Multi-Objective Parametric Shape Optimisation of Body-Centred Cubic Lattice Structures for Additive Manufacturing

Abstract

There has been significant interest in additively manufactured lattice structures in recent years due to their enhanced mechanical and multi-physics properties, making them suitable candidates for various applications. This study presents a multi-parameter implicit equation model for designing body-centred cubic (BCC) lattice structures. The model is used in conjunction with a multi-objective genetic algorithm (MOGA) approach to maximise the stiffness of the BCC lattice structure while minimising von-Mises stress within the structure under a specific loading condition. The selected design from the MOGA at a specific lattice density is compared with the classical BCC lattice structure and the designs generated by a single-objective genetic algorithm, which focuses on maximising stiffness or minimising von-Mises stress alone. By conducting a finite element analysis on the optimised samples and performing mechanical testing on the corresponding 3D-printed specimens, it was observed that the optimised lattice structures exhibited a substantial improvement in mechanical performance compared to the classical BCC model. The suitability of multi-objective and single-objective optimisation approaches for designing lattice structures was further investigated by comparing the corresponding designs in terms of their stiffness and maximum von-Mises stress values. The results from the numerical analysis and experimental testing demonstrate the significance of the application of an appropriate optimisation strategy for designing lattice structures for additive manufacturing.

1. Introduction

Additive manufacturing (AM) has opened up a great potential for geometric design freedom, paving the way for the creation of a new generation of lightweight and efficient materials and with diverse applications [1,2]. This potential has been further augmented by the advancement of computer-aided design (CAD) and optimisation techniques tailored for AM, which have enabled the realisation of energy-efficient structures. Examples of such techniques include lattice (cellular) structure design and topology optimisation specifically developed for additive manufacturing, as evidenced by various studies [1,3,4,5,6].

Cellular structures can be found in natural materials, including bone, wood, sponge, and coral, with unique properties, such as their lightweight nature, high strength-to-weight ratio, and high surface area-to-volume ratio. More recently, lattice structures have been designed and engineered to serve specific purposes, such as impact absorption, acoustic or vibrational damping, heat transmission, and thermal isolation [7,8,9]. Complex lattice structures can only be fabricated through additive manufacturing technologies, such as digital light processing (DLP), fused deposition modelling (FDM), and laser powder bed fusion (L-PBF) [10].

Different types of lattice structures can be grouped into two main families, including strut-based lattice structures and surface-based lattice structures [6,11]. The unit cell of a strut-based lattice structure consists of spatially distributed strut networks that are connected at certain nodes to create a truss-like structure, with examples including body-centred cubic (BCC), face-centred cubic (FCC), and octet structures. In contrast, surface-based lattice structures have unit cells constructed from surfaces. Triply periodic minimal surface (TPMS) lattices are a subset of surface-based lattices structures with their unit cells defined mathematically as the iso-surface of a given function. Examples include the Schwarz-P, diamond, and gyroid TPMS lattice structures [6]. Offering a diverse range of properties, both types of lattice structures have found numerous applications in various fields, including automotive [12], aerospace [13,14], sporting [15], biomedical [13,16], and pharmaceutical [17] industries. The focus of the current study is on the design and optimisation of BCC lattice structures which have been widely used in designs for AM. An important feature of this type of strut-based lattice structure is that the strut members are positioned at a 45° angle (as can be seen in Figure 1a) making the lattice structure self-supporting and suitable for fabrication through different AM processes [12].

Tao et al. [18] and Xiao et al. [19] developed equations of implicit surfaces to represent unit cells of lattice structures similar to TPMS equations. The unit cell can be modified by varying the parameters of the implicit equation to control and tune the properties of lattice structures, such as the porosity and mechanical response. In order to achieve the desired response for a specific application, it is important to use optimisation techniques to design lattice structures that offer the best possible performance at minimal weight and are also manufacturable through AM [6]. Topology optimisation techniques [20] can be utilised to find the best material distribution, member connectivity, or position of the holes within a lattice unit cell [21]. In contrast, shape optimisation techniques aim to determine the best shape for a structure, while topology, i.e., the connectivity of the strut members within the unit cell, remains unchanged throughout the optimisation process [22,23] as demonstrated in Figure 1b for a BCC structure. Parametric shape optimisation is a subset of shape optimisation that specifically focuses on varying a predefined set of geometric parameters to optimise the design’s performance. In parametric shape optimization, the design space is constrained to a set of parameters that control the geometry, such as dimensions, angles, curves, filet radius, and other geometric attributes [24,25].

Tancogne-Dejean and Mohr [26] compared the performance of BCC structures composed of beams of a uniform thickness with the performance of BCC structures composed of tapered beams in terms of stiffness and specific energy absorption properties. Through a numerical analysis, they found a relation between the input design parameters and the lattice mechanical performance. Zhao et al. [27] used a parametric design approach to reduce the stress concentration at nodes and improve the mechanical properties of tapered BCC structures. Their simulation results showed a significant reduction in the anisotropy of the BCC lattice structure and an increase in the elastic modulus of the structure when constant-thickness cylindrical members of the BCC structure were replaced by parametrically designed tapered beams. Furthermore, they used an optimisation strategy to simultaneously optimise the lattice density distribution within a structure under a specified loading condition and the strut geometry of BCC lattice structures. In another work, Zhao et al. [28] applied their optimisation strategy for the design of BCC lattice structures with hollow prismatic struts. Bai et al. [29] proposed a strut thickness grading approach applied to BCC lattice structures to improve their mechanical properties. Through compression tests performed on lattice specimens produced through L-PBF, it was observed that BCC lattices with strut thickness grading exhibited up to 38% greater stiffness and 34% greater strength compared to the classical BCC lattices with the same density. Lee et al. [30] developed a generative machine learning algorithm for the shape optimisation of BCC lattice structures based on neural network and genetic optimisation techniques. Their design showed greater stiffness and strength values than those of a classical model of BCC structure when compared against the same relative density of ${\rho }_r=0.17$.

The use of implicit surfaces has been a strong tool for designing complicated lattice structures, such as TPMS structures. However, strut-based lattice structures, such as BCC, are mainly designed using conventional CAD or through parametric equations. Such representations can be used in conjunction with an optimisation approach to perform a size optimisation on the lattice structure [31], e.g., to optimise the thickness of the struts of a classical BCC lattice or the tapered angle of a tapered BCC lattice [27]. However, it does not provide sufficient design freedom in relation to the shape optimisation of the lattice unit cell. Furthermore, most research in this area focuses on the optimisation of the lattice unit cell only for a single objective.

This study focuses on the design and optimisation of BCC structures as a type of strut-based lattice structures frequently studied in the literature. The simple topology of the BCC unit cell makes it well-suited for applying our proposed design and optimisation approach. This facilitates the evaluation of the efficiency of the proposed approach while benefiting from established benchmarks corresponding to earlier research within the same domain. A novel aspect of the current study is the presentation of the BCC lattice structure through an innovative implicit equation providing a high degree of design freedom for modifying the shape of the unit cell, which is driven by a parametric optimisation approach. Moreover, a multi-objective genetic algorithm (MOGA) tool is utilised to optimise the shape of the BCC unit cell simultaneously for two objectives: maximising the stiffness of the lattice structure and minimising the maximum von-Mises stress within the structure when it is under displacement loading. The unit cell geometry achieved from the multi-objective optimisation is compared with those of the single-objective optimisation corresponding to the maximum stiffness and minimum von-Mises stress designs. All designs are fabricated through the DLP process and undergo compression testing. The numerical and experimental results are compared and discussed.

The remainder of the manuscript is structured as follows: it commences with the introduction of the design methodology section, encompassing implicit surface modelling, finite element modelling, and genetic algorithm-based optimisation. The subsequent section covers the additive manufacturing of the designed samples and the mechanical testing setup. Then, a comprehensive Results and Discussion section is presented, leading to a summary and conclusion.

2. Design Methodology

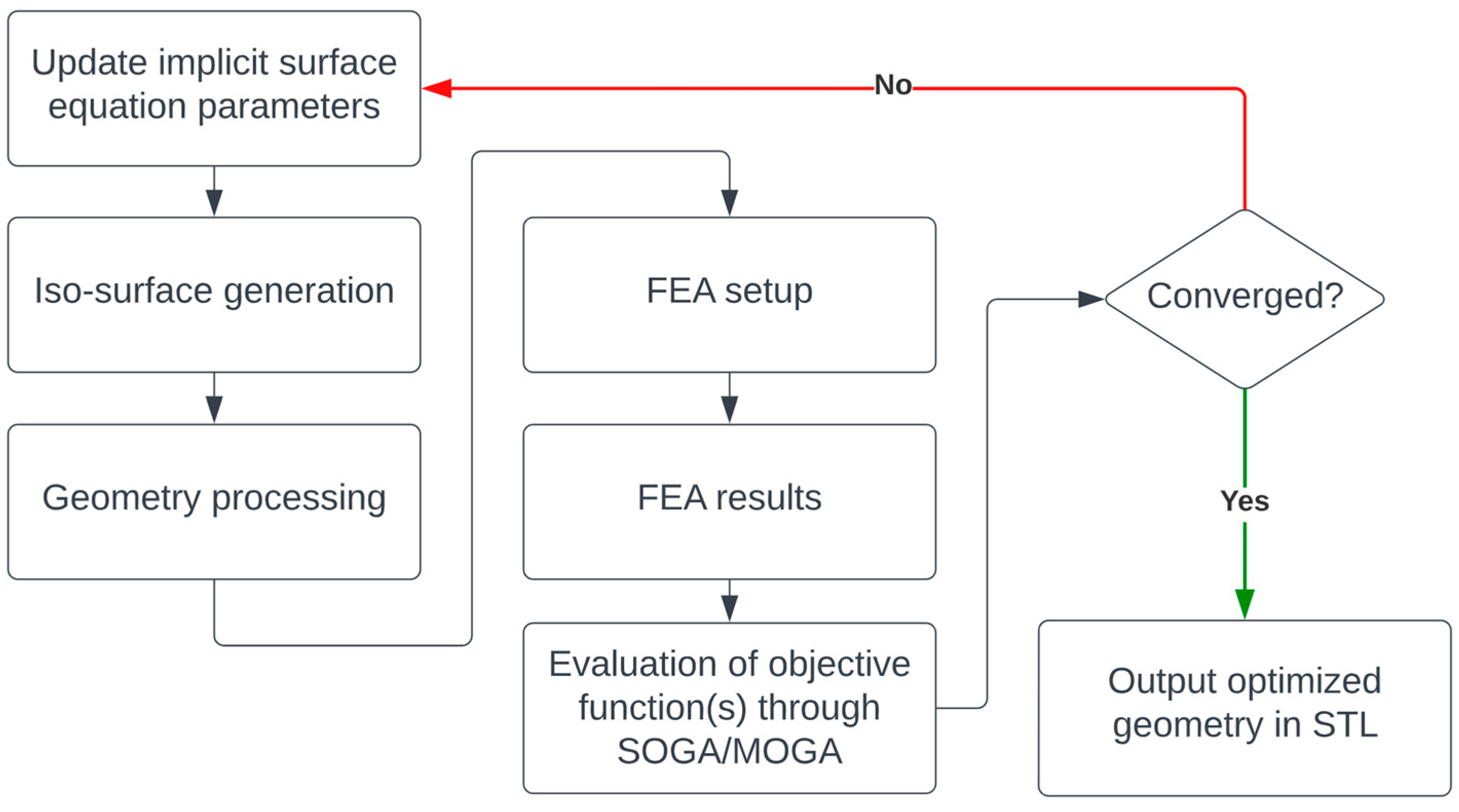

The presented approach for the efficient design of BCC lattice structures involves the utilisation of an implicit model of the structure using a multi-parameter implicit equation implemented within the Surfer program (IMAGINARY) (Figure 2). The developed implicit equation was then exported into MATLAB^® for the finite element analysis of the lattice structures and the optimisation of the geometry through single-/multi-objective genetic algorithm optimisations. Figure 3 presents a flowchart of the proposed lattice design approach.

2.1. Implicit Surface Model of BCC Structure

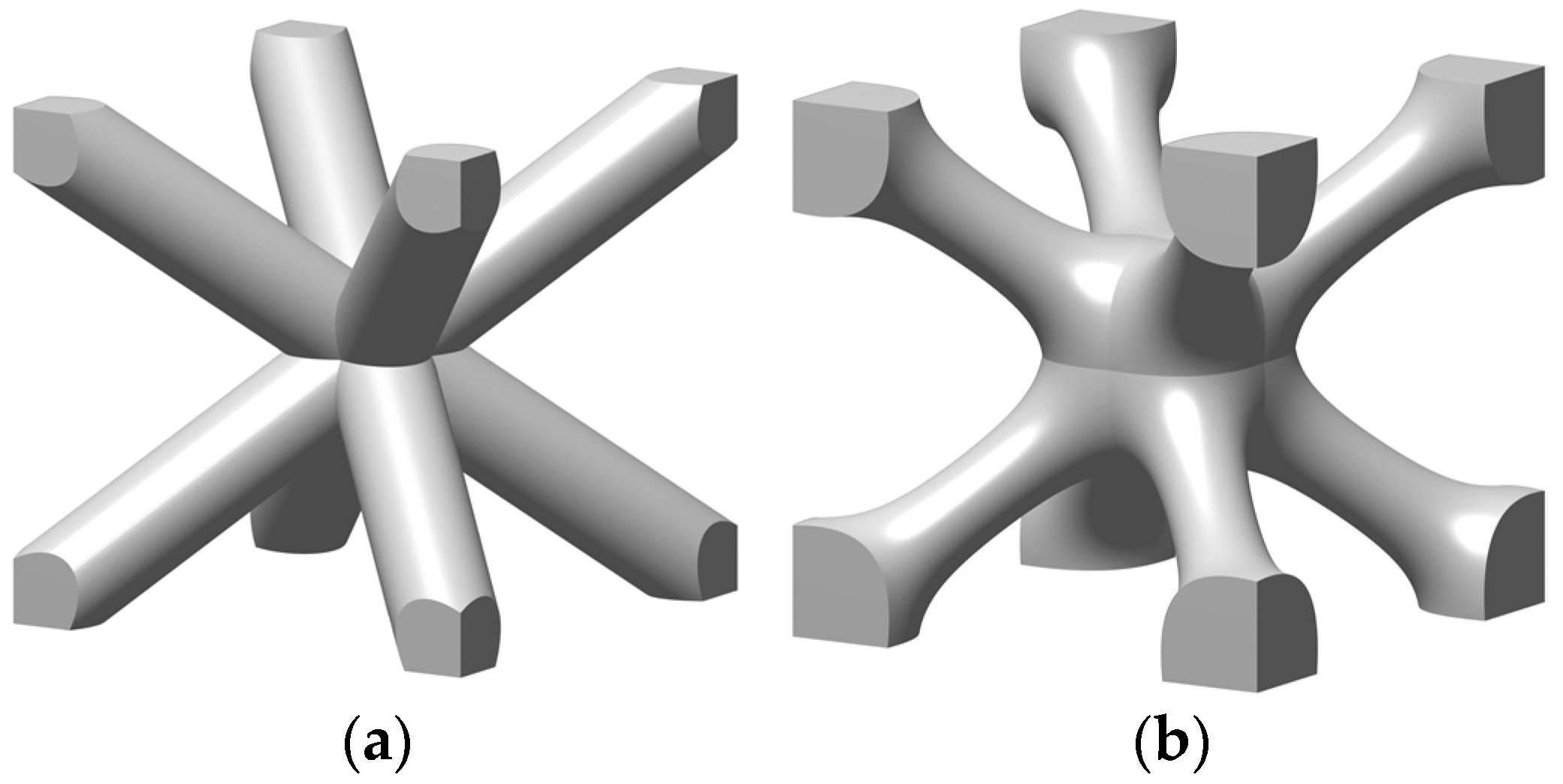

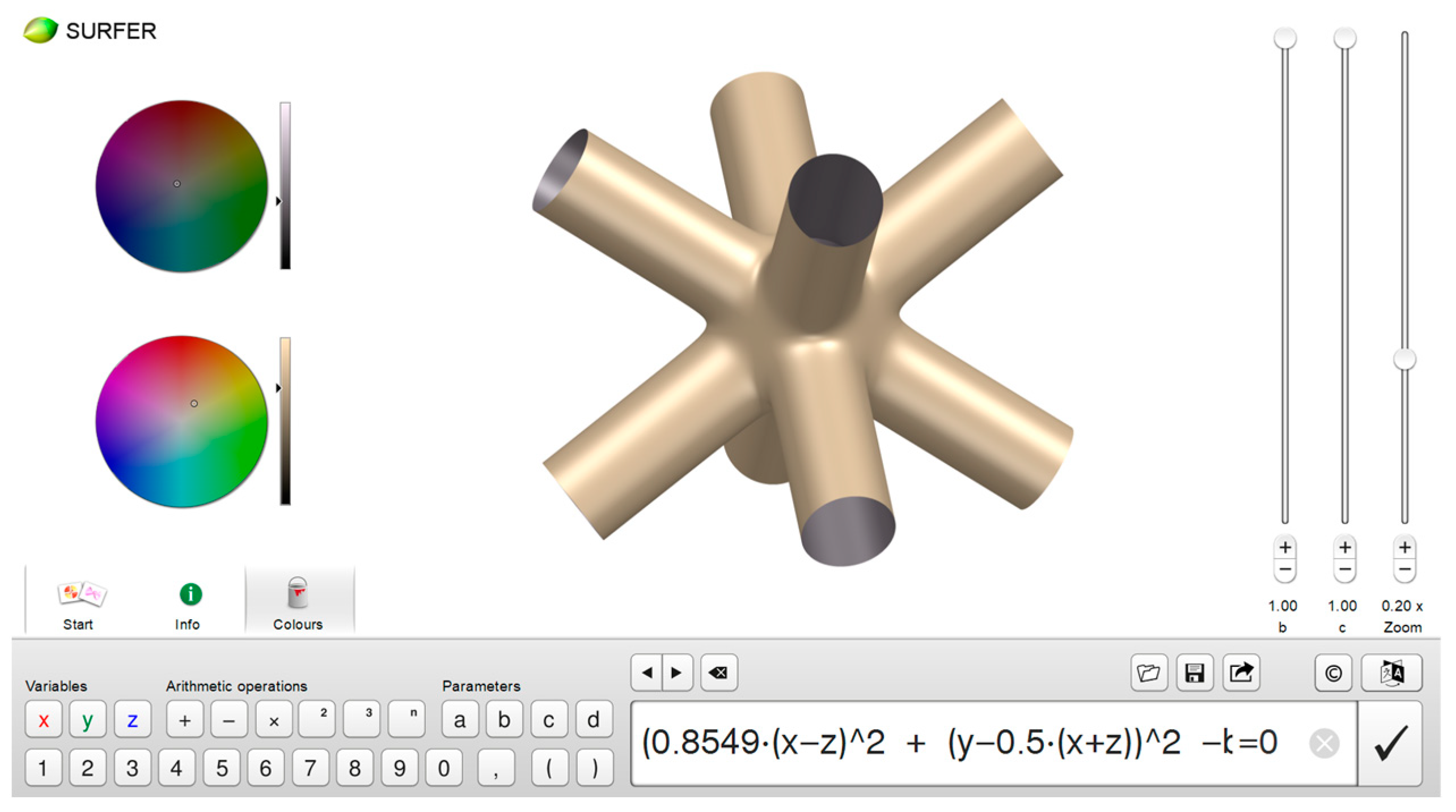

Implicit surfaces can represent complex and irregular shapes more easily than explicit representations and can be of benefit for the representation of complex lattice structures. Our study employed implicit modelling primarily to facilitate the introduction of new design variables, which can be programmed to attain the optimal configuration of a lattice structure with respect to the specific objectives. To develop the implicit model of a BCC lattice unit cell, initially, an implicit equation of a cylinder representing a strut member of the lattice unit cell was utilised, as shown in Equation (1), where $\left(a,b,0\right)$ is the center of the base circle of the cylinder. A BCC unit cell was constructed from four cylindrical members; therefore, the implicit equation of cylinder was repeated (multiplied) four times to represent a BCC structure, as presented in Figure 4 and Equation (2):

$${\left(x-a\right)}^2+{\left(y-b\right)}^2=r^2$$

(1)

$$\begin{array}{ll}F\left(x,y,z\right)=& \left[k·{\left(x+z\right)}^2+{\left(y-\frac{x+z}{2}\right)}^2-t_r\right]\\ & ·\left[k·{\left(x-z\right)}^2+{\left(y-\frac{x+z}{2}\right)}^2-t_r\right]\\ & ·\left[k·{\left(x+y\right)}^2+{\left(z-\frac{x-y}{2}\right)}^2-t_r\right]\\ & ·\left[k·{\left(x+y\right)}^2+{\left(z-\frac{y-x}{2}\right)}^2-t_r\right]-c=0\end{array}$$

(2)

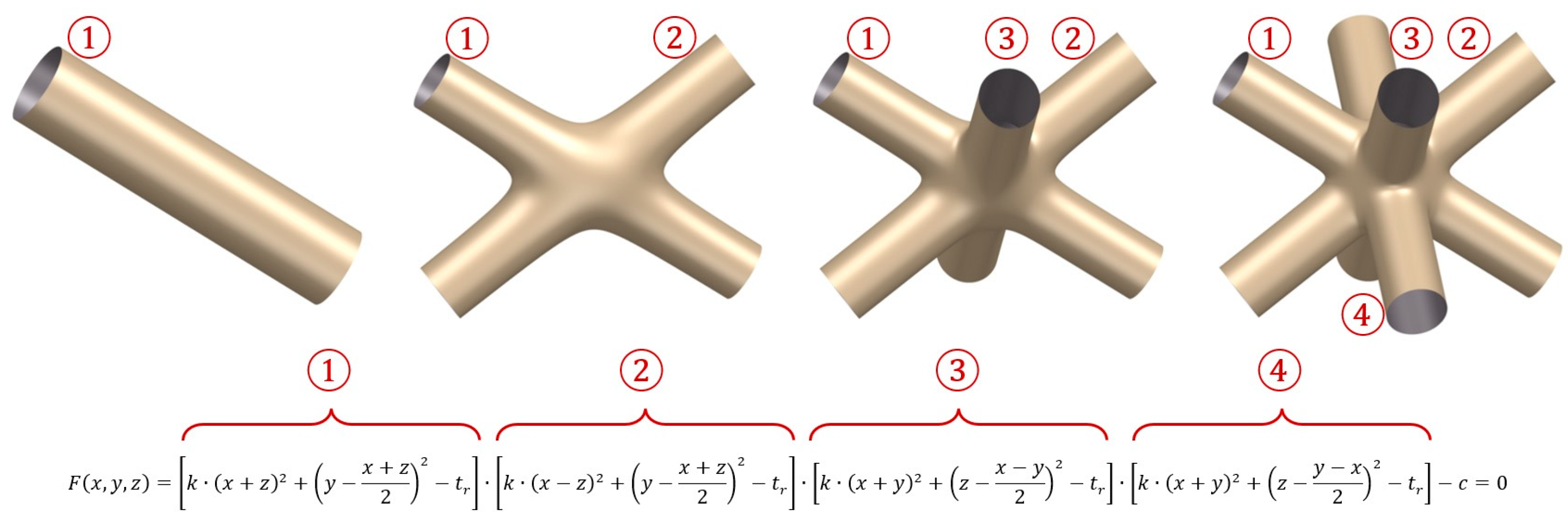

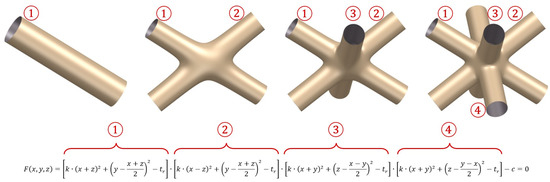

where $t_r$ is the parameter that controls the strut radius, $f_r$ is the parameter that controls the fillet radius at the nodes, $k$ is a constant equal to $0.8549$, and $c=t_r^4+f_r^4$. This equation was developed assuming that the size of the unit cell was equal to 10 units; however, the constructed geometry could be rescaled to match a desired cell size.

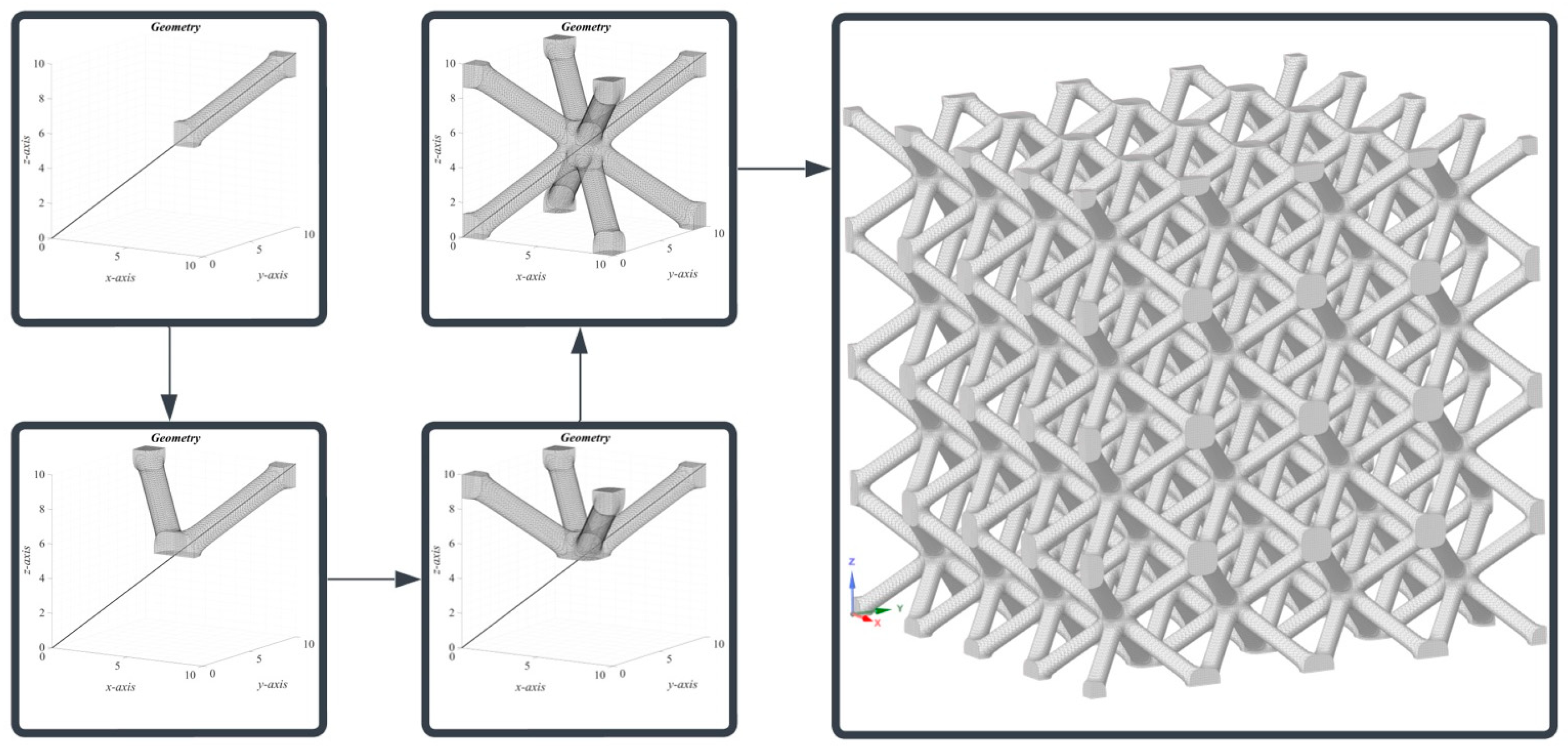

The developed implicit equation was then exported into MATLAB^® to create iso-surfaces representing the corresponding lattice geometry. In order to achieve symmetric features on both sides of the strut members within a lattice, the construction process began with the creation of a single strut member. This was accomplished by mirroring the geometry of a strut, which was defined by Equation (2), around the outer end of the strut. A symmetrical model is important to avoid sharp corners on both sides of the strut, i.e., the same filet radius defined for the struts merging at the centre of the cell was defined for the opposite sides of the struts located at the corners of the unit cell. The unit cell was subsequently tessellated in a 3D space, with a spatial distribution defined by the parameters nx, ny, and nz representing the number of unit cells along the $x-axis$, $y-axis$, and $z-axis$, respectively. In this work, $nx=ny=nz=4$ was set for creating test samples for the numerical analysis and experimental validation, as demonstrated in Figure 5. The generated iso-surface model of the BCC lattice structure was then converted into a STL model for further finite element analysis (FEA), optimisation, and 3D printing. The process included extracting surface points corresponding to the iso-surface model. Subsequently, these surface points were triangulated to produce a triangular mesh, which could be saved as an STL file.

Table 1. Different design variants of the proposed implicit-based BCC lattice structure achieved by increasing $f_r$ while keeping $t_r$ constant at 0.1.

$f_r=4.0$	$f_r=8.0$	$f_r=12.0$	$f_r=16.0$	$f_r=20.0$	$f_r=24.0$

shows various design configurations achieved by varying the design variable $f_r$, while keeping $t_r$ constant at 0.1. It can be seen that increasing $f_r$ beyond a specific value significantly influences the resulting configuration, allowing control over the minimum strut thickness through the $f_r$ variable. Since the geometry of the proposed BCC structure was defined using an implicit equation, there was a certain range of design variables, which enabled the generation of a valid geometry. For instance, when $f_r=0$, the implicit equation did not form a valid surface model. Thus, an experimental relation was derived to establish the lower bound of $f_r$ in relation to $t_r$ as $f_r=12\times t_r$. This ensured a minimum value of $f_r$ for a valid iso-surface, which enabled the generation of the corresponding STL model.

Table 2. Different design variants of the proposed implicit-based BCC lattice structure achieved by increasing $t_r$ while assigning lower band values to $f_r$ from $f_r=12\ast t_r$.

$$\begin{gathered} t_r=0.2 \\ {f}_r=2.4 \end{gathered}$$	$$\begin{gathered} t_r=0.4 \\ {f}_r=4.8 \end{gathered}$$	$$\begin{gathered} t_r=0.6 \\ {f}_r=7.2 \end{gathered}$$	$$\begin{gathered} t_r=0.8 \\ {f}_r=9.6 \end{gathered}$$	$$\begin{gathered} t_r=1.0 \\ {f}_r=12 \end{gathered}$$	$$\begin{gathered} t_r=1.2 \\ {f}_r=14.4 \end{gathered}$$

presents various design configurations achieved by adjusting the design variable $t_r$ while adhering to the assigned lower band values for $f_r$. Increasing $t_r$ led to a higher relative density of the lattice unit cell, which in turn had a significant impact on the stiffness and stress distribution within the BCC lattice structure. Similarly, $f_r$ was expected to have a significant impact on these factors. To achieve the desired design objectives and find the optimal configuration for the lattice structure, the implementation of a multi-objective shape optimisation strategy became essential.

2.2. Finite Element Analysis

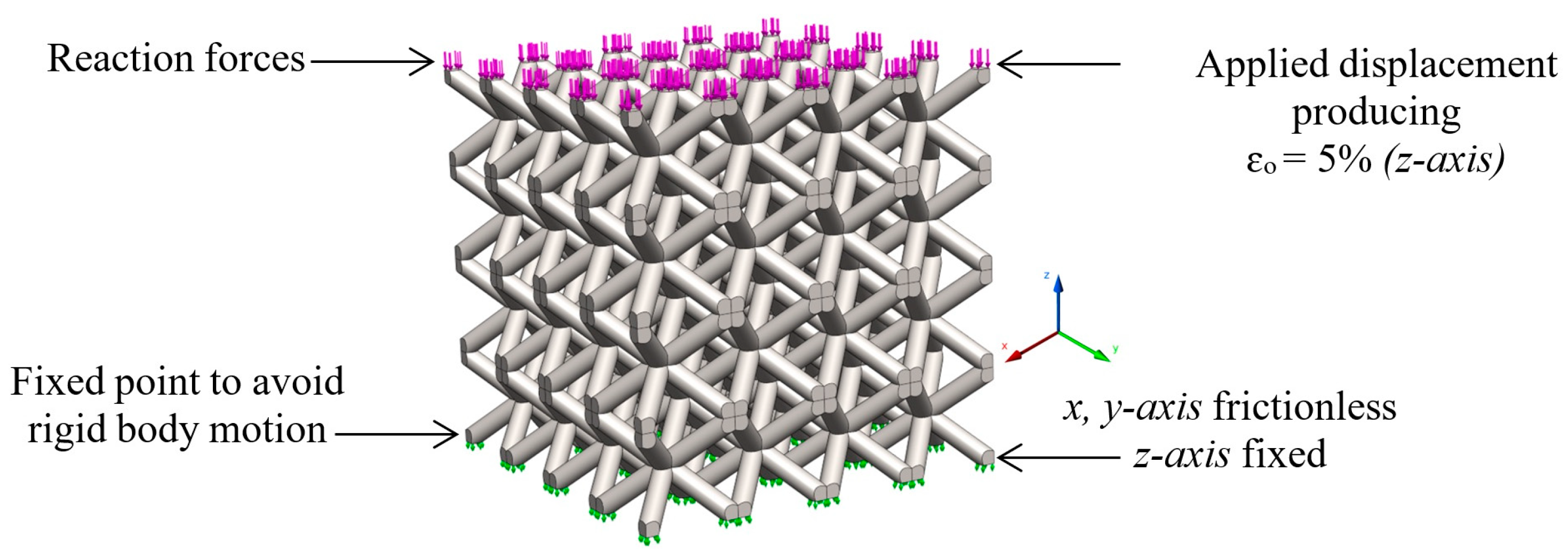

A finite element (FE) model of the lattice structures employing a tetrahedral mesh was developed in MATLAB^® using the MATLAB PDE toolbox. The boundary conditions corresponding to the FE model are presented in Figure 6. The bottom surface of the lattice structure model was fixed in the vertical (z-axis) direction, while it was allowed to move freely (frictionless) in the x-y horizontal plane. The top surface of the lattice was subject to a displacement loading of 2 mm downward (-z-axis), producing an overall strain of ${\epsilon }_o=5\%$. A static structural FEA was performed to study the linear elastic behaviour of lattice structures under uni-axial compression. The total reaction force on the top surface of the lattice geometry was derived from FEA. The reaction force was divided by the face area (40 × 40 mm) of the lattice sample to calculate the overall stress generated, which was then divided by the applied strain $\left({\epsilon }_o=5\%\right)$ to find the elastic modulus $E_l$ of the lattice model. The relative elastic modulus $E_r$ of the lattice was calculated by dividing the elastic modulus of the lattice by the Young’s modulus of the building material ($E_s$), i.e., $E_r=\raisebox{1ex}{$E_l$}\!\left/ \!\raisebox{-1ex}{$E_s$}\right.$. The von-Mises stress (${\sigma }_{vm}$) was also calculated across the lattice structure for the further investigation of the performance of different designs.

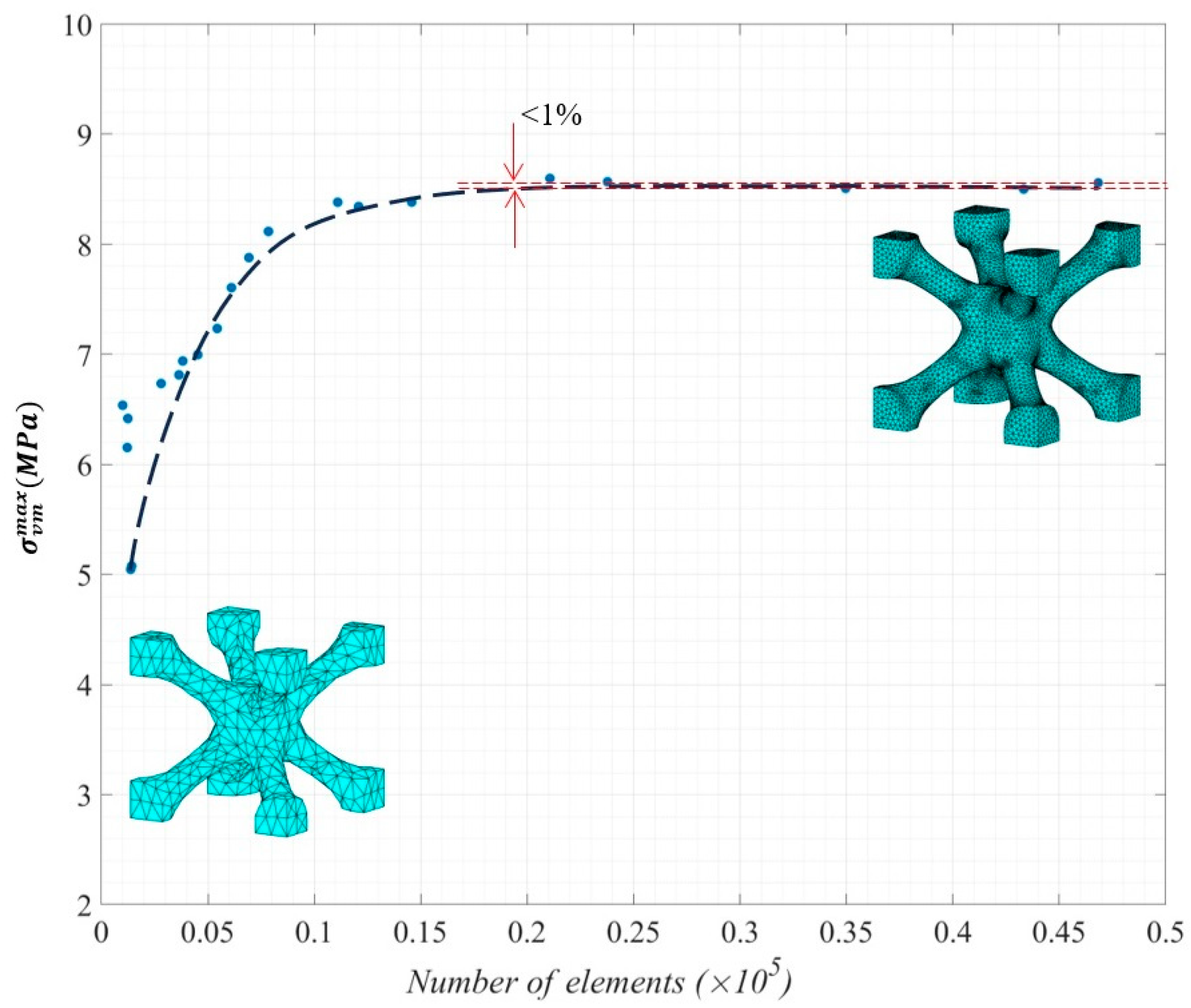

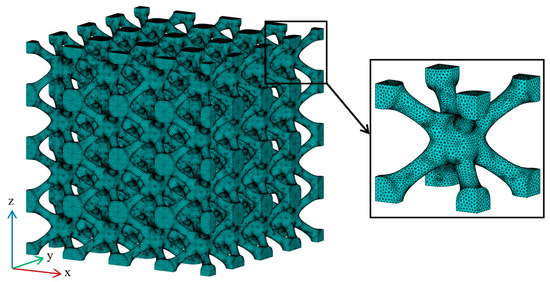

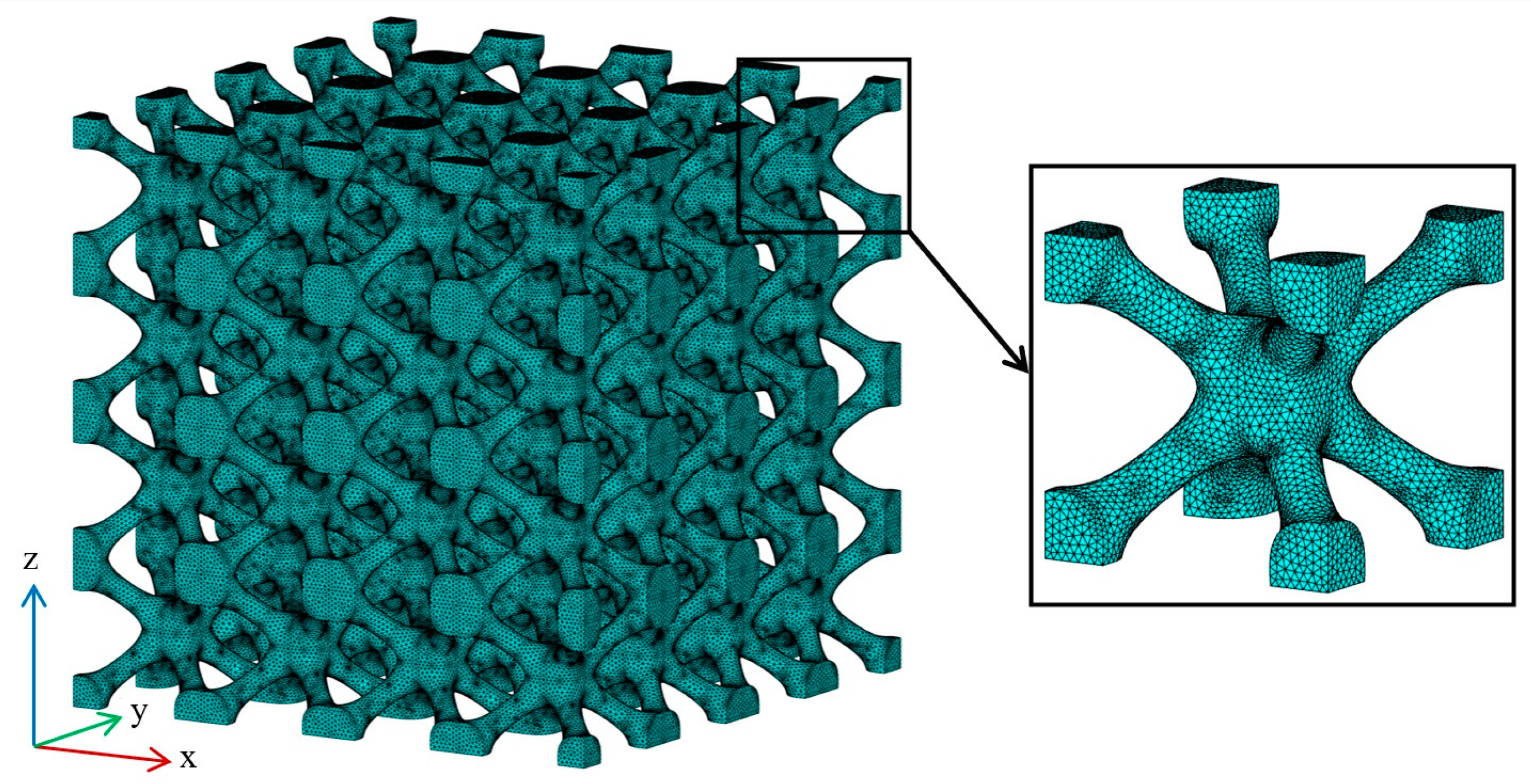

The tetrahedral mesh used in this study for all samples had a maximum element size of 0.2 mm providing a balance between the computation cost and numerical accuracy. Figure 7 demonstrates a sample of the BCC structure with such a mesh density. To investigate the accuracy of the FEA results for the given element size, a mesh sensitivity analysis was performed on the BCC structure with a relative density of 18%. Figure 8 shows the convergence plot associated with the maximum von-Mises stress (${\sigma }_{vm}^{max}$) for different mesh densities. It can be seen from the convergence plot that when a maximum element size of 0.2 mm (which corresponds to the total number of elements = 20,000 in this case) was utilised, the maximum von-Mises stress (${\sigma }_{vm}^{max}$) exhibits less than a 1% deviation from the converged value of ${\sigma }_{vm}^{max}$.

2.3. Preliminary Investigation of the Effect of Design Variables on the Mechanical Response of the Lattice

To investigate the effect of design variables $t_r$ and $f_r$ on the relative density (${\rho }_r)$ of the lattice as well as its mechanical response to external loads, the domain of the design variables was discretized into a 30 × 30 grid, and the lattice structure corresponding to each grid point was constructed through the methodology presented in Section 2.1. These lattice structures were then saved in an STL file format for further analysis. The relative density ${\rho }_r$ of each design was calculated by dividing the volume of the solid region within the lattice by the volume of the whole cubic domain. Furthermore, FEA was performed on each lattice structure subjected to the boundary conditions presented in Section 2.2 to calculate the von-Moses stress ${\sigma }_{vm}$ and relative modulus $E_r$.

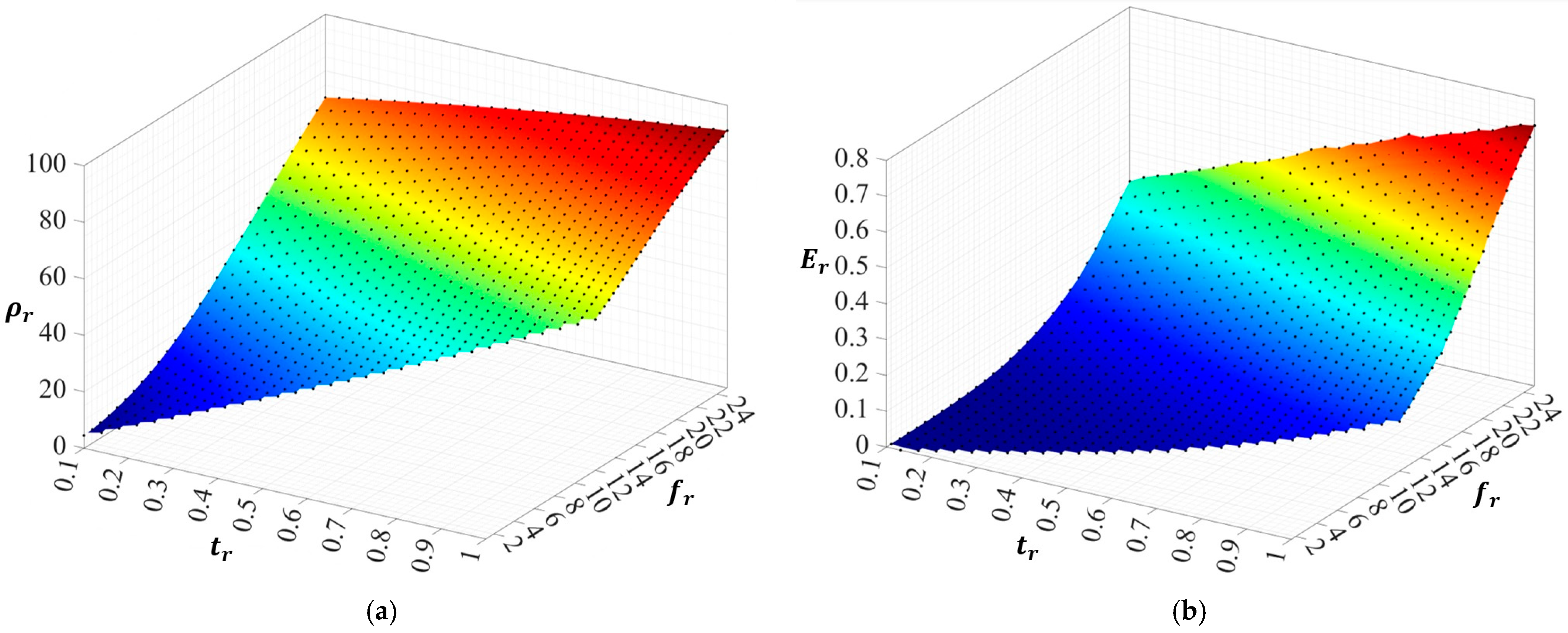

Figure 9a presents the relationship between two design variables ($t_r$ and $f_r$) and the relative density ${\rho }_{r }$ of the corresponding lattice structure. As can be expected, increasing the value of each design variable can lead to an increase in ${\rho }_{r }$ of the constructed lattice structure. Figure 9b presents the effects of $t_r$ and $f_r$ on the relative modulus $E_r$ of the constructed lattice structure. It can be seen that increasing each design variable has a positive effect on increasing $E_r$.

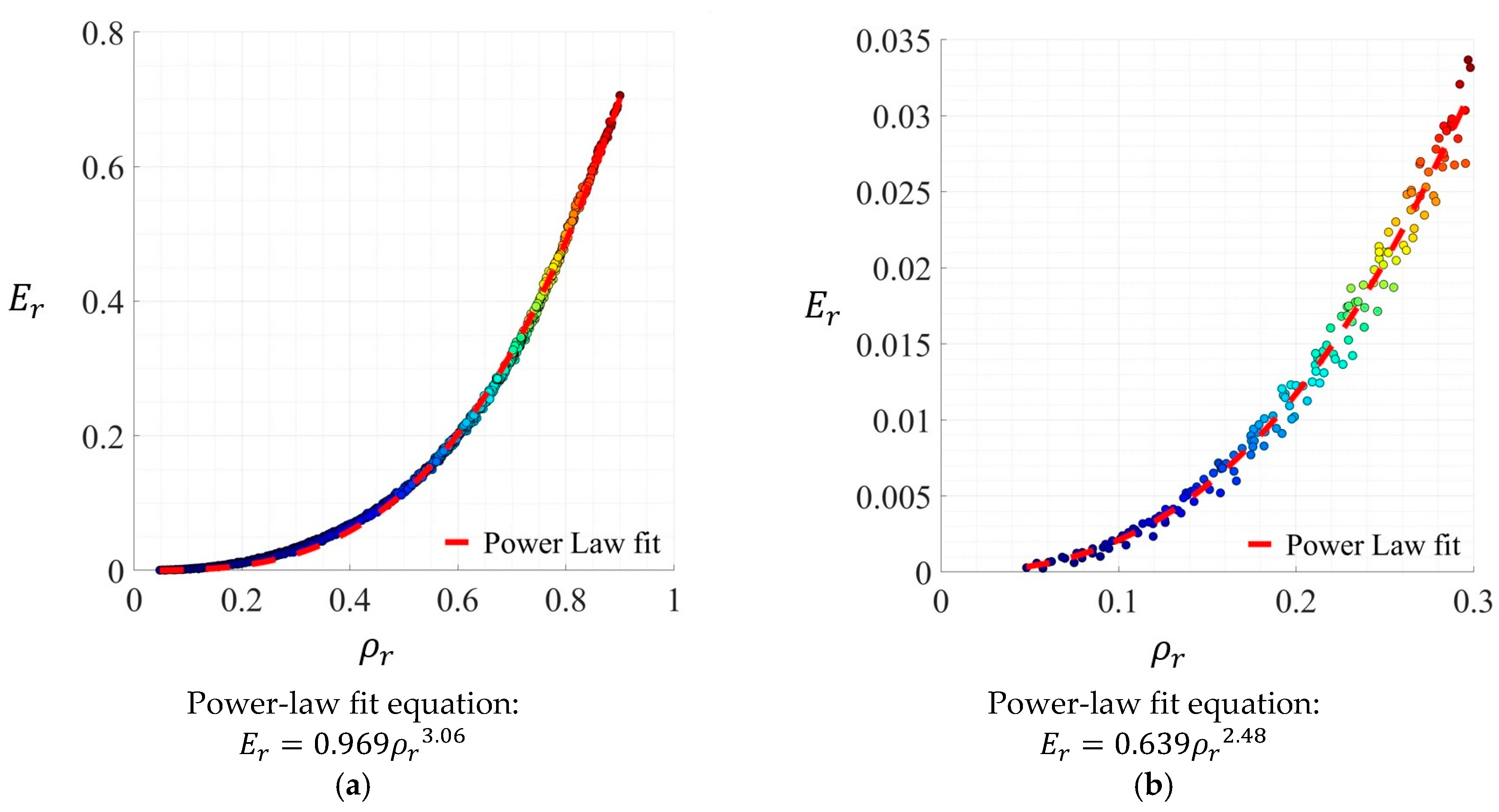

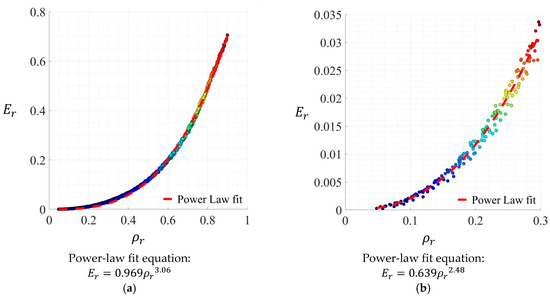

Figure 10 presents the measurements of $E_r$ and ${\rho }_{r }$ for the 900 different lattice designs. Figure 10a displays the measurements across the full density range, while Figure 10b focuses on the relative density range of 0–30%. The Ashby–Gibson power-law model [32], commonly used for analysing the properties of cellular structures, was employed to establish the density–stiffness relationship. It can be seen from Figure 10a that the power-law model does not fit well for the data points covering the full density range. However, when the model is applied to relative densities within the 0–30% range, the best fit curve aligns well with the data points. This particular density range has been suggested in the literature as the effective range for the implementation of Ashby–Gibson power-law model in the analysis of cellular structures [33]. From Figure 10a, it can also be seen that the variation in $E_r$, which serves as an indicator of stiffness, is primarily related to the density of the lattice. However, Figure 10b highlights the presence of data points with different stiffness values at the same density. This observation suggests that factors other than density, though potentially not significant, can influence the stiffness of the lattice structure when variables vary at the same density.

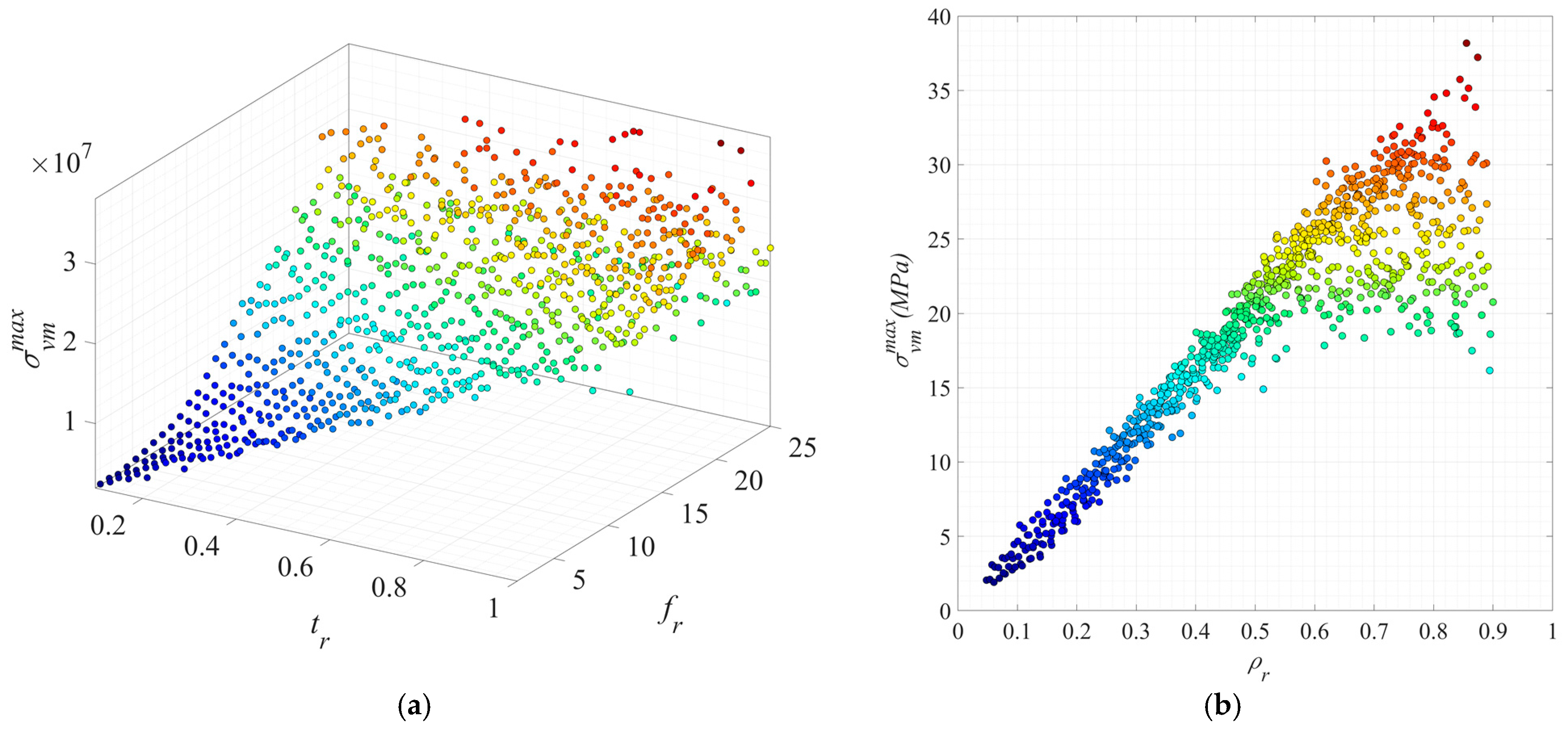

Figure 11 presents the datapoints corresponding to ${\sigma }_{vm}^{max}$ for BCC lattice structures with respect to the design variables (Figure 11a) and relative density ${\rho }_{r }$ (Figure 11b). The von-Mises stress vs. design variables plot presented in Figure 11a does not provide sufficient clarity on the relationship between ${\sigma }_{vm}^{max}$, t_r, and f_r, due to the scattered distribution of data points within the 3D plot. From Figure 11b, it can be seen that, in general, as ${\rho }_{r }$ increases, so does ${\sigma }_{vm}^{max}$ (it should be noted that the results are obtained under displacement loading, where the applied displacement remains constant for all lattice samples; however, the reaction force varies, resulting in different stress levels within the lattice structures). However, compared to the stiffness–density data presented earlier in Figure 10, the stress–density data appears more scattered over a wider range. This indicates the importance of carefully adjusting the design variables to achieve the desired response from the lattice structure. In any case, the preliminary investigation of the effect of design variables on lattice structure properties demonstrates the significance and necessity of the implementation of an appropriate optimisation strategy for the design of the lattice structure, particularly for multi-objective optimisation problems, for instance, when the lattice structure is designed for maximum stiffness and minimum von-Mises stress with a target volume fraction (relative density) constraint. This was further investigated in the following section.

2.4. Parametric Shape Optimisation of BCC Structures through the Multi-Objective Genetic Algorithm

The genetic algorithm (GA) invented in 1970s by John Holand [34] is a computational method rooted in the principles of natural evolution. These fundamental principles encompass selection, mutation, and crossover, guided by the survival of the fittest criterion. The GA, as an evolutionary algorithm, involves the definition of an objective function, which is either maximised or minimised across successive generations, primarily driven by the fittest individuals that possess superior genetic traits. Given its ability to tackle complex optimisation problems, for instance, where there is a high chance of falling into a local minima during the optimisation process, or when the problem involves optimising multiple conflicting objectives, the GA serves as a strong tool in the pursuit of optimal solutions [35]. The GA has been implemented in several previous studies focused on the design of AM, such as the optimisation of auxetic metamaterials [23] and the material optimisation of biomedical composite devices [36].

This work employed a multi-objective genetic algorithm (MOGA) approach [37] available in MATLAB^® to optimise two or more objectives simultaneously. MOGA begins by a random creation of an initial population of candidate solutions (individuals or chromosomes), which are then evaluated in terms of their performance (fitness) based on the objective functions of the problem. A non-dominated sorting technique is then used to rank the chromosomes based on their dominance relationship. Selection operators, such as tournament or roulette wheel selections, are used by MOGA to choose the best fit chromosomes. It also uses genetic operators, including crossover and mutation, to create offspring for the next generation. The offspring, along with some individuals from the population at present, replaces the previous generation, and the process is repeated until a termination criterion, such as a maximum number of generations or achieving a desired level of convergence, is met. Throughout the evolutionary process, MOGA maintains a set of non-dominated solutions, the solutions that cannot be improved in any objective without sacrificing the performance of another, known as the Pareto front. This set represents the trade-off between conflicting objectives offering decision makers a diverse set of solutions to choose from, based on their preferences.

In this work, MOGA was implemented to find the best design variables $t_r$ and $f_r$, which can optimise the two objective functions of the problem. Objective 1 (Equation (3)) was to maximise the stiffness of the BCC lattice structure (the relative modules $E_r$) and objective 2 (Equation (4)) was to minimise the maximum value of the von-Mises stress (${\sigma }_{vm}^{max}$) within the lattice structure:

$$Objective 1: maximise f_1\left(t_r,f_r\right)=E_r$$

(3)

$$Objective 2: minimise f_2\left(t_r,f_r\right)={\sigma }_{vm}^{max}$$

(4)

In this study, it was assumed that the optimised solutions were manufacturable, taking into account the selected material, AM process, and geometric properties of the cells, including the cell size, which was an important consideration if the unit cell was not self-supporting for AM. However, to extend the applicability of the proposed optimisation approach for AM, additional manufacturing constraints, such as minimum strut thickness and minimum/maximum relative density, must be incorporated into the optimisation problem to further refine the search domain.

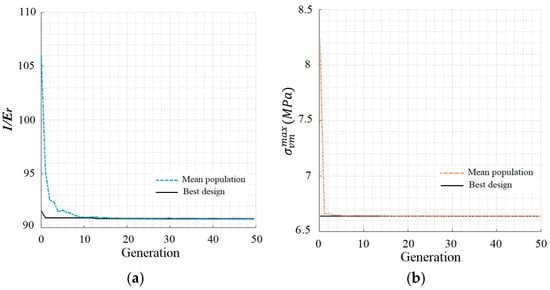

To perform MOGA, the population size was set to 100, the number of generations was set to 200, the number of pairs of chromosomes to cross over was 20, and the number of chromosomes to be mutated was two. Convergence was achieved when the best solutions across generations remained relatively unchanged or changed only minimally. Figure 12a presents the Pareto front corresponding to the optimisation of the two objective functions through MOGA. For reference, Figure 12b demonstrates the distribution of objectives corresponding to the 900 different designs studied in Section 2.3. Comparing the two graphs presented in Figure 12, it can be seen that MOGA is able to identify designs with high values for objective 1 ($E_r$) and low values for objective 2 (${\sigma }_{vm}^{max}$). It can also be seen that the Pareto front offers a diverse set of solutions representing a trade-off between the two objective functions $E_r$ and ${\sigma }_{vm}^{max}$.

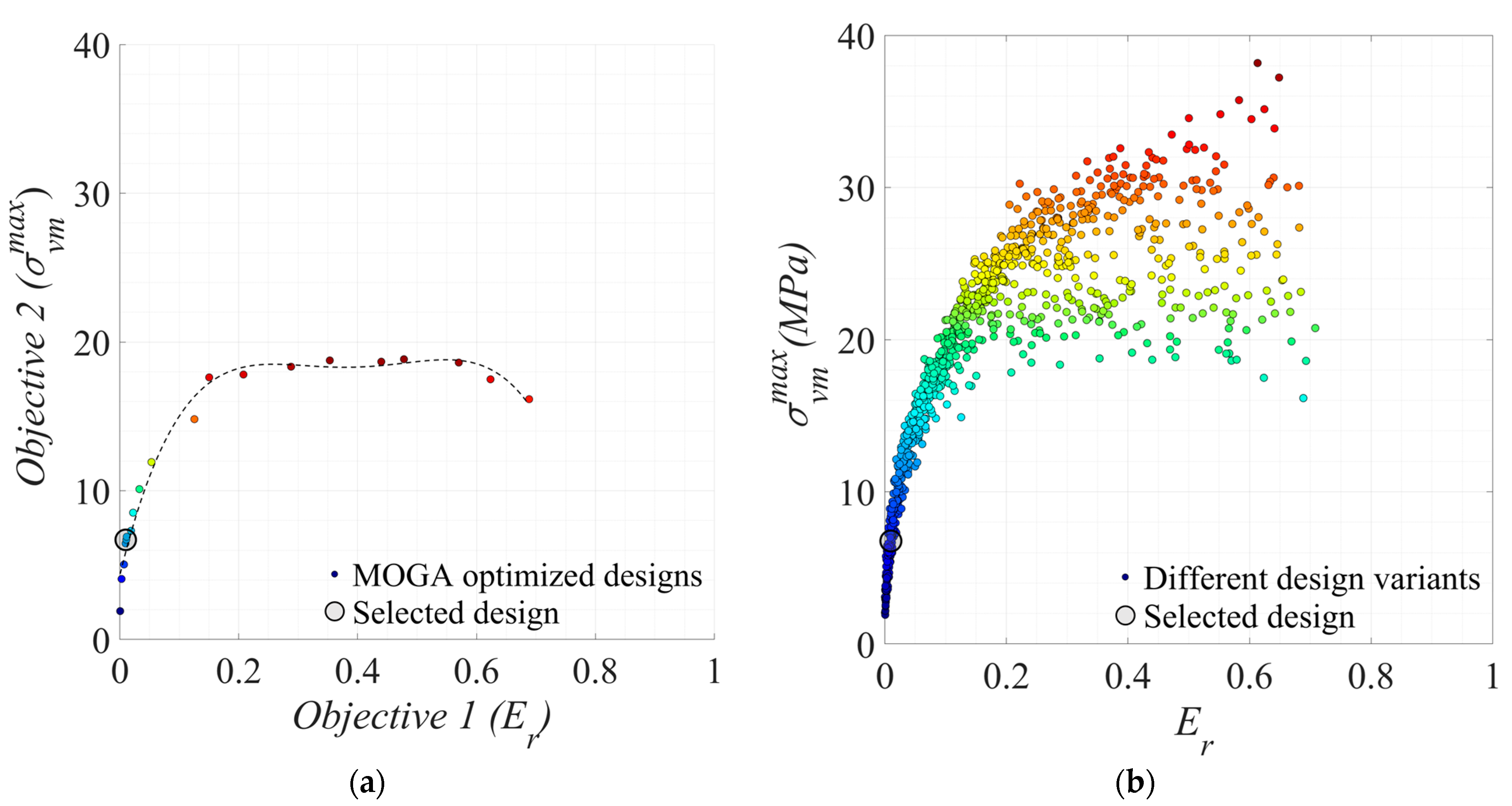

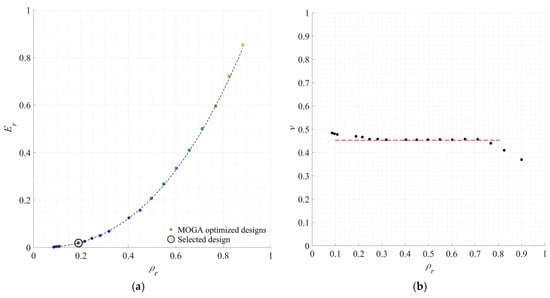

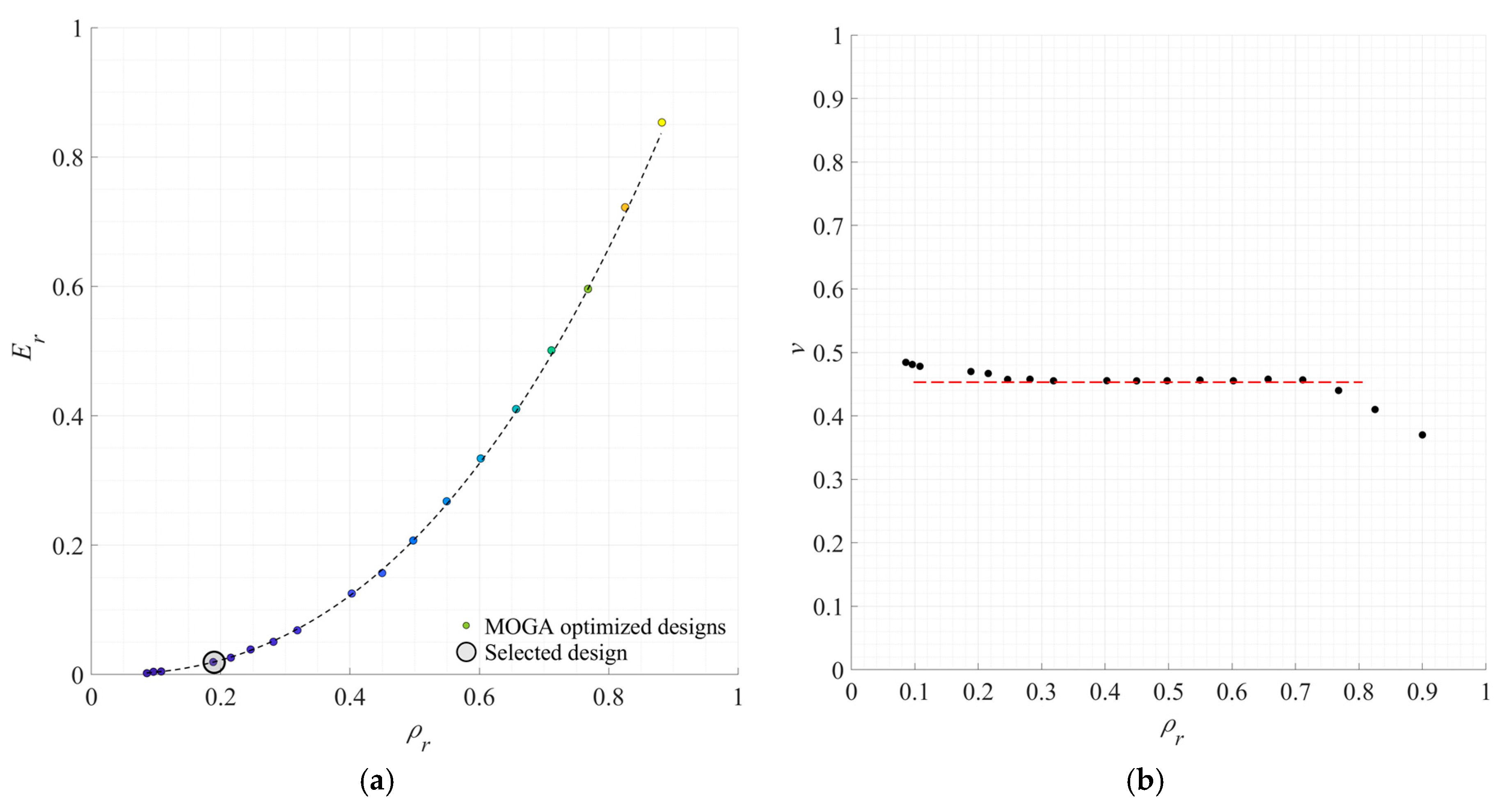

Figure 13a shows the $E_r$-${\rho }_r$ graph for the set of solutions presented by the Pareto front. The graph reveals a diverse range of designs, encompassing relative densities that range from 0 to 1. This provides designers with the flexibility to choose solutions based on their preference in relation to the relative density. Poisson’s ratio, defined as the negative of the ratio of transverse strain to axial strain, is another important property affecting the behaviour of cellular structure. Figure 13b demonstrates the Poisson’s ratio of the MOGA solutions presented by the Pareto front. It can be seen that the Poisson’s ratio of the designs exhibits a range of 0.45–0.5 at lower relative densities. However, as the relative density increases towards 1, the Poisson’s ratio decreases and falls within the range of 0.25–0.3, reaching the value of the Poisson’s ratio for the bulk material.

From the set of optimised solutions achieved from MOGA, a solution with a relative density of ${\rho }_r=18.7\%$ was selected for further analysis, including mechanical testing. This relative density was within the valid range for the implementation of the Ashby–Gibson power law and was also within the same range as the BCC structures studied in the literature, Refs. [28,30], allowing for a meaningful comparison to be performed with the results presented in previous studies on BCC structures.

2.5. Single-Objective Genetic Algorithm Optimisation (SOGA)

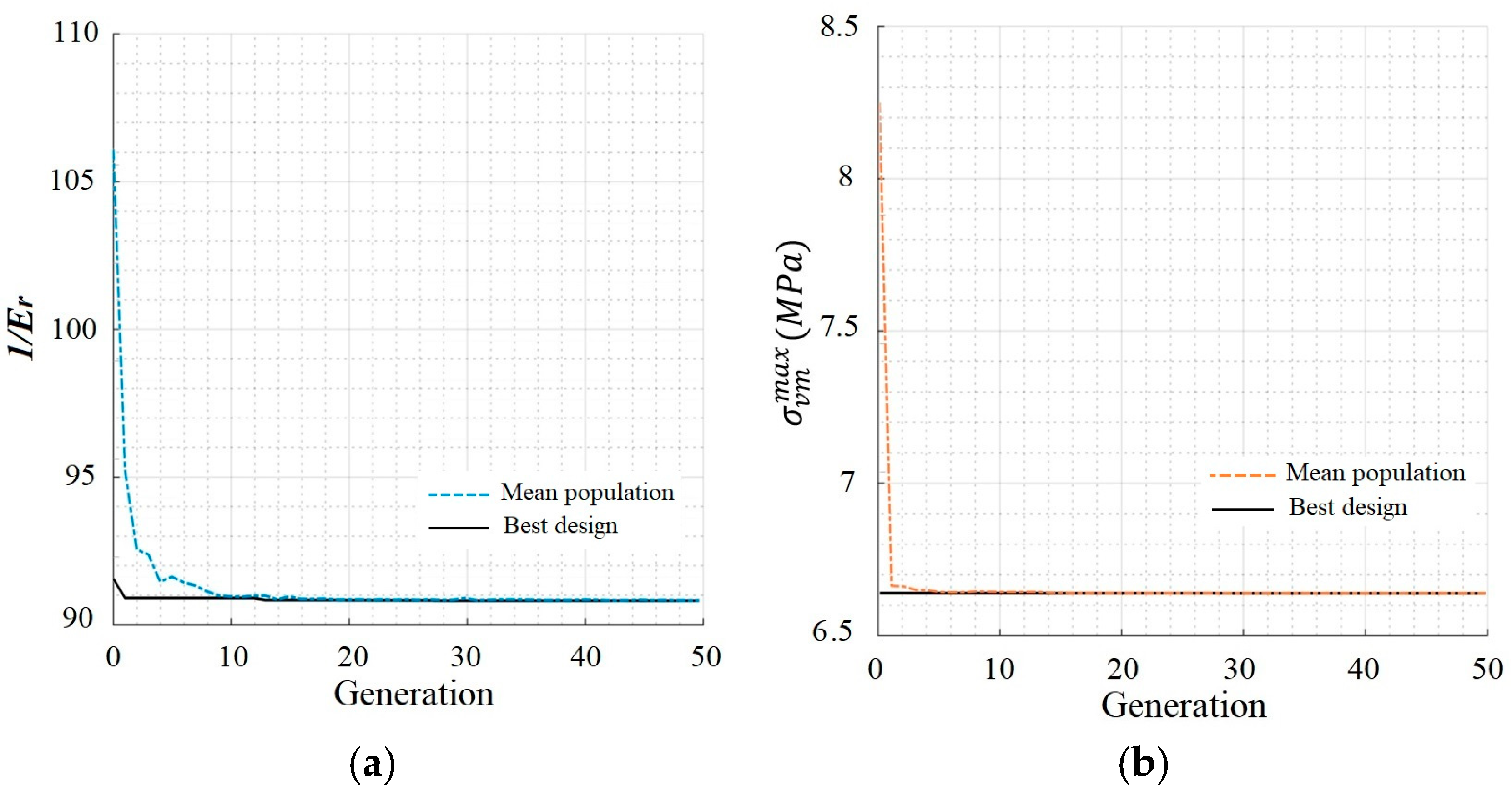

Following the results obtained from the multi-objective optimisation using MOGA in the previous section, this section presents the designs optimised for each single objective and compares them with those simultaneously optimised for the two objectives through MOGA. The single-objective optimisation was performed through standard GA at a relative density constraint of ${\rho }_r=18.7\%\pm 0.01\%$. To limit the search space within the specified range of the relative density, the range of the design variables were adjusted as $0.1\le t_r\le 0.4$ and $0\le f_r\le 5$. The implementation of SOGA involved two runs. The first run focused on maximising objective 1 $E_r$ (or minimising $\frac{1}{E_r}$), exclusively. In the second run, the objective was to minimise objective 2 ${\sigma }_{vm}^{max}$, exclusively. Figure 14 presents the evolution histories of the two objective functions associated with the two separate runs. It can be seen that they both converge within 20 generations. A great improvement in the mean objective can be observed in both runs of SOGA. From Figure 14a, it can be seen that the mean value of $\frac{1}{E_r}$ reduces from approximately 105 in the first generation of designs converging to around 91 within the evolutionary process. This corresponds to an average $E_r$ of 0.0095 at the first generation converging to $E_r=0.011$. A similar trend can be observed in Figure 14b for the minimisation of objective 2 ${\sigma }_{vm}^{max}$ through SOGA. The average ${\sigma }_{vm}^{max}$ decreases from approximately 8.3 MPa in the initial generation to around 6.66 MPa as the evolutionary process progresses.

2.6. Numerical Comparison of the Solutions

FEA was performed on the BCC structures optimised through MOGA (${\mathrm{BCC}}_{\mathrm{M}}$) and SOGA (${\mathrm{BCC}}_{\mathrm{E}}$ denoting stiffness-optimised BCC and ${\mathrm{BCC}}_{\mathrm{vm}}$ denoting ${\sigma }_{vm}^{max}$-optimised BCC), as well as the classical BCC structure (${\mathrm{BCC}}_{\mathrm{C}}$) to compare the performance of different designs in terms of $E_r$ and ${\sigma }_{vm}^{max}$ at the relative density of ${\rho }_r=18.7 \pm 0.01\%$. The numerical results are summarised in

Table 3. Performance comparison of different BCC structures optimised through MOGA and SOGA as well as the classical model of BCC.

	$\mathbf{Classical} \mathbf{BCC} \mathbf{\left(}BC{C}_C\mathbf{\right)}$	$\mathrm{MOGA}-\mathrm{Optimised} \mathrm{BCC} \mathrm{for} \mathrm{Both} E_r$ $\mathrm{and} {\sigma }_{vm}^{max}$$(BC{C}_M$)	$\mathrm{SOGA}-\mathrm{Optimised} \mathrm{BCC} \mathrm{for} E_r$$(BC{C}_E$)	$\mathrm{SOGA}-\mathrm{Optimised} \mathrm{BCC} \mathrm{for} {\sigma }_{vm}^{max}$$(BC{C}_{vm}$)
Design variables	$-$	$$\begin{gathered} t_r=0.178 \\ {f}_r=9.338 \end{gathered}$$	$$\begin{gathered} t_r 0.179 \\ {f}_r=9.338 \end{gathered}$$	$$\begin{gathered} t_r=0.100 \\ {f}_r=10.500 \end{gathered}$$
${\sigma }_{vm}$ contour
${\sigma }_{vm}^{max}$ (MPa)	8.8892	6.7772	6.8542	6.6617
$E_r$	0.00811	0.01098	0.01113	0.01071

.

From Table 3 it can be seen that all three structures optimised through MOGA and SOGA (${\mathrm{BCC}}_{\mathrm{M}}$, ${\mathrm{BCC}}_{\mathrm{E}}$, and ${\mathrm{BCC}}_{\mathrm{vm}}$) have superior performances compared to ${\mathrm{BCC}}_{\mathrm{C}}$, in terms of both $E_r$ and ${\sigma }_{vm}^{max}$. Comparing the optimised designs in terms of stiffness, it can be seen that ${\mathrm{BCC}}_{\mathrm{M}}$ and ${\mathrm{BCC}}_{\mathrm{E}}$ have very similar values of $E_r$, which is slightly higher than that of ${\mathrm{BCC}}_{\mathrm{vm}}$. Similarly, comparing them against ${\sigma }_{vm}^{max}$, it can be seen that the design optimised for the von-Mises stress (${\mathrm{BCC}}_{\mathrm{vm}}$) has a smaller value of ${\sigma }_{vm}^{max}$ compared to the other two optimised designs. Overall, the optimised designs for the BCC structure show a significant enhancement of the mechanical performance when compared with the classical model of BCC. The comparison of the numerical results corresponding to $E_r$ and ${\sigma }_{vm}^{max}$ underscores the effectiveness of the optimisation strategy. However, the three optimised designs appear very similar in shape and also performance (two almost identical), indicating that optimising one objective of this multi-objective problem can positively impact the improvement of the second objective. This was further investigated in the following sections though the additive manufacturing of the samples and subsequent mechanical testing.

3. Additive Manufacturing and Mechanical Testing

The BCC lattice specimens studied earlier were printed through the DLP process using a Phrozen Mini 8k printer with an XY print resolution of 22 µm. Three samples for each design were printed for further testing to ensure experiment repeatability. The slicing software ChituBox V1.9.3 was used to generate machine-readable files. The print settings included a bottom-layer exposure time of 35 s, other-layer exposure time of 10 s, and a layer thickness of 0.1 mm. A high-resolution transparent photopolymer resin (UV DLP Crystal Clear by Photocentric) [38] with a curing wavelength of ${\lambda }_{DLP}=420 \mathrm{nm}$ was utilised for the 3D printing of the specimens. The printed specimens were not UV-cured after printing to avoid the non-homogeneous penetration of the UV light into the lattice structures during post-processing, which can create non-homogenous material properties across the lattice volume. Instead, a longer exposure time per layer (10 s) during the print process was used to maintain homogenous properties across the lattice. Using the same print settings, solid cubes 10 mm in size were also printed to evaluate the density and mechanical properties of the bulk material. From the mass and volume measurements obtained from the solid cubes, the density of the bulk material was calculated as 1188 kg/m³.

Table 4. The comparison between the theoretical masses and the 3D-printed specimens.

	$\mathbf{Classical} \mathbf{BCC} \mathbf{\left(}BC{C}_C\mathbf{\right)}$	$\mathrm{MOGA}-\mathrm{Optimised} \mathrm{BCC} \mathrm{for} \mathrm{Both} E_r$ $\mathrm{and} {\sigma }_{vm}^{max}$$(BC{C}_M$)	$\mathrm{SOGA}-\mathrm{Optimised} \mathrm{BCC} \mathrm{for} E_r$$(BC{C}_E$)	$\mathrm{SOGA}-\mathrm{Optimised} \mathrm{BCC} \mathrm{for} {\sigma }_{vm}^{max}$$(BC{C}_{vm}$)
Unit cell
DLP-printed lattice sample
Mass (g)	16.95	16.47	17.45	15.60
${\rho }_r$	0.22	0.22	0.23	0.21

presents the 3D-printed samples of the different BCC structures, including ${\mathrm{BCC}}_{\mathrm{C}}$, ${\mathrm{BCC}}_{\mathrm{M}}$, ${\mathrm{BCC}}_{\mathrm{E}}$, and ${\mathrm{BCC}}_{\mathrm{vm}}$, along with their experimentally measured mass and relative density values. Using the experimental measurement of the density of bulk material, the intended design mass for the BCC samples at ${\rho }_r=18.7$ could be calculated as 14.22 g. However, the data presented in Table 4 show a discrepancy of up to 23% between the mass/relative density values of the BCC lattice designs and the corresponding values of the 3D-printed specimens. This can be attributed to the geometric overgrowth during the DLP 3D-printing process, which was observed and discussed in the literature [39]. Geometric overgrowth is caused by UV-light scattering effects, which depend on different factors, such as layer thickness, layer exposure time, and exposure intensity. Since the lattice structure has a complex geometry with a high surface to volume ratio, the deviation from the original design geometry is more pronounced compared to simpler shapes, such as cubes. Despite the observed design-to-build discrepancy in the mass, it was noteworthy that the relative densities of all 3D-printed specimens were about ${\rho }_r=0.22 \pm 0.01$, providing a sufficient level of accuracy for the performance comparison of different 3D-printed specimens, as discussed in the following section.

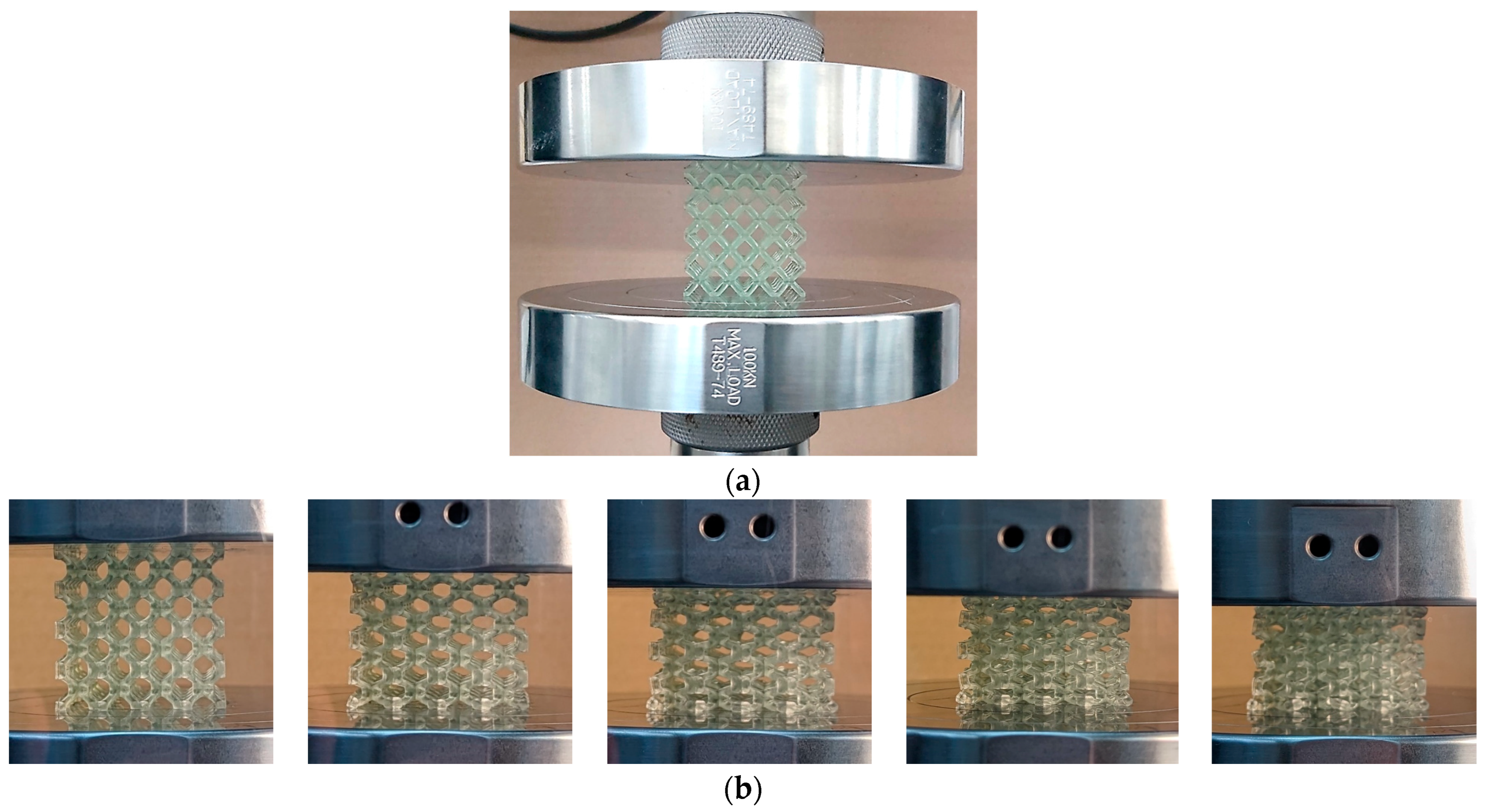

In order to assess the mechanical performance of the DLP-printed BCC structures and compare it with the numerically evaluated results presented in Section 2, a compression test was executed on the entire set of printed samples. All the specimens were tested along the build direction. The compression test was conducted using an Instron 3367 machine, equipped with a 30 kN load cell, in accordance with the ASTM D1621-16 standard [40]. A uniform compression rate of 0.1 mm/s was applied to each individual sample. Throughout the compression process, the reaction force and corresponding displacement were recorded through the employment of the load cell and a displacement gauge, respectively. The data were then collected and managed using the Bluehill^® computer program, which captured readings at a frequency of 20 readings per second. To visually document the deformation induced by the compression plate of the machine, a high-speed, high-resolution camera capable of capturing 60 frames per second and performing high-definition video recording was utilised. An illustrative depiction of a BCC structure undergoing compression testing is presented in Figure 15.

During the compression testing of the specimens, the force values were systematically documented in a spreadsheet alongside their respective displacements. These force values were subsequently divided by the face area of the cubic lattice sample (40 × 40 mm²) under compression, resulting in the computation of global stress values (σ). Plotting these stress values (σ) against the strain (ε) induced by the compression test machine facilitated the determination of the Young’s modulus of the lattice material ($E_l$), based on the slope of the linear elastic region within the stress–strain curve. Similarly, following ASTM D695-15 [41], the Young’s modulus ($E_s$) of solid samples sized 10.0 mm × 10.0 mm × 10.0 mm was calculated. These solid samples were 3D-printed using the same material and settings as those used for the lattice samples. This process yielded the stress–strain curves depicted in Figure 16, from which a Young’s modulus of $E_s=104.3$ MPa was computed for the bulk material. Parallel to the numerical calculations presented in Section 2, the experimental relative modulus values ($E_r$) for each lattice structure were deduced, employing the formula $E_r=\raisebox{1ex}{$E_l$}\!\left/ \!\raisebox{-1ex}{$E_s$}\right.$.

The numerical model developed for FEA and the optimisation of BCC lattice structures applied a 5% strain to calculate the elastic modulus of the lattice structure. As the simulations were based on the linear FEA model neglecting large deformations, the magnitude of the applied strain did not affect the magnitude of the calculated elastic modulus for the specimen. However, when investigating the results of the compression testing of the lattice structures, it was observed that the specimens subjected to a 5% strain underwent large deformations. Consequently, the elastic modulus was determined within a smaller strain range of 1–2% to account for this behaviour. The initial strain range of 0–1% was omitted from the calculations to mitigate potential impacts arising from uneven sample surfaces during the experimental measurements.

Based on the literature, it is well-established that solid samples produced through AM can exhibit varying mechanical properties, which partly depend on their orientations during fabrication and testing processes [42]. Similarly, DLP-printed solid specimens have been observed to display anisotropic behaviour in stiffness and strength tests [43]. However, the literature reports suggest that the compressive behaviour of AM lattice structures is not influenced by build orientation in the same manner as AM solid structures [42]. In this study, all samples were tested along the build orientation. Nevertheless, future studies can take into account material anisotropy when studying the mechanical properties of DLP-printed lattice structures.

4. Results and Discussion

This section presents the results and discussions related to the compression testing of BCC lattice specimens, followed by additional comments on the broader application of the proposed method in lattice structure design for AM.

4.1. Comparison of Different Designs

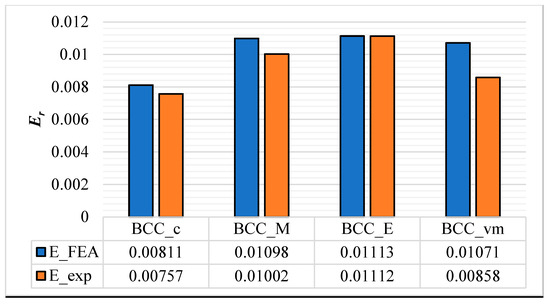

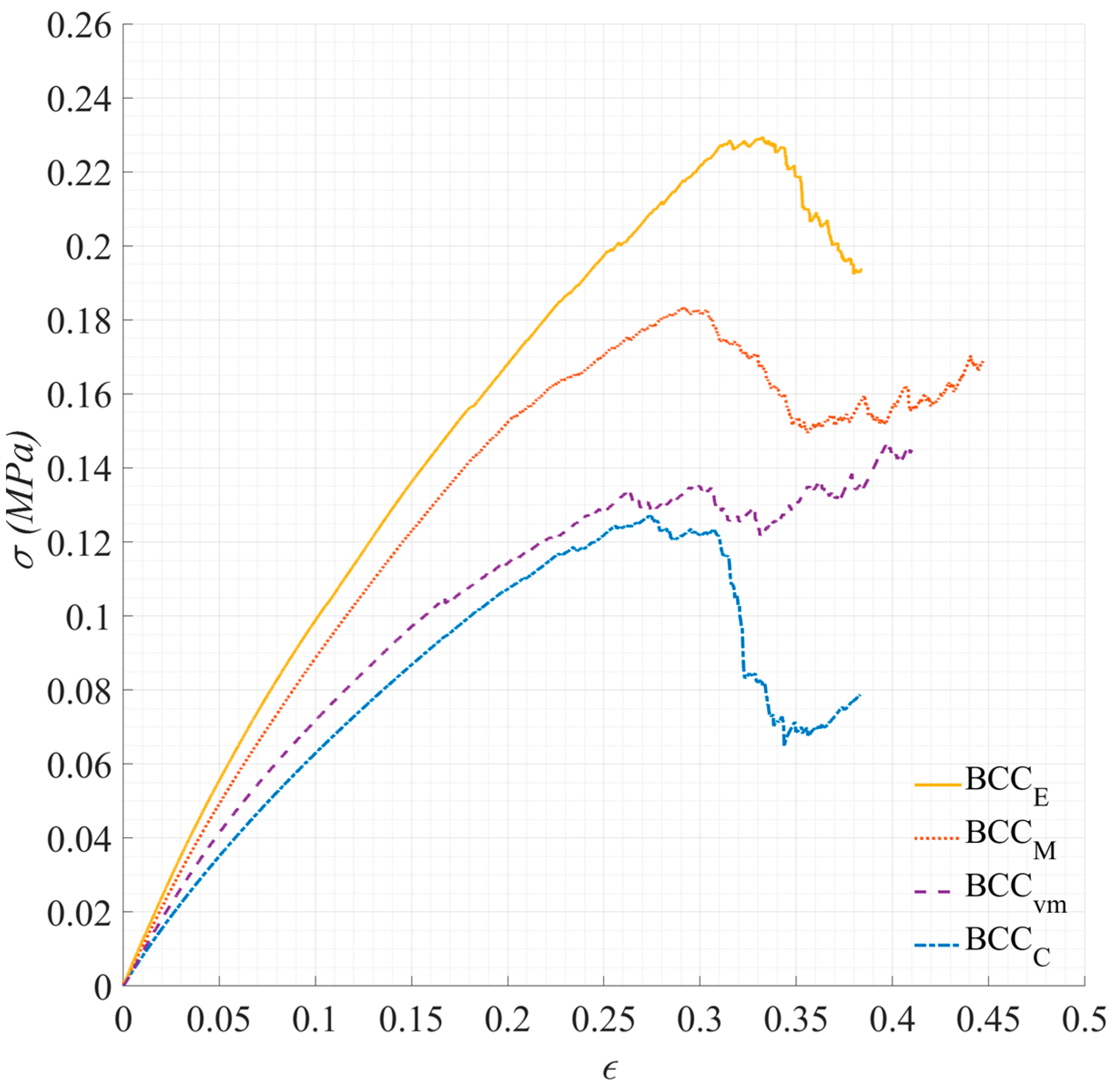

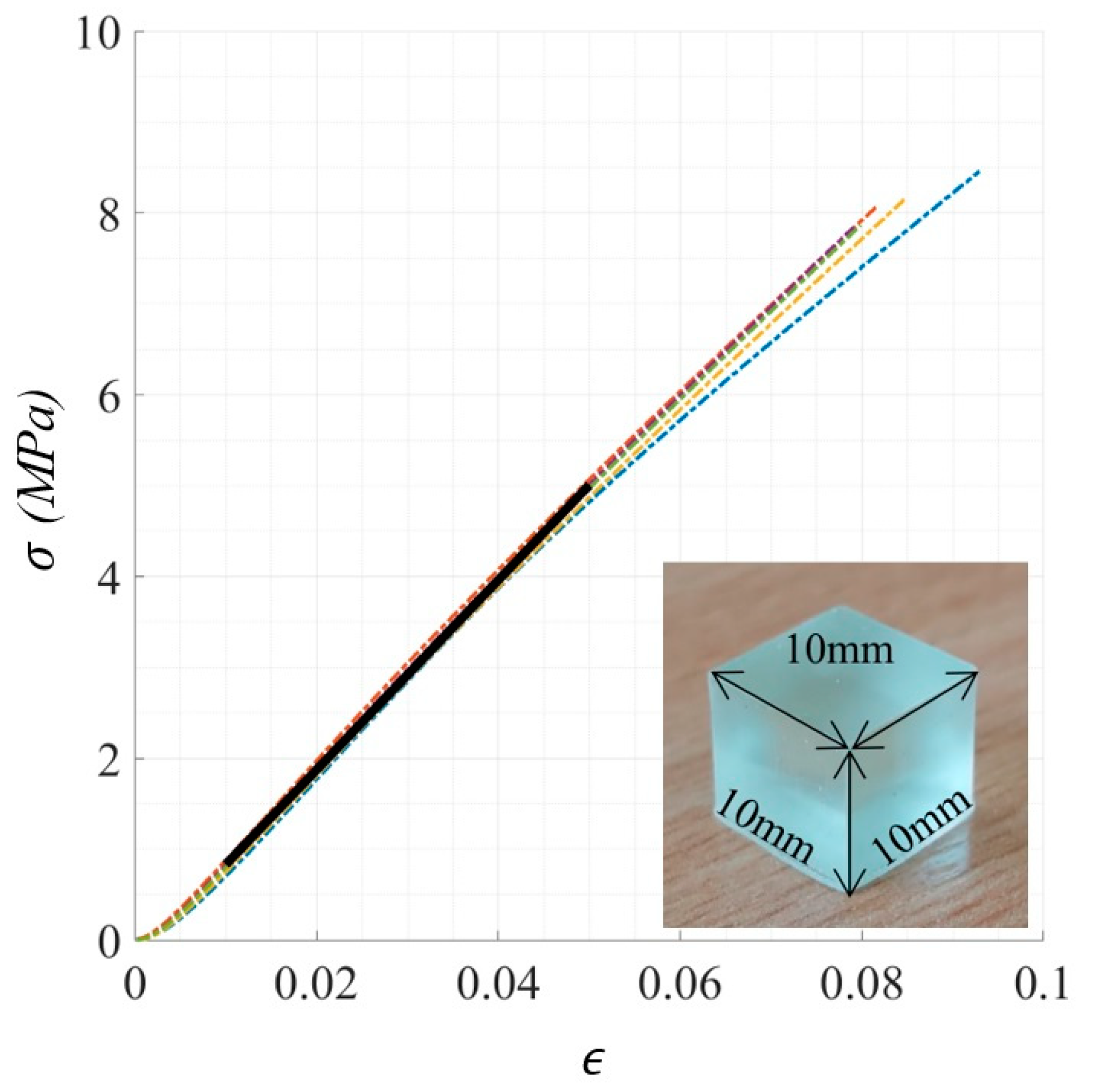

Figure 17 illustrates the stress–strain plots corresponding to the compression test of a set of four different BCC structures, including ${\mathrm{BCC}}_{\mathrm{C}}$, ${\mathrm{BCC}}_{\mathrm{M}}$, ${\mathrm{BCC}}_{\mathrm{E}}$, and ${\mathrm{BCC}}_{\mathrm{vm}}$. The stiffness of the lattice structures presented in terms of $E_r$ was directly related to the slope of the curves in the linear elastic region, which is calculated and demonstrated in Figure 18. From the comparison of the stiffness values presented in this figure, it can be observed that the experimental values of $E_r$ are slightly smaller than their corresponding numerical values, despite the fact that the experimental tests were performed on the lattices with a slightly larger mass (due to print inaccuracies) in comparison to their intended designs. The observed discrepancy can be attributed to various factors, including the influence of surface roughness effects, which become more prominent in samples with a high surface-to-volume ratio, such as lattice structures. These factors prevent the experimental performance from achieving the numerically estimated values. This emphasises the need for the consideration of size effects in the design and optimisation of lattice structures for AM in the future research. It is important to note that the similarity between the numerical and experimental $E_r$ values observed for MOGA and stiffness-optimised solutions in Figure 18 did not inherently establish the accuracy of the experimental measurements. This was due to the fact that the experiments were conducted on samples with slightly higher relative densities. Consequently, to address this concern, a MOGA solution with a relative density of 22% (similar to the relative density of the printed lattice samples) was investigated. Through FEA, a relative modulus of $E_r=0.0161$ was calculated, which notably exceeded the value obtained from the experimental measurements $E_r=0.0198$.

The second important thing that can be observed from Figure 18 is that the experimental measurements of $E_r$ for the set of four BCC structures results in the same stiffness ranking as that for the numerical measurements, i.e., ${\mathrm{BCC}}_{\mathrm{E}}$ and ${\mathrm{BCC}}_{\mathrm{M}}$ have higher values of stiffness within this set of four samples, followed by ${\mathrm{BCC}}_{\mathrm{vm}}$, while ${\mathrm{BCC}}_{\mathrm{C}}$ ranks at the bottom. This demonstrates the correlation between the experimental and numerical results with respect to the stiffness. The experimental evaluation of the von-Mises stress in different lattice samples would not be as straightforward as the procedure used for the stiffness measurement and is beyond the scope of this study. However, by looking at the peaks of the stress–strain plots presented in Figure 17, it can be observed that all plots corresponding to the optimised samples have higher values of maximum stress compared to the classical model of the BCC structure, indicating the effectiveness of the proposed design and optimisation approach in improving the strength of the lattice structures.

4.2. Insights into the Failure Modes of DLP-Printed BCC Lattices

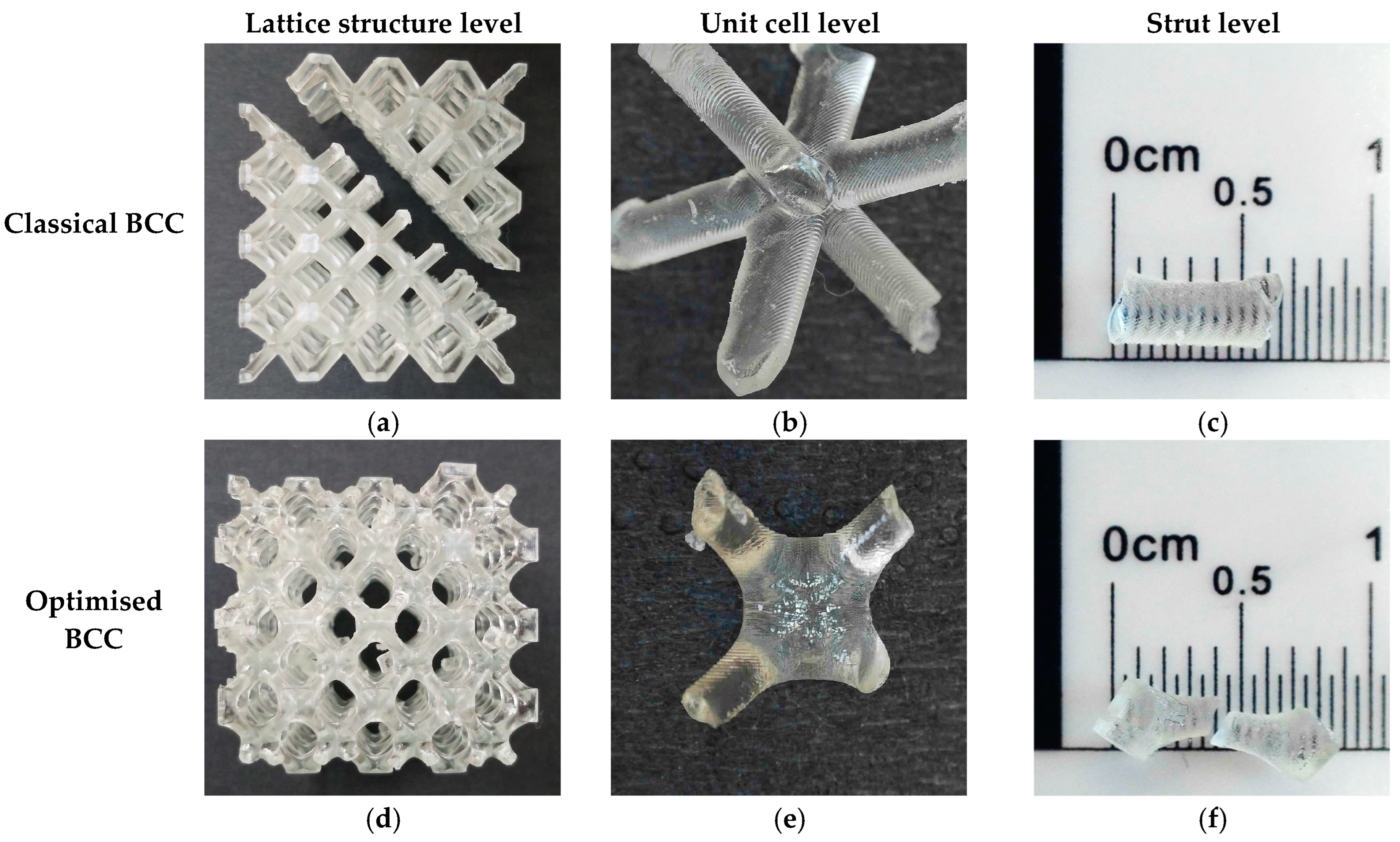

Following the compression testing, a further examination of the lattice structures was conducted to determine the mode of failure within the structures. Figure 19 presents the findings from this observation, comparing the failure mode of a classical BCC structure (${\mathrm{BCC}}_{\mathrm{C}}$) with the one for an optimised BCC structure, e.g., ${\mathrm{BCC}}_{\mathrm{M}}$. The observations were performed on three levels: lattice structure, unit cell, and strut levels. The observation of the failure mode at the lattice structure level for the classical BCC structure (Figure 19a) indicated the shear failure mode for this structure. This mode was observed in all three samples of the classical BCC structure repeated for testing and was reported in the literature [27]. By observing the failure of the classical BCC structure at the unit cell (Figure 19b) and strut (Figure 19c) levels further, it can be noticed that the failure starts from the nodes that are under high levels of von-Mises stress due to stress concentration. This non-uniform distribution of stress and concentration at the nodes can be observed from the von-Mises stress contour of ${\mathrm{BCC}}_{\mathrm{C}}$ presented Table 3. Figure 19d–f shows the failure mode of the optimised BCC at the lattice structure, unit cell, and strut levels, respectively. It can be observed that failure occurs in the middle of the struts, where the struts have their minimum thickness. This failure mode occurred due to bending, as discussed in [27]. When the filet radius at the nodes is increased while keeping the relative density constant, it leads to a reduction in the stress concentration effects and can subsequently enhance the strength of the lattice structure. However, to maintain a constant relative density while increasing the fillet radius, the diameter of the struts in the middle must be proportionally reduced, resulting in failure occurring at the middle of the struts. As can be seen in Figure 17, the optimised BCC structures require higher levels of global stress to reach the failure point. This can be attributed to a more uniform distribution of stress within the optimised lattice structures, as is evident from the corresponding von-Mises stress contours presented in Table 3.

4.3. Further Remarks on the Generalisation of the Lattice Structure Design for AM

The primary objective of this study was to apply an innovative design approach based on implicit geometry modelling and GA optimisation on the design of BCC lattice structures intended for manufacturing through the DLP process. However, a more comprehensive design workflow for AM can be considered, aligned with the presented approach, to broaden its scope and encompass the design of diverse lattice structures for various AM processes [44,45].

An initial problem statement identifying the design space followed by a preliminary macroscale FEA or topology optimisation performed on the design space can provide insights into the mesoscale design requirements and objectives. An important step towards achieving the generalisation of the proposed approach would be the extension of the implicit modelling to other types of strut-based lattice unit cells through the development of an implicit equation representing the geometry of the corresponding unit cell. Moreover, following the selection of an appropriate material and an AM process, AM constraints and considerations need to be integrated into the proposed parametric optimisation approach as design constraints. Such design constraints can be related to geometrical features, which affect the self-supporting aspect of a unit cell, minimum feature size, and/or maximum/minimum relative densities. To achieve the utmost precision in accordance with the input geometry, it is essential to fine-tune the AM process parameters in alignment with the chosen build material and lattice geometry. Depending on the selected AM process, material anisotropy effects corresponding to the build material can also be taken into account when evaluating the response of the designed lattice structures associated with certain loading conditions and design objectives. The design workflow can also benefit from the development of appropriate testing equipment for evaluating the response of additively manufactured lattice structures. Efficient metrological measurements of the 3D-printed specimens should be considered to evaluate the design-to-build discrepancy. A clear understanding of this discrepancy would be advantageous in design and optimization stages to provide insights into the potential adjustments needed to compensate for the discrepancy in forthcoming print iterations.

5. Summary and Conclusions

This study introduced a design and optimisation methodology for the parametric shape optimisation of BCC lattice structures based on an implicit modelling scheme integrated with single-/multi-objective genetic algorithm optimisations. Stiffness responses associated with a classical BCC structure as well as single-objective and multi-objective optimised BCC structures were investigated and compared through FEA and mechanical testing. The distribution of the stress and the maximum value of the von-Mises stress were also studied numerically in different BCC structures.

When comparing the relative elastic modulus ($E_r$) values of various BCC structures with identical relative densities, it was observed that the optimised BCC structures exhibited an improved stiffness response compared to the conventional BCC structure. Specifically, at a relative density of ${\rho }_r=18.7\%$, the numerical analysis and experimental measurements indicated an estimated improvement in $E_r$ of up to 57% and 83%, respectively. Furthermore, it was observed that the stress concentration was significantly reduced by implementing the proposed shape optimisation approach. At the relative density of ${\rho }_r=18.7\%$, up to a 25% reduction in the maximum von-Mises stress in a BCC structure was observed upon the application of the proposed design and optimisation strategies. The experimental results further confirm these numerical findings, demonstrating that the optimised BCC structures subjected to a compression test exhibit higher maximum stress values compared to the classical BCC structure.

This research effectively implemented the multi-objective GA (MOGA) for the parametric shape optimisation of lattice structures involving multiple objectives. The range of solutions provided by MOGA allowed for flexibility in choosing a preferred design from a variety of optimised designs with different relative densities. The research also studied the use of single-objective GA (SOGA) optimisation for the design of BCC lattices at a particular relative density. Although SOGA seeks the best design associated with a single objective, the results for the second objective are still comparable to those obtained from MOGA. This evidently depends on the objectives included in the problem and whether they are in conflict with each other. In cases where conflicting objectives are present, the application of MOGA proves advantageous.

In this study, a high-resolution DLP process was utilised for the additive manufacturing of the designed BCC structures. While the process showed excellent capabilities in the fabrication of lattices with a high resolution, a noticeable design-to-build discrepancy was observed between the mass of the fabricated samples and their intended designs. This phenomenon has been discussed in the literature, attributing it to geometric overgrowth triggered by the scattering effects of UV light. These effects also have the potential to impact the shape of printed samples, leading to deviations from the original CAD model. A thorough exploration of the shape of 3D-printed lattice specimens can offer insights into these geometric discrepancies. Future research can greatly benefit from incorporating manufacturing-related effects into the design process to mitigate the design-to-build discrepancy. However, achieving this goal necessitates considering numerous process-related factors during the design phase, thereby increasing the complexity of the design and optimisation approach.

Overall, the application of implicit modelling in conjunction with a GA-based optimisation strategy was determined as a robust and promising approach for designing and optimising lattice structures for additive manufacturing. Future research should expand the application of the presented implicit modelling technique to design various types of lattice structures with desired structural responses, which can be tailored through the GA optimisation.
