Exploring the Potential of Autonomous Underwater Vehicles for Microplastic Detection in Marine Environments: A Systematic Review

Highlights

What are the main findings?

• AUVs are an attractive platform for in situ detection of microplastics (MPs), although the current applications remain underdeveloped.
• Although AUV-based MP monitoring is still in its early development stages, the rise of new technologies such as hyperspectral imaging (HSI), electrochemical sensors, and artificial intelligence (AI)-assisted optical systems creates opportunities for future in situ applications.

What is the implication of the main finding?

• The progress of miniaturized, rugged and automated sensors will allow AUVs to map large-scale MP distributions efficiently.
• Integrating sophisticated detection technologies onto an AUV could improve MP marine pollution monitoring capabilities.

Abstract

AUVs offer the potential for in situ MP detection at constant, pre-set depths in marine environments. By carrying onboard MP detectors, AUVs can serve as alternatives to traditional methods of sample collection, processing, and analysis, while also addressing the inefficiencies and complexities associated with conventional detection procedures. This study conducts a comprehensive review of existing and potential MP detection methods that can be integrated with AUVs for in situ detection. In particular, guided by the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) framework, this review analyzes selected studies on MP detection using AUVs. It finds that real-time, in situ MP detection via AUVs or multi-AUV systems remains underdeveloped. Key challenges include deep-sea communication, sensor integration, and underwater durability. The review highlights the current advances, research gaps, and future directions for AUV-based MP detection technologies.

1. Introduction

Vast quantities of plastic waste enter the ocean each year, gradually degrading into MP particles, many of which are too small to be easily detected by the naked eye. The particles with a diameter of less than 5 mm are called MPs. MPs are present in human daily life, for instance, in salt, water, and even the air, and among these routes, the inhalation of airborne MPs, especially indoors, contributes the most to human intake [1]. Most MPs in wastewater result from day-to-day human activities [2]. Additionally, MP pollution has become a particularly significant threat to marine life and ecosystems due to resistance to natural degradation processes. It contains toxic chemicals, including phthalates and bisphenol A [3]. The diminutive size allows them to enter the bodies of ocean life, potentially wreaking havoc on the delicate balance of marine ecosystems. Researchers found that 0.2 µm PS fluorescent microbeads can enter plant cells and hinder plant growth [4]. In marine environments, various sources, including tiny plastic beads (less than one millimeter-sized particles found in makeup and cleaning products) and degraded plastic debris, are major MP contaminants [5]. Identifying and quantifying the different MPs for the protection of the ocean environment is imperative.

There are currently many methods for detecting MPs. Manual visual inspection of MPs is time-consuming, labor-intensive, and unsuitable for large-scale use. The Fourier Transform Infrared Spectroscopy (FTIR) detection method is fast [6], non-destructive, and needs simple sample preparation [7]. The Raman spectroscopy detection method requires time-consuming sample preparation [8]. Near-infrared spectroscopy is more reliable for estimating the number of MPs than for detecting their polymer types [9]. Laser Direct Infrared Spectroscopy (LDIR) is a fast, non-destructive, and highly automated technique that enables comprehensive analysis of MP number, size, shape, and polymer type over large areas without the need for liquid nitrogen, but it is relatively expensive despite being highly efficient for large-scale environmental monitoring [10]. Machine learning (ML) algorithms, particularly neural networks, as a powerful auxiliary tool, have shown promise for detecting MPs combined with polarization cameras, yielding real-time high accuracy results if the setup is proper [11,12].

AUVs show strong potential as effective tools for underwater MP detection if the setup is correctly performed. In the late 1950s, the Applied Physics Laboratory of the University of Washington built the first AUV, named the Special Purpose Underwater Research Vehicle (SPURV), to perform scientific research in the undersea environment [13]. SPURV, with a 3.1 m overall length and 0.508 m diameter, was a pre-programmed AUV to perform specific research tasks, and its maximum dive depth was 3600 m. SPURV had a torpedo shape and could last 5.5 h in the undersea environment. It had a 2–2.5 m/s horizontal travel speed, 1.3 m/s dive rate and 2.3 m/s climb rate. An acoustic tracking system was employed to monitor the SPURV underwater activity. The mother ship could send acoustic commands to SPURV, and the tracking range of the acoustics was 2000 m. This early AUV was unsophisticated but serviceable.

In the late 20th century, AUVs were mainly used in military areas, such as territory protection. AUVs have evolved to meet the diverse demands of underwater environments and tasks. These include biomimetic AUVs, screw-driven AUVs, tethered AUVs and underwater gliders. Biomimetic AUVs are designed to mimic marine life to improve their performance in underwater environments [14]. Screw-driven AUVs use a propeller for propulsion to increase speed and hence resilience in ocean currents. A tethered Remotely Operated Vehicle (ROV) connects to the mother ship via tether or cable, allowing those on the vessel to control the ROV in real time. However, there can be hybrids between an AUV and an ROV.

In the early 21st century, the use of AUVs became more widespread. Due to the reduction in AUV production costs, they have become excellent tools for scientific research, such as marine environmental and biological monitoring. Scientists can complete challenging scientific research due to the combination of AUV and sensors, such as sonar imaging sensors [15]. Figure 1 diagrammatically shows various features of ocean topography. The deepest known ocean trench is 10,972.8 m, and the ocean’s average depth is about 3600 m. Some AUV dive depths can be in excess of 6000 m [16]. The Sentry AUVs from Woods Hole Oceanographic Institution (WHOI) can explore the sea down to 6000 m (19,685 feet) [17]. The Orpheus AUVs from WHOI can dive to 11,000 m (36,000 feet) [18]. Deep-sea detection capabilities are critical for examining MPs since particles may be present in all ocean areas, including the deep ocean. AUVs that operate in extremely deep marine environments can expand the scope of deep-sea sampling and in situ detection in previously inaccessible marine environments.

The main aims of the study were to evaluate the capabilities of AUVs to detect MP particles in the ocean, to examine existing methods of detecting MPs, to recommend practical detection methods that could eventually be extended to AUVs as real-time in situ sensors, and to offer some insights for future work.

Several specific objectives support this overarching goal:

• For a clear, structured, and methodologically rigorous review process, this study employs Semantic Scholar AI and adheres to the systematic literature review method, supported by semi-automated tools referenced in the data availability statement to complete this review.
• Review existing MP detection methods, AUV-based approaches for MP detection, and AUV-based techniques for plastic debris detection.
• Analyze reviewed MP detection methods to find out which show promise for integration and operation aboard AUVs
• Provide informed guidance for future research, identifying current challenges, technical limitations, and knowledge gaps that require further investigation to advance AUV-based MP detection.

This paper reviews the state-of-the-art MP detection methods that have been used in the last few years. The objective of the review is to put into context the various detection methods that have been proposed. The details of MP are presented. Previous methods of detection are described. Conclusions as to the effectiveness of those methods of MP monitoring are presented.

Below is the structure of the paper: Section 1 introduces the background and objectives. Section 2 describes the Explorer AUV, including its potential for detecting MPs. The next section shows the research methodology. Section 4 presents the results and discussion. The detailed discussion and discoveries follow in the next section. Section 6 provides conclusions and suggestions for future research.

2. MPs and Explorer AUV

2.1. MP

MPs are tiny plastic particles with a diameter of less than 5 mm. MP is mainly made up of polymers, including polyethylene, polyethylene terephthalate (PET), polypropylene, polyvinyl chloride, polystyrene and low-density polyethylene (LDPE), which are harmful to the environment [20]. Polymers are giant molecules composed of repeating chemical units and are primarily made up of carbon and hydrogen. There are two main types of polymers: homopolymers and copolymers, and MPs can be any polymer. Homopolymers consist of identical monomer units, such as Polyethylene. On the other hand, copolymers are made up of multiple monomer units. An example is styrene-acrylonitrile copolymer (SAN), which includes two different monomers, styrene and acrylonitrile.

There are two main kinds of MPs: primary MPs, such as microbeads, nurdles, and microfibers, and secondary MPs, which are tiny particles resulting from the degradation of larger plastic items [21]. Microbeads are tiny plastic particles with less than 1 mm diameter intentionally produced in cosmetic products, such as toothpaste, lipstick, eyeliner, body washes, sunscreen, face scrubs, and other personal care products. In order to reduce their environmental impact, numerous countries and regions, including Canada and Taiwan, have banned or restricted these personal-care products. A nurdle, also called a bead, is a small plastic pellet smaller than 5 mm used as a raw material in manufacturing plastic products, which can be released into the environment through accidental spills during transport or manufacturing processes. Beads are used for producing items, including bags and plastic containers. A microfiber is a synthetic fiber with a diameter of less than 10 micrometers, released when washing clothing made from polyester or nylon. It can enter aquatic systems and pose a risk to aquatic life.

The journey of MPs coming into public awareness has been a lengthy one. In the 1970s and 1980s, studies mainly focused on the harmful effects of large amounts of plastic waste in the oceans. By the 2000s, scientists started paying more attention to MPs, and this term began appearing more frequently in public articles. MP research significantly increased after 2010 in ocean environments and other areas like freshwater rivers, terrestrial soil, and the air. MPs have recently become a popular research focus due to their negative impact on ecosystems and the human body. As a result of their small size, people can breathe in MPs through the air [22]. MPs are ubiquitous in the human diet and atmosphere, and they cannot be avoided during inhaling and digesting [23]. Although the entry of MPs into the human body might trigger immune responses, scientists have not yet found clear evidence proving that MPs can directly harm the human body [23]. Nevertheless, MP is still a concern in various environments, including seawater, freshwater, soil and atmosphere. They are universal, with widespread implications for ecosystems and creatures on earth.

2.2. Explorer AUV

Identifying MPs in marine environments is challenging due to their small size, motility in the water column, and their wide distribution. Monitoring MP presence is important due to the threats against marine animals and other life. When considering the detection of underwater MPs, numerous platforms could be operated, including AUVs, gliders, Remotely Operated Vehicles (ROVs), and Large Displacement Unmanned Underwater Vehicles (LDUUVs).

Table 1. Comparison of underwater vehicle types.

	AUV	Glider	ROV	LDUUV
Operational flexibility	Programmable missions and can navigate complex terrains [26]	Limited maneuverability [24]	Real-time manipulation	Programmable missions
Depth capabilities	Typically up to 6000 m [26]	10–200 m (coastal version); up to 1000 m (deep-sea version) [24]	Up to 11,000 m [27]	-
Payload capacity	Large [26,28]	Limited space [25]	-	Large
Horizontal speed	0.5–2.5 m/s [26]	Approximately 0.56 m/s [24]	-	-
Cost	Medium to high (varies by size and depth rating)	Relatively low cost [29]	-	Very high
Duration	Up to 2–3 months [26]	Long-endurance [24]	-	Long-endurance
Tethered	No	No	Yes	No
Citation	[26,28]	[24,25,29]	[27]	-

shows the key features of the platforms, which can carry MP sensors to detect targets in situ. A platform offering high operational flexibility, substantial payload capacity, long endurance, and low cost is preferred. Compared to other platforms, AUVs demonstrate the highest alignment with these requirements. Gliders can serve for very long-duration missions, but the drawbacks are limited maneuverability and low payload capacity [24,25]. ROVs operate in real time but are tethered to a surface vessel and have range limitations. LDUUVs conduct longer missions and have larger payload capacity, but the cost is unbearable. AUVs, such as the International Submarine Engineering’s Explorer, provide a pragmatic compromise for autonomy, duration of operation and cost compared to gliders, ROVs and LDUUVs, and therefore are suitable for in situ monitoring and mapping of MPs located in a deep and complex marine environment.

AUVs hold significant potential for MP research by enabling the autonomous mapping of MP distribution across horizontal or three-dimensional scales in the ocean. They can perform adaptive, targeted sampling in dynamic or hard-to-reach environments, such as deep-sea habitats, polar regions or areas with strong currents, where traditional platforms (including traditional vessels) are limited. Additionally, AUVs are versatile platforms for integrating advanced sensors (including optical, electrochemical, and microfluidic devices), allowing the real-time detection of the physical or chemical characteristics of MPs and other key environmental parameters (including temperature, salinity, and pressure). AUVs are one of the promising solutions for MP sampling, characterization, mapping, and monitoring, as well as providing insights for uncovering the sources, sinks, and ecological effects of MPs in marine ecosystems, which helps address marine pollution.

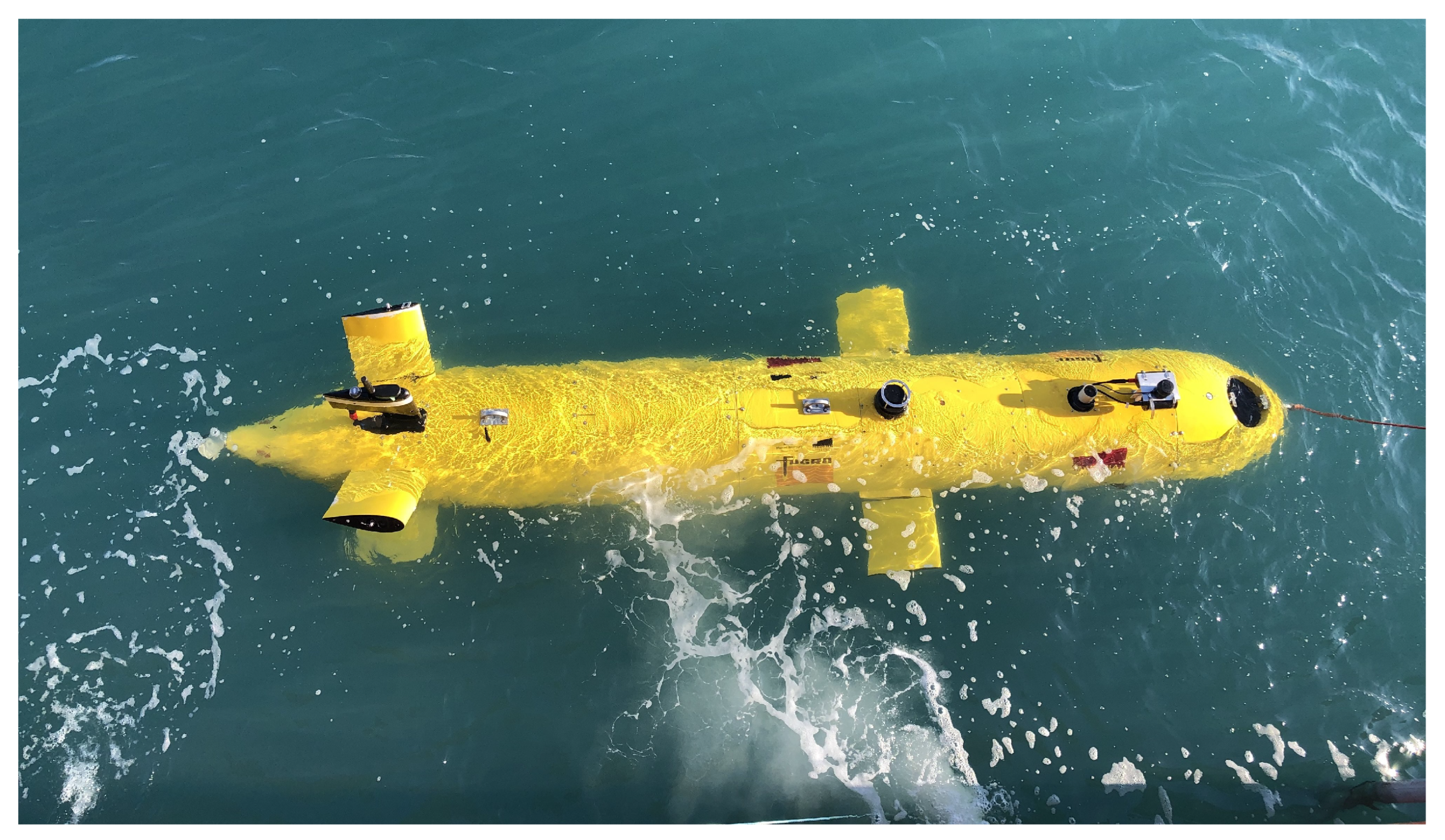

Figure 2 shows the Explorer AUV of Memorial University of Newfoundland, an underwater robot, manufactured by International Submarine Engineering Ltd. (Port Coquitlam, BC, Canada), which can dive to depths of 3000 m [30]. It is a potentially useful vehicle for investigations of deep-sea environments due to increasing levels of MP pollution. The speed range of the Explorer AUV (0.5–2.5 m/s) allows for flexible maneuvers for broad surveys and targeted detection. The depth measurements (Valeport MiniSVS, manufactured by Teledyne Valeport Ltd., Totnes, United Kingdom) and the 300 kHz Doppler Velocity Log (DVL, manufactured by Teledyne RD Instruments, Poway, CA, USA), together with other onboard equipment [31] of the AUV, keep it on a stable movement path. The aforementioned functions aid in MP detection work, especially when it requires a specific speed and orientation to obtain trustworthy study results.

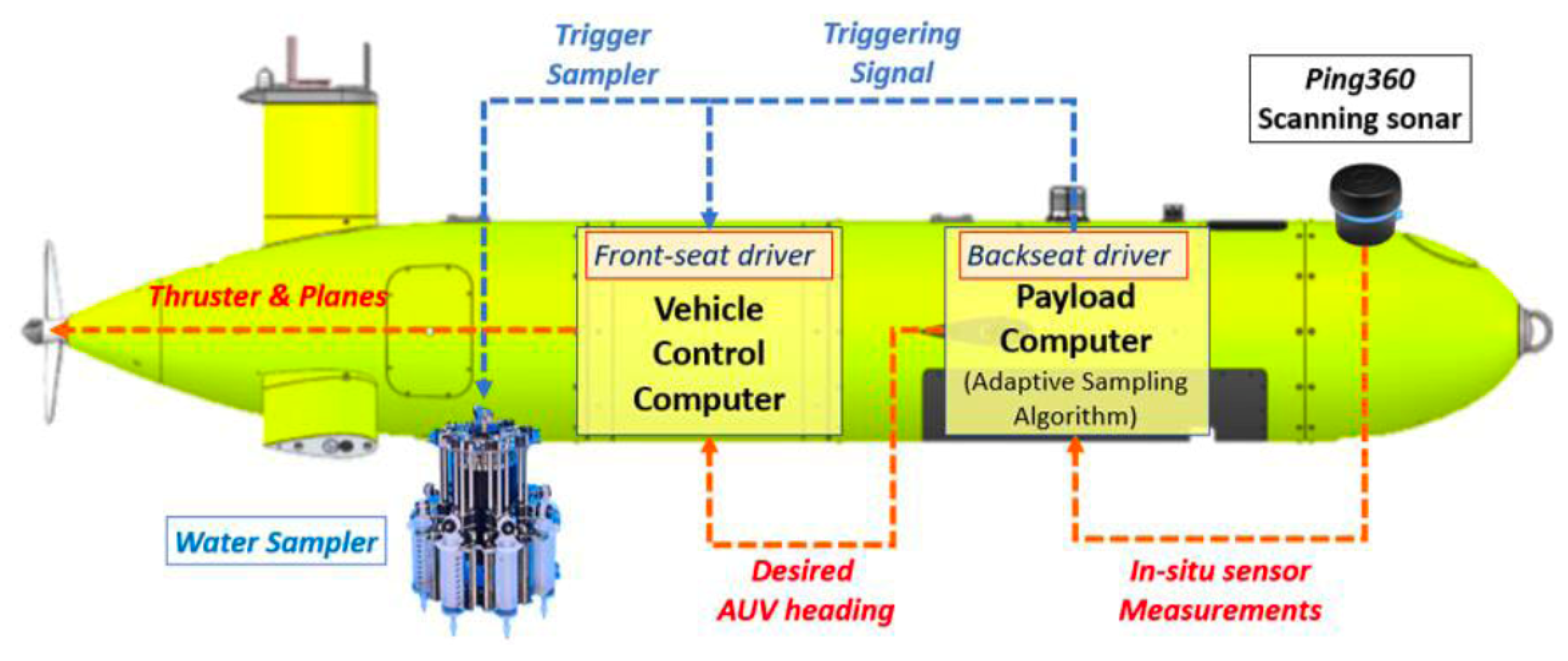

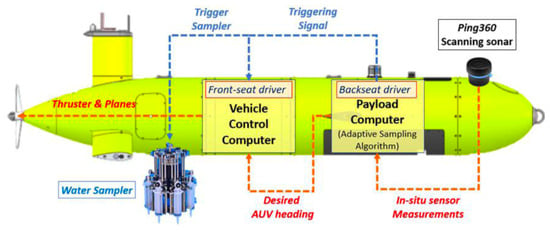

Figure 3 shows the internal control architecture of the AUV, showing how input from sensors can help make decisions in real time. The high-level control system transmits real-time signals and controls the navigation direction of the AUV.

The Payload Computer (Backseat Driver) continually processes input from the sensors (for example, depth sensor and pressure sensor) to determine environmental features and then modifies predefined mission variables, including speed or heading, via the Vehicle Control Computer (Front-seat Driver). This closed-loop communication will allow the AUV to adapt based on environmental cues. Perhaps most importantly for MP detection, the architecture allows for sensors to trigger the action of detection (i.e., turning on the MP detection device) exactly when the AUV reaches a desired target zone. The control-responsive and sensor-triggered system of an AUV is a key feature for the real-time detection of MPs in the ocean and environmental monitoring of complex and dynamic underwater environments. The ability of AUVs to autonomously take measurements in uncertain marine environments is critical for detecting and mapping MPs, given that human intervention is not feasible.

The Explorer AUV has a hollow cylindrical internal volume inside its wet section, offering at least 0.69 m in length and 0.69 m in diameter. The wet section has room for a water sampler, an MP detector, or other research devices. The MP detector needs to be small enough to fit in the available space, or an MP detector with a suitable size needs to be developed and adapted to be capable of integration into the Explorer AUV system. In this situation, the Explorer AUV is programmed to dive to a specific depth of interest. When the depth sensor indicates that the required depth has been achieved, the Explorer AUV shifts into a cruise or search mode to detect MPs at that depth. When the Explorer AUV completes its pre-planned path, it will return to the surface along with the collected data. This method is ideal for detecting and mapping MPs in open ocean environments at specific depths. The above process is consistent with the dual driver system [33,34,35]. More details about the Explorer AUV can be found in a number of published studies [26,36,37,38,39,40,41]. However, as of today, very few commercially in situ MP detectors are available that are mature, stable, and accurate enough to be deployed on an AUV. Therefore, it is imperative to review the existing MP detection technologies and explore the possibility of using an AUV as a platform for MP monitoring.

3. Research Methodology

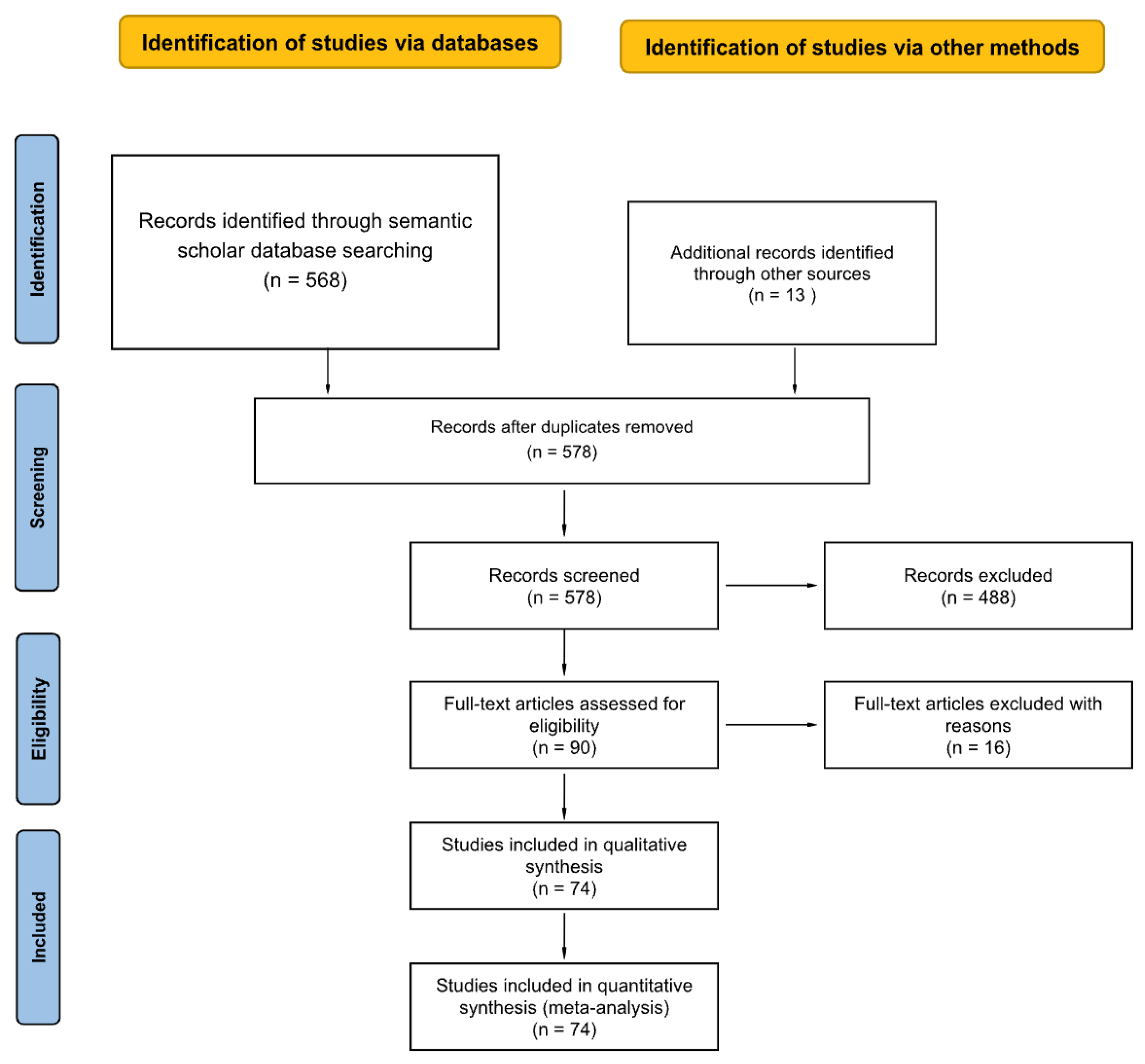

This paper uses PRISMA guidelines to review MP detection, AUV-based MP, and AUV-based plastic detection methods. The PRISMA statement is a set of evidence-based guidelines designed to help authors transparently report systematic reviews and meta-analyses [42,43,44,45,46,47,48,49,50,51]. As shown in Figure 4, the PRISMA flow diagram illustrates the screening process.

3.1. Identification

The preliminary phase of this research included a thorough search for pertinent literature. This study used the Semantic Scholar platform for literature query, which is a free AI research tool for collecting scientific papers. Semantic Scholar provides open API access and a wide range of disciplines, including computer science (e.g., robotics and AI) and environmental sciences, making it a useful tool for interdisciplinary literature searches. A Python (v3.12) program was developed using the Semantic Scholar API to automatically search related papers systematically. Three groups of keywords were used: [“AUV,” “Microplastic”], [“AUV,” “Plastic”] and [“Microplastic,” “Detection,” “Method”]. Keywords were needed to be included in the title and abstract of the paper. In addition to the automated results (568 records), other related papers were added manually as a complement (13 records).

As a result of the various stages of routine search, a total of 581 document records were produced. After removing 3 duplicates, 578 papers remained for further analysis. This search strategy was delivered to encompass literature from an AUV perspective on the detection of MPs, reviewing the literature with MP detection methods and the literature on detecting plastic from an AUV, which may be extended for MP monitoring and detection.

3.2. Screening

A filtering process was applied to narrow the pool of 578 documents. The first filter was the publication venue (i.e., source title, including journals and conference). Any documents with venues matching the list of reputable publications, illustrated in

Table 2. Filtered journals and conference sources considered for review.

Venue Name/Source Title
Nature
Drones
Sensors
Science
Talanta
IEEE Access
IEEE Sensors Journal
IEEE Internet of Things Journal
IEEE Journal of Oceanic Engineering
IEEE/OES Autonomous Underwater Vehicles
IEEE Transactions on Neural Networks and Learning Systems
Nature Communications
Environmental Pollution
Marine Pollution Bulletin
Science of the Total Environment
Communications Earth & Environment
Environmental Science and Technology
Frontiers in Ecology and the Environment
International Journal of Intelligent Robotics and Applications

, were kept. This step helped ensure the quality of the selected literature, and the corpus was reduced to 151 documents. Next, due to the large number of papers after the automatic search, all papers with fewer than six citations were filtered out, and the dataset was further reduced to 90 documents.

3.3. Eligibility

The analysis focused on the 90 papers identified through the review. However, 16 were excluded in the eligibility review stage. Of these 16 exclusions, 1 was not accessible, 1 was not in English, and 14 were excluded, as they were not related to the research topic. After these exclusions, 74 papers remained, comprising the primary dataset for the subsequent analyses.

Table 3. Papers included for AUV-based detection of plastics and MPs.

Cited	Year	Authors	Cited	Year	Authors
[52]	2023	Thevar et al.	[53]	2019	Rahmati and Pompili
[54]	2022	Zocco et al.	[55]	2022	Wang et al.
[56]	2021	Hong et al.	[57]	2023	Corrigan et al.

,

Table 4. Papers included for approaches of MP detection.

Cited	Year	Authors	Cited	Year	Authors
[22]	2022	Huang et al.	[58]	2020	Materić et al.
[59]	2020	Xu et al.	[60]	2018	Eisentraut et al.
[61]	2020	Ribeiro et al.	[62]	2017	Erni-Cassola et al.
[63]	2021	Dey et al.	[64]	2019	Wright et al.
[65]	2016	Sgier	[66]	2019	Wiggin et al.
[67]	2025	Nihart et al.	[68]	2021	Zhang et al.
[69]	2020	Kaile et al.	[70]	2020	Witzig et al.
[71]	2021	Ye et al.	[72]	2021	Baruah et al.
[73]	2023	Rathore et al.	[74]	2021	Evans et al.
[75]	2023	Xie et al.	[76]	2020	Maxwell et al.
[77]	2021	Aragaw et al.	[78]	2020	Müller et al.
[79]	2019	Wagner et al.	[80]	2020	Sancataldo et al.
[81]	2023	Giardino et al.	[82]	2022	Weber et al.
[83]	2024	Guselnikova et al.	[84]	2022	Li et al.
[85]	2022	Xiang et al.	[86]	2019	Hahn et al.
[87]	2022	Ateia et al.	[88]	2019	Leed et al.
[89]	2021	Lechthaler et al.	[90]	2023	Li et al.
[91]	2021	Liu et al.	[92]	2022	Jin et al.
[93]	2023	Ece et al.	[94]	2023	Du et al.
[95]	2023	Liu et al.	[96]	2022	Cingolani et al.
[97]	2023	Phan et al.	[98]	2022	Park and Ahn
[99]	2024	Canga et al.	[100]	2022	Ouyang et al.
[101]	2024	Du et al.	[102]	2021	Shahani et al.
[103]	2022	Chun et al.	[104]	2024	Rede et al.
[105]	2024	Liu et al.	[106]	2024	Faramarzi et al.
[107]	2025	Rivera-Rivera et al.	[108]	2023	Willans et al.
[109]	2024	Zhang et al.	[110]	2020	Kanyathare et al.
[111]	2019	Zhang et al.

and

Table 5. Papers included via manual search.

Cited	Year	Authors	Cited	Year	Authors
[11]	2024	Li et al.	[112]	2020	Sierra et al.
[113]	2024	Sarker et al.	[114]	2020	Biermann et al.
[115]	2016	Frere et al.	[116]	2015	Song et al.
[117]	2023	Motalebizadeh et al.	[118]	2019	Asamoah et al.
[119]	2018	Zubkov et al.	[120]	2015	Löder et al.
[121]	2021	Tata al.	[122]	2023	Sarker et al.
[123]	2020	Lorenzo-Navarro et al.

reveal that a total of 74 papers were published from 2015 to 2025. The topics of MP detection based on AUVs, plastic detection via AUVs, and MP detection methods were included in the review.

4. Results Overview

4.1. Bibliometric Analysis

4.1.1. Trends in Scientific Production

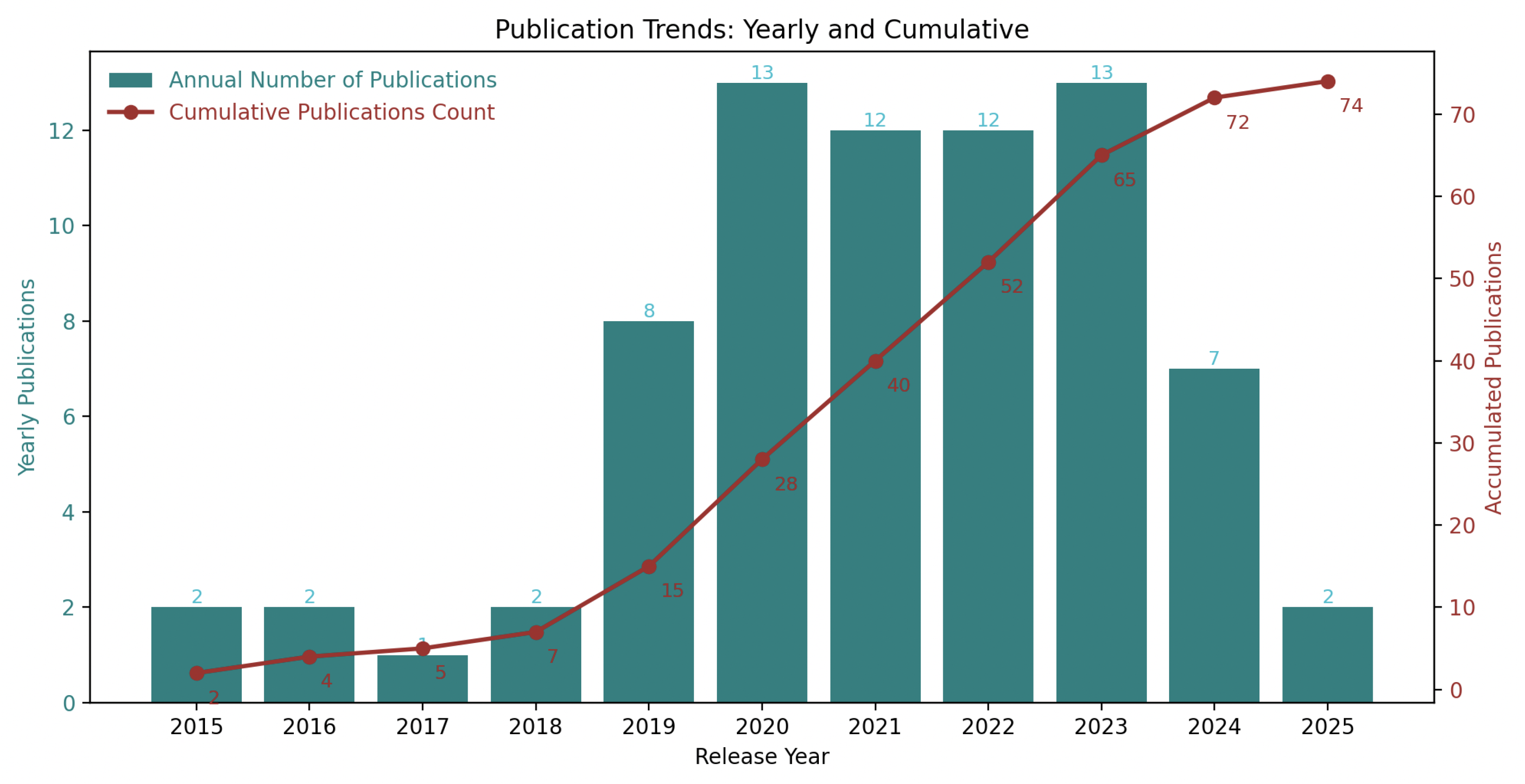

The annual and cumulative number of publications from 2015 to 2025 are shown in Figure 5. The yearly and cumulative publication numbers are shown above the bar graph (green) and below the line graph (red). A peak in publications occurred between 2020 and 2023. Although there was a decline in publications in 2024 and 2025, this could reflect natural fluctuations, and since 2025 is still ongoing, the long-term trend is still uncertain.

4.1.2. Analysis of Publication Sources

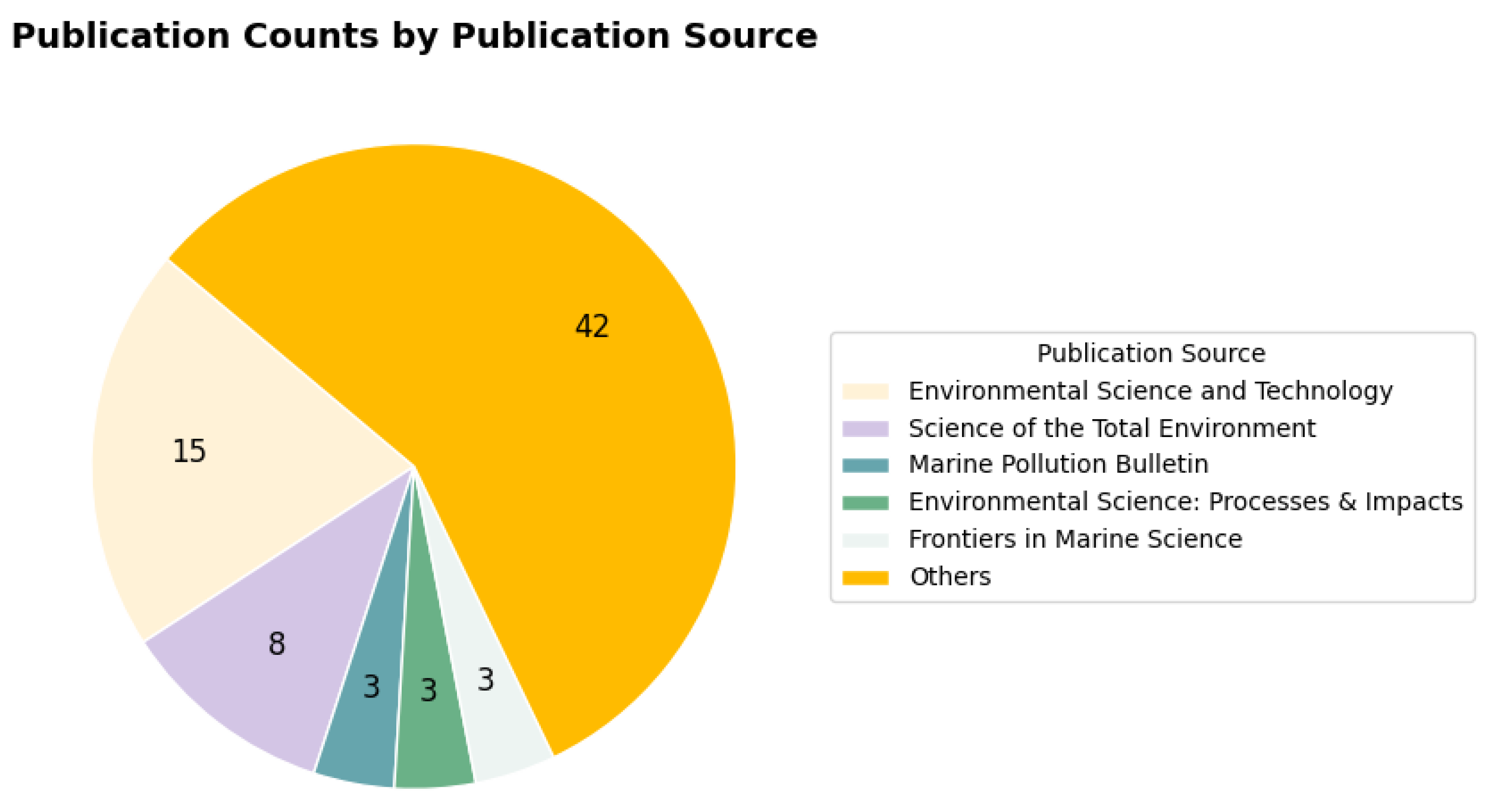

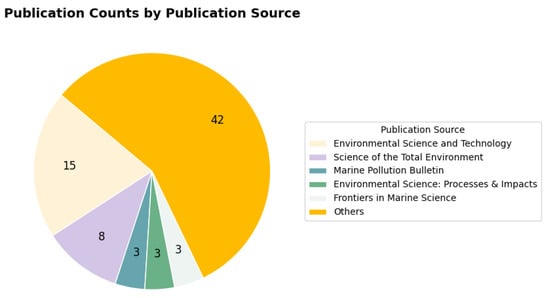

The total number of publications grouped by journal is shown in Figure 6. If at least three papers are published in a given journal, the journal is identified here. Otherwise, the journal is classified as “Other”. More than half of the papers belong to the “Other” classification, which contains 42 articles. The second largest category is Environmental Science and Technology, with 15 publications. Science of the Total Environment contains eight articles. Marine Pollution Bulletin, Environmental Science: Processes & Impacts, and Frontiers in Marine Science have three papers each.

4.1.3. Top Cited Publication Sources

The top 10 most heavily cited journals are shown in

Table 6. Top cited journals with year ranges.

Source Titles	Total Citations	Year Start	Year End
Environmental Science and Technology	1563	2017	2023
Marine Pollution Bulletin	809	2015	2019
Environmental Chemistry	528	2015	2015
Scientific Reports	312	2020	2024
Science of the Total Environment	242	2019	2024
Environmental Science and Technology Letters	186	2018	2018
Environmental Science and Pollution Research International	164	2021	2023
Nature Communications	117	2016	2024
Frontiers in Marine Science	113	2020	2022
Oceanology	112	2018	2018
Environmental Science: Processes & Impacts	89	2020	2022

. Environmental Science and Technology is markedly the most cited at 1563 citations, proving the journal’s authority in this field. Following are Marine Pollution Bulletin with 809 citations, Environmental Chemistry with 528 citations, Scientific Reports with 312 citations, and Science of the Total Environment with 242 citations. The reviewed documents come from various sources, not concentrated in a single journal. Overall, the quality of the materials reviewed is relatively high. In terms of time frame, the literature was published within 10 years, which means that the research in this technical field is highly timely and cutting-edge.

4.2. Emerging Advances in Detection Techniques

4.2.1. AUV-Based Detection of Plastics and MPs

Target identification is vital for the recognition of plastic debris and to improve their detection in marine environments using AUVs. For example, Corrigan et al. (2023) and Zocco et al. (2022) applied neural network models in combination with standard cameras to automate the detection of underwater plastic litter [54,57]. However, extending these approaches to MP detection is unsuitable because MPs are extremely small. Rahmati and Pompili (2019) [53] developed an efficient method for video data sharing among underwater autonomous vehicles enabling the collaborative reconstruction of marine litter maps jointly. Wang et al. (2022) [55] applied neural network algorithms (YOLOv5-series) for detecting plastic debris and fishing nets by training on underwater sonar imagery. Hong et al. (2021) [56] proposed a workload distribution architecture allowing multiple AUVs to cooperatively perform marine plastic cleanup, providing robust and adaptive task allocation under persistent difficult communication environments. Tata et al. [121] developed an effective method for ocean plastic detection through neural network algorithms, yielding commendable real-time accuracy. However, it did not cover how to detect MPs.

Thevar et al. (2023) [52] developed a lightweight system called weeHoloCam, which is compatible with AUV platforms and employs a holographic imaging technique to detect fine particles in marine environments. A holographic camera reconstructs three-dimensional images of particles via interference patterns of light waves to acquire images from a distance using weeHoloCam. It is a good option for in situ analysis to obtain particle images in a marine environment. However, there are still challenges to overcome. The amount of intense computing required to reconstruct holographic images is very high. AUVs have limited power supplies and computing capabilities to support the analyses. If these limitations can be overcome, holographic camera systems have great potential as autonomous monitoring systems for MPs in marine environments.

4.2.2. Approaches of MP Detection

There are many methods for the detection of MPs. Early methods mainly relied on the naked eye and microscopes to observe particles’ size, shape and color. Fluorescence, spectral, thermal analysis, sensors, and in situ detection methods are also used to detect MPs. Many scholars have reviewed MP detection technology [63,71,72,77,85,87,88,92,99,103,124]. For instance, Dey et al. (2021) [63] summarized the advantages and disadvantages of multiple MP detection methods, including using naked-eye inspection, stereomicroscopy or Scanning Electron Microscopy (SEM) on morphological identification, for example, size and color; using Scanning Electron Microscopy–Energy Dispersive Spectroscopy (SEM-EDS) [65], Polarized Light Microscopy (PLM), FTIR, Focal Plane Array-Fourier Transform Infrared Spectroscopy (FPA-FTIR), Raman spectroscopy or thermoanalytical techniques (for instance, Differential Scanning Calorimetry (DSC), Pyro-GC-MS, Thermogravimetric Analysis–Fourier Transform Infrared Spectroscopy (TGA-FTIR) and Atomic Force Microscopy–Infrared Spectroscopy (AFM-IR)) as composition-based analytical techniques; and using remote sensing methods to find MPs by satellite data as described by Biermann et al. [114]. Ye et al. (2021) [71] summarized various primary and auxiliary analytical methods of MPs and future development prospects in the marine and soil environments of the above methods.

Morphological-Based Analysis Methods

In the early days of MP research, there was no standard process to analyze such small particles. Manual detection of MPs is time-consuming and laborious. The methods of analyzing MPs include selective sampling, volume-reduced methods and taking samples from the water column [119]. The selective sampling method allows for the detection of MP particles from a beach’s surface with the naked eye. However, MP is often overlooked due to the small size of the plastic debris.

The four primary morphologically based MP detection methods are shown in

Table 7. Morphological-based MP detection methods.

Method Type	Techniques	References
Morphological-Based Analysis Methods	Optical Microscopy	[63,71,77,79,89,125]
	Stereomicroscope	[63,68,72,85,87,99,116]
	Fluorescence Microscopy	[62,83,85,99]
	SEM	[63,71,72,83,87,88,99,103,119]

. Light microscopy/optical microscopy is commonly used to identify the size and shape of MPs as described in other studies [63,71,77,79,89,125]. Stereomicroscopy [63,68,72,85,87,99,116] allows users to use surface-enhanced three-dimensional visualization to characterize the MP morphology further.

Fluorescence microscopy [62,83,85,99] uses fluorescent dyes such as Nile red to enable the identification of MPs and distinguish them from organic materials. SEM [63,71,72,83,87,88,99,103,119] is able to provide high-resolution images and analyze surface textures at the micrometer or nanometer level. These techniques are commonly used in laboratory studies and provide morphological details that help characterize MPs in the environment.

Fluorescence-Based Analysis Methods

Fluorescence detection protocols for MPs, including both traditional staining protocols and more advanced imaging methods, are presented in

Table 8. Fluorescence-based detection methods for MPs.

Method Type	Technique	References
Fluorescence-Based Analysis Methods	Nile red Stained	[62,66,69,72,76,80,81,82,92,99]
	Calcofluor white, Evans blue and Nile red Stained	[76]
	FLIM	[80,96]
	SR-CFM	[80]
	UV-Induced Fluorescence Imaging with Automated Software Analysis	[81]

. Fluorescence staining has emerged as the most commonly used technique for detecting MPs due to both the strong affinity of Nile red to the hydrophobic plastic surface and the amount of literature that supports its use [62,66,69,72,76,80,81,82,92,99].

Nile red staining effectively highlights MPs, distinguishing them from inorganic and some biological materials by binding to hydrophobic surfaces. However, it cannot reliably distinguish MPs from invertebrate debris [76]. Another detection method, Calcofluor white combined with Evans blue and Nile red, increases the detection sensitivity [76]. Fluorescence Lifetime Imaging Microscopy (FLIM) [80,96] generates contrast from the fluorescence decay time. Spectrally Resolved Confocal Fluorescence Microscopy (SR-CFM) [80] extracts spectral profiles from imagery to provide high-resolution information. Even more advanced methods, such as UV-induced fluorescence imaging with automated software analysis [81], allow for high-throughput MPs detection, with little manual labor.

Spectroscopic Component Analysis Methods

The various spectroscopic component analysis techniques that can be used for MP detection are shown in

Table 9. Spectroscopic component analysis methods for MPs.

Method Type	Technique	References
SpectroscopicComponent AnalysisMethods	FTIR	[22,63,71,72,79,85,86,87,88,92,95,99,103,115,116,119,120]
	µ-FTIR	[68,70,73,77,99,109]
	ATR-FTIR	[67,77,82,89,92,100,119]
	Reflectance-FTIR	[108]
	FPA-FTIR	[63]
	Raman	[62,63,64,71,72,75,84,85,87,88,97,99,100,103,106,115,119]
	µ-Raman	[70,77,92,99,109,126]
	SRS	[72]
	SERS	[59,83,101,103]
	THz	[71]
	AFM-IR	[63]
	HSI Methods	[71,111,127]
	SEM-EDS	[65,67,71,77,79,88]
	LDIR	[22,68]
	PLM	[63,112]
	Kramers–Kronig Analysis	[110]

. FTIR mainly detects plastic particles with a particle size of more than 20 µm and is not good at detecting weathered MPs [88]. FTIR [22,63,71,72,79,85,86,87,88,92,95,99,103,115,116,119,120], with µ-FTIR [68,70,73,77,99,109], Attenuated Total Reflectance–Fourier Transform Infrared Spectroscopy (ATR-FTIR) [67,77,82,89,92,100,119], Reflectance-FTIR [108], and FPA-FTIR [63] are predominantly used for polymer identification, as they produce molecular fingerprints.

Raman spectroscopy is a non-destructive, non-contact analytical method that can characterize the polymer composition of samples. Raman spectroscopy [62,63,64,71,72,75,84,85,87,88,97,99,100,103,106,115,119] and µ-Raman [70,77,92,99,109,126] are also popular due to having excellent spatial resolution, thus being very useful in identifying tiny particles. Raman spectroscopy relies on inelastic photon scattering and can be used to analyze MPs smaller than 20 µm and bigger than 1 µm [88]. Raman spectroscopy may not be able to distinguish between MPs and microadditive particles effectively [84]. Additive particles can interfere with MP detection, and alcohol treatment can successfully remove interfering particles, allowing for improvements in MP detection accuracy [84]. Compared to FTIR spectroscopy, Raman is more affected by autofluorescence from soil organic matter but is not easily interfered with by organic substances, and the detection process time is relatively short [88].

Stimulated Raman Scattering Spectroscopy (SRS) [72] microscopy can speed up the detection of MPs, but the short focal depth may cause image distortion. Surface-Enhanced Raman Spectroscopy (SERS) [59,83,101,103] can potentially enhance the sensitivity for trace detection due to its ability to yield enhanced Raman signals. Other emerging techniques relevant to MPs are Terahertz Spectroscopy (THz) [71] and AFM-IR spectroscopy [63], the method of choice for structural analysis at multiple wavelengths and high-resolution imaging. HSI [71,111,127] combines spatial information and spectral information to detect MPs efficiently, but it is relatively expensive to purchase this system. SEM-EDS [65,67,71,77,79,88] helps identify the shape and chemical elements of MPs, but it is time-consuming to analyze particles. LDIR [22,68] for automated screening requires sample preparation. PLM [63,112] cannot detect thick and opaque MPs. Kramers–Kronig [110] analysis allows for more advanced spectral analysis.

Löder et al. proposed a rapid and robust method for detecting enriched MP from environmental samples through Function Point Analysis, based on a Fourier-Transform infrared spectroscopy system for the first time [120]. This is exciting news, as it fills the gap in MP research and provides a faster method for monitoring MP based on its characteristics. However, it requires special devices and expertise, which drives up costs and makes it difficult to use on a large scale. FTIR system is the interferometer, an optical device crucial for transforming the time-domain signal into a frequency-domain spectrum. FTIR interacts with infrared radiation and molecular vibrations within an MP for detection purposes. Huang et al. (2022) [22] used FTIR and LDIR to analyze MPs and determine their size distribution in sputum samples. FTIR and Raman spectroscopy are the most common lab-based MP identification and quantification spectroscopic techniques. Conventional FTIR and Raman spectrometry involve several steps mentioned before. Raman Spectroscopy, compared to FTIR, performs better with non-polar polymers, small particles (<20 µm), MPs in aqueous samples, and higher spatial resolution. However, it involves greater time investment and human effort than FTIR for producing and interpreting data [115]. Some modern FTIR and Raman systems have built-in automated data analysis systems, saving sample analysis time. Xu et al. (2020) [59] operated SERS to detect individual micro and nanoplastics smaller than 1 $\mu$m, with detection capabilities reaching down to 360 nm in size. Here are other similar MP detection studies using Raman spectroscopy [64]. Zhang et al. (2019) [111] used the HSI method combined with Support Vector Machine (SVM) classification to enable rapid, reagent-free identification of MPs (>0.2 mm) in fish intestinal content with high accuracy and efficiency. However, the HSI system is high-cost, and the data processing is complicated. Nihart et al. (2025) [67] validate MPs and nanoplastics in human brain tissue using multiple approaches (including Pyrolysis–Gas Chromatography–Mass Spectrometry (Py-GC-MS), ATR-FTIR, and SEM-EDS). Witzig et al. (2020) [70] used µ-Raman, µ-FTIR, and Py-GC-MS to analyze and find MPs from the percolate of disposable gloves.

Thermal-Based Composition Analysis Methods

Five thermal analysis methods for the composition of MPs are shown in

Table 10. Thermal-based composition analysis methods for MPs.

Method Type	Technique	References
Thermal-BasedComposition AnalysisMethods	Py-GC-MS	[61,63,67,68,70,71,72,77,85,87,88,90,92,104,105,119]
	TED-GC-MS	[60,71,78,87,88,92,103]
	TD-PTR-MS	[58]
	TGA-FTIR	[63,103]
	DSC	[63,71,77]

. Py-GC-MS [61,63,67,68,70,71,72,77,85,87,88,90,92,104,105,119] is the most widely used thermal method due to its high sensitivity and ability to extract detailed polymer composition from complex matrices. Py-GC-MS has fewer restrictions on particle size, but the pretreatment is time-consuming [88]. Thermal Extraction Desorption–Gas Chromatography–Mass Spectrometry (TED-GC-MS) [60,71,78,87,88,92,103] allows the qualitative and quantitative identification of MPs with a short pretreatment time, and can be used to identify polyethylene, polypropylene and polystyrene in complex soil matrices, but currently only polyethylene can be quantitatively analyzed. Thermal Desorption–Proton Transfer Reaction–Mass Spectrometry (TD-PTR-MS) [58] allows for faster detection of MPs from environmental samples. TGA-FTIR [63,103] and DSC [63,71,77] are complementary methods that show thermal decomposition curves and transitions, allowing MPs to be identified. These techniques mainly use laboratory high-temperature instruments, suitable for analyzing micron-sized particles, and complex or mixed samples. Eisentraut et al. (2018) [60] used TED-GC-MS to identify and quantify MPs with rapid processing time, while eliminating the need for sample preparation. Ribeiro et al. (2020) [61] found MPs in commonly consumed fishery products, including crabs, shrimp and oysters, by the Py-GC-MS method. Materić et al. (2020) [58] adopted the TD-PTR-MS method for MP and nanoplastic detection, which offers high sensitivity and chemical fingerprinting capability for identifying and quantifying plastics in complex organic matrices at nanogram levels with complicated process.

Sensor-Based Analysis Methods

Various sensor-based approaches for MP detection are summarized in

Table 11. Sensor-based detection methods for MPs.

Method Type	Technique	References
Sensor-Based Analysis Methods	Portable Optical Sensor Combining the Measurement Principle of a Handheld Device and a CCD Camera	[118]
	Spaceborne Radar	[74]
	Plasmonic Sensors	[107]
	Fluorescence Biosensors	[107]
	Electrochemical Sensor Based on Graphene Electrode	[94,107]
	Remote Sensing Method	[114]

. Portable optical sensors combine handheld devices with a CCD camera to enable the in situ visualization for detecting translucent MPs in freshwater [118]. Spaceborne bistatic radar enables the large-scale detection of surface roughness changes linked to surfactants that signal MPs [74]. Optical techniques such as plasmonic sensors (including High-Performance Plasmonic Sensors [128]) and fluorescent biosensors have high sensitivity in complex media [107]. Electrochemical sensors using graphene electrodes provide strong signal responses for MP detection [94,107]. Electrochemical sensors enable real-time, low-cost detection but are prone to fouling. Some plasmonic sensors can work in seawater directly. Fluorescence biosensors have mainly been demonstrated in the laboratory but are adaptable for environmental monitoring [107]. Remote sensing methods also show potential for wide-area plastic identification based on spectral signatures [114].

Other Composition Analysis Methods

Other component analysis methods for MP analysis are shown in

Table 12. Other composition analysis methods.

Method Type	Technique	References
Other Composition Analysis Methods	LC-UV	[78]
	LC-MS/MS	[68,72]
	Microfluidics	[93,106]
	HPLC	[71,87,104]
	Flow Cytometry	[69]
	ML Enhanced Standard Webcam Detection	[113,122,123]
	ML-based Intelligent Detection with a Polarization Camera	[11,12]

. Liquid chromatography with ultraviolet detection (LC-UV) [78] has been used to identify additives and degradation products of MPs. Liquid Chromatography–Tandem Mass Spectrometry (LC-MS/MS) [68,72] has been used for high-sensitivity chemical analysis of plastic-derived chemicals, but sample processing is complex, and instrumentation is costly. MP detection and analysis based on microfluidic [93,106] systems is fast and easy to integrate with other technologies. However, there are too many system instability factors, and strict control conditions are required. High-Performance Liquid Chromatography (HPLC) [71,87,104] mainly characterizes polymer degradation products and additives. Flow cytometry [69] can quickly screen many samples in a short time, with a high degree of automation, but requires a complex sample pretreatment process. Research based on ML, including ML-enhanced detection using webcams [113,122,123] and ML-based intelligent detection using polarization cameras [11,12], can provide methods for the automatic real-time identification of MPs and reduce workload.

MP detection often uses a combination of multiple methods, and the results can be verified against each other. Erni-Cassola et al. (2017) [62] combined Nile red dye and green fluorescence microscopy to quantify MPs in the size range of 20 µm and 1 mm using Raman spectroscopy to validate that all fluorescing particles were synthetic plastics. This highly sensitive method is low-cost to detect smaller, low-density MPs. Zhang et al. (2021) [68] used stereomicroscopy, LDIR, µ-FTIR, LC-MS/MS and GC-MS to recognize and analyze MPs in mineralized landfill waste. Analytical chemistry techniques for MP detection include TED-GC-MS, Py-GC-MS, TD-PTR-MS based on fluorescence staining (including Nile red [66]). Kaile et al. (2020) [69] presented a method based on fluorescent dye combining flow cytometry (flow rate is 25 µL/min, and the minimum detection limit of MPs is 0.2 µm) for automated and scalable MP detection. While simplifying the workflow, the method still involved data preparation. Sarker et al. [122] introduced a methodology for detecting MPs in freshwater environments through neural network techniques combined with standard webcams. Regrettably, their work did not address certain unique complexities (e.g., strong ocean currents, high pressure, and low or lack of light conditions) associated with MP detection in oceanic settings. Javier et al. [123] conceived a system to calculate MPs in a controlled laboratory environment through computer vision techniques. Their approach predominantly relies on pre-cleaned MP samples and data acquired from outside of underwater settings. Based on the methods discussed above, it becomes evident that there is room for enhancing the accuracy of real-time MP detection in marine environments by optimizing neural network algorithms. Li et al. [11] developed a method using a polarization camera to intelligently detect MPs in flow rates ranging from 2 mL/min to 15 mL/min with good performance. However, the flow rate is too slow compared with the cruising speed of a free swimming AUV, which is often about 1.5 m/s (4050 mL/min with an inside cross-section of 5 mm × 9 mm). The method would have to be used on a hovering capable AUV that periodically stops to take samples at discrete intervals.

In Situ Analysis Methods

Recent in situ detection methods for MPs are outlined in

Table 13. In situ detection methods for MPs.

Method Type	Technique	References
In situComposition AnalysisMethods	Polarized Light Scattering Method	[91]
	Surface-Functionalized THz Microfluidic Metamaterials Combined with In situ THz	[98]
	Microfluidic Approach Combined with Surface Nanodroplets and Raman	[106]
	Portable Microfluidic Triboelectric Sensor	[117]
In situ Morphological	In situ Underwater Microscopy	[102]

and classified by type of analysis. Four methods of compositional in situ analysis exist: polarized light scattering, which enables non-contact, real-time MP detection in water, but accuracy can be affected by multiple factors [91]; surface-functionalized THz microfluidic metamaterials plus in situ THz (a rapid, real-time but volume-limited high-fabrication sensing method) [98]; surface nanodroplet microfluidic systems that allow Raman spectroscopy in single-particle in situ detection (but under complex microfluidic design) [106]; and portable microfluidic triboelectric sensors, which allow a real-time but low-cost capacity to develop in-situ MP detection but rely on the flow to be stable [117]. Morphological MP measurements are used for in situ underwater imaging microscopy, which allows direct visualization within fresh waters [102]. These examples of advances in optical detection and data processing capability, combined with improvements in imaging and computational capacity, suggest that capabilities for field-deployable monitoring technologies for MPs are progressing.

4.3. Analysis of Keyword Clusters

VOSviewer (v1.6.20) can be found at https://www.vosviewer.com, and was developed at Leiden University to construct and visualize bibliometric networks based on co-citation, bibliographic coupling, and co-authorship relations. VOSviewer provides mapping functions (including Network Map, Overlay Map, and Density Map) to visualize the structure of main topics or authors and trends or emerging interdisciplinary areas. In the VOSviewer software, adjusting the threshold (the minimum number of occurrences of a keyword) from 2 to 4 modified the cluster group number. The total keywords are 44 when the threshold is 2, and the number of clusters is 9. When the threshold becomes 3, the total number of extracted keywords drops from 44 to 18, and the number of clusters drops to 4 with lower link density. A threshold of 4 allows for 13 keywords, and the number of clusters is 4. A lower threshold can capture broad themes and more keywords, while a higher threshold contains more stable core clusters showing more frequent, connected, and dominant themes.

In this research, VOSviewer full counts were used to evaluate the co-occurrence of keywords in 74 papers with a limit of 2 occurrences. It was possible to extract 218 keywords, 44 of which met the threshold. The keywords with total link strength were investigated to identify core research topics. Here are more details about VOSviewer [129,130,131,132,133,134,135,136,137].

Table 14. Keyword clusters with total link strength and occurrences.

Description	Keywords	Total Link Strength	Occurrences
Cluster 1 (8 Keywords)	microbial	3	2
	pollutants	5	2
	polystyrene	2	2
	sediment	5	2
	sedimentation	4	2
	sewage	6	2
	sludge	5	2
	wastewater	9	4
Cluster 2 (7 Keywords)	aquatic	9	4
	debris	12	6
	detection	9	5
	marine	6	4
	ocean	4	2
	segmentation	5	2
	underwater	7	4
Cluster 3 (6 Keywords)	contaminants	4	5
	ftir	3	3
	mass spectrometry	5	2
	pet	3	2
	pollution	12	4
	polycarbonate	6	2
Cluster 4 (5 Keywords)	fluorescence	5	2
	holographic	4	2
	microplastic pollution	1	2
	microscopy	7	2
	polarization	4	2
Cluster 5 (5 Keywords)	contamination	7	2
	microplastic	64	26
	plastics	32	12
	polyethylene	30	8
	spectrometry	10	3
Cluster 6 (5 Keywords)	fish	7	2
	microplastics	95	47
	plastic	7	3
	raman	7	3
	spectroscopy	4	2
Cluster 7 (4 Keywords)	nanoplastics	21	8
	polymer	7	2
	polymers	11	3
	polypropylene	16	4
Cluster 8 (3 Keywords)	deepsort	5	2
	environmental monitoring	4	2
	yolov5	5	2
Cluster 9 (1 Keywords)	sensors	3	2

illustrates nine thematic keyword clusters. These clusters were derived from a co-occurrence and total link strength analysis. The number of occurrences refers to the number of documents in which the keyword appears, and the total link strength measures the cumulative strength of the co-occurrence links a keyword shares with other keywords, indicating how closely they are thematically connected in the dataset. Cluster 1 (i.e., “wastewater” 4 × 9) has a theme related to aquatic pollution; Cluster 2 (i.e., “debris” 6 × 12) also relates to detection in marine environments; Cluster 3 (i.e., “pollution” 4 × 12) focused on chemical analysis; Cluster 4 (i.e., “microscopy” 2 × 7) relates to optical imaging; Cluster 5 (i.e., “microplastic” 26 × 64) includes polymer characterization; Cluster 6 (i.e., “microplastics” 47 × 95) relates to bio-interaction and Raman detection; Cluster 7 (i.e., “nanoplastics” 8 × 21) refers to nano-scale polymers; Cluster 8 (i.e., “YOLOv5” 2 × 5) used AI-based monitoring; and Cluster 9 (i.e., “sensors” 2 × 3) highlights sensor technology as a cross-cutting theme across detection methods.

Co-occurrence analysis demonstrates that the nodes “microplastic” and “microplastics” are the most common and are associated with detection-related technologies (including Raman, microscopy, and sensors) and context areas of research (including wastewater, debris, and pollution). It also shows the association between analytical approaches and environmental monitoring topics. The extensiveness of this co-occurrence analysis also demonstrates that the center nodes connect across various research fields and help researchers identify gaps for future research. The analysis found various keywords, such as holographic, YOLOv5, and sensor, which reflect the existence of MP detection methods in the fields of imaging technology, neural network models, and advanced sensor technology.

4.4. Network Map

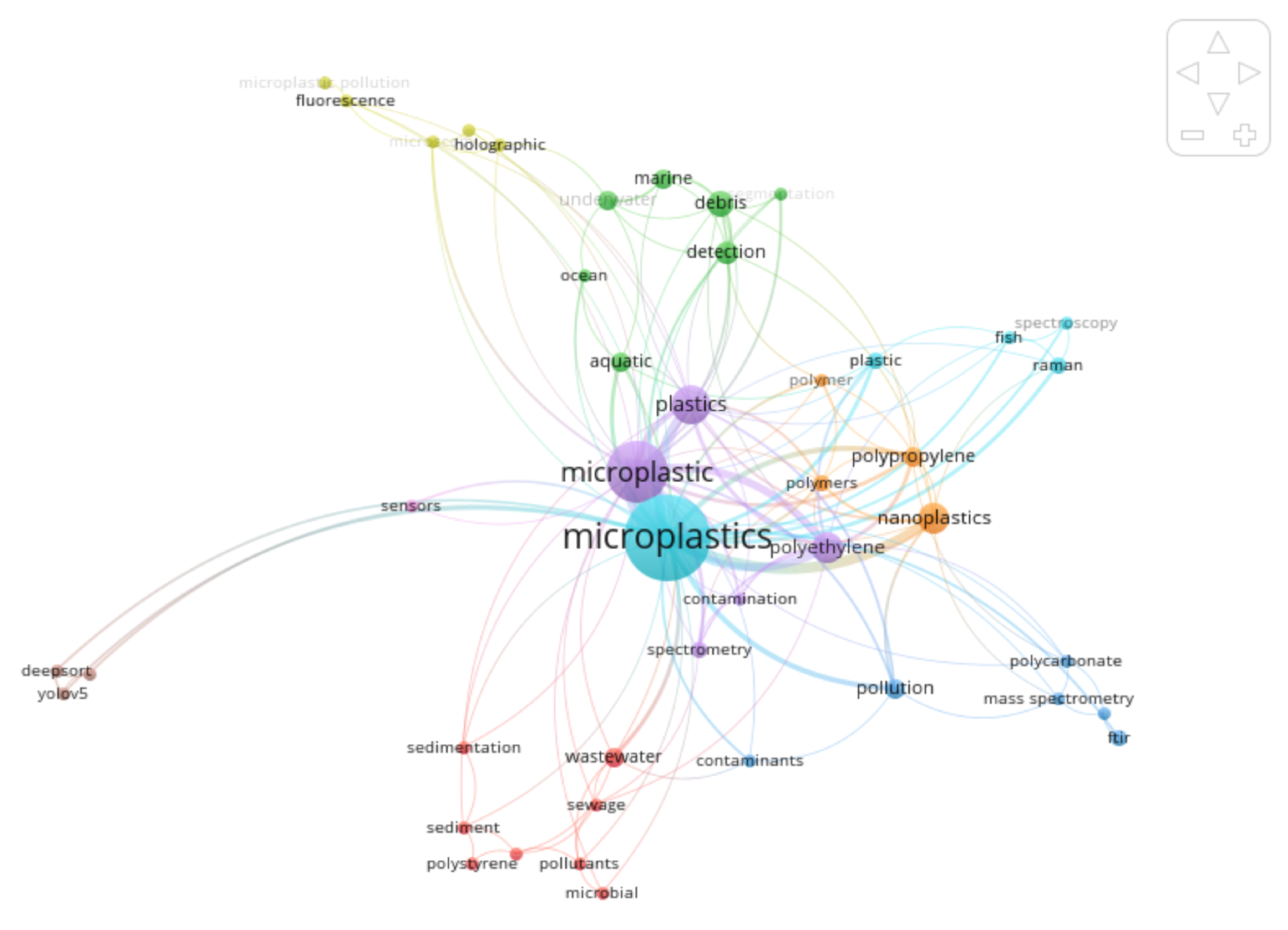

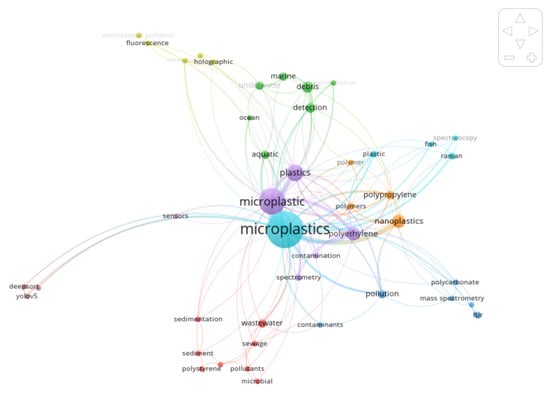

The following network visualization, generated by VOSviewer, is shown in Figure 7, which displays clusters of topics within MPs research. The network map was achieved by analyzing co-occurrences of keywords by maps, with size denoting frequency (weight), thickness showing the strength of co-occurrences, and colors representing different areas of research, for example, sources of pollution, types of polymer, detection methods, and AI-based monitoring.

4.5. Overlay Map

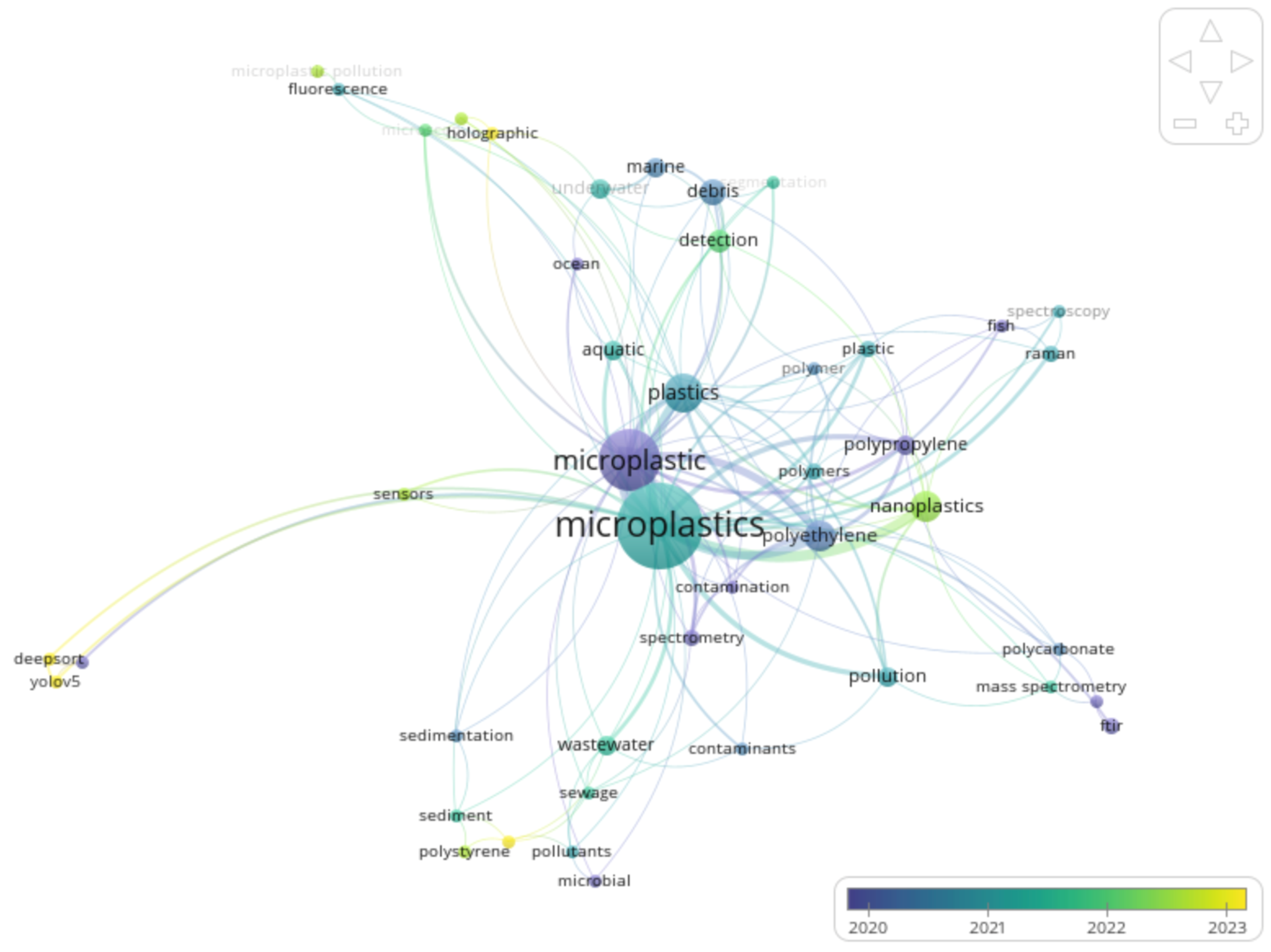

Figure 8 displays the thematic transformation of MP research from traditional analytical methods to emerging automated sensing technologies.

VOSviewer overlays visually display the co-occurrence of keywords in MP research, where node size indicates keyword frequency and link thickness indicates connection strength. The color gradient from purple (2020) to yellow (2023) shows the average publication year, revealing temporal trends. Common central terms like “microplastic” and “microplastics” are situated together with related topics like “polyethylene”, “pollution”, and “spectroscopy”. These grouped topics demonstrate the continued emphasis on material characterization and environmental pollution. The yellow-green nodes represent newer research focuses like “deep sorting”, “YOLOv5”, and “fluorescence”, indicating an emerging emphasis on AI-based detection and novel optical methods.

4.6. Density Map

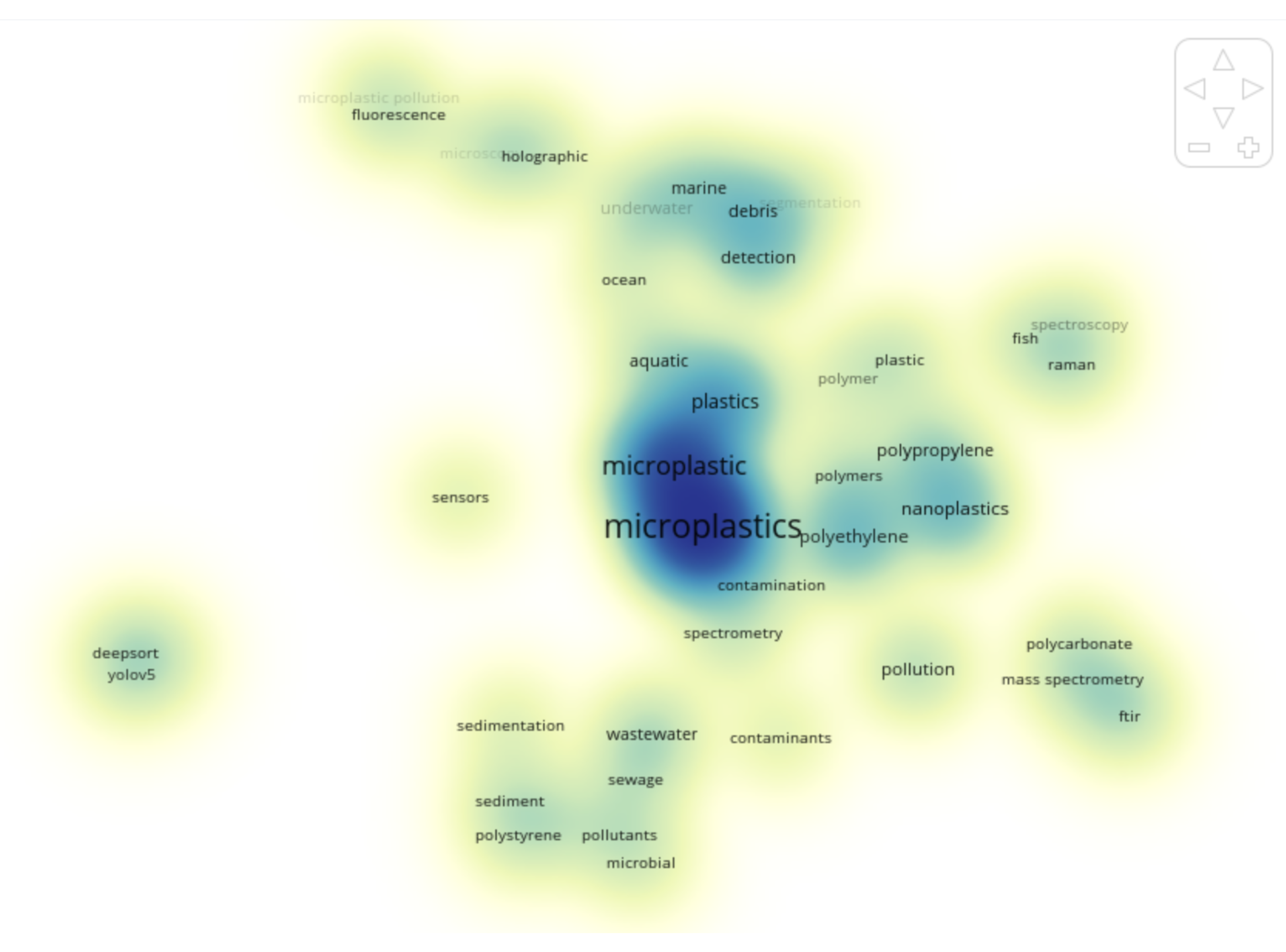

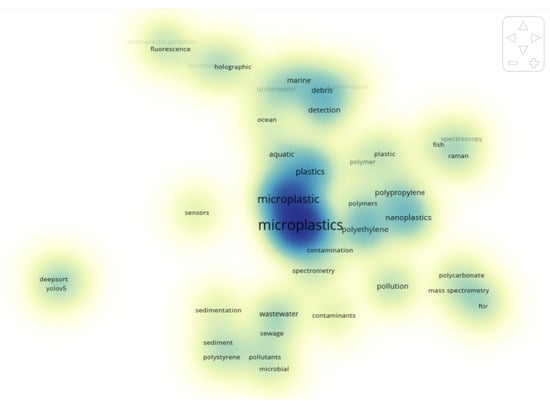

The density map in Figure 9 generated by VOSviewer visually displays the distribution and popularity of keywords within the MP research dataset, where each keyword is displayed as a dot.

The color intensity reflects the co-occurrence frequency and the strength of its connection with other keywords in the dataset. The darker blue areas (for example, some of the areas surrounding “microplastics”, “plastics”, and “polyethylene”) illustrate areas of active research stemming from the groupings of topics. The lighter yellow-green areas (for example, some of the areas surrounding “deep sorting”, “YOLOv5”, “sensors”, and “fluorescence”) represent areas that are emerging or have not been mentioned as much. This diagram highlights both prominent topics in the genre versus outlier or emerging areas of the genre. By including the disbursement of keyword density, insight can be gained into current and developing research directions within mainstream and developing areas.

5. Discussion

Most MP detection methods are laboratory-based, involving sample collection, sample pretreatment (for example, dilution), instrument-based measurement, or data analysis. Although these methods are valuable, they are also labor-intensive, take substantial time to analyze, and lack the automation to process information in real time and on site, which would limit their application on AUVs for the detection of MPs. There are various detection methods for plastic particles. We can choose the corresponding method according to the different detection objects, such as the ocean surface, the middle of the ocean, seabed sedimentation, and beach sedimentation. An AUV is a suitable tool for exploring and studying MPs in the middle and bottom of the seawater column. According to the known information, a gap exists in the scientific research areas that can be filled by using AUVs for real-time intelligent ocean MP detection.

Some exciting MP detection technologies that may apply to AUVs are shown in

Table 15. Potential AUV-based MP detection technologies.

Category	MPs Detection Method	Reference
Spectroscopy	HSI Methods	[71,111,127]
Sensors	Plasmonic Sensors	[107]
	Fluorescence Biosensors	[107]
	Electrochemical Sensor Based on Graphene Electrode	[94,107]
Others	Portable Optical Sensor Combining the Measurement Principle of a Handheld Device and a CCD Camera	[118]
	ML-Based Intelligent Detection with a Polarization Camera	[11,12]
In situ	Polarized Light Scattering Method	[91]
	Surface-Functionalized THz Microfluidic Metamaterials Combined with in situ THz	[98]
	Microfluidic Approach Combined with Surface Nanodroplets and Raman	[106]
	Portable Triboelectric Microfluidic Sensor	[117]
	In situ morphological analysis methods: Underwater Microscopy	[102]

. Those methods may be able to fill the gap mentioned above. As shown in the table, these promising technologies can be divided into three major categories: spectroscopy, sensors, others, and in situ techniques. HSI can detect semi-transparent MP in water environments and may achieve rapid, non-destructive chemical identification through spectral signatures, but it is expensive, requires substantial computational and power resources, and few researchers have tried integrating it into AUVs. Plasmonic sensors offer high sensitivity with proper configuration, label-free detection, strong multiplexing, and miniaturization potential. They can detect MPs in seawater without sample pretreatment. However, complicated instrumentation needs and limited validation in real marine environments limit their application to field MP detection. Fluorescent biosensors monitor MPs by measuring fluorescence intensity changes or emission wavelengths, which gives a high sensitivity. They are an emerging approach and are changing environmental monitoring. However, such sensors are still in the laboratory stages and require complex instrumentation and are subject to the possibility of fluorescent agent leakage due to the dynamic ocean environment.

Electrochemical sensors are portable, low-cost platforms that can be used for in situ analysis quickly and straightforwardly, with multiplexing capabilities for measuring different MPs. The potential for electrochemical sensors to be integrated into AUVs relies on their miniaturization possibility and low power requirements, which makes them well-suited for integration with microfluidic systems to achieve real-time monitoring. However, data processing is elaborate, and sample pH, ionic strength, matrix effects and surface/electrode fouling can interfere with detection accuracy. Portable optical sensors, handheld devices with a CCD camera for MP detection, combine the simultaneous measurement of specular laser light reflection and transmitted interference patterns from MPs. This method uses a photodiode to record reflection signals and a CCD camera to capture interference patterns, and allows the screening of MP (including PET and LDPE) type and size. Currently, the method detects transparent and translucent MPs.

The ML-Based Intelligent Detection with a Polarization Camera method works by simultaneously capturing holographic interference patterns and polarization states of light at four angles (0°, 45°, 90°, and 135°) to characterize the polarization state of scattered light from MP samples. The system offers multiple significant features, including no sample preparation, and the real-time monitoring, accurate detection, and automatic counting of MPs in aqueous environments. However, the detection speed is relatively slow, approximately 8 mL/min, and cannot currently be matched at AUV cruising speeds of 1.5 m/s. Polarized light scattering enables contactless MPs detection in water with long analysis times. Terahertz-based microfluidics metamaterial analysis offers rapid analysis but has constrained sample volumes due to equipment limitations. Surface nanodroplet microfluidics combined with Raman spectroscopy can have particle detection sensitivity down to the single particle level. However, they require sophisticated microfluidic devices. Triboelectric sensors have the potential to be low-cost, versatile, and rapid approaches for detecting MPs with a wide size range in real time, but the flow rate must be stable. Underwater microscopy provides a method for direct morphological observations but lacks the capability for component analysis.

Integrating these technologies into AUV platforms to conduct the MP detection task presents several engineering and operational challenges. High-resolution techniques like HSI require significant power, space, and computational capacity, usually exceeding the payload and energy budgets of general AUVs. Microfluidic and triboelectric sensors require a stable flow rate, which may be disrupted by vehicle movement. Furthermore, most MP detection devices in deep-sea environments typically require pressure-resistant housings and robust calibration procedures to maintain performance in high-pressure, low-temperature environments. Achieving real-time onboard analysis for imaging-based or spectroscopy-based detection is constrained by the limited computational resources of AUVs, which highlights the need for lightweight data-processing algorithms. Mounting heavy devices on an AUV can increase drag and alter buoyancy, reducing its endurance and maneuverability, and lighter devices are preferable. Addressing these constraints will be critical for transitioning laboratory-based MP detection methods into practical, field-ready methods for AUV usage.

6. Conclusions and Future Work

Based on the PRISMA method, this paper reports on a structured and systematic literature review of current MP detection methods. Semantic Scholar was used to retrieve information, and after deleting duplicates, screening and qualification assessment, 74 articles were finally obtained for analysis. Based on these articles, this study also conducted a bibliometric analysis of the number of papers, publication time, and the top 10 journals with the most citations in this field. Potential methods for detecting MPs that can be combined with an AUV for in situ detection are discussed. Several potential detection methods that may be combined with an AUV are summarized. However, there are still challenges in achieving a mature and stable MP sensor, which can be mounted on an AUV and can be used for in situ detection, including a few studies focusing on the design of in situ AUV MP detectors, limited research literature, and existing detection technologies requiring continued advancement.

Future research should focus on transitioning laboratory methods to small autonomous systems that can be deployed on AUVs and improving existing in situ MP detection methods. Some promising technologies, such as electrochemical and triboelectric sensors, can achieve real-time, low-cost monitoring, but issues like matrix effects exist. Plasmonic sensors are attractive due to their high sensitivity without pretreatment, but they need more field evaluation. Fluorescent biosensors show good promise for future environmental monitoring, but are still experimental. Current advanced spectroscopic techniques for MP detection (HSI and Raman microfluidics) have achieved exceptionally high accuracy, but need to be simplified and reduced in cost. ML also shows good promise in MP monitoring using optical techniques (such as with polarization cameras); however, given the AUVs’ operating speed and data processing capabilities, better use of ML and optimization algorithms is needed. More importantly, we can develop these technologies for in situ MP detection in complex and changing marine environments. Future research should strive to develop and improve detection technologies, make detection results more robust, and design more miniaturized and oceanic systems to enable the future field monitoring of MP.
