UAV-Based Landfill Land Cover Mapping: Optimizing Data Acquisition and Open-Source Processing Protocols

Abstract

Earth observation technologies offer non-intrusive solutions for monitoring complex and risky sites, such as landfills. In particular, unmanned aerial vehicles (UAVs) offer the ability to acquire data at very high spatial resolution, with full control of the temporality required for the desired application. The versatility of UAVs, both in terms of flight characteristics and on-board sensors, makes it possible to generate relevant geodata for a wide range of landfill monitoring activities. This study aims to propose a robust tool and to provide data acquisition guidelines for the land cover mapping of complex sites using UAV multispectral imagery. For this purpose, the transferability of a state-of-the-art object-based image analysis open-source processing chain was assessed and its sensitivity to the segmentation approach, textural and contextual information, spectral and spatial resolution was tested over the landfill site of Hallembaye (Wallonia, Belgium). This study proposes a consistent open-source processing chain for the land cover mapping using UAV data with accuracies of at least 85%. It shows that low-cost red-green-blue standard sensors are sufficient to reach such accuracies and that spatial resolution of up to 10 cm can be adopted with limited impact on the performance of the processing chain. This study also results in the creation of a new operational service for the monitoring of the active landfill sites of Wallonia.

1. Introduction

The volume of waste produced by human activity, and in particular by the construction and industrial sectors, is constantly increasing, with a volume exceeding 67 million tons of waste per year in Belgium [1]. The management, treatment, and recycling of these different types of waste is therefore a challenge for health, the environment, and the economy. Although the number of waste recycling channels is increasing, notably due to the prospects offered by enhanced landfill mining [2], the burial of waste in landfills is historically the primary solution and continues to be so for a series of specific wastes, which cannot be directly recycled or are considered hazardous. To reduce environmental impact, secure routine operation, and monitor compliance with imposed standards, landfill managers are subject to various obligations: control pollution levels (soil, air, and water, including biogas emission and odor nuisance, limit leachate leakage and diffuse pollution of waste due to light fractions spreading by wind, etc.), avoid mechanical instabilities (maximum slope angles), and control the landfill completion rate and the volumes of waste buried. For all these controls, ground survey solutions exist but are hampered by the complexity, danger, and size of the areas to be monitored.

Earth observation (EO), from satellite to Unmanned Aerial Vehicles (UAVs), is a proven technology for many of these control activities. The last decade has seen UAV technology adopt one of the most dynamic growth patterns in the aerospace sector [3]. The increasing payload and autonomy capabilities of UAVs contribute to the diversification of business applications, technology, and operations research. The miniaturization of EO sensors and the optimization and automation of data processing chains reinforce this observation. UAVs can be equipped with a growing range of single-band, multispectral or hyperspectral sensors operating in the visible, infrared, or microwave spectrums [4]. The cost benefits of UAVs for fine-scale environmental monitoring as an alternate to satellite or airborne platform systems is established as they are more flexible, mission specific, and versatile [5]. This is particularly true when the research focuses on a concise area (<1 km²) with a need for ultra-high resolution (sub-decimeter resolution) and/or with full control of the flight conditions (weather, cloud-free, revisit time, or acquisition properties such as viewing angle, height, path, etc.). In addition, offering the possibility of non-intrusive data collection, UAVs are particularly appropriate for the monitoring of complex sites with a high degree of risk (ground operation, dangerous terrain, etc.). Such case studies include the monitoring of engineering structures [6], construction sites [7], brownfields [8], quarries [9], agriculture fields [10], and forestry plots [11]. By verifying all these criteria, active landfills are particularly relevant study sites.

In their review about the use of drone technology in municipal solid waste management and landfilling, Sliuzar et al. [12] noted that the most mature field of application of drones on waste disposal sites is the analysis of its spatial properties. The photogrammetric pre-processing algorithms are efficient and allow for obtaining qualitatively comparable results to ground-based approaches (global navigation satellite system (GNSS) solutions) with a non-negligible saving of resources and reduction in risks. The second most studied field of application is the field of thermal and gas surveys to detect surface emissions or leaks in the biogas collection network. Despite suitable hardware design, this task remains difficult because of the spatial and temporal variability of emissions and the high dynamics of the air environment. Sliuzar et al. [12] highlighted that in addition to the effective spatial characterization of landfills by UAV data, the overall management of the site and the reduction in environmental impacts would benefit from new developments aiming at the automatic-type recognition of land cover (LC) features. The authors noted that machine learning (ML) and waste recognition algorithms are improving at a rapid pace [13], with new promising application from deep learning (DL) algorithms [14,15]. The review listed only one paper applying ML specifically to landfills for LC features extraction [16], but noted that the technological evolution of these techniques should lead to more publications in the near future.

Regarding the use of ML and DL techniques in the specific fields of waste management, Xia et al. [17] demonstrated their use and their relevance at all stages, from the generation of municipal solid waste to their recycling or landfilling. This review noted the growth of ML and DL publications in recent years with the prevalence of artificial neural networks (ANNs), DL such as convolutional neural networks (CNNs), support vector machine (SVM), support vector regression (SVR), and random forest (RF) methods. The authors listed only one publication applying ML to EO data: ANNs applied to thermal data for assessing and predicting landfill surface temperature [18]. This highlights once again the novelty of the use of EO data, including UAV, for the monitoring of landfill and specifically for LC features extraction.

Extracting automatically wall-to-wall LC maps from ultra-high-resolution data is indeed challenging [19]. Active landfills’ LC is usually very fragmented and LC change can be highly dynamic. It continuously evolves because of new deposits, earthworks, natural growth of vegetation, and rehabilitation activities. As such, automated classification methods are needed. When dealing with very high-resolution data, numerous studies conclude that object-based image analysis (OBIA) supervised classification is the most suited technique for LC mapping compared with pixel-based approaches [20,21]. OBIA approaches have the advantages of considering shape and texture properties in addition to spectral properties. Wyard et al. [16] successfully transposed the OBIA processing chain developed by Grippa et al. [22] to UAV data for the automatic LC classification of the Hallembaye landfill site (Wallonia, Belgium) reaching an overall accuracy (OA) of 80.5%. This open-source processing chain includes tools for unsupervised segmentation, its optimization, and multiple ML classification algorithms. Its original design is for city-scale to regional LC mapping using very high-resolution satellite data [22,23]. Beaumont et al. [24] and Bassine et al. [25] applied it to the classification of aerial orthophotos combined with normalized digital surface models (nDSMs). To our knowledge, this processing chain has only been applied twice to UAV data in addition to the work of Wyard et al. [16]. Wijesingha et al. [26] performed a binary classification of the invasive plant species Lupinus polyphyllus within grasslands from a red-green-blue (RGB) camera; Souffer et al. [27] classified visible and thermal UAV imagery for the automatic extraction of photovoltaic panels, obtaining an F-factor of 98.7%.

As a continuation of the work of Wyard et al. [16], this study has two objectives. Given the complexity of landfills and the high revisit rate desired in such application, the first objective is to provide guidelines on the necessary UAV flight characteristics (spatial and spectral resolution) required for the automatic multi-class LC mapping of such site. The second objective is to provide a robust and optimized open-source OBIA processing chain as automated as possible for the production of LC maps using UAVs data. The robustness of the processing chain presented in Wyard et al. [16] was first assessed by applying it to new datasets acquired over the same landfill site (Hallembaye, Belgium). The sensitivity of the results to segmentation approach, textural information, spectral resolution, spatial resolution, and contextual information were then assessed. It was indeed suggested that a better spectral resolution can improve class discrimination and that the segmentation approach as well as contextual information can also help to refine the results [16]. It was demonstrated that textural information has a significant positive impact on UAV image classification results [28]. In addition, the spatial resolution on the ground is crucial because it affects the objects that can be discriminated depending on their size, the UAV flight height and speed, and thus directly the area that can be covered and the amount of data to process.

Section 2 describes the characteristics of the Hallembaye landfills as well as the UAVs datasets acquired on this site. The description of the OBIA LC processing chain can also be found in Section 2. Section 3 starts by a presentation of the results for six series of experiments: robustness, sensitivity to segmentation approach, sensitivity to textural information, sensitivity to spectral resolution, sensitivity to spatial resolution, and sensitivity to contextual approach. Section 3 ends with an analysis of feature contribution from the best results. The results are discussed in Section 4 while the conclusions and prospects are presented in Section 5.

2. Materials and Methods

2.1. Study Area

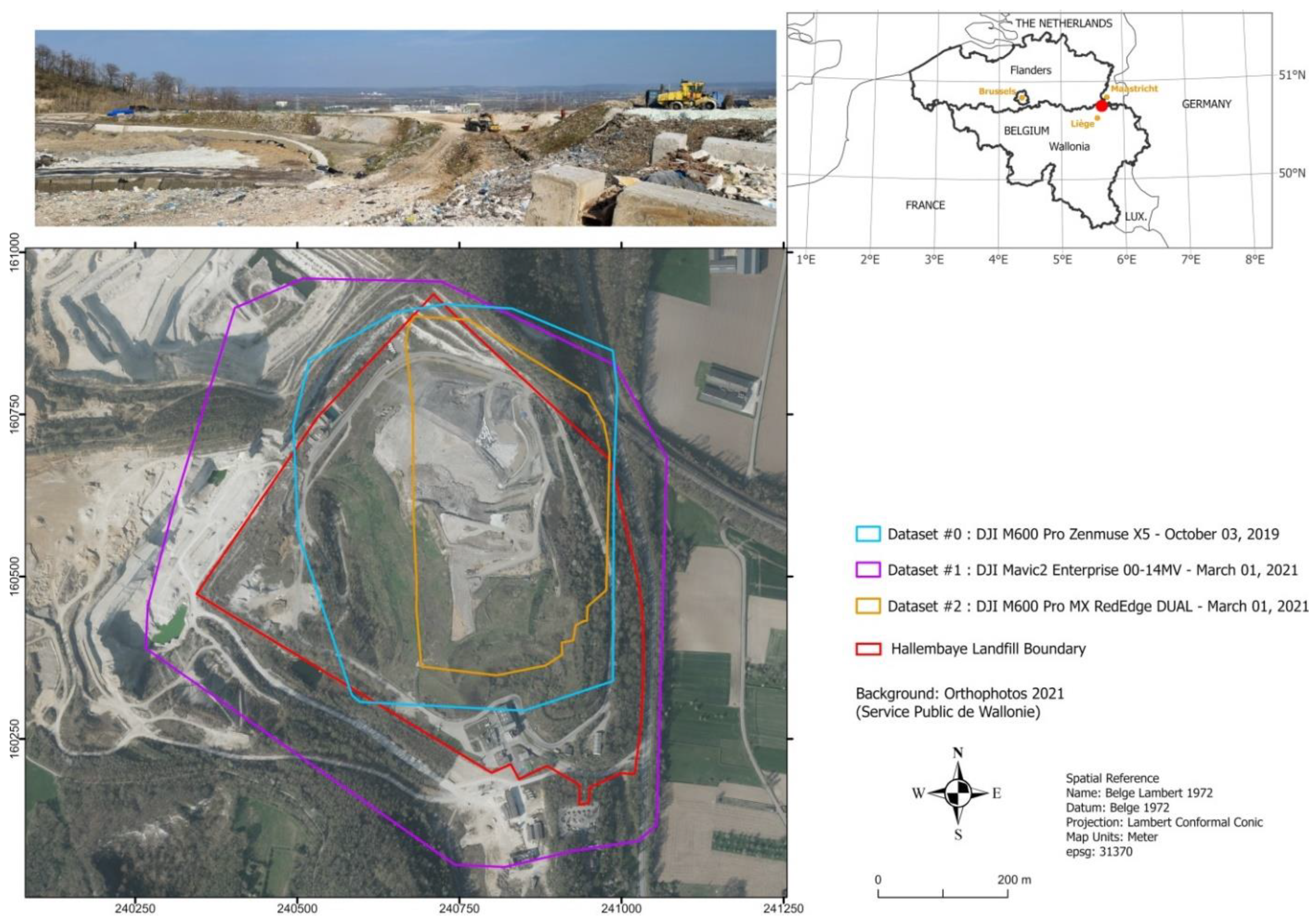

This research focuses on the landfill site of Hallembaye, located in the east of Wallonia (Belgium) less than 2 km from the Dutch border, on the Communes of Oupeye and Visé (Figure 1). The site covers an area of 31.4 ha. It has been operating since 1989 for the burial of household waste, non-hazardous and non-toxic industrial waste, inert waste, as well as residual waste from sorting centers. The landfill is characterized by areas in exploitation (active) and areas under temporary rehabilitation (passive), with a wide variety of LC objects. The Hallembaye landfill site is part of the dozen-site network in Wallonia submitted to the same exploitation and obligation protocols.

2.2. Data

Three UAV datasets were used in this study (

Table 1. UAVs datasets over the landfill of Hallembaye.

# Dataset	Date	Vector-Sensor	Height AGL [m]	Frontal-Side Overlap [%]	Camera Angle [°]	Spatial Res. [cm]	Spectral Res. [nm]	Coverage [ha]	# Images	# Flights
0	3 October 2019—11 h 53–12 h 36	Mavic DJI M600 Pro—DJI Zenmuse X5	90	80–70	70	2.8	Blue, green, and red	27.6	710	2
1	1 March 2021—11 h 36–13 h 14	DJI Mavic 2 Enterprise 00-14MV	90	75–75	70	3.8	Blue, green, and red	56.1	954	4
2	1 March 2021—13 h 32–14 h 32	Mavic DJI M600 Pro—Micasense RedEdge MX Dual Camera System	45	75–75	70	3.2	RedEdge MX: blue (center wavelength: 475 nm (bandwidth: 32 nm)), green (560 (27)), red (668 (14)), red-edge (717 (12)), and NIR channels (842 (57)). RedEdge MX Blue: aerosol (444 (28)), green (431 (14)), red (650 (16)), red-edge channels (705 (10), and 740 (18)).	15.2	25,862	2

). The two main datasets used in this study were acquired on 1 March 2021, using two vectors and two different sensors. The DJI^®® Mavic 2 Enterprise has a three-band true-color on-board sensor by default (Dataset #1) [29]. The MicaSense^®® RedEdge MX Dual Camera System embarked on the Mavic M600 Pro UAV provides spectral information in 10 wavelengths (Dataset #2) [30]. The RedEdge MX provides blue (center wavelength: 475 nm (bandwidth: 32 nm)), green (560 (27)), red (668 (14)), red-edge (717 (12)), and near-infrared (NIR) channels (842 (57)). The RedEdge MX Blue provides aerosol (444 (28)), green (431 (14)), red (650 (16)), and red-edge channels (705 (10) and 740 (18)).

To a lesser extent the classification results of a third dataset acquired on 3 October 2019 were exploited (Dataset #0; [16]). Its acquisition was performed using the DJI^®® Mavic M600 Pro hexacopter equipped with a DJI^® Zenmuse X5 [31]. This camera captures RGB information. For all three datasets, frontal and side overlap was set between 70 and 80% while camera angle was set to 70°. All flights were conducted from the top of the landfill for visibility reasons. In order to achieve the objectives of spatial resolution (between 3 and 4 cm) and overlap, the height above ground level (AGL) of 90 m (Datasets #0 and #1) and 45 m (#2) were defined in relation to the take-off point. As a result, and in view of the battery capacities, the following areas could be covered: 27.6 ha for Dataset #0, 56.1 ha for Dataset #1 and 15.2 ha for Dataset #2 (Figure 1).

The flight planner for Dataset #0 was Pix4DCapture [32], while DJI Ground Station pro ([33] was used for planning Datasets #1 and #2. Ground control points ((GCPs) 9 for Dataset #0 and 6 for Datasets #1 and #2) were used to improve the geometric accuracy of the photogrammetric processing. These GCPs were acquired using a Sokkia GRX1 global navigation satellite system (GNNS) receiver [34], which is compatible with the real time kinematic (RTK) technique and operates the permanent network of Walcors stations [35]. The accuracies in XYZ given by the device are lower than 1 cm. Images were radiometrically corrected and mosaicked using the Pix4D Mapper software v4.4.12. RGB orthomosaics and digital surface models (DSMs) were obtained for Datasets #0 and #1. The spatial resolution of the orthomosaics ranges between 2.8 and 3.8 cm. From Dataset #2, a 10-band orthomosaic characterized by a 3.2 cm spatial resolution was obtained.

This study mainly used Datasets #1 and #2 as input for sensitivity experiments on the OBIA processing chain described in the following sections (Section 2.3 and Section 2.4). To perform an objective comparison of the classification results, Dataset #1 was clipped to the extent of Dataset #2. This smaller area comprises a wide range of LC classes and includes active waste deposit areas. The classification results obtained from Dataset #0 in a previous work [16] were exploited for comparison with results obtained with the new classification results generated in this study from Dataset #1 and Dataset #2.

2.3. OBIA Processing Chain

The OBIA processing chain used to extract the LC of Hallembaye was based on the work of Wyard et al. [16]. They transposed and modified the open-source processing chain developed by Grippa et al. [22] to UAVs data. This processing chain was based on an integration of GRASS GIS and R within a Python programming environment. The code was implemented in a Jupyter Notebook. The modifications applied to the original work of Grippa et al. [18] included textural index calculation and implementation of feature selection through the classification optimizer presented by Georganos et al. [36]. The full flowchart of the processing chain can be found in the study by Grippa et al. [22].

2.3.1. Classification Scheme and Sampling

The variability in spatial coverages and LC change over time impact classification scheme and sampling strategy. A total of 11 classes were identified over the common dataset coverage (Figure 2).

These are green and dry vegetation, grey concrete roads and buildings, mostly spread over the passive area and surroundings of the site. Waste, black tarps, white tarps and three types of soils (embankments, classified according to their colors) are visible in the active area. These classes correspond to the LC generally observed on active landfills in Wallonia and other neighboring regions. However, the nature of the soil embankments may vary from one landfill to another, as well as the typology of the buried waste. This variation can also be observed over time, due to the strong dynamics of these sites. Wells and pipes are specific elements that are not included in our automatic classification tests. The site manager maintains geolocation files of these objects which allowed us to extract both classes from the UAV images. UAV data are valuable for updating these objects by manual digitalization. Samples were collected for the 9 remaining classes. A random stratified sampling was used to obtain a minimum of 100 points per class. Sample classes were identified through a visual interpretation. A total of 70 training points per class were considered for the training, the remaining samples were considered for the validation (

Table 2. Classification scheme and size of the training and test sets.

LC Class	Training Set Size	Test Set Size
Green vegetation	70	33
Dry vegetation	70	30
Waste	70	54
Grey bare soil	70	32
Brown bare soil	70	58
Black bare soil	70	98
Grey concrete roads and buildings	70	25
Black tarp	70	54
White tarp	70	41

).

2.3.2. Image Segmentation

The extraction of objects from raster data can be performed using various GRASS-GIS add-ons and strategies. For instance, the i.segment GRASS GIS add-on, which is based on a region-growing algorithm [37], can be applied to raster data. Object recognition is tuned by setting a segment minimum size and a ‘threshold’ representing the spectral similarity between adjacent segments. A threshold of 0 allows only identical valued pixels to be merged, while a threshold of 1 allows everything to be merged. The i.superpixels.slic (Simple Linear Iterative Clustering (SLIC)) GRASS-GIS add-on is another option. It creates superpixels using a k-means method, based on the work of Radhakrishna et al. [38]. This add-on divides the image into a number of compact and nearly uniform superpixels.

2.3.3. Object Statistics Computation/Feature Creation

For each segment, a wide range of statistics can be computed from the various raster provided as input. The available raster statistics are: minimum, maximum, range, mean, mean of absolute values, standard deviation, sum, sum of absolute values, variance, coefficient of variation, first quartile, median, third quartile, and percentile 90 statistics. Input raster can be optical bands, DSM and its by-products, and textural indexes computed from optical bands. The r.texture GRASS GIS add-on was implemented after the studies by Haralick et al. [39,40] and allows the computation of a few dozen texture indexes including angular second moment (ASM), contrast (CONTR), correlation (CORR), entropy (ENTR), difference variance (DV), inverse difference moment (IDM), sum average (SA), and sum entropy (SE). Raster statistics can be completed with the morphological attributes of the segments, namely: area, perimeter, compact circle, compact square, fractal dimension (fd), x coordinates (xcoords), and y coordinates (ycoords).

2.3.4. Classification

The classification stage was performed using v.class.mlR in GRASS GIS [41]. Classification performance is optimized through feature selection using the RF classifier [36]. Indeed, RF was shown to be highly accurate and stable with high-dimensional data which is the case in this study given the large variety of features that can be created (Section 2.3.3) [42].

2.3.5. Post-Processing

The resulting map was scanned by a convolutional square window of 7 × 7 pixels. The class value of the central pixel was replaced by the most frequently occurring class value in the neighborhood (modal filter). The size of the neighborhood was chosen by considering a minimum mapping unit (MMU) of 20 cm (image spatial resolution x neighborhood size = MMU). This operation was performed using the r.neighbors GRASS GIS add-on.

2.4. Experiments

To reach the objectives of this study, sensitivity experiments were carried out on Dataset #1 and Dataset #2 (Section 2.2).

Table 3. Overview of all sensitivity experiments performed in the framework of this study.

Experiment						Test Id	# Dataset	Input Raster	Segmentation Type and Parameters	OA [%]
Robustness	Segmentation	Texture	Spectral Info.	Spatial res.	Context Info
X						0 *	0	RGB + Slope + 8 texture indexes computed from a pseudo-panchromatic band *	i.segment, threshold = 0.06, minsize = 20 *	80.5 *
X	X	X	X	X		1	1	RGB + Slope + 8 texture indexes computed from a pseudo-panchromatic band *	i.segment, threshold = 0.06, minsize = 20 *	82.6
	X					2	1	Same as Test 1	Superpixel + i.segment	79.5
		X				3	1	RGB + Slope + 3 texture indexes (ASM, CONTR, SA) computed for each spectral band	Same as Test 1	78.8
		X				4	1	RGB + Slope + 5 texture indexes (ASM, CONTR, CORR, DV, SA) computed for each spectral band	Same as Test 1	79.8
		X				5	1	RGB + Slope + 8 texture indexes computed for each spectral band	Same as Test 1	80.0
		X				6	2	MX 10 Bands + Slope + 8 texture indexes computed from a pseudo-panchromatic band	Same as Test 1	80.0
		X				7	2	MX 5 Bands + Slope + 3 texture indexes (ASM, CONTR, SA) computed for each spectral band	Same as Test 1	80.9
		X				8	2	MX 5 Bands + Slope + 5 texture indexes (ASM, CONTR, CORR, DV, SA) computed for each spectral band	Same as Test 1	82.2
		X	X			9	2	MX 5 Bands + Slope + 8 texture indexes computed for each spectral band	Same as Test 1	82.4
			X			10	2	MX Blue 5 Bands + Slope + 8 texture indexes computed for each spectral band	Same as Test 1	82.8
			X			11	2	MX 10 Bands + Slope + 8 texture indexes computed for each spectral band	Same as Test 1	81.2
				X		12	1 **	Same as Test 1	Same as Test 1	79.7
				X		13 ***	1	Same as Test 1	Same as Test 1	88.5

* Test 0 on Dataset #0 was originally presented in Wyard et al. [16]; ** resampled to 10 cm; *** used xcoords and ycoords in the geometric attributes.

summarizes the tests performed and their main characteristics.

First, the robustness of the processing chain was assessed by applying it without modification to the new RGB Dataset (#1) in its native spatial resolution (3.8 cm), which was set with similar acquisition characteristics as Dataset #0 used by Wyard et al. [16]. Related tests are Test #0 and Test #1.

Second, the sensitivity of the processing chain to the segmentation approach was assessed. More precisely, two approaches were tested. On the one hand, a region-growing approach was applied. Objects were extracted from the multispectral data (either 3 or 10 bands) in their native spatial resolution by directly applying the i.segment GRASS GIS add-on. This first approach used the original version of the processing chain [16]. Then, a hybrid clustering approach was performed. A preliminary step of superpixel creation was performed using the i.superpixels.slic GRASS-GIS add-on and used as objects seeds for subsequent region growing with i.segment. The division of the image into a number of compact and nearly uniform superpixels provided useful clustering cues to guide image segmentation and accelerated the convergence of the region-growing algorithm (i.segment), which was then applied. Crommelinck et al. [43] tested the SLIC approach for the segmentation of 5 cm UAV data and concluded that “the approach is not suitable as a standalone approach for object delineation. However, it shows high potential for a combination with further methods”. The SLIC approach can indeed be used in combination with other algorithms or as a first step in image segmentation [44,45,46,47]. Such approach is noted to be more efficient than the region-growing approach especially from a computation time point of view (less time than traditional method). Wu et al. [46] combined the SLIC superpixel to the region-growing algorithm with satisfying results. For both approaches, parameters were determined by human eye assessment. Tests related to this experiment are Test #1 and Test #2.

Third, the sensitivity of the processing chain results to the textural information was assessed. In fact, textural information was proven to have a significant positive impact on UAV image classification results [28]. This was confirmed by Wyard et al. [16], who improved the classification OA by 10% by using eight textural indexed computed from a single pseudo-panchromatic band and by performing a feature selection. In this study, two approaches were tested to determine which one provided the best results for reasonable computation time. Texture computation is indeed very time-consuming (in our case, 1 h per textural index depending on the resources available). The first approach used a pseudo-panchromatic band (pseudo_panchro = 0.2989 × R + 0.5870 × G + 0.1140 × B) and the calculation of eight textural indexes on the latter (hereafter referred to the texture from one panchromatic band approach). The second approach consisted of the calculation of a variable number (3, 5, and 8) of textural indexes on the raw spectral bands (hereafter referred to the texture by spectral band approach). For both approaches a window of 15 pixels was set by experimentation. Tests were carried out on RGB Dataset #1 and 10-band Dataset #2 in their native spatial resolution using the best segmentation approach identified in the previous experiment. Tests related to this experiment are Test #1 (best result of previous experiment), Test #3, Test #4, Test #5, Test #6, Test #7, Test #8, and Test #9.

Fourth, the sensitivity of the processing chain to spectral resolution was assessed. The hypothesis was indeed raised that a better spectral resolution can improve class discrimination [16]. Results obtained for the three-band Dataset #1 were compared with results obtained for the 10-band Dataset #2 using the best texture combination identified in the previous experiment. The focus was on the precision by class. Tests used for this analysis are Test #1 (best result of previous experiment using the RGB dataset), #Test 9 (best result of previous experiment using the 10-band dataset), Test #10, and Test #11.

Fifth, the sensitivity of the processing chain to spatial resolution was assessed. The spatial resolution on the ground is crucial because it impacts the objects that can be discriminated depending on their size, the UAV flight height and speed, and thus directly the area that can be covered and the amount of data to process. For this purpose, Dataset #1 was resampled from its native resolution of 3.8 cm to 10 cm and the best configuration of the processing chain determined by the previous experiments was adapted to this coarser resolution. Namely, parameters were adapted to keep the same order of size. The result was then compared with the best results obtained from the processing chain using Dataset #1 in its native spatial resolution. The related tests are Test #1 (best result of previous experiment) and Test #12.

Sixth, the sensitivity of the processing chain to contextual information was evaluated. For this propose, Dataset #1 was used in its original spatial resolution, and xcoords and ycoords were added as features. The related test is Test #13. Results were then compared with the same test performed without contextual information (Test #1).

Tests #1 to #12 were performed using the same features. These features consist of the following raster statistics: min, max, range, mean, stddev, sum, variance, first_quart, median, third_quart; and the following geometric attributes: area, perimeter, compact_circle, fd. Test #13 used all these features, plus xcoords and ycoords in the geometric attributes.

3. Results

Table 3 provides an overview of results obtained during the sensitivity experiments that are described in Section 2.4. The OA of the different tests exhibits a 10% variation, from 78.8% to 88.5%, which is significant given the complexity of the task (a nine-class supervised classification) and the high OA which are already achieved. The following subsections analyze the results in detail by sensitivity experiment.

3.1. Robustness

Results confirm the robustness of the OBIA processing chain for the LC mapping of a landfill site using drone data. By applying this processing chain to a new RGB dataset (Test #1) and compared with Wyard et al. [16] (Test #0), results show close OA of 80.5% (Test #0) and 82.6% (Test #1) (Table 3). Test #1 OA is also significantly better than Test #0. It can therefore be concluded that the processing chain is robust and applicable to RGB UAV images taken at different dates. The only constraint is that the sampling must be checked from one dataset acquisition to another.

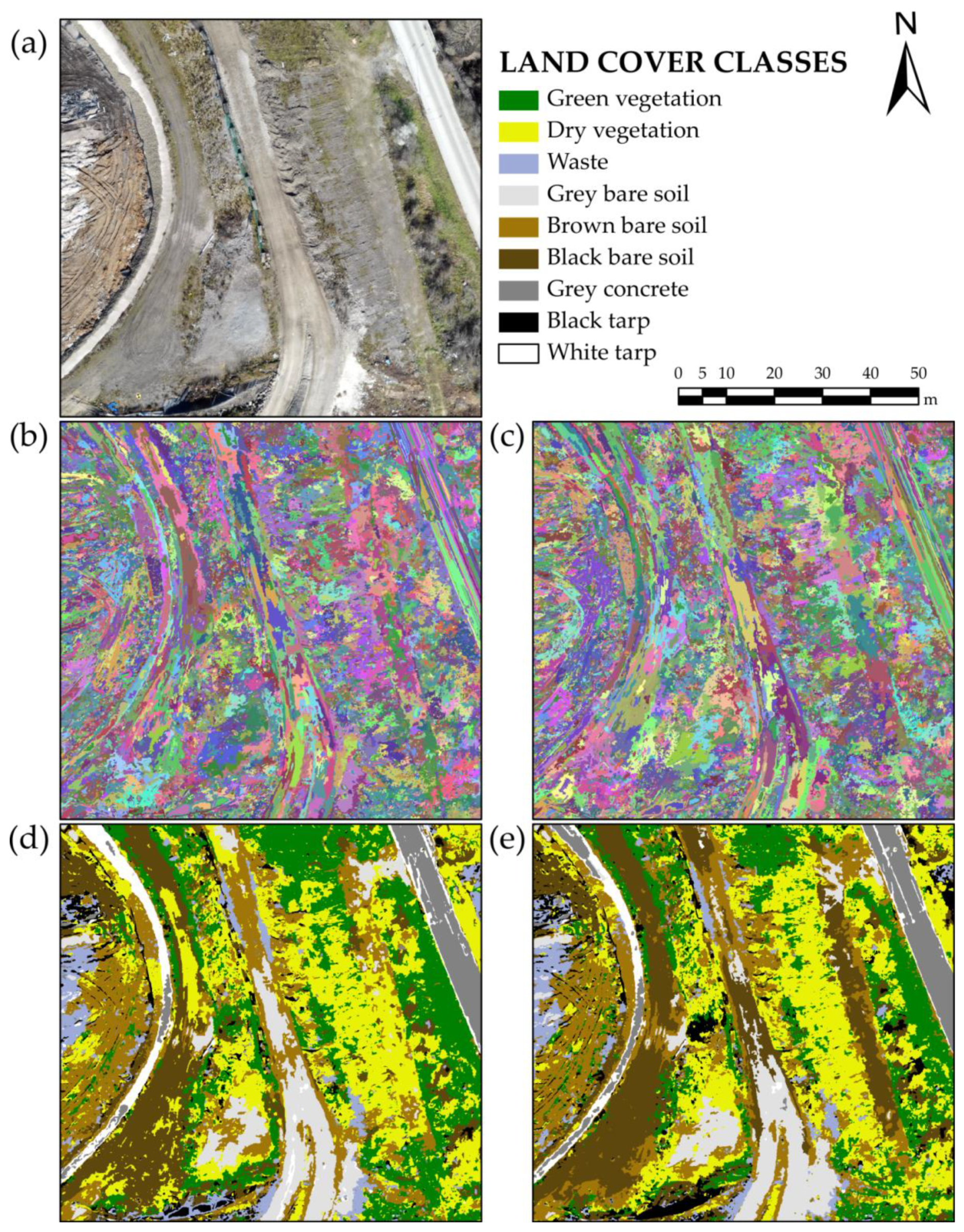

3.2. Sensitivity to Segmentation Approach

Both tested segmentation approaches (see Section 2.4. for details) provide consistent results but the direct application of i.segment remains the best compromise between computation time and performance. In fact, the results show that Test #1 has a significantly higher OA (82.6%) than Test #2 (76.7%) (Table 3). Figure 3 provides a visual comparison of both segmented images and classification results.

A significant drop in dry vegetation (−10.0%), brown bare soil (−8.4%), black bare soil (−9.5%), grey concrete (−10.2%), and white tarp (−11.0%) class precision explains the counter performance of Test #2 and is illustrated in Figure 3e. As expected, Test #2 allows for significantly reducing the segmentation computation time by 60% but requires two steps of manual parameter fitting instead of one for Test #1. The first segmentation approach is therefore considered the most relevant.

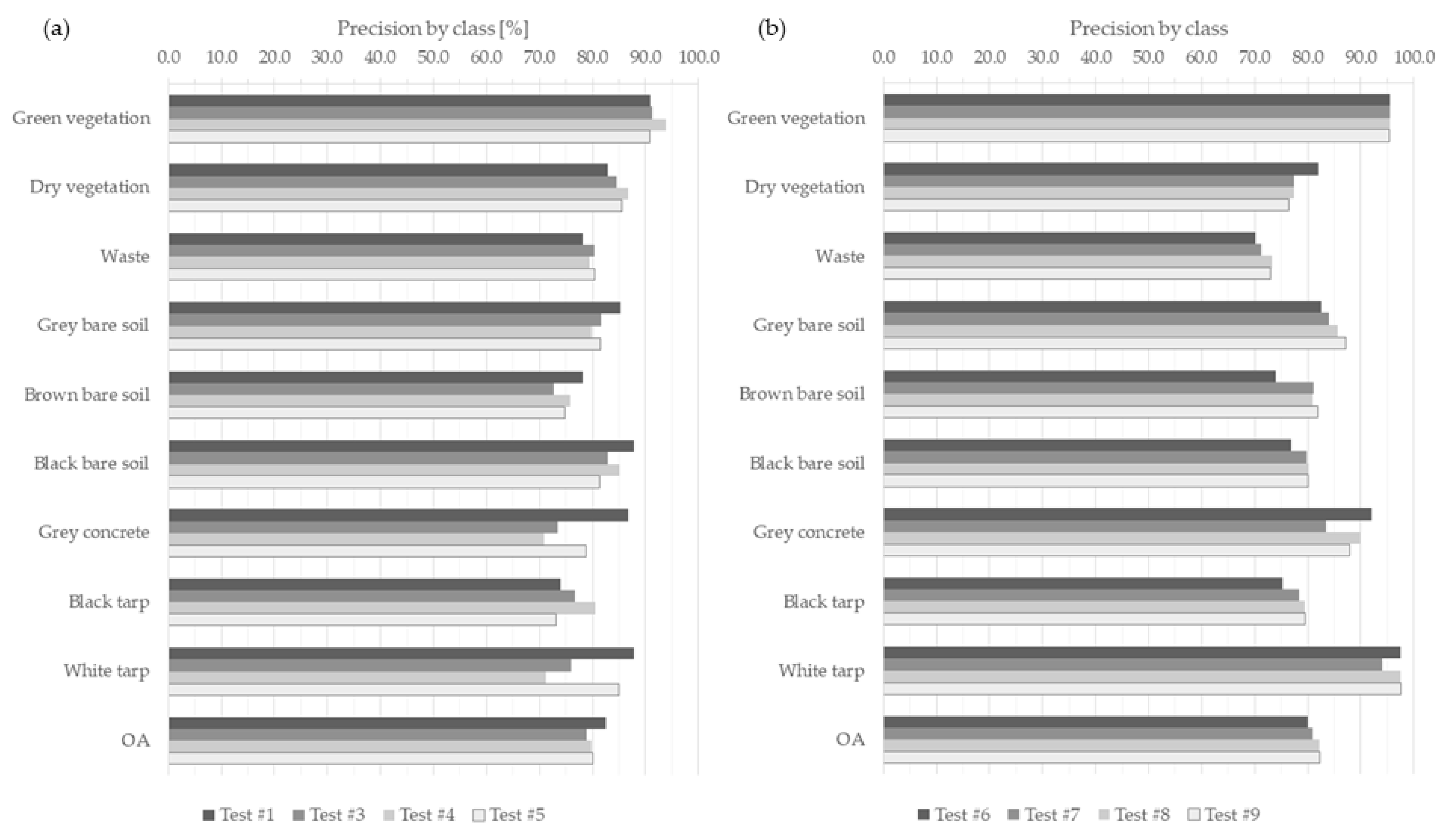

3.3. Sensitivity to Textural Information

Although the addition of textural information generally refines the classification results and influences the precision of certain classes, the new tested approaches do not outperform the original approach applied to RGB images by Wyard et al. [16]. However, the approach generating the best results varies following the spectral resolution of the dataset.

On the one hand, by comparing the texture by spectral band approaches (new approaches) performed on the RGB imagery (Dataset #1) (Test #3, Test #4, Test #5) to the texture from one panchromatic band approach (original approach) (Test #1), results show that the latter remains the best with OA peaking at 82.6% (Figure 4a). The OA of Tests #3, #4, and #5 are very close with values of 78.8, 79.8, and 80%, respectively (Figure 4a). Increasing the number of texture indexes allows for refining the classification results, especially when this number goes from three (Test #3) to five (Test #4) (+1%), which corresponds to the addition of DV and CORR. The addition of IDM, SE, and ENTR has a much more limited impact on classification results (Test #5). The addition of textural information generally benefits to all classes. By analyzing the precision by class, the texture by spectral band approach allows to refine the identification of green vegetation, dry vegetation, waste, and black tarp, which correspond to the most textured classes (Figure 2).

On the other hand, tests performed on the 10-band imagery (Dataset #2) show that contrary to the RGB imagery, texture by spectral band approaches are more indicative with OA peaking at 82.2% when eight textures per spectral band of the first RedEdge MX camera are used (Test #9) (Figure 4b). In fact, the use of a panchromatic band, and the calculation of textures on the latter produced OA of 80.0% (Test #6). On the contrary, the addition of up to eight textures calculated directly on the raw spectral bands contributes to the improvement of the OA. However, the texture from spectral band approach is very time consuming compared with the texture from one pseudo-panchromatic band approach, up to +900% in terms of processing time for a gain of about 2% in OA. As observed for the tests performed on the RGB imagery, the gain in OA is larger when the number goes from three (80.9%) to five (82.2%) than to five to eight (82.4%) (Test #7, #8, and #9 respectively).

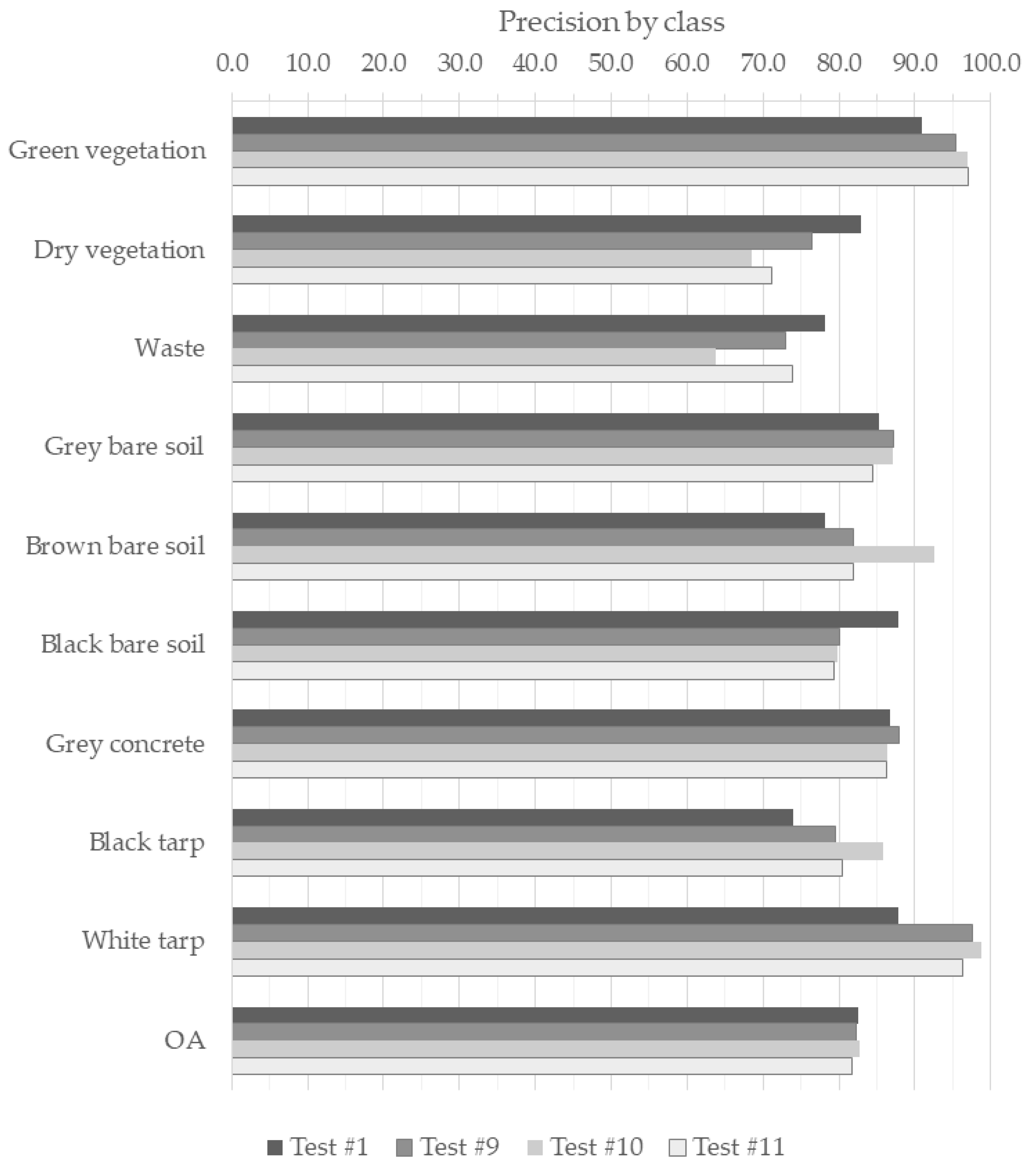

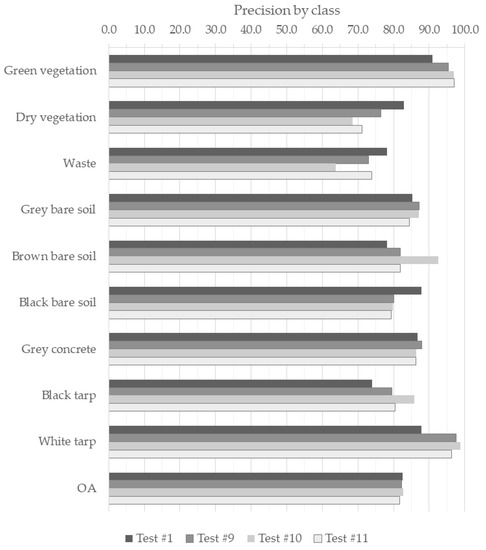

3.4. Sensitivity to Spectral Resolution

The results show that an RGB sensor allows for obtaining more comparable results than the 10-band sensor such as the RedEdge MX Dual Camera System although potential complementarities are identified. To reach this statement, several specific tests were carried out on the 10-band imagery (Dataset #2).

Classification results using either or both MX cameras together show limited changes in OA. Maximum OA (82.8%) was achieved using only the RedEdge MX Blue camera, offering two RedEdge bands (Test #10) (Figure 5).

Comparative analysis by class shows that the first MX camera (having one band in the RedEdge and one in the NIR) improves the classification of the dry vegetation and the waste matrix by about 10% compared with the MX Blue sensor (Test #9). In contrast, the MX Blue sensor improves the discrimination of grey bare soil and black membranes (Test #10). This may highlight the value of using the two sensors in separate classifications and crossing the results in post processing. Indeed, combining the 10 bands in the classification chain tends to average out these improvements, and results in a lower OA (81.2%) (Test #11).

In the end, the OA of the best results obtained from the 10-band imagery (i.e., the RedEdge MX Blue camera classification using eight textures, Test #10) is comparable to the best results obtained from the RGB imagery (i.e., three bands RGB, panchromatic band, eight textures, Test #1) with OA of 82.8% and 82.6%, respectively. It can therefore be concluded that for this LC mapping scheme applied to the Hallembaye landfill, an RGB sensor is sufficient. However, it should be noted that the addition of spectral information offered by the MX Dual camera contributes to improve the classification of brown bare soils by more than 14%, black tarp by almost 12%, white tarp by 11%, and green vegetation by 6%. On the other hand, the RGB classification performs better for dry vegetation and waste (more than 14% better for these two classes) and for black bare soils (by 8%). In total, the overall OA is not significantly different between these two tests, but potential complementarities are identified.

3.5. Sensitivity to Spatial Resolution

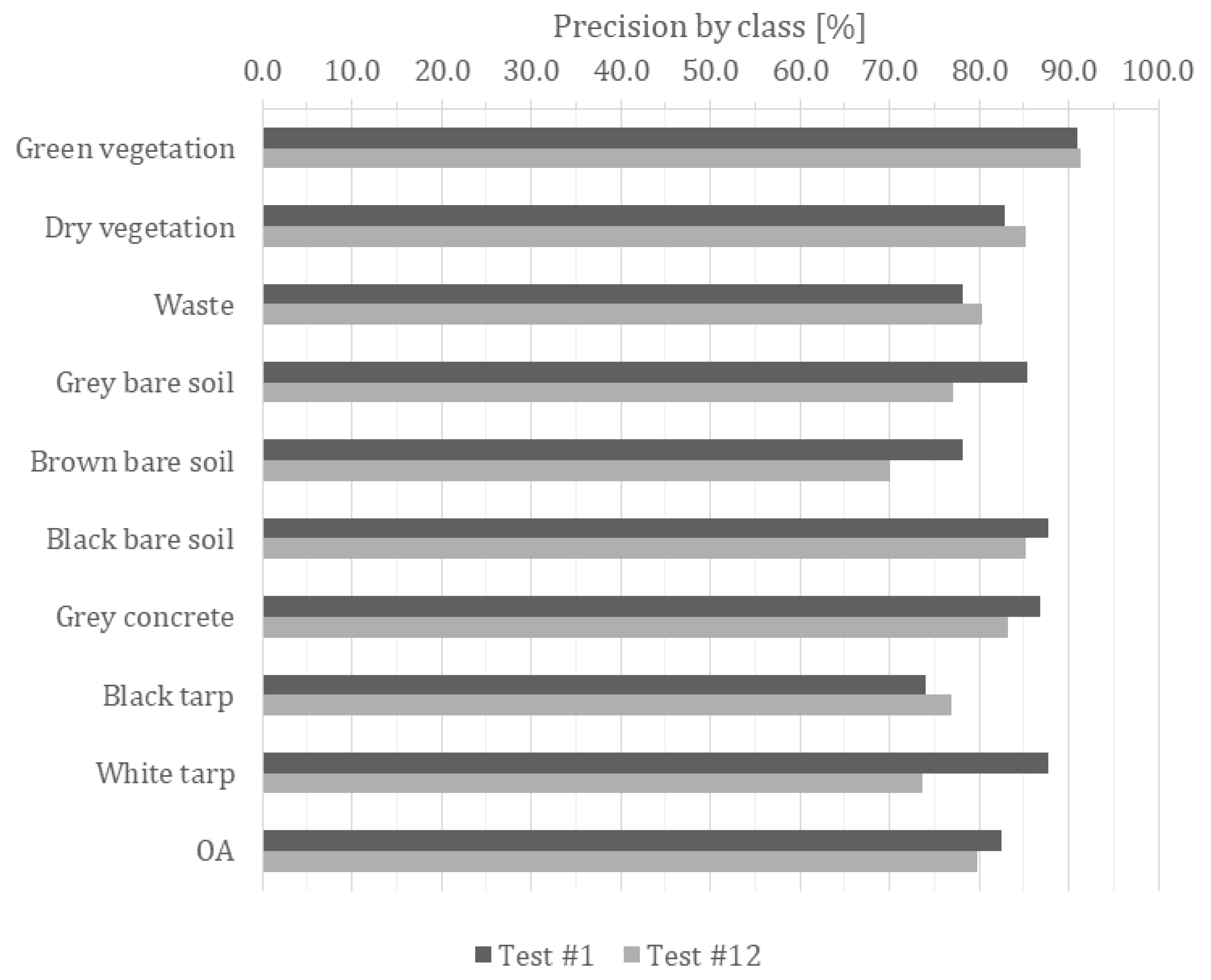

Tests performed on the RGB imagery (Dataset #1) show that a spatial resolution of 10 cm is sufficient to obtain OA of about 80%. The comparison between Test #1 (3.8 cm) and Test #12 (10 cm) shows rather close OA (Figure 6). However, Test #1 remains significantly better (+2.8%). Regarding precision by class, the 10 cm resolution seems to be more suitable only for the identification of dry vegetation (+2.4%), waste (+2.2%), and black tarp (+2.9%), which are classes rather heterogeneous. Indeed, the 10 cm resolution allows generalizing information for these classes.

In addition, the use of a coarser resolution has several advantages: reduction in the UAV flight duration, reduction in the number of images to be pre-processed and consequently the general processing time, possibility to cover a larger area. For a 10 cm resolution, compared with a 3.8 cm resolution, the flight duration is reduced by 72% while the number of images is reduced by 90%.

3.6. Sensitivity to Contextual Information

The addition of contextual information, namely, the x and y coordinates of the objects in their features, produces the most significant improvement of classification with OA of 88.5%. Compared with Test #1, this is an improvement of nearly +6%. Almost all classes benefit from the additional contextual information with gain in precision by class ranging from +4.6% (green vegetation) to +20% (black tarp). Two classes show a drop in their precision: grey concrete (−10.2%) and white tarp (−13.4%). The analysis of the Test #13 confusion matrix reveals a strong confusion between these two classes leading to precision by class of 76.6% and 74.4%, respectively. Grey concrete and white tarp have indeed close optical characteristics; however, this is their spatial proximity and their marginal distribution over the site at this acquisition date which explains their confusion (

Table 4. Confusion matrix of Test #13. PA: producer accuracy; UA: user accuracy.

			Classification
			11	12	21	31	32	33	41	42	43	SUM	PA [%]	Class Prec. [%]
Reference	Green vegetation	11	32	0	0	0	0	1	0	0	0	33	97.0	95.5
	Dry vegetation	12	0	28	0	0	2	0	0	0	0	30	93.3	91.8
	Waste	21	1	2	43	0	6	0	0	2	0	54	79.6	89.8
	Grey bare soil	31	0	0	0	31	0	0	1	0	0	32	96.9	91.5
	Brown bare soil	32	1	1	0	5	50	0	0	1	0	58	86.2	85.5
	Black bare soil	33	0	0	0	0	1	94	0	3	0	98	95.9	96.9
	Grey concrete constructions	41	0	0	0	0	0	0	25	0	0	25	100.0	76.6
	Black tarp	42	0	0	0	0	0	1	0	53	0	54	98.1	94.0
	White tarp	43	0	0	0	0	0	0	21	0	20	41	48.8	74.4
		SUM	34	31	43	36	59	96	47	59	20	425
	UA [%]		97.0	94.1	90.3	100.0	86.1	84.7	97.9	53.2	89.8	100.0	OA = 88.5%

). Regarding the seven remaining classes, confusion is very limited so that their precision is above 85% (five classes with precision above 90%). In addition, the comparison between the classified LC map obtained from Test #13 (Figure 7b) and the original image (Figure 7a) reveals unwanted classification artefacts of white tarp, black tarp, and grey bare soil. These classes are characterized by a reduced and marginal distribution at this acquisition date which results in clustering in the sampling as well. The x and y coordinates used as features results in the artifacts observed in Figure 7b and in confusion between classes of similar appearance which are spatially close to each other.

3.7. Features Contribution

Among all tests performed, Test #13 produced the best OA with a value of 88.5%. Regarding precision by class, Test #13 performs better with seven classes above 85% (five above 90%) and a minimum precision by class of 74.4% (Table 4). Such performance is achieved using a total of 22 features. Contextual information explains 70.7% of this performance, while features related to optical bands and texture indexes account for 16.9% and 12.4%, respectively.

By analyzing the second-best test (Test #10) when contextual information is not used, the resulted classified LC map does not exhibit artefacts as strong as Test #13 (Figure 7c). As a reminder, Test #10 used the five-band RedEdge MX Blue camera, slope, and eight textures computed for each spectral band, which allows reaching OA of 82.8%. This performance is achieved using a larger number of features: 94 in total. Features related to texture indexes explain 70.4% of this performance, while features related to optical bands and to slope account for 26.0% and 3.6%, respectively.

Finally, it should be noted that the classification of shadows is a challenge as illustrated in both classified LC map presented in Figure 7.

4. Discussion

The final results show that the OBIA processing chain allows for producing consistent LC classifications for at least two dates using RGB UAV imagery. They also show that low-cost RGB standard sensors are sufficient to reach accuracies above 85% and that spatial resolution of up to 10 cm can be adopted with limited impact on the performance of the processing chain. The sensitivity experiments carried out on the segmentation approach, textural, and contextual information, and spectral and spatial resolution show that when contextual information is not taken into account, OA peaks at 82.8%. Dry vegetation, waste and black bare soil are the classes which systematically drag down the classification performance with precision below 80% and even below 70% for dry vegetation and waste. Confusions originate from similar color and texture. The addition of NIR and red edge spectral bands obviously fails to solve color-related confusion. The addition of contextual information, namely the x and y coordinates of objects, allows to significantly improve the performance of the processing chain with a +6% jump in OA reaching 88.6%. However, unwanted classification artifacts are observed in the resulted LC map due to a reduced and marginal distribution of certain class at this acquisition. The following subsections discuss these results in view of the original objectives of the study, of improvements that are still possible in the processing chain, and in the prospects offered by this work for the monitoring of landfill sites.

4.1. Robustness and Replicability of the Processing Chain

The first objective of this study was to provide a robust and optimized open-source OBIA processing chain as automated as possible for the production of LC maps using UAVs data. The satisfying OA obtained for two UAV data acquisition dates demonstrates the replicability of the processing chain. This replicability was already demonstrated in the processing of airborne and satellite data at very high spatial resolution [22,24,25]. It was demonstrated for the processing of UAV data.

However, the large number of activities carried out on an operational landfill does not allow for a fully automated processing chain: the selection of training and validation points must be checked manually between each dataset. However, experience shows that most of the changes are made in the active zone, thus limiting the number of points to be updated (max 1 to 2 h for the update of more than 1000 sampled points). Given the temporal variability of landfill waste and soil deposits in terms of color, the automation of this selection, such as in the works of Radoux et al. [48] or using active learning strategies [49], appears complex on such site, but can be more easily considered in other applications.

In this study, the replicability of the processing chain was demonstrated for at least two different seasons: early autumn and late winter. On the one hand, the flight conducted in early October 2019 (early autumn) occurred at the end of the growing season. The advantages are: (a) less confusion between vegetation and other LC classes as vegetation is mostly green; (b) and shadows can be limited. On the other hand, the flights conducted in early March 2021 (late winter) occurred outside the growing season. This has two advantages: (a) the mapping of the ground cover is partly free of vegetation and therefore it is possible to better discriminate objects on the ground; (b) and it is carried out in the cold period that is favorable for the thermographic analysis of the site for the detection of biogas leaks, and therefore for the coupling of UAV-based services. The resulting difficulty is less discrimination of vegetated areas and consequently greater confusion between vegetation and other LC. For the other periods of year which have not yet been tested, late autumn and early spring can be more challenging. Indeed, the various states of the vegetation at these periods would add complexity to the discrimination of vegetation classes against soil classes and waste.

The LC context of the Hallembaye landfill is characteristic of the context of other Walloon landfills included in the monitoring network. We are therefore convinced, and the prospects include running this service routinely on all sites, of the replicability of the OBIA processing chain. However, it is crucial to adapt the sampling and classification strategy to the classes present on each site. Indeed, the legal provisions vary from one site to another, notably in the typology of the waste buried and in the status of the site (in activity, in post-management, or in rehabilitation). Depending on the local soil properties of the site, it is highly likely that the types of soil embankments will also vary from one site to another.

4.2. Data Acquisition Guidelines

The second objective of this paper was to provide guidelines on the necessary UAV flight characteristics required for the automatic multi-class LC mapping of dynamic sites. At the end of the empirical approach, we can conclude that the use of light UAV equipment with a traditional multispectral sensor with three visible bands appears to be the best compromise in terms of classification quality, flight autonomy, and consequently, the area that can be covered during a flight campaign. The current legislation on flight authorization (Regulation (EU) 2019/947 and Regulation (EU) 2019/945) is also more flexible for this type of equipment, compared with that applicable to M600 Pro such as UAVs.

The richer multispectral information shows limited improvement in the classification results in our case study. This observation is only valid for the equipment we compared and should be put into perspective with the opportunities offered by a UAV-borne spectrometer or those operating in other wavelength ranges [50,51].

In terms of recommendations for the flight height and the temporality of the acquisitions (frequency and period in the year), we feel it is necessary to relate this application to the other services using UAVs useful for landfill management. In this sense, our study shows that a spatial resolution of 10 cm is sufficient for the purpose of LC mapping. However, such a resolution complicates the photo-interpretation purposes as developed by Filkin et al. [52]. In this sense, we recommend aiming for a spatial resolution of less than or equal to 5 cm, allowing the photo-interpretation of all the features of interest present on a landfill.

The robustness of the processing chain was demonstrated in and out of the vegetation period for two acquisition dates (early autumn and late winter) with satisfying results in terms of OA. In terms of temporality, we recommend adjusting the acquisition frequency to the needs of the topographic monitoring of landfills that can use the same equipment, but keeping in mind that some periods of the year may be more challenging for LC mapping, as detailed in Section 4.1. More generally we recommend acquiring UAV data in weather and illumination conditions as homogeneous as possible.

4.3. Improving Classification Performances

Given the complexity of this classification (nine classes) and the high OAs that were achieved (88.5%), every percentage that can still be gained is significant but the task is difficult. The more classes and the higher the OA, the more difficult it is to further improve the OA. Sensitivity experiments performed on segmentation approach, textural, spatial, and textural information showed limited impact on the classification performances compared with the original version of the processing chain [16]. Still, the next step can be to take a closer look at the spectral signatures of the different types of waste and landfill to better guide the choice for specific sensor with a relevant spectral band. However, it should be noted that such a task is difficult because each site is different and hosts different wastes. Moreover, the availability of the relevant sensor on the market is not guaranteed.

The improvement of the classification performance can come from the addition of contextual features and/or of contextual post-processing rules [53]. Regarding the addition of contextual features, the addition of object location criteria (namely their x and y coordinates) in the features strongly impacted the classification results with a +6% jump in the OA reaching 88.6% (Test #13, see Section 3.6). However, unwanted classification artefacts were observed in the classified LC maps due to the clustering in the sampling of certain classes (Figure 7b). This clustering results from the reduced and marginal spatial distribution of certain classes such as black and white tarps. This situation can however change from one acquisition date to another as landfill sites rapidly change from day to day. In addition, this situation can also be solved with the extension of the study area. Indeed, the use of light UAV equipment allows for acquiring data over larger areas as explained in Section 4.1. Regarding the contextual post-processing rules, such rules must be adapted from one classification result to another. It is not compatible with our processing chain, which we want to be as automated as possible and replicable for other dates and for other sites.

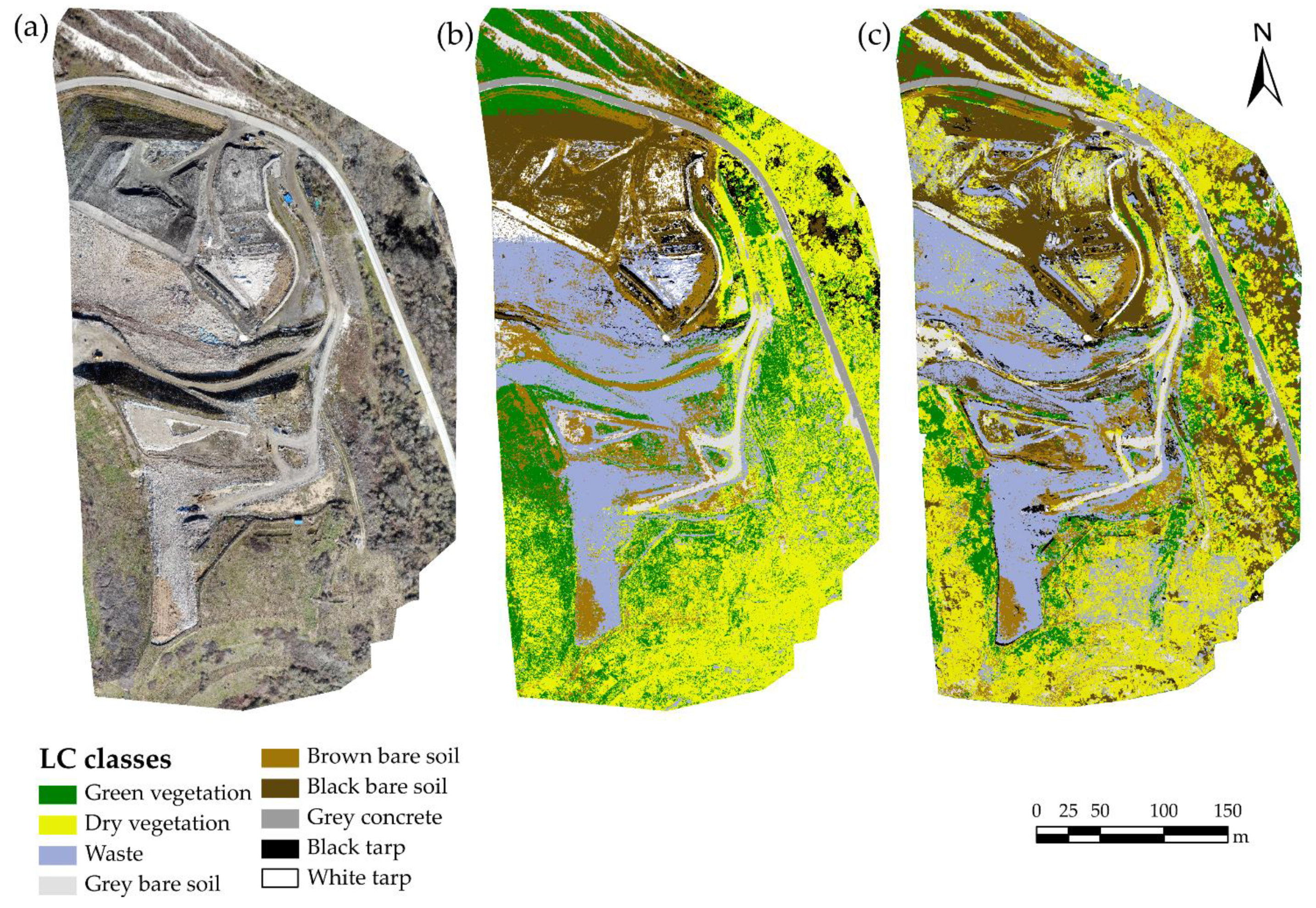

The analysis of the classified LC maps (Figure 7) showed that the presence of shadows and classification is a challenge (Section 3.7). Several options are possible to tackle this problem. Image acquisition can be carefully planned to limit the presence of shadows (e.g., cloudy weather conditions avoid direct radiation and therefore shadows, around noon under sunny conditions). Another option is the addition of a shadow class to the classification scheme and its reclassification in post-processing using rules for instance. For the latter option, the use of slope and their orientation (also called “aspect”) can be relevant. However, as already noted, post-classification rules are not fully compatible with the first objective of this study.

Reaching OA above 90% would allow obtaining results of the same order as authors using other approaches for the LC mapping from UAV imagery. In fact, although OBIA combined to supervised classification is the most commonly used technique for LC mapping, other approaches also have their proof. OBIA combined with a fuzzy unordered rule induction algorithm outperforms decision tree and SVM with OA of 91.23% for a nine-class LC mapping over palm tree exploitation [53].

Another way of improvement to investigate in the near future is the use of deep-learning approaches [54]. However, creating fully labeled patches for semantic segmentation is dramatically time consuming and should be avoided as much as possible. A hybrid approach consisting of using state-of-the-art models such as Xception or DenseNet pre-trained on ImageNet dataset and using them as feature extractors to generate features to feed a conventional machine learning classifier such as random forest, is an option to investigate [55,56].

4.4. Integration of the Method into Landfill Control Actions

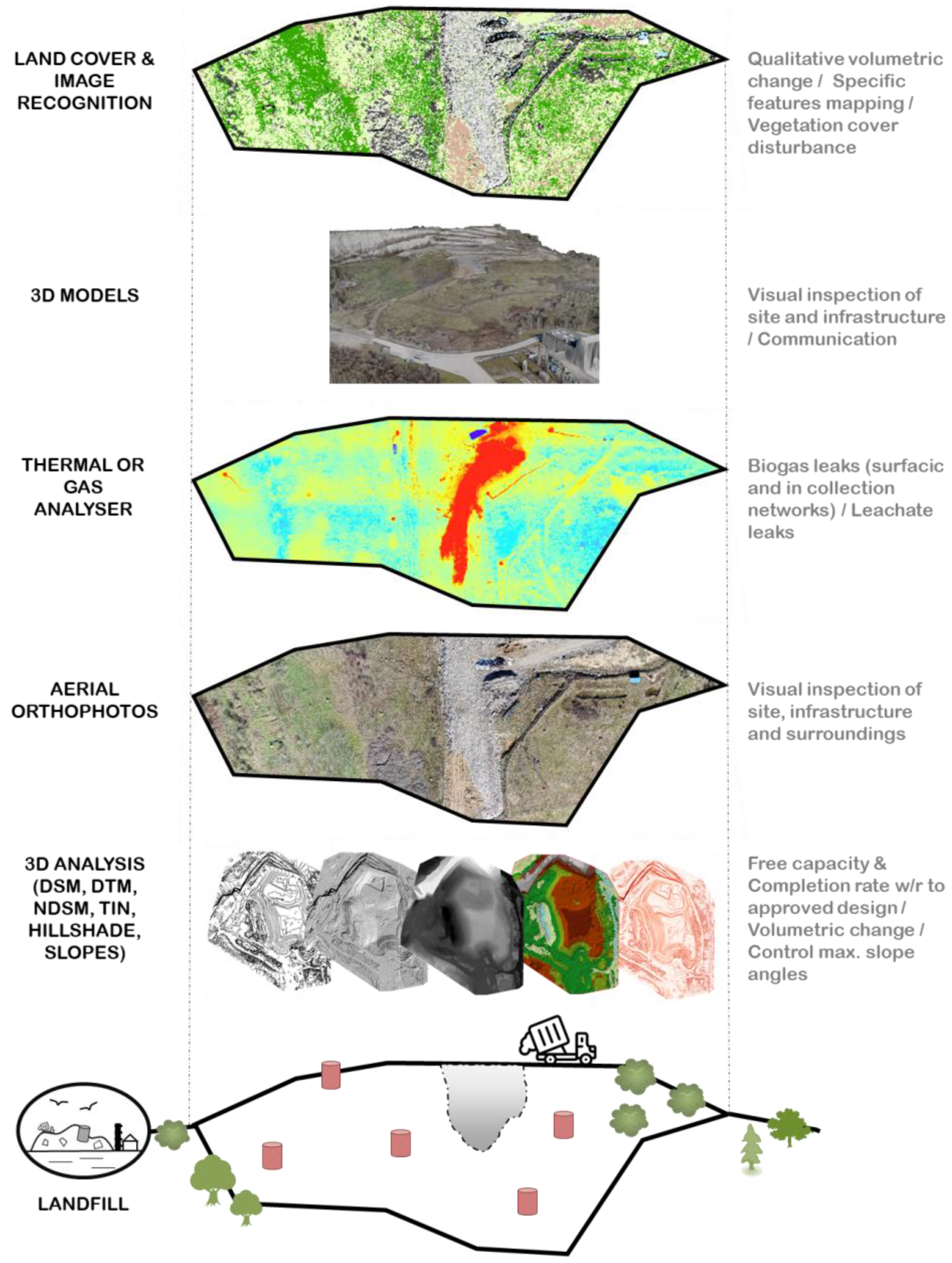

During the last decade, the qualitative improvement of sensors, vectors, and processing make UAVs an efficient technology for the identification and evaluation of environmental effects and the regular analysis of operations related to landfill management [12]. Beyond the services currently considered as operational, such as the extraction of information on the spatial properties of a landfill [57] or its thematic inspection in connection with technological monitoring and operational control [50], this study adds a new LC mapping service in the framework of our landfill control actions (Figure 8).

Achieving OA below 90% does not preclude the value of this application. Indeed, the managers in the temporal follow-up of the deposits are particularly interested in the study of the volumetric changes on site. For this application, the qualitative contribution (what type of waste, soils, vegetation growth, etc.) is value-added data. The generalization of the classification in “super object”, delimiting a waste mass or an excavated zone, namely allows for bringing this qualification to the volumetric statistics.

The proposed methodology not only offers a solution for the qualification and quantification of LC features over landfills, it also can contribute to a better mapping of illegal dumping sites (discriminating waste deposits from surrounding features), to the monitoring of other complex sites (construction site, quarries, etc.), or for other applications where only UAVs can provide suitable resolutions.

5. Conclusions

Achieving the qualitative standards of classification is a challenge and a difficulty on sites as complex and in constant evolution as a landfill. This study aimed to develop a robust and automated tool and to provide data acquisition guidelines for LC mapping of such complex sites using UAV multispectral imagery. For this purpose, the robustness of the object-based supervised classification processing chain originally developed by Grippa et al. [22] and adapted to UAV data by Wyard et al. [16] was assessed. Its sensitivity to the segmentation approach, textural information, spectral resolution, spatial resolution, and contextual information were also tested. The experimental design included the use of three distinct UAV datasets acquired using two vectors and three sensors at two acquisition dates over the Hallembaye landfill.

The sensitivity experiments performed on the OBIA processing chain demonstrates the added value of the use of contextual information as features in addition to features computed from optical and texture index rasters with a gain in OA of +6% reaching 88.5%. In fact, when contextual properties are not taken into account, OA peaks at 82.8% and confusions remain between classes of similar spectra and texture.

Regarding the first objective of this study (production of a robust and automated tool), the results proved the replicability of the OBIA processing chain for at least two acquisition dates (early autumn and late winter). The processing chain developed in this study may be used for other acquisition dates although the rapid evolution and different aspects of the vegetation during early spring and late autumn can add a challenge to the discrimination of LC classes. The processing chain can be used over other sites with the condition of adapting the classification schema to the LC classes observed over these sites.

Regarding the second objective of this study (the formulation of acquisition guidelines), the use of low cost and light UAV equipment with a standard RGB sensor appears to be the best compromise in terms of classification quality, flight autonomy, and consequently, the area that can be covered during a flight campaign. Results show that spatial resolution of up to 10 cm can be adopted with limited impact on the performance of the processing chain.

Among all the options considered to further improve the classification performance, the use of DL techniques is particularly promising and should certainly be investigated.

Finally, this study results in the creation of a new operational service for the monitoring of active landfill sites of Wallonia.
