Proceeding Paper

Wireless Channel Characterization and System Analysis of Complex Utility Tunnel Environments †

by
Mikel Celaya-Echarri
1,
Leyre Azpilicueta
1,*,
Peio Lopez-Iturri
2,3,
Imanol Picallo
2,3,
Erik Aguirre
2,
Jose Javier Astrain
4,
Jesús Villadangos
4 and
Francisco Falcone
2,3
1
School of Engineering and Sciences, Tecnologico de Monterrey, Monterrey 64849, NL, Mexico
2
Electric, Electronic and Communication Engineering Department, Public University of Navarre, 31006 Pamplona, Navarra, Spain
3
Institute of Smart Cities, Public University of Navarre, 31006 Pamplona, Navarra, Spain
4
Mathematical Engineering and Computer Science Department, Public University of Navarre, 31006 Pamplona, Spain
*
Author to whom correspondence should be addressed.
†
Presented at the 6th International Electronic Conference on Sensors and Applications, 15–30 November 2019; Available online: https://ecsa-6.sciforum.net/.
Proceedings 2020, 42(1), 53; https://doi.org/10.3390/ecsa-6-06559
Published: 14 November 2019
(This article belongs to the Proceedings of The 6th International Electronic Conference on Sensors and Applications)
Browse Figures
Versions Notes

Abstract

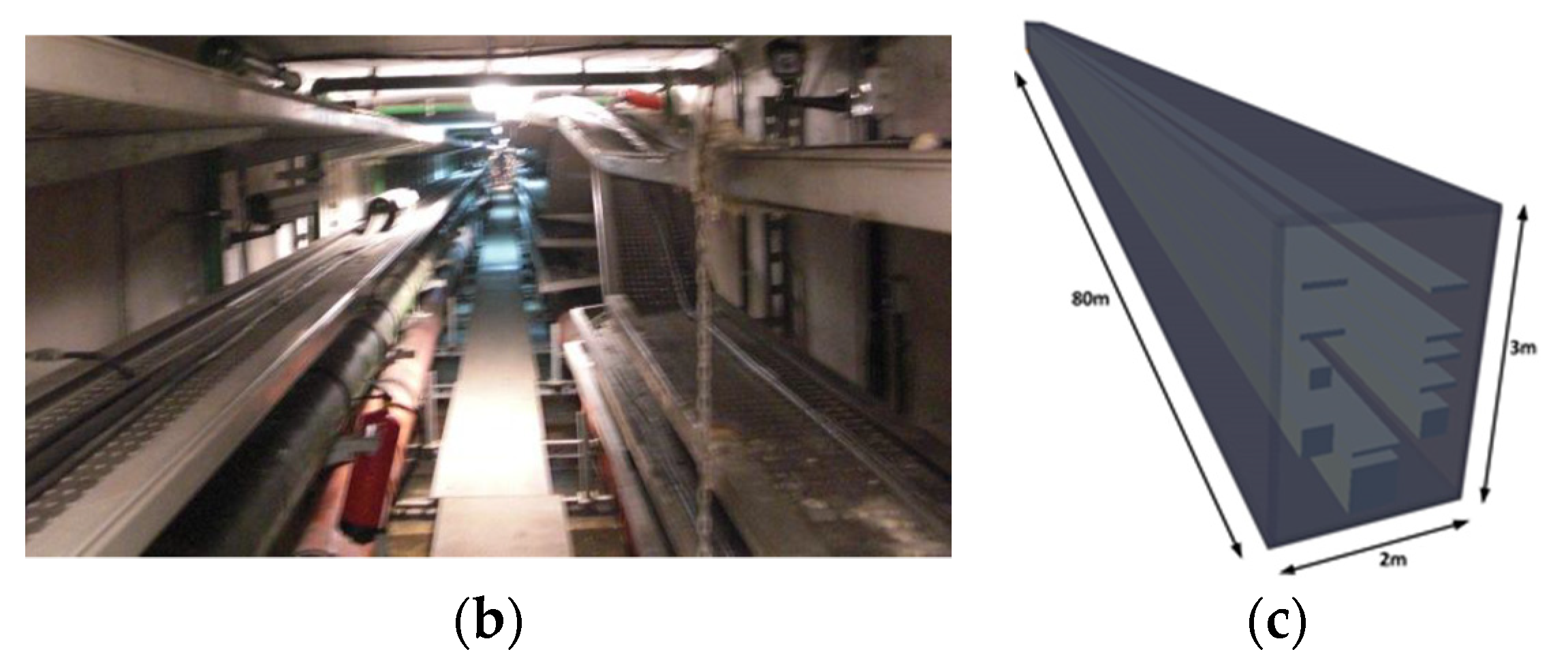

The evolution of wireless communications has led to the adoption of a wide range of applications and utilities not only by the general public but also by administrative authorities. Consequently, the huge growth of new city services requires in some specific cases the construction of underground tunnels in order to reduce visual impact within the city center, as well as enabling the maintenance and operation works of utilities. One of the main challenges is that, inherently, underground service tunnels lack coverage from exterior wireless systems, such as mobile networks or municipal WLAN networks, which can be potentially dangerous for maintenance personnel working within the tunnels. In this work, wireless channel characterization for urban tunnel scenarios will be analyzed based on the assessment of LoRaWAN and ZigBee technologies operating at 868 MHz. For this purpose, a real urban utility tunnel has been modeled and simulated by means of an in-house 3D ray launching code and compared with experimental measurements, showing good agreement. The singularity and complexity of the limited tunnel dimensions and the inclusion of additional elements such as service trays, user pathways, and handrails have been considered. Results provide an adequate radio planning approach for the deployment of wireless systems in urban utility scenarios, with optimal coverage and enhanced quality of service. Besides, in order to have access to the data obtained by the potential WSN deployed within the tunnels, a solution to store such information in a cloud is included in the study.
Keywords: wireless sensor networks; LoRaWAN; ZigBee; 3D ray launching; tunnel environment; smart cities wireless sensor networks; LoRaWAN; ZigBee; 3D ray launching; tunnel environment; smart cities
