# Gray Level Co-Occurrence Matrix, Fractal and Wavelet Analyses of Discrete Changes in Cell Nuclear Structure following Osmotic Stress: Focus on Machine Learning Methods

^{1}

^{2}

^{3}

^{4}

^{5}

^{6}

^{7}

^{8}

^{9}

^{10}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

## 3. Results

#### 3.1. Results of GLCM, Fractal, and DWT Analyses

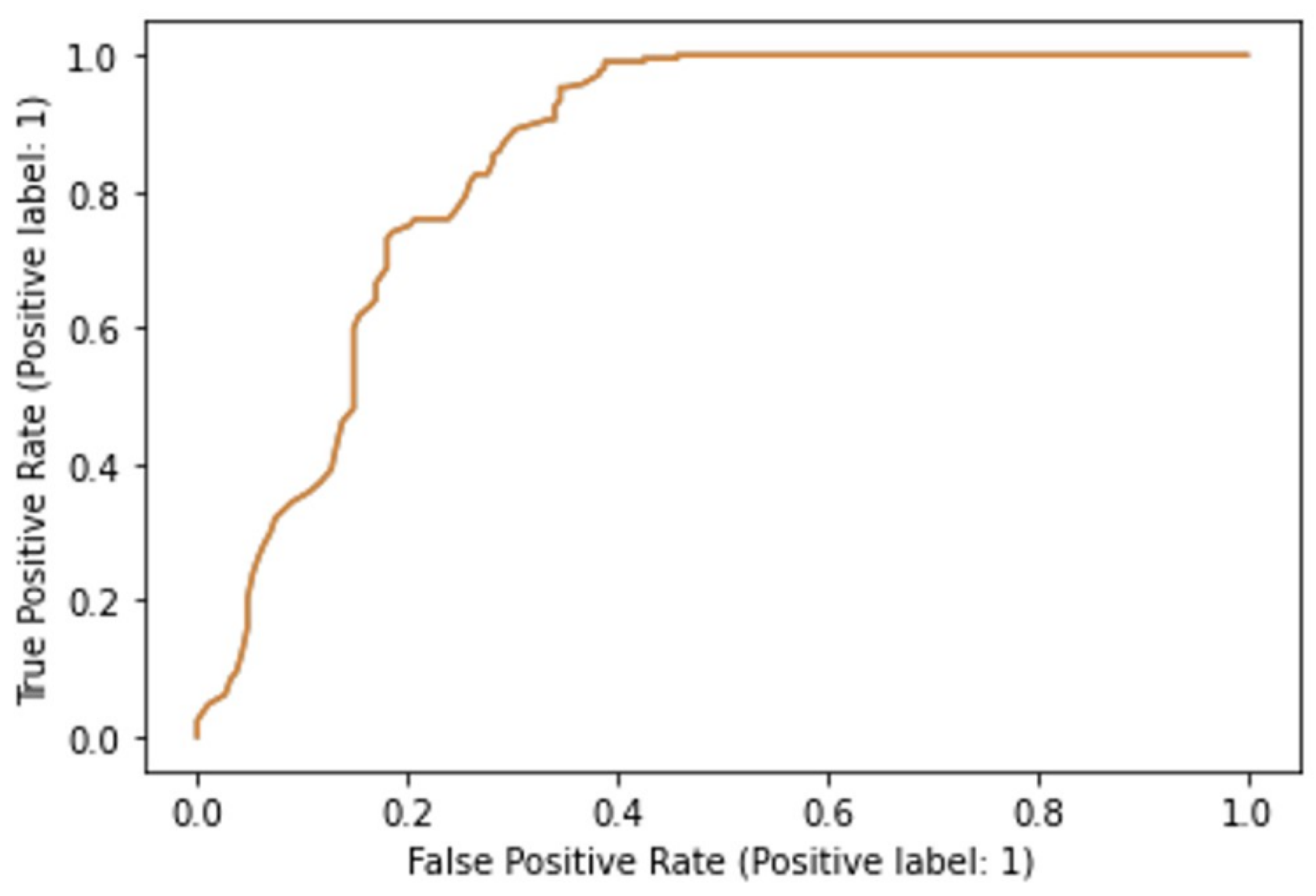

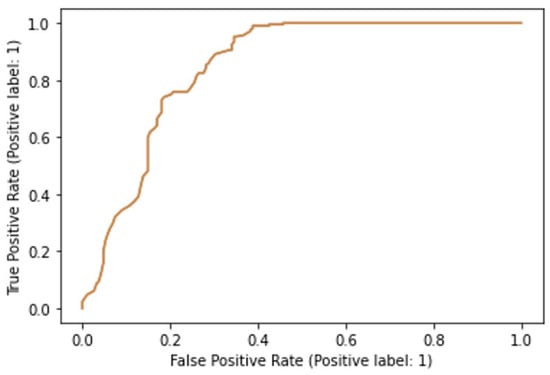

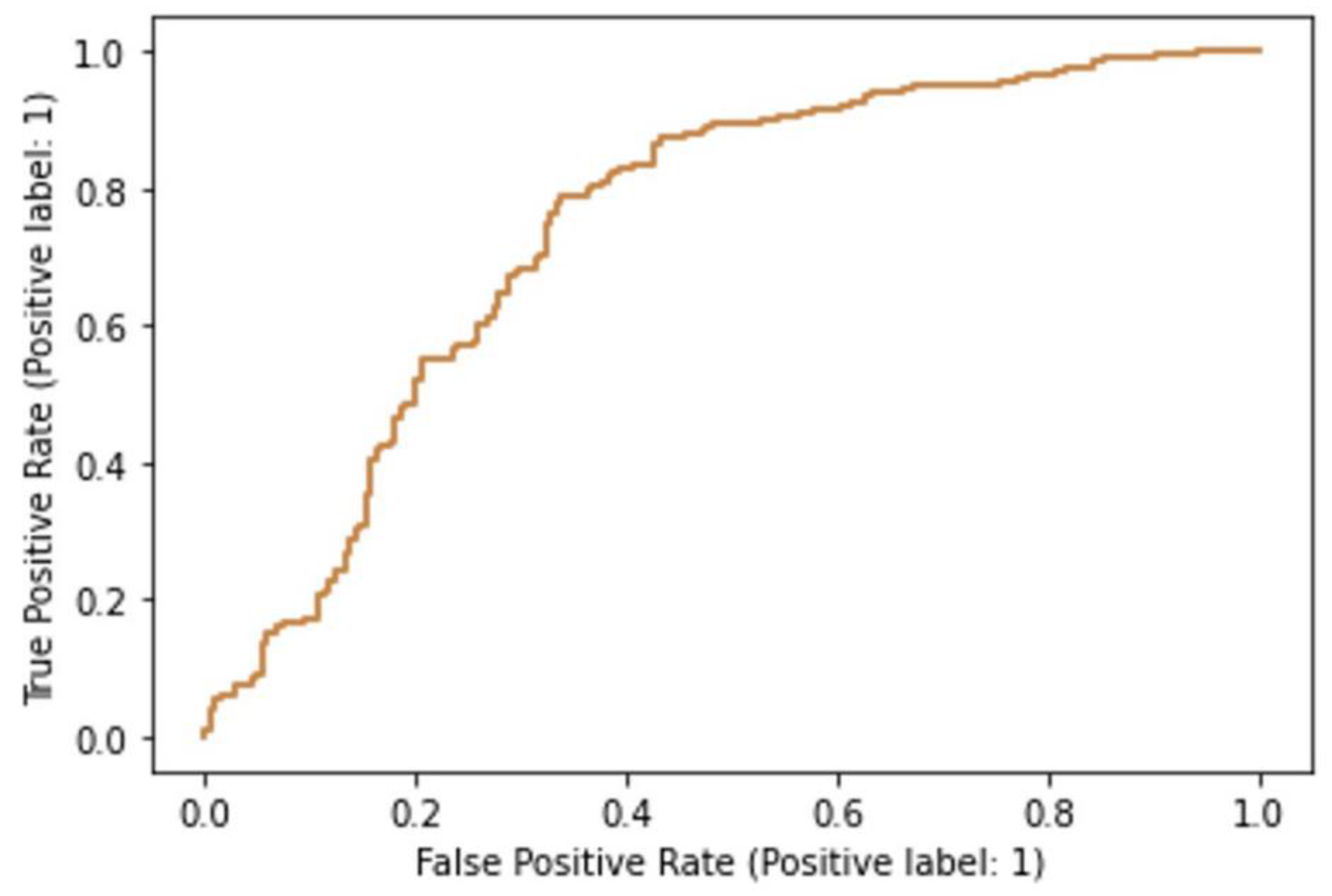

#### 3.2. Machine Learning Models

## 4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## References

- AlKubeyyer, A.; Ben Ismail, M.M.; Bchir, O.; Alkubeyyer, M. Automatic detection of the meningioma tumor firmness in MRI images. J. X-Ray Sci. Technol.
**2020**, 28, 659–682. [Google Scholar] [CrossRef] [PubMed] - Althubiti, S.A.; Paul, S.; Mohanty, R.; Mohanty, S.N.; Alenezi, F.; Polat, K. Ensemble Learning Framework with GLCM Texture Extraction for Early Detection of Lung Cancer on CT Images. Comput. Math. Methods Med.
**2022**, 2022, 2733965. [Google Scholar] [CrossRef] - Alyami, J.; Sadad, T.; Rehman, A.; Almutairi, F.; Saba, T.; Bahaj, S.A.; Alkhurim, A. Cloud Computing-Based Framework for Breast Tumor Image Classification Using Fusion of AlexNet and GLCM Texture Features with Ensemble Multi-Kernel Support Vector Machine (MK-SVM). Comput. Intell. Neurosci.
**2022**, 2022, 7403302. [Google Scholar] [CrossRef] - Anand, L.; Mewada, S.; Shamsi, W.; Ritonga, M.; Aflisia, N.; KumarSarangi, P.; NdoleArthur, M. Diagnosis of Prostate Cancer Using GLCM Enabled KNN Technique by Analyzing MRI Images. BioMed. Res. Int.
**2023**, 2023, 3913351. [Google Scholar] [CrossRef] [PubMed] - Anwar, S.M.; Majid, M.; Qayyum, A.; Awais, M.; Alnowami, M.; Khan, M.K. Medical Image Analysis using Convolutional Neural Networks: A Review. J. Med. Syst.
**2018**, 42, 226. [Google Scholar] [CrossRef] [Green Version] - Yu, K.H.; Beam, A.L.; Kohane, I.S. Artificial intelligence in healthcare. Nat. Biomed. Eng.
**2018**, 2, 719–731. [Google Scholar] [CrossRef] - Pantic, I.; Cumic, J.; Dugalic, S.; Petroianu, G.; Corridon, P. Gray level co-occurrence matrix and wavelet analyses reveal discrete changes in proximal tubule cell nuclei after mild acute kidney injury. Sci. Rep.
**2022**, 13, 4025. [Google Scholar] [CrossRef] - Davidovic, L.M.; Cumic, J.; Dugalic, S.; Vicentic, S.; Sevarac, Z.; Petroianu, G.; Corridon, P.; Pantic, I. Gray-Level Co-occurrence Matrix Analysis for the Detection of Discrete, Ethanol-Induced, Structural Changes in Cell Nuclei: An Artificial Intelligence Approach. Microsc. Microanal. Off. J. Microsc. Soc. Am. Microbeam Anal. Soc. Microsc. Soc. Can.
**2021**, 28, 265–271. [Google Scholar] [CrossRef] - Dimitriadis, I.; Zaninovic, N.; Badiola, A.C.; Bormann, C.L. Artificial intelligence in the embryology laboratory: A review. Reprod. Biomed. Online
**2021**, 44, 435–448. [Google Scholar] [CrossRef] - Hudson, I.L. Data Integration Using Advances in Machine Learning in Drug Discovery and Molecular Biology. Methods Mol. Biol.
**2021**, 2190, 167–184. [Google Scholar] [CrossRef] [PubMed] - Shah, S.M.; Khan, R.A.; Arif, S.; Sajid, U. Artificial intelligence for breast cancer analysis: Trends & directions. Comput. Biol. Med.
**2022**, 142, 105221. [Google Scholar] [CrossRef] - Pantic, I.V.; Shakeel, A.; Petroianu, G.A.; Corridon, P.R. Analysis of Vascular Architecture and Parenchymal Damage Generated by Reduced Blood Perfusion in Decellularized Porcine Kidneys Using a Gray Level Co-occurrence Matrix. Front. Cardiovasc. Med.
**2022**, 9, 797283. [Google Scholar] [CrossRef] [PubMed] - Alkhodari, M.; Fraiwan, L. Convolutional and recurrent neural networks for the detection of valvular heart diseases in phonocardiogram recordings. Comput. Methods Programs Biomed.
**2021**, 200, 105940. [Google Scholar] [CrossRef] [PubMed] - Simonyan, K.; Zisserman, A. Very Deep Convolutional Networks for Large-Scale Image Recognition. In Proceedings of the 3rd International Conference on Learning Representations, ICLR Conference 2015, San Diego, CA, USA, 7–9 May 2015. [Google Scholar]
- Zhang, T.; Zeng, Y.; Zhang, Y.; Zhang, X.; Shi, M.; Tang, L.; Zhang, D.; Xu, B. Neuron type classification in rat brain based on integrative convolutional and tree-based recurrent neural networks. Sci. Rep.
**2021**, 11, 7291. [Google Scholar] [CrossRef] - Tan, J.; Gao, Y.; Liang, Z.; Cao, W.; Pomeroy, M.J.; Huo, Y.; Li, L.; Barish, M.A.; Abbasi, A.F.; Pickhardt, P.J. 3D-GLCM CNN: A 3-Dimensional Gray-Level Co-Occurrence Matrix-Based CNN Model for Polyp Classification via CT Colonography. IEEE Trans. Med. Imaging
**2020**, 39, 2013–2024. [Google Scholar] [CrossRef] [PubMed] - Tan, T.C.; Ritter, L.J.; Whitty, A.; Fernandez, R.C.; Moran, L.J.; Robertson, S.A.; Thompson, J.G.; Brown, H.M. Gray level Co-occurrence Matrices (GLCM) to assess microstructural and textural changes in pre-implantation embryos. Mol. Reprod. Dev.
**2016**, 83, 701–713. [Google Scholar] [CrossRef] - Vidya, K.S.; Ng, E.Y.; Acharya, U.R.; Chou, S.M.; Tan, R.S.; Ghista, D.N. Computer-aided diagnosis of Myocardial Infarction using ultrasound images with DWT, GLCM and HOS methods: A comparative study. Comput. Biol. Med.
**2015**, 62, 86–93. [Google Scholar] [CrossRef] - Gupta, S.; Savala, R.; Gupta, N.; Dey, P. Fractal dimension and chromatin textural analysis to differentiate follicular carcinoma and adenoma on fine needle aspiration cytology. Cytopathol. Off. J. Br. Soc. Clin. Cytol.
**2020**, 31, 491–493. [Google Scholar] [CrossRef] - Mattos, A.C.; Florindo, J.B.; Adam, R.L.; Lorand-Metze, I.; Metze, K. The Fractal Dimension Suggests Two Chromatin Configurations in Small Cell Neuroendocrine Lung Cancer and Is an Independent Unfavorable Prognostic Factor for Overall Survival. Microsc. Microanal. Off. J. Microsc. Soc. Am. Microbeam Anal. Soc. Microsc. Soc. Can.
**2022**, 28, 522–526. [Google Scholar] [CrossRef] - Metze, K.; Adam, R.; Florindo, J.B. The fractal dimension of chromatin—A potential molecular marker for carcinogenesis, tumor progression and prognosis. Expert Rev. Mol. Diagn.
**2019**, 19, 299–312. [Google Scholar] [CrossRef] - Brocker, C.; Thompson, D.C.; Vasiliou, V. The role of hyperosmotic stress in inflammation and disease. Biomol. Concepts
**2012**, 3, 345–364. [Google Scholar] [CrossRef] [PubMed] - Colin, L.; Ruhnow, F.; Zhu, J.K.; Zhao, C.; Zhao, Y.; Persson, S. The cell biology of primary cell walls during salt stress. Plant Cell
**2023**, 35, 201–217. [Google Scholar] [CrossRef] - Reiling, J.H.; Sabatini, D.M. Stress and mTORture signaling. Oncogene
**2006**, 25, 6373–6383. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Sadowska, A.; Kameda, T.; Krupkova, O.; Wuertz-Kozak, K. Osmosensing, osmosignalling and inflammation: How intervertebral disc cells respond to altered osmolarity. Eur. Cells Mater.
**2018**, 36, 231–250. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Itto-Nakama, K.; Watanabe, S.; Ohnuki, S.; Kondo, N.; Kikuchi, R.; Nakamura, T.; Ogasawara, W.; Kasahara, K.; Ohya, Y. Prediction of ethanol fermentation under stressed conditions using yeast morphological data. J. Biosci. Bioeng.
**2023**, 135, 210–216. [Google Scholar] [CrossRef] [PubMed] - Pereira, D.R.; Papa, J.P.; Saraiva, G.F.R.; Souza, G.M. Automatic classification of plant electrophysiological responses to environmental stimuli using machine learning and interval arithmetic. Comput. Electron. Agric.
**2018**, 145, 35–42. [Google Scholar] [CrossRef] [Green Version] - Santos, T.A.; Maistro, C.E.; Silva, C.B.; Oliveira, M.S.; Franca, M.C., Jr.; Castellano, G. MRI Texture Analysis Reveals Bulbar Abnormalities in Friedreich Ataxia. AJNR Am. J. Neuroradiol.
**2015**, 36, 2214–2218. [Google Scholar] [CrossRef] [Green Version] - Kociołek, M.; Materka, A.; Strzelecki, M.; Szczypinski, P. Discrete wavelet transform—Derived features for digital image texture analysis. In Proceedings of the International Conference on Signals and Electronic Systems, Lodz, Poland, 18–21 September 2001; pp. 163–168. [Google Scholar]
- Strzelecki, M.; Szczypinski, P.; Materka, A.; Klepaczko, A. A software tool for automatic classification and segmentation of 2D/3D medical images. Nucl. Instrum. Methods Phys. Res. A
**2013**, 702, 137–140. [Google Scholar] [CrossRef] - Szczypinski, P.; Strzelecki, M.; Materka, A. MaZda—A Software for Texture Analysis. In Proceedings of the 2007 International Symposium on Information Technology Convergence, ISITC 2007, Jeonju, Republic of Korea, 23–24 November 2007; pp. 245–249. [Google Scholar]
- Szczypinski, P.; Strzelecki, M.; Materka, A.; Klepaczko, A. MaZda-A software package for image texture analysis. Comput. Methods Programs Biomed.
**2009**, 94, 66–76. [Google Scholar] [CrossRef] - Mallat, S. A Wavelet Tour of Signal Processing; Academic Press: San Diego, CA, USA, 1998. [Google Scholar]
- Karperien, A. FracLac for ImageJ. Available online: http://rsb.info.nih.gov/ij/plugins/fraclac/FLHelp/Introduction.htm (accessed on 28 January 2023).
- Dincic, M.; Todorovic, J.; Nesovic Ostojic, J.; Kovacevic, S.; Dunderovic, D.; Lopicic, S.; Spasic, S.; Radojevic-Skodric, S.; Stanisavljevic, D.; Ilic, A.Z. The Fractal and GLCM Textural Parameters of Chromatin May Be Potential Biomarkers of Papillary Thyroid Carcinoma in Hashimoto’s Thyroiditis Specimens. Microsc. Microanal. Off. J. Microsc. Soc. Am. Microbeam Anal. Soc. Microsc. Soc. Can.
**2020**, 26, 717–730. [Google Scholar] [CrossRef] - Pedregosa, F.; Varoquaux, G.; Gramfort, A.; Michel, V.; Thirion, B.; Grisel, O.; Blondel, M.; Prettenhofer, P.; Weiss, R.; Dubourg, V. Scikit-learn: Machine Learning in Python. J. Mach. Learn. Res.
**2011**, 12, 2825–2830. [Google Scholar] - Kim, J.; Kwon, N.; Chang, S.; Kim, K.T.; Lee, D.; Kim, S.; Yun, S.J.; Hwang, D.; Kim, J.W.; Hwu, Y.; et al. Altered branching patterns of Purkinje cells in mouse model for cortical development disorder. Sci. Rep.
**2011**, 1, 122. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Cozzini, T.; Piona, C.; Marchini, G.; Merz, T.; Brighenti, T.; Bonetto, J.; Marigliano, M.; Olivieri, F.; Maffeis, C.; Pedrotti, E. In vivo confocal microscopy study of corneal nerve alterations in children and youths with Type 1 diabetes. Pediatr. Diabetes
**2021**, 22, 780–786. [Google Scholar] [CrossRef] [PubMed] - Li, Q.; Wang, X.; Wang, Z.H.; Lin, Z.; Yang, J.; Chen, J.; Wang, R.; Ye, W.; Li, Y.; Wu, Y.; et al. Changes in dendritic complexity and spine morphology following BCG immunization in APP/PS1 mice. Hum. Vaccines Immunother.
**2022**, 18, 2121568. [Google Scholar] [CrossRef] [PubMed] - Blomberg, A. Yeast osmoregulation—Glycerol still in pole position. FEMS Yeast Res.
**2022**, 22, foac035. [Google Scholar] [CrossRef] - Saxena, A.; Sitaraman, R. Osmoregulation in Saccharomyces cerevisiae via mechanisms other than the high-osmolarity glycerol pathway. Microbiology
**2016**, 162, 1511–1526. [Google Scholar] [CrossRef] - de Nadal, E.; Posas, F. The HOG pathway and the regulation of osmoadaptive responses in yeast. FEMS Yeast Res.
**2022**, 22, foac013. [Google Scholar] [CrossRef] - Haralick, R.M.; Shanmugam, K.; Dinstein, I. Textural Features for Image Classification. IEEE Trans. Syst. Man Cybern.
**1973**, SMC-3, 610–621. [Google Scholar] [CrossRef] [Green Version] - Pantic, I.; Paunovic, J.; Cumic, J.; Valjarevic, S.; Petroianu, G.A.; Corridon, P.R. Artificial neural networks in contemporary toxicology research. Chem. Biol. Interact.
**2023**, 369, 110269. [Google Scholar] [CrossRef]

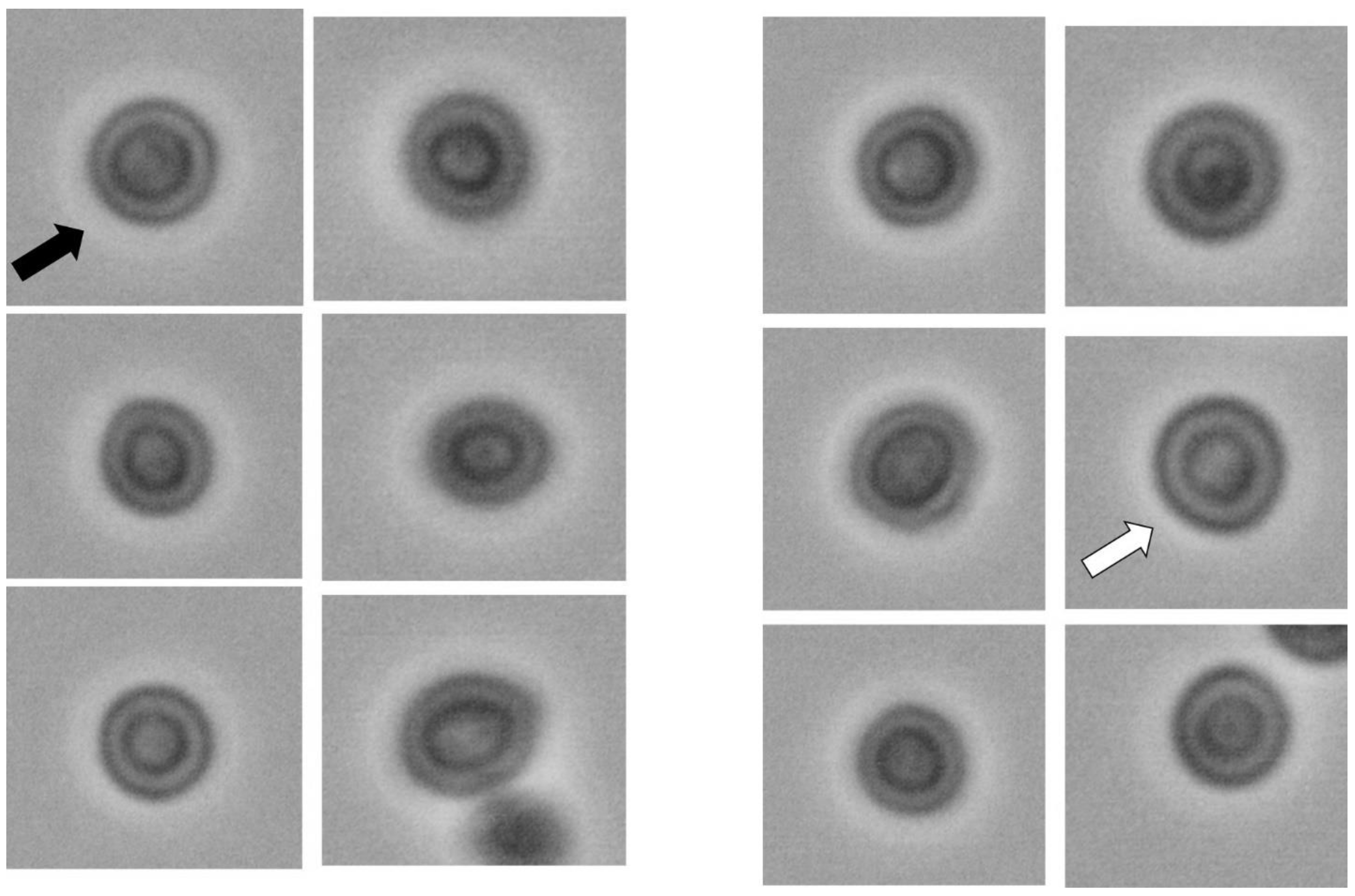

**Figure 1.**Saccharomyces cerevisiae yeast cells exposed to a hyperosmotic environment (right half of the image, 6 cells) and control cells (left half of the image, 6 cells). Although microscopically, no significant morphological differences can be observed, nuclear ROIs of these cells have different values of GLCM, fractal and wavelet indicators. For example, the first cell of the control group (upper left cell, marked with the black arrow) had a nuclear IDM of 0.163 and a fractal dimension of 1.551. The morphologically similar cell exposed to a hyperosmotic environment (right half of the image, marked with the white arrow) had an IDM value of 0.149 and a fractal dimension of 1.434.

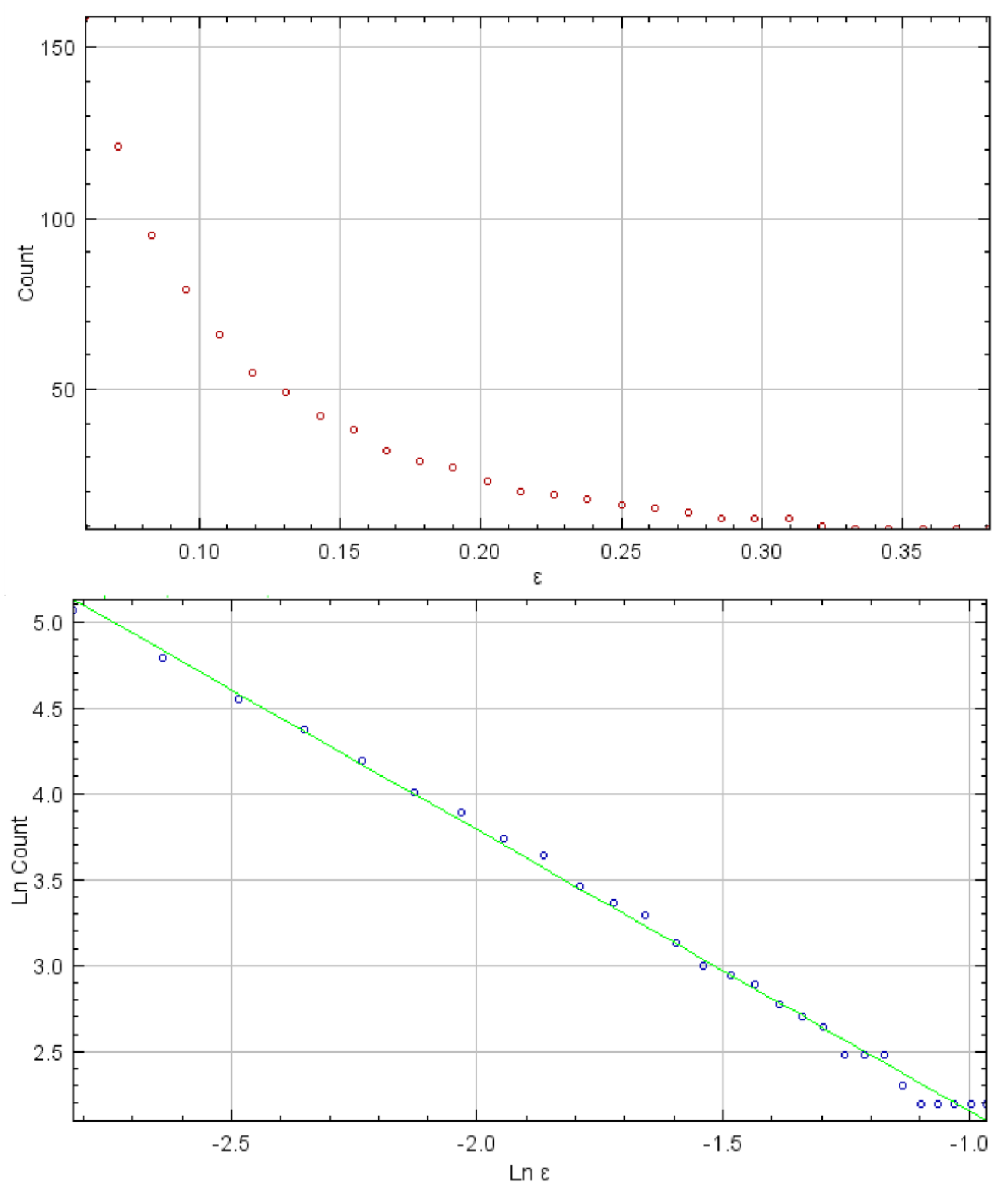

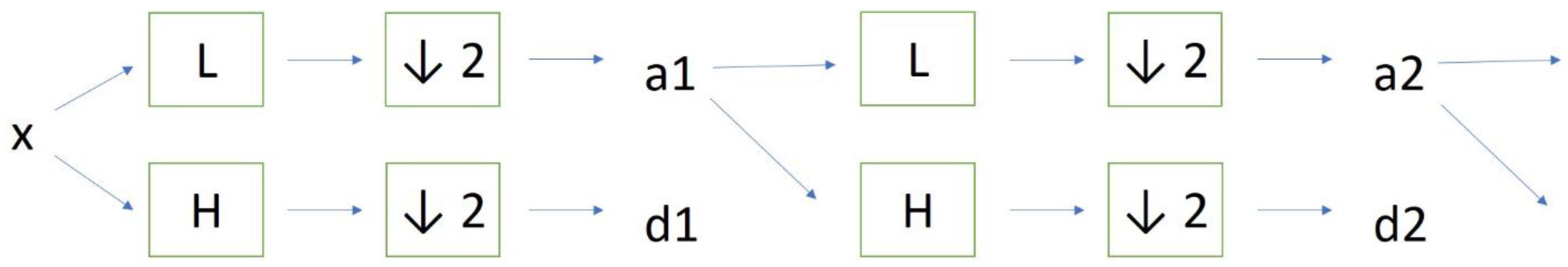

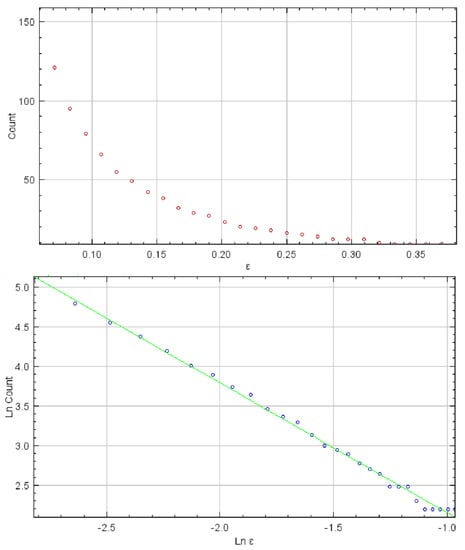

**Figure 3.**The fractal dimension of ROIs was calculated based on the slope of the regression line of log(1/ε) versus log N(ε) for all scales. The value of the fractal dimension in this example is 1.6142. The standard deviations for the experimental and control groups of cells were 0.155 and 0.142, respectively.

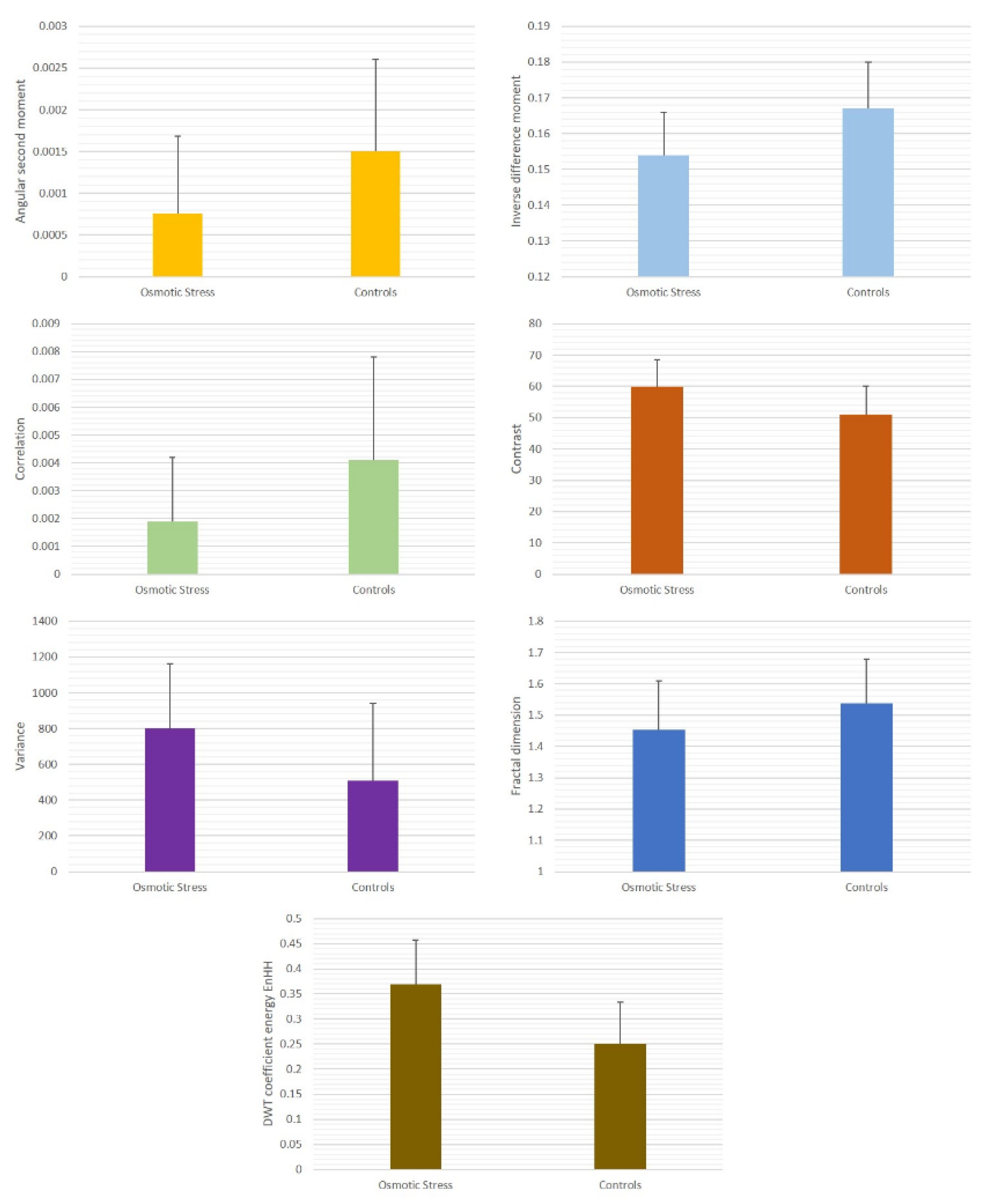

**Figure 4.**Average values of nuclear GLCM indicators in cells exposed to hyperosmotic environment and controls.
