# Scaling in Anti-Plane Elasticity on Random Shear Modulus Fields with Fractal and Hurst Effects

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Theory

#### 2.1. Governing Equations

#### 2.2. Scale-Dependent Homogenization

#### 2.2.1. Hill–Mandel Macrohomogeneity Condition

- Uniform displacement (Dirichlet):$$\mathit{u}\left(\mathit{x}\right)={\u03f5}^{0}\xb7\mathit{x},\phantom{\rule{10.0pt}{0ex}}\forall \mathit{x}\in \partial {B}_{\delta}\left(\omega \right).$$
- Uniform traction (Neumann):$$\mathit{t}\left(\mathit{x}\right)={\sigma}^{0}\xb7\mathit{n},\phantom{\rule{10.0pt}{0ex}}\forall \mathit{x}\in \partial {B}_{\delta}\left(\omega \right).$$
- Uniform displacement-traction (mixed-orthogonal):$$[\mathit{u}\left(\mathit{x}\right)-{\u03f5}^{0}\xb7\mathit{x}]\xb7[\mathit{t}\left(\mathit{x}\right)-{\sigma}^{0}\xb7\mathit{n}]=0,\phantom{\rule{10.0pt}{0ex}}\forall \mathit{x}\in \partial {B}_{\delta}\left(\omega \right).$$

#### 2.2.2. Apparent and Effective Properties

#### 2.2.3. Scaling

#### 2.3. Random Fields

#### 2.4. Cellular Automata

## 3. Numerical Results and Discussion

#### 3.1. Cauchy Random Field Responses

#### 3.2. Dagum Random Field Responses

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Ostoja-Starzewski, M. Microstructural Randomness and Scaling in Mechanics of Materials; Chapman and Hall/CRC: Boca Raton, FL, USA, 2007. [Google Scholar]
- Ostoja-Starzewski, M.; Kale, S.; Karimi, P.; Malyarenko, A.; Raghavan, B.; Ranganathan, S.; Zhang, J. Scaling to RVE in random media. Adv. Appl. Mech.
**2016**, 49, 111–211. [Google Scholar] - Huet, C. Application of variational concepts to size effects in elastic heterogeneous bodies. J. Mech. Phys. Solids
**1990**, 38, 813–841. [Google Scholar] [CrossRef] - Sab, K. On the homogenization and the simulation of random materials. Eur. J. Mech. Solids
**1992**, 11, 585–607. [Google Scholar] - Ranganathan, S.I.; Ostoja-Starzewski, M. Scaling function, anisotropy and the size of RVE in elastic random polycrystals. J. Mech. Phys. Solids
**2008**, 56, 2773–2791. [Google Scholar] [CrossRef] - Ranganathan, S.I.; Ostoja-Starzewski, M. Towards scaling laws in random polycrystals. Int. J. Eng. Sci.
**2009**, 47, 1322–1330. [Google Scholar] [CrossRef] - Murshed, M.R.; Ranganathan, S.I. Hill–Mandel condition and bounds on lower symmetry elastic crystals. Mech. Res. Commun.
**2017**, 81, 7–10. [Google Scholar] [CrossRef] - Dalaq, A.S.; Ranganathan, S.I. Invariants of mesoscale thermal conductivity and resistivity tensors in random checkerboards. Eng. Comput.
**2015**, 32, 1601–1618. [Google Scholar] [CrossRef] - Kale, S.; Saharan, A.; Koric, S.; Ostoja-Starzewski, M. Scaling and bounds in thermal conductivity of planar Gaussian correlated microstructures. J. Appl. Phys.
**2015**, 117, 104301. [Google Scholar] [CrossRef] - Ostoja-Starzewski, M.; Schulte, J. Bounding of effective thermal conductivities of multiscale materials by essential and natural boundary conditions. Phys. Rev. B
**1996**, 54, 278. [Google Scholar] [CrossRef] [Green Version] - Ghossein, E.; Lévesque, M. Homogenization models for predicting local field statistics in ellipsoidal particles reinforced composites: Comparisons and validations. Int. J. Solids Struct.
**2015**, 58, 91–105. [Google Scholar] [CrossRef] - Savvas, D.; Stefanou, G.; Papadrakakis, M. Determination of RVE size for random composites with local volume fraction variation. Comput. Methods Appl. Mech. Eng.
**2016**, 305, 340–358. [Google Scholar] [CrossRef] - Raghavan, B.V.; Ranganathan, S.I.; Ostoja-Starzewski, M. Electrical properties of random checkerboards at finite scales. AIP Adv.
**2015**, 5, 017131. [Google Scholar] [CrossRef] [Green Version] - Karimi, P.; Zhang, X.; Yan, S.; Ostoja-Starzewski, M.; Jin, J.M. Electrostatic and magnetostatic properties of random materials. Phys. Rev. E
**2019**, 99, 022120. [Google Scholar] [CrossRef] [Green Version] - Mandelbrot, B. The Fractal Geometry of Nature; W.H. Freeman & Co.: New York, NY, USA, 1982. [Google Scholar]
- Malyarenko, A.; Ostoja-Starzewski, M. Tensor-Valued Random Fields for Continuum Physics; Cambridge University Press: Cambridge, UK, 2019. [Google Scholar]
- Hill, R. Elastic properties of reinforced solids: Some theoretical principles. J. Mech. Phys. Solids
**1963**, 11, 357–372. [Google Scholar] [CrossRef] - Mandel, J.; Dantu, P. Contribution à l’étude théorique et expérimentale du coefficient d’élastcité d’un milieu hétérogène, mais statistiquement homogène. Annales des Ponts et Chaussées Paris
**1963**, 6, 115–145. [Google Scholar] - Hill, R. The Mathematical Theory of Plasticity; Oxford University Press: Oxford, UK, 1998; Volume 11. [Google Scholar]
- Gneiting, T.; Schlather, M. Stochastic models that separate fractal dimension and the Hurst effect. SIAM Rev.
**2004**, 46, 269–282. [Google Scholar] [CrossRef] [Green Version] - Porcu, E. Spatio-Temporal Geostatistics: New Classes of Covariance, Variogram and Spectral Densities. Ph.D. Thesis, University of Milano, Milano, Italy, 2004. [Google Scholar]
- Chiles, J.P.; Delfiner, P. Geostatistics: Modeling Spatial Uncertainty; John Wiley & Sons: Hoboken, NJ, USA, 2009. [Google Scholar]
- Porcu, E.; Mateu, J.; Zini, A.; Pini, R. Modelling spatio-temporal data: A new variogram and covariance structure proposal. Stat. Probab. Lett.
**2007**, 77, 83–89. [Google Scholar] [CrossRef] - Lim, S.; Teo, L. Analytic and asymptotic properties of multivariate generalized Linnik’s probability densities. J. Fourier Anal. Appl.
**2010**, 16, 715–747. [Google Scholar] [CrossRef] [Green Version] - Laudani, R.; Zhang, D.; Faouzi, T.; Porcu, E.; Ostoja-Starzewski, M.; Chamorro, L.P. On streamwise velocity spectra models with fractal and long-memory effects. Phys. Fluids
**2021**, 33, 035116. [Google Scholar] [CrossRef] - Davies, T.M.; Bryant, D. On circulant embedding for Gaussian random fields in R. J. Stat. Softw.
**2013**, 55, 1–21. [Google Scholar] [CrossRef] [Green Version] - von Neumann, J.; Burks, A.W. Theory of Self-Reproducing Automata; University of Illinois Press Urbana: Champaign, IL, USA, 1966; Volume 1102024. [Google Scholar]
- Leamy, M.J. Application of cellular automata modeling to seismic elastodynamics. Int. J. Solids Struct.
**2008**, 45, 4835–4849. [Google Scholar] [CrossRef] [Green Version] - Hopman, R.K.; Leamy, M.J. Arbitrary geometry cellular automata for elastodynamics. In Proceedings of the ASME International Mechanical Engineering Congress and Exposition, Lake Buena Vista, FL, USA, 13–19 November 2009; Volume 43888, pp. 535–547. [Google Scholar]
- Zhang, X.; Nishawala, V.; Ostoja-Starzewski, M. Anti-plane shear Lamb’s problem on random mass density fields with fractal and Hurst effects. Evol. Equ. Control Theory
**2019**, 8, 231. [Google Scholar] [CrossRef] [Green Version]

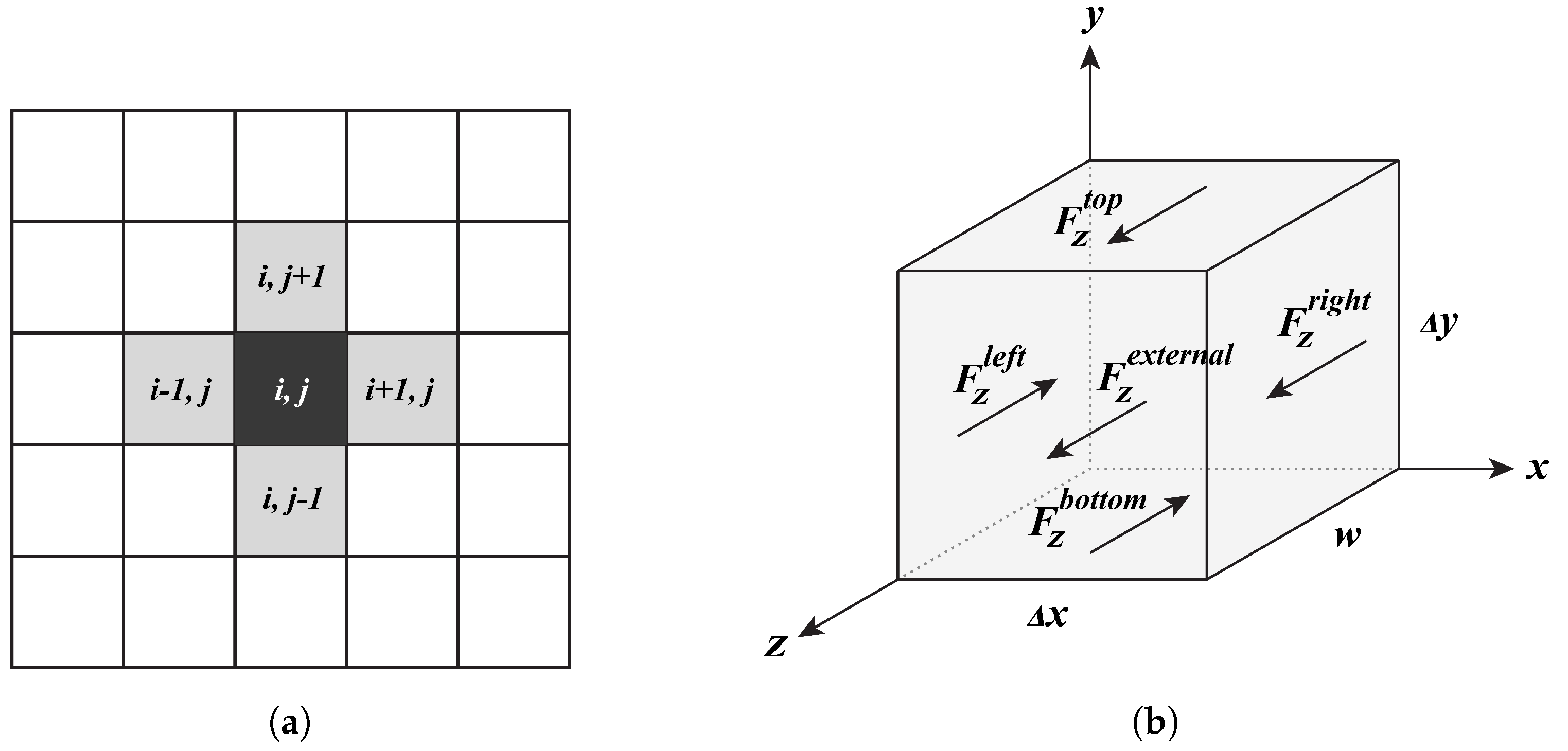

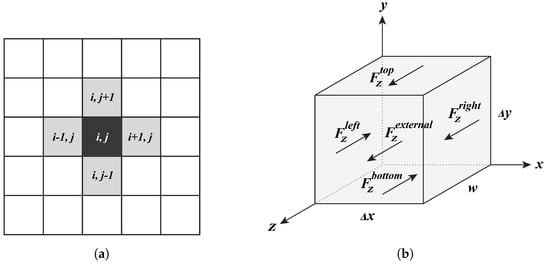

**Figure 1.**(

**a**) A cell (i,j) and its von Neumann neighbours for cellular automaton discretization. (

**b**) neighbor forces and the external force acting on cell (i,j).

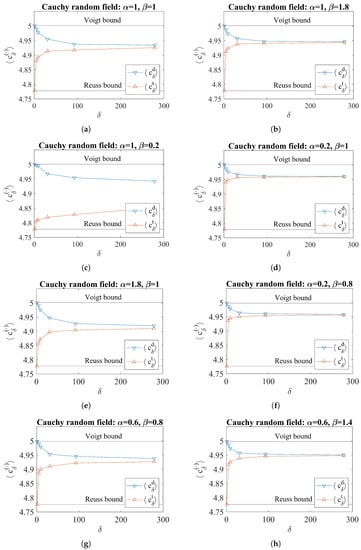

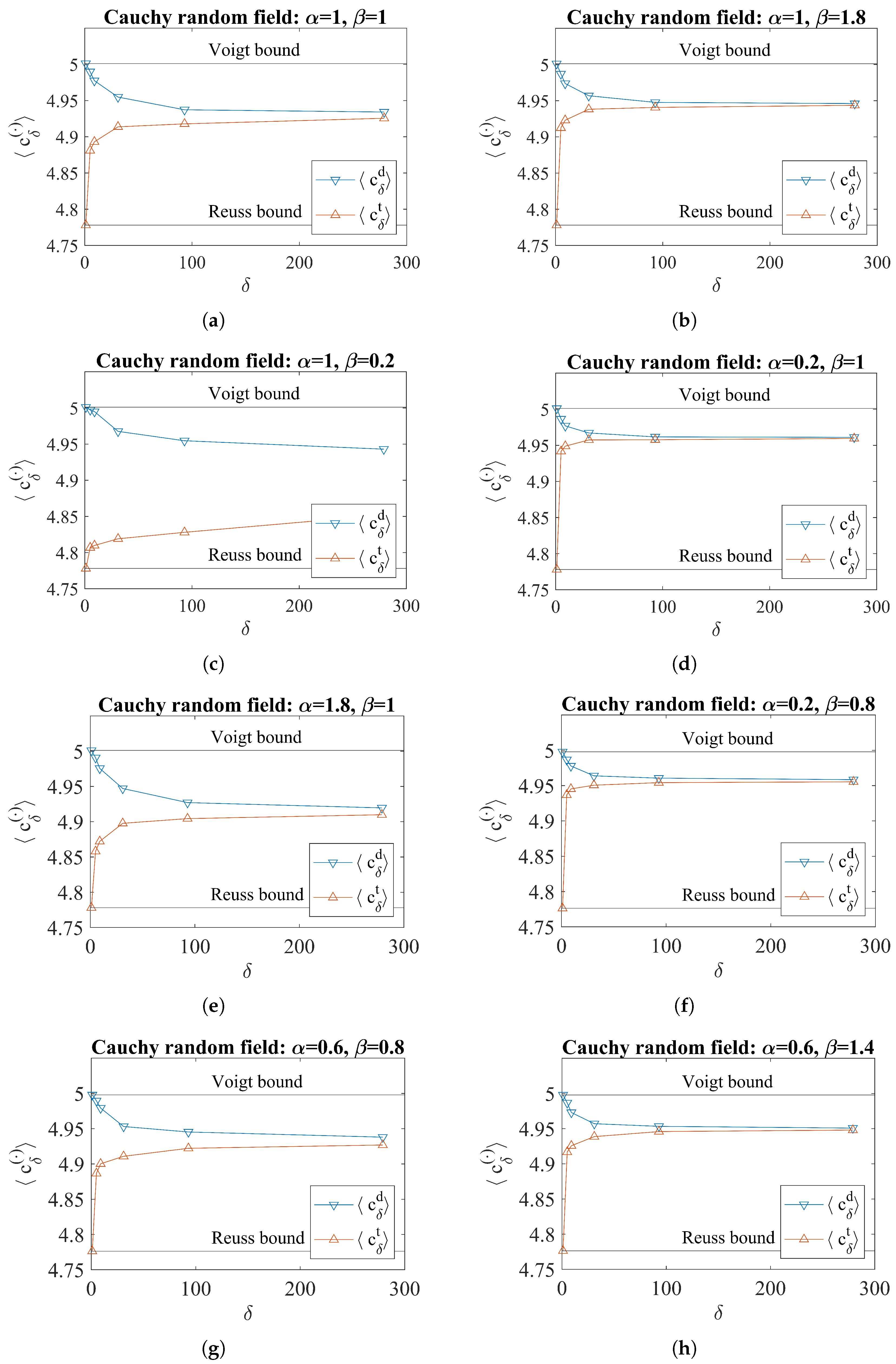

**Figure 2.**Apparent shear modulus responses corresponding to Cauchy random fields for various combinations of $(\alpha ,\beta ,\delta )$.

**Figure 3.**The scaling function $g({R}_{\alpha ,\beta}^{C},\delta )$ as a function of $\delta $ and the corresponding stretched exponential fit.

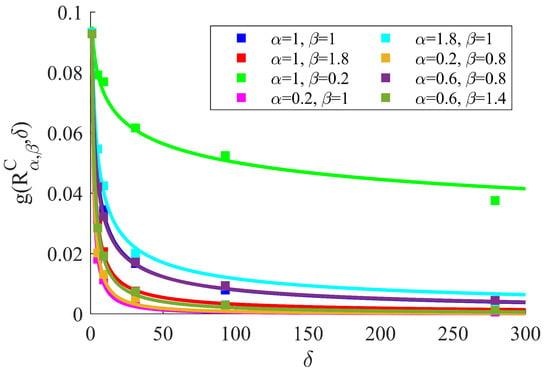

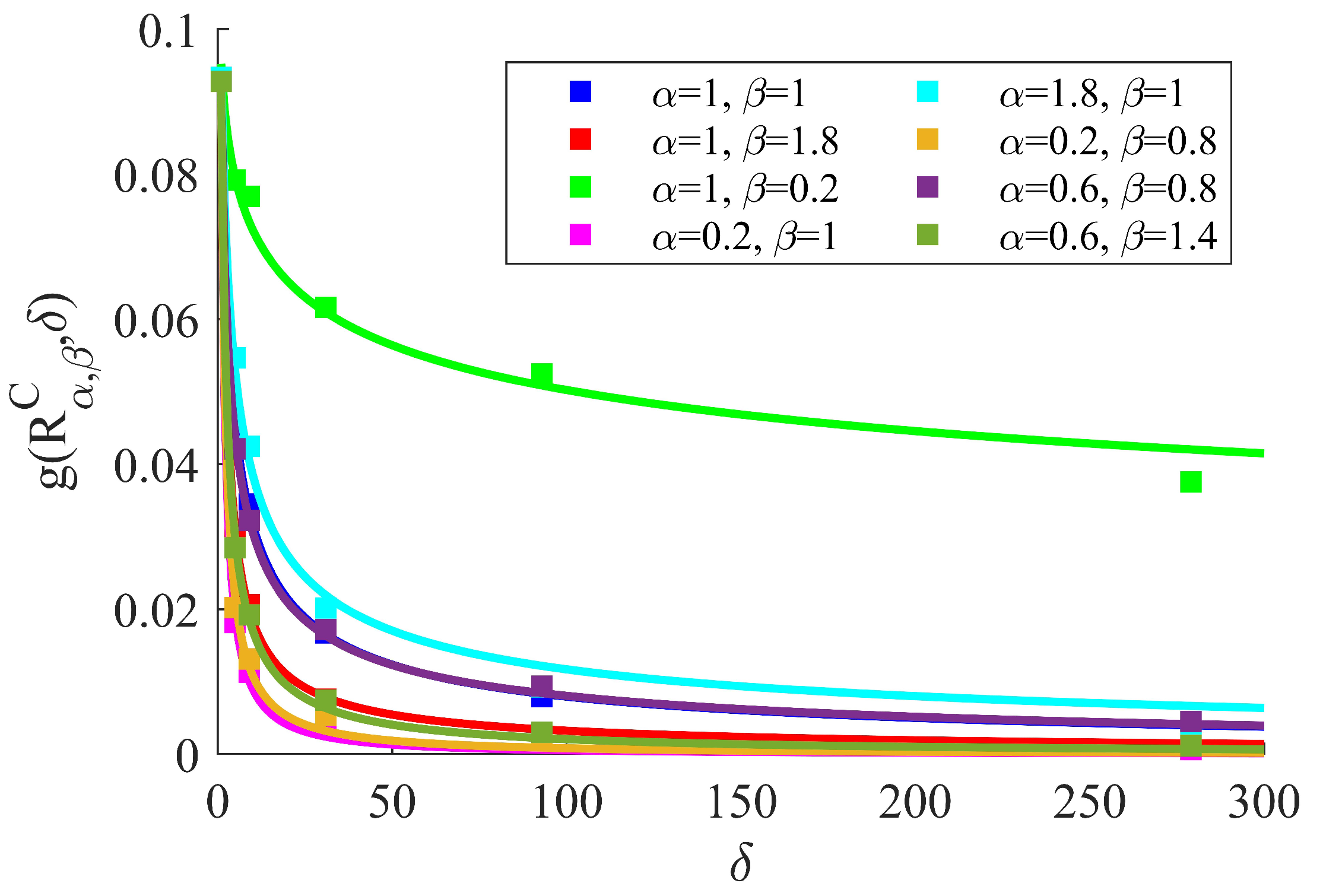

**Figure 4.**The scaling function $g({R}_{\alpha ,\beta}^{C},\delta )$ as a function of $\delta $ and the corresponding Cauchy function fit.

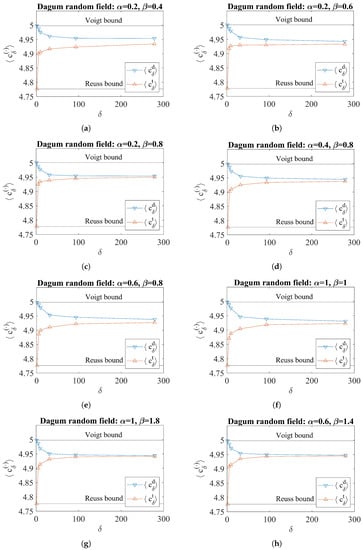

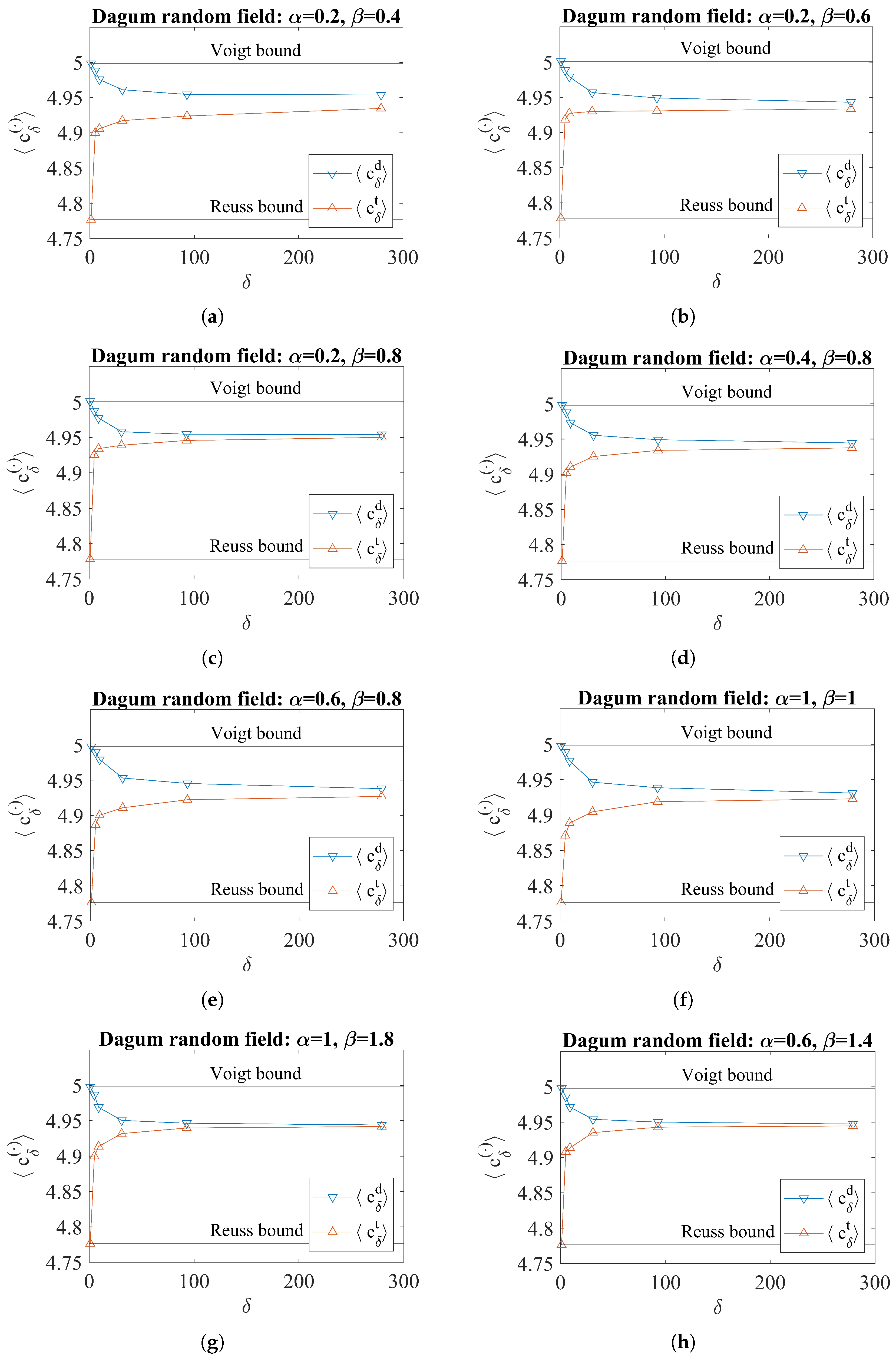

**Figure 5.**Apparent shear modulus responses corresponding to Dagum random fields for various combinations of $(\alpha ,\beta ,\delta )$.

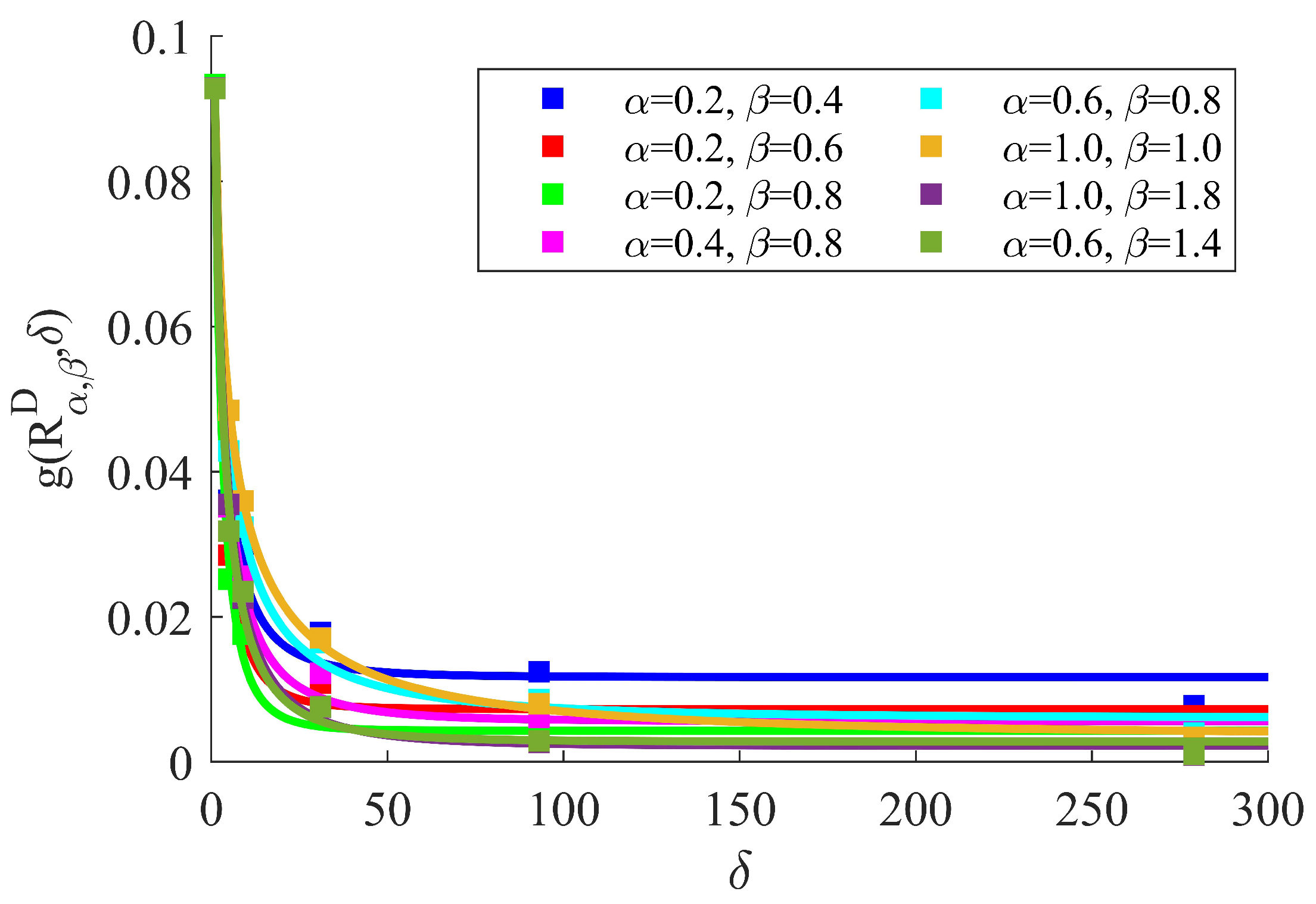

**Figure 6.**The scaling function $g({R}_{\alpha ,\beta}^{D},\delta )$ as a function of $\delta $ and the corresponding stretched exponential fit.

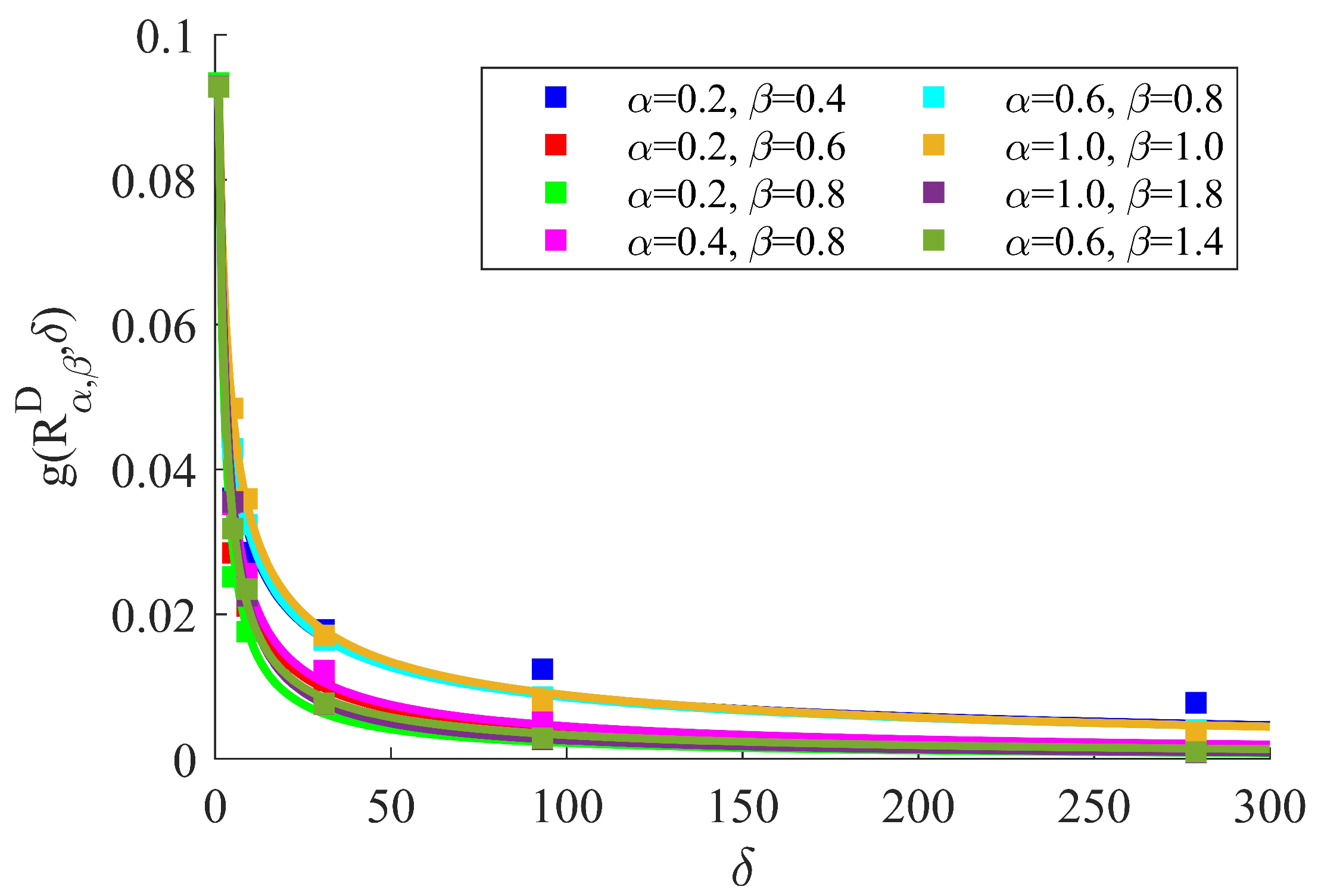

**Figure 7.**The scaling function $g({R}_{\alpha ,\beta}^{D},\delta )$ as a function of $\delta $ and the corresponding Dagum function fit.

**Table 1.**Different combinations of $\alpha $ and $\beta $ in Cauchy and Dagum random fields. (A, B, C), (${A}_{C}$, ${B}_{C}$, ${C}_{C}$), and (${A}_{D}$, ${B}_{D}$, ${C}_{D}$) are the coefficients in the stretched exponential, the Cauchy function, and the Dagum function, respectively. $SSE$, $SS{E}_{C}$, and $SS{E}_{D}$ are the error sums of the squares corresponding to the stretched exponential and Cauchy and Dagum functions’ fits, respectively.

$\alpha $ | $\beta $ | D | H | A | B | C | $SSE$ | ${A}_{C}$ | ${B}_{C}$ | ${C}_{C}$ | $SS{E}_{C}$ |

1 | 1 | 2.5 | 0.5 | 0.24 | 0.34 | 0.005 | 2.5 × 10${}^{-6}$ | 0.46 | 0.34 | 2.3 | 2.1 × 10${}^{-6}$ |

1 | 1.8 | 2.5 | 0.1 | 0.24 | 0.46 | 0.003 | 2.2 × 10${}^{-5}$ | 0.11 | 4.60 | 0.16 | 1 × 10${}^{-6}$ |

1 | 0.2 | 2.5 | 0.9 | 0.50 | 0.05 | −0.090 | 2.7 × 10${}^{-5}$ | 0.12 | 0.53 | 0.35 | 3.9 × 10${}^{-5}$ |

0.2 | 1 | 2.9 | 0.5 | 0.25 | 0.60 | 0.002 | 3.7 × 10${}^{-6}$ | 25.36 | 0.22 | 8.11 | 7.5 × 10${}^{-6}$ |

1.8 | 1 | 2.1 | 0.5 | 0.25 | 0.27 | 0.001 | 9.4 × 10${}^{-7}$ | 0.17 | 0.69 | 0.82 | 2.7 × 10${}^{-5}$ |

0.2 | 0.8 | 2.9 | 0.6 | 0.24 | 0.58 | 0.003 | 2.2 × 10${}^{-5}$ | 14.88 | 0.23 | 7.33 | 1.2 × 10${}^{-5}$ |

0.6 | 0.8 | 2.7 | 0.6 | 0.23 | 0.37 | 0.008 | 2.8 × 10${}^{-5}$ | 1.11 | 0.23 | 3.59 | 5.6 × 10${}^{-6}$ |

0.6 | 1.4 | 2.7 | 0.3 | 0.24 | 0.48 | 0.004 | 2.4 × 10${}^{-5}$ | 1.90 | 0.29 | 4.36 | 1.4 × 10${}^{-5}$ |

(a) Cauchy random fields | |||||||||||

$\alpha $ | $\beta $ | D | H | A | B | C | $SSE$ | ${A}_{D}$ | ${B}_{D}$ | ${C}_{D}$ | $SS{E}_{D}$ |

0.2 | 0.4 | 2.9 | 0.8 | 0.22 | 0.45 | 0.012 | 4.9 × 10${}^{-5}$ | 2.35 | 0.58 | 0.056 | 8.5 × 10${}^{-5}$ |

0.2 | 0.6 | 2.9 | 0.7 | 0.23 | 0.51 | 0.007 | 3.7 × 10${}^{-5}$ | 2.43 | 0.75 | 0.055 | 6.5 × 10${}^{-6}$ |

0.2 | 0.8 | 2.9 | 0.6 | 0.24 | 0.52 | 0.004 | 3.3 × 10${}^{-5}$ | 0.76 | 0.90 | 0.187 | 2.3 × 10${}^{-5}$ |

0.4 | 0.8 | 2.8 | 0.6 | 0.24 | 0.42 | 0.006 | 3.1 × 10${}^{-5}$ | 0.54 | 0.75 | 0.273 | 8.7 × 10${}^{-6}$ |

0.6 | 0.8 | 2.7 | 0.6 | 0.23 | 0.36 | 0.006 | 2.1 × 10${}^{-5}$ | 0.66 | 0.60 | 0.215 | 4.5 × 10${}^{-6}$ |

1 | 1 | 2.5 | 0.5 | 0.24 | 0.32 | 0.004 | 3.3 × 10${}^{-6}$ | 0.22 | 0.64 | 0.821 | 4.9 × 10${}^{-6}$ |

1 | 1.8 | 2.5 | 0.1 | 0.25 | 0.42 | 0.002 | 6.4 × 10${}^{-6}$ | 0.15 | 0.95 | 1.33 | 5.8 × 10${}^{-8}$ |

0.6 | 1.4 | 2.7 | 0.3 | 0.24 | 0.44 | 0.003 | 2.6 × 10${}^{-5}$ | 1.18 | 0.81 | 0.119 | 6.3 × 10${}^{-6}$ |

(b) Dagum random fields |
