Article

Seismic Behavior of a Class of Mixed Reinforced Concrete-Steel Buildings Subjected to Near-Fault Motions

by
Paraskevi K. Askouni
1 and
George A. Papagiannopoulos
2,*
1
Civil Engineer, University of Patras, 149 Riga Feraiou Street, 26221 Patras, Greece
2
School of Sciences and Technology, Hellenic Open University, 26335 Patras, Greece
*
Author to whom correspondence should be addressed.
Infrastructures 2021, 6(12), 172; https://doi.org/10.3390/infrastructures6120172
Submission received: 10 November 2021 / Revised: 26 November 2021 / Accepted: 2 December 2021 / Published: 5 December 2021
(This article belongs to the Special Issue Advances in Structural Dynamics and Earthquake Engineering)

Abstract

:
This paper investigates the seismic behavior of a class of mixed reinforced concrete-steel buildings. In particular, mixed buildings constructed by r/c (reinforced concrete) at their lower story(ies) and structural steel at their upper story(ies) are studied from the viewpoint of their wide application in engineering praxis. The need to investigate the seismic behavior for this type of mixed buildings arises from the fact that the existent literature is small and that modern seismic codes do not offer specific seismic design recommendations for them. To study the seismic behavior of mixed r/c-steel buildings, a 3-D numerical model is employed and five realistic r/c-steel mixed buildings are simulated. Two cases of the support condition, i.e., fixed or pinned, of the lowest steel story to the upper r/c one are examined. The r/c and steel parts of the mixed buildings are initially designed as separate structures by making use of the relevant seismic design guidelines of Eurocode 8, and then the seismic response of these buildings is computed through non-linear time-history analyses. The special category of near-fault seismic motions is selected in these time-history analyses to force the mixed r/c-steel buildings under study to exhibit a strong non-linear response. Seismic response indices in terms of inter-story drift ratio, residual inter-story drift ratio and peak floor absolute accelerations are computed. The maximum values of these indices are discussed by comparing the two aforementioned kinds of support conditions and checking the satisfaction of specific seismic performance limits. Conclusions regarding the expected seismic behavior of mixed r/c-steel buildings under near-fault seismic motions are drawn. Finally, the need to introduce specific design recommendations for mixed r/c-steel buildings in modern seismic codes is stressed.

1. Introduction

The common practice of adding stories made of structural steel upon an existing reinforced concrete (r/c) building is mainly based on empirical engineering rules, as current seismic design building codes, e.g., Eurocode 8 [1], provide design recommendations for structures made from the same material throughout the whole building. Nevertheless, buildings constructed by r/c at their lower story(ies) and structural steel at their upper story(ies) constitute a building type that is very often met in engineering praxis. Leaving aside the treatment of the added stories as a secondary structure appended to the primary structure [2], implying thus, a substantially reduced in size and weight secondary structure with respect to the primary one, this work focuses on the case in which the upper steel stories tend to have the same size in-plan with the lower r/c ones, thereby adding a significant weight to them. Therefore, the resulting structure is termed as mixed and its dynamic behavior has to be assessed by either modal superposition or time-domain analysis [2].
This study deals exclusively with vertically mixed r/c-steel buildings. The term ‘vertically’ is used to denote that the material of the structural members of each story is either r/c or steel. If both r/c and steel materials are used for the structural members in each story, then the term ‘horizontally’ mixed building fits. A representative type of a horizontally mixed building is the one in which r/c shear walls coupled with steel beams, e.g., [3,4], are employed. Horizontally mixed buildings of the aforementioned type as well as of other types and/or materials, e.g., [5,6,7], have been proposed and investigated in detail, but are not considered in this study. Moreover, it should be stressed that the dynamic (seismic) behavior of horizontally mixed buildings is totally different from that of vertically mixed ones. On the other hand, one other thing to note is that the vertically mixed buildings studied herein cannot be viewed as (r/c-steel) composite buildings because for the latter, by definition, the section of the structural members and/or the slabs is composite, i.e., from r/c and steel working cooperatively.
Despite the practical interest associated with vertically mixed r/c-steel buildings, only limited research has been performed so far on their seismic behavior and design, being at the same time focused on moment-resisting frames (MRFs) [8,9]. Oddly enough, being the damping ratio of the lower (r/c) and upper (steel) parts different (the usually assumed values are 5% and 2%, respectively), several studies dealing with the quantification of a uniform damping ratio of vertically mixed buildings can be found in literature, e.g., [10,11,12,13,14,15,16]. This uniform damping ratio can be used in the context of either response spectrum or time-history analysis, even though a specific value for the damping ratio of vertically mixed r/c-steel buildings is absent in [1]. As mentioned in a later section of this paper, selecting one value for this uniform damping ratio is necessary, otherwise, the engineer should consider several values of this ratio and, thus, perform a significant number of seismic analyses.
In addition to the aforementioned limited research performed so far, modern seismic codes, e.g., Eurocode 8 [1], do not provide specific recommendations for the seismic design of vertically mixed r/c-steel buildings, but rely instead on the seismic design performed separately for their r/c and steel parts. Thus, there is a need to investigate the seismic behavior of realistic mixed buildings, especially from the perspective of performance-based seismic design.
For this reason, a 3-D numerical model is employed and five kinds of typically met in engineering praxis r/c-steel mixed buildings are simulated. Two cases of the support condition of the lowest steel story to the upper r/c one are studied: (i) fixed in both horizontal directions and (ii) pinned in one direction and fixed in the other. The r/c and steel parts of the mixed buildings are initially designed as separate structures by making use of the relevant seismic design guidelines of Eurocode 8 in conjunction with Eurocodes 2 and 3 [17,18].
The mixed buildings are then assessed by non-linear time-history (NLTH) analyses employing a set of 11 near-fault seismic motions. These seismic motions are deliberately chosen because they have been repeatedly reported in the literature to cause large seismic demands even to building structures designed according to modern seismic codes, e.g., [19,20]. Global seismic response indices, i.e., the interstorey drift ratio (IDR), the residual interstorey drift ratio (RIDR) and peak floor (absolute) acceleration (PFA), are computed and their height-wise distribution is plotted. Using these plots, the maximum values for IDR, RIDR and PFA (normalized to peak-ground acceleration) are easily identified and then discussed in detail based on comparing the two aforementioned kinds of support conditions and checking the satisfaction of specific seismic performance limits. Conclusions regarding the expected seismic behavior of vertically mixed r/c-steel buildings under near-fault seismic motions are drawn. Finally, the need to introduce specific design recommendations for vertically mixed r/c-steel buildings in modern seismic codes is stressed.

2. Mixed Buildings Considered

The two-, three-, four-, five- and six-story 3-D mixed r/c-steel buildings shown in Figure 1a–e are considered. In particular, in Figure 1a–e the lower story(ies), shown with blue color, are assumed to be constructed by r/c, whereas the upper story(ies) shown with cyan color, are assumed to be constructed by steel. In both horizontal directions, the buildings shown in Figure 1a–e behave as MRFs. All buildings have a square plan configuration of 15.0 × 15.0   m 2 and three identical spans of 5.0   m are formed in each one of the two horizontal directions. The global coordinate system is also shown in Figure 1.
Except for the height of the bottom story (r/c), which is 4.0   m , the height of each other story (r/c or steel) is 3.0   m . Diaphragm action is assumed for each floor due to the presence of r/c and composite slabs having a thickness of 0.15   m . The materials used for the r/c part of the mixed building are C25/30 and B500c for concrete and steel reinforcement [17], respectively, whereas the steel grade for both beams and columns of the steel part of the mixed building is S355 [18].
The mixed buildings of Figure 1a–e are designed according to the provisions of relevant Eurocodes [1,17,18] as ordinary buildings (importance factor is 1.0). The gravity load consists of dead load G and live load Q = 2.5   kN / m 2 . Load G is 5   kN / m 2 on floors and 3   kN / m on walls. The mixed buildings are seismically designed for a ductility class medium (DCM), according to [1], and are assumed to be founded in a site with a g R = 0.36   g . The design spectrum is that of type 1, viscous damping ratio 5% and soil type C.
The effect of soil-structure interaction is assumed to be small and hence is not included in the seismic analysis. The maximum values of the behavior factor q permitted by [1] for DCM are 3.9 and 4.0 for r/c and steel MRFs, respectively. It is recalled that in [1] the value of q may be different in the two horizontal directions of the structure, although the ductility class shall be the same in these directions. Seismic loading is considered for both horizontal directions following the 30% combination rule of [1]. An accidental eccentricity of 5% is considered [1].
The seismic design checks are performed separately for the r/c and steel parts of the mixed buildings, assuming the aforementioned maximum values of q . The inter-story drift sensitivity coefficient θ in both horizontal directions of the mixed buildings has been taken into account and the final design is checked against the damage limitation criterion of [1], assuming non-structural elements of brittle materials. Final sections for beams and columns of the r/c and steel parts of the mixed buildings (a)–(e) of Figure 1 are shown in Table 1. It should be noted that for each r/c story the square cross-sections of all columns has been chosen to be the same. On the other hand, the orientation of the steel columns follows Figure 2, essentially leading to a strong perimeter steel frame.
Concerning the support condition of the lowest steel story to the upper r/c story, two cases are examined: (i) the steel columns behave as fixed (carrying moment) in both horizontal directions of the mixed building and (ii) the steel columns behave as fixed in one horizontal direction (cross-sectional minor axis) and nominally pinned (carry small or no moment) in the other one (cross-sectional major axis). This distinction regarding support conditions is of utmost importance taking into account that, in all likelihood, the drilled-in epoxy type anchor rods used in the base plate connections of the steel columns cannot be fully anchored into a pre-existing r/c column, thus the moment capacity of the base-plate connections may be small. Moreover, the number and placement of anchor rods is directly related to the dimensions of the r/c column as well as to the presence of the steel reinforcement and stirrups in it. Thus, under normal circumstances, the engineer should perform several analyses of the mixed building, considering different degrees of freedom for the support of the steel structure upon the r/c one.
For reasons of comparison between the two aforementioned kinds of support conditions, the sections of all steel and r/c members of the mixed buildings are considered to be those shown in Table 1. As expected, the first significant modes of vibration of the mixed buildings of Figure 1 for the cases of the fixed or fixed-pinned support conditions of the steel structure to the r/c one, are different. The first two translational modes and the third torsional one, along with their corresponding mass participating ratios in parentheses, are presented in Table 2. In Table 2, I and II denote fixed and fixed-pinned condition cases, respectively, whereas symbols (a)–(e) used for each mixed building follow Figure 1.
With reference to Figure 2, the mixed r/c-steel buildings shown in Figure 1a–e are symmetrical and the difference between the center of stiffness and mass is found to be small. If unsymmetrical mixed buildings are considered, this difference becomes larger and should be taken into account in the design.

3. Seismic Motions and Modeling of Mixed Structures for NLTH Analyses

The mixed buildings of Figure 1 are subjected to 3-D NLTH analyses, employing the two horizontal components that correspond to each one of the eleven (11) near-fault seismic motions (downloaded from [21]) presented in Table 3. In this table, data with the concerning earthquake name, location, year, recording station, moment magnitude Mw and peak ground acceleration (PGA) of the two horizontal components are provided. More information regarding the location, soil type, proximity to fault, etc., for the near-fault seismic motions of Table 3 can be found in [21].
Being recorded close to the ruptured fault, the near-fault seismic motions of Table 3 are strongly influenced by directivity effects. The two horizontal components of each seismic motion are used interchangeably for the two horizontal axes X and Y, shown in Figure 1, of the mixed buildings, thus, doubling the number of NLTH analyses performed. Therefore, it is assumed that the angle of orientation of the seismic motion with respect to the horizontal direction of the building, is either 0° or 90°. Due to the symmetry of the mixed buildings studied herein, there is no need to perform a further variation of the angle of orientation of seismic motion to the horizontal directions of the buildings. On the other hand, in the NLTH analyses conducted herein, the two horizontal components of the near-fault ground motions of Table 3 have not been rotated to the angle of the seismic fault, i.e., to the fault-normal and fault-parallel directions, and have been used as recorded. It is believed that the error introduced to the maximum seismic response by not performing the rotation of the recorded components is small and hence the results presented in the following are credible.
As stated in the Introduction, a potential problem in the computation of the seismic response of a mixed building arises from the value of the damping ratio assumed, at least for the significant modes of vibration. In this work, the approach proposed by Sivandi-Pour et al. [12] is followed and uniform (common) values of damping ratios for the first few modes of vibration are calculated. These damping ratio values for each of the mixed buildings of Figure 1 (following symbols (a)–(e)) are provided in Table 4, and are then used to form the damping matrix needed for the NLTH analyses.
For the execution of NLTH analyses, the computer program RUAUMOKO 3-D [22] is utilized. In particular: (i) both geometrical and material nonlinearities are considered; (ii) beam and column members are modeled using typical frame elements and their inelastic behavior is taken into account using point plastic hinges at their both ends. The formation of plastic hinges takes place due to uniaxial bending in beams and axial force with biaxial moment interaction in columns. A detailed joint modelling of beam-to-column connection is not included in the NLTH analyses, upon the assumption of well-detailed steel and r/c joints provided by the design rules [1]. Failure of r/c members in shear before their bending failure is excluded if the capacity design provisions of [1] are applied.
The system of equations of motion solved for each non-linear structure has the form M u ¨ + C u ˙ + F = R = M I u ¨ g , where M, C and K are the mass, viscous damping and stiffness matrices, respectively, u is the vector of the lateral displacement of the structure relative to the ground,   u ¨ g is the ground seismic acceleration, I is the unit vector, F is the vector of the nodal internal forces, which depend nonlinearly on the deformation and the rest of the matrices and vectors and overdots denote differentiation with respect to time t. This system is solved by stepwise time integration.
A 2% strain hardening is assumed for steel members, whereas the limits for their plastic hinge rotations, concerning the seismic performance levels, are those of ASCE 41-17 [23]. The modified Takeda hysteresis model [22] is employed to model stiffness degradation and strength deterioration of the r/c members. The post-yield hardening ratio of r/c members is considered to be 5%. The backbone moment M-rotation θ curve is defined as in ASCE 41-17 [23]. An effective (cracked) stiffness equal to 0.30 and 0.35 times the initial (uncracked) stiffness for columns and beams, respectively, is assumed.
Non-structural elements and soil-structure interaction effects are not modelled for the NLTH analyses conducted in this work. The total number of NLTH analyses performed for each mixed building of Figure 1 is 44, i.e., 11 (seismic motions) times two (changing the two horizontal components of seismic motion along the two horizontal axes of the buildings) times two (fixed and fixed-pinned support conditions of the steel structure to the r/c one).

4. Seismic Response Results and Discussion

In this section, the seismic response results of the mixed buildings of Figure 1, when subjected to the seismic motions of Table 3, are presented and discussed. More specifically, plots portraying height-wise distributions of the maximum IDR, RDIR and PFA in both horizontal directions X and Y of the mixed building are provided separately for the two aforementioned cases of support condition of the steel structure to the r/c one, i.e., fixed and fixed-pinned. It is noted that in these plots: (i) the vertical axis is the cumulative floor height, which is 4.0   m for the bottom (r/c) story and increases per 3.0   m for each other story (r/c or steel); (ii) the symbols (in legends) 0 and 90 are used in conjunction with the name of the seismic motion (following Table 3) to distinguish the mutual change between the two horizontal components of seismic motion with respect to the horizontal directions X and Y of the mixed building; (iii) the code names (in legends) of the seismic motions can be found in Table 3.
Limit IDR values for the seismic performance levels IO (Immediate Occupancy), DC (Damage Control), LS (Life Safety) and CP (Collapse Prevention) are those of SEAOC [24] and read: 0.5%, 1.5%, 2.5% and 4.0%, respectively, for r/c MRFs, and 0.7%, 1.5%, 2.5% and 5.0%, respectively, for steel MRFs. The stress–strain state of the building structures at the levels DC, LS and CP of seismic response induced by the near-fault seismic motions in Table 3, is essentially non-linear. Limit values for plastic hinge rotation associated with the IO, DC, LS and CP seismic performance levels are those defined in ASCE 41-17 [23].
Concerning the RIDR, the limit value of 0.5% is selected [25]. The 0.5% maximum permissible of RIDR is assumed to hold for both the r/c and steel stories of the mixed building. Limit PFA values for the aforementioned IO, DC, LS and CP seismic performance levels do not exist in the literature. Thus, PFA values are simply normalized to the PGA values given in Table 3. This normalization is performed separately for the X and Y directions of the mixed building, following the 0 and 90 symbolization, as explained above.
Failure of the mixed building occurs if one or more of the following is satisfied: (i) plastic hinge rotations at the lower-end of the bottom (r/c) story column and at the ends of the r/c and steel beams, are beyond the limit values corresponding to the LS seismic performance level; (ii) a soft-story mechanism is formed and (iii) the threshold RIDR value of 0.5% is surpassed.
Due to space limitations, only plots of the maximum RIDR and PFA/PGA height-wise distributions considering the two support conditions of the steel structure to the r/c one, are shown in the following. In these plots, only the relevant results from these NLTH analyses that have converged are included. Furthermore, it should be recalled that when near-fault seismic motions influenced by directivity effects (as those of Table 3) are employed in NLTH analyses, the maximum seismic response is expected to occur in this horizontal direction (0 or 90 as defined above) where the strongest ground motion component (mainly depends on the amplitude of the velocity pulse) is applied.
Starting with the two-story mixed building of Figure 1a, the maximum IDR values computed for the X and Y horizontal directions of the building are 1.82% and 2.15%, respectively, for the case of fixed steel structure to the r/c one, and 3.30% and 2.97%, respectively, for the case of fixed-pinned steel structure to the r/c one. Figure 3, Figure 4, Figure 5 and Figure 6 display that: (i) the 0.5% RIDR value is violated for five seismic motions in total (three and two seismic motions along with the X and Y horizontal directions of the building, respectively) for the case of the fixed steel structure to the r/c one; (ii) the 0.5% RIDR value is violated for seven seismic motions in total (four and three seismic motions along with the X and Y horizontal directions of the building, respectively) for the case of the fixed-pinned steel structure to the r/c one; (iii) for the X horizontal direction of the building, the maximum PFA/PGA is 2.54 and 2.98 for the cases of fixed and fixed-pinned, respectively, and the steel structure to the r/c one; (iv) for the Y horizontal direction of the building, the maximum PFA/PGA is 3.74 and 3.45 for the cases of fixed and fixed-pinned, respectively, and the steel structure to the r/c one.
Next, the three-story mixed building of Figure 1b is presented. The maximum IDR values computed for the X and Y horizontal directions of the building are 2.22% and 2.93%, respectively, for the case of fixed steel structure to the r/c one, and 2.20% and 2.92%, respectively, for the case of fixed-pinned steel structure to the r/c one. Figure 7, Figure 8, Figure 9 and Figure 10 display that: (i) the 0.5% RIDR value is violated for eight seismic motions in total (four seismic motions along with each one of the X and Y horizontal directions of the building, respectively) for the case of fixed steel structure to the r/c one; (ii) the 0.5% RIDR value is violated for nine seismic motions in total (four and five seismic motions along with the X and Y horizontal directions of the building, respectively) for the case of fixed-pinned steel structure to the r/c one; (iii) for the X horizontal direction of the building, maximum PFA/PGA is 2.76 and 3.17 for the cases of fixed and fixed-pinned, respectively, steel structure to the r/c one; (iv) for the Y horizontal direction of the building, maximum PFA/PGA is 3.24 and 3.37 for the cases of fixed and fixed-pinned, respectively, steel structure to the r/c one.
Moving to the RIDR and PFA/PGA results of the four-story mixed building of Figure 1c, the maximum IDR values computed for the X and Y horizontal directions of the building are 3.45% and 2.42%, respectively, for the case of fixed steel structure to the r/c one, and 3.31% and 2.43%, respectively, for the case of fixed-pinned steel structure to the r/c one. Figure 11, Figure 12, Figure 13 and Figure 14 display that: (i) the 0.5% RIDR value is violated for nine seismic motions in total (five and four seismic motions along with the X and Y horizontal directions of the building, respectively) for the case of the fixed steel structure to the r/c one; (ii) the 0.5% RIDR value is violated for nine seismic motions in total (six and three seismic motions along with the X and Y horizontal directions of the building, respectively) for the case of fixed-pinned steel structure to the r/c one; (iii) for the X horizontal direction of the building, maximum PFA/PGA is 3.10 and 3.67 for the cases of fixed and fixed-pinned, respectively, steel structure to the r/c one; (iv) for the Y horizontal direction of the building, maximum PFA/PGA is 3.21 and 3.82 for the cases of fixed and fixed-pinned, respectively, for the steel structure to the r/c one.
For the five-story mixed building of Figure 1d, the maximum IDR values computed for the X and Y horizontal directions of the building are 3.02% and 2.18%, respectively, for the case of fixed steel structure to the r/c one, and 3.40% and 2.21%, respectively, for the case of fixed-pinned steel structure to the r/c one. Figure 15, Figure 16, Figure 17 and Figure 18 display that: (i) the 0.5% RIDR value is violated for nine seismic motions in total (four and five seismic motions along with the X and Y horizontal directions of the building, respectively) for the case of fixed steel structure to the r/c one; (ii) the 0.5% RIDR value is violated for ten seismic motions in total (six and four seismic motions along with the X and Y horizontal directions of the building, respectively) for the case of the fixed-pinned steel structure to the r/c one; (iii) for the X horizontal direction of the building, the maximum PFA/PGA is 4.15 and 4.18 for the cases of fixed and fixed-pinned, respectively, for the steel structure to the r/c one; (iv) for the Y horizontal direction of the building, maximum PFA/PGA is 4.56 and 4.97 for the cases of fixed and fixed-pinned, respectively, for the steel structure to the r/c one.
Finally, for the six-story mixed building of Figure 1e, the maximum IDR values computed for the X and Y horizontal directions of the building are 2.79% and 3.26%, respectively, for the case of fixed steel structure to the r/c one, and 2.83% and 3.04%, respectively, for the case of fixed-pinned steel structure to the r/c one. Figure 19, Figure 20, Figure 21 and Figure 22 display that: (i) the 0.5% RIDR value is violated for eight seismic motions in total (five and three seismic motions along with the X and Y horizontal directions of the building, respectively) for the case of fixed steel structure to the r/c one; (ii) the 0.5% RIDR value is violated for eight seismic motions in total (four seismic motions along with each one of the X and Y horizontal directions of the building, respectively) for the case of fixed-pinned steel structure to the r/c one; (iii) for the X horizontal direction of the building, maximum PFA/PGA is 3.41 and 3.88 for the cases of fixed and fixed-pinned, respectively, steel structure to the r/c one; (iv) for the Y horizontal direction of the building, maximum PFA/PGA is 3.15 and 3.41 for the cases of fixed and fixed-pinned, respectively, for the steel structure to the r/c one.
Regarding the PFA/PGA plots shown above, it is concluded that this ratio is maximized at the steel part of the mixed building. However, an exception is observed for the six-story mixed building where the maximum value of PFA/PGA occurs at the upper r/c story. On the other hand, the PFA/PGA values at all stories may be small in one of the horizontal directions X and Y. This is justified, as the mixed buildings studied herein essentially respond in this horizontal direction, where the strongest ground motion component is applied.
From the maximum IDR values mentioned above, it is clear that the seismic performance of the three-, four- and six-story mixed buildings lies between the LS and CP levels, whereas that of the two- and five-story ones lies between either the DC and LS or the LS and CP levels. The large (i.e., larger than 2.5%) values of maximum IDR almost always lead to large values of maximum RIDR.
Regarding RIDRs, the relevant plots presented above reveal that the maximum RIDR always takes place at the r/c part of the mixed building. Taking into account the exhibition of large maximum RIDRs, i.e. over the threshold 0.5% value considered, one should check if plastic hinges are formed at both ends of the columns, as this eventually triggers a soft-story mechanism. Indeed, when RIDR surpasses 0.5%, plastic hinges are observed at the top and bottom ends to many columns of the lower r/c stories, whereas columns of the steel stories, with only a few notable exceptions, remain elastic.
Table 5 provides the total number of failures for each mixed building studied herein based on RIDRs larger than 0.5% in conjunction with plastic hinge formation at both ends of the columns. It is recalled that the total number of NLTH analyses performed for each mixed building of Figure 1, taking into account the support condition of the steel structure to the r/c one, is 22 (see end paragraph in Section 3).
Judging by the number of failures presented in Table 5, irrespectively of the support condition of the steel structure to the r/c one, it is concluded that the mixed buildings studied herein, despite being designed by a modern seismic code [1], are expected to exhibit unfavorable seismic behavior when subjected to near-fault seismic motions. This unfavorable seismic behavior is justified, as explicit seismic design recommendations for building structures located at the proximity of a seismic fault are not provided in [1].
Based on the aforementioned results and discussion as well as for assessment purposes of other types of mixed r/c-steel buildings, the procedure implemented in this work starts with the design of the r/c and steel parts of the mixed building, continues with the conduction of NLTH analyses under a specific set of seismic motions and ends with the computation of the seismic response indices needed. The maximum values of these indices are then compared with those values that are expected not to be surpassed for a given seismic performance level.

5. Conclusions

The purpose of this paper is to investigate and discuss the seismic behavior of some vertically mixed r/c-steel building structures, as modern seismic codes do not offer specific seismic design recommendations for them. In particular, 3-D numerical models of five realistic and commonly met in engineering praxis r/c-steel mixed buildings are considered.
The seismic response of these mixed buildings, in terms of height-wise distributions of maximum IDR, RDIR and PFA values, is found through NLTH analyses considering near-fault seismic motions and two kinds of support conditions of the steel structure to the r/c one. The r/c and steel parts of the mixed buildings are initially designed as separate structures, following the corresponding seismic design provisions of Eurocode 8 [1] for r/c and steel structures, but they are then treated as united in the NLTH analyses. Taking into account the maximum values for IDR, RDIR, PFA/PGA and in conjunction with specific seismic performance levels that the r/c and steel parts of the mixed building should satisfy, the following conclusions are drawn:
  • Near-fault seismic motions induce, as expected, large maximum IDRs and PFA amplifications, which in turn lead to large RIDR.
  • The maximum values of IDR and RIDR take place at the r/c part of the mixed building, whereas maximum PFA almost always occurs at the steel part.
  • The large RIDRs are always accompanied by the formation of plastic hinges at the ends of the lower r/c stories, thus rendering the capacity design performed to the r/c part of the mixed building defective.
  • The steel columns of the mixed building almost always exhibit elastic behavior and, thus, the capacity design performed to the steel part of the mixed building is in all likelihood effective.
  • The type of support condition of the steel structure to the r/c one does not seem to heavily influence the maximum IDR, RDIR and PFA values induced to the mixed building.
It is finally noted that the seismic response of a mixed r/c-steel building is influenced by the value of the damping ratio assigned to the first few significant modes of vibration. Nevertheless, it is believed that the aforementioned conclusions will not be drastically affected if different values for modal damping ratios, but certainly within the commonly employed values of 2% and 5% for steel and r/c, respectively, are considered in the seismic analyses performed for the purposes of the present investigation.
The findings of this study do not reflect the seismic behavior/performance of mixed r/c-steel buildings having unsymmetrical configurations, along with height and layout or exhibiting differences in stiffness and mass distributions. Nevertheless, symmetrical or almost symmetrical mixed r/c-steel buildings, having probably more stories and/or bay spans, if designed by avoiding drastic changes in mass and stiffness distributions, then their seismic behavior/performance when subjected to near-fault seismic motions is expected to be similar with the one identified herein.
As the mixed, from the perspective of using different materials, type of construction for buildings continues to gain ground in engineering praxis and based on the results and findings of the present study, it is believed that future version of Eurocode 8 [1] should include specific seismic design guidelines for vertically mixed r/c-steel structures.

Author Contributions

All the authors have equally contributed to the conception, design and execution of this study. The final paper has been critically revised and accepted by all the authors. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Part 1-1: General rules, seismic actions and rules for buildings. In Eurocode 8 (EC8): Design of Structures for Earthquake Resistance; European Committee for Standardization (CEN): Brussels, Belgium, 2004.
  2. Villaverde, R. Fundamental Concepts of Earthquake Engineering; CRC Press: Boca Raton, FL, USA, 2009. [Google Scholar]
  3. Bengar, H.A.; Aski, R.M. Performance based evaluation of RC coupled shear wall system with steel coupling beam. Steel Compos. Struct. 2016, 20, 337–355. [Google Scholar] [CrossRef]
  4. Ji, X.; Liu, D.; Sun, Y.; Hutt, C.M. Seismic performance assessment of a hybrid coupled wall system with replaceable steel coupling beams versus traditional RC coupling beams. Earthq. Eng. Struct. Dyn. 2017, 46, 517–535. [Google Scholar] [CrossRef]
  5. Ávila, F.; Dechent, P.; Opazo, A. Seismic behaviour evaluation of CLT horizontal diaphragms on hybrid buildings with reinforced concrete shear walls. Eng. Struct. 2021, 244, 112698. [Google Scholar] [CrossRef]
  6. Pan, Y.; Tannert, T.; Kaushik, K.; Xiong, H.; Ventura, C.E. Seismic performance of a proposed wood-concrete hybrid system for high-rise buildings. Eng. Struct. 2021, 238, 112194. [Google Scholar] [CrossRef]
  7. Gallo, P.Q.; Carradine, D.M.; Bazaez, R. State of the art and practice of seismic-resistant hybrid timber structures. Eur. J. Wood Wood Prod. 2021, 79, 5–28. [Google Scholar] [CrossRef]
  8. Maley, T.J.; Sullivann, T.J.; Pampanin, S. Issues with the seismic design of mixed MRF Systems. In Proceedings of the 15th World Conference on Earthquake Engineering, Lisboa, Portugal, 24–28 September 2012; Available online: http://www.iitk.ac.in/nicee/wcee/article/WCEE2012_4043.pdf (accessed on 25 September 2021).
  9. Pnevmatikos, N.G.; Papagiannopoulos, G.A.; Papavasileiou, G.S. Fragility curves for mixed concrete/steel frames subjected to seismic excitation. Soil Dyn. Earthq. Eng. 2019, 116, 709–713. [Google Scholar] [CrossRef]
  10. Papageorgiou, A.V.; Gantes, C.J. Equivalent modal damping ratios for concrete/steel mixed structures. Comput. Struct. 2010, 88, 1124–1136. [Google Scholar] [CrossRef]
  11. Papageorgiou, A.V.; Gantes, C.J. Equivalent uniform damping ratios for linear irregularly damped concrete/steel mixed structures. Soil Dyn. Earthq. Eng. 2011, 31, 418–430. [Google Scholar] [CrossRef]
  12. Sivandi-Pour, A.; Gerami, M.; Khodayarnezhad, D. Equivalent modal damping ratios for non-classically damped hybrid steel concrete buildings with transitional storey. Struct. Eng. Mech. 2014, 50, 383–401. [Google Scholar] [CrossRef]
  13. Huang, W.; Qian, J.; Zhou, Z.; Fu, Q. An approach to equivalent damping ratio of vertically mixed structures based on response error minimization. Soil Dyn. Earthq. Eng. 2015, 72, 119–128. [Google Scholar] [CrossRef]
  14. Qian, J.; Zhou, Z.; Huang, W. Investigation on the modal strain energy for dynamic analysis of steel-concrete vertically mixed structures. J. Asian Archit. Build. Eng. 2015, 14, 671–678. [Google Scholar] [CrossRef]
  15. Sivandi-Pour, A.; Gerami, M.; Kheyroddin, A. Uniform damping ratio for non-classically damped hybrid steel concrete structures. Int. J. Civ. Eng. 2016, 14, 1–11. [Google Scholar] [CrossRef]
  16. Lu, Z.; He, X.; Zhou, Y. Studies on damping behavior of vertically mixed structures with upper steel and lower concrete substructures. Struct. Des. Tall Spec. Build. 2017, 26, e1392. [Google Scholar] [CrossRef]
  17. Part 1-1: General rules and rules for buildings. In Eurocode 2 (EC2): Design of Concrete Structures; European Committee for Standardization (CEN): Brussels, Belgium, 2004.
  18. Part 1-1: General rules and rules for Buildings. In Eurocode 3 (EC3): Design of Steel Structures; European Committee for Standardization (CEN): Brussels, Belgium, 2009.
  19. Katsimpini, P.; Konstandakopoulou, F.; Papagiannopoulos, G.; Pnevmatikos, N.; Hatzigeirgiou, G. Seismic performance of steel structure-foundation systems designed according to Eurocode 8 provisions: The case of near-fault seismic motions. Buildings 2020, 10, 63. [Google Scholar] [CrossRef] [Green Version]
  20. Yang, F.; Wang, G.; Ding, Y. Damage demands evaluation of reinforced concrete frame structure subjected to near-fault seismic sequences. Nat. Hazards 2019, 97, 841–860. [Google Scholar] [CrossRef]
  21. Center for Engineering Strong Motion Data. Available online: www.strongmotioncenter.org (accessed on 5 July 2021).
  22. Carr, A.J. Ruaumoko 3D: Program for Inelastic Dynamic Analysis. Theory and User Guide to Associated Programs; Department of Civil Engineering, University of Canterbury: Christchurch, New Zealand, 2009. [Google Scholar]
  23. ASCE 41-17. Seismic Evaluation and Retrofit of Existing Buildings; American Society of Civil Engineers: Reston, VA, USA, 2017. [Google Scholar]
  24. SEAOC. Recommended Lateral Force Requirements and Commentary, 7th ed.; Structural Engineers Association of California: Sacramento, CA, USA, 1999. [Google Scholar]
  25. McCormick, J.; Aburano, H.; Ikenaga, M.; Nakashima, M. Permissible residual deformation levels for building structures considering both safety and human elements. In Proceedings of the 14th World Conference on Earthquake Engineering, Beijing, China, 12–17 October 2008; Available online: https://www.iitk.ac.in/nicee/wcee/article/14_05-06-0071.PDF (accessed on 25 March 2020).

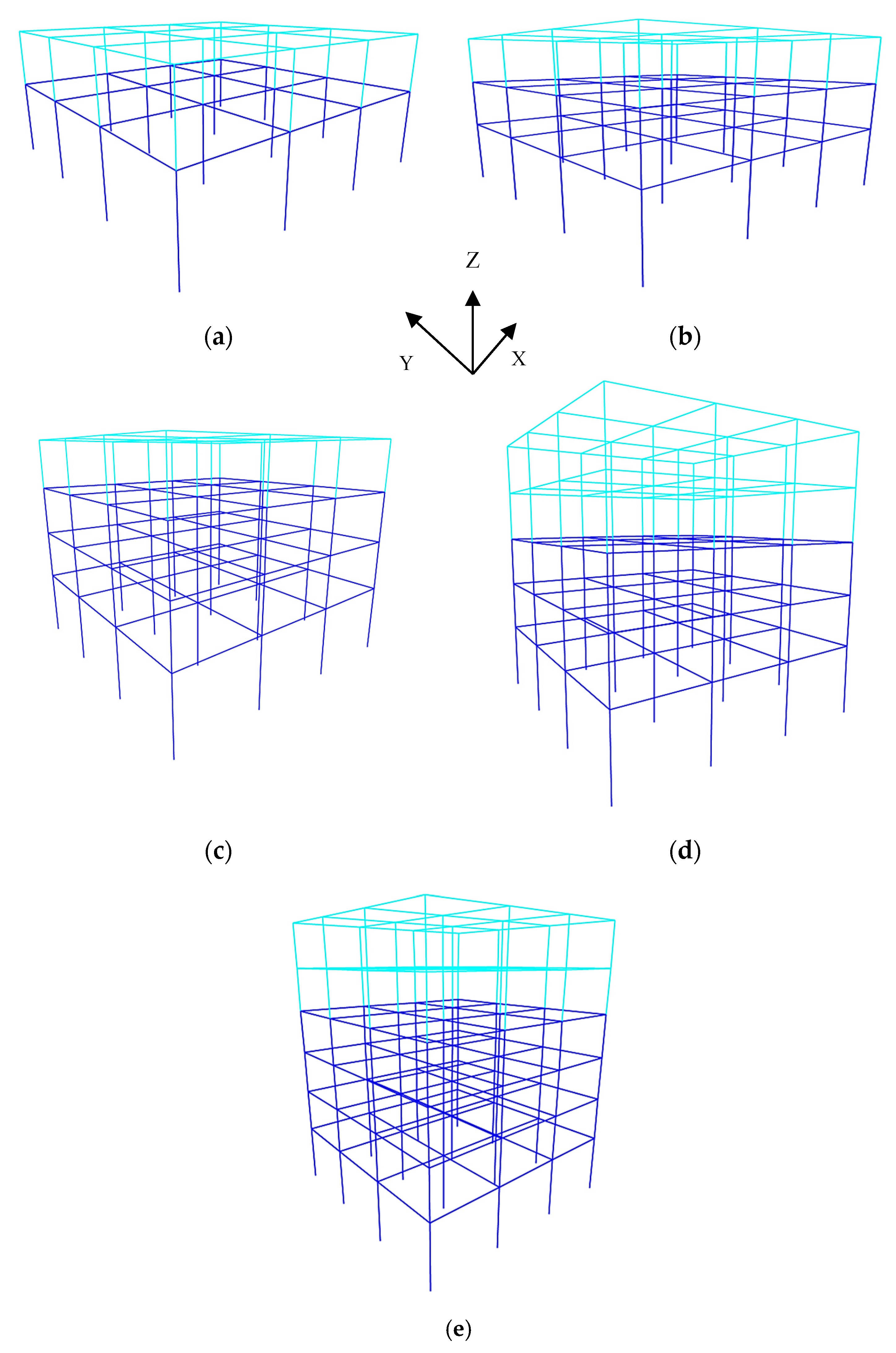

Figure 1. (a) Two-, (b) three-, (c) four-, (d) five- and (e) six-story mixed r/c-steel buildings (lower r/c and upper steel parts shown with blue and cyan colors, respectively).
Figure 1. (a) Two-, (b) three-, (c) four-, (d) five- and (e) six-story mixed r/c-steel buildings (lower r/c and upper steel parts shown with blue and cyan colors, respectively).
Infrastructures 06 00172 g001

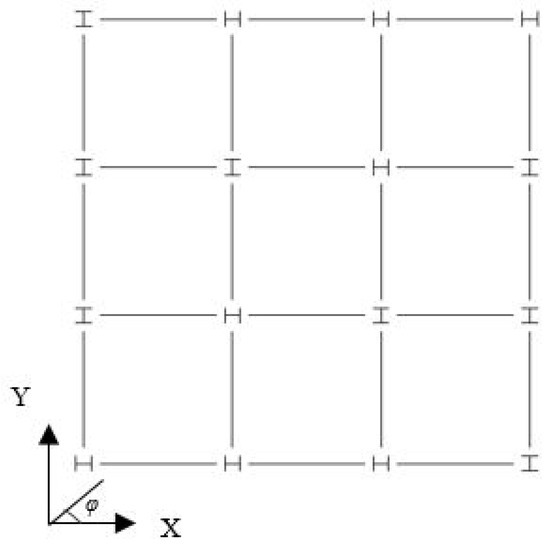

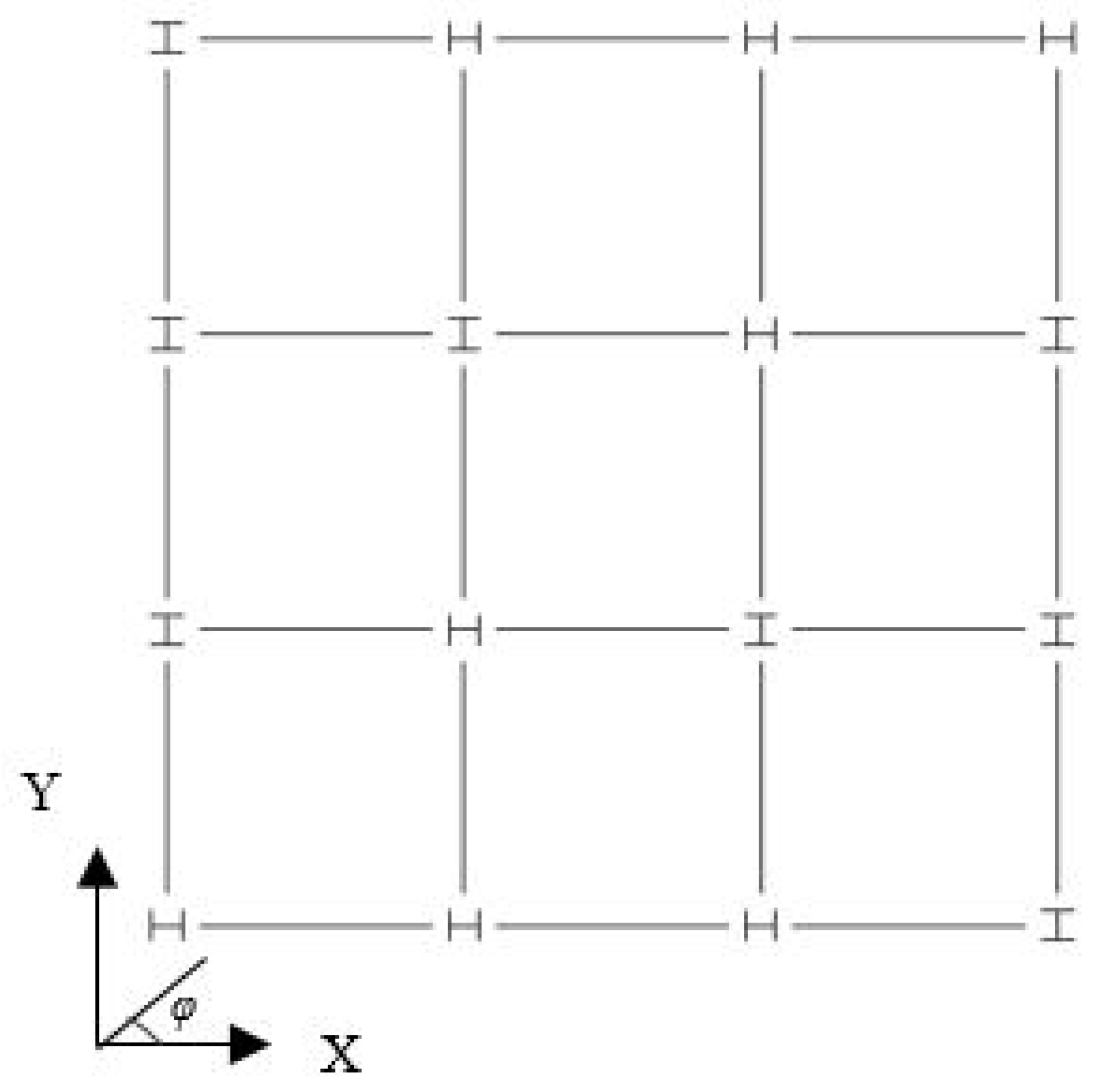

Figure 2. The orientation of the steel columns for the upper story(ies) of the mixed buildings.
Figure 2. The orientation of the steel columns for the upper story(ies) of the mixed buildings.
Infrastructures 06 00172 g002

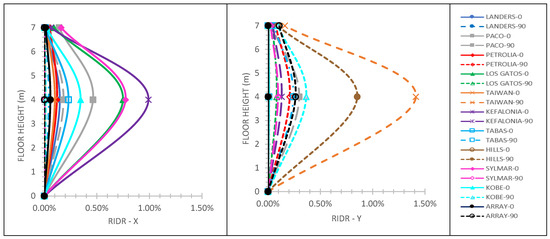

Figure 3. RIDR along X (left) and Y (right) horizontal directions of the two-story mixed building, considering the fixed connection of the steel structure to the r/c one.
Figure 3. RIDR along X (left) and Y (right) horizontal directions of the two-story mixed building, considering the fixed connection of the steel structure to the r/c one.
Infrastructures 06 00172 g003

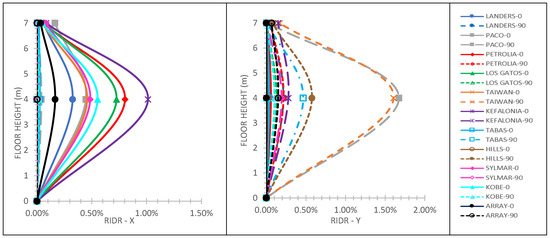

Figure 4. RIDR along X (left) and Y (right) horizontal directions of the two-story mixed building, considering the fixed-pinned connection of the steel structure to the r/c one.
Figure 4. RIDR along X (left) and Y (right) horizontal directions of the two-story mixed building, considering the fixed-pinned connection of the steel structure to the r/c one.
Infrastructures 06 00172 g004

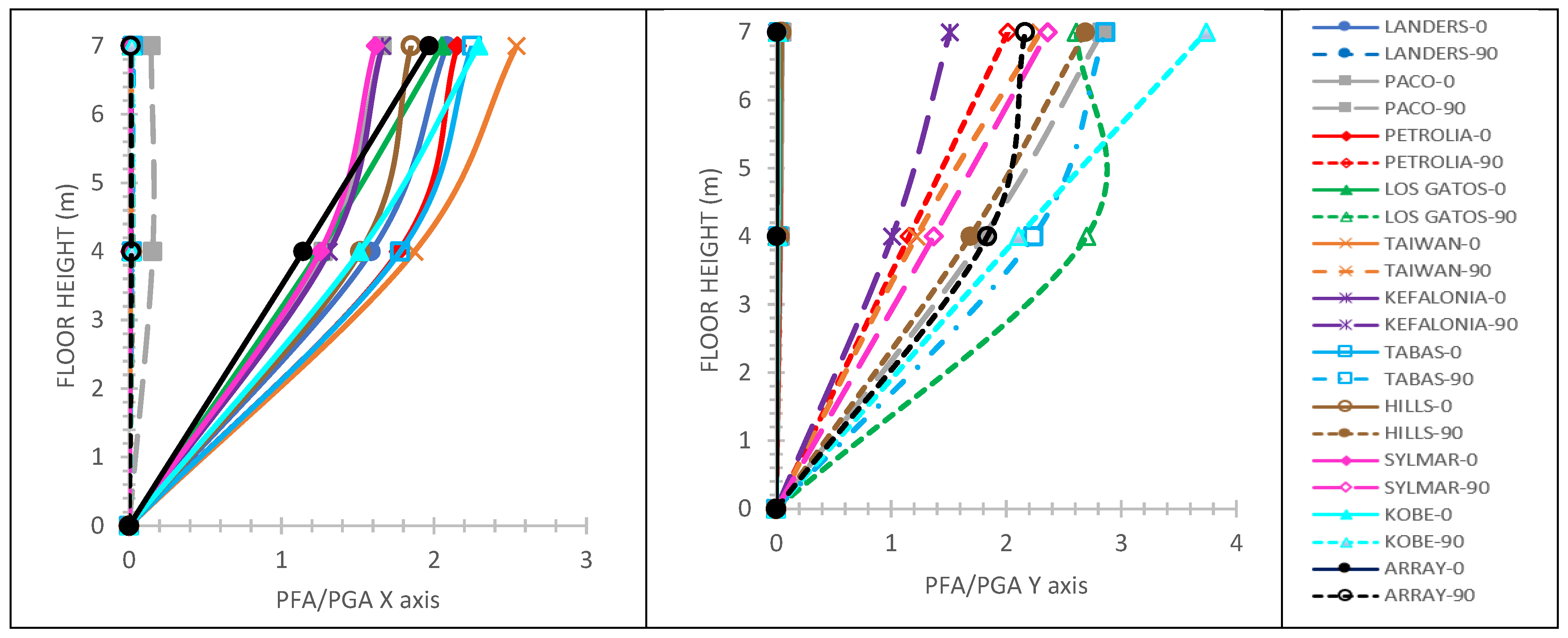

Figure 5. PFA/PGA along X (left) and Y (right) horizontal directions of the two-story mixed building, considering the fixed connection of the steel structure to the r/c one.
Figure 5. PFA/PGA along X (left) and Y (right) horizontal directions of the two-story mixed building, considering the fixed connection of the steel structure to the r/c one.
Infrastructures 06 00172 g005

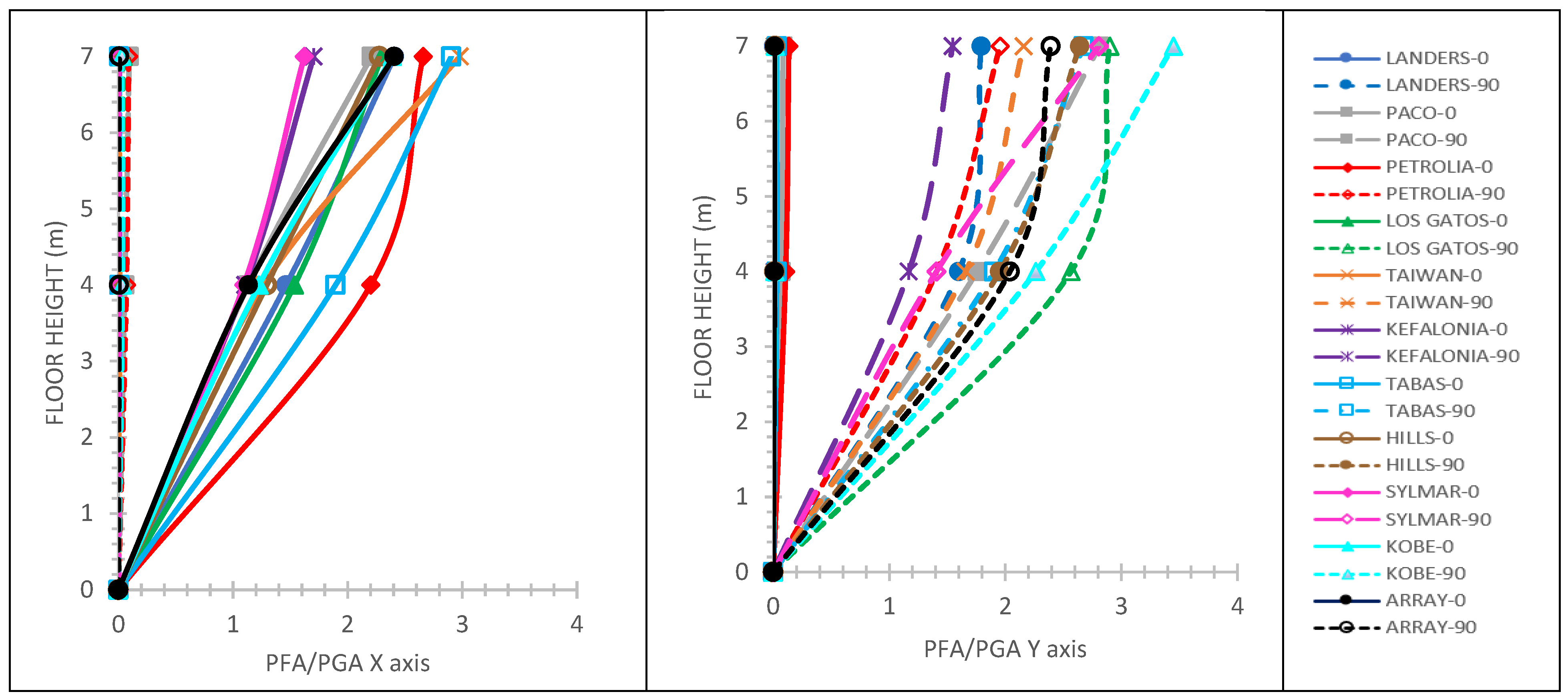

Figure 6. PFA/PGA along X (left) and Y (right) horizontal directions of the two-story mixed building, considering the fixed-pinned connection of the steel structure to the r/c one.
Figure 6. PFA/PGA along X (left) and Y (right) horizontal directions of the two-story mixed building, considering the fixed-pinned connection of the steel structure to the r/c one.
Infrastructures 06 00172 g006

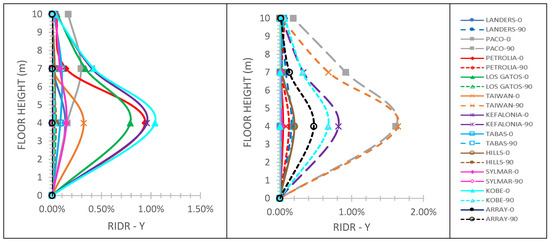

Figure 7. RIDR along X (left) and Y (right) horizontal directions of the three-story mixed building, considering the fixed connection of the steel structure to the r/c one.
Figure 7. RIDR along X (left) and Y (right) horizontal directions of the three-story mixed building, considering the fixed connection of the steel structure to the r/c one.
Infrastructures 06 00172 g007

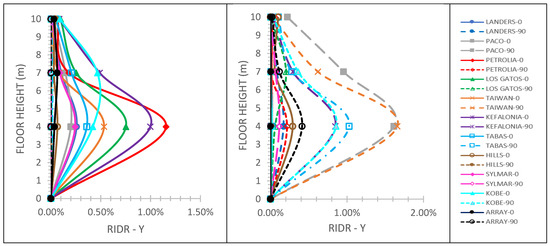

Figure 8. RIDR along X (left) and Y (right) horizontal directions of the three-story mixed building, considering the fixed-pinned connection of the steel structure to the r/c one.
Figure 8. RIDR along X (left) and Y (right) horizontal directions of the three-story mixed building, considering the fixed-pinned connection of the steel structure to the r/c one.
Infrastructures 06 00172 g008

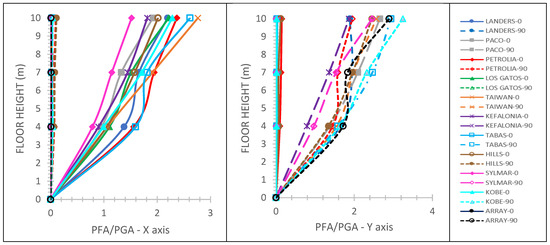

Figure 9. PFA/PGA along X (left) and Y (right) horizontal directions of the three-story mixed building, considering the fixed connection of the steel structure to the r/c one.
Figure 9. PFA/PGA along X (left) and Y (right) horizontal directions of the three-story mixed building, considering the fixed connection of the steel structure to the r/c one.
Infrastructures 06 00172 g009

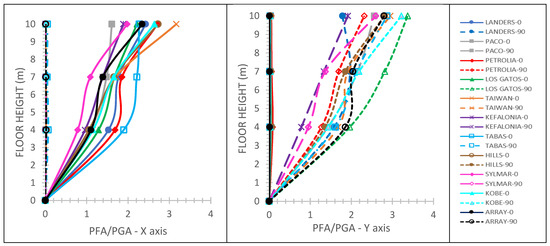

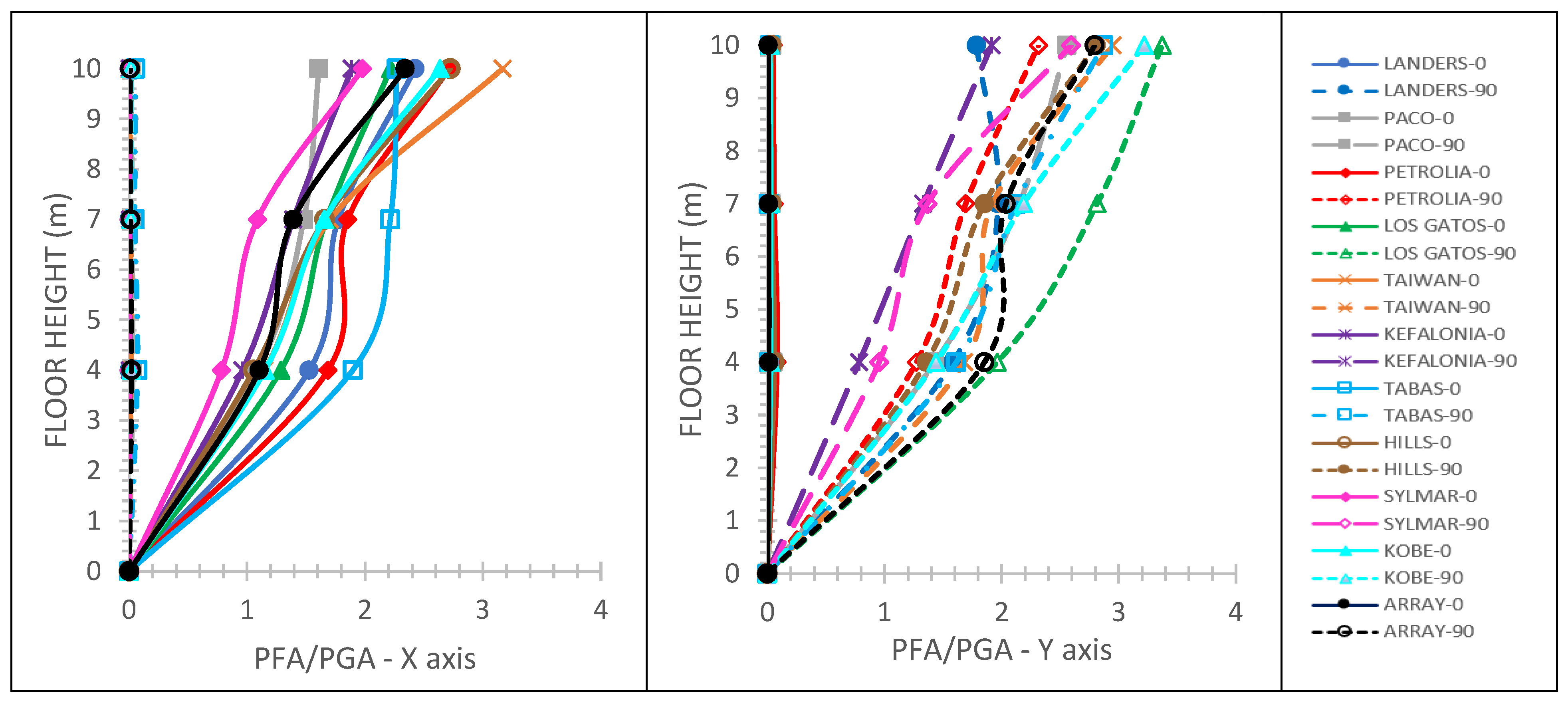

Figure 10. PFA/PGA along X (left) and Y (right) horizontal directions of the three-story mixed building, considering the fixed-pinned connection of the steel structure to the r/c one.
Figure 10. PFA/PGA along X (left) and Y (right) horizontal directions of the three-story mixed building, considering the fixed-pinned connection of the steel structure to the r/c one.
Infrastructures 06 00172 g010

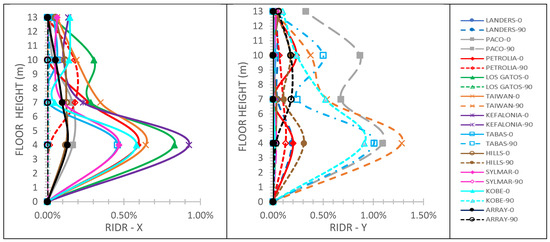

Figure 11. RIDR along X (left) and Y (right) horizontal directions of the four-story mixed building, considering the fixed connection of the steel structure to the r/c one.
Figure 11. RIDR along X (left) and Y (right) horizontal directions of the four-story mixed building, considering the fixed connection of the steel structure to the r/c one.
Infrastructures 06 00172 g011

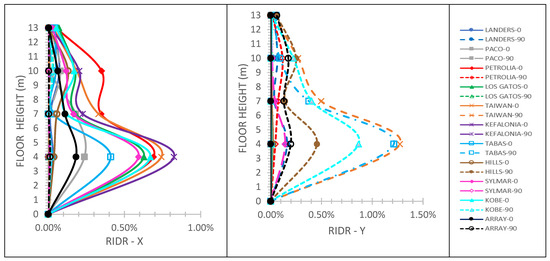

Figure 12. RIDR along X (left) and Y (right) horizontal directions of the four-story mixed building, considering the fixed-pinned connection of the steel structure to the r/c one.
Figure 12. RIDR along X (left) and Y (right) horizontal directions of the four-story mixed building, considering the fixed-pinned connection of the steel structure to the r/c one.
Infrastructures 06 00172 g012

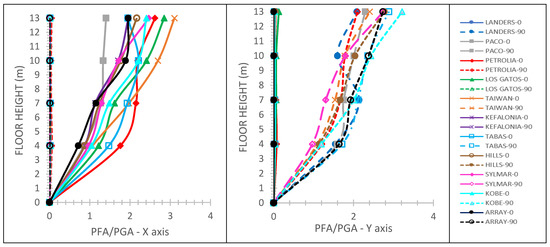

Figure 13. PFA/PGA along X (left) and Y (right) horizontal directions of the four-story mixed building, considering the fixed connection of the steel structure to the r/c one.
Figure 13. PFA/PGA along X (left) and Y (right) horizontal directions of the four-story mixed building, considering the fixed connection of the steel structure to the r/c one.
Infrastructures 06 00172 g013

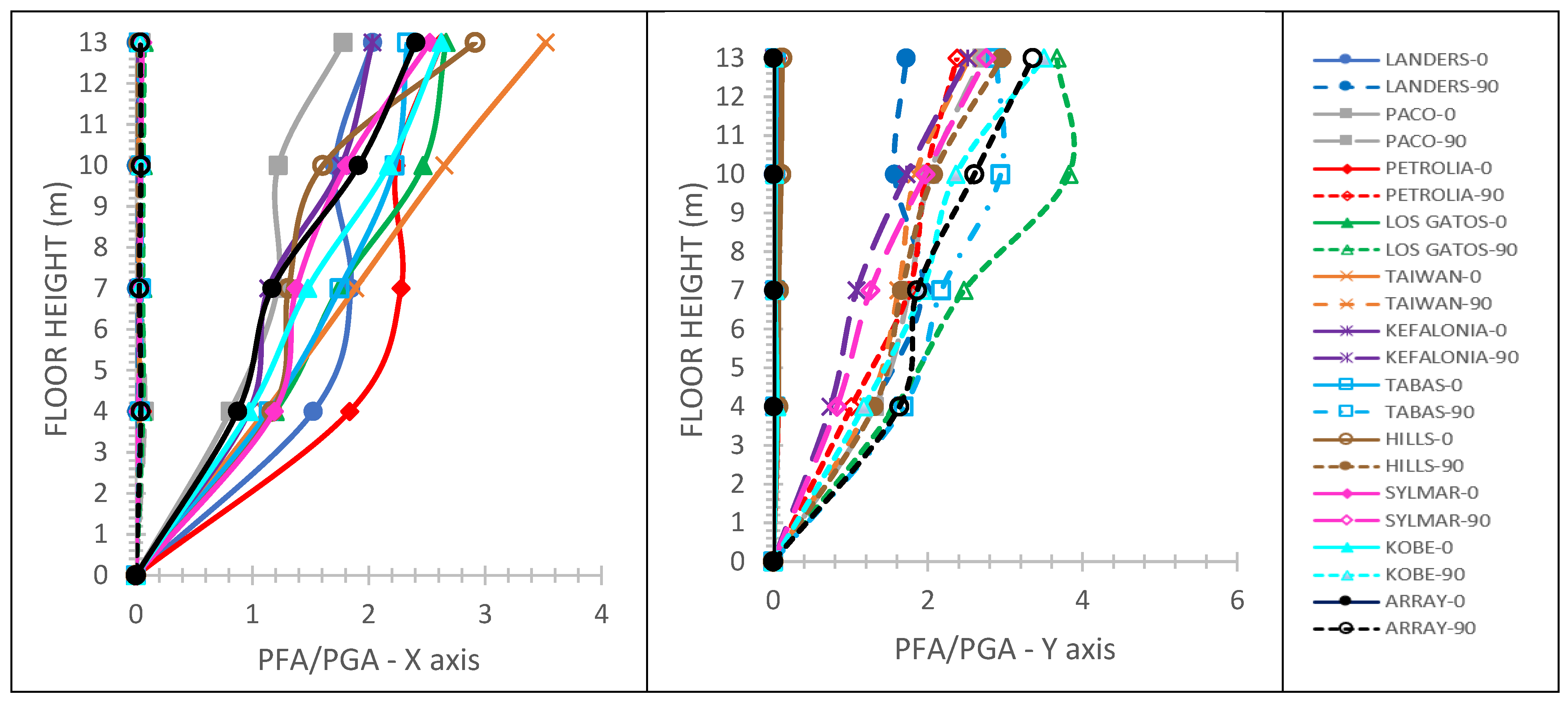

Figure 14. PFA/PGA along X (left) and Y (right) horizontal directions of the four-story mixed building, considering the fixed-pinned connection of the steel structure to the r/c one.
Figure 14. PFA/PGA along X (left) and Y (right) horizontal directions of the four-story mixed building, considering the fixed-pinned connection of the steel structure to the r/c one.
Infrastructures 06 00172 g014

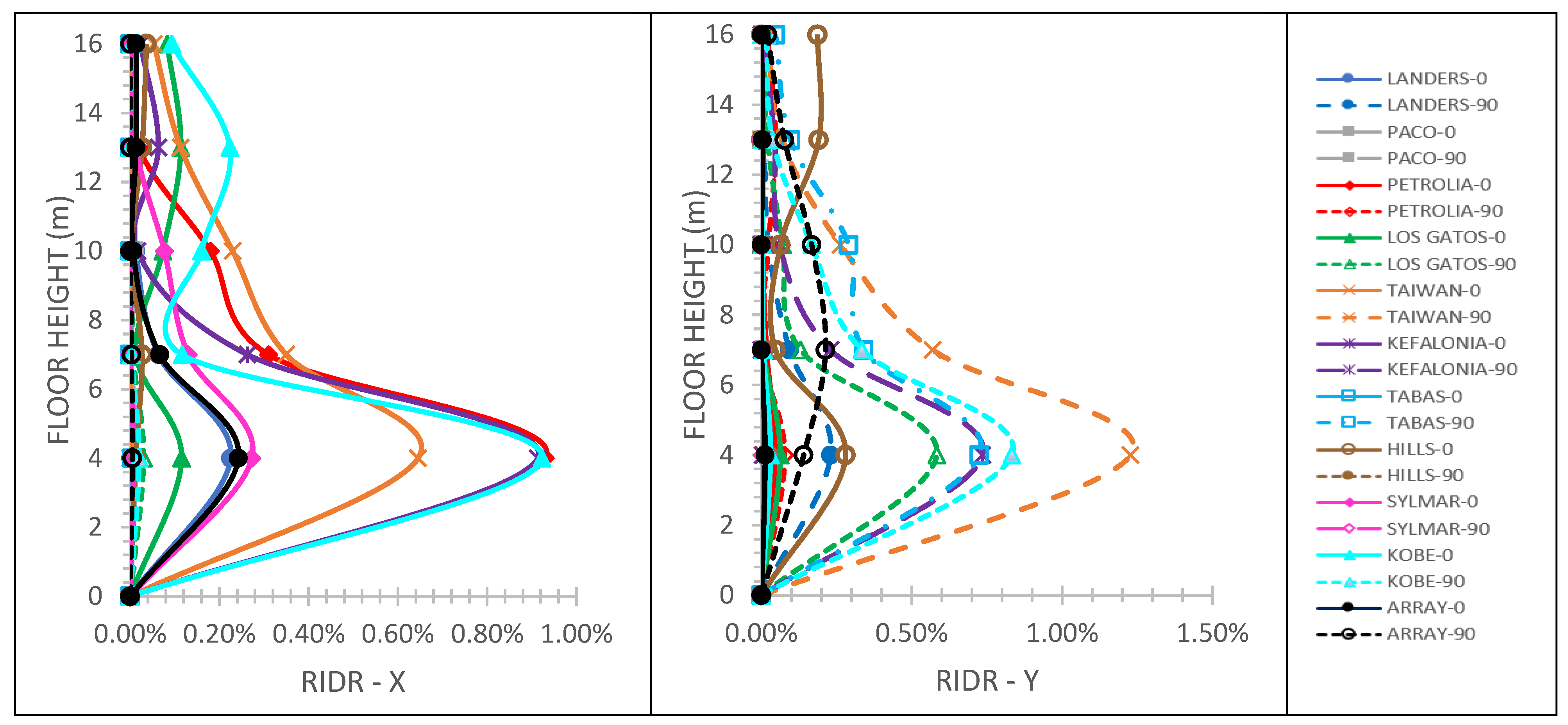

Figure 15. RIDR along X (left) and Y (right) horizontal directions of the five-story mixed building, considering the fixed connection of the steel structure to the r/c one.
Figure 15. RIDR along X (left) and Y (right) horizontal directions of the five-story mixed building, considering the fixed connection of the steel structure to the r/c one.
Infrastructures 06 00172 g015

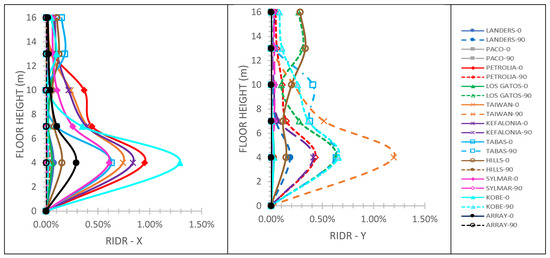

Figure 16. RIDR along X (left) and Y (right) horizontal directions of the five-story mixed building, considering the fixed-pinned connection of the steel structure to the r/c one.
Figure 16. RIDR along X (left) and Y (right) horizontal directions of the five-story mixed building, considering the fixed-pinned connection of the steel structure to the r/c one.
Infrastructures 06 00172 g016

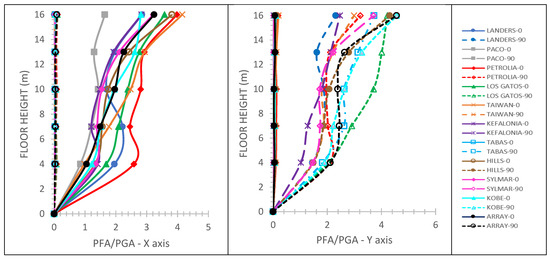

Figure 17. PFA/PGA along X (left) and Y (right) horizontal directions of the five-story mixed building, considering the fixed connection of the steel structure to the r/c one.
Figure 17. PFA/PGA along X (left) and Y (right) horizontal directions of the five-story mixed building, considering the fixed connection of the steel structure to the r/c one.
Infrastructures 06 00172 g017

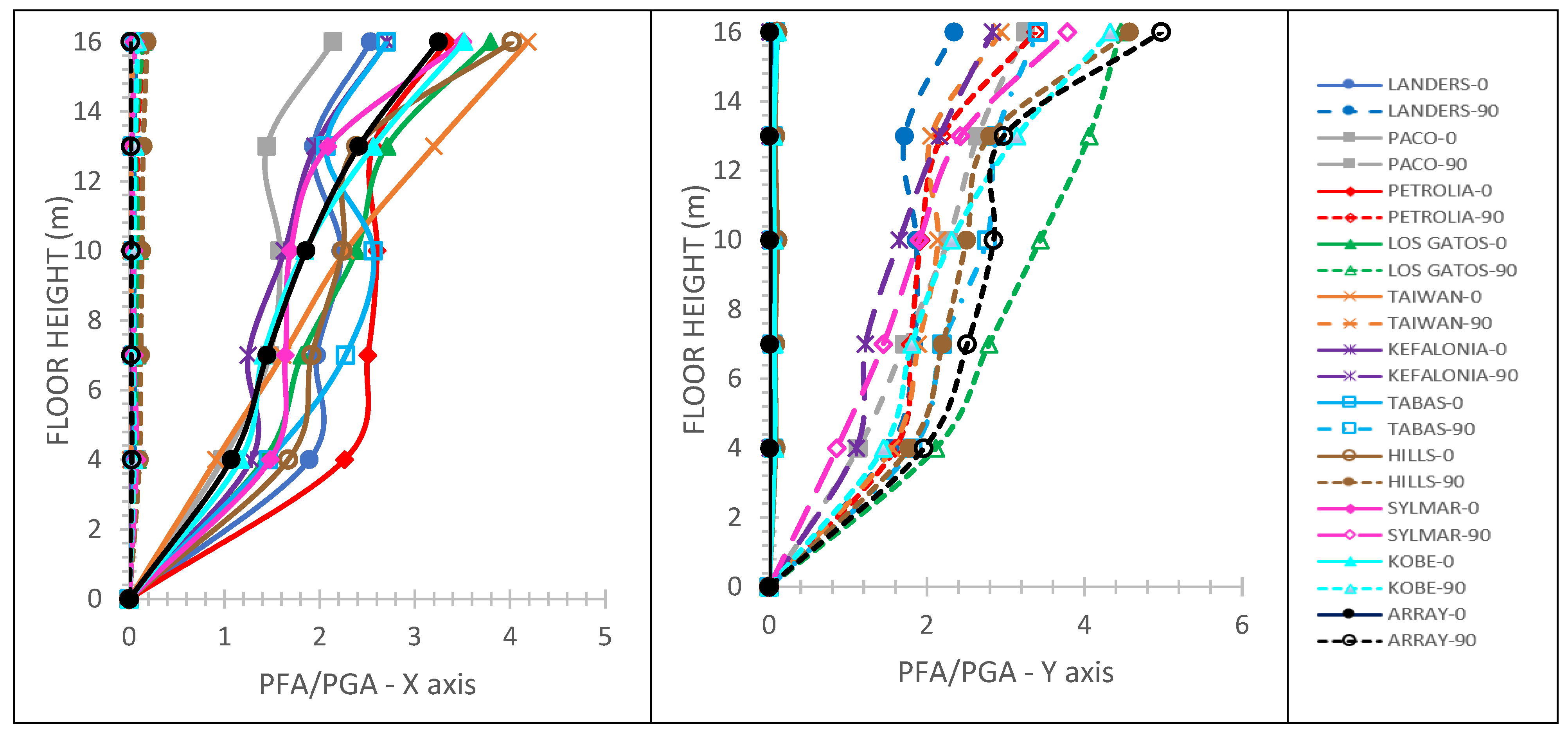

Figure 18. PFA/PGA along X (left) and Y (right) horizontal directions of the five-story mixed building, considering the fixed-pinned connection of the steel structure to the r/c one.
Figure 18. PFA/PGA along X (left) and Y (right) horizontal directions of the five-story mixed building, considering the fixed-pinned connection of the steel structure to the r/c one.
Infrastructures 06 00172 g018

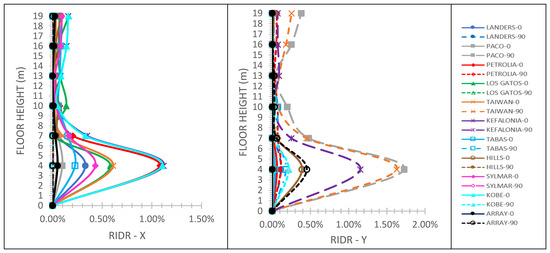

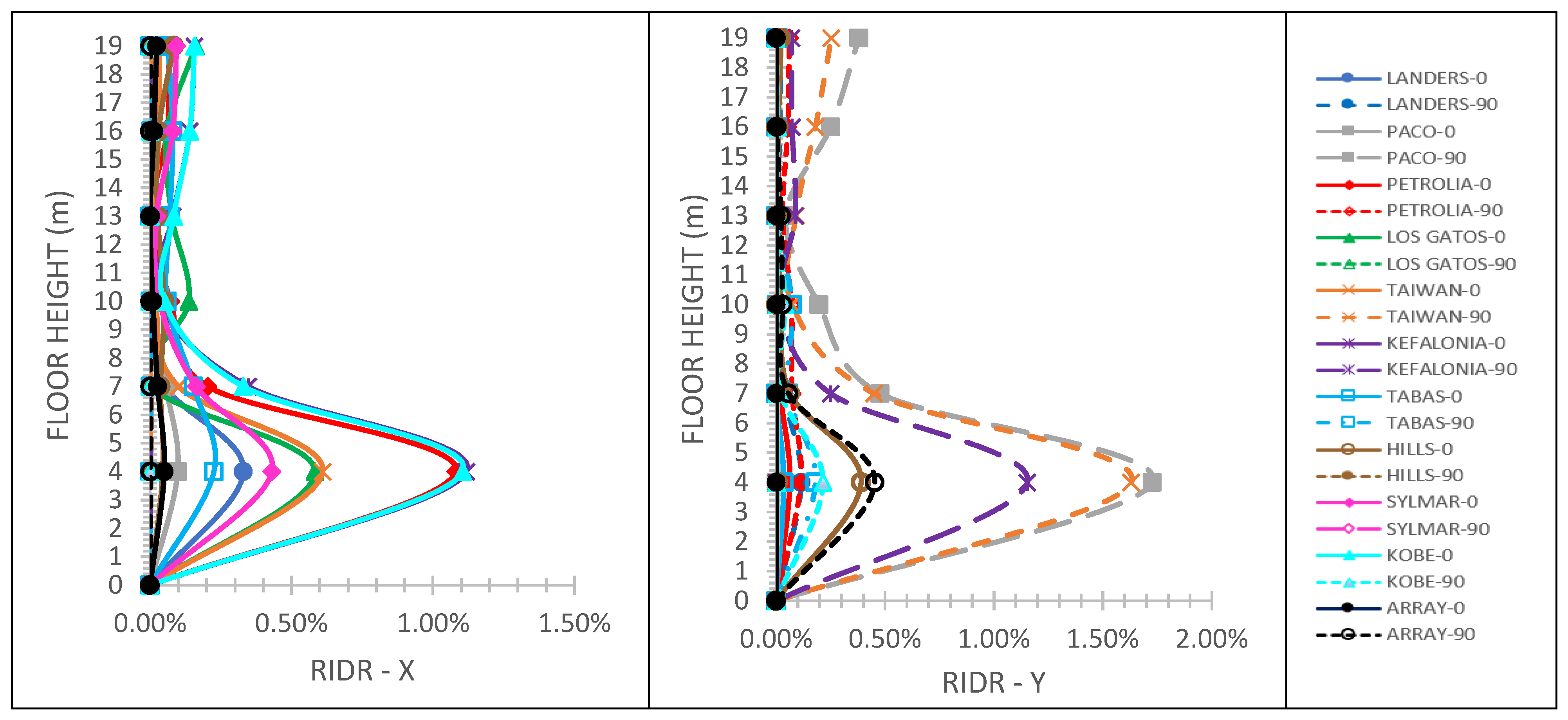

Figure 19. RIDR along X (left) and Y (right) horizontal directions of the six-story mixed building, considering the fixed connection of the steel structure to the r/c one.
Figure 19. RIDR along X (left) and Y (right) horizontal directions of the six-story mixed building, considering the fixed connection of the steel structure to the r/c one.
Infrastructures 06 00172 g019

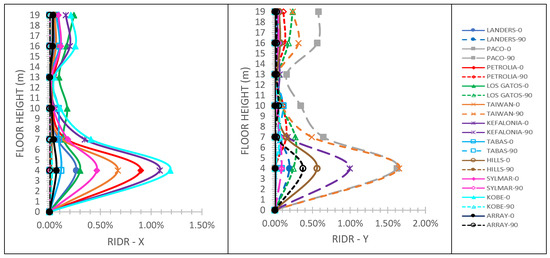

Figure 20. RIDR along X (left) and Y (right) horizontal directions of the six-story mixed building, considering the fixed-pinned connection of the steel structure to the r/c one.
Figure 20. RIDR along X (left) and Y (right) horizontal directions of the six-story mixed building, considering the fixed-pinned connection of the steel structure to the r/c one.
Infrastructures 06 00172 g020

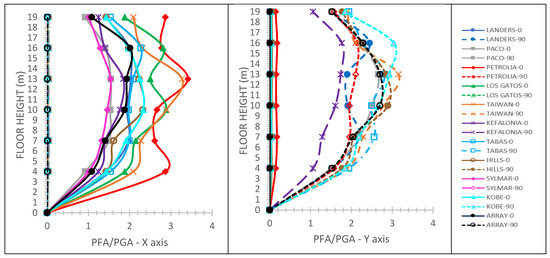

Figure 21. PFA/PGA along X (left) and Y (right) horizontal directions of the six-story mixed building, considering the fixed connection of the steel structure to the r/c one.
Figure 21. PFA/PGA along X (left) and Y (right) horizontal directions of the six-story mixed building, considering the fixed connection of the steel structure to the r/c one.
Infrastructures 06 00172 g021

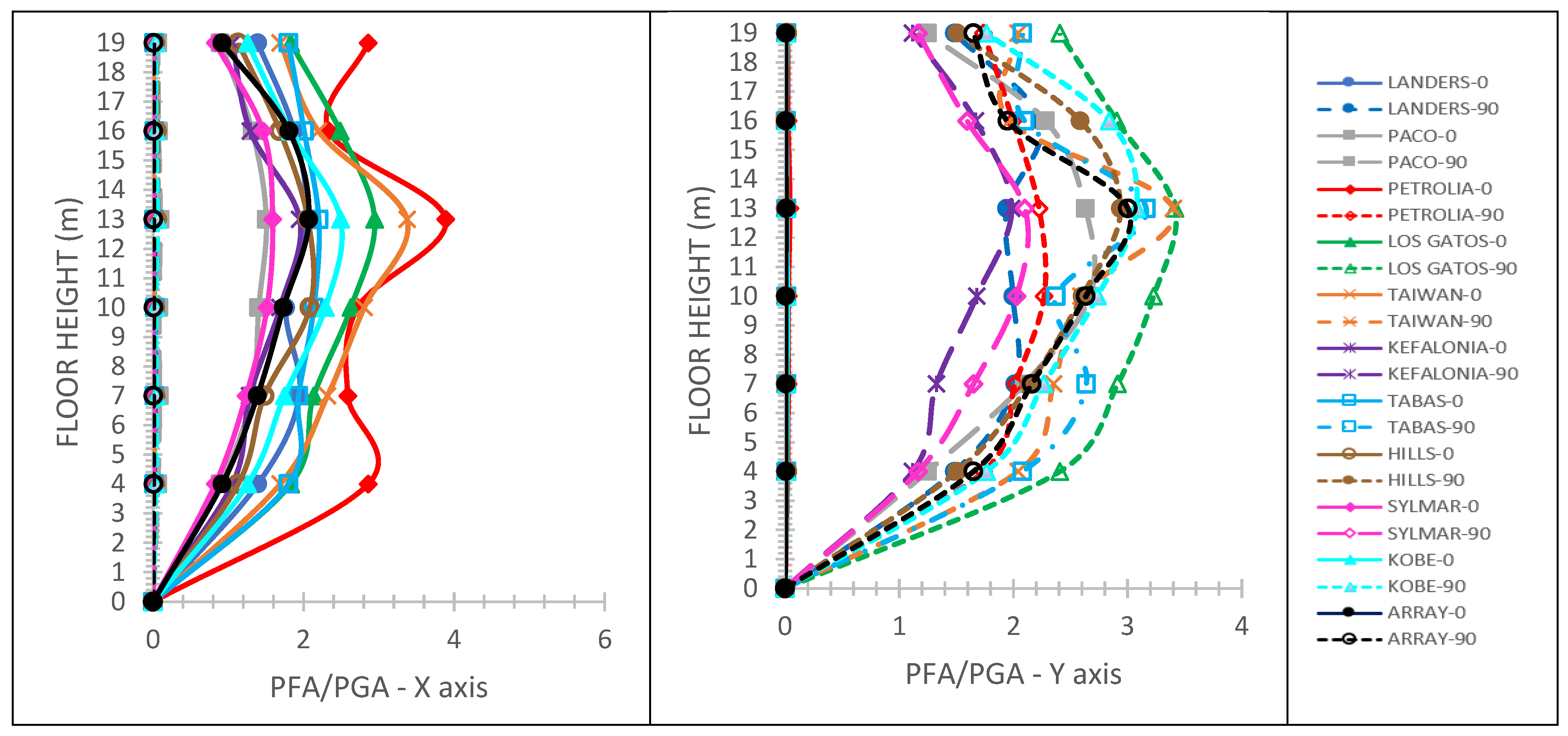

Figure 22. PFA/PGA along X (left) and Y (right) horizontal directions of the six-story mixed building, considering the fixed-pinned connection of the steel structure to the r/c one.
Figure 22. PFA/PGA along X (left) and Y (right) horizontal directions of the six-story mixed building, considering the fixed-pinned connection of the steel structure to the r/c one.
Infrastructures 06 00172 g022
Table 1. Sections of columns and beams for the mixed buildings (a)–(e) shown in Figure 1.
Table 1. Sections of columns and beams for the mixed buildings (a)–(e) shown in Figure 1.
Building (a)ColumnsBeams
Story numberStory height (m)MaterialCross-section dimesions (cm/cm)Longitudinal reinf/mentStirrupsCross-section dimensions (cm/cm)Longitudinal reinf/mentStirrups
14.0r/c50/508Φ22Φ8/1025/608Φ18Φ8/10
23.0steelHEA 360IPE 270
Building (b)ColumnsBeams
Story numbersSory height (m)MaterialCross-section dimensions (cm/cm)Longitudinal reinf/mentStirrupsCross-section dimensions (cm/cm)Longitudinal reif/mentStirrups
14.0r/c55/5516Φ20Φ8/1025/608Φ20 + 8Φ10Φ8/10
23.0r/c50/508Φ20 + 8Φ10Φ8/1025/608Φ18Φ8/10
33.0steelHEA 360IPE 270
Building (c)ColumnsBeams
Story numberStorey height (m)MaterialCross-section dimensions (cm/cm)Longitudinal reinf/mentStirrupsCross-section dimensions (cm/cm)Longitudinal reinf/mentStirrups
14r/c60/6016Φ20Φ8/1025/708Φ20 + 8Φ10Φ8/10
23r/c60/608Φ20 + 8Φ16Φ8/1025/708Φ20 + 8Φ10Φ8/10
33r/c50/508Φ20 + 8Φ10Φ8/1025/608Φ18Φ8/10
43SteelHEA 360IPE 270
Building (d)ColumnsBeams
Story numberStory height (m)MaterialCross-section dimesions (cm/cm)Longitudinal reinf/mentStirrupsCross-section dimensions (cm/cm)Longitudinal reinf/mentStirrups
14r/c70/708Φ22 + 16Φ20Φ8/1025/708Φ20 + 8Φ16Φ8/10
23r/c70/7016Φ20Φ8/1025/708Φ20 + 8Φ10Φ8/10
33r/c70/708Φ20 + 8Φ10Φ8/1025/608Φ18Φ8/10
43SteelHEΒ 500IPE 360
53SteelHEΒ 500IPE 300
Building (e)ColumnsBeams
Story numberStory height (m)MaterialCross-section dimensions (cm/cm)Longitudinal reinf/mentStirrupsCross-section dimensions (cm/cm)Longitudinal reinf/mentStirrups
14r/c70/7032Φ20Φ8/1025/708Φ20 + 8Φ10Φ8/10
23r/c70/7016Φ20Φ8/1025/708Φ18Φ8/10
33r/c70/7016Φ20Φ8/1025/708Φ18Φ8/10
43r/c70/7016Φ20Φ8/1025/708Φ18Φ8/10
53SteelHEA 500IPE 400
63SteelHEA 500IPE 400
Table 2. Modal properties of the mixed buildings of Figure 1.
Table 2. Modal properties of the mixed buildings of Figure 1.
Mixed BuildingMode NumberPeriod(s) and Participating Mass Ratios: Case IPeriod(s) and Participating Mass Ratios: Case II
2-story (a)10.399 (0.91)0.429 (0.83)
20.399 (0.91)0.429 (0.83)
30.356 (0.92)0.394 (0.80)
3-story (b)10.506 (0.89)0.522 (0.85)
20.451 (0.89)0.474 (0.85)
30.425 (0.90)0.451 (0.82)
4-story (c)10.559 (0.86)0.571 (0.83)
20.559 (0.86)0.571 (0.83)
30.504 (0.86)0.519 (0.82)
5-story (d)10.581 (0.80)0.601 (0.76)
20.581 (0.80)0.601 (0.76)
30.522 (0.81)0.545 (0.75)
6-story (e)10.498 (0.80)0.509 (0.82)
20.498 (0.80)0.509 (0.82)
30.449 (0.80)0.465 (0.83)
Table 3. Near-fault seismic motions considered.
Table 3. Near-fault seismic motions considered.
Earthquake, Location, YearRecording StationCode Name Used in PlotsMwPGA (g)
San Fernando, USA, 1971Pacoima DamPACO6.61.17/1.08
Tabas, Iran, 1978TabasTABAS7.10.93/1.10
Imperial Valley, USA, 1979El Centro Array 6ARRAY6.50.34/0.46
Superstition Hills, USA, 1987Parachute Test SiteHILLS6.50.45/0.38
Loma Prieta, USA, 1989Los GatosLOS GATOS7.00.56/0.61
Cape Mendocino, USA, 1992PetroliaPETROLIA6.90.66/0.59
Landers, USA, 1992Lucerne ValleyLANDERS7.30.81/0.73
Northridge, USA, 1994Sylmar Converter St.SYLMAR6.70.37/0.58
Kobe, Japan, 1995TakatoriKOBE6.90.61/0.62
Chi-Chi, Taiwan, 1999TCU 052TAIWAN7.60.50/0.36
Kefalonia, Greece, 2014LixouriKEFALONIA6.10.67/0.60
Table 4. Values of uniform damping ratio to be used in NLTH analyses.
Table 4. Values of uniform damping ratio to be used in NLTH analyses.
Mixed BuildingDamping Ratio
2-story (a)4.57%
3-story (b)4.33%
4-story (c)3.63%
5-story (d)2.31%
6-story (e)2.14%
Table 5. The number of failure cases for the mixed buildings of Figure 1.
Table 5. The number of failure cases for the mixed buildings of Figure 1.
Mixed BuildingFixed Support ConditionFixed-Pinned Support Condition
2-story (a)22/2222/22
3-story (b)21/2221/22
4-story (c)21/2222/22
5-story (d)20/2220/22
6-story (e)21/2221/22
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Askouni, P.K.; Papagiannopoulos, G.A. Seismic Behavior of a Class of Mixed Reinforced Concrete-Steel Buildings Subjected to Near-Fault Motions. Infrastructures 2021, 6, 172. https://doi.org/10.3390/infrastructures6120172

AMA Style

Askouni PK, Papagiannopoulos GA. Seismic Behavior of a Class of Mixed Reinforced Concrete-Steel Buildings Subjected to Near-Fault Motions. Infrastructures. 2021; 6(12):172. https://doi.org/10.3390/infrastructures6120172

Chicago/Turabian Style

Askouni, Paraskevi K., and George A. Papagiannopoulos. 2021. "Seismic Behavior of a Class of Mixed Reinforced Concrete-Steel Buildings Subjected to Near-Fault Motions" Infrastructures 6, no. 12: 172. https://doi.org/10.3390/infrastructures6120172

APA Style

Askouni, P. K., & Papagiannopoulos, G. A. (2021). Seismic Behavior of a Class of Mixed Reinforced Concrete-Steel Buildings Subjected to Near-Fault Motions. Infrastructures, 6(12), 172. https://doi.org/10.3390/infrastructures6120172

Article Metrics

Back to TopTop
