# Value of Information of Structural Health Monitoring in Asset Management of Flood Defences

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Flood Defence Monitoring from an Asset Management Perspective

- The action to acquire information $i\in I$, where I is the set of all possible information acquiring actions.
- The outcome of the action to acquire information, $z\in Z$, where Z is the set of all possible outcomes. Note that z is used to update the belief of the decision maker about the state $\theta $ (see the last bullet).
- The action $a\in A$ following the obtained information, where A is the set of all possible actions. Here, it should be noted that this can be formulated by a decision rule which maps different outcomes $a\in A$ to outcomes $z\in Z$. This yields a decision rule $d\left(z\right)$ that assigns an a to each z. Hence, we use a set of decision rules $d\left(z\right)\in A$.
- The state of nature $\theta \in \Theta $ where $\Theta $ is the a priori set of all possible states of nature.

## 3. Methodology

#### 3.1. Time-Dependent Failure Probability Model

#### 3.2. Environment

#### 3.2.1. General Input

^{th}sample of a possible posterior state.

#### 3.2.2. Decision Model

#### 3.3. Decision-Making

#### 3.3.1. General Input

- Strategy a: no monitoring.
- Strategy b: monitoring is started if the failure probability ${P}_{\mathrm{f}},\mathrm{bel}>0.5\phantom{\rule{0.166667em}{0ex}}\xb7\phantom{\rule{0.166667em}{0ex}}{P}_{\mathrm{req}}$, where ${P}_{\mathrm{req}}$ is the reliability requirement. Monitoring is stopped after 25 years.
- Strategy c: continuous monitoring starting at $t=1$.

#### 3.3.2. Decision Model

#### 3.4. Evaluation

## 4. Case Study

## 5. Results

#### 5.1. Benefits of Monitoring for a Deterministic Future

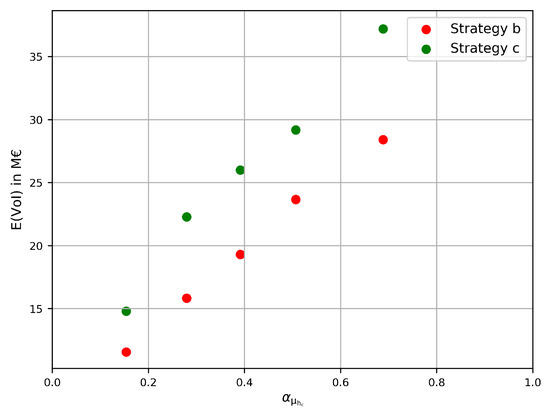

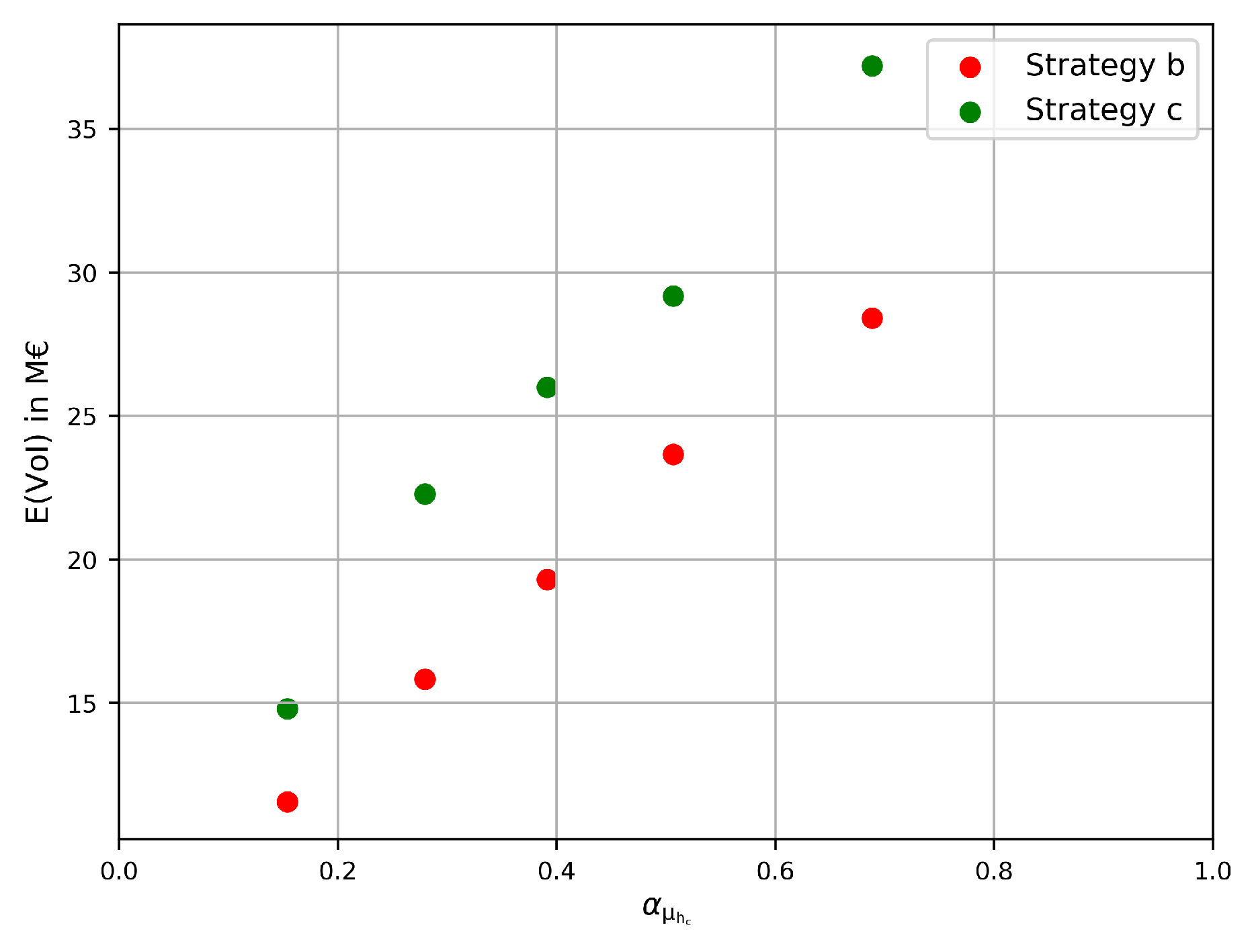

#### 5.2. The Effect of Future Uncertainty on the Value of Information of Monitoring

## 6. Discussion

## 7. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Appendix A. Kernel Density Estimates for Six Cases of Water Level Increase

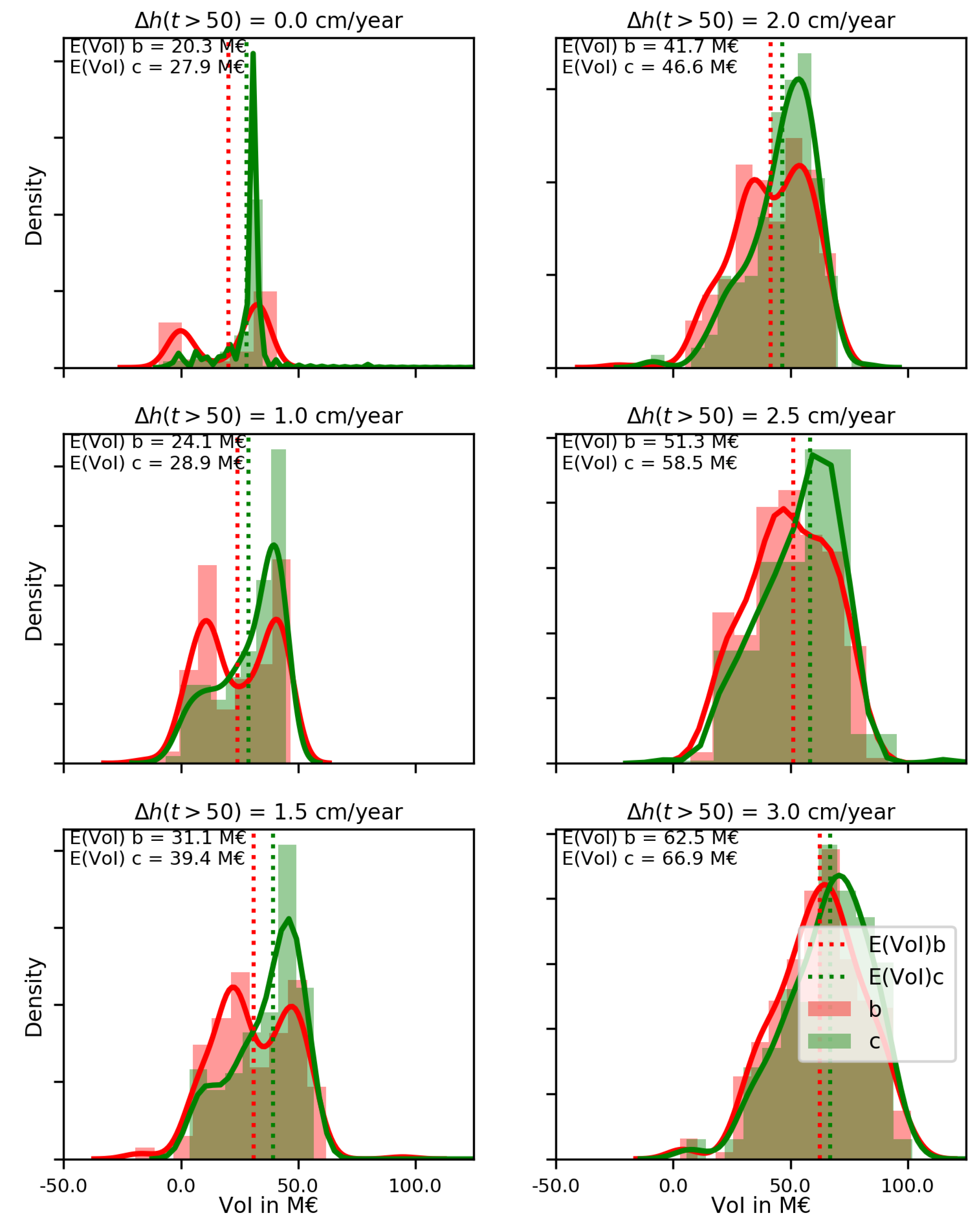

**Figure A1.**Gaussian Kernel Density Estimates for six rates of water level increase after $t=50$. Bar plots indicate histograms of strategies b (in red) and c (in green).

## References

- Frangopol, D.M.; Soliman, M. Life-cycle of structural systems: recent achievements and future directions. Struct. Infrastruct. Eng.
**2015**, 5, 1–20. [Google Scholar] - ISO. NEN-ISO 55000: Asset Management—Overview, Principles and Terminology (ISO55000:2014 (Corr. 2014-03), IDT); Technical Report; Nederlands Normalisatie-instituut: Delft, The Netherlands, 2014. [Google Scholar]
- Institute of Asset Management. Asset Management—An Anatomy; Technical Report; Institute for Asset Management: Bristol, UK, 2014. [Google Scholar]
- Klerk, W.; den Heijer, F. A framework for life-cycle management of public infrastructure. In Life-Cycle of Engineering Systems: Emphasis on Sustainable Civil Infrastructure, Proceedings of the Fifth International Symposium on Life-Cycle Civil Engineering (IALCCE 2016), Delft, the Netherlands, 16–19 October 2016; lCRC Press/Taylor & Francis Group: Boca Raton, FL, USA, 2016. [Google Scholar]
- Cagle, R.F. Infrastructure Asset Management: An Emerging Direction; AACE International Transactions: Morgantown, WV, USA, 2003; pp. PM21–PM26. [Google Scholar]
- Frangopol, D.M.; Kong, J.S.; Gharaibeh, E.S. Reliability-Based Life-Cycle Management of Highway Bridges. J. Comput. Civil Eng.
**2001**, 15, 27–34. [Google Scholar] [CrossRef] - Pandey, M.D.; Yuan, X.X.; van Noortwijk, J.M. The influence of temporal uncertainty of deterioration on life-cycle management of structures. Struct. Infrastruct. Eng.
**2009**, 5, 145–156. [Google Scholar] [CrossRef] - Ko, J.M.; Ni, Y.Q. Technology developments in structural health monitoring of large-scale bridges. Eng. Struct.
**2005**, 27, 1715–1725. [Google Scholar] [CrossRef] - Thöns, S. Monitoring Based Condition Assessment of Offshore Wind Turbine Support Structures. Ph.D. Thesis, ETH Zurich, Zürich, Switzerland, 2012. [Google Scholar]
- Raiffa, H.; Schlaifer, R. Applied Statistical Decision Theory; Cambridge University Press: Cambridge, MA, USA, 1961. [Google Scholar]
- Thöns, S. On the Value of Monitoring Information for the Structural Integrity and Risk Management. Comput.-Aided Civil Infrastruct. Eng.
**2018**, 33, 79–94. [Google Scholar] [CrossRef] - Thöns, S. Quantifying the Value of Structural health Information for Decision Support: Guide for Scientists; Technical Report, COST Action TU1402. 2019. Available online: https://www.cost-tu1402.eu/-/media/sites/cost-tu1402/documents/deliverables/guidelines/tu1402-guide -for-scientists-v3.ashx (accessed on 29 August 2019).
- Straub, D. Value of information analysis with structural reliability methods. Struct. Saf.
**2014**, 49, 75–85. [Google Scholar] [CrossRef] - Goulet, J.A.; Der Kiureghian, A.; Li, B. Pre-posterior optimization of sequence of measurement and intervention actions under structural reliability constraint. Struct. Saf.
**2015**, 52, 1–9. [Google Scholar] [CrossRef][Green Version] - CIRIA. International Levee Handbook; lCIRIA: London, UK, 2013. [Google Scholar]
- Voortman, H.; Vrijling, J. Optimal design of flood defence systems in a changing climate. Heron
**2004**, 49, 75–93. [Google Scholar] - Kok, M.; Jongejan, R.; Nieuwjaar, M.; Tanczos, I. Expertise Netwerk Waterveiligheid (ENW). In Fundamentals of Flood Protection; Ministerie van Infrastructuur en Milieu: The Hague, The Netherlands, 2017. [Google Scholar]
- Jonkman, S.; Voortman, H.; Klerk, W.; van Vuren, S. Developments in the management of flood defences and hydraulic infrastructure in the Netherlands. Struct. Infrastruct. Eng.
**2018**, 14, 895–910. [Google Scholar] [CrossRef][Green Version] - Kanning, W. The Weakest Link: Spatial Variability in the Piping Failure Mechanism of Dikes. Ph.D. Thesis, Delft University of Technology, Delft, The Netherlands, 2012. [Google Scholar]
- De Vries, G.; Koelewijn, A.; Hopman, V. IJkdijk Full Scale Underseepage Erosion (Piping) Test: Evaluation of Innovative Sensor Technology. In Proceedings of the International Conference on Scour and Erosion, lSan Francisco, CA, USA, 7–10 November 2010. [Google Scholar] [CrossRef]
- Smart Levee Guideline. Available online: http://www.dijkmonitoring.nl/en/ (accessed on 29 August 2019).
- Pyayt, A.L.; Kozionov, A.P.; Mokhov, I.I.; Lang, B.; Meijer, R.J.; Krzhizhanovskaya, V.V.; Sloot, P.M. Time-frequency methods for structural health monitoring. Sensors
**2014**, 14, 5147–5173. [Google Scholar] [CrossRef] - Klerk, W.; Kanning, W.; van der Meer, M.; Nieuwenhuis, J. Structural health monitoring in life-cycle management of dikes: A case study in the north of the Netherlands. In Life-Cycle of Engineering Systems: Emphasis on Sustainable Civil Infrastructure, Proceedings of the Fifth International Symposium on Life-Cycle Civil Engineering (IALCCE 2016), Delft, the Netherlands, 16–19 October 2016; lCRC Press/Taylor & Francis Group: Boca Raton, FL, USA, 2016. [Google Scholar]
- Schweckendiek, T.; Vrouwenvelder, A. Reliability updating and decision analysis for head monitoring of levees. Georisk Assess. Manag. Risk Eng. Syst. Geohazards
**2013**, 7, 110–121. [Google Scholar] [CrossRef] - Schweckendiek, T. On Reducing Piping Uncertainties: A Bayesian Decision Approach. Ph.D. Thesis, Delft University of Technology, Delft, The Netherlands, 2014. [Google Scholar]
- Klerk, W.; den Heijer, F.; Schweckendiek, T. Value of information in life-cycle management of flood defences. In Safety and Reliability of Complex Engineered Systems, Proceedings of ESREL 2015, Zurich, Switzerland; CRC Press/Taylor & Francis Group: Boca Raton, FL, USA, 2015; pp. 931–938. [Google Scholar]
- Biondini, F.; Frangopol, D.M. Life-Cycle Performance of Deteriorating Structural Systems under Uncertainty: Review. J. Struct. Eng.
**2016**, 142, F4016001. [Google Scholar] [CrossRef] - Vrijling, J. Probabilistic design of water defense systems in the Netherlands. Reliab. Eng. Syst. Saf.
**2001**, 74, 337–344. [Google Scholar] [CrossRef] - Jongejan, R.B.; Maaskant, B. Quantifying flood risks in the Netherlands. Risk Anal. Off. Publ. Soc. Risk Anal.
**2015**, 35, 252–264. [Google Scholar] [CrossRef] [PubMed] - Der Kiureghian, A.; Ditlevsen, O. Aleatory or epistemic? Does it matter? Struct. Saf.
**2009**, 31, 105–112. [Google Scholar] [CrossRef] - Van Gelder, P. Statistical Methods for the Risk-Based Design of Civil Structures. Ph.D. Thesis, Delft University of Technology, Delft, The Netherlands, 2000. [Google Scholar]
- Baecher, G.B.; Christian, J.T. Reliability and Statistics in Geotechnical Engineering; John Wiley & Sons Ltd.: Chichester, UK, 2003; Volume 47. [Google Scholar] [CrossRef]
- Straub, D.; Faber, M.H. Risk based inspection planning for structural systems. Struct. Saf.
**2005**, 27, 335–355. [Google Scholar] [CrossRef] - Luque, J.; Straub, D. Risk-based optimal inspection strategies for structural systems using dynamic Bayesian networks. Struct. Saf.
**2019**, 76, 68–80. [Google Scholar] [CrossRef] - Luque, J.; Straub, D. Algorithms for optimal risk-based planning of inspections using influence diagrams. In Proceedings of the 11th International Probabilistic Workshop, lBrno, Czech Republic, 6–8 November 2013; pp. 247–261. [Google Scholar]
- Le Bars, D.; Drijfhout, S.; De Vries, H. A high-end sea level rise probabilistic projection including rapid Antarctic ice sheet mass loss. Environ. Res. Lett.
**2017**, 12, 044013. [Google Scholar] [CrossRef] - Bachmann, D.; Huber, N.P.; Johann, G.; Schüttrumpf, H. Fragility curves in operational dike reliability assessment. Georisk
**2013**, 7, 49–60. [Google Scholar] [CrossRef] - Edwards, T.L.; Brandon, M.A.; Durand, G.; Edwards, N.R.; Golledge, N.R.; Holden, P.B.; Nias, I.J.; Payne, A.J.; Ritz, C.; Wernecke, A. Revisiting Antarctic ice loss due to marine ice-cliff instability. Nature
**2019**, 566, 58–64. [Google Scholar] [CrossRef][Green Version] - Hanemann, W.M. Information and the concept of option value. J. Environ. Econ. Manag.
**1989**, 16, 23–37. [Google Scholar] [CrossRef][Green Version] - Hohenbichler, M.; Rackwitz, R. First-order concepts in system reliability. Struct. Saf.
**1983**, 1, 177–188. [Google Scholar] [CrossRef] - Eijgenraam, C.; Brekelmans, R.; Hertog, D.D.; Roos, K. Optimal Strategies for Flood Prevention. Manag. Sci.
**2016**, 63, 1644–1656. [Google Scholar] [CrossRef] - DeConto, R.M.; Pollard, D. Contribution of Antarctica to past and future sea-level rise. Nature
**2016**, 531, 591–597. [Google Scholar] [CrossRef] [PubMed] - Nerem, R.S.; Beckley, B.D.; Fasullo, J.T.; Hamlington, B.D.; Masters, D.; Mitchum, G.T. Climate-change-driven accelerated sea-level rise detected in the altimeter era. Proc. Natl. Acad. Sci. USA
**2018**, 115, 2022–2025. [Google Scholar] [CrossRef] [PubMed] - Vermeersen, B.L.; Slangen, A.B.; Gerkema, T.; Baart, F.; Cohen, K.M.; Dangendorf, S.; Duran-Matute, M.; Frederikse, T.; Grinsted, A.; Hijma, M.P.; et al. Sea-level change in the Dutch Wadden Sea. Geologie en Mijnbouw/Neth. J. Geosci.
**2018**, 97, 79–127. [Google Scholar] [CrossRef][Green Version] - Baart, F.; Rongen, G.; Hijma, M.; Kooi, H.; de Winter, R.; Nicolai, R. Zeespiegelmonitor 2018; Technical Report, Deltares Report 11202193-000-ZKS-0004; Deltares: Delft, The Netherlands, 2019. [Google Scholar]
- Van Pelt, S.C.; Beersma, J.J.; Buishand, T.A.; van den Hurk, B.J.; Schellekens, J. Uncertainty in the future change of extreme precipitation over the Rhine basin: the role of internal climate variability. Clim. Dyn.
**2015**, 44, 1789–1800. [Google Scholar] [CrossRef] - Haasnoot, M.; Bouwer, L.; van Alphen, J. Planning for rapidly accelerating sea-level rise for the Dutch coast. In Proceedings of the 20th EGU General Assembly Conference, Vienna, Austria, 4–13 April 2018; Volume 20, p. 7840. [Google Scholar]
- Schweckendiek, T.; van der Krogt, M.; Teixeira, A.; Kanning, W.; Brinkman, R.; Rippi, K. Reliability Updating with Survival Information for Dike Slope Stability Using Fragility Curves. In Geo-Risk 2017; American Society of Civil Engineers: Reston, VA, USA, 2017; pp. 494–503. [Google Scholar] [CrossRef]
- Klerk, W.; Kanning, W.; Kok, M. Time-dependent reliability in flood protection decision-making in the Netherlands. In Safety and Reliability—Safe Societies in a Changing World, Proceedings of the ESREL 2018, Trondheim, Norway, 17–21 June 2018; lCRC Press/Balkema-Taylor & Francis Group: Boca Raton, FL, USA, 2018; pp. 3167–3174. [Google Scholar]
- Schweckendiek, T.; Vrouwenvelder, A.; Calle, E. Updating piping reliability with field performance observations. Struct. Saf.
**2014**, 47, 13–23. [Google Scholar] [CrossRef]

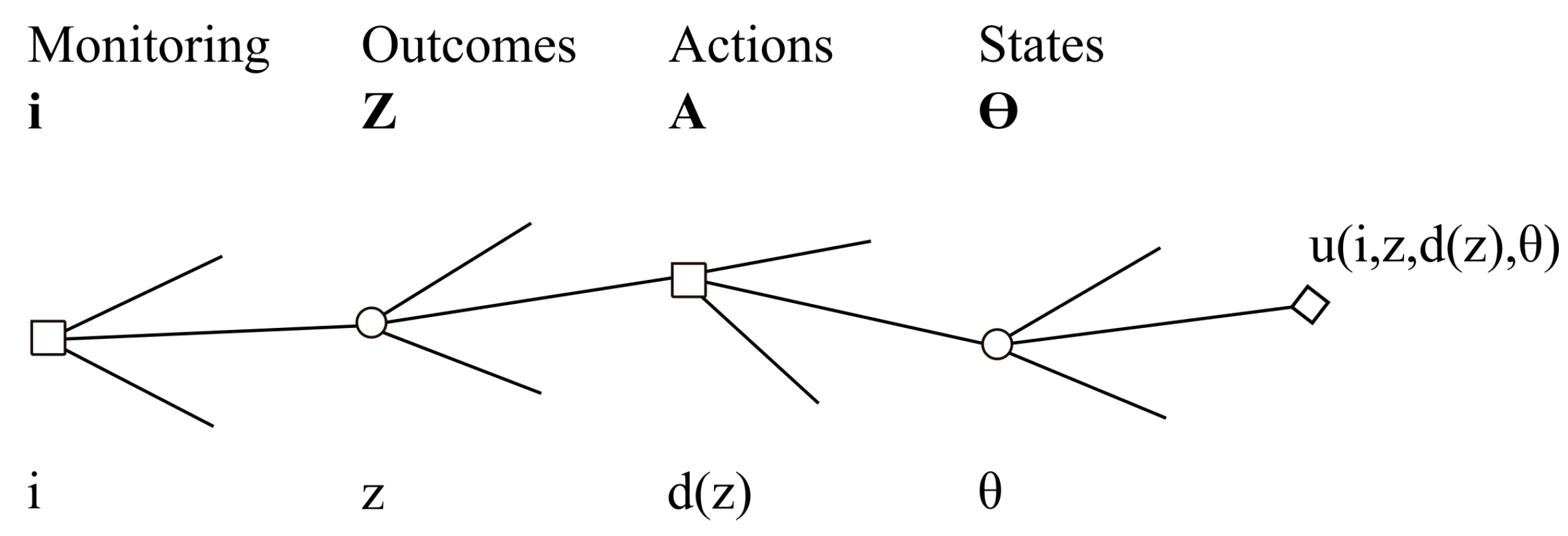

**Figure 1.**Decision tree for the choice whether to obtain information $i\in I$, modified from [10]. Levels I and A are choices by the decision maker, whereas levels Z and $\Theta $ are governed by chance. Level A consists of decision rules $d\left(z\right)$ which map actions to outcomes of z. The result is a utility over a combination of the levels $u(i,z,d(z),\theta )$.

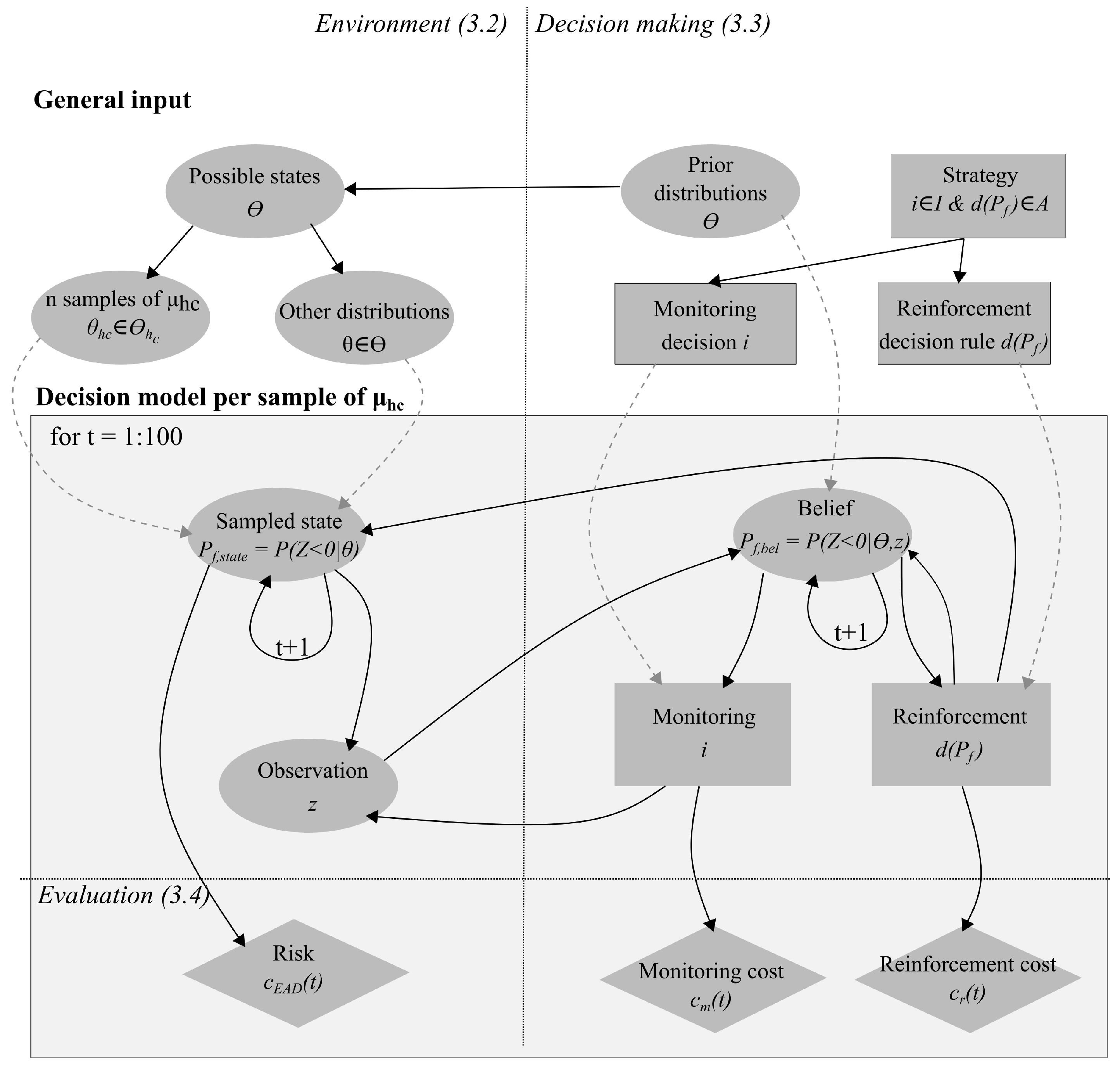

**Figure 2.**Overview of the methodology. The top part shows in general how the input values are related to each other. The bottom part shows an influence diagram for the Bayesian decision model that is run for each sampled state. Dashed arrows indicate how general input is transferred to the model per sample. The dotted line in the middle indicates in which section (Section 3.2 or Section 3.3) the various parts are discussed. Parameters in blocks relate to Figure 1.

**Figure 3.**Two calculations of β in time for samples x

_{i}∈

**x**

_{n}for Case B. The left pane shows an unfavourable sample (β

_{state}> β

_{belief}), the right pane a favourable sample. Circled markers on the line for strategy b indicate presence of monitoring equipment. Dotted vertical lines indicate a reinforcement.

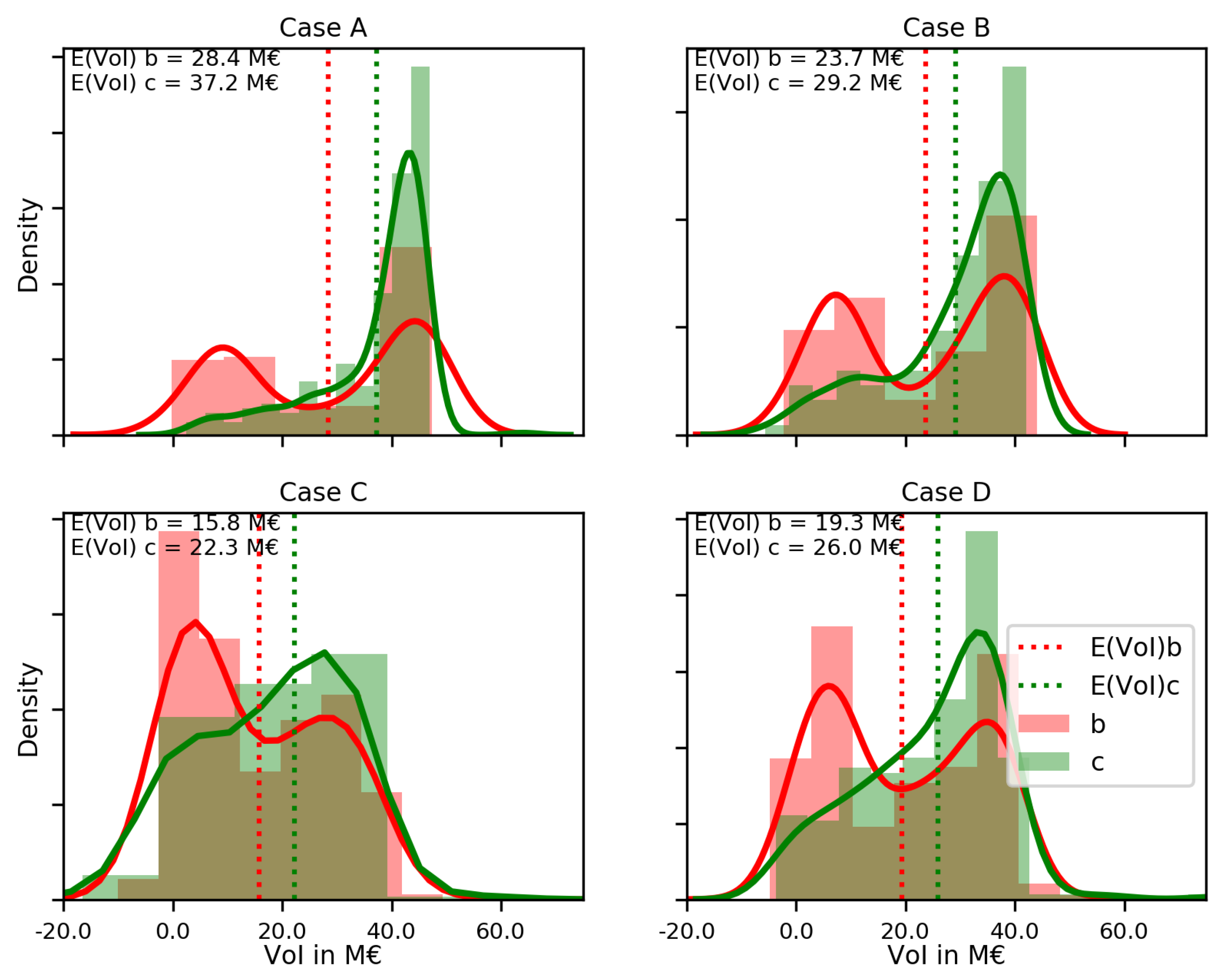

**Figure 4.**Value of Information (VoI) for cases A to D. Thick lines represent a Gaussian Kernel Density Estimation. Bars denote the histograms of the underlying samples. Dotted lines represent computed expected Value of Information for both strategies b and c, for which values are shown in the left top of each figure.

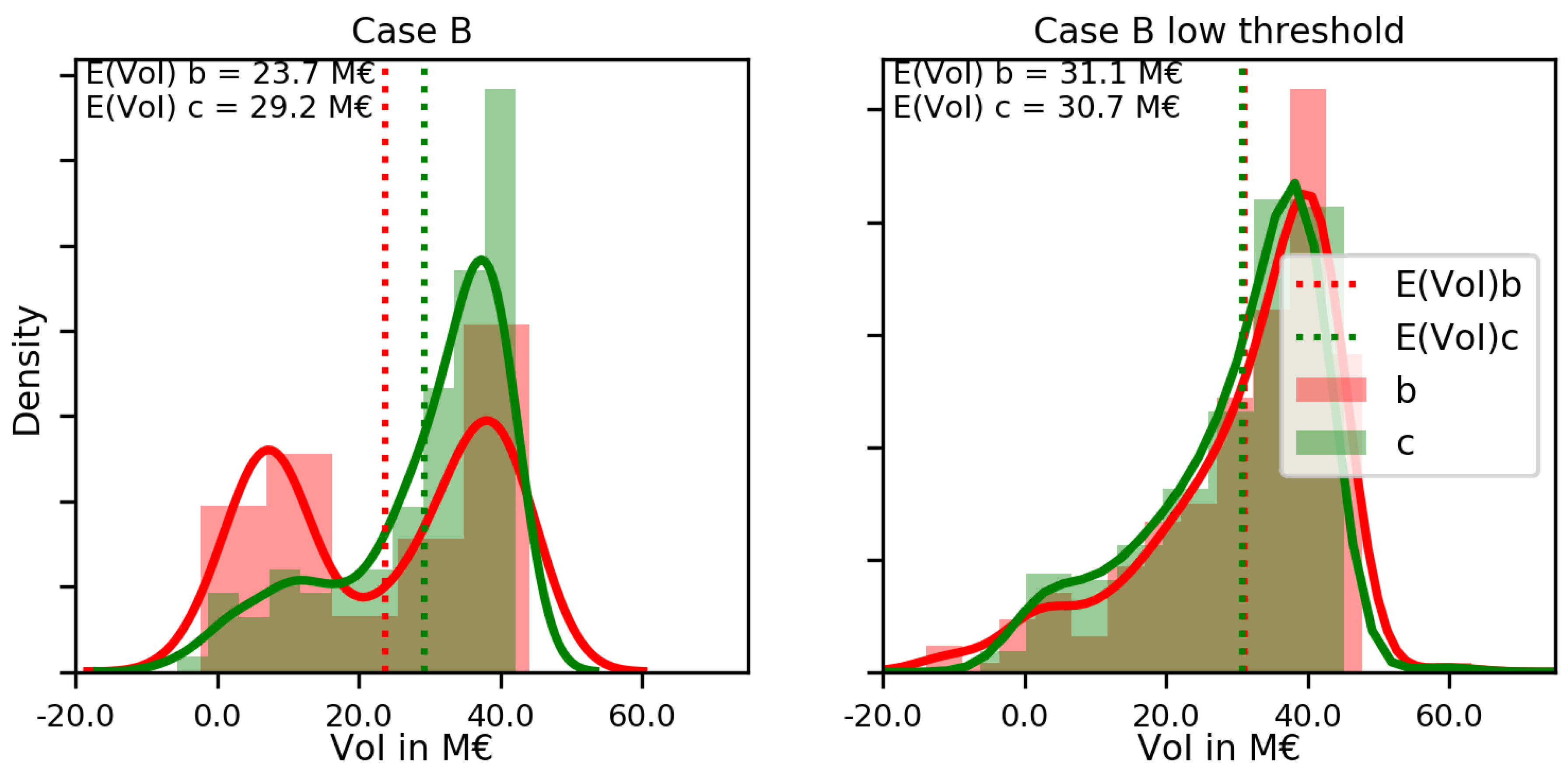

**Figure 6.**VOI for case B with default and lower threshold. Thick lines represent a Gaussian kernel Density Estimation and bars the histograms of underlying data. For B, it holds that ${P}_{\mathrm{thresh}}=1/10\phantom{\rule{3.33333pt}{0ex}}{\mathrm{year}}^{-1}$ for B low threshold ${P}_{\mathrm{thresh}}=1/2\phantom{\rule{3.33333pt}{0ex}}{\mathrm{year}}^{-1}$.
