Article

Novel Ultrafast Lu2O3:Yb Ceramics for Future HEP Applications

1
High Energy Physics, California Institute of Technology, Pasadena, CA 91125, USA
2
Radiation Monitoring Devices, Inc., Watertown, MA 02472, USA
*
Author to whom correspondence should be addressed.
Instruments 2022, 6(4), 67; https://doi.org/10.3390/instruments6040067
Received: 14 August 2022 / Revised: 9 October 2022 / Accepted: 9 October 2022 / Published: 18 October 2022

Abstract

:
Inorganic scintillators activated by charge transfer luminescence Yb3+ are considered promising ultrafast material to break the ps timing barrier for future high energy physics applications. Inorganic scintillators in ceramic form are potentially more cost-effective than crystals because of their lower fabrication temperature and no need for aftergrowth mechanical processing. This paper reports an investigation on Lu2O3:Yb and Lu2xY2(1−x)O3:Yb scintillating ceramic samples fabricated by Radiation Monitoring Devices Inc. All samples show X-ray excited luminescence peaked at 370 nm. Ultrafast decay time of 1.1 ns was observed by using a microchannel plate-photomultiplier tube-based test bench at Caltech. Considering its intrinsic high density (9.4 g/cm3), Lu2O3:Yb ceramics are promising for future time of fight application for high energy physics experiments.

1. Introduction

Inorganic scintillators are widely used in high energy physics (HEP) experiments to construct total absorption electromagnetic calorimeters, providing the best possible energy resolution and position resolution, as well as good electron and photon identification and reconstruction efficiency. The 2019 Department of Energy (DOE) basic research needs (BRN) report [1] points out that ultrafast, radiation hard and cost-effective scintillators are one of the priority research directions for HEP calorimetry. Ultrafast inorganic scintillators are required by future HEP experiments at both the energy and intensity frontiers to mitigate high event rate and pileup. The Compact Muon Solenoid (CMS) experiment is building a barrel timing layer (BTL) consisting of cerium doped lutetium yttrium oxyorthosilicate (Lu2(1−x)Y2xSiO5:Ce or LYSO) crystals readout by Silicon Photomultipliers (SiPM) for the high luminosity large hadron collider (HL-LHC) [2]. Its timing resolution reaches 30 ps. One of the limiting factors for the timing resolution is the 40 ns decay time of LYSO:Ce crystals, which would also cause pile-up in future high-rate experiments. Ultrafast heavy inorganic scintillators with a few nano-second decay time are important to break the pico-second (ps) timing barrier for time of flight (TOF) and ultrafast calorimetry applications for future HEP experiments. An example of ultrafast inorganic scintillator is BaF2:Y crystal, which is proposed for the Mu2e-II experiment at Fermilab [2], and also for GHz hard X-ray imaging for future Free-Electron Laser facilities [3,4,5]. We use two figures of merit for such applications: (1) the light yield in the first ns, and (2) the ratio between the light yield in the first ns and its total light yield (U/T).
Charge transfer (CT) luminescence was observed in Yb3+ (4f13) activated scintillators [6]. It features two emission bands (CT state −> 2F5/2) and (CT state −> 2F7/2) with an energy difference of about 10,000 cm−1, and a strong thermal quenching. Depending on the temperature and the composition, ultrafast and fast decay time from sub-nanosecond to tens of nanosecond was observed in Yb3+ doped scintillators. Among them, Lu2O3:Yb shows a high-density (9.42 g/cm3) and large dE/dx (11.6 MeV/cm), so it is attractive for the HEP community. Its high melting point (2490 °C), however, makes the growth of a single crystal expensive. Ceramics are more cost-effective than single crystals because of the following reasons. (1) Ceramic fabrication does not require melting raw material, so can be conducted with a simpler process at a sintering temperature lower than the melting point for single crystals. (2) Ceramic fabrication allows complex shape with minimum after-growth mechanical processing. It thus has a higher raw material usage and low cost. (3) Activator distribution in ceramics is more homogeneous than in crystals by avoiding segregation.
Cost-effective transparent ceramics have been pursued by industry for decades [7]. Previous studies demonstrate that Lu2O3:Yb ceramic plates with optical quality approaching theoretical transmittance can be obtained [8,9,10,11,12]. By fine-tuning the Yb3+ doping level, light yield of 500 ph/MeV and decay time of ~1 ns were reported [10,13]. Its light yield in the first ns, however, is still low compared to other candidate ultrafast scintillators. On the other hand, radiation hardness of the scintillators must be investigated for applications in a severe radiation environment, such as the HL-LHC or FCC-hh. Systematic investigation was carried out to understand radiation damage in various inorganic scintillators against γ-rays [14], neutrons [15,16], and protons [16,17,18,19]. The radiation hardness of these rare-earth sesquioxide scintillators needs also be checked.
In this investigation, Lu2O3:Yb and Lu2xY2(1−x)O3:Yb ((Lu,Y)2O3:Yb) ceramics were fabricated by Radiation Monitoring Devices, Inc, Watertown, MA (RMD). Their optical and scintillation performance were measured at Caltech HEP Crystal Lab. Ultrafast decay time was measured by using a microchannel plate-photomultiplier tube (MCP-PMT)-based test bench. Radiation hardness against γ-rays was also investigated.

2. Materials and Methods

Figure 1 shows seven Lu2O3:Yb and Lu2xY2(1−x)O3:Yb ((Lu,Y)2O3:Yb) ceramic samples used in this investigation. Table 1 lists their detailed information.
Their X-ray excited luminescence spectrum (XEL) was measured by using a HITACHI F-4500 spectrophotometer and an Amptek Eclipse-III X-ray tube. Their transmittance was measured by using a Hitachi U3210 spectrophotometer with 0.2% precision. Their light output (LO) was measured by a Hamamatsu R2059 PMT with a grease coupling for 0.511-MeV γ-rays from a 22Na source with a coincidence trigger. The corresponding systematic uncertainty of the light output data is 1%. The sample RMD-2 was irradiated by γ-rays from a Cs-137 source at Caltech in two steps to reach a total ionization dose (TID) of 10.1 Mrad. This sample was kept at room temperature and wrapped with Al foil to avoid optical bleaching in the entire process. Both transmittance and light output of the sample were measured before and after irradiation at the Caltech HEP crystal lab.
Figure 2 shows the test-benches used to measure the temporal response for (a) BaF2 samples to 511 keV γ-rays from a 22Na source with a coincidence trigger, and (b) Lu2O3:Yb ceramic samples to a 241Am source. A Photek MCP-PMT240 with a rise time and FWHM of 0.18 and 0.82 ns, respectively, was used to measure the scintillation signal. A 2.5 GHz Agilent MSO 9254A was used to collect and process the signal.
Rise time and decay time of the measured scintillation pulse was obtained by fitting the temporal response of the pulse shape with the following equation [20]:
V   ( t ) = A ( e t τ d e t τ r ) + B ,
where V is the measured pulse amplitude, B represents background noise, and τr and τd are respectively the rise time and decay time. The full width at half maximum (FWHM) of the pulse was calculated by the fitting.
The data presented in this paper are not corrected by the Instrument Response Function.

3. Results and Discussions

Figure 3 shows X-ray excited luminescence spectra measured for the Lu2O3:Yb ceramic sample 2 (top) and 3 (middle), and the (Lu,Y)2O3:Yb ceramic sample 6 (bottom). All three samples show consistent XEL peaked at ~370 nm. A slight difference was observed for sample 6, which can be attributed to the Y admixture.
Figure 4 shows transmittance spectra measured for the Lu2O3:Yb ceramic samples 2 (top) and 3 (middle), and the (Lu,Y)2O3:Yb ceramic sample 6 (bottom). The XEL spectra (blue dash lines) are also shown in the figure, as well as the theoretical limit of transmittance (black dots) and the numerical values of the emission weighted longitudinal transmittance (EWLT). The theoretical limit of transmittance is calculated by using the refractive index assuming multiple bounces and no internal absorption. The EWLT value represents the numerical value of transmittance over emission spectrum. The (Lu,Y)2O3:Yb sample 6 shows poor transmittance. This is due to the scattering centers in the sample.
Figure 5 shows LO as a function of integrated time measured for the Lu2O3:Yb ceramic samples 2 (top) and 3 (middle), and the (Lu,Y)2O3:Yb sample 9 (bottom). Taking out the emission-weighted quantum efficiency (EWQE) of 20%, these Lu2O3:Yb samples shows light yield of up to 280 ph/MeV with negligible slow component. By using the LO data and the decay time from Figure 6 below the corresponding light yield in the first ns and the U/T ratio are 170 photons/MeV and 61% respectively for the Lu2O3:Yb ceramic sample 3, which is very promising. On the other hand, doping with yttrium is found to increase the light output, but also introduce slow light with decay time of ~100 and ~2500 ns.
Figure 6 shows the temporal response measured by a Photek MCP-PMT240 for (a) a BaF2:Y crystal (top) and a BaF2 crystal (bottom) and (b) one Lu2O3:Yb ceramic sample with an ultrafast decay time of 0.6 and 1.1 ns, respectively. The corresponding rise time and FWHM are 0.2 and 0.9 ns for BaF2 crystals, and 0.3 and 1.5 ns for Lu2O3:Yb. These values can be compared to the MCP-PMT240 response of 0.18 and 0.82 ns, respectively.
Figure 7 shows (a) transmittance and (b) light output as a function of the integral time measured before and after γ-ray irradiation with a total dose of 5.1 Mrad (red) and 10.1 Mrad (blue) for the Lu2O3:Yb ceramic sample 2. Radiation damage appears approaching saturation after 5.1 Mrad. Light output and transmittance loss can be attributed to the radiation induced absorption in the Lu2O3:Yb sample. Damage recovery and dose rate dependence will be studied for thicker Lu2O3:Yb ceramics with better optical quality to reduce the uncertainty in the radiation induced absorption data to facilitate direct comparison with other well-investigated crystal scintillators [14].
Table 2 compares the scintillation performance for various fast and ultrafast inorganic scintillators [4]. Among them, Lu2O3:Yb ceramics show the highest density and dE/dx, and the shortest radiation and nuclear interaction length. Its ultrafast decay time of 1.1 ns and the high U/T ratio of 61% make it promising for future TOF and ultrafast calorimetry applications. Additional work is needed to improve its light yield in the first ns while keeping the slow component under control.

4. Conclusions

Development of ultrafast heavy crystals with sub-nanosecond decay time is important to break the ps timing barrier for future HEP TOF system and ultrafast calorimetry, and for GHz hard X-ray imaging. All Lu2O3:Yb and (Lu,Y)2O3:Yb samples from RMD show XEL emission peaked at ~370 nm. Lu2O3:Yb ceramics show light yield up to 280 ph/MeV with negligible slow component. Mixing Lu2O3 with Y2O3 increases light yield but introduces a significant slow component of 100 and 2500 ns decay time. A sub-nanosecond decay time of 1.1 ns was measured by using MCP-PMT. With a high density, an ultrafast decay time, a light yield in the first nanosecond of 170 photon/MeV and an U/T ratio of 61%, Lu2O3:Yb ceramics are promising for future TOF and ultrafast calorimetry applications. This investigation will continue to optimize the composition of Lu2O3:Yb and increase its transparency and ultrafast light while keeping the slow component under control.

Author Contributions

Conceptualization, R.-Y.Z. and L.S.P.; methodology, R.-Y.Z., L.Z. and L.S.P.; investigation, C.H., L.Z., R.-Y.Z., L.S.P., Y.W. and J.G.; resources, R.-Y.Z., L.S.P., Y.W. and J.G.; writing—original draft preparation, C.H.; writing—review and editing, R.-Y.Z., L.Z., L.S.P. and J.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Department of Energy, Office of Science, Office of High Energy Physics, under Award Number DE-SC0011925 and the Small Business Innovation Research program under Award Number DE-SC0021686.

Data Availability Statement

All data are available on the Web. The data presented in this paper are openly available in: http://www.hep.caltech.edu/~zhu/ accessed on 9 August 2022.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Basic Research Needs Study on HEP Detector Research and Development. 2019. Available online: https://science.osti.gov/hep/Community-Resources/Reports (accessed on 9 August 2022).
  2. Abusalma, F.; Ambrose, D.; Artikov, A.; Bernstein, R.; Blazey, G.C.; Bloise, C.; Boi, S.; Bolton, T.; Bono, J.; Bonventre, R.; et al. Expression of Interest for Evolution of the Mu2e Experiment. arXiv 2018, arXiv:1802.02599. [Google Scholar]
  3. Zhu, R.-Y. Fast Crystal Scintillators for GHz Hard X-Ray Imaging. 2016. Available online: http://www.hep.caltech.edu/~zhu/talks/ryz_160803_X-Ray_imaging.pdf (accessed on 9 August 2022).
  4. Hu, C.; Zhang, L.; Zhu, R.-Y.; Chen, A.; Wang, Z.; Ying, L.; Yu, Z. Ultrafast Inorganic Scintillators for Gigahertz Hard X-Ray Imaging. IEEE Trans. Nucl. Sci. 2018, 65, 2097–2104. [Google Scholar] [CrossRef]
  5. Hu, C.; Zhang, L.; Zhu, R.-Y.; Chen, J.; Ding, D.; Wang, Y.; Zhang, M. Spatial Resolution of an Inorganic Crystal-Based Hard X-Ray Imager. IEEE Trans. Nucl. Sci. 2020, 67, 1014–1019. [Google Scholar] [CrossRef]
  6. van Pieterson, L.; Heeroma, M.; de Heer, E.; Meijerink, A. Charge Transfer Luminescence of Yb3+. J. Lumin. 2000, 91, 177–193. [Google Scholar] [CrossRef]
  7. Greskovich, C.; Duclos, S. Ceramic Scintillators. Annu. Rev. Mater. Sci. 1997, 27, 69–88. [Google Scholar] [CrossRef]
  8. Takaichi, K.; Yagi, H.; Shirakawa, A.; Ueda, K.; Hosokawa, S.; Yanagitani, T.; Kaminskii, A.A. Lu2O3:Yb3+ Ceramics—A Novel Gain Material for High-Power Solid-State Lasers. Phys. Status Solidi (A) 2005, 202, R1–R3. [Google Scholar] [CrossRef]
  9. Kim, W.; Baker, C.; Villalobos, G.; Frantz, J.; Shaw, B.; Lutz, A.; Sadowski, B.; Kung, F.; Hunt, M.; Sanghera, J.; et al. Synthesis of High Purity Yb3+-Doped Lu2O3 Powder for High Power Solid-State Lasers. J. Am. Ceram. Soc. 2011, 94, 3001–3005. [Google Scholar] [CrossRef]
  10. Yanagida, T.; Fujimoto, Y.; Yagi, H.; Yanagitani, T. Optical and Scintillation Properties of Transparent Ceramic Yb:Lu2O3 with Different Yb Concentrations. Opt. Mater. 2014, 36, 1044–1048. [Google Scholar] [CrossRef]
  11. Liu, Z.; Toci, G.; Pirri, A.; Patrizi, B.; Feng, Y.; Wei, J.; Wu, F.; Yang, Z.; Vannini, M.; Li, J. Fabrication, Microstructures, and Optical Properties of Yb:Lu2O3 Laser Ceramics from Co-Precipitated Nano-Powders. J. Adv. Ceram. 2020, 9, 674–682. [Google Scholar] [CrossRef]
  12. Yin, D.; Ma, J.; Liu, P.; Yao, B.; Wang, J.; Dong, Z.; Kong, L.B.; Tang, D. Submicron-grained Yb:Lu2O3 Transparent Ceramics with Lasing Quality. J. Am. Ceram. Soc. 2019, 102, 2587–2592. [Google Scholar] [CrossRef]
  13. Yanagida, T.; Fujimoto, Y.; Kurosawa, S.; Watanabe, K.; Yagi, H.; Yanagitani, T.; Jary, V.; Futami, Y.; Yokota, Y.; Yoshikawa, A.; et al. Ultrafast Transparent Ceramic Scintillators Using the Yb3+ Charge Transfer Luminescence in RE2O3 Host. Appl. Phys. Express 2011, 4, 126402. [Google Scholar] [CrossRef]
  14. Yang, F.; Zhang, L.; Zhu, R.-Y. Gamma-Ray Induced Radiation Damage Up to 340 Mrad in Various Scintillation Crystals. IEEE Trans. Nucl. Sci. 2016, 63, 612–619. [Google Scholar] [CrossRef]
  15. Hu, C.; Yang, F.; Zhang, L.; Zhu, R.-Y.; Kapustinsky, J.; Mocko, M.; Nelson, R.; Wang, Z. Neutron-Induced Radiation Damage in LYSO, BaF2, and PWO Crystals. IEEE Trans. Nucl. Sci. 2020, 67, 1086–1092. [Google Scholar] [CrossRef]
  16. Hu, C.; Zhang, L.; Zhu, R.-Y.; Li, J.; Jiang, B.; Kapustinsky, J.; Mocko, M.; Nelson, R.; Li, X.; Wang, Z. Hadron-Induced Radiation Damage in LuAG:Ce Scintillating Ceramics. IEEE Trans. Nucl. Sci. 2022, 69, 181–186. [Google Scholar] [CrossRef]
  17. Yang, F.; Zhang, L.; Zhu, R.-Y.; Kapustinsky, J.; Nelson, R.; Wang, Z. Proton Induced Radiation Damage in Fast Crystal Scintillators. Nucl. Instrum. Methods Phys. Res. A 2016, 824, 726–728. [Google Scholar] [CrossRef]
  18. Yang, F.; Zhang, L.; Zhu, R.-Y.; Kapustinsky, J.; Nelson, R.; Wang, Z. Proton-Induced Radiation Damage in Fast Crystal Scintillators. IEEE Trans. Nucl. Sci. 2017, 64, 665–672. [Google Scholar] [CrossRef]
  19. Hu, C.; Yang, F.; Zhang, L.; Zhu, R.-Y.; Kapustinsky, J.; Nelson, R.; Wang, Z. Proton-Induced Radiation Damage in BaF2, LYSO, and PWO Crystal Scintillators. IEEE Trans. Nucl. Sci. 2018, 65, 1018–1024. [Google Scholar] [CrossRef]
  20. Rodnyi, P.A. Physical Processes in Inorganic Scintillators; Rodnyi, P.A., Ed.; CRC Press: Boca Raton, FL, USA, 2020; ISBN 9780138743352. [Google Scholar]

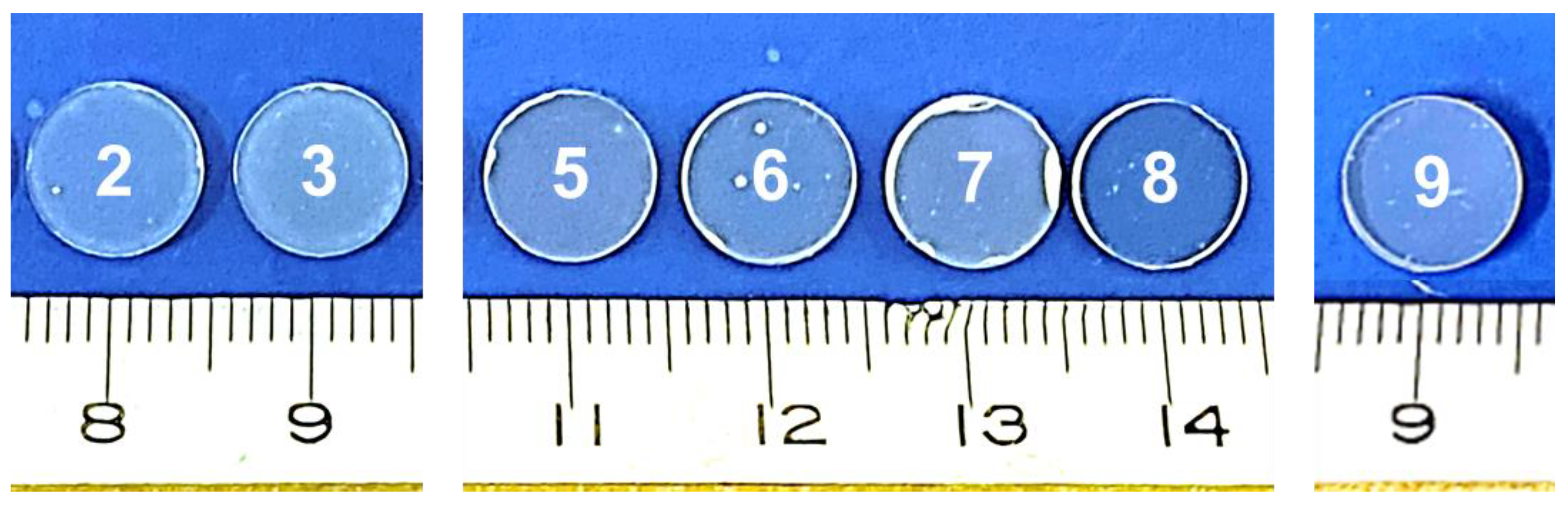

Figure 1. A photo showing seven Lu2O3:Yb and (Lu,Y)2O3:Yb ceramic samples fabricated by RMD.
Figure 1. A photo showing seven Lu2O3:Yb and (Lu,Y)2O3:Yb ceramic samples fabricated by RMD.
Instruments 06 00067 g001

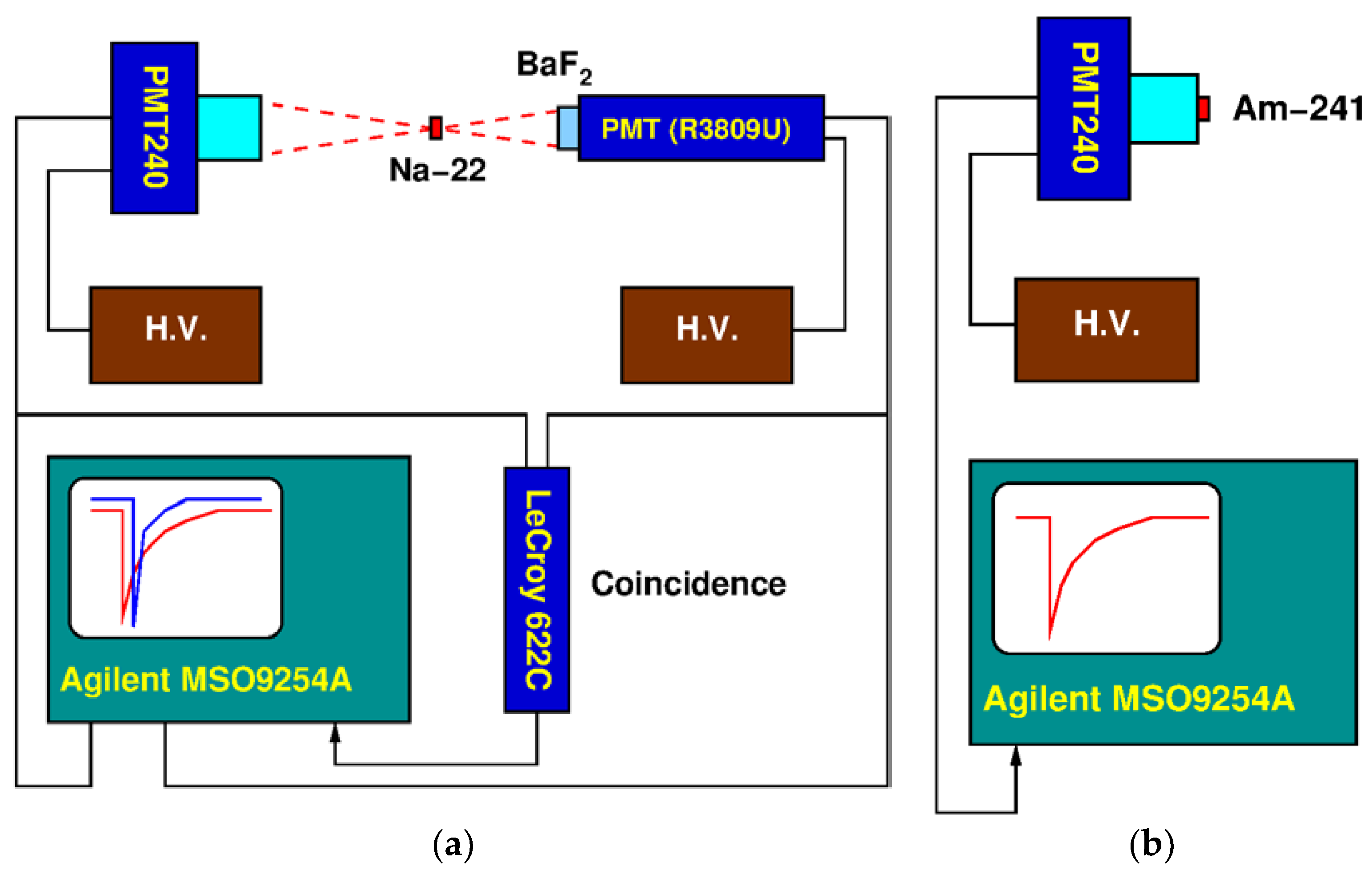

Figure 2. A schematic showing MCP-based test benches for temporal response measurement for (a) BaF2 samples to 511 keV γ-rays from a 22Na source with a coincidence trigger, and (b) Lu2O3:Yb ceramic samples to a 241Am source.
Figure 2. A schematic showing MCP-based test benches for temporal response measurement for (a) BaF2 samples to 511 keV γ-rays from a 22Na source with a coincidence trigger, and (b) Lu2O3:Yb ceramic samples to a 241Am source.
Instruments 06 00067 g002

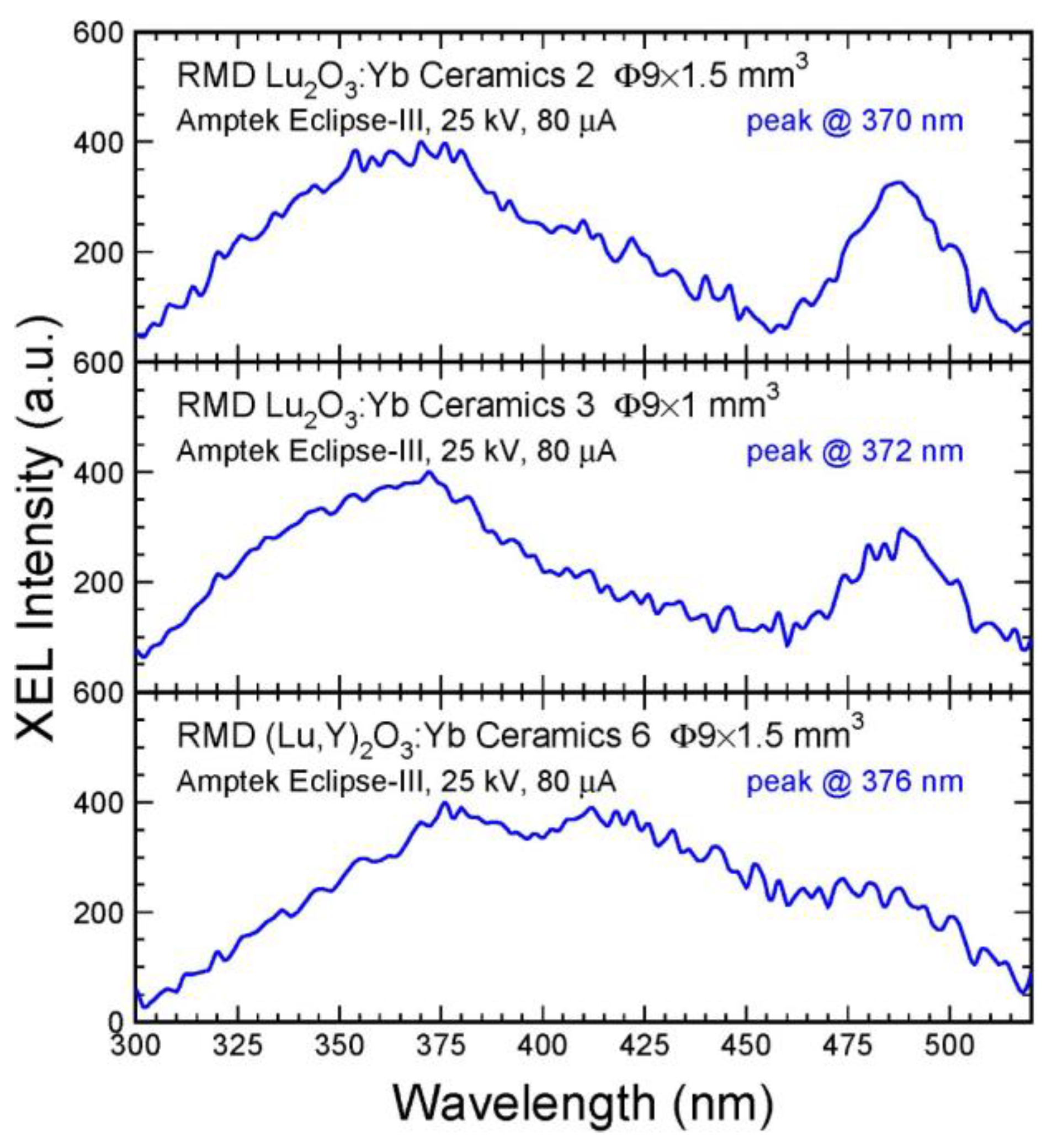

Figure 3. XEL spectra measured for the Lu2O3:Yb ceramic sample 2 (top) and 3 (middle), and the (Lu,Y)2O3:Yb ceramic sample 6 (bottom).
Figure 3. XEL spectra measured for the Lu2O3:Yb ceramic sample 2 (top) and 3 (middle), and the (Lu,Y)2O3:Yb ceramic sample 6 (bottom).
Instruments 06 00067 g003

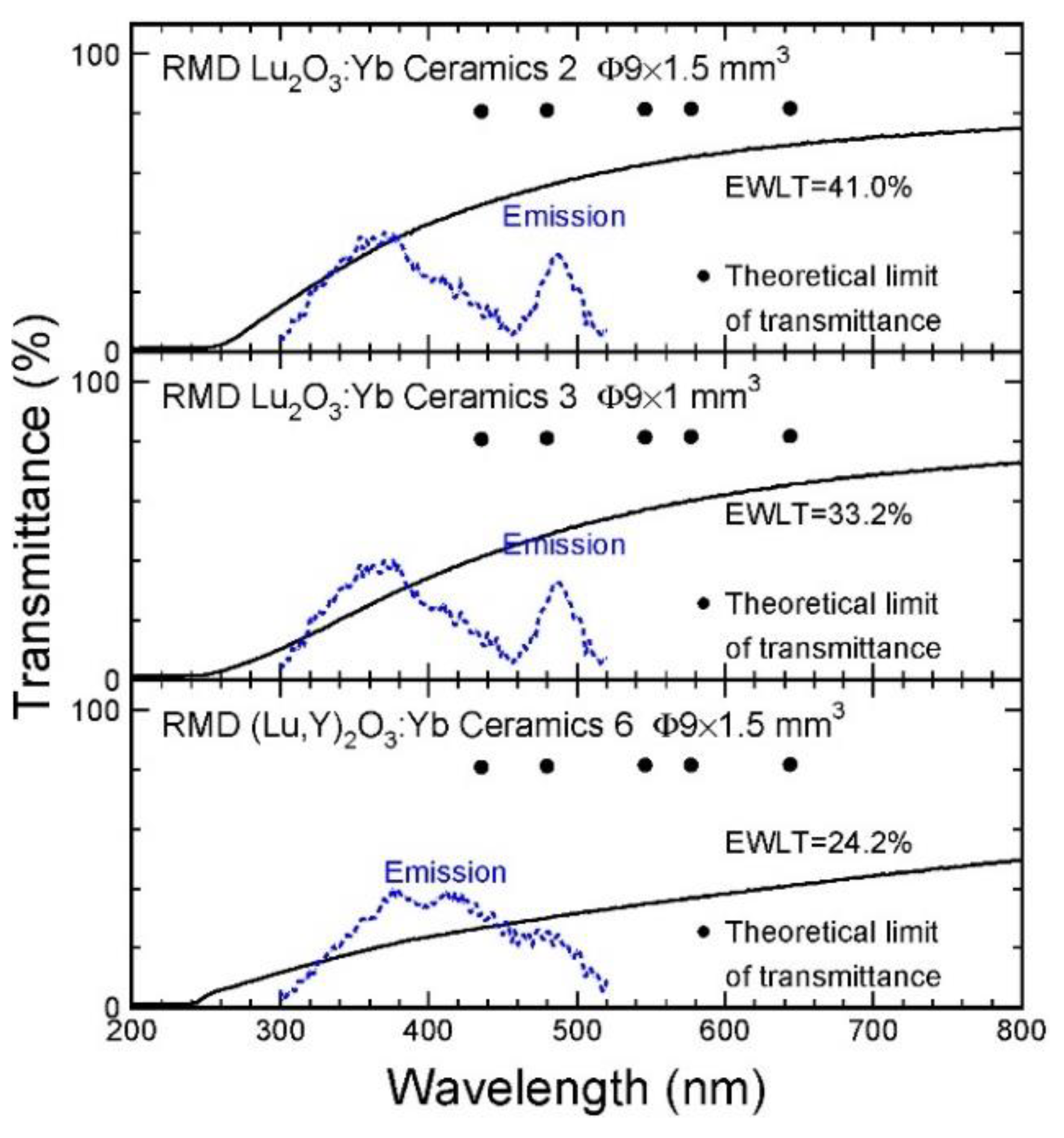

Figure 4. Transmittance spectra (black lines) measured for the Lu2O3:Yb ceramic samples 2 (top) and 3 (middle), and the (Lu,Y)2O3:Yb ceramic sample 6 (bottom).
Figure 4. Transmittance spectra (black lines) measured for the Lu2O3:Yb ceramic samples 2 (top) and 3 (middle), and the (Lu,Y)2O3:Yb ceramic sample 6 (bottom).
Instruments 06 00067 g004

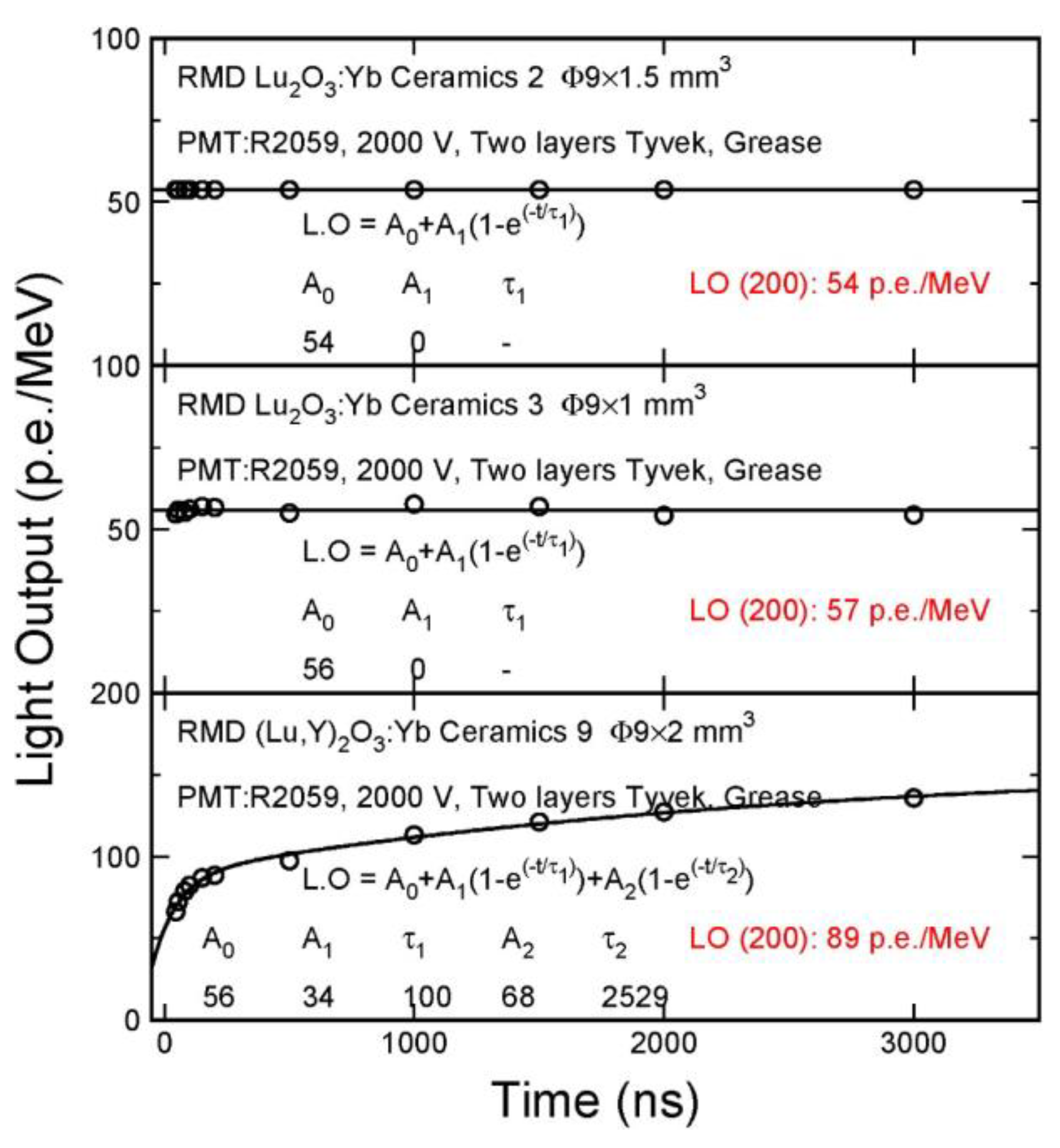

Figure 5. Light output is shown as a function of integration time for the Lu2O3:Yb ceramic samples 2 (top) and 3 (middle), and the (Lu,Y)2O3:Yb ceramic sample 9 (bottom).
Figure 5. Light output is shown as a function of integration time for the Lu2O3:Yb ceramic samples 2 (top) and 3 (middle), and the (Lu,Y)2O3:Yb ceramic sample 9 (bottom).
Instruments 06 00067 g005

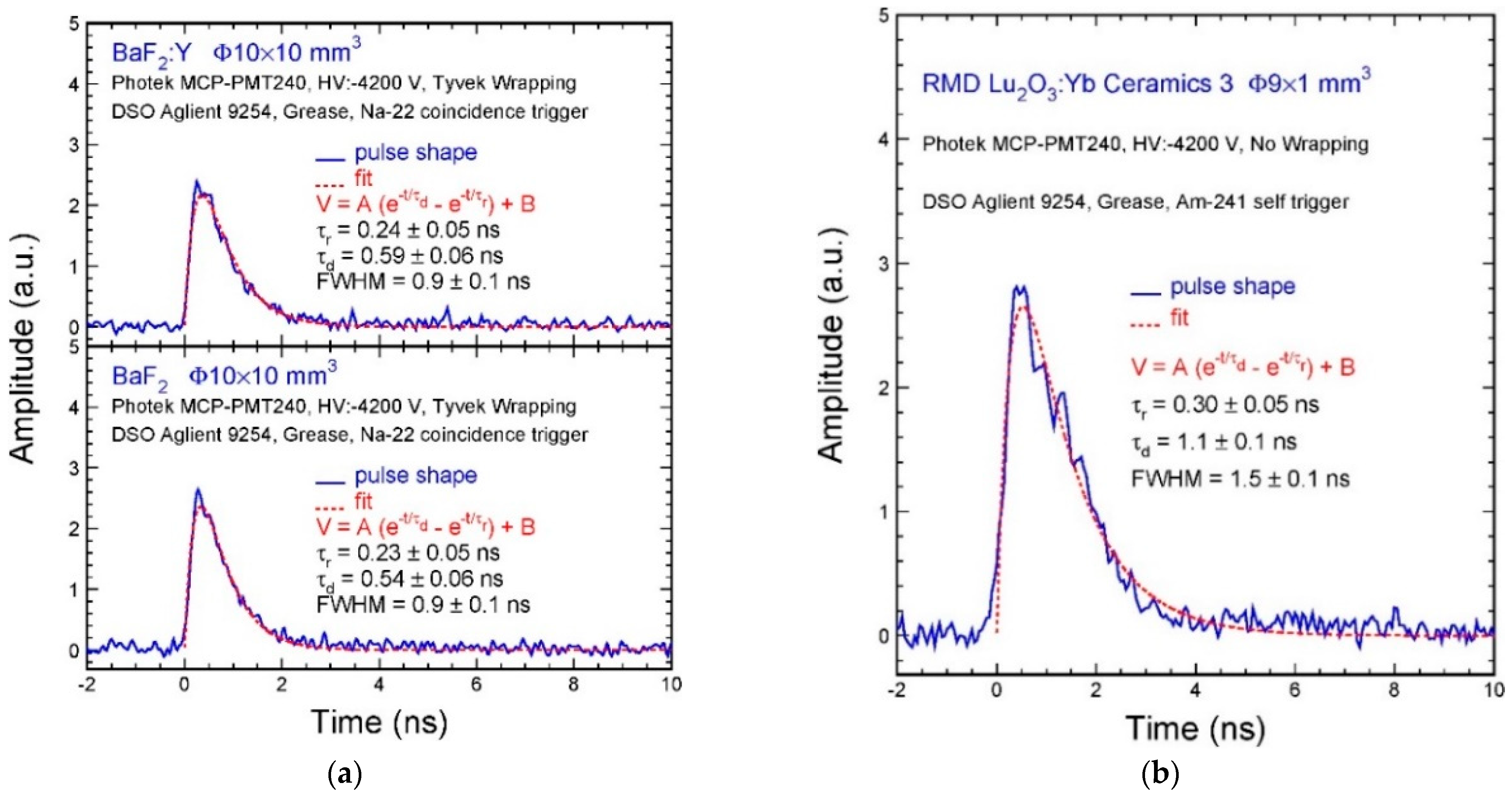

Figure 6. Temporal response measured by a Photek MCP-PMT240 for (a) BaF2 samples and (b) the Lu2O3:Yb ceramic sample 3.
Figure 6. Temporal response measured by a Photek MCP-PMT240 for (a) BaF2 samples and (b) the Lu2O3:Yb ceramic sample 3.
Instruments 06 00067 g006

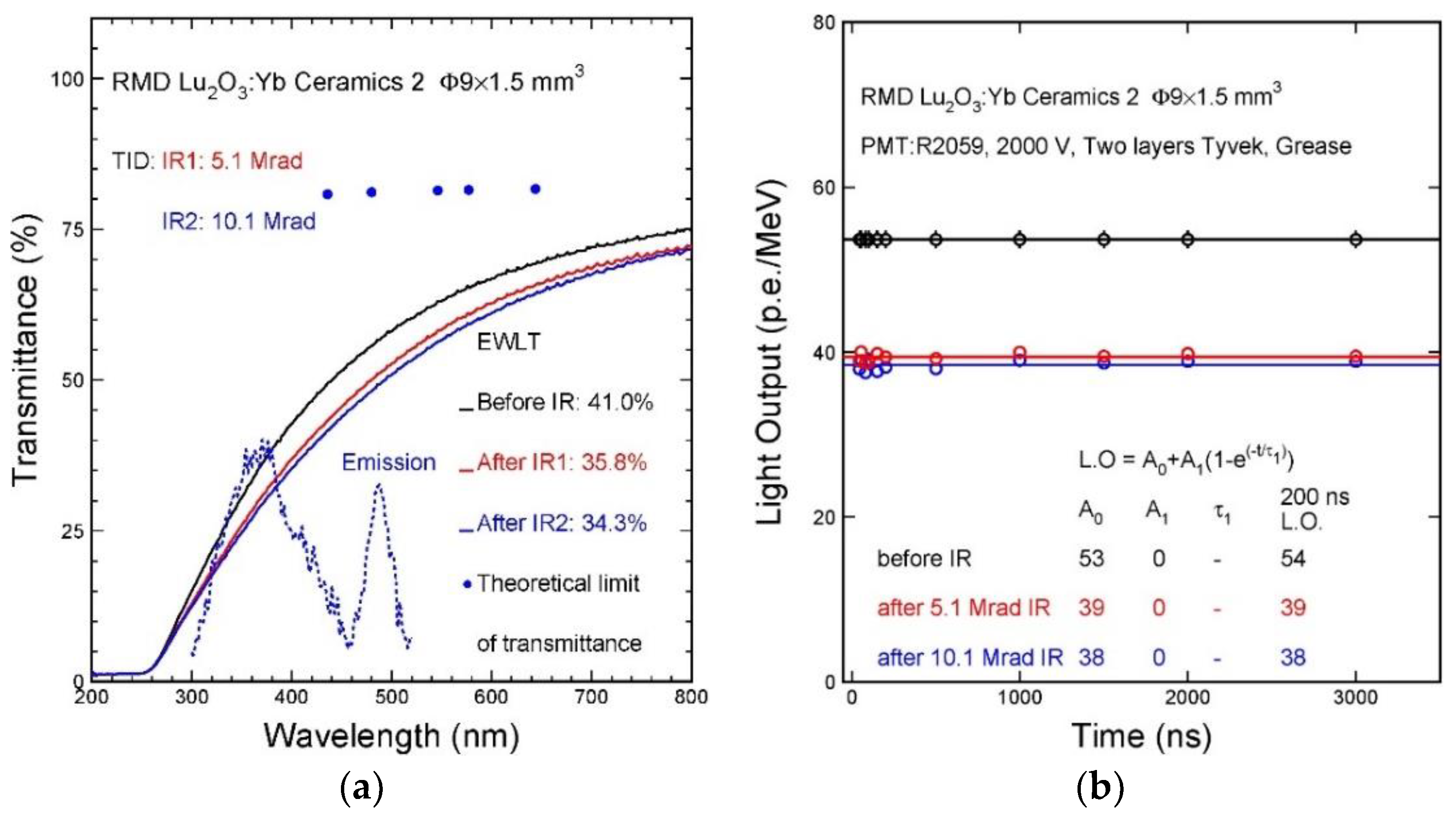

Figure 7. (a) Transmittance and (b) light output as a function of integral time measured before and after irradiation are shown for the Lu2O3:Yb ceramic sample 2 before and after the total γ-ray dose of 5.1 (red) and 10.1 Mrad (blue).
Figure 7. (a) Transmittance and (b) light output as a function of integral time measured before and after irradiation are shown for the Lu2O3:Yb ceramic sample 2 before and after the total γ-ray dose of 5.1 (red) and 10.1 Mrad (blue).
Instruments 06 00067 g007
Table 1. Dimension and composition of the Lu2O3:Yb and (Lu,Y)2O3:Yb ceramic samples used in this investigation.
Table 1. Dimension and composition of the Lu2O3:Yb and (Lu,Y)2O3:Yb ceramic samples used in this investigation.
IDDimension (mm3)Composition
RMD-2Φ9 × 1.5Lu2O3
RMD-3Φ9 × 1Lu2O3
RMD-5Φ9 × 1.5(Lu,Y)2O3
RMD-6Φ9 × 1.5(Lu,Y)2O3
RMD-7Φ9 × 2(Lu,Y)2O3
RMD-8Φ9 × 1Lu2O3
RMD-9Φ9 × 2(Lu,Y)2O3
Table 2. Scintillation performance of various fast and ultrafast inorganic scintillators.
Table 2. Scintillation performance of various fast and ultrafast inorganic scintillators.
BaF2BaF2:YZnO:GaLu2O3:YbYAP:YbYAG:Ybβ-Ga2O3PWOLYSO:CeLuAG:CeYAP:CeGAGG:CeLuYAP:CeYSO:Ce
Density (g/cm3)4.894.895.679.425.354.565.948.287.46.765.356.57.2 64.44
Melting points (°C)12801280197524901870194017251123205020601870185019302070
X0 (cm) 2.032.032.510.812.593.532.510.891.141.452.591.631.373.10
RM (cm)3.13.12.281.722.452.762.202.002.072.152.452.202.012.93
λI (cm)30.730.722.218.123.125.220.920.720.920.623.121.519.527.8
Zeff51.051.027.767.332.829.327.873.663.758.732.850.657.132.8
dE/dX (MeV/cm)6.526.528.3411.67.917.018.8210.19.559.227.918.969.826.57
λpeak 1 (nm)300
220
300
220
380370350350380425
420
420520370540385420
Refractive Index 21.501.502.12.01.961.871.972.201.821.841.961.921.941.78
Normalized
Light Yield 1,3
42
4.8
1.7
4.8
6.6 40.950.19 40.36 46.5
0.5
1.6
0.4
10035 5
48 5
9
32
19016
15
80
Total Light yield
(ph/MeV)
13,00020002000 428057 4110 4210013030,00025,000 512,00058,00010,00024,000
Decay time 1 (ns)600
0.5
600
0.5
<11.1 41.54148
6
30
10
40820
50
191
25
570
130
1485
36
75
LY in 1st ns
(photons/MeV)
12001200610 417028 424 4435.3740240391400125318
LY in 1st ns
/Total LY (%)
9.260316149222.04.32.51.03.30.71.31.3
40 keV Att. Leng.
(1/e, mm)
0.1060.1060.4070.1270.3140.4390.3940.1110.1850.2510.3140.3190.2140.334
1 top/bottom row: slow/fast component. 2 at the emission peak. 3 normalized to LYSO:Ce. 4 excited by alpha particles. 5 ceramic with 0.3 Mg at% co-doping. 6 density for composition Lu0.7Y0.3AlO3:Ce.
