# Investigating the Individual Performances of Coupled Superconducting Transmon Qubits

^{1}

^{2}

^{3}

^{4}

^{5}

^{6}

^{7}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Results

#### 2.1. Read-Out Resonator and Qubit Spectroscopy

#### 2.2. Relaxation and Coherence Properties

#### 2.3. Control-Pulses Optimization

#### 2.4. Single-Qubit Gate Fidelities

#### 2.5. Evidence of Two-Qubit Coupling

## 3. Materials and Methods

## 4. Discussion and Concluding Remarks

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Sample Availability

## References

- Preskill, J. Quantum Computing in the NISQ era and beyond. Quantum
**2018**, 2, 79. [Google Scholar] [CrossRef] - Fowler, A.G.; Mariantoni, M.; Martinis, J.M.; Cleland, A.N. Surface codes: Towards practical large-scale quantum computation. Phys. Rev. A
**2012**, 86, 032324. [Google Scholar] [CrossRef] [Green Version] - Gambetta, J.M.; Chow, J.M.; Steffen, M. Building logical qubits in a superconducting quantum computing system. NPJ Quantum Inf.
**2017**, 3, 2. [Google Scholar] [CrossRef] [Green Version] - Versluis, R.; Poletto, S.; Khammassi, N.; Tarasinski, B.; Haider, N.; Michalak, D.J.; Bruno, A.; Bertels, K.; DiCarlo, L. Scalable Quantum Circuit and Control for a Superconducting Surface Code. Phys. Rev. Appl.
**2017**, 8, 034021. [Google Scholar] [CrossRef] [Green Version] - Campbell, E.T.; Terhal, B.M.; Vuillot, C. Roads towards fault-tolerant universal quantum computation. Nature
**2017**, 549, 172–179. [Google Scholar] [CrossRef] [Green Version] - Egan, L.; Debroy, D.M.; Noel, C.; Risinger, A.; Zhu, D.; Biswas, D.; Newman, M.; Li, M.; Brown, K.R.; Cetina, M.; et al. Fault-tolerant control of an error-corrected qubit. Nature
**2021**, 598, 281–286. [Google Scholar] [CrossRef] - Krinner, S.; Lacroix, N.; Remm, A.; Di Paolo, A.; Genois, E.; Leroux, C.; Hellings, C.; Lazar, S.; Swiadek, F.; Herrmann, J.; et al. Realizing repeated quantum error correction in a distance-three surface code. Nature
**2022**, 605, 669–674. [Google Scholar] [CrossRef] - Webster, P.; Vasmer, M.; Scruby, T.R.; Bartlett, S.D. Universal fault-tolerant quantum computing with stabilizer codes. Phys. Rev. Res.
**2022**, 4, 013092. [Google Scholar] [CrossRef] - Zhao, Y.; Ye, Y.; Huang, H.L.; Zhang, Y.; Wu, D.; Guan, H.; Zhu, Q.; Wei, Z.; He, T.; Cao, S.; et al. Realization of an Error-Correcting Surface Code with Superconducting Qubits. Phys. Rev. Lett.
**2022**, 129, 030501. [Google Scholar] [CrossRef] - Marques, J.F.; Varbanov, B.M.; Moreira, M.S.; Ali, H.; Muthusubramanian, N.; Zachariadis, C.; Battistel, F.; Beekman, M.; Haider, N.; Vlothuizen, W.; et al. Logical-qubit operations in an error-detecting surface code. Nat. Phys.
**2022**, 18, 80–86. [Google Scholar] [CrossRef] - Koch, D.; Torrance, A.; Kinghorn, D.; Patel, S.; Wessing, L.; Alsing, P.M. Simulating Quantum Algorithms Using Fidelity and Coherence Time as Principle Models for Error. arXiv
**2019**, arXiv:1908.04229. [Google Scholar] - Bravyi, S.; Dial, O.; Gambetta, J.M.; Gil, D.; Nazario, Z. The future of quantum computing with superconducting qubits. J. Appl. Phys.
**2022**, 132, 160902. [Google Scholar] [CrossRef] - Abad, T.; Fernández-Pendás, J.; Frisk Kockum, A.; Johansson, G. Universal Fidelity Reduction of Quantum Operations from Weak Dissipation. Phys. Rev. Lett.
**2022**, 129, 150504. [Google Scholar] [CrossRef] [PubMed] - Wallraff, A.; Schuster, D.I.; Blais, A.; Frunzio, L.; Huang, R.S.; Majer, J.; Kumar, S.; Girvin, S.M.; Schoelkopf, R.J. Strong coupling of a single photon to a superconducting qubit using circuit quantum electrodynamics. Nature
**2004**, 431, 162–167. [Google Scholar] [CrossRef] [Green Version] - Blais, A.; Huang, R.S.; Wallraff, A.; Girvin, S.M.; Schoelkopf, R.J. Cavity quantum electrodynamics for superconducting electrical circuits: An architecture for quantum computation. Phys. Rev. A
**2004**, 69, 062320. [Google Scholar] [CrossRef] [Green Version] - Koch, J.; Yu, T.M.; Gambetta, J.; Houck, A.A.; Schuster, D.I.; Majer, J.; Blais, A.; Devoret, M.H.; Girvin, S.M.; Schoelkopf, R.J. Charge-insensitive qubit design derived from the Cooper pair box. Phys. Rev. A
**2007**, 76, 042319. [Google Scholar] [CrossRef] [Green Version] - Oliver, W.D.; Welander, P.B. Materials in superconducting quantum bits. MRS Bull.
**2013**, 38, 816–825. [Google Scholar] [CrossRef] [Green Version] - Lee, K.H.; Chakram, S.; Kim, S.E.; Mujid, F.; Ray, A.; Gao, H.; Park, C.; Zhong, Y.; Muller, D.A.; Schuster, D.I.; et al. Two-Dimensional Material Tunnel Barrier for Josephson Junctions and Superconducting Qubits. Nano Lett.
**2019**, 19, 8287–8293. [Google Scholar] [CrossRef] - Place, A.P.M.; Rodgers, L.V.H.; Mundada, P.; Smitham, B.M.; Fitzpatrick, M.; Leng, Z.; Premkumar, A.; Bryon, J.; Vrajitoarea, A.; Sussman, S.; et al. New material platform for superconducting transmon qubits with coherence times exceeding 0.3 milliseconds. Nat. Commun.
**2021**, 12, 1779. [Google Scholar] [CrossRef] - Blais, A.; Grimsmo, A.L.; Girvin, S.M.; Wallraff, A. Circuit quantum electrodynamics. Rev. Mod. Phys.
**2021**, 93, 025005. [Google Scholar] [CrossRef] - Wang, C.; Li, X.; Xu, H.; Li, Z.; Wang, J.; Yang, Z.; Mi, Z.; Liang, X.; Su, T.; Yang, C.; et al. Towards practical quantum computers: Transmon qubit with a lifetime approaching 0.5 milliseconds. NPJ Quantum Inf.
**2022**, 8, 3. [Google Scholar] [CrossRef] - Manucharyan, V.E.; Koch, J.; Glazman, L.I.; Devoret, M.H. Fluxonium: Single Cooper-Pair Circuit Free of Charge Offsets. Science
**2009**, 326, 113–116. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Nguyen, L.B.; Lin, Y.H.; Somoroff, A.; Mencia, R.; Grabon, N.; Manucharyan, V.E. High-Coherence Fluxonium Qubit. Phys. Rev. X
**2019**, 9, 041041. [Google Scholar] [CrossRef] [Green Version] - Somoroff, A.; Ficheux, Q.; Mencia, R.A.; Xiong, H.; Kuzmin, R.V.; Manucharyan, V.E. Millisecond coherence in a superconducting qubit. arXiv
**2021**, arXiv:2103.08578. [Google Scholar] - Dogan, E.; Rosenstock, D.; Guevel, L.L.; Xiong, H.; Mencia, R.A.; Somoroff, A.; Nesterov, K.N.; Vavilov, M.G.; Manucharyan, V.E.; Wang, C. Demonstration of the Two-Fluxonium Cross-Resonance Gate. arXiv
**2022**, arXiv:2204.11829. [Google Scholar] - Sevilla, J.; Riedel, C.J. Forecasting timelines of quantum computing. arXiv
**2020**, arXiv:2009.05045. [Google Scholar] - IBM Unveils 400 Qubit-Plus Quantum Processor and Next-Generation IBM Quantum System Two. 2022. Available online: https://newsroom.ibm.com/2022-11-09-IBM-Unveils-400-Qubit-Plus-Quantum-Processor-and-Next-Generation-IBM-Quantum-System-Two (accessed on 1 February 2023).
- Krinner, S.; Storz, S.; Kurpiers, P.; Magnard, P.; Heinsoo, J.; Keller, R.; Lütolf, J.; Eichler, C.; Wallraff, A. Engineering cryogenic setups for 100-qubit scale superconducting circuit systems. EPJ Quantum Technol.
**2019**, 6, 2. [Google Scholar] [CrossRef] [Green Version] - George, R.E.; Senior, J.; Saira, O.P.; Pekola, J.P.; de Graaf, S.E.; Lindström, T.; Pashkin, Y.A. Multiplexing Superconducting Qubit Circuit for Single Microwave Photon Generation. J. Low Temp. Phys.
**2017**, 189, 60–75. [Google Scholar] [CrossRef] [Green Version] - Shan, Z.; Zhu, Y.; Zhao, B. A high-performance compilation strategy for multiplexing quantum control architecture. Sci. Rep.
**2022**, 12, 7132. [Google Scholar] [CrossRef] - Braginski, A.I. Superconductor Electronics: Status and Outlook. J. Supercond. Nov. Magn.
**2019**, 32, 23–44. [Google Scholar] [CrossRef] [Green Version] - Lin, J.; Liang, F.T.; Xu, Y.; Sun, L.H.; Guo, C.; Liao, S.K.; Peng, C.Z. Scalable and customizable arbitrary waveform generator for superconducting quantum computing. AIP Adv.
**2019**, 9, 115309. [Google Scholar] [CrossRef] - Pauka, S.J.; Das, K.; Kalra, R.; Moini, A.; Yang, Y.; Trainer, M.; Bousquet, A.; Cantaloube, C.; Dick, N.; Gardner, G.C.; et al. A cryogenic CMOS chip for generating control signals for multiple qubits. Nat. Electron.
**2021**, 4, 64–70. [Google Scholar] [CrossRef] - Potočnik, A.; Brebels, S.; Verjauw, J.; Acharya, R.; Grill, A.; Wan, D.; Mongillo, M.; Li, R.; Ivanov, T.; Winckel, S.V.; et al. Millikelvin temperature cryo-CMOS multiplexer for scalable quantum device characterisation. Quantum Sci. Technol.
**2021**, 7, 015004. [Google Scholar] [CrossRef] - Parker, M. Controlling qubits with cryogenic devices. Nat. Electron.
**2022**, 5, 125. [Google Scholar] [CrossRef] - Howe, L.; Castellanos-Beltran, M.A.; Sirois, A.J.; Olaya, D.; Biesecker, J.; Dresselhaus, P.D.; Benz, S.P.; Hopkins, P.F. Digital Control of a Superconducting Qubit Using a Josephson Pulse Generator at 3 K. PRX Quantum
**2022**, 3, 010350. [Google Scholar] [CrossRef] - Lecocq, F.; Quinlan, F.; Cicak, K.; Aumentado, J.; Diddams, S.A.; Teufel, J.D. Control and readout of a superconducting qubit using a photonic link. Nature
**2021**, 591, 575–579. [Google Scholar] [CrossRef] - Larsen, T.W.; Petersson, K.D.; Kuemmeth, F.; Jespersen, T.S.; Krogstrup, P.; Nygård, J.; Marcus, C.M. Semiconductor-Nanowire-Based Superconducting Qubit. Phys. Rev. Lett.
**2015**, 115, 127001. [Google Scholar] [CrossRef] [Green Version] - de Lange, G.; van Heck, B.; Bruno, A.; van Woerkom, D.J.; Geresdi, A.; Plissard, S.R.; Bakkers, E.P.A.M.; Akhmerov, A.R.; DiCarlo, L. Realization of Microwave Quantum Circuits Using Hybrid Superconducting-Semiconducting Nanowire Josephson Elements. Phys. Rev. Lett.
**2015**, 115, 127002. [Google Scholar] [CrossRef] [Green Version] - Wiedenmann, J.; Bocquillon, E.; Deacon, R.S.; Hartinger, S.; Herrmann, O.; Klapwijk, T.M.; Maier, L.; Ames, C.; Brüne, C.; Gould, C.; et al. 4π-periodic Josephson supercurrent in HgTe-based topological Josephson junctions. Nat. Commun.
**2016**, 7, 10303. [Google Scholar] [CrossRef] [Green Version] - Manousakis, J.; Altland, A.; Bagrets, D.; Egger, R.; Ando, Y. Majorana qubits in a topological insulator nanoribbon architecture. Phys. Rev. B
**2017**, 95, 165424. [Google Scholar] [CrossRef] [Green Version] - Karzig, T.; Knapp, C.; Lutchyn, R.M.; Bonderson, P.; Hastings, M.B.; Nayak, C.; Alicea, J.; Flensberg, K.; Plugge, S.; Oreg, Y.; et al. Scalable designs for quasiparticle-poisoning-protected topological quantum computation with Majorana zero modes. Phys. Rev. B
**2017**, 95, 235305. [Google Scholar] [CrossRef] [Green Version] - Gül, Ö.; Zhang, H.; Bommer, J.D.S.; de Moor, M.W.A.; Car, D.; Plissard, S.R.; Bakkers, E.P.A.M.; Geresdi, A.; Watanabe, K.; Taniguchi, T.; et al. Ballistic Majorana nanowire devices. Nat. Nanotechnol.
**2018**, 13, 192–197. [Google Scholar] [CrossRef] [PubMed] - Kroll, J.G.; Uilhoorn, W.; van der Enden, K.L.; de Jong, D.; Watanabe, K.; Taniguchi, T.; Goswami, S.; Cassidy, M.C.; Kouwenhoven, L.P. Magnetic field compatible circuit quantum electrodynamics with graphene Josephson junctions. Nat. Commun.
**2018**, 9, 4615. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Casparis, L.; Connolly, M.R.; Kjaergaard, M.; Pearson, N.J.; Kringhøj, A.; Larsen, T.W.; Kuemmeth, F.; Wang, T.; Thomas, C.; Gronin, S.; et al. Superconducting gatemon qubit based on a proximitized two-dimensional electron gas. Nat. Nanotechnol.
**2018**, 13, 915–919. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Kunakova, G.; Surendran, A.P.; Montemurro, D.; Salvato, M.; Golubev, D.; Andzane, J.; Erts, D.; Bauch, T.; Lombardi, F. Topological insulator nanoribbon Josephson junctions: Evidence for size effects in transport properties. J. Appl. Phys.
**2020**, 128, 194304. [Google Scholar] [CrossRef] - Ahmad, H.G.; Minutillo, M.; Capecelatro, R.; Pal, A.; Caruso, R.; Passarelli, G.; Blamire, M.G.; Tafuri, F.; Lucignano, P.; Massarotti, D. Coexistence and tuning of spin-singlet and triplet transport in spin-filter Josephson junctions. Commun. Phys.
**2022**, 5, 2. [Google Scholar] [CrossRef] - Ahmad, H.G.; Brosco, V.; Miano, A.; Di Palma, L.; Arzeo, M.; Montemurro, D.; Lucignano, P.; Pepe, G.P.; Tafuri, F.; Fazio, R.; et al. Hybrid ferromagnetic transmon qubit: Circuit design, feasibility, and detection protocols for magnetic fluctuations. Phys. Rev. B
**2022**, 105, 214522. [Google Scholar] [CrossRef] - Likharev, K.K.; Semenov, V.K. RSFQ logic/memory family: A new Josephson-junction technology for sub-terahertz-clock-frequency digital systems. IEEE Trans. Appl. Supercond.
**1991**, 1, 3–28. [Google Scholar] [CrossRef] - Mukhanov, O.A. Energy-Efficient Single Flux Quantum Technology. IEEE Trans. Appl. Supercond.
**2011**, 21, 760–769. [Google Scholar] [CrossRef] - Tanaka, M.; Kitayama, A.; Koketsu, T.; Ito, M.; Fujimaki, A. Low-Energy Consumption RSFQ Circuits Driven by Low Voltages. IEEE Trans. Appl. Supercond.
**2013**, 23, 1701104. [Google Scholar] [CrossRef] - Mukhanov, O.A. Digital electronics. In Handbook of Superconductivity, 2nd ed.; CRC Press: Boca Raton, FL, USA, 2022; pp. 702–709. [Google Scholar]
- Liebermann, P.J.; Wilhelm, F.K. Optimal Qubit Control Using Single-Flux Quantum Pulses. Phys. Rev. Appl.
**2016**, 6, 024022. [Google Scholar] [CrossRef] [Green Version] - McDermott, R.; Vavilov, M.G.; Plourde, B.L.T.; Wilhelm, F.K.; Liebermann, P.J.; Mukhanov, O.A.; Ohki, T.A. Quantum–classical interface based on single flux quantum digital logic. Quantum Sci. Technol.
**2018**, 3, 024004. [Google Scholar] [CrossRef] [Green Version] - Mukhanov, O.; Kirichenko, A.; Howington, C.; Walter, J.; Hutchings, M.; Vernik, I.; Yohannes, D.; Dodge, K.; Ballard, A.; Plourde, B.L.T.; et al. Scalable Quantum Computing Infrastructure Based on Superconducting Electronics. In Proceedings of the 2019 IEEE International Electron Devices Meeting (IEDM), Francisco, CA, USA, 7–11 December 2019; pp. 31.2.1–31.2.4. [Google Scholar] [CrossRef]
- Takeuchi, N.; Ozawa, D.; Yamanashi, Y.; Yoshikawa, N. An adiabatic quantum flux parametron as an ultra-low-power logic device. Supercond. Sci. Technol.
**2013**, 26, 035010. [Google Scholar] [CrossRef] - Govia, L.C.G.; Pritchett, E.J.; Xu, C.; Plourde, B.L.T.; Vavilov, M.G.; Wilhelm, F.K.; McDermott, R. High-fidelity qubit measurement with a microwave-photon counter. Phys. Rev. A
**2014**, 90, 062307. [Google Scholar] [CrossRef] [Green Version] - Opremcak, A.; Pechenezhskiy, I.V.; Howington, C.; Christensen, B.G.; Beck, M.A.; Leonard, E.; Suttle, J.; Wilen, C.; Nesterov, K.N.; Ribeill, G.J.; et al. Measurement of a superconducting qubit with a microwave photon counter. Science
**2018**, 361, 1239–1242. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Howington, C.; Opremcak, A.; McDermott, R.; Kirichenko, A.; Mukhanov, O.A.; Plourde, B.L.T. Interfacing Superconducting Qubits With Cryogenic Logic: Readout. IEEE Trans. Appl. Supercond.
**2019**, 29, 1–5. [Google Scholar] [CrossRef] - Opremcak, A.; Liu, C.H.; Wilen, C.; Okubo, K.; Christensen, B.G.; Sank, D.; White, T.C.; Vainsencher, A.; Giustina, M.; Megrant, A.; et al. High-Fidelity Measurement of a Superconducting Qubit Using an On-Chip Microwave Photon Counter. Phys. Rev. X
**2021**, 11, 011027. [Google Scholar] [CrossRef] - Di Palma, L.; Miano, A.; Mastrovito, P.; Massarotti, D.; Arzeo, M.; Pepe, G.; Tafuri, F.; Mukhanov, O. Discriminating the phase of a weak coherent tone with a flux-switchable superconducting circuit. 2023; under revision. [Google Scholar]
- Conner, C.; Biengait, A.; Chang, H.; Chou, M.; Dumur, E.; Grebel, J.; Peairs, G.; Povey, R.; Yan, H.; Zhong, Y.; et al. Superconducting qubits in a flip-chip architecture. Appl. Phys. Lett.
**2021**, 118, 232602. [Google Scholar] [CrossRef] - Smith, K.N.; Ravi, G.S.; Baker, J.M.; Chong, F.T. Scaling Superconducting Quantum Computers with Chiplet Architectures. In Proceedings of the 2022 55th IEEE/ACM International Symposium on Microarchitecture (MICRO), Chicago, IL, USA, 1–5 October 2022. [Google Scholar] [CrossRef]
- Thomas, C.; Michel, J.P.; Deschaseaux, E.; Charbonnier, J.; Souil, R.; Vermande, E.; Campo, A.; Farjot, T.; Rodriguez, G.; Romano, G.; et al. Superconducting routing platform for large-scale integration of quantum technologies. Mater. Quantum Technol.
**2022**, 2, 035001. [Google Scholar] [CrossRef] - Kosen, S.; Li, H.X.; Rommel, M.; Shiri, D.; Warren, C.; Grönberg, L.; Salonen, J.; Abad, T.; Biznárová, J.; Caputo, M.; et al. Building blocks of a flip-chip integrated superconducting quantum processor. Quantum Sci. Technol.
**2022**, 7, 035018. [Google Scholar] [CrossRef] - Leonard, E.; Beck, M.A.; Nelson, J.; Christensen, B.; Thorbeck, T.; Howington, C.; Opremcak, A.; Pechenezhskiy, I.; Dodge, K.; Dupuis, N.; et al. Digital Coherent Control of a Superconducting Qubit. Phys. Rev. Appl.
**2019**, 11, 014009. [Google Scholar] [CrossRef] [Green Version] - Yorozu, S.; Miyazaki, T.; Semenov, V.; Nakamura, Y.; Hashimoto, Y.; Hinode, K.; Sato, T.; Kameda, Y.; Tsai, J.S. Sub-Kelvin single flux quantum control circuits and multi-chip packaging for supporting superconducting qubit. J. Phys. Conf. Ser.
**2006**, 43, 1417. [Google Scholar] [CrossRef] [Green Version] - Yohannes, D.; Amparo, D.; Chernyashevskyy, O.; Mukhanov, O.; Renzullo, M.; Talalaeskii, A.; Vernik, I.; Vivalda, J.; Walter, J. System and Method for Superconducting Multi-Chip Module. Patent No. US11121302B2, 14 September 2019. [Google Scholar]
- Yohannes, D.; Vernik, I.; Jordan, C.; Truitt, P.; Kirichenko, A.; Salim, A.J.; Katam, N.; Mukhanov, O. Interconnections between Quantum Computing Module and Non-Quantum Processing Modules in Quantum Computing Systems. Patent No. US20220237495A1, 28 July 2021. [Google Scholar]
- Mukhanov, O.A.; Kirichenko, A.F.; Vernik, I.V.; Nevirkovets, I.P.; Kadin, A.M. System and Method for Cryogenic Hybrid Technology Computing and Memory. Patent No. US10950299B1, 16 March 2022. [Google Scholar]
- Probst, S.; Song, F.B.; Bushev, P.A.; Ustinov, A.V.; Weides, M. Efficient and robust analysis of complex scattering data under noise in microwave resonators. Rev. Sci. Instrum.
**2015**, 86, 024706. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Krantz, P.; Kjaergaard, M.; Yan, F.; Orlando, T.P.; Gustavsson, S.; Oliver, W.D. A quantum engineer’s guide to superconducting qubits. Appl. Phys. Rev.
**2019**, 6, 021318. [Google Scholar] [CrossRef] [Green Version] - Naghiloo, M. Introduction to experimental quantum measurement with superconducting qubits. arXiv
**2019**, arXiv:1904.09291. [Google Scholar] - Chen, Z.; Kelly, J.; Quintana, C.; Barends, R.; Campbell, B.; Chen, Y.; Chiaro, B.; Dunsworth, A.; Fowler, A.G.; Lucero, E.; et al. Measuring and Suppressing Quantum State Leakage in a Superconducting Qubit. Phys. Rev. Lett.
**2016**, 116, 020501. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Lucero, E.; Hofheinz, M.; Ansmann, M.; Bialczak, R.C.; Katz, N.; Neeley, M.; O’Connell, A.D.; Wang, H.; Cleland, A.N.; Martinis, J.M. High-Fidelity Gates in a Single Josephson Qubit. Phys. Rev. Lett.
**2008**, 100, 247001. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Chow, J.M.; DiCarlo, L.; Gambetta, J.M.; Motzoi, F.; Frunzio, L.; Girvin, S.M.; Schoelkopf, R.J. Optimized driving of superconducting artificial atoms for improved single-qubit gates. Phys. Rev. A
**2010**, 82, 040305. [Google Scholar] [CrossRef] [Green Version] - Pokharel, B.; Anand, N.; Fortman, B.; Lidar, D.A. Demonstration of Fidelity Improvement Using Dynamical Decoupling with Superconducting Qubits. Phys. Rev. Lett.
**2018**, 121, 220502. [Google Scholar] [CrossRef] [Green Version] - Werninghaus, M.; Egger, D.J.; Roy, F.; Machnes, S.; Wilhelm, F.K.; Filipp, S. Leakage reduction in fast superconducting qubit gates via optimal control. NPJ Quantum Inf.
**2021**, 7, 14. [Google Scholar] [CrossRef] - Chow, J.M.; Gambetta, J.M.; Tornberg, L.; Koch, J.; Bishop, L.S.; Houck, A.A.; Johnson, B.R.; Frunzio, L.; Girvin, S.M.; Schoelkopf, R.J. Randomized Benchmarking and Process Tomography for Gate Errors in a Solid-State Qubit. Phys. Rev. Lett.
**2009**, 102, 090502. [Google Scholar] [CrossRef] [Green Version] - Grier, D.; Schaeffer, L. The Classification of Clifford Gates over Qubits. Quantum
**2022**, 6, 734. [Google Scholar] [CrossRef] - Wallman, J.J.; Barnhill, M.; Emerson, J. Robust characterization of leakage errors. New J. Phys.
**2016**, 18, 043021. [Google Scholar] [CrossRef] [Green Version] - Sheldon, S.; Bishop, L.S.; Magesan, E.; Filipp, S.; Chow, J.M.; Gambetta, J.M. Characterizing errors on qubit operations via iterative randomized benchmarking. Phys. Rev. A
**2016**, 93, 012301. [Google Scholar] [CrossRef] [Green Version] - Lin, J.; Wallman, J.J.; Hincks, I.; Laflamme, R. Independent state and measurement characterization for quantum computers. Phys. Rev. Res.
**2021**, 3, 033285. [Google Scholar] [CrossRef] - Reed, M. Entanglement and Quantum Error Correction with Superconducting Qubits. Ph.D. Thesis, Faculty of the Graduate School of Yale University, New Haven, CT, USA, May 2013. [Google Scholar]
- Motzoi, F.; Gambetta, J.M.; Rebentrost, P.; Wilhelm, F.K. Simple Pulses for Elimination of Leakage in Weakly Nonlinear Qubits. Phys. Rev. Lett.
**2009**, 103, 110501. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Krantz, P.; Bengtsson, A.; Simoen, M.; Gustavsson, S.; Shumeiko, V.; Oliver, W.D.; Wilson, C.M.; Delsing, P.; Bylander, J. Single-shot read-out of a superconducting qubit using a Josephson parametric oscillator. Nat. Commun.
**2016**, 7, 11417. [Google Scholar] [CrossRef] [Green Version] - Theis, L.S.; Motzoi, F.; Machnes, S.; Wilhelm, F.K. Counteracting systems of diabaticities using DRAG controls: The status after 10 years(a). Europhys. Lett.
**2018**, 123, 60001. [Google Scholar] [CrossRef] [Green Version] - Gao, Y.Y.; Rol, M.A.; Touzard, S.; Wang, C. Practical Guide for Building Superconducting Quantum Devices. PRX Quantum
**2021**, 2, 040202. [Google Scholar] [CrossRef] - Babu, A.P.; Tuorila, J.; Ala-Nissila, T. State leakage during fast decay and control of a superconducting transmon qubit. NPJ Quantum Inf.
**2021**, 7, 30. [Google Scholar] [CrossRef] - Chao, R.; Reichardt, B.W. Fault-tolerant quantum computation with few qubits. NPJ Quantum Inf.
**2018**, 4, 42. [Google Scholar] [CrossRef] [Green Version] - Majer, J.; Chow, J.M.; Gambetta, J.M.; Koch, J.; Johnson, B.R.; Schreier, J.A.; Frunzio, L.; Schuster, D.I.; Houck, A.A.; Wallraff, A.; et al. Coupling superconducting qubits via a cavity bus. Nature
**2007**, 449, 443–447. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Sillanpää, M.A.; Park, J.I.; Simmonds, R.W. Coherent quantum state storage and transfer between two phase qubits via a resonant cavity. Nature
**2007**, 449, 438–442. [Google Scholar] [CrossRef] [PubMed] [Green Version] - DiCarlo, L.; Chow, J.M.; Gambetta, J.M.; Bishop, L.S.; Johnson, B.R.; Schuster, D.I.; Majer, J.; Blais, A.; Frunzio, L.; Girvin, S.M.; et al. Demonstration of two-qubit algorithms with a superconducting quantum processor. Nature
**2009**, 460, 240–244. [Google Scholar] [CrossRef] [PubMed] - Filipp, S.; Göppl, M.; Fink, J.M.; Baur, M.; Bianchetti, R.; Steffen, L.; Wallraff, A. Multimode mediated qubit-qubit coupling and dark-state symmetries in circuit quantum electrodynamics. Phys. Rev. A
**2011**, 83, 063827. [Google Scholar] [CrossRef] [Green Version] - Ferraro, E.; Rei, D.; Paris, M.; De Michielis, M. Universal set of quantum gates for the flip-flop qubit in the presence of 1/f noise. EPJ Quantum Technol.
**2022**, 9, 2. [Google Scholar] [CrossRef] - Ganzhorn, M.; Salis, G.; Egger, D.J.; Fuhrer, A.; Mergenthaler, M.; Müller, C.; Müller, P.; Paredes, S.; Pechal, M.; Werninghaus, M.; et al. Benchmarking the noise sensitivity of different parametric two-qubit gates in a single superconducting quantum computing platform. Phys. Rev. Res.
**2020**, 2, 033447. [Google Scholar] [CrossRef] - Huang, H.L.; Wu, D.; Fan, D.; Zhu, X. Superconducting quantum computing: A review. Sci. China Inf. Sci.
**2020**, 63, 180501. [Google Scholar] [CrossRef] - Torosov, B.T.; Vitanov, N.V. Robust high-fidelity coherent control of two-state systems by detuning pulses. Phys. Rev. A
**2019**, 99, 013424. [Google Scholar] [CrossRef] [Green Version] - Peterson, J.P.; Sarthour, R.S.; Laflamme, R. Enhancing Quantum Control by Improving Shaped-Pulse Generation. Phys. Rev. Appl.
**2020**, 13, 054060. [Google Scholar] [CrossRef] - Güngördü, U.; Kestner, J.P. Robust quantum gates using smooth pulses and physics-informed neural networks. Phys. Rev. Res.
**2022**, 4, 023155. [Google Scholar] [CrossRef] - Wang, C.; Axline, C.; Gao, Y.Y.; Brecht, T.; Chu, Y.; Frunzio, L.; Devoret, M.H.; Schoelkopf, R.J. Surface participation and dielectric loss in superconducting qubits. Appl. Phys. Lett.
**2015**, 107, 162601. [Google Scholar] [CrossRef] [Green Version] - Groszkowski, P.; Koch, J. Scqubits: A Python package for superconducting qubits. Quantum
**2021**, 5, 583. [Google Scholar] [CrossRef] - Chitta, S.P.; Zhao, T.; Huang, Z.; Mondragon-Shem, I.; Koch, J. Computer-aided quantization and numerical analysis of superconducting circuits. New J. Phys.
**2022**, 24, 103020. [Google Scholar] [CrossRef] - Bruno, A.; Poletto, S.; Dicarlo, L. Superconducting Microwave-Frequency vias for Mult-Planar Quantum Circuits. Patent No. WO2017155531A1, 14 September 2017. [Google Scholar]

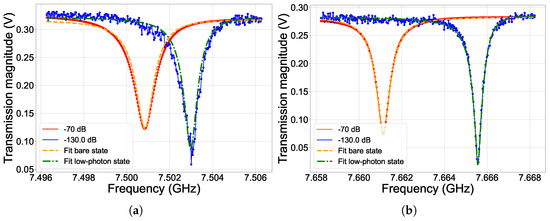

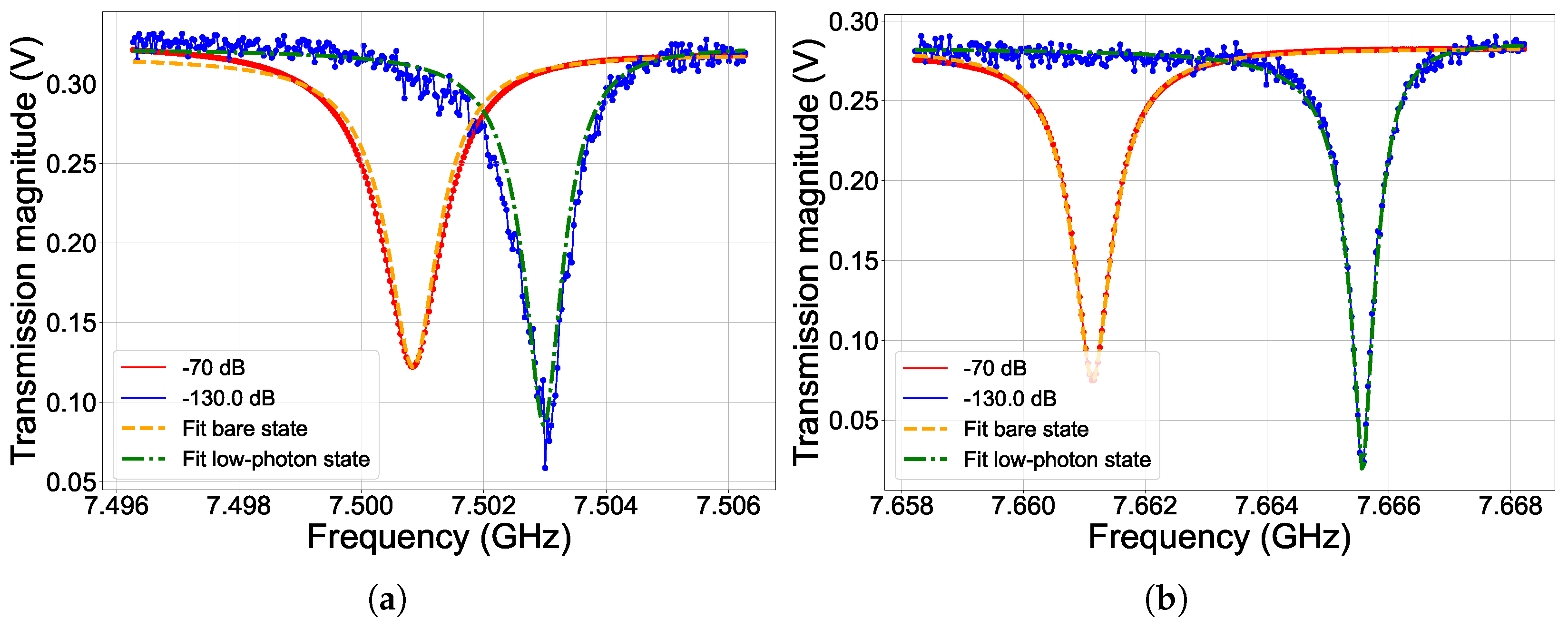

**Figure 1.**Readout resonator and qubit spectroscopy for superconducting coupled transmon qubits ${Q}_{a}$–${Q}_{b}$. In (

**a**), readout cavity of ${Q}_{a}$ and low-photon shift; in (

**b**) for ${Q}_{b}$. Scatter-line plots represent the readout response to large ($-70$ dBm on the device-under-test, corresponding to around 6–8 $\times \phantom{\rule{3.33333pt}{0ex}}{10}^{6}$ photons, in red) input power signal, corresponding to the resonators bare-state, and in the low-power regime ($-130$ dBm on the device-under-test, corresponding to tens of photons, in blue). Yellow dashed and green dash-dotted curves correspond to the resonator fit performed with an open-source traceable Python fit routine [71] for the estimation of quality factors in the bare and low-photon states (Table 1), respectively. In (

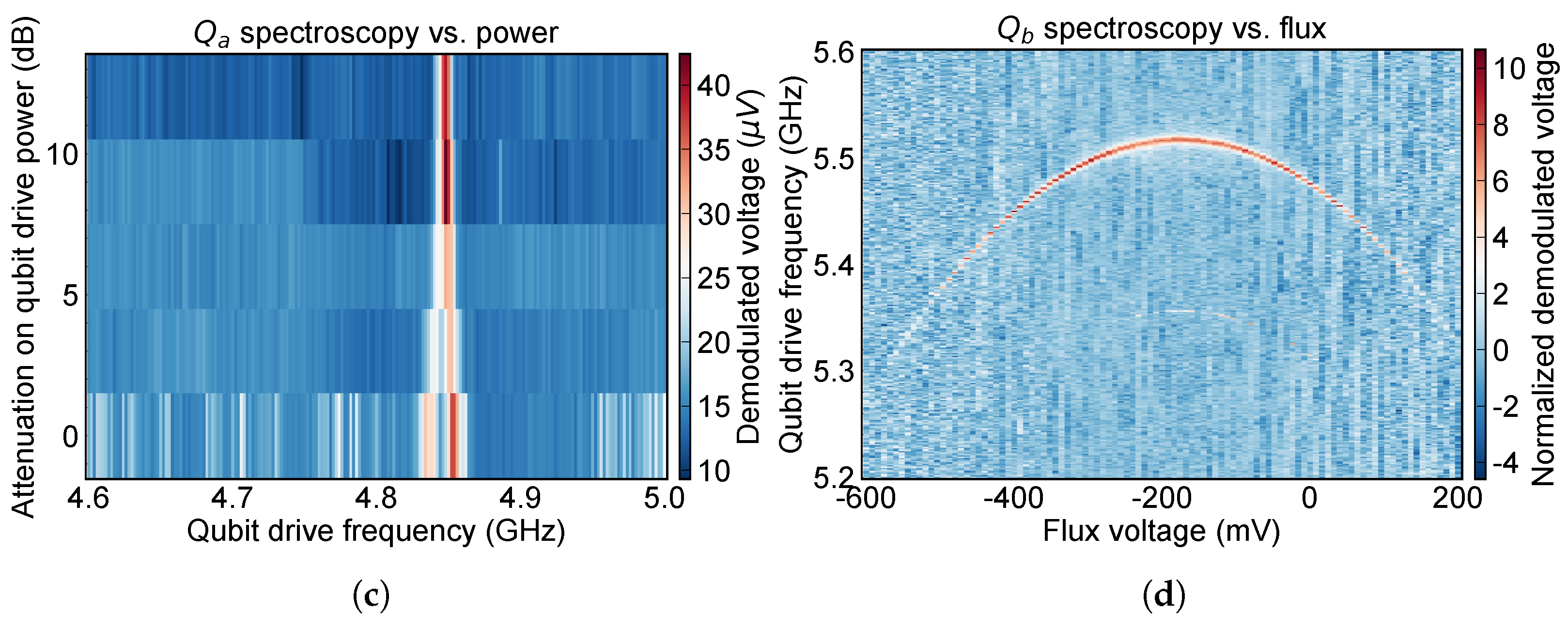

**c**), ${Q}_{a}$ pulsed spectroscopy as a function of the qubit-drive attenuation, which adds to roughly $-70$ dB drive input power on the device-under-test and the qubit-drive frequency. In (

**d**) ${Q}_{b}$ two-tone pulsed two-tone spectroscopy as a function of the flux and the qubit-drive frequency at fixed qubit drive power on the device-under-test of roughly $-80$ dB. Please note that the readout resonator frequency has been kept fixed during the measurement, thus causing lower resolution of the qubit frequency peaks far from the flux sweet spot.

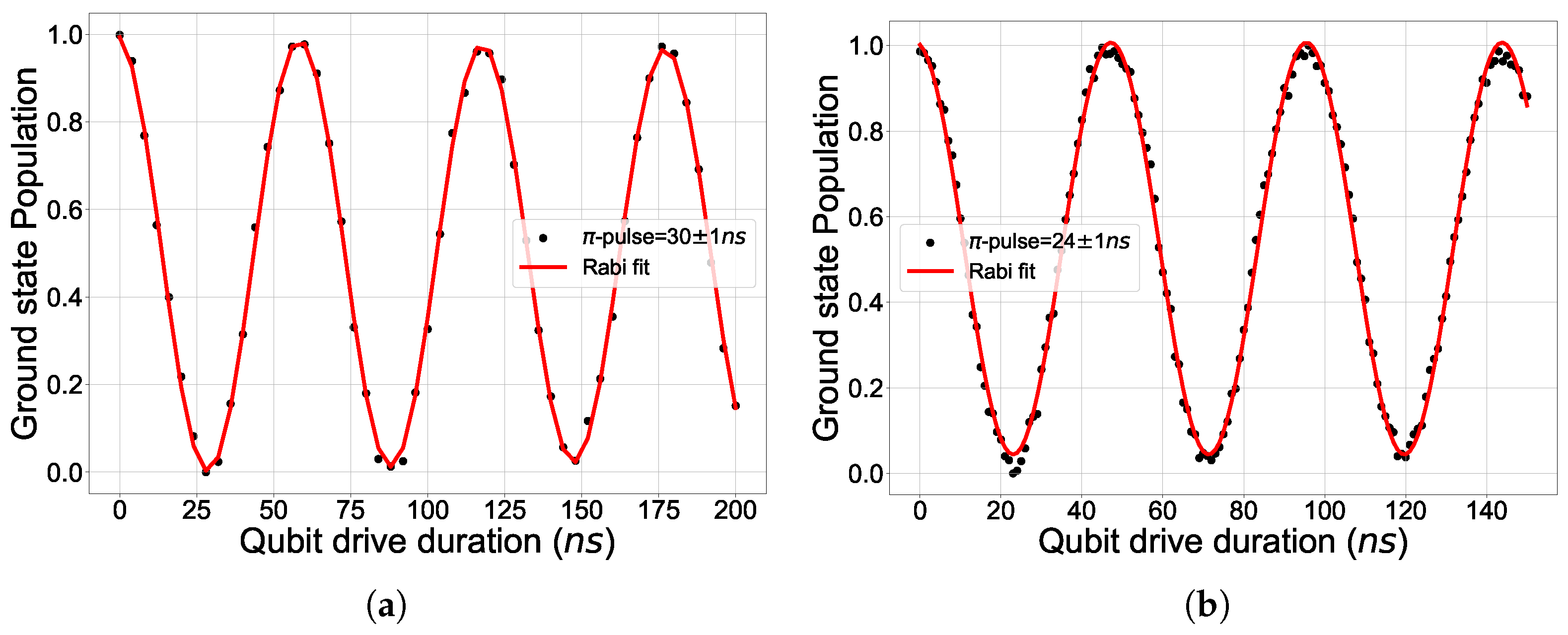

**Figure 2.**In (

**a**,

**b**), Rabi oscillations measured for ${Q}_{a}$ and ${Q}_{b}$, respectively. Data points correspond to the population of the qubit ground state as a function of the duration of the qubit-drive pulse. The red curve represents the Rabi fit, which gives the $\pi $-pulse duration reported in the legends.

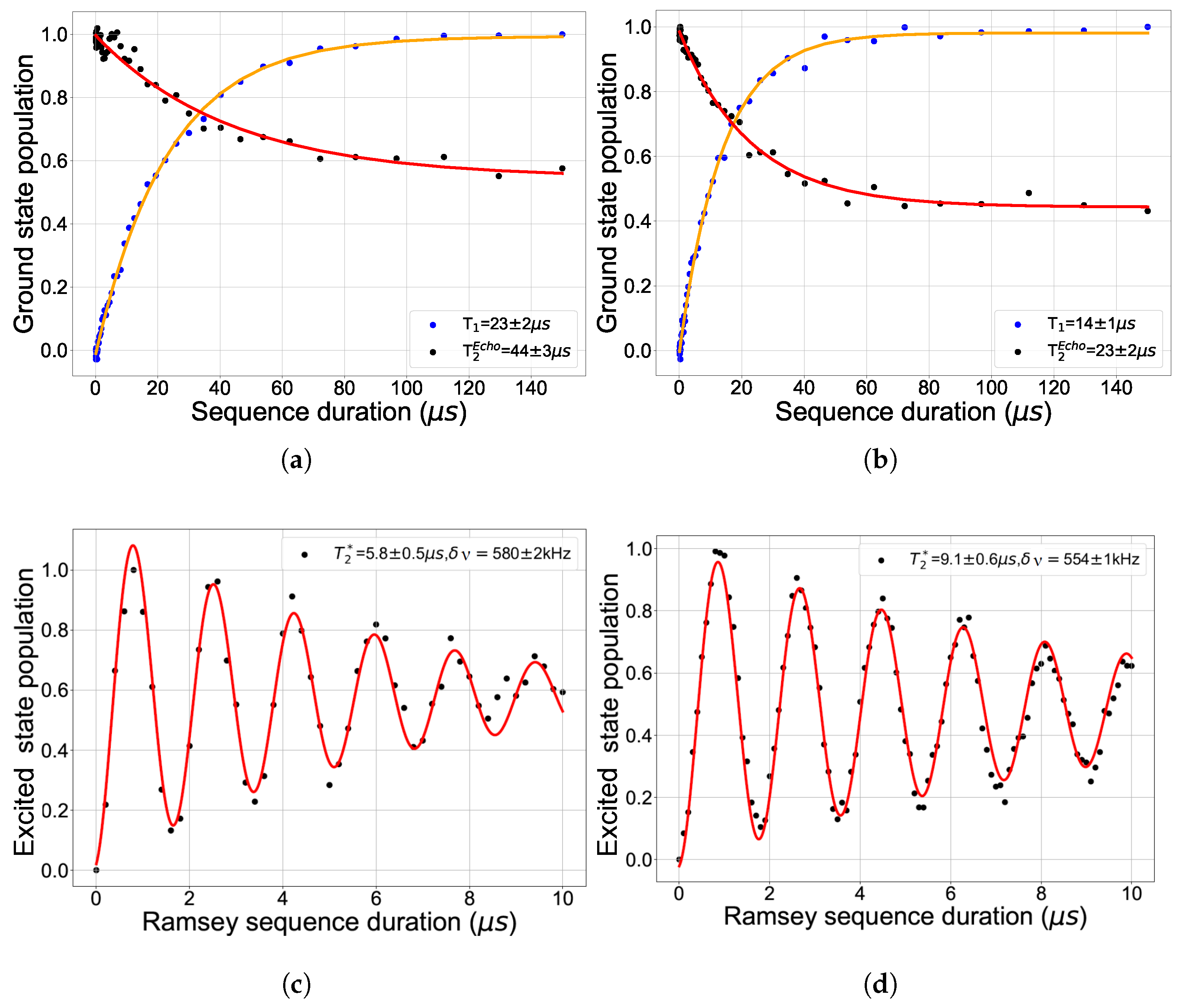

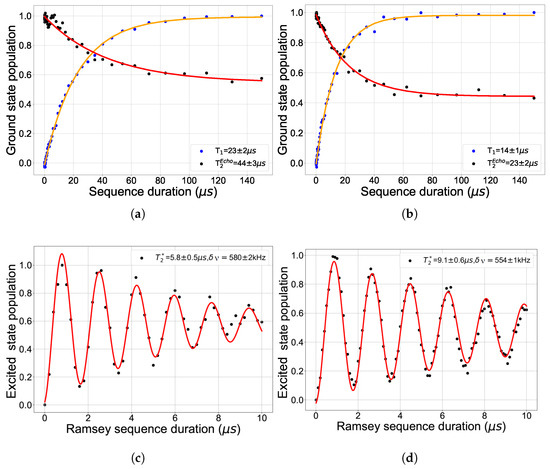

**Figure 3.**Relaxation, Hahn-Echo and Ramsey fitting for qubit ${Q}_{a}$ and ${Q}_{b}$. In (

**a**,

**b**), black (blue) scatter points correspond to the qubit state population as a function of the ${T}_{1}$ (${T}_{2}^{Echo}$) sequence duration. Straight orange (red) curves are the fit functions used for the estimation of ${T}_{1}$ (${T}_{2}^{Echo}$) time, reported also in the legend. In (

**c**,

**d**), Ramsey oscillations fit for the estimation of ${T}_{2}^{*}$ for ${Q}_{a}$ and ${Q}_{b}$, respectively. Black scatter points correspond to the excited state population as a function of the Ramsey sequence duration, while red lines correspond to the fit. Please note that the ${\chi}^{2}$-minimization of the fitting procedure compensates for the higher ground state population for long sequence durations in the Ramsey oscillations, due to unoptimized $\pi $ and $\pi /2$ control pulses, with a non-physical ground state probability >1.

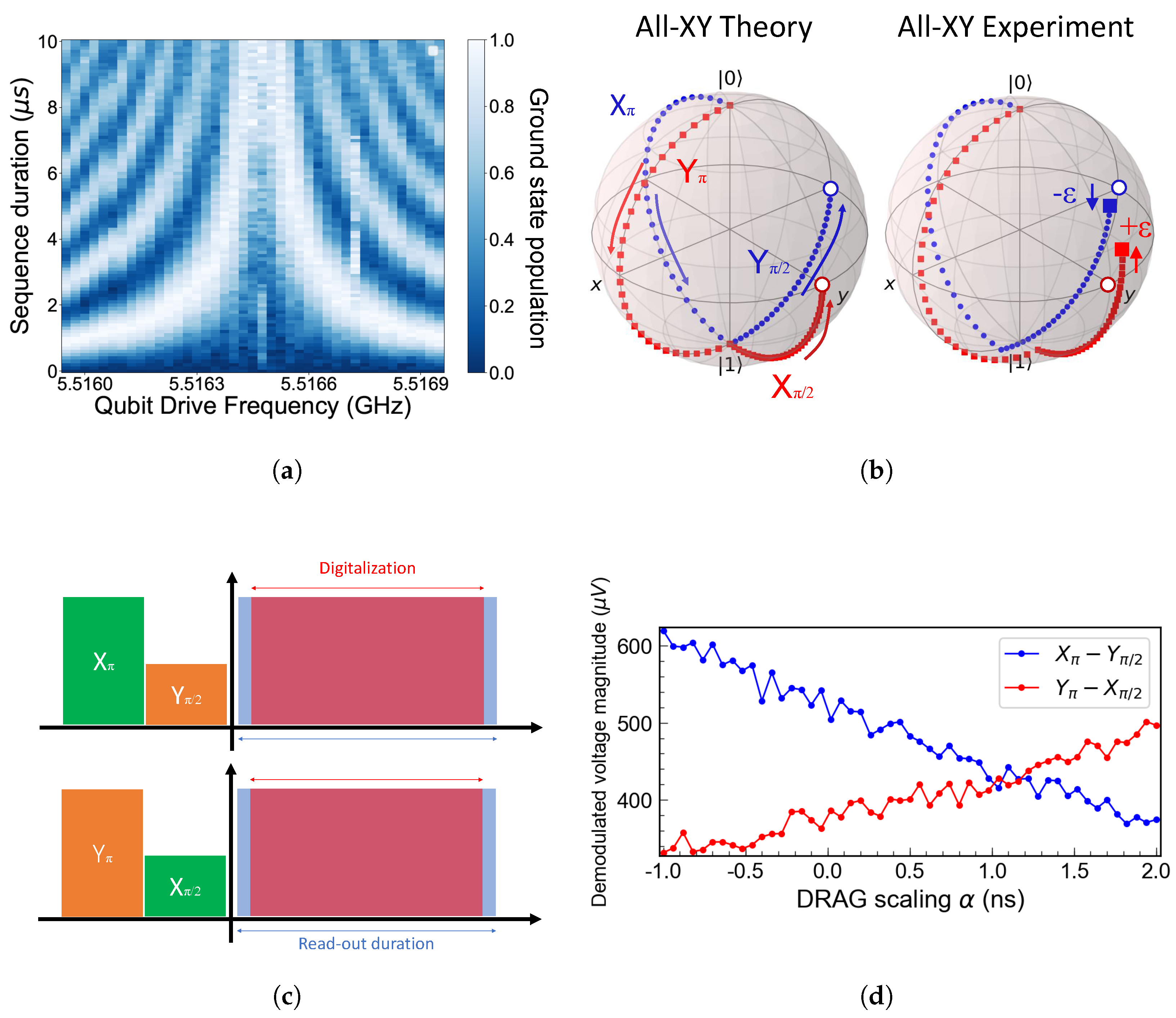

**Figure 4.**Example of optimization protocol for Randomized Benchmarking on qubit ${Q}_{b}$. In (

**a**), Ramsey fringes for qubit ${Q}_{b}$ from interferometry experiment, fundamental for the optimization of qubit drive frequency signal. In (

**b**), an example of a Derivative-Reductive-Adiabatic-Gate calibration with the All-XY technique on ${Q}_{b}$, fundamental for the optimization of qubit drive pulses shape. In (

**c**), All-XY protocol scheme. In (

**d**), experimental demodulated voltage as a function of the DRAG scaling parameter $\alpha $ within the All-XY technique.

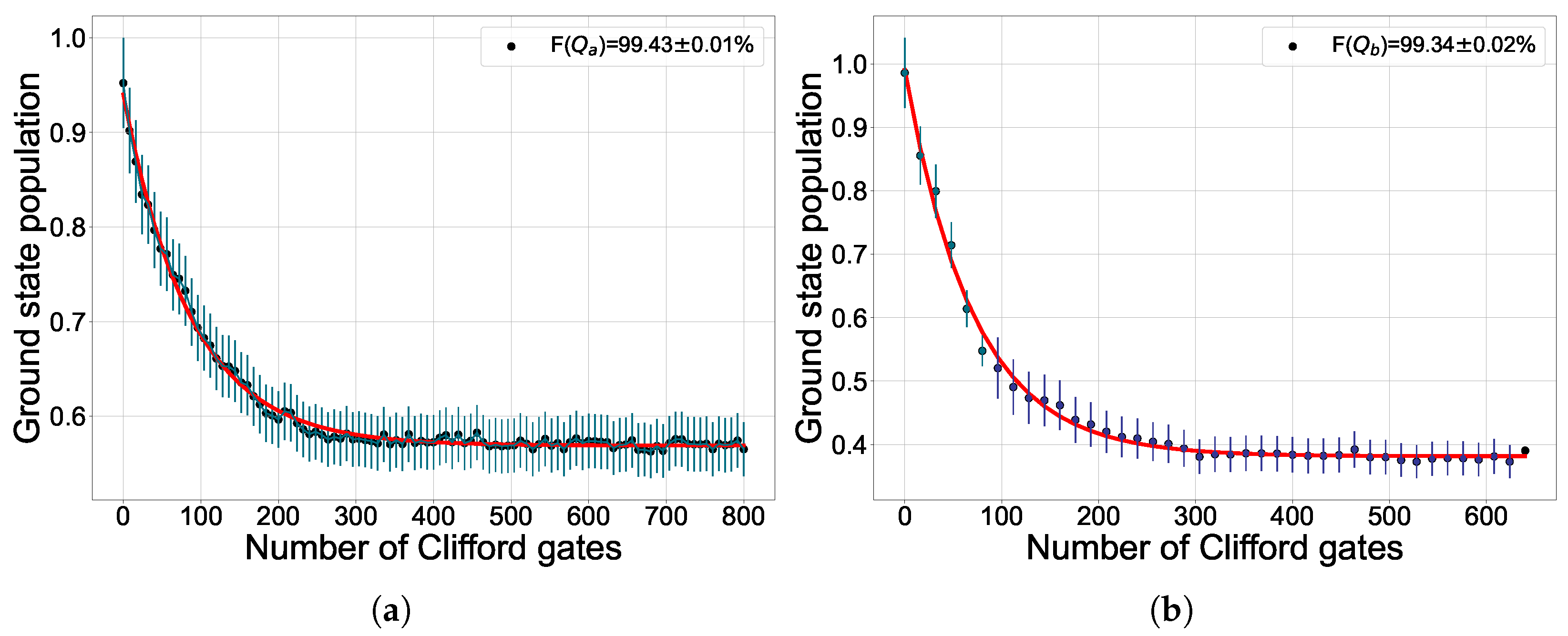

**Figure 5.**Randomized Benchmarking measurements for single-qubit average gate fidelity F estimation for qubit ${Q}_{a}$ and ${Q}_{b}$. Black scatter data corresponds to a real part of the demodulated readout voltage signal as a function of the number of Clifford gates in the randomized benchmarking sequence, averaged over a number of random seeds ${n}_{seed}$: in (

**a**), ${n}_{seed}=25$ and in (

**b**), ${n}_{seed}=26$, respectively. The error bars represent the standard deviation of the measured data among different repetitions. Straight red curves are the fit functions used for the estimation of the single-qubit randomized benchmarking average gate fidelity F, which is $99.43\%$ for ${Q}_{a}$ and $99.34\%$ for ${Q}_{b}$.

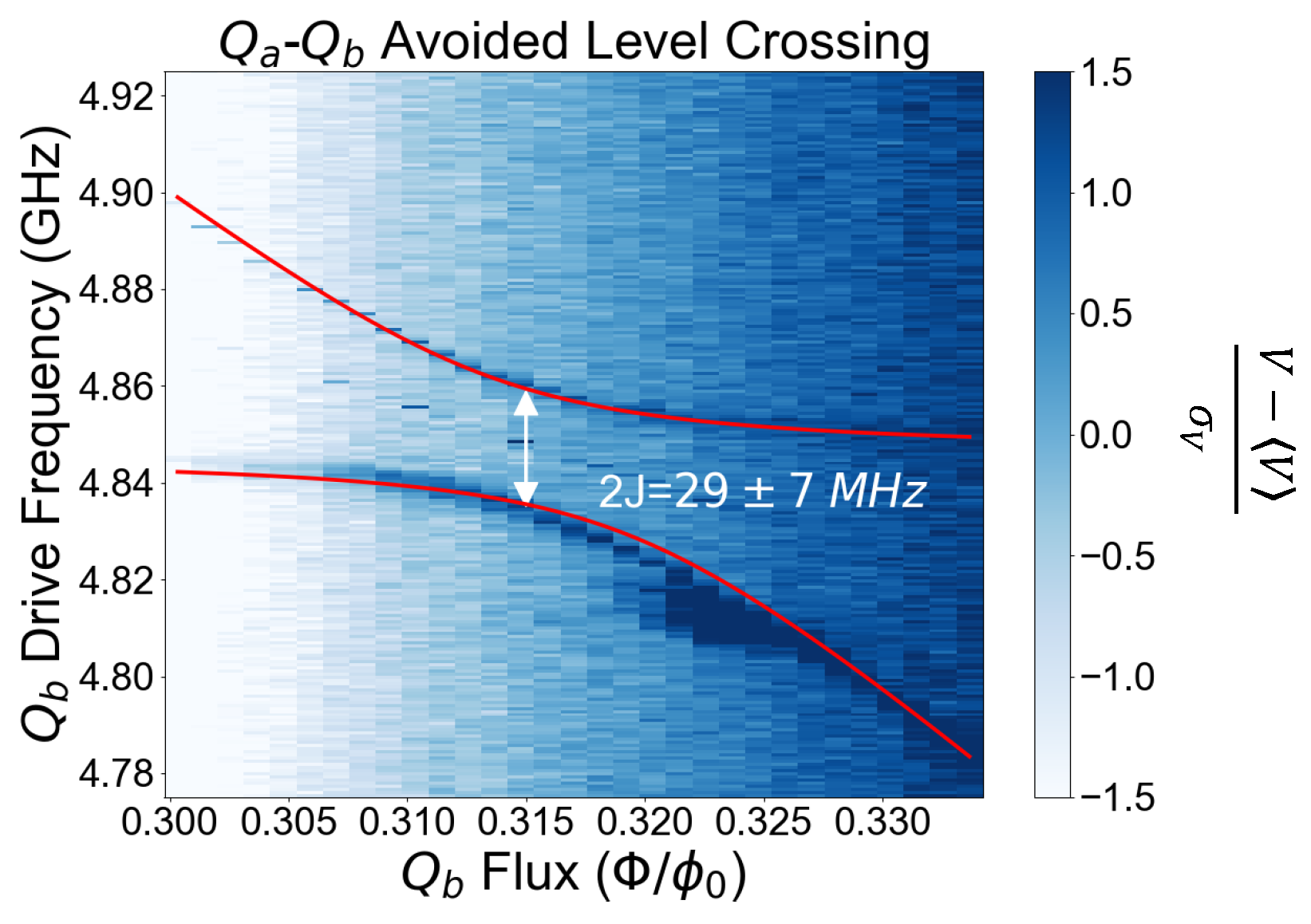

**Figure 6.**Avoided Level Crossing between ${Q}_{a}$ and ${Q}_{b}$. The colour bar represents the normalized demodulated voltage readout signal $(V-\u2329V\u232a)/{\sigma}_{V}$, where $\u2329V\u232a$ is the average magnitude voltage and ${\sigma}_{V}$ is the standard deviation, obtained for a two-tone pulsed spectroscopy measurement of ${Q}_{b}$ on resonance with ${Q}_{a}$. The qubit ${Q}_{b}$ is put on resonance with ${Q}_{a}$ by using an external flux coupled to the DC-SQUID in the split-transmon. The red curve represents the Avoided Level Crossing fit reported in Refs. [91,92,94], with which we extract a qubit-qubit coupling energy $2J=29\pm 7$ MHz.

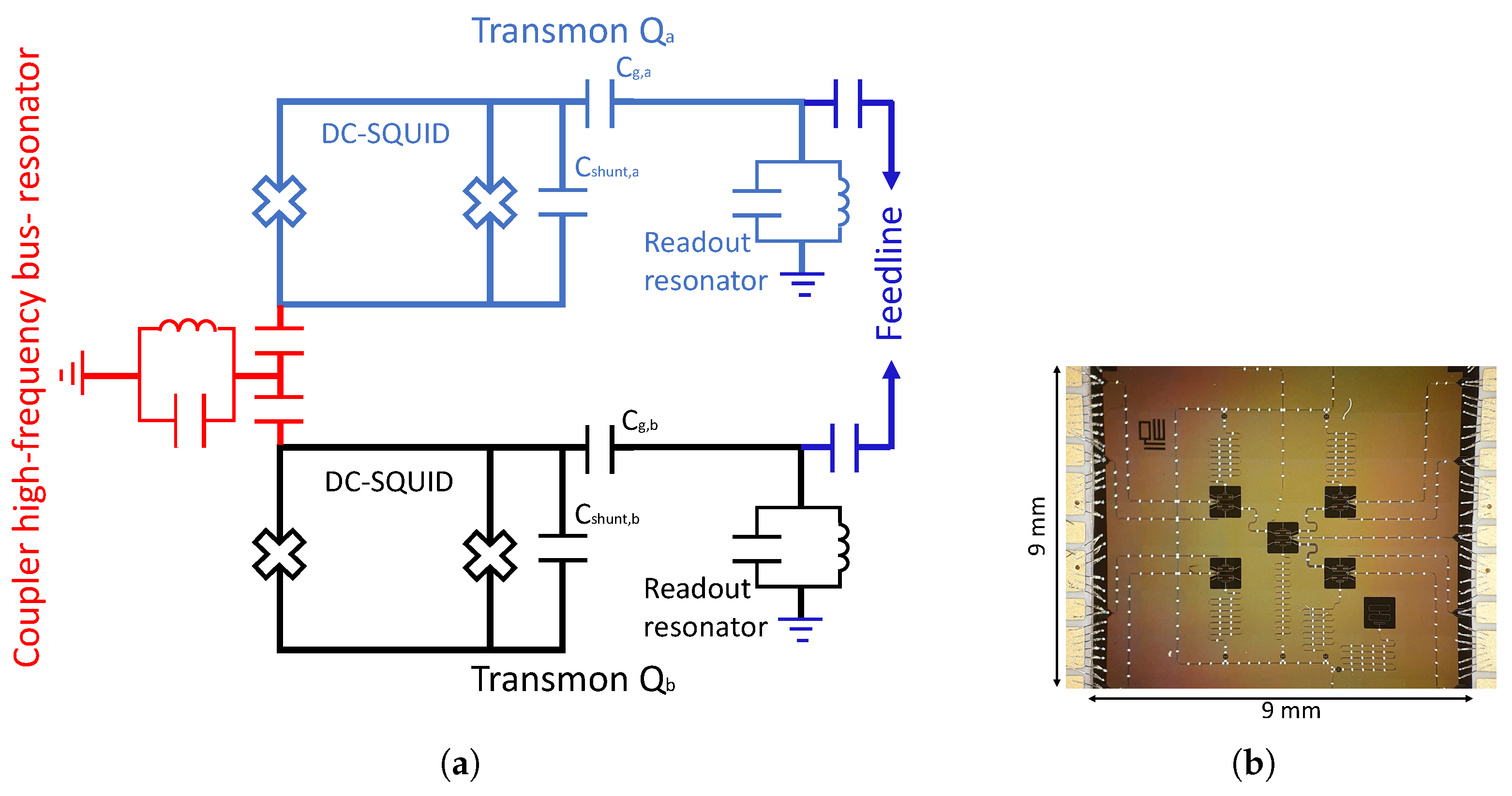

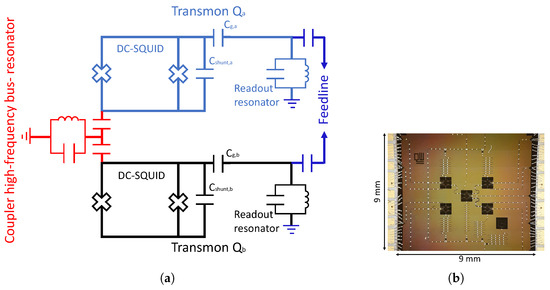

**Figure 7.**In (

**a**), circuit schematics of the coupled superconducting transmon qubits ${Q}_{a}$ (in blue) and ${Q}_{b}$ (in black). The two qubits are symmetric split-transmons, coupled by means of a high-frequency resonator bus coupler (in red). Read-out is performed through read-out resonators, capacitively coupled to a common feedline for multiplexing (dark blue). External flux is applied through inductively coupled superconducting flux lines on the chip, while control is done by capacitively coupled dedicated drive lines (not shown). In (

**b**), an example of an optical microscope picture of a similar sample with four qubits coupled through high-frequency bus resonators. Sample geometry and chip dimensions are the same for both devices.

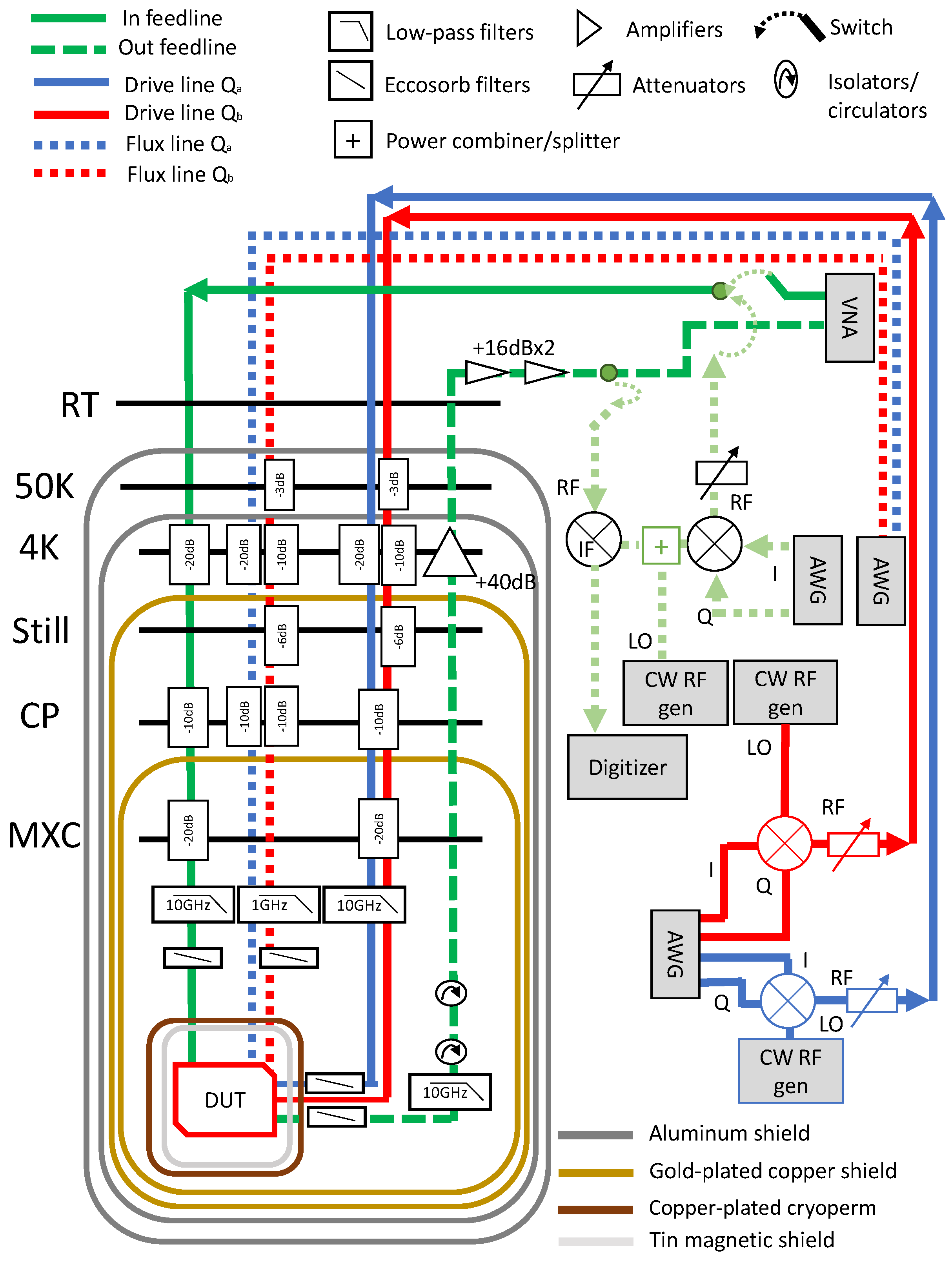

**Figure 8.**Schematics of the room-temperature and cryogenic electronics for two-qubit characterization. In blue (red), ${Q}_{a}$ (${Q}_{b}$) setup drive lines. Dashed blue (red) lines are related to flux-bias circuitry. In green, input and output lines schematics. The down-conversion is obtained through a single-sideband three-port mixer, while the up-conversion for both drive and readout input signals is provided by an I-Q mixer.

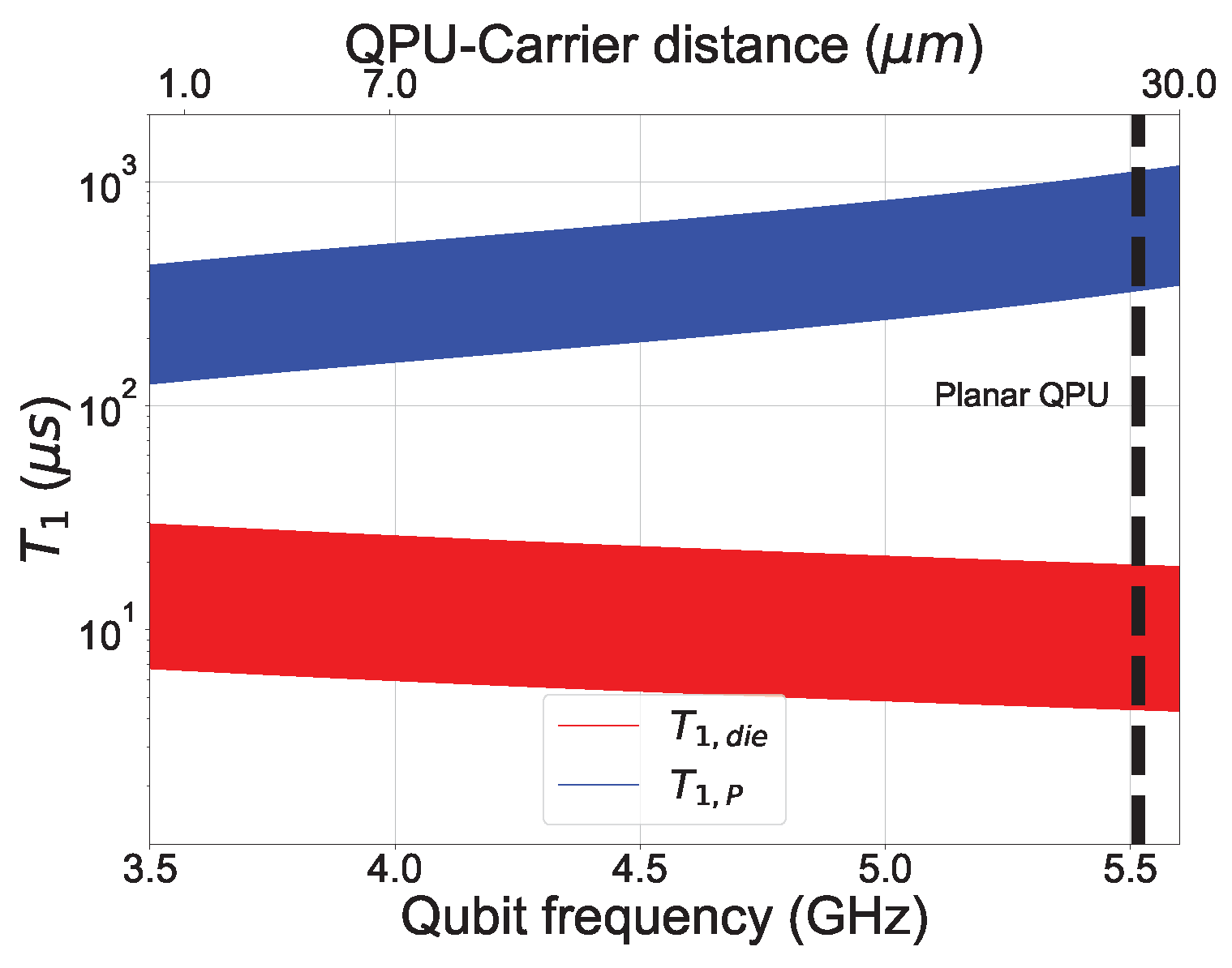

**Figure 9.**Simulations of the total relaxation time due to Purcell and radiative decay in the drive lines ${T}_{1,P}$ and the dielectric losses induced relaxation time ${T}_{1,d}$ for ${Q}_{b}$ in case of a flip chip configuration. The thickness of the lines represents the error on the estimated values of the order of $30\%$. The data are reported as a function of the qubit frequency, and the distance between the QPU and the carrier in the flip-chip qMCM module.

**Table 1.**Summary of the Quantum Processing Unit (QPU) with the two coupled split-transmon qubits, ${Q}_{a}$ and ${Q}_{b}$: the $\left|0\right.\u232a\to \left|1\right.\u232a$ qubit frequency transition ${\nu}_{01}$ at the Sweet-Spot (SS), the qubit anharmonicity $\alpha $, calculated as twice the frequency separation between ${\nu}_{01}$ and the two-photon transition ${\nu}_{02}/2$ in Figure 1d, the readout resonator frequency in the bare-state ${\nu}_{r}$, the resonator coupling and intrinsic quality factors ${Q}_{c}$ and ${Q}_{i}$, the readout-qubit detuning $\Delta $, the relaxation time ${T}_{1}$, the Hahn-echo time ${T}_{2}$, the Ramsey time ${T}_{2}^{*}$ and the qubit-qubit coupling $2J$. The error on the qubit frequency, estimated as the centre of a Ramsey fringes experiment, is a maximum error related to the acquisition step as a function of the qubit-drive frequency. The error on the resonator frequency is a maximum error related to the readout frequency acquisition step. The error on the quality factors is given a maximum error of $10\%$ of the fitting routine. The errors on ${T}_{2}^{*}$ and the qubit-qubit coupling strength are the fit errors, while for ${T}_{1}$, ${T}_{2}^{Echo}$ they are given as an estimation from statistical measurements.

${\mathit{Q}}_{\mathit{a}}$ | ${\mathit{Q}}_{\mathit{b}}$ | ||
---|---|---|---|

${\nu}_{01}$ at SS (GHz) | $4.8475\pm 0.0001$ | $5.5167\pm 0.0001$ | |

$\alpha $ at SS (MHz) | - | $321.2\pm 1$ | |

${\nu}_{r}$ (bare state) (GHz) | $7.5008\pm 0.0001$ | $7.6611\pm 0.0001$ | |

${Q}_{c}$ | $(9\pm 1)\phantom{\rule{3.33333pt}{0ex}}\times \phantom{\rule{3.33333pt}{0ex}}{10}^{3}$ | $(10\pm 1)\phantom{\rule{3.33333pt}{0ex}}\times \phantom{\rule{3.33333pt}{0ex}}{10}^{3}$ | |

${Q}_{i}$ | $(2.7\pm 0.3)\phantom{\rule{3.33333pt}{0ex}}\times \phantom{\rule{3.33333pt}{0ex}}{10}^{4}$ | $(1.5\pm 0.3)\phantom{\rule{3.33333pt}{0ex}}\times \phantom{\rule{3.33333pt}{0ex}}{10}^{5}$ | |

$\Delta $ (GHz) | $2.6534\pm 0.0002$ | $2.1444\pm 0.0002$ | |

g (MHz) | $112\pm 1$ | $88\pm 1$ | |

${T}_{1}\phantom{\rule{0.277778em}{0ex}}(\mathsf{\mu}$s) | $23\pm 2$ | $14\pm 1$ | |

${T}_{2}^{Echo}(\mathsf{\mu}$s) | $44\pm 3$ | $23\pm 2$ | |

${T}_{2}^{*}(\mathsf{\mu}$s) | $5.8\pm 0.5$ at $\delta \nu =580\pm 2$ kHz | $9.1\pm 0.6$ at $\delta \nu =554\pm 1$ kHz | |

$2J$ (MHz) | $29\pm 7$ |

**Table 2.**Design and materials parameters of the Quantum Processing Unit (QPU) with the two coupled split-transmon qubits, ${Q}_{a}$ and ${Q}_{b}$: the critical temperature ${T}_{c}$ of the NbTiN readout and coupling resonators, the width of the resonator w and the length gap ${L}_{gap}$ and the phase-velocity ${v}_{ph}$.

${T}_{c}$ | $14.6$ K |

w | 12 $\mathsf{\mu}$m |

${L}_{gap}$ | 4 $\mathsf{\mu}$m |

${v}_{ph}$ | 112 × 10${}^{6}$ m/s |
