Optimizing Permanganic Acid Production: Effects of Temperature on Stability

Abstract

In the nuclear industry, the decontamination of nuclear metallic structures is an essential process to reduce radiation exposure during maintenance or dismantling. The oxide layer, such as chromium (III) oxide (Cr₂O₃), formed on stainless steel and nickel-based alloys, contributes significantly to surface radioactivity by trapping radioactive contaminants. To address this, permanganic acid (HMnO₄) has proven to be a promising oxidizing agent for dissolving these oxide layers—particularly chromium oxide—on stainless steel and nickel-based alloys. In this study, HMnO₄ was synthesized via ion exchange using AmberLite IRN97 H resin and potassium permanganate (KMnO₄). The optimized process yielded a highly acidic solution (pH~1.6) with potassium concentrations below 0.1 ppm, indicating near-complete exchange efficiency. Dissolution kinetics were investigated at HMnO₄ concentrations ranging from 240 to 1920 ppm and temperatures from 30 °C to 80 °C. At a constant temperature, increasing HMnO₄ concentration significantly improved Cr dissolution, with up to 31% of total chromium solubilized after 33 h. Lower temperatures favored higher dissolution efficiency, likely due to improved thermal stability of HMnO₄. For durations shorter than 4 h, the influence of temperature was limited compared to the effect of acid concentration. To assess post-treatment options, HMnO₄ decomposition was studied using oxalic acid (H₂C₂O₄) at 80 °C. Results showed that a minimum H₂C₂O₄/HMnO₄ molar ratio above 2.75 was necessary to achieve effective reduction while preventing MnO₂ precipitation. However, even under strongly acidic conditions and with a large excess of reductant, Mn²⁺ yields remained below 55%, suggesting that thermal degradation of oxalic acid and possible formation of undetected manganese species limited the reduction process.

1. Introduction

Permanganic acid is a powerful oxidizing agent derived from the permanganate anion Mn${\mathrm{O}}_4^{-}$which has a standard redox potential E⁰ (Mn${\mathrm{O}}_4^{-}$/Mn²⁺) = 1.507 V [1], a monovalent species known for its vibrant purple coloration in aqueous solution, and its solid dihydrate from HMnO₄·2H₂O [2]. Permanganic acid is a strong acid with several pKa values proposed in the literature. The values vary between −4.5 and −2.25 [3,4,5]. Understanding the production mechanisms and optimizing the synthesis of permanganic acid HMnO₄ are essential to enhance its range of applications while mitigating safety and environmental risks.

The strong oxidizing properties of permanganic acid make it suitable for a wide range of applications. It is commonly used in organic synthesis, water treatment, and disinfection, as well as treatment of contaminated soil and groundwater [6]. It is also used in analytical chemistry to determine the concentration of reducible substances in a solution. In the context of Iron-Chromium Redox Flow Batteries (ICRFBs), permanganic acid is used to etch graphite felt electrodes, a surface treatment reported to reduce charge transfer resistance and support improved electrochemical performance [7]. In the capacitor design industry, the thermo-decomposition of highly concentrated permanganic acid is used to produce a solid, thin, continuous, and highly adherent manganese oxide film for high-performance capacitors [8]. Permanganic acid is also involved in the purification process of silicon and germanium semiconductors by eliminating carbon impurities through oxidation [9].

In the nuclear industry, permanganic acid has been recognized as an important agent for decontamination processes since 1978. It is used by industry professionals to remove oxide film deposited on internal structural metal components made of chromium, cobalt, and iron-based alloys, such as stainless steel, nickel-based alloys such as Inconel 600 and 690, and cobalt chromium alloys such as stellite, located in both the primary and secondary circuits of nuclear reactors [10,11,12]. This application is essential for preventive maintenance and extending the lifespan of key components like steam generators [13], and the safe dismantling of nuclear facilities, by minimizing radiation exposure and facilitating the classification and treatment of radioactive waste prior to final disposal [14,15].

Several approaches for the production of HMnO₄ have been reported in the literature. Early studies described chemical oxidation of manganese compounds using strong oxidants, but these procedures were often limited in applicability [16,17]. More recently, electrochemical oxidation has emerged as a reliable method, involving the electrolysis of manganese precursors in acidic media. Although relatively costly, this route is recognized for providing HMnO₄ solutions of high purity yield [18]. In addition, photoelectrochemical techniques have been explored. A study by Nakajima demonstrated an environmentally friendly production method based on a solar-driven photoelectrochemical process utilizing porous WO₃ thin film photoanodes to generate permanganic acid [19].

Currently, the Ion Exchange Resin method has become the most favorable method for producing HMnO₄ due to its operational simplicity and scalability for industrial application, and ability to produce high-yield and high-purity solution [20]. The ion exchange resin process involves passing a solution of KMnO₄, the most stable form of permanganate, through a column or reactor filled with a strong acid cation exchange resin. During the process, the potassium ion is exchanged with a hydrogen ion from the resin (${\mathrm{R}-\mathrm{S}\mathrm{O}}_3^{-}{\mathrm{H}}^{+}$) resulting in the formation of permanganic acid according to the following cation exchange equilibrium reaction of species at the solid/liquid interface:

$$\mathrm{R}-{\mathrm{S}\mathrm{O}}_3^{-}{\mathrm{H}}^{+}+{\mathrm{K}\mathrm{M}\mathrm{n}\mathrm{O}}_4\rightleftharpoons \mathrm{R}-{\mathrm{S}\mathrm{O}}_3^{-}{\mathrm{K}}^{+}{+\mathrm{H}\mathrm{M}\mathrm{n}\mathrm{O}}_4$$

(1)

According to the study by [21] for dilute aqueous solutions at room temperature and for different cations of the same charge, affinity for the sulfonate resin generally increases with the element’s atomic number: Li⁺ < H⁺ < Na⁺ < NH₄⁺ < K⁺ < Cs⁺ < Ag⁺ < Tl⁺. The apparent exchange constant, therefore, depends on the proportion of the two cations in the equilibrium solution. For example, a sulfonic acid resin has a very high affinity for the alkali cation in solution, in the presence of large quantities of alkali in low acid concentration. Under these conditions, the reaction equilibrium shifts towards the formation of HMnO₄. This acid, HMnO_4, tends to decompose into manganese dioxide (MnO₂) while releasing ozone, a hazardous gas at high concentrations.

This work focuses on the synthesis of permanganic acid via cation exchange and investigates its reactivity in dissolving chromium oxide-an oxide phase found in passivation layers of metals. The performance of HMnO₄ is evaluated in terms of its stability and efficiency, with the aim of optimizing its use in nuclear decontamination processes [22,23].

2. Materials and Methods

2.1. Permanganic Acid Preparation

HMnO₄ solution was synthesized through a chromatographic resin exchange process using strong acid cation exchange AmberLite IRN97 H resin (Chauny, France), a nuclear grade with uniform spherical particle size. This resin contains a minimum of 99% exchange sites in the hydrogen form, indicating its high purity and efficiency for cation exchange applications. Total Exchange Capacity ≥ 2.10 eq/L (H⁺ form) and density = 820 g/L [24]. Potassium permanganate, KMnO₄ (Sigma Aldrich, St Louis, MO, USA, 99% ACS Reagent), was used as the precursor for $\mathrm{M}\mathrm{n}{\mathrm{O}}_4^{-}$ for ion exchange, where K⁺ is exchanged with the proton of the sulfonic group (Equation (1)). The synthesis is based on the exchange of H⁺ ions from the resin with K⁺ ions from KMnO₄. Initially, potassium permanganate powder was dissolved in ultra-pure water and stirred for 24 h to ensure complete dissolution. Subsequently, the AmberLite IRN97 H resin was conditioned in a 190 ppm nitric acid solution 24 h prior to the experiment. The ion exchange process was initiated by introducing the KMnO₄ solution into a column packed with the pre-conditioned resin. The eluate was collected, and the pH of both the inlet (KMnO₄) prior to contact with the resin and the eluate was monitored. The pH difference serves as an indicator of the exchange and the degree of acidification in the resulting HMnO₄ solution. To validate the ion exchange process, potassium concentrations in the collected fractions were measured using a Metrohm 850 Professional IC system (Villebon Courtaboeuf, France) equipped with a Metrosep C6 analytical column and a corresponding guard column. The eluent consisted of 504 ppm HNO₃ and 82 ppm 2,6-pyridinedicarboxylic acid (PDCA). Prior to injection, samples were filtered through 0.45 µm PTFE membrane filters. If necessary, the samples were diluted with the eluent to fall within the calibration and pH range. Following the initial production trial, the preparation method was refined to optimize the purity and yield of the final HMnO₄ solution.

2.2. Preliminary Evaluation of Ion Exchange Conditions

A series of three tests were carried out to evaluate the ion exchange performance of the resin, including its capacity and impact on solution pH (

Table 1. Quantities of materials used in pre-optimization tests.

	KMnO4 (ppm)	Resin (Grams)	HNO3 (ppm)
Test 1	316	0.49	190
Test 2	3160	0.49	190
Test 3	316	1.48	190

). Test 1 was performed under a reference stoichiometric condition (1:1 molar ratio between H⁺ resin sites and incoming K⁺). In Tests 2 and 3, distinct conditions were applied (higher KMnO₄ concentration in Test 2, higher resin amount in Test 3) in order to evaluate the resin’s performance. In each test, the AmberLite IRN97 H resin was first preconditioned with a 190 ppm HNO₃ solution, then packed into a column to interact with the KMnO₄ solution. For every 5 mL of KMnO₄ introduced, 1 mL aliquots were collected, and both pH and K⁺ ion concentration were measured.

• In Test 1, a low concentration of KMnO₄ (316 ppm) was used with 0.49 g of AmberLite IRN97 H resin, calculated based on a 1:1 molar ratio between H⁺ and K⁺.
• In Test 2, the concentration of KMnO₄ increased tenfold (3610) while keeping the resin quantity constant. This test aimed to provide insights into its maximum ion exchange capacity and observe any possible changes in pH or other chemical interactions that might occur under these conditions.
• In Test 3 the resin quantity increased to 1.48 g while maintaining the KMnO₄ concentration at 316 ppm, as in Test 1.

2.3. Potassium Ion Monitoring by Ion Chromatography

Following the initial screening, further tests were carried out to refine the ion exchange process and assess its efficiency in more detail. KMnO₄ solution was passed through the resin column, and fractions were collected every 2.5 mL, immediately as they emerged from the outlet of the column, without any additional waiting time between KMnO₄ addition and collection. The potassium ion concentration in each fraction was determined using ion chromatography, providing a profile of exchange performance over the elution volume. This detailed analysis not only validated the exchange mechanism but also supported the fine-tuning of the production protocol. These optimized conditions enabled the production of a highly pure HMnO₄ solution, with improved yield and minimal residual K⁺ content.

2.4. Cr₂O₃ Kinetic Dissolution in HMnO₄ Solution

The dissolution kinetics of Cr₂O₃ in HMnO₄ solutions were investigated at two concentrations: 240 ppm and 1920 ppm. For each experiment, 1 mg of Cr₂O₃ powder was added to 50 mL of HMnO₄ solution in a glass vessel under a fume hood. The suspensions were maintained at constant temperatures of 30 °C, 40 °C, and 80 °C to assess the oxidation of Cr (III) into its soluble hexavalent form, Cr (VI). For each test, aliquots of 1–3 mL were collected at 1 min, 1 h, 3 h, 4 h, 24 h, 27 h, 31 h, and 33 h. The chromium concentration in each sample was determined by ICP-MS to monitor the evolution of dissolution over time. This experiment aimed to investigate the kinetics of the dissolution process and determine the influence of temperature and HMnO₄ concentration on the efficiency of Cr₂O₃ oxidation. It is noteworthy that the experiments conducted at 80 °C were performed to reproduce the industrial conditions for decontamination processes involving the use of permanganate-based oxidants at elevated temperatures [25]. While these conditions are used to accelerate the reactions, they are not optimal for the stability of HMnO₄.

2.5. Decomposing HMnO₄ with Oxalic Acid

Following the dissolution of Cr₂O₃ by HMnO₄, residual manganese species may remain in solution. Oxalic acid, which has a standard redox potential E⁰ (CO₂/H₂C₂O₄) = −0.49 V, is recognized for its ability to reduce the permanganate ion (${\mathrm{M}\mathrm{n}\mathrm{O}}_4^{-}$) to manganese(II) ion (Mn²⁺) [26] according to the chemical reaction:

$$5{\mathrm{H}}_2{\mathrm{C}}_2{\mathrm{O}}_4+2\mathrm{M}\mathrm{n}{\mathrm{O}}_4^{-}+6{\mathrm{H}}^{+}\rightleftharpoons 10\mathrm{C}{\mathrm{O}}_2\uparrow +2{\mathrm{M}\mathrm{n}}^{2+}+8{\mathrm{H}}_2\mathrm{O}$$

(2)

This reaction enables manganese to be removed from solution either by precipitation (e.g., Mn(OH)₂ or MnCO₃) or by co-precipitation with other insoluble phases (e.g., iron-based co-precipitation [27]. For each test, 50 mL of HMnO₄ at concentrations of 240 ppm and 1920 ppm was mixed with 50 mL of oxalic acid (H₂C₂O₄) at concentrations of 900 ppm, 3870 ppm, and 7560 ppm. The mixture was heated to 80 °C, a temperature close to those used in nuclear industry decontamination processes involving permanganic acid [28]. This is why, in the Cr₂O₃ powder experiments, the temperature was increased to 80 °C at high permanganic acid concentrations to better mimic real application conditions. The goal of decomposing HMnO₄ with oxalic acid is to evaluate the effect of the H₂C₂O₄/HMnO₄ molar ratio on manganese reduction and removal under controlled thermal conditions.

2.6. Analytical Methods

Potassium and manganese (Mn²⁺) concentrations were determined by ion chromatography (IC) equipped with a conductivity detector. Prior to injection, samples were filtered through 0.22 µm membrane filters. The eluent consisted of a nitric acid (HNO₃) and pyridine-2,6-dicarboxylic acid (PDCA) mixture, optimized for the separation of alkali metals. The system was calibrated using certified manganese and potassium standard solutions, and quantification was performed with a detection limit below 0.1 ppm.

Chromium concentrations in the dissolution experiments were measured using inductively coupled plasma mass spectrometry (ICP-MS) with a Thermo Scientific XSeries 2 instrument, (Thermo Scientific, Waltham, MA, USA). Samples were diluted in 2% ultrapure nitric acid and spiked with internal standards (Scandium-45 and Indium-115) to correct for signal drift and matrix effects. External calibration was performed using SCP Science solution standards, and the detection limit was approximately 4·10⁻⁴ mM.

3. Results and Discussion

3.1. Pre-Optimization of HMnO₄ Production

3.1.1. pH Evolution

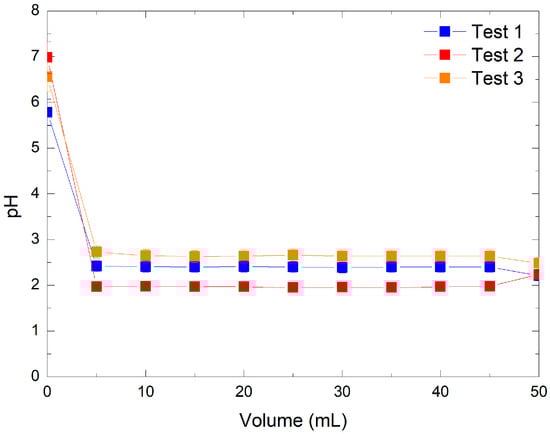

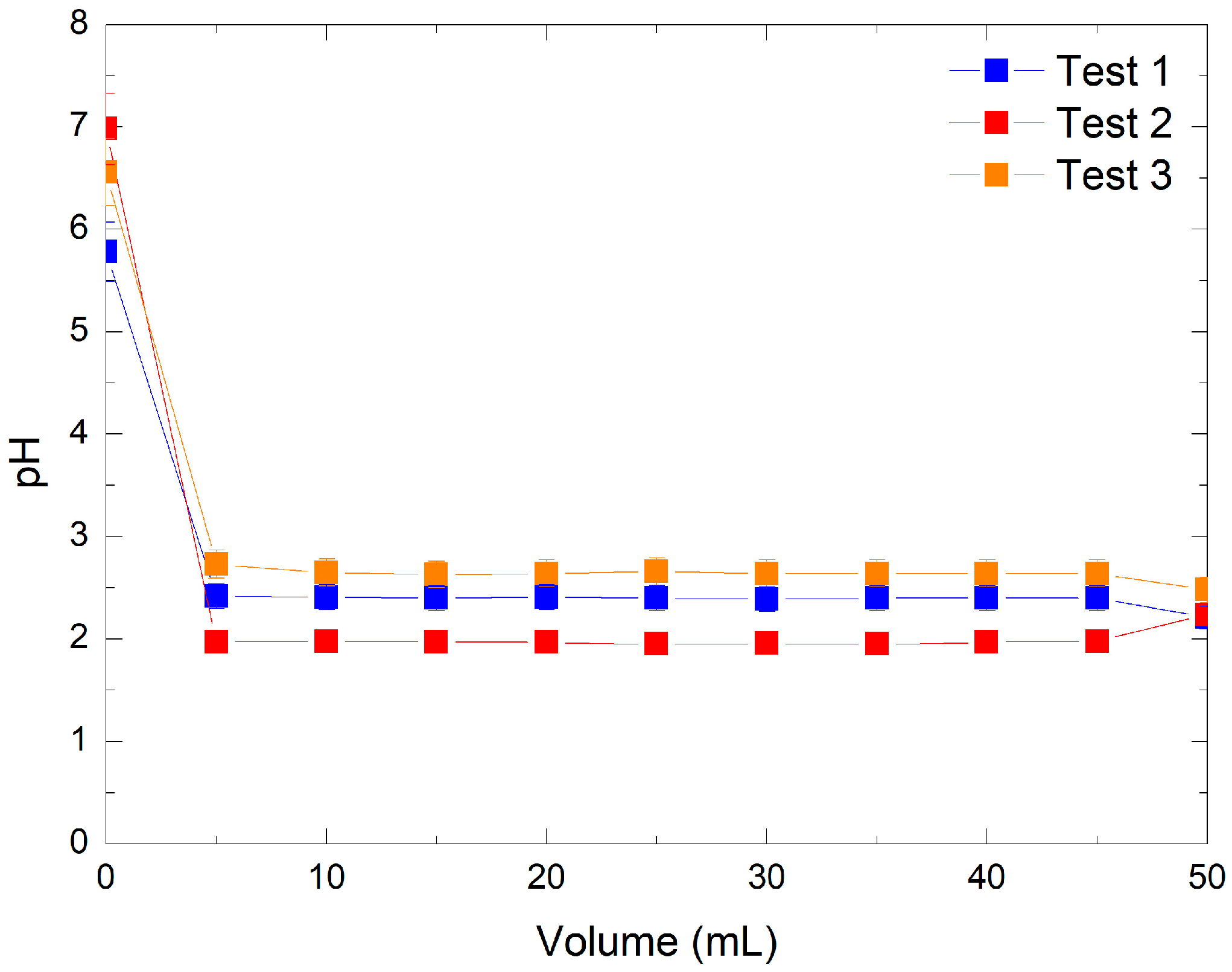

Three preliminary experiments were conducted on the acidification behavior of KMnO₄ solutions following ion exchange with AmberLite IRN97 H resin. The pH of each 5 mL fraction was measured during the passage of KMnO₄ solution through the resin column. The initial KMnO₄ solution, referred as “volume 0”, had a pH between 5 and 7, depending on the concentration. As shown in Figure 1, increasing the concentration of KMnO₄ led to a more significant decrease in pH upon contact with the resin.

The recovered solutions, identified as permanganic acid, exhibited strong acidity consistent with values reported by V. Subramanian and P. Chandramohan [20], where pH values ranged from 1.62 to 3.56. To further validate these observations, a comparison was made between experimental pH values and theoretical estimates based on the reported pKa of HMnO₄ (between −4.5 and −2.25 [3,4,5]). A 316 ppm KMnO₄ solution (Tests 1 and 3) corresponds to an expected pH of 2.70 for full conversion in HMnO₄, while a 3160 ppm KMnO₄ solution (Test 2) gives a pH of 1.70. These ranges are consistent with our experimental pH values in eluates with about 2.4 and 2.6 in Tests 1 and 3, respectively, and 1.9 in Test 2. The slightly lower values observed experimentally may be attributed to the residual nitric acid at 189 ppm from resin during the pre-conditioning. This comparison shows that most permanganate ions were effectively converted to HMnO₄.

3.1.2. K⁺ Ions Concentration

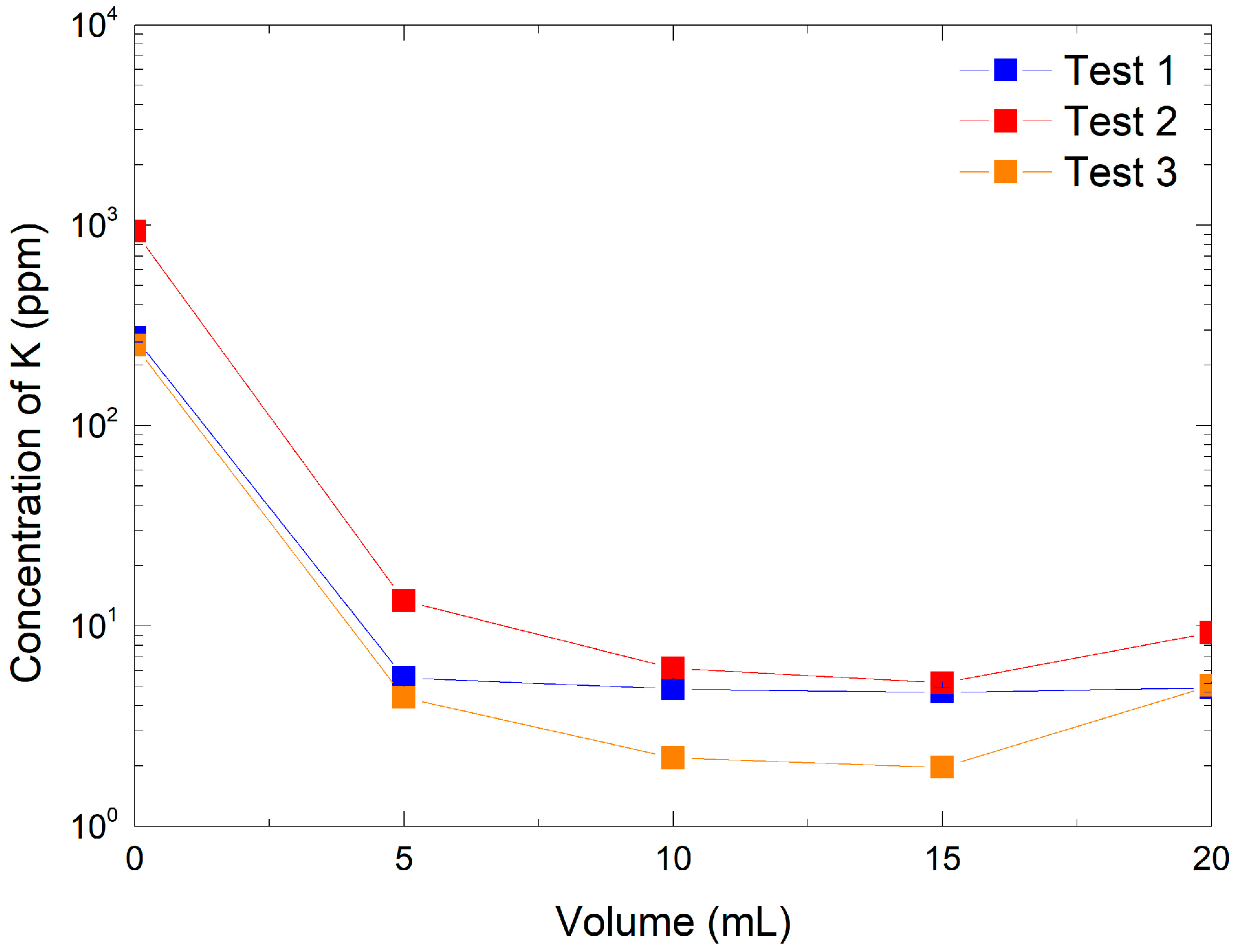

To further validate the ion exchange process, potassium ion concentrations in each recovered fraction were measured. As shown in Figure 2, the resin demonstrated a high retention capacity for potassium at both tested KMnO₄ concentrations. For the lowest concentration (316 ppm, Tests 1 and 3), K⁺ retention was nearly complete, with a measured efficiency of 99.95%, indicating that almost all potassium ions were replaced by protons from the resin during the exchange process. At the higher KMnO₄ concentration (3160 ppm, Test 2), the retention efficiency slightly decreased to 97.9%, suggesting that the exchange capacity of the resin becomes a limiting factor when more potassium ions are introduced. This observation highlights the importance of optimizing the [K⁺]-to-resin ratio to maintain high exchange efficiency. These results confirm that the AmberLite IRN97 H resin is highly effective in exchanging K⁺ for H⁺ under the tested conditions. The minimal potassium content in the recovered HMnO₄ solution further supports the successful production of high-purity acid, suitable for subsequent applications. However, we should note that potassium retention only corresponds to the efficiency of cation exchange. The concentration of MnO₄⁻ was not directly evaluated during the experiments; therefore, we cannot completely exclude the possible limited decomposition of HMnO₄ during or after elution.

3.2. Optimization of HMnO₄ Production

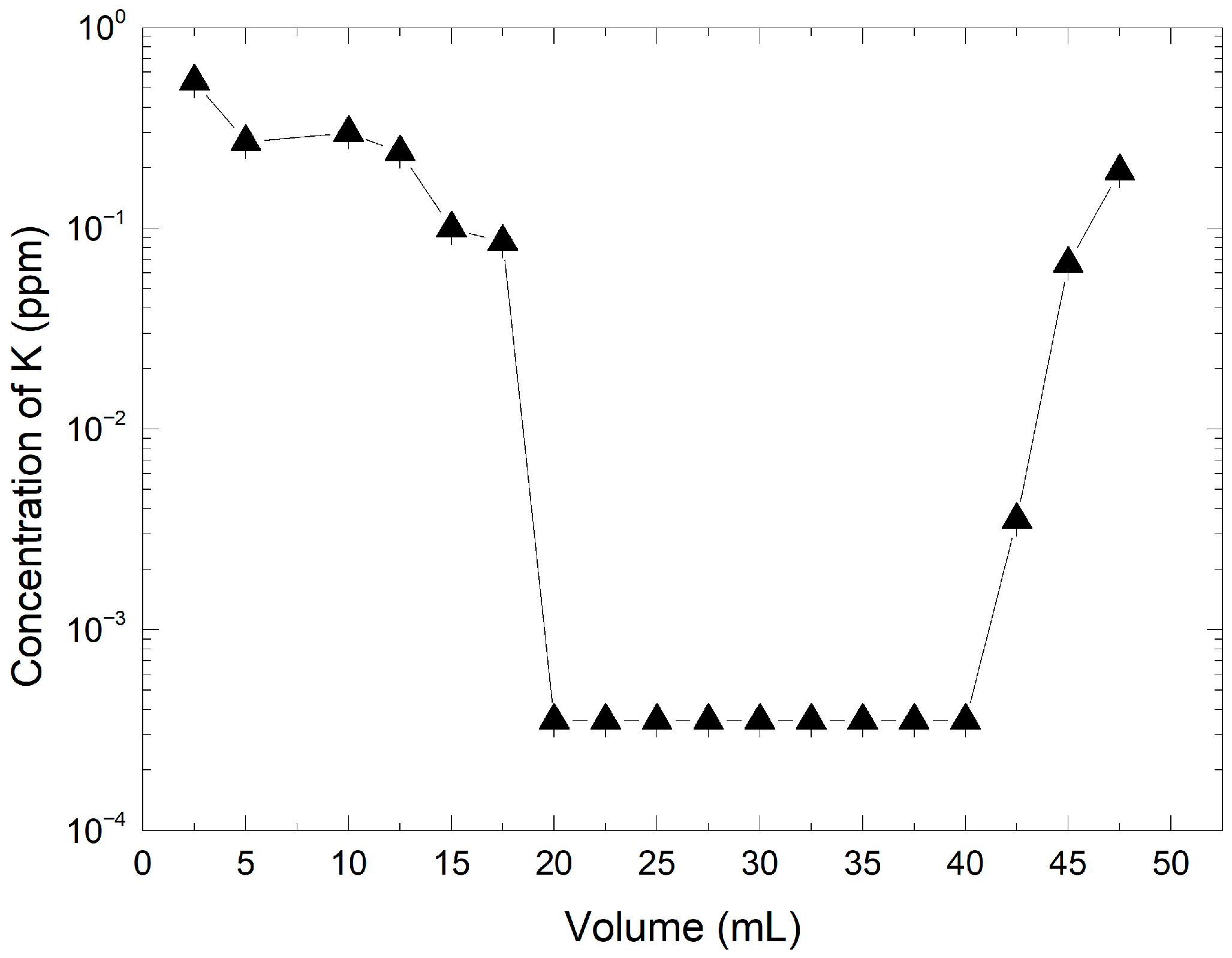

Based on the results of the preliminary tests, an optimized protocol was implemented using 50 mL of a 3160 ppm KMnO₄ solution and 1.48 g of resin. The eluate was collected in 2.5 mL fractions and analyzed for potassium ion content. As shown in Figure 3, the potassium concentration in the eluate was initially high but decreased progressively as the solution passed through the column. A stable low-concentration plateau was observed between 20 mL and 40 mL, with K⁺ concentrations below 0.1 ppm.

This plateau likely represents the effective exchange zone, where the majority of potassium ions were replaced by protons from the resin. Beyond this range, a gradual increase in K⁺ concentration was detected, suggesting a decrease in exchange efficiency due to partial saturation of the resin. The pH of the KMnO₄ solution prior to exchange was 6.5 ± 0.1, while the recovered HMnO₄ fractions reached a pH of approximately 1.63, consistent with successful conversion into the acid form. The K⁺ concentration in the initial KMnO₄ solution was 255.6 ppm, whereas the maximum K⁺ concentration in the recovered solution is only 0.54 ppm, indicating a retention rate of 99.8%. The experimental results confirm that under optimized conditions, the AmberLite IRN97 H resin provides near-complete ion exchange, yielding a high-purity permanganic acid solution. The clearly defined exchange plateau also offers a practical window for collecting HMnO₄ with minimal potassium contamination.

The observed potassium concentrations at the end of the experiment indicate resin exchange capacity saturation after eluting 42.5 mL of the KMnO₄ solution. These observations are consistent with the results from pre-optimization Tests 1, 2, and 3 and demonstrate that the initial assumptions and the protocol applied for optimization are valid.

3.3. Evolution of Cr₂O₃ Dissolution in Presence of HMnO₄ Solution

The oxidative dissolution of Cr₂O₃ by HMnO₄ was investigated in order to assess its efficiency for removing passive oxide films. The overall process can be represented by the following reaction in acidic media to favor the reaction:

$$5{\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_3+6{\mathrm{H}\mathrm{M}\mathrm{n}\mathrm{O}}_4+2{\mathrm{H}}^{+}\to 5{\mathrm{C}\mathrm{r}}_2{\mathrm{O}}_7^{2-}+6{\mathrm{M}\mathrm{n}}^{2+}+4{\mathrm{H}}_2\mathrm{O}$$

(3)

Several concentrations of HMnO₄ were investigated.

3.3.1. At 240 ppm HMnO₄

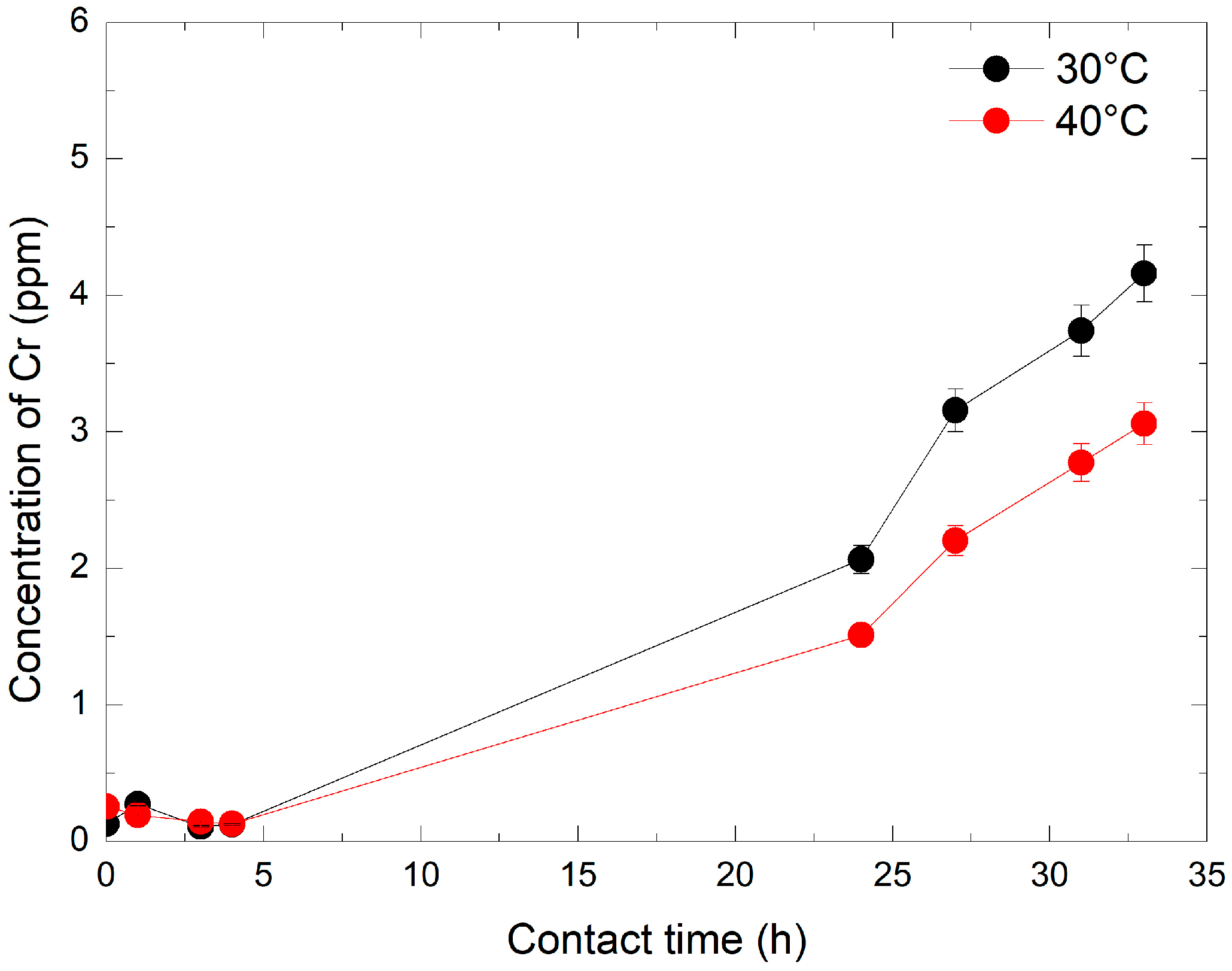

The dissolution kinetics of Cr₂O₃ were first evaluated using a 240 ppm HMnO₄ solution at 30 °C and 40 °C. Chromium concentrations were monitored by ICP-MS at specific intervals: immediately (1–2 min) and after 1 h, 3 h, 4 h, 24 h, 27 h, 31 h, and 33 h. As illustrated in Figure 4, Cr concentration remained stable at about 0.25 ppm during the first 4 h. A significant increase was observed after 24 h, with final concentration values rising by 6 and 8-fold at 40 °C and 30 °C, respectively. This trend continued over time, reaching final concentrations of 3 and 4.2 ppm at 40 °C and 30 °C, respectively, after 33 h. The results indicate that the dissolution of Cr₂O₃ is both temperature and time-dependent: the lower the temperature, the greater the ability of HMnO₄ to dissolve Cr₂O_3. This is likely due to the increased instability of HMnO₄ at increased temperatures. Furthermore, at a given temperature, the efficiency of HMnO₄ in dissolving Cr₂O₃ increased proportionally with contact time.

3.3.2. At 1920 ppm HMnO₄

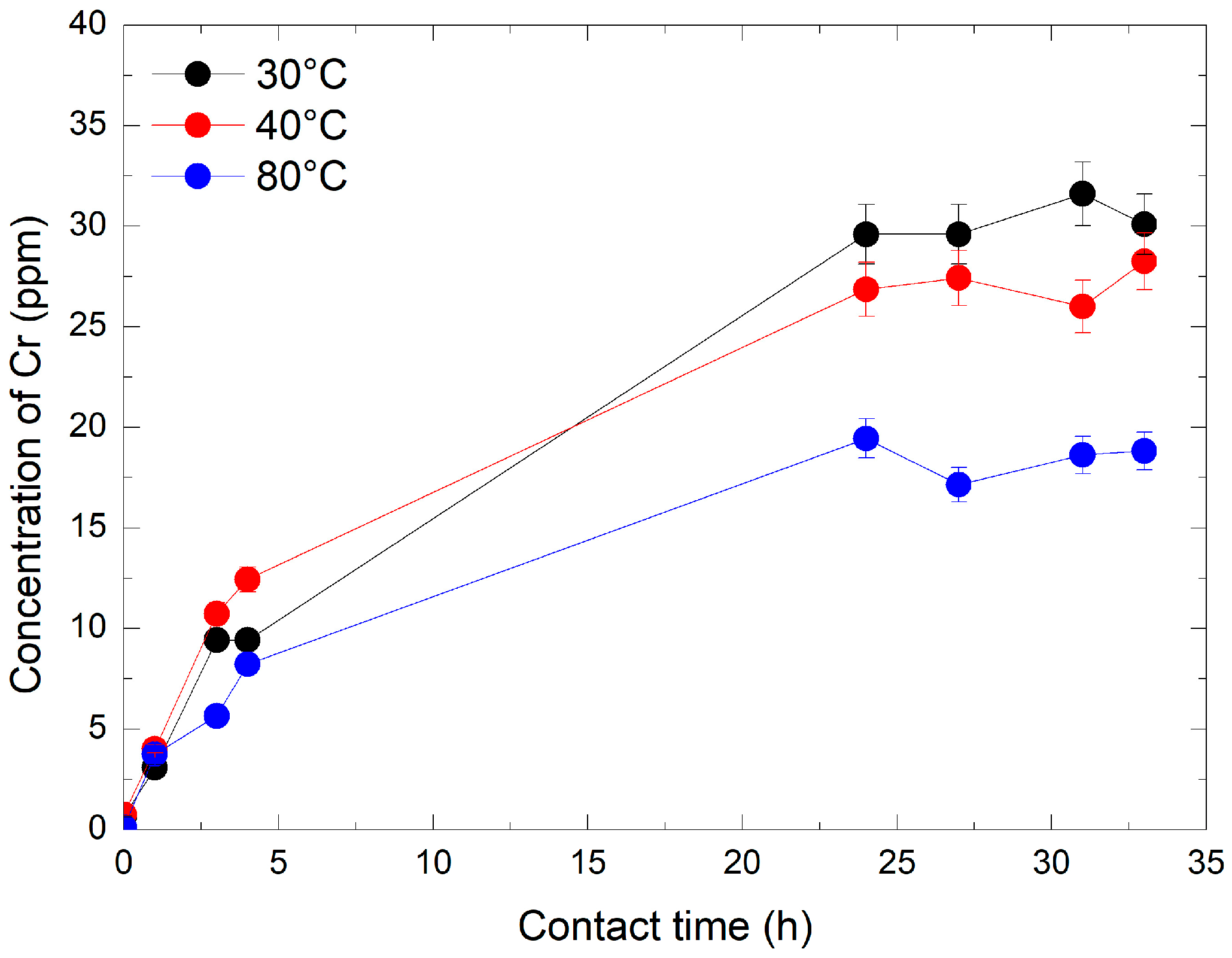

In the second dissolution experiment, Cr₂O₃ powder was dissolved in the presence of 1920 ppm HMnO₄ at three different temperatures: 30 °C, 40 °C, and 80 °C. The chromium concentrations were measured at the following times: immediately (1–2 min), 1 h, 3 h, 4 h, 24 h, 27 h, 31 h, and 33 h. Figure 5 shows a significant increase in Cr concentrations within the first hour, especially at 30 °C and 40 °C. After 24 h, a plateau was observed. The experiment also revealed that at 80 °C, the amount of dissolved Cr was lower at 30 °C and 40 °C. These results highlight the influence of HMnO₄ concentration on the dissolution of Cr₂O₃. After 4 h of reaction, the amount of dissolved chromium was significantly higher at 1920 ppm HMnO₄, increasing by factors of 40 and 5 compared to the experiments with 240 ppm. An inverse relationship was observed between temperature and dissolved chromium concentration, with higher temperatures leading to reduced Cr dissolution. This trend is best explained by the thermal instability of permanganic acid (HMnO₄), which decomposes more rapidly at elevated temperatures, reducing its oxidative effectiveness. These observations are consistent with previous findings [29], who reported increased HMnO₄ decomposition with rising temperature at concentrations of 360 ppm and temperatures up to 95 °C. The highest levels of Cr dissolution were achieved at lower temperatures, highlighting the importance of HMnO₄ stability and extended contact time for efficient Cr₂O₃ dissolution.

To assess the dissolution efficiency, the amount of Cr released into solution was compared to the theoretical chromium content of the initial Cr₂O₃ sample. Under the most favorable condition (30 °C, 1920 ppm HMnO₄), approximately 31% of the total chromium was recovered in solution after 33 h. This partial but significant dissolution highlights the suitability of the experimental setup for monitoring the progressive oxidation of Cr (III) by HMnO₄.

The results here also highlight the almost linear increase in Cr dissolution with increasing HMnO₄ concentrations at the same contact times (about 3.5 ppm at 33 h vs. closer to 30 ppm at increased conc of HMnO₄ at similar temps). This is interesting because this leads to a choice during the treatment or decontamination. A significantly lower contact time is attainable at elevated concentrations which has its benefits vs. a higher contact time at lower concentrations. This would require further exploration, considering factors such as resin and other costs, which are out of the scope of this work.

3.4. Effect of Oxalic Acid Concentration on HMnO₄ Decomposition at 80 °C

The decomposition of HMnO₄ by oxalic acid (H₂C₂O₄) was investigated to determine the conditions required for complete reduction of permanganate species without manganese dioxide precipitation (Figure 6, Figure 7 and Figure 8). HMnO₄ solutions at 240, 720, and 1920 ppm were reacted with increasing concentrations of H₂C₂O₄ (900, 3870, and 7560 ppm) at 80 °C. The evolution of Mn²⁺ concentration, pH, and the presence of MnO₂ precipitation were monitored over 4 h to assess the effect of the H₂C₂O₄/HMnO₄ molar ratio on the reduction efficiency. This step is very crucial because in nuclear decontamination processes, any residual permanganate from the decontamination step remains as a byproduct and must be treated as waste. Efficient decomposition of this residual permanganate into manganese precipitate (MnO₂), which can be separated, is essential to minimize secondary liquid waste generation and ensure proper waste management.

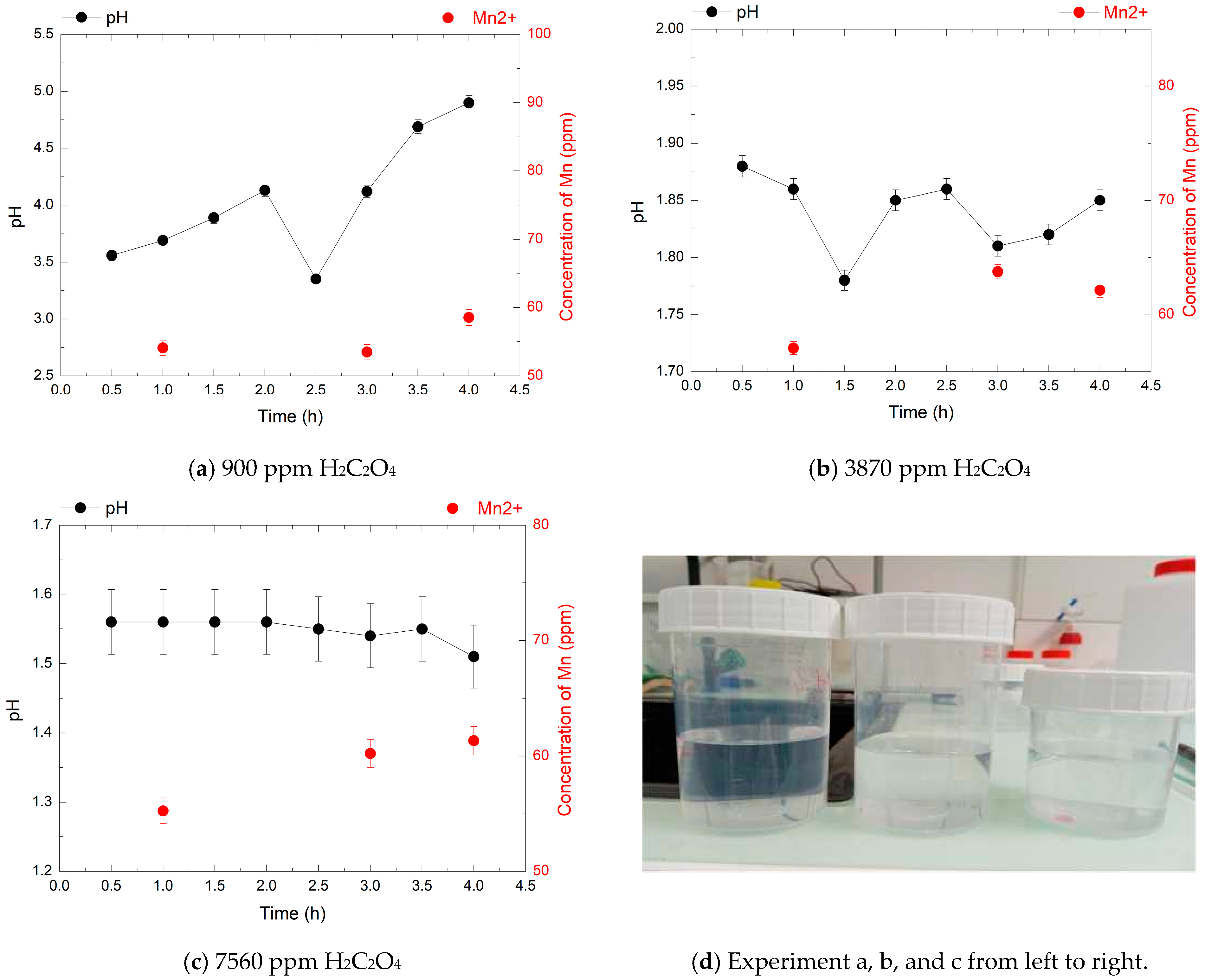

In the first experiment, with 240 ppm HMnO₄, the Mn²⁺ concentration remained nearly constant (about 60 ppm) across all oxalic acid concentrations, corresponding to ~55% of the theoretical yield expected for full reduction.

The pH, monitored every 30 min, increases from around 3.5 to 5 for the 900 ppm concentration, and tends to become more acidic for the 3870 ppm and 7560 ppm concentrations and no visible MnO₂ precipitation was observed, suggesting a predominantly homogeneous reduction. Lower concentrations of oxalic acid led to higher final pH values, with a maximum of pH 5 at 900 ppm H₂C₂O₄. The pH minimum at 2.5 h likely reflects a transient stage in the redox reaction, where a proton release causes a temporary drop—indicative of a complex reaction mechanism.

These results suggest that oxalic acid can effectively reduce HMnO₄ without inducing manganese precipitation, particularly at moderate concentrations and elevated temperature (80 °C). However, the observed reduction efficiency, especially at lower HMnO₄ concentrations (240 ppm), remained incomplete despite increasing oxalic acid doses. This behavior may partly stem from oxalic acid’s thermal degradation, which limits its reducing capacity over time. A related study showed that heating oxalic acid in nitric acid at 100 °C in the presence of Mn²⁺ significantly accelerates its decomposition [30].

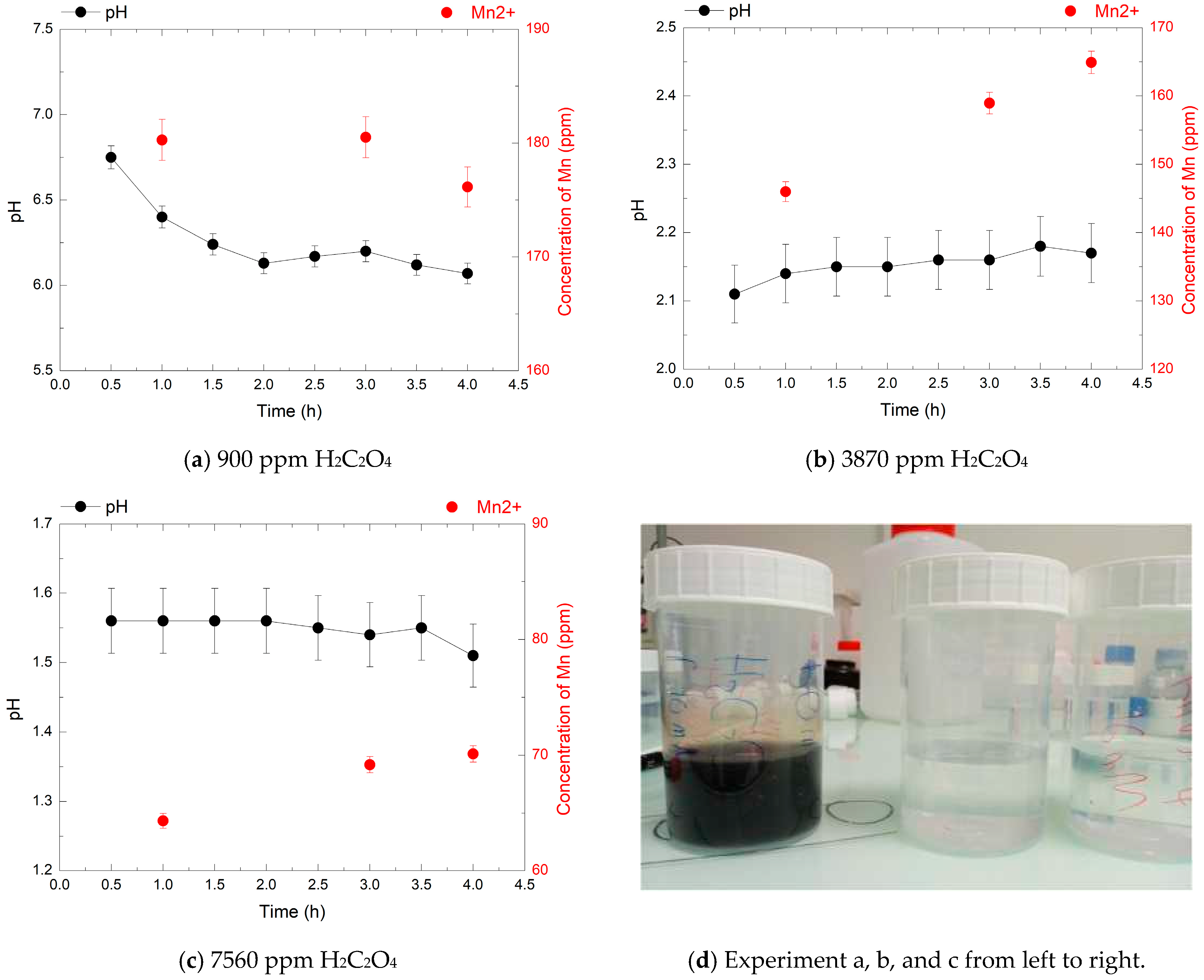

In the second experiment, with 720 ppm HMnO₄, the final Mn²⁺ concentrations after 4 h were 176 ppm, 165 ppm, and 70 ppm for 900, 3870, and 7560 ppm oxalic acid concentration, respectively. These correspond to 53%, 50%, and 21% of the theoretical value. At low oxalic acid concentration (900 ppm), MnO₂ precipitation was visually observed, likely due to the combination of low reductant availability and a rising pH (up to 6.1), indicating an incomplete reduction reaction.

In this experiment, with 3870 ppm HMnO₄, the reaction proceeded more efficiently, with a stable acidic pH (pH 2.15), the absence of visible precipitate, and a high Mn²⁺ concentration consistent with reduction. At 7560 ppm H₂C₂O₄, the pH remained low (1.55), and no precipitation was observed, yet the Mn²⁺ concentration decreased significantly. This suggests that other reactions may compete, potentially leading to the formation of soluble or colloidal intermediate species. Further investigation would be needed to clarify the fate of manganese under these conditions.

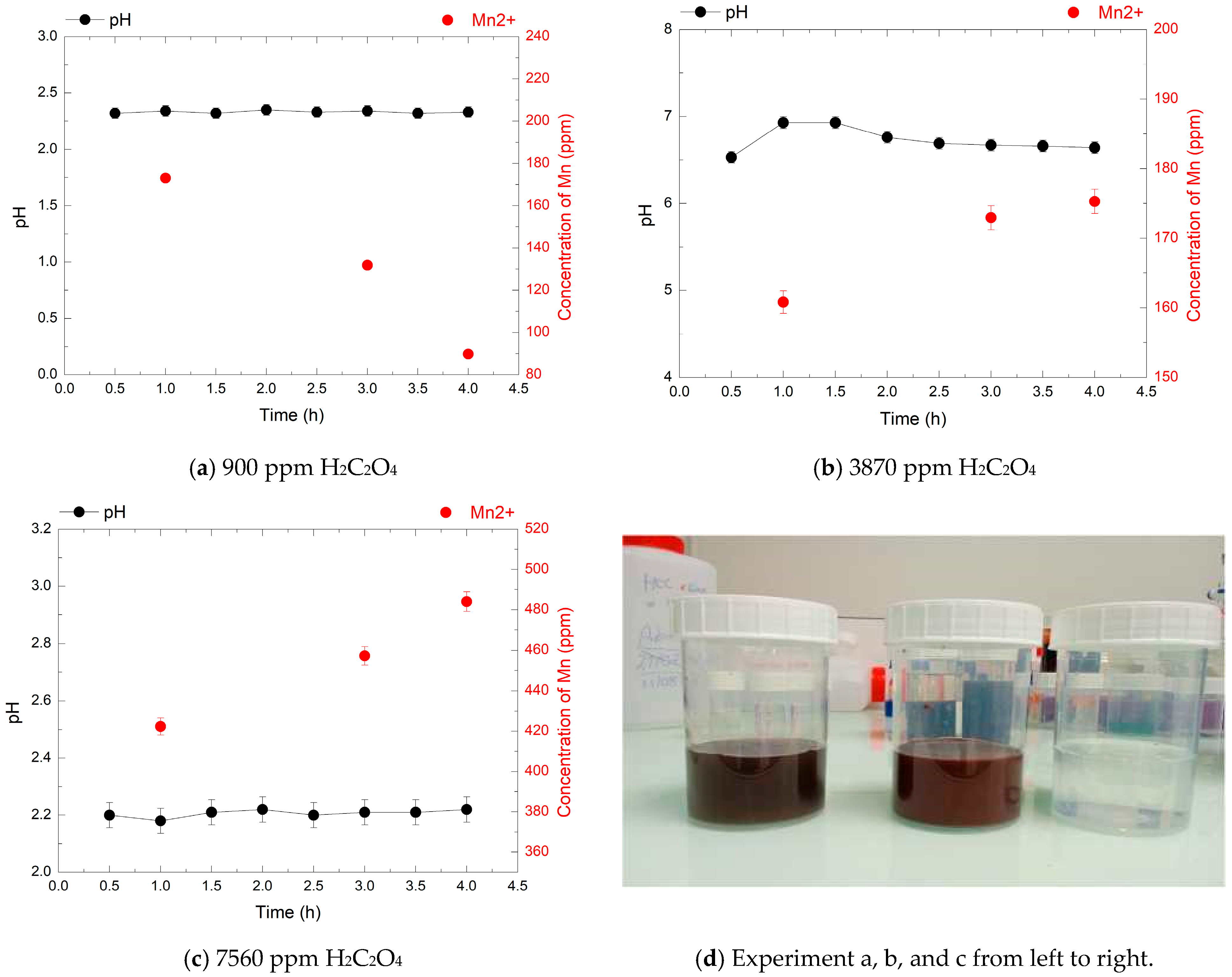

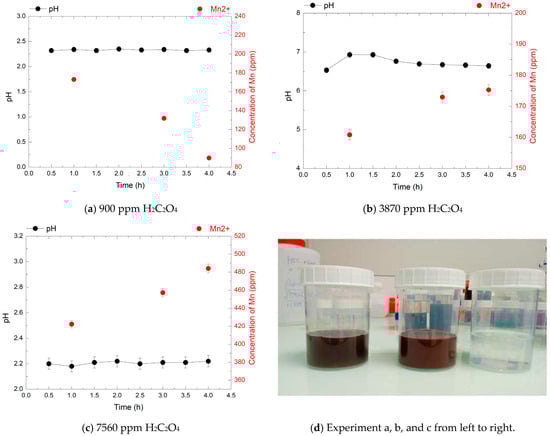

In the third experiment, with 1920 ppm HMnO₄, the Mn²⁺ concentrations measured after 4 h were 90 ppm, 175 ppm, and 485 ppm for 900, 3870, and 7560 ppm oxalic acid, respectively. These correspond to 10%, 20%, and 55% of the theoretical yield, indicating that only partial reduction was achieved in all cases. At 900 ppm H₂C₂O₄, the limited availability of reductant resulted in minimal Mn²⁺ concentration despite a moderately acidic pH (2.3). At 3870 ppm the Mn²⁺ concentration increased but the pH stabilized between 6.1 and 6.8, suggesting possible proton depletion that may have limited reduction efficiency. The highest Mn²⁺ concentration was obtained at 7560 ppm oxalic acid, under acidic conditions (pH 2.2), with no visible MnO₂ precipitation. This condition resulted in the most efficient reduction observed at this HMnO₄ concentration, approaching 55% of the expected value. However, with lower concentrations, complete reduction was not achieved, likely due to the high oxidant load and precipitation reactions competing with direct Mn²⁺ formation.

The reduction of HMnO₄ by oxalic acid appears to be influenced by several interdependent factors. While maintaining a low pH is essential to promote the reduction of Mn (VII) to Mn (II), this condition alone does not ensure complete reduction. In all experiments, the Mn²⁺ yield remained systematically below the theoretical value, not exceeding 55%, even under strongly acidic conditions and in the presence of a large excess of reductant. This limitation suggests that other processes are competing with or limiting the full reduction. In particular, the reaction may be sensitive to temperature: at 80 °C, oxalic acid can decompose, as observed during the thermal stability experiments of HMnO₄ in the presence of Cr₂O₃ powders. This could contribute to the incomplete reaction observed, even in the absence of visible manganese oxide precipitation.

Furthermore, the formation of colloidal or complex manganese species that remain in solution but are not detected by ion chromatography may also contribute to the limited Mn²⁺ yield. Similar behavior was reported by H.-C. Eun and S. Yoon Park [31], who showed that an excess of reductant (N₂H₄ in their work) in acidic media can lead to the formation of insoluble manganese oxides or intermediate species, thereby limiting Mn²⁺ recovery. The observed sensitivity to the H₂C₂O₄/HMnO₄ molar ratio further confirms that the reaction is affected not only by the proton concentration but also by the relative amount of available reductant.

The overall results indicate that HMnO₄ reduction by oxalic acid is influenced by multiple parameters, including reductant concentration, pH, and temperature. A significant contributing factor is likely the thermal decomposition of oxalic acid at 80 °C, which can reduce its effective concentration over time. Prior studies have shown that oxalic acid degrades more rapidly at elevated temperatures, especially in oxidative media. For instance, complete decomposition of 47,000 ppm oxalic acid was observed within 4 h at 100 °C in nitric acid with 2570 ppm Mn²⁺, whereas it required over 30 h without the catalyst [30]. This reinforces the notion that oxalic acid instability under thermal and oxidative stress may limit its reductive capacity in HMnO₄ systems.

4. Conclusions

This study explored the synthesis of permanganic acid HMnO₄ by cation exchange using a nuclear-grade Amberlite IRN97 H resin and its application for the oxidative dissolution of chromium oxide. The method produced a highly acidic solution of HMnO₄ with low potassium content, confirming the effectiveness of the resin-based process. Potassium removal reached 99.95%, and the resulting solution exhibited a pH range between 1.65 and 2.5.

The results highlight the influence of both HMnO₄ concentration and temperature on the efficiency of Cr₂O₃ dissolution. Higher acid concentrations favored reactivity over time, while lower temperatures improved HMnO₄ stability. This study allowed us to refine the synthesis of HMnO₄, a relevant oxidant for the chemical dissolution of chromium-based alloys, particularly in the nuclear industry.

The decomposition of HMnO₄ by oxalic acid was also investigated to evaluate the fate of manganese after the oxidative step. The reduction in efficiency depended not only on the acidity of the medium, but also on the H₂C₂O₂/HMnO₄ molar ratio. A minimum ratio above 2.75 appeared necessary, but the best results were obtained between 5 and 7, depending on the initial concentration of HMnO₄.

It is important to note that the release of ozone during HMnO₄ decomposition could pose significant safety challenges. Although concentrations used in the lab remain below harmful thresholds, scale-up for industrial decontamination must account for gas handling and mitigation. Extending experiments to include temperatures below and above 80 °C (e.g., 25–95 °C) would help pinpoint thermal stability thresholds of both HMnO₄ and oxalic acid more precisely. Sampling Mn²⁺ and pH at shorter intervals, especially within the first hour, would provide better kinetic insights into decomposition and reduction steps and help model the reaction progression.

These results are relevant to advanced nuclear decontamination processes such as HP-CORD (Chemical Oxidation and Reduction Decontamination) [27], where permanganic acid is used to dissolve passivation layers rich in chromium oxide. The moderate HMnO₄ concentrations used in this study (up to 1920 ppm) align with operational concentrations in actual decontamination systems.
