Demonstration of Focusing Wolter Mirrors for Neutron Phase and Magnetic Imaging

Abstract

Image-forming focusing mirrors were employed to demonstrate their applicability to two different modalities of neutron imaging, phase imaging with a far-field interferometer, and magnetic-field imaging through the manipulation of the neutron beam polarization. For the magnetic imaging, the rotation of the neutron polarization in the magnetic field was measured by placing a solenoid at the focus of the mirrors. The beam was polarized upstream of the solenoid, while the spin analyzer was situated between the solenoid and the mirrors. Such a polarized neutron microscope provides a path toward considerably improved spatial resolution in neutron imaging of magnetic materials. For the phase imaging, we show that the focusing mirrors preserve the beam coherence and the path-length differences that give rise to the far-field moiré pattern. We demonstrated that the visibility of the moiré pattern is modified by small angle scattering from a highly porous foam. This experiment demonstrates the feasibility of using Wolter optics to significantly improve the spatial resolution of the far-field interferometer.

1. Introduction

Nearly all existing neutron-imaging instruments can be described as pinhole cameras that measure the neutron shadow of a sample. In such cameras, the geometric blur, which fundamentally limits spatial resolution, is given by λ_g = z D/(L − z), where z is the sample to detector distance, D is the beam defining aperture, and L is the aperture to detector distance. Due to the inherent low intensity of neutron sources, D is of order 1 cm. This size limitation precludes the use of geometric magnification to improve spatial resolution, and currently achievable spatial resolutions reach ~10 µm. The primary reason for the utilization of the pinhole geometry is the lack of a practical neutron-image forming lens. While refractive neutron lenses have been incorporated into small angle neutron scattering instruments, they are not suitable for imaging, since the refractive index for materials is n ~1–10⁻⁴ λ (nm)². Therefore, neutron refractive lenses have very long focal lengths (~10′s of meters) and are strongly chromatic [1].

The geometric blur limits the achievable spatial resolution especially for methods that require placing of sample environments or optical components between the sample and the detector. We consider below two examples of emerging techniques which require such equipment: polarized and grating-interferometry imaging. First, after the work of Kardjilov et al. [2], there is renewed interest in exploiting the spin of the neutron to image magnetic fields, for instance the trapped flux in superconductors [3]. In order to measure the magnetic field, one must measure the neutron spin rotation angle by the sample with the help of spin analyzers such as compact polarizing supermirrors or ³He neutron spin filters. These devices require a minimum of z ~ 20 cm of separation between the sample and the detector, limiting achievable spatial resolution. The state-of-the-art polarized neutron imaging instrument PONTO [4] has been able to achieve only 120 µm resolution, almost a factor of ten more coarse than what can be routinely achieved using conventional neutron-imaging layouts. Second, the recently introduced broadband far field interferometer is a potentially groundbreaking method of obtaining phase gradient and dark-field images [5,6]. However, in order to probe the longest autocorrelation lengths, one places the sample in the middle of the flight path for a geometric magnification of 2, producing strongly blurred images. While a small aperture could be used to obtain resolution of order 0.5 mm, the strong reduction in intensity would obviate the advantages of the method.

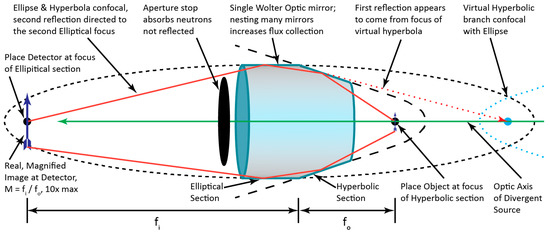

It was recently demonstrated that Wolter mirrors, which are widely used in X-ray telescopes, could be used as neutron-image forming optics [7,8]. Briefly, Wolter mirrors are axisymmetric mirrors composed of two conic sections, see Figure 1. With such optics, one could realize several improvements in neutron imaging over the pinhole optics geometry. First, there is a large distance, of order meters, between the sample and optics (and optics and detector) enabling the introduction of bulky sample environment or beam conditioning devices without the loss of spatial resolution. Second, the image resolution is determined by the optics and not the beam collimation (or L/D ratio). (This is generally true for any optical system which employs image-forming mirrors or lenses.) Therefore, the aperture size D could be increased so that the sample is illuminated by the full power of the divergent polychromatic neutron beam. Third, many mirrors can be nested to increase the solid angle portion of the beam collected by the optics, resulting in orders of magnitude increase in the neutron fluence rate for high spatial resolution imaging. Fourth, optical magnification can be achieved in order to improve the spatial resolution. As in geometrical optics, the magnification is given by the ratio of focal lengths (f_i and f_o in Figure 1).

In this article, we demonstrate how to exploit the advantages offered by Wolter optics to polarized imaging, which we refer to as Wolter optics, Helium-3 Neutron imaging of Magnetic Samples (WHIMS), and Wolter Optics Far-Field Interferometry (WOOFF). Specifically, the sample-to-detector separation enables high-resolution, WHIMS, while the image-forming ability of Wolter mirrors enables high-resolution broadband far-field phase imaging [5,6].

2. Materials and Methods

All measurements were made at the cold neutron imaging instrument (CNII) located at the end of the NG6 neutron guide at the NIST Center for Neutron Research [9]. The neutron imaging detector consisted of a 150 µm thick LiF:ZnS scintillator screen viewed by an Andor NEO sCMOS (Andor Technology: Belfast, Ireland) detector [10] through a Nikon 50 mm f/1.2 lens via a mirror at 45 degrees to place the camera out of the gamma and fast neutron beams from the direct line of sight to the reactor core. With this configuration, the effective pixel pitch is 51.35 µm with a field of view of about 13 cm × 11 cm and a spatial resolution of about 150 µm.

2.1. Wolter Optic

The Wolter optic employed in these measurements consisted of 3 nested nickel mirrors composed of a hyperbolic and an elliptical section with focal lengths of 0.64 m and 2.56 m for an overall focal length F = 3.2 m, a magnification of 4. The mirror diameters were about 3 cm and the overall length was about 6 cm, as described in detail elsewhere [7,8]. The angular resolution of about 110 µrad, coupled with the focal length of 0.64 m result in an image spatial resolution of about 100 µm. Aperture stops and diaphragms were placed both upstream and downstream of the optic to block the direct, unfocused beam. In both experiments, the optic was used in magnification mode, so that the optic to sample distance was 0.64 m. The optic was aligned in pitch and yaw by observing when an image of a 1.6 mm diameter hole placed at the focal position (f₀ = 0.64 m) was well formed.

The small optic was manufactured for test and validation purposes, not to maximize the intensity and resolution at CNII. Therefore, the signal rate was relatively small. Also, a reduction of the intensity in the center of the image was observed, indicating under-illuminated optics due to insufficient divergence of the neutron beam passing through the sample. With the far-field setup, the field of view was offset from the optical axis by about 2 cm. As a result, the usable portion of the focused image is limited. In the discussion section, we comment about the possibility for future improvements.

2.2. Wolter Optics, Helium-3 Neutron Imaging of Magnetic Samples (WHIMS)

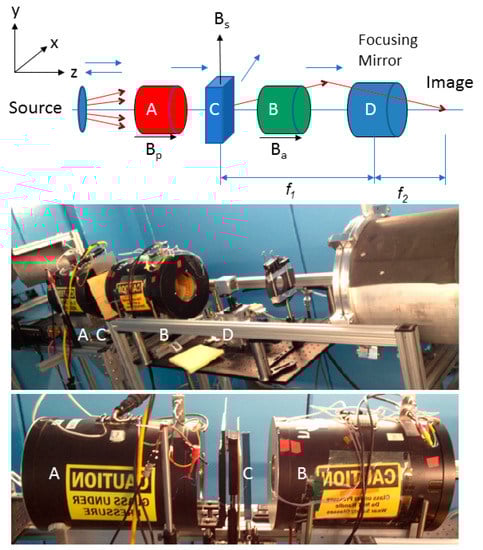

The layout of the experiment and a photograph of the WHIMS setup are shown in Figure 2. The sample was a solenoid, which had a rectangular cross section and was aligned so that the short face of the rectangle was perpendicular to the beam. The solenoid’s cross-section is about 15 mm × 7 mm with rounded corners and has a winding density of 2200 m⁻¹ of aluminum wire. A Hall probe was used to determine the magnetic field for a given current setting. The field was linearly proportional to the current; at 0.4 A, a field of 1.5 mT was measured. In this case, a near uniform spin rotation of the polarized neutrons passing through the solenoid field results in a decrease in the observed transmission through the analyzer for a given magnetic field. For B = 1.5 mT and λ = 0.6 nm, a spin rotation of about 2π is expected through the long direction of the solenoid cross-section, which corresponds to a maximum in transmission, while the minimum transmission occurs when the spin is rotated by π at half that field, for I = 0.2 A.

A double monochromator composed of two 5 cm × 5 cm highly oriented pyrolytic graphite (HOPG) (002) crystals was positioned to select a neutron wavelength of 0.6 nm. The neutron wavelength resolution of δλ/λ ~ 1% from the monochromator was finer than required to connect the observed spin rotation to the magnetic field within the solenoid [2], and it would be possible to perform measurements with coarser wavelength resolution, for instance using a velocity selector with δλ/λ ~ 10% which would increase the time resolution.

There are two primary techniques for spin-polarizing a neutron beam, polarizing supermirrors or dense samples of hyperpolarized ³He. The advantages of ³He include the ability to polarize a divergent beam while introducing no additional structure into the open beam image. For these experiments, two neutron spin filters of ³He contained in glass cells were polarized via spin exchange optical pumping (SEOP) [11,12]. The first cell, denoted by the name Francis, polarized the beam. It was 9 cm in diameter with entrance and exit windows made of silicon. The relaxation time of Francis was ≅68 h, and the initial polarization was ≅56%. The second cell, Spock, spin-analyzed the beam that transmits through the solenoid. Spock had flat aluminosilicate glass windows, a relaxation time of ≅120 h and an initial polarization of ≅62%. An issue with the nuclear magnetic resonance system used to invert the ³He polarization for the first cell delayed the beginning of the measurement time by 24 h for Spock, and did not permit complete polarization of Francis. Despite this, the initial flipping ratio for spin-parallel and spin-antiparallel measurements was ≅14, which was more than sufficient for these demonstration measurements. Measurements were made over a period of 15 h. The flipping ratio decreased over the 15 h measurement to ≅8. We note that NIST is developing systems that will be able to continuously polarize ³He neutron spin filters via the SEOP method on the beam line so that the flipping ratio will be constant in time.

The count rates for this demonstration experiment were relatively low. The reasons are that the total transmission through the two ³He cells was about 5% in the spin parallel condition, and the intensity at 0.6 nm is about half that obtained at the peak of the NG6 spectrum. (The 0.6 nm was chosen to suit the critical-reflection-angle requirement for the test Wolter mirrors used for this measurement. Optimization of the mirrors for the beamline spectrum is straightforward and would result in significant increase in the signal intensity.) As a result, the camera was set to 4 × 4 binning and images were acquired for 120 s; since the optic has magnification 4, the effective pixel pitch remained 51.35 µm. Each magnetic field condition was measured for a minimum of 30 min. To further reduce the noise, 5 images were combined with a boxcar median filter and a stripe filter based on wavelets removed the variation due to readout noise and then the average of the remaining time series was formed (3 images in the case of 30 min total exposure time).

2.3. Wolter Optics Far-Field Interferometry (WOOFF)

Neutron grating interferometry is a collection of new imaging techniques exploring interference phenomena to image spatial distribution of refractive index of samples, the most common interferometer geometry being the Talbot-Lau. A new technique that we explore here is a far-field interferometer, which consists of two phase modulating gratings of period P_g. When illuminated by a wave with sufficient transverse coherence the gratings produce a moiré pattern at the detector with a period which depends only on the geometry of the setup and is independent of wavelength. However, the visibility of the fringes is wavelength dependent. One can use a source grating with period P_s to create the transverse coherence while preserving a high intensity of the neutron beam. The relative positions of source, gratings, Wolter optic, sample and detector are inter-related through the following considerations [7]. The detector, optic and sample positions are fixed by the geometry of the optic. The separation from the source grating to detector, L, is determined by L = P_s D/P_g, where D is the separation of the two phase gratings. In order to have transverse coherence at the sample larger than the autocorrelation length, ξ, the gratings are placed downstream of the sample position, z, so that L = z + F and ξ = λ z/P_s. The period of the moiré pattern at the detector will be enlarged by the magnification of the optic, in this case a magnification of 4.

As with other harmonic imaging methods, if the sample has a dispersion in the microstructure, the visibility of the interference pattern will be reduced [13]. If one can tune the autocorrelation length of the interferometer, ξ, and measure the reduction in the fringe visibility as a function of ξ, one measures the pair distribution function of the sample. This function is connected to the form factor measured in small angle scattering measurements via the Hankel transformation. However, these measurements didn’t scan ξ, rather only the thickness of the sample was increased to observe a change in fringe visibility.

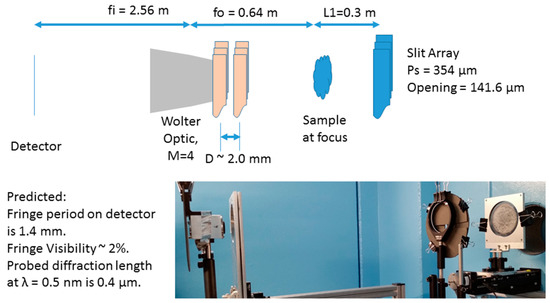

For this demonstration, we employed optical components that were readily available, namely the phase modulating gratings had a period of 2.4 µm, the source grating was composed of Gadox powder deposited onto silicon combs with a period of 354 µm and duty cycle of 40%, and the Wolter optic previously described. This led to the configuration, which is shown in Figure 3, and which was expected to produce a moiré pattern with 1.4 mm period and 2% fringe visibility (FV) at the detector. The theoretical limit of the FV with two ideal gratings and a point source is above 50% for a broadband neutron beam. The 2% estimate comes from the 4.5% FV of the earlier 2-grating far field experiments [6], modified by the geometry of the 0.354 mm slit array. Two factors that reduced the FV are 1: the mismatch between the available grating periods (2 gratings of the same 2.4 um period) and the 0.354 mm slit array period within the geometry of the Wolter lens setup; 2: grating profiles which we knew were not ideal from the earlier FFI experiments [6]. If we purpose-made gratings for the Wolter lens setup, the FV could have been higher by an order of magnitude.

The ability to observe the moiré pattern requires fine angular alignment of the phase gratings (0.001°). The moiré pattern created with a source grating is also only observed for a small range of phase grating separations. In order to facilitate the initial alignment, the gratings of the far-field interferometer were first aligned using a single source slit with a 8.4 m total flight path length, similar to the configuration described previously [8]. Once aligned, the gratings were translated along the rail system of the CNII which maintained their mutual alignment.

3. Results

3.1. WHIMS

Images of the solenoid at magnetic fields of 0 mT, 0.375 mT, 0.75 mT, 1.125 mT and 1.5 mT were acquired. The images were background corrected, and the states with magnetic field were normalized to that with no field, and these are shown in Figure 4.

The transmission through the polarizer-solenoid-analyzer system depends on the neutron spin orientation. The spin precession angle φ in the applied field B at the neutron velocity $v$ is

$$\mathsf{\phi }={\omega }_{L}t=\frac{{\mathsf{\gamma }}_L}{v}{{\displaystyle \int }}_{path}Bds,$$

(1)

where γ_L is the gyromagnetic ratio and neutron Larmor precession frequency ω_L in the magnetic field B. The transmission of the polarized ³He analyzer strongly depends on the spin state of the neutrons. The attenuation of the polarized beam due to the spin rotation is given by

$$\mathrm{I}(x,y)={\mathrm{I}}_0(x,y)·\frac{1}{2}(1+\cos \mathsf{\phi }(x,y))$$

(2)

Therefore, the transmission is suppressed when the field corresponds to φ = π, and recovered for φ = 2π.

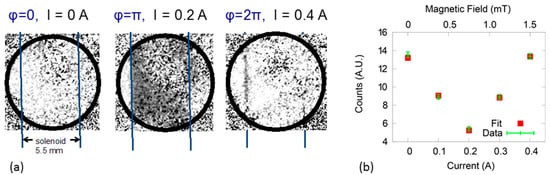

Figure 4 shows 3 images (a) and integrated intensities (b) as a function of the applied magnetic field. Flat-field images with the beam blocked were subtracted. In the bottom figure, the intensity is integrated over the area of the solenoid and the change in intensity is fitted with the cosine Function (1), taking into account the parameters of both ³He cells. The two fitting parameters are the period of the oscillation, (0.403 ± 0.006) A, and the background, (4.6 ± 0.1) in arbitrary units, where the uncertainty is the one-sigma root mean square deviation from the least squares fit. Interestingly, at 0.4 A (φ = 2π) the solenoid’s boundary is clearly visible as a sharp line. This is due to the neutron trajectories, which cross the solenoid near the corners, and thus their path lengths are shorter than needed to rotate the spin by 2π. Note that the inhomogeneity near the center of the images is due to under-illumination of the mirrors by the collimated beam, as discussed earlier.

In addition, we modeled our experiment in ray-tracing simulations using McStas [14,15], including the polarizer, solenoid, analyzer and Wolter mirrors. The calculated intensity at the detector is a cosine function with the period of 0.4 A, consistent with the measurements, validating the concept of the polarized neutron microscope.

3.2. WOOFF

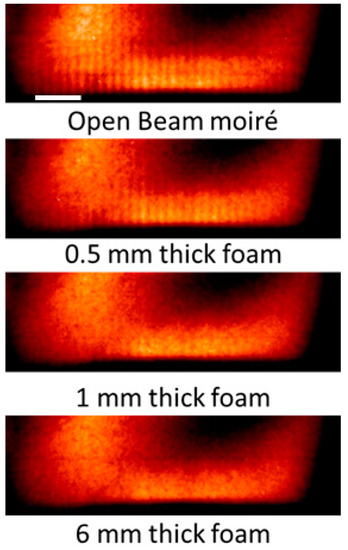

The measurements were obtained for only one autocorrelation length, ξ = 0.4 µm. (Limited beam time did not permit extensive studies of the WOOFF setup.) To determine if the observed moiré pattern was due to the far field interferometer and not merely an image of the source slit, the gratings were removed and the pattern disappeared. Additionally, three thickness of high temperature insulation were placed at the focus of the Wolter optic. The foam is composed of aluminosilicate fibers with diameter 3.5 µm and length of about 50 µm with a material mass density of 0.1 g/cm³ and was shown previously to have high transmission, but strong attenuation of the far-field fringe visibility. As is shown in Figure 5, the Wolter optic preserves the coherence of the beam so that the moiré pattern of the open beam is clearly observed and has the expected period, measured to be 1.4 mm. A higher fringe visibility than expected was observed, likely due to the fact that the Wolter optic preferentially focuses longer wavelengths. Further, the foam attenuates the fringe visibility but not the overall intensity indicating that the observed moiré was in fact due to the far-field interferometer and not merely the image of the source slit grating. (The foam destroys the incident beam coherence because of the interference between the incident and forward-scattered beam. Therefore, the fringe visibility also decreases.).

4. Discussion and Conclusions

We have demonstrated that Wolter optics can be used to obtain high spatial resolution images of the magnetic field distribution. As well, the mirrors are of sufficient quality to preserve the transverse coherence of grating interferometers. The observed count rates were low due to the limited divergence of the beam (about 0.5°), whereas the optimal divergence would be about 1.3° for the mirrors employed here. The reduced divergence also reduces the field of view and introduces non-homogeneities into the open beam image. While the observed spatial resolution of about 100 µm is better than typically observed for polarized neutron imaging, finer spatial resolution would be desired. As a comparison, in polarized imaging, a sample to detector separation of about 50 cm is needed to accommodate the neutron analyzer after the sample, creating a geometric unsharpness on the order of 1 mm. Using the optics employed in this work, it is possible to improve the time resolution and field of view by use a focusing guide (such as a parabolic mirror) to produce the optimal divergence. Further improvements can be realized through design of instrument specific optics. We are pursuing the development of a 1:1 optic which will consist of 10 nested shells ranging in diameter from 10 to 15 cm with a total mirror length of 20 cm with object and image focal lengths of 3.5 m. New mirror fabrication methods are being pursued that are believed will improve the angular resolution of the mirrors from 100 µrad to 5 µrad so that the achievable resolution will be ~20 µm with 3.5 m focal lengths. Ray tracing results indicate that this optic will improve time resolution by about a factor of about 70 with a field of view of at least 1 cm [16]. With such improved optics, the spatial resolution of magnetic imaging and far-field interferometry will be substantially improved over the current state of the art.
