Review

Comparison of Properties with Relevance for the Automotive Sector in Mechanically Recycled and Virgin Polypropylene

by
Abdelhak Ladhari
1,†,
Esra Kucukpinar
2,
Henning Stoll
1 and
Sven Sängerlaub
1,3,*,†
1
Department of Mechanical, Automotive and Aeronautical Engineering, Munich University of Applied Sciences HM, Lothstraße 38, 80335 Munich, Germany
2
Fraunhofer Institute for Process Engineering and Packaging IVV, Giggenhauser Strasse 35, 85354 Freising, Germany
3
Department of Building Services Engineering, Paper and Packaging Technology and Print and Media Technology, Munich University of Applied Sciences HM, Lothstraße 38, 80335 Munich, Germany
*
Author to whom correspondence should be addressed.
†
Both authors contributed equally to this work.
Recycling 2021, 6(4), 76; https://doi.org/10.3390/recycling6040076
Submission received: 18 October 2021 / Revised: 18 November 2021 / Accepted: 21 November 2021 / Published: 24 November 2021
(This article belongs to the Special Issue Feature Papers in Recycling 2021)
Browse Figures
Review Reports Versions Notes

Abstract

:
Polypropylene (PP) has a high recycling potential. However, the properties of mechanically recycled PP (R-PP) have not been fully compared to those of virgin PP (V-PP). Therefore, in this study, properties of R-PP and V-PP were compared using data from recyclers, virgin plastic suppliers, and the literature. The properties of recyclates could not be directly correlated either with the properties of the virgin polymers from which the recyclates were made or the recycling parameters. It was found that the MFR of R-PP was higher; MFR R-PP had a median value (m) of 11 g/10 min while MFR V-PP had a median value of 6.3 g/10 min (at 230 °C and with 2.16 kg). In terms of mechanical properties, in many cases R-PP exhibited stiffer and more brittle behavior, with a slightly higher Young’s modulus (ER-PP = 1400 and EV-PP = 1200 MPa), a reduced elongation at break (ɛbR-PP = 4 l.-% and ɛbV-PP = 83 l.-%), and notched charpy impact strength (NCISR-PP = 4.8 and NCISV-PP = 7.5 kJ/m2). However, the values for every property had a broad distribution. In addition to existing information from the literature, our research sheds fresh light on the variation of the characteristics of recycled polypropylenes presently on the market.

1. Introduction

1.1. Plastics in the Car Industry

Plastics and the automobile industry have a shared history dating back to 1839, when Charles Goodyear developed vulcanized rubber by altering the mechanical characteristics of natural rubber from the Pará rubber tree. This rubber was the one of the world’s first polymers; it had a high relevance for cars and was quickly adopted for use in automobile tires [1].
After World War II, the widespread usage of plastics in the automotive sector underwent a major shift. The potential to create a low-cost petroleum-derived gasoline provided a cohesive and dependable raw material for the manufacturing of low-cost plastics [2]. This presented the automobile sector with many possibilities. Today, the automotive industry ranks third in terms of plastics consumption, after packaging and building and construction [3].
The use of plastics in the car manufacturing industry presents several advantages, such as the following: (1) Fuel efficiency: The incorporation of plastics into vehicle design improves fuel efficiency and reduces overall emissions. Substituting plastics for heavier materials results in an overall weight decrease, with a 10% weight reduction resulting in a 3% to 7% increase in fuel economy [4]. (2) Design and innovation: External plastic vehicle cladding enables automobile designers to develop novel designs that would not be achievable with metal. (3) Safety: Polymers are used to construct automobile safety systems such as airbags and seatbelts. Exterior items, for example bumpers, serve as shields, assisting in the prevention and/or mitigation of damage to the vehicle’s body caused by low-speed accidents. Bumpers are important because they lower the chance of pedestrian harm in low-speed crashes by absorbing energy and separating pedestrians from the more rigid structural sections of the automobile [5]. (4) Weather resistance: synthetic coatings on metal surfaces are employed to minimize the risk of corrosion caused by salt damage, high heat, and water exposure.
The percentages of the top six plastics and polymers used in automobiles with different powertrain configurations manufactured between 2016 and 2020 are as follows: 44% PP, 4% PBT, PET, 5% ABS, 7% PE, 8% PA, 9% PUR, and 23% others [6]. There are currently approximately 39 different types of plastics and polymers used in the manufacture of automobiles [7]; however, 72 kg of the 158 kg of plastic used is polypropylene (PP) [6]. European manufacturers alone use over one million tons of PP per year [8], which gives PP a huge recycling potential. Key automotive application features of PP are its low coefficient of linear thermal expansion and specific gravity, high chemical resistance, and good weatherability, processability, and impact/stiffness balance. PP characteristics may be further improved with the use of additives such as long-glass fiber reinforcing. Main applications include bumpers, air ducts, battery cases and trays, fender liners, interior trim, instrumental panels, and door trims [6]. Typical PP property requirements for automotive applications are given in Table S1.
Automotive manufacturers worldwide have committed to reducing their industrial footprints and plastics have been identified as a critical component of these environmental sustainability initiatives. Volvo, the Swedish car manufacturer, stated that by 2025, at least 25% of the plastics used in its vehicles would come from recycled materials. As recyclates are increasingly being used to create new automotive components [9], competition between the recycled plastics may occur. To prevent production problems, it is necessary to ensure a continuous supply of recycled material throughout the manufacturing process of an automobile component. Therefore, recycling becomes interesting, but in order to use recycled plastics as a substitute, recyclers must guarantee that they have sufficient technical and quality properties compared to the virgin material. The substitution factor is the key parameter that describes the effect of substituting recycled plastic for virgin plastic, it being the ratio of virgin to recycled material for the same application. A substitution factor of 1 indicates that recycled material can replace virgin plastic without increasing the product’s weight. When more recycling material is required to compensate for physical properties, the substitution factor is less than 1. If substitution of virgin materials in products is not possible and the R-PP is instead used in lower-quality products, it is called “downcycling” [10].

1.2. Degradation of PP during Multiple Extrusions

During extrusion, PP degrades, which is a known phenomenon. Different research groups have conducted multiple extrusion experiments to analyze the influence of this degradation. The subjects of these investigations were thermal properties (DSC, TGA), rheological measurements (MFR), mechanical properties, and spectroscopy [11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33]. Molecular weight decreases [13,34] by chain scission [28,35] causing lower viscosity and higher MFR [13,15,25,36,37,38]. The molecular weight distribution is narrowed, which is associated with higher flowability of the polymer melt but also lower mechanical performance of parts thereof [34]. A higher extrusion temperature results in a higher MFR [37] caused by more chain scission. In addition, a higher crystallinity [11,15,36] can be explained by smaller macromolecules, which arrange and crystallize easier. A higher crystallinity due to chain scission during multiple extrusion has been associated in several studies (but not all) with a higher tensile modulus and tensile strength [36] but a lower elongation at break [11,16]. However, in contrast, a lower tensile strength (here yield stress) was observed with more extrusion cycles [13]. Virgin PP has a higher resistance to break due to its higher molecular weight [30].
PP recyclates often contain traces of impurities such as other polymers (PA, PE, PET) [39,40]. In such samples, lower tensile impact strength and strain but higher tensile strength and tensile modulus were observed [39].

1.3. Intention of This Study

The aim of this study was to compare the mechanical and rheological properties of market-available recycled polypropylene (R-PP) with those of virgin polypropylene (V-PP). We used the presented results of product data sheets and of various studies. Our hypotheses were as follows:
Hypothesis 1 (H1).
R-PP has a higher MFR, tensile modulus, and yield strength compared to V-PP;
Hypothesis 2 (H2).
R-PP has a lower elongation at break and charpy impact strength compared to V-PP.
We based our assumption on the phenomenon of chain scission, which causes a higher macromolecule mobility and therefore a higher crystallinity and lower elongation at break.

2. Results and Discussion

2.1. Rheological Properties (MFR)

The melt flow rate (MFR) is a parameter that indicates the resistance to flow of a polymer melt (viscosity) at a particular temperature and applied force over a specified length of time. All values here were measured at 230 °C and with 2.16 kg weight. Full viscosity curves were not provided by the suppliers.
Figure 1 shows that both R-PP and V-PP MFR values spanned a broad range. MFRR-PP had a median value of 11 g/10 min (this means that 50% of the values collected for R-PP were over 11 g/10 min) while MFRV-PP had a median value of 6.25 g/10 min.
MFR indirectly correlates with molecular weight (Mw), with a low melt flow rate indicating a high Mw [41]. Multiple extrusions have been demonstrated to result in a reduction in the average molecular weight [24,42]. The decrease in molecular weight has been ascribed to a chain scission mechanism caused by thermomechanical effects [43]. Therefore, the result matches prior findings on the Mw reduction of PP due to the recycling process. Stabilizers may be used to avoid this increase in MFI, but they also are exhausted through recycling operations [15]. Information about their use in the present samples is unknown.
The values found for R-PP were still acceptable both for injection and blow molding processes. MFR values of 1 to 100 g/10 min (230 °C/2.16 kg) for injection molding, 1.0–2.5 g/10 min for extrusion blow molding, and 10–25 g/10 min for injection blow molding have been reported to be suitable [34]. Injection molding and the blow molding technique are extensively utilized in the automobile sector due to their ability to produce complicated products in a variety of forms and shapes that would be difficult to achieve with other technologies even at a considerably greater cost [44].

2.2. Mechanical Properties

2.2.1. Tensile Modulus

R-PP had slightly a higher tensile modulus than V-PP (Figure 2); this could be explained by the higher crystallinity of the R-PP. With each recycling cycle, the degree of crystallinity increases [16]. As molecular weight decreases, chain mobility increases and crystallization happens in a more organized manner [45]. Crystalline materials are considerably stiffer than the same plastics in an amorphous state [15,46] due to a higher tensile modulus.
A higher tensile modulus can also be caused by inorganic fillers used to reinforce PP. Fillers can act as nucleating agents. Nucleating agents increase crystallinity [47,48,49].

2.2.2. Yield Strength

The median of the R-PP yield strength (σy) was similar to that of the V-PP (Figure 3). However, the R-PP values had a wider distribution. The possible increase in yield strength could be associated with the higher crystallinity of the recycled polypropylene, which results from increased intermolecular bonding in the crystalline phase [45].

2.2.3. Elongation at Break

The median of the elongation of break of R-PP was lower than that of V-PP (Figure 4). The elongation at break is expected to drop as the molecular weight decreases, because shorter chains are easier to untangle, allowing the test specimen to break at a lower elongation percentage. Along with variations in the molecular weight, the increase of crystallinity as a consequence of chain scission also influences the elongation at break. In contrast to tensile modulus, increasing crystallinity decreases the value of elongation at break because the stiff crystal particles are unable to stretch like the amorphous polymer chains [50]. Another explanation for the reduced elongation of break of recyclates is impurities [40]. Their contents in the recyclates were not known and their impact could therefore not be evaluated.

2.2.4. Charpy Impact Strength

Figure 5 shows a significant decrease in the median of the charpy impact strength for R-PP in comparison to V-PP. In general, a high molecular weight [41] and a narrow molecular weight distribution enhance impact resistance, whereas increasing crystallinity and voids reduce it. The lower charpy impact strength makes R-PP unsuitable for use in high concentrations in new car bumpers, because the energy-absorbing medium in a good bumper system should withstand the impact and absorb the crash energy to limit vehicle damage. A good bumper system should also have enough resilience and deformability [5].

2.2.5. Correlation of Properties

In Figure 6, tensile modulus and MFR are correlated, showing data specifications for both results. There was no correlation observed between the tensile modulus and MFR. However, values for V-PP scattered more than those for R-PP. Due to the fact the exact compositions of the PPs were unknown, results could not be significantly correlated.
In Figure 7, tensile modulus and elongation at break are correlated, showing data specifications for both results. A higher crystallinity correlated with a higher tensile strength and a lower elongation at break. There was no strong correlation observed between the tensile modulus and elongation at break. However, values for R-PP scattered more than those for V-PP. Due to the fact the exact compositions of the PPs were unknown, results could not be significantly correlated.

3. Materials and Methods

In order to gather information on the mechanical and rheological properties of R-PP, over 570 plastic recycling plants’ websites were visited or directly contacted through email to get information in the primary research stage. Three percent of the companies (i.e., 18 plants) had datasheets on their websites or were willing to provide them upon request. In the secondary research, data were mainly collected from research papers and journal articles. For V-PP, most of the information was obtained from the websites of plastic suppliers, where most suppliers provided product datasheets.
To compare the technical properties of R-PP with those of V-PP, quantitative data were required. Table 1 displays the data collection matrix.
Table 2 summarizes the data gathered on V-PP and R-PP, as well as the equivalent number of values collected.
The results of the data collection are given in Table S2. The data for V-PP lacked information on the molecular weight distribution, conformation, crystallinity, extrusion process, flexural strength, additives, and the material’s chemical composition. The data for R-PP lacked, in addition, information about the number of extrusions and impurities. There was also no information about the grades of PP (homo-polymer, random copolymer, or block copolymer). These three grades cannot be separated during the recycling sorting process because the majority of plastic recycling facilities sort plastics using near-infrared reflection (NIR) spectroscopy [24]; this sorting method can sort the main polymers but not the grades of the polymers. All types of PP are blended and marketed as a single product after recycling. To obtain insight into the rheological and mechanical characteristics of various kinds of V-PP, datasheets were randomly chosen.
There are two widely used testing methods for determining the tensile properties of resin samples: (1) American Society of Testing Materials (ASTM): the ASTM D638 standard is primarily used in North America. (2) International Standards Organization (ISO): the ISO 527 standard is used primarily throughout Europe and Asia. While there are many variations between the injection molding and analytical testing techniques specified by the ISO and ASTM standards [42], the findings achieved using each approach are similar for the majority of tensile tests [43]. Therefore, the outcomes of both methods were evaluated together. However, there was a considerable variation in the impact resistance recorded for various resin types using each protocol [15] (ASTM D6110 and ISO 179); thus, only results from ISO 179 were compared in this study. As for MFI, the two major test standards are ASTM D1238 and ISO 1133; both standards measure the same property and should deliver the same result when properly conducted.
To make comparisons easier and to gain a better understanding of the distribution of the data collected for each property of V-PP and R-PP, Excel box plots were used. In a box plot, quantitative data are split into quartiles, with a line drawn between the first and third quartiles to represent the median. Outside the first and third quartiles, the minima and maxima are depicted with lines. The interquartile range (IQR) is the gap between the third and first quartiles. Excel classifies a data item as an “outlier” if it is greater than the third quartile by 1.5 times the IQR or smaller than the first quartile by 1.5 times the IQR.

4. Conclusions

As expected from and in harmony with the general theory of polymer processing and polymer physics, the findings of our study indicate that the median of market-available recycled polypropylene is lower for the impact strength and the elongation at break but slightly higher for the tensile modulus compared to market-available virgin polypropylene.
Even though it was impossible from the available market data to draw a direct dependency between the properties of virgin and recycled PP, it can be assumed that both correlate with each other (see Section 1.2). It can be assumed further that recycling causes changes in the mechanical properties. Interestingly, and as expected, the properties of virgin PPs scattered widely, reflecting the many PP grades available on the market.
Our results should be considered when making substitutions of virgin material in car products. The value of the recyclates generated from PP-based automotive parts can be increased by identifying applications in which the recyclates’ characteristics of a higher tensile modulus can be uniquely utilized even though the recycled material is more brittle with a lower elongation at break. It is worth mentioning that, because of the high variability of results, cases can be found where recycled PP has higher values than virgin PP for a technical parameter.
The exact composition, molecular weight distribution, and conformity of the R-PP and V-PP samples were not known. Therefore, it was not possible in this study to attribute properties and property changes to additives or, in the case of R-PP, to possible impurities.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/recycling6040076/s1. Table S1: Key functional properties of PP for automotive application, Table S2: Data collected from product data sheets, R: recycled PP, V: virgin PP; PP types and compositions unknown, File S1: References for polymer properties.

Author Contributions

Conceptualization, A.L., S.S. and H.S.; methodology, A.L.; formal analysis, A.L.; investigation, A.L.; data curation, A.L.; writing—original draft preparation, A.L., S.S.; writing—review and editing, S.S., E.K. and H.S.; supervision, S.S.; funding acquisition, S.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the Munich University of Applied Sciences HM and the German Research Foundation (DFG) through the “Open Access Publishing” program.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data sources are listed in the references.

Conflicts of Interest

The authors declare no conflict of interest.

Remark

Results of this work were used previously for the Bachelor thesis of the main author Abdelhak Ladhari.

References

  1. Lattermann, G. From Rubber Tires to Plastic Cars. Kunstst. Int. 2010, 5, 56–61. [Google Scholar]
  2. Feldman, D. Polymer History. Des. Monomers Polym. 2008, 11, 1–15. [Google Scholar] [CrossRef]
  3. Stanic, S.; Koch, T.; Schmid, K.; Knaus, S.; Archodoulaki, V.-M. Improving Rheological and Mechanical Properties of Various Virgin and Recycled Polypropylenes by Blending with Long-Chain Branched Polypropylene. Polymer 2021, 13, 1137. [Google Scholar] [CrossRef]
  4. McAuley, J.W. Global Sustainability and Key Needs in Future Automotive Design. Environ. Sci. Technol. 2003, 37, 5414–5416. [Google Scholar] [CrossRef] [PubMed]
  5. Pradeep, S.A.; Iyer, R.K.; Kazan, H.; Pilla, S. Automotive Applications of Plastics: Past, Present, and Future. In Applied Plastics Engineering Handbook. Processing, Materials, and Applications; Kutz, M., Ed.; Elsevier/William Andrew: Amsterdam, The Netherlands; Boston, MA, USA; Heidelberg, Germany, 2017; pp. 651–673. [Google Scholar]
  6. Emilsson, E.; Dahllöf, L.; Ljunggren, M. Plastics in Passenger Cars: A Comparison Over Types and Time; IVL Swedish Environmental Research Institute Ltd.: Stockholm, Sweden, 2019. [Google Scholar]
  7. The European Recycling Industries’ Confederation. EuRIC Call for Recycled Plastic Content in Cars. Press Release, 24 February 2020, Brussels, Belgium.
  8. Toni Gallone, A.Z.-G. Closed-loop polypropylene, an opportunity for the automotive sector. Field Actions Sci. Rep. 2019, 19, 48–53. [Google Scholar]
  9. Mashek, W.; Holmes, K.; Martin, K. Automotive Recycling: Devaluated is Now Revalued; The Plastics Industry Trade Association: Washington, DC, USA, 2016; p. 48. [Google Scholar]
  10. Jenseit, W.; Stahl, H.; Wollny, V.; Wittlinger, R. Recovery Options for Plastic Parts from End-of-Life Vehicles: An Eco-Efficiency Assessment; Institute for Applied Ecology: Darmstadt, Germany, 2003; p. 141. [Google Scholar]
  11. da Costa, H.M.; Ramos, V.D.; de Oliveira, M.G. Degradation of polypropylene (PP) during multiple extrusions: Thermal analysis, mechanical properties and analysis of variance. Polym. Test. 2007, 26, 676–684. [Google Scholar] [CrossRef]
  12. Delva, L.; Ragaert, K.; Degrieck, J.; Cardon, L. The Effect of Multiple Extrusions on the Properties of Montmorillonite Filled Polypropylene. Polymer 2014, 6, 2912–2927. [Google Scholar] [CrossRef] [Green Version]
  13. Guerrica-Echevarria, G.; Eguiazábal, J.; Nazábal, J. Effects of reprocessing conditions on the properties of unfilled and talc-filled polypropylene. Polym. Degrad. Stab. 1996, 53, 1–8. [Google Scholar] [CrossRef]
  14. Wang, K.; Addiego, F.; Bahlouli, N.; Ahzi, S.; Remond, Y.; Toniazzo, V.; Muller, R. Analysis of thermomechanical reprocessing effects on polypropylene/ethylene octene copolymer blends. Polym. Degrad. Stab. 2012, 97, 1475–1484. [Google Scholar] [CrossRef]
  15. Aurrekoetxea, J.; Sarrionandia, M.; Urrutibeascoa, I.; Maspoch, M.L. Effects of recycling on the microstructure and the mechanical properties of isotactic polypropylene. J. Mater. Sci. 2001, 36, 2607–2613. [Google Scholar] [CrossRef]
  16. Jansson, A.; Möller, K.; Gevert, T. Degradation of post-consumer polypropylene materials exposed to simulated recycling—Mechanical properties. Polym. Degrad. Stab. 2003, 82, 37–46. [Google Scholar] [CrossRef]
  17. Strömberg, E.; Karlsson, S. The design of a test protocol to model the degradation of polyolefins during recycling and service life. J. Appl. Polym. Sci. 2009, 112, 1835–1844. [Google Scholar] [CrossRef]
  18. Camacho, W.; Karlsson, S. Assessment of thermal and thermo-oxidative stability of multi-extruded recycled PP, HDPE and a blend thereof. Polym. Degrad. Stab. 2002, 78, 385–391. [Google Scholar] [CrossRef]
  19. Sarrionandia, M.; Lopez-Arraiza, A.; Aurrekoetxea, J.; Arostegui, A. Structure and mechanical properties of a talc-filled polypropylene/ethylene-propylene-diene composite after reprocessing in the melt state. J. Appl. Polym. Sci. 2009, 114, 1195–1201. [Google Scholar] [CrossRef]
  20. Maier, C.; Calafut, T. 9-Recycling, in Polypropylene the Definitive User’s Guide and Databook; William Andrew Publishing: Norwich, NY, USA, 1998; pp. 75–78. [Google Scholar]
  21. Klitkou, R.; Jensen, E.A.; Christiansen, J.D.C. Effect of multiple extrusions on the impact properties of polypropylene/clay nanocomposites. J. Appl. Polym. Sci. 2012, 126, 620–630. [Google Scholar] [CrossRef]
  22. Hermanova, S.; Tocháček, J.; Jancar, J.; Kalfus, J. Effect of multiple extrusion on molecular structure of polypropylene impact copolymer. Polym. Degrad. Stab. 2009, 94, 1722–1727. [Google Scholar] [CrossRef]
  23. Tocháček, J.; Jančář, J.; Kalfus, J.; Hermanová, S. Processing stability of polypropylene impact-copolymer during multiple extrusion—Effect of polymerization technology. Polym. Degrad. Stab. 2011, 96, 491–498. [Google Scholar] [CrossRef]
  24. Tocháček, J.; Jančář, J.; Kalfus, J.; Zbořilová, P.; Buráň, Z. Degradation of polypropylene impact-copolymer during processing. Polym. Degrad. Stab. 2008, 93, 770–775. [Google Scholar] [CrossRef]
  25. da Costa, H.M.; Ramos, V.D.; Rocha, M.C. Rheological properties of polypropylene during multiple extrusion. Polym. Test. 2005, 24, 86–93. [Google Scholar] [CrossRef]
  26. Gonzàlez, V.A.; Neira-Velázquez, G.; Angulo-Sánchez, J.L. Polypropylene chain scissions and molecular weight changes in multiple extrusion. Polym. Degrad. Stab. 1998, 60, 33–42. [Google Scholar] [CrossRef]
  27. Silvano, J.D.R.; Rodrigues, S.A.; Marini, J.; Bretas, R.E.; Canevarolo, S.; Carvalho, B.D.M.; Pinheiro, L.A. Effect of reprocessing and clay concentration on the degradation of polypropylene/montmorillonite nanocomposites during twin screw extrusion. Polym. Degrad. Stab. 2013, 98, 801–808. [Google Scholar] [CrossRef]
  28. Hinsken, H.; Moss, S.; Pauquet, J.-R.; Zweifel, H. Degradation of polyolefins during melt processing. Polym. Degrad. Stab. 1991, 34, 279–293. [Google Scholar] [CrossRef]
  29. Hamester, L.S.; Muñoz, P.A.R.; Canevarolo, S.V. A new device for in-line colorimetric quantification of polypropylene degradation under multiple extrusions. Polym. Test. 2015, 41, 117–123. [Google Scholar] [CrossRef] [Green Version]
  30. Aurrekoetxea, J.; Sarrionandia, M.; Urrutibeascoa, I.; Maspoch, M.L. Fracture behaviour of virgin and recycled isotactic polypropylene. J. Mater. Sci. 2001, 36, 5073–5078. [Google Scholar] [CrossRef]
  31. Wang, K.; Bahlouli, N.; Addiego, F.; Ahzi, S.; Remond, Y.; Ruch, D.; Muller, R. Effect of talc content on the degradation of re-extruded polypropylene/talc composites. Polym. Degrad. Stab. 2013, 98, 1275–1286. [Google Scholar] [CrossRef]
  32. Canevarolo, S.V.; Babetto, A.C. Effect of screw element type in degradation of polypropylene upon multiple extrusions. Adv. Polym. Technol. 2002, 21, 243–249. [Google Scholar] [CrossRef]
  33. Cáceres, C.A.; Zborowski, L.; Canevarolo, S.V. Thermo-mechanical degradation and VOC emission of unstabilized and stabilized polypropylene copolymer during multiple Extrusions. Mater. Res. 2011, 14, 569–575. [Google Scholar] [CrossRef] [Green Version]
  34. Gahleitner, M.; Paulik, C. Polypropylene. In Ullmann’s Encyclopedia of Industrial Chemistry; Wiley-VCH: Weinheim, Germany, 2003; pp. 1–44. [Google Scholar]
  35. Canevarolo, S. Chain scission distribution function for polypropylene degradation during multiple extrusions. Polym. Degrad. Stab. 2000, 70, 71–76. [Google Scholar] [CrossRef]
  36. Huang, P.-W.; Peng, H.-S. Number of Times Recycled and Its Effect on the Recyclability, Fluidity and Tensile Properties of Polypropylene Injection Molded Parts. Sustainability 2021, 13, 11085. [Google Scholar] [CrossRef]
  37. Lehner, M.; Schlemmer, D.; Sängerlaub, S. Recycling of blends made of polypropylene and an iron-based oxygen scavenger—Influence of multiple extrusions on the polymer stability and the oxygen absorption capacity. Polym. Degrad. Stab. 2015, 122, 122–132. [Google Scholar] [CrossRef]
  38. Saikrishnan, S.; Jubinville, D.; Tzoganakis, C.; Mekonnen, T.H. Thermo-mechanical degradation of polypropylene (PP) and low-density polyethylene (LDPE) blends exposed to simulated recycling. Polym. Degrad. Stab. 2020, 182, 109390. [Google Scholar] [CrossRef]
  39. Gall, M.; Steinbichler, G.; Lang, R.W. Learnings about design from recycling by using post-consumer polypropylene as a core layer in a co-injection molded sandwich structure product. Mater. Des. 2021, 202, 109576. [Google Scholar] [CrossRef]
  40. Tratzi, P.; Giuliani, C.; Torre, M.; Tomassetti, L.; Petrucci, R.; Iannoni, A.; Torre, L.; Genova, S.; Paolini, V.; Petracchini, F.; et al. Effect of Hard Plastic Waste on the Quality of Recycled Polypropylene Blends. Recycling 2021, 6, 58. [Google Scholar] [CrossRef]
  41. Gahleitner, M. Melt rheology of polyolefins. Prog. Polym. Sci. 2001, 26, 895–944. [Google Scholar] [CrossRef]
  42. Incarnato, L.; Scarfato, P.; Acierno, D. Rheological and mechanical properties of recycled polypropylene. Polym. Eng. Sci. 1999, 39, 749–755. [Google Scholar] [CrossRef]
  43. Ramírez-Vargas, E.; Navarro-Rodríguez, D.; Blanqueto-Menchaca, A.; Huerta-Martínez, B.; Palacios-Mezta, M. Degradation effects on the rheological and mechanical properties of multi-extruded blends of impact-modified polypropylene and poly(ethylene-co-vinyl acetate). Polym. Degrad. Stab. 2004, 86, 301–307. [Google Scholar] [CrossRef]
  44. Grand View Research. Automotive Plastics Market Size, Share & Trends Analysis Report by Product (PP, ABS, PU, PE, PC, PA, PVC, PMMA), By Application (Powertrain, Interior/Exterior Furnishings, Electrical Components), By Process, By Region, And Segment Forecasts, 2021–2028; Research Inc.: San Francisco, CA, USA, 2021. [Google Scholar]
  45. Balani, K.; Verma, V.; Agarwal, A.; Narayan, R. (Eds.) Physical, Thermal, and Mechanical Properties of Polymers, in Biosurfaces; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2014; pp. 329–344. [Google Scholar]
  46. Sokol, H. Comparison between ISO and ASTM Methods for Polypropylene Injetion Molding and Mechanical Testing. Master’s Thesis, Johns Hopkins University, Baltimore, MD, USA, 2018. [Google Scholar]
  47. Várdai, R.; Schäffer, Á.; Ferdinánd, M.; Lummerstorfer, T.; Jerabek, M.; Gahleitner, M.; Faludi, G.; Móczó, J.; Pukánszky, B. Crystalline structure and reinforcement in hybrid PP composites. J. Therm. Anal. Calorim. 2021, 1–10. [Google Scholar] [CrossRef]
  48. Mileva, D.; Tranchida, D.; Gahleitner, M. Designing polymer crystallinity: An industrial perspective. Polym. Cryst. 2018, 1, e10009. [Google Scholar] [CrossRef]
  49. Housmans, J.-W.; Gahleitner, M.; Peters, G.W.; Meijer, H.E. Structure—Property relations in molded, nucleated isotactic polypropylene. Polymer 2009, 50, 2304–2319. [Google Scholar] [CrossRef]
  50. Der Grüne Punkt Group. Systalen PP-C24000 gr000; Der Grüne Punkt Group: Cologne, Germany, 2021. [Google Scholar]
Recycling 06 00076 g001 550

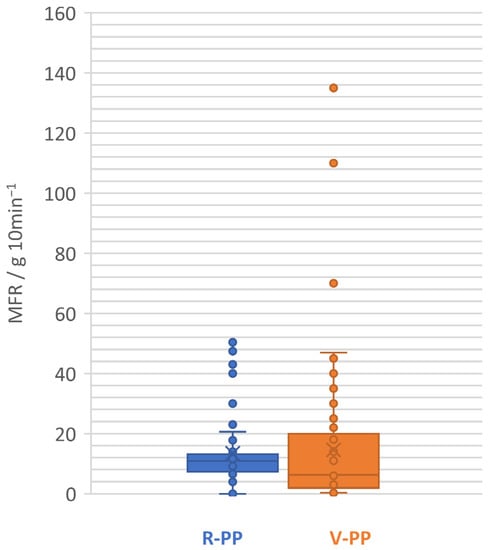

Figure 1. MFR values of recycled (R-PP) and virgin polypropylene (V-PP) at 230 °C and with 2.16 kg; for data, see Table S2.
Figure 1. MFR values of recycled (R-PP) and virgin polypropylene (V-PP) at 230 °C and with 2.16 kg; for data, see Table S2.
Recycling 06 00076 g001
Recycling 06 00076 g002 550

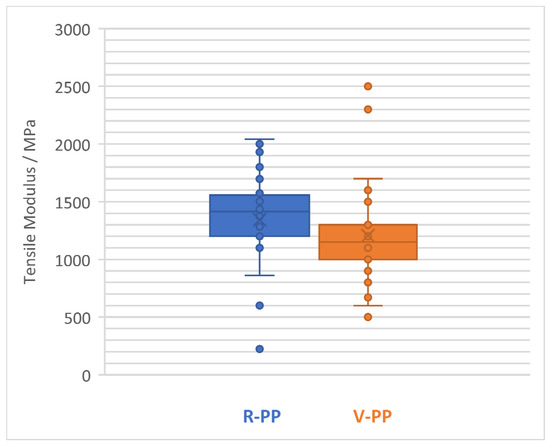

Figure 2. Tensile modulus values of R-PP and V-PP; for data, see Table S2.
Figure 2. Tensile modulus values of R-PP and V-PP; for data, see Table S2.
Recycling 06 00076 g002
Recycling 06 00076 g003 550

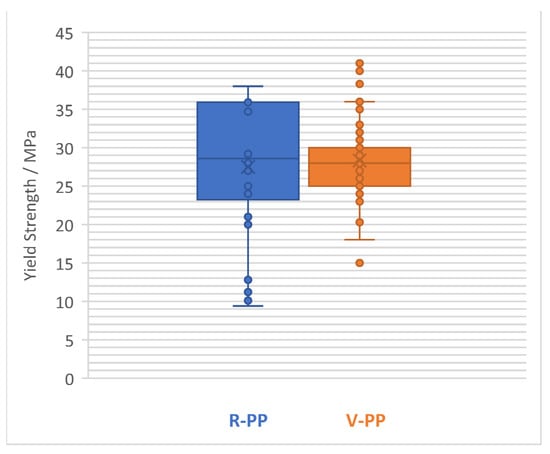

Figure 3. Yield strength of R-PP and V-PP; for data, see Table S2.
Figure 3. Yield strength of R-PP and V-PP; for data, see Table S2.
Recycling 06 00076 g003
Recycling 06 00076 g004 550

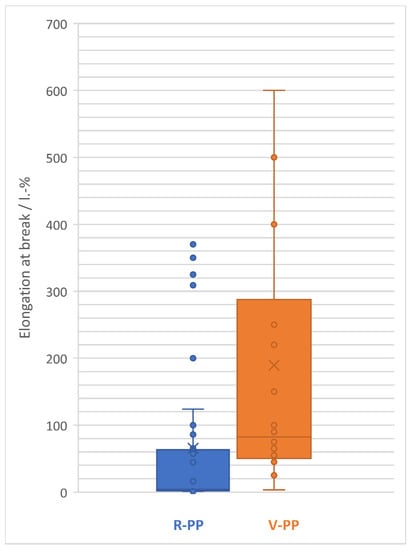

Figure 4. Elongation at break of R-PP and V-PP; for data, see Table S2.
Figure 4. Elongation at break of R-PP and V-PP; for data, see Table S2.
Recycling 06 00076 g004
Recycling 06 00076 g005 550

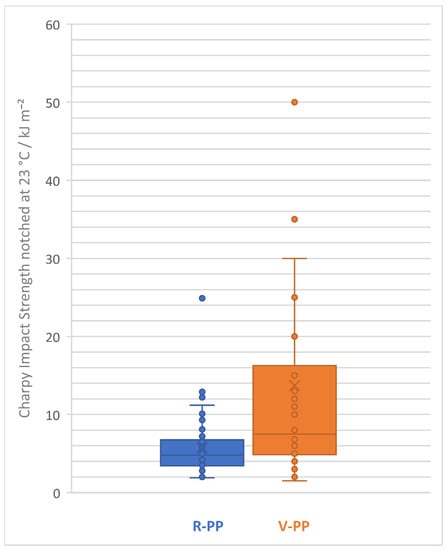

Figure 5. Charpy impact strength of R-PP and V-PP; for data, see Table S2.
Figure 5. Charpy impact strength of R-PP and V-PP; for data, see Table S2.
Recycling 06 00076 g005
Recycling 06 00076 g006 550

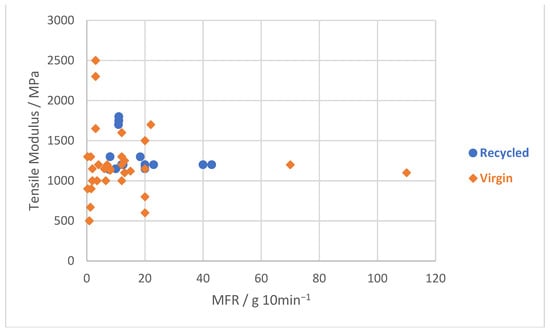

Figure 6. Tensile modulus and MFR values of R-PP and V-PP.
Figure 6. Tensile modulus and MFR values of R-PP and V-PP.
Recycling 06 00076 g006
Recycling 06 00076 g007 550

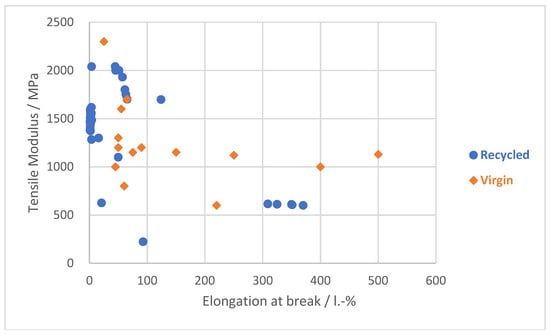

Figure 7. Tensile modulus and elongation at break values of R-PP and V-PP.
Figure 7. Tensile modulus and elongation at break values of R-PP and V-PP.
Recycling 06 00076 g007
Table
Table 1. Data collection matrix (see File S1); databases accessed March–July 2021.
Table 1. Data collection matrix (see File S1); databases accessed March–July 2021.
PerspectivePrimary ResearchSecondary Research
R-PPDatasheets from plastic recycling plantsResearch papers, journal articles
V-PPDatasheets from plastic suppliersReference books, publications
Table
Table 2. Data and number of values collected.
Table 2. Data and number of values collected.
PropertyR-PPV-PP
Melt flow rate (MFR)5174
Tensile modulus (E)5337
Tensile strength at yield (σy)4061
Elongation at break (ɛb)4520
Notched charpy impact strength5548
