Variation of Used Vegetable Oils’ Composition upon Treatment with Algerian Clays

Abstract

The treatment of used vegetable oils (UVOs) with clays represents a pivotal step in their industrial recycling process as well as one of the most challenging topics for researchers. In particular, cheap, effective, and sustainable powders need to be explored in order to develop new processes which produce beneficial results in relation to economic and environmental aspects. In this context, five samples within commercial and waste vegetable oils were treated with two sodium- and calcium-based bentonites employing a low oil/bentonite ratio (0.15 wt%). The outcomes of the processes were monitored by FT-IR spectroscopy and compared with the data relative to the parent commercial edible oil. In particular, treatment of FT-IR data by multivariate statistical analysis allowed us to determine a chemical fingerprint characteristic of each sample. Important relationships between the overall chemical composition and the specific clay employed and the treatment time (2 or 4 h) were highlighted. Finally, N₂ physisorption, TEM microscopy, and FT-IR analyses of the more efficient Na bentonite allowed us to characterize the material and thus to furnish all the information needed to set-up a general protocol for the partial regeneration of waste vegetable oil destined for further processing.

1. Introduction

The awareness of the importance of recycling wastes arising from urban areas has grown exponentially during the last years. In order to comply with the international targets of sustainability and CO₂ emission, it is pivotal to apply circular economy models to the development of new processes and to the reconversion of existing ones [1,2]. In a circular economy, the employment of wastes as raw materials is fundamental [3,4,5] and, thus, many recent national and international legislative efforts have been directed to the endorsement of this practice [6].

In this context, waste oils, especially vegetal ones, are ideal candidates as raw materials for circular processes [7]. In fact, used vegetable oils (UVOs) are produced in large amounts worldwide, are widely diffuse, and easy to recycle. Additionally, from the processing of UVOs it is possible to obtain many chemicals with applications in several market segments [8]: from energy (burning), transport (biodiesel) [9,10], industry (lubrication), food (edible ingredients), cosmetics [11], constructions [12], to bioplastics.

Waste vegetable oils are constituted in large part by cooking oils from private kitchens and catering industries, and in minor percentage by animal fats and greases [13]. In the European Union, UVOs are considered urban wastes and they are registered in the European catalogue of wastes under the code 19 08 09 (edible oils and fats) [14]. From the chemical point of view, UVOs are made by a mixture of fatty acids (mainly linoleic, oleic, and linolenic) [15] with a variable degree of esterification and oxidation, contaminated by metals, food residues, and other particles [16,17]. Nowadays, UVOs are collected, stored and finally periodically delivered to a recycling plant, which in 90% of the cases produces biodiesel [18]. After collecting and before storage, the waste is usually treated in order to provide the recycling facility with a raw material of acceptable quality. This preliminary treatment is mainly directed to the adjustment of the total acidity, which must be more than 3–3.5 units to avoid undesired side reactions during the further esterification step (biodiesel production), and for the physical elimination of particles, including metal traces. Thus, filtration of synthetic and natural powders represents the procedure of choice for UVOs first treatment. Actually, clay minerals have been used for the clarification and bleaching [19] of oil samples for many years [20], resulting very effective in removing grease and impurities [21]. Clay minerals are cheap and available in many territories worldwide and their properties can be modified by proper activation protocols [22,23].

Despite the important advancement of the knowledge and related technology for the recycling of UVOs, filtration of porous materials still represents the best industrial procedure for recycling and purifying waste vegetable oils, restoring the colour, density, viscosity, and removing inorganic and solid contaminants. Recently, it was reported that waste oils treated with bentonites subjected to different pre-treatments show a different variation of their chemical composition, as different chemical groups are retained [24]. This specific affinity of selected clays for different chemical groups can be also exploited in other research fields, e.g., in the treatment of wastewaters [25,26].

In this context, many kinds of bentonites are available worldwide, which show different microstructural characteristics and effectiveness in purifying used vegetable oils, thus many experimental data are necessary in order to assess general trends aimed to develop new and more effective processes.

With the aim to extend the current portfolio of cheap and sustainable clays for UVOs processing, the regeneration of model UVO by treatment with Na- or Ca-based Algerian bentonites is herein reported. A spectroscopic characterization by meaning of FT-IR was conducted on both clays and oil samples, prior to and after treatment. The variation of some additional physical parameters, such as conductivity, salinity, pH, turbidity, and density in the oil samples, was also monitored and discussed. Microstructural features of Na clays, which showed better results, were further characterized by N₂ physisorption and TEM microscopy.

2. Results and Discussion

2.1. FT-IR and Principal Component Analysis

Samples of UVO were partially regenerated by processing with Na (UVO Na filtered) or Ca (UVO Ca filtered) clays. The process was monitored by FT-IR after 2 and 4 h and the results compared with the spectra of the parent commercial Elio oil and the raw UVO (Figure 1).

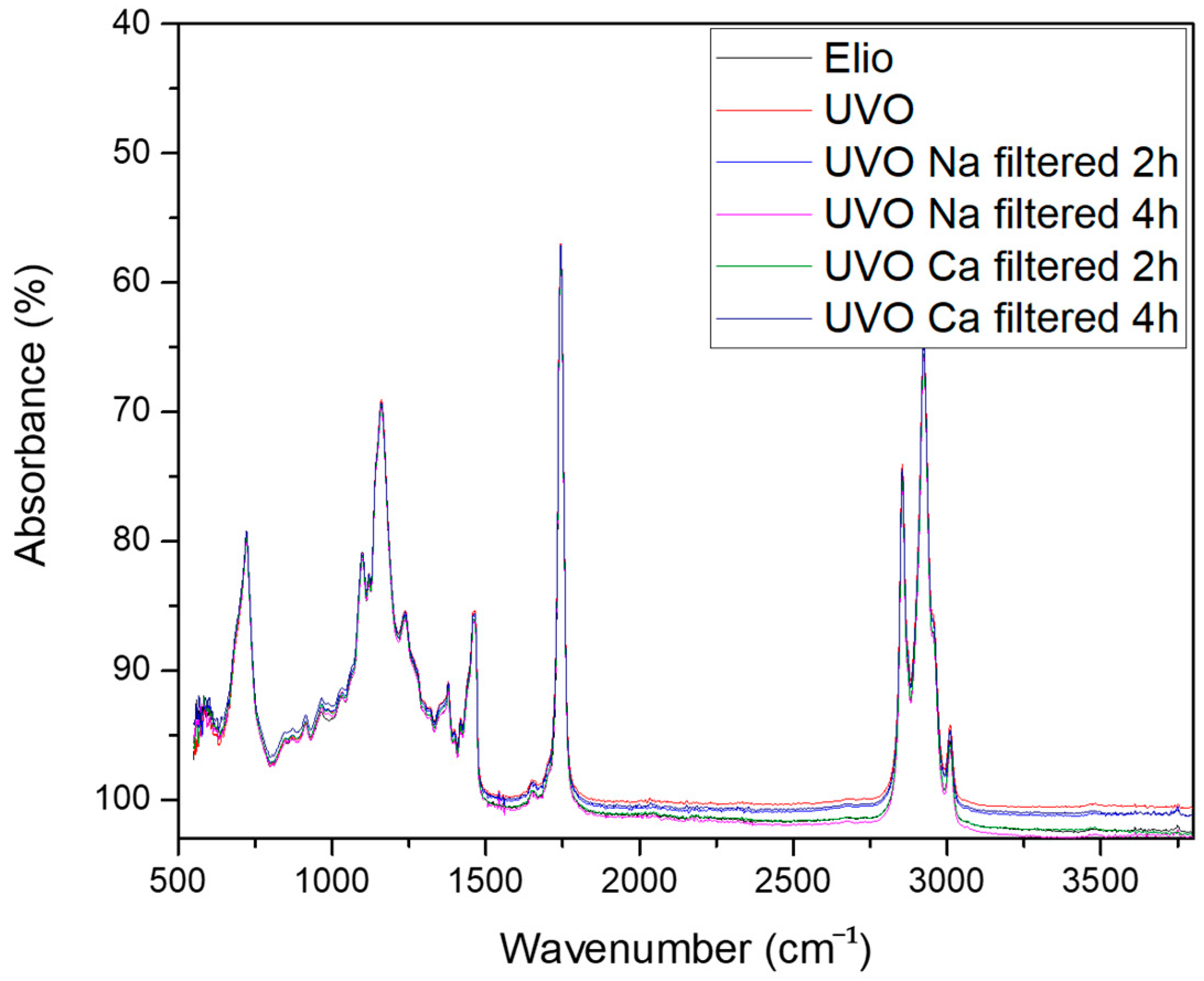

From a visual and qualitative analysis of the FT-IR profiles reported in Figure 1, it is possible to detect the typical major constituents of vegetable oils. According to Alexa and coworkers [27], it is possible to detect the symmetrical and asymmetrical vibrations ν(C-H) of the CH₂ and CH₃ aliphatic groups from the alkyl rest of the triglycerides between 3100 and 2800 cm⁻¹, the absorption relative to the presence of saturated fatty acids at about 1750 cm⁻¹, and the vibration bands related to the -CH₂- and =CH₂ groups between 1600 and 1400 cm⁻¹. Finally, C=O vibrations (1150–1060 cm⁻¹), C-C bond (from 1100 to 800 cm⁻¹), C=O bond (970–800 cm⁻¹), and carbohydrate chain vibrations (under 450 cm⁻¹) can be appreciated.

As expected, from a visual inspection of the FT-IR spectra it is not possible to distinguish between edible, waste, and treated samples. This is due to the fact that the changes in the chemical composition of a vegetable oil prior and after frying are really minimal and the overall nature and distribution of the fatty acids profile becomes almost identical [28]. Even the regeneration of UVOs by treatment with clays did not change the overall chemical profile. In fact, it retains solids and small particles (as metal traces), and can affect the distribution of the volatile fraction [24], which is difficult to observe by qualitative FT-IR. Nevertheless, most of the information is hidden in the spectra raw data and it is possible to extract it by opportune multivariate analysis for building a chemical fingerprint characteristic of each type of oil. This technique has been already applied to GC-MASS [26], X-ray [29], NMR [30], FT-IR, and UV-VIS [31] raw data of vegetable oils.

In this context, Analysis of the Variance (ANOVA) and a Principal Component Analysis (PCA) was performed in order to determine the distances between each family of samples (Figure 2).

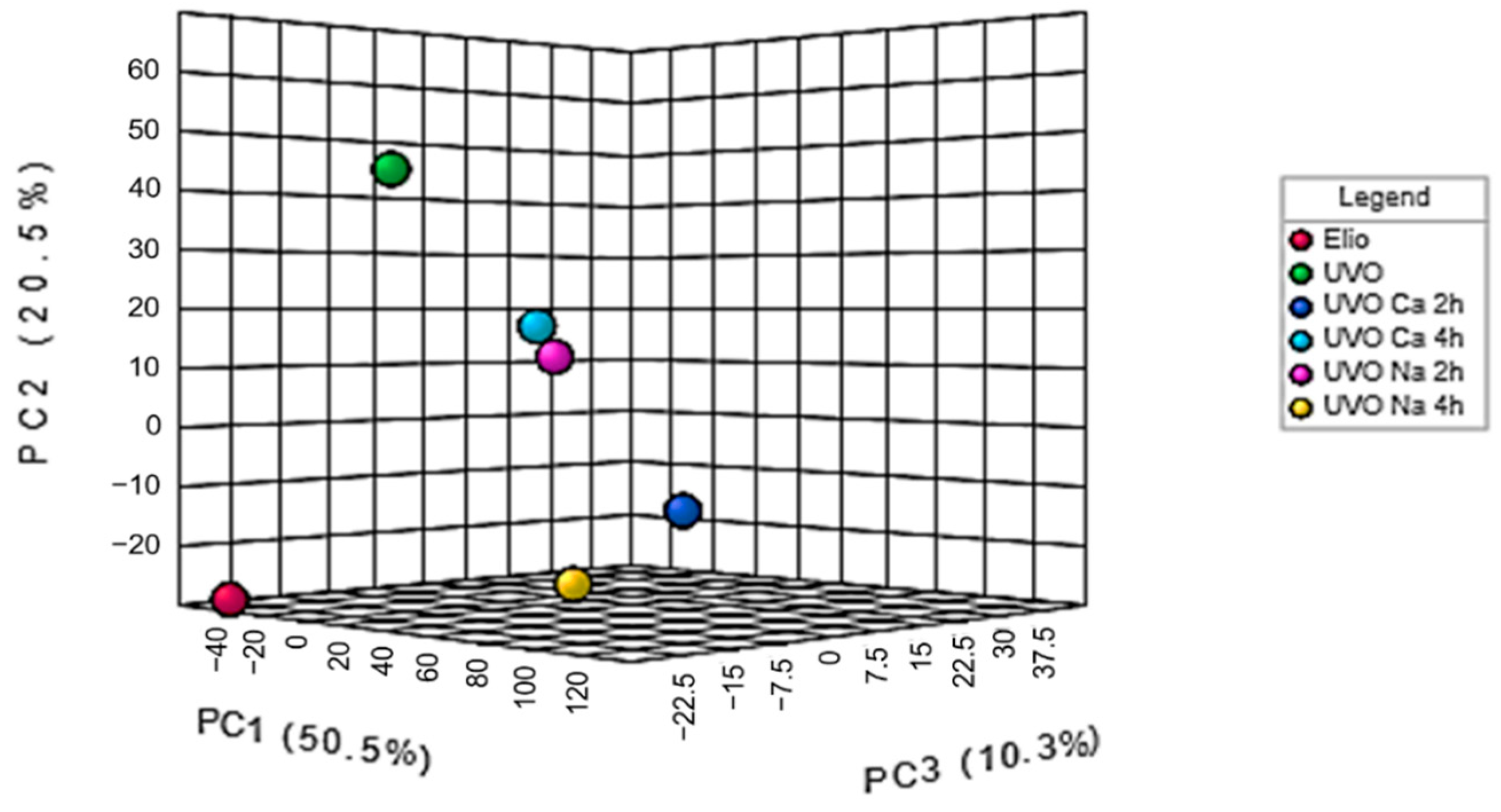

From the 3D PCA plot reported in Figure 2, it is possible to notice that all the samples turn out to be different, indicating the possibility of classifying the considered oils on the basis of the FT-IR profile. Edible Elio oil can be located in the down-left corner of the plot, far away from waste UVO (up-left), indicating that the frying process has affected the chemical composition of the vegetable oil. Regarding the treated samples, UVO treated for 2 h with Na clay or for 4 h with Ca clay seem to have a similar fingerprint, while between the samples processed for 4 h with Na clay and for 2 h with Ca clays, the first one appears as more similar to the original edible oil (Figure 2, yellow spot).

Additional FT-IR spectra were registered after 24 h of treatment as reported in the Supplementary Material (Figure S1). In that case, no relevant changes were observed with respect to the spectra recorded after 4 h, confirming the completion of the treatment in short times. This indicates that after 4 h of processing, even small amounts of Na-bentonite (0.15 wt%) can be effective in modifying the chemical composition of the waste vegetable oil.

Taking into consideration the PCA outcomes, Na clay was selected as reference material for a more detailed study (Section 3.1).

As the FT-IR analyses revealed a different fingerprint related to samples treated with different bentonites or even in different conditions, a detailed analysis of some physical properties of the oil prior and after treatment was performed. In particular, the pH, conductivity, TDS, turbidity, and density were measured for untreated and treated samples (

Table 1. Physicochemical parameters for samples of edible oil (EO), UVO, Na, and Ca treated oils.

	EO	UVO	Ca Treated		Na Treated
			2 h	4 h	2 h	4 h
pH	5.507	5.104	7.05	6.75	6.68	6.39
$\sigma \left(\frac{\mu S}{cm}\right)$	0.1	0.1	1.23	0.8	1.7	0.9
TDS	0	0	1	1	2	1
salinity 1	n.d.	n.d.	n.d.	n.d.	n.d.	n.d.
turbidity (UTN)	0	69	26	57	37	14
density	0.938	0.9048	0.9221	0.9212	0.9215	0.9224

¹ n.d. stands for not detected.

).

The aim of the physicochemical analyses was to determine which conditions were more suitable for recycling waste vegetable oil samples for further industrial applications.

From the data reported in Table 1 it is possible to compare the performances of Na- and Ca-based bentonites. The first relevant aspect regards the variation of the pH, which ranges between about 5 and 5.5 points for edible and waste oils and increases between 1 and 1.5 units after treatment with clays. The lower values of pH observed after 4 h with respect to the ones registered after 2 h indicates that the system has reached an equilibrium in some point between in this window of time (2–4 h). Considering the basic nature of the clays herein used (10.8 for Na- and 9.88 for Ca-based ones), the protocol herein reported can be successful employed for acidic waste oils which cannot be delivered to a pilot plant if the pH value results lower than 3 units.

The increment of polar compounds and chemical groups in the treated oil is also reflected by the increment of the conductivity after 2 h, which seems stabilized after 4 h and shows even lower values that the ones observed in the edible and waste samples (0.8 for Na and 0.9 for Ca, respectively, against 0.1 of EO and UVO).

The increasing of TDS (both after 2 and 4 h) reveals the formation of dissolved matters in the analyzed samples. However, the measurements of the salinity suggest the absence of dissolved salts, indicating the non-ionic nature of the TDS. Regarding the turbidity, it increases to 69 NTU after frying, in agreement with the low transparency of the waste oil observed by a visual inspection. Probably, leaching from food and oxidation of the oil fatty acids produce and waxes and esters with high molecular weight. On the other side, the turbidity value decreased in the treated oils and after 4 h of treatment it results closer to the initial value relative to the oil before frying.

Regarding the density, which is affected by temperature, it decreases from 0.938 to 0.905, according to the observation of Sahasrabudhe and coworkers [31].

The analysis of the physical parameters reported in Table 1 confirm the preliminary indications obtained by the multivariate analysis based on the FT-IR data. In fact, considering the low amount of bentonite employed in each experiment (clay/oil ratio 0.15 wt%), the variation of the chemical composition, and thus of the physical parameters, obtained after 2 h and consolidated after 4 h, is excellent for a partially recycled vegetable oil.

2.2. Characterization of Na-Based Clay

The analysis of the chemical fingerprints of the partially regenerated oils, as well the variation of the physical parameters (especially turbidity) reported in Table 1 and discussed in the previous paragraph, highlighted the best performance of the Na-clay. As the bentonites herein tested are not commercially available, a characterization of the Na-clay used would facilitate the understanding of which microstructural characteristics are requested in order to reach the recycling performances reported. With this aim, N₂-physisorption analysis and a TEM study were conducted. Bentonite pertains to the family of montmorillonite and thus it is characterized by the presence of Mg and Al as dominant components. The typical montmorillonite structure is organized in a series of layers made of a sandwich of one octahedral alumina sheet between two tetrahedral silica sheets (TOT) [26]. A random number of the tetrahedral Si atoms it is usually replaced by Al or Mg and/or by elements with a lower oxidation number. This arrangement produces a surface negatively charged which is balanced by the presence of inorganic cations as Na⁺ and Ca²⁺ located in the interlayer spaces [32]. Usually, the nature of these cations as well as the resulting pore size determine the behaviour of the specific bentonite and its application [33,34].

The bentonite herein employed was not modified or activated in any way, so a chemical-physical characterization was conducted in order to gain some knowledge about its structural features.

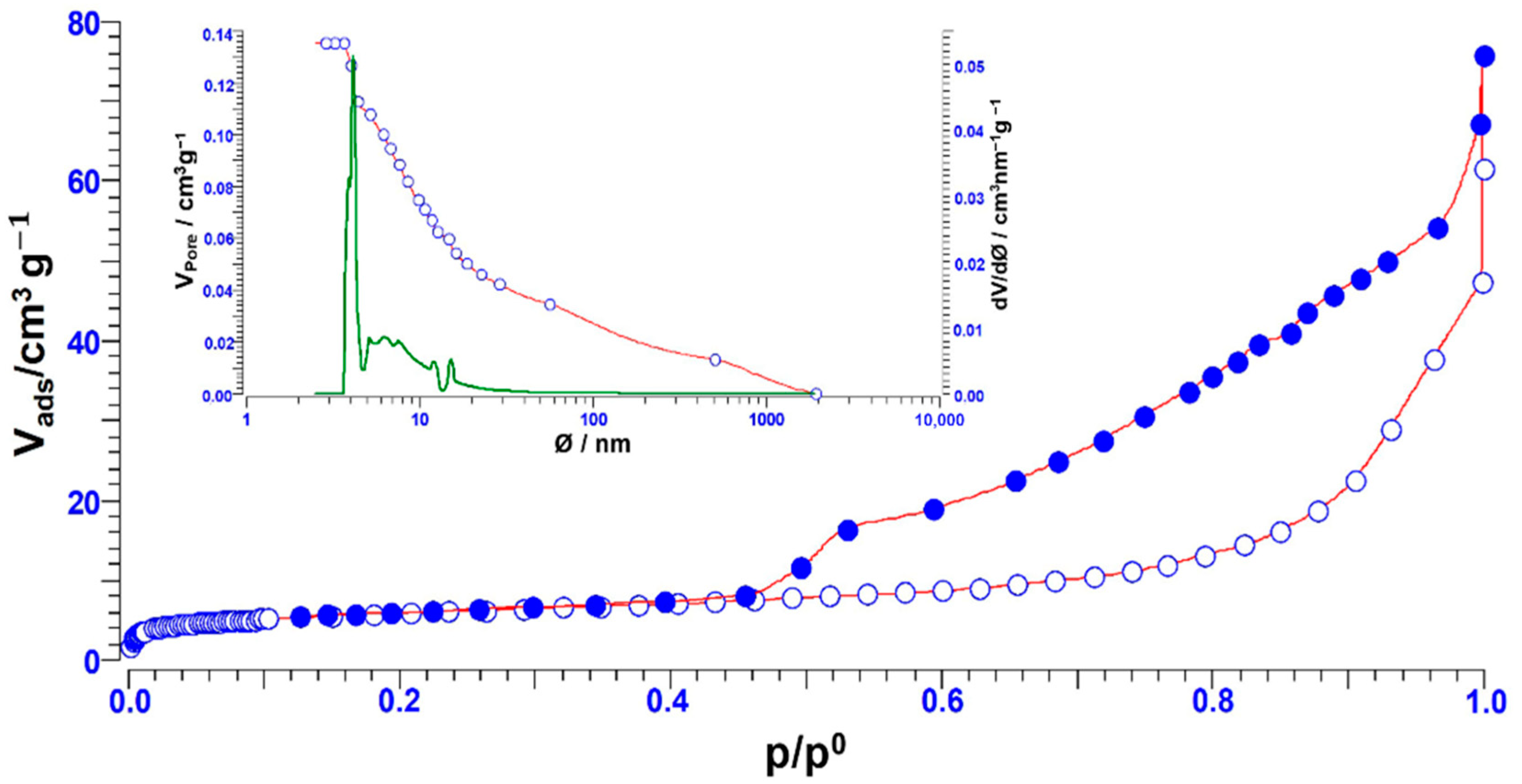

Samples of Na clay were subjected to N₂ physisorption analysis. The considered samples exhibit a type IV isotherm and H₂-isotherm loop, typical characteristic of mesoporous materials. Na clay shows a surface area of about 20 m²/g and a pore size distribution centred about at 4 nm (Figure 3).

TEM pictures (Figure 4) were used to elucidate the microstructure characteristics of the Na clays, which as expected were found to be unstructured. It is possible to observe that the clay layers are aligned in a parallel manner with the expansion of the interlayer space. The elementary analysis with EDAX data, reported in

Table 2. EDAX data for Na clays.

Elements	Na Clays Weight %
C	23.84
O	42.94
Na	2.72
Mg	2.85
Al	7.19
Si	19.43
K	0.16
Fe	0.83

, highlights the presence of Na alkaline metal in the type of clay.

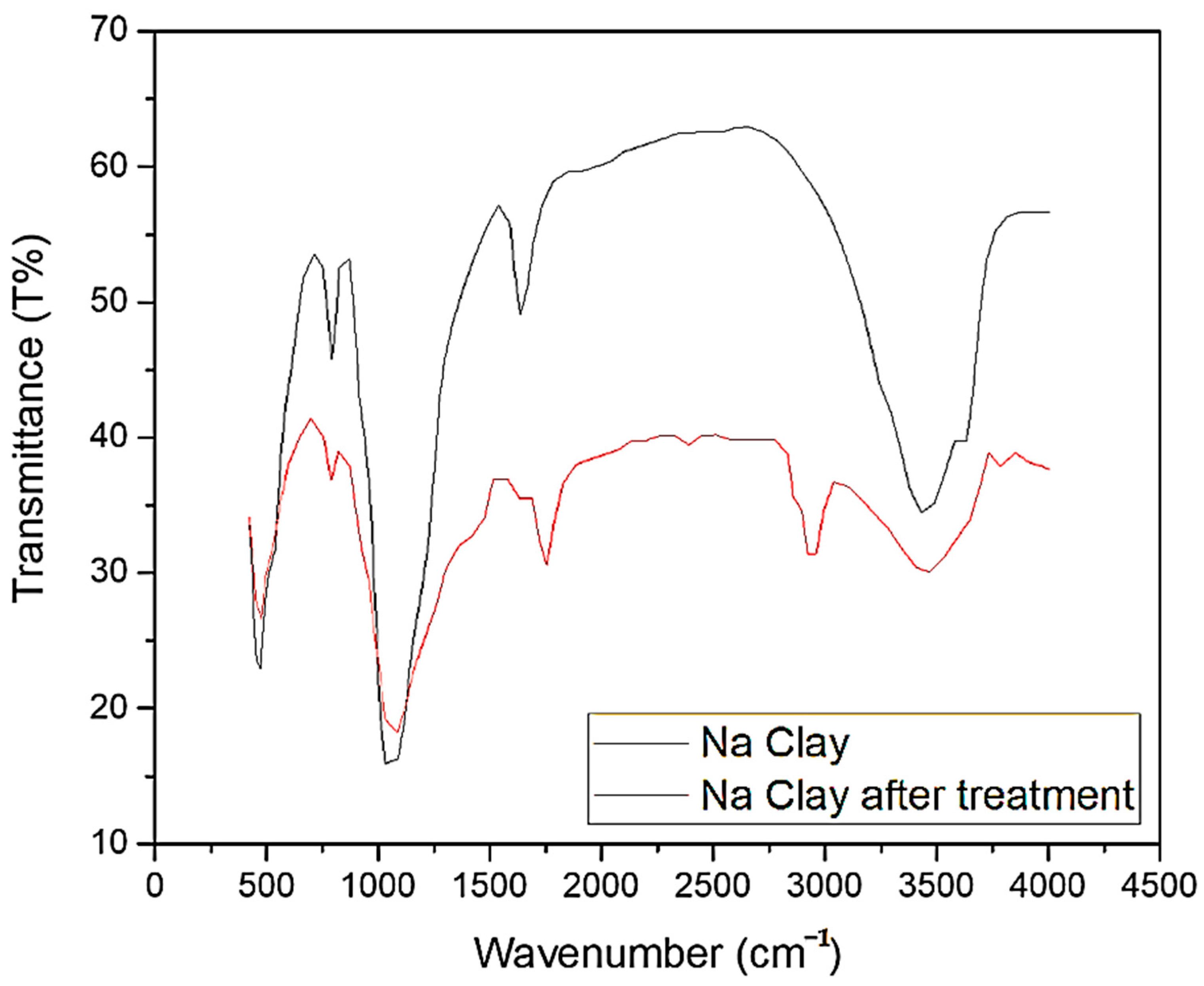

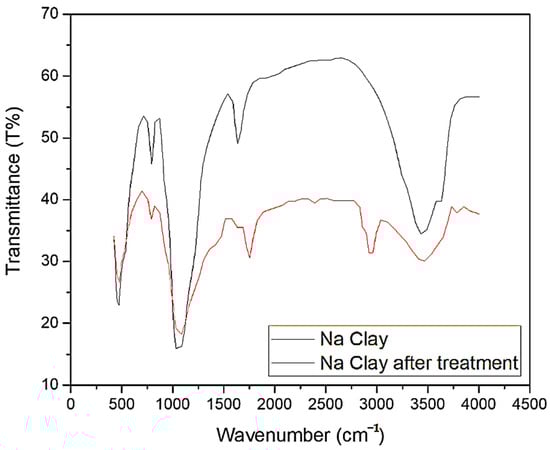

Finally, FT-IR spectroscopy was used to characterize the main chemical groups of Na clays and to determine any variation induced during the oil treatment (Figure 5).

The signals corresponding to the main chemical groups present in bentonite samples are in agreement with the same analysis performed on similar samples of Sardinian bentonite [35]. In particular, the typical bending vibration peak at 917 cm⁻¹ (Al-Al-OH), 519 cm⁻¹ (Si-O-Al), and 419 cm⁻¹ (Si-O) confirm the montmorillonite structure of the bentonite [36]. Additionally, stretching of the –OH group of intra-layers water can be observed respectively at 3436 cm⁻¹ and 1636 cm⁻¹. Additional FT-IR spectra of the Na clays after 24 h of treatment are reported in the Supplementary Material (Figure S1).

3. Materials and Methods

3.1. Raw Materials

Commercial edible frying oil Elio brand (80% soya and 20% sunflower) form Algerian market (ELIO) was analysed and after that used for 10 cycles of deep frying, generating the samples of UVO herein discussed.

Two types of clays (sodium, Na, and calcium, Ca) were brought from a natural cave in the Maghnia region in Western Algeria, by National Company of Non-Ferrous Mining Products (ENOF).

3.2. Physico Chemical Analyses

Conductivity meter Inolab type (from German manufacturer represented, in Algeria, by the commercial company HEXX) was employed for measuring the conductivity, salinity, and TDS (total dissolved solids). Electrical conductivity characterizes the ability of a material or a solution to allow electrical charges to move freely and therefore allow the passage of an electrical current. Salinity refers to the quantity of salts dissolved in a liquid, in particular water, which is a powerful solvent for many minerals. Salinity should not be confused with the hardness of the water, which is related to its dosage of calcium and magnesium. Total dissolved solids (TDS) represents the total concentration of substances dissolved in water. pH meter Inolab Level 1 brand (from Germany manufacturer represented, in Algeria, by the commercial company HEXX), with a digital display fitted with a combined glass electrode was used for determining the pH of the samples.

Turbidimeter HACH DR/800 Colorimeter brand (from Germany manufacturer represented, in Algeria, by the commercial company HEXX) used to measure the turbidity which refers to the content of a fluid in matters which disturb it.

Density was determined by the classical volumetric method as the ratio between the density (ρ) of the oil and the water (Equation (1)).

d = ρ(oil)/ρ(water) with ρ(oil) = m/v

(1)

Fourier Transform Infrared spectrometer Perkin Elmer type (Model SPECTRUM 100, from USA manufacturer represented, in Algeria, by the commercial company HTDS) was used to characterize oils and clays before and after processing, as well as the bentonite samples.

N₂ sorption isotherms were collected on a Sorptomatic 1990 instrument (Fisons Instruments, Thermo Instrument Systems Inc., Waltham, MA, USA) and the data were analysed according to BET and BJH methods [37,38]. The following experimental procedure was used: 200 mg of sample were located in a quartz tube and degassed under high vacuum (1 × 10⁻³ bar) at 250 °C for 24 h and the residual volume was evaluated through helium before the measurements.

The transmission electron microscopy (TEM) was performed on a Fei Technai 200 kV instrument (Thermo Fisher Scientific, Waltham, MA, USA) operated at an accelerating voltage of 200 kV. EDAX (energy dispersive X-ray spectroscopy) spectrum was recorded for elementary analysis. The analysis of TEM data and images was carried out using Digital Micrograph (Gatan, Inc., Pleasanton, CA, USA) and TIA software (Thermo Fisher Scientific, Waltham, MA, USA).

3.3. Experimental Protocol

On a laboratory scale, about 100 g of UVO was mixed with 15 mg of Na or Ca clay and the mixture stirred for 2 h and 4 h. The ratio clay/waste oil was 0.15 wt% which is about ten times less than the usual amount employed for vegetable oil bleaching (1–3%) [39]. Regarding the processing timing, considering the low clay/oil ratio, short treatments (30 min or 1 h) were not considered. The resulting product was filtered on a funnel equipped with a small cotton portion. Then, the processed oil was analysed without any further treatment while the residual clay was dried before analysis.

4. Conclusions

Processing of vegetable oils (both edible and waste) by treatment with natural clays represents a pivotal step in several industrial processes. The effectiveness of the procedure combined with the wide availability of cheap and sustainable natural clays represents an incentive to the developing of optimized treatments. A preliminary screening between two types of Algerian clay revealed different performances of Na- or Ca-based bentonites, with the first one being more effective for the regeneration of waste vegetable oils arising from deep frying. A chemical fingerprint of commercial, waste, and recycled (under different conditions) samples was determined by statistical multivariate analysis of FT-IR data. Comparison of the different fingerprints revealed as even small variations in the procedure (e.g., 2 or 4 h) can have not negligible consequences on the chemical composition of the samples. The analysis of some physical parameters, such as pH, conductivity, TDS, salinity, turbidity, and density, confirmed the statistical results, revealing that 4 h of treatment with Na-clays represents the best compromise for obtaining a recycled oil matrix ready to be further processed. Thus, an improved protocol, which employs low clay/oil ratio (0.15 wt%) and reasonable processing times (2–4 h), was developed and described. Finally, a specific characterization of the Na-clay was conducted by meaning of N₂ physisorption, SEM microscopy, and FT-IR spectroscopy.
