Anion Intercalation/De-Intercalation Mechanism Enabling High Energy and Power Densities of Lithium-Ion Capacitors

Abstract

The growing demands for electrochemical energy storage systems is driving the exploration of novel devices, with lithium-ion capacitors (LICs) emerging as a promising strategy to achieve both high energy density and fast charge capability. However, the low capacitance of commercial activated carbon (AC) cathode based on anion absorption/desorption limits LIC applications. Herein, commercial graphite is proposed as the cathode to construct an innovative AC (−)//graphite (+) system. The graphite cathode functions as anion hosting, allowing reversible intercalation/de-intercalation of anions into/from its interlayers. The as-designed AC (−)//graphite (+) full cell achieves stable cycling with 90.6% capacity retention after 200 cycles at 0.1 A g⁻¹ and a prolonged lifespan with 87.5% capacity retention after 5000 cycles at 0.5 A g⁻¹ with the upper cut-off voltage of 5.0 V, yielding a high average Coulombic efficiency (CE) of 99.3%. Moreover, the full cell exhibits a high energy density (>200 Wh kg⁻¹) and power density of 7.7 kW kg⁻¹ (calculated based on active mass in both electrodes). These performances exceed most LICs based on anions absorption/desorption on the surface of AC cathodes. This work explores an effective electrode revolution with the assistance of anion intercalation/de-intercalation chemistry for developing novel LICs with high energy and power densities.

1. Introduction

Addressing the increasing global energy demands requires advancements in electrochemical devices, given their wide-ranging applications from portable electronics to electric transportation to the integration of renewable energy sources for powering the electrical grid [1,2]. Lithium-ion batteries (LIBs) have emerged as the predominant energy storage and conversion device owing to its high energy density (>300 Wh kg⁻¹), yet the lower power density remains a notable challenge [3,4]. In comparison to extensively researched LIBs, supercapacitors (electrical double-layer capacitors) typically consist of a symmetrical structure composed of high surface area carbon materials such as activated carbon (AC). This configuration facilitates rapid energy storage through ion adsorption/desorption on the surface of the AC, consequently achieving high power density and a long cycling life, but their practical application is limited by lower energy density (<10 Wh kg⁻¹) [5]. Therefore, there is a strong appeal for innovative electrochemical energy storage and conversion devices that integrate the merits of both batteries (high energy density) and supercapacitors (high power density).

Lithium-ion capacitors (LICs), utilising a battery-type anode (graphite or Li₄Ti₅O₁₂) driven by Faraday reactions (mainly intercalation/deintercalation behaviour) and a capacitor-type cathode operating on non-Faraday reactions (absorption/desorption behaviour), have been developed to achieve enhanced energy density (20–146 Wh kg⁻¹) [6]. However, the energy density of commercial AC cathode-based LICs via anion absorption/desorption behaviour during charging/discharging processes is constrained by the limitation of low capacitance and low stable working voltage (<4.6 V versus Li/Li⁺) [7,8,9]. Building upon this foundation, considerable efforts have been made, encompassing the exploration of high-capacitance electrode materials, surpassing commercial AC to construct high-voltage devices [10,11].

Graphite, consisting of stacked layers of graphene held together by weak van der Waals force, has the capability to electrochemically accommodate charge carriers. The graphite can form acceptor-type graphite interphase compounds (GICs) by stabilising additional holes in its bonding π-band, allowing for the intercalation/de-intercalation of anions. Typically, the charge-transfer reaction with the intercalation/de-intercalation of anions is exhibited as Equation (1) [12].

C + xA⁻ ↔ A_xC + xe⁻

(1)

The graphite cathode demonstrates favourable operation at a high upper cut-off voltage of 5.3 V, yielding a medium voltage of around 4.6 V, which is significant compared to most cathode materials. The high working voltage ensures a potentially high energy density. Typically, graphite cathode is coupled with graphite anode to construct dual-graphite batteries. However, the dual-graphite batteries face challenges, including a limited rate capability and, particularly, a short cycle life. These issues are primarily due to the insufficient reaction kinetics of the graphite anode, which experiences inevitable capacity decay with increasing the current density up to 300 mA g⁻¹ [13]. In contrast, the graphite cathode is expected to exhibit superior rate performance, capable of sustaining a stable capacity close to its theoretical value of approximately 100 mAh g⁻¹ even at a high current density up to 2 A g⁻¹ [14]. Remarkably, the high operating voltage and excellent rate performance of the graphite cathode contribute to maximising the advantages of LICs incorporating an AC anode, especially in terms of rapid and stable charge storage. This suggests promising potential for developing innovative high-energy and high-power LICs based on anion intercalation chemistry. However, this novel construction is still in the early stages of research, with limited studies primarily focusing on the low voltage range (0–4.5 V), demonstrating low energy density (<100 Wh kg⁻¹) [15,16,17]. Therefore, optimising and matching the graphite cathode and electrolyte to unlock performance at higher voltages and achieve a prolonged cyclic life is of great significance. Furthermore, there is substantial room for improvement in the fundamental and technical principles of this system, as well as in the exploration of its working mechanisms.

Herein, we propose the construction of novel LICs featuring an AC anode and graphite cathode in a standard concentration electrolyte (1M LiPF₆ EMC), employing the combination of cation absorption/desorption and anion intercalation/de-intercalation chemistry. The as-prepared AC (−)//graphite (+) full cell is operated at a high voltage range of 2.0–5.0 V, with a medium voltage above 4.2 V at the current density of 0.1 A g⁻¹. As expected, excellent cyclic stability (90.6% capacity retention after 200 cycles at 0.1 A g⁻¹) and long-term cycle life (87.5% capacity retention after 5000 cycles at 0.5 A g⁻¹ with an average CE of 99.3%) can be achieved in the AC (−)//graphite (+) full cell. Notably, a high energy density of 204 Wh kg⁻¹ (calculated on the active mass of both electrodes) is achieved. This exploration sheds light on the construction of novel LICs based on graphite cathode and demonstrates the potential to achieve electrochemical systems with high-performance energy storage capability through the assistance of anion intercalation chemistry.

2. Materials and Methods

2.1. Materials

Electrolyte: 1M LiPF₆ EC/EMC (1:1, vol.) and 1M LiPF₆ EMC were produced from Merck Life Science UK Limited. SLP50, SP1, and SFG6L graphite and Super P carbon black were sourced from IMERYS Graphite & Carbon (Switzerland). Lithium metal foil with a diameter of 16 mm and a thickness of 0.025 cm, along with polypropylene (PP) separator film, were obtained from Xiamen TOB New Energy Technology Co., Ltd (China). Sodium alginate (NaAl) was a product of MP Biomedicals. Commercial Ketjen Black (KB) was purchased from Shandong Gelon Lib Co., Limited (China). The glass fibre membrane separator (MG 160) was acquired from Fisher Scientific UK Ltd. Commercial TF-B520 activated carbon was supplied by MTI Corporation (UK). All chemicals were used directly without undergoing any additional purification processes.

2.2. Experimental Procedures

2.2.1. Graphite and Activated Carbon Electrode Preparation

For preparation of the graphite and activated carbon electrode, SLP50 graphite, Ketjen Black, and sodium alginate (NaAl) binder were first mixed by deionised water using a speed mixer (SpeedMixer DAC 600.2, Artisan technology group, USA) in a mass ratio of 8:1:1. The homogeneous slurry was then cast onto carbon-coated Al foil as the current collector, and the electrode was dried in a vacuum oven at 80 °C overnight. The electrode discs of 12 mm in diameter with a mass loading of 1.8–2.2 mg were cut. The TF-B520 activated carbon electrode was prepared using CMC binder and carbon black (Super P) in a mass ratio of 7:1.5:1.5. The CMC binder was first dissolved by deionised water, and then, activated carbon and carbon black were added to form a homogeneous slurry. The paste was coated on the Cu foil, and the desired electrode (diameter of 15 mm) was obtained after drying at 80 °C overnight. The mass ratio between graphite and the activated carbon electrode was 2:1 in this work.

2.2.2. Cell Assembly and Electrochemical Testing of the Li//AC, Li//Graphite Half Cell, and AC (−)//Graphite (+) Cells

Cell assembly: The CR2032-type coin cells were used to assemble cells, while AC or graphite with the electrode and lithium metal (diameter 16 mm) was served as the counter/reference electrode, and the polypropylene separator film or glass fibre (diameter 18 mm) was used as the separator. The electrolytes for Li//AC and Li//graphite half cells were 1M LiPF₆ EC/EMC (1:1, vol.) and 1M LiPF₆ EMC (~120 µL), respectively. For the assembly of AC (−)//graphite (+) cells, the AC anode was first discharged/charged for 5 cycles in Li//AC half cells within 0.01–3.0 V at 100 mA g⁻¹, then discharged to 0.01 V to the pre-lithiate. In the meantime, the graphite cathode was pre-cycled for 5 charge/discharge processes in Li//graphite half cells within 3.0–5.0 V at 100 mA g⁻¹, then stopped at the upper cut-off voltage of 5.0 V. The coin cell configuration is displayed in Figure S1 (Supplementary Materials). The pre-prepared AC anode and graphite cathode were then assembled in a coin cell with a glass fibre separator, and the amount of electrolyte was ~150 µL. The assembly of coin cells was conducted in the glovebox with O₂ < 0.5 ppm and H₂O < 0.5 ppm.

Electrochemical performance measurements: The galvanostatic charge/discharge test was performed with the NEWARE test system (BTS9000, Shenzhen, China), and the voltage ranges for the Li//AC, Li//graphite, and AC (−)//graphite (+) cells were 0.01–3.0 V, 3.0–5.0 V, and 2.0–5.0 V, respectively. Cyclic voltammetry (CV) was measured with the electrochemical workstation (VersaSTAT 4 Potentiostat Galvanostat, Ametek scientific instruments, USA).

2.2.3. Materials Characterisations

The morphologies of pristine graphite and activated carbon were examined by scanning electron microscope (SEM; TESCAN MIRA3 SC + OI EDS). The transmission electron microscope (TEM) images were acquired by Talos™ F200X TEM. X-ray diffraction (XRD) was conducted with an X-ray diffractometer (Powder X-ray Diffraction Phillips X‘Pert) using Cu-Kα radiation at a wavelength of 0.15418 nm (V = 30 kV, I = 25 mA). Raman measurement was carried out by a Renishaw inVia Reflex Raman microscope. The surface area was analysed by acquiring nitrogen absorption/desorption isotherms using the Brunauer–Emmett–Teller (BET) method on a Surface Area Analyzer—Quadrasorb Evo.

3. Results and Discussion

3.1. Half Cell Investigations

3.1.1. Li//Graphite Half Cell via Anion Intercalation/De-Intercalation

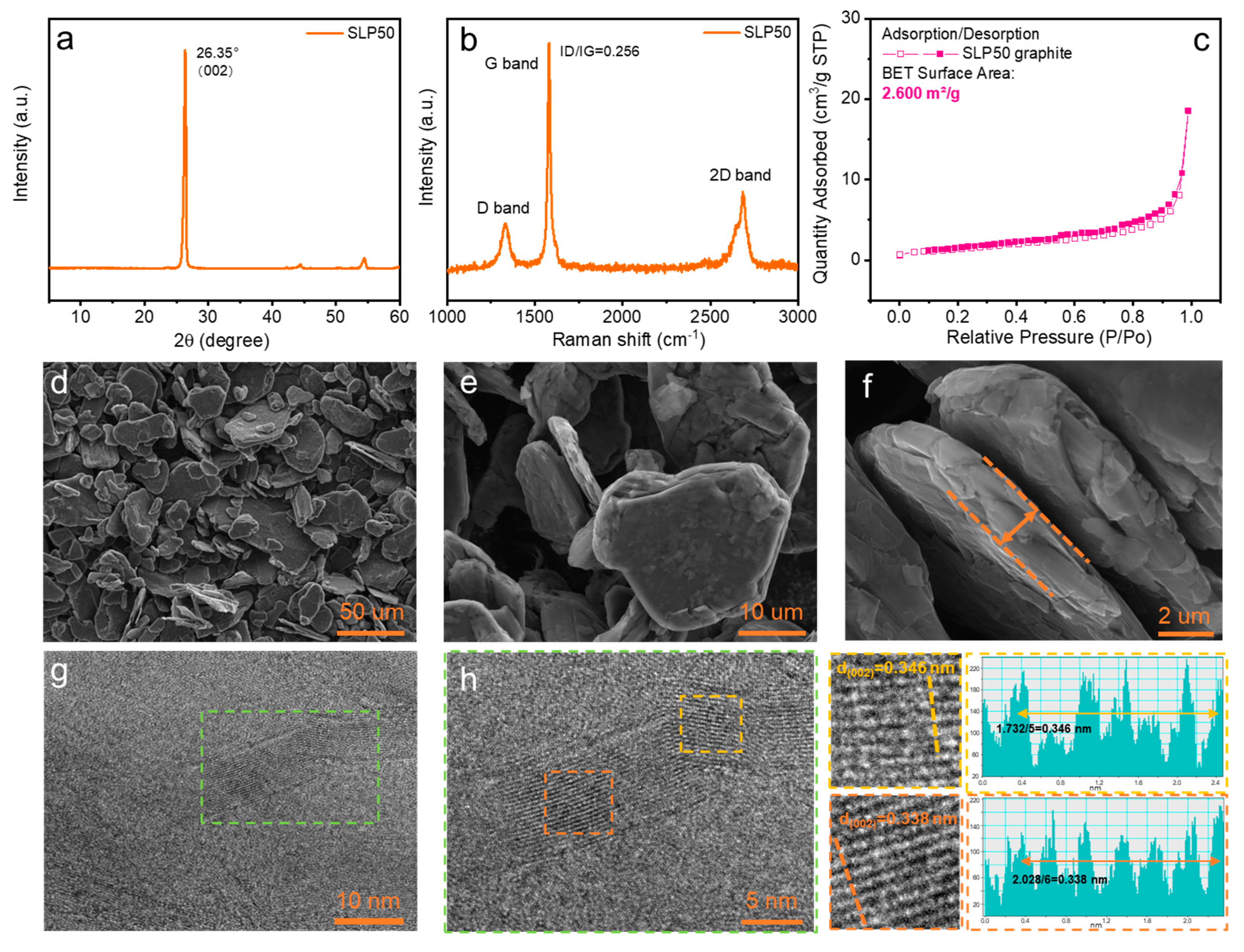

Figure 1a shows the XRD pattern of SLP50 graphite, in which a strong peak located at 26.35° is observed. This reflection can be associated with the crystallographic (002) plane of graphite. The Raman spectrum of SLP50 graphite is exhibited in Figure 1b, appearing in three peaks positioned at 1335, 1580, and 2686 cm⁻¹, which correspond to the D band, G band, and 2D band, respectively. The G band is the specific reflection for sp² carbon networks, while the D band is the defect-induced Raman feature. The ratio of intensity I_D/I_G for the D and G bands is normally used for predicting the defect quantity and degree of graphitisation. The I_D/I_G for SLP50 graphite was calculated to be 0.256, suggesting few defects in the well-ordered graphitic structures. Figure 1c is the N₂ adsorption/desorption isotherms, revealing the BET surface area for SLP50 graphite to be 2.6 m²/g. This relatively small surface suggests limited porosity or specific surface features. The pore size distribution is exhibited in Figure S2 (Supplementary Materials), indicating the presence of a small quantity of pores. The SEM technique was further employed to gain a more comprehensive understanding of the surface feature and morphology of SLP50 graphite. The SEM images are depicted in Figure 1d–f, and flake-shaped graphitic particles with a thickness of ~2 µm are observed, while the particle size distribution is mainly between the range of ~20 to 50 µm. Furthermore, the high-resolution TEM images are listed in Figure 1g,h, revealing detailed insights into the crystalline structure. The lattice distance for the (002) plane of SLP50 graphite was analysed to be ~0.338–0.346 nm, offers a suitable interlayer spacing that can effectively accommodate the intercalation of anions.

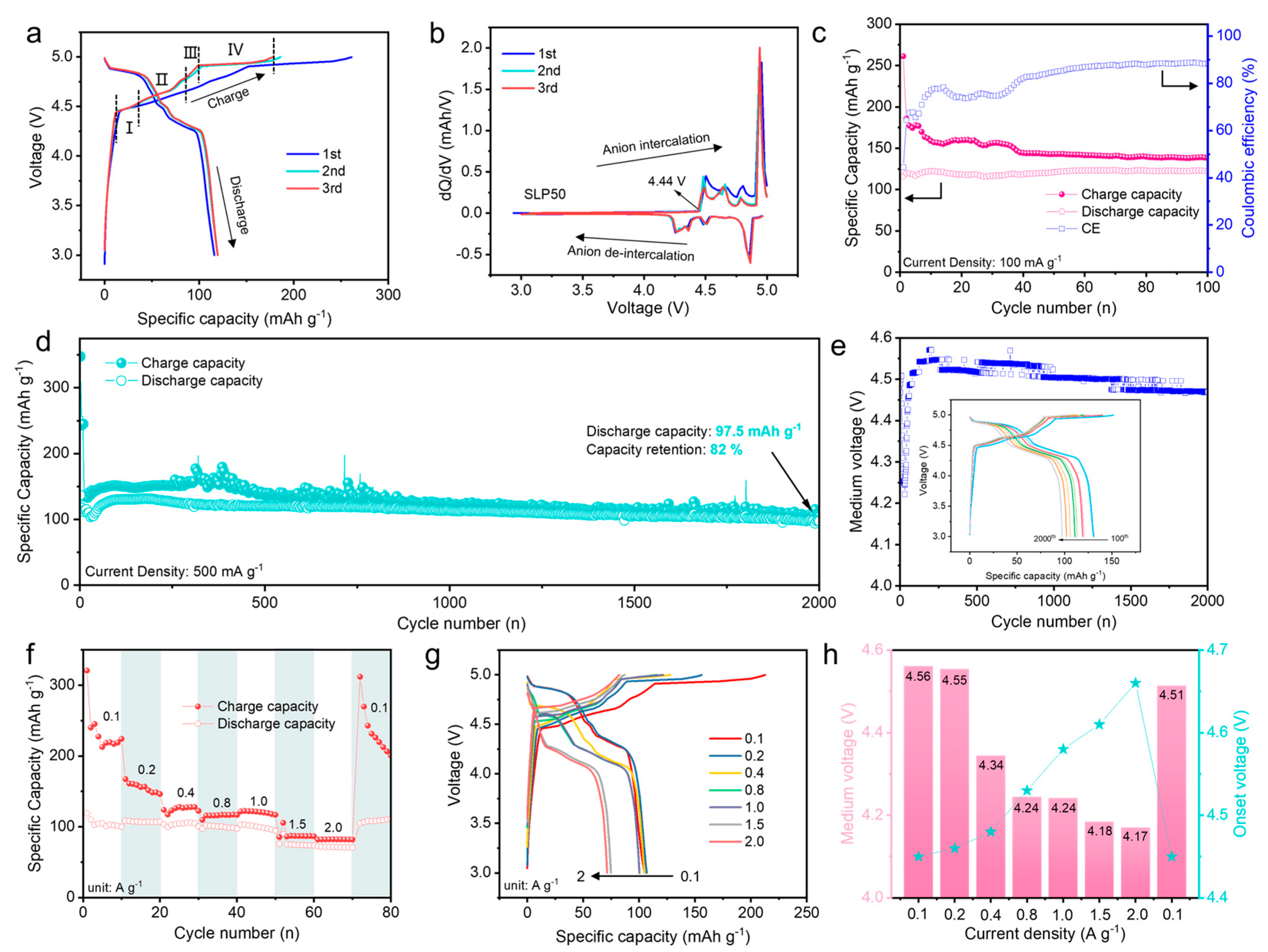

Figure 2 displays the testing results of electrochemical PF₆⁻ anion intercalation into SLP50 graphite in the Li//graphite half cells based on 1M LiPF₆ EMC electrolyte. The PF₆⁻ anion intercalation/de-intercalation process was first analysed at a constant current density of 100 mA g⁻¹ in the voltage range of 3.0–5.0 V. The galvanostatic charge/discharge curves for the initial three cycles are exhibited in Figure 2a. The charge platforms detected in the curves are associated with the “staging” process, which are identified as four potential regions of 4.44–4.51 V (stage I), 4.51–4.74 V (stage II), 4.74–4.92 V (stage III), and 4.92–5.0 V (stage IV), reflecting that the PF₆⁻ anions intercalate into graphite interlayers to form graphite intercalation compounds (GICs) [18]. Meanwhile, the anion de-intercalation platforms are observed in the discharge curves, revealing a reversible PF₆⁻ anion intercalation/de-intercalation process. Figure 2b shows the relevant capacitance differential (dQ/dV) curves, while these specific peaks correspond to the charge/discharge plateaus in galvanostatic charge/discharge curves. The onset voltage for anion intake is around 4.44 V, and subsequent peaks confirm the occurrence of intercalation/de-intercalation processes at certain potentials. Figure 2c lists the evaluation of the specific capacity and Coulombic efficiency (CE) within 100 cycles. Importantly, a high discharge capacity of ~120 mAh g⁻¹ via this anion intercalation/de-intercalation process was achieved and was extremely stable after 100 repeated charge/discharge processes. The initial CE was 40% and increased from cycle to cycle until it was stable at ~90%, and the small CE was due to the electrolyte degradation and self-discharge reactions at the high upper cut-off voltage. Figure 2d exhibits the specific capacity of Li//graphite half cells at a high current density of 500 mA g⁻¹ in the voltage range of 3.0–5.0 V. The discharge capacity decreases slightly to ~100 mAh g⁻¹, and the capacity retention after 2000 cycles is 82%, indicating the great long-term cyclic stability. This excellent cyclic capability of SLP50 graphite in a standard concentration electrolyte (1M LiPF₆ EMC) is comparable to other reported graphite cathodes, even those using high-concentration electrolytes or ionic liquid electrolytes [19,20]. Figure 2e concludes the medium discharge voltage of the Li//graphite half cells, and the inset displays charge/discharge curves from the 100th to 2000th cycles. Notably, the medium discharge voltage was stable at ~4.5 V after 2000 cycles, indicating excellent cyclic reversibility and stability. A slight decrease in the charge/discharge plateau voltage during the cycles further demonstrates less polarisation in the cell. Figure 2f presents the charge/discharge capacities of the Li//graphite half cells at different current densities. At the current densities of 0.1, 0.2, 0.4, 0.8, and 1.0 A g⁻¹, the discharge capacities of the cell were around 100 mAh g⁻¹, respectively, indicating great applicability with the current increasing. Figure S3 (Supplementary Materials) shows the cyclic voltammetry curves of the Li//graphite half cells at different scan rates, where the primary oxidation/reduction peaks are observed and retained well when the scan rate changes, revealing good reversibility of the electrode reaction. In addition, the capacity decayed to 75 mAh g⁻¹ and then fell to 70 mAh g⁻¹ when the current density increased to 1.5 and 2.0 A g⁻¹. This decrease in capacity under high current conditions is a consequence of larger concentration polarisation, hindering the electrode reactions and the effective capacity. Figure 2g shows the charge/discharge curves of the cell at different current densities. Correspondingly, the voltage hypothesis phenomenon was observed in the charge/discharge curves as the current densities increased, suggesting there was a noticeable deviation in the voltage behaviour. Notably, the discharge capacity was recovered to 100 mAh g⁻¹ when the current density was reversed to 1.0 A g⁻¹, revealing a good reversibility of the Li//graphite cell. Moreover, the medium voltage and onset voltage for anion intercalation into graphite interlayers at different current densities are compared in Figure 2h. It is observed that the medium voltage was reversibly resumed to 4.51 V when the current density returned from 2 A g⁻¹ to 0.1 A g⁻¹, suggesting good reversibility of the cell. The onset voltage for anion intercalation kept increasing when the current density was increased, which most likely contributed to the higher activation barrier resulting from the sluggish kinetic movement of PF₆⁻ at the large current condition [21]. These results demonstrate the effective intercalation and de-intercalation of PF₆⁻ anions in SLP50 graphite, suggesting the potential for the construction of a high-performance full-cell system.

3.1.2. Li//AC Half Cells via Li⁺ Adsorption/Desorption

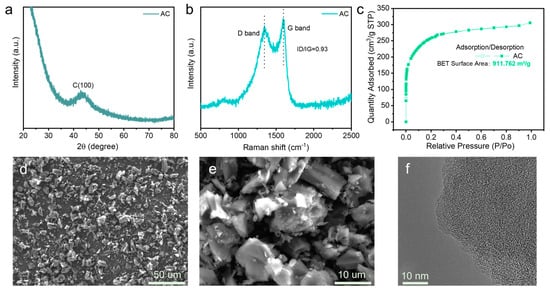

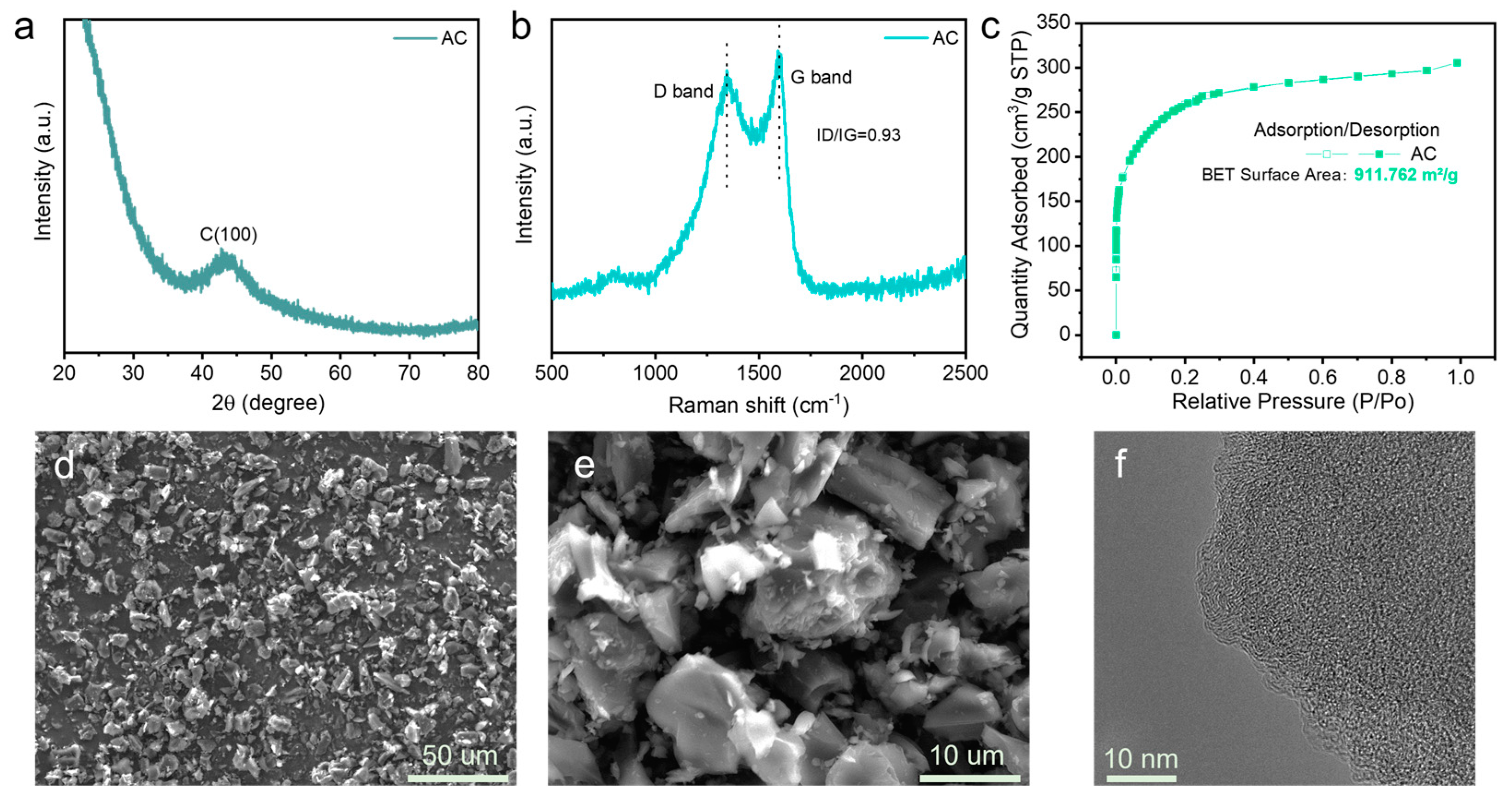

The crystallinity of TF-B520 activated carbon (AC) was conducted using XRD, and the pattern is exhibited in Figure 3a. The absence of a diffraction peak for the reflection of the graphite (002) plane is attributed to the lack of a well-defined long-range order in the arrangement of the carbon atom [22]. The broad and weak peak around 43° is observed in the spectrum, corresponding to the diffraction of the (100) plane, while the low intensity of the diffraction peak demonstrates the amorphous structures [23]. Figure 3b displays the Raman spectra of AC, while the D band (1345.7 cm⁻¹) and G band (1598.5 cm⁻¹) are clearly observed. The ID/IG was calculated as 0.93, indicating lower fractions of the graphitic region and the disordered nature of the carbon matrix. According to the N₂ adsorption/desorption curves in Figure 3c, the BET surface area value for AC was measured to be 911.75 m²/g, which is much larger than that of SLP50 graphite. The pore size distribution, shown in Figure S4 (Supplementary Materials), highlights a prominent microporous structure with a pore size ranging from 0.5 to 0.8 nm. A larger surface area implies more adsorption sites, thus conferring a higher adsorption capacity. This facilitates rapid adsorption and desorption of ions on the AC electrode surface. Figure 3d,e show the SEM images of the AC, and the size is mainly distributed in the range of 5–10 µm. Figure 3f illustrates the TEM image of the AC, revealing disordered microstructures characteristic of amorphous carbon.

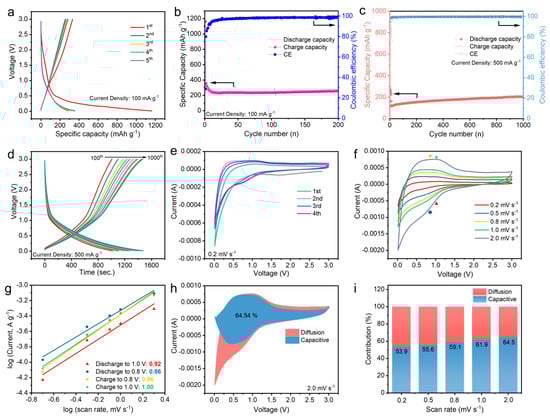

The electrochemical performances of the AC electrode were investigated in Li//AC half cells with the electrolyte of 1M LiPF₆ EC/EMC (vol. 1:1). Figure 4a displays the initial five galvanostatic charge/discharge curves for the AC electrode at the current density of 100 mA g⁻¹ between the voltage range of 0.01–3.0 V. The first discharge capacity was found to be 1200 mAh g⁻¹, which reduced to ~300 mAh g⁻¹ in the second cycle and was stable for five cycles. The long plateau in the first cycle is attributed to the formation of a solid electrolyte interphase (SEI) film on the AC electrode surface. Figure 4b illustrates the specific charge/discharge capacities and CE of the cell at 100 mA g⁻¹ in different cycles. The discharge capacity was kept at ~260 mAh g⁻¹ after 200 repeated charge/discharge processes, indicating an excellent cyclic stability. Figure 4c shows the charge/discharge capacities and CE of the cell at a large current density of 500 mA g⁻¹ after the initial 10 formation cycles at 100 mA g⁻¹. The capacity was maintained above 200 mAh g⁻¹ after 1000 cycles, yielding a CE near 99.7%. Notably, a good cyclic capability was confirmed by the overlapped charge/discharge curves of the cells at different cycles from the 100th to 1000th (Figure 4d). CV analysis of the Li//AC cell was first conducted at the scan rate of 0.1 mV s⁻¹, and the initial four cycle CV curves are exhibited in Figure 4e. It is obvious that the typical broad peak between 0.5 and 1.0 V is observed for each cycle, probably due to a formation of the SEI layer on the AC electrode surface. The strong current drop below the voltage of 0.5 V is associated with the reaction between Li⁺ and the AC electrode. Furthermore, the CV analysis at various scan rates (0.2, 0.5, 0.8, 1.0, and 2.0 mV s⁻¹) was carried out to investigate the electrochemical dynamic behaviour of the electrode, and the curves are depicted in Figure 4f. As the scan rate increases, the peak intensity of the electrode reaction rises, resulting from an augmented electrochemical reaction rate. Notably, according to previous reports, the electrochemical storage behaviour can be specified by the equations as follows [24,25,26]:

i = av^b

(2)

log (i) = blog(v) + loga

(3)

i = k₁v + k₂v^1/2

(4)

i/v^1/2= k₁v^1/2+ k₂

(5)

where i is the current, v is the scan rate, and a and b are the variable parameters. The b-value, determined from the slop of log(i) versus log(v) plot, approaches 0.5 when diffusion-controlled behaviours are predominant. Conversely, a b-value close to 1.0 signifies the dominance of pseudocapacitive contributions. Figure 4g shows the fitted relationship between log(i) and log(v) of the AC electrode at different voltages. The corresponding b-values when discharged to 1.0 and 0.8 V and charged to 0.8 and 1.0 V are calculated to be 0.92, 0.86, 0.96, and 1.0, respectively. The b-value approaching 1 indicates the surface-induced capacitive behaviour of the AC electrode, revealing efficient electrode reaction kinetics. Based on Equations (4) and (5), the current (i) is expressed as the sum of k₁v and k₂v^1/2 at specific voltages corresponding to the capacitive behaviour and diffusion-controlled behaviour, respectively. The value of k₁ can be determined by plotting the curve with i/v^1/2 versus v^1/2, and the capacitive contribution is the value of k₁v. Figure 4h quantitatively analyses the surface-dominated contribution, revealing that 65.45% of the whole capacity belongs to the non-diffusion controlled capacity at the scan rate of 2 mV s⁻¹. Clearly, it is found that the diffusion-controlled behaviours mainly contribute to the whole discharge capacity in the reduction range between 0.75 and 0.01 V, suggesting a Li⁺ intake process occurring on the electrode at low voltage. This behaviour is similar to that of previously reported electrode materials [27,28]. Moreover, as shown in Figure 4i, the percentage for capacitive contributions of the AC electrode exhibits an increasing trend when the scan rate rises, disclosing the more dominated capacitive behaviour at high rates.

3.2. AC (−)//Graphite (+) Full-Cell Investigations

3.2.1. Cell Configuration

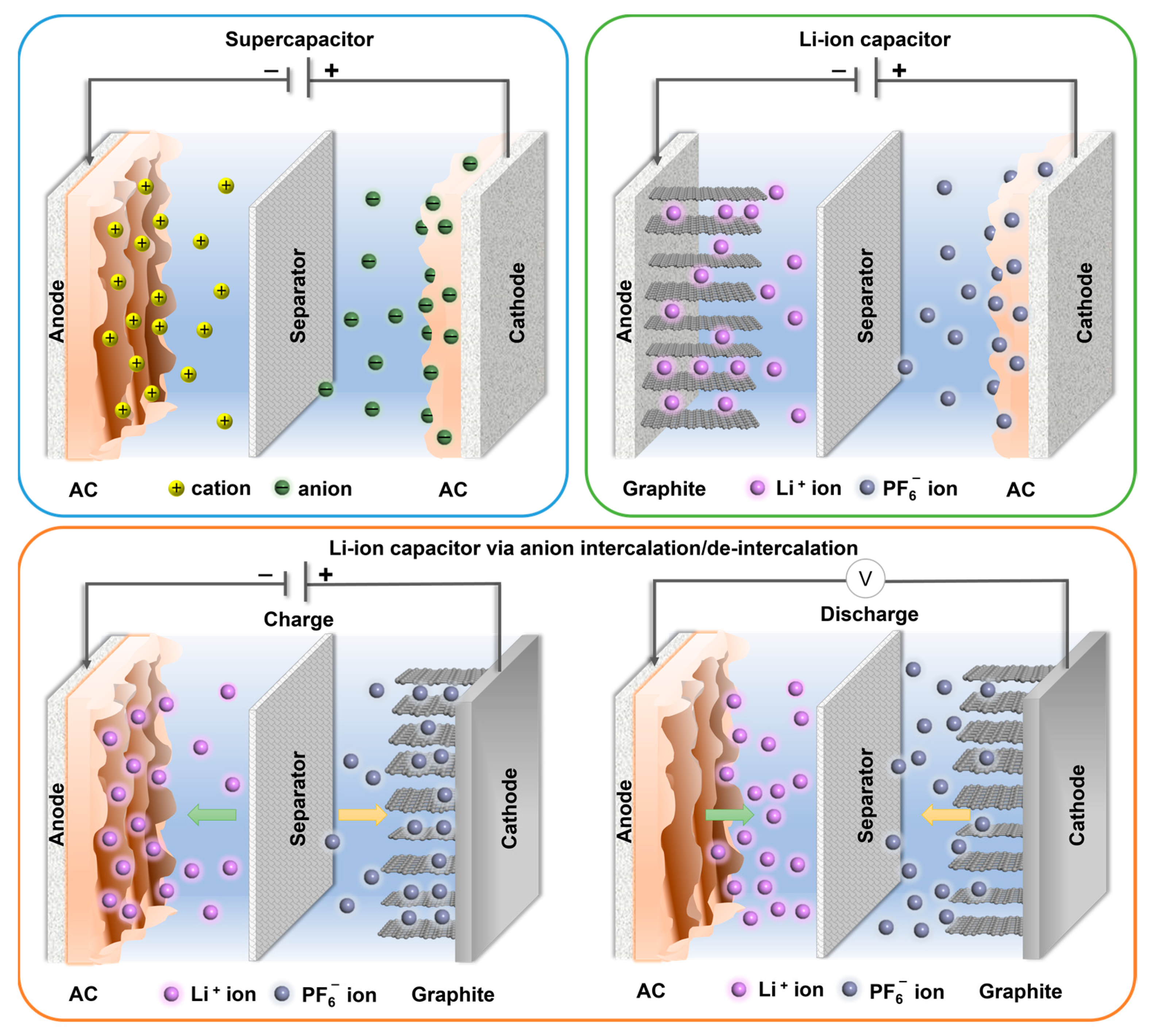

The full-cell configuration of AC (−)//graphite (+) is achieved by employing an AC anode and graphite cathode. Scheme 1 illustrates a comparison of the three capacitors mentioned above (supercapacitor, conventional LICs with an AC cathode, and LICs with a graphite cathode). In these novel LICs with a graphite cathode, PF₆⁻ anions are forced to intercalate into graphite interlayers during the charging process, while Li⁺ ions are absorbed onto the AC surface. Conversely, during the discharging process, PF₆⁻ anions and Li⁺ ions are released and return to the electrolyte. Here, a pre-lithiation process is necessary for the AC anode to enhance the availability of Li⁺ ions for charge storage and facilitate the effective formation of SEI film. The charge/discharge curves for the pre-lithiation process of the AC anode are displayed in Figure S5a (Supplementary Materials). Additionally, a pre-cycle treatment is applied to the graphite cathode to activate the anion intercalation pathways, with the charge/discharge curves of the Li//graphite half cells shown in Figure S5b (Supplementary Materials). The AC and graphite electrodes are fully discharged and fully charged to 0.01 V and 5 V, respectively, allowing for Li⁺ absorption and PF₆⁻ anions intercalation, before being used to assemble the full cell.

3.2.2. Electrochemical Performances

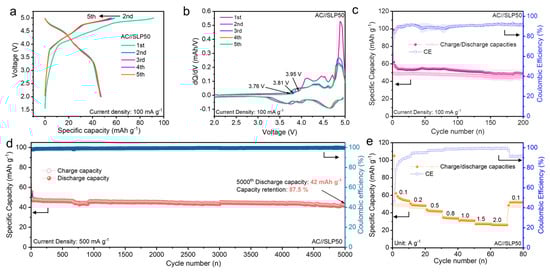

The electrochemical performance of AC (−)//graphite (+) full cells was first investigated by the galvanostatic charge/discharge test. Figure 5a displays the initial five charge/discharge curves of the cell at the current density of 100 mA g⁻¹ with the voltage range between 2.0 and 5.0 V. It is clear that the voltage plateaus corresponding to the anion intercalation behaviour are observed. The charge capacity of the first cycle reaches 90 mAh g⁻¹, but the first discharge capacity is lower than 50 mAh g⁻¹, yielding an initial CE of 50%. The lower CE in the first cycle is probably associated with the parasitic reactions, such as the electrolyte decomposition and self-discharge behaviour. Notably, the subsequent curves are overlapped well, which demonstrates the excellent cyclic reversibility and stability. Correspondingly, the initial five dQ/dV curves are exhibited in Figure 5b, while the peaks are attributed to the plateaus in the charge/discharge curves. The onset voltage for anion intercalation in the first cycle is 3.95 V, and the voltage decreases to 3.81 V in the second cycle and 3.76 V for subsequent cycles. The shift in the onset voltage indicates that the first uptake of anions into graphite interlayers needs to overcome the activation barrier to open the interlayer gaps [21,29,30]. This onset shift is also observed in CV curves of the cell at the scan rate of 0.2 mV s⁻¹ (Figure S6a, Supplementary Materials). Meanwhile, the specific peaks observed in the CV curves are associated with the anion intercalation/de-intercalation behaviours. Moreover, Figure S6b (Supplementary Materials) exhibits CV curves at various scan rates from 0.2 to 2.0 mV s⁻¹, and good reversibility of the cell is demonstrated. Figure 5c exhibits the charge/discharge capacities and relevant CE of the AC (−)//graphite (+) cell at the current density of 100 mA g⁻¹ between the voltage range of 2.0–5.0 V within the 200 cycles. The discharge capacity of 45 mAh g⁻¹ is delivered after 200 repeated charge/discharge processes, yielding a CE of 91.4%. The capacity retention of the cell is higher than 90%, demonstrating an excellent cyclic stability. The cyclic stability of the AC (−)//graphite (+) cell was further explored through the galvanostatic charge/discharge cycle at a high current density of 500 mA g⁻¹. The charge/discharge capacities and CE for 5000 cycles are exhibited in Figure 5d. Obviously, the capacity was still stable after 5000 cycles, yielding a capacity retention of 87.5% with an average CE of 99.3%. Furthermore, as shown in Figure 5e, the reversible discharge capacities of 48.7, 46.1, 41.0, 33.5, 31.4, 27.4, and 26.3 mAh g⁻¹ are maintained at various current densities of 0.1, 0.2, 0.5, 0.8, 1.0, 1.5, and 2.0 A g⁻¹, respectively. Particularly, the capacity of the AC (−)//graphite (+) cell recovered to 47.6 mAh g⁻¹ when the current density was switched back to the initial 0.1 A g⁻¹, exhibiting excellent rate capability and cyclic reversibility. Figure S7a (Supplementary Materials) displays the charge/discharge curves of the cell cycled at various current densities. Obviously, the discharge time reduces with the increasing current density. Figure S7b (Supplementary Materials) illustrates the medium voltage of the cell at various current densities, while the medium voltage drops from 4.2 V to 3.8 V when the current density increases from 0.1 to 2.0 A g⁻¹. This result demonstrates a high operating voltage in the AC (−)//graphite (+) full-cell system.

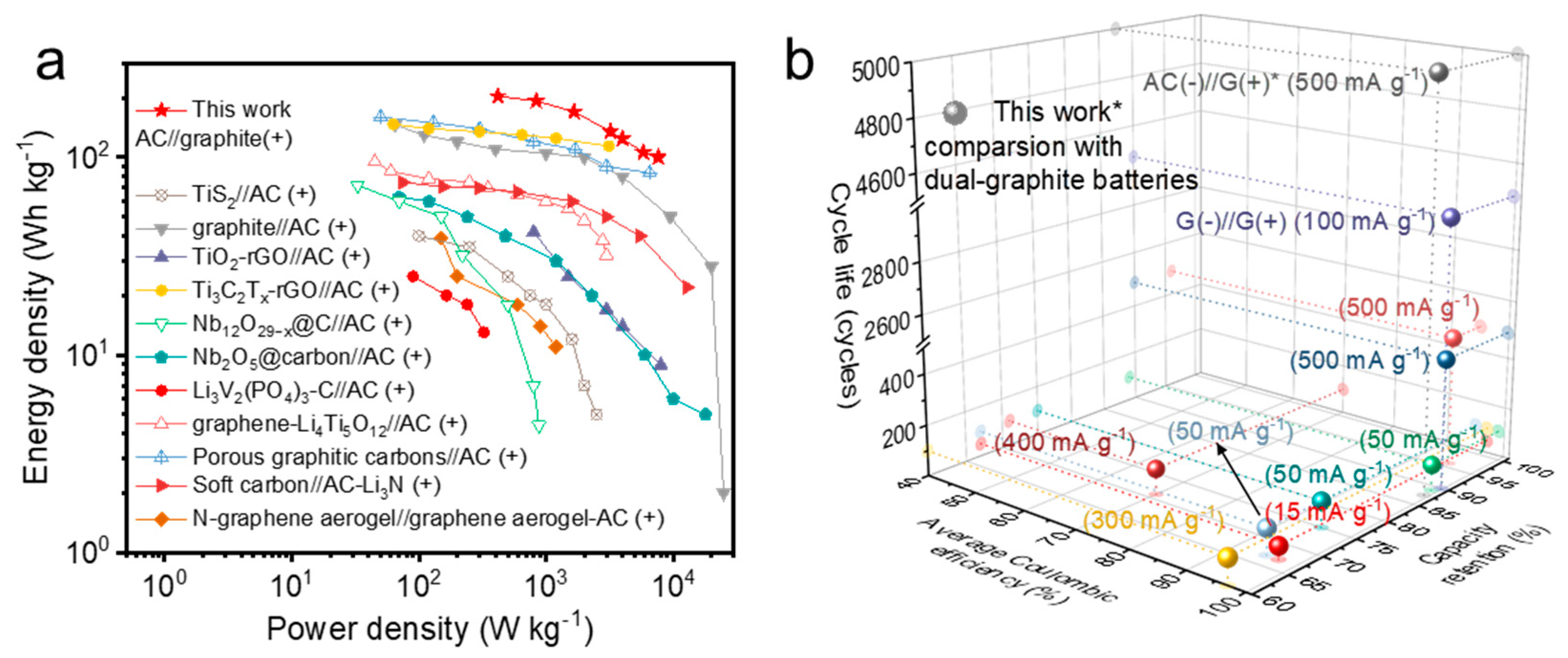

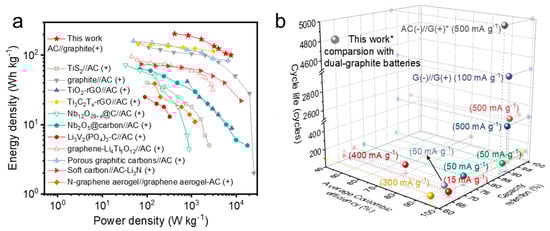

Accordingly, the energy and power density of the AC (−)//graphite (+) full-cell system were calculated using the equations provided in the Supplementary Materials, with detailed data displayed in Table S1 (Supplementary Materials). The comparisons, shown in the Ragone plot in Figure 6a and Table S2 (Supplementary Materials), are displayed with the previously fabricated LICs. A high energy density of 204 Wh kg⁻¹ (calculated based on the active mass of both electrodes) is achieved at a power density of 418 W kg⁻¹. At a high power density of 7.7 kW kg⁻¹, the AC (−)//SLP50 graphite (+) full cell delivers an energy density of 100 Wh kg⁻¹, exceeding most LICs based on anion absorption/desorption on the surface of the AC cathode [9,31,32,33,34,35,36,37,38,39,40]. Additionally, the electrochemical performance of this AC (−)//SLP50 graphite (+) full-cell system is compared to reported dual-graphite battery systems [41,42,43,44,45,46,47,48,49,50]. The comparison of the cycle life, capacity retention, and average Coulombic efficiency is presented in Figure 6b, with the detailed data summarised in Table S3. Notably, the novel AC (−)//SLP50 graphite (+) full-cell system in this work demonstrates a prolonged cycle life, along with cyclic efficiency and capacity retention comparable to those of dual-graphite batteries.

Moreover, different types of graphite, including SP1 and SFG6L, were applied as cathodes in the AC (−)//graphite (+) full-cell system. The detailed physical properties of these two graphite types are displayed in Figure S8 (Supplementary Materials). Figure S9 (Supplementary Materials) exhibits the electrochemical performance of the full cell, demonstrating a reversible and stable cyclic capability for both AC (−)//SP1 graphite (+) and AC (−)//SFG6L graphite (+) configurations. In summary, it can be concluded that various graphite cathode materials are suitable for this novel AC (−)//graphite (+) system in the electrolyte of 1 M LiPF₆ EMC operating at a high voltage range. This demonstrates the compatibility of graphite cathodes with anion intercalation behaviour for the improvement in the overall performances of AC-based energy storage devices. Notably, the electrochemical performance varies with different types of graphite. The potential influence of graphite properties on the overall performance of this AC (−)//graphite (+) full-cell system will be explored in our future work.

4. Conclusions

In summary, we demonstrated graphite as the cathode material for a novel AC (−)//graphite (+) device with the assistance of anion intercalation/de-intercalation chemistry. It has been found that the graphite cathode storing an anion charge via intercalation behaviour can deliver a higher capacitance than the commercial AC based on surface adsorption. The as-designed AC (−)//graphite (+) device showed a high energy density (>200 Wh kg⁻¹) with a well-maintained power density (>7 kW kg⁻¹), surpassing most reported supercapacitors and LICs. The AC (−)//graphite (+) device was also evaluated by cyclic stability and rate capability, which achieved a high capacity retention of 87.5% after 5000 cycles at the current density of 0.5 A g⁻¹, yielding an average CE of 99.3%. Moreover, various commercial graphite with different properties were successfully applied in this AC (−)//graphite (+) system, demonstrating good compatibility. Considering the abundance, wide availability, and low cost of the commercial graphite, this work is expected to inspire the development of novel electrochemical devices with a prolonged cyclic life, high energy density, and fast energy conversion rates.
