Perspective

Redox Activity as a Powerful Strategy to Tune Magnetic and/or Conducting Properties in Benzoquinone-Based Metal-Organic Frameworks

by
Noemi Monni
1,2,*,
Mariangela Oggianu
1,2,
Suchithra Ashoka Sahadevan
3 and
Maria Laura Mercuri
1,2,*
1
Department of Chemical and Geological Sciences, University of Cagliari, Highway 554, Crossroads for Sestu, I09042 Monserrato (CA), Italy
2
National Interuniversity Consortium of Materials Science and Technology, INSTM, Street Giuseppe Giusti, 9, I50121 Florence, Italy
3
Applied Physical Chemistry, Centre of Molecular Devices, Department of Chemistry, KTH Royal Institute of Technology, SE-10044 Stockholm, Sweden
*
Authors to whom correspondence should be addressed.
Magnetochemistry 2021, 7(8), 109; https://doi.org/10.3390/magnetochemistry7080109
Submission received: 12 June 2021 / Revised: 6 July 2021 / Accepted: 22 July 2021 / Published: 2 August 2021
(This article belongs to the Special Issue Perspectives on Molecular Materials—A Tribute to Professor Peter Day)
Browse Figures
Versions Notes

Abstract

:
Multifunctional molecular materials have attracted material scientists for several years as they are promising materials for the future generation of electronic devices. Careful selection of their molecular building blocks allows for the combination and/or even interplay of different physical properties in the same crystal lattice. Incorporation of redox activity in these networks is one of the most appealing and recent synthetic strategies used to enhance magnetic and/or conducting and/or optical properties. Quinone derivatives are excellent redox-active linkers, widely used for various applications such as electrode materials, flow batteries, pseudo-capacitors, etc. Quinones undergo a reversible two-electron redox reaction to form hydroquinone dianions via intermediate semiquinone radical formation. Moreover, the possibility to functionalize the six-membered ring of the quinone by various substituents/functional groups make them excellent molecular building blocks for the construction of multifunctional tunable metal-organic frameworks (MOFs). An overview of the recent advances on benzoquinone-based MOFs, with a particular focus on key examples where magnetic and/or conducting properties are tuned/switched, even simultaneously, by playing with redox activity, is herein envisioned.

Graphical Abstract

1. Introduction

Over several decades, metal-organic frameworks (MOFs) have been extensively studied [1] due to their unique supramolecular architectures, which lead to high porosity and interesting properties in magnetism [2], conductivity [3], photochromism [4,5], luminescence [6,7,8,9], etc. MOFs are coordination compounds formed by metal ions linked to organic ligands, forming an infinite array in one, two, or three dimensions (1D, 2D, and 3D) and offering a plethora of applications in different fields including gas storage, separation, catalysis, energy storage, sensing, biomedical applications, etc. [10,11,12,13,14]. Depending on a careful choice of metal ions/linkers [15], MOFs can also show a combination and/or even interplay of physical properties. A relatively new strategy [10,16,17] to enhance their physical properties, in particular, magnetism and conductivity, is the incorporation of redox activity. Redox activity can be promoted via various methods such as (i) a rational design of redox-active metals centers or linkers [18], (ii) post-synthetic modifications of metal ions or through ligand exchange, and (iii) encapsulation of redox-active guest ions in the pores of MOFs [19], leading to the formation of radical species, affecting the electronic properties of the organic linkers and, therefore, the physical properties of the related networks [20,21].
Among the redox-active linkers, derivatives of pyrazine [22], dithiolenes [23], triphenylamine [24], N,N-Dipyridil Naphthalenediimide [20], hexaaminobenzene [25], porphyrin [26], bipyridine [27], etc., are most commonly used in MOFs, while multidentate redox- active linkers, providing different possibilities to tune redox activity, still represent a challenge up to now [20,21,28].
The benzoquinone/hydroquinone linkers represent a redox-active couple remarkably studied in technologically important materials such as electrodes [6,29], flow batteries [30], pseudo-capacitors [31], and materials used in artificial photosynthesis [32]. Benzoquinones are a class of naturally occurring organic compounds that possess two carbonyl groups C=O in the 1 and 4 position in an unsaturated six-membered ring [33]. Benzoquinones are usually electron deficient, and their benzoquinoid-like configuration undergoes a mono-electron reversible reduction to produce the para semiquinone radical species, which, in turn, could be further reduced to form the aromatic hydroquinone dianion (vide infra), as described in Scheme 1.
The stability of the semiquinoid form could be influenced by different factors, such as the nature of the ring substituents, intra/intermolecular hydrogen bonding, solvent polarity, the presence of acidic or basic additives, and protonation [34,35,36,37,38,39]. Particularly, chemical tailoring of benzoquinone linkers, through the functionalization of the six-membered ring by various substituents (halo, nitro, amino, methoxy, etc.), can stabilize the radical anion [40], depending on the steric and electronic nature of the substituents, thus modulating the physical properties of the benzoquinone-based networks at a molecular level [41]. In fact, the presence of different substituents on the benzoquinoid ring can tune the one-electron reduction potential, as shown in Table 1. When the benzoquinones are functionalized with electron-donating substituents, i.e., methyl groups, the reduction potential is more negative depending on how many methyl groups are present, making these species more difficult to reduce. On the contrary, it is possible to observe an opposite trend when electron-withdrawing substituents, such as chlorine, are present. Therefore, benzoquinones containing chlorine substituents in the ring show more positive reduction potentials and consequently are easier to reduce [33].
Among the parabenzoquinones derivatives, 2,5-dihydroxy-1,4-benzoquinones (dhbq) have attracted ever-growing interest in material chemistry due to their versatile coordination modes (Scheme 2). Furthermore, when hydrogens at the 3 and 6 position are replaced with different substituents (halogen atoms or functional groups), they are better known in the literature as anilic acids, formulated as H2X2C6O4 (H2X2An), where X indicates the substituent and C6O4 indicates the anilate moiety (An) [2,42,43]. When the anilic acids are in their dianionic form, i.e., anilates, they act as valuable linkers for transition [44,45,46,47,48,49,50,51] and lanthanide metal nodes [52,53,54,55,56,57,58] to build materials showing a combination of fascinating physical properties and redox states (vide infra). All these features make them interesting molecular building blocks for constructing a large variety of novel supramolecular frameworks [49,59], as shown in Figure 1. Particularly, most of the reported structures based on parabenzoquinone derivatives are 2D, paving the way for a further exfoliation of bulk MOFs to fabricate metal-organic nanosheets (MON) that can show peculiar redox behavior [60].
On this basis, MOFs formed by metal nodes and benzoquinoid-based ligands, especially anilates, feature an ideal platform for the construction of porous redox materials with switchable conducting/magnetic properties [62], due to the changeover to the semiquinoid form.
A pioneering study on a dhbq based-framework, reported by Abrahams et al. [63], revealed (i) the potential of benzoquinone to act as a suitable building block for constructing extended frameworks [64] and (ii) its capability to receive/lose electrons while keeping unchanged the supramolecular architecture. This study opened up unprecedented routes to tune the physical properties of extended frameworks through redox activity.
The present work focuses on key examples of the latest developments (from 2015 to date) on redox-active benzoquinone-based MOFs showing conducting and/or magnetic properties. The aim is to evidence the enhancement/switching of magnetism and/or conductivity due to a fine modulation of benzoquinone redox properties, highlighting the extreme versatility of this class of redox-active linkers in tailoring the physical properties of extended frameworks.

2. Semiquinone-Based MOFs

The incorporation of a semiquinone in a solid framework could be achieved through in situ or post-synthetic reduction of the benzoquinone derivatives. In 2016, Stock et al. [65] reported on the first example of permanently porous AlIII-MOFs, of the formulas (CH3)2NH2)3[Al4(dhbq)3(dhbq•)3]·3DMF (1) and ((CH3)2NH2)3[Al4(Cl2An)3(Cl2An•)3]·9DMF (2), containing ligands in both their dianionic form (dhbq2−) as well as in the semiquinonic form (dhbq3−). Interestingly, MOFs 1 and 2 were obtained by in situ reduction, using high-throughput methods, which consist of an automated solvothermal equipment with different ligand/Al stoichiometric ratios, in DMF solvent, for optimizing the synthesis conditions. MOFs 1 and 2 show specific surface areas of 1440 and 1430 m2g−1, respectively [65]. A similar MOF was also reported by Harris et al. [62,66], by combining FeII ions with H2Cl2An through a solvothermal reaction in DMF, leading to a novel porous semiquinoid antiferromagnet formulated as ((CH3)2NH2)2[Fe2(Cl2An)3]·2H2O·6DMF (3). The chloranilate bridging ligand is simultaneously present in both benzoquinoid and semiquinoid forms, resulting from a spontaneous electron transfer from FeII to Cl2An2−, giving rise to a mixed-valence layered MOF [62]. The ligand coordinates in its bis-bidentate mode, which generates anionic layers where six metal ions are coordinate by the ligand forming a hexagonal motif, the typical honeycomb packing. The (CH3)2NH2+ cations both balance the charge and orient the anionic layers to an eclipsed structure, forming 1D hexagonal channels, which show a Brunauer–Emmett–Teller (BET) surface area of 1175 m2g−1. MOF 3 shows antiferromagnetic interactions with a spontaneous magnetization below 80 K in its solvated form, while the magnetic ordering temperature decreases to 26 K in the desolvated form (3_desolv), which shows a BET surface area of 885 m2g−1 (Figure 2) and a fully reversible structural contraction consistent with a “breathing” behavior. The high value of magnetic ordering temperature compared to other extended systems containing the same bridging ligand in its dianionic form [45] highlights the ability of semiquinone ligands to form porous magnets with enhanced magnetic coupling between metal ions (vide supra) [62]. Moreover, MOFs 3 and 3_desolv show conductivity values of σ = 1.4(7) × 10−2 S/cm (Ea = 0.26(1) eV) and 1.0(3) × 10−3 S/cm (Ea = 0.19(1) eV), respectively, proving the ability of benzoquinone derivatives to construct multifunctional MOFs, in which porosity, magnetism, and conductivity coexist [62].
Furthermore, H2Cl2An in MOF 3 could be fully reduced to its semiquinoid form via a post-synthetic approach by using cobaltocene (Cp2Co), which allows a single-crystal-to-single-crystal chemical (one-electron) reduction, due to its porous crystalline structure, affording a 2D MOF, formulated as (Cp2Co)1.43((CH3)2NH2)1.57[Fe2 Cl2An 3]·4.9DMF (4). Remarkably, the Tc can increase up to 105 K, a rare value for MOFs, attributable to the strong magnetic exchange interactions between metal ions mediated by the semiquinone radical form. Variable-field measurements show a magnetic hysteresis up to 100 K, which is consistent with the high Tc value (see Figure 3).
The r.t. conductivity of MOF 4, on a pressed-pellet, has a value of σ = 5.1(3) × 10−4 Scm−1, probably due to the complete ligand reduction that remove the mixed-valence character of the MOF [66]. Variable-temperature conductivity data in the 300–160 K range fit well the Arrhenius law with Ea = 0.34(1) eV, in agreement with the observed conductivity value of MOF 4 and lower than MOFs 3 and 3_desolv, supporting the complete chemical reduction. Noteworthily, the coexistence of high magnetic ordering and electrical conductivity in the same material is rather unusual, as well as the capability of the quinoid MOF to retain its crystalline structure upon post-synthetic chemical reduction, demonstrating the potential of quinoid-based MOFs to provide a new generation of redox-active conducting magnets for future spintronics applications (vide infra).
In 2015, Long et al. reported the first example of a 3D dhbq-based MOF, obtained by a solvothermal reaction and formulated as (NBu4)2FeIII2(dhbq)3 (5) [67]. This MOF shows a very rare topology for dhbq2−-based coordination compounds [68,69,70] with two interpenetrated (10,3)-a networks of opposing chiralities (Figure 4), generating a topology that differs from the classic honeycomb structure frequently observed for anilates [71]. This material behaves as an Arrhenius semiconductor with a very high r.t. conductivity of 0.16(1) S/cm and an Ea of 110 meV. Mössbauer spectroscopy confirms the presence of high-spin FeIII metal ions, and the high conductivity value can be ascribed to the presence of mixed-valency due to dhbq3− radicals, remarkably Class II/III according to Robin-Day, as evidenced by diffuse reflectance measurements in the UV–Vis–NIR range. Noteworthily, MOF 5, where a FeII-semiquinoid transition occurred, provides a challenging scaffold for constructing tunable long-range electronic communication in MOF [72].
Interestingly, it is possible to tune the electrical conductivity by combining dhbq or H2Cl2An with transition metal ions having diffuse 3D orbitals. In 2018, Long et al. reported on 2D semiquinoid-bridged frameworks based on titanium, chromium, and vanadium, formulated as ((CH3)2NH2)2Ti2(Cl2An)3·4.7DMF (6), ((CH3)2NH2)1.5Cr2(dhbq)3·4.4DMF (7), and ((CH3)2NH2)2V2(Cl2An)3·6.4DMF (8), respectively [73]. MOFs 6–8 show a honeycomb-type structure similar to MOFs 1–4, which were studied electrochemically by using solid-state cyclic voltammetry, which pointed out only ligand-based redox processes for compounds of MOFs 6–7 and a combination of ligand- and metal-based redox activity for MOF 8. Given their mixed-valence character, they all show electronic conductivity of values 2.7(2) × 10−3 S/cm, 1.2(1) × 10−4 S/cm, and remarkably 0.45(3) S/cm, respectively, for MOFs 6–8, following the expected trend based on the correlation with the electronic structure of the frameworks and, in the case of MOF 8, consistent with the observed metal−ligand covalency [73].
These results show that the incorporation of semiquinoid ligands in an extended scaffold is a valuable strategy for developing multifunctional MOFs with improved electrical conductivity and temperature magnetic ordering, making quinone derivatives excellent candidates for constructing next-generation data processing and storage systems.

3. Benzoquinone-Based MOFs

Very recently, Miyasaka et al. reported on post-synthetic generation of radical species via solid-state bulk electrochemistry technique, in a MOF containing diamagnetic benzoquinone derivatives, at the cathode of a lithium-ion battery system (LIB), producing a radical spin in the benzoquinone moiety and Li+ insertion for preserving neutrality [74]. In this case, porosity is a fundamental requirement for host Li+ ions. The precursor, formulated as (H3O)2(phz)3[Fe2(Cl2An)3] (9), was obtained by the desolvatation of (H3O)2(phz)3[Fe2(Cl2An)3]∙(CH3COCH3)n∙(H2O)n(9_solv). MOF 9 shows the typical honeycomb packing shown by anilates, with alternating anionic/cationic layers, where the counter cations [(H3O)2(phz)3]2+ are placed between the layers, acting as a templating agent that leads to 1D hexagonal channels along the c axis, conferring porosity to the network. MOF 9 shows paramagnetic behavior and short-range ferromagnetic correlations among FeII ions, through a chloranilate linker, in the layered framework, as can be seen by lack of hysteresis in the magnetization vs. field (M-H) measurements, even at 5 K. With the ligand reduction due to the insertion of Li+ ions, antiferromagnetic superexchange interactions between the radical anion Cl2An•3− and FeII ions took place, and the reduced MOF, formulated as (Li)3(H3O)2(phz)3[(Fe)2(Cl2An)3] (9_red), shows one of the higher Tc values reported so far, Tc = 128 K [74] (Figure 5). The formation of the radical ligand Cl2An•3−, starting from Cl2An2−, leads to a long-range magnetic ordering in the MOF, making this MOF a potential cathode material of a LIB.
Remarkably, Harris et al. [75] reported on the simultaneous switching of magnetic and conducting properties induced by post-synthetic chemical reduction in a MOF of formula (Me4N)2[Mn2(Cl2An)3]x.DMF, containing the diamagnetic chloranilate linker (10). When MOF 10 is soaked in a THF equimolar reducing solution of sodium naphthalenide and 1,2-dihydroacenaphthylene for several days, a semiquinoid-based MOF, of formula Na3(Me4N)2[Mn2(Cl2An)3]3.9THF (11), is obtained. The reduction mechanism occurs via single-crystal-to-single-crystal process (vide infra), provoking the formation of Cl2An•3− semiquinone radical form starting from diamagnetic Cl2An2−, while the oxidation state of MnII remains unchanged. Upon the conversion in the radical form of Cl2An2−, a simultaneous change in both conductivity and magnetic properties is observed. Indeed MOF 10 shows a paramagnetic behavior above 1.8 K and a r.t. conductivity value of σ = 1.14(3) × 10−13 Scm−1 (Ea = 0.74(3) eV), whereas MOF 11 shows antiferromagnetic interactions between MnII ions below 41 K, mediated by the semiquinone, and a r.t. conductivity value of σ = 2.27(1)× 10−8 Scm−1 (Ea = 0.489 (8) eV), a value 200,000 times higher than the respective benzoquinoid framework. Furthermore, by soaking MOF 11 in ferrocene (Cp2Fe+) solution, a compound, formulated as Na((CH3)4N)[Mn2(Cl2An)3] 5.5THF 0.8CH3CN (12), is afforded, showing similar values of Tc and σ as MOF 10 (oxidized compound), highlighting the reversibility of the redox process [75], as reported in Figure 6.
The capability of benzoquinone-based MOFs to undergo reversible redox processes, which provoke a simultaneous switching of magnetic and transport properties, are worth being highlighted, as they may be considered suitable materials for future spintronic technologies.

4. Conclusions and Perspectives

The recent developments on redox-active benzoquinone-based MOFs, herein discussed, contribute to the ongoing research on the use of these materials for technologically relevant applications. It turns out that benzoquinoid/semiquinoid redox activity is a powerful strategy to tune their physical properties, in particular magnetism and/or conductivity. Porosity is a remarkable additional property and porous channels in benzoquinoid MOFs, allowing for the facile insertion/extraction of the electrolytes, which makes them promising materials for electrodes and rechargeable energy storage systems [76,77]. Furthermore, it has been highlighted that post-synthetic chemical redox reactions are a promising strategy to control ligand redox states in the MOF and the related changes of its conducting and magnetic properties, while the scaffold with metal–semiquinoid transitions provides tunable and delocalized electronic structures. Therefore, the whole redox control over MOFs is a very challenging task, specifically for their applications in the electronic devices realm. In more detail, redox control requires open-shell ligands and metals, frontier orbitals with similar energies, and maximal overlap to favor charge delocalization, and benzoquinones successfully match these requirements. Finally, the fabrication of semiquinoid MOFs, showing coexistence of simultaneously switchable conducting and magnetic properties, represents a forefront challenge for their potential applications in next-generation spintronic technologies, as magnetic transistors, terahertz information, and multifunctional chips, where data storage and information processing can occur at the same location.

Author Contributions

N.M., M.O. and S.A.S. contributed equally in terms of accurate literature searching and paper writing; M.L.M. supervised and wrote the paper with the help of N.M. All authors have read and agreed to the published version of the manuscript.

Funding

(a) Fondazione di Sardegna e gli Atenei Sardi, Regione Sardegna-L.R. 7/2007 annualità 2018-DGR 28/21 del 17.05.2015, project F74I19000940007; (b) CESA−RAS-Piano SULCIS (E58C16000080003) are acknowledged for the PhD grant of M.O.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tran, M.; Kline, K.; Qin, Y.; Shen, Y.; Green, M.D.; Tongay, S. 2D coordination polymers: Design guidelines and materials perspective. Appl. Phys. Rev. 2019, 6, 041311. [Google Scholar] [CrossRef]
  2. Mercuri, M.L.; Congiu, F.; Concas, G.; Ashoka Sahadevan, S. Recent Advances on Anilato-Based Molecular Materials with Magnetic and/or Conducting Properties. Magnetochemistry 2017, 3, 17. [Google Scholar] [CrossRef] [Green Version]
  3. Coronado, E.; Galán-Mascarós, J.R.; Gómez-García, C.J.; Laukhin, V. Coexistence of ferromagnetism and metallic conductivity in a molecule-based layered compound. Nature 2000, 408, 447–449. [Google Scholar] [CrossRef]
  4. Haldar, R.; Heinke, L.; Wöll, C. Advanced Photoresponsive Materials Using the Metal–Organic Framework Approach. Adv. Mater. 2019, 1905227, 1905227. [Google Scholar] [CrossRef] [Green Version]
  5. Bénard, S.; Yu, P.; Audière, J.P.; Rivière, E.; Clément, R.; Guilhem, J.; Tchertanov, L.; Nakatani, K. Structure and NLO properties of layered bimetallic oxalato-bridged ferromagnetic networks containing stilbazolium-shaped chromophores. J. Am. Chem. Soc. 2000, 122, 9444–9454. [Google Scholar] [CrossRef]
  6. Han, C.; Li, H.; Shi, R.; Zhang, T.; Tong, J.; Li, J.; Li, B. Organic quinones towards advanced electrochemical energy storage: Recent advances and challenges. J. Mater. Chem. A 2019, 7, 23378–23415. [Google Scholar] [CrossRef]
  7. Pamei, M.; Puzari, A. Luminescent transition metal–organic frameworks: An emerging sensor for detecting biologically essential metal ions. Nano-Struct. Nano-Objects 2019, 19, 100364–100386. [Google Scholar] [CrossRef]
  8. Ashoka Sahadevan, S.; Monni, N.; Abhervé, A.; Marongiu, D.; Sarritzu, V.; Sestu, N.; Saba, M.; Mura, A.; Bongiovanni, G.; Cannas, C.; et al. Nanosheets of Two-Dimensional Neutral Coordination Polymers Based on Near-Infrared-Emitting Lanthanides and a Chlorocyananilate Ligand. Chem. Mater. 2018, 30, 6575–6586. [Google Scholar] [CrossRef]
  9. Kuznetsova, A.; Matveevskaya, V.; Pavlov, D.; Yakunenkov, A.; Potapov, A. Coordination polymers based on highly emissive ligands: Synthesis and functional properties. Materials 2020, 13, 2699. [Google Scholar] [CrossRef]
  10. He, Y.; Chen, F.; Li, B.; Qian, G.; Zhou, W.; Chen, B. Porous metal–organic frameworks for fuel storage. Coord. Chem. Rev. 2018, 373, 167–198. [Google Scholar] [CrossRef]
  11. Zhang, X.; Chen, A.; Zhong, M.; Zhang, Z.; Zhang, X.; Zhou, Z.; Bu, X.-H. Metal–Organic Frameworks (MOFs) and MOF-Derived Materials for Energy Storage and Conversion; Springer: Singapore, 2019; Volume 2, ISBN 0123456789. [Google Scholar]
  12. Koo, W.-T.; Jang, J.-S.; Kim, I.-D. Metal-Organic Frameworks for Chemiresistive Sensors. Chem 2019, 5, 1938–1963. [Google Scholar] [CrossRef]
  13. Baumann, A.E.; Burns, D.A.; Liu, B.; Thoi, V.S. Metal-organic framework functionalization and design strategies for advanced electrochemical energy storage devices. Commun. Chem. 2019, 2, 1–14. [Google Scholar] [CrossRef] [Green Version]
  14. Oggianu, M.; Monni, N.; Mameli, V.; Cannas, C.; Sahadevan, S.A.; Mercuri, M.L. Designing Magnetic NanoMOFs for Biomedicine: Current Trends and Applications. Magnetochemistry 2020, 6, 39. [Google Scholar] [CrossRef]
  15. Mínguez Espallargas, G.; Coronado, E. Magnetic functionalities in MOFs: From the framework to the pore. Chem. Soc. Rev. 2018, 47, 533–557. [Google Scholar] [CrossRef] [Green Version]
  16. Wang, H.; Cui, L.; Xie, J.; Leong, C.F.; Alessandro, D.M.D.; Zuo, J. Functional coordination polymers based on redox-active tetrathiafulvalene and its derivatives. Coord. Chem. Rev. 2017, 345, 342–361. [Google Scholar] [CrossRef]
  17. Degayner, J.A.; Wang, K.; Harris, T.D. A Ferric Semiquinoid Single-Chain Magnet via Thermally-Switchable Metal-Ligand Electron Transfer. J. Am. Chem. Soc. 2018, 140, 6550–6553. [Google Scholar] [CrossRef]
  18. Sun, L.; Hendon, C.H.; Park, S.S.; Tulchinsky, Y.; Wan, R.; Wang, F.; Walsh, A.; Dinca, M. Is iron unique in promoting electrical conductivity in MOFs? Chem. Sci. 2017, 8, 4450–4457. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Halls, J.E.; Jiang, D.; Burrows, A.D.; Kulandainathan, M.A.; Marken, F. Electrochemistry within metal-organic frameworks. Electrochemistry 2013, 12, 187–210. [Google Scholar] [CrossRef]
  20. Calbo, J.; Golomb, M.J.; Walsh, A. Redox-active metal-organic frameworks for energy conversion and storage. J. Mater. Chem. A 2019, 7, 16571–16597. [Google Scholar] [CrossRef]
  21. D’Alessandro, D.M. Exploiting redox activity in metal-organic frameworks: Concepts, trends and perspectives. Chem. Commun. 2016, 52, 8957–8971. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Pedersen, K.S.; Perlepe, P.; Aubrey, M.L.; Woodruff, D.N.; Reyes-Lillo, S.E.; Reinholdt, A.; Voigt, L.; Li, Z.; Borup, K.; Rouzieres, M.; et al. Formation of the layered conductive magnet CrCl2 (pyrazine)2 through redox-active coordination chemistry. Nat. Chem. 2018, 10, 1056–1061. [Google Scholar] [CrossRef] [PubMed]
  23. Yan, Y.; Keating, C.; Chandrasekaran, P.; Jayarathne, U.; Mague, J.T.; Debeer, S.; Lancaster, K.M.; Sproules, S.; Rubtsov, I.V.; Donahue, J.P. Ancillary ligand effects upon dithiolene redox noninnocence in tungsten Bis(dithiolene) complexes. Inorg. Chem. 2013, 52, 6743–6751. [Google Scholar] [CrossRef]
  24. Ellis, H.; Eriksson, S.K.; Feldt, S.M.; Gabrielsson, E.; Lohse, P.W.; Lindblad, R.; Sun, L.; Rensmo, H.; Boschloo, G.; Hagfeldt, A. Linker unit modification of triphenylamine-based organic dyes for efficient cobalt mediated dye-sensitized solar cells. J. Phys. Chem. C 2013, 117, 21029–21036. [Google Scholar] [CrossRef]
  25. Li, C.; Shi, L.; Zhang, L.; Chen, P.; Zhu, J.; Wang, X.; Fu, Y. Ultrathin two-dimensional π–d conjugated coordination polymer Co3(hexaaminobenzene)2 nanosheets for highly efficient oxygen evolution. J. Mater. Chem. 2020, 8, 369–379. [Google Scholar] [CrossRef]
  26. Campbell, W.M.; Jolley, K.W.; Wagner, P.; Wagner, K.; Walsh, P.J.; Gordon, K.C.; Schmidt-Mende, L.; Nazeeruddin, M.K.; Wang, Q.; Grätzel, M.; et al. Highly efficient porphyrin sensitizers for dye-sensitized solar cells. J. Phys. Chem. C 2007, 111, 11760–11762. [Google Scholar] [CrossRef]
  27. Xiang, W.; Huang, F.; Cheng, Y.B.; Bach, U.; Spiccia, L. Aqueous dye-sensitized solar cell electrolytes based on the cobalt(ii)/(iii) tris(bipyridine) redox couple. Energy Environ. Sci. 2013, 6, 121–127. [Google Scholar] [CrossRef]
  28. Su, J.; Hu, T.H.; Murase, R.; Wang, H.Y.; D’Alessandro, D.M.; Kurmoo, M.; Zuo, J.L. Redox Activities of Metal-Organic Frameworks Incorporating Rare-Earth Metal Chains and Tetrathiafulvalene Linkers. Inorg. Chem. 2019, 58, 3698–3706. [Google Scholar] [CrossRef]
  29. Wu, Y.; Zeng, R.; Nan, J.; Shu, D.; Qiu, Y.; Chou, S.L. Quinone Electrode Materials for Rechargeable Lithium/Sodium Ion Batteries. Adv. Energy Mater. 2017, 7, 1700278–1700304. [Google Scholar] [CrossRef]
  30. Tabor, D.P.; Gómez-Bombarelli, R.; Tong, L.; Gordon, R.G.; Aziz, M.J.; Aspuru-Guzik, A. Mapping the frontiers of quinone stability in aqueous media: Implications for organic aqueous redox flow batteries. J. Mater. Chem. A 2019, 7, 12833–12841. [Google Scholar] [CrossRef]
  31. Boota, M.; Chen, C.; Be, M.; Miao, L.; Gogotsi, Y. Pseudocapacitance and excellent cyclability of 2,5-dimethoxy-1,4-benzoquinone on graphene. Energy Environ. Sci. 2016, 9, 2586–2594. [Google Scholar] [CrossRef]
  32. Schon, T.B.; Mcallister, B.T.; Li, P.; Seferos, D.S. The rise of organic electrode materials for energy storage. Chem. Soc. Rev. 2016, 45, 6345–6404. [Google Scholar] [CrossRef] [Green Version]
  33. Patai, S.; Rappoport, Z. The Chemistry of the Quinonoid Compounds; Bath, John Wiles & Sons Ltd.: Hoboken, NJ, USA, 1988; Volume 2. [Google Scholar]
  34. Guin, P.S.; Das, S.; Mandal, P.C. Electrochemical Reduction of Quinones in Different Media: A Review. Int. J. Electrochem. 2011, 2011, 1–22. [Google Scholar] [CrossRef] [Green Version]
  35. Lehmann, M.W.; Evans, D.H. Mechanism of the electrochemical reduction of 3,5-di-tert-butyl-1,2-benzoquinone. Evidence for a concerted electron and proton transfer reaction involving a hydrogen-bonded complex as reactant. J. Phys. Chem. B 2001, 105, 8877–8884. [Google Scholar] [CrossRef]
  36. Gupta, N.; Linschitz, H. Hydrogen-bonding and protonation effects in electrochemistry of quinones in aprotic solvents. J. Am. Chem. Soc. 1997, 119, 6384–6391. [Google Scholar] [CrossRef]
  37. Given, P.H.; Peover, M.E. Polarographic Reduction of Aromatic Hydrocarbons and Carbonyl Compounds in Dimethylformamide in the Presence of Proton-donors. J. Chem. Soc. 1960, 385–393. [Google Scholar] [CrossRef]
  38. Wightman, R.M.; Cockrell, J.R.; Murray, R.W.; Burnett, J.N.; Jones, S.B. Protonation Kinetics and Mechanism for 1,8-Dihydroxyanthraquinone and Anthraquinone Anion Radicals in Dimethylformamide Solvent. J. Am. Chem. Soc. 1976, 98, 2562–2570. [Google Scholar] [CrossRef]
  39. Garza, J.; Vargas, R.; Gómez, M.; González, I.; González, F.J. Theoretical and Electrochemical Study of the Quinone-Benzoic Acid Adduct Linked by Hydrogen Bonds. J. Phys. Chem. A 2003, 107, 11161–11168. [Google Scholar] [CrossRef]
  40. Yao, M.; Senoh, H.; Yamazaki, S.I.; Siroma, Z.; Sakai, T.; Yasuda, K. High-capacity organic positive-electrode material based on a benzoquinone derivative for use in rechargeable lithium batteries. J. Power Sources 2010, 195, 8336–8340. [Google Scholar] [CrossRef]
  41. Khattak, A.M.; Ghazi, Z.A.; Liang, B.; Khan, N.A.; Iqbal, A.; Li, L.; Tang, Z. A redox-active 2D covalent organic framework with pyridine moieties capable of faradaic energy storage. J. Mater. Chem. A 2016, 4, 16312–16317. [Google Scholar] [CrossRef]
  42. Atzori, M.; Pop, F.; Cauchy, T.; Mercuri, M.L.; Avarvari, N. Thiophene-benzoquinones: Synthesis, crystal structures and preliminary coordination chemistry of derived anilate ligands. Org. Biomol. Chem. 2014, 12, 8752–8763. [Google Scholar] [CrossRef]
  43. Atzori, M.; Artizzu, F.; Sessini, E.; Marchiò, L.; Loche, D.; Serpe, A.; Deplano, P.; Concas, G.; Pop, F.; Avarvari, N.; et al. Halogen-bonding in a new family of tris(haloanilato)metallate(III) magnetic molecular building blocks. Dalton Trans. 2014, 43, 7006–7019. [Google Scholar] [CrossRef]
  44. Abhervé, A.; Mañas-Valero, S.; Clemente-León, M.; Coronado, E. Graphene related magnetic materials: Micromechanical exfoliation of 2D layered magnets based on bimetallic anilate complexes with inserted [FeIII (acac 2 -trien)] + and [FeIII (sal 2 -trien)] + molecules. Chem. Sci. 2015, 6, 4665–4673. [Google Scholar] [CrossRef] [Green Version]
  45. Atzori, M.; Benmansour, S.; Mínguez Espallargas, G.; Clemente-León, M.; Abhervé, A.; Gómez-Claramunt, P.; Coronado, E.; Artizzu, F.; Sessini, E.; Deplano, P.; et al. A family of layered chiral porous magnets exhibiting tunable ordering temperatures. Inorg. Chem. 2013, 52, 10031–10040. [Google Scholar] [CrossRef]
  46. Benmansour, S.; Abhervé, A.; Gómez-Claramunt, P.; Vallés-García, C.; Gómez-García, C.J. Nanosheets of Two-Dimensional Magnetic and Conducting Fe(II)/Fe(III) Mixed-Valence Metal-Organic Frameworks. ACS Appl. Mater. Interfaces 2017, 9, 26210–26218. [Google Scholar] [CrossRef]
  47. Sahadevan, S.A.; Abhervé, A.; Monni, N.; Sáenz De Pipaón, C.; Galán-Mascarós, J.R.; Waerenborgh, J.C.; Vieira, B.J.C.; Auban-Senzier, P.; Pillet, S.; Bendeif, E.-E.; et al. Conducting Anilate-Based Mixed-Valence Fe(II)Fe(III) Coordination Polymer: Small-Polaron Hopping Model for Oxalate-Type Fe(II)Fe(III) 2D Networks. J. Am. Chem. Soc. 2018, 140, 12611–12621. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Atzori, M.; Pop, F.; Auban-Senzier, P.; Gómez-García, C.J.; Canadell, E.; Artizzu, F.; Serpe, A.; Deplano, P.; Avarvari, N.; Mercuri, M.L. Structural diversity and physical properties of paramagnetic molecular conductors based on bis(ethylenedithio)tetrathiafulvalene (BEDT-TTF) and the tris(chloranilato)ferrate(III) complex. Inorg. Chem. 2014, 53, 7028–7039. [Google Scholar] [CrossRef]
  49. Kitagawa, S.; Kawata, S. Coordination compounds of 1,4-dihydroxybenzoquinone and its homologues. Structures and properties. Coord. Chem. Rev. 2002, 224, 11–34. [Google Scholar] [CrossRef]
  50. Nielson, K.V.; Zhang, L.; Zhang, Q.; Liu, T.L. A strategic high yield synthesis of 2,5-dihydroxy-1,4-benzoquinone Based MOFs. Inorg. Chem. 2019, 58, 10756–10760. [Google Scholar] [CrossRef] [PubMed]
  51. Poschmann, M.P.M.; Reinsch, H.; Stock, N. [M2(μ-OH)2(DHBQ)3] (M = Zr, Hf)—Two New Isostructural Coordination Polymers based on the Unique M2O14 Inorganic Building Unit and 2,5-Dioxido-p-benzoquinone as Linker Molecule. Z. Anorg. Und Allg. Chem. 2021, 647, 436–441. [Google Scholar] [CrossRef]
  52. Benmansour, S.; Hernández-Paredes, A.; Gómez-García, C.J. Effect of the lanthanoid-size on the structure of a series of lanthanoid-anilato 2-D lattices. J. Coord. Chem. 2018, 71, 845–863. [Google Scholar] [CrossRef]
  53. Gómez-Claramunt, P.; Benmansour, S.; Hernández-Paredes, A.; Cerezo-Navarrete, C.; Rodríguez-Fernández, C.; Canet-Ferrer, J.; Cantarero, A.; Gómez-García, C.J. Tuning the Structure and Properties of Lanthanoid Coordination Polymers with an Asymmetric Anilato Ligand. Magnetochemistry 2018, 4, 6. [Google Scholar] [CrossRef] [Green Version]
  54. Benmansour, S.; Pérez-Herráez, I.; López-Martínez, G.; Gómez García, C.J. Solvent-modulated structures in anilato-based 2D coordination polymers. Polyhedron 2017, 135, 17–25. [Google Scholar] [CrossRef]
  55. Kingsbury, C.J.; Abrahams, B.F.; Auckett, J.E.; Chevreau, H.; Dharma, A.D.; Duyker, S.; He, Q.; Hua, C.; Hudson, T.A.; Murray, K.S.; et al. Square Grid Metal—Chloranilate Networks as Robust Host Systems for Guest Sorption. Chem. Eur. J. 2019, 25, 5222–5234. [Google Scholar] [CrossRef]
  56. Sahadevan, S.A.; Monni, N.; Abhervé, A.; Cosquer, G.; Oggianu, M.; Ennas, G.; Yamashita, M.; Avarvari, N.; Mercuri, M.L. Dysprosium Chlorocyanoanilate-Based 2D-Layered Coordination Polymers. Inorg. Chem. 2019, 58, 13988–13998. [Google Scholar] [CrossRef]
  57. Benmansour, S.; Gómez-García, C.J. Lanthanoid-anilato complexes and lattices. Magnetochemistry 2020, 6, 71. [Google Scholar] [CrossRef]
  58. Benmansour, S.; Hernández-Paredes, A.; Bayona-Andrés, M.; Gómez-García, C.J. Slow Relaxation of the Magnetization in Anilato-Based Dy(III) 2D Lattices. Molecules 2021, 26, 1190. [Google Scholar] [CrossRef] [PubMed]
  59. Kawata, S.; Kitagawa, S.; Kumagai, H.; Kudo, C.; Kamesaki, H.; Ishiyama, T.; Suzuki, R.; Kondo, M.; Katada, M. Rational Design of a Novel Intercalation System. Layer-Gap Control of Crystalline Coordination Polymers, {[Cu(CA)(H2O)m](G)}n (m = 2,5 = 2,5-Dimethylpyrazine and Phenazine; m = 1, G = 1,2,3,4,6,7,8,9-Octahydrophenazine). Inorg. Chem. 1996, 35, 4449–4461. [Google Scholar] [CrossRef] [PubMed]
  60. Maka, V.K.; Mukhopadhyay, A.; Jindal, S.; Moorthy, J.N. Redox-Reversible 2D Metal–Organic Framework Nanosheets (MONs) Based on the Hydroquinone/Quinone Couple. Chem. A Eur. J. 2019, 25, 3835–3842. [Google Scholar] [CrossRef]
  61. Zhu, X.Q.; Wang, C.H. Accurate estimation of the one-electron reduction potentials of various substituted quinones in DMSO and CH3CN. J. Org. Chem. 2010, 75, 5037–5047. [Google Scholar] [CrossRef] [PubMed]
  62. Jeon, I.R.; Negru, B.; Van Duyne, R.P.; Harris, T.D. A 2D Semiquinone Radical-Containing Microporous Magnet with Solvent-Induced Switching from Tc = 26 to 80 K. J. Am. Chem. Soc. 2015, 137, 15699–15702. [Google Scholar] [CrossRef]
  63. Abrahams, B.F.; Bond, A.M.; Le, T.H.; McCormick, L.J.; Nafady, A.; Robson, R.; Vo, N. Voltammetric reduction and re-oxidation of solid coordination polymers of dihydroxybenzoquinone. Chem. Commun. 2012, 48, 11422–11424. [Google Scholar] [CrossRef]
  64. Kharitonov, A.D.; Trofimova, O.Y.; Meshcheryakova, I.N.; Fukin, G.K.; Khrizanforov, M.N.; Budnikova, Y.H.; Bogomyakov, A.S.; Aysin, R.R.; Kovalenko, K.A.; Piskunov, A.V. 2D-metal-organic coordination polymers of lanthanides (La(III), Pr(III) and Nd(III)) with redox-active dioxolene bridging ligands. CrystEngComm 2020, 22, 4675–4679. [Google Scholar] [CrossRef]
  65. Halis, S.; Inge, A.K.; Dehning, N.; Weyrich, T.; Reinsch, H.; Stock, N. Dihydroxybenzoquinone as Linker for the Synthesis of Permanently Porous Aluminum Metal-Organic Frameworks. Inorg. Chem. 2016, 55, 7425–7431. [Google Scholar] [CrossRef]
  66. DeGayner, J.A.; Jeon, I.R.; Sun, L.; Dincă, M.; Harris, T.D. 2D Conductive Iron-Quinoid Magnets Ordering up to Tc = 105 K via Heterogenous Redox Chemistry. J. Am. Chem. Soc. 2017, 139, 4175–4184. [Google Scholar] [CrossRef] [Green Version]
  67. Darago, L.E.; Aubrey, M.L.; Yu, C.J.; Gonzalez, M.I.; Long, J.R. Electronic Conductivity, Ferrimagnetic Ordering, and Reductive Insertion Mediated by Organic Mixed-Valence in a Ferric Semiquinoid Metal-Organic Framework. J. Am. Chem. Soc. 2015, 137, 15703–15711. [Google Scholar] [CrossRef]
  68. Benmansour, S.; Vallés-García, C.; Gómez-Claramunt, P.; Mínguez Espallargas, G.; Gómez-García, C.J. 2D and 3D Anilato-Based Heterometallic M(I)M(III) Lattices: The Missing Link. Inorg. Chem. 2015, 54, 5410–5418. [Google Scholar] [CrossRef]
  69. Barltrop, J.A.; Burstall, M.L. The synthesis of Tetracyclines. Part I. Some Model Diene Reactions. J. Chem. Soc. 1959, 2183–2186. [Google Scholar] [CrossRef]
  70. Abrahams, B.F.; Hudson, T.A.; McCormick, L.J.; Robson, R. Coordination polymers of 2,5-dihydroxybenzoquinone and chloranilic acid with the (10,3)- A topology. Cryst. Growth Des. 2011, 11, 2717–2720. [Google Scholar] [CrossRef]
  71. Luo, T.-T.; Liu, Y.-H.; Tsai, H.-L.; Su, C.-C.; Ueng, C.-H.; Lu, K.-L. A Novel Hybrid Supramolecular Network Assembled from Perfect p-p Stacking of an Anionic Inorganic Layer and a Cationic Hydronium-Ion-Mediated Organic Layer. Eur. J. Inorg. Chem. 2004, 2004, 4253–4258. [Google Scholar] [CrossRef]
  72. Miller, J.S. Magnetically ordered molecule-based materials. Chem. Soc. Rev. 2011, 40, 3266–3296. [Google Scholar] [CrossRef]
  73. Ziebel, M.E.; Darago, L.E.; Long, J.R. Control of Electronic Structure and Conductivity in Two-Dimensional Metal-Semiquinoid Frameworks of Titanium, Vanadium, and Chromium. J. Am. Chem. Soc. 2018, 140, 3040–3051. [Google Scholar] [CrossRef] [PubMed]
  74. Chen, J.; Taniguchi, K.; Sekine, Y.; Miyasaka, H. Electrochemical development of magnetic long-range correlations with Tc = 128 K in a tetraoxolene-bridged Fe-based framework. J. Magn. Magn. Mater. 2020, 494, 165818. [Google Scholar] [CrossRef]
  75. Liu, L.; Degayner, J.A.; Sun, L.; Zee, D.Z.; Harris, T.D. Reversible redox switching of magnetic order and electrical conductivity in a 2D manganese benzoquinoid framework. Chem. Sci. 2019, 10, 4652–4661. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Taniguchi, K.; Chen, J.; Sekine, Y.; Miyasaka, H. Magnetic Phase Switching in a Tetraoxolene-Bridged Honeycomb Ferrimagnet Using a Lithium Ion Battery System. Chem. Mater. 2017, 29, 10053–10059. [Google Scholar] [CrossRef]
  77. Jiang, Q.; Xiong, P.; Liu, J.; Xie, Z.; Wang, Q.; Yang, X.Q.; Hu, E.; Cao, Y.; Sun, J.; Xu, Y.; et al. A Redox-Active 2D Metal–Organic Framework for Efficient Lithium Storage with Extraordinary High Capacity. Angew. Chem. Int. Ed. 2020, 59, 5273–5277. [Google Scholar] [CrossRef]
Magnetochemistry 07 00109 sch001 550

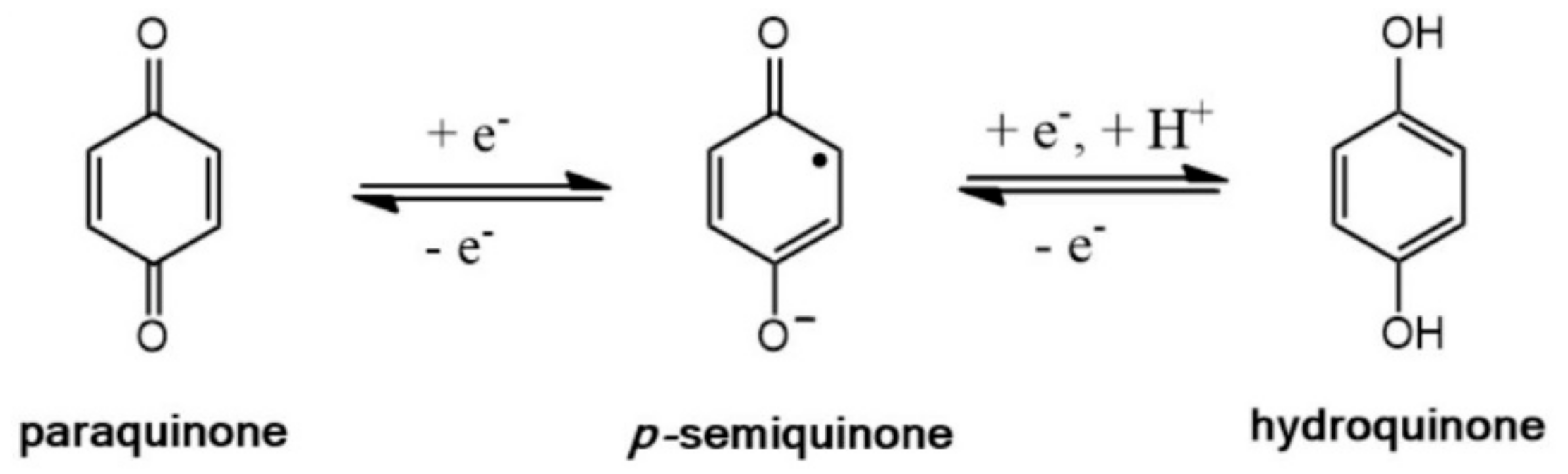

Scheme 1. Reversible redox reactions for p–quinone/hydroquinone couple.
Scheme 1. Reversible redox reactions for p–quinone/hydroquinone couple.
Magnetochemistry 07 00109 sch001
Magnetochemistry 07 00109 sch002 550

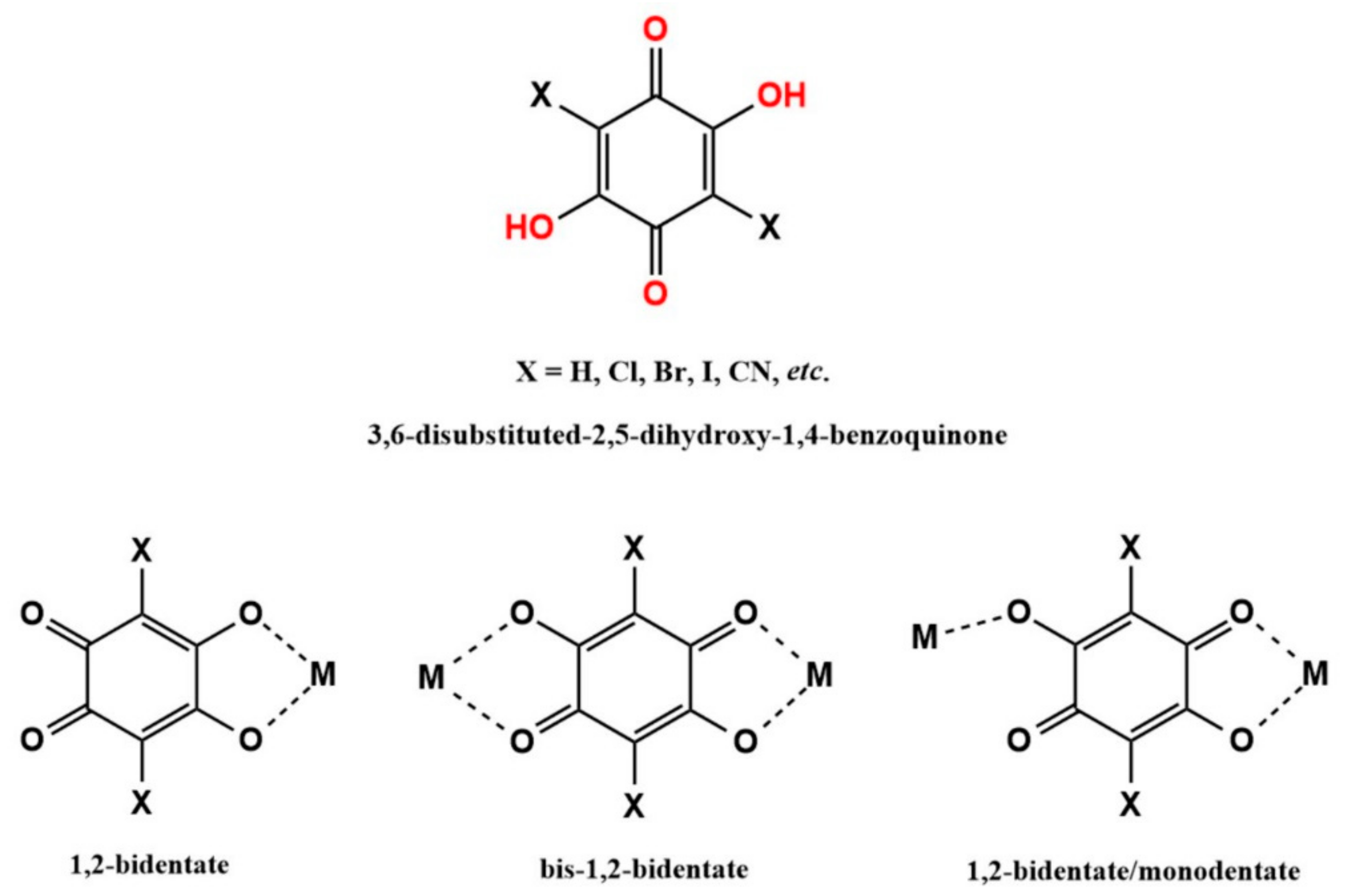

Scheme 2. Chemical structure of anilates and the most common coordination modes.
Scheme 2. Chemical structure of anilates and the most common coordination modes.
Magnetochemistry 07 00109 sch002
Magnetochemistry 07 00109 g001 550

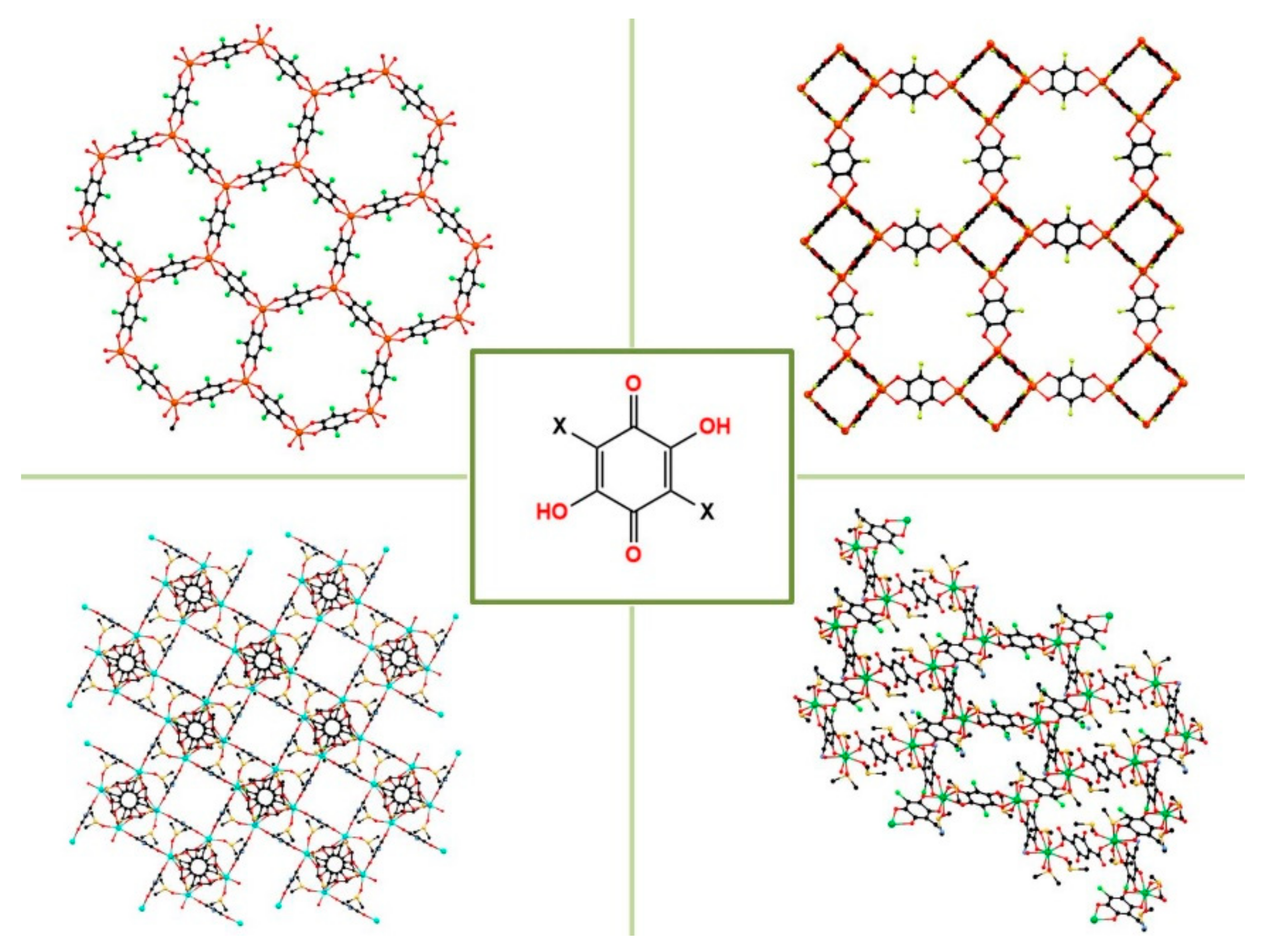

Figure 1. Extended networks based on anilates.
Figure 1. Extended networks based on anilates.
Magnetochemistry 07 00109 g001
Magnetochemistry 07 00109 g002 550

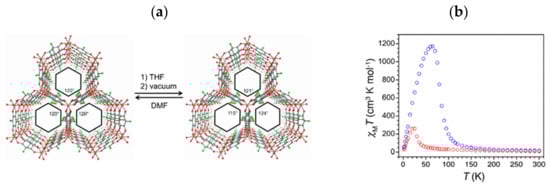

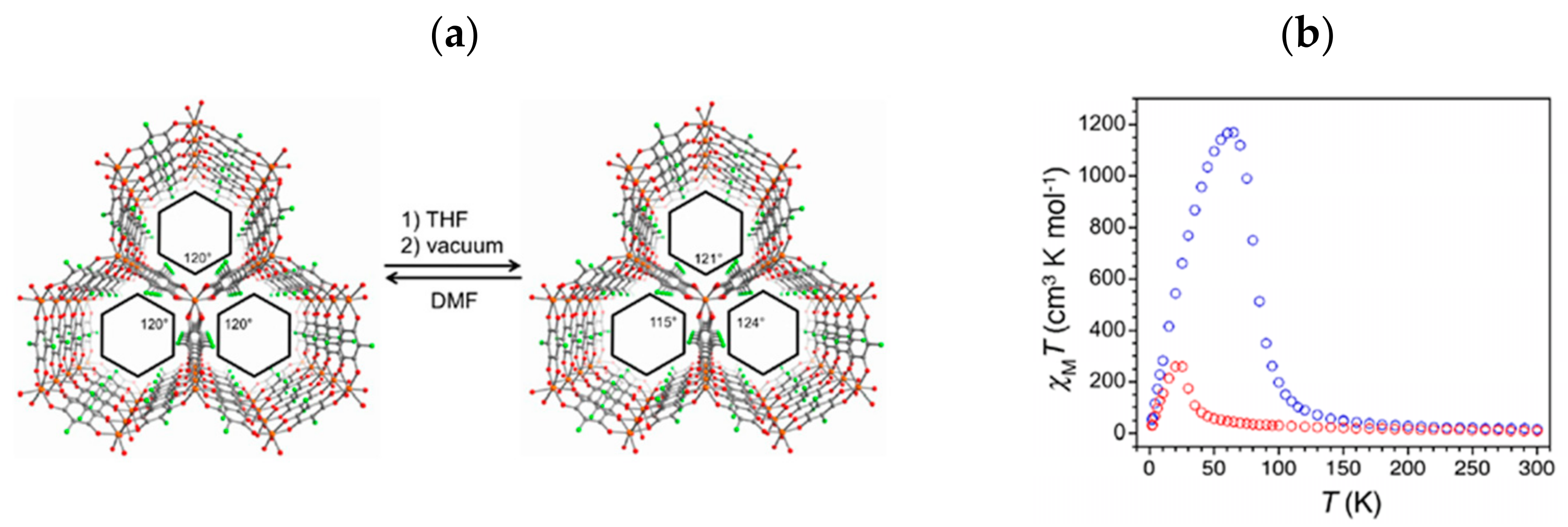

Figure 2. (a) Perspective view along the c axis of crystal structures of MOFs 3 (left) and 3_desolv (right)—Fe, Cl, O, and C atoms are shown in orange, green, red, and grey, respectively. (b) Thermal variation of χMT for MOFs 3 (blue) and 3_desolv (red) (applied dc field of 1000 Oe). Reprinted with permission from Reference [62]. Copyright © 2015, American Chemical Society.
Figure 2. (a) Perspective view along the c axis of crystal structures of MOFs 3 (left) and 3_desolv (right)—Fe, Cl, O, and C atoms are shown in orange, green, red, and grey, respectively. (b) Thermal variation of χMT for MOFs 3 (blue) and 3_desolv (red) (applied dc field of 1000 Oe). Reprinted with permission from Reference [62]. Copyright © 2015, American Chemical Society.
Magnetochemistry 07 00109 g002
Magnetochemistry 07 00109 g003 550

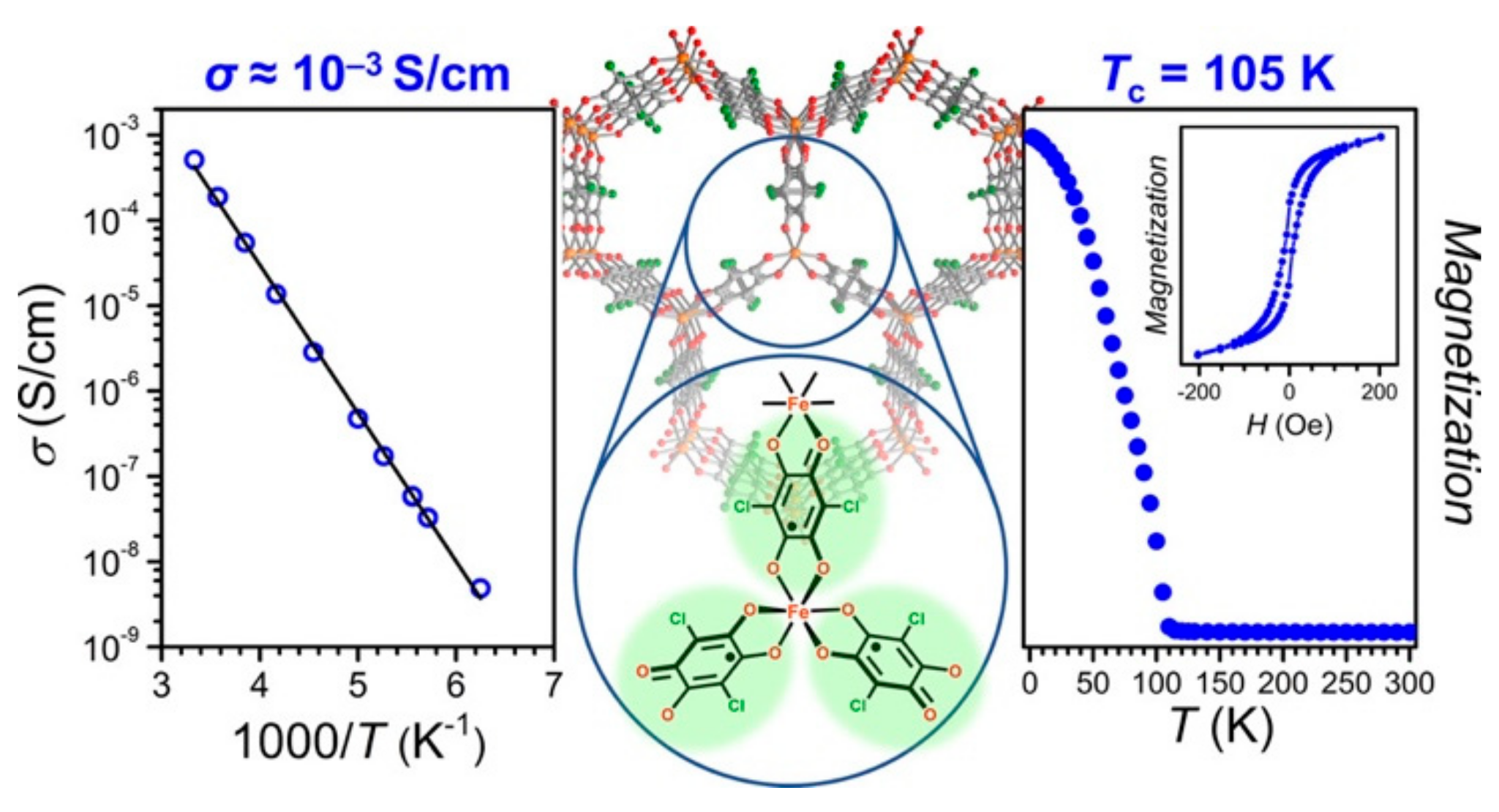

Figure 3. Magnetic and transport properties of 2D semiquinoid–based MOF 4. Reprinted with permission from [66]. Copyright © 2017, American Chemical Society.
Figure 3. Magnetic and transport properties of 2D semiquinoid–based MOF 4. Reprinted with permission from [66]. Copyright © 2017, American Chemical Society.
Magnetochemistry 07 00109 g003
Magnetochemistry 07 00109 g004 550

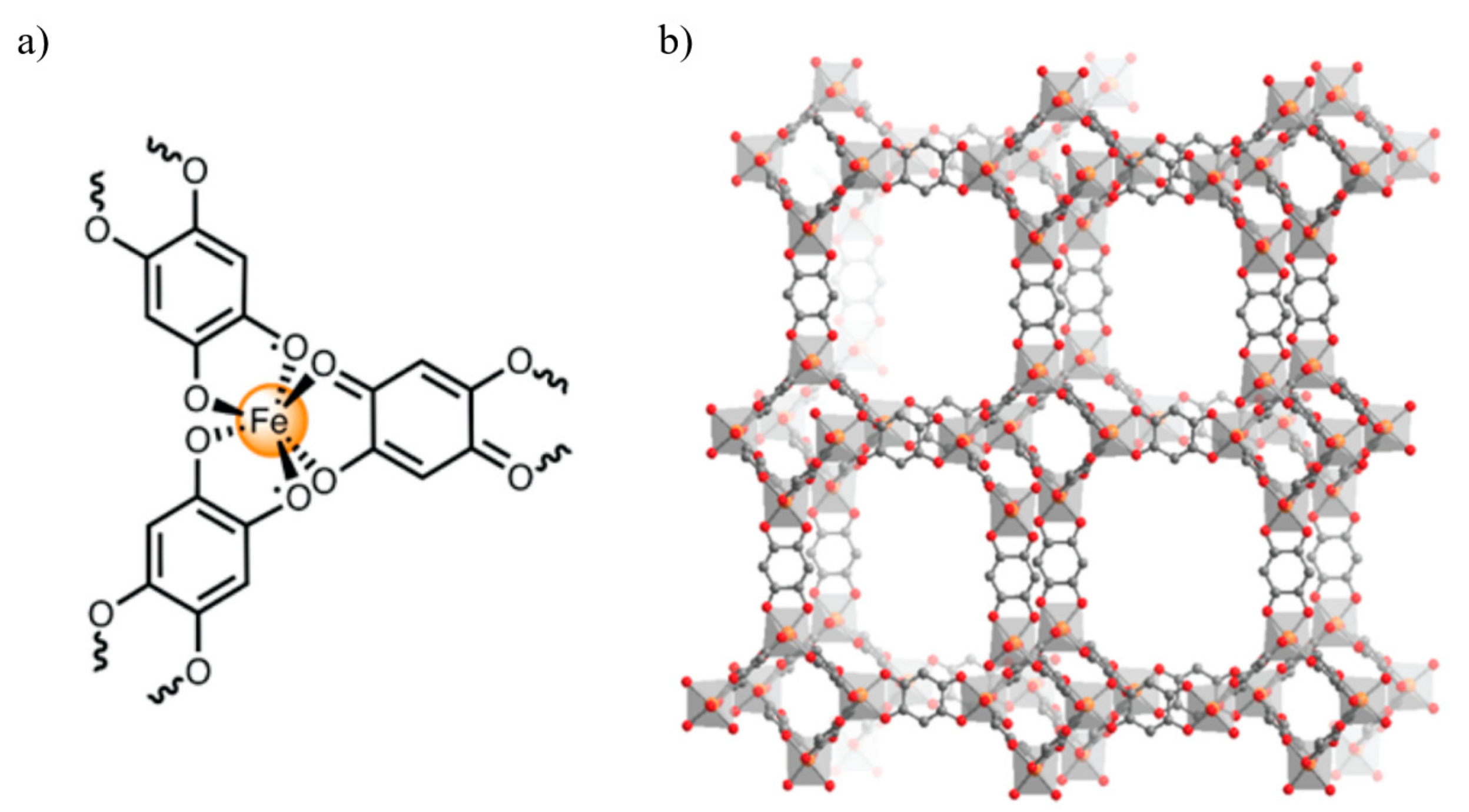

Figure 4. (a) Molecular structure of a single FeIII center in MOF 5, showing that two radical (H2An3−) bridging ligands and one diamagnetic (H2An2−) bridging ligand are coordinated to each metal site. (b) View of the porous 3D crystal structure formed by dhbqn−-bridged FeIII centers, giving the interpenetrated (10,3)-a nets. Reprinted with permission from Reference [67]. Copyright © 2015, American Chemical Society.
Figure 4. (a) Molecular structure of a single FeIII center in MOF 5, showing that two radical (H2An3−) bridging ligands and one diamagnetic (H2An2−) bridging ligand are coordinated to each metal site. (b) View of the porous 3D crystal structure formed by dhbqn−-bridged FeIII centers, giving the interpenetrated (10,3)-a nets. Reprinted with permission from Reference [67]. Copyright © 2015, American Chemical Society.
Magnetochemistry 07 00109 g004
Magnetochemistry 07 00109 g005 550

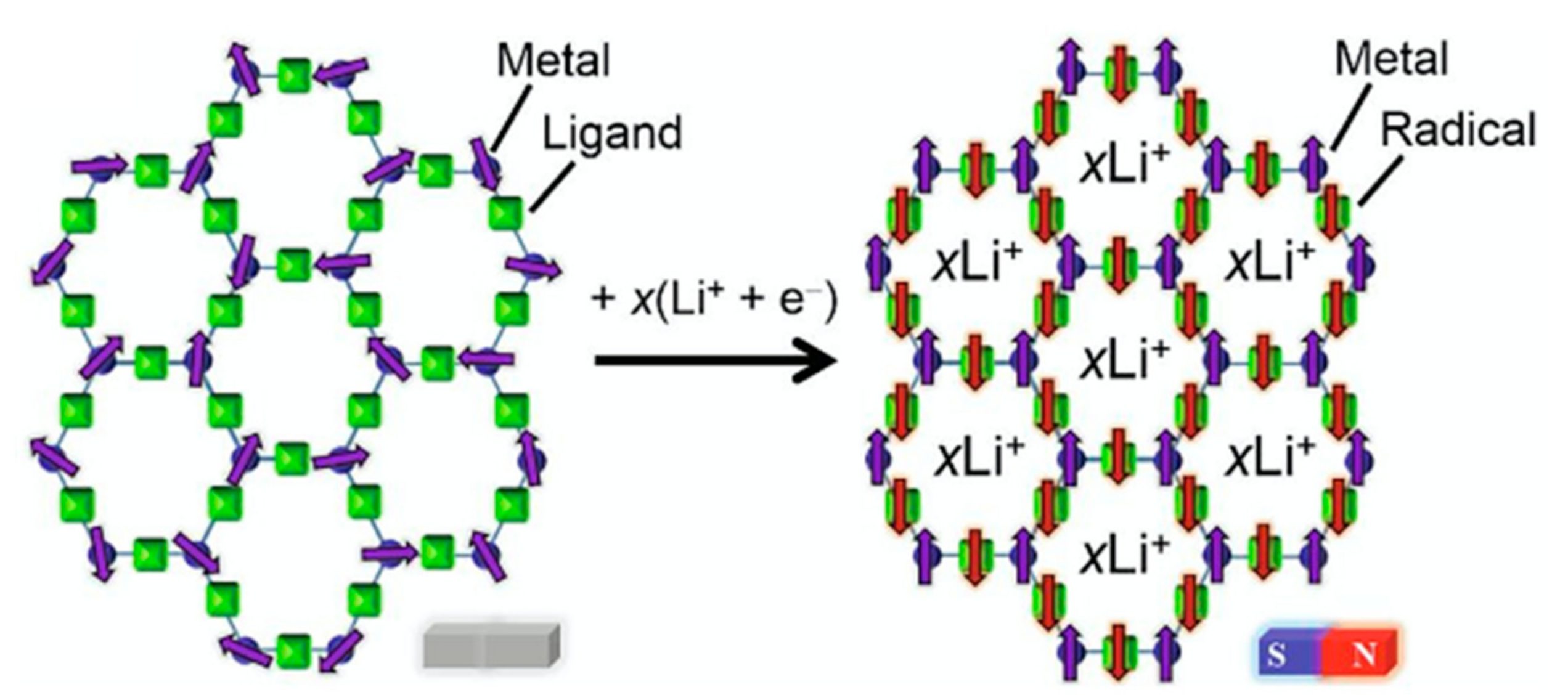

Figure 5. Schematic view of spin variation during the discharge process MOF → electron-reduced MOF, (Li+)x[MOF]x−. Reprinted with permission from Reference [74].
Figure 5. Schematic view of spin variation during the discharge process MOF → electron-reduced MOF, (Li+)x[MOF]x−. Reprinted with permission from Reference [74].
Magnetochemistry 07 00109 g005
Magnetochemistry 07 00109 g006 550

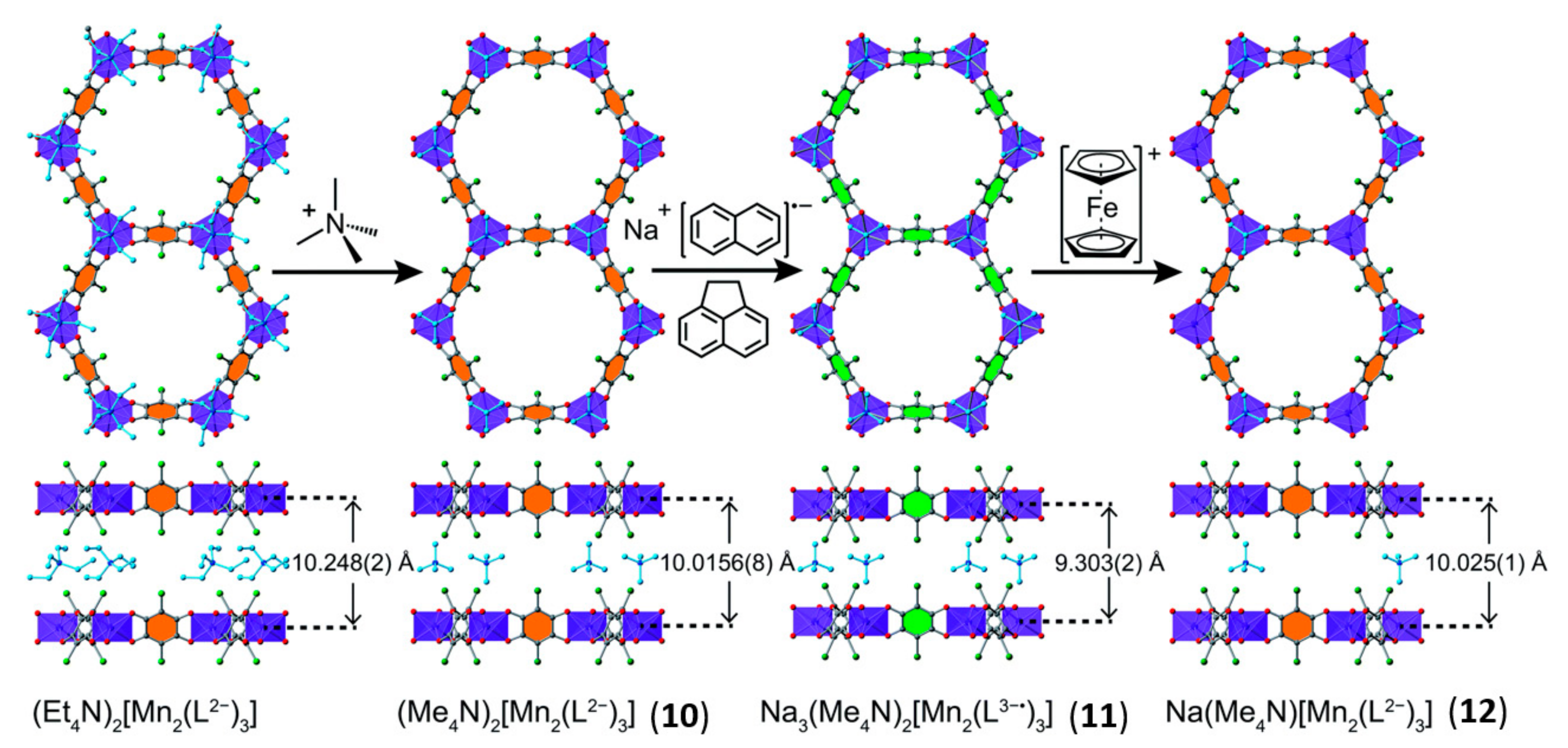

Figure 6. Schematic representation of reversible redox mechanism via single-crystal-to-single-crystal (SC-SC) process in MOFs 10–12. Reproduced from Reference [75] with permission from the Royal Society of Chemistry.
Figure 6. Schematic representation of reversible redox mechanism via single-crystal-to-single-crystal (SC-SC) process in MOFs 10–12. Reproduced from Reference [75] with permission from the Royal Society of Chemistry.
Magnetochemistry 07 00109 g006
Table
Table 1. Theoretical one-electron reduction potentials of selected benzoquinone derivatives (mV vs. NHE in CH3CN) [61] showing the influence of substituents.
Table 1. Theoretical one-electron reduction potentials of selected benzoquinone derivatives (mV vs. NHE in CH3CN) [61] showing the influence of substituents.
Benzoquinone Derivatives (ENHE)
Magnetochemistry 07 00109 i001
1,4-benzoquinone (−255 mV)
Magnetochemistry 07 00109 i002
2-methylbenzoquinone
(−341 mV)		 Magnetochemistry 07 00109 i003
2,5-dimethylbenzoquinone
(−434 mV)		 Magnetochemistry 07 00109 i004
2,3,5,6-tetramethylbenzoquinone
(−646 mV)
Magnetochemistry 07 00109 i005
2-chlorobenzoquinone
(−139 mV)		 Magnetochemistry 07 00109 i006
2,5-dichlorobenzoquinone
(33 mV)		 Magnetochemistry 07 00109 i007
2,3,5,6-tetrachlorobenzoquinone
(837 mV)
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Monni, N.; Oggianu, M.; Ashoka Sahadevan, S.; Mercuri, M.L. Redox Activity as a Powerful Strategy to Tune Magnetic and/or Conducting Properties in Benzoquinone-Based Metal-Organic Frameworks. Magnetochemistry 2021, 7, 109. https://doi.org/10.3390/magnetochemistry7080109

AMA Style

Monni N, Oggianu M, Ashoka Sahadevan S, Mercuri ML. Redox Activity as a Powerful Strategy to Tune Magnetic and/or Conducting Properties in Benzoquinone-Based Metal-Organic Frameworks. Magnetochemistry. 2021; 7(8):109. https://doi.org/10.3390/magnetochemistry7080109

Chicago/Turabian Style

Monni, Noemi, Mariangela Oggianu, Suchithra Ashoka Sahadevan, and Maria Laura Mercuri. 2021. "Redox Activity as a Powerful Strategy to Tune Magnetic and/or Conducting Properties in Benzoquinone-Based Metal-Organic Frameworks" Magnetochemistry 7, no. 8: 109. https://doi.org/10.3390/magnetochemistry7080109

APA Style

Monni, N., Oggianu, M., Ashoka Sahadevan, S., & Mercuri, M. L. (2021). Redox Activity as a Powerful Strategy to Tune Magnetic and/or Conducting Properties in Benzoquinone-Based Metal-Organic Frameworks. Magnetochemistry, 7(8), 109. https://doi.org/10.3390/magnetochemistry7080109

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
