Article

Structures and Properties of New Organic Molecule-Based Metals, (D)2BrC2H4SO3 [D = BEDT-TTF and BETS]

by
Hiroki Akutsu
1,*,
Yuta Koyama
1,
Scott S. Turner
2 and
Yasuhiro Nakazawa
1
1
Department of Chemistry, Graduate School of Science, Osaka University, 1-1 Machikaneyama, Toyonaka, Osaka 560-0043, Japan
2
Department of Chemistry, University of Surrey, Guildford GU2 7XH, UK
*
Author to whom correspondence should be addressed.
Magnetochemistry 2021, 7(7), 91; https://doi.org/10.3390/magnetochemistry7070091
Submission received: 15 May 2021 / Revised: 5 June 2021 / Accepted: 18 June 2021 / Published: 23 June 2021
(This article belongs to the Special Issue Perspectives on Molecular Materials—A Tribute to Professor Peter Day)
Browse Figures
Versions Notes

Abstract

:
An organic anion, 2-bromoethanesulfonate (BrC2H4SO3−), provides one bis(ethylenedithio)tetrathiafulvalene (BEDT-TTF) and two bis(ethylenedithio)tetraselenafulvalene (BETS) salts, the compositions of which are β’’-β’’-(BEDT-TTF)2BrC2H4SO3 (1), β’’-β’’-(BETS)2BrC2H4SO3 (2), and θ-(BETS)2BrC2H4SO3 (3), respectively. Compound 1 shows a metal–insulator transition at around 70 K. Compound 2 is isomorphous to 1, and 3 is polymorphic with 2. Compounds 2 and 3 show metallic behavior at least down to 4.2 K. The pressure dependence of the electrical resistivity of 1 is also reported.

1. Introduction

Over the past half century, numerous organic conductors have been prepared [1], particularly electron donor–anion type conductors, based on TTF (tetrathiafulvalene), TMTTF (tetramethyltetrathiafulvalene), TMTSF (tetramethyltetraselenafulvalene), BEDT-TTF (bis(ethylenedithio)tetrathiafulvalene), BETS (bis(ethylenedithio)tetraselenafulvalene), etc., with a wide variety of counterions, which are commonly inorganic, such as BF4−, PF6−, ClO4−, Cl−, Br−, I−, I3−, AuI2−, etc. Organic anions, which are less common than inorganic ions, have also been used. The first radical cation salts with organic anions were reported by D. R. Rosseinsky et al. in 1979 [2], where CH3CO2−, maleate, fumarate, and p-MeC6H4SO2− were used. Each electrocrystallization with TTF gave powder, micro-crystalline, or blocklets. However, the crystal structures were not determined. According to a review about the organic conducting salts with organic and organometallic anions [3], in 1983, the crystal structures of a CF3SO3− salt of TMTSF was reported [4]. However, CF3SO3− is not clearly organic because the anion includes no hydrogens. In 1985, the crystal structures of TMTTF and TTMTTF (tetramethylthiotetrathiafulvalene) salts with hexacyanobutadiene (HGBD) were reported [5]. However, HGBD was used not as an anion but as an electron acceptor because the crystals were obtained by mixing hot acetonitrile solutions of the donor and the acceptor, namely HGBD. This indicates that these are donor–acceptor complexes. The crystal structure of the first organic conducting salt with an organic anion reported in 1988 by Peter Day’s group [6] is (BEDT-TTF)2(p-CH3C6H4SO3). After the discovery, sulfonates were widely used as counterions of organic conductors [3,7,8,9,10] because sulfonates have relatively low pKa (<1), which indicates that the bare monoanion state (–SO3−) is far more stable than the protonated state (–SO3H). By contrast carboxylates (–CO2−) are not useful as counterions because of the relatively high pKa (>3), where the protonated state (–CO2H) is much more stable than the bare monoanion state (–CO2−). We have already reported several organic conducting salts with sulfonates [11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41], which are relatively large and anisotropic and several of which have provided unique salts having polar counterion layers [20,28,29,35,36,38,41]. Schematic diagrams of the crystal structures of the salts are shown in Figure S1. Here we report new BEDT-TTF and BETS salts of a relatively small and anisotropic sulfonate, BrC2H4SO3−.

2. Results and Discussion

A conventional constant-current electrocrystallization in a mixed solvent of PhCl (18 mL) and EtOH (2 mL) with BEDT-TTF (10 mg), BrC2H4SO3Na (44 mg), and 18-crown-6 ether (67 mg) gave black blocks and thick needles. X-ray analyses indicated that the blocks and needles had the same cell parameters. The resulting data were solved as β’’-β’’-(BEDT-TTF)2(BrC2H4SO3) (1). Using BETS (5 mg) instead of BEDT-TTF afforded dark green plates (3) with a small number of black blocks and needles (2). X-ray analyses indicated that 2 was isomorphous to 1, and the composition of the major product 3 was θ-(BETS)2(BrC2H4SO3), which is a polymorph of 2 and the cell parameters are different from those of 2. The crystallographic data of 1, 2, and 3 are shown in Table 1. Using o-C6H4Cl2 (18 mL) instead of PhCl in the electrocrystallization of 1 yielded black thin plates (4), X-ray analysis of which indicated that the composition was (BEDT-TTF)3(Br3)5, the structure and properties of which have already been reported [42]. This indicates that the BrC2H4SO3− anion decomposed during the electrocrystallization process. Indeed, both the cell parameters and the crystal structure (Figure S2) were the same as reported in ref. [42]. However, the electrical resistivity measurement indicated that the salt 4 was metallic down to 4.2 K (Figure S3), whereas ref. [42] reported a broad metal–insulator (MI) transition at 120 K. The difference may be caused by a difference in the direction of the resistivity measurements and/or crystal conditions.

2.1. Crystal Structures

2.1.1. Crystal Structure of β’’-β’’-(BEDT-TTF)2(BrC2H4SO3) (1)

Figure 1a shows the crystal structure of 1. Two BEDT-TTF molecules (A and B) and one BrC2H4SO3− anion are crystallographically-independent. The unit cell has two independent donor layers, one of which consists of only the donor A (A layer) and the other of which consists of only the donor B (B layer). One of the two ethylene groups of A is disordered and refined over two positions, the refined occupancies of which are found to be 0.734 and 0.266. Both donor layers have quite similar β’’-type arrangements, as shown in Figure 1b,c. Each donor layer alternates with an anionic layer. Figure 1d shows short contacts between S atoms of BEDT-TTF molecules and O atoms of sulfo (–SO3−) groups. In our previous reports, concerning sulfonate salts that are in the charge-ordered state, the donor having the shortest S···O contact with a sulfonate has the largest positive charge, perhaps because of the largest Madelung potential [20,31,35]. However, in salt 1, both A and B molecules have short S···O contacts, the distances of which are almost the same. This suggests that no charge disproportionation occurs. The molecular charges of A and B were estimated from bond lengths according to the literature method [43]. The calculated charges, normalized by the total formula charge (and non-normalized charge), are +0.492 (+0.567) and +0.508 (+0.586) for A and B, respectively. Both values are close to +0.5, suggesting no charge disproportionation. Figure 1e shows the structure of the anionic layer. All anions in the layer orient along the same direction (//b), which confers a dipole moment on the anionic layer. However, an inversion center provides the other anionic layer in the unit cell with the opposite dipole moment. Therefore, no net dipole moment exists. According to our classification suggested in ref. [44], the crystal has a Type III dipole arrangement (Figure S1) [44,45]. In addition, the dipole moment of the BrC2H4SO3− anion was calculated by MOPAC7 [46] using the geometry observed in 1 to be 9.9 D.

2.1.2. Crystal Structure of β’’-β’’-(BETS)2(BrC2H4SO3) (2)

As shown in Table 1, the cell parameters of 2 are almost the same as 1, suggesting that both are isomorphous. Therefore, the crystal packing structure of 2 is not shown. There are two independent donors (A and B) and one anion in the asymmetric unit. Similar to 1, one of the two ethylene groups of A is disordered and refined over two positions. The occupancies were found to be 0.799 and 0.201. Figure 2a,b shows the donor arrangements of both A and B layers, which are almost the same as 1. However, a larger number of short contacts were observed in A and B layers compared to 1, suggesting that 2 has stronger donor–donor interactions than 1. Figure 2c shows short contacts between S atoms of BETS molecules and O atoms of sulfo (–SO3−) groups. An A molecule has a S···O contact that is 0.032 Å shorter than that of B. However, the difference is one order smaller than those of charge-ordered salts [20,31,35]. The relatively small difference suggests that the short anon–donor interactions provide no charge-ordered state. In addition, this cannot be confirmed since there are no previous studies on the relationship between bond lengths in BETS and the molecular charges. The molecular arrangement of the anionic layers of 2 is almost the same as 1, and we do not show the structure. All anions in the layer orient along the same direction (//b) and therefore the crystal also has a Type III dipole arrangement [44,45]. In addition, the dipole moment of the BrC2H4SO3− anion was calculated by MOPAC7 [46] using the geometry observed in 2 to be 9.7 D. In addition, a CCDC search indicated that the structures of 72 BETS salts have already been reported, which consist of 21 κ–, 18 θ–, 7 λ–, 7 α–, 4 β–, and 15 other miscellaneous types of salts. However, no β’’-type salts have been reported yet, indicating that 2 is the first BETS-based salt having a β’’-type donor arrangement.

2.1.3. Crystal Structure of θ-(BETS)2(BrC2H4SO3) (3)

The thin plate crystals were the main products under the electrocrystallization condition, as mentioned previously. Figure 3a shows the molecular structure of the asymmetric unit of 3. There are a half of BETS and a quarter of anion in the asymmetric unit. The donor is not disordered and located about the center of symmetry, whereas the anion is heavily disordered. The asymmetric part of the anion consists of –SO3−, each occupancy of which is 0.25, and –CH2CH2Br disordered over two positions (–C61–C71–Br11 and –C62–C72–Br12), where each occupancy is 0.125. Thus, the anion is disordered over eight positions. Relatively large residual densities were observed due to the severe disorder. The asymmetric part of the anion is located about the center of symmetry, so that the anion layer is non-polar. The crystal structure is shown in Figure 3b. One donor layer and one anion layer are crystallographically-independent. Figure 3c shows the packing arrangement of the donor layer, which has a so called θ-type packing motif. The dihedral angle (θ) shown in Figure 3c of 98.1° was observed. A literature source [47] shows a phase diagram of the θ-type BEDT-TTF-based salts as a function of the dihedral angle (θ), where 98.1° is located in a superconducting phase. However, the salt 3 is BETS-based, not BEDT-TTF-based. BETS usually provides much stronger intermolecular interactions, which give much larger transfer integrals. Therefore, the interaction in 3 is stronger than that of the BEDT-TTF-based salt, which suggests that 3 is a stable metal [48]. The occupancy of the BrC2H4SO3− anion of 0.25 suggests that there are four possible positions, one of which is occupied by an anion and the other three of which are vacant in the actual crystal. The anion is located about the center of symmetry, indicating that there are two possible positions on the inversion center. The length of the b axis of 5.1193(3) Å is too short for the anions to occupy each unit cell, suggesting that the anions exist every two-unit cells along the b axis. If anions exist in every two-unit cells regularly, which makes the length of the b axis double, the crystal usually provides satellite reflections and/or diffuse streaks on the X-ray photographs. No satellite reflections and/or diffuse streaks were observed in all 44 measured photographs. The lack of any superstructures suggests that the disorder is not so simple that each anion chain has unique periodicity. Furthermore, each donor, which also can form a superstructure of a 2kF (four-fold) or 4kF (two-fold) charge–density wave, gathers not to form any superstructures but to form a uniform stack. This again suggests that the salt is a stable metal.

2.2. Electrical Resistivity

Temperature dependences of electrical resistivities of 1, 2, and 3 are shown in Figure 4. The BEDT-TTF salt 1 shows a metal–insulator (MI) transition at around 70 K, and then the resistivity gradually increases, and the resistivity at 4.2 K is 20 times larger than that at 70 K. β’’-salts can be classified into several groups according to structural features [49]. According to the classification, 1 belongs to the β’’211-type. Most β’’211-salts are stable metals apart from the two salts, (BEDT-TTF)2Br2SeCN and (BEDT-TTF)2Cl2SeCN, which show relatively sharp MI transitions at 200 K. The isomorphous BETS-based salt 2 shows metallic behavior from room temperature down to 4.2 K. Salt 3 also shows metallic behavior across the whole temperature range.

2.3. Magnetic Susceptibility

Temperature dependences of magnetic susceptibility of 1 and 3 are shown in Figure 5a,b, respectively. We have not yet obtained a sufficient quantity of 2 for SQUID measurement, and therefore the susceptibility data of 2 is not available. The magnetic susceptibility of 1 decreases monotonically from room temperature (RT) from 6 to 2 × 10−4 emu mol−1, which are in the range of normal Pauli paramagnetism of organic BEDT-TTF-based metals [50], and then shows a more rapid decrease in susceptibility at the same temperature as was observed (70 K) for the metal–insulator (MI) transition. The susceptibility then becomes almost zero at the lowest measured temperature. The result indicates a non-magnetic ground state for 1. Most β’’-salts have charge-ordered ground states, suggesting that the ground state of 1 has a non-magnetic 0011 type of charge-ordered pattern [1]. We will discuss further this in the context of the electronic structure of 1 later. The susceptibility of 3 (Figure 5b) is almost constant, ≈2.5 × 10−4 emu mol−1, from RT to 175 K. On further lowering the temperature, the susceptibility decreases monotonically down to 2 K. The non-zero susceptibility, ≈1.2 × 10−4 emu mol−1, at the lowest temperature suggests that the sample has an itinerant nature down to 2 K. In addition, the ρ-T plot of 3 (Figure 5c) has an anomaly at 175 K, at which temperature the susceptibility starts decreasing, suggesting that there is a transition between two metallic phases at around 175 K. The temperature dependence of magnetic susceptibility of θ-(BETS)2Cu2Cl6 [51], which is also a stable metal with θ = 100°, is similar to that of 3. The broad decrease was observed from 2.3 × 10−4 above 120 K, where a structural phase transition (Pbcn to P21212) is observed, to 1.0 × 10−4 emu mol−1 below 70 K. X-ray analyses of 3 at 110 and 290 K were also performed (Table 1) to confirm whether there is a phase transition at around 175 K. However, cell parameters at 110 and 290 K are almost the same, and no structural phase transition was observed. The origin is not clear at present.

2.4. Band Structure Calculations

Band structures of 1, 2, and 3 were calculated using the Mori’s band structure calculation software package [52]. The resultant overlap integrals are shown in Table 2. Figure 6 shows a schematic diagram of the donor layers with the directions and labelling of donor–donor interactions. The p1 values of both A and B layers in 1 is one and two orders larger than those of p2, respectively, indicating strong dimerization along the stacking direction in each layer, which is also confirmed by the intermolecular spacing; the plane–plane distances of p1 are 0.167 (A layer) and 0.226 Å (B layer) shorter than those of p2 (see Figure 1b,c). The side-by-side interactions (r1, r2, and s) were larger than p1, suggesting that the salt is metallic along the side-by-side directions. Band dispersions and Fermi surfaces of 1 are shown in Figure 7a. There are quasi-1D electron sheets and hole pockets in the first Brillouin zone. The Fermi surface is open along the stacking direction (//b), suggesting that the metallic tendency along the side-by-side directions is stronger than that along the stacking direction. As previously described, the salt shows a MI transition, for which we speculate that a tetramerization along the side-by-side direction occurs (perhaps in the s direction because s values of A and B are the largest). The tetramerization will make the salt a band insulator to give a diamagnetic ground state, which is consistent with the magnetic behavior shown in Figure 5a. In addition, since the A and B layers of 1 have almost the same donor arrangements and overlap integrals (Table 2), both band dispersions and Fermi surfaces are also quite similar.
Similarly, the band dispersions and Fermi surfaces of A and B layers of 2 are also similar (Figure 7b) because, again, both layers have almost the same donor arrangements. Since 1 and 2 are isomorphous, their electronic structures are almost the same as compared in Figure 7a,b. However, 2 does not show a MI transition. The most significant difference between 1 and 2 is a degree of dimerization along the b axis. The values of |p1|/|p2| of 1 are 14.0 and 81.3 for A and B layers, respectively, but the similar values for 2 are only 2.5 and 1.7 for A and B layers, respectively. The considerably smaller values for 2 suggest that the support for dimerization in 2 is far weaker than in 1, which is not reflected in the intermolecular spacing. The plane–plane distances of p1 are 0.205 (A layer) and 0.257 Å (B layer) shorter than those of p2 (see Figure 2a,b). The differences in 2 are rather larger than those in 1. The weak dimerization in 2 makes carriers less correlated and stabilizes the metallic state. In addition, the band width of the conduction bands of 2 are 1.77 eV, which is 1.9 times larger than that of the 0.93 eV of 1.
The donor arrangement of 3 is simple so that there are only two crystallographically-independent overlap integrals, one of which (p) lies along the stacking direction, and the other (r) lies along the side-by-side direction, as shown in Figure 3c. Values of p = 3.26 and r = 22.52 × 10−3 were calculated. Figure 8 shows the band dispersions and Fermi surfaces of 3. There is a simple and large 2D Fermi surface in the first Brillouin zone, and the band width of 1.80 eV was observed.

2.5. Electrical Resistivity under Pressure

For compound 1, the electrical resistivity under static pressure up to 0.5 GPa (5.0 kbar) was measured. This was achieved using a clamp-type pressure cell from RT to 4.2 K (Figure 9). Applying 1.0 kbar of pressure made the MI transition sharper and moved the transition temperature (TMI) 10 K higher to 80 K. By contrast the 2.0 kbar curve reveals an upturn at 55 K, which is 15 K lower than that at 1 bar, but the transition is still sharper than that at 1 bar. The TMI at 3.0 kbar is 51 K, which is only 4 K smaller than that at 2.0 kbar; however, the resistivity at 4.2 K (ρ4.2 K) is more than two orders of magnitude smaller than that at 2 kbar. In fact, ρ4.2 K decreases with increasing pressure from 3 to 5 kbar. The upturn for the MI transition almost disappears at 4.5 kbar, but we have not yet observed superconductivity at the measured pressures and down to 4.2 K.

3. Materials and Methods

BEDT-TTF, purchased from Tokyo Chemical Industry Co. Ltd., Tokyo, Japan, and BrC2H4SO3Na, purchased from FUJIFILM Wako Pure Chemical Corporation (Chuo-Ku Osaka, Japan), were used without purification. 18-Crown-6 ether was used after recrystallization from acetonitrile. PhCl, purchased from Kishida Chemicals, was distilled from P2O5. EtOH, special grade, purchased from Kishida Chemicals, and o-C6H4Cl2, HPLC grade, purchased from FUJIFILM Wako Pure Chemical Corporation, were used without further purification. Electrocrystallization was performed using a conventional H-shaped cell with Pt wire (1 mm ϕ) electrodes, between which 0.9 μA for 20 days and 0.2 μA for 2 months were applied for BEDT-TTF and BETS salts, respectively.
Single crystal X-ray measurements were performed at 150 K for 1 and 2 and at 110, 150 and 290 K for 3 with a Rigaku Rapid II imaging plate system with MicroMax-007 HF/VariMax rotating-anode X-ray generator with confocal monochromated MoKα radiation. The crystallographic data of 1, 2, and 3 are listed in Table 1. The structures of 1, 2, and 3 were solved by SHELXT [53], and each structure refinement was completed with SHELXL [53] software. The intensities were corrected for absorption with ABSCOR (Higashi, T. (1995); ABSCOR. Rigaku Corporation, Tokyo, Japan). All non-hydrogen atoms were refined anisotropically. Hydrogen atom positions were calculated geometrically and refined using the riding model. The disordered ethylene moieties in 1 and 2 were constrained displacement parameters (EADP in SHELX). The anion in 3 was severely disordered and refined with bond distance and angle restraints (DFIX and DANG in SHELX) and constrained displacement parameters (EADP in SHELX). In the circumstance, relatively large residual densities were observed. In addition, 1 and 2 salts had relatively weaker reflections with h + l = odd than those with h + l = even, suggesting the possibility that the cell volumes become half. Actually, 1 and 2 can be solved using the cell parameters with the half volumes, 1′: P 1 ¯ , a = 5.8667(2), b = 8.7788(2), c = 16.6858(5) Å, α = 88.451(6), β = 84.438(6), γ = 75.791(5)°, V = 829.14(5) Å3, R(I > 2σ(Ι)) = 3.0%, wR(all data) = 8.1%, Rint = 3.2%, and 2′: P 1 ¯ , a = 5.9343(2), b = 8.8354(3), c = 17.0567(5) Å, α = 88.674(6), β = 84.312(6), γ = 76.164(5)°, V = 864.09(5) Å3, R(I > 2σ(Ι)) = 3.9%, wR(all data) = 11.6%, Rint = 6.4%. Each asymmetric unit has one donor and a half of anion, the latter of which is located about a center of symmetry and which is disordered where Br atoms and crystallographically-independent SO3 group are overlapped. Only one donor layer is crystallographically-independent in 1′ and 2′. However, 1 and 2 have many reflections with h + l = odd, which were significantly observed (I >> 3σ(I)). For example, the intensity (I), sigma (σ), and I/σ(Ι) of (−2 2 −7) of 236.10, 3.04, and 77.66, respectively, for 1 and 123.45, 2.20, and 56.11, respectively, for 2 were observed. Moreover, 1′ and 2′ have the disorder of the anion, which does not exist in 1 and 2. Therefore, we decided that 1 and 2 are correct. The relatively low R values of 1′ and 2′ indicate that each salt has pseudosymmetry because the structures of each two independent donor layers are quite similar in 1 and 2. Electrical AC resistivity measurements from 4.2 to 300 K were measured by the conventional four-probe method using a HUSO HECS 994C1 four channel resistivity meter with cooling and heating rates of ≈0.5 K/min. Each resistivity value was recorded after averaging for 10 s. Temperature-dependent magnetic susceptibility of a polycrystalline sample from 2 to 300 K was measured using a Quantum Design MPMS-2S SQUID magnetometer. The magnetic susceptibility data of 1 and 3 were corrected for a contribution from an aluminum foil sample holder, and the diamagnetic contributions of the samples were estimated from Pascal’s constant (−4.444 and –5.084 × 10−4 emu mol−1 for 1 and 3, respectively). The contributions of the Al foil sample holders were of the same orders as those of conducting electrons. Due to the relatively low contribution of the conducting electrons, less than 20% of absolute error was sometimes observed.

4. Conclusions

We prepared three new BEDT-TTF- and BETS-based organic conductors with an organic sulfonate anion, bromoethanesulfonate, β’’-β’’-(BEDT-TTF)2BrC2H4SO3 (1), β’’-β’’-(BETS)2BrC2H4SO3 (2), and θ-(BETS)2BrC2H4SO3 (3). Salt 1 shows a MI transition at around 70 K. The isomorphous 2 does not show a MI transition and is metallic down to at least 4.2 K. Compound 3 is also a stable metal down to at least 4.2 K. The dihedral angle of 3 of 98.1° is located in the superconducting phase of the phase diagram of the θ-type BEDT-TTF salts. This suggests that if we can obtain the isomorphous BEDT-TTF-based salt, it may show superconductivity (a resistivity drop and a Meissner effect). Preparation of the θ-type BEDT-TTF salt is now in progress.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/magnetochemistry7070091/s1, Figure S1. Schematic diagrams of the crystal structures of Type I-IV salts where the electrical di-poles of the counterions are indicated by arrows, electrically conducting layers are shown as green squares, and counterion layers are shown as blue rectangles, Figure S2. Crystal structure of 4, Figure S3. Temperature-dependent electrical resistivity of 4.

Author Contributions

Conceptualization, H.A.; methodology, H.A.; validation, H.A., Y.K., and Y.N.; formal analysis, H.A. and Y.K; investigation, H.A. and Y.K.; resources, H.A. and Y.N.; data curation, H.A.; writing—original draft preparation, H.A.; writing—review and editing, S.S.T.; visualization, H.A.; supervision, H.A., S.S.T., and Y.N.; project administration, Y.N.; funding acquisition, H.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research was partially funded by JSPS KAKENHI, grant number 17K05751.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data available on request from the corresponding author. Data available includes raw resistivity and SQUID magnetization data. The crystallographic data has been submitted to the Cambridge Crystallographic Data Centre. The deposition references are shown in Table 1. Available online: http://www.ccdc.cam.ac.uk/conts/retrieving.html (accessed on 15 March 2021).

Acknowledgments

The authors thank Keigo Furuta at Yokohama National University for providing the BETS molecule.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mori, T. Electronic Properties of Organic Conductors; Springer: Tokyo, Japan, 2016. [Google Scholar]
  2. Kaythirgamanan, P.; Mucklejohn, S.A.; Rosseinsky, D.R. Electrocrystallisation of Conductive Nonstoicheiornetric Adducts of Tetrathiafulvalene with Inorganic or Organic Anions, and of Similar Adducts of Tetracyanoquinodirnethane. J. Chem. Soc. Chem. Commun. 1979, 2, 86–87. [Google Scholar] [CrossRef]
  3. Geiser, U.; Schlueter, J.A. Conducting Organic Radical Cation Salts with Organic and Organometallic Anions. Chem. Rev. 2004, 104, 5203–5241. [Google Scholar] [CrossRef] [PubMed]
  4. Soling, H.; Rindorf, G.; Thorup, N. Di(4,4′,5,5′-tetramethyl-∆2,2′-bi-1,3-diselenolyliden)ium trifluoromethanesulfonate, C21H24F3O3SSe8, (TMTSF)2CF3SO3. Acta Cryst. 1983, C39, 490–491. [Google Scholar]
  5. Katayama, C.; Honda, M.; Kumagai, H.; Tanaka, J.; Saito, G.; Inokuchi, H. Crystal Structures of Complexes between Hexacyanobutadiene and Tetramethyltetrathiafulvalene and Tetramethylthiotetrathiafulvalene. Bull. Chem. Soc. Jpn. 1985, 58, 2272–2278. [Google Scholar] [CrossRef] [Green Version]
  6. Chasseau, D.; Watkin, D.; Rosseinsky, M.J.; Kurmoo, M.; Talham, D.R.; Day, P. Syntheses, crystal structures and physical properties of conducting salts (BEDT-TTF)2X (X = CF3SO3 or p-CH3C6H4SO3). Synth. Met. 1988, 24, 117–125. [Google Scholar] [CrossRef]
  7. Brezgunova, M.; Shin, K.-S.; Auban-Senzier, P.; Jeannin, O.; Fourmigué, M. Combining halogen bonding and chirality in a two-dimensional organic metal (EDT-TTF-I2)2(D-camphorsulfonate)·H2O. Chem. Commun. 2010, 46, 3926–3928. [Google Scholar] [CrossRef] [Green Version]
  8. Lakhdar, Y.; El-Ghayoury, A.; Zorina, L.; Mercier, N.; Allain, M.; Mézière, C.; Auban-Senzier, P.; Batail, P.; Giffard, M. Acentric Polymeric Chains in Radical Cation Salts of Tetrathiafulvalene Derivatives with the p-Carboxybenzenesulfonate Anion. Eur. J. Inorg. Chem. 2010, 2010, 3338–3342. [Google Scholar] [CrossRef] [Green Version]
  9. Shin, K.-S.; Brezgunova, M.; Jeannin, O.; Roisnel, T.; Camerel, F.; Auban-Senzier, P.; Fourmigué, M. Strong Iodine···Oxygen Interactions in Molecular Conductors Incorporating Sulfonate Anions. Cryst. Growth Des. 2011, 11, 5337–5345. [Google Scholar] [CrossRef]
  10. Camerel, F.; Helloco, G.L.; Guizouarn, T.; Jeannin, O.; Fourmigué, M.; Frąckowiak, A.; Olejniczak, I.; Świetlik, R.; Marino, A.; Collet, E.; et al. Correlation between Metal–Insulator Transition and Hydrogen-Bonding Network in the Organic Metal δ-(BEDT-TTF)4[2,6-Anthracene-bis(sulfonate)]·(H2O)4. Cryst. Growth Des. 2013, 13, 5135–5145. [Google Scholar] [CrossRef]
  11. Akutsu, H.; Yamada, J.; Nakatsuji, S. A New Organic Anion Consisting of the TEMPO Radical for Organic Charge-Transfer Salts: 2,2,6,6-Tetramethylpiperidinyloxy-4-sulfamate (TEMPO-NHSO3−). Chem. Lett. 2001, 30, 208–209. [Google Scholar] [CrossRef]
  12. Akutsu, H.; Yamada, J.; Nakatsuji, S. Preparation and characterization of novel organic radical anions for organic conductors: TEMPO–NHSO3− and TEMPO-OSO3−. Synth. Met. 2001, 120, 871–872. [Google Scholar] [CrossRef]
  13. Akutsu, H.; Yamada, J.; Nakatsuji, S. New BEDT-TTF-based Organic Conductor Including an Organic Anion Derived from the TEMPO Radical, α-(BEDT-TTF)3(TEMPO–NHCOCH2SO3)2·6H2O. Chem. Lett. 2003, 32, 1118–1119. [Google Scholar] [CrossRef]
  14. Furuta, K.; Akutsu, H.; Yamada, J.; Nakatsuji, S. A Novel BEDT-TTF-based Organic Conducting Salt with a Ferrocene-containing Dianion, α-(BEDT-TTF)4(Fe(Cp–CONHCH2SO3)2)·4H2O. Chem. Lett. 2004, 33, 1214–1215. [Google Scholar] [CrossRef]
  15. Furuta, K.; Akutsu, H.; Yamada, J.; Nakatsuji, S. New organic functional anions: Ferrocenyl-(CONHCH2SO3−)n (n = 1–2) and their TTF salts. Synth. Met. 2005, 152, 381–384. [Google Scholar] [CrossRef]
  16. Akutsu, H.; Yamada, J.; Nakatsuji, S. Novel organic magnetic conductors based on organochalcogen donors and an organic magnetic anion, TEMPO-NHCOCH2SO3−. Synth. Met. 2005, 152, 377–380. [Google Scholar] [CrossRef]
  17. Akutsu, H.; Masaki, K.; Mori, K.; Yamada, J.; Nakatsuji, S. New organic free radical anions TEMPO-A-CO-(o-, m-, p-)C6H4SO3− (A = NH, NCH3, O) and their TTF and/or BEDT-TTF salts. Polyhedron 2005, 24, 2126–2132. [Google Scholar] [CrossRef]
  18. Yamashita, A.; Akutsu, H.; Yamada, J.; Nakatsuji, S. New organic magnetic anions TEMPO–CONA(CH2)nSO3− (n = 0–3 for A = H, n = 2 for A = CH3) and their TTF, TMTSF and/or BEDT-TTF salts. Polyhedron 2005, 16, 2796–2802. [Google Scholar] [CrossRef]
  19. Furuta, K.; Akutsu, H.; Yamada, J.; Nakatsuji, S.; Turner, S.S. The first organic molecule-based metal containing ferrocene. J. Mater. Chem. 2006, 16, 1504–1506. [Google Scholar] [CrossRef]
  20. Akutsu, H.; Yamada, J.; Nakatsuji, S.; Turner, S.S. A novel BEDT-TTF-based purely organic magnetic conductor, α-(BEDT-TTF)2 (TEMPO-N(CH3)COCH2SO3)·3H2O. Solid State Commun. 2006, 140, 256–260. [Google Scholar] [CrossRef] [Green Version]
  21. Furuta, K.; Akutsu, H.; Yamada, J.; Nakatsuji, S.; Turner, S.S. The first metallic salt containing ferrocene, β′′-(BEDT-TTF)4(Fe(Cp-CONHCH2SO3)2)·2H2O. In Multifunctional Conducting Molecular Materials; Saito, G., Wudl, F., Haddon, R.C., Tanigaki, K., Enoki, T., Katz, H.E., Maesato, M., Eds.; RSC Publishing: Dorchester, UK, 2007; pp. 147–150. [Google Scholar]
  22. Akutsu, H.; Yamada, J.; Nakatsuji, S.; Turner, S.S. An anionic weak acceptor 2-aminomethylsulfo-3,5,6-trichloro-1, 4-benzoquinone and its BEDT-TTF-based charge-transfer salts. Solid State Commun. 2007, 144, 144–147. [Google Scholar] [CrossRef]
  23. Akutsu, H.; Ohnishi, R.; Yamada, J.; Nakatsuji, S.; Turner, S.S. Novel Bis(ethylenedithio)tetrathiafulvalene-Based Organic Conductor with 1,1-Ferrocenedisulfonate. Inorg. Chem. 2007, 46, 8472–8474. [Google Scholar] [CrossRef]
  24. Akutsu, H.; Sato, K.; Yamashita, S.; Yamada, J.; Nakatsuji, S.; Turner, S.S. The first organic paramagnetic metal containing the aminoxyl radical. J. Mater. Chem. 2008, 18, 3313–3315. [Google Scholar] [CrossRef]
  25. Akutsu, H.; Yamashita, S.; Yamada, J.; Nakatsuji, S.; Turner, S.S. Novel Purely Organic Conductor with an Aminoxyl Radical, α-(BEDT-TTF)2(PO–CONHCH2SO3)·2H2O (PO = 2,2,5,5-Tetramethyl-3-pyrrolin-1-oxyl Free Radical). Chem. Lett. 2008, 37, 882–883. [Google Scholar] [CrossRef]
  26. Akutsu, H.; Yamada, J.; Nakatsuji, S.; Turner, S.S. A new anionic acceptor, 2-sulfo-3,5,6-trichloro-1,4-benzoquinone and its charge-transfer salts. CrystEngComm 2009, 11, 2588–2592. [Google Scholar] [CrossRef]
  27. Akutsu, H.; Sasai, T.; Yamada, J.; Nakatsuji, S.; Turner, S.S. New anionic acceptors Br2XQNHCH2SO3− [X = Br, BryCl1−y (y ≈ 0.5), and Cl; Q=1,4-benzoquinone] and their charge-transfer salts. Physica B 2010, 405, S2–S5. [Google Scholar] [CrossRef]
  28. Akutsu, H.; Yamashita, S.; Yamada, J.; Nakatsuji, S.; Hosokoshi, Y.; Turner, S.S. A Purely Organic Paramagnetic Metal, κ-β″-(BEDT-TTF)2(PO–CONHC2H4SO3), Where PO = 2,2,5,5-Tetramethyl-3-pyrrolin-1-oxyl Free Radical. Chem. Mater. 2011, 23, 762–764. [Google Scholar] [CrossRef] [Green Version]
  29. Akutsu, H.; Kawamura, A.; Yamada, J.; Nakatsuji, S.; Turner, S.S. Anion polarity-induced dual oxidation states in a dual-layered purely organic paramagnetic charge-transfer salt, (TTF)3(PO–CON(CH3)C2H4SO3)2, where PO = 2,2,5,5-tetramethyl-3-pyrrolin-1-oxyl free radical. CrystEngComm 2011, 13, 5281–5284. [Google Scholar] [CrossRef] [Green Version]
  30. Akutsu, H.; Maruyama, Y.; Yamada, J.; Nakatsuji, S.; Turner, S.S. A new BEDT-TTF-based organic metal with an anionic weak acceptor 2-sulfo-1,4-benzoquinone. Synth. Met. 2011, 161, 2339–2343. [Google Scholar] [CrossRef]
  31. Akutsu, H.; Yamada, J.; Nakatsuji, S.; Turner, S.S. A New BEDT-TTF-Based Organic Charge Transfer Salt with a New Anionic Strong Acceptor, N,N′-Disulfo-1,4-benzoquinonediimine. Crystals 2012, 2, 182–192. [Google Scholar] [CrossRef] [Green Version]
  32. Kanbayashi, N.; Akutsu, H.; Yamada, J.; Nakatsuji, S.; Turner, S.S. A new ferrocene-containing charge-transfer salt, (TTF)2[Fe(C5H4-CH(CH3)NHCOCH2SO3)2]. Inorg. Chem. Commun. 2012, 21, 122–124. [Google Scholar] [CrossRef] [Green Version]
  33. Akutsu, H.; Yamada, J.; Nakatsuji, S.; Turner, S.S. Structures and properties of a BEDT-TTF-based organic charge transfer salt and the zwitterion of ferrocenesulfonate. Dalton Trans. 2013, 42, 16351–16354. [Google Scholar] [CrossRef] [PubMed]
  34. Akutsu, H.; Hashimoto, R.; Yamada, J.; Nakatsuji, S.; Nakazawa, Y.; Turner, S.S. Structures and properties of new ferrocene-based paramagnetic anion octamethylferrocenedisulfonate and its TTF salt. Inorg. Chem. Commun. 2015, 61, 41–47. [Google Scholar] [CrossRef]
  35. Akutsu, H.; Ishihara, K.; Yamada, J.; Nakatsuji, S.; Turner, S.S.; Nakazawa, Y. A strongly polarized organic conductor. CrystEngComm 2016, 18, 8151–8154. [Google Scholar] [CrossRef]
  36. Akutsu, H.; Ishihara, K.; Ito, S.; Nishiyama, F.; Yamada, J.; Nakatsuji, S.; Turner, S.S.; Nakazawa, Y. Anion Polarity-Induced Self-doping in Purely Organic Paramagnetic Conductor, α′-α′-(BEDT-TTF)2(PO-CONH-m-C6H4SO3)·H2O where BEDT-TTF is Bis(ethylenedithio)tetrathiafulvalene and PO is 2,2,5,5-Tetramethyl-3-pyrrolin-1-oxyl Free Radical. Polyhedron 2017, 136, 23–29. [Google Scholar] [CrossRef]
  37. Akutsu, H.; Hashimoto, R.; Yamada, J.; Nakatsuji, S.; Turner, S.S.; Nakazawa, Y. Structure and Properties of a BEDT-TTF-Based Organic Conductor with a Ferrocene-Based Magnetic Anion Octamethylferrocenedisulfonate. Eur. J. Inorg. Chem. 2018, 3249–3252. [Google Scholar] [CrossRef] [Green Version]
  38. Ito, H.; Edagawa, Y.; Pu, J.; Akutsu, H.; Suda, M.; Yamamoto, H.M.; Kawasugi, Y.; Haruki, R.; Kumai, R.; Takenobu, T. Electrolyte-Gating-Induced Metal-Like Conduction in Nonstoichiometric Organic Crystalline Semiconductors under Simultaneous Bandwidth Control. Phys. Status Solidi 2019, 13, 1900162–1900175. [Google Scholar] [CrossRef]
  39. Akutsu, H.; Koyama, Y.; Turner, S.S.; Furuta, K.; Nakazawa, Y. Structures and Properties of New Organic Conductors: BEDT-TTF, BEST and BETS Salts of the HOC2H4SO3− Anion. Crystals 2020, 10, 775. [Google Scholar] [CrossRef]
  40. Akutsu, H.; Kohno, A.; Turner, S.S.; Nakazawa, Y. Structure and Properties of a New Purely Organic Magnetic Conductor, δ´-(BEDT-TTF)2(PO-CONHCH(cyclopropyl)SO3)·1.7H2O. Chem. Lett. 2020, 49, 1345–1348. [Google Scholar] [CrossRef]
  41. Akutsu, H.; Kohno, A.; Turner, S.S.; Yamashita, S.; Nakazawa, Y. Different electronic states in the isomorphous chiral vs. racemic organic conducting salts, β′′-(BEDT-TTF)2(S- and rac-PROXYL-CONHCH2SO3). Mat. Adv. 2020, 1, 3171–3175. [Google Scholar] [CrossRef]
  42. Minemawari, H.; Naito, T.; Inabe, T. (ET)3(Br3)5: A Metallic Conductor with an Unusually High Oxidation State of ET (ET = Bis(ethylenedithio)tetrathiafulvalene). Chem. Lett. 2007, 36, 74–75. [Google Scholar] [CrossRef]
  43. Guionneau, P.; Kepert, C.J.; Bravic, G.; Chasseau, D.; Truter, R.M.; Kurmoo, M.; Day, P. Determine the charge distribution in BEDT-TTF salts. Synth. Met. 1997, 86, 1973–1974. [Google Scholar] [CrossRef]
  44. Akutsu, H.; Turner, S.S.; Nakazawa, Y. New Dmit-Based Organic Magnetic Conductors (PO-CONH-C2H4N(CH3)3)[M(dmit)2]2 (M = Ni, Pd) Including an Organic Cation Derived from a 2,2,5,5-Tetramethyl-3-pyrrolin-1-oxyl (PO) Radical. Magnetochemisry 2017, 3, 11. [Google Scholar] [CrossRef] [Green Version]
  45. Akutsu, H.; Ito, S.; Kadoya, T.; Yamada, J.; Nakatsuji, S.; Turner, S.S.; Nakazawa, Y. A new Ni(dmit)2-based organic magnetic charge-transfer salt, (m-PO-CONH-N-methylpyridinium)[Ni(dmit)2]·CH3CN. Inorg. Chim. Acta 2018, 482, 654–658. [Google Scholar] [CrossRef]
  46. Stewart, J.J.P. MOPAC7; Stewart Computational Chemistry: Colorado Springs, CO, USA, 1993. [Google Scholar]
  47. Mori, H.; Tanaka, S.; Mori, T. Systematic study of the electronic state in θ-type BEDT-TTF organic conductors by changing the electronic correlation. Phys. Rev. B 1998, 57, 12023–12029. [Google Scholar] [CrossRef]
  48. Mori, H.; Sakurai, N.; Tanaka, S.; Moriyama, H.; Mori, T.; Kobayashi, H.; Kobayashi, A. Control of electronic state by dihedral angle in θ-type bis(ethylenedithio)tetraselenafulvalene salts. Chem. Matter. 2000, 12, 2984–2987. [Google Scholar] [CrossRef]
  49. Mori, T. Structural Genealogy of BEDT-TTF-Based Organic Conductors I. Parallel Molecules: β and β″ Phases. Bull. Chem. Soc. Jpn. 1998, 71, 2509–2526. [Google Scholar] [CrossRef]
  50. Williams, J.M.; Ferraro, J.R.; Thorn, R.J.; Carlson, K.D.; Geiser, U.; Wang, H.H.; Kini, A.M.; Whangbo, M.H. Organic Superconductors: Synthesis, Structure, Properties, and Theory; Prentice Hall: Englewood Cliffs, NJ, USA, 1992. [Google Scholar]
  51. Kobayashi, A.; Sato, A.; Arai, E.; Kobayashi, H.; Faulmann, C.; Kushch, N.; Cassoux, P. A stable molecular metal with a binuclear magnetic anion, θ-(BETS)2Cu2Cl6. Solid State Commun. 1997, 103, 371–374. [Google Scholar] [CrossRef]
  52. Mori, T.; Kobayashi, A.; Sasaki, Y.; Kobayashi, H.; Saito, G.; Inokuchi, H. The Intermolecular Interaction of Tetrathiafulvalene and Bis(ethylenedithio)tetrathiafulvalene in Organic Metals. Calculation of Orbital Overlaps and Models of Energy-band Structures. Bull. Chem. Soc. Jpn. 1984, 57, 627–633. [Google Scholar] [CrossRef]
  53. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Cryst. C 2015, 71, 3–8. [Google Scholar] [CrossRef]
1
2,083,397
2
2,088,144
Magnetochemistry 07 00091 g001 550
Figure 1. (a) Crystal structure, donor arrangements of (b) A and (c) B layers with two crystallographically-independent plane–plane distances, where the dashed lines indicate S···S contacts shorter than the van der Waals distance of 3.70 Å, (d) short contacts between donors and anions, and (e) structure of the anion layer of 1.
Figure 1. (a) Crystal structure, donor arrangements of (b) A and (c) B layers with two crystallographically-independent plane–plane distances, where the dashed lines indicate S···S contacts shorter than the van der Waals distance of 3.70 Å, (d) short contacts between donors and anions, and (e) structure of the anion layer of 1.
Magnetochemistry 07 00091 g001
Magnetochemistry 07 00091 g002 550
Figure 2. Donor arrangements of (a) A and (b) B layers of 2 with two crystallographically-independent plane–plane distances, where the dashed lines indicate short Se···Se (<3.80 Å), Se···S (<3.75 Å), and S···S contacts (<3.70 Å). (c) Short contacts between donors and anions of 2.
Figure 2. Donor arrangements of (a) A and (b) B layers of 2 with two crystallographically-independent plane–plane distances, where the dashed lines indicate short Se···Se (<3.80 Å), Se···S (<3.75 Å), and S···S contacts (<3.70 Å). (c) Short contacts between donors and anions of 2.
Magnetochemistry 07 00091 g002
Magnetochemistry 07 00091 g003 550
Figure 3. (a) Molecular structure of the asymmetric unit, (b) crystal structure, and (c) packing motif of the donor layer with one independent plane–plane distance and dihedral angle of 3 at 150 K.
Figure 3. (a) Molecular structure of the asymmetric unit, (b) crystal structure, and (c) packing motif of the donor layer with one independent plane–plane distance and dihedral angle of 3 at 150 K.
Magnetochemistry 07 00091 g003
Magnetochemistry 07 00091 g004 550

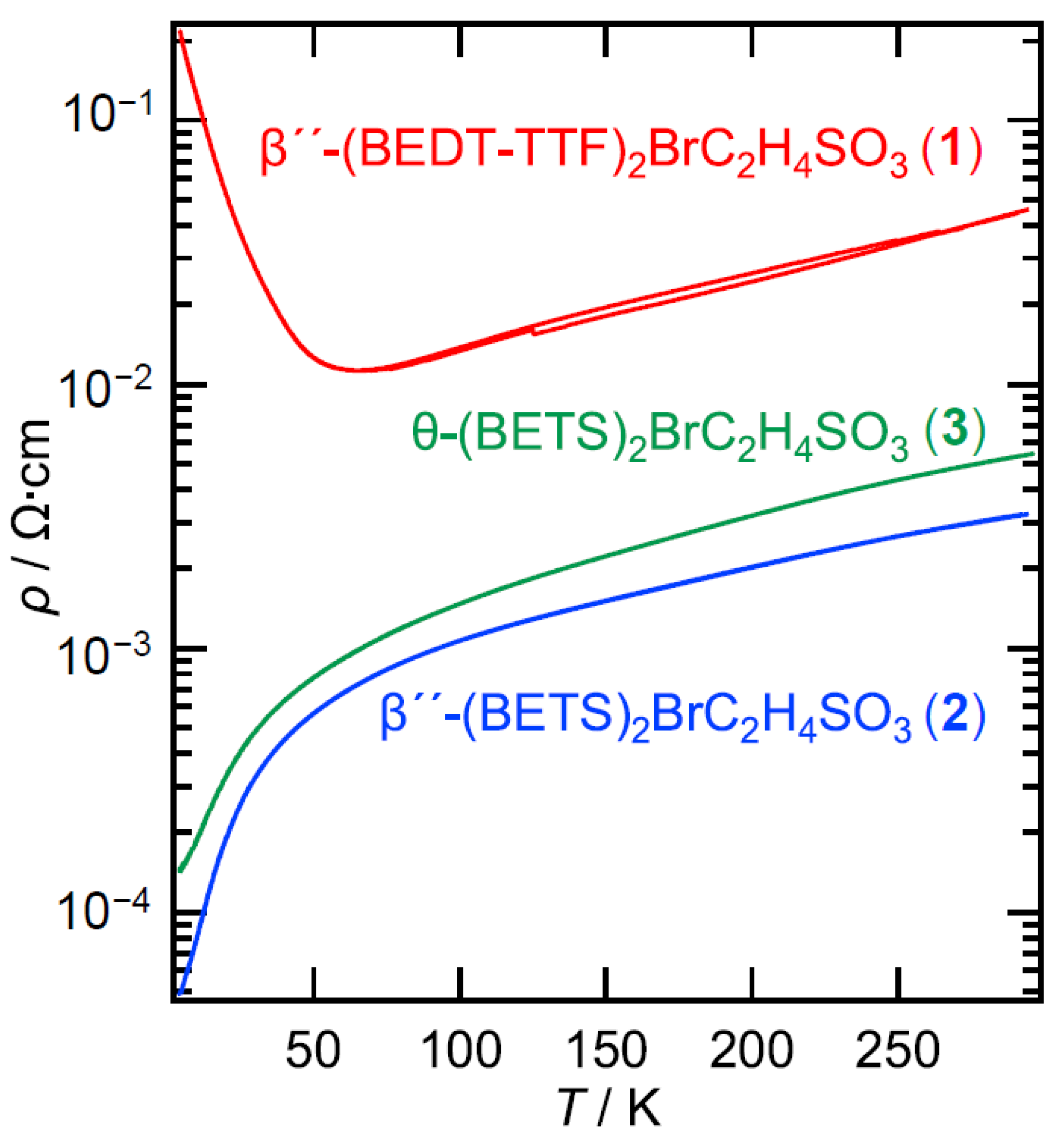

Figure 4. Temperature-dependent electrical resistivities of 1, 2, and 3.
Figure 4. Temperature-dependent electrical resistivities of 1, 2, and 3.
Magnetochemistry 07 00091 g004
Magnetochemistry 07 00091 g005 550

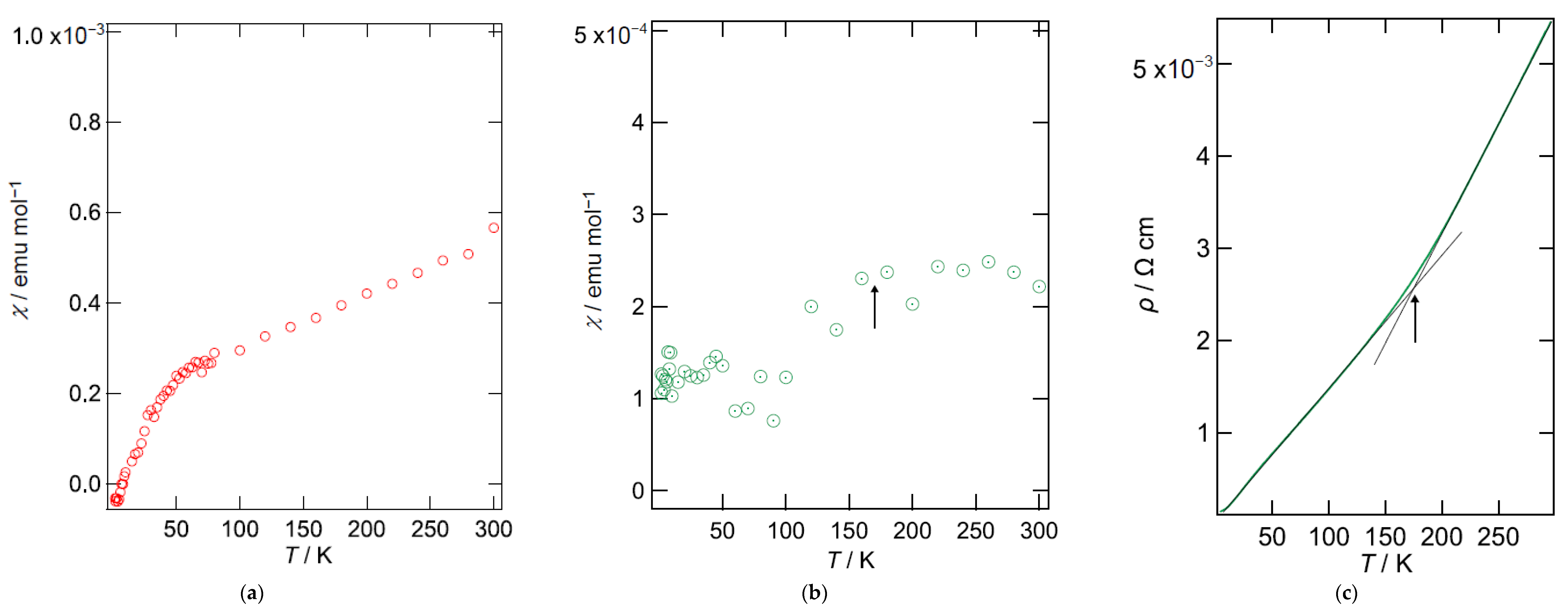

Figure 5. Temperature dependences of magnetic susceptibilities of (a) 1 and (b) 3, where 0.46 and 0.30% of Curie tails have been subtracted, respectively. (c) Resistivity–temperature plots of 3.
Figure 5. Temperature dependences of magnetic susceptibilities of (a) 1 and (b) 3, where 0.46 and 0.30% of Curie tails have been subtracted, respectively. (c) Resistivity–temperature plots of 3.
Magnetochemistry 07 00091 g005
Magnetochemistry 07 00091 g006 550

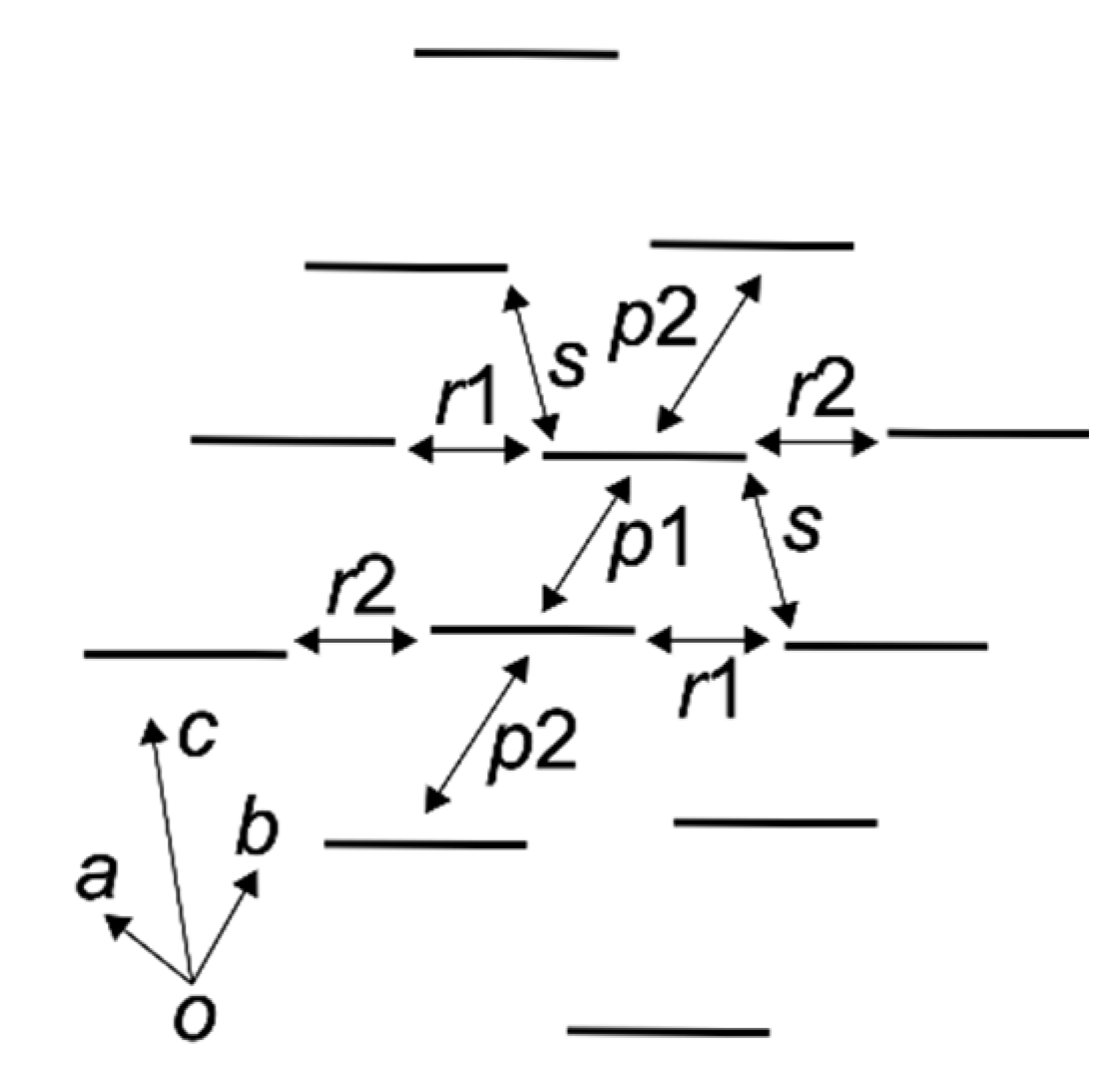

Figure 6. Schematic diagram of the structure of the donor layer with directions of interactions of 1 and 2.
Figure 6. Schematic diagram of the structure of the donor layer with directions of interactions of 1 and 2.
Magnetochemistry 07 00091 g006
Magnetochemistry 07 00091 g007 550

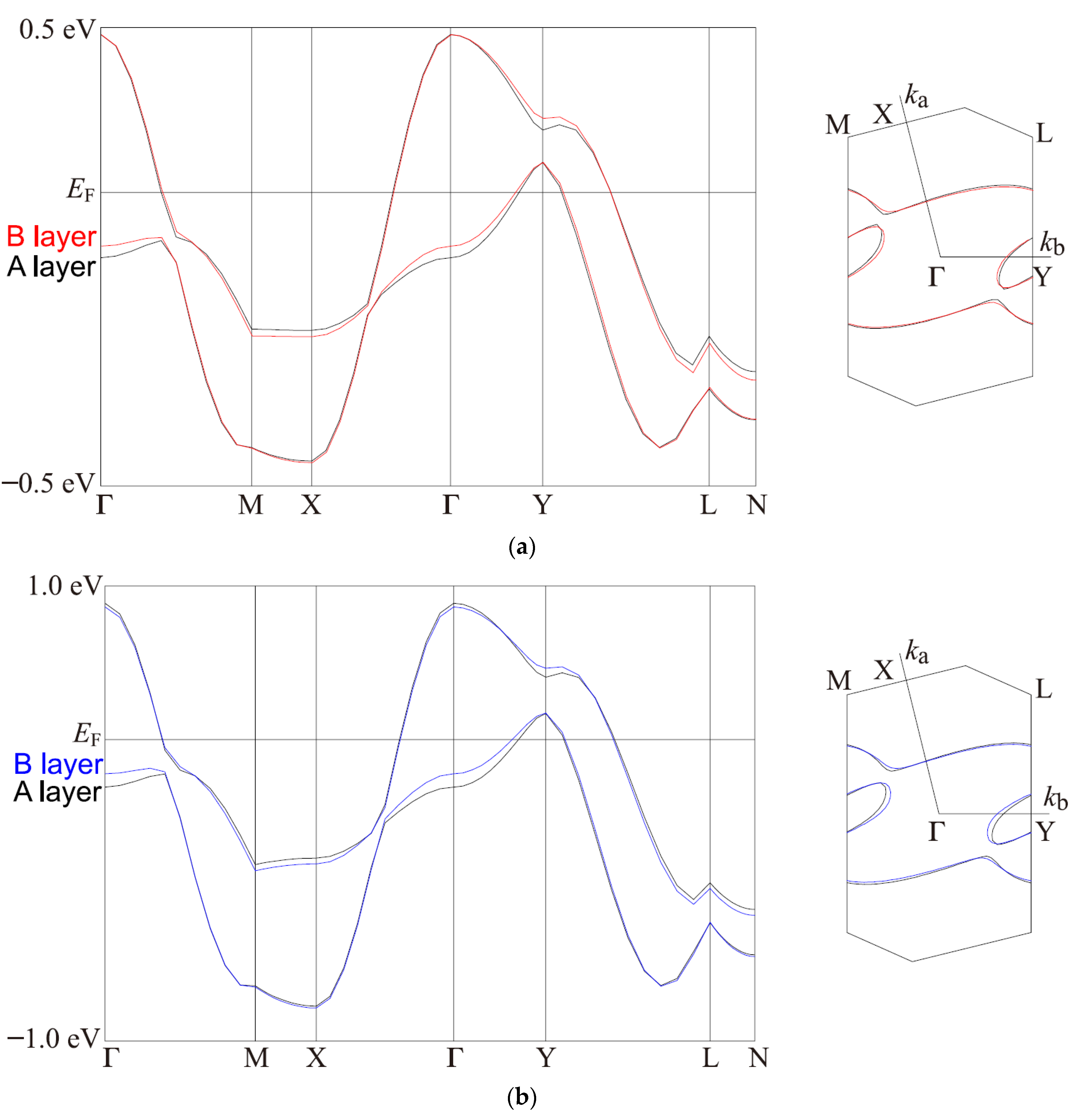

Figure 7. Band dispersions (left) and Fermi surfaces (right) of 1 (a) and 2 (b) at 150 K.
Figure 7. Band dispersions (left) and Fermi surfaces (right) of 1 (a) and 2 (b) at 150 K.
Magnetochemistry 07 00091 g007
Magnetochemistry 07 00091 g008 550

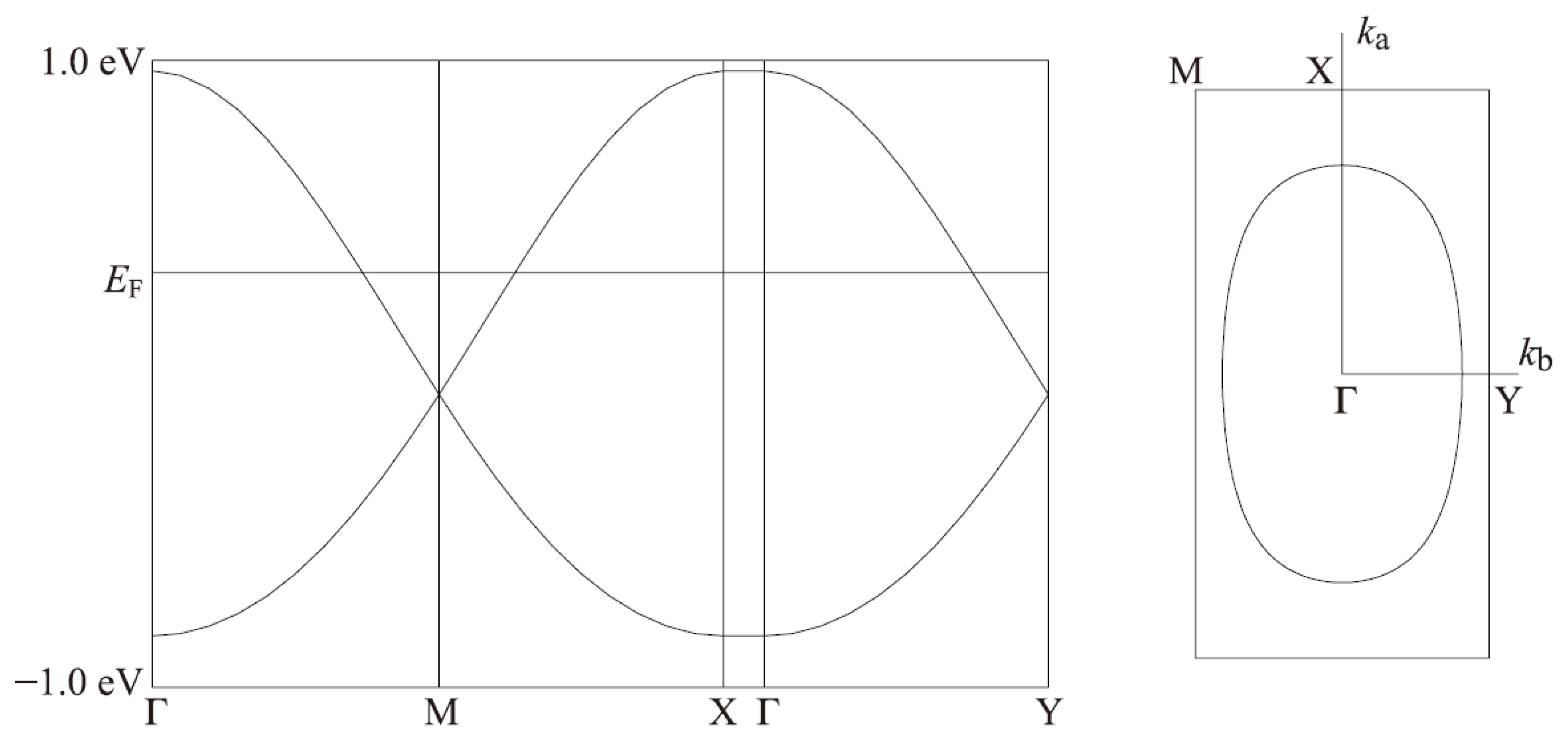

Figure 8. Band dispersions (left) and Fermi surfaces (right) of 3 at 150 K.
Figure 8. Band dispersions (left) and Fermi surfaces (right) of 3 at 150 K.
Magnetochemistry 07 00091 g008
Magnetochemistry 07 00091 g009 550

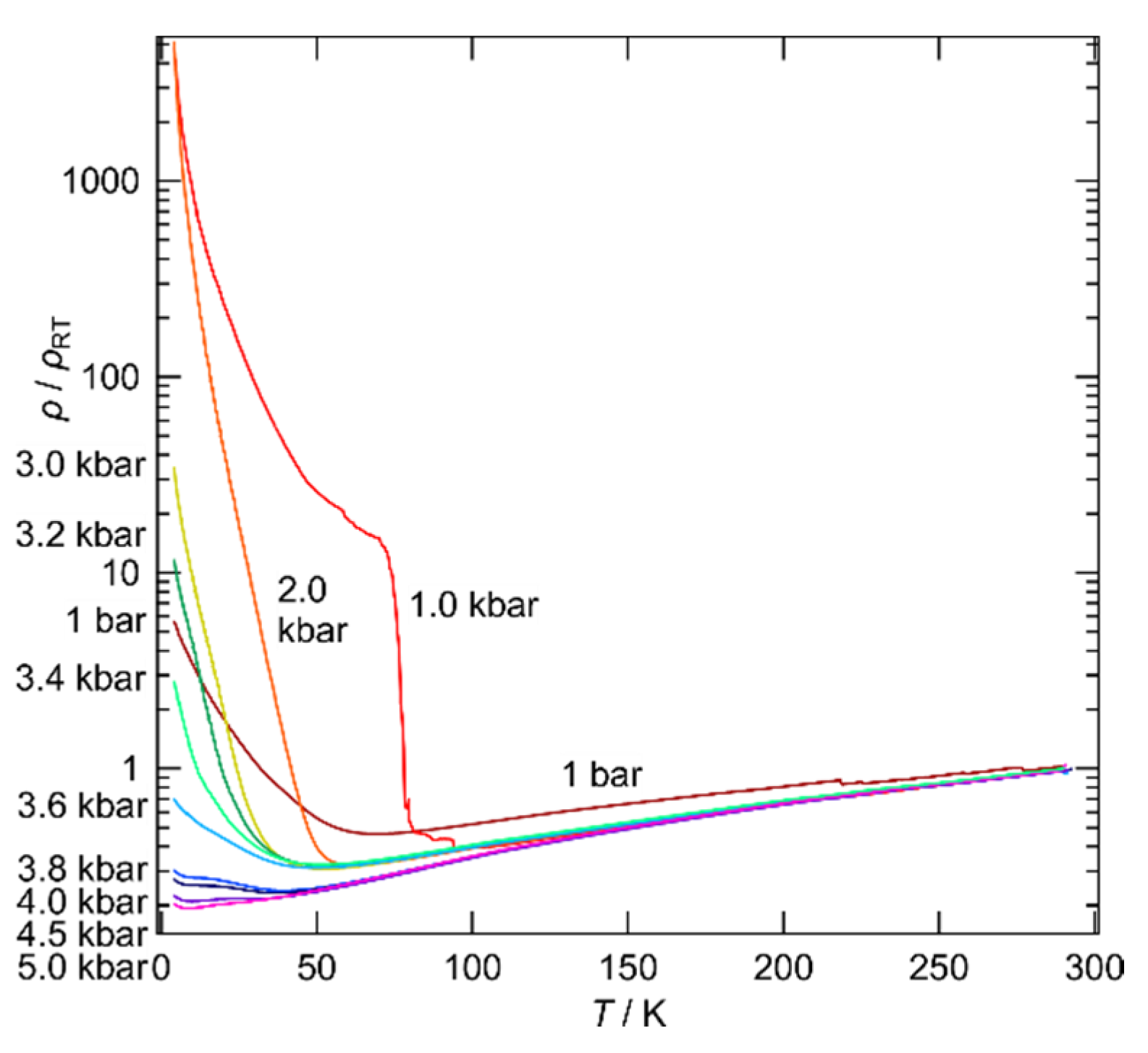

Figure 9. Electrical resistivity under pressure of 1.
Figure 9. Electrical resistivity under pressure of 1.
Magnetochemistry 07 00091 g009
Table
Table 1. Crystallographic data of 1, 2, and 3.
Table 1. Crystallographic data of 1, 2, and 3.
Compound12333
FormulaC22H20O3S17BrC22H20O3S9Se8BrC22H20O3S9Se8BrC22H20O3S9Se8BrC22H20O3S9Se8Br
Fw *1957.321332.521267.521267.521267.52
Space GroupP 1 ¯ P 1 ¯ C2/cC2/cC2/c
a (Å)5.8671(2)5.93509(18)35.850(2)35.686(2)35.633(2)
b (Å)8.7790(2)8.8364(2)5.1587(3)5.1193(3)5.0986(4)
c (Å)33.3201(7)34.0428(9)9.9900(6)9.9154(7)9.9154(7)
α (°)89.076(6)88.939(6)90.090.090.0
β (°)85.469(6)85.697(6)93.346(7)92.695(7)92.673(7)
γ (°)75.793(5)76.167(5)90.090.090.0
V (Å3)1658.53(9)1728.70(9)1844.38(19)1809.43(19)1798.1(2)
Z22222
T (K)150150290150110
dcalc (g·cm−1)1.9172.5602.3992.4462.461
μ (cm−1) *223.434101.89695.50597.34997.963
F(000) *39661254125412541254
2θ range (°) 4–554–554–554–554–55
Total ref.16,12716,694816479368018
Unique ref.75597871211020812063
Rint0.03250.06720.07330.03910.0431
Parameters407395118118118
R1 (I > 2σ(I))0.0320.0490.0630.0510.059
wR2 (all data)0.0890.1580.2050.1380.166
S *41.0091.0421.0601.1191.088
Δρmax (e Å−3)1.491.941.182.182.20
Δρmin (e Å−3)−0.72−1.73−0.62−1.92−2.06
CCDC number2,083,3972,083,3982,088,1442,083,3992,088,145
*1 Formula weight, *2 linear absorption coefficient, *3 total number of electrons in the unit cell, *4 goodness of fitness.
Table
Table 2. Overlap integrals (×10−3) of 1 and 2 at 150 K.
Table 2. Overlap integrals (×10−3) of 1 and 2 at 150 K.
Salts12
LayersABAB
p1−5.03−4.88−6.43−5.97
p2−0.36−0.06+2.53+3.50
r1−9.80−9.89−17.73−17.27
r2−10.74−9.60−18.70−16.87
s−14.50−14.98−26.02−26.96
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Akutsu, H.; Koyama, Y.; Turner, S.S.; Nakazawa, Y. Structures and Properties of New Organic Molecule-Based Metals, (D)2BrC2H4SO3 [D = BEDT-TTF and BETS]. Magnetochemistry 2021, 7, 91. https://doi.org/10.3390/magnetochemistry7070091

AMA Style

Akutsu H, Koyama Y, Turner SS, Nakazawa Y. Structures and Properties of New Organic Molecule-Based Metals, (D)2BrC2H4SO3 [D = BEDT-TTF and BETS]. Magnetochemistry. 2021; 7(7):91. https://doi.org/10.3390/magnetochemistry7070091

Chicago/Turabian Style

Akutsu, Hiroki, Yuta Koyama, Scott S. Turner, and Yasuhiro Nakazawa. 2021. "Structures and Properties of New Organic Molecule-Based Metals, (D)2BrC2H4SO3 [D = BEDT-TTF and BETS]" Magnetochemistry 7, no. 7: 91. https://doi.org/10.3390/magnetochemistry7070091

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
