Article

A New FeIII Substituted Arsenotungstate [FeIII2(AsIIIW6O23)2(AsIIIO3H)2]12−: Synthesis, Structure, Characterization and Magnetic Properties

1
Institute of Nanotechnology, Karlsruhe Institute of Technology, Hermann von-Helmholtz Platz 1, 76344 Eggenstein-Leopoldshafen, Germany
2
Institute of Inorganic Chemistry, Karlsruhe Institute of Technology, Engesserstrasse 15, 76131 Karlsruhe, Germany
*
Author to whom correspondence should be addressed.
Magnetochemistry 2020, 6(4), 54; https://doi.org/10.3390/magnetochemistry6040054
Received: 18 September 2020 / Revised: 16 October 2020 / Accepted: 19 October 2020 / Published: 25 October 2020
(This article belongs to the Special Issue Paramagnetic Metal Ion-Containing Polyoxometalates)

Abstract

The iron(III)-containing arsenotungstate [FeIII2(AsIIIW6O23)2(AsIIIO3H)2]12− (1) was prepared via a simple, one-pot reaction in aqueous basic medium. The compound was isolated as its sodium salt, and structurally-characterized by Single Crystal X-ray Diffraction (SCXRD), Powder X-ray Diffraction (PXRD), Fourier-Transform Infrared (FT-IR) spectroscopy, Thermogravimetric Analysis (TGA) and elemental analysis. Its magnetic properties are reported; the antiferromagnetic coupling between the two FeIII centers is unusually weak as a result of the bridging geometry imposed by the rigid arsenotungstate metalloligands.
Keywords: polyoxometalates; arsenotungstate; antiferromagnetism; iron; lacunary POMs polyoxometalates; arsenotungstate; antiferromagnetism; iron; lacunary POMs

1. Introduction

Polyoxometalates (POMs) are discrete molecular metal oxides, typically composed of early transition metals (M) (such as W6+, Mo6+, V5+, Nb5+ and Ta5+) in their high oxidation states. POMs have been attracting increasing interest in recent years owing to their enormous structural and compositional diversity and wide variety of applications [1,2,3]. The inherent properties of parent POMs can basically be modified by tuning the primary structural properties at the atomic or molecular level [4]. Lacunary (or vacant) POMs, which can be derived from parent polyanions of the Keggin [XW12O40]n− or Wells–Dawson [X2W18O61]n− structures (X = Si, Ge, P, As, etc.) by removal of one or more WVI centers under controlled basic conditions, are considered as multidentate all-inorganic ligands. POM ligands show a strong affinity to transition metal (TM) and lanthanide (Ln) cations, allowing the design and development of new POM-based materials with enhanced electronic properties [5,6,7,8,9,10,11,12,13,14,15,16,17]. A POM ligand with typical intrinsic properties, such as oxygen-rich surface, strong coordinating ability, various mode of coordination, adjustable/flexible size, thermal stability and hydrolytic stability, is expected to afford more rigid materials with a multitude of shapes, sizes and compositions in comparison with commonly utilized organic ligands [18]. More particularly, the bridging geometries imposed by POM-based ligands on di- or polynuclear metal complexes may differ significantly from those typically observed with the more usual organic-based bridging ligands, leading to different magnetic coupling scenarios. In addition, POMs may be promising inorganic diamagnetic ligands for constructing paramagnetic metal complexes, since the bulky feature of POM ligands assures an effective insulation of magnetic cores within the POM backbone, thus suppressing intermolecular magnetic interaction and polymerization [19,20,21]. Among magnetically functionalized POMs, the chemistry of iron-POMs is of great interest particularly for their inherent magnetic properties; they often exhibit interesting magnetic properties due to the high-spin FeII/III centers [22,23]. Another important aspect of iron-POMs is their catalytic applications due to the easily available FeII/III redox couple [24,25,26,27].
As part of our ongoing research on Fe(III)-POM chemistry, we report here the dinuclear FeIII-containing 12-tungsto-4-arsenite(III) [FeIII2(AsIIIW6O23)2(AsIIIO3H)2]12− (1), which has been synthesized under normal bench conditions by the reaction of Na2WO4·2H2O, As2O3 and FeCl3·6H2O in basic medium, and characterized by single crystal X-ray crystallography (SCXD), powder X-ray diffraction (PXRD), Fourier-transform infrared (FT-IR) spectroscopy, elemental analysis and thermogravimetric analysis. The magnetic properties of 1 have been investigated.

2. Experimental Section

All reactions were carried out under aerobic conditions. All reagents were purchased commercially and were used without further purification.

Synthesis

Synthesis procedure for Na12[FeIII2(AsW6O23)2(AsIIIO3H)2].30H2O {Na-1}.
A mixture of Na2WO4·2H2O (4.20 g, 13.00 mmol), As2O3 (0.45 g, 2.27 mmol) and FeCl3·6H2O (0.33 g, 1.22 mmol) was dissolved in 50 mL of distilled water with stirring. The pH of the resultant suspension was adjusted to 8.5 and maintained at 8.5 by small addition of Na2CO3 (5 g, 4.71 mmol) and dropwise addition of 4 M HCl. This solution was kept at 80 °C for two hours. After heating, the solution was filtered and 0.50 mL of 1 M dimethylammonium chloride solution (CH3)2NH2Cl was added to the clear filtrate. Slow evaporation of the clear solution led to light yellow crystals after approximately two weeks, which were isolated by filtration and dried in air. (Yield ~350 mg, ~13% based on Fe). IR (2% KBr pellet, ν/cm−1): 1631 (br), 933 (m), 848 (s), 717 (s) 609 (w), 505 (w), 443 (w). Elemental analysis (%) calculated: W 51.69, As 7.02, Fe 2.62, Na 6.46; found: W 51.61, As 7.26, Fe 2.76, Na 6.32.

3. Results and Discussion

3.1. Synthesis

The novel POM [FeIII2(AsIIIW6O23)2(AsIIIO3H)2]12− (1) was isolated as its sodium salt by reaction of Fe(III) ion with Na2WO4·2H2O and As2O3 in the presence of (Me2NH2)Cl in basic medium (pH 8) at 80 °C. Although dimethylammonium cations are not found in the crystal structure, their presence appears to play an important role in obtaining diffraction-quality crystals. The absence of the dimethylammonium cation was confirmed by elemental analyses, and no absorption bands for dimethylammonium cations were observed in the FT-IR spectrum of Na-I. In addition to delivering high-quality crystals, an organic cation was also a factor in obtaining a phase pure product. Whereas, the reactions which were carried out under the same conditions in absence of (Me2NH2)Cl produced a mixture of a yellow and white product. The investigation of this impure product by FT-IR spectroscopy indicates the presences of Na-1 and unidentified material (Figure S1).

3.2. Single-Crystal X-ray Structure Determination

The compound crystallizes as the hydrated sodium salt Na12[FeIII2(AsIIIW6O23)2(AsIIIO3H)2].30H2O {Na-1} in the triclinic space group P 1 ¯ with Z = 1; the cluster thus has crystallographically-imposed inversion symmetry. Crystal data for Na-1 are summarized in Table 1. The X-ray structure of the anionic component [FeIII2(AsW6O23)2(AsIIIO3H)2]12− (1) reveals that the two FeIII ions are sandwiched between two equivalent hexatungstate {As2W6} units (Figure 1). In {As2W6} moiety an arsenate group decorates the {AsW6} units through two µ2-oxo bridges (via two As-O=W bridges). The highly vacant lacunary specie {As2W6} contains two edge-sharing tungstate triads {W3O13} connected via their corner-sharing oxygen atoms (Figure 2 left). This type of building block and assembly are a common feature of most polytungstate clusters, but to the best of our knowledge a POM cluster based on two triads has been isolated for the first time in the present work. The hexalacunary unit {AsW6} in 1 is different from the previously reported {PW6} unit in structure [P8W12Co2Na2O68]18− that contains three edge-sharing tungstate {W2O10} units which connect to each other via their corner-sharing oxygen atoms, and a phosphate group then decorates each of these {W2O10} units [28]. The hexalacunary {AsW6} units are structurally related to the well-known trilacunary heteropolyanion [B-AsW9O33]9 but with one missing triad {W3O13}. The two FeIII ions are bridged by two oxygen atoms from arsenite groups, O(1) and its inversion equivalent O(1′). The rigid {As2W6} moieties impose a bridging geometry with a rather small Fe-O-Fe angle: Fe(1)-O(1) = 2.035(6) Å, Fe(1′)-O(1) = 2.047(7) Å, Fe(1)-O(1)-Fe(1′) = 99.1(3)°. Fe(1) is six coordinate, adopting a distorted octahedral geometry (Figure 2 right), and this coordination sphere is completed by four oxido ligands from two {As2W6} units. Two protons are required for charge-balance, and these were located in the crystal structure, bonded to oxygens O(6) and O(6′) of the outer arsenite moieties, where they are involved in hydrogen bonds to oxido ligands of neighboring cluster molecules (Figure 3). After submission of this work, it became apparent that the same compound is reported in the PhD thesis of Wenjing Liu, 2015, Jacobs University (Bremen, Germany), PhD mentor: Prof. U. Kortz. Also some other dinuclear tungstoarsenate(III) complexes [H2M2(AsIIIW6O23)2(AsIIIO3)2]n− (M = ScIII, InIII, and TiIV) and [H3CrIII2(AsIIIW6O23)2(AsIIIO3)2]11− have been reported there [29]. The polyanionic unit of these complexes also consist of two equivalent {As2W6} units, which then sandwich two metal ions bridged by four M−O−W and two M−O−As bridges. These central embedded metal ions also adopt a distorted octahedral geometry similar to FeIII metal ion geometry in 1.

3.3. Characterizations

The experimental powder XRD pattern (measured at room temperature) is compatible with the pattern simulated from the solved crystal structure are shown in Figure 4. The diffraction peaks of both calculated and experimental patterns match well, which indicates the phase purity of the bulk product.

3.3.1. Vibrational Spectroscopy

The FT-IR spectrum of Na-1 displays a fingerprint region that is characteristic of tungstoarsenates [30]. The observed bands at 933 cm−1 and 848 cm−1 are assigned to νas (W=Ot), and νas(W–Ob–W) vibrations, respectively. The bands belonging to W–Oc–W vibrations appeared at 717 and 609 cm−1. The absorption bands of the As–O (900 cm−1) vibrations are partially overlapped with the νas(W–Ob–W) ones. The strong peak at about 1630 cm−1 corresponds to vibrations of lattice water molecules. No vibrational modes of dimethylammonium cations were observed (Figure S1).

3.3.2. Thermogravimetric Analysis

The thermal decomposition processes for Na-1 was investigated under an N2 atmosphere from room temperature (RT) to 1000 °C (Figure S2). The TGA curve indicates two weight loss steps. The first step corresponds to the dehydration process, which starts at RT and is completed at around ~340 °C. This weight loss involves the loss of 25 water molecules [% calc. (found): 12.6 (11)]. The second weight loss occurs between 340 °C and 587 °C which can be associated to the removal of two arsenic groups {AsO} per formula unit [% calc. (found): 4.8 (4.0)]. The slight difference between the calculated and observed values for water content observed in TGA of Na-1 can be justified by a higher degree of dryness of the sample used for TGA analysis. The final residue Na12As2Fe2W12O50 (~83% (calc.) remained stable between 587 °C and 1000 °C and accounts for 85 % (found) of the total mass.

3.4. Magnetic Properties

Variable-temperature magnetic susceptibility studies were carried out on powder samples in the temperature range 2 to 300 K and in an applied field of 1000 Oe (Figure S3). As shown in Figure 5, the χT product is 8.45 cm3 K mol−1 at 300 K, which is good agreement with the expected value of 8.75 cm3 K mol−1 for a dinuclear species containing two non-interacting FeIII (S = 5/2) ions. Upon cooling, the χT values decrease slowly between 300 and 50 K and quickly between 50 and 2 K, reaching a minimum value of 0.64 cm3 K mol−1 at 2 K, indicating the presence of a weak antiferromagnetic exchange interaction between the FeIII ions. The field dependence of the magnetization of Na-1 was measured over the range 0 to 7 T at 2, 4 and 5 K (Figure 6), and shows typical behavior for an antiferromagnetically coupled {FeIII2} system. The χT vs. T and M vs. H plots could be fitted with a H = −2J(S1.S2) Hamiltonian using PHI [31], giving best-fit parameters JFe-Fe = −1.0 K and g = 2.0. Such a coupling is unusually weak for a bis-oxygen-bridged dinuclear FeIII2 complex, being nearly as weak as that (−0.33 K) previously reported by some of us in a FeIII2Y2 butterfly complex [32], and results from the bridging geometry between the iron centers imposed by the two rigid W6As2 metalloligands. The most widely used magnetostructural correlation for bridged FeIII systems has been that proposed by Christou and co-workers in 2004 [33], which gives J(calc) = −7.0 K for Na-1. They more recently proposed a modified correlation [34], but this gives a very similar J(calc) (−6.7 K) for Na-1. Some of us have previously shown that the coupling constants calculated from the earlier correlation are typically 5–6 K too antiferromagnetic [x4], and if this correction is applied then the calculated value, from either version of the correlation, falls well into line with the experimental value found here. This confirms that, provided our correction is applied, both the correlations are also valid for systems with very weak interactions, such as the present complex, by the two rigid {As2W6} metalloligands. The most widely used magnetostructural correlation for bridged FeIII systems, that proposed by Canada-Viltalta et al. [33], gives J(calc) = −6.9 K. We have previously shown that values calculated from this correlation are typically 5–6 K too antiferromagnetic [35], and if this correction is applied then the calculated value falls well into line with the experiment, confirming that this correlation is still valid even for systems with very weak interactions, such as the present complex.

4. Conclusions

We have prepared and structurally characterized the first FeIII-containing hexalacunary heteroarsenotungstate 1 by using simple open-beaker, aqueous solution synthesis technique. The new heteropolyanion architecture involves the sandwiching of the two paramagnetic iron centers between two rigid {As2W6} metalloligands, and the geometry imposed by these on the FeIII2 core resulted in an unusually weak antiferromagnetic interaction. Future work will be concentrated on exploring the hexalacunary systems with variety of paramagnetic and diamagnetic cations with related magnetic and catalytic investigations.

Supplementary Materials

The following are available online at https://www.mdpi.com/2312-7481/6/4/54/s1, Figure S1: FT-IR spectra of pure Na-1 (black) and mixture of product obtained in absence of (Me2NH2)+ cation (red), Figure S2: Thermogravimetric analysis (TGA) curve of Na-1, Figure S3: Plot of chiT vs. T under 1000 Oe for compound Na-1.

Author Contributions

All the authors contributed to this work. M.I. conceived and designed the experiments. M.I. characterized the compound. Structure refinement was done by C.E.A. Magnetic data were processed by Y.P. The manuscript was written with participation of all authors, who have all checked and approved the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

German Science Foundation (DFG. Grant Number: 123/1-1).

Acknowledgments

M.I. acknowledges support by the Helmholtz society through program Science and Technology of Nanosystems (STN). We also thank Dieter Fenske and Thomas Bergfeldt for measuring the single crystal X-ray crystallography dataset and the elemental analysis respectively. We thank Valeriu Mereacre for the magnetic measurements. COST Actions MultiComp (CA15107) and MOLSPIN (CA15128), KNMF and POF.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Anyushin, A.V.; Kondinski, A.; Parac-Vogt, T.N. Hybrid polyoxometalates as post-functionalization platforms: From fundamentals to emerging applications. Chem. Soc. Rev. 2020, 49, 382–432. [Google Scholar] [CrossRef] [PubMed]
  2. Sullivan, K.P.; Yin, Q.; Collins-Wildman, D.L.; Tao, M.; Geletii, Y.V.; Musaev, D.G.; Lian, T.; Hill, C.L. Multi-tasking POM systems. Front. Chem. 2018, 6, 365. [Google Scholar] [CrossRef] [PubMed]
  3. Long, D.L.; Tsunashima, R.; Cronin, L. Polyoxometalates: Building blocks for functional nanoscale systems. Angew. Chem. Int. Ed. 2010, 49, 1736–1758. [Google Scholar] [CrossRef] [PubMed]
  4. Stuckart, M.; Monakhov, K.Y. Polyoxometalates as components of supramolecular assemblies. Chem. Sci. 2019, 10, 4364–4376. [Google Scholar] [CrossRef]
  5. Oms, O.; Dolbecq, A.; Mialane, P. Diversity in structures and properties of 3d-incorporating polyoxotungstates. Chem. Soc. Rev. 2012, 41, 7497–7536. [Google Scholar] [CrossRef]
  6. Reinoso, S. Heterometallic 3d-4f polyoxometalates: Still an incipient field. Dalton Trans. 2011, 40, 6610–6615. [Google Scholar] [CrossRef]
  7. Boskovic, C. Rare earth polyoxometalates. Acc. Chem. Res. 2017, 50, 2205–2214. [Google Scholar] [CrossRef]
  8. Zhao, J.W.; Li, Y.Z.; Chen, L.J.; Yang, G.Y. Research progress on polyoxometalate-based transition-metal-rare-earth heterometallic derived materials: Synthetic strategies, structural overview and functional applications. Chem. Commun. 2016, 52, 4418–4445. [Google Scholar] [CrossRef]
  9. Ibrahim, M.; Mereacre, V.; Leblanc, N.; Wernsdorfer, W.; Anson, C.E.; Powell, A.K. Self-assembly of a giant tetrahedral 3 d-4 f single-molecule magnet within a polyoxometalate system. Angew. Chem. Int. Ed. 2015, 54, 15574–15578. [Google Scholar] [CrossRef]
  10. Ibrahim, M.; Lan, Y.; Bassil, B.S.; Xiang, Y.; Suchopar, A.; Powell, A.K.; Kortz, U. Hexadecacobalt(II)-containing polyoxometalate-based single-molecule magnet. Angew. Chem. Int. Ed. 2011, 50, 4708–4711. [Google Scholar] [CrossRef]
  11. AlDamen, M.A.; Clemente-Juan, J.M.; Coronado, E.; Martí-Gastaldo, C.; Gaita-Arino, A. Mononuclear lanthanide single-molecule magnets based on polyoxometalates. J. Am. Chem. Soc. 2008, 130, 8874–8875. [Google Scholar] [CrossRef]
  12. Ritchie, C.; Ferguson, A.; Nojiri, H.; Miras, H.N.; Song, Y.F.; Long, D.L.; Burkholder, E.; Murrie, M.; Kögerler, P.; Brechin, E.K.; et al. Polyoxometalate-mediated self-assembly of single-molecule magnets: {[XW9O34]2[MnIII4MnII2O4(H2O)4]}12−. Angew. Chem Int. Ed. 2008, 47, 5609–5612. [Google Scholar] [CrossRef] [PubMed]
  13. Feng, X.; Zhou, W.; Li, Y.; Ke, H.; Tang, J.; Clérac, R.; Wang, Y.; Su, Z.; Wang, E. Polyoxometalate-supported 3d-4f heterometallic single-molecule magnets. Inorg. Chem. 2012, 51, 2722–2724. [Google Scholar] [CrossRef]
  14. Izarova, N.V.; Kögerler, P. Polyoxometalate-based single-molecule magnets. In Trends in Polyoxometalates Research; Ruhlmann, L., Schaming, D., Eds.; Nova Science Publishers: Hauppauge, NY, USA, 2015; pp. 121–149. [Google Scholar]
  15. El Moll, H.; Dolbecq, A.; Marrot, J.; Rousseau, G.; Haouas, M.; Taulelle, F.; Rogez, G.; Wernsdorfer, W.; Keita, B.; Mialane, P. A stable hybrid bisphosphonate polyoxometalate single-molecule magnet. Chem. Eur. J. 2012, 18, 3845–3849. [Google Scholar] [CrossRef]
  16. Li, Z.; Li, X.X.; Yang, T.; Cai, Z.W.; Zheng, S.T. Four-shell polyoxometalates featuring high-nuclearity Ln26Clusters: Structural transformations of nanoclusters into frameworks triggered by transition-metal ions. Angew. Chem. Int. Ed. 2017, 56, 2664–2669. [Google Scholar] [CrossRef] [PubMed]
  17. Ritchie, C.; Moore, E.G.; Speldrich, M.; Kögerler, P.; Boskovic, C. Terbium polyoxometalate organic complexes: Correlation of structure with luminescence properties. Angew. Chem. Int. Ed. 2010, 49, 7702–7705. [Google Scholar] [CrossRef]
  18. Katsoulis, D.E. A survey of applications of polyoxometalates. Chem. Rev. 1998, 98, 359–388. [Google Scholar] [CrossRef] [PubMed]
  19. Clemente-Juan, J.M.; Coronado, E.; Gaita-Ariño, A. Magnetic polyoxometalates: From molecular magnetism to molecular spintronics and quantum computing. Chem. Soc. Rev. 2012, 41, 7464–7478. [Google Scholar] [CrossRef]
  20. Coronado, E.; Gómez-García, C.J. Polyoxometalate-based molecular materials. Chem. Rev. 1998, 98, 273–296. [Google Scholar] [CrossRef]
  21. Vonci, M.; Boskovic, C. Polyoxometalate-supported lanthanoid single-molecule magnets. Aust. J. Chem. 2014, 67, 1542–1552. [Google Scholar] [CrossRef]
  22. Compain, J.D.; Mialane, P.; Dolbecq, A.; Mbomekallé, I.M.; Marrot, J.; Sécheresse, F.; Riviére, E.; Rogez, G.; Wernsdorfer, W. Iron polyoxometalate single-molecule magnets. Angew. Chem. Int. Ed. 2009, 48, 3077–3081. [Google Scholar] [CrossRef] [PubMed]
  23. Pichon, C.; Dolbecq, A.; Mialane, P.; Marrot, J.; Rivière, E.; Sécheresse, F. Square versus tetrahedral iron clusters with polyoxometalate ligands. J. Chem. Soc. Dalton Trans. 2007, 707, 71–76. [Google Scholar] [CrossRef] [PubMed]
  24. Ibrahim, M.; Haider, A.; Xiang, Y.; Bassil, B.S.; Carey, A.M.; Rullik, L.; Jameson, G.B.; Doungmene, F.; Mbomekallé, I.M.; de Oliveira, P.; et al. Tetradecanuclear iron(III)-oxo nanoclusters stabilized by trilacunary heteropolyanions. Inorg. Chem. 2015, 54, 6136–6146. [Google Scholar] [CrossRef] [PubMed]
  25. Singh, V.; Chen, Z.; Ma, P.; Zhang, D.; Drew, M.G.B.; Niu, J.; Wang, J. Unprecedented {Fe14}/{Fe10} Polyoxotungstate-based nanoclusters with efficient photocatalytic H2 evolution activity: Synthesis, structure, magnetism, and electrochemistry. Chem. Eur. J. 2016, 22, 10983–10989. [Google Scholar] [CrossRef]
  26. Botar, B.; Geletii, Y.V.; Kögerler, P.; Musaev, D.G.; Morokuma, K.; Weinstock, I.A.; Hill, C.L. The true nature of the di-iron(III) γ-Keggin structure in water: Catalytic aerobic oxidation and chemistry of an unsymmetrical trimer. J. Am. Chem. Soc. 2006, 128, 11268–11277. [Google Scholar] [CrossRef]
  27. Du, X.; Ding, Y.; Song, F.; Ma, B.; Zhao, J.; Song, J. Efficient photocatalytic water oxidation catalyzed by polyoxometalate [Fe11(H2O)14(OH)2(W3O10)2(α-SbW9O33)6]27− based on abundant metals. Chem. Commun. 2015, 51, 13925–13928. [Google Scholar] [CrossRef]
  28. Ritchie, C.; Li, F.; Pradeep, C.P.; Long, D.L.; Xu, L.; Cronin, L. A functional hybrid polyoxometalate framework based on a ‘trilacunary’ heteropolyanion [(P4W6O34)2Co2Na2(H2O)2]18−. J. Chem. Soc. Dalton Trans. 2009, 2, 6483–6486. [Google Scholar] [CrossRef]
  29. Wenjing, L. Synthesis of Chromium-Containing and Some other Heteropolytungstates and Study of Their Magnetic, Electrochemical, and Biological Properties. Ph.D. Thesis, Jacobs University Bremen, Bremen, Germany, 2015. [Google Scholar]
  30. Detusheva, L.G.; Kuznetsova, L.I.; Dovlitova, L.S.; Likholobov, V.A. Study of the equilibrium of formation of arsenic(III) lacunar heteropolytungstates by Raman spectroscopy. Russ. Chem. Bull. 2003, 52, 370–374. [Google Scholar] [CrossRef]
  31. Chilton, N.F.; Anderson, R.P.; Turner, L.D.; Soncini, A.; Murray, K.S. PHI: A powerful new program for the analysis of anisotropic monomeric and exchange-coupled polynuclear d- and f-block complexes. J. Comput. Chem. 2013, 34, 1164–1175. [Google Scholar] [CrossRef]
  32. Xiang, H.; Mereacre, V.; Lan, Y.; Lu, T.-B.; Anson, C.E.; Powell, A.K. Direct observation of the role of lanthanides in stabilizing a ferromagnetic spin orientation in a weak FeIII-FeIII antiferromagnet. Chem. Commun. 2013, 49, 7385–7387. [Google Scholar] [CrossRef]
  33. Canada-Vilalta, C.; O’Brien, T.A.; Brechin, E.K.; Pink, M.; Davidson, E.R.; Christou, G. Large spin differences in structurally related Fe6 molecular clusters and their magnetostructural explanation. Inorg. Chem. 2004, 43, 5505–5521. [Google Scholar] [CrossRef] [PubMed]
  34. Mitchell, K.J.; Abboud, K.A.; Christou, G. Magnetostructural correlation for high-nuclearity iron(III)/oxo complexes and application to Fe5, Fe6, and Fe8 clusters. Inorg. Chem. 2016, 55, 6597–6608. [Google Scholar] [CrossRef]
  35. Ako, A.M.; Lan, Y.; Mereacre, V.; Ruiz, E.; Aravena, D.; Anson, C.E.; Powell, A.K. Spins on a curved surface: A FeIII14 ferracalixarene. Dalton Trans. 2013, 42, 9606–9612. [Google Scholar] [CrossRef] [PubMed]

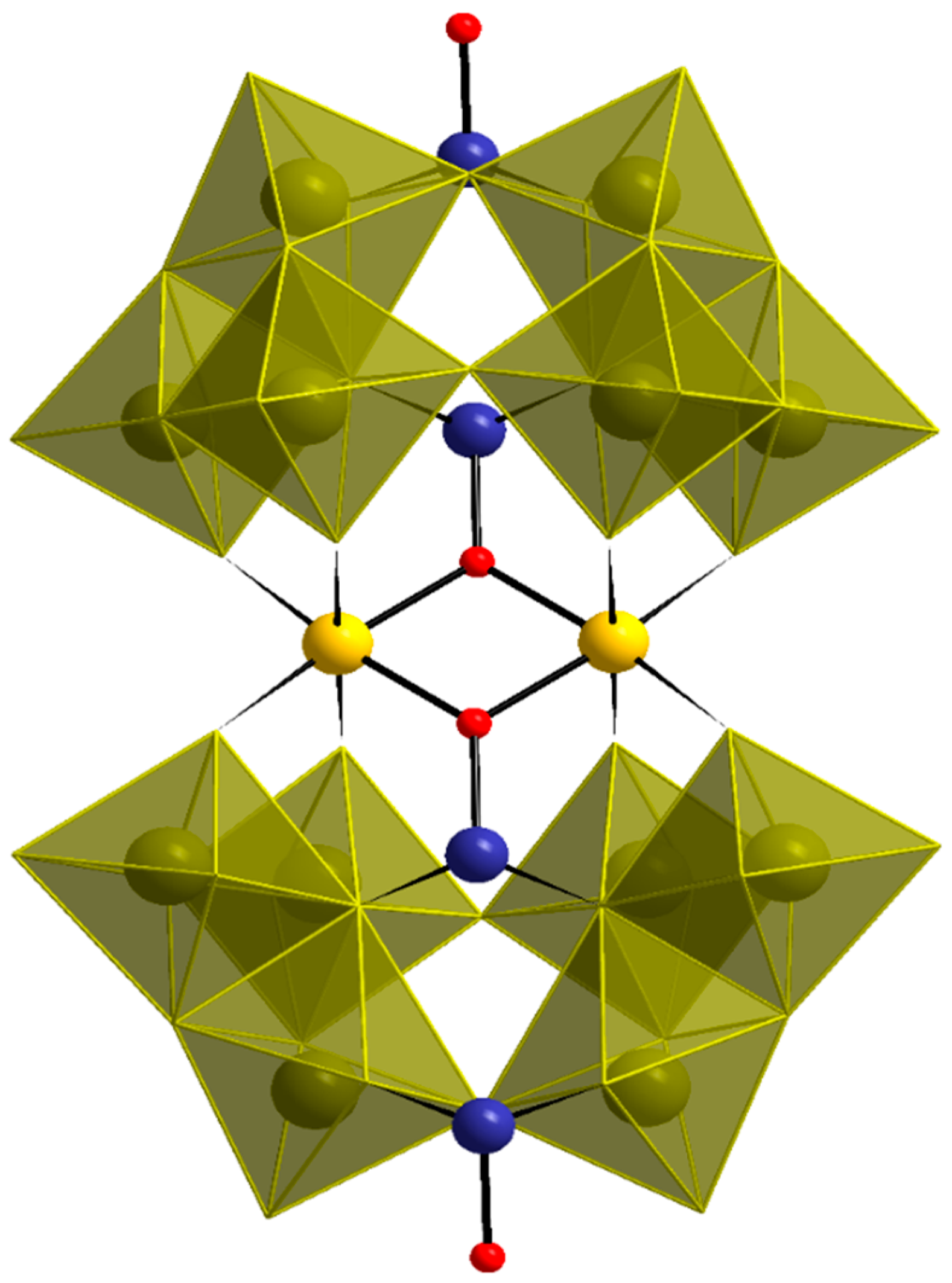

Figure 1. Combined polyhedral/ball-and-stick representation of 1. Color code: WO6 octahedra olive green, As blue, Fe yellow, O red.
Figure 1. Combined polyhedral/ball-and-stick representation of 1. Color code: WO6 octahedra olive green, As blue, Fe yellow, O red.
Magnetochemistry 06 00054 g001

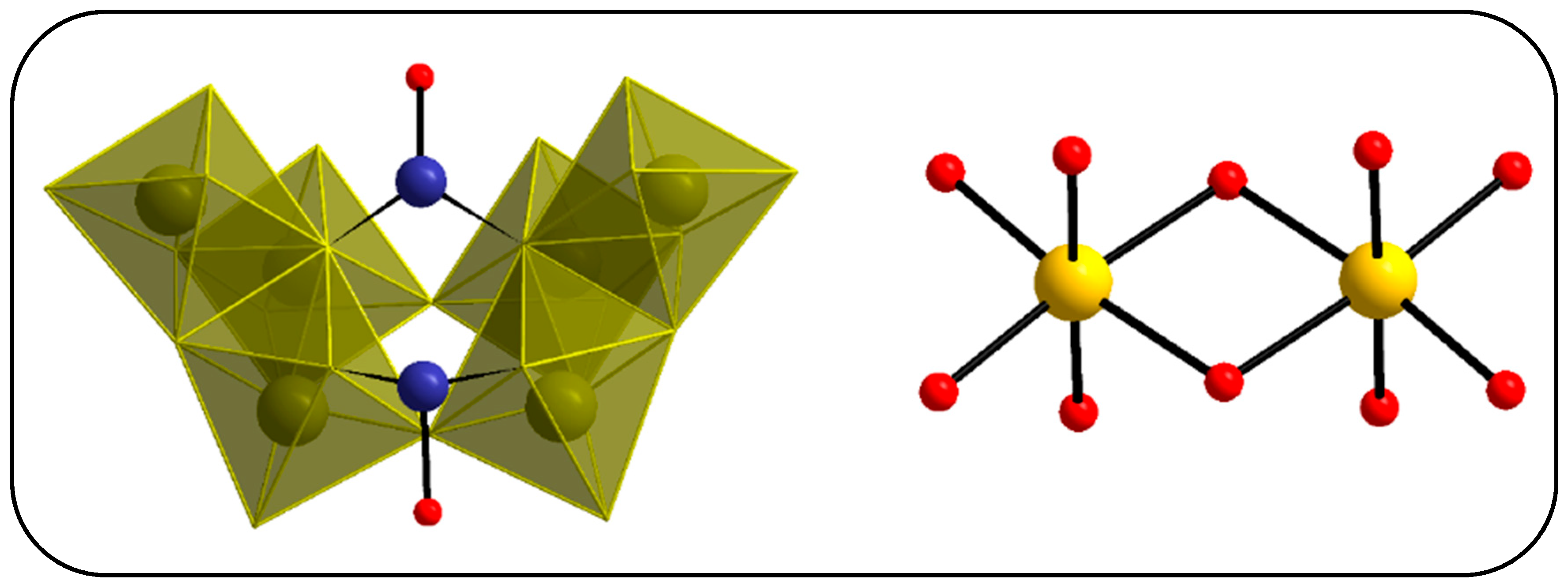

Figure 2. Combined polyhedral/ball-and-stick representation: Left {(AsIIIW6O23)(AsIIIO3H)}. Right FeIII2 core. Color code: WO6 octahedra olive green, As blue, Fe yellow, O red.
Figure 2. Combined polyhedral/ball-and-stick representation: Left {(AsIIIW6O23)(AsIIIO3H)}. Right FeIII2 core. Color code: WO6 octahedra olive green, As blue, Fe yellow, O red.
Magnetochemistry 06 00054 g002

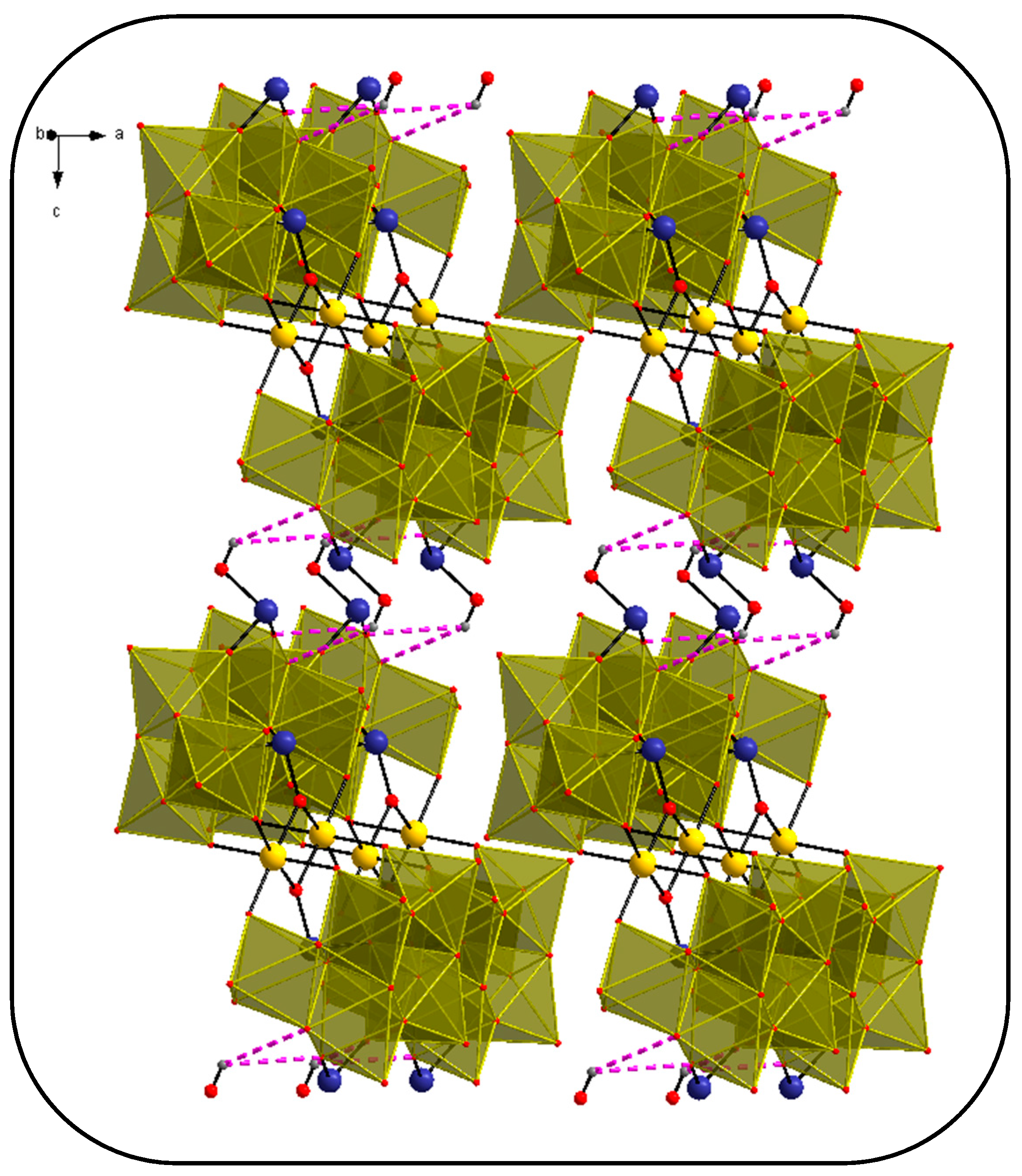

Figure 3. The packing arrangements in 1. Hydrogen bonds are drawn as pink dashed lines. Color code: WO6 octahedra olive green, As blue, Fe yellow, O red, H gray.
Figure 3. The packing arrangements in 1. Hydrogen bonds are drawn as pink dashed lines. Color code: WO6 octahedra olive green, As blue, Fe yellow, O red, H gray.
Magnetochemistry 06 00054 g003

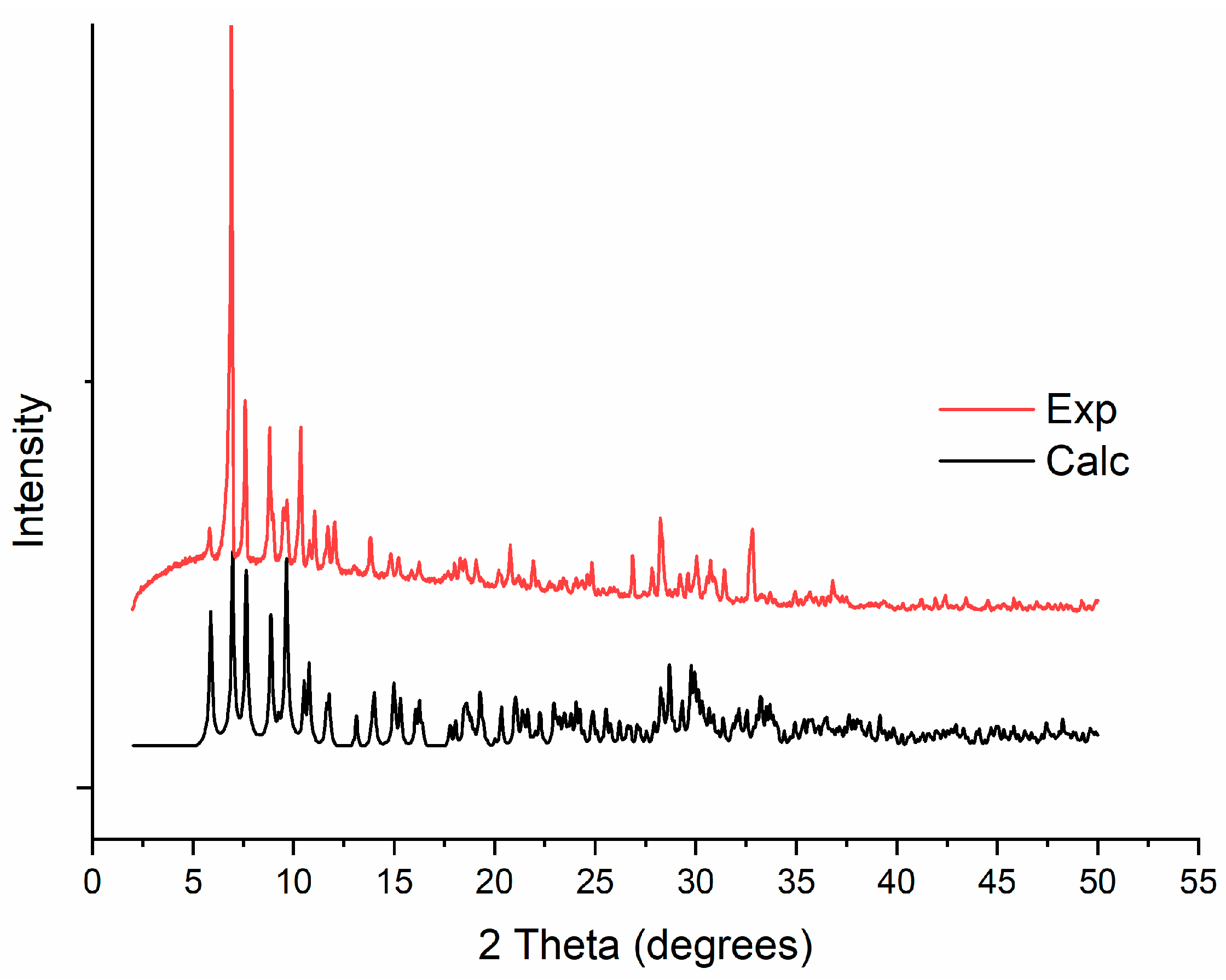

Figure 4. Experimental (red) and simulated (black) X-ray diffraction pattern of Na-1.
Figure 4. Experimental (red) and simulated (black) X-ray diffraction pattern of Na-1.
Magnetochemistry 06 00054 g004

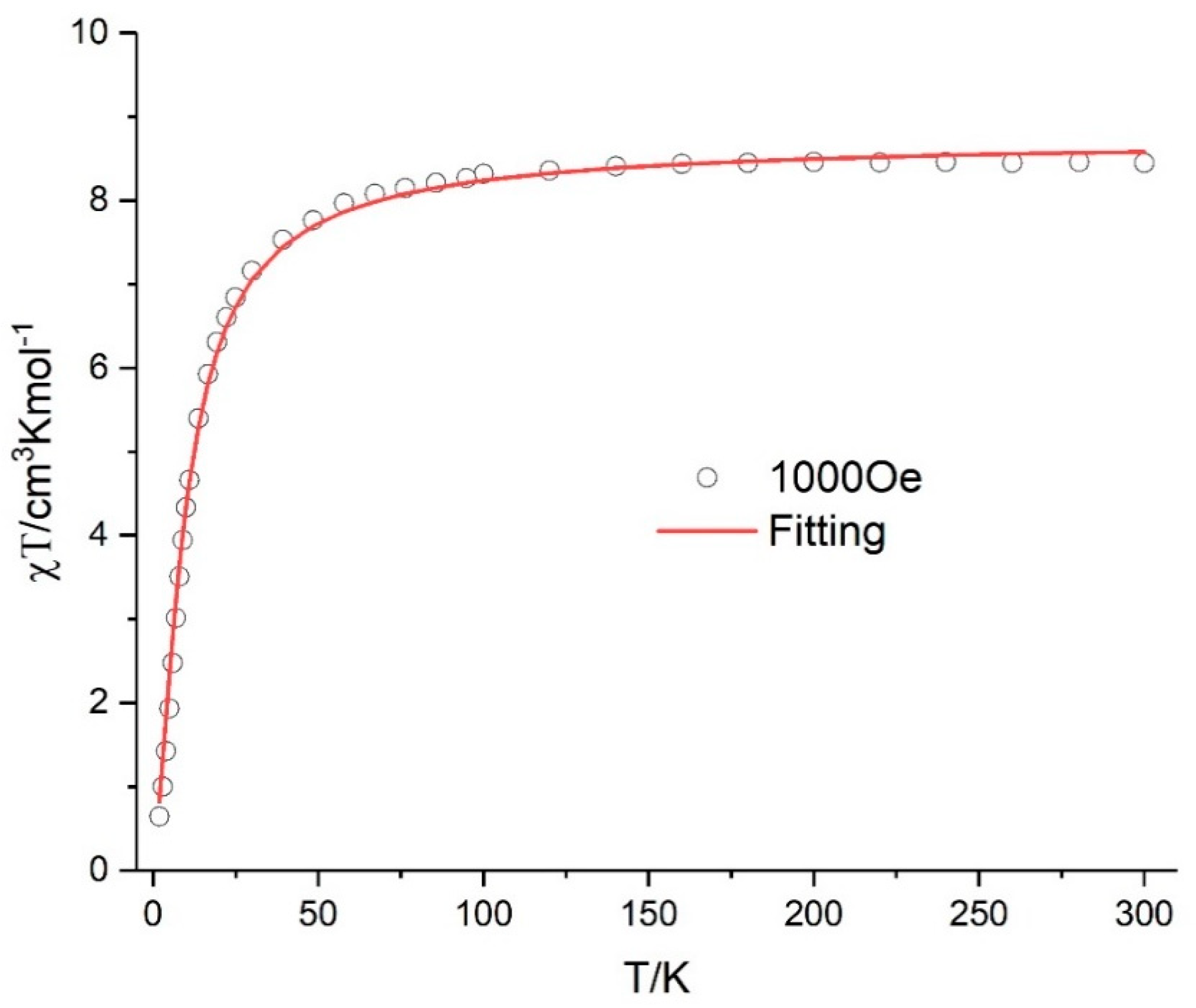

Figure 5. Plot of χT vs. T for Na-1 under 1000 Oe applied dc field. Solid line for fitting.
Figure 5. Plot of χT vs. T for Na-1 under 1000 Oe applied dc field. Solid line for fitting.
Magnetochemistry 06 00054 g005

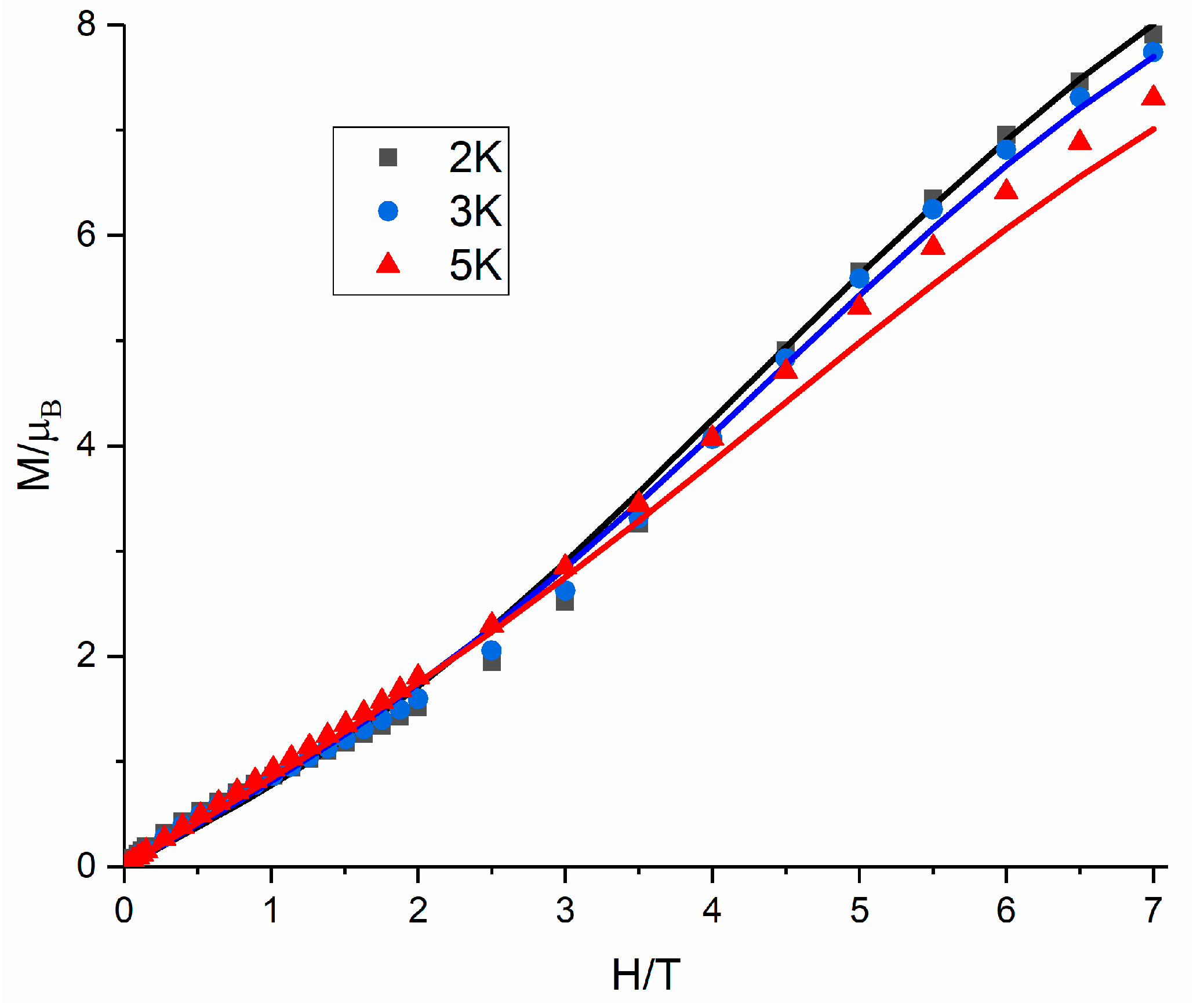

Figure 6. Plot of M vs. H for Na-1 at 2, 3 and 5 K. Solid lines for fitting.
Figure 6. Plot of M vs. H for Na-1 at 2, 3 and 5 K. Solid lines for fitting.
Magnetochemistry 06 00054 g006
Table 1. Crystal Data.
Table 1. Crystal Data.
CompoundNa-1
FormulaAs4 H90 Fe2 Na12 O96 W12
Formula weight4520.17
Crystal SystemTriclinic
Space GroupP 1 ¯
a11.9906 (9)
b13.1591 (9)
c15.0490 (9)
α/°88.242 (5)
β/°89.361 (6)
γ/°74.518 (5)
U32287.3 (3)
Z1
T/K150 (2)
F(000)2062
Dc/Mg m−33.282
μ(Ga-Kα)/mm−123.123
Data Measured21,626
Unique Data9508
Rint0.0378
Data with I ≥ 2σ(I)9017
wR2 (all data)0.1663
S (all data)1.056
R1 [I ≥ 2σ(I)]0.0578
Parameters/Restraints598/1
Biggest diff. peak/hole/eÅ−32.46/−3.14
CSD number2,022,893
