Magnetochemistry 2019, 5(2), 36; https://doi.org/10.3390/magnetochemistry5020036

Review
Recent Advances of Cellulase Immobilization onto Magnetic Nanoparticles: An Update Review
1
Biosensor Research Center, Endocrinology and Metabolism Molecular-Cellular Sciences Institute, Tehran University of Medical Sciences, Tehran 1411713137, Iran
2
Department of Biology, Faculty of Sciences, University of Payame Noor, Tehran 19395-3697, Iran
3
Department of Medical Nanotechnology, Applied Biophotonics Research Center, Science and Research Branch, Islamic Azad University, Tehran 1477893855, Iran
4
Zar Center, University of Applied Science and Technology (UAST), Karaj 1599665111, Iran
*
Author to whom correspondence should be addressed.
Received: 25 April 2019 / Accepted: 4 June 2019 / Published: 10 June 2019

Abstract

:
Cellulosic enzymes, including cellulase, play an important role in biotechnological processes in the fields of food, cosmetics, detergents, pulp, paper, and related industries. Low thermal and storage stability of cellulase, presence of impurities, enzyme leakage, and reusability pose great challenges in all these processes. These challenges can be overcome via enzyme immobilization methods. In recent years, cellulase immobilization onto nanomaterials became the focus of research attention owing to the surface features of these materials. However, the application of these nanomaterials is limited due to the efficacy of their recovery process. The application of magnetic nanoparticles (MNPs) was suggested as a solution to this problem since they can be easily removed from the reaction mixture by applying an external magnet. Recently, MNPs were extensively employed for enzyme immobilization owing to their low toxicity and various practical advantages. In the present review, recent advances in cellulase immobilization onto functionalized MNPs is summarized. Finally, we discuss enhanced enzyme reusability, activity, and stability, as well as improved enzyme recovery. Enzyme immobilization techniques offer promising potential for industrial applications.
Keywords:
cellulase immobilization; magnetic nanoparticles; stability; functionalized nanoparticles

1. Introduction

The environmental pollution produced by fossil fuels, the increasing growth of population, and the expensive costs of traditional energy sources compel researchers to develop novel approaches toward ecofriendly and biodegradable energy sources. Biomass, specifically cellulose, nature’s most abundant biopolymer, is a low-cost energy source which can be degraded as biomaterials to yield chemical products applicable in many industrial applications [1,2].
Cellulosic enzymes such as cellulases are catalysts which convert cellulose to glucose, and are widely used in different industries, including food, pulp and paper, laundry, beverages, textile, agriculture, pharmaceutics, medicine, and especially in biofuel production [3]. Glucose is the main product of cellulose conversion, which is applied as a precursor for the production of various valuable products. Cellulase, which is synthesized by microorganisms including bacteria and fungi [4,5], is the most powerful hydrolyzing enzyme and can be easily employed [6].
Chemical, physical, and biological methods were employed for cellulosic hydrolysis, from which the enzymatic conversion gained much attention because of its mild reaction conditions. Therefore, these methods provide high yield with no inhibitory by-products and are considered environmentally friendly. Cellulases are highly selective catalysts and the degradation process is naturally carried out in pH 4.5–5.5 at 40–50 °C [7,8,9].
Cellulases are responsible for biochemical conversion processes and convert the lignocellulosic biomass (hemicellulose and cellulose) into an intermediate sugar, which further acts as the substrate for ethanol production [10,11,12,13,14]. Biocatalysts have limitations such as limited availability, substrate scope, and operational stability [15]. Recent findings can help scientists overcome these limitations. The main challenge in the application of biocatalysts is their high cost; therefore, reusability and recovery of the enzymes are two significant factors that should be considered for industrial applications [16,17]. In industrial processes, enzymatic reactions are generally performed in high-temperature conditions which can lead to changes in the natural structure of cellulase [18,19]. For this reason, enzyme properties must be greatly improved. Immobilization is a powerful tool to increase the stability and reusability of enzymes.
Enzyme immobilization on support materials is a well-established approach for enhancement of enzyme features such as activity, stability, reusability, purification, reduction of inhibition, and selectivity. Enzyme immobilization on a solid support provides good distribution of the catalysts with less aggregation. On the other hand, covalent binding between the support and the enzyme results in increased enzymatic stability, which in turn leads to enhanced enzymatic activity [1,20,21].
Different methods for enzyme immobilization exist, including covalent binding, adsorption, ionic bonding, entrapment, and encapsulation [22,23,24,25,26,27]. There are also numerous approaches to facilitate enzyme immobilization on nanomaterials, including enzymatic modifications, enzymatic immobilization and biosensor development [28,29], enzymatic degradation, enzyme nanoparticles, and enzyme mimics of nanomaterials [30,31,32,33]. Among several available nanoparticles, magnetic nanoparticles (MNPs) received more attention owing to their advantageous features including low toxicity and high surface area, which allows a large number of enzyme molecules to be loaded to their surface [30,34,35].
In recent decades, most research studies on cellulase immobilization illustrated that the enzyme structure was improved, and bound cellulase maintains high activity for a long time. Furthermore, the immobilized cellulase is more resistant to structural alterations induced by increased temperature [36,37,38,39]. The activity of bounded cellulase was shown to be higher at most pH values than the free form due to enhanced stability [40,41,42].
Fe3O4 MNPs obtained great attention due to their low toxicity, simple preparation, unique size, strong magnetic properties, and proper physical properties, as well as simple recovery from the media with an external magnetic field [43,44]. Although, magnetite nanoparticles tend to agglomerate and be easily oxidized upon air exposure, it is very important to functionalize its surface in order to avoid oxidization.
The enzymes can bind to the surface of MNPs through van der Waals and electrostatic forces, hydrophobic, or π–π stacking connections by means of non-covalent binding. However, the main challenge of non-covalent immobilization is protein leakage from the surface of the MNPs. Thus, the covalent binding using cross-linkers is widely applied to resolve this problem. Among the cross-linkers, glutaraldehyde is commonly employed as the coupling agent for covalent cellulase immobilization to the support since it is soluble in aqueous solvents and provides firm inter- and intra-covalent bonds [45,46,47,48,49].
A summary of different methods used for MNP functionalization for cellulase immobilization is presented in Figure 1. These functionalization methods are further described and their advantageous features are thoroughly discussed. The current review is focused on recent findings on immobilized cellulases on MNP supports with various functionalized groups and their advantages.

2. Cellulase Immobilization on Silica-Functionalized MNPs

Silica functionalized MNPs provide suitable supports with low aggregation in solutions. Silica functionalization enhances biocompatibility, as well as thermal and chemical stability, of the MNP surface [34,50]. Co-immobilization of tri-enzymes consisting of cellulase, pectinase, and xylanase was investigated for industrial applications. The results revealed that kinetic parameters (i.e., Vmax and Km) of the tri-enzyme were not affected by the immobilization process. It can be concluded that the immobilization process significantly enhances thermal and chemical stability [18].
Zhang et al. reported an enzymatic catalysis with chemocatalysis in an iPrOH/water solvent mixture by employing a novel approach for green conversion of ionic liquid (IL) while pretreating cellulose with 5-hydroxymethylfurfural (HMF). This pretreatment of media converted cellulose to glucose and glucose to HMF, while HMF and glucose yields were 43.6% and 86.2%, respectively (Scheme 1). The results obtained from enzymatic cascades and reaction systems prove that this method can be applied as an operative route for biomass energy maintenance [51].
In another study, Trichoderma reesei cellulase was immobilized on two different nanomatrices (MNPs and silica nanoparticles (SNPs)) to improve enzymatic efficiency. Then, 1-ethyl-3-methylimidazoliumacetate [EMIM][Ac] was applied as an IL for cellulase immobilization and was used for pretreatment of sugarcane bagasse and wheat straw. The results obtained from this study revealed a great hydrolysis yield (89%). This process, due to IL reusability and the enhanced stability of the immobilized enzyme, can be potentially used for biorefineries [52].
The immobilization and characterization of holocellulase from Aspergillus niger on five different nanoparticles (NPs) via available methods was reported by Kuma et al. Enzyme molecules were covalently immobilized on magnetic enzyme–nanoparticle complexes (MENC), and the results obtained from this study revealed that the immobilization of indigenous enzymes and their consumption can be used for saccharification of paddy straw [53].
Jia et al. established and applied novel MNP cross-linked cellulase aggregates (Figure 2) in order to improve enzyme reusability and stability for biomass bioconversion. The immobilized cellulase further represented suitable activity and stability following reusability in biomass applications [54].
The key parameters of enzyme immobilization such as pH, temperature, efficiency, reusability, and coupling agents, as well as supports and substrates, are presented in Table 1. As mentioned before, glutaraldehyde is the most commonly used cross-linker for enzyme immobilization. Our findings suggest that biocompatible, biodegradable, and nontoxic polymers such as polyethylene glycol (PEG) can also be used as an alternative cross-linker for this process.

3. Carrier Free Cellulase Immobilization Strategy

In recent years, MNPs were commonly applied as a solid support for recovery systems [55]. Carrier-free immobilization approaches like co-immobilization by cross-linked enzyme crystals (CLECs) and cross-linking enzyme aggregates (CLEAs) are conceivable methods to boost the enzyme stability [56,57,58,59]. Tri-enzyme was co-immobilized on MNPs to improve reusability by cross-linking with glutaraldehyde. In this study, co-immobilized MNPs remained stable for more than a month at 5 °C and also retained activity for up to four cycles. It was suggested that this platform can be effectively applied for the extraction of different plants [19]. In another similar study, enzymes including xylenes, cellulases, and amylases were derived from bacteria and applied for cellulase immobilization on MNPs to enhance stability and facilitate reusability (Figure 3). The results obtained demonstrated that the enzyme-coupled MNPs exhibited excellent stability and recovery. Tri-enzyme immobilized MNPs can be potentially applied in plant biomass production [60].
Different MNPs were prepared and characterized, while the significance of MNP characterization was exclusively discussed by Schwaminger and his colleagues (Scheme 2). Moreover, electrostatic and hydrophobic interactions between the enzyme molecules and MNPs were also investigated. Results from infrared (IR) spectroscopy revealed a high affinity for β-sheet formation in the tertiary structure content of enzyme molecules. In this study, cellulase loading on different MNPs was studied, and the results showed that higher loading efficiencies would be achieved by using a higher α-helical section [61].
In another study, fungus cell filtrate was applied to synthesize MNPs, which was further characterized. The results obtained from this study revealed that the free enzyme was more efficient than the immobilized form and that cellulase molecules retained high activity following immobilization. The authors suggested that cellulase immobilization on MNPs provides good reusability, making the process more efficient for sustainable bioethanol production [62]. As summarized in Table 2, the significant parameters of cellulase immobilization such as pH, temperature, reusability, and coupling agents, as well as supports and substrates, are presented for carrier-free immobilization approach.

4. Cellulase Immobilization on Amino-Functionalized MNPs

Functionalization of MNPs is a commonly used strategy for tri-enzyme immobilization via covalent bonding. Amines are among the most common functionalized groups that can be linked to proteins via cross-linking agents. Cellulase (from Trichoderma reesei) and pectinase (from Aspergillus aculeatus) were simultaneously immobilized on amino-functionalized MNPs (AMNPs) for antioxidant extraction from waste fruit peels. This immobilization method led to increased thermal stability, half-life, and Vmax for both enzymes; however, it caused a slight decrease in their activity. Immobilized enzymes on MNPs show increased reusability of the biocatalyst. Results showed that glutaraldehyde’s concertation is an important factor affecting the activity of immobilized enzyme [63]. In a similar study, pectinase and cellulase were immobilized on AMNPs and utilized in the extraction of tomato peel lycopene. The immobilization process decreased enzyme activity while increasing its stability. Ultrasonic irradiation is used to highly activate immobilized cellulase, as well as increase the efficiency of biocatalyst. Results also showed that the biocatalyst decreased extraction time in comparison to free enzyme forms [64]. Hyperactivity of immobilized cellulase on AMNPs was investigated in another study. Application of ultrasound irradiation enhanced cellulase activity up to 3.6-fold. Sonication also increased Vmax and decreased Km of cellulase. The results obtained from this study showed that MNP/enzyme ratio, concentration of cross-linking agent, and cross-linking time affected the enzyme activity [65].
Co-immobilization of cellulase and lysozyme on AMNPs was performed for extraction of lipids from microalgae (Scheme 3). Their findings showed that enzyme stability and catalytic efficiency were increased; however, the activity and kinetic parameters of both enzymes decreased following immobilization [66].
It is believed that co-immobilization of cellulose is greatly influenced by the enzyme concentration on the MNP surface. In addition, the immobilization process increases the efficiency of biocatalyst via multiple enzymes; however, applicable enzyme concertation is limited and enzyme activity is reduced due to low availability of surface area. As summarized in Table 3, enzyme immobilization on AMNPs via covalent bonding can increase thermal and chemical stability while generally reducing enzyme activity. MNPs provide biocatalyst reusability, while sonication hyperactivates immobilized cellulase which can compensate for the enzyme activity. It can be concluded that enzyme immobilization on AMNPs can be used for industrial applications.
In a recent study, AMNPs in combination with copper (Cu) (as an affinity ligand) were employed for immobilization of A. niger-derived cellulase. Metal affinity ligands are commonly used due to their high chemical stability, low cost, and modifying capability. Loading concentration and cellulase activity were investigated by full factorial design, considering pH, and Cu/MNP and enzyme/MNP ratios as independent variables. Obtained data revealed that Cu improved the immobilized enzyme’s activity, storage stability, and loading capacity (i.e., 164 mg/g MNPs). The biocatalyst remained stable under a wide range of pHs and temperatures [67].

5. Cellulase Immobilization on Composite-Functionalized MNPs

MNPs used as enzyme immobilization supports can be coated with various nanomaterials. MNP coating prevents nanoparticles oxidation, improves enzyme immobilization efficacy, and may decrease toxicity of the support materials. The coating process should not alter the magnetic properties of nanoparticles, which are essential for the biocatalyst’s reusability through a magnetic field. Different composite coatings were prepared for cellulase immobilization, and the effects of coating on enzyme activity and stability were studied.
In recent years, metallic, metallic oxide, and carbon-related materials were widely applied and blended with different polymers to prepare novel nanocomposites for enzyme immobilization. Specifically, gold, MgO, and graphene oxide (GO) were blended with different polymers such as PEG, glutamic acid, and poly(methyl methacrylate) for enhancing the enzyme stability.
Immobilized cellulase on MNPs coated with layered double hydroxide (LDH) nanosheets were used to reduce the magneto-induced effect on the enzyme. Results showed that utilizing nanocomposite materials could increase specific enzyme activity and loading efficiency, but could reduce enzyme reusability. Immobilized cellulase also demonstrated higher stability in a wide range of temperatures and pH values [68]. MgO-coated MNPs were used as a support for covalent immobilization of cellulase from Chlorella sp. CYB2. MgO played a significant role for improvement of immobilization yield, activity recovery, and hydrolysis of the substrate [69].
In another study, poly(methyl methacrylate)-coated MNPs were used for cellulase immobilization as shown in Scheme 4. Enzyme stability and activity were affected by the immobilization process as detailed in Table 4. The results obtained revealed that poly(methyl methacrylate) as a coating polymer did not have any significant effect on the particles’ magnetic properties (Figure 4) [70].
Four-arm dendritic polymers composed of PEG-NH2 (Scheme 5) were used as coating materials for immobilization of cellulase derived from Trichoderma viride onto MNPs. The enzyme was covalently bonded to the dendrimer via coupling agents. The dendrimer improved the thermal stability and activity of cellulase [45]. GO-decorated four-arm PEG-NH2 was applied as a coating composite of MNPs in another study (Scheme 6). The obtained results showed that polymers with higher molecular weights can increase loading capacity, enzymatic activity, and storage stability of cellulase [71].

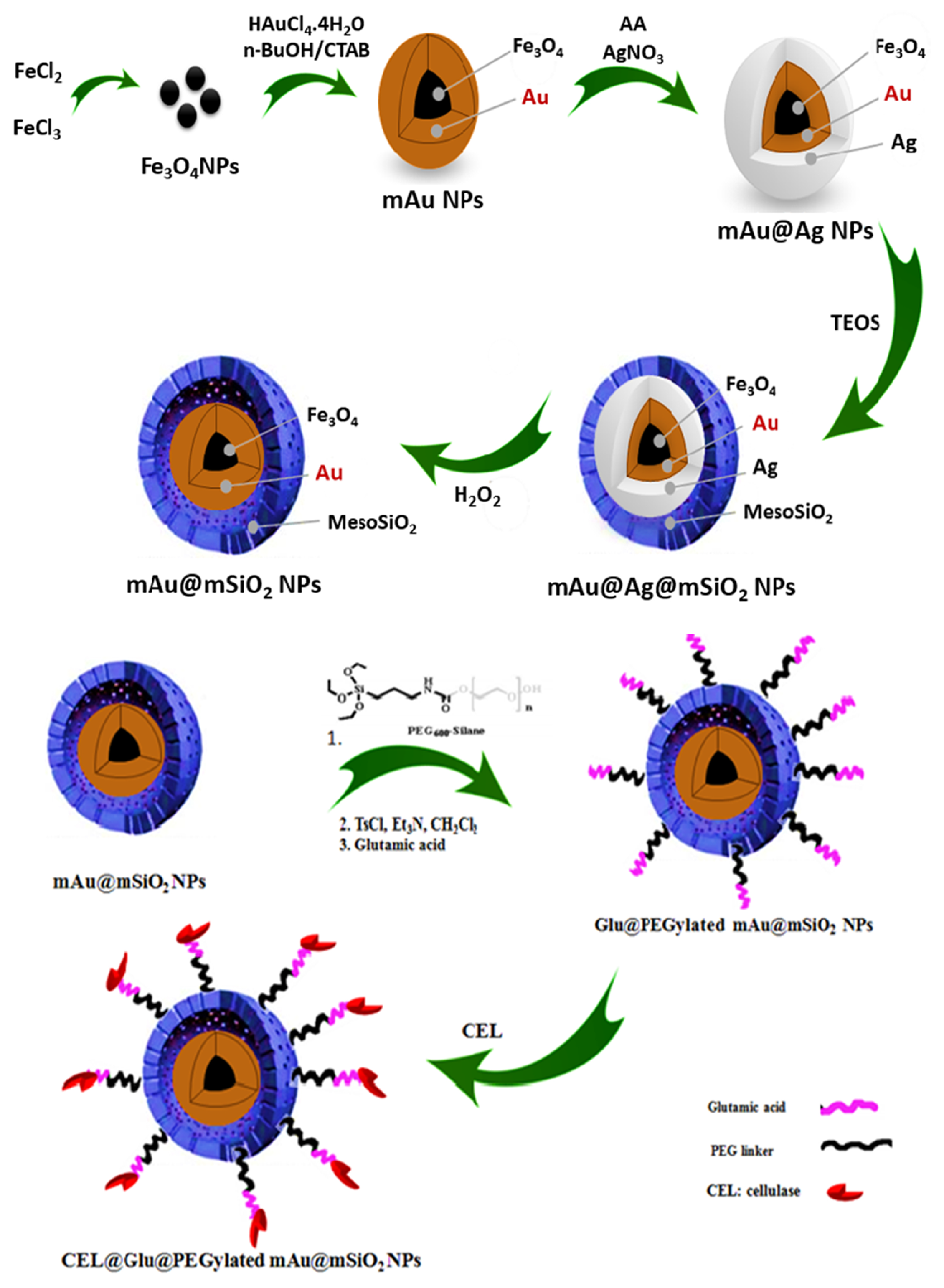

Core–shell magnetic gold mesoporous silica was exploited as a support for cellulase immobilization (Scheme 7). Thermal and chemical stabilities were considerably augmented in a wide range of pH values and temperatures. Vibrating-sample magnetometer (VSM) study results showed that the magnetic behavior of MNPs was not altered following the coating process [72].
As presented in Table 4, cellulase was immobilized on MNP surfaces via different coating materials. Polymers are extensively applied as preferred coating materials for cellulase immobilization. The immobilization of cellulase on MNPs via covalent binding improves biocatalyst activity and stability, regardless of coating type.

6. Cellulase Immobilization on Chitosan-Functionalized MNPs

Chitosan, a biocompatible and biodegradable polymer, is exclusively used as a coating agent in enzyme immobilization processes. Chitosan can provide a positively charged coating, while acting as a toxicity reducing agent or adhesive enhancer for simple immobilization processes or in vivo applications.

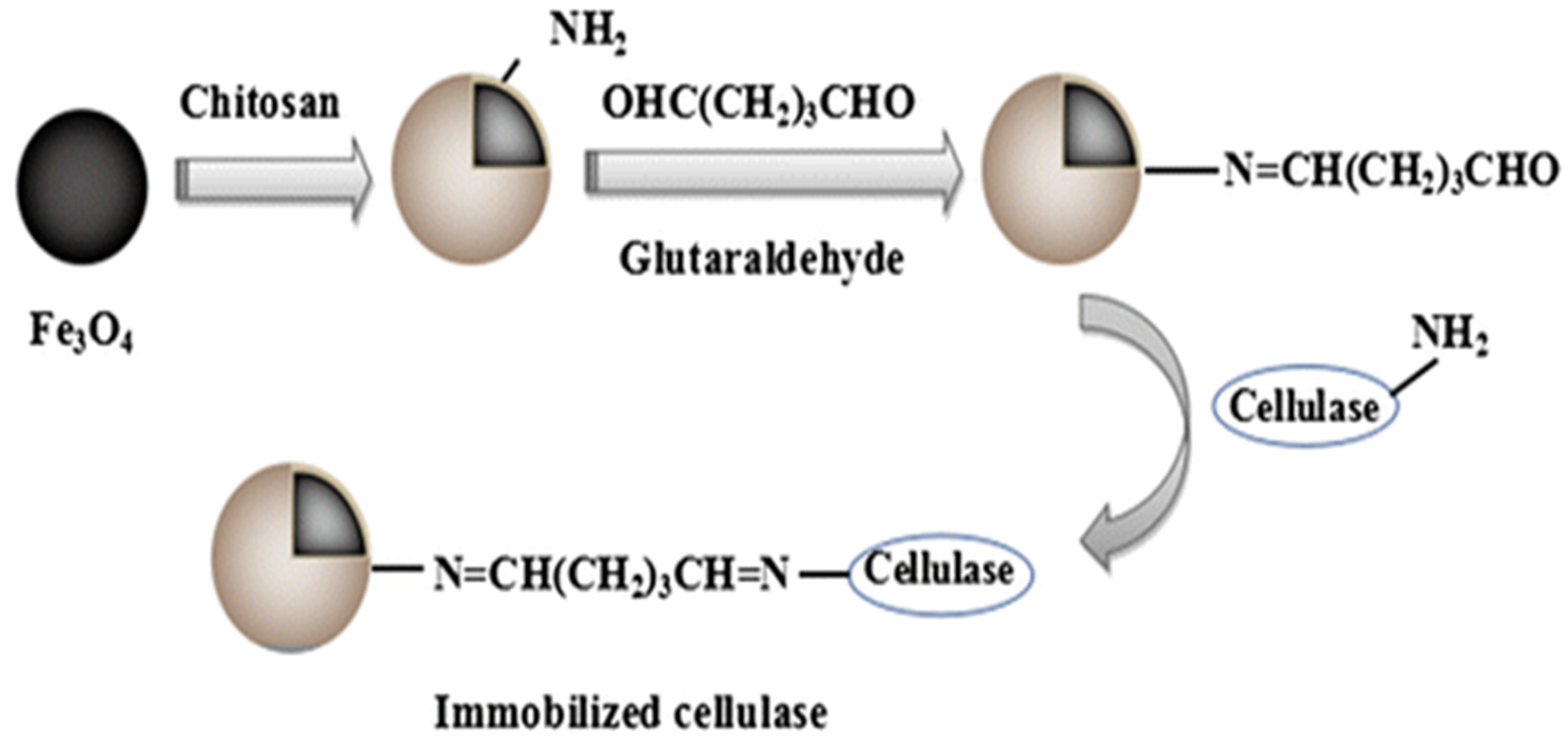

Cellulase enzyme was covalently immobilized on chitosan-coated MNPs (Ch-MNPs) using coupling agents. The immobilization of cellulase decreased enzyme activity compared to free enzyme, while thermal stability and reusability of the enzyme was improved. The immobilization process significantly increased the Km value and the biocatalyst efficiently hydrolyzed lignocellulosic materials from Agave atrovirens leaves with acceptable yield [37]. In a similar study, cellulase was immobilized on MNPs using a cross-linking agent (Scheme 8), and the optimal enzyme loading efficiency and standard recovery ratio were studied [46].
Maximizing the rate of cellulase and xylanase immobilization onto Ch-MNP was studied, and the obtained data showed that 12 mg of protein was cross-linked per gram of MNPs. The results also showed that size distribution, shape, and surface chemistry of MNPs affected the coating process and immobilization efficiency [73]. In the case of enzymatic saccharification, laccase from Trametes versicolor was immobilized onto Ch-MNPs (Scheme 9). It was concluded that the catalytic activity, thermal and chemical stability, and the Km value were improved significantly following enzyme immobilization [74].
Chitosan as a coating material for MNPs was utilized for enzyme cross-linking in order to enhance the stability parameters (Table 5). Chitosan-coated MNPs are prepared in a one-step process which can be a simple and cost-effective method for enzyme immobilization.

7. An Overview of Principal Factors Affecting Cellulase Immobilization onto MNPs

Among the different methods available for cellulase immobilization on functionalized MNPs, covalent binding by applying glutaraldehyde as the coupling agent is the most efficient process. Different types of functionalized MNPs were studied for cellulase immobilization [39,75,76,77]. Gold magnetic silica nanoparticles were used as a promising platform for cellulase immobilization. Graphene oxide is another candidate which retains high enzymatic activity. In addition to functionalized groups, chitosan- and silica-coated MNPs could be used as efficient solid supports for biomaterials hydrolysis. The application of ultrasound is another approach for improving the properties of immobilized enzyme. Different functionalization methods of MNPs for the cellulase immobilization approach and the attributes of each approach are outlined in Table 6.

8. Summary and Outlook

Biotechnology opened new horizons for human beings, especially in the field of industry. Due to increased environmental pollution, and of the increase in human population, biotechnology employs nano-biomaterials in order to enhance product yield. Cellulase is one of the most widely used biocatalysts that converts cellulosic materials into monosaccharides such as glucose, which are further used for biofuel production. However, biomass conversion to glucose needs to be efficient and cost-effective; as a result, researchers are focusing on the development of novel approaches with enhanced enzyme reusability and lower cost, along with easy enzyme recovery from the reaction mixture. During the last two years, studies showed that immobilized cellulases on nanocarrier supports provide promising potential as novel nano-biocatalysts which can be further exploited for achieving higher enzyme activity and storage stability in the immobilization processes. Meanwhile, MNPs are suitable nano-carriers to separate enzymes from the reaction mixture by using an external magnet while being efficient by reducing recycling costs. Various MNPs with different functional groups as solid supports exist, including inorganic metals, graphene, chitosan, and organic compounds. Despite recent advances, novel approaches are still required for achieving more efficient nano-biocatalysts. The increasing demand for low-cost immobilized cellulase and the ever-increasing applications in different industries are the main reasons for research attention in this field.

Author Contributions

Conceptualization, methodology, writing, original draft preparation, table preparation, review, and editing, K.K.; writing, original draft preparation, table preparation, and review E.P.; writing, original draft preparation, and table preparation, H.B.; original draft preparation, schemes and figures preparation, M.B.

Funding

Private funds were applied to carry out this study.

Acknowledgments

The authors would like to express special thanks to F. Vakhshiteh, A.K. Bordbar, and H. Stamatis for their practical and valuable collaboration in our previous study.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Khoshnevisan, K.; Vakhshiteh, F.; Barkhi, M.; Baharifar, H.; Poor-Akbar, E.; Zari, N.; Stamatis, H.; Bordbar, A.-K. Immobilization of cellulase enzyme onto magnetic nanoparticles: Applications and recent advances. Mol. Catal. 2017, 442, 66–73. [Google Scholar] [CrossRef]
  2. Coseri, S. Cellulose: To depolymerize… or not to? Biotechnol. Adv. 2017, 35, 251–266. [Google Scholar] [CrossRef] [PubMed]
  3. Phitsuwan, P.; Laohakunjit, N.; Kerdchoechuen, O.; Kyu, K.L.; Ratanakhanokchai, K. Present and potential applications of cellulases in agriculture, biotechnology, and bioenergy. Folia Microbiol. 2013, 58, 163–176. [Google Scholar] [CrossRef] [PubMed]
  4. Kuhad, R.C.; Gupta, R.; Singh, A. Microbial Cellulases and Their Industrial Applications. Enzym. Res. 2011, 2011, 280696. [Google Scholar] [CrossRef]
  5. Aftab, M.N.; Zafar, A.; Awan, A.R. Expression of thermostable β-xylosidase in Escherichia coli for use in saccharification of plant biomass. Bioengineered 2017, 8, 665–669. [Google Scholar] [CrossRef] [PubMed]
  6. Meenu, K.; Singh, G.; Vishwakarma, R.A. Chapter 22—Molecular Mechanism of Cellulase Production Systems in Trichoderma; Gupta, V.K., Schmoll, M., Herrera-Estrella, A., Upadhyay, R.S., Druzhinina, I., Tuohy, M., Eds.; Elsevier: Amsterdam, The Netherlands, 2014; pp. 319–324. ISBN 978-0-444-59576-8. [Google Scholar]
  7. Pan, X.; Arato, C.; Gilkes, N.; Gregg, D.; Mabee, W.; Pye, K.; Xiao, Z.; Zhang, X.; Saddler, J. Biorefining of softwoods using ethanol organosolv pulping: Preliminary evaluation of process streams for manufacture of fuel-grade ethanol and co-products. Biotechnol. Bioeng. 2005, 90, 473–481. [Google Scholar] [CrossRef]
  8. Klein-Marcuschamer, D.; Simmons, B.A.; Blanch, H.W. Techno-economic analysis of a lignocellulosic ethanol biorefinery with ionic liquid pre-treatment. Biofuels Bioprod. Biorefin. 2011, 5, 562–569. [Google Scholar] [CrossRef]
  9. Zhang, Y.-H.P.; Ding, S.-Y.; Mielenz, J.R.; Cui, J.-B.; Elander, R.T.; Laser, M.; Himmel, M.E.; McMillan, J.R.; Lynd, L.R. Fractionating recalcitrant lignocellulose at modest reaction conditions. Biotechnol. Bioeng. 2007, 97, 214–223. [Google Scholar] [CrossRef]
  10. Gupta, V.K.; Kubicek, C.P.; Berrin, J.-G.; Wilson, D.W.; Couturier, M.; Berlin, A.; Filho, E.X.F.; Ezeji, T. Fungal Enzymes for Bio-Products from Sustainable and Waste Biomass. Trends Biochem. Sci. 2016, 41, 633–645. [Google Scholar] [CrossRef]
  11. Kossatz, H.L.; Rose, S.H.; Viljoen-Bloom, M.; van Zyl, W.H. Production of ethanol from steam exploded triticale straw in a simultaneous saccharification and fermentation process. Process Biochem. 2017, 53, 10–16. [Google Scholar] [CrossRef]
  12. Binod, P.; Gnansounou, E.; Sindhu, R.; Pandey, A. Enzymes for second generation biofuels: Recent developments and future perspectives. Bioresour. Technol. Rep. 2019, 5, 317–325. [Google Scholar] [CrossRef]
  13. Poudel, S.; Giannone, R.J.; Rodriguez, M.; Raman, B.; Martin, M.Z.; Engle, N.L.; Mielenz, J.R.; Nookaew, I.; Brown, S.D.; Tschaplinski, T.J.; et al. Integrated omics analyses reveal the details of metabolic adaptation of Clostridium thermocellum to lignocellulose-derived growth inhibitors released during the deconstruction of switchgrass. Biotechnol. Biofuels 2017, 10, 14. [Google Scholar] [CrossRef] [PubMed]
  14. Avanthi, A.; Kumar, S.; Sherpa, K.C.; Banerjee, R. Bioconversion of hemicelluloses of lignocellulosic biomass to ethanol: An attempt to utilize pentose sugars. Biofuels 2017, 8, 431–444. [Google Scholar] [CrossRef]
  15. Sheldon, R.A.; Brady, D. The limits to biocatalysis: Pushing the envelope. Chem. Commun. 2018, 54, 6088–6104. [Google Scholar] [CrossRef] [PubMed]
  16. Ye, L.; Yang, C.; Yu, H. From molecular engineering to process engineering: Development of high-throughput screening methods in enzyme directed evolution. Appl. Microbiol. Biotechnol. 2018, 102, 559–567. [Google Scholar] [CrossRef]
  17. Naeem, M.; Rehman, A.U.; Shen, B.; Ye, L.; Yu, H. Semi-rational engineering of carbonyl reductase YueD for efficient biosynthesis of halogenated alcohols with in situ cofactor regeneration. Biochem. Eng. J. 2018, 137, 62–70. [Google Scholar] [CrossRef]
  18. Perwez, M.; Ahmad, R.; Sardar, M. A reusable multipurpose magnetic nanobiocatalyst for industrial applications. Int. J. Biol. Macromol. 2017, 103, 16–24. [Google Scholar] [CrossRef]
  19. Muley, A.B.; Thorat, A.S.; Singhal, R.S.; Harinath Babu, K. A tri-enzyme co-immobilized magnetic complex: Process details, kinetics, thermodynamics and applications. Int. J. Biol. Macromol. 2018, 118, 1781–1795. [Google Scholar] [CrossRef]
  20. Waifalkar, P.P.; Parit, S.B.; Chougale, A.D.; Sahoo, S.C.; Patil, P.S.; Patil, P.B. Immobilization of invertase on chitosan coated γ-Fe2O3 magnetic nanoparticles to facilitate magnetic separation. J. Colloid Interface Sci. 2016, 482, 159–164. [Google Scholar] [CrossRef]
  21. Dosadina, E.E.; Savelyeva, E.E.; Belov, A.A. The effect of immobilization, drying and storage on the activity of proteinases immobilized on modified cellulose and chitosan. Process Biochem. 2018, 64, 213–220. [Google Scholar] [CrossRef]
  22. Bilal, M.; Rasheed, T.; Zhao, Y.; Iqbal, H.M.N.; Cui, J. “Smart” chemistry and its application in peroxidase immobilization using different support materials. Int. J. Biol. Macromol. 2018, 119, 278–290. [Google Scholar] [CrossRef] [PubMed]
  23. Liu, D.-M.; Chen, J.; Shi, Y.-P. Advances on methods and easy separated support materials for enzymes immobilization. TrAC Trends Anal. Chem. 2018, 102, 332–342. [Google Scholar] [CrossRef]
  24. Lonappan, L.; Liu, Y.; Rouissi, T.; Pourcel, F.; Brar, S.K.; Verma, M.; Surampalli, R.Y. Covalent immobilization of laccase on citric acid functionalized micro-biochars derived from different feedstock and removal of diclofenac. Chem. Eng. J. 2018, 351, 985–994. [Google Scholar] [CrossRef]
  25. Zaak, H.; Sassi, M.; Fernandez-Lafuente, R. A new heterofunctional amino-vinyl sulfone support to immobilize enzymes: Application to the stabilization of β-galactosidase from Aspergillus oryzae. Process Biochem. 2018, 64, 200–205. [Google Scholar] [CrossRef]
  26. Vaghari, H.; Jafarizadeh-Malmiri, H.; Mohammadlou, M.; Berenjian, A.; Anarjan, N.; Jafari, N.; Nasiri, S. Application of magnetic nanoparticles in smart enzyme immobilization. Biotechnol. Lett. 2016, 38, 223–233. [Google Scholar] [CrossRef]
  27. Royvaran, M.; Taheri-Kafrani, A.; Landarani Isfahani, A.; Mohammadi, S. Functionalized superparamagnetic graphene oxide nanosheet in enzyme engineering: A highly dispersive, stable and robust biocatalyst. Chem. Eng. J. 2016, 288, 414–422. [Google Scholar] [CrossRef]
  28. Baharifar, H.; Honarvarfard, E.; Haji Malek-kheili, M.; Maleki, H.; Barkhi, M.; Ghasemzadeh, A.; Khoshnevisan, K. The Potentials and Applications of Cellulose Acetate in biosensor technology. Nanomed. Res. J. 2017, 2, 216–223. [Google Scholar]
  29. Khoshnevisan, K.; Maleki, H.; Honarvarfard, E.; Baharifar, H.; Gholami, M.; Faridbod, F.; Larijani, B.; Faridi Majidi, R.; Khorramizadeh, M.R. Nanomaterial based electrochemical sensing of the biomarker serotonin: A comprehensive review. Microchim. Acta 2019, 186, 49. [Google Scholar] [CrossRef]
  30. Chen, M.; Zeng, G.; Xu, P.; Lai, C.; Tang, L. How Do Enzymes ‘Meet’ Nanoparticles and Nanomaterials? Trends Biochem. Sci. 2017, 42, 914–930. [Google Scholar] [CrossRef]
  31. Nasir, M.; Nawaz, M.H.; Latif, U.; Yaqub, M.; Hayat, A.; Rahim, A. An overview on enzyme-mimicking nanomaterials for use in electrochemical and optical assays. Microchim. Acta 2017, 184, 323–342. [Google Scholar] [CrossRef]
  32. Wu, J.; Wang, X.; Wang, Q.; Lou, Z.; Li, S.; Zhu, Y.; Qin, L.; Wei, H. Nanomaterials with enzyme-like characteristics (nanozymes): Next-generation artificial enzymes (II). Chem. Soc. Rev. 2019, 48, 1004–1076. [Google Scholar] [CrossRef] [PubMed]
  33. Hemmati, M.; Barkhi, M.; Baharifar, H.; Khoshnevisan, K. Removal of Malachite Green by Using Immobilized Glucose Oxidase Onto Silica Nanostructure-Coated Silver Metal-Foam. J. Nanoanal. 2017, 4, 196–204. [Google Scholar]
  34. Bilal, M.; Iqbal, H.M.N. Chemical, physical, and biological coordination: An interplay between materials and enzymes as potential platforms for immobilization. Coord. Chem. Rev. 2019, 388, 1–23. [Google Scholar] [CrossRef]
  35. Pandiyaraj, K.N.; Ramkumar, M.C.; Arun Kumar, A.; Padmanabhan, P.V.A.; Pichumani, M.; Bendavid, A.; Cools, P.; De Geyter, N.; Morent, R.; Kumar, V.; et al. Evaluation of surface properties of low density polyethylene (LDPE) films tailored by atmospheric pressure non-thermal plasma (APNTP) assisted co-polymerization and immobilization of chitosan for improvement of antifouling properties. Mater. Sci. Eng. C 2019, 94, 150–160. [Google Scholar] [CrossRef] [PubMed]
  36. Tedersoo, L.; Sánchez-Ramírez, S.; Kõljalg, U.; Bahram, M.; Döring, M.; Schigel, D.; May, T.; Ryberg, M.; Abarenkov, K. High-level classification of the Fungi and a tool for evolutionary ecological analyses. Fungal Divers. 2018, 90, 135–159. [Google Scholar] [CrossRef]
  37. Sánchez-Ramírez, J.; Martínez-Hernández, J.L.; Segura-Ceniceros, P.; López, G.; Saade, H.; Medina-Morales, M.A.; Ramos-González, R.; Aguilar, C.N.; Ilyina, A. Cellulases immobilization on chitosan-coated magnetic nanoparticles: Application for Agave Atrovirens lignocellulosic biomass hydrolysis. Bioprocess Biosyst. Eng. 2017, 40, 9–22. [Google Scholar] [CrossRef] [PubMed]
  38. Xu, J.; Xiong, P.; He, B. Advances in improving the performance of cellulase in ionic liquids for lignocellulose biorefinery. Bioresour. Technol. 2016, 200, 961–970. [Google Scholar] [CrossRef]
  39. Cipolatti, E.P.; Valério, A.; Henriques, R.O.; Moritz, D.E.; Ninow, J.L.; Freire, D.M.G.; Manoel, E.A.; Fernandez-Lafuente, R.; de Oliveira, D. Nanomaterials for biocatalyst immobilization—State of the art and future trends. RSC Adv. 2016, 6, 104675–104692. [Google Scholar] [CrossRef]
  40. Malgas, S.; Thoresen, M.; van Dyk, J.S.; Pletschke, B.I. Time dependence of enzyme synergism during the degradation of model and natural lignocellulosic substrates. Enzym. Microb. Technol. 2017, 103, 1–11. [Google Scholar] [CrossRef]
  41. Molina, G.; de Lima, E.A.; Borin, G.P.; de Barcelos, M.C.S.; Pastore, G.M. Chapter 7—Beta-Glucosidase From Penicillium; Gupta, V.K., Rodriguez-Couto, S.B.T.-N., Eds.; Elsevier: Amsterdam, The Netherlands, 2018; pp. 137–151. ISBN 978-0-444-63501-3. [Google Scholar]
  42. Khoshnevisan, K.; Bordbar, A.-K.; Zare, D.; Davoodi, D.; Noruzi, M.; Barkhi, M.; Tabatabaei, M. Immobilization of cellulase enzyme on superparamagnetic nanoparticles and determination of its activity and stability. Chem. Eng. J. 2011, 171, 669–673. [Google Scholar] [CrossRef]
  43. Khoshnevisan, K.; Barkhi, M.; Zare, D.; Davoodi, D.; Tabatabaei, M. Preparation and Characterization of CTAB-Coated Fe3O4 Nanoparticles. Synth. React. Inorg. Met. Org. Nano-Met. Chem. 2012, 42, 644–648. [Google Scholar] [CrossRef]
  44. Khoshnevisan, K.; Barkhi, M.; Ghasemzadeh, A.; Tahami, H.V.; Pourmand, S. Fabrication of Coated/Uncoated Magnetic Nanoparticles to Determine Their Surface Properties. Mater. Manuf. Process. 2016, 31, 1206–1215. [Google Scholar] [CrossRef]
  45. Han, J.; Wang, L.; Wang, Y.; Dong, J.; Tang, X.; Ni, L.; Wang, L. Preparation and characterization of Fe3O4-NH2@4-arm-PEG-NH2, a novel magnetic four-arm polymer-nanoparticle composite for cellulase immobilization. Biochem. Eng. J. 2018, 130, 90–98. [Google Scholar] [CrossRef]
  46. Lin, Y.; Liu, X.; Xing, Z.; Geng, Y.; Wilson, J.; Wu, D.; Kong, H. Preparation and characterization of magnetic Fe3O4–chitosan nanoparticles for cellulase immobilization. Cellulose 2017, 24, 5541–5550. [Google Scholar] [CrossRef]
  47. Yang, C.; Mo, H.; Zang, L.; Chen, J.; Wang, Z.; Qiu, J. Surface functionalized natural inorganic nanorod for highly efficient cellulase immobilization. RSC Adv. 2016, 6, 76855–76860. [Google Scholar] [CrossRef]
  48. Zang, L.; Qiao, X.; Hu, L.; Yang, C.; Liu, Q.; Wei, C.; Qiu, J.; Mo, H.; Song, G.; Yang, J.; et al. Preparation and Evaluation of Coal Fly Ash/Chitosan Composites as Magnetic Supports for Highly Efficient Cellulase Immobilization and Cellulose Bioconversion. Polymers 2018, 10, 523. [Google Scholar] [CrossRef] [PubMed]
  49. Carli, S.; de Campos Carneiro, L.A.B.; Ward, R.J.; Meleiro, L.P. Immobilization of a β-glucosidase and an endoglucanase in ferromagnetic nanoparticles: A study of synergistic effects. Protein Expr. Purif. 2019, 160, 28–35. [Google Scholar] [CrossRef]
  50. Cacicedo, M.L.; Manzo, R.M.; Municoy, S.; Bonazza, H.L.; Islan, G.A.; Desimone, M.; Bellino, M.; Mammarella, E.J.; Castro, G.R. Chapter 7—Immobilized Enzymes and Their Applications. In Biomass, Biofuels, Biochemicals; Singh, R.S., Singhania, R.R., Pandey, A., Larroche, C.B.T.-A., Eds.; Elsevier: Amsterdam, The Netherlands, 2019; pp. 169–200. ISBN 978-0-444-64114-4. [Google Scholar]
  51. Zhang, Y.; Jin, P.; Liu, M.; Pan, J.; Yan, Y.; Chen, Y.; Xiong, Q. A novel route for green conversion of cellulose to HMF by cascading enzymatic and chemical reactions. AIChE J. 2017, 63, 4920–4932. [Google Scholar] [CrossRef]
  52. Grewal, J.; Ahmad, R.; Khare, S.K. Development of cellulase-nanoconjugates with enhanced ionic liquid and thermal stability for in situ lignocellulose saccharification. Bioresour. Technol. 2017, 242, 236–243. [Google Scholar] [CrossRef]
  53. Kumar, A.; Singh, S.; Tiwari, R.; Goel, R.; Nain, L. Immobilization of indigenous holocellulase on iron oxide (Fe2O3) nanoparticles enhanced hydrolysis of alkali pretreated paddy straw. Int. J. Biol. Macromol. 2017, 96, 538–549. [Google Scholar] [CrossRef]
  54. Jia, J.; Zhang, W.; Yang, Z.; Yang, X.; Wang, N.; Yu, X. Novel Magnetic Cross-Linked Cellulase Aggregates with a Potential Application in Lignocellulosic Biomass Bioconversion. Molecules 2017, 22, 269. [Google Scholar] [CrossRef] [PubMed]
  55. Gaikwad, S.; Ingle, A.P.; da Silva, S.S.; Rai, M. Immobilized Nanoparticles-Mediated Enzymatic Hydrolysis of Cellulose for Clean Sugar Production: A Novel Approach. Curr. Nanosci. 2019, 15, 296–303. [Google Scholar] [CrossRef]
  56. Cui, J.D.; Jia, S.R. Optimization protocols and improved strategies of cross-linked enzyme aggregates technology: Current development and future challenges. Crit. Rev. Biotechnol. 2015, 35, 15–28. [Google Scholar] [CrossRef] [PubMed]
  57. Xu, M.-Q.; Wang, S.-S.; Li, L.-N.; Gao, J.; Zhang, Y.-W. Combined Cross-Linked Enzyme Aggregates as Biocatalysts. Catalysts 2018, 8, 460. [Google Scholar] [CrossRef]
  58. Bilal, M.; Asgher, M.; Parra-Saldivar, R.; Hu, H.; Wang, W.; Zhang, X.; Iqbal, H.M.N. Immobilized ligninolytic enzymes: An innovative and environmental responsive technology to tackle dye-based industrial pollutants—A review. Sci. Total Environ. 2017, 576, 646–659. [Google Scholar] [CrossRef] [PubMed]
  59. Jafari Khorshidi, K.; Lenjannezhadian, H.; Jamalan, M.; Zeinali, M. Preparation and characterization of nanomagnetic cross-linked cellulase aggregates for cellulose bioconversion. J. Chem. Technol. Biotechnol. 2016, 91, 539–546. [Google Scholar] [CrossRef]
  60. Kumari, A.; Kaila, P.; Tiwari, P.; Singh, V.; Kaul, S.; Singhal, N.; Guptasarma, P. Multiple thermostable enzyme hydrolases on magnetic nanoparticles: An immobilized enzyme-mediated approach to saccharification through simultaneous xylanase, cellulase and amylolytic glucanotransferase action. Int. J. Biol. Macromol. 2018, 120, 1650–1658. [Google Scholar] [CrossRef] [PubMed]
  61. Schwaminger, S.P.; Fraga-García, P.; Selbach, F.; Hein, F.G.; Fuß, E.C.; Surya, R.; Roth, H.-C.; Blank-Shim, S.A.; Wagner, F.E.; Heissler, S.; et al. Bio-nano interactions: Cellulase on iron oxide nanoparticle surfaces. Adsorption 2017, 23, 281–292. [Google Scholar] [CrossRef]
  62. Ingle, A.P.; Rathod, J.; Pandit, R.; da Silva, S.S.; Rai, M. Comparative evaluation of free and immobilized cellulase for enzymatic hydrolysis of lignocellulosic biomass for sustainable bioethanol production. Cellulose 2017, 24, 5529–5540. [Google Scholar] [CrossRef]
  63. Nadar, S.S.; Rathod, V.K. A co-immobilization of pectinase and cellulase onto magnetic nanoparticles for antioxidant extraction from waste fruit peels. Biocatal. Agric. Biotechnol. 2019, 17, 470–479. [Google Scholar] [CrossRef]
  64. Ladole, M.R.; Nair, R.R.; Bhutada, Y.D.; Amritkar, V.D.; Pandit, A.B. Synergistic effect of ultrasonication and co-immobilized enzymes on tomato peels for lycopene extraction. Ultrason. Sonochem. 2018, 48, 453–462. [Google Scholar] [CrossRef] [PubMed]
  65. Ladole, M.R.; Mevada, J.S.; Pandit, A.B. Ultrasonic hyperactivation of cellulase immobilized on magnetic nanoparticles. Bioresour. Technol. 2017, 239, 117–126. [Google Scholar] [CrossRef] [PubMed]
  66. Chen, Q.; Liu, D.; Wu, C.; Yao, K.; Li, Z.; Shi, N.; Wen, F.; Gates, I.D. Co-immobilization of cellulase and lysozyme on amino-functionalized magnetic nanoparticles: An activity-tunable biocatalyst for extraction of lipids from microalgae. Bioresour. Technol. 2018, 263, 317–324. [Google Scholar] [CrossRef]
  67. Abbaszadeh, M.; Hejazi, P. Metal affinity immobilization of cellulase on Fe3O4 nanoparticles with copper as ligand for biocatalytic applications. Food Chem. 2019, 290, 47–55. [Google Scholar] [CrossRef] [PubMed]
  68. Pei, J.; Huang, Y.; Yang, Y.; Yuan, H.; Liu, X.; Ni, C. A Novel Layered Anchoring Structure Immobilized Cellulase via Covalent Binding of Cellulase on MNPs Anchored by LDHs. J. Inorg. Organomet. Polym. Mater. 2018, 28, 1624–1635. [Google Scholar] [CrossRef]
  69. Velmurugan, R.; Incharoensakdi, A. MgO-Fe3O4 linked cellulase enzyme complex improves the hydrolysis of cellulose from Chlorella sp. CYB2. Biochem. Eng. J. 2017, 122, 22–30. [Google Scholar] [CrossRef]
  70. Lima, J.S.; Araújo, P.H.H.; Sayer, C.; Souza, A.A.U.; Viegas, A.C.; de Oliveira, D. Cellulase immobilization on magnetic nanoparticles encapsulated in polymer nanospheres. Bioprocess Biosyst. Eng. 2017, 40, 511–518. [Google Scholar] [CrossRef]
  71. Han, J.; Luo, P.; Wang, Y.; Wang, L.; Li, C.; Zhang, W.; Dong, J.; Ni, L. The development of nanobiocatalysis via the immobilization of cellulase on composite magnetic nanomaterial for enhanced loading capacity and catalytic activity. Int. J. Biol. Macromol. 2018, 119, 692–700. [Google Scholar] [CrossRef]
  72. Poorakbar, E.; Shafiee, A.; Saboury, A.A.; Rad, B.L.; Khoshnevisan, K.; Ma’mani, L.; Derakhshankhah, H.; Ganjali, M.R.; Hosseini, M. Synthesis of magnetic gold mesoporous silica nanoparticles core shell for cellulase enzyme immobilization: Improvement of enzymatic activity and thermal stability. Process Biochem. 2018, 71, 92–100. [Google Scholar] [CrossRef]
  73. Díaz-Hernández, A.; Gracida, J.; García-Almendárez, B.E.; Regalado, C.; Núñez, R.; Amaro-Reyes, A. Characterization of Magnetic Nanoparticles Coated with Chitosan: A Potential Approach for Enzyme Immobilization. J. Nanomater. 2018, 2018, 9468574. [Google Scholar] [CrossRef]
  74. Sánchez-Ramírez, J.; Martínez-Hernández, J.L.; López-Campos, R.G.; Segura-Ceniceros, E.P.; Saade, H.; Ramos-González, R.; Neira-Velázquez, M.G.; Medina-Morales, M.A.; Aguilar, C.N.; Ilyina, A. Laccase Validation as Pretreatment of Agave Waste Prior to Saccharification: Free and Immobilized in Superparamagnetic Nanoparticles Enzyme Preparations. Waste Biomass Valorization 2018, 9, 223–234. [Google Scholar] [CrossRef]
  75. Zhou, M.; Ju, X.; Li, L.; Yan, L.; Xu, X.; Chen, J. Immobilization of cellulase in the non-natural ionic liquid environments to enhance cellulase activity and functional stability. Appl. Microbiol. Biotechnol. 2019, 103, 2483–2492. [Google Scholar] [CrossRef] [PubMed]
  76. Saha, K.; Verma, P.; Sikder, J.; Chakraborty, S.; Curcio, S. Synthesis of chitosan-cellulase nanohybrid and immobilization on alginate beads for hydrolysis of ionic liquid pretreated sugarcane bagasse. Renew. Energy 2019, 133, 66–76. [Google Scholar] [CrossRef]
  77. Bohara, R.A.; Thorat, N.D.; Pawar, S.H. Immobilization of cellulase on functionalized cobalt ferrite nanoparticles. Korean J. Chem. Eng. 2016, 33, 216–222. [Google Scholar] [CrossRef]

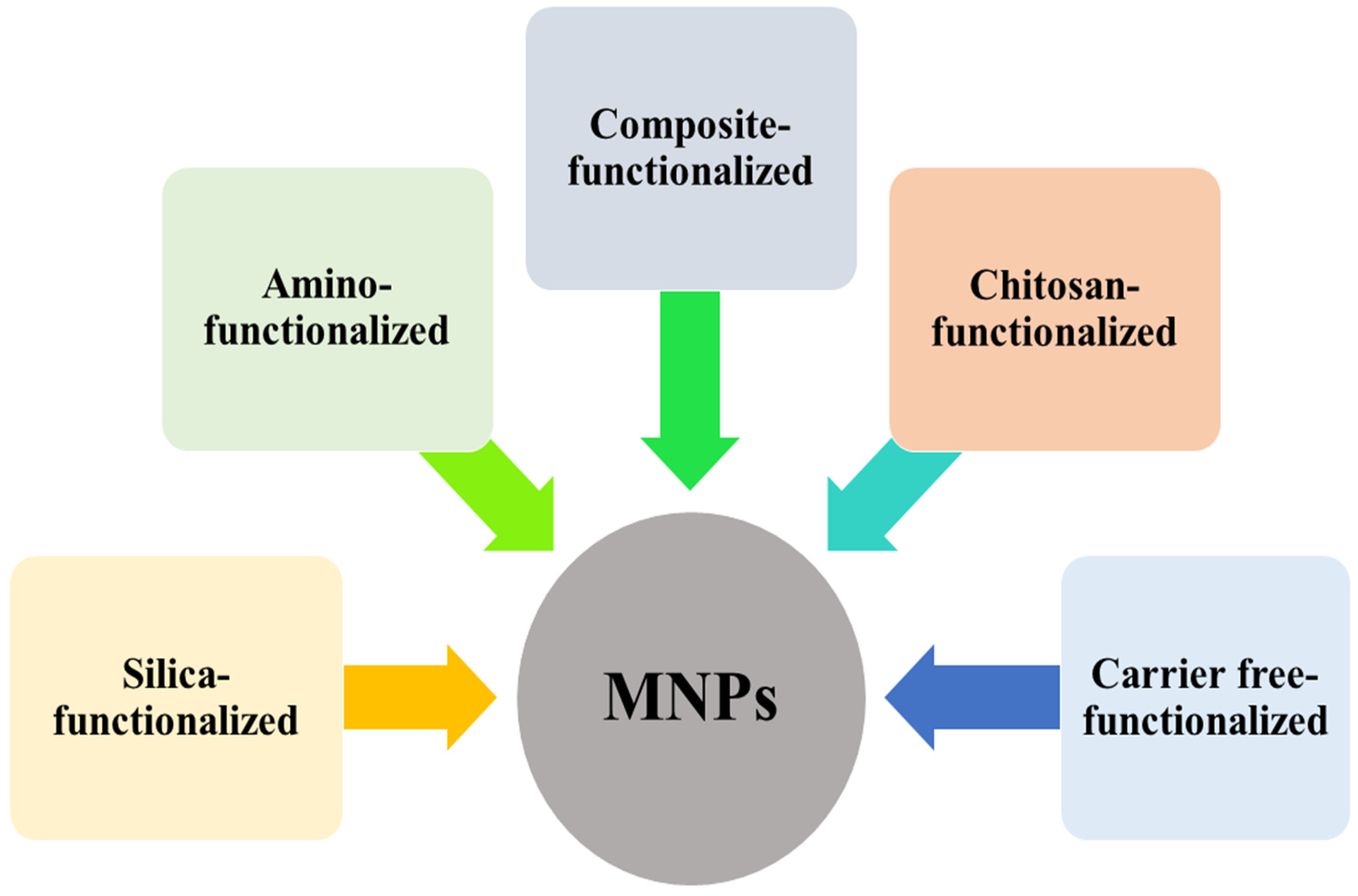

Figure 1. An overview of magnetic nanoparticles (MNPs) functionalized by different methods.
Figure 1. An overview of magnetic nanoparticles (MNPs) functionalized by different methods.
Magnetochemistry 05 00036 g001

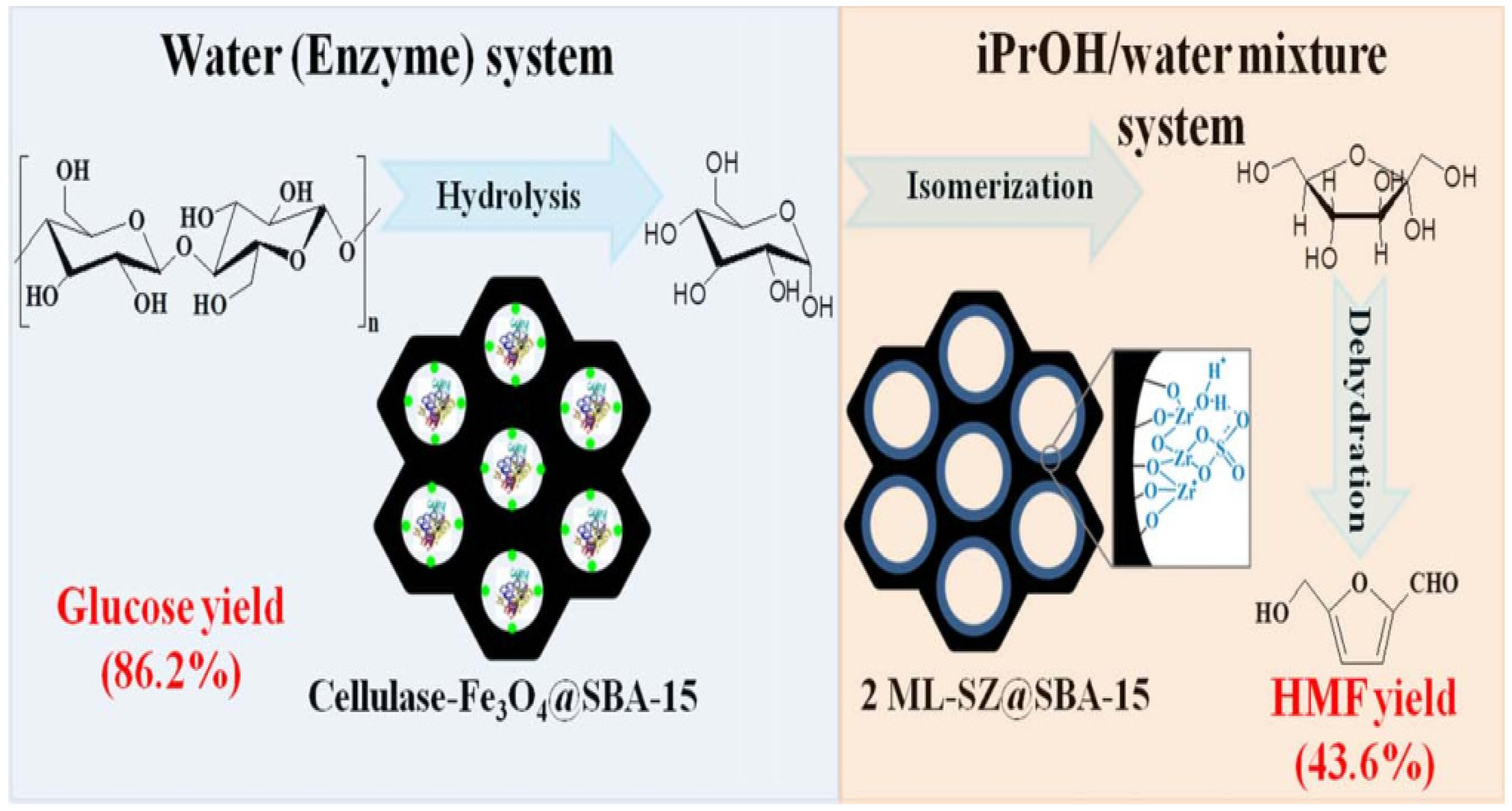

Scheme 1. Schematic representation of the cascaded enzymatic and chemical steps for ionic liquid (IL) pretreated cellulose into 5-hydroxymethylfurfural (HMF) in water (enzyme) and iPrOH/water solvent mixtures with enzyme and SBA-15 grafted sulfated zirconium dioxide (SZ) conformed monolayers, respectively. Reproduced with permission from Reference [51].
Scheme 1. Schematic representation of the cascaded enzymatic and chemical steps for ionic liquid (IL) pretreated cellulose into 5-hydroxymethylfurfural (HMF) in water (enzyme) and iPrOH/water solvent mixtures with enzyme and SBA-15 grafted sulfated zirconium dioxide (SZ) conformed monolayers, respectively. Reproduced with permission from Reference [51].
Magnetochemistry 05 00036 sch001
Figure 2. Scanning electron microscopy (SEM) images of (a) Fe3O4; (b) 3-aminopropyl triethoxysilane (APTES)-Fe3O4; (c) cellulase cross-linked enzyme aggregates (CLEAs); (d) magnetic cellulase CLEAs. Reproduced from Reference [54].
Figure 2. Scanning electron microscopy (SEM) images of (a) Fe3O4; (b) 3-aminopropyl triethoxysilane (APTES)-Fe3O4; (c) cellulase cross-linked enzyme aggregates (CLEAs); (d) magnetic cellulase CLEAs. Reproduced from Reference [54].
Magnetochemistry 05 00036 g002

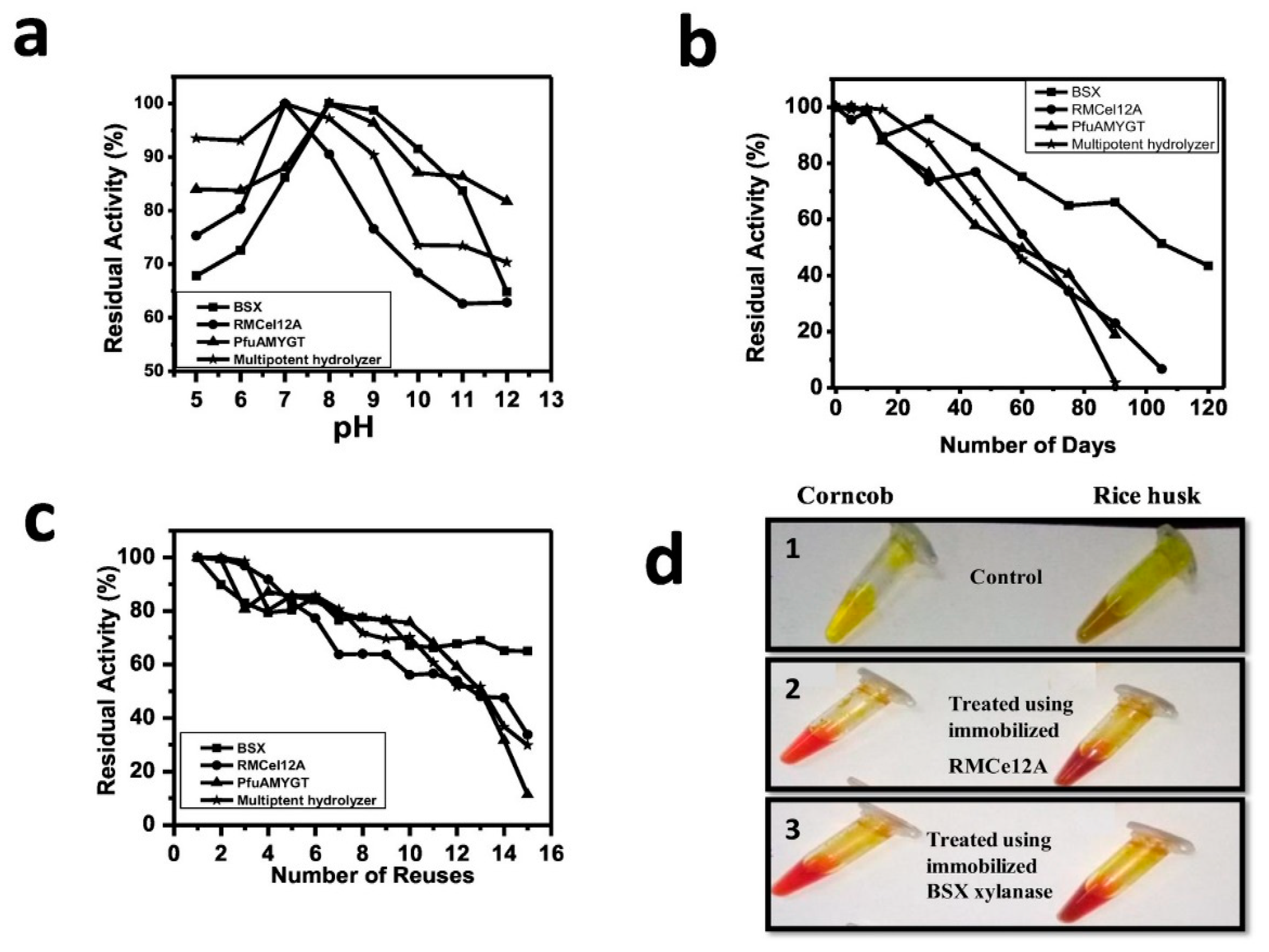

Figure 3. Functional characterization of immobilized enzyme-carrying magnetic nanoparticles (MNPs) and untreated (control) nanoparticles where fitting. The text insets describe individual plots or photographs relating to nanoparticles carrying BSX, RMCel12A, or PfuAmyGT, or all the tri-enzymes (multipotent). (a) Effect of pH; (b) variations in stability upon storage; (c) reusability of immobilized enzyme preparations; (d) visual evidence for degradation of biomass (corn cob or rice husk) by RMCel12A or BSX. Reproduced with permission from Reference [60].
Figure 3. Functional characterization of immobilized enzyme-carrying magnetic nanoparticles (MNPs) and untreated (control) nanoparticles where fitting. The text insets describe individual plots or photographs relating to nanoparticles carrying BSX, RMCel12A, or PfuAmyGT, or all the tri-enzymes (multipotent). (a) Effect of pH; (b) variations in stability upon storage; (c) reusability of immobilized enzyme preparations; (d) visual evidence for degradation of biomass (corn cob or rice husk) by RMCel12A or BSX. Reproduced with permission from Reference [60].
Magnetochemistry 05 00036 g003

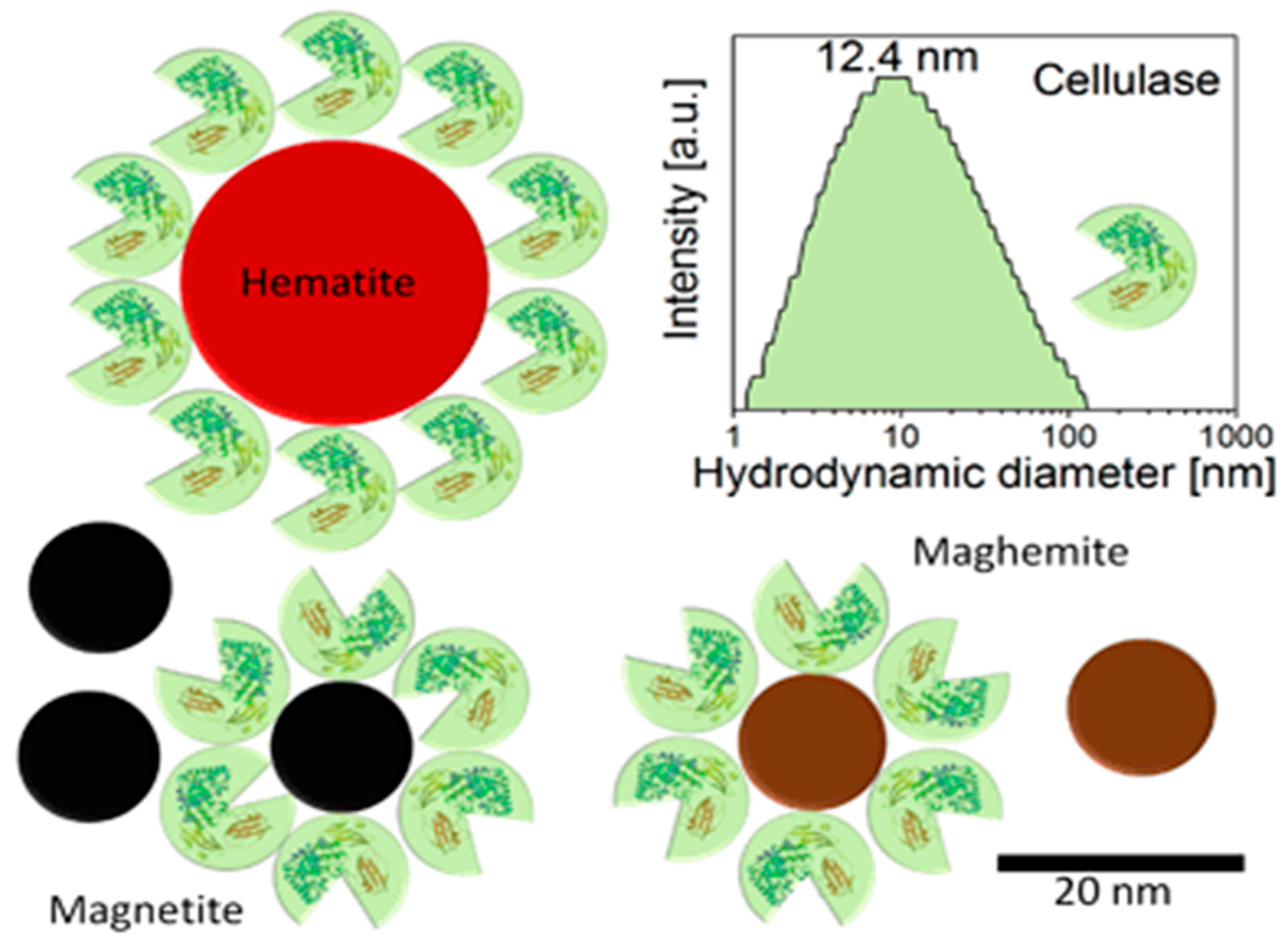

Scheme 2. Schematic representation of cellulase immobilization onto three types of MNPs. Reproduced with permission from Reference [61].
Scheme 2. Schematic representation of cellulase immobilization onto three types of MNPs. Reproduced with permission from Reference [61].
Magnetochemistry 05 00036 sch002
Scheme 3. Co-immobilization of cellulase and lysozyme on amino-functionalized MNPs (AMNPs) for extraction of lipid. Reproduced with permission from Reference [66].
Scheme 3. Co-immobilization of cellulase and lysozyme on amino-functionalized MNPs (AMNPs) for extraction of lipid. Reproduced with permission from Reference [66].
Magnetochemistry 05 00036 sch003

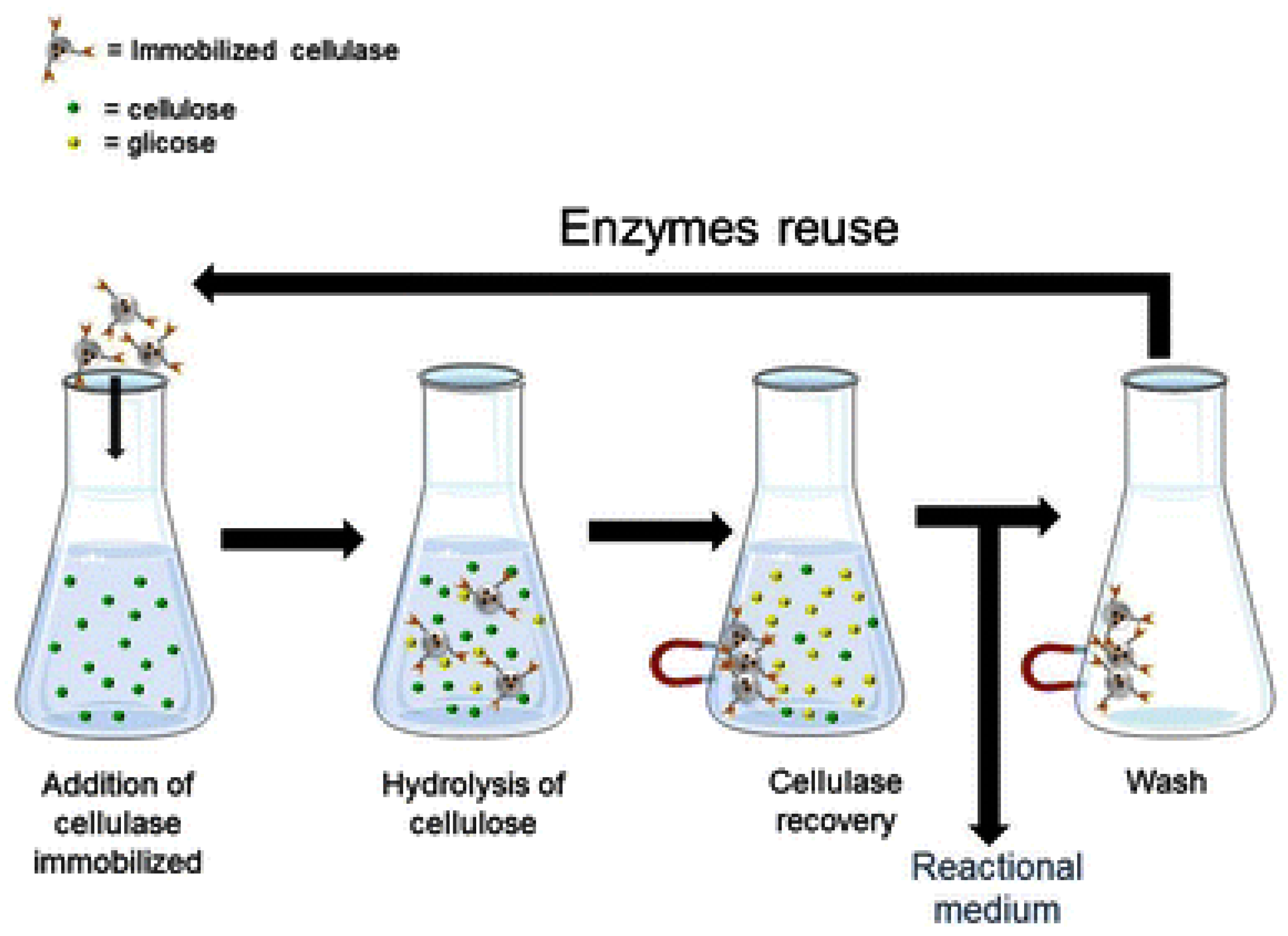

Scheme 4. Overview of hydrolysis of cellulose by poly(methyl methacrylate)-coated MNPs applied for enzyme immobilization and enzyme reusability. Reproduced with permission from Reference [70].
Scheme 4. Overview of hydrolysis of cellulose by poly(methyl methacrylate)-coated MNPs applied for enzyme immobilization and enzyme reusability. Reproduced with permission from Reference [70].
Magnetochemistry 05 00036 sch004
Figure 4. Magnetic behavior of poly(methyl methacrylate)-coated MNPs before (a) and after (b) separation. Reproduced with permission from Reference [70].
Figure 4. Magnetic behavior of poly(methyl methacrylate)-coated MNPs before (a) and after (b) separation. Reproduced with permission from Reference [70].
Magnetochemistry 05 00036 g004

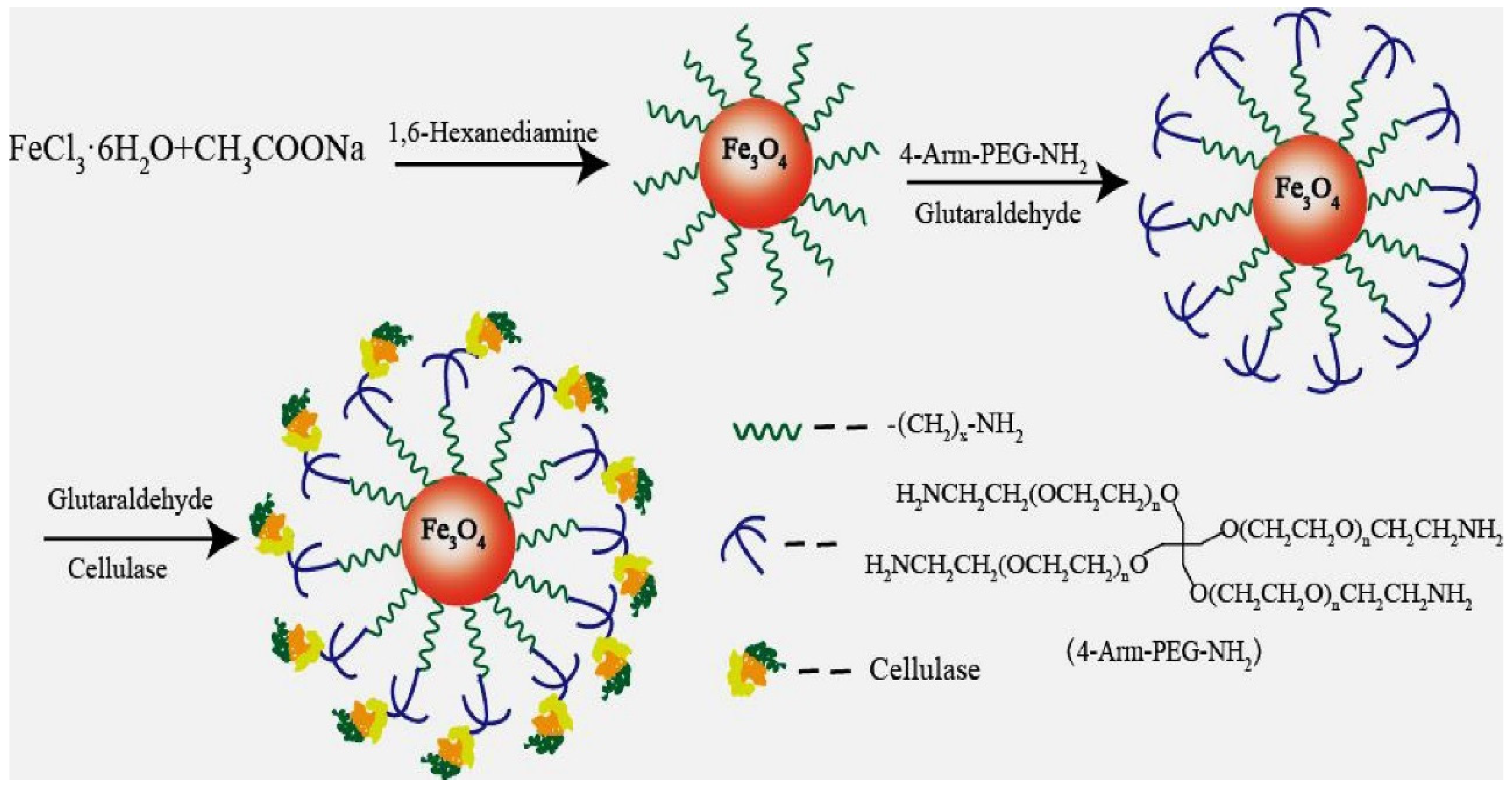

Scheme 5. Preparation process of four-arm dendritic polymers comprising polyethylene glycol (PEG)-NH2. Reproduced with permission from Reference [45].
Scheme 5. Preparation process of four-arm dendritic polymers comprising polyethylene glycol (PEG)-NH2. Reproduced with permission from Reference [45].
Magnetochemistry 05 00036 sch005

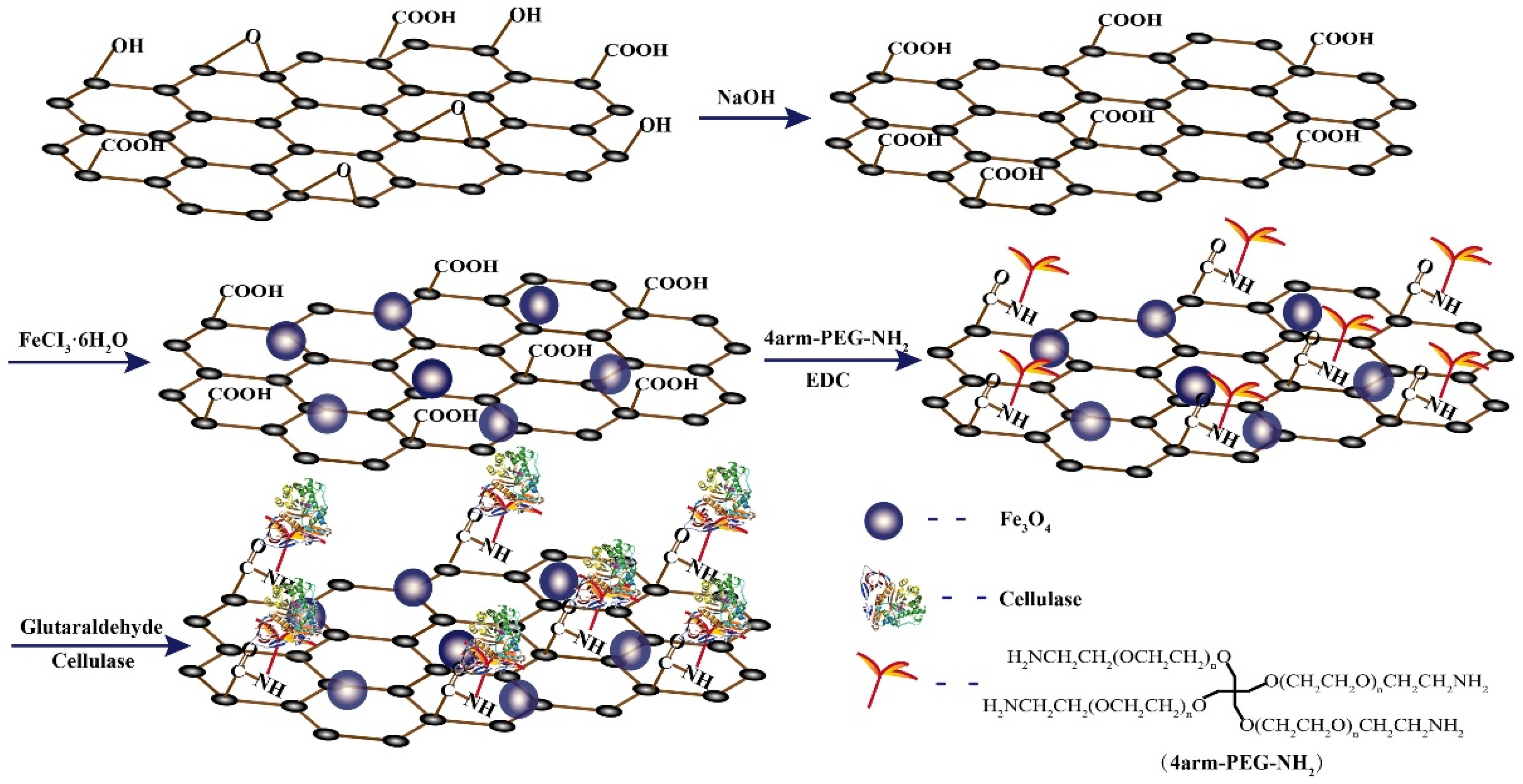

Scheme 6. Graphene oxide (GO)-decorated four-arm PEG-NH2 coating composite of MNPs. Reproduced with permission from Reference [71].
Scheme 6. Graphene oxide (GO)-decorated four-arm PEG-NH2 coating composite of MNPs. Reproduced with permission from Reference [71].
Magnetochemistry 05 00036 sch006
Scheme 7. Cellulase immobilization on core–shell magnetic gold mesoporous silica support. Reproduced with permission from Reference [72].
Scheme 7. Cellulase immobilization on core–shell magnetic gold mesoporous silica support. Reproduced with permission from Reference [72].
Magnetochemistry 05 00036 sch007
Scheme 8. Immobilization of cellulase on chitosan-coated (Ch)-MNPs using glutaraldehyde as a cross-linking agent. Reproduced with permission from Reference [46].
Scheme 8. Immobilization of cellulase on chitosan-coated (Ch)-MNPs using glutaraldehyde as a cross-linking agent. Reproduced with permission from Reference [46].
Magnetochemistry 05 00036 sch008

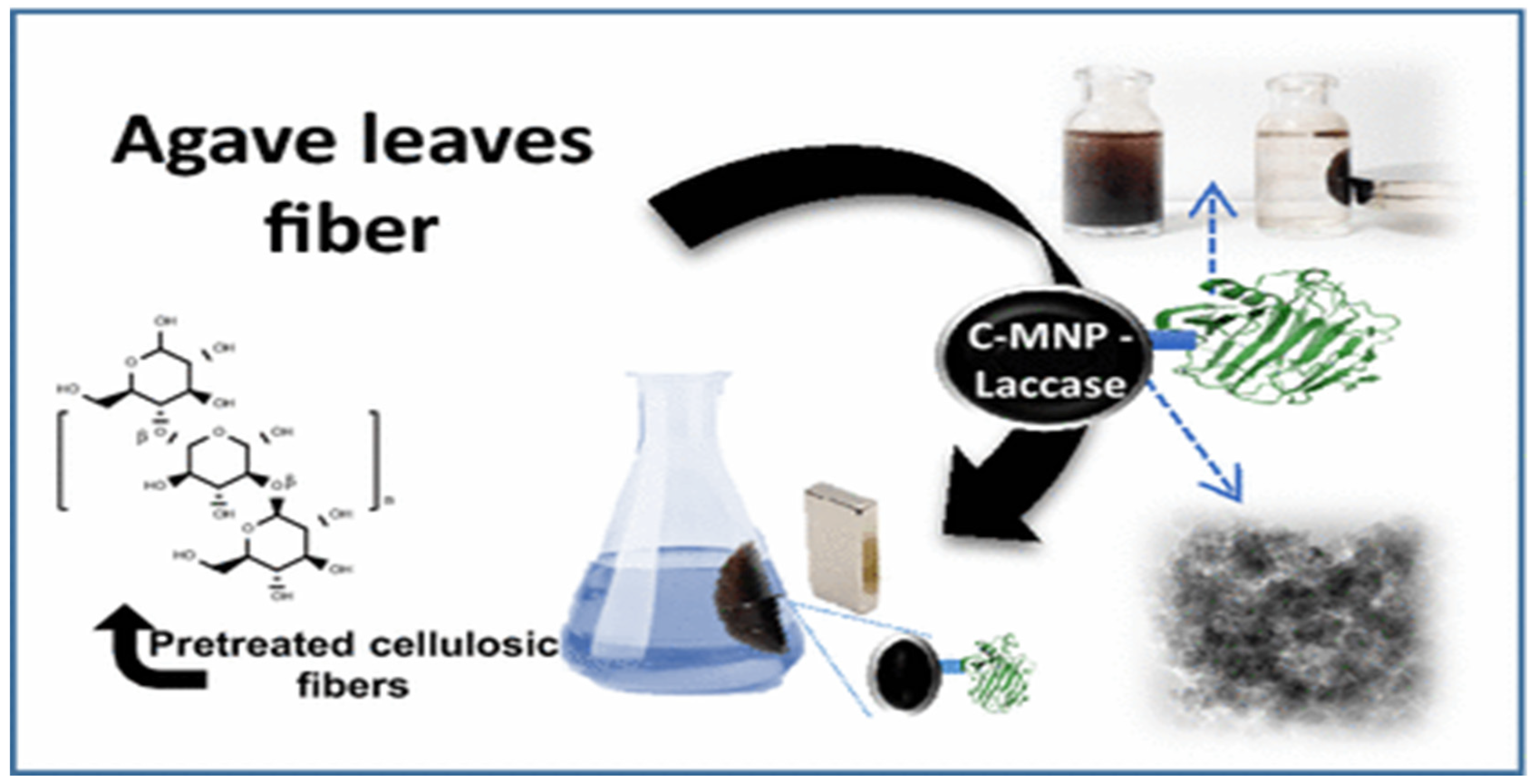

Scheme 9. Enzymatic saccharification and reusability of immobilized laccase onto Ch-MNPs. Reproduced with permission from Reference [74].
Scheme 9. Enzymatic saccharification and reusability of immobilized laccase onto Ch-MNPs. Reproduced with permission from Reference [74].
Magnetochemistry 05 00036 sch009
Table 1. Cellulase immobilization on silica-functionalized magnetic nanoparticles (MNPs).
Table 1. Cellulase immobilization on silica-functionalized magnetic nanoparticles (MNPs).
EnzymeSubstrateSupportCoupling AgentAmount *pHTemperatureReusabilityRef.
CycleEfficiency
Pectinase
Xylanase
Cellulase
Polygalacturonic acid
Xylan
CMC
(Fe3O4) on APTESGlutaraldehyde12, 5, 31 mg/mL4.870 °C587%, 69%, and 58%[18]
CellulaseCelluloseFe3O4 encapsulated with SBA-15PEG-10001.6 mg4.825–85 °C587.5%[51]
CellulaseWheat straw and sugarcane[EMIM][Ac] functionalized-MNPs and SNPGlutaraldehyde10 and, 7.5 mg/mL3.5–9.520–80 °C1085% and 76% [52]
HolocellulaseFP, CMC, and xylanAPTES-Fe3O4Glutaraldehyde2 mg/mL3–740–80 °C260–80%[53]
CellulaseCMCAPTES-Fe3O4Glutaraldehyde176 mg/g3–830–80 °C688%[54]
Abbreviations: 1-ethyl-3-methylimidazoliumacetate [EMIM][Ac]; silica nanoparticles (SNPs); filter paper (FP); polyethylene glycol (PEG); carboxyl methyl cellulose (CMC); 3-aminopropyltriethoxysilane (APTES); * amount of immobilized enzyme.
Table 2. Carrier-free MNP systems for cellulase immobilization.
Table 2. Carrier-free MNP systems for cellulase immobilization.
EnzymeSubstrateSupportCoupling AgentAmountpHTemperatureReusability Ref.
CycleEfficiency
Cellulase, pectinase, and xylanaseCMC, pectin, and xylanFe3O4Glutaraldehyde5.06 ± 0.46 mg/mL
3.39 ± 0.12 mg/mL
2.95 ± 0.14 mg/mL
5.555–75 °C480.25 ± 1.03%
84.76 ± 1.71%
75.62 ± 0.76%
[19]
Xylanase, cellulase, amylaseXylan, CMC, starchMNPsGlutaraldehyde3 mg/mL2–12Thermostable up to 70 °C1369, 48, and 50%[60]
CellulaseN/A *magnetite, maghemite, and hematite MNPsN/A0.6 g∙g−1N/ANAN/AN/A[61]
CellulaseMicrocrystallineFe3O4Glutaraldehyde250 mgN/A27 °C, 40 °C, 50 °C and 60 °C352%[62]
* Not available.
Table 3. Cellulase immobilization on amino-functionalized MNPs (AMNPs).
Table 3. Cellulase immobilization on amino-functionalized MNPs (AMNPs).
EnzymeSubstrateSupportCoupling AgentAmountpHTemperatureReusabilityRef.
CycleEfficiency
Pectinase, cellulaseCarboxymethyl cellulose (CMC)AMNPsGlutaraldehyde9 and 3 mg/mL6.550–70 °C887% and 82%[63]
Pectinase, cellulasepectin, celluloseAMNPsGlutaraldehyde50 mg525–35 °C885% and 80%[64]
CellulasecelluloseAMNPsGlutaraldehydeN/A3–830–80 °C758%[65]
Cellulase, lysozymecell wallsAMNPsGlutaraldehyde0.5 mg3–760–80 °C678.1% and 69.6%[66]
CellulaseCMCCu/AMNPsAPTESN/A2–720–80 °C573%[67]
Amino-functionalized MNPs (AMNPs); 3-aminopropyl-triethoxysilane (APTES).
Table 4. Cellulase immobilization on composite functionalized MNPs.
Table 4. Cellulase immobilization on composite functionalized MNPs.
EnzymeSubstrateSupportCoupling AgentAmountpHTemperatureReusabilityRef.
CycleEfficiency
CellulaseCMC(Fe3O4) layered double hydroxides (LDHs)Glutaraldehyde1.2 g/L5.550 °C631.8%[68]
CellulasecelluloseMgO–Fe3O4Xylan aldehyde150 mg/g4.5–6.550–70 °C784.5%[69]
CellulaseCMCPoly(methyl methacrylate) MNPsN/A5% (w/v)3–835–75 °C869%[70]
CellulaseMicrocrystalline cellulose or filter paperFe3O4-NH2@4-arm-PEG-NH2Glutaraldehyde132 mg/g3–730–80 °C676%.[45]
CellulaseMicrocrystalline cellulose or filter paper[email protected]3O4@4arm PEG NH2Glutaraldehyde2–8 mg3.5–5.530–80 °C765% and 70%[71]
CellulaseMicrocrystalline or filter paper[email protected] [email protected]Glutamic acid25 mg3–835–75 °C576%[72]
Table 5. Cellulase immobilization on chitosan-functionalized MNPs.
Table 5. Cellulase immobilization on chitosan-functionalized MNPs.
EnzymeSubstrateSupportCoupling AgentAmountpHTemperatureReusabilityRef.
CycleEfficiency
CellulaseCMCChitosan-coated MNPs
(Ch-MNPs)
Glutaraldehyde26.06 mg2.5–8.520–70 °C1580%[37]
CellulaseCMCMagnetic
Fe3O4chitosan
Glutaraldehyde32.29 mg 3–730–70 °C580%[46]
Xylanase and cellulase
1:0.5
N/AChitosan-coated magnetite particlesGlutaraldehydeN/AN/AN/AN/AN/A[73]
LaccaseLigninChitosan (C)-MNPGlutaraldehyde25 mg2–725–75 °C550%[74]
Table 6. Recent advances in immobilizing cellulase onto MNPs.
Table 6. Recent advances in immobilizing cellulase onto MNPs.
Different Functionalized MNPs Applied in Cellulase Immobilization Approaches
Immobilization ApproachAttributesRef.
Silica-based surface functionalizationEnhanced chemical stability while avoiding the aggregation of nanoparticles[51,52,53,54]
Composite-based surface functionalizationProviding unique physical and electronic properties and also providing a large surface area for biomolecules to anchor [69,70,71,72]
Amino-based surface functionalizationNovel strategies to enhance the enzyme’s thermal and chemical stability [63,64,65,66,67]
Chitosan-based surface functionalizationProviding an appropriate surface for biomolecules to anchor[46,74]
Carrier-free immobilizationNovel strategies to improve enzyme activity [60,61,62]

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Magnetochemistry EISSN 2312-7481 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
