Magnetochemistry 2018, 4(2), 23; https://doi.org/10.3390/magnetochemistry4020023

Article
Magnetic Characterization of Chromium Intermediates in the Reduction of Chromium (VI) by Glutathione in Acidic Solutions
1
Department of Chemistry and Biochemistry, Northern Illinois University, DeKalb, IL 60115, USA
2
Department of Physics, Northern Illinois University, DeKalb, IL 60115, USA
*
Author to whom correspondence should be addressed.
Received: 26 April 2017 / Accepted: 3 May 2018 / Published: 17 May 2018

Abstract

:
Chromium (VI) is carcinogenic through intermediates formed in the cellular milieu by reduction with small reductants like glutathione (GSH), ascorbate, cysteine, and NADPH. Although the reduction of chromate by thiols has been investigated, the participation of Cr(IV) intermediates has been inferred only indirectly due to the Cr(IV) refractive behavior towards EPR spectroscopy. Biological data from numerous reports indicate that Cr(IV) is the species most likely responsible for the carcinogenicity of Cr(VI). Our kinetic studies suggested that in acidic solutions, glycine buffer at pH 2.8, the reduction of chromate with GSH involves mostly a chromium(IV) intermediate. As a step towards the full characterization of the paramagnetic species involved in the reduction of chromate by thiols at neutral pH, we embarked on an investigation of the reduction of chromate with GSH in glycine buffer at pH 2.8 using a Superconducting QUantum Interference Device (SQUID) magnetometer. Our results indicate a strong influence of temperature and confirm the presence of Cr(IV). At 2 K, the saturation magnetization method was applied to the frozen reaction when it reached the peak of formation of intermediates and the contributions were calculated to be 30% of Cr(IV) and 69% of Cr(V). When the Curie–Weiss method was applied to determine the effective magnetic moment, the use of the linear portion of the curve, 100–200 K, yielded 58% Cr(IV) and 42% Cr(V); when data from the region below the temperature of liquid N2 (77 K) is employed, the intermediate is exclusively Cr(IV).
Keywords:
chromium carcinogenesis; Cr(III); Cr(IV); Cr(V); Cr(VI); glutathione; SQUID; Magnetic Property Measuring System

1. Introduction

Chromium is known to cause lung cancer in workers of several industries [1]. The mechanism of carcinogenesis is associated with DNA damage from transient chromium species produced during the reduction of chromate. Indeed, DNA strand breaks and DNA oxidation catabolites [2,3,4,5,6,7,8] have been detected in in vivo studies with chromate, Cr(V), and Cr(IV) model compounds.
Glutathione, cysteine, and ascorbate are thought to be the main in vivo reductants. Interestingly, each of these produces a distinct combination of paramagnetic species: Cr(III), Cr(IV), and Cr(V) [9,10,11].
The carcinogenicity of Cr(VI) has been recently reviewed [12]. Besides affecting the lungs of workers exposed to dust-carrying Cr(VI) compounds, there is mounting evidence indicating that Cr(VI) causes cancers in the digestive tract upon oral exposure. During the reduction of Cr(VI), Cr(IV) appears to be the primary reactive species, and it is now accepted that the reduction probably starts during transport within the cell membrane, where chromate uptake is mediated by the CLIC carrier proteins. CLIC1 is a monomeric protein that belongs to the GST superfamily. The redox active site of CLIC1 is occupied by GSH. Glutathione is not only found in relatively high concentrations in the cellular milieu (0.8–8.0 mM) [13], its concentration is 10–1000 times higher than that of other biological thiols that react faster with Cr(VI) [13]. It has been hypothesized that hexavalent Cr enters the cell and reacts with GSH in the CLIC within the cellular membrane, forming Cr(IV) and some Cr(V). Biological evidence also indicates that Cr(IV)—instead of Cr(V)—is the true carcinogen, as Cr(V) triggers cellular defense mechanisms including cell death and DNA repair processes [12], and Cr(IV) does not.
Ultimately, Cr(VI) is fully reduced to Cr(III) products within the cellular milieu [12]. It has been argued that a ligand exchange of these products with DNA and proteins causes primary, secondary, and tertiary adducts responsible for the carcinogenicity of Cr(VI) [14]. We have studied the Cr(V)/Cr(IV) and Cr(IV)/Cr(III) reduction processes [15] and know that Cr(IV) is more oxidizing than Cr(V); however, the reduction of Cr(IV) is slower. Therefore, we hypothesize that Cr(IV) intermediates accumulate and react with DNA and proteins forming adducts in which the metal is further reduced. Consistent with this framework, we recently reported on the detection of a wide (peak-to-peak separation = 260 G) EPR signal with a g value of 1.975 [16]. This species was detected during the reaction of the complex aquaethylenediaminebis(peroxo)chromium(IV) hydrate (I) (Figure 1) with GSH at neutral pH. Interestingly, the signal was observed when nearly all of the Cr(V) species were depleted. Not surprisingly, Luo and Dalal [6] have also reported very broad Cr(IV) EPR signals.
Several groups [9,17,18,19,20,21,22] have studied the reaction between Cr(VI) and glutathione (or related thiols). One common feature is that, regardless of pH, the reaction proceeds through sequential one-electron transfers with the formation of one or more intermediates. At high pH values, various Cr(V) signals are detected by EPR, indicating both sluggishness and the involvement of parallel mechanisms. In order to gain insights into the involvement of Cr(IV) in these reactions, Bose et al. [9] studied the reaction between GSH and chromate at low pH values. Under the conditions of this study, the intermediate was characterized as mostly Cr(IV). Because, at ambient temperature, Cr(IV) is usually refractive to EPR spectroscopy, the study involved measurements of magnetic susceptibility using an NMR method developed by the author [22,23].
Here we present a report concerning our investigation of the reaction between chromate and glutathione at low pH using a Superconducting QUantum Interference Device (SQUID) magnetometer. Both the temperature-dependent magnetic susceptibility (via the Curie-Weiss Law) and the low-temperature isothermal magnetization (via saturation magnetization) curves were used to determine the oxidation state of the chromium intermediates. Our vision is twofold—to provide a clearer picture of the most likely carcinogen in chromium mediated DNA damage and to learn the chemical properties that differentiate the elusive Cr(IV) from the better known Cr(V) state. As a corollary, we expect to utilize the knowledge learned to develop catalytic systems (and possibly even chromium anti-cancer drugs).

2. Materials and Methods

Reagents: Deuterated water (D2O), chromium potassium sulfate [CrK(SO4)2·12H2O], anhydrous potassium chromate (K2CrO4), reduced glutathione (GSH), and glycine (Gly) were purchased from Aldrich (Sigma-Aldrich, Saint Louis, MO, USA) and used as received.
Kinetic profiles: The absorbance vs. time data of a mixture containing 1.02 ± 0.05 mM Cr, 15.0 ± 0.8 mM GSH, and 100 ± 5 mM Gly (pH 2.8) were measured at 460 nm with a Shimadzu UV160U spectrophotometer (Shimadzu Scientific Instruments, Columbia, MD., USA) at room temperature and subjected to iterative non-linear computer fitting using Sigma Stat (Systat Software Inc., San Jose, CA, USA) for Windows Version 3.5.
Magnetic Susceptibility Measurements: The Magnetic Property Measurement System (MPMS-7, Quantum Design, San Diego, CA, USA) was employed. The sample, 100 μL, was carried in a cuvette made from a 200 μL PCR polypropylene tube. The magnetometer was calibrated by direct comparison of reference palladium samples originally purchased from the National Bureau of Standards (NBS Standard Reference Material 765) and provided by the manufacturer of the instrument—and the method was then tested against known CrK(SO4)2 samples [24]. In a typical experiment, the chromium stock solution and the mixture of glycine and fresh glutathione were bubbled separately with argon gas for 10 min in a glove box. The glutathione glycine mixture was then pipetted into the cuvette and mixed with enough chromium stock solution to make 100 μL. Once the cuvette was capped, the reaction was allowed to run until the peak of the biphasic kinetic profile was reached. At this time, the sample was submerged in liquid nitrogen and quickly placed in the airlock of the magnetometer, which was then purged to remove air and hence oxygen. Next it was lowered into the sample chamber, where a temperature of 70 K was maintained and centered inside a superconducting magnet to obtain the most accurate measurements. The same cuvette used to measure the sample was used to measure the control. When the control was measured, the (control) solution was added with a micro syringe until its weight matched the weight of the sample. All solutions were prepared in D2O to reduce the paramagnetic contribution of the proton nuclei of water whose nuclear paramagnetism (expressed as concentration of spins ½ accounts for about 0.26 mM). Because of this, the deuteron’s contribution was only 0.02 mM [25]. A similar reason motivated the removal of oxygen from the samples. Initially, an M(H) curve was measured at 2 K to determine saturation magnetization. Right after this, a temperature dependence of magnetization was measured in the temperature range of 2–300 K to determine the material parameters according to the Curie–Weiss law. The same sequence of measurements was performed on the control solution, and the results of the control measurements were subtracted from the results of the Cr-containing solutions.

3. Results

The kinetic profile of the reaction between 1.0 mM Cr(VI) and 15 mM GSH in 100 mM glycine buffer (pH 2.8) is shown in Figure 2. As previously noticed [9,22], this reaction is best described by a biphasic process:
Cr ( VI ) + GSH k 1 Intermediate k 2 Products
The concentration of the three absorbing components of the mixture can be represented by the following set of differential equations:
d[Cr(VI)]/dt = −k1[Cr(VI)]
d[Intermediate]/dt = k1[Cr(VI)] − k2[Intermediate]
d[Products]/dt = k2[Intermediate].
Assuming that the initial concentration of Cr is [Cr(VI)]o and that at time zero [intermediate] = [Products] = 0, the equations can be integrated to yield expressions for the concentration of each component over time:
[Cr(VI)] = [Cr(VI)]o e−k1t
[Intermediate] = [k1/(k2 − k1)][Cr(VI)]o(e−k1t − e−k2t)
[Products] = [Cr(VI)]o − [Cr(VI)] − [Intermediate]
[Products] = [Cr(VI)]o{1 − [k1/(k2 − k1)](e−k1t − e−k2t) − e−k1t}.
The time at the top of the curve of Figure 2 is given by
ttop = ln(k2/k1)/(k2 − k1).
To obtain the rate constants, Equation (9) was fitted to the absorbance vs. time trace shown in Figure 2. In Equation (9), the first exponential corresponds to the rise of the intermediate, and the second exponential corresponds to its decay:
A = a + be−k1t + ce−k2t.
Because [Cr(VI)]0 is known—and because the rate constants were obtained from the computer fitting of Equation (9)—the concentrations and the mole fractions of the components of the mixture were calculated by substitution in the above expressions. The results are given in Table 1.
Figure 3 shows the magnetization of the frozen reaction of Cr(VI) and glutathione. The saturation magnetic moment of the reacted solution was 3.04 μB, in agreement with the products being Cr(III). The saturation magnetic moment at the top of the kinetic profile was 1.39 μB. To this value, each paramagnetic component of the mixture contributes according to its mole fraction at the time of measurement. In this respect, Cr(VI) is diamagnetic and negligibly contributes to the magnetic moment of the mixture. For the intermediate, there is a contribution of 2 μB per atom of Cr(IV) and 1 μB per atom of Cr(V), while the products contribute with 3 μB per Cr(III).
The expected saturation magnetic moment of the mixture at the top of the kinetic curve is calculated below (Table 2) using the mole fractions (fIntermediate, fProducts) of the intermediate and the products in two limiting cases: the hypothetical case in which the intermediate is exclusively Cr(IV), and the hypothetical case in which the intermediate is exclusively Cr(V):
Because the experimental value of the saturation magnetization of the reaction was 1.39 μB, the intermediate was neither Cr(IV) or Cr(V) alone. The contribution of Cr(IV) and Cr(V) was calculated to be 30% of Cr(IV) and 69% of Cr(V).
The Curie–Weiss curves of the frozen reaction, and of the reaction after it was allowed to react at room temperature for 12 h, are shown in Figure 4. Using the expression χ = χ0 + μeff2/8(T − θ), computer fittings of the experimental data were performed to estimate the effective magnetic moment. As is customarily done with pure and non-reactive samples, a fitting of the experimental data corresponding to the products was performed within the high-temperature portion of the curve (nominally from 100 to 200 K), and the effective magnetic moment was 3.87 μB. This value of 3.87 μB is in agreement with the expected value predicted by the spin only formula for a sample composed of Cr(III). To estimate the effective magnetic moments of the reacting sample, the fittings were performed using the data below the temperature of liquid nitrogen (77 K). The effective magnetic moment was determined to be 2.75 μB. Next, we calculated the result assuming that the intermediate was only Cr(IV), and found that the effective magnetic moment would be 2.8 μB in this case (while if the intermediate were only Cr(V), the effective magnetic moment would be 2.1 μB). Clearly, this value of 2.75 μB corresponds to a sample of only Cr(IV). If the fitting is performed within the high temperature range (as it was done with the reacted sample), the effective magnetic moment is 2.55 μB, which corresponds to 58% Cr(IV) and 42% Cr(V).

4. Discussion

In the original study [9], with an excess of oxidized glutathione at pH 2.7, the chromium (VI) vs. glutathione reaction showed two chromatographic peaks that grew and then decayed. The two peaks showed a maximum absorption at 460 nm. At this wavelength, none of the reagents or products absorbed, and these peaks were assigned to intermediates [9]. The reaction produced only Cr(III) as evidenced by the UV-VIS spectrum of the mixture at the end of the reaction. The main bands were centered at 572 (ε = 33 M−1 cm−1) and 408 nm (ε = 26 M−1 cm−1). The EPR of the reaction mixture showed a weak peak with a g value of 1.989. When compared with an authentic Cr(V) complex (II) (bis(2-hydroxy-2-ethylbutyrato)oxochromate(V), g = 1998) (Figure 1), this complex produced an intense signal even at 0.5 mM in an acidic solution. Using the intensity of this complex as a calibration point, it was estimated that, among the intermediates, less than 3% of the total chromium was Cr(V). When the same reaction was performed in the absence of excess oxidized glutathione and in a glycine buffer, only one intermediate was detected by HPLC, and the EPR experiments did not show evidence of Cr(V) at pH values lower than 3.4 [22]. In order to further characterize the EPR silent intermediate, time course magnetic susceptibility measurements by NMR were performed. These experiments gave effective magnetic moments of 2.6 μB for the intermediates and 4.3 μB for the products, which led to the conclusion that the intermediates were exclusively Cr(IV). This result has been disputed with the argument that a mixture of Cr(VI) and Cr(III) can produce the same magnetic moments. However, the kinetic profile of this reaction clearly indicates the presence of an intermediate that decays slowly, so the magnetic properties of the mixture cannot be attributed to a combination of starting materials and products. One possibility is that the intermediate is a Cr(VI)–GSH complex, as Lay et al. [26] have proposed. This would be consistent with the lack of detection of Cr(V) EPR signals. However, if the intermediate were a Cr(VI)-GSH complex, the saturation magnetic moment would be 0.45 μB—instead of the 1.4 μB that we measured—and the expected effective magnetic moment would be 1.5 μB. The values of the saturation magnetic moment and the effective magnetic moment obtained in this work are helpful for clarifying one fact: that the intermediate in this reaction is not a Cr(VI)-GSH complex. A larger effective magnetic moment than the saturation magnetic moment is consistent with a larger proportion of Cr(IV) at temperatures higher than 2 K. This is evidence that the reduction of chromate by glutathione progresses in steps of one-electron, Cr(VI)→Cr(V)→Cr(IV)→Cr(III). However, because of the fact that Cr(IV) normally does not give EPR signals at room temperature, the lack of detection of Cr(V) signals with EPR is only indicative of how fast the process goes from Cr(VI) to Cr(IV). In brief, the reaction proceeds in one-electron steps with a long-lived Cr(IV) intermediate as originally proposed.

5. Conclusions

We have shown that the magneto-chemical technique is suitable for the characterization of the reduction of chromate by biological reductants. The worthiness of this instrumental approach is evident when it is considered that Cr(IV) is typically not EPR active at ambient temperature. Moreover, the UV spectroscopy technique is not specific enough, especially when it is noted that these reactions produce more than one intermediate. In fact, in our [16] ESI-MS, cyclic voltammetry, EPR, and HPLC studies of the reaction between aquaethylenediaminebis(peroxo)chromium(IV) hydrate (I) with GSH at neutral pH, we detected multiple intermediates of Cr(IV) and Cr(V) (mono and multi-ligated Cr-GSH species). Some researchers, including Bose et al. [9], Marin et al. [16], Liu et al. [27], and Ramsey and Dalal [28], have paid attention to the potentially essential role of Cr(IV) in chromium carcinogenesis. Considering that the DNA damage caused by Cr(IV) does not trigger the cellular defense mechanisms that occur with Cr(V) and Cr(IV), Cr(IV) is likely the most potent carcinogen through altered survivor cells leading to cancer [12].
In this work, the difference between magneto-chemical measurements at 2 K and those at higher temperatures leads to two questions: (1) At what temperature does the advancement of the reaction in the frozen mixture occur? (2) What are the mechanism(s) responsible for this? The facilitation of reactions at various pH values as well as the measurement of the magnetism at various times over the kinetic profile are next steps in further magneto-chemical investigations of this system.

Author Contributions

R.A.M. and R.B. conceived the experiments; R.A.M. and S.K. designed the experiments; R.A.M. and S.K. performed the experiments; R.A.M. and S.K. analyzed the data; R.B. and B.D. contributed reagents/materials/analysis tools; R.A.M. interpreted the data and wrote the paper.

Acknowledgments

The authors thank Northern Illinois University for financial support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. International Agency for Research on Cancer (IARC). Chromium, nickel and welding. In Monographs on the Evaluation of Carcinogenic Risks in Humans; IARC: Lyon, France, 1990; Volume 49, pp. 1–648. [Google Scholar]
  2. Bose, R.N.; Fonkeng, B.S.; Moghaddas, S.; Stroup, D. Mechanisms of DNA damage by chromium(V) carcinogens. Nucleic Acids Res. 1998, 26, 1588–1596. [Google Scholar] [CrossRef] [PubMed]
  3. Bose, R.N.; Moghaddas, S.; Mazzer, P.A.; Dudones, L.P.; Joudah, L.; Stroup, D. Oxidative damage of DNA by chromium(V) complexes: Relative importance of base versus sugar oxidation. Nucleic Acids Res. 1999, 27, 2219–2226. [Google Scholar] [CrossRef] [PubMed]
  4. Joudah, L.; Moghaddas, S.; Bose, R.N. DNA oxidation by peroxo-chromium(V) species: Oxidation of guanosine to guanidinohydantoin. Chem. Commun. 2002, 16, 1742–1743. [Google Scholar] [CrossRef]
  5. Hai, L.; Youngde, L.; Xianglin, S.; Yan, M.; Nar, S.D. Chromium(IV)-Mediated Fenton-like Reaction Causes DNA Damage: Implication to Genotoxicity of Chromate. Ann. Clin. Lab. Sci. 1996, 26, 185–191. [Google Scholar]
  6. Hai, L.; Youngde, L.; Yan, M.; Xianglin, S.; Nar, S.D. Role of Chromium(IV) in the Chromium(VI)-Related Free Radical Formation, dG Hydroxylation, and DNA Damage. J. Inorg. Biochem. 1996, 64, 25–35. [Google Scholar]
  7. Casadevall, M.; Da Cruz Fresco, P.; Kortemkamp, A. Chromium(VI)-Mediated DNA damage: Oxidative pathways resulting in the formation of DNA breaks and abasic sites. Chem.-Biol. Interact. 1999, 123, 117–132. [Google Scholar] [CrossRef]
  8. Slade, P.G.; Hailer, M.K.; Martin, B.D.; Sugden, K.D. Guanine-Specific Oxidation of Double-Stranded DNA by Cr(VI) and Ascorbic Acid Forms Spiroiminodihydantoin and 8-Oxo-2′-deoxyguanosine. Chem. Res. Toxicol. 2005, 18, 1140–1149. [Google Scholar] [CrossRef] [PubMed]
  9. Bose, R.N.; Moghaddas, S.; Gelerinter, E. Long-Lived Chromium(IV) and Chromium(V) Metabolites in the Chromium(VI)-Glutathione Reaction: NMR, ESR, HPLC, and Kinetic Characterization. Inorg. Chem. 1992, 31, 1987–1994. [Google Scholar] [CrossRef]
  10. Stearns, D.M.; Wetterhahn, K.E. Reaction of Chromium(VI) with Ascorbate Produces Chromium(V), Chromium(IV), and Carbon-Based Radicals. Chem. Res. Toxicol. 1994, 7, 219–230. [Google Scholar] [CrossRef] [PubMed]
  11. Chiu, A.; Chiu, N.; Shi, X.; Beaubier, J.; Dalal, N. Activation of a Procarcinogen by Reduction: Cr(VI)-Cr(V)-Cr(IV)-Cr(III) A Case Study by Electron Spin Resonance (ESR/PMR). J. Environ. Sci. Health Part C Environ. Carcinog. Ecotoxicol. Rev. 1999, 16, 135–148. [Google Scholar] [CrossRef]
  12. Chiu, A.; Shi, J.; Lee, W.K.P.; Hill, R.; Wakeman, T.P.; Katz, A.; Xu, B.; Dalal, N.S.; Robertson, J.D.; Chen, C.; et al. Review of Chromium (VI) Apoptosis, Cell-Cycle-Arrest, and Carcinogenesis. J. Environ. Sci. Health Part C Environ. Carcinog. Ecotoxicol. Rev. 2010, 28, 188–230. [Google Scholar] [CrossRef] [PubMed]
  13. Connett, P.H.; Wetterhahn, K.E. Metabolism of the Carcinogen Chromate by Cellular Constituents. Struct. Bond. 1983, 54, 93–124. [Google Scholar]
  14. Macfie, A.; Hagan, E.; Zhitkovich, A. Mechanism of DNA−Protein Cross-Linking by Chromium. Chem. Res. Toxicol. 2010, 23, 341–347. [Google Scholar] [CrossRef] [PubMed]
  15. Bose, R.N.; Fonkeng, B.; Barr-David, G.; Farrell, R.P.; Judd, R.J.; Lay, P.A.; Sangster, D.F. Redox Potentials of Chromium(V)/(IV), -(V)/(III), and -(IV)/(III) Complexes with 2-Ethyl-2-hydroxybutanoato(2-/1-) Ligands. J. Am. Chem. Soc. 1996, 118, 7139–7144. [Google Scholar] [CrossRef]
  16. Marin, R.; Ahuja, Y.; Jackson, G.P.; Laskay, U.; Bose, R.N. Potentially Deadly Carcinogenic Chromium Redox Cycle Involving Peroxochromium(IV) and Glutathione. J. Am. Chem. Soc. 2010, 132, 10617–10619. [Google Scholar] [CrossRef] [PubMed]
  17. McAuley, A.; Olatunji, M.A. Metal-ion oxidations in solutions. Part XVIII. Characterization, rates and mechanism of formation of the intermediates in the oxidation of thiols by chromium(VI). Can. J. Chem. 1977, 55, 3328–3334. [Google Scholar] [CrossRef]
  18. Connett, P.H.; Wetterhahn, K.E. In Vitro Reaction of the Carcinogen Chromate with Cellular Thiols and Carboxylic Acids. J. Am. Chem. Soc. 1985, 107, 4282–4288. [Google Scholar] [CrossRef]
  19. O’Brien, P.; Wang, G.; Wyatt, P.B. Studies of the Kinetics of the Reduction of Chromate by Glutathione and Related Thiols. Polyhedron 1992, 11, 3211–3216. [Google Scholar] [CrossRef]
  20. Kwong, D.W.J.; Pennington, D.E. Stoichiometry, Kinetics, and Mechanisms of the Chromium(VI) Oxidation of L-Cysteine at Neutral pH. Inorg. Chem. 1984, 23, 2528–2532. [Google Scholar] [CrossRef]
  21. Lay, P.A.; Levina, A. Kinetics and Mechanism of Chromium(VI) Reduction to Chromium(III) by L-Cysteine in Neutral Aqueous Solutions. Inorg. Chem. 1996, 35, 7709–7717. [Google Scholar] [CrossRef]
  22. Moghaddas, S.; Gelerinter, E.; Bose, R.N. Mechanisms of Formation and Decomposition of Hypervalent Chromium Metabolites in the Glutathione-Chromium (VI) Reaction. J. Inorg. Biochem. 1995, 57, 135–146. [Google Scholar] [CrossRef]
  23. Bose, R.N.; Li, D.; Moghaddas, S. Kinetic Method Based on Nuclear Magnetic Resonance Measurements. Anal. Chem. 1991, 63, 2757–2762. [Google Scholar] [CrossRef]
  24. Warren, H.E. Spin Paramagnetism of Cr+++, Fe+++, and Gd+++ at Liquid Helium Temperatures and in Strong Magnetic Fields. Phys. Rev. 1952, 88, 559–562. [Google Scholar]
  25. Day, E.P.; Kent, T.A.; Lindahl, P.A.; Munck, E. Squid Measurement of Metalloprotein Magnetization. Biophys. J. 1987, 52, 837–853. [Google Scholar] [CrossRef]
  26. Levina, A.; Lay, P.A. Solution Structures of Chromium(VI) Complexes with Glutathione and Model Thiols. Inorg. Chem. 2004, 43, 324–335. [Google Scholar] [CrossRef] [PubMed]
  27. Liu, K.J.; Shi, X.; Dalal, N.S. Synthesis of Cr(IV)-GSH, Its Identification and Its Free Hydroxyl Radical Generation: A Model Compound for Cr(VI) Carcinogenicity. Biochem. Biophys. Res. Commun. 1997, 235, 54–58. [Google Scholar] [CrossRef] [PubMed]
  28. Ramsery, C.M.; Dalal, N.S. Crystalline and water soluble Cr(4+) and Cr(5+) model compounds for chromium toxicity studies. Mol. Cell. Biochem. 2004, 255, 113–118. [Google Scholar] [CrossRef]

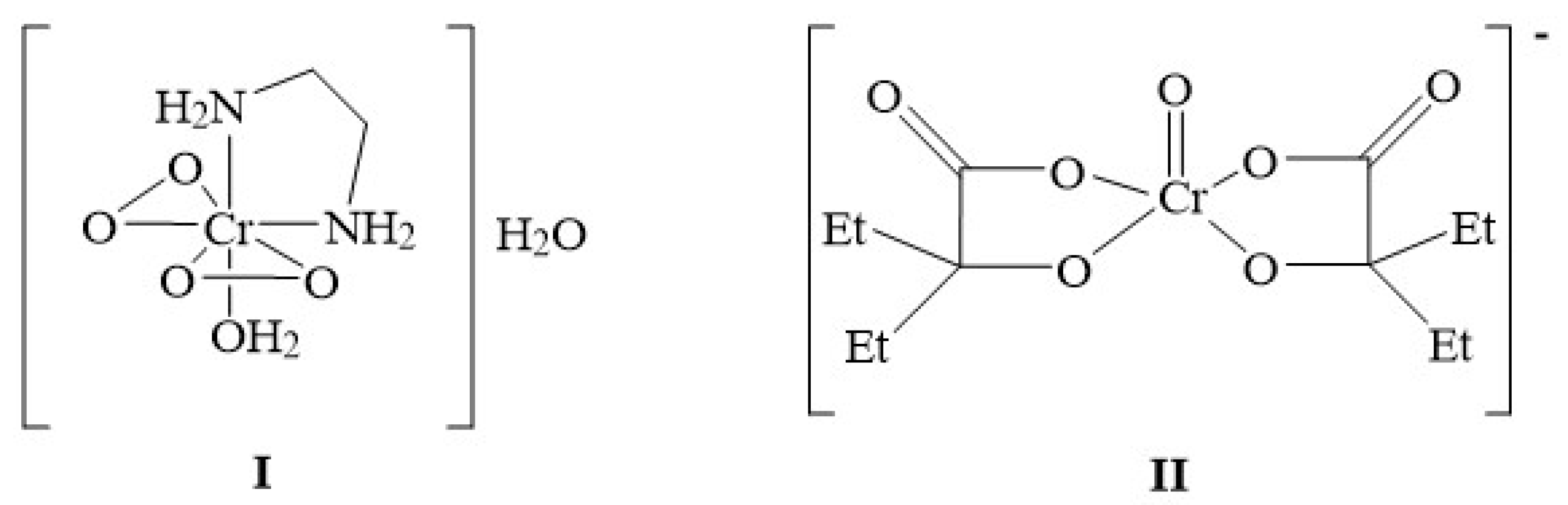

Figure 1. Aquaethylenediaminebis(peroxo)chromium(IV) hydrate (I) and (bis(2-hydroxy-2-ethylbutyrato)oxochromate(V) (II)
Figure 1. Aquaethylenediaminebis(peroxo)chromium(IV) hydrate (I) and (bis(2-hydroxy-2-ethylbutyrato)oxochromate(V) (II)
Magnetochemistry 04 00023 g001

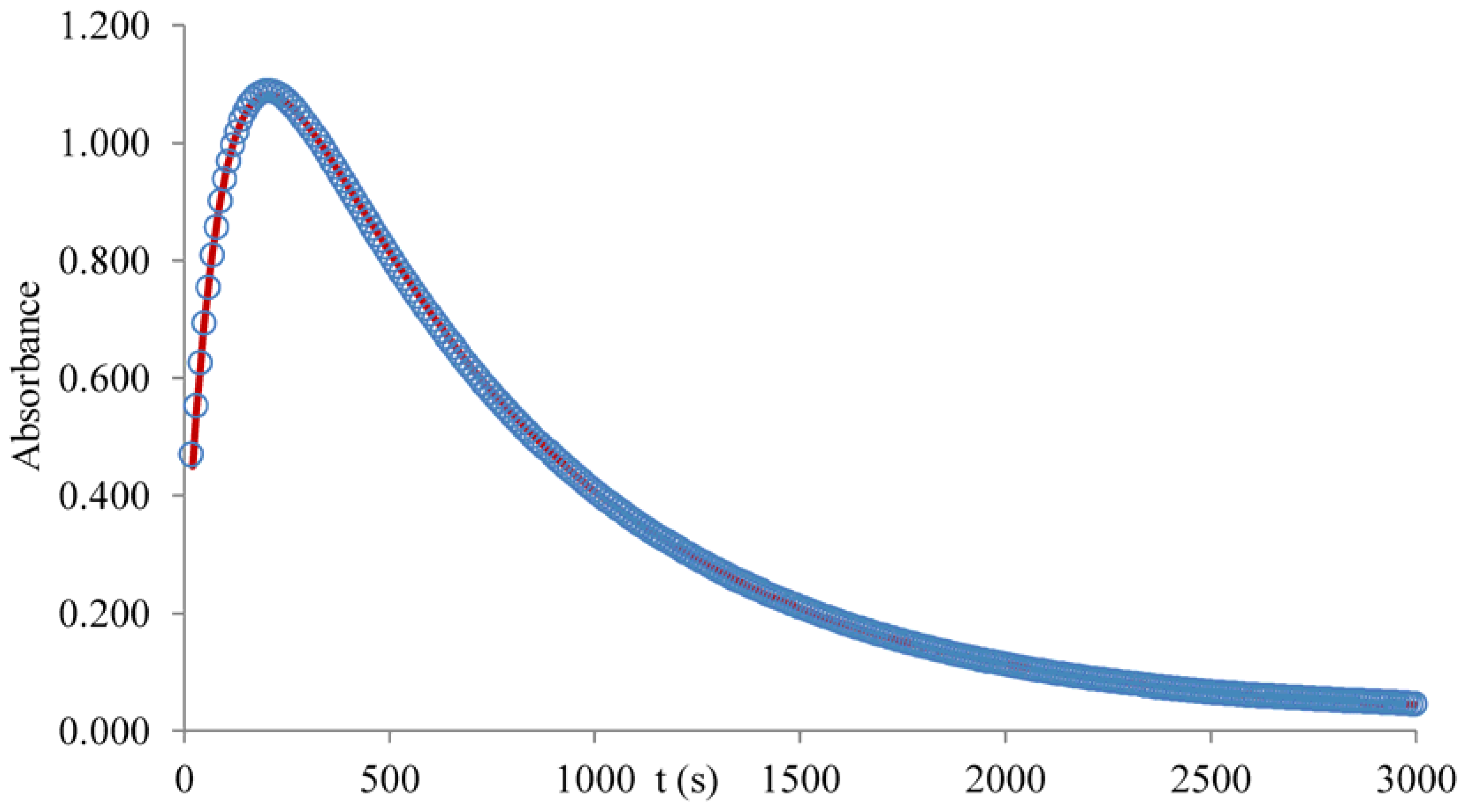

Figure 2. Observed (Circles) and simulated (solid line) absorbance–time trace at 460 nm of a mixture of 1.02 ± 0.05 mM Cr(VI) and 15.0 ± 0.8 mM glutathione in 100 mM glycine (pH 2.8). The calculated absorbances are based on Equation (9). The parameters used to plot the simulated curve are a = 2.4 × 10−2, b = −1.4, k1 = (1.0 × 10−1) s−1, c = 1.6, and k2 = (1.5 × 1−3) s−1.
Figure 2. Observed (Circles) and simulated (solid line) absorbance–time trace at 460 nm of a mixture of 1.02 ± 0.05 mM Cr(VI) and 15.0 ± 0.8 mM glutathione in 100 mM glycine (pH 2.8). The calculated absorbances are based on Equation (9). The parameters used to plot the simulated curve are a = 2.4 × 10−2, b = −1.4, k1 = (1.0 × 10−1) s−1, c = 1.6, and k2 = (1.5 × 1−3) s−1.
Magnetochemistry 04 00023 g002
Figure 3. Isothermal (2 K) magnetization curves of the reaction of 1.02 ± 0.05 mM Cr(VI) and 15.0 ± 0.8 mM GSH in 100 mM glycine, pH 2.8, in D2O.
Figure 3. Isothermal (2 K) magnetization curves of the reaction of 1.02 ± 0.05 mM Cr(VI) and 15.0 ± 0.8 mM GSH in 100 mM glycine, pH 2.8, in D2O.
Magnetochemistry 04 00023 g003

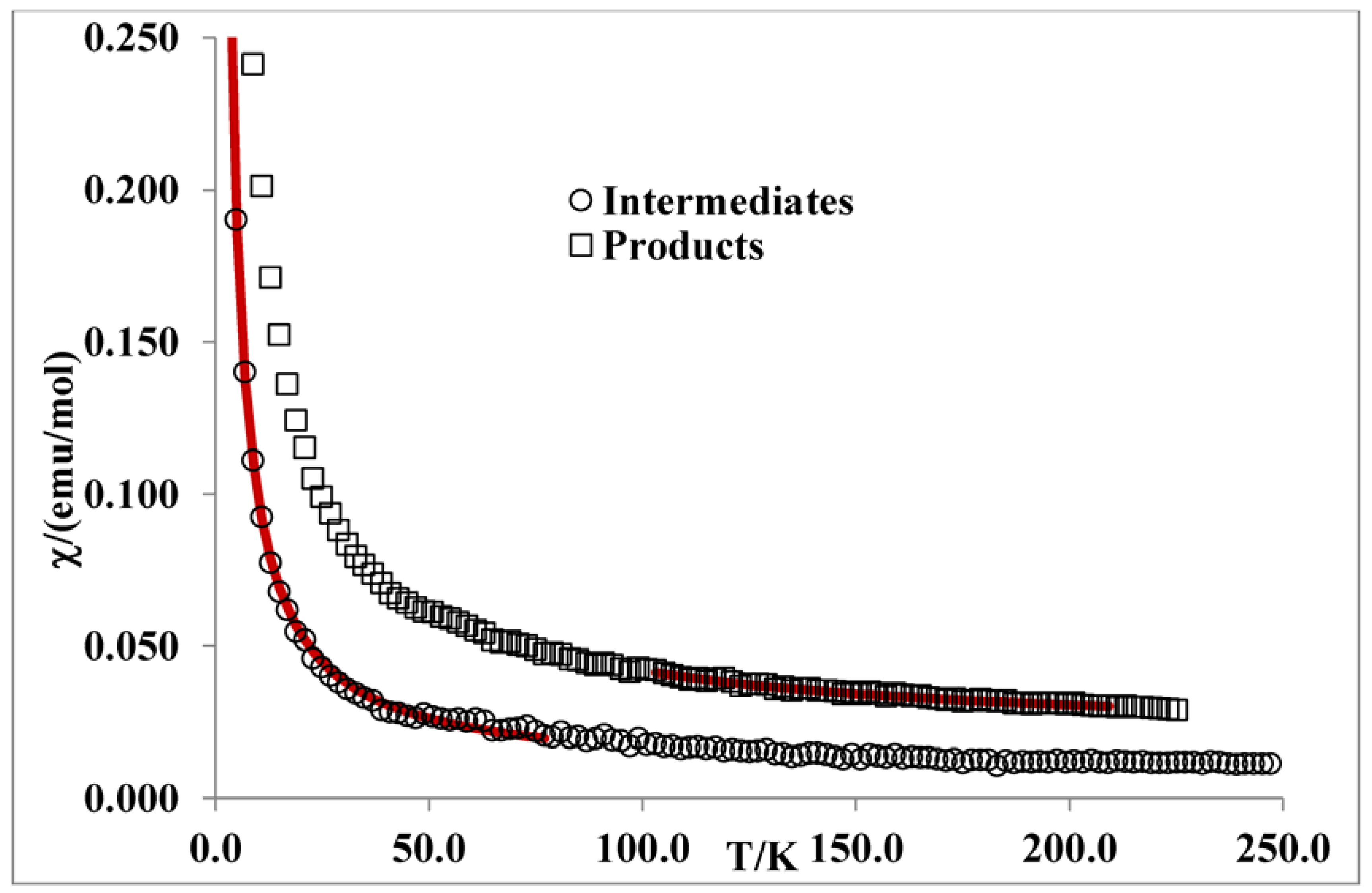

Figure 4. Observed (markers) and fitted (solid lines) magnetic susceptibility at 10 kOe of the reaction of 1.02 ± 0.05 mM Cr(VI) and 15 ± 0.8 mM glutathione in 100 mM glycine. The fitting was done using the equation χ = χ0 + μeff2/8(T − θ). The obtained fitting parameters are χ0 = 7.44 × 10−3 emu/mol, μeff = 2.75 μB, and θ = −0.276 K for the intermediates, and 2.075 × 10−2 emu/moL, μeff = 3.87 μB, and θ = 12.88 K for the products.
Figure 4. Observed (markers) and fitted (solid lines) magnetic susceptibility at 10 kOe of the reaction of 1.02 ± 0.05 mM Cr(VI) and 15 ± 0.8 mM glutathione in 100 mM glycine. The fitting was done using the equation χ = χ0 + μeff2/8(T − θ). The obtained fitting parameters are χ0 = 7.44 × 10−3 emu/mol, μeff = 2.75 μB, and θ = −0.276 K for the intermediates, and 2.075 × 10−2 emu/moL, μeff = 3.87 μB, and θ = 12.88 K for the products.
Magnetochemistry 04 00023 g004
Table 1. Distribution of chromium in the reaction between Cr(VI) and glutathione in 100 mM glycine at the time when [Intermediate] is at maximum concentration (ttop).
Table 1. Distribution of chromium in the reaction between Cr(VI) and glutathione in 100 mM glycine at the time when [Intermediate] is at maximum concentration (ttop).
[GSH]/[Cr(VI)]15
Ttop/s200
[Cr(VI)]o/mM1.02Mole Fraction
[Cr(VI)]top/mM0.1280.12
[Intermediate]top/mM0.740.72
[Products]top/mM0.1550.15
Table 2. Expected saturation magnetic moment in the reaction between Cr(VI) and glutathione in 100 mM glycine at the time when [Intermediate] is at maximum concentration (ttop).
Table 2. Expected saturation magnetic moment in the reaction between Cr(VI) and glutathione in 100 mM glycine at the time when [Intermediate] is at maximum concentration (ttop).
[Cr(VI)]/[GSH] = 15
Intermediate is only Cr(IV)M = fIntermediate MCr(IV) + fProducts MCr(III)
M = 0.72 × 2 μB + 0.15 × 3 μB = 1.9 μB
Intermediate is only Cr(V)M = fIntermediate MCr(V) + fProducts MCr(III)
M = 0.72 × 1 μB + 0.15 × 3 μB = 1.2 μB
