Article

Nodulated White Lupin Plants Growing in Contaminated Soils Accumulate Unusually High Mercury Concentrations in Their Nodules, Roots and Especially Cluster Roots

by
Miguel A. Quiñones
*,
Susana Fajardo
,
Mercedes Fernández-Pascual
,
M. Mercedes Lucas
and
José J. Pueyo
*
Department of Soil, Plant and Environmental Quality, Institute of Agricultural Sciences, ICA-CSIC, Serrano, 115-bis, 28006 Madrid, Spain
*
Authors to whom correspondence should be addressed.
Horticulturae 2021, 7(9), 302; https://doi.org/10.3390/horticulturae7090302
Submission received: 17 August 2021 / Revised: 3 September 2021 / Accepted: 7 September 2021 / Published: 9 September 2021
(This article belongs to the Special Issue Phytotoxicity of Heavy Metals in Horticultural Plants and Security)

Abstract

:
Two white lupin (Lupinus albus L.) cultivars were tested for their capacity to accumulate mercury when grown in Hg-contaminated soils. Plants inoculated with a Bradyrhizobium canariense Hg-tolerant strain or non-inoculated were grown in two highly Hg-contaminated soils. All plants were nodulated and presented a large number of cluster roots. They accumulated up to 600 μg Hg g−1 DW in nodules, 1400 μg Hg g−1 DW in roots and 2550 μg Hg g−1 DW in cluster roots. Soil, and not cultivar or inoculation, was accountable for statistically significant differences. No Hg translocation to leaves or seeds took place. Inoculated L. albus cv. G1 plants were grown hydroponically under cluster root-promoting conditions in the presence of Hg. They accumulated about 500 μg Hg g−1 DW in nodules and roots and up to 1300 μg Hg g−1 DW in cluster roots. No translocation to the aerial parts occurred. Bioaccumulation factors were also extremely high, especially in soils and particularly in cluster roots. To our knowledge, Hg accumulation in cluster roots has not been reported to date. Our results suggest that inoculated white lupin might represent a powerful phytoremediation tool through rhizosequestration of Hg in contaminated soils. Potential uptake and immobilization mechanisms are discussed.

1. Introduction

Environmental pollution is one of the most critical problems affecting society in the 21st century. The loss of air quality, water resources and available soil is drastically affecting food security and public health [1,2]. Many studies have demonstrated that heavy metals and metalloids such as mercury (Hg), arsenic (As), lead (Pb), cadmium (Cd), zinc (Zn), nickel (Ni) and chromium (Cr) are present in plants of agronomic interest and pose major environmental risks, and present human health implications [3]. Heavy metals are present in soil either as free or bioavailable ions (soluble metal salts), or as insoluble or partially soluble compounds (oxides, carbonates and hydroxides). Many environmental or human factors can influence the toxicity, mobilization, migration or accumulation of heavy metals by changing soil structure, its physicochemical properties or microbial diversity [4]. Among heavy metals, Hg is considered one of the most toxic elements, with highly adverse effects on soil biological activity and plant metabolism, even at low concentrations [5,6,7]. Once deposited in the soil, it is retained mainly by organic matter, iron and manganese oxides and clay minerals [8], and is strongly bound to soil constituents, resulting in low availability and mobility [9]. However, under certain conditions mobilization can occur, where both pH and chloride concentrations in the soil solution are favorable for complex formation [10].
The Almadén Mining District in Ciudad Real, Spain comprises the largest natural concentration of Hg in the world. Consequently, it is also one of the most Hg-contaminated areas, as a result of both, natural occurrence and anthropogenic activities [11,12]. When searching for appropriate alternative uses for local soils, agricultural activities stand out as an environmentally friendly and potentially cost-effective option to mining in this area [13]. Regrettably, the soils affected by mining activity are generally low in nutrients and organic matter.
Legumes are particularly well suited to colonize contaminated or nutrient-deprived soils [14]. Most species develop nitrogen-fixing nodules by establishing symbiosis with soil rhizobia. The inclusion of nitrogen-fixing plants appears to be a good strategy for stabilizing vegetation and facilitating ecosystem development by increasing the nitrogen content of the soils and boosting vegetation cover [15], but it is also necessary to address the problem of how the Hg present in the soil may affect the plants. Symbiosis confers legumes increased tolerance to various abiotic stresses, including heavy metal stress [16]. White lupin (Lupinus albus L.) is both an agronomic crop, since it provides seeds for food and feed, fodder and green manure, and a horticultural crop, as it is a good honey plant and an attractive annual ornamental [17]. Lupin seeds have an extremely high protein content; thus, lupin is considered as an excellent protein crop capable of promoting socio-economic growth and environmental benefits to the areas where it is cultivated [18,19]. Lupin is a legume particularly well suited for growth in marginal soils because not only is it capable of forming nitrogen-fixing nodules in symbiosis with rhizobia, but it is also capable of developing cluster or proteoid roots that promote P mobilization [16]. Symbiosis is established with bacteria that most often belong to the Bradyrhizobium genus, and occasionally to other genera [20], in a unique process leading to the formation of lupinoid nodules [21,22]. Proteoid roots were observed by Engler over 100 years ago and later defined as dense clusters of rootlets of limited growth [23]. Currently, the more general term, cluster roots, proposed by Lamont [24] is recommended. Cluster roots are specialized roots capable of mobilizing nutrients (P, Fe, Zn, Mn) by inducing chemical changes in the rhizosphere [25,26]. Cluster roots appear under conditions of low P and, at least in some species, low Fe [27,28]. They excrete carboxylates (mainly citrate and malate), protons and phenolics, generating changes in pH or redox potential in the rhizosphere that mobilize nutrients [29,30]. Furthermore, cluster roots mobilize P by exuding acid phosphatases [31] and improve P uptake by inducing a high-affinity P transport system [32]. The morphology of cluster roots has evolved towards a maximization of the surface–volume ratio. This increase in root exudation surface enhances nutrient mobilization in the rhizosphere [26,30]. Nodules and cluster roots have major roles in lupin N and P metabolisms, respectively, but there are interactive regulation pathways between both organs that interlink N and P recycling [33].
There are many studies showing how Hg impairs plant development, but not so many specifically addressing the effects of this heavy metal on nodulated nitrogen-fixing legumes or their Hg-accumulation capacity. Retama sphaerocarpa plants growing near Almadén translocate small amounts of Hg to the aerial parts [9]. In Vigna radiata, increasing Hg concentrations in the substrate produced decreases in leaf area, root and shoot length, number and size of nodules and chlorophyll and leghemoglobin contents [34]. L. albus plants in symbiosis with a Hg-sensitive Bradyrhizobium canariense strain exposed to increasing concentrations of Hg in hydroponic culture endured significant declines in aerial biomass, chlorophylls and xanthophylls contents, photosynthetic efficiency, stomatal conductance, nodule number and weight and nitrogenase activity [35]. Furthermore, drastic tissue and cellular alterations were described in both leaves and nodules of these plants that were directly related to the presence of Hg in the substrate [36]. Conversely, when L. albus plants were inoculated with a Hg-tolerant B. canariense strain, none of the above-described Hg-induced damages were observed, and the plants could be considered tolerant to this heavy metal, were able to fix nitrogen and grow normally, and accumulated substantial Hg amounts in their roots and nodules [35,36]. Besides, the L. albus-B. canariense symbiosis has been proven tolerant to different abiotic stresses such as nitrate [37], salt [38], herbicides [16] or heavy metals such as Zn [39], Cd [40] and Cu [41]. In light of these reported features, it seemed reasonable to consider the L. albus-B. canariense symbiotic system a good candidate for the phytoremediation of Hg-contaminated soils. To our knowledge, the possible role of cluster roots in heavy metal phytoremediation has not been investigated.
Phytoremediation is the removal or destruction of contaminants by plants [42]. Plants suitable for phytoremediation of heavy metals should have a fast growth, high biomass and widespread roots, be easily harvested and, naturally, be able to tolerate and accumulate those heavy metals [43]. Plants can achieve phytoremediation through different approaches such as phytostabilization, phytovolatilization, phytoextraction, rhizofiltration or phytodegradation, and all of them have advantages and disadvantages [44]. Rhizoremediation is the removal of heavy metals from the environment by the roots of plants in association with the microorganisms present in the rhizosphere [44], and rhizostabilization is the immobilization of contaminants by absorption, precipitation or complexation, therefore reducing their bioavailability and distribution in the wildlife food chain [45]. Phytosequestration is the ability of plants to sequester contaminants in the root zone, and it is used as a synonym of rhizostabilization or phytostabilization in plant roots. The current definition of a hyperaccumulator is a plant capable of taking up a metal from the soil, translocating it to the aerial parts and concentrating it in the leaves at a concentration larger than that in the soil [46,47,48,49]. Even though more than 700 plant species have been described as hyperaccumulators of heavy metals, very few have proven utility in the phytoremediation of contaminated soils since most of them have a high metal specificity (they only accumulate one metal) and are slow-growing, low biomass-producing species [50,51]. To date, no Hg hyperaccumulator species have been identified, although considerable progress has been made in identifying plant species that can grow on Hg-contaminated soil [52]. Thus, Hg rhizostabilization/phytosequestration might represent more feasible phytoremediation strategies to reduce environmental and health risks associated to the presence of Hg in soils.
The aims of this study were to analyze the ability of L. albus cvs. N1 and G1 plants in symbiosis with Hg- tolerant B. canariense rhizobia to grow in Hg-contaminated soils and hydroponic conditions, to assess their capacity to accumulate Hg in their underground organs (root, nodules and cluster roots) and to evaluate their phytosequestration potential.

2. Materials and Methods

2.1. Soils

Two soils were collected to carry out this study from the Almadén Mining District, located in South-Central Spain (Ciudad Real). One of them was collected in Almadenejos (AH), a heavily Hg-contaminated site where the furnaces used to extract Hg from cinnabar ore used to be located (UTM 30N: N351189; E4289382), and the second one (LC) was obtained from the Las Cuevas mine (UTM 30N: N347016; E4298281). The soils were cleaned, sieved and stored until use. Soil pH, organic matter content and elemental analysis (except for Hg) were performed at the Soil, Plant and Water Analysis service at the ICA-CSIC in Madrid, Spain. Samples were digested in nitric/perchloric acid, cooled, resuspended, filtered and analyzed by inductively coupled plasma-atomic emission spectrometry with a Perkin Elmer Optima 4300 DV spectrometer (Waltham, MA, USA). Soil Hg content was analyzed at the Heavy Metals Biogeochemistry Laboratory of the School of Mining and Industrial Engineering of Almadén (Ciudad Real, Spain). Samples were stove-dried, sieved, mortar-ground and analyzed by high-frequency modulation atomic absorption spectrometry with Zeeman effect (ZAAS-HFM), using a Lumex RA-915+ device with a pyrolysis attachment (Mission, BC, Canada). Soil analyses are shown in Table 1. For the experiments, both soils were mixed in equal parts with vermiculite to avoid compaction.

2.2. Plant Material, Inoculation and Growth in Hg-Contaminated Soils

White lupin cultivars (Lupinus albus L. cv. G1 and cv. N1) were selected after lupin germplasm screening identified them as Hg-tolerant. The screening method used the relative root growth at the seedling stage as an indicator of heavy metal tolerance, and was adapted for lupin seedlings from a previously described system used in the identification of Hg- and Cd-tolerant Medicago truncatula cultivars [53,54]. Seeds were surface sterilized by submersion in 1% HgCl2 for 5 min and then washed thoroughly with sterile distilled water. Forty-eight 1 L plastic containers were filled with Almadenejos soil-vermiculite mix and 48 containers with Las Cuevas soil mix. Each group of 48 pots was divided into two groups of 24 in which seeds (one per pot) of cultivars G1 or N1 were sown.
One half of the seeds were inoculated with Bradyrhizobium canariense Hg-tolerant strain L-7AH, isolated from Almadenejos (Ciudad Real, Spain) and previously characterized [55]. Each seed was inoculated twice, once at the time of sowing and again one week later, with 1 mL of B. canariense cell suspension in exponential growth phase (OD600 = 0.8). The remaining half of the seeds were not inoculated in order to check for nodulation by native soil rhizobia, and to assess the effects of inoculation. Plants were grown in an open-air shade for six weeks without any environmental control, so that growing conditions were as similar as possible to those in the field. All plants were watered three times a week with sterile distilled H2O and rotated periodically to avoid any location-induced effects. This assay was carried out twice between March and June in Madrid (Spain) with similar results. Data presented herein are from the experiment completed between May and June 2019.

2.3. Cluster Root Promotion Conditions

White lupin seeds (L. albus L. cv. G1) were surface sterilized. Forty 1 L plastic containers were filled with vermiculite and seeds were sown. Each seed was inoculated twice with B. canariense L-7AH, as described above. The plants were grown in a growth chamber under a 14 h light (23 °C)/10 h dark (20 °C) photoperiod for six weeks. Relative humidity was maintained between 50 and 80%, and the light (provided by a combination of LEDs and incandescent lights) had a photon flux density around 500 μmol m−2 s−1 PAR. The plants were watered three times a week with a nitrogen-free nutrient solution modified from [56], containing (or not) 50 μM HgCl2. The modification consisted of removing any trace of P from the nutrient solution during the first three weeks of growth to induce the formation of cluster roots. During the three subsequent weeks, P was added to the nutrient solution at two different concentrations: 0.5 mM (standard concentration) [56] and 0.05 mM. This experiment was repeated three times.

2.4. Chlorophyll Content and Stomatal Conductance

Chlorophyll content and stomatal conductance were measured at the end of the sixth week in the youngest fully expanded leaves of all plants using non-invasive techniques. Total chlorophylls were measured using a portable chlorophyll content meter from Opti-Sciences Inc. (Model CCM-200 plus) (Hudson, NH, USA). Stomatal conductance was measured using a portable steady-state porometer from Decagon Devices Inc. (Model SC-1) (Pullman, WA, USA).

2.5. Sample Collection

Plants were harvested and aerial parts and roots were separated. Aerial parts were weighed, frozen in liquid N2 and stored at −80 °C for later analyses. Prior to freezing, the youngest fully expanded leaves were collected to measure leaf area (two leaves per plant). Intact roots were used to measure nitrogenase activity. Later, roots were washed with tap water, brushed with a paintbrush (to remove all soil and vermiculite) and rinsed thoroughly with deionized water. Nodules and cluster roots were separated, counted, weighed, frozen in liquid N2 and stored at −80 °C. The remaining roots were frozen in liquid N2 and stored at −80 °C for later analyses. Two or three plants per treatment were left to grow until pods and seeds could be collected for Hg content analysis.

2.6. Leaf Area

Two leaves per plant, i.e., 20 leaves per treatment, were scanned using an Epson Perfection V350 Photo scanner (Suwa, Japan). Images were processed using the ImageJ v.1.53 software (NIH, Bethesda, MD, USA) to obtain leaf areas.

2.7. Nitrogenase Activity

Nitrogenase was measured using the acetylene reduction assay [56]. Gas samples were collected and analyzed using a Perkin Elmer 8310 gas chromatograph (Norwalk, CT, USA) equipped with a Porapak R column and using N as carrier gas with a 50 mL min−1 flow.

2.8. Mercury Content

Nodules, roots and cluster roots were washed thoroughly with tap and distilled water, sweeping with a paintbrush. After rinsing, they were oven dried at 60 °C for 48 h. Hg content in plant tissues was determined by the Soil, Plant and Water Analysis service at the ICA-CSIC in Madrid using a Perkin Elmer AAnalyst 100 atomic absorption spectrometer (Waltham, MA, USA). Samples from leaves, nodules, roots, cluster roots and seeds were collected.

2.9. Statistical Analyses

Data were analyzed with the SPSS v27.0 software package (SPSS Inc., Chicago, IL, USA). For the experiments with Almadén soils, three-factor analysis of variance (p ≤ 0.05) was used to analyze the effect of fixed factors (soil, inoculation and cultivar) and their interactions on each measured variable. For the vermiculite experiments, two-factor analysis of variance (p ≤ 0.05) was used to analyze the effect of fixed factors (P concentration and presence/absence of Hg) and their interactions on each variable were measured. Significant differences among treatments were separated by the least significant difference test or the Tukey B test (p ≤ 0.05).

3. Results

3.1. White Lupin Plants Grew Normally in Hg-Contaminated Soils and Were Efficient in Nitrogen Fixation

A noticeable difference between both soils in this study was their pH, which was close to neutral in Almadenejos (AH) and quite acidic in Las Cuevas (LC) (Table 1). This might have important implications in terms of solubility of nutrients, as well as contaminants. Both soils were very rich in organic matter and had similar C and N contents. Both were quite poor in P and rich in Fe. AH soil presented an extremely high Hg contamination level, which was about 10 times lower in the LC soil, but still quite high. Most of the Hg was in the form of cinnabar and was, therefore, not bioavailable to plants. The difference in bioavailable Hg between the two soils was not so large (×3.3), probably because the acidic pH of the LC soil contributed to increase Hg bioavailability. For the rest of the analyzed elements (Ca, Mg, Na, K, Mn, Zn, Al, Cu, Ni and Pb), no significant differences were found between both soils and, furthermore, the values were well below the contamination level (data not shown).

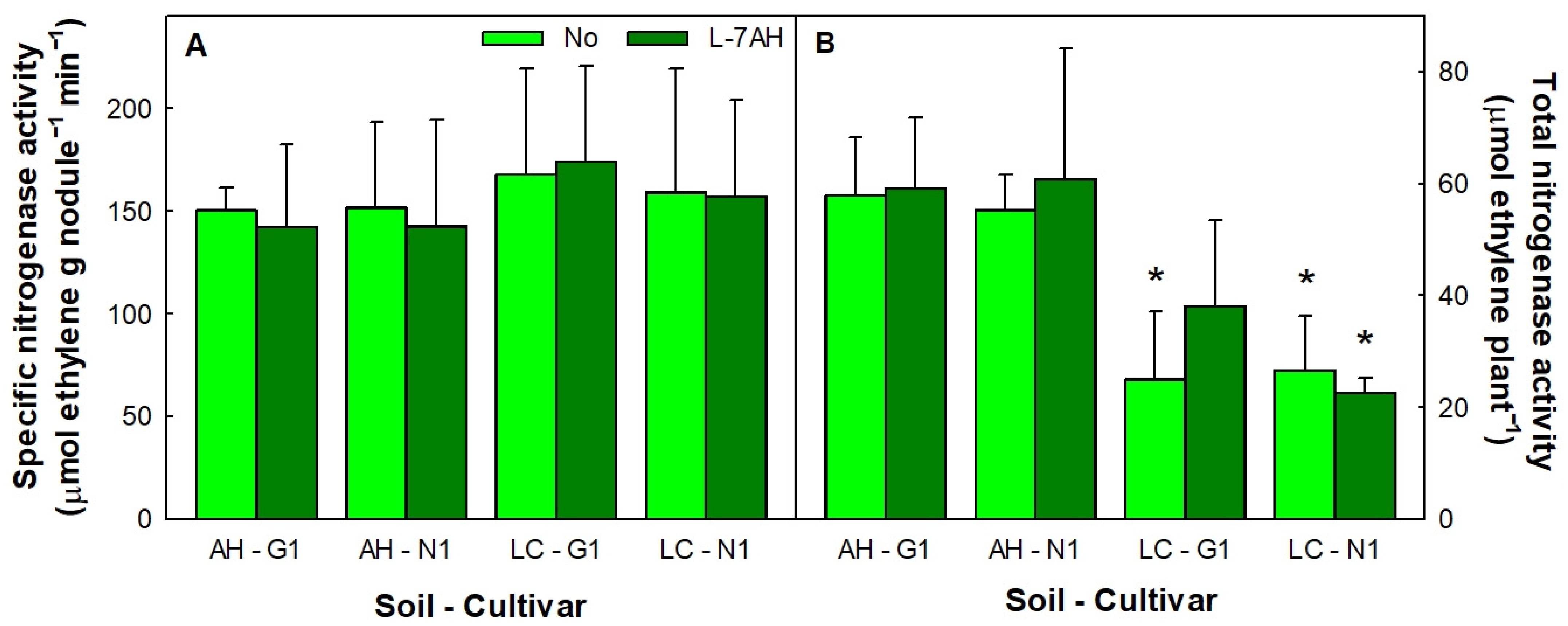

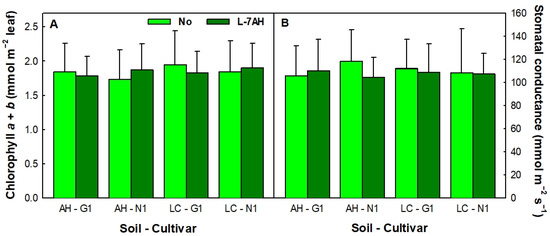

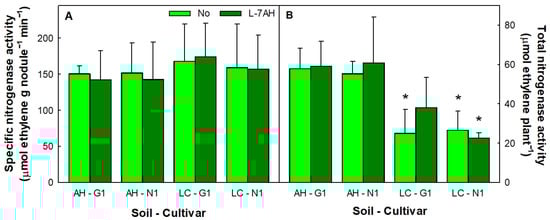

Lupinus albus G1 and N1 plants, inoculated with B. canariense L-7AH or non-inoculated, and grown in a shade for 6 weeks in either soil presented essentially the same phenotype [57]. There were no significant differences in aerial part fresh weight or leaf area between both cultivars, grown in either soil, inoculated or not [57]. Furthermore, when additional parameters such as chlorophyll content or stomatal conductance were measured, no significant differences were found (Table S1, Figure 1).
We have previously shown that both soils, AH and LC, contained native rhizobia able to nodulate L. albus G1 and N1 plants, and that plants inoculated with B. canariense L-7AH or non-inoculated presented significant differences in nodulation depending on the soil origin. Namely, plants grown in AH soil had 40–50 nodules (0.38–0.55 g), while those grown in LC soil had around 20 nodules (0.15–0.25 g) per plant [57]. In the present work, no significant differences in specific nitrogenase activity (activity per gram of nodule) existed between nodules of L. albus cv. G1 or N1 plants inoculated with B. canariense L-7AH or non-inoculated and grown in AH or LC soils (Table S1, Figure 2A). The specific nitrogenase activity values obtained here were in the same range of those observed for L. albus plants inoculated with B. canariense L-7AH and grown in hydroponic conditions in the absence of Hg [35]. Nodule weight of plants grown in AH soil practically doubled that of plants grown in the LC soil [57]. Soil had an effect on the nitrogenase activity per plant (Table S1), which was approximately twice as high in plants grown in AH soil (Figure 2B).

3.2. Cluster Root Occurrence Was High in Plants Grown in Hg-Contaminated AH and LC Soils

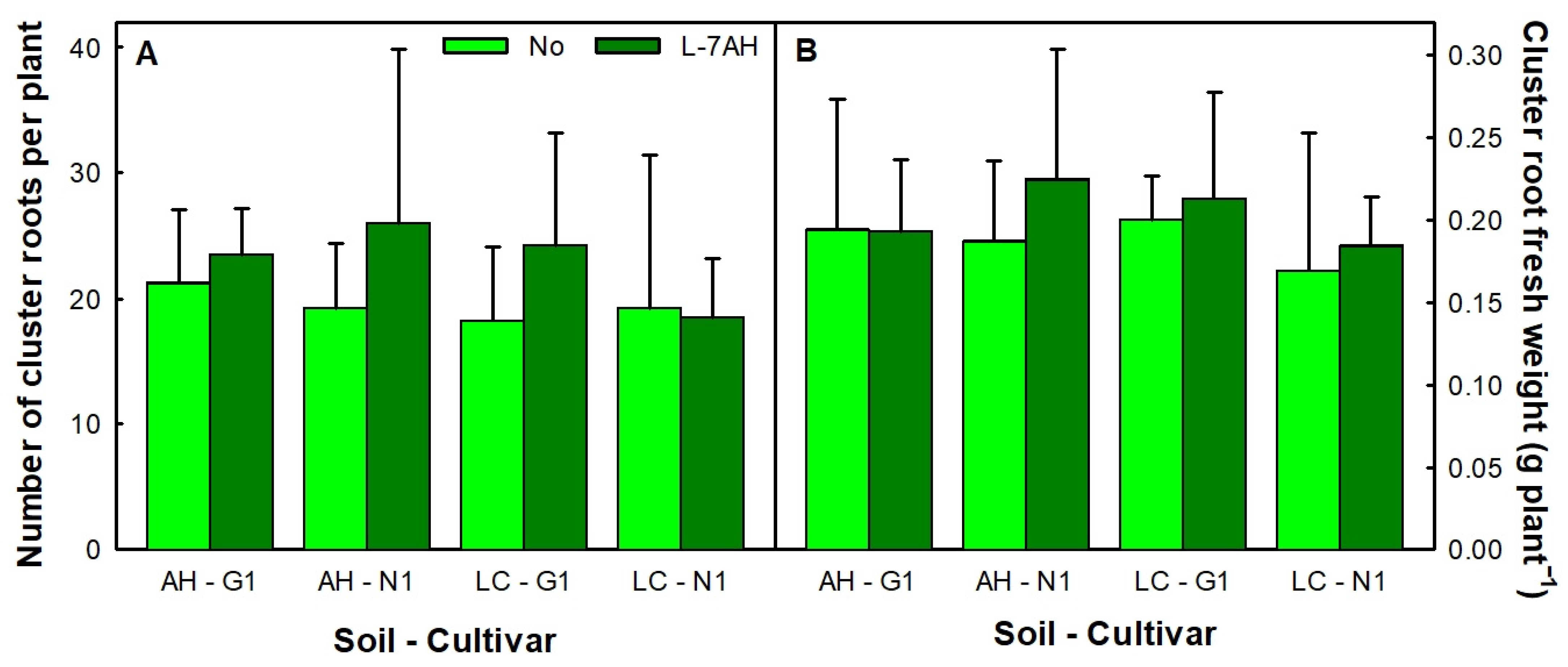

When plants were collected, the presence of abundant root clusters in all plants could be observed. These cluster roots developed mostly in the secondary roots and were a darker shade of brown than the rest of the roots (Figure 3). The cluster roots were counted and weighed and the results are presented in Figure 4A,B. No significant differences were found in cluster root number between N1 and G1 plants, inoculated or not, grown in either soil (Table S1, Figure 4). Total root fresh weights showed a very large variability between plants; there were no significant differences between soils or cultivars and average whole root weights ranged from 6.75 to 7.85 g. Most plants averaged 20–25 cluster roots with a minimum of 11 and a maximum of 41, but large differences between plants accounted for large standard deviations. It should be noted that when L. albus plants were inoculated with B. canariense L-7AH and grown in hydroponic conditions and watered with a standard nutrient solution, rich in P, no cluster roots were formed (in rare occasions, one or two cluster roots could be observed in one isolated plant).

3.3. White Lupin Plants Grown in Hg-Contaminated Soils Accumulated Elevated Amounts of Hg in Nodules, Roots and Cluster Roots

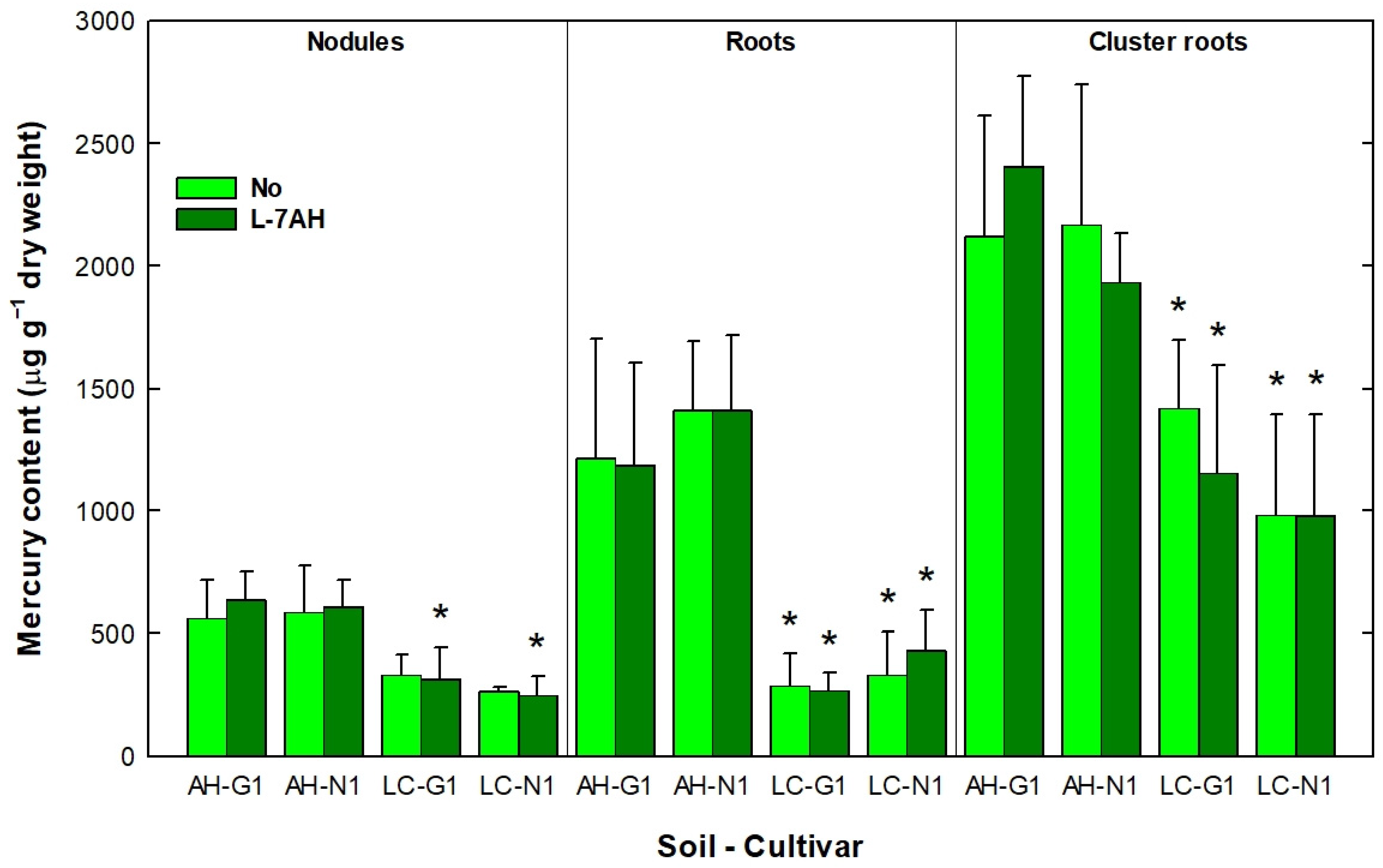

Samples of leaves, nodules, roots, cluster roots and seeds were collected to determine their Hg content. No Hg could be detected in any leaves and seeds samples (detection limit 1 ng g−1). Conversely, nodules, roots and cluster roots accumulated large amounts of this heavy metal, and soil appeared to have a significant effect on Hg accumulation (Table S1, Figure 5).
Nodules from plants grown in AH soil accumulated around 600 μg Hg g−1 dry weight (DW) while plants grown in LC soil accumulated around 250–300 μg Hg g−1 DW, independently of cultivar or inoculation. Differences between soils were only statistically significant for nodules of plants inoculated with B. canariense L-7AH. Hg accumulation in roots was significantly higher in plants grown in AH soil (1200–1400 μg Hg g−1 DW) than in plants grown in LC soil (250–450 μg Hg g−1 DW), for both cultivars and inoculation treatments. Cluster roots accumulated the largest amounts of Hg. Cluster roots of plants grown in AH soil accumulated 1850–2550 μg Hg g−1 DW, while cluster roots from plants grown in LC soil showed values between 800 and 1400 μg Hg g−1 DW. The differences between soils were statistically significant for both cultivars (Figure 5).
According to these results, translocation factors, [Hg]leaves/[Hg]roots, for plants from all treatments were zero. On the other hand, bioaccumulation factors or BAFs, [Hg]tissue/bioavailable [Hg]soil [58], were quite high for nodules, roots and cluster roots (Table 2).
Inoculation did not have an effect on Hg accumulation (Table S1) and thus, BAFs were calculated for plants of the same cultivar (inoculated plus non-inoculated) and grown in the same soil. Since soils were mixed 1:1 with vermiculite (to avoid compaction), the bioavailable Hg concentration values utilized to calculate BAFs were 1.345 μg g−1 for AH soil and 0.41 μg g−1 for LC soil. The bioavailable Hg concentration in LC soil was much lower than that in AH soil, which led to higher BAF values for nodules and cluster roots. BAFs for roots were higher in AH soil, due to the high Hg accumulation values recorded for roots in this soil. Cluster roots presented the highest BAF values in both soils. Only nodules and cluster roots (from both cultivars) of plants grown in LC soil showed statistically significant higher BAF values than those calculated for plants grown in AH soil.

3.4. White Lupin Plants Grown Hydroponically under Cluster Root Promoting Conditions Accumulate High Amounts of Hg in Nodules, Roots and Cluster Roots

In a previous work, we reported that L. albus plants inoculated with B. canariense L-7AH and exposed to Hg under hydroponic conditions were capable of accumulating up to 350–400 μg Hg g−1 DW in their roots and nodules [35]. Most plants did not develop cluster roots (occasionally, one or two cluster roots could be seen in an isolated plant) but as is common in hydroponic conditions, in rare occasions, one or two cluster roots could be observed in very few plants. We decided to study the effect of the presence of cluster roots on the Hg accumulation capacity of L. albus plants in symbiosis with B. canariense. The induction of cluster root formation in the L. albus-B. canariense system was achieved by depriving the plants of P during the first three weeks of development. Later, the plants were nurtured with two different P concentrations in the nutrient solution, that is, 0.05 mM (low) and 0.5 mM (standard). This strategy led to the formation of cluster roots in all plants (Figure 6A,B). There were no significant differences in the number of cluster roots per plant between any of the different treatments (Table S2, Figure 6A,B). The different P concentrations applied after the third week did not seem to have any effect on the number or weight of cluster roots per plant. The presence of Hg in the nutrient solution did not affect the number of cluster roots but caused a significant decrease in weight (measured as total weight per plant) (Figure 6B). Total root fresh weights were highly variable between plants, ranging from 8.0 to 9.8 g per plant. No significant differences between treatments were observed. Nodules, roots and cluster roots looked normal and similar to previously published pictures in different works, only darker in color when grown in the presence of Hg.

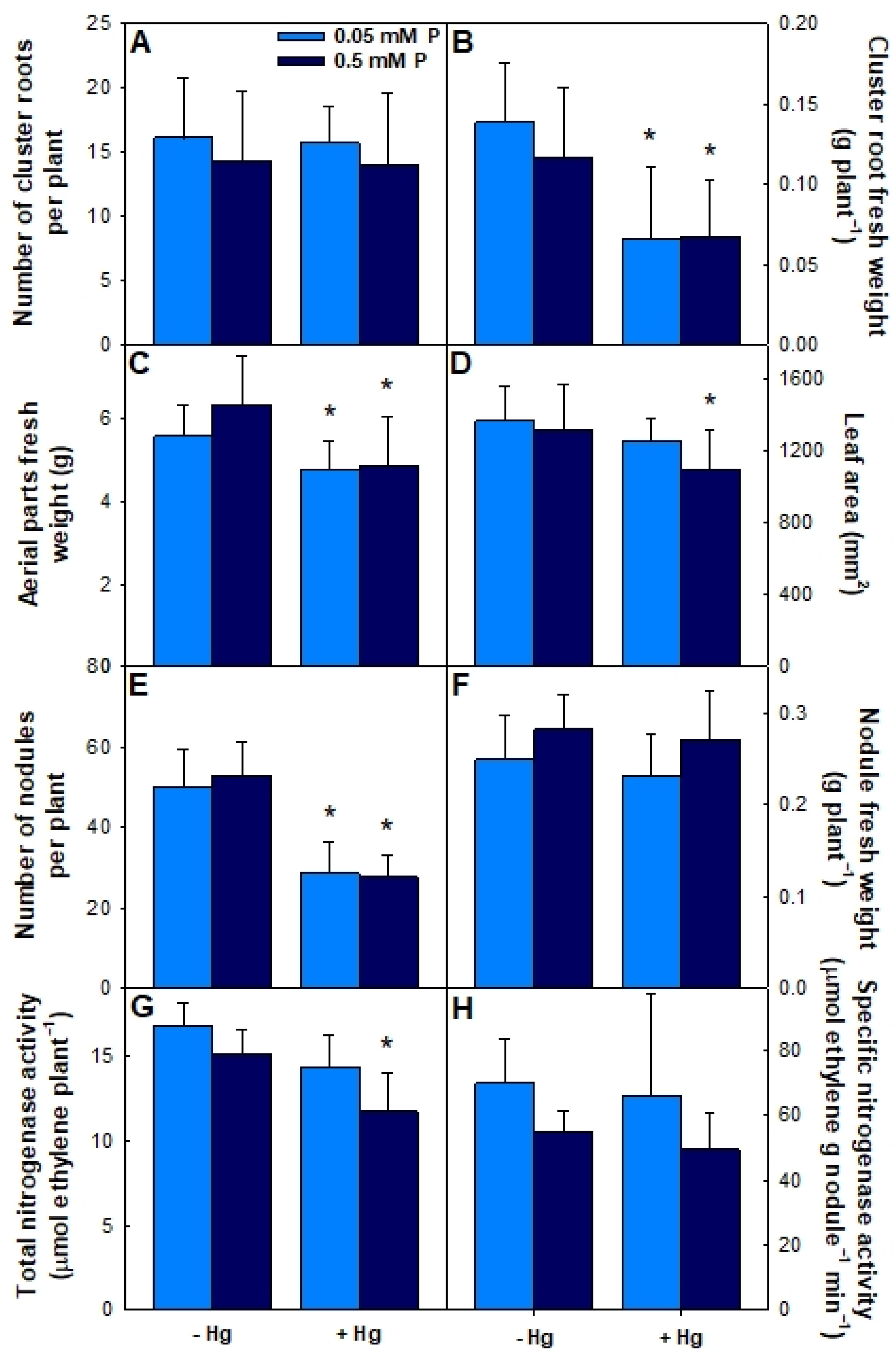

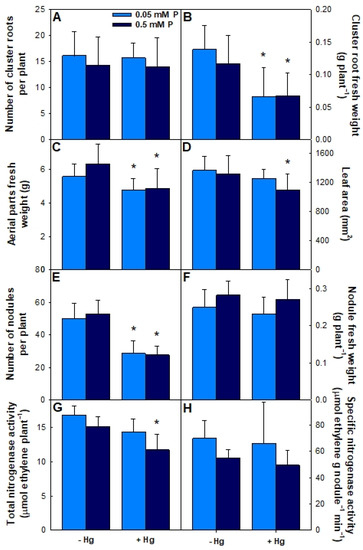

The effect of growth under cluster root-promoting conditions on plant development parameters and nitrogen fixation was evaluated. Growth in the presence or absence of Hg had a significant effect on the plants’ phenotypes. After 6 weeks, all plants presented similar size, their leaves had the characteristic dark green color, and they were starting to flower. However, both the aerial biomass and leaf area of plants grown with 0.5 mM P significantly decreased (Figure 6C,D). Total chlorophyll content and stomatal conductance were also measured, but no differences were found between treatments (data not shown). The number of nodules per plant decreased significantly in the presence of Hg (Figure 6E). However, Hg did not have an effect on the total weight of nodules per plant (Figure 6F), therefore nodules from plants grown in the presence of Hg were larger.
The healthy phenotype of the plants suggested that all of them could carry out N2 fixation independently of the treatment received. Total nitrogenase activity per plant decreased in the presence of Hg, but the decrease was significant for cultivar N1 only (Figure 6G). No significant differences in specific nitrogenase activity between treatments were detected (Figure 6H).

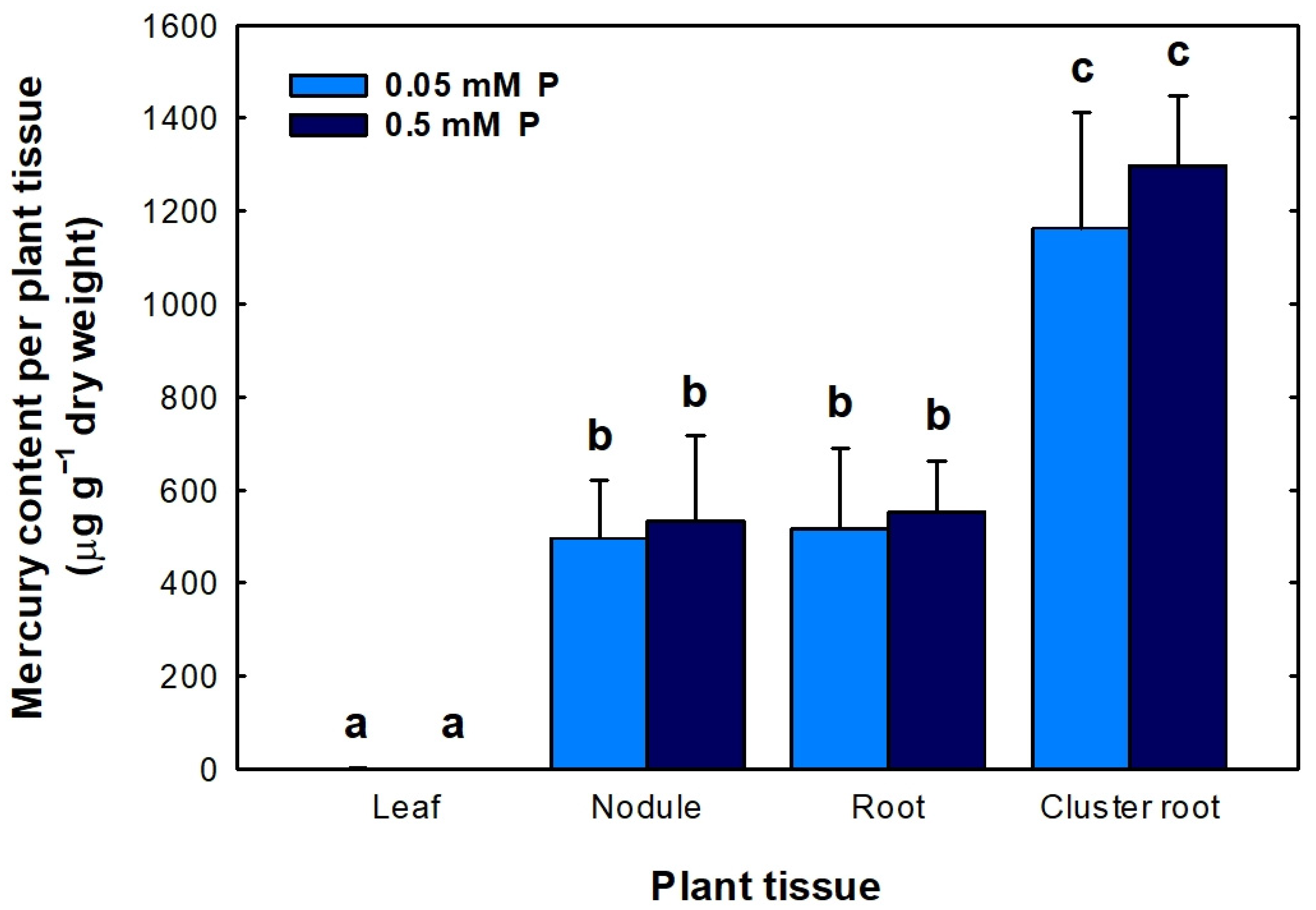

The ultimate purpose of this experiment was to determine whether plants grown hydroponically under cluster root-promoting conditions were capable of accumulating similarly large amounts of Hg in their nodules, roots and cluster roots, compared with plants grown in Hg-polluted soils. L. albus G1 plants inoculated with B. canariense L-7AH and watered with a nutrient solution containing 50 μM HgCl2 accumulated large Hg amounts in their underground organs but not in their leaves (Figure 7). Nodules and roots accumulated considerably similar amounts of Hg (in the range of 500–550 μg Hg g−1 DW) independently of the P concentration supplied to the plants. Cluster roots accumulated the largest amounts of Hg. The values ranged from 1150 to 1300 μg Hg g−1 DW. There were no significant differences between P treatments. Hg accumulation was significantly higher in cluster roots than in roots or nodules (Figure 7). In summary, plants accumulated large concentrations of Hg in nodules, roots and cluster roots, although not as large as plants grown in Almadén Hg-contaminated soils (Figure 5).
Bioaccumulation factors were similar for nodules and roots and significantly higher for cluster roots (Table 3). The P concentration in the nutrient solution had no significant effect on BAFs. Interestingly, these values were much lower than the ones obtained for plants grown in Hg-contaminated soils (Table 2). The bioavailable Hg in the substrate was 0.40 μg g−1after 5 days, 1.35 μg g−1after 15 days and 3.76 μg g−1 at the end of the experiment, which is higher than the values for bioavailable Hg in AH and LC soils. However, Hg adsorption by vermiculite has been reported [59], which could lead to lower Hg bioavailability and explain why plants grown in vermiculite accumulated less Hg than plants grown in contaminated Almadén soils, and presented lower BAFs.

4. Discussion

Lupinus albus cv. G1 plants cultivated hydroponically in symbiosis with Hg-resistant Bradyrhizobium canariense L-7AH can tolerate large Hg doses and grow normally, and accumulate significant Hg amounts in their roots and nodules [35,36]. Moreover, L. albus cv. Marta plants have also been shown to endure growth in Hg-contaminated substrates [13,60]. The purpose of the present study was to evaluate L. albus cv. G1 and N1 growth in Hg-contaminated soils from the Almadén Mining District (Ciudad Real, Spain), and assess their phytoremediation potential. Two soils from the area were selected. The soil from Almadenejos (AH) contained 21,845 μg g−1 Hg (Table 1), among the highest concentrations ever reported. Previous studies showed a mean Hg concentration in the soils of Almadenejos of 4220 μg g−1 with a maximum of 15,900 μg g−1, making it one of the most contaminated sites in the world [61]. Most Hg was in the form of cinnabar, and only 0.01% (2.69 μg g−1) was bioavailable, probably due to the pH of the soil, which was very close to neutrality. The second soil (LC) collected from Las Cuevas contained less Hg (2622 μg g−1), but due to the acidic pH of this soil, bioavailable Hg was comparatively higher (0.82 μg g−1). L. albus plants inoculated with B. canariense L-7AH, or non-inoculated, were able to grow normally in both soils. All plants exhibited similar sizes, leaf color and area, chlorophyll content, stomatal conductance and nitrogenase activity. The fact that non-inoculated plants were able to develop nodules and fix nitrogen proved that both soils contained native functional Hg-tolerant rhizobia capable of establishing efficient symbiosis with L. albus. In fact, B. canariense L-7AH was isolated from Almadenejos soil [55].
The emergence of numerous cluster roots in plants grown in both Hg-contaminated soils was most likely related to their low P content, and in accordance with previous knowledge [27,30]. Iron deficiency might also trigger the formation of cluster roots [28]. However, our analyses revealed that both soils were quite rich in bioavailable Fe, and therefore, this possibility may be discarded. L. albus cluster roots are well known to excrete large amounts of organic acid anions, mainly citrate and malate. Up to 9 mM citrate has been measured in the rhizosphere of this species [62]. The release of organic acid anions leads to soil acidification and mobilization of P and other nutrients, but also toxic heavy metals [30,63]. Organic acid anions also increase dissolved organic matter originated from soil organic matter [64]. Soil organic matter significantly limits the bioavailability of Hg [65]. However, Hg binding to organic matter declines when the pH decreases since protons compete with the heavy metal for reduced sulfur sites [66]. Most likely, L. albus plants grown in Hg-contaminated soils from Almadenejos and Las Cuevas were able to mobilize certain amounts of Hg. It has also been shown that dissolved organic matter leads to the release of Hg from cinnabar (HgS), increasing its bioavailability [67].
To test whether cluster roots played a role in Hg uptake and accumulation by lupin plants, a strategy was devised to promote the development of cluster roots in L. albus cv. G1 plants inoculated with Hg-resistant B. canariense strain L-7AH. The approach was successful and all plants developed cluster roots, although the weight of cluster roots was lower when plants were grown in the presence of Hg. Plants were healthy and flowering after six weeks of growth in the presence or absence of Hg, and comparable to plants that were not deprived of P [35], thus suggesting that the cluster roots-promoting conditions used were not detrimental for plant development.
L. albus cv. G1 and cv. N1 plants in symbiosis with B. canariense L-7AH were able to accumulate large amounts of Hg in nodules, roots and cluster roots both when grown in Hg-contaminated soils and when grown in vermiculite in the presence of HgCl2. Under both growth conditions, plants were unable to translocate the heavy metal to their aerial parts and Hg was absent from leaves and seeds. L. albus cv. Marta plants have been reported to translocate very small amounts of Hg to the aerial parts [13,60]. A very small Hg accumulation was observed in the leaves of L. albus cv. G1 plants inoculated with B. canariense L-7AH when grown in vermiculite in the presence of different concentrations of Hg under growth conditions that did not induce the formation of cluster roots [35]. Lupin cluster roots might be responsible for Hg phytostabilization in such a manner that translocation to the aerial parts of the plant is blocked.
Nodules of plants grown in the highly Hg-contaminated AH soil or in vermiculite accumulated similar amounts of the heavy metal, while nodules of plants grown in LC soil accumulated less Hg. The latter presented a significantly lower number of nodules [57], which suggested that some soil properties might partially inhibit root nodulation. It has been long known that acidic soil pH negatively affects nodulation in many legumes [68,69,70], so the low pH (5.09) of the LC soil might be responsible for the above-mentioned decrease in nodulation.
Hg accumulation in the roots of plants grown in AH soil was significantly higher than Hg accumulation in the roots of plants grown in LC soil or than that in roots of plants grown in vermiculite. These differences match the differences in bioavailable Hg concentration between the two soils and the Hg concentration used for the hydroponic experiments, which was designed to be somewhere in the middle. Hg accumulation in cluster roots of plants grown in vermiculite under cluster root-promoting conditions was higher than in roots and nodules. Interestingly, Hg contents in nodules and roots was only slightly higher than that previously reported [35] for plants with no cluster roots. This seems to suggest that the Hg accumulated in cluster roots might not be transferred to other belowground organs.
The accumulation of Hg in the cluster roots of plants grown in AH soil was extraordinarily high, while in cluster roots from plants grown in LC soil or vermiculite the values were somewhat lower. Hg concentrations in roots and nodules are much higher than those previously published for roots of L. albus cv. Marta [13,60,71], eggplant [72], lavender [73], barley [74], rice [75], mung bean [34], olive tree [76] or many other plant species ([52] and references therein). Some ferns have been reported to accumulate very high Hg concentration in roots, and Nephrolepis exaltata has been proposed as a potential Hg rhizostabilizer [77]. Plants from different species have been shown to accumulate Hg in different tissues, but the uptake mechanism by roots is unknown. No precise membrane transporters involved in root Hg2+ uptake have been identified to date. Because of the similarities between Cd and Hg, it is possible that specific transmembrane Cd transporters [78] might be used for Hg entrance [52]. The bioaccumulation of Hg in the aquatic plant Elodea nuttallii has been analyzed, concluding that copper transporters might be involved in the process [79]. Numerous metal transporter homologues have been identified in white lupin roots [80]. Whether Cu or Cd transporters might play a similar role in the uptake of Hg by L. albus remains to be proven, but if this were the case, cluster roots, because of their very large surface, would likely play a significant role in increasing the uptake and concentration of Hg.
In bacteria, several Hg transporters have been characterized [81]. Transformation of Arabidopsis thaliana plants with the MerC Hg transporter resulted in enhanced Hg accumulation [82], but did not provide clues as to how plants take this heavy metal up. Recently, we reported that rhizobia can effectively detoxify Hg by reducing Hg2+ to Hg0. However, in the case of B. canariense, additional mechanisms that might involve Hg immobilization appear to be involved [83].
The mechanisms to sequester Hg in L. albus belowground organs have not yet been elucidated. However, hypotheses can be formulated based on different evidence. White lupin cluster roots are rich in malate and succinate that are secreted to the rhizosphere. These organic acids can also chelate heavy metals inside the root cell, and such chelates are primarily located in the vacuole. This has been reported to occur in several hyperaccumulators such as Thlaspi caerulescens and Arabidopsis halleri [84,85]. The presence of Se in the soil might lead to the formation of HgSe insoluble complexes in the rhizosphere and/or the roots that immobilize Hg and inhibit both uptake and translocation [86,87]. Thiols and phenolics concentrations have been reported to increase in L. albus cv. Marta when grown in the presence of Hg [88]. Exposure to Hg induces production of cysteine (Cys) and glutathione (GSH) in different plants, including the metallophyte Sylene vulgaris [89]. Phytochelatins (PCs) are Cys-rich peptides assembled from GSH units, and they form covalent bonds with Hg2+. Complexation of Hg with PCs has been reported to be important for plant Hg tolerance [90]. Hg2+ can also be ligated to sulfur-rich structural proteins in the cell wall, such as extensins and expansins [91]. Conglutin gamma, an oligomeric glycoprotein that is abundant in L. albus seeds and seedling roots, is capable of aggregating and precipitating Hg [92], but its presence in adult roots or cluster roots has not been reported to date.

5. Conclusions

Phytostabilization aims to contain contaminants within the vadose zone of soils through immobilization in the soil or in the root system [93], thus preventing contaminants from migration to other sites due to erosion (wind and water), leaching or dispersion. An important advantage of phytosequestration by roots, or rhizosequestration, is that it does not generate a contaminated secondary waste that needs further treatment as phytoextraction does, favors ecosystem development and enhances biodiversity [93]. Furthermore, accumulation and immobilization of toxic elements in the roots of agricultural plants does not hinder the use of the aerial parts (stems, leaves, fruits, seeds) for food or feed. Our results indicate that L. albus plants in symbiosis with B. canariense accumulate extremely large amounts of Hg in their nodules, roots and particularly in cluster roots without translocation to the aerial part. They efficiently remove Hg from the soils and immobilize the metal in their underground tissues, thus reducing its bioavailability and dispersal. This trait, together with the plant’s ability to establish symbiosis with soil rhizobia and fix atmospheric N2, its Fe mobilizing capacity and its adaptability to P deprived soils, make white lupin a suitable candidate for revegetation of Hg-contaminated soils. The extreme bioaccumulation factors of L. albus plants in nodules, roots and especially in cluster roots suggest that it may constitute a useful system to investigate the mechanisms of Hg uptake and immobilization in plant roots, and a powerful phytoremediation tool with promising potential in Hg-contaminated soils.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/horticulturae7090302/s1, Table S1: Effect of the fixed factors soil, cultivar and inoculation, and their interactions on the different parameters, analyzed by factorial ANOVA (p ≤ 0.05). Asterisks (*) denote significant effects. Table S2: Effect of the fixed factors Hg treatment and P concentration, and their interactions on the different parameters analyzed by factorial ANOVA (p ≤ 0.05). Asterisks (*) denote significant effects.

Author Contributions

Conceptualization, M.A.Q., M.F.-P., M.M.L. and J.J.P.; methodology, M.A.Q. and S.F.; validation, M.A.Q. and S.F.; formal analysis, M.A.Q. and J.J.P.; investigation, M.A.Q. and S.F.; resources, M.A.Q., M.M.L. and J.J.P.; writing—original draft preparation, M.A.Q.; writing—review and editing, M.A.Q., M.M.L. and J.J.P.; visualization, M.A.Q. and J.J.P.; supervision, M.A.Q. and J.J.P.; project administration, M.A.Q.; funding acquisition, M.M.L. and J.J.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Agencia Estatal de Investigación, AEI, Spain, grant number AGL2017-88381-R, and by Agencia Estatal Consejo Superior de Investigaciones Científicas, CSIC, grant number 2016SU0005.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are available from the authors upon reasonable request.

Acknowledgments

The authors thank Miguel A. López-Berdonces, José M. Esbrí and Pablo L. Higueras from the Heavy Metals Biogeochemistry Laboratory of the School of Mining and Industrial Engineering of Almadén for their help with the soil collection and analyses. We also thank CICYTEX (Centro de Investigaciones Científicas y Tecnológicas de Extremadura), Finca La Orden–Valdesequera (Badajoz, Spain) for their generous gift of the seeds used in this work.

Conflicts of Interest

The authors declare no conflict of interest.
