Continuous Plant-Based and Remote Sensing for Determination of Fruit Tree Water Status

Abstract

Climate change poses significant challenges to agricultural productivity, making the efficient management of water resources essential for sustainable crop production. The assessment of plant water status is crucial for understanding plant physiological responses to water stress and optimizing water management practices in agriculture. Proximal and remote sensing techniques have emerged as powerful tools for the non-destructive, efficient, and spatially extensive monitoring of plant water status. This review aims to examine the recent advancements in proximal and remote sensing methodologies utilized for assessing the water status, consumption, and irrigation needs of fruit tree crops. Several proximal sensing tools have proved useful in the continuous estimation of tree water status but have strong limitations in terms of spatial variability. On the contrary, remote sensing technologies, although less precise in terms of water status estimates, can easily cover from medium to large areas with drone or satellite images. The integration of proximal and remote sensing would definitely improve plant water status assessment, resulting in higher accuracy by integrating temporal and spatial scales. This paper consists of three parts: the first part covers current plant-based proximal sensing tools, the second part covers remote sensing techniques, and the third part includes an update on the on the combined use of the two methodologies.

1. Introduction

The world’s sustainable supply of water resources has become a critically important issue in the context of recent environmental and agricultural challenges. Agriculture, as one of the main water-consuming sectors, plays a crucial role in the responsible management of global water resources [1,2,3,4]. Climate change-induced temperature rises impact water availability through increased evapotranspiration and subsequent alterations in rainfall and river flows, increasing the frequency and intensity of heatwaves and drought events [5,6,7]. Therefore, understanding plant responses to water availability in order to increase their water use efficiency is becoming more and more urgent [8].

For irrigation scheduling, monitoring environmental parameters to calculate crop evapotranspiration (ET_c) has been one of the most widely used methods. It is obtained by considering a reference evapotranspiration (ET₀) and crop coefficients (K_c). The ET_c can easily be estimated following the FAO-56 method described by Allen et al. (1998) [9,10,11]. Nevertheless, different studies have highlighted that this method might overestimate the irrigation needed for the optimal yield and consequently diminish orchard water use efficiency [12,13], because it does not take into account the actual plant water status (PWS). In recent years, soil-based systems have been developed by using soil water potential or volumetric water content principles [14]. This includes the use of precision instruments such as tensiometers [15,16], soil psychrometers [17,18], continuous and real-time sensors [19,20], and remote sensing techniques [21,22] capable of measuring soil moisture.

However, soil-based methods could be significantly influenced by different variables such as the soil texture, and soil moisture level indirectly influences the PWS rather than measuring it directly on the plant [23]. Furthermore, we should point out that the plant is the intermediate component in the soil–plant–atmosphere continuum, and its water status is directly affected by changes in its leaf water content and leaf and stem water potential [10,24,25,26]. For these reasons, recently, the focus has shifted to the direct assessment of PWS.

Traditional systems for the plant-based monitoring of PWS include measurement of the stem (Ψ_stem) and leaf (Ψ_leaf) water potential using Scholander’s pressure chamber. This represents the most common method of measuring plant water potential, used as an accurate indicator of fruit trees’ water status [27,28]. However, assessing water potential using a pressure chamber is an invasive and labor-intensive procedure, requiring a skilled operator to consistently apply and release pressure to the chamber containing the leaf sample, and the operator must meticulously determine the pressure at which water emerges from the leaf petiole [29]. In addition, it could also be influenced by the osmotic component, i.e., a lower water potential may indicate lower hydration or a higher concentration of solutes, thus decreasing the osmotic potential and consequently the water potential [30]. Leaf relative water content (RWC) could also be considered a valid method for estimating PWS [31,32]. RWC quantifies the amount of water within leaf tissues relative to the maximum amount of water the leaf tissues can retain when fully hydrated. In addition, with respect to stem and leaf water potential, it takes into account some physiological phenomena such as osmotic adjustment. This is one of the mechanisms that plants use to maintain cell hydration. Consequently, the RWC remains relatively high even under water stress conditions, inducing improved cellular hydration and enhancing the ability of the plant to survive under severe water stress conditions [9,26,33]. Despite the potential reliability and relative easiness of RWC as a method for assessing PWS, similarly to determining the water potential with a pressure chamber, it is an invasive and very time-consuming method, mainly due to the need to obtain and weigh fully saturated and dry samples [34]. An alternative conventional method to assess plant water status can be the measurement of gas exchange (e.g., stomatal conductance—g_s), since it is well known that stomatal opening and closing depends on PWS, with responses differing from crop to crop [35,36]. Similar to the previous methods, these techniques are also time-consuming and require the use of expensive instruments (e.g., porometer). Other useful approaches for PWS assessment may involve indirect estimation methods such as the leaf turgor [29] and thickness [37], sap flow [38,39], stem [40,41], and fruit diameter [42]. Nonetheless, these measurements require high precision that is only achievable with the use of sensors and other precision technologies.

In recent years, the focus has moved to two new approaches for irrigation management. The first involves the use of large-scale imagery from above using instruments such as drones (UAVs) and satellites (remote sensing). The second involves the use of plant-based ground sensors to obtain more accurate data (proximal sensing) [26]. The main advantage of ground-based sensors is that they may provide continuous and real-time PWS indications, as opposed to traditional methods. The possibility of having real-time estimates of PWS and consumption greatly facilitates the grower’s decision to act at the right time with the right irrigation volume. Having precise information about the timing and volume of irrigation would allow action only when necessary, avoiding waste and thus significantly increasing water use efficiency. Consequently, there would be a positive impact in terms of sustainability from both economic and environmental perspectives.

Last-generation sensors allow accessing data directly from home via cloud, easing the farm workload. These kinds of systems belong to Internet of Things (IoTs) technologies [43]. IoTs technology mainly focuses on providing many small, interconnected devices using WSN (Wireless Sensor Network) technology [44]. With the help of WSN technologies, growers will be able to consult weather conditions, soil conditions, and plant physiological parameters collected from their farm, thus obtaining an efficient decision support system (DSS) [45]. An evaluation issue may arise due to potential small errors introduced by the installation of sensors in sample plants. These errors could be associated with different variables, including the soil texture, soil chemical composition, presence of pathogens, etc. Remote sensing technologies, on the other hand, by providing images of entire plot areas, allow us to have data from different types of optical sensors (RGB, multispectral, thermal, hyperspectral, etc.) to assess spatial variability in terms of the health, nutrient, and water status of trees and soil [46]. The combined use of proximal and remote sensing could provide more complete and precise information on PWS since, with proximal sensors, we have accurate, continuous real-time data concerning individual plants, while data from UAVs or satellites may expand the information throughout the field [47]. In other words, there is a higher level of accuracy because of the possibility of integrating information at the temporal (proximal sensing) and spatial (remote sensing) scales. To do this clearly, appropriate models have to be developed, and exploiting machine learning techniques seems the best way to go [44,48].

On this basis, this review aims to gather state-of-the-art updates covering the use of proximal sensors, remote sensing, and the combined use of both techniques to assess the water status, consumption, and requirements of fruit tree crops. More specifically, we reviewed stem-, leaf-, and fruit-mounted sensors, the use of satellites and UAVs with multispectral, thermal, and hyperspectral sensing devices, and their combined use. In detail, this review provides an extensive overview of various proximal and remote sensors, elucidating their respective advantages, disadvantages, and practical applications. Each sensor type is carefully evaluated, offering insights into their specific capabilities and limitations when employed for assessing water status, consumption, and requirements in fruit tree crops. Following this comprehensive evaluation, this review will conclude by outlining future perspectives. Based on the insights from the analysis, this review will propose hypotheses regarding the development of efficient systems that integrate both proximal and remote sensing techniques. Ultimately, these hypotheses will foster exploration of novel approaches and methodologies for enhancing the assessment of the water status, consumption, and requirements of fruit tree crops.

2. Proximal Sensing

2.1. Leaf-Mounted Sensors

2.1.1. Leaf Patch Clamp Pressure Probe

The force exerted by water toward the cell walls of plant cells is known as leaf turgor pressure. This force is closely dependent on the water status of various parts of the plant, most notably the leaf [49]. When the plant is well-hydrated, the water inside the leaf cells tends to exert adequate pressure toward the walls. Conversely, when the plant begins to dehydrate, the cells will start losing turgor pressure and the leaf will tend to wilt [10,50]. The loss of turgor pressure is directly related to stomatal closure and a decrease in the transpiration rate [51]. Hence, leaf water status can be assessed by measuring the amount and rate of turgor pressure loss at solar noon (when the transpiration rate is highest) and the duration required for its restoration in the afternoon [52].

Early attempts to measure cell turgor include that of Green and Stanton who, in 1967, used, in Nitella axillaris cells, a small capillary fused at the end with the other resembling the tip of a syringe needle. This capillary contained a gas in order to act as a micromanometer [53]. A Nitella internodal cell was inserted into the open end. The ability of the cell to compress the gas within the capillary allows its turgor pressure to be measured directly. The first prototype of a leaf turgor pressure probe was developed by Zimmermann et al. in 1969 [54]. This consisted of a pressure screw connected to a silicon membrane in turn connected to a pressure transducer. This device allowed instantaneous data to be taken or recorded. Although this system was widely used and improved over time [55,56,57], it did not allow continuous, real-time data acquisition. In 2008, Zimmermann et al. developed leaf patch clamp pressure (LPCP) probes (Yara International, Oslo, Sweden), capable of continuous, non-destructive, real-time monitoring of leaf turgor pressure (Figure 1) [29]. The sensor was validated in Tetrastigma vonierianum plants grown in greenhouses [29]. The probe is composed of two metal magnetic pads. One of the pads incorporates a pressure-sensing chip. These magnets are strategically positioned on both the adaxial and abaxial sides of a leaf, ensuring that the pressure chip maintains close contact with the leaf surface. The distance between the magnets above and below the clamped leaf patch can be adjusted by regulating the separation between the two magnets, depending on the thickness and rigidity of the leaf. The sensors are connected by wire to a radio transmitter that sends the output directly to a gateway located in the field. After that, the output is transmitted to a server via a general packet radio service (GPRS) system. The data can be accessed via a cloud platform.

The sensor output (P_p) varies with the distance between the two magnets and is inversely proportional to the turgor pressure (P_c). For example, as the P_c decreases in response to daytime stomatal opening, the P_p gradually increases. Conversely, when stomata close at night, causing an increase in the P_c, the P_p gradually decreases [9,58]. Nevertheless, in olive (Olea europaea L.), it has been observed that, as water stress increases, P_p values tend to drop causing a semi-inversion of the curve under moderate stress situations, and a complete inversion at severe stress conditions [58,59,60,61]. Moreover, the output signal may vary with the tree height [29]. In addition, leaving the probe in the same leaf for too long could cause depigmentation of the sensor area due to a loss of chlorophyll, causing altered measurements as a result [26]. Specifically, data from the electrical output of the sensor were coupled with actual leaf turgor pressure data determined by the method developed by Zimmermann et al. in 1969 (described previously) [54]. A validation process was carried out over a wide range of turgor pressures (0–100 kPa), thus considering a full hydration status of the plant up to severe water stress. In the following years, LPCP sensors have been tested in various horticultural crops, such as in grapevine (Vitis vinifera L.) [62], grapefruit (Citrus x paradisi Macfad.) [62,63], nectarine (Prunus persica L.) [64,65], persimmon (Dyospiros kaki L.) [66,67], clementine (Citrus clementina Tanaka) [66], and olive [58,59,60,61,68,69,70]. In olive, they have been extensively tested with excellent results, indicating great reliability of the sensors for both ecophysiological studies and irrigation scheduling. Sghaier et al. [71] utilized these probes to study the effect of three irrigation levels on the water relations of young ‘Koroneiki’ and ‘Picholine’ olive trees, demonstrating the suitability of the sensors to monitor plant physiological and biological mechanisms [71]. In 2016, Padilla-Díaz et al. established an irrigation plan using such sensors to monitor the PWS in a hedgerow ‘Arbequina’ olive orchard. In detail, the authors found that the relation between the output trend and the tree water stress levels is robust for olive trees of different ages under a wide range of growing conditions [60]. To identify actual water stress thresholds, recent studies have suggested monitoring other plant organs as well by combining the use of LPCP probes with other sensors and instruments. Rodriguez-Dominguez studied the sensitivity of olive leaf turgor to the air vapor pressure deficit (VPD), finding strong relationships. Moreover, the authors normalized their P_p data with the VPD values in order to predict the diurnal max stomatal conductance (g_s,max) measured with an open flow gas exchange system (IRGA Li-6400; LI-COR Biosciences, Lincoln, NE, USA) in olive trees grown in a hedgerow orchard. The sensors were proven to be highly reliable in predicting g_s,max. In nectarine, Scalisi et al. tested the combined use of LPCP probes and fruit gauges, demonstrating the suitability of a dual-organ sensing approach for the improved prediction of tree water status [64]. In 2020, Scalisi also confirmed the effectiveness of these two sensors when used together for detecting plant water stress in two olive cultivars (‘Nocellara del Belice’ and ‘Olivo di Mandanici’). In the same trial, the authors also demonstrated the suitability of the probes to predict stomatal conductance and stem water potential [68].

Barriga et al. have developed a new expert system based on machine learning (ML) techniques together with an IoT infrastructure based on continuous measurements of leaf turgor pressure, providing very important information for irrigation scheduling [72]. The study shows that the ML models and the developed algorithm are valid for sweet orange (Citrus sinensis (L.) Osbeck cv. Navelina), while subsequent studies should test these models on other orange varieties and other citrus species, like lemon or tangerines (Barriga et al., 2022). Another model was proposed by Palomo et al. based on ML techniques to classify olive (Olea europaea L.) trees (cv. Arbequina) into three distinct levels of water stress by analyzing daily data trends [73].

2.1.2. Leaf Water Meter

A recent non-invasive leaf-mounted sensor developed and made commercially available to assess plant water status is the leaf water meter (LWM; Pastella Factory S.R.L.S., Verona, Italy). This optical sensor was developed in 2022 by Brunetti et al. [74] and is based on the photon attenuation during the passage of light at specific wavelengths (about 1450 nm) through the leaf, the signal intensity of which is related to the leaf water content. The LWM is composed of three plastic wires connected to a controller equipped with additional sensors (soil moisture sensor, temperature, relative humidity, and PPFD) and a LoRa module to transmit data via radio frequencies. The main sensor consists of a plastic clamp with a pair of LEDs and photodiodes inside, to be placed in the abaxial and adaxial parts of the leaf, respectively. The two pairs (LEDs and photodiodes) operate at two specific wavelengths, producing an electrical (analog) signal that correlates with the leaf water content. Specifically, one LED is set at 1450 nm (SWIR) and the other at 890 nm (NIR). The first is directly related to water status assessment [75,76], while the second is mainly linked to dry matter [74]. Also, in this case, the data are transmitted (through a LoRa module) to a gateway located in the field that sends the data directly to an internet server. The data are accessible in a cloud. The acquired data express the leaf dehydration level (DL). These need to be normalized by the feature scaling method (min-max normalization) to have comparable data between sensors.

This sensor was first tested by Brunetti et al. in 2022 in woody crops with different morphologies and biological characteristics (Citrus limon L., Olea europaea L., Acer platanoides L., and Arbutus unedo L.). A strong correlation was found between the DL and both the Ψ_stem and, especially, the leaf RWC (R² = 0.73 and R² = 0.84, respectively). The significance of estimating the RWC lies in the ability to bypass leaf osmotic regulation phenomena, providing more accurate data regarding the plant’s actual hydration status [33]. Hence, the results of the first test demonstrated that the LWM can be a reliable and non-destructive alternative sensor for the continuous and real-time assessment of leaf water status in woody crops. Nevertheless, no other study employing the LWM has been conducted to date that confirms the sensor’s reliability. Therefore, its official validation on other economically significant fruit tree species (e.g., apple, pear, peach, grapevine, etc.) under various agro-environmental conditions is still pending.

2.1.3. Leaf Thickness Sensors

The relationship between leaf thickness and plant water status has been known for a long time. Basically, changes in leaf thickness are the result of water exchanges between the plant or the atmosphere and the leaf [77]. The leaf thickness undergoes changes not only due to oscillations in leaf water content, but also in response to various physiological and environmental mechanisms [78]. For instance, the leaf thickness exhibits diurnal-nocturnal cycles: in well-irrigated plants, the leaf thickness remains relatively constant during nighttime, decreasing throughout the day until reaching the minimum peak at solar noon [77,79]. Furthermore, leaf thickness shows a negative correlation with the VPD and light [80,81]. Thus, environmental factors influence leaf thickness changes by affecting the transpiration process [82,83].

The first studies were carried out in 1922 by Bachmann [84], followed by Meidner (1952) [77]. The latter was the first to use a gear micrometer to measure changes in leaf thickness continuously. He also observed a strong correlation between leaf thickness and leaf water content. In 1987, Búrquez used a spring-loaded gear-wheel micrometer in different herbaceous crops, finding strong correlations between leaf thickness and RWC (R² = 0.96–0.99) [81]. However, these instruments were found to be impractical and unable to make automatic and continuous measurements. In subsequent years other less bulky and more accurate devices were developed, mainly based on the principle of a differential transformer, i.e., linear variable displacement transducers (LVDTs) [85,86,87]. Seelig et al. designed an efficient irrigation scheduling method on cowpea using a miniaturized leaf thickness sensor consisting of electrical distance transducers [79]. Sharon and Bravdo conducted a comparison of irrigation scheduling methods, including continuous leaf thickness monitoring and four conventional drip irrigation regimes based on schedules and water depletion [87]. The results showed that the sensor-based drip irrigation treatment achieved the highest yield and exhibited the greatest water use efficiency for ‘Oroblanco’ grapefruit.

In 2017, Afzal et al. integrated leaf capacitance and leaf thickness measurements into a single sensor to investigate whether the combination of the two measurements can be used as an indicator of PWS [83]. In detail, the sensor consists of a clamp with two sensing units, one capable of measuring leaf thickness and the other capacitance. The thickness is measured by a pair of magnets, and based on their distance, measurements of leaf thickness (which depends on leaf turgor) can be obtained. A PCB is connected to the sensors via wires, and through a transmission module, it sends data to an internet-connected central unit. In summary, it is a kind of combination of LPCP probes and LMCS. The device was tested on tomato plants. From initial results, it was observed that changes in leaf thickness reflect the leaf transpiration rate, while capacitance is strongly related to the light period and photosynthesis. Thus, capacitance can be a reliable indirect measure of PWS through the water–photosynthesis relationship. Despite its reliability and simplicity, there are no studies on this sensor being applied in fruit crops. Indeed, variations in leaf thickness and capacitance may differ from one species to another and environmental variables may strongly influence sensor data. Hence, further studies are needed to validate the sensor. Currently, the sensor is not commercially available.

2.1.4. Leaf-Mounted Capacitance Sensor (LMCS)

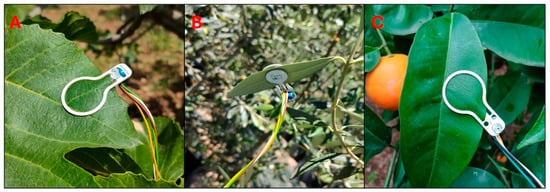

In 2023, Talheimer developed the leaf-mounted capacitance sensor (LMCS) (Figure 2) [88]. This is a very low-cost sensor that is able to continuously measure a signal that follows the patterns of leaf transpiration and solar irradiance. The sensor is based on the approach of sensing leaf transpiration flow by forcing water vapor to condense in the leaf blade, whose temperature is below the atmospheric dew point [89]. The condensation process is driven by a declining temperature gradient, resulting from the decreasing temperature across the sunlit leaf and the underneath sensor plate. The sensor is based on a capacitive principle and incorporates a photodiode as a light sensor. Simultaneously and continuously measuring incident light and leaf transpiration enables a qualitative assessment of the PWS. This estimation involves comparing the pattern of plant transpiration with the fluctuation in solar irradiance, which acts as its main driving force [90]. The sensor consists of a circular printed circuit board (PCB) and a photodiode. The circular PCB represents a capacitance sensor that can provide different outputs (in pF) depending on the vapor deposition in the lower leaf lamina. For this reason, the circular PCB has to be placed in contact with the lower leaf blade (Figure 2B). The sensors are then connected to a battery-powered Arduino-based microcontroller. Capacitance and irradiance data are transmitted via LoRaWan to an internet-connected gateway. Thus, the data can be accessed via a cloud. An additional strength of this device is its low cost due to its simple components. The use of the principle of capacitance to estimate leaf transpiration was studied by Afzal et al. in 2017 [91].

The sensor was first tested in 2023 in several perennial species: grapevine, persimmon, walnut (Junglans regia L.), olive, and apple (Malus domestica Borkh.). For instance, grapevine leaves revealed a signal indicating severe water stress under drought conditions, and a restoration of conditions (curve rise) after rainfall events and irrigation. Carella et al. (unpublished data) correlated the capacitance output of an LMCS with VPD data in fig (Ficus carica L.), finding a similar relationship to that between transpiration and the VPD which is already well-documented in the literature. Specifically, the relationship follows a hysteretic pattern due to the lag time of the stomatal response [92,93,94]. In detail, the capacitance increases more and more slowly as the VPD increases, until it reaches an asymptote where the capacitance becomes stable. In contrast, an inverse pattern was observed in the afternoon, in which, as the VPD decreases, the capacitance decreases more and more rapidly, until an asymptote is reached, indicating a transpiration stop. Clauser tested the LMC sensor in apple (cv Rosy Glow Pink Lady^®), relating it to other technologies that measured soil moisture [95]. The results showed that this sensor allows for monitoring tree water status to define whether the lack of soil moisture is really a problem for the plant.

Since there are no other trials that use an LMCS, further validation studies of the sensor, e.g., by appropriate machine learning techniques, are needed to predict leaf transpiration and to evaluate the performance of the sensor under different climatic and physiological conditions of the tree. Furthermore, additional field testing will be essential to validate the sensor’s long-term reliability and determine the most effective methods for integrating it into smart irrigation strategies across various crops and environmental conditions, with specific attention to crop performance and water use.

2.1.5. Continuous Thermal Sensing

Temperature is closely related to the PWS, since the physical principle behind changes in canopy temperature depends on the transpiration flow. Indeed, the closure of stomata caused by water deficit causes a reduction in leaf transpiration, consequently leading to an increase in leaf temperature [96]. Unfortunately, relying exclusively on leaf temperature (T_c) may have several limitations due to the significant impact of environmental variables, including the wind speed, radiation, air humidity, and air temperature [97]. Therefore, it becomes imperative to normalize the data with other parameters (e.g., air temperature or a constantly heated thermocouple) or calculate vegetation indices to acquire thermal data that can be readily associated with plant physiological information, such as the crop water stress index (CWSI) [98,99]. Thermal sensors can be classified into contact and non-contact sensors. Among the contact sensors, the most widely used are thermal resistance sensors and the better-known thermocouples. The non-contact ones, on the other hand, are based on temperature measurement by infrared sensors or thermal imaging cameras [99].

A thermal resistance sensor is a temperature sensor consisting of a known resistance that varies with temperature, such as platinum resistance temperature measurement [99]. A thermal resistance sensor (LT-1T) was used to validate a system based on estimating plant water status using thermal images [100,101]. In 2012, Atherton et al. [102] developed a microsensor able to continuously and real-time monitor leaf temperature, in order to estimate leaf water content. The device is composed of a thin-film resistive heater and two thin-film thermocouple (TFTC) temperature sensors molded on a 10 μm-thick polyimide substrate. The sensor measures the leaf thermal resistance. The resistive heater generates a thermal gradient that changes in response to the overall thermal resistance of any sample in contact with the device. The resulting thermal gradient is measured as a temperature difference (ΔT) between the two TFTC sensors. The results achieved showed a strong positive linear correlation between the ΔT and leaf RWC. Despite its reliability and potential, the sensor has never been tested in horticultural crops or commercialized. Additional studies are necessary to establish specific thresholds for detecting water stress, to improve the sensitivity of the sensor and minimize its impact on plant health, possibly through design refinement or parameter adjustment. In addition, the effectiveness of the sensor under different environmental conditions needs to be thoroughly investigated to ensure reliable operation in various agricultural settings. In this regard, a thermocouple works as a transducer that converts thermal energy into electrical energy, and it is constructed by connecting wires made from different metals to create a junction. When the temperature at the junction changes, voltage is generated. The fundamental principle behind thermocouples is the Seebeck effect, which states that if dissimilar metals are joined at a point, they produce a small measurable voltage when the temperature at the connection point changes [103,104]. The magnitude of the voltage is determined by the extent of the temperature change and the characteristics of the metals. To date, thermocouples are used in validation operations for other techniques for estimating PWS by thermal sensing. For instance, Pou et al. utilized thermocouples for the validation of thermal indices for water status assessment in grapevine [105]. Costa et al. developed models to estimate water and heat fluxes in grapevine using leaf-mounted thermocouples and thermal imaging techniques [106].

In 2017, Dhillon et al. developed a continuous leaf monitoring system to assess plant water status by combining low-cost thermal infrared thermometers and environmental sensors [107]. The authors found a negative linear relationship between the ΔT (T_leaf − T_air) and stem water potential. Moreover, the combination of sensors provided enough data to accurately calculate the CWSI. The method was successfully tested in almond (Prunus amygdalus Batsch) and walnut (Juglans regia L.) [108]. Despite the demonstrated accuracy of the measurements, for a definitive validation of the system, studies on different crops and evaluation of the system performance under different conditions are needed to fully assess its potential as an irrigation scheduling tool.

2.1.6. Further New Sensors (Microsensors)

The emerging wearable electronics industry has shown promising results in various applications, although it is in its early stages in agriculture. The flexibility of wearable sensors allows their easy positioning close to specific plant organs and portions, facilitating continuous and accurate monitoring. This capability helps in early plant stress detection and reduces plant productivity loss [109,110].

In addition to those already described, other interesting leaf-mounted sensors for PWS estimation have been developed in the past two years. In 2024, Peng et al. built a wearable and capacitive sensor for the real-time and precise monitoring of leaf water content. It was tested in golden pothos (Epipremnum aureum Lindl. and Andre) leaves [111]. The microsensor consisted of two wearable electrodes. The leaf must be placed between the two electrodes. Due to the excellent flexibility of the electrodes, the device can be used in a multitude of leaf types. The authors found that the leaf capacitance value is positively correlated with the leaf moisture content, and the results were similar to those found with conventional rigid electrodes [91,112]. Despite the results achieved and the high potential of the sensor, several problems remain to be solved. For example, attention needs to be paid to the leaf integrity when monitoring physiological information, which could be influenced by wearable electrodes. In addition, as the sensor has been tested for only a few days, it will be necessary to test it under open-field conditions and evaluate the timing of its measurement reliability. Im et al. built a flexible polyimide (PI)-based sensor, that is also based on the capacitance principle [113]. This microsensor proved useful for estimating the transpiration flux of tobacco plants grown in growth chamber conditions. Also in this case, although the sensor has demonstrated accuracy in its growth chamber measurements and is lightweight, it still requires testing under open-field conditions, particularly on fruit trees, to assess its consistency and durability.

2.2. Stem-Mounted Sensors

2.2.1. Stem Dendrometers

The plant water status can also be estimated by measuring diameter changes in different organs such as the stem, branches, and fruits [26]. Regarding the stem diameter variations (SDV), C3 plants follow a precise mechanism depending on the transpiration flow. In the early morning, as transpiration begins, the xylem water potential starts to decrease [114]. This tension extends from the foliage to the other organs of the plant, leading to the loss of water stored overnight [115]. Consequently, the plant responds to atmospheric water demand at a time when the root uptake is not fully active, acquiring water from other organs such as fruits, branches, and the trunk and causing daily fluctuations in their diameter [116,117]. In trees, the trunk’s contribution to water transfer is significant [118]. Thus, a reduction in diameter occurs due to this transpiration water withdrawal from xylem and phloem vessels [119]. During the evening and night, the water potential is restored, and the trunk returns to its volume or increases, depending on the amount of carbohydrates gained during the day [120]. The fluctuation amplitude depends on the elastic properties of the tissues [117], the difference in osmotic pressure between the bark and xylem [121], the diffusive properties of water in the phloem [122], and the growth rate of the trunk [117].

From measuring changes in stem diameter, several SDV-derived indicators can be taken into account to assess PWS, e.g., the trend of maximum and minimum daily growth, daily growth, stem growth rate (SGR), and maximum daily shrinkage (MDS) [9,123]. The two last indicators are the most widely used [114].

The first prototype dendrometer (dendrograph) was built in 1883 by Böhmerle [124]. The use of automated dendrometers, on the other hand, has occurred since the second half of the 20th century [9,125,126]. Nowadays, the most commonly used dendrometers are optical types (infrared distance sensor [127]), electronic point dendrometers [128,129], and strain gauges with linear variable differential transformers (LVDTs). The majority of authors have used LVDT-type sensors, mainly because they are easy-to-use and low-cost [9].

Naor and Cohen utilized LVDT dendrometers to study the sensitivity and variability of the maximum daily shrinkage, midday stem water potential, and daily transpiration rate in response to withholding irrigation from field-grown drip-irrigated ‘Golden delicious’ apple trees [130]. The authors observed that both the MDS and Ψ_stem exhibit higher sensitivity to variations in the soil water availability compared to the daily transpiration rate (determined using a ‘Class A’ evaporation pan). Moreover, the MDS was more responsive than the Ψ_stem to changes in the soil water availability. This may be explained by the non-linear relationship between the Ψ_stem and MDS [130,131]. However, they found that the MDS showed a higher variability than the Ψ_stem. In particular, the MDS’s variability increased with the water stress. Therefore, the authors concluded that more measures than just the Ψ_stem and MDS need to be integrated. Additionally, establishing an irrigation scheduling threshold based on MDS measurements is likely to be more complex because thresholds may vary from one apple commercial plot to another due to changes in parameters influencing trunk bark thickness, such as the tree age and rootstock. More recently, Wheeler et al. utilized stem dendrometers to determine the tree water status of high-density apple orchards [132]. They aimed to enhance the precision of irrigation scheduling by correlating continuous data obtained from stem dendrometers with the Ψ_stem and atmospheric evaporative demand. On the other hand, in peach trees (Prunus persica L.), Conejero et al. showed that using dendrometers alone and calculating the MDS is sufficient for irrigation scheduling [133]. These results were confirmed by Mirás-Avalos et al. [134] and De la Rosa [135] in 2017 and 2016. In almond, on the other hand, the stem growth rate (SGR) was found to be more reliable than the MDS for assessing water status [136]. In pear (Pyrus communis L.), the MDS was found to be a good indicator of water stress, due to the quick response to environmental conditions [137]. On the contrary, Blanco and Kalcsits found that, despite the MDS detecting water stress earlier, it did not increase in the same proportion as the Ψ_stem when it was lower than −1.4 MPa [138]. In a table olive orchard, Corell et al. showed that both the TGR and MDS were found to be reliable indicators to detect mild water stress, even though they were less reliable than the Ψ_stem [139]. In cherry (Prunus avium L.), the MDS was less precise than the Ψ_stem but more sensitive and responsive to water stress, making it useful in situations where even a slight water deficit could impact the vegetative growth, fruit development, and yield [140]. In grapevine, the MDS and TGR were found to be unsuitable to predict water stress after veraison [141]. Finally, it can be stated that, while the measurement of the trunk diameter to assess the PWS can prove reliable depending on the crop, phenological stage, and water stress level and is easy to apply, it does not provide comprehensive information regarding the leaf and fruit water status [9,26].

2.2.2. Microtensiometers

The stem water potential (Ψ_stem) is considered one of the main indicators for assessing plant water status. However, as indicated previously, the most reliable method to measure the Ψ_stem has been the pressure chamber method, which is labor-intensive and time consuming. Fortunately, in recent years, devices that can measure the Ψ_stem continuously and in real-time are being developed. Recently, people at Cornell University together with the FloraPulse (FloraPulse Co., Davis, CA, USA, www.florapulse.com) company developed an electro-mechanical system-based microtensiometer which can be embedded in the trunk and is capable of measuring water potential continuously. This sensor was first described by Pagay et al. in 2014 [142]. In 2019, Black et al. published a detailed description of the sensor with its physical principle, also adding improvements [143]. The sensor is based on the tensiometer principle, i.e., an instrument able to monitor the water potential of an external matrix (xylem) by balancing an internal volume of water, where the hydrostatic pressure is considered the negative counterpart of the external water potential [144,145]. In brief, the microtensiometer combines two common sensing circuits: a strain gauge and a thermometer. The thermometer is made of a serpentine thin film platinum resistance (PRT), which changes its resistance with the temperature. The strain gauge consists of four polycrystalline silicon resistors (piezoresistors) in a Wheatstone bridge configuration placed on a diaphragm, and its resistances vary with the strain. Below the strain gauge, a 3 μm-deep cavity is etched with a diaphragm and a water reservoir [143]. Also in this case, data can be transmitted either via a wireless system or downloaded from a datalogger. The sensor is capable of continuously monitoring the trunk water potential (Ψ_trunk), thus providing another tree water status indicator [142,146]. Although, in early studies, it was thought that the sensor directly measured the Ψ_stem, Pagay et al. showed that, in grapevine, there were differences between the Ψ_stem measured with the pressure chamber and the Ψ_trunk [144]. Specifically, the Ψ_trunk was generally higher than the Ψ_stem measured at the same time. The authors deduced that this difference is mainly due to hydraulic resistances between the trunk and leaves. Zucchini et al. also noticed this difference between the Ψ_trunk and Ψ_stem in olive trees [147]. In particular, they observed that, in 32 out of 33 measurements, the Ψ_stem data obtained using the pressure chamber were lower than the Ψ_trunk, with a maximum difference of 1.15 MPa. On the other hand, in almond [146] and nectarine [148], the Ψ_trunk and Ψ_stem were found to be quite similar. Due to such differences, new thresholds of water stress need to be established using Ψ_trunk.

The microtensiometer was first field tested on two grapevine cultivars, Shiraz and Cabernet Sauvignon [144]. The author characterized the seasonal and diurnal dynamics of the Ψ_trunk and compared these values with the Ψ_stem and Ψ_leaf measured with the pressure chamber. He found that the Ψ_trunk correlated better with the Ψ_stem than with the Ψ_leaf. Moreover, he showed that the relationship between the Ψ_trunk and Ψ_stem is stronger under low VPD than under high VPD conditions. In details, under high VPD conditions, the Ψ_trunk consistently declined below the Ψ_stem around mid-afternoon, followed by a recovery observed by early evening. The author concluded that the microtensiometer provided good measurement reliability and several studies will be needed to establish irrigation thresholds.

Blanco and Kalcsits tested the microtensiometer in pear by relating the Ψ_trunk and Ψ_stem measured with pressure chamber and found strong correlations, concluding that microtensiometers provide an accurate continuous method for measuring the water potential in trees throughout the growing season, even under diverse environmental conditions and variations in soil water content [149]. In 2023, Blanco and Kalcsits again published the results of 2 years of monitoring a pear orchard [138]. The authors found a strong correlation between the Ψ_stem and Ψ_trunk (R² = 0.88), and variations in trunk diameter (measured with a LVDT dendrometer) followed changes in the Ψ_trunk mainly at the beginning of the irrigation season. Once again, the sensor demonstrated high reliability for continuous PWS assessment. Kisekka et al. compared and evaluated data recorded on almond leaves with a Scholander chamber, microtensiometers, and osmotic cells for continuous measurement of the Ψ_stem [150]. The excellent results confirmed the potential of these sensors in facilitating irrigation scheduling.

Nieto et al. studied the relationship between the Ψ_trunk and fruit growth rate and managed to determine irrigation thresholds in apple trees [151]. In detail, through logistic regression analysis between the Ψ_trunk and fruit growth rate (in terms of fruit weight), the authors identified the critical value of approximately −0.97 MPa, which corresponded to the irrigation intervention threshold in that ecosystem. Satisfactory results regarding the suitability of microtensiometers to assess PWS were also obtained in nectarine [148] and almond [146,152] orchards.

Despite its reliability, the usefulness of the data, and its ease of installation, the sensor still needs to be validated at wider ranges of plant hydration given that so far it has been tested down to about −3.5 MPa (as also indicated on the FloraPulse website). Indeed, in species such as olive, especially in areas characterized by water scarcity, it is important to have a reliable sensor also at Ψ_stem values below −3.5 MPa [69,153]. Also, at least for strict determinations of tree water status, a 20–30-min time lag of the microtensiometer readings compared to actual Ψ_stem values has been observed, which must be taken into account, especially when daily curves are being studied. Additionally, there are still no studies where the microtensiometer has been employed for more than two consecutive years. Finally, the high cost of the sensor may represent a limiting factor for many growers and agricultural areas.

2.2.3. Sap Flow Sensors

The transpiration flow is closely dependent on the PWS, as the latter influences stomatal opening and thus gas exchange between the plant and the atmosphere. Nevertheless, in parallel with PWS, the transpiration (and thus sap flow) can be affected by environmental factors (VPD) [154]. The transpiration rates of whole trees can be assessed by sap flow methods that quantify the rate at which sap rises through the stems [155]. Such methods are collected on the dedicated working group web page of the International Society for Horticultural Science (ISHS) (https://www.ishs.org/sap-flow/ishs-working-group-sap-flow-online-resources, accessed on 12 May 2024), and recently Noun et al. published a review on plant-based methodologies and approaches for estimating the plant water status of horticulture crops in which there is an exhaustive update on methods for measuring sap flow [10]. In addition, there is SAPFLUXNET (https://sapfluxnet.creaf.cat/, accessed on 12 May 2024), a global database maintained by the Centre for Ecological Research and Forestry Applications (CREAF) (Barcelona, Spain), which aims to advance scientific understanding of the ecological factors that determine plant transpiration and drought responses worldwide [156]. One of the main advantages of sap flow sensors is that they are easily automated for continuous measurements [10].

Sap flow can be defined in terms of the sap flow rate (g or L h⁻¹ or equivalent) or sap flux density (sap flow rate per sapwood area) [157]. Flo et al. split the methods into four groups depending on their physical principle [157]: (1) dissipation [158,159], (2) pulse [88,160,161,162,163,164,165,166], (3) field [167], and (4) balance [38,168]. Such methods are briefly described in the following table (

Table 1. A list of the main techniques for measuring sap flow, with brief descriptions.

Method		Brief Description	References
(1) Dissipation		It measures heat dissipation from a heated probe inserted in the sapwood compared to a non-heated reference probe
Thermal dissipation	TD	The upper probe is constantly heated, and the measured temperature difference decreases with increasing sap flow density	[158]
Transient thermal dissipation	TTD	It works under transient conditions by introducing a relatively short heating and cooling cycle	[159]
(2) Pulse		It applies heat intermittently and monitor changes in sapwood temperature induced by thermal convection and conduction
Compensation heat pulse	CHP	A heater probe is inserted into the xylem between two temperature sensors. By measuring the time, it takes for the heat pulse to travel via convection to the midpoint, the velocity of the pulse is determined	[160]
Heat ratio	HR	It employs a brief heat pulse to trace water movement, and by analyzing the heat ratio between two symmetrical temperature sensors, the magnitude and direction of water flow can be determined	[161]
Cohen’s heat pulse	T-max	It uses a single temperature sensor located downstream of the heater probe. The sap flow rate is calculated from the time it takes the downstream temperature sensor to register the maximum temperature rise	[162]
Calibrated average gradient	CAG	Useful for calculating low sap velocities from sap flow records obtained with the standard CHP method, but the temperature differences between the readings of the two temperature probes are averaged (ΔTa) over a certain period of time.	[163]
Sapflow+	SF+	It uses a four-needle sensor to measure heat velocity in the entire density range of natural sap flow and allows simultaneous estimation of stem water content	[164]
Single probe heat pulse	SPHP	It uses a single-probe sensor based on the fundamental conduction−convection principles of heat transport in sapwood	[165]
Dual heat pulse	Dual	It combines two heat-pulse methods: The HR, effective for low and reverse flows, and CHP, suitable for moderate to high flows, within a single set of sensor probes	[166]
Ratio heat pulse	TmRatio	It uses the ratio of temperature maxima on downstream and side probes	[88]
(3) Field		It measures the shape variations of a continuous heat field within the sapwood by utilizing tangential and axial probes
Heat field deformation	HFD	It uses a sensor composed of one needle-like heater inserted in the sapwood and three temperature sensors placed above, below and at the side of the heater	[167]
(4) Balance		It measures the energy balance through a heated wood section
Stem heat balance	SHB	It involves employing a sensor with a flexible heater, typically several centimeters wide, encircling the stem and protected by layers of insulating and weather-resistant materials	[38]
Trunk heat balance	THB	It consists of three to five stainless steel metal plates inserted in parallel into the sapwood, spaced two centimeters apart, covering the entire sapwood depth. This configuration allows for the integration of sap flow across the sapwood.	[168]

):

Sap flow sensors based on the principle of thermal dissipation have been widely used in the literature [156]. Their popularity likely stems from their reliability, simplicity, and cost-effectiveness, as well as the ease of construction of handmade probes [169]. In 1985, Granier developed a thermal sensor consisting of two needle-shaped probes inserted radially into the sapwood [158]. One of these probes is heated at constant power, while the other serves as a temperature reference. In detail, a thermocouple (copper-constantan) is placed in the middle of the heating resistor, and an aluminum sheath covers the entire system to equalize the temperature. The second probe, positioned in the trunk below the previous one, contains an identical thermocouple mounted in opposition to that of the heating element. The system then permits measurement of the temperature difference (ΔT) between the two probes [170]. The author also found experimentally that the volumetric sap flow density (u, cm³ cm⁻² s⁻¹) is related to the temperature (T) by the following relationship (calibrated for different woody crops):

u = 0.119 × K^1.231

(1)

In which:

$$\mathrm{K}=\frac{\mathsf{\Delta }{\mathrm{T}}_{\mathrm{m}\mathrm{a}\mathrm{x}}-\mathsf{\Delta }\mathrm{T}}{\mathsf{\Delta }\mathrm{T}}$$

(2)

where ∆T_max represents the maximum temperature value (when u = 0, i.e., during the night) and ΔT is the temperature difference between the two probes. In addition, the total sap flow (F, cm³ s⁻¹) can be calculated from the sap flow density using the formula:

F = u × A_sw

(3)

In which A_sw is the cross-sectional area of the sapwood (cm²) [170].

The latter estimate (F) can be used for appropriate precision irrigation management since it is possible to estimate the actual volume of water transpired by the tree in the unit of time. The sensor was initially validated on forest species [158,170], but over the years it has been widely used in fruit crops. However, considering the high sensitivity of sap flow to weather conditions, sap flow sensors often require calibration in the field [171] and, therefore, it is highly recommended to use them in conjunction with other sensors, such as LPCP probes and/or fruit gauges [9,25,26]. Fuchs et al. performed recalibration and comparison tests between TD and HFD methods [172]. The results showed that TD probes tend to underestimate the flux density by 23–45% with Granier’s original calibration. The accuracy improves by performing species-specific recalibration. In contrast, HFD sensors overestimate flux by up to 11%. Under low and medium sap flow conditions, the HFD method underestimates the flux by 0.8%, thus demonstrating high accuracy. The authors concluded that both HFD and TDP sensors require new species-specific calibrations to improve their measurement accuracy. Furthermore, sap flow systems are currently not affordable for a significant portion of the agricultural community.

Despite these issues, sap flow has been used as an indicator for water stress in several cases. On apple trees, Nadezhdina used a sap flow index estimated by the heat pulse velocity (HPV) method that proved sensitive to water stress, with a strong correlation with the pre-dawn Ψ_leaf (R² = 0.96) [167]. Hernandez-Santana et al. [173] correlated sap flow data with the gas exchange in olive trees. They found that stomatal conductance (g_s) and net photosynthesis (An) can be readily estimated from sap flow. Ferrara et al. used sap flow meters with the thermal dissipation method to evaluate the influence of the water deficit on the water use efficiency and water productivity in olive trees (cv. Arbosana) cultivated in an adult super-high-density orchard [174]. In orange (Citrus sinensis Osbeck), Cohen’s heat pulse (T_max) sap flow was successfully used to identify water stress conditions [175]. In cherry, the joint use of sap flow sensors and dendrometers (MDS) represented a suitable system for irrigation scheduling [176]. Marino et al. included continuous TD probes in a multiple plant-based sensing system to detect mild water stress in olive [58]. The authors concluded that sap flow probes are not as useful as LPCPs and fruit gauges for detecting water stress in olive because they are strongly influenced by VPD. However, they can provide a useful quantitative indication of transpired water.

2.2.4. Thermocouple Psychrometer

An additional non-invasive method to monitor the water status of a plant through water potential is using thermocouple psychrometers. These instruments allow for determining the Ψ_leaf or Ψ_stem. The principle is based on the Seebeck effect, which consists of a complete electrical circuit formed by two dissimilar metals forming a thermocouple. If the measuring and reference junctions of the circuit are at different temperatures, a voltage difference, which depends on the temperature difference between the junctions, will be generated by a flowing current [98]. In thermocouple psychrometry, the relative humidity of the air around the sensing junction is crucial because it affects the temperature difference between the wet sensing junction and the dry reference junction [177]. To directly calculate the water potential from the measurements, the instrument needs to be empirically calibrated using solutions of known water potential [178]. This method started to be used around the 50s. Initially, psychrometry was only used in the laboratory because it required accurate temperature control. Over time, advancements in new projects and electronic instrumentation have provided the capability to perform on-site measurements quickly and non-destructively. There are currently three types of psychrometers: non-equilibrium, isopiestic, and dew point psychrometers [179]. Nowadays, the most used psychrometer is the PSY1 Stem Psychrometer built by Dixon and Tyree and currently produced by ICT International (Armidale, NSW, Australia) [180]. The PSY1 Stem Psychrometer consists of two soldered chromel-constantan thermocouples connected in series inside a chrome-plated brass chamber that forms a large thermal insulating mass. Inside the chamber, one thermocouple is in contact with the stem sample and the other simultaneously measures the chamber air temperature and, after a Peltier cooling pulse, the wet bulb depression. A third copper-constantan soldered thermocouple is located inside the sample chamber body to measure the temperature of the instrument for temperature compensation purposes. The use of the PSY1 Stem Psychrometer has proven to be reliable for monitoring the water potential, after validation with other techniques, including the Scholander pressure chamber [181,182]. Kokkotos et al. used the PSY1 Stem Psychrometer to evaluate the variation in water potential in response to alternate fruit bearing [183]. In this study, the instrument was calibrated with a NaCl solution, and the water potential data were acquired every 30 min. In another study carried out in olive [184], water potential measurements were taken every 20 min, and the purpose was to evaluate how the hydraulic conductance changes in plants under water deficit. The PSY1 Stem Psychrometer was also used on grapevine to evaluate the plant response to a 6-week drought experiment [185]. In conclusion, the use of the PSY1 Stem Psychrometer has proved to be a very valid method for the continuous measurement of stem water potential [186]. Despite the sensor’s reliability, the main disadvantages can be related to the need for calibration with standard solutions, difficult installation, and high cost [186].

2.2.5. TreeTalker^®

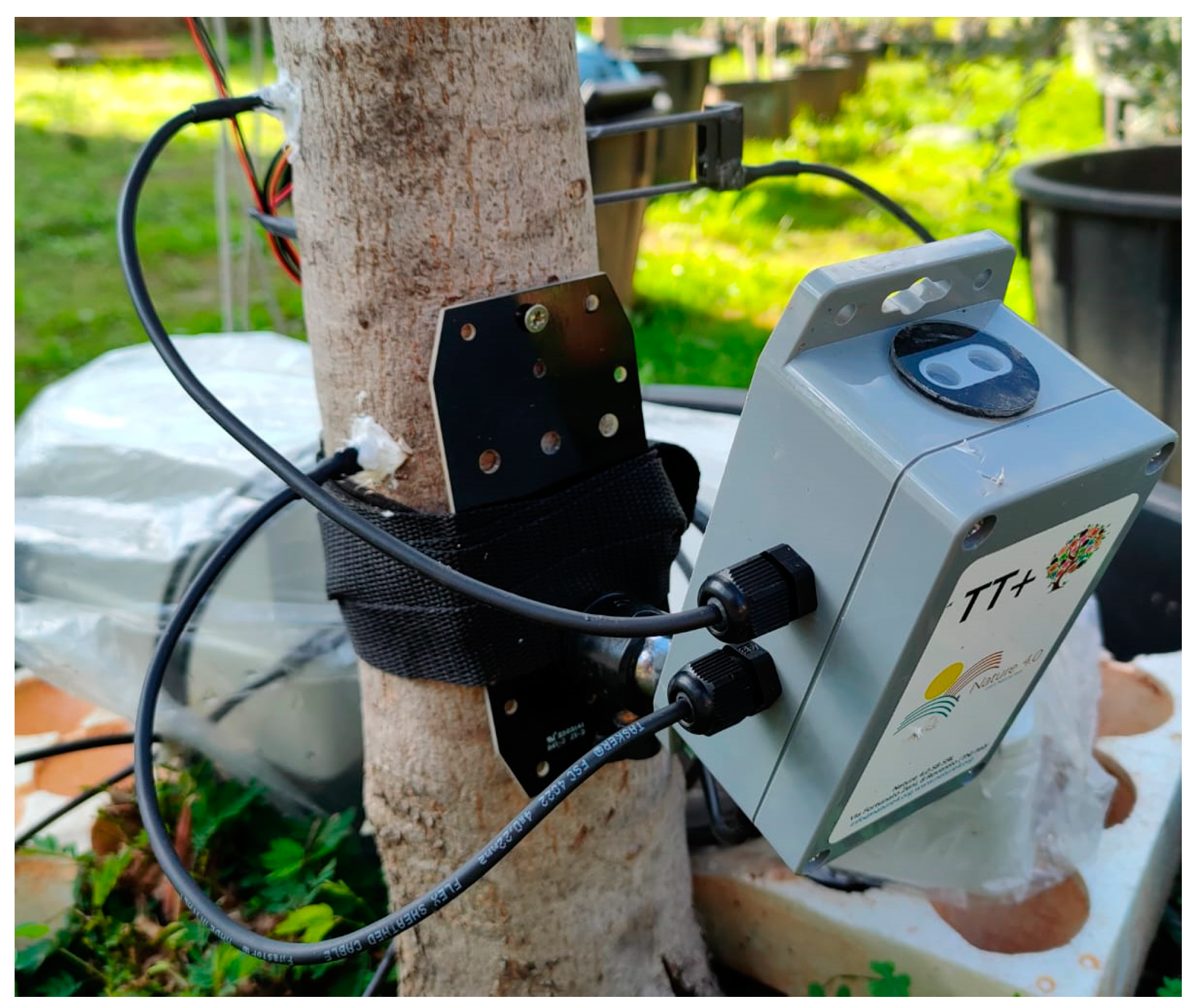

The TreeTalker^® is a continuous real-time system that was developed by Valentini et al. (Figure 3) to measure water transport in trees, radial trunk growth, spectral characteristics of leaves, and microclimatic parameters using artificial intelligence [127,187]. The instrument consists of a microcontroller with an ATMega 328 processor chip connected with different sensors designed for the measurement of plant physiological variables. The TreeTalker^® includes a reference and a heated probe (Murata Electronics, Nagaokakyo, Kyoto, Japan) to measure the sap flow rate through the heat pulse method; a capacitive sensor to measure trunk moisture content; a 12-spectral-band spectrometer (AS7262 for visible and AS7263 for near infrared band—AMS, Premstaetten, Austria) centered at the wavelengths of 450, 500, 550, 570, 600, 610, 650, 680, 730,760, 810, and 860 nm to measure the multispectral signature of light transmitted through the canopy; a MMA8451Q thermohygrometer (Silicon labs, Austin, TX, USA) to measure air temperature and relative humidity; an infrared distance sensor (SHARP, Osaka, Japan) to measure tree trunk radial growth; a Si7006 accelerometer (NXP/Freescale, Austin, TX, USA) to measure accelerations along a 3D coordinate system used to detect tree movements. The TreeTalker^® has mainly been used in forestry but could potentially be used in fruit trees [188,189,190]. This device could be valuable for assessing both plant water status and consumption. Specifically, integrated sap flow probes can provide data on transpired water, while the infrared resistance sensor, capacitive trunk moisture sensor, and spectroradiometer can offer a good indication of the PWS. Such comprehensive information can be of great advantage for irrigation management. On the contrary, it requires a validation with PWS main references (RWC, Ψ_stem). To date, no experimental trials with TreeTalker^® on assessing the plant water status and consumption and irrigation management of fruit trees have been conducted.

2.3. Fruit-Mounted Sensors

Fruit Gauges

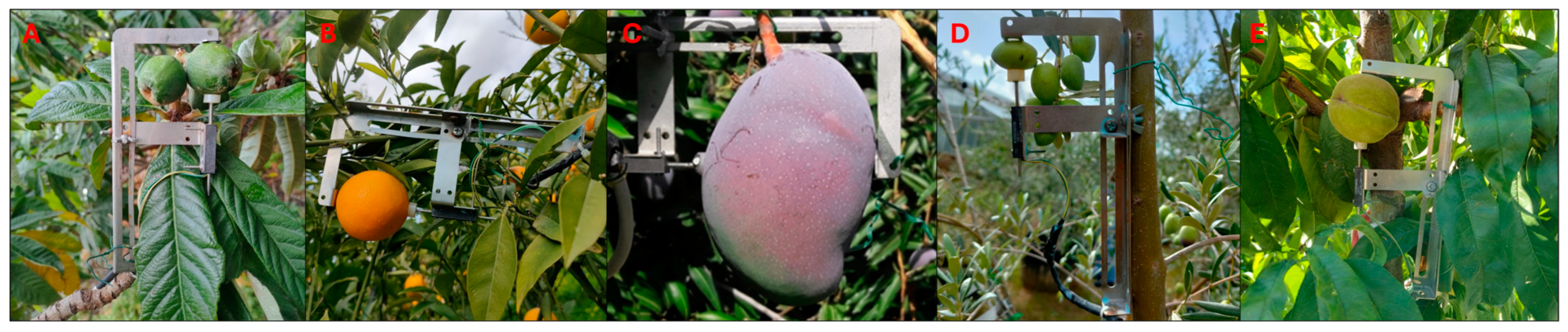

Fruit growth parameters can be a reliable indicator of PWS [191]. The total volume of the fruit is determined by the balance of water inflow and outflow through the phloem and xylem, along with atmospheric exchanges that occur through the exocarp [26]. Such water flows into and out of the fruit are determined from the water potential gradient differences between the plant and the fruit [191,192]. Similar to what happens in the trunk, water exchanges cause diametric fluctuations during the day. Furthermore, due to the composition of fruit tissues (relatively high water content compared to wood tissues), they exhibit greater sensitivity in diametric variation to changes in water potential gradients compared to the trunk. This increased sensitivity allows for timely measurements, which are useful in preventing adverse effects on fruit growth and final yields. Daily diametric fluctuations are due to the imbalance between the inflow and outflow. Indeed, during the midday hours, the fruit transpiration rate is higher than the xylem inflow (outflow > inflow), causing fruit shrinkage [193]. During the evening and night, water potential is restored, and the fruit returns to its original volume or expands thanks to the accumulation of carbohydrates during the day [193,194,195].

Since the second half of the 1900s, several studies have reported the use of devices to monitor fruit diameter [196,197,198,199,200]. Most of the sensors developed are LVDTs (strain gauges) connected to a plunger that makes direct contact with the peel, usually mounted in a metal frame [199]. The first rudimentary LVDT device for the continuous monitoring of fruit diameter was designed by Tukey in 1964 [196]. In 1984, Higgs and Jones devised an accurate system for the continuous measuring of fruit diametric fluctuations [197]. In 1998, Link improved the sensor by making it more flexible and suitable for greater thickness ranges [200]. Despite the accuracy and reliability of these sensors, they were relatively expensive and, considering the number of sensors required to be used in the field, non-sustainable for a farm [26]. In 2007, Morandi et al. constructed a low-cost sensor consisting of a linear potentiometer connected to a plunger that must be kept in contact with the peel and a stainless-steel frame (Figure 4) [199]. The gauge is adjustable and can be used with fruits of various sizes, from olive [68] to mango (Mangifera indica L.) [193]. To date, it is the most widely used type of fruit gauge in studies of fruit growth dynamics in response to external factors, including changes in PWS [65,69,201,202,203]. In 2016, Thalheimer built a fruit diameter monitoring sensor with low-cost optoelectronic components and with a flexible two-color tape for movement detection by the optoelectronic sensor [198]. However, while this sensor may prove useful for monitoring the active growth of the fruit, it does not seem suitable for assessing PWS because it is only able to detect fruit enlargements and it does not react to shrinkage. The latest sensor built for monitoring fruit growth was presented by Peppi et al. in 2023 [204]. It is part of a low-cost multi-channel sensor-node architecture capable of transmitting data with a low-power LoRa transmission system. The sensor structure consists of two solid arms bound together at one end with a bolt. The plier is held in place by a spring, while a reference voltage-supplied potentiometer is located within the fulcrum of the plier and rigidly connected to one of the two arms of the clamp. This seems to be a more stable sensor on the fruit and more suitable for IoT systems. However, it still needs to be validated in fruit crops.

Fruit gauges have been abundantly used to understand the physiological dynamics of fruit water exchanges, i.e., to study the relative contribution of xylem, phloem, and transpiration flows to fruit growth and understand the water relationships between a fruit, plant, and environment at different fruit development stages. These mechanisms were studied in peach [194], apricot (Prunus armeniaca L.) [205], kiwifruit (Actinidia deliciosa Chev.) [206], sweet cherry [207], and pear [208]. Carella et al. used fruit gauges to test the effect of the vapor pressure deficit (VPD) on the fruit relative growth rate (RGR), by comparing data of peach, mango, loquat (Eriobotrya japonica Lindl.), olive, and orange [209].

Several studies have investigated the suitability of the continuous monitoring of fruit growth to promptly detect when the fruit starts to be affected by water deficit in order to establish the moment to apply irrigation water. Boini et al. [210] monitored fruit growth to detect the onset of water stress in ‘Imperal Gala’ apples by correlating various growth parameters (fruit net daily growth, midday AGR, maximum AGR, minimum AGR, and fruit daily shrinkage) with the Ψ_stem. The results showed that the fruit daily growth rate (g day⁻¹) is the index that better correlates with the Ψ_stem, thus having the potential to be used as a reference in apple irrigation scheduling. In addition, the authors were able to define the threshold indicating the onset of moderate water stress in terms of the fruit daily growth rate (from 1.2 to 1.3 g day⁻¹). Khosravi et al. carried out a three-year study using fruit gauges to assess abnormalities in the fruit growth of ‘Frantoio’ olive trees due to several factors including tree water status. The purpose of the study was also to find the best way to analyze data with different statistical models [211]. Marino et al. used fruit gauges in conjunction with sap flow probes and leaf turgor pressure sensors (LPCP probes) [58]. The authors showed that the joint use of these three sensors can provide a comprehensive indication of olive trees’ water status. For instance, the two olive cultivars studied showed different response behaviors to a water deficit: one manifested it in pronounced changes in its leaf turgor and fruit RGR, and the other significantly reduced its sap flow and reached very low values of leaf turgor pressure. In nectarine, Scalisi et al. demonstrated the suitability of a dual-organ sensing approach by using fruit gauges with LPCP probes to determine irrigation timing by assessing which organ and sensor exhibited the strongest correlation with the Ψ_stem [64]. Ultimately, it was found that a combination of both approaches proved most effective in determining irrigation timing. In 2020, Scalisi et al. replicated the experiment with olive trees and similarly concluded that a combination of leaf and fruit sensing proved most effective in determining irrigation timing [68].

Although monitoring the fruit diameter may be important to identify when fruits are adversely affected by water deficit (fruit is the strongest sink organ), these data alone may not be enough for a complete analysis, as its growth dynamics may be influenced by other factors like the crop load and mainly phenological stage [64]. In most stone fruits, water exchanges between the fruit and the plant or the atmosphere are at their lowest during pit hardening, while transpiration rate peaks during cell enlargement [212]. Having information from multiple organs simultaneously, such as the leaves and xylem, can be valuable for assessing the physiological behavior of the entire plant system across the stages of fruit development. Therefore, it would be necessary to use this sensor in combination with others, for example, sap flow and LPCP sensors, as previously shown.

3. Remote Sensing

Investigating the spatial and temporal variability in the field is one of the primary goals of precision irrigation. Ground-based measurements, although reliable, continuous in time, and accurate, provide a spot indication of the whole-field water status. Remote sensing techniques, although generally unable to monitor variability over time, are meant to overcome this spatial limitation of proximal measurements [45,213,214]. Remote sensors are capable of acquiring images containing information of different types and covering a wide area. In order to understand what type of sensor to use, one must be clear about the variable to be analyzed. Generally, remote sensors that are capable of measuring data reflected or transmitted by crops are used. This is because different components of the canopy structure are capable of reflecting energy at different wavelengths depending on the molecules in the tissues. The spectral bands used in precision farming include ultraviolet (UV; 300–400 nm), visible (VIS; 400–700 nm), near infrared (NIR; 700–1400 nm), shortwave infrared (SWIR; 1400–3000 nm), and thermal infrared (TIR; 3000–25,000 nm) [46,215]. These spectral bands allow the calculation of vegetation indices (VI) that are useful in assessing plant physiological parameters, e.g., the normalized difference vegetation index (NDVI), crop water stress index (CWSI), normalized difference red edge index (NDRE), normalized difference water index (NDWI), etc. In this regard, remote sensors include optical cameras that are distinguished by various factors such as the type of operation to carry out, type of acquisition, and number of spectral bands [46]. In precision irrigation, thermal, multispectral, and hyperspectral sensors can provide accurate PWS information [6]. The main platforms used in remote sensing are satellites and unmanned aircraft systems (UAS, drones). Generally, satellites can provide a large amount of information since they can cover huge areas, but with a relatively low resolution [216]. Drones, on the other hand, manage to cope with the resolution problem since they can fly at closer distances (40–120 m above the ground) [217,218,219,220]. Nevertheless, with the growing prevalence of free satellite data sources such as MODIS, Landsat, Sentinel, and Gaofen, commercial satellite imagery resolutions continue to improve both spatially (WorldView) and temporally (Planet). This improvement is attributed to cost reductions in small satellite systems [221,222].

The following paragraphs briefly describe the main remote sensing techniques for assessing the field water status (FWS) in woody fruit crops by using thermal, multispectral, and hyperspectral sensors.

3.1. Thermal Sensing

Plant temperature has been a longstanding indicator of water availability [96]. In the last three decades, thermal infrared (TIR) cameras have proven to be effective tools for estimating leaf and canopy temperature (T_c), which has been recognized as a rapid, reliable, and non-destructive indicator of transpiration and PWS [223,224]. Plants tend to regulate their temperature by transpiring through the stomata, thereby balancing the energy fluxes within and outside the canopy [6,225]. When the plant undergoes stress, the transpiration rate decreases, leading to an increase in the T_c. This increase in the T_c may serve as an indicator for detecting plant water stress [46,225]. However, the T_c alone may not be sufficient, as it is influenced by various factors, mainly the air temperature (T_air). Several authors have often decided to normalize the canopy temperature with the air temperature (T_c − T_air) before correlating it with the main indicators of PWS (Ψ_stem, RWC, g_s, etc.…) [66,226,227]. In 1981, Jackson et al. [96] developed the crop water stress index (CWSI), derived from the energy balance equation. In detail, the complete formula for CWSI is the following [98]:

$$\mathrm{C}\mathrm{W}\mathrm{S}\mathrm{I}=\frac{\left({\mathrm{T}}_{\mathrm{c}}-{\mathrm{T}}_{\mathrm{a}\mathrm{i}\mathrm{r}}\right)-{\left({\mathrm{T}}_{\mathrm{c}}-{\mathrm{T}}_{\mathrm{a}\mathrm{i}\mathrm{r}}\right)}_{\mathrm{L}\mathrm{L}}}{{\left({\mathrm{T}}_{\mathrm{c}}-{\mathrm{T}}_{\mathrm{a}\mathrm{i}\mathrm{r}}\right)}_{\mathrm{U}\mathrm{L}}-{\left({\mathrm{T}}_{\mathrm{c}}-{\mathrm{T}}_{\mathrm{a}\mathrm{i}\mathrm{r}}\right)}_{\mathrm{L}\mathrm{L}}}$$

(4)

where (T_c − T_air)_LL is the lower limit of the difference between T_c and T_air, corresponding to a fully transpiring canopy. (T_c − T_air)_UL is the upper limit, corresponding to a non-transpiring canopy. (T_c − T_air)_LL is also defined as non-water stress baseline (NWSB), established through the relationship between T_c − T_air and VPD; whereas (T_c − T_air)_UL corresponds to the relationship between the T_c − T_air and VPD of a non-transpiring canopy. Conventionally, the (T_c − T_air)_UL is obtained from the intercept of the equation used to calculate the NWSB corrected for air temperature, according to the methodology proposed by Idso et al. in 1981 [98,228]. In 1999, Jones simplified the equation as follows [229]:

$$\mathrm{C}\mathrm{W}\mathrm{S}\mathrm{I}=\frac{{\mathrm{T}}_{\mathrm{c}}-{\mathrm{T}}_{\mathrm{w}\mathrm{e}\mathrm{t}}}{{\mathrm{T}}_{\mathrm{d}\mathrm{r}\mathrm{y}}-{\mathrm{T}}_{\mathrm{w}\mathrm{e}\mathrm{t}}}$$

(5)

In which T_c is the actual canopy temperature obtained by thermal photo, and T_dry and T_wet are the references representing the non-transpiring leaf (or canopy) temperature and a fully transpiring leaf (or canopy) temperature, respectively. The CWSI ranges from 0 (fully hydrated plant) to 1 (fully stressed plant). One of the most debated issues concerns the methodology to establish T_dry and T_wet references. To date, several methods have been studied. One may involve a theoretical (or analytical) approach, determining the CWSI and references via the balance equation at the canopy surface. However, this method requires the use of several environmental parameters (for more details see Jackson et al. [230] and Agam et al. [231]). An alternative approach involves the use of a wet artificial reference surface (WARS) [232,233] as T_wet, while T_dry can be estimated empirically as T_air + 5 °C [234]. Nevertheless, the accuracy of this method could be significantly affected by the material of the WARS, which should have similar leaf emissivity [6,235]. Apolo-Apolo et al. built paper-based hemispheric surfaces that were placed in a 3D-printed plastic structure that continuously allows water storage [236]. Another common approach involves using leaves sprayed with water and detergent 30 s before measuring the leaf temperature as wet references. For the dry reference, the leaf is covered with petroleum jelly at least 30 min before the measurement to artificially close the stomata and inhibit transpiration [225]. Finally, a frequently used approach in recent studies involves extrapolating the temperature of the pure canopy from the entire thermal image through image analysis, aiming to obtain the temperature distribution histogram of the pure canopy. T_wet corresponded to the average temperature of the 0.5% values on the left side of the histogram, whereas T_dry to the average temperature of the 0.5% values on the right side [237,238,239,240,241]. The latter approach has proven reliable in different species such as nectarines [237], grapevine [242], plums (Prunus domestica L.) [243], and olive [241].

Image analysis is necessary to extract temperature values. The main methods for canopy extraction consist of selecting a region of interest (ROI), temperature threshold, and binary mask [244]. A ROI containing a single leaf or an area of leaves is identified in the thermal image either through manual or automatic delineation of an area mainly covered by leaves within the central portion of the thermal image [105]. ROI selection is rarely used for canopy segmentation in thermal imaging obtained by UAVs. This is largely due to the presence of significant ground background pixels in UAV-obtained thermal images, which makes it difficult to accurately isolate the canopy pixels. Temperature thresholding consists of distinguishing the soil and canopy pixels using a bimodal histogram showing two temperature peaks attributed to the soil and canopy [245]. Thus, temperature thresholding can be easily determined from the temperature frequency histogram of thermal imaging. Although most pure canopy pixels can be extracted, the temperature threshold has shown a lack of suitability for distinguishing canopies under severe water stress, because the T_c is higher than that of well-watered canopies and is likely to be improperly discarded as soil pixels [244]. This could lead to subsequent errors in the calculation of the mean canopy temperature and CWSI. Finally, for the binary mask technique, it is necessary to capture thermal and RGB images simultaneously. The binary mask is created by interactively determining the threshold values for the color components in the visible (RGB) images. The visible images are then processed to segment the canopy pixels according to color characteristics [246]. Afterwards, the segmented RGB image and the thermal image are perfectly overlaid to determine the temperature of the selected areas. Great care must be taken at this stage since a slight misalignment of the images will cause the soil background to be included in the thermal image, leading to errors in the calculation of the average canopy temperature (a problem that can be solved by a temperature thresholding operation).

In practice, CWSI from remote sensing has proved useful for estimating PWS in terms of both water potential (Ψ_stem and Ψ_leaf) and gas exchange (g_s) in woody fruit crops. Strong correlations have been shown in multiple crops, such as grapevine [105,238,247], olive [231,248,249,250], almond [251], plum [243], peach [237,245,252], apple [253], cherry [223], pear [227], and citrus [228,254,255], among others. In 2023, Mortazavi et al. developed a predictive model for determining the Ψ_stem in almond and pistachio using vegetation indices obtained from aerial images through a machine learning approach [256]. Employing the random forest (RF) algorithm, which demonstrated higher accuracy (88% for pistachio, 89% for almond), they found that the CWSI played a more significant role in predicting the Ψ_stem in both crops.

Thermal imaging techniques can be applied with images from both unmanned aerial vehicles (UAVs) and satellites. Although thermal satellite imagery is mainly used to study climate change, due to the ease of access to low-resolution imagery, Landsat and Sentinel-2 have been frequently used in agriculture for CWSI calculation [257]. Jamshidi et al. [254] used both Landsat and Sentinel-2 data to assess the CWSI in citrus. The authors found strong correlations by comparing the CWSI calculated from satellite data and in situ CWSI obtained from UAV thermal imagery.

In summary, remote thermal sensing has proven to be a reliable method on from medium to large scales for assessing the water status of fruit trees. However, despite the strong and significant relationships between thermal indices and direct ground-based measurements, there are varying ranges of CWSI values, depending primarily on the methodology applied for calculating the different indices. Furthermore, it would be beneficial to develop models not only for individual species but also for different cultivars.

3.2. Multispectral Sensing

Reflectance data in the different bands can provide direct or indirect indications of PWS. The reflectance spectrum of water can be identified in the infrared region as there are overtone bands of OH bonds at about 760, 970, 1450, and 1940 nm (regions of the NIR and SWIR, respectively) [258,259]. Multispectral cameras are sensors that can commonly provide data in five or six spectral regions, usually included in the VIS, rededge, and NIR bands. Since multispectral cameras mounted in drones or satellites generally do not go beyond NIR, crop water status is often assessed by indices that provide an indirect estimate [260]. Chlorophyll or nitrogen content may prove useful indirect indicators of PWS. Therefore, indices have been developed that are calculated in the reflectance band of these molecules, i.e., in the VIS, rededge, and NIR regions [221,261]. The index that has been most widely used in fruit crops is the NDVI, calculated by considering the rededge and NIR reflectance [262]:

$$\mathrm{N}\mathrm{D}\mathrm{V}\mathrm{I}=\frac{\mathrm{N}\mathrm{I}\mathrm{R}-\mathrm{R}\mathrm{E}\mathrm{D}}{\mathrm{N}\mathrm{I}\mathrm{R}+\mathrm{R}\mathrm{E}\mathrm{D}}$$

(6)

When biotic or abiotic stress phenomena begin to occur, the reflectance of the NIR tends to decrease. In contrast, the reflectance of the RED increases. NDVI values range from −1 to +1. Negative values refer to soil properties, and positive to vegetation [263]. Numerous works have investigated the use of the NDVI to assess PWS. For instance, Ballester et al. [264] examined the effectiveness of multiple xanthophyll, chlorophyll, and structure-sensitive spectral indices from UAVs for identifying water stress within a commercial orchard that included five different species (apricot, almond, peach, orange, and lemon). The authors showed that the NDVI and photochemical reflectance index (PRI; a further VI calculated in the VIS region) were the indices that best correlated with the Ψ_stem (R² = 0.61 and 0.65, respectively), whereas, for analyzing within single species, peach and ‘Garrigue’ almond were found to be the most suitable species for the prediction of both the Ψ_stem and g_s from NDVI data (R² = 0.72 and 0.74 for Ψ_stem and R² = 0.75 and 0.71 for g_s, respectively). In olive, Caruso et al. [265] demonstrated that the NDVI can be a reliable indicator of tree water stress. In grapevine, several works confirm that the NDVI can be a good indicator of PWS [266,267,268,269]. Other vegetation indices commonly used for PWS assessment, and which have been shown to be reliable, are the green normalized difference vegetation index (GNDVI), modified soil adjusted vegetation index (MSAVI), optimized soil adjusted vegetation index (OSAVI), green index (GI), normalized differenced rededge index (NDRE), enhanced vegetation index (EVI), simple ratio index (SR), and water index (WI) [6,268,270,271,272,273]. Zúñiga Espinoza successfully used the green normalized difference vegetation index (GNDVI; a further VI calculated as the ratio between the difference of NIR and Green bands and the sum of NIR and Green bands) for estimating the g_s in grapevine [261]. Stagakis found strong relationships between the PRI and Ψ_stem in orange [274]. In 2023, Fasiolo et al. introduced a novel method to assess the effects of different water regimes on the water potential, vegetation indices, and canopy geometric data in grapevine [275]. This approach combined geometric measurements gathered by a mobile robot with multispectral data obtained from a UAV, as well as traditional measurements like Ψ_stem and Ψ_pd (pre-dawn stem water potential). In detail, 60 vegetation indices were accurately calculated using the projected area of the vineyard point cloud as a mask. Among them, three vegetation indices were identified that correlated best with the Ψ_stem: the green difference vegetation index (GDVI; R² = 0.90), perpendicular vegetation index (PVI; R² = 0.90), and triangular greenness index (TGI; R² = 0.87). In addition, they observed that the canopy volume and area projected onto the ground were affected by the water status, as were measurements of the Ψ_stem and Ψ_pd. Their scientific contribution involved integrating multispectral data from UAVs with ground-based data from a robot, enabling the extraction of spectral information exclusively from plants while excluding non-canopy surfaces.

Also in 2023, Longo-Minnolo et al. developed a new combined approach based on the use of multispectral imagery from UAVs and statistical models to determine the water status of an orange orchard (cv. Tarocco Sciara) during different phenological stages, compared with the traditional Ψ_stem [276]. The results first indicate that significant correlations with the Ψ_stem were found for 9 of the 14 calculated vegetation indices: atmospherically resistant vegetation index (ARVI), EVI, MSAVI, NDRE, NDVI, OSAVI, renormalized difference vegetation index (RDVI), soil adjusted vegetation index (SAVI), and SR. Second, the use of statistical methods such as stepwise linear regression and principal component regression (PCR) with all bands and vegetation indices allows for more reliable Ψ_stem estimates. Both methods have comparable performances, with PCR showing slightly lower errors.

Satellite multispectral imaging provides different information with respect to drones. Satellites can provide images at a wider multispectral range. Sentinel-2 [277,278] and Landsat 8 [279], for example, are capable of obtaining information on the spectral bands of VIS, NIR, SWIR, and thermal infrared (TIR) [6]. Other satellites used for the water status of fruit crops are Landsat 7 [280], WorldView-2 [281,282], and MODIS [283]. In pear, Van Beek [281] successfully estimated the Ψ_stem through WorldView-2 multispectral imagery. In recent years, the Planet [284] platform has been developed, which uses a wide network of satellites (including PlanetScope, SkySat and RapidEye, Landsat 8, and Sentinel-2) to collect images and data from around the world. These satellites constantly capture information about the Earth’s surface, giving users access to recent and historical images [285]. For example, Helman et al. used planet satellite images to monitor grapevine Ψ_stem [285]. In olive, Garofalo et al. [286] developed a machine learning algorithm to predict the Ψ_stem using Planet.

Since the spectral bands of water are the NIR and SWIR bands, with the use of satellites, indices can be calculated for direct estimation of PWS, such as the moisture stress index (MSI) [283] and the better-known normalized difference water index (NDWI) [287]. For instance, Rodríguez-Fernández found strong relationships between the Ψ_stem and NDWI (R² = 0.67) in grapevine [288]. Also in olive, the NDWI proved to be a reliable predictor of water potential [270].

Multispectral methods may prove useful for PWS assessment, albeit often indirectly (especially with sensors lacking the SWIR band). Moreover, it could be argued that handling this extensive amount of data and conducting image analysis requires specialized skills. Knowledge of GIS-based software for geographic data visualization, management, and analysis is crucial. Furthermore, the acquisition and management of these tools can be expensive, particularly when working with high-resolution imagery. This limitation may restrict access to such technologies for certain growers. Environmental conditions could also significantly affect the measurements. The reflection and refraction of sunlight on the Earth’s surface can vary depending on environmental conditions, such as the presence of fog, clouds, atmospheric dust, or humidity. These phenomena can affect the quantity and quality of the reflected light recorded by multispectral sensors, compromising the accuracy of the measurements [6]. Nevertheless, optimistic future prospects for multispectral remote sensing in PWS monitoring exist. The growing accessibility of this system, refinement of vegetation indices, and advancements in artificial intelligence may lead to the development of new models and ready-to-use systems for efficient irrigation management.

3.3. Hyperspectral

In recent years a rapid advancement in spectroscopic and imaging technologies has occurred. In this regard, hyperspectral remote sensing imaging (HRS) has emerged as an efficient nondestructive technique to monitor several plant physiological parameters [289,290]. Multispectral imaging involves capturing spectral signals in specific bands, covering a wide spectral range from tens to hundreds of nanometers. Hyperspectral imaging, on the other hand, captures spectral signals in a sequence of continuous channels with a narrow spectral bandwidth, usually less than 10 nm. This capability allows hyperspectral imaging to capture detailed spectral features of targets that might be overlooked by multispectral imaging [291,292]. Besides cameras, spectrometers are also used in HRS. A spectrometer analyzes the spectral signatures of ground features in the sensor’s field of view by examining the spectral characteristics of light radiation and separating the incoming energy into various wavelengths. Unlike optical, multispectral, and hyperspectral cameras that capture multiple bands of the electromagnetic spectrum and offer continuous gridded pixel area coverage, a spectrometer provides coverage in single pixel footprints determined by its field of view. Nevertheless, its high spectral resolution makes it a viable alternative to multispectral sensors [293]. Both hyperspectral cameras and spectrometers are mounted on UAVs during remote sensing measurements. In addition, hyperspectral sensors are also mounted on some satellites. However, few studies have been carried out with satellite remote sensing. Moreover, compared to the large number of satellite-mounted multispectral sensors, there are fewer with hyperspectral sensors. These include EO-1 Hyperion (the most widely used in agriculture), Tian-Gong-1, PRISMA, and PROBA-CHRIS [235,292]. For future perspective, the European Space Agency (ESA) is developing the Copernicus Hyperspectral Imaging Mission for the Environment (CHIME). This will carry a unique infrared spectrometer in the visible and shortwave bands to provide routine hyperspectral observations to support new and improved services for the sustainable management of agriculture and biodiversity, as well as the characterization of soil properties. The mission will complement Copernicus Sentinel-2 for applications such as land cover mapping (https://www.esa.int/ESA_Multimedia/Missions/CHIME/(result_type)/images, accessed on 12 May 2024) [294].

Various vegetation indices based mainly on NIR and SWIR bands (950–970, 1150–1260, 1450, 1950, and 2250 nm) can be determined from the hyperspectral sensors, such as the NDWI, water index (WI), and water band index (WBI), among others [6,295,296]. Specifically, the NDWI is calculated as the ratio between the difference in reflectance at approximately 860 nm and the reflectance at approximately 1240 nm bands, divided by their sum. Meanwhile, the WI is determined by the ratio of reflectance at 970 nm to the reflectance at 900 nm. Finally, the WBI is calculated as the ratio of reflectance at 900 nm to the reflectance at 970 nm.

In addition, despite its recognizable higher precision, hyperspectral TIR remote sensing has still received little attention to date [235,297].

Hyperspectral sensors have been used in several studies for PWS assessment. In citrus, Zarco-Tejada, with a UAV-mounted micro-hyperspectral imager, was able to estimate the g_s and Ψ_stem by vegetation indices calculated in the VIS-NIR band (NDVI, TCARI, PRI, etc.…) and chlorophyll fluorescence indices [298]. Several works on PWS estimation by hyperspectral images have been carried out on grapevine [269,295,299]. Matese et al. conducted the first evaluation of a UAV hyperspectral dataset on the entire vine ecosystem, using narrowband VIS and multivariate PLS regressions [300]. This study included assessments of water status and vegetative parameters (such as total and lateral leaf area, pruning weight), as well as pomological and quality parameters. In 2023, Vasquez et al. used a machine learning approach to predict grapevine Ψ_stem from UAV-based hyperspectral imagery in the NIR-SWIR range at different phenological stages [301]. Again, an RF model was used to model the data and 10-fold cross-validation was used for evaluation. The authors were able to develop a predictive model of the Ψ_stem with RMSE = 0.12 MPa. Exhaustive results were also found on apple [302], cherry [303], and almond [304] trees.

An important consideration about hyperspectral sensing in general is the relatively high cost. Currently, due to their technological complexity, hyperspectral sensors are less affordable than multispectral sensors. Additionally, a higher level of expertise is required to handle and interpret hyperspectral data [292].

4. Combined Approaches of Proximal and Remote Sensing

The joint use of proximal and remote sensing technologies could provide more comprehensive information on orchard water status and facilitate the acquisition of irrigation needs in terms of timing and volumes. Field water availability may depend on several factors, e.g., the soil texture [305], chemical, and physical properties [306], leaf area [307], presence of cover crops [308], field microclimate [309], etc.

Data from remote sensing could provide useful insights into spatial variability by allowing adequate field mapping. In this way, it would be possible to strategically place proximal sensors according to the distinct zones of the field. In addition, during the irrigation season, the continuous acquisition of data from proximal sensors could expand throughout the orchard by developing appropriate predictive models from vegetation indices obtained via UAVs or satellites. The result would be the expansion of information in time and space. For these reasons, the combination of the two approaches (proximal and remote) may prove to be an efficient and sustainable system for irrigation scheduling, greatly increasing water savings. Yet, as of now, affording a comprehensive system that integrates data from both proximal and remote sensors remains economically challenging for a significant portion of the agricultural community. For this reason, new low-cost sensors are continually being developed and validated, in part due to the simplicity of setting up affordable electronic systems and in part to the advancement of validation techniques such as machine learning. Furthermore, the UAV industry is making rapid progress towards producing miniaturized and cost-effective devices. Similarly, the accessibility and affordability of various satellite platforms could facilitate the retrieval of remote data.

To date, there is not a large number of studies combining remote and proximal sensing. Caruso et al. evaluated the combined use of multispectral data from UAVs with data from soil electrical conductivity sensors in order to identify homogeneous zone in a high-density irrigated olive orchard [265]. The authors found that the impact of various irrigation strategies on tree performance and water use efficiency (WUE) is location-dependent within the orchard, and tree vigor emerges as a primary factor influencing the ultimate fruit yield when the soil water availability is optimal. Matese et al. combined ground-based infrared thermography and thermal imaging from UAVs [310]. The results showed that CWSI values obtained from both remote and proximal sensors serve as useful indicators for evaluating the spatial variability in crop water status in Mediterranean vineyards. In almond, Gonzalez-Dugo et al. related the actual transpiration measured with heat-pulse sap flow probes with the CWSI, calculated using an empirical non-water stress baseline [311]. The relationship obtained between the CWSI and relative transpiration was high (R² = 0.69), demonstrating the effectiveness of the combined use of sap flow probes with airborne thermal imaging. To further confirm their combined use, a relationship between the CWSI and transpiration calculated from the sap flow output was also found on ‘Tonda Romana’ hazelnut (Corylus avellana L.) by Pasqualotto et al. [312]. No further coupling studies were found between remote sensing techniques and the proximal sensors mentioned above.

5. Conclusions

The management of irrigation water in orchards has become a crucial issue. Today, thanks to the techniques mentioned in this review, it is possible to develop an efficient and sustainable irrigation plan. As shown above, several types of sensors can prove useful in estimating PWS, but the future challenge lies in being able to find the appropriate combination for the crop type, soil, and climate. The integration of remote and plant-based proximal sensing techniques can effectively provide large-scale (time and space) information for the efficient monitoring of orchard water availability. However, few studies have investigated the combination of both techniques.

Developing appropriate protocols for efficient and sustainable irrigation management remains a primary research goal. Artificial intelligence may be an effective tool for the integration of different sensors, leading to new machine learning algorithms that can easily make system automation possible. Another challenge lies in the choice of sensors to be combined. An efficient and sustainable precision irrigation system should incorporate sensors that not only provide qualitative information about irrigation timing, but also offer quantitative data on plant water usage. One hypothesis is to combine sensors that provide direct information on water status (e.g., microtensiometers, psychrometers) with sensors that can monitor the response of various plant organs to different hydration levels (e.g., leaf turgor sensors and fruit gauges), and finally, those that can provide information on actual water consumption (e.g., sap flow sensors, leaf transpiration sensors).

Furthermore, integrating proximal systems with remote sensing can offer comprehensive information for more precise and efficient irrigation management, thereby minimizing water waste, meeting plant requirements, and maintaining good yields. Moreover, such accurate information would more easily enable an increasingly punctual irrigation system within orchards, which would lead to significant water savings, increased profits, and improved environmental sustainability. In addition to system precision, economic factors must also be considered. Nowadays, thanks to the more affordable prices of electronic components along with continuously evolving artificial intelligence tools, obtaining sensors and models that overcome the high costs associated with precision systems may become possible. Therefore, improving existing systems that have high potential but also high costs (e.g., microtensiometers, sap flow sensors) and making them accessible to a wide range of producers could be an immediate challenge. Regarding remote sensing systems, the prices of drones and satellite imagery are progressively decreasing, and such expenses can represent an investment to significantly increase profits.

This review provides updates on both proximal and remote sensing methodologies, encompassing established techniques like LPCP probes, fruit gauges, and sap flow probes as well as emerging technologies like microtensiometers, and potentially reliable and user-friendly options such as LWM and LMCP. In particular, the affordability of the latter is emphasized, as it would make it easily accessible to farmers. It is crucial to note the ongoing evolution of remote sensing methodologies, facilitated by the growing accessibility of instruments like UAVs, satellite platforms, and nanotechnologies. The final challenge launched by this review is to encourage researchers to investigate these techniques further and develop appropriate protocols that could make these methodologies increasingly accurate, reliable, and low-cost.
