Article

Mixed-Culture Metagenomics of the Microbes Making Sour Beer

1
Bochman Lab, Department of Molecular and Cellular Biochemistry, Indiana University, Bloomington, IN 47405, USA
2
Laboratório de Microbiologia, Centro de Desenvolvimento Tecnológico, Universidade Federal de Pelotas, Pelotas 96010-610, RS, Brazil
3
Wild Pitch Yeast, Bloomington, IN 47405, USA
*
Author to whom correspondence should be addressed.
Fermentation 2021, 7(3), 174; https://doi.org/10.3390/fermentation7030174
Received: 21 July 2021 / Revised: 17 August 2021 / Accepted: 27 August 2021 / Published: 30 August 2021
(This article belongs to the Special Issue Mixed Culture Fermentation)

Abstract

:
Mixed microbial cultures create sour beers but many brewers do not know which microbes comprise their cultures. The objective of this work was to use deep sequencing to identify microorganisms in sour beers brewed by spontaneous and non-spontaneous methods. Twenty samples were received from brewers, which were processed for microbiome analysis by next generation sequencing. For bacteria, primers were used to amplify the V3-V4 region of the 16S rRNA gene; fungal DNA detection was performed using primers to amplify the entire internal transcribed spacer region. The sequencing results were then used for taxonomy assignment, sample composition, and diversity analyses, as well as nucleotide BLAST searching. We identified 60 genera and 140 species of bacteria, of which the most prevalent were Lactobacillus acetotolerans, Pediococcus damnosus, and Ralstonia picketti/mannitolilytica. In fungal identification, 19 genera and 26 species were found, among which the most common yeasts were Brettanomyces bruxellensis and Saccharomyces cerevisiae. In some cases, genetic material from more than 60 microorganisms was found in a single sample. In conclusion, we were able to determine the microbiomes of various mixed cultures used to produce beer, providing useful information to better understand the sour beer fermentation process and brewing techniques.

1. Introduction

Traditionally, beer production methods are divided into two categories: (a) fermentation at the bottom of the fermenter, performed by Saccharomyces pastorianus in lager beer production, and (b) top-fermented beers, in which S. cerevisiae yeast ferments at the top of the wort, producing ales. Extending the concept to mixed fermentations, two new categories can be included: (c) non-spontaneous fermentation, carried out by an in-house starter culture which consists of yeast and lactic acid bacteria (LAB), and (d) spontaneous fermentation, in which microorganisms such as enterobacteria, yeasts, mold, LAB, and acetic acid-producing bacteria (AAB), among others, are inoculated through exposure to ambient air or external sources (e.g., wood, flowers, or fruits) to ferment these beers [1,2]. Moreover, wooden barrels and foeders used during fermentation act as additional source for microbial inoculation in beer wort [3,4,5].
Mixed fermentations are generally performed by yeasts and LAB in the process of creating sour beers, forming a complex microbiome that acts through their interaction and cooperation [6]. Microorganisms and their enzymes are used through biotechnological processes for acidification, alcohol production, proteolysis, lipolysis, and amino acid conversion in beer wort [1]. Various phases of fermentation can be identified in mixed fermentation beers, in which different bacteria and yeasts are isolated at specific periods [7], including novel microorganisms not yet characterized [5]. Changes in the presence and concentrations of various microorganisms suggest the existence of a microenvironment regulated according to substrate conversion and growth-limiting factors such as pH, carbohydrate concentration, oxygen, temperature, and alcohol concentration [8].
The global beer market is experiencing a resurgence in the interest in sour beers because new products and more complex flavors are being obtained by large and small production breweries around the world [4,9]. Non-spontaneous and spontaneous mixed fermentations are processes used by brewers worldwide to produce these sour beers [4]. However, most brewers do not know exactly which microorganisms are present in their mixed cultures, as well as are unaware of the relative proportions of these microbes in their starter cultures. Even though wild yeasts, LAB, and some Gram-positive bacteria are considered contaminants in the vast majority of beer fermentations, these same microorganisms are often highly desired for the production of specific sour and wild beer styles. As an example, Lambics and American Coolship Ales are beverages with unique flavor profiles generated by “spoilage” organisms [10], in which dozens of volatile compounds can be identified as a direct result of the microbial interactions and release of fermentation by-products [11]. Thus, it is of interest to know the microorganisms present in these fermentative processes, seeking to characterize the microbial diversity and parameters that influence sensory perceptions, and to deepen the knowledge of mixed fermentation beers. The objective of this study was to identify bacteria and yeasts present in different beers and mixed-culture samples from several locations produced by homebrewers and craft breweries using spontaneous and non-spontaneous fermentation methods.

2. Materials and Methods

2.1. Samples

The samples used in this study were obtained through the crowdfunding project “Mixed culture metagenomics of the microbes making sour beer” (DOI 10.18258/13495) hosted on the Experiment platform (www.experiment.com, accessed on 2 July 2021). Each brewer collected and sent their own sample in glass beer bottles or plastic vials containing beer or slurry, which were stored at 4 °C until their analysis.
During July–December 2019, 20 samples were received, including spontaneous and non-spontaneous fermentation beers produced by homebrewers and craft brewers, as well as some samples from house cultures propagated to ferment these beers. Samples were obtained from different regions including countries such as Canada, the United States, and Israel. Furthermore, these samples had different maintenance times, ranging from a few months of storage to more than 5 years of use and propagation by the brewer. Non-spontaneous fermentation samples originated from commercial blends, bottle dregs, or cultures that were propagated and maintained by brewers, of which the exact microbial composition was not known. Spontaneous fermentation samples mostly originated through the process of exposing the beer wort to the ambient air using open fermenters. In some of these samples, it was observed that the brewers inoculated the beer using an external source that likely contained microorganisms such as wood, flowers, or fruits. Details concerning the individual samples can be found in Table 1 and Supplementary Information File S1.
In the case of beer samples, 50 mL was processed by centrifugation at 2000× g for 10 min at 4 °C and the supernatant was decanted. For mixed-culture samples, a small volume (≤5 mL) was resuspended in 50 mL sterile water and treated in the same manner. Then, the pelleted cells and debris were resuspended in 500 μL of 2× DNA/RNA Shield (Zymo Research (Irvine, CA, USA) and stored at −20 °C. Samples were subsequently submitted for microbiome analysis through the ZymoBIOMICS® Targeted Sequencing Service for Microbiome Analysis by the Zymo Research company.

2.2. DNA Extraction and Sequencing

DNA extraction was performed using a ZymoBIOMICS® -96 MagBead DNA kit (Zymo Research, Irvine, CA, USA) or ZymoBIOMICS® DNA Miniprep kit (Zymo Research, Irvine, CA) with an automated extraction platform (www.zymoresearch.com/pages/microbiome-analysis-services, accessed on 6 July 2021). Bacterial and fungal identifications were performed with 10% PhiX spike-in using next generation sequencing (NGS) on an Illumina® MiSeq™ system with a v3 reagent kit (600 cycles). First, targeted libraries were prepared for both groups. For bacteria, 16S ribosomal RNA gene-targeted sequencing was performed using a Quick-16STM NGS Library Prep Kit (Zymo Research, Irvine, CA, USA), in which 16S primers were used to amplify the V3/V4 region of the 16S rRNA gene, maintaining good coverage and high sensitivity. Fungal internal transcribed spacer (ITS)-targeted gene sequencing was performed using the same kit described above, though ITS2 primers were used instead 16S primers, which amplifies the entire ITS region and allowes for the molecular phylogenetic sequence identification for many fungi.
PCR reactions were performed to prepare the sequencing library, controlling cycles and limiting PCR chimera formation. The quantification of final PCR products was performed with qPCR fluorescence readings and DNAs were pooled together based on equal molarity. The cleaning and quantification of final pooled libraries was performed using Select-a-Size DNA Clean & ConcentratorTM (Zymo Research, Irvine, CA, USA), TapeStation® (Agilent Technologies, Santa Clara, CA, USA), and Qubit® (Thermo Fisher Scientific, Waltham, WA, USA) reagents. Negative controls (blanks) were used during all processes, as well as the ZymoBIOMICS® Microbial Community Standard (Zymo Research, Irvine, CA, USA) as a positive control, which mimics a mixed microbial community of a well-defined composition, containing Gram-negative and Gram-positive bacteria and yeasts. Additional information can be found at the ZymoBiomicsTM Service website.

2.3. Bioinformatics Analyses

Sequencing results were used for taxonomy assignment, sample composition visualization, and alpha and beta-diversity analyses. Unique amplicon sequence variants (ASVs) were inferred from raw reads using the DADA2 pipeline [12]. The ASVs of bacteria and fungi were used to create three-dimensional principle component analysis (PCoA) plots using the matrix of paired-wise distances between samples, calculated by the Bray–Curtis dissimilarity. Uclust from Qiime v. 1.9.1 [13] was used for the taxonomy assignment using the Zymo Research Database, a 16S and ITS database that was internally designed and curated, as a reference. Results were re-analyzed by amplified sequence alignment using the nucleotide collection database from NCBI (National Center for Biotechnology Information, Rockville, MD) and the nucleotide BLAST tool. Taxonomy nomenclature and classification were analyzed using the Taxonomy Browser tool on the NCBI website (http://www.ncbi.nlm.nih.gov/Taxonomy/Browser, accessed on 8 July 2021) [14].
Sequencing results were used to separately analyze the phylogenetic relationships between groups of bacteria and fungi with MEGA v.10.1.7 software for alignment, construction, and visualization of phylogenetic trees. Sequence alignment was performed using ClustalW, which was also used to construct neighbor-joining (N-J) phylogenetic trees with 1000 bootstrap trials. Circular trees were used as templates for final figures, which had schemes and colors added using Gimp v.2.10.18 software. The microbial composition for each sample was evaluated using GraphPad Prism v.7 software, which was also used to plot the data. Samples were also analyzed for taxonomy, visualization, and interactive reporting using the Knomics-Biota system [15].

3. Results

Based on the different pipelines used by ZymoResearch and Knomics-Biota, with ASVs examined through the analysis of each amplified fragment using the NCBI nucleotide database, we were able to determine the metagenomes of 20 different beer samples and starter cultures that originated from mixed fermentations made by both spontaneous and non-spontaneous methods.

3.1. Bacteria—16S rRNA V3-V4 Region Analysis

3.1.1. Bacterial Composition

The analysis of the bacteria present in the various samples revealed 60 genera and 120 different species, with some samples containing only one species of bacteria (e.g., samples 15, 16, 17, and 18) and others containing >50 species (e.g., sample 1) (Figure 1). Based on ASV analysis, the most prevalent bacteria were Lactobacillus acetotolerans, which was identified in 60% of the analyzed samples (n = 12), followed by Pediococcus damnosus and Ralstonia picketii/mannitolilytica, both identified in 35% of the samples (n = 7). Although a large number of bacteria were identified at the species level, we observed that several ASVs did not allow for the differentiation of species belonging to the same genus, leading to the designation of two different species for the same ASV, such as for L. collinoides/paracollinoids. Only six ASVs could not be identified at the genus level, allowing only for their classification at the level of phylum, order, or family, as in the case of Myxococales bacteria classification. The microbial composition and raw reads of each sample are available in detail in Supplementary Information File S1, while the total number of bacterial and fungal species identified is shown in Figure 2.
The significant presence of bacteria from the Enterobacteriaceae family was observed in different samples, which could be >15% of the ASV total composition, as in samples 1 and 14, and could even surpass 90% of the bacterial composition, as in samples 6, 7, and 20 (Figure A1, Appendix A). However, even though many of these beers were made by spontaneous fermentation and were inoculated with external sources of microorganisms, the presence of this bacterial group was <2% of the total composition of ASVs identified in most samples (n = 14).
Based on the differences in the microbial composition among samples, beta diversity demonstrated through PCoA plots revealed some similarities among samples according to the identified genera (Figure 3a). We highlight four main groups: group A (samples 4, 5, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, and 18), in which the genus with the highest prevalence was Lactobacillus; group B (samples 6, 7, and 20), in which samples were composed mainly by Enterobacteriaceae bacteria; group C (samples 1 and 2), in which Pediococcus (Pediococcus damnosus exclusively) was the genus with the highest proportion; and group D (samples 3 and 19), in which the microbial composition revealed a large presence of other ASVs detected, such as Gluconobacter spp. and Ralstonia spp. Similarities observed in the bacterial composition could also be seen in the phylogenetic tree generated through the Knomics-Biota pipeline, which grouped samples in a similar way (Figure 3b). Note that the similarity between samples 1 and 11 was due to specific ASVs of P. damnosus, present only in these two samples.

3.1.2. Phylogenetic Analysis

The construction of phylogenetic trees (Figure 4a) showed that Lactobacillus spp. and Pediococcus spp. were the main microbes from the LAB, a group of great importance in the production of sour beers. At least nine different Lactobacillus spp. were detected, including L. brevis, L. plantarum, L. casei/paracasei, L. backii, L. buchneri, L. lindneri, and L. delbrueckii, in addition to those mentioned above. Among the several species of Pediococcus, only P. damnosus was identified but the presence of possible subspecies could be responsible for the multiple different ASVs found. In addition, belonging to the LAB group, bacteria in the genera Leuconostoc, Weissela, and Aerococcus were likewise detected (with lower prevalence), as well as bacteria with potential probiotic activities, such as Bifidobacterium spp. and Bacillus spp. Other phylogenetically distinct groups of bacteria also demonstrated important participation in spontaneous and non-spontaneous fermentations, such as AAB Gluconobacter spp. and Acetobacter spp., and especially G. oxydans and A. pasteurianus.
Several species of the genus Pseudomonas were also detected, mainly in sample 20, in which it was possible to identify eight different ASVs related to this genus, corresponding mainly to P. fluorescens. Although Pseudomonas spp. are mainly known because of the pathogenic bacterium P. aeruginosa, this organism was not detected in the studied samples. A special emphasis was given to the Enterobacteriaceae family in the phylogenetic tree as they corresponded to a large number of identified ASVs and thus represented a vast number of species found at different concentrations. The samples’ metagenomes showed the presence of a large number of genera included in this family, among them Enterobacter spp., Salmonella spp., Klebsiella spp., and Pantoea spp. During the identification of the ASVs corresponding to these bacteria, it was possible to observe a high similarity among the genera, which made specific identification difficult in many cases, especially at the species level.
In analyzing the metagenomes discovered (Figure 4b), three main phyla were identified with high prevalence: Proteobacteria (66.67% of the identified bacteria belonged to this phylum), Firmicutes (19.38%), and Actinobacteria (11.63%). ASVs from other phyla were also detected, though at smaller proportions: Deinococcus-Thermus (0.78%), Cyanobacteria (0.78%), and Planctomycetes (0.78%). Almost half of the identified bacteria belonged to the Gammaproteobacteria class, which includes families such as Enterobacteriaceae, Pseudomonadaceae, and Acetobacteriaceae, among others, totaling to 17 different bacterial families. Though most studies and applications involving mixed-fermentation beers focus on the Lactobacillaceae family, it was related to only 7.75% of ASVs, representing a small portion of the variety of microorganisms identified.

3.2. Fungi—ITS2 Region Analysis

3.2.1. Fungal Composition

NGS targeting the ITS2 region was able to detect 19 genera and 26 different species of fungi in the 20 analyzed samples (Figure 2). Among them, yeasts were the most identified microorganisms, while ASVs from filamentous fungi, molds, and more complex fungi (e.g., mushrooms) were also identified in smaller proportions. Samples were basically dominated by two main yeasts: Brettanomyces bruxellensis and S. cerevisiae, which were present in 75% (n = 15) and 65% (n = 13) of the samples, respectively (Figure 5). Microbial composition analyses revealed that in the vast majority samples (n = 16), fermentation was carried out by at least two different species of fungi. Of these two, an association between Brettanomyces spp. and Saccharomyces spp. was shown to be recurrent (n = 7), in which both exceeded at least 5% concentration in the ASVs found in each sample.
Other yeasts such as Issatchenkia orientalis (also known as Pichia kludriavzevii, Candida krusei, and Candida glycerinogenes) and Wickerhamomyces anomalus (or Pichia anomala) also participated in these mixed-fermentation beers, which could be detected in 30% (n = 6) and 25% (n = 5) of the samples, respectively, with a large presence in samples 3, 6, 7, and 10. It is interesting to note that not only were yeasts identified but also more complex fungi, such as Penicillium spp. which accounted for most of the ASVs, were found in sample 14. Overall, we observed that several fungal species were often present in mixed-culture samples, with more than seven species found in samples 11 and 18, and over 11 different fungi detected in sample 3.
The beta diversity of the cultures was evaluated according to the genera identified in the microbial composition of each sample. In these analyses, we could verify the distribution of samples into four groups (Figure 6a) by similarities between identified microorganisms: group A (samples 4, 9, 15, 16, and 20), in which >95% of the sample was composed of S. cerevisiae; group B (samples 1, 12, 13, 17, 18, and 19), in which >90% of the identified ASVs corresponded to Brettanomyces spp.; group C (samples 2, 5, 8, and 11), in which approximately 70% of the sample was represented by S. cerevisiae, 25% by Brettanomyces spp., and 5% by other fungi; and group D (samples 3, 6, 7, 10, and 14), in which other genera such as Wickerhamomyces, Issatchenkia, Penicillium, and Lachancea dominated.
The tree constructed based on the hierarchical clustering between ASVs detected for ITS2 (Figure 6b) reveals that samples tended to follow the same relationship observed in Figure 6a, though some samples such as 13 and 14 had greater hierarchical approximation because similar ASVs referring to Brettanomyces custersianus were found in significant proportions (86% and 10% of the ASVs identified in these samples, respectively). Similarly, samples 9 and 11, though organized in different groups in Figure 6a, presented a phylogenetic relationship in this analysis because there were specific ASVs corresponding to B. bruxellensis and Brettanomyces anomalus found exclusively in their microbial composition. The other samples displayed phylogenetic relationships in accordance with those observed in the PCoA analysis, confirming similarities in the fungi composition among the samples evaluated in this study.

3.2.2. Phylogenetic Analysis

The construction of a phylogenetic tree using the fungal species detected in this study reveals different subspecies of both B. bruxellensis and S. cerevisiae (Figure 7a). Their excellent growth and adaptability in beer wort favors the presence of these yeasts, as well as the presence of other Brettanomyces spp. such as B. anomalus, B. naardenensis, and B. custersianus, all of which were identified in the spontaneous and non-spontaneous fermentation beers. In addition, multiple species from the Pichia genus were detected, such as P. fermentans and P. membranifaciens, with an emphasis on four subspecies of I. orientalis that were identified as a large proportion in some samples. We observed that different ASVs referring to the fungus Penicillium spp. were present in these samples, as well as more complex fungi such as Perenniporia japonica and Fomitopsis palustres (ASVs identified only in samples 3 and 18, respectively), whose presence is generally related to wood colonization.
Fungi from the Ascomycota phylum, which contains yeasts, accounted for 88.46% of the ASVs found, as well as the Basidiomycota phylum to a lesser extent (11.54%) (Figure 7b). The Pichiaceae family, which contains yeasts of the genera Brettanomyces, Pichia, Kregervanrija, and Issatchenkia, displayed the highest proportion among the families classified (34.62%) in this study. The Saccharomyces, Torulaspora, Lachancea, and Kluyveromyces genera belong to the Saccharomycetaceae family, a taxonomic classification that comprises genera of great importance in mixed-fermentation beer production, and such microbes were responsible for 19.23% of the fungi ASVs classified. Other families were responsible for the classification of only one genus, representing 3.85% each of the total yeasts found.

4. Discussion

4.1. Exploring the Microbiomes of Mixed-Fermentation Beers

Elucidating the microbiomes of mixed-fermentation beers is important to understand the participation of microorganisms in this fermentation niche. The production of sour beers from spontaneous fermentations is associated with inconsistencies in product quality, unpredictability in fermentation results, and extra time to consumption [8], as it is often not known which microorganisms will act in the beer wort exposed to the thousands of bacteria and fungi present in the environment or after the repitching a slurry from previous mixed-fermentation batches. Even brewers who work with spontaneously fermented beers for years or decades very often do not know which wild microbes are fermenting their beers, thus it is important to reveal the microbiomes of mixed cultures responsible for fermenting normal beer wort into high-value sour beers. Thus, identifying and characterizing the metagenomes present in mixed fermentation beers and mixed cultures samples allows one to predict which microorganisms typically participate in these fermentations and formulate new bacterial and yeast blends to mimic this fermentation process in a controlled and reproducible way.
Preliminary studies performed by our research group concerning the metagenomes of commercial beers made by mixed fermentation and the barrels used in their maturation corroborate the data presented here, where L. acetotolerans, L. brevis, L. buchneri, B. bruxellensis, and S. cerevisiae were commonly observed in the samples (data not shown). Though different microorganisms have been detected at lower concentrations, the metagenome data in this study are in accordance with observations by other researchers, such as Bokulich et al. (2012) [10], Bokulich et al. (2015) [16], De Roos et al. (2019) [3], and Tyakht et al. (2021) [15]. We observed in our work that dozens of bacterial species can be found through NGS using the V3/V4 region of the 16S rRNA, revealing that beers produced spontaneously and non-spontaneously represent an interesting source for the identification of new microorganisms that cooperate or compete amongst themselves in the consumption of substrates present in beer wort [17]. Their presence is important in mixed-fermentation beers as they are able to enhance the production of specific flavors and acidify the wort through lactic acid production, which are typical characteristics in these beer styles [2].
Fungal ASV detection by sequencing the ITS2 region revealed microbiomes based on two main genera: Brettanomyces spp. and Saccharomyces spp., which were found in the vast majority of samples corresponding to >90% of the ASVs identified per sample. However, there is still a little-known world of unconventional yeasts to be discovered and characterized, which is comprised of less common genera such as Issatchenkia and Wickerhamomyces. The fungal microbiomes presented a lower variability in the number of species when compared to bacteria, which may be related to the avidity in glucose consumption by commercial strains (reducing the concentration of easily assimilated carbohydrates in the medium) and the competition among yeasts, which can present killer characteristics, producing secondary metabolites that aim to stop the multiplication of cross-feed competitors [18,19]. Even so, 12 different yeast genera were detected as participating in these fermentations.

4.2. Lactobacillus spp. and Pediococcus spp. Are Often Identified in Mixed-Fermentation Beers

In recent years, the application of LAB has been explored in sour beer production, with emphasis on bacteria in the Lactobacillus genus as not just contaminants in beer but as interesting tools for acidification and the production of new flavors [20]. Although the vast majority of these bacteria are not tolerant to hop alpha-acid concentrations of up to 20 international bitterness units (IBUs), some species and subspecies adapt to the adverse conditions that exist in beers, becoming tolerant to this and others selective pressures such as hydrostatic pressure, alcohol, and low pH [21]. In our study, we observed nine Lactobacillus spp., including L. acetotolerans (with eight identified subspecies), L. backii, and L. plantarum, a genus present in 18 of the 20 samples analyzed. Several authors highlight the presence of Lactobacillus spp. in the microbiomes of mixed-fermentation beers, such as Tyakht et al. (2021) [15] and Spitaels et al. (2014) [7], who detected these bacteria in American Coolship Ales, Wild Ales, Sour Ales, and Belgian Lambic Beers.
P. damnosus was the only identified species from the Pediococcus genus but 18 subspecies were detected in this study. Similar to Lactobacilllus spp., Pediococcus spp. are commonly considered as beer and manufacturing environmental contaminants, a characteristic that encourages research into the identification of resistance factors mainly acquired through specific plasmids and genes [17,22]. In Lambic-style beers (produced by spontaneous fermentation), P. damnosus is one of the main isolated species and can be easily identified as part of the microbiome of the interior surface of wooden barrels [1], in the air, and on other brewery equipment surfaces [23] mainly due to its high oxidative stress resistance and hop tolerance [4]. In our study, ASVs corresponding to these bacteria were found in seven samples, representing up to 70% of the bacterial microbiome, as in sample 2.
Biological acidification during the brewing process by the action Lactobacillus spp. or Pediococcus spp. has several benefits: flavor stability, greater zinc bioavailability, fast final attenuation, lower wort viscosity, and smoother hop bitterness, among others [2]. In pre-fermentation tests using these bacteria, impacts are observed on volatile compound and organic acid production, which result in significant differences in the sensorial characteristics of sour beers [20]. These bacteria can also use carbohydrates that are not metabolized by conventional yeasts, such as maltotriose, maltotetraose, and cellobiose, resulting in beer over-attenuation [8,24]. Although Pediococcus spp. are historically reported as responsible for high levels of diacetyl production and causing viscous “sick beers” (through exopolysaccharide secretion), these bacteria have been intentionally combined with Brettanomyces spp. to generate a deeper acidity and mouthfeel in various mixed-fermentation beers [24]. Some Brettanomyces strains have β-glucosidase enzyme activity, permitting the yeast to degrade the exopolysaccharides produced by LAB and demonstrating the importance of microbial consortia found in mixed-fermentation beers [4].

4.3. Bacteria of the Enterobacteriaceae Family and Their Presence in Spontaneous and Non-Spontaneous Fermentations

Enterobacteriaceae bacteria are well-known contaminants in spontaneously fermented beers, participating in the initial stages of fermentation (also known as the Enterobacteriaceae phase) that starts on day one and can last approximately 1 month [1]. In our work, ASVs corresponding to different bacteria in this family were identified, such as Rahnella spp., Klebsiella spp., Enterobacter spp., Providencia spp., Escherichia spp., Erwiniae spp., and Pantoea spp. In samples 6, 7, and 20, we found that almost the entire bacterial microbiome corresponded to Enterobacteriaceae, with emphasis on the species R. aquatilis, K. oxytoca, E. asburiae, and E. billingiae, which were present at levels of >20% of the ASVs found in these samples. Using methods for the isolation of microorganisms in specific-culture media, Spitaels et al. (2014) [7] could verify that after 2 months of maturation, only P. damnosus was found in beers in which Enterobacteriaceae were previously recovered during the initial fermentation period. Thus, it is noteworthy that although we detected ASVs corresponding to these bacteria in the samples in our study, this does not imply that these microbes were viable at the time of sample collection.
Different studies have successfully isolated and identified Enterobacteriaceae in spontaneously fermented beers, whether American Coolship Ales, Belgian Lambics, or Wild Ales [7,9,15]. In such cases, these bacteria were highly abundant (>8% of ASVs) in six beer samples. Although they are responsible for off-flavor production and can be harmful to health through biogenic amine production [1,9], these bacteria are also linked to the production of specific flavors related to young Lambics, such as 2,3-butanediol, ethyl acetate, higher alcohols, acetic acid, lactic acid, succinic acid, and fatty acids [10,24]. Manual wort acidification prior to fermentation is a technique that may lower the Enterobacteriaceae concentration during early fermentation and is often used by lambic brewers to shorten the Enterobacteriaceae phase [4].

4.4. Other Bacteria

The metagenomes of our mixed-culture samples were not restricted to bacteria from the Enterobacteriaceae and Lactobacillaceae families. Several different species were often present, mainly AAB from the genera Gluconobacter and Acetobacter. Indeed, G. oxydans corresponded to 64.23% of the ASVs found in sample 3 and different Acetobacter spp. were present in concentrations of >20% in samples 2, 4, and 5. Their presence is likely due to the fact that they are able to tolerate hop alpha-acids and ethanol concentrations up to 10%, as well as being responsible for ethanol oxidation with the formation of organic acids, mainly acetic acid (one of the flavors commonly associated with spontaneously fermented beers) [25].
Similar to our findings, Tyakht et al. (2021) detected the presence of the Leuconostocacaceae and Acetobactereaceae families at abundant levels (>5%) in the microbiomes of two wild beers. Not only are LAB important in the flavor bouquet construction of sour beers, but other less conventional bacteria can also be highlighted, such as Acetobacter spp. which are related to the production of beers with high contents of 5-methyl-furfural, flavonoids, and 2- and 3-methyl butanol [9]. When associated with the presence of lactic acid, acetic acid addition by these bacteria (at adequate amounts) can increase the sensory complexity of the beer, resulting in the construction of the “layered flavors” so important in traditional Belgian sour beers [4,24]. However, excessive production of acetic acid and acetoin by AAB is normally avoided through the use of full and well-sealed wooden casks. This maintains a yeast pellicle at the wort/air surface that enables microaerobic conditions, consequently limiting AAB growth [4].
Bacteria of the genus Pseudomonas were also detected. Even though a large variability in the of ASVs for Pseudomonas spp. was found only in sample 20, P. fluorescens was identified in 20% of the studied samples (n = 4), with concentrations ranging from 0.3–8% in samples in which it was identified (samples 1, 3, 12, and 19). This genus was also identified by Rodhouse (2017) [26], mainly in malt samples, with a decrease in its detection during the brewing process (mashing, boiling, and bottling). Considering spontaneously fermented beers are usually exposed to the environment, it is possible that these bacteria are transported from the raw brewing ingredients (mainly malt) to the wort during the open-air fermentation process [27].
Aside from Pseudomonas spp., other Gram-negative bacteria found in significant concentrations were Ralstonia spp., representing 17% of bacterial ASVs found in sample 19 and 8% in sample 3. Both genera were also detected at small concentrations (<103 cell/mL) by other researchers such as Takahashi et al. (2015) [28] who observed the presence of these bacteria in the early and intermediate stages of beer-like beverage fermentation and Bokulich et al. (2012) [10] who detected them in American Coolship Ales. Other bacteria such as Acinetobacter spp., Stenotrophomonas spp., Sphingomonas spp., and Staphylococcus spp. were also detected in small amounts in the metagenomes of mixed-fermentation beers by Bossaert et al. (2021) [9]. However, De Roos et al. (2019) [3] detected a high relative abundance of the same bacteria on the surfaces of wooden barrels used in beer fermentation.

4.5. Fungi besides the Brettanomyces spp. and Saccharomyces spp.

In addition to traditional and well-known Brettanomyces spp. and Saccharomyces spp., other yeasts were present in the microbiomes of our mixed-culture samples. Genera such as Debaryomyces, Lachancea, and Pichia, and mainly Issatchenkia and Wickerhamomyces, were identified as part of the samples’ fungal microbiomes. I. orientalis, a yeast known for its industrial application in bioethanol production and participation in the construction of the aroma bouquet in wines [29], has been used in co-fermentations with S. cerevisiae for the production of beers with higher levels of fruity esters [30]. In our study, we identified this yeast at high concentrations (>45% of the ASVs found) in the fungal microbiomes of samples 3 and 14, demonstrating its adaptability to beer wort and its participation in the fermentation process.
Wickerhamomyces anomalus and D. hansenii are yeasts very often detected in the air surrounding coolships, as well as observed participating in Lambic beer fermentation [4]. The use of W. anomalus has already been studied in a controlled way in the production of beers, classifying this yeast as a potential organism for the primary souring technique with contribution to fruity organoleptic profiles [31,32]. W. anomalus was detected in our study, comprising almost the entire fungal microbiome (>98%) in samples 6 and 7, as well as being relatively abundant in sample 3 (9% of the ASVs). Although Tyakht et al. (2021) [15] did not detect the presence of W. anomalus in the beer samples analyzed, Spitaels et al. (2014) [7] confirmed its participation in Lambic beer fermentation, identifying relevant levels (>20%) in the microbiomes of beers after 24 months and detecting its presence both in the air of the brewery environment and on the external surface of casks.
Varied Pichia spp. such as P. manshurica and P. fermentans were also found in the analyzed samples, generally at concentrations of <2%. However, P. membranifaciens was the only species of this genus that could be identified above this rate in the microbiome of a sample, representing 7% of the ASVs found in sample 2. Although in our study the concentration of Pichia spp. was considered low, other studies such as Bossaert et al. (2021) [9] identified P. membranifaciens as comprising up to 98% of the OTUs (operational taxonomic units) found in beers at specific maturation periods and also revealing that beer maturation over time leads to changes in the microbiome. Lachancea spp. are also reported to participate in mixed-fermentation beers, mainly being responsible for pH decrease in sour beers through lactic acid production [31,33]. L. fermentati/dasiensis was detected in our work in sample 3, with a relatively abundant concentration of 12% of the fungal microbiome.
The beer microbiomes in our study also revealed that among the most abundant families of fungi, Aspergillaceae represented around 7% of the identified ASVs. Cason et al. (2020) [34] observed a similar relative abundance (6.7% of OTUs) in Sesotho beer samples, a traditional South African style produced by spontaneous fermentation. Fungi of the Penicilllium genus, which is part of this family, are related to gushing and their presence has been detected inside beer and wine barrels, mainly participating in biofilm formation on porous surfaces [3,35]. These fungi are capable of producing enzymes responsible for the degradation of lignocellulose and beta-glycans, contributing to changes in beer color and aroma [36]. Other researchers such as Bossaert et al. (2021) [9] and De Roos et al. (2019) [3] have also identified Penicillium spp. in their samples. However, we found only one sample (sample 14) with >80% of fungal ASVs related to Penicillium carneum/roqueforti. ASVs referring to fungi with advanced and more complex structures (e.g., P. japonica) were also detected in samples at levels between 0.05% and 0.5%, indicating little relevance in the microbiomes of the analyzed beers.

4.6. The Importance of Traditional Yeasts in Mixed-Fermentation Beers

Brettanomyces (also known as Dekkera), perhaps the second most important genus of yeast in mixed-fermentation beers, can be found in large proportions in spontaneously and non-spontaneously fermented beers, associated with the production of phenolic and esterified volatile compounds [8]. The ability of Brettanomyces ssp. to metabolize complex sugars, produce acetic acid, generate a characteristic aromatic profile, and cause “super-attenuation” in beer wort has aroused interest in their use [32,37], which has led to several production laboratories around the world distributing these yeasts commercially.
Here, B. bruxellensis was the species with highest proportions found in the ASVs of this genus, totaling to >90% of the fungal microbiome in some samples such as 12, 17, and 19. Sobel et al. (2017) [38] also highlighted the large presence of B. bruxellensis in traditional beers from countries such as Belgium, Italy, and Switzerland, detecting it in the metagenomes of 36 samples (n = 39). Not only did we find B. bruxellensis in large proportions in our samples but also B. anomalus (15% of the ASVs in sample 1) and B. custersianus, which comprised >85% of the ASVs in sample 13. These species present differences in sugar metabolism, aggregation, and flavor production, leading to interest in their use during beer fermentation [39]. It is noteworthy that the ASVs corresponding to Brettanomyces spp. and Saccharomyces spp. found in samples 2, 11, and 18 are possibly not related to wild strains but rather to the use of commercial blends inoculated at the beginning of fermentation.
The identification of the yeasts in the metagenomes of our samples revealed only one species in the Saccharomyces genus, S. cerevisiae, which together with S. pasteurianus are the brewers’ yeasts most used for beer fermentation and are widely commercially available through propagation laboratories [40]. Wild strains of S. cerevisiae can offer interesting characteristics such as the extracellular production of different secondary metabolites (related to the production of new aromas) and tolerance to different stress conditions (e.g., salinity, temperature, and high levels of ethanol) [19]. These strains have mainly been isolated and characterized from spontaneous fermentations of traditional fermented beverages such as Kveik strains, isolated from Norwegian Kveik Beer [41]. In seven samples, in which there was no commercial S. cerevisiae inoculum, ASVs corresponding to S. cerevisiae were detected, which may be related to the presence of wild strains acting during fermentation. However, because the detection of this yeast may be related to the cross-contamination of utensils and fermenters by the presence of commercial S. cerevisiae on such equipment [16], further studies must be conducted to confirm these ASVs as originating from wild strains.
Among the eight strains of S. cerevisiae detected in the metagenomes here, only one was identified as a hybrid of this yeast with another species (S. cerevisiae × S. eubayanus × S. uvarum). It was found at a low concentration (<2% of the ASVs) in just one sample (#20), a beer produced through spontaneous fermentation. Yeasts with hybrid genotypes are generally reported in beer and wine, where their presence is caused by interspecific hybridization during the diversification and adaptation of yeasts to the industrial niche [42].

5. Conclusions

The microbiome analysis of 20 samples of mixed cultures with different origins allowed us to deepen our knowledge of the metagenomes of the cultures used for beer production, identifying the distribution and concentration of bacteria and fungi in these samples. Exploring new microorganisms and their strains that adapt to and ferment beer wort is an important key factor in the rational development of new blends for brewers to ensure that the production of various beers and their flavors become reliable and reproducible. Based on these data, we conclude that this is a vast field that needs to be further explored, with potential for industrial applications and in the development of basic and applied science. Future work connecting the bacterial compositions of mixed cultures used for fermentation to metadata on the base wort, kinetics of fermentation, and organoleptic compounds produced in various sour beers will enable brewers to construct bespoke mixed cultures the generate desired sensorial results.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/fermentation7030174/s1, Supplementary Information S1: Raw reads, ASVs sequences, microorganisms’ identification, and prevalence in each sample (Microsoft Excel file).

Author Contributions

Conceptualization, R.E.A.P. and M.L.B.; methodology, R.E.A.P. and M.L.B.; software, R.E.A.P., F.P.L.L. and M.L.B.; validation, R.E.A.P., F.P.L.L. and M.L.B.; formal analysis, R.E.A.P., F.P.L.L. and M.L.B.; investigation, R.E.A.P. and M.L.B.; resources, R.E.A.P., F.P.L.L. and M.L.B.; data curation, R.E.A.P. and M.L.B.; writing—original draft preparation, R.E.A.P.; writing—review and editing, R.E.A.P., F.P.L.L. and M.L.B.; visualization, R.E.A.P.; supervision, F.P.L.L. and M.L.B.; project administration, F.P.L.L. and M.L.B.; funding acquisition, R.E.A.P., F.P.L.L. and M.L.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by donors to the Experiment.com project “Mixed culture metagenomics of the microbes making sour beer” (DOI 10.18258/13495).

Data Availability Statement

The data presented in this study are available in the Supplementary Information.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

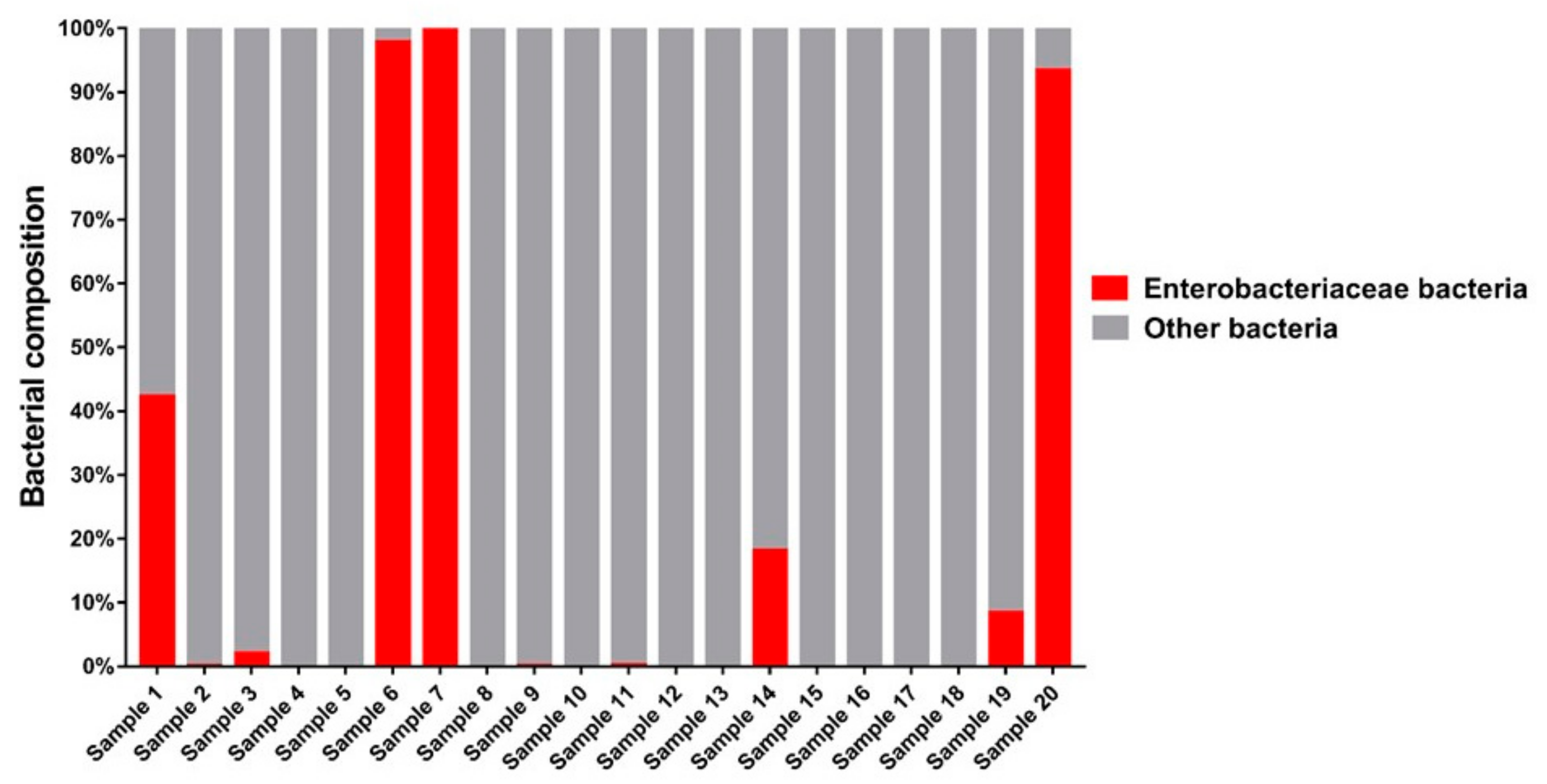

Figure A1. Enterobacteriaceae family presence in the bacterial composition of the analyzed samples. Bacteria from the Enterobacteriaceae family are commonly detected in the first fermentation phase of mixed-fermentation beers produced by spontaneous fermentation (De Roos and De Vuyst, 2019) and in our study they could be identified in relevant proportions in samples 1, 6, 7, 14, 19, and 20 (>8% of the ASVs detected in each sample).
Figure A1. Enterobacteriaceae family presence in the bacterial composition of the analyzed samples. Bacteria from the Enterobacteriaceae family are commonly detected in the first fermentation phase of mixed-fermentation beers produced by spontaneous fermentation (De Roos and De Vuyst, 2019) and in our study they could be identified in relevant proportions in samples 1, 6, 7, 14, 19, and 20 (>8% of the ASVs detected in each sample).
Fermentation 07 00174 g0a1

References

  1. De Roos, J.; De Vuyst, L. Microbial acidification, alcoholization, and aroma production during spontaneous lambic beer production. J. Sci. Food Agric. 2019, 99, 25–38. [Google Scholar] [CrossRef] [PubMed][Green Version]
  2. Vriesekoop, F.; Krahl, M.; Hucker, B.; Menz, G. 125th Anniversary review: Bacteria in brewing: The good, the bad and the ugly. J. Inst. Brew. 2012, 118, 335–345. [Google Scholar] [CrossRef]
  3. De Roos, J.; Van der Veken, D.; De Vuyst, L. The interior surfaces of wooden barrels are an additional microbial inoculation source for lambic beer production. Appl. Environ. Microbiol. 2019, 85, 1–18. [Google Scholar] [CrossRef][Green Version]
  4. Bongaerts, D.; De Roos, J.; De Vuyst, L. Technological and environmental features determine the uniqueness of the lambic beer microbiota and production process. Appl. Environ. Microbiol. 2021, 87. [Google Scholar] [CrossRef] [PubMed]
  5. Shayevitz, A.; Harrison, K.; Curtin, C.D. Barrel-Induced Variation in the Microbiome and Mycobiome of Aged Sour Ale and Imperial Porter Beer. J. Am. Soc. Brew. Chem. 2020, 79, 33–40. [Google Scholar] [CrossRef]
  6. Faria-Oliveira, F.; Diniz, R.H.S.; Godoy-Santos, F.; Piló, F.B.; Mezadri, H.; Castro, I.M.; Brandão, R.L. The Role of Yeast and Lactic Acid Bacteria in the Production of Fermented Beverages in South America. In Food Production and Industry; InTech: Roseville, CA, USA, 2015; Volume i, p. 13. [Google Scholar]
  7. Spitaels, F.; Wieme, A.D.; Janssens, M.; Aerts, M.; Daniel, H.M.; Van Landschoot, A.; De Vuyst, L.; Vandamme, P. The microbial diversity of traditional spontaneously fermented lambic beer. PLoS ONE 2014, 9, e95384. [Google Scholar] [CrossRef]
  8. Dysvik, A.; La Rosa, S.L.; De Rouck, G.; Rukke, E.-O.; Westereng, B.; Wicklund, T. Microbial Dynamics in Traditional and Modern Sour Beer Production. Appl. Environ. Microbiol. 2020, 86, 1–14. [Google Scholar] [CrossRef]
  9. Bossaert, S.; Winne, V.; Van Opstaele, F.; Buyse, J.; Verreth, C.; Herrera-Malaver, B.; Van Geel, M.; Verstrepen, K.J.; Crauwels, S.; De Rouck, G.; et al. Description of the temporal dynamics in microbial community composition and beer chemistry in sour beer production via barrel ageing of finished beers. Int. J. Food Microbiol. 2021, 339, 109030. [Google Scholar] [CrossRef] [PubMed]
  10. Bokulich, N.A.; Bamforth, C.W.; Mills, D.A. Brewhouse-resident microbiota are responsible for multi-stage fermentation of American coolship ale. PLoS ONE 2012, 7, e35507. [Google Scholar] [CrossRef]
  11. Witrick, K.; Pitts, E.R.; O’Keefe, S.F. Analysis of Lambic Beer Volatiles during Aging Using Gas Chromatography–Mass Spectrometry (GCMS) and Gas Chromatography–Olfactometry (GCO). Beverages 2020, 6, 31. [Google Scholar] [CrossRef]
  12. Callahan, B.J.; McMurdie, P.J.; Rosen, M.J.; Han, A.W.; Johnson, A.J.A.; Holmes, S.P. DADA2: High-resolution sample inference from Illumina amplicon data. Nat. Methods 2016, 13, 581–583. [Google Scholar] [CrossRef][Green Version]
  13. Caporaso, J.G.; Kuczynski, J.; Stombaugh, J.; Bittinger, K.; Bushman, F.D.; Costello, E.K.; Fierer, N.; Peña, A.G.; Goodrich, J.K.; Gordon, J.I.; et al. QIIME allows analysis of high-throughput community sequencing data. Nat. Methods 2010, 7, 335–336. [Google Scholar] [CrossRef] [PubMed][Green Version]
  14. Schoch, C.L.; Ciufo, S.; Domrachev, M.; Hotton, C.L.; Kannan, S.; Khovanskaya, R.; Leipe, D.; McVeigh, R.; O’Neill, K.; Robbertse, B.; et al. NCBI Taxonomy: A comprehensive update on curation, resources and tools. Database 2020, 2020, 1–21. [Google Scholar] [CrossRef] [PubMed]
  15. Tyakht, A.; Kopeliovich, A.; Klimenko, N.; Efimova, D.; Dovidchenko, N.; Odintsova, V.; Kleimenov, M.; Toshchakov, S.; Popova, A.; Khomyakova, M.; et al. Characteristics of bacterial and yeast microbiomes in spontaneous and mixed-fermentation beer and cider. Food Microbiol. 2021, 94, 103658. [Google Scholar] [CrossRef]
  16. Bokulich, N.A.; Bergsveinson, J.; Ziola, B.; Mills, D.A. Mapping microbial ecosystems and spoilage-gene flow in breweries highlights patterns of contamination and resistance. Elife 2015, 4, e04634. [Google Scholar] [CrossRef]
  17. Kajala, I.; Bergsveinson, J.; Friesen, V.; Redekop, A.; Juvonen, R.; Storgårds, E.; Ziola, B. Lactobacillus backii and Pediococcus damnosus isolated from 170-year-old beer recovered from a shipwreck lack the metabolic activities required to grow in modern lager beer. FEMS Microbiol. Ecol. 2018, 94, 1–10. [Google Scholar] [CrossRef]
  18. Rodhouse, L.; Carbonero, F. Overview of craft brewing specificities and potentially associated microbiota. Crit. Rev. Food Sci. Nutr. 2019, 59, 462–473. [Google Scholar] [CrossRef]
  19. Molinet, J.; Cubillos, F.A. Wild Yeast for the Future: Exploring the Use of Wild Strains for Wine and Beer Fermentation. Front. Genet. 2020, 11, 1–8. [Google Scholar] [CrossRef]
  20. Dysvik, A.; Liland, K.H.; Myhrer, K.S.; Westereng, B.; Rukke, E.O.; de Rouck, G.; Wicklund, T. Pre-fermentation with lactic acid bacteria in sour beer production. J. Inst. Brew. 2019, 125, 342–356. [Google Scholar] [CrossRef]
  21. Sakamoto, K.; Konings, W.N. Beer spoilage bacteria and hop resistance. Int. J. Food Microbiol. 2003, 89, 105–124. [Google Scholar] [CrossRef]
  22. Garcia-Garcia, J.H.; Damas-Buenrostro, L.C.; Cabada-Amaya, J.C.; Elias-Santos, M.; Pereyra-Alférez, B. Pediococcus damnosus strains isolated from a brewery environment carry the horA gene. J. Inst. Brew. 2017, 123, 77–80. [Google Scholar] [CrossRef][Green Version]
  23. Garcia-Garcia, J.H.; Galán-Wong, L.J.; Pereyra-Alférez, B.; Damas-Buenrostro, L.C.; Pérez, E.; Carlos Cabada, J. Distribution of lactobacillus and pediococcus in a brewery environment. J. Am. Soc. Brew. Chem. 2017, 75, 312–317. [Google Scholar] [CrossRef]
  24. Bossaert, S.; Crauwels, S.; Lievens, B.; De Rouck, G. The power of sour—A review: Old traditions, new opportunities. BrewingScience 2019, 72, 78–88. [Google Scholar] [CrossRef]
  25. Ashtavinayak, P.; Elizabeth, H.A. Review: Gram Negative Bacteria in Brewing. Adv. Microbiol. 2016, 06, 195–209. [Google Scholar] [CrossRef][Green Version]
  26. Rodhouse, L. Phylogenetic Diversity of the Bacterial Communities in Craft Beer; University of Arkansas: Fayetteville, AR, USA, 2017. [Google Scholar]
  27. Justé, A.; Malfliet, S.; Lenaerts, M.; De Cooman, L.; Aerts, G.; Willems, K.A.; Lievens, B. Microflora during malting of barley: Overview and impact on malt quality. BrewingScience 2011, 64, 22–31. [Google Scholar]
  28. Takahashi, M.; Kita, Y.; Kusaka, K.; Mizuno, A.; Goto-Yamamoto, N. Evaluation of microbial diversity in the pilot-scale beer brewing process by culture-dependent and culture-independent method. J. Appl. Microbiol. 2015, 118, 454–469. [Google Scholar] [CrossRef] [PubMed]
  29. Zhao, Y.; Sun, Q.; Zhu, S.; Du, F.; Mao, R.; Liu, L.; Tian, B.; Zhu, Y. Biodiversity of non-Saccharomyces yeasts associated with spontaneous fermentation of Cabernet Sauvignon wines from Shangri-La wine region, China. Sci. Rep. 2021, 11, 1–10. [Google Scholar] [CrossRef]
  30. Van Rijswijck, I.M.H.; Wolkers-Rooijackers, J.C.M.; Abee, T.; Smid, E.J. Performance of non-conventional yeasts in co-culture with brewers’ yeast for steering ethanol and aroma production. Microb. Biotechnol. 2017, 10, 1591–1602. [Google Scholar] [CrossRef] [PubMed][Green Version]
  31. Osburn, K.; Amaral, J.; Metcalf, S.R.; Nickens, D.M.; Rogers, C.M.; Sausen, C.; Caputo, R.; Miller, J.; Li, H.; Tennessen, J.M.; et al. Primary souring: A novel bacteria-free method for sour beer production. Food Microbiol. 2018, 70, 76–84. [Google Scholar] [CrossRef]
  32. Capece, A.; Romaniello, R.; Siesto, G.; Romano, P. Conventional and Non-Conventional Yeasts in Beer Production. Fermentation 2018, 4, 38. [Google Scholar] [CrossRef][Green Version]
  33. Zdaniewicz, M.; Satora, P.; Pater, A.; Bogacz, S. Low lactic acid-producing strain of lachancea thermotolerans as a new starter for beer production. Biomolecules 2020, 10, 256. [Google Scholar] [CrossRef] [PubMed][Green Version]
  34. Cason, E.D.; Mahlomaholo, B.J.; Taole, M.M.; Abong, G.O.; Vermeulen, J.G.; de Smidt, O.; Vermeulen, M.; Steyn, L.; Valverde, A.; Viljoen, B. Bacterial and Fungal Dynamics During the Fermentation Process of Sesotho, a Traditional Beer of Southern Africa. Front. Microbiol. 2020, 11, 1–14. [Google Scholar] [CrossRef]
  35. Vogt, E.I.; Kupfer, V.M.; Vogel, R.F.; Niessen, L. Evidence of gushing induction by Penicillium oxalicum proteins. J. Appl. Microbiol. 2017, 122, 708–718. [Google Scholar] [CrossRef] [PubMed]
  36. Nigam, D.; Asthana, M.; Kumar, A. Penicillium: A fungus in the wine and beer industries; Elsevier B.V.: Amsterdam, The Netherlands, 2017; ISBN 9780444635013. [Google Scholar]
  37. Serra Colomer, M.; Funch, B.; Forster, J. The raise of Brettanomyces yeast species for beer production. Curr. Opin. Biotechnol. 2019, 56, 30–35. [Google Scholar] [CrossRef]
  38. Sobel, J.; Henry, L.; Rotman, N.; Rando, G. BeerDeCoded: The open beer metagenome project. F1000Research 2017, 6, 1676. [Google Scholar] [CrossRef] [PubMed]
  39. Colomer, M.S.; Chailyan, A.; Fennessy, R.T.; Olsson, K.F.; Johnsen, L.; Solodovnikova, N.; Forster, J. Assessing Population Diversity of Brettanomyces Yeast Species and Identification of Strains for Brewing Applications. Front. Microbiol. 2020, 11, 1–21. [Google Scholar] [CrossRef]
  40. Stewart, G. Saccharomyces species in the Production of Beer. Beverages 2016, 2, 34. [Google Scholar] [CrossRef]
  41. Lengeler, K.B.; Stovicek, V.; Fennessy, R.T.; Katz, M.; Förster, J. Never Change a Brewing Yeast? Why Not, There Are Plenty to Choose From. Front. Genet. 2020, 11. [Google Scholar] [CrossRef]
  42. Gallone, B.; Steensels, J.; Mertens, S.; Dzialo, M.C.; Gordon, J.L.; Wauters, R.; Theßeling, F.A.; Bellinazzo, F.; Saels, V.; Herrera-Malaver, B.; et al. Interspecific hybridization facilitates niche adaptation in beer yeast. Nat. Ecol. Evol. 2019, 3, 1562–1575. [Google Scholar] [CrossRef] [PubMed]

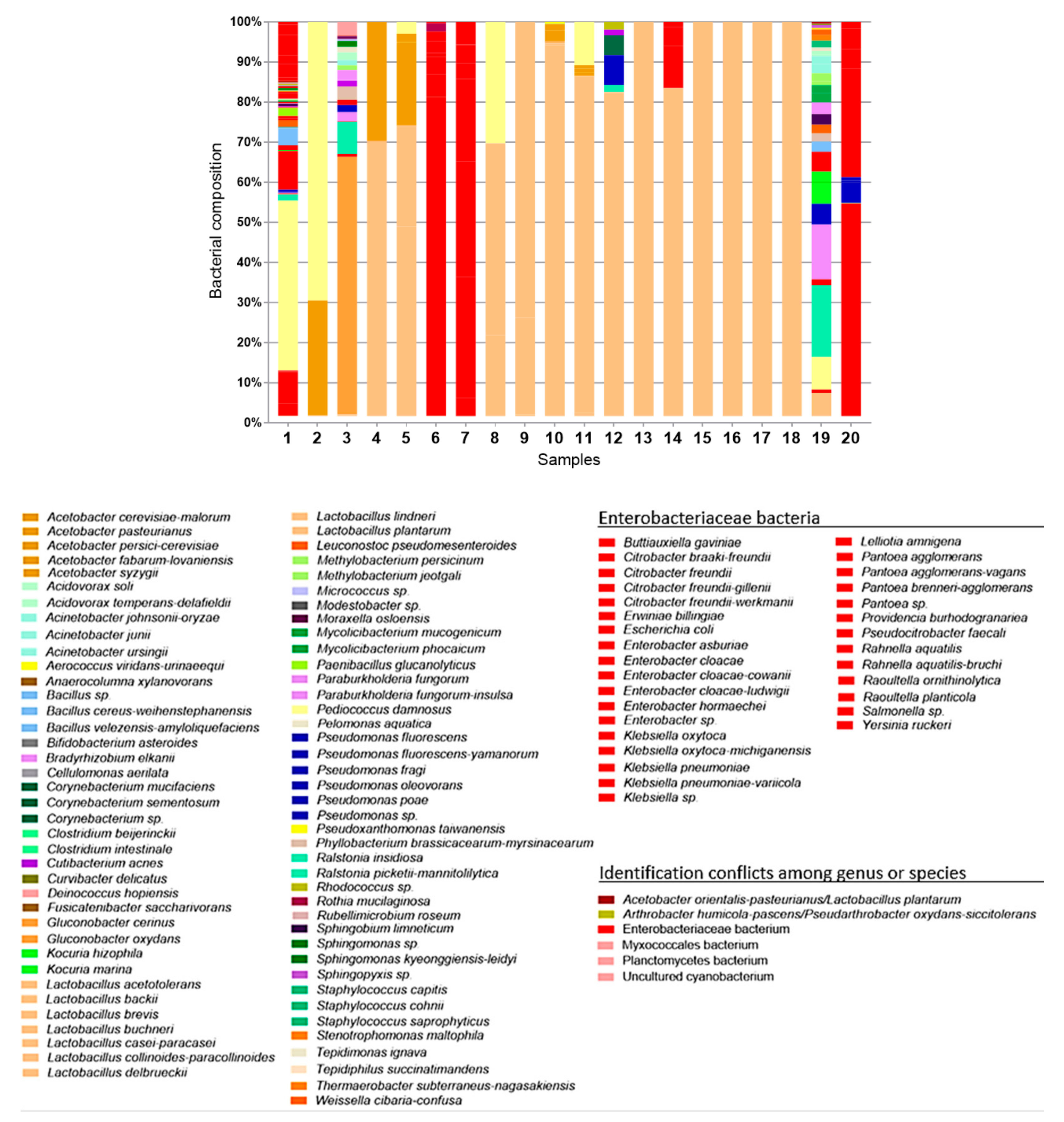

Figure 1. Bacterial composition of the 20 samples analyzed. Bacterial identification was performed from ASVs originating from NGS using the V3/V4 region of the 16S rRNA gene. Due to the large number of species found, colors for identification were designated according to genera, with the exception of the Enterobacteriaceae family which is identified in the graph with the red color only.
Figure 1. Bacterial composition of the 20 samples analyzed. Bacterial identification was performed from ASVs originating from NGS using the V3/V4 region of the 16S rRNA gene. Due to the large number of species found, colors for identification were designated according to genera, with the exception of the Enterobacteriaceae family which is identified in the graph with the red color only.
Fermentation 07 00174 g001

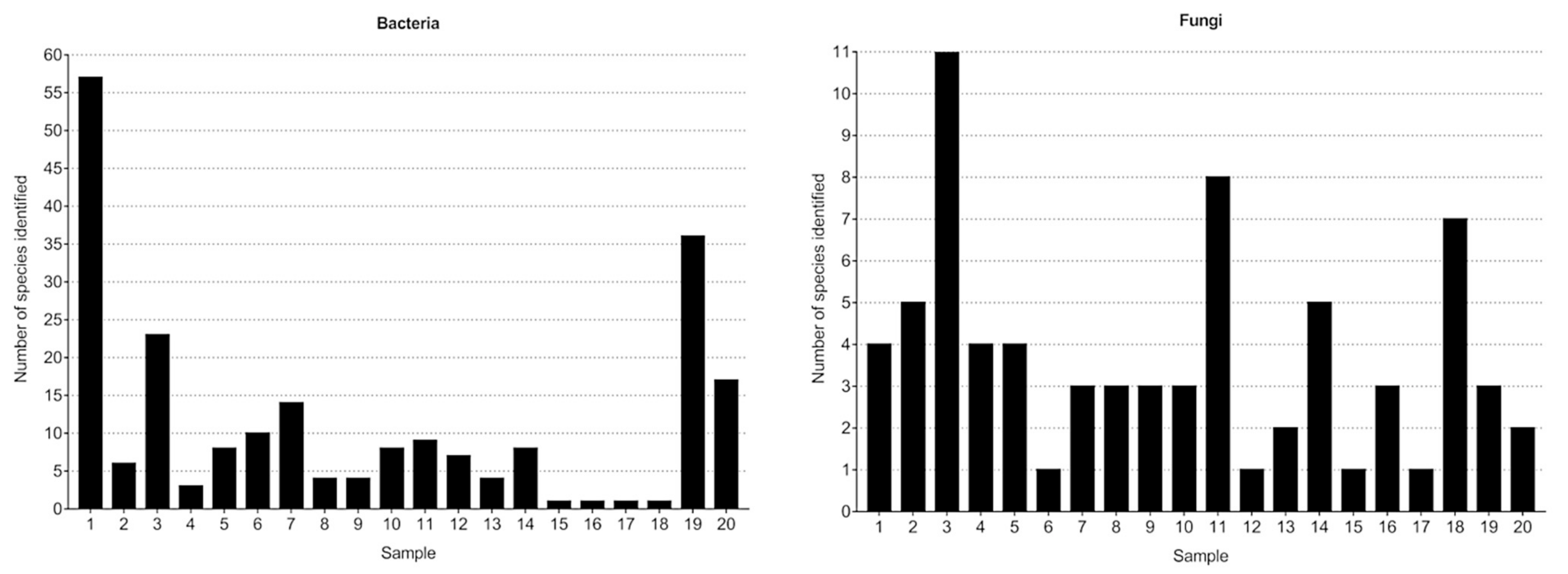

Figure 2. Number of species identified in each sample for bacteria (left) and fungi (right). Metagenome identification of mixed-fermentation samples made it possible to identify samples containing from just one to >55 species of bacteria, while for fungi, it was possible to detect samples with only one yeast participating in the fermentation and up to more than eight different species acting together during fermentation.
Figure 2. Number of species identified in each sample for bacteria (left) and fungi (right). Metagenome identification of mixed-fermentation samples made it possible to identify samples containing from just one to >55 species of bacteria, while for fungi, it was possible to detect samples with only one yeast participating in the fermentation and up to more than eight different species acting together during fermentation.
Fermentation 07 00174 g002

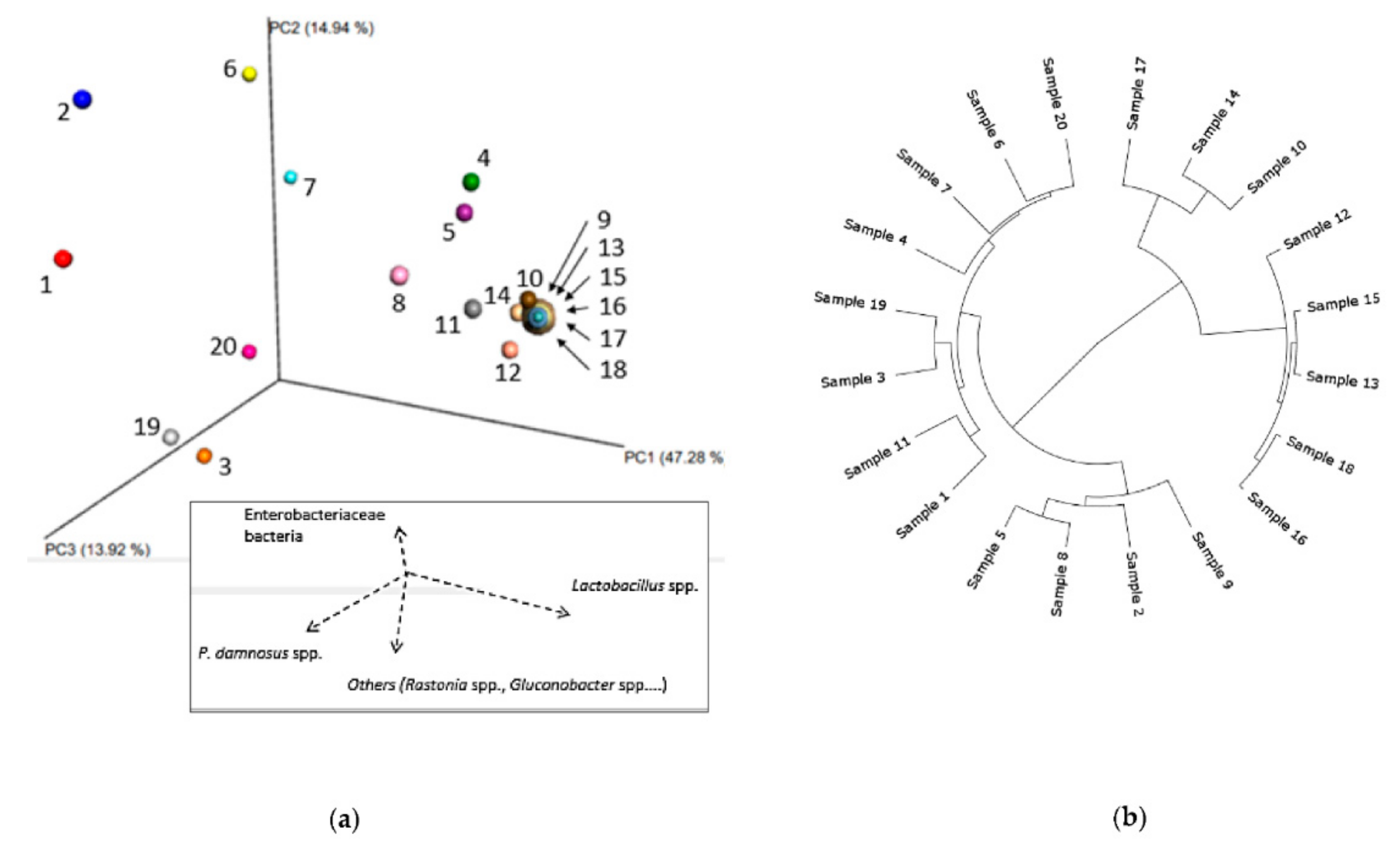

Figure 3. Sample similarity based on bacterial composition. (a) PCoA tridimensional plot created using the matrix of pairwise distances between samples calculated by the Bray–Curtis dissimilarity using genera found in the microbial composition. 3D images, schematic representation, and visualization were generated using the EMPeror tool. Below the PCoA plot is a schematic representation based on the sample composition, in which arrows show different directions for locating the samples on the graph according to the presence and concentration of Enterobacteriaceae bacteria, Lactobacillus spp., P. damnosus, and other bacteria such as Ralstonia spp. and Gluconobacter spp. (b) Phylogenetic tree showing clustering of the samples by similarity of their taxonomic composition, calculated by the Bray–Curtis dissimilarity at the ASV level using Ward’s method.
Figure 3. Sample similarity based on bacterial composition. (a) PCoA tridimensional plot created using the matrix of pairwise distances between samples calculated by the Bray–Curtis dissimilarity using genera found in the microbial composition. 3D images, schematic representation, and visualization were generated using the EMPeror tool. Below the PCoA plot is a schematic representation based on the sample composition, in which arrows show different directions for locating the samples on the graph according to the presence and concentration of Enterobacteriaceae bacteria, Lactobacillus spp., P. damnosus, and other bacteria such as Ralstonia spp. and Gluconobacter spp. (b) Phylogenetic tree showing clustering of the samples by similarity of their taxonomic composition, calculated by the Bray–Curtis dissimilarity at the ASV level using Ward’s method.
Fermentation 07 00174 g003

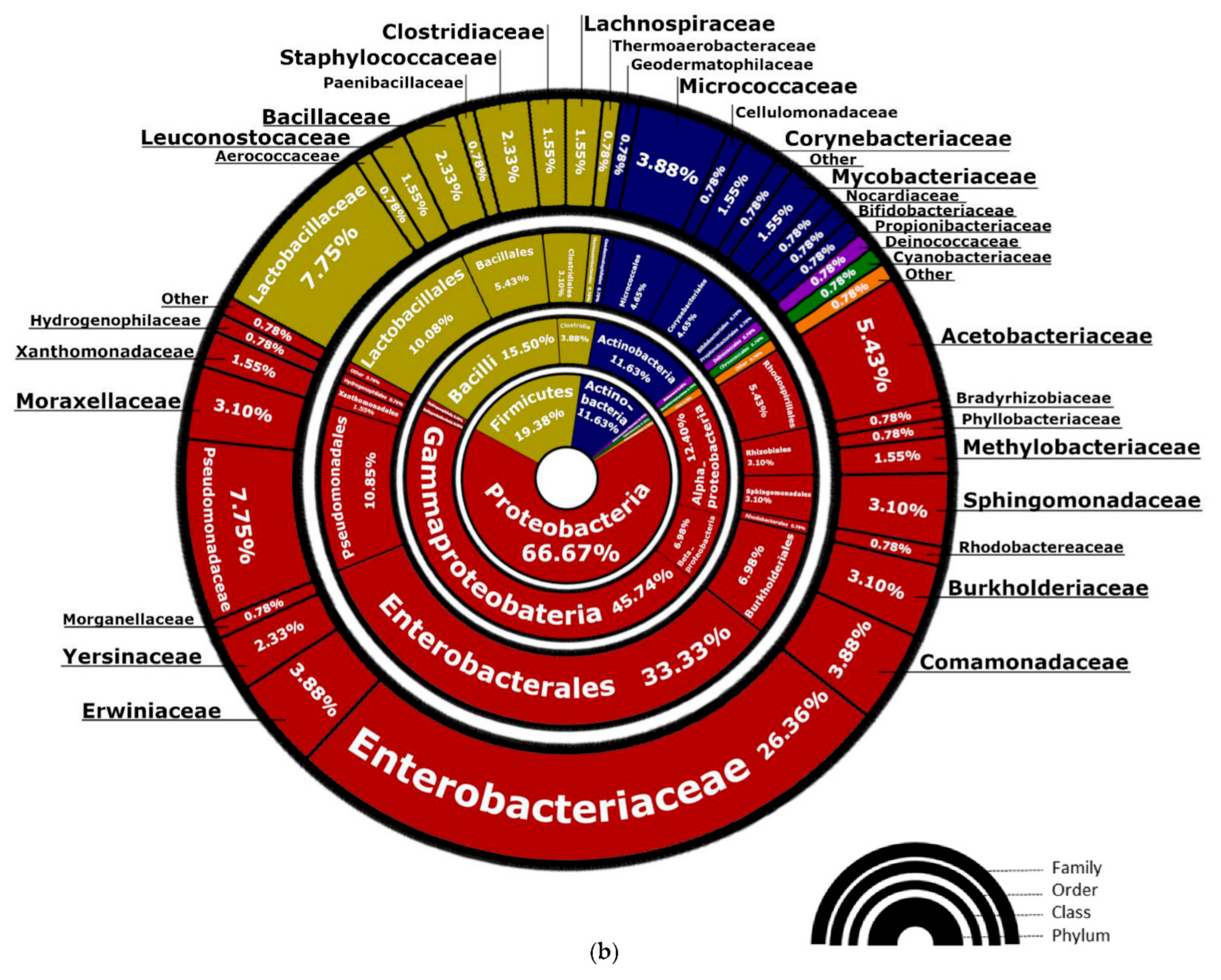

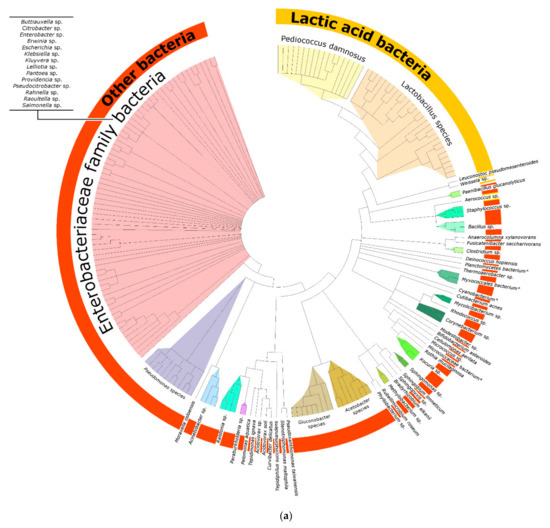

Figure 4. Phylogenetic analysis and abundance of bacterial taxa. (a) Phylogenetic tree constructed based on the ASVs of 120 bacterial species found in the mixed-culture samples. Phylogenetic relationships were made using MEGA v.10.1.7 software for alignment, construction, and visualization of the phylogenetic tree. Sequence alignment was performed using ClustalW. Supplementary Information File S2 contains a high-resolution version of Figure 4a, suitable for zooming and enlargement. (b) The image shows the prevalence of taxonomic classifications according to the genera and species found in the bacterial microbiomes. Higher taxonomic classifications are shown in circles near the image center, while lower classifications are shown toward the outer edge. Images were constructed using MEGA and GIMP 2.1 software.
Figure 4. Phylogenetic analysis and abundance of bacterial taxa. (a) Phylogenetic tree constructed based on the ASVs of 120 bacterial species found in the mixed-culture samples. Phylogenetic relationships were made using MEGA v.10.1.7 software for alignment, construction, and visualization of the phylogenetic tree. Sequence alignment was performed using ClustalW. Supplementary Information File S2 contains a high-resolution version of Figure 4a, suitable for zooming and enlargement. (b) The image shows the prevalence of taxonomic classifications according to the genera and species found in the bacterial microbiomes. Higher taxonomic classifications are shown in circles near the image center, while lower classifications are shown toward the outer edge. Images were constructed using MEGA and GIMP 2.1 software.
Fermentation 07 00174 g004aFermentation 07 00174 g004b

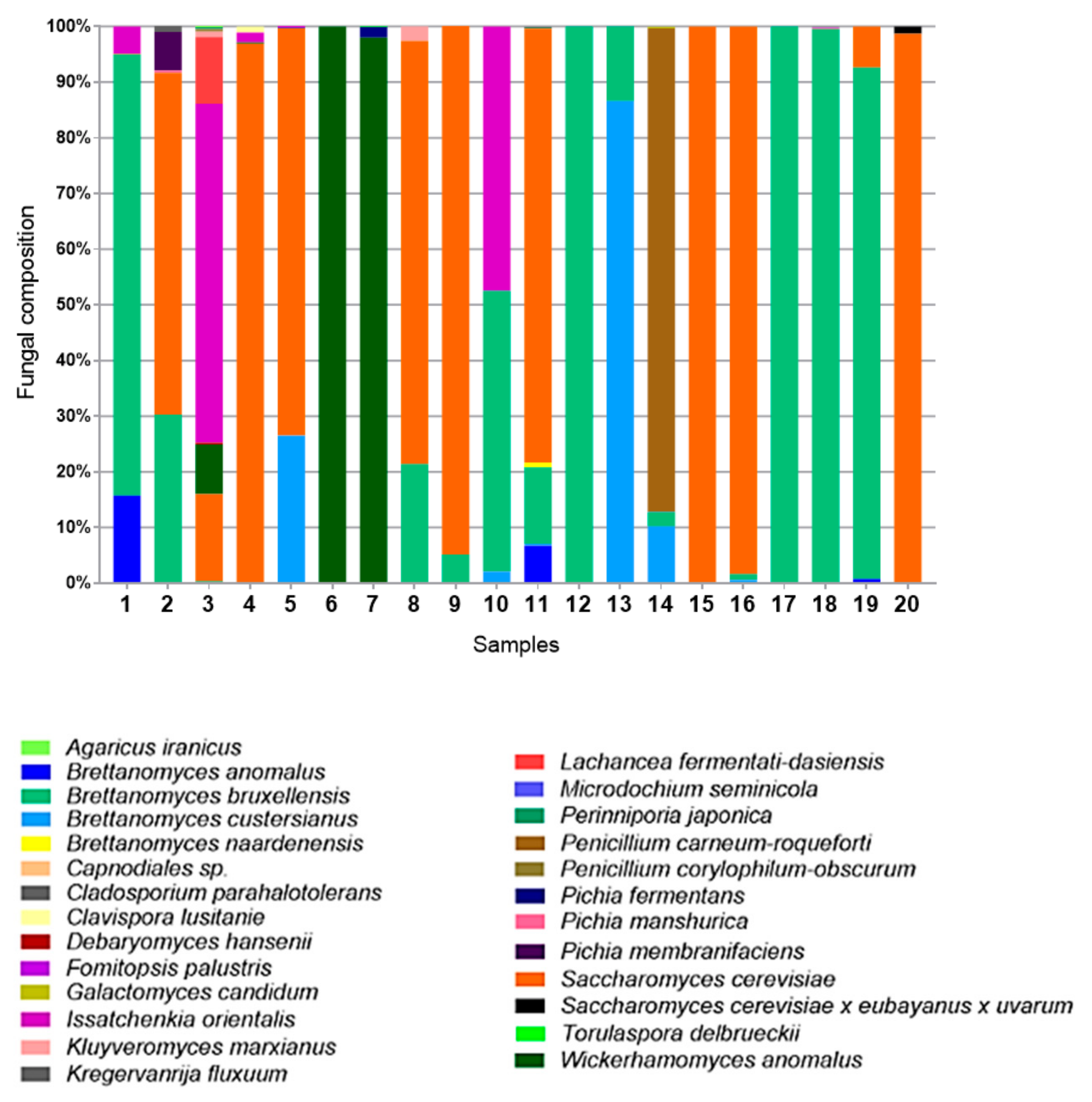

Figure 5. Fungal composition of the 20 samples analyzed. Fungal identification was performed from ASVs originating from NGS of the ITS2 region, amplifying the entire ITS region. Colors for identification were designed according to the fungal species as shown below the plot.
Figure 5. Fungal composition of the 20 samples analyzed. Fungal identification was performed from ASVs originating from NGS of the ITS2 region, amplifying the entire ITS region. Colors for identification were designed according to the fungal species as shown below the plot.
Fermentation 07 00174 g005

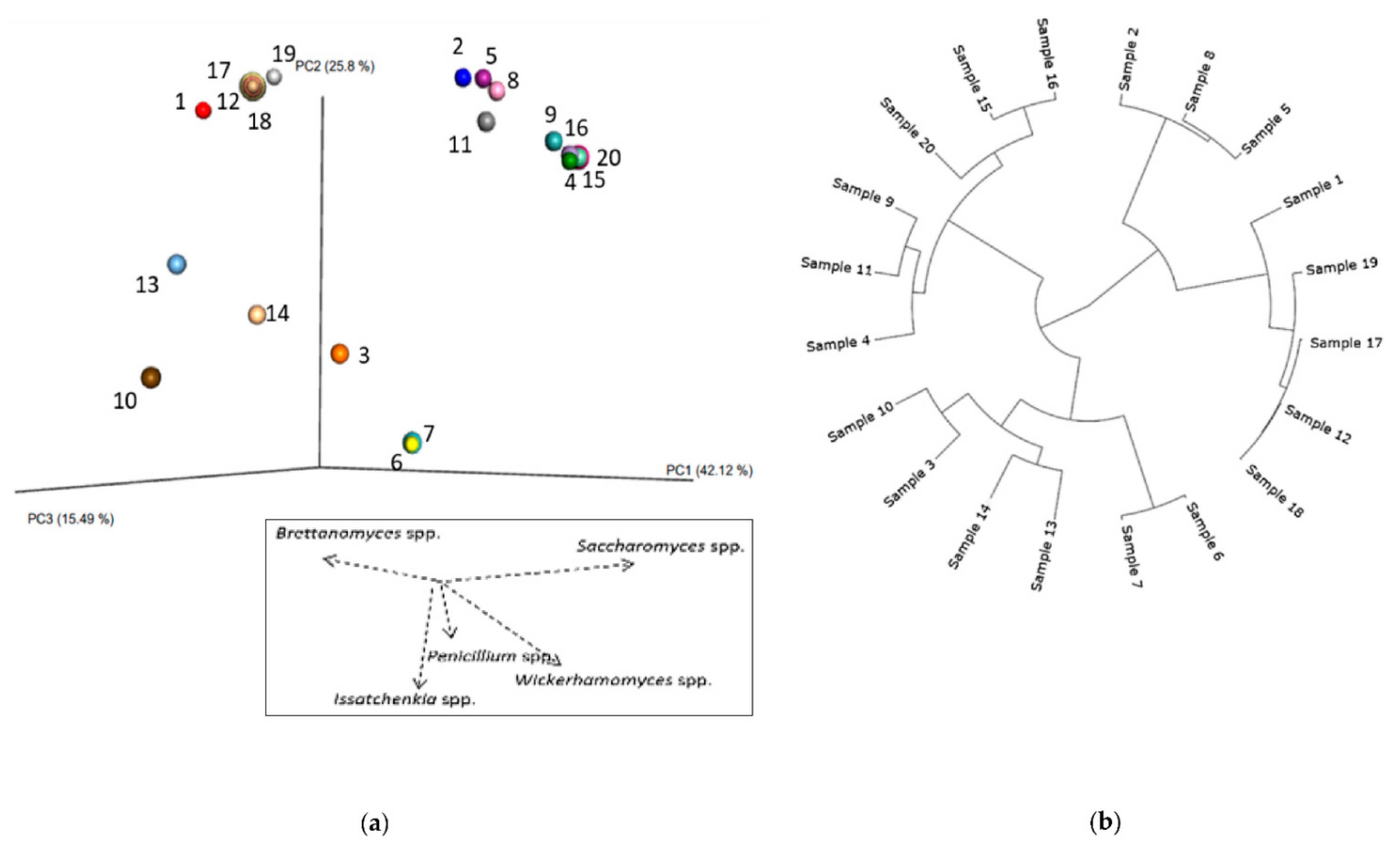

Figure 6. Sample similarity based on fungal composition. (a) PCoA tridimensional plot created using the matrix of pairwise distances between samples calculated by the Bray–Curtis dissimilarity using the genera found in the microbial composition. Below the PCoA plot is a schematic representation based on the sample composition, in which arrows demonstrate different directions for sample localization according to the presence and concentration of Brettanomyces spp., Saccharomyces spp., Penicillium spp., Issatchenkia spp., and Wickerhamomyces spp. (b) The tree shows clustering of the samples by similarity of their taxonomic composition, calculated by the Bray–Curtis dissimilarity at the ASV level using Ward’s method.
Figure 6. Sample similarity based on fungal composition. (a) PCoA tridimensional plot created using the matrix of pairwise distances between samples calculated by the Bray–Curtis dissimilarity using the genera found in the microbial composition. Below the PCoA plot is a schematic representation based on the sample composition, in which arrows demonstrate different directions for sample localization according to the presence and concentration of Brettanomyces spp., Saccharomyces spp., Penicillium spp., Issatchenkia spp., and Wickerhamomyces spp. (b) The tree shows clustering of the samples by similarity of their taxonomic composition, calculated by the Bray–Curtis dissimilarity at the ASV level using Ward’s method.
Fermentation 07 00174 g006

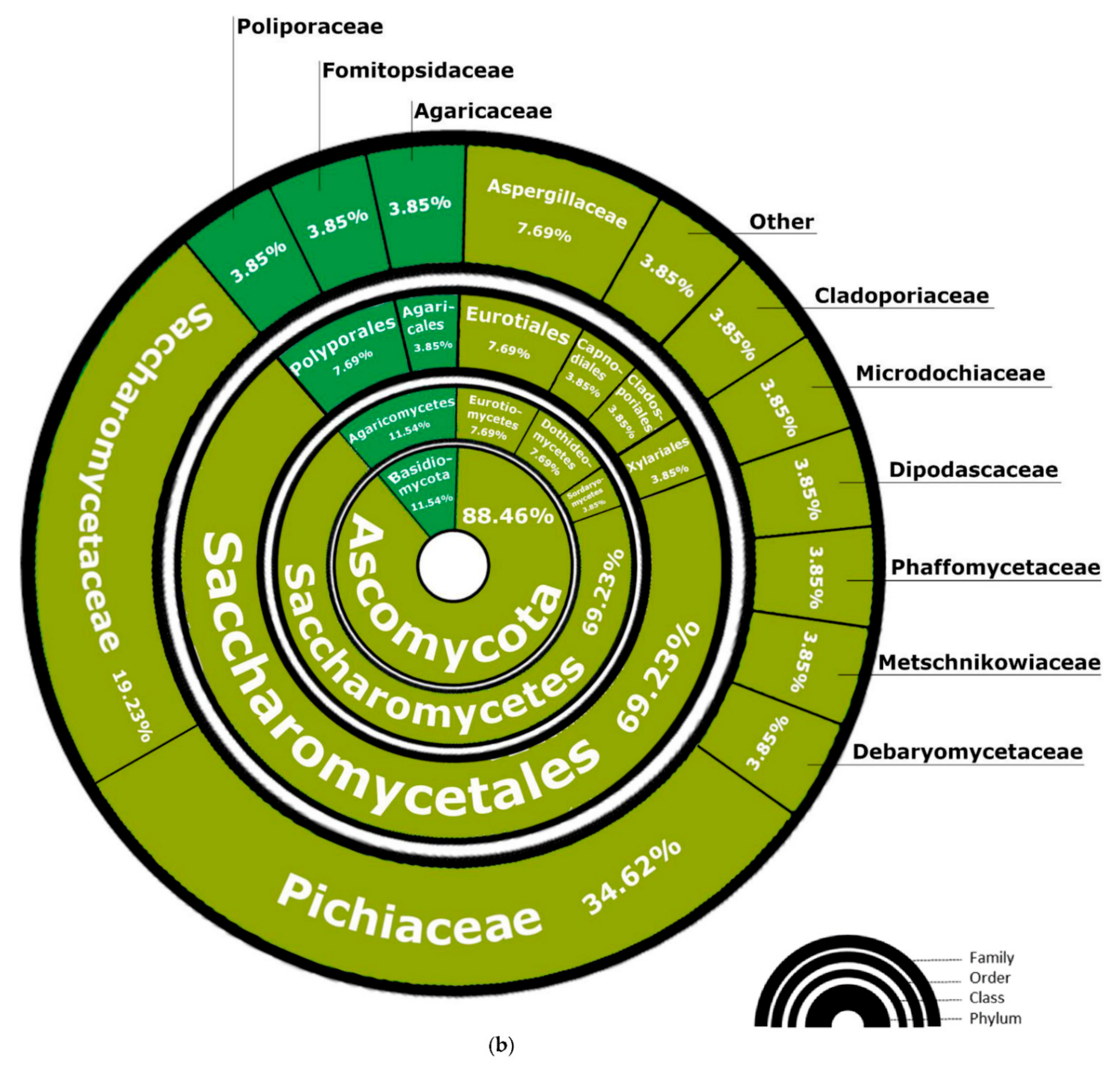

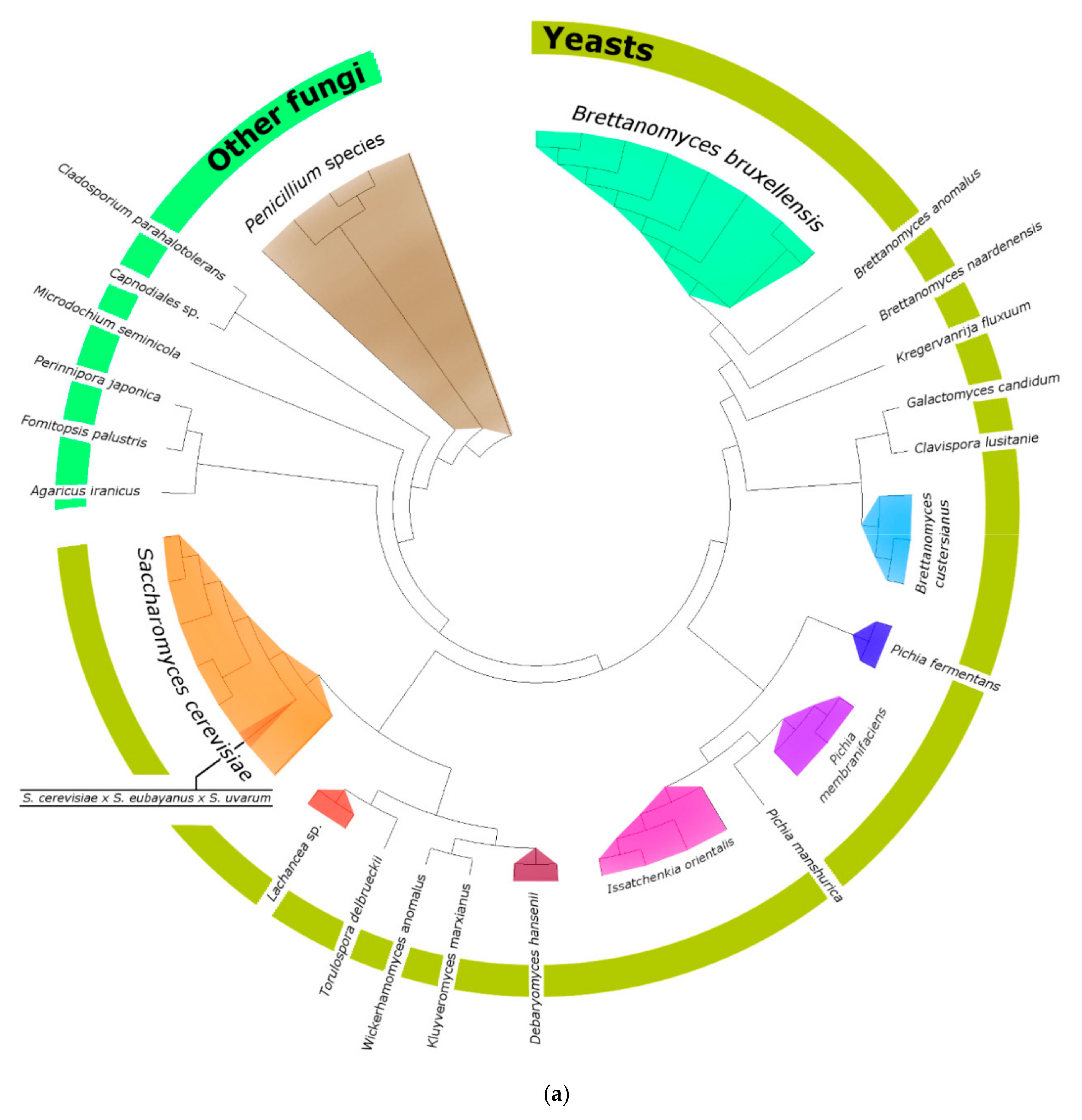

Figure 7. Phylogenetic analysis and abundance of fungal taxa. (a) Phylogenetic tree constructed based on the ASVs of 26 fungal species found in the mixed-fermentation beer samples. Supplementary Information File S3 contains a high-resolution version of Figure 7a, suitable for zooming and enlargement. (b) The image shows the prevalence of taxonomic classifications according to genera and species found in the fungal microbiomes. Higher taxonomic classifications are shown in circles near the image center, while lower classifications are shown toward the outer edge.
Figure 7. Phylogenetic analysis and abundance of fungal taxa. (a) Phylogenetic tree constructed based on the ASVs of 26 fungal species found in the mixed-fermentation beer samples. Supplementary Information File S3 contains a high-resolution version of Figure 7a, suitable for zooming and enlargement. (b) The image shows the prevalence of taxonomic classifications according to genera and species found in the fungal microbiomes. Higher taxonomic classifications are shown in circles near the image center, while lower classifications are shown toward the outer edge.
Fermentation 07 00174 g007aFermentation 07 00174 g007b
Table 1. Identification and characteristics of samples of the mixed cultures received for the study.
Table 1. Identification and characteristics of samples of the mixed cultures received for the study.
SampleOriginMaterialSpontaneous
Fermentation
Fruits, Woods, Flowers, or Another Microbe Source AddedCulture Maintenance TimeCommercial Strains Inoculated
1Jerusalem (IL*)Culture pre-pitchYESNO6–12 months-
2Alberta (CA)Beer/slurryNOYES1–6 monthsNew W. Saison (Escarpment Labs) and
Brett ‘M’ (Escarpment Labs)
3Alberta (CA)BeerYESYES6–12 months-
4Alberta (CA)BeerYESNO6–12 months-
5Alberta (CA)BeerYESYES6–12 months-
6Alberta (CA)BeerYESYES6–12 months-
7Alberta (CA)BeerYESYES6–12 months-
8Alberta (CA)BeerYESYES6–12 months-
9Washington (US)Culture pre-pitchYESNO2–3 years-
10Washington (US)Culture pre-pitchYESNO6–12 months-
11Ohio (US)Beer/slurryNONO6–12 monthsSour Solera (Bootleg Biology);
Mélange (The Yeast Bay);
BugCounty (East Coast Yeast); and
dregs from beer bottles
12Nevada (US)BeerNOYES6–12 monthsDregs from beer bottles
13Nevada (US)BeerNOYES6–12 monthsDregs from beer bottles
14California (US)BeerNONO6–12 monthsin-house culture
15California (US)Culture pre-pitchYESNO5–6 years-
16California (US)BeerNONO4–5 yearsin-house culture
17California (US)BeerYESNO1–6 months-
18California (US)BeerNONO2–3 yearsWY3763 (Wyeast);
WY3711 (Wyeast); and
WLP650 (White Labs)
19California (US)BeerNONO1–2 yearsWLP565 (White Labs) and
dregs from beer bottles
20Michigan (US)BeerYESNO1–6 monthsCBC-1 (Lallemand) for bottling
* IL, Israel; CA, Canada; and US, United States.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Piraine, R.E.A.; Leite, F.P.L.; Bochman, M.L. Mixed-Culture Metagenomics of the Microbes Making Sour Beer. Fermentation 2021, 7, 174. https://doi.org/10.3390/fermentation7030174

AMA Style

Piraine REA, Leite FPL, Bochman ML. Mixed-Culture Metagenomics of the Microbes Making Sour Beer. Fermentation. 2021; 7(3):174. https://doi.org/10.3390/fermentation7030174

Chicago/Turabian Style

Piraine, Renan Eugênio Araujo, Fábio Pereira Leivas Leite, and Matthew L. Bochman. 2021. "Mixed-Culture Metagenomics of the Microbes Making Sour Beer" Fermentation 7, no. 3: 174. https://doi.org/10.3390/fermentation7030174

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
