Article

Optimization of Synthetic Media Composition for Kluyveromyces marxianus Fed-Batch Cultivation

1
Laboratory of Bioengineering, Latvian State Institute of Wood Chemistry, Dzerbenes Street 27, LV-1006 Riga, Latvia
2
Institute of General Chemical Engineering, Faculty of Materials Science and Applied Chemistry, Riga Technical University, Paula Valdena Street 3, LV-1658 Riga, Latvia
3
Biotehniskais Centrs AS, Dzerbenes Street 27, LV-1006 Riga, Latvia
4
Institute of Microbiology and Biotechnology, University of Latvia, Jelgavas Street 1, LV-1004 Riga, Latvia
*
Author to whom correspondence should be addressed.
Fermentation 2021, 7(2), 62; https://doi.org/10.3390/fermentation7020062
Submission received: 25 March 2021 / Revised: 9 April 2021 / Accepted: 13 April 2021 / Published: 15 April 2021

Abstract

:
The Kluyveromyces marxianus yeast recently has gained considerable attention due to its applicability in high-value-added product manufacturing. In order to intensify the biosynthesis rate of a target product, reaching high biomass concentrations in the reaction medium is mandatory. Fed-batch processes are an attractive and efficient way how to achieve high cell densities. However, depending on the physiology of the particular microbial strain, an optimal media composition should be used to avoid by-product synthesis and, subsequently, a decrease in overall process efficiency. Thus, the aim of the present study was to optimise the synthetic growth medium and feeding solution compositions (in terms of carbon, nitrogen, phosphorous, magnesium, and calcium concentrations) for high cell density K. marxianus fed-batch cultivations. Additionally, the biomass yields from the vitamin mixture and other macro/microelements were identified. A model predictive control algorithm was successfully applied for a fed-batch cultivation control. Biomass growth and substrate consumption kinetics were compared with the mathematical model predictions. Finally, 2-phenylethanol biosynthesis was induced and its productivity was estimated. The determined optimal macronutrient ratio for K. marxianus biomass growth was identified as C:N:P = 1:0.07:0.011. The maximal attained yeast biomass concentration was close to 70 g·L−1 and the 2-PE biosynthesis rate was 0.372 g·L−1·h−1, with a yield of 74% from 2-phenylalanine.

1. Introduction

Microbial biomass is a catalytic chassis for numerous biotechnological processes. Yeasts are one of the traditional organisms used in biotechnology. Among them, Saccharomyces cerevisiae is a well-known workhorse, which was used in food and beverage production for thousands of years. During the past 100 years, the mentioned budding yeast has been widely applied in bioethanol, recombinant protein, glycerol, and cell biomass production [1]. However, in order to widen microbial conversion of industrially relevant, complex substrates, accelerate biomass production, and perform fermentation in elevated temperatures, use of other yeast species might be more feasible than S. cerevisiae [2].
Besides S. cerevisiae, other yeast species are emerging as potential candidates for biotechnological manufacturing. Among them, Kluyveromyces marxianus is of particular interest, due to its rapid growth, wide applicable substrate range, temperature, and acetic acid tolerance [3,4]. K. marxianus is a prospective organism for a secondary metabolite, e.g., fragrances (2-phenylethanol, isoamyl alcohol, 2-phenylethyl acetate, isoamyl acetate) and precursor (ethyl acetate) production for the chemical industry, with potential to replace petrochemicals [5,6].
In order to increase the efficiency of a particular biotechnological process, higher amounts of microbial biomass should be obtained. Several cultivation process modes exist. Among them, the most widely applied are batch, fed-batch, and continuous. The batch mode is likely the easiest from the process control perspective. However, such regimes may well lead to accumulation of by-products in the medium, which, in turn, can significantly affect the biomass yield. The continuous mode can provide constant growing biomass efflux from the bioreactor. However, on-site separation of the biomass should be ensured in order to provide appropriate target product quality. Fed-batch cultivations combine the best features both from batch and continuous modes. If correctly implemented, accumulation of by-products can be minimized, substrate concentration control in the growth medium can be ensured, the conversion efficiency of all media components can be improved, and the growth and accumulation of microbial biomass can be carried out in a single vessel [7].
2-phenylethanol (2-PE) is one of the high-value added products, which can be produced by the K. marxianus yeast. Conventional methods of 2-PE production (chemical synthesis and extraction from plants) seem to pose significant problems in providing proper product quality or are simply too expensive. Currently, 2-PE is produced either by chemical synthesis or by extraction from rose flowers. Chemical synthesis is cheap, but it possesses a threat to human health and the environment. Carbon from the petrochemical industry is used in 2-PE synthesis and by products of the synthesis are carcinogenic. On the other hand, when using rose flowers for 2-PE extraction, the price for the product is too high. Microbial production of 2-phenylethanol is environmentally friendly. Bio-renewable substrates are used in the production process and no carcinogenic by-products accumulate. The overall cost of the production process is significantly lowered with respect to plant extract-based 2-PE. The application of yeast for the biosynthesis of 2-phenylethanol is more environmentally friendly, in comparison to traditional chemical methods. During biosynthesis, no carcinogens or harmful metabolites are produced, while the overall cost of the production process is significantly lowered with respect to natural (plant-based) 2-phenylethanol. The main problem of biosynthesis is related to the fact that the maximum concentration of 2-PE in the fermentation broth at which no biomass growth inhibition takes place is very low (1-4 g·L−1, depending on the applied yeast strain). Therefore, the yield of the fermentation process, which is carried out in a batch or semi-batch mode, is limited by the maximum bioreactors volume and the tolerance of microorganisms to 2-PE. In order to increase the productivity and yield of the biosynthesis, fermentation techniques such as perfusion, pertraction, extractive fermentation, or conventional continuous fermentation should be applied [8]. 2-PE can be formed in biological processes in two ways: by utilizing phenylalanine as a precursor in the Ehrlich pathway or by converting various carbohydrates to phenylalanine via the Shikimate metabolic pathway and then converting it to 2-PE. In the first case, higher productivity can be obtained but, in the second case, cheaper substrates can be used, such as whey, molasses, and other. In the case of the Ehrlich pathway, the production rate of 2-phenylethanol is limited by the maximum biomass concentration (the higher the biomass concentration, the more 2-PE could be synthesized per unit time) and the maximum 2-PE concentration that the microorganism can tolerate. In the case of the Shikimate metabolic pathway, the productivity of 2-PE is highly dependent on the physical conditions maintained during the process and the carbon/nitrogen ratio in the fermentation medium [9]. The highest reported 2-PE productivity (0.478 g·L−1·h−1) was achieved in a hybrid system (membrane extraction bioreactor). The maximal obtained concentrations of 2-PE and K. marxianus biomass in the mentioned report were 2.0 g·L−1 and 20 g·L−1, respectively [10].
In order to increase the biosynthesis rate of a chemical precursor or fragrance molecule (like 2-phenylethanol) in K. marxianus, a high initial concentration (before stimulation of target compound biosynthesis) of biomass in the culture medium is required. Fed-batch is a common method describing how to achieve high cell densities. By performing a fed-batch cultivation of K. marxianus in a complex (‘rich’) medium, it was possible to achieve a final biomass concentration of up to 105 g·L−1 [11]. On the other hand, when optimizing a synthetic medium for S. cerevisiae biomass production, its productivity was revealed to be the same or even higher than in the ‘rich’ medium [12]. The latter potentially indicates that, in the case of K. marxianus, similarly to S. cerevisiae, an increase in process performance can be achieved when switching from ‘rich’ to synthetic mediums. Additionally, in order to prevent the biosynthesis of by-products (ethanol, acetate, glycerol, etc.) during fed-batch cultivations, the yeast growth and feeding rates should be maintained at certain values. Such degrees of control can be achieved by advanced fed-batch control approaches, such as Model-Predictive control (MPC) and/or others [13]. Feeding solution and growth medium composition optimization for fed-batch cultivations is critical for achieving maximum biomass yields. An inadequate supply of nutrients to the growth medium—accumulation (if supplied in excess) or limitation (if supplied in insufficient quantities) leads to suboptimal biomass growth. The carbon limit might lead to accumulation of other compounds (due to incomplete assimilation of nitrogen, phosphorous, or sulphate sources). For example, ammonium sulphate is a traditional nitrogen source used for K. marxianus cultivation. However, when utilizing ammonia specifically, SO42− ions can be left out and accumulate in the media. In the same time, ammonia metabolism is not a proton neutral process, metabolising one molecule of ammonia releases 1 proton [14]. Therefore, accumulation of sulphate and a pH drop is expected when using ammonia sulphate as a nitrogen source. Alternatively, urea metabolism is proton neutral and can be considered as an N source of choice for K. marxianus biomass production [14,15].
Even though complex (yeast extract-based) mediums contain all the necessary compounds for microbial growth (therefore, these media are often termed ‘rich’), their use in fed-batch might be unreliable due to suboptimal concentrations of vitamins, N, C, P, and S compounds [16]. In addition, the presence of a large number of organic nitrogen can induce the biosynthesis of a wide variety of by-products, which, in turn, can inhibit the biomass growth. Furthermore, yeast extract (YE) costs are significantly higher in comparison to the costs of individual vitamins (if introduced into the growth medium in identical quantities as found in YE). Synthetic mediums, on the other hand, offer options to manipulate each component concentration individually, exchange carbon or nitrogen sources, and add specific substrates to induce recombinant protein production, etc. [15,17].
Thus, the main goal of the current research was to determine the optimal component (glucose, phosphorus, nitrogen, and potassium) concentration relations for the Kluyveromyces marxianus DSM5422 synthetic growth medium and to practically maintain the mentioned components in appropriate amounts during fed-batch cultivations to obtain high cell densities and high productivity of 2-phenylethanol. The medium composition optimization was performed starting from a Yeast Nitrogen Base (YNB)-based medium [18]. We estimated the specific consumption rates for glucose, urea, and phosphate by the micro-cultivation method and then fine-tuned the growth medium and feeding solution compositions during laboratory scale (5 L) bioreactor fed-batch cultivations. For the feeding rate control, an MPC algorithm with a kinetic process model (based on Monod equations) was used. The values of model parameters were estimated/fine-tuned during the course of the work.

2. Materials and Methods

2.1. Yeast Strain and Media

The Kluyveromyces marxianus DSM 5422 strain was obtained from the Leibniz-Institute DSMZ-German Collection of Microorganisms and Cell Cultures. In prior cultivation experiments, the yeast was maintained on YPD (yeast extract, peptone, dextrose) agar plates. The YPD medium contained (per liter) yeast extract (Biolife, Italy) 10 g, bactopeptone (Biolife, Italy) 20 g, glucose (Sigma, Germany) 20 g, and agar (Biolife, Italy) 20 g.
A synthetic growth medium was used during micro-cultivations and experiments in the laboratory bioreactor. The medium composition as proposed by Saldanha [18] was as follows (per liter): biotin—0.002 mg, calcium panthotenate—0.4 mg, folic acid—0.002 mg, inositol—2 mg, niacin—0.4 mg, p-aminobenzoic acid—0.2 mg, pyridoxine hydrochloride—0.4 mg, riboflavin—0.2 mg, thiamine-HCl—0.4 mg, H3BO3—0.5 mg, CuSO4∙5H2O—0.04 mg, KI—0.1 mg, FeCl3∙6H2O—0.2 mg, MnSO4∙H2O—0.4 mg, Na2MoO4∙2H2O—0.2 mg, ZnSO4∙7H2O—0.4 mg, CaCl2—0.1 g, NaCl—0.1 g, and MgSO4∙7H2O—0.5 g [18]. Nitrogen (urea), phosphorus (K2HPO4), and carbon (glucose) concentrations were varied during the course of the research.

2.2. Micro-Cultivation Experiments

In order to estimate the specific consumption rates of the main medium components (carbon, nitrogen, and phosphorous), a series of micro-cultivation experiments were performed. To decrease pipetting errors, an automatic pipetting robot Opentron OT-2 Opentrons Labworks Inc. (New York, NY, USA) was used. A microplate reader Tecan Infinite M200 PRO Tecan Group Ltd. (Männedorf, Austria), set to an absorbance regime at 590 nm, was used to determine the biomass concentrations during micro-cultivation experiments. Incubation temperature of 30 °C was maintained constant during all experiments of the current research. The measuring cycle consisted of 490 s of plate shaking with a 3.5 mm orbital amplitude, 3 s pause, OD590 measurement, 60 s pause, and repeat. The cultivations were run for 20 h. The media composition with respect to glucose, urea, and phosphate concentrations were varied, as seen in Table 1.

2.3. Laboratory Bioreactor Cultivation Experiments

Laboratory-scale cultivations were performed in a 5.4 L working volume bioreactor EDF-5.4_1 JSC Biotehniskais centrs (Riga, Latvia). During bioreactor cultivations, active control was performed for maintaining the temperature (at 30 °C), pH (at 5.5 ± 0.2), dissolved oxygen (at 45 ± 5%-sat.), and foam level. The pH control was performed by automatic dosing of acidic (20 W% H2SO4) or alkali (10 W% NaOH) solutions to the cultivation medium via two pre-calibrated peristaltic pumps. The dissolved oxygen (DO) control was performed according to a cascade algorithm (primarily increasing the agitation rate from 100 to 800 rpm, and, secondly, by Ehrliching the inlet gas with oxygen). During the cultivations, a constant gas flow rate of 1.6 slpm (standard liters per minute) was maintained.
Online measurements of CO2 and O2 concentrations in the off-gas were performed by a BlueInOneFerm gas analyser (BlueSens gas sensor GmbH, Germany). The ethanol concentration in the cultivation medium was estimated using an ethanol/methanol gas sensor BCP-EtOh (BlueSens gas sensor GmbH, Germany).
Process data acquisition was performed through a SCADA (supervisory control and data acquisition) software which was linked to a BIO4 bioprocess controller JSC Biotehniskais centrs (Riga, Latvia).
The inoculum for the bioreactor experiment was prepared in 100 mL shake flasks, which were incubated at 30 °C overnight in an ES-20 orbital shaker-incubator Biosan Ltd. (Riga, Latvia). The cultivation medium for shake flasks and the laboratory bioreactor was prepared, according to the compositions mentioned earlier (with glucose, urea, and potassium dihydrogenphosphate concentrations as primarily determined from the microplate experiments). After process data analysis, further optimization of component concentrations was performed. After introducing the pre-prepared inoculum into the growth medium, the cultivation was initialized in a batch mode, and proceeded in fed-batch when the substrate concentration fell to a pre-defined level (determined by the MPC algorithm).
Off-line samples for product and metabolite concentration measurements were harvested aseptically every 30–120 min. The biomass concentration was determined by measuring the optical density at 600 nm by a Jenway 6300, spectrophotometer (Staffordshire, UK). Medium samples were centrifuged at 1327× g for 10 min, filtered, and stored at −21 °C for further analyses. The glucose concentration was measured enzymatically by an AccuChek ACTIVE blood sugar analyser (Roche, Switzerland). The concentrations of 2-phenylethanol were quantified by HPLC (Agilent 1100, HP, USA) with an XBridge BEH C18 column, 130Å, 5 µm, 4.6 mm × 250 mm, Mobile phase ACN:H2O—78:22, sample volume −10 µL, flow rate—0.6 mL·min−1, temperature—26 °C [19]. Nitrogen and phosphorous were determined spectrophotometrically (see method description below). In order to determine the concentration of 2-phenylalanine, a modified Cd-Ninhydrin Method C described by Doiz et al., 1981, was used [20].

2.4. Determination of Nitrogen

In order to determine the concentrations of nitrogen in media samples, a combination of methods described by Fawcett et al., 1960, and Weatherburn et al., 1967, was used [21,22].
All solutions were prepared and stored in a refrigerator at +3 °C. A calibration curve of diluted urea standards (0.0025–0.5 g·L−1) was constructed before each series of measurements.
The urea determination procedure was set up as follows: 20 µL of hydrolysed urea (0.2 mL of urea containing sample was mixed with 0.2 mL (about 200 Sumner units) of urease solution. The urease solution was prepared by dissolving 100 mg of urease (Sigma U1500) in 100 mL 0.05 M Phosphate buffer (6 g·L−1 KH2PO4, 2 g·L−1 Na2HPO4). The hydrolysed urea solutions were incubated for 1 h at +37 °C. Then the solutions were vigorously mixed with 3 mL of reagent A (10 g·L−1 of phenol with 0.5 g·L−1 of sodium nitroprusside). After mixing, 3 mL of reagent B (solution of 5 g·L−1 NaOH and 8.4 mL·L−1 of 15% NaClO) were added, mixed, and incubated for 30 min at 37 °C. The absorbance of the solutions was measured spectrophotometrically at 625 nm.

2.5. Determination of Phosphorus

In order to determine the concentration of phosphate ions in media samples, a method described by Saheki et al., 1985, was used [23].
A calibration curve (KH2PO4 concentration range of 0.0125–0.5 g·L−1) was constructed before each series of measurements. Then, 0.2 mL of the test sample was mixed with 2 mL of the molybdate reagent (2.94 g·L−1 of ammonium molybdate and 21.9 g·L−1 of zinc acetate adjusted to pH 5.0 with 30% H2SO4), 2 mL of ascorbic acid reagent (10 g·L−1 ascorbic acid, pH 5.0 adjusted with 3 M NaOH), and 8 mL of re-distilled water. The solution was mixed and incubated for 30 min at 30 °C. The solution absorbance was measured spectrophotometrically at 850 nm.

Determination of Biomass Dry Cell Weight

The biomass dry cell weight (DCW) in relation to the absorbance at a wavelength of 600 nm was determined gravimetrically. First, a portion of growth medium containing K. marxianus cells was withdrawn from the bioreactor during the exponential growth phase. The absorbance of the solution was measured at 600 nm. Next, the solution was separated in two equal parts. One part was transferred to a vessel for drying at 60 °C for at-least 24–48 h (until the mass reading reaches equilibrium). The second part of the solution was centrifuged at 3500 rpm for 10 min. The supernatant was filtered through a glass filter and then transferred to a vessel for drying at 60 °C for at-least 24–48 h (until the mass reading reaches equilibrium). Upon reaching constant mass readings of both supernatant and growth medium samples, both masses were measured and used for correlation coefficient calculations. The correlation coefficient was calculated using the mathematical correlation presented below (Equation (1)).
k = X DCW OD 600 = m x V x - m sn V sn / OD 600
where XDCW—biomass concentration in the solution, g(DCW)·L−1, OD600—absorbance of the solution measured at 600 nm; mx—mass of dry residue (left from the solution containing K. marxianus cells), g; msn—mass of dry residue (left from the supernatant), g; Vx—volume of the solution containing K. marxianus cells, L, and Vsn—volume of the supernatant, L. During the present study, the correlation coefficients value was determined as 0.234 g(DCW)·L−1·A.U.−1.

2.6. Fed-Batch Model Predictive Control

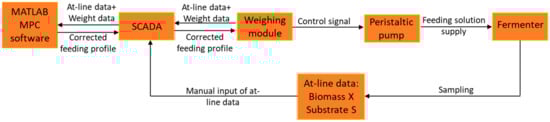

During cultivations, offline glucose and biomass measurements were carried out and the obtained results were uploaded into SCADA, which passed the updated information to the MPC software. A schematic representation of information exchange routes between the control system elements is depicted in Figure 1.
The MPC software based on off-line data (Xreal, Sreal), as well as taking into account the deviation of predicted pumped volumes (Vreal) of titrants known as acid, base, and antifoam, made a prediction regarding the state of the system (Xpred, Spred, Vpred) upon a defined time period (termed the prediction horizon). When a forecast was built, the software compared the mentioned predicted trajectories to the reference trajectory and, if deviations exceeded a certain threshold, the MPC algorithm performed a correction of the feeding rate profile (by adjusting the feeding rate in a defined range) for a given time period (termed the control horizon), e.g., until new sets of off-line data were supplied to the system (the MPC algorithms’ working principle is shown in Figure 2). The corrected feeding profile was then uploaded to the BIO-4 bioprocess controller, and the analogue peristaltic pump started operating with respect to the newly updated setpoint values.

2.7. Fermentation Process Model

The mathematical model for process simulation and reference trajectory calculation was based on the model of Grigs et al., 2016 [24]. To simplify the model, an assumption was made that oxygen mass transfer does not limit K. marxianus growth and no ethanol formation occurs during the fermentation processes. The mentioned assumption has been made considering that dissolved oxygen levels during each fermentation process were maintained at 50 ± 5%-sat. by using a cascade control algorithm. For the current application, the following differential mass balance equations (Equations (2)–(4)) for biomass, substrate, and volume modelling in a fed-batch process were used.
dX dt = μ s - F V X
dS dt = - σ X   -   S + F S V   S f
dV dt = F -   F smp
where X, S are the concentrations (g·L−1) of biomass and substrate, respectively. V is the culture volume, L. µs is the specific biomass growth rate,·h−1 (Equation (5)).
μ s = σ   ·   Y xs
where Yxs—is the biomass yield from substrate, g·g−1. σ—is the specific substrate consumption rate, g·g−1·h−1 (Equation (6)).
σ = σ max · S K S + S   ·   K si K si + S   1   -   X Kx max
Ks, Ksi, KXmax are the substrate half-saturation, substrate inhibition, and biomass inhibition constants. σmax—is the maximal specific glucose consumption rate, g·g−1·h−1.
F is a rate of change of the culture volume, mL·min−1 (Equation (7)).
F = F s + F b + F af F c - F e
where Fs—is the substrate addition rate, mL·min−1, Fb is the base addition rate (mL·min−1), Faf is the antifoam addition rate (mL·min−1), Fc is the carbon loss rate (g·min−1) during the respiration, Fe are the evaporation rate, and the Fsmp is the rate (mL·min−1) of the solution volume change due to sampling, and t is the time. The equations for Fs, Fb, Faf, Fc, Fe, and Fsmp calculation can be found in Appendix A.
Process modelling was performed in the MATLAB environment. For the integration of differential equations, the ODE solver ode15s (a variable-order method for solving stiff differential equation systems) was used. The function LSQCURVEFIT was used to determine the values of the mentioned model parameters.

2.8. Reference Trajectory

Reference trajectories Xref, Sref, Vref, and Fref were calculated using the model described above, so as to keep the specific growth rate (µs) constant. The substrate feeding rate for building reference trajectories was calculated as (Equation (8)):
F r e f = ( σ   · X   ·   V + F   ·   S )   /   ( S f S )

3. Results

3.1. Determination of Glucose, Urea and Phosphate Consumption during Micro-Cultivations

In order to estimate the required substrate concentrations within the fed-batch solution and determine the optimal feeding profile, first, it was necessary to identify the specific uptake rates of glucose, phosphate, and urea. In order to accomplish the mentioned task, sets of micro-cultivations on 96 well micro plates were performed. The applied synthetic media was prepared with all nutrients in surplus except the ones in which uptake was tested. In Figure 3A, K. marxianus DSM 5422 growth in medium with variable urea content (0–2.1 mM) is depicted. Complete datasets on the kinetic of all micro-cultivation experiments can be found in Table S1. As expected, biomass yield (maximum OD590) depends on the urea concentration. Although, OD590 was not directly proportional to the biomass concentration within the entire dynamic range. It was identified that, for our microplate reader, OD590 = 0.5 A.U. is the maximum at which linear proportionality between biomass concentration and measured absorbance still holds (see Appendix B, Figure A1). OD590 measurements of K. marxianus growth when urea concentration exceeds 1 mM, yields absorbance values that were higher than 0.5 A.U., which is, thus, not proportional to the biomass concentration and, therefore, were excluded from further analyses.

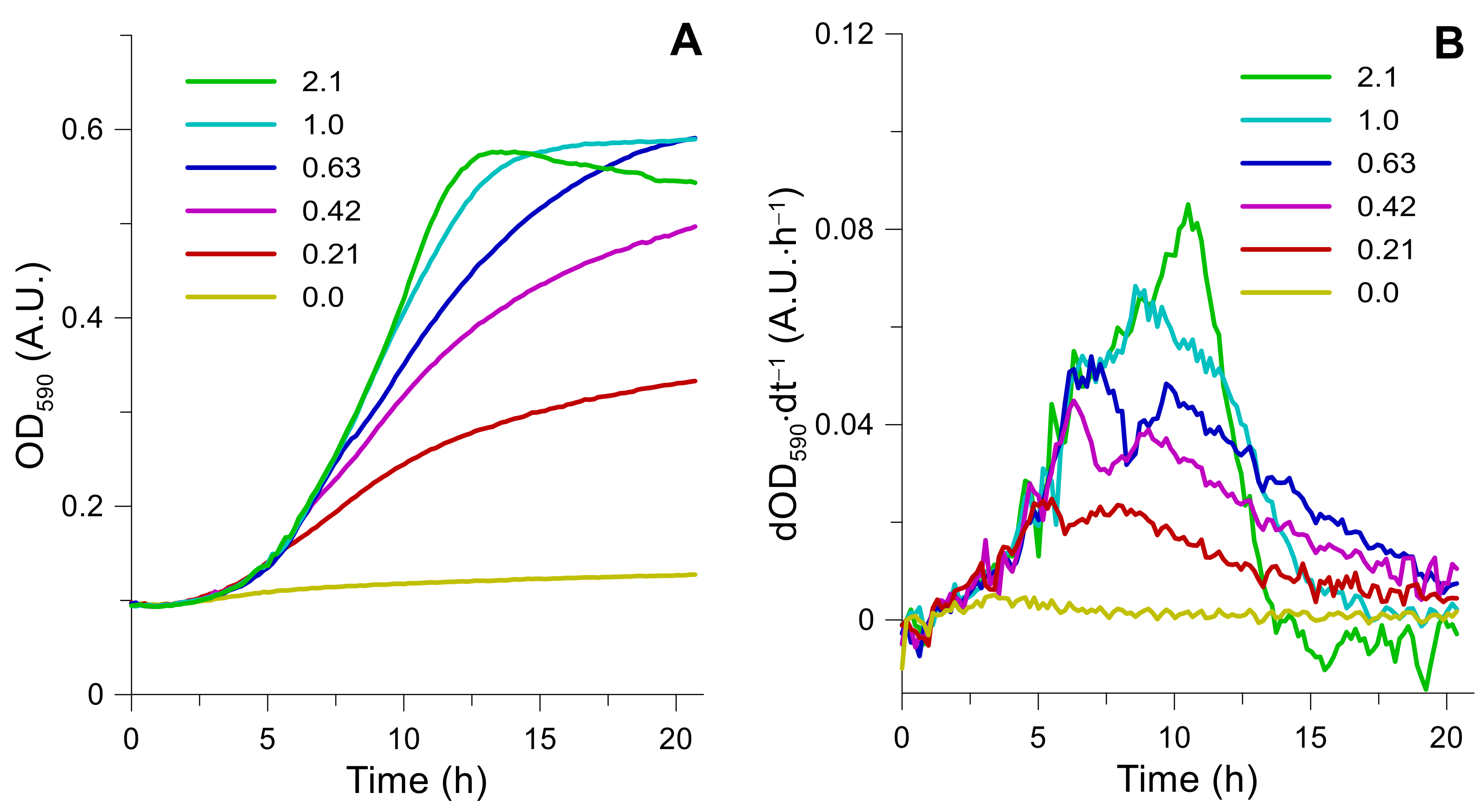

The first derivative of K. marxianus growth curves was constructed (see Figure 3B). The maximum peak value of each plot corresponds to the time when the limiting nutrient is depleted. For example, 0.21 mM of urea was depleted after 5 h into the cultivation (see Figure 3B). At the same time, the OD590 increase (difference from the beginning of cultivation). At this point, it is 0.11 A.U. We experimentally determined that 1 A.U. in our microplate reader (in a 96 well plate) for a working volume of 200 uL per well equals 0.904 g of dry yeast biomass per litre. For nutrient uptake calculations, we used the following equations.
The specific substrate uptake rate (σ), g·g−1·h−1 was determined as (Equation (9)):
σ = μ s Y xs
where µ—the specific biomass growth rate, ·h−1, Yxs—is the biomass yield from substrate, g·g−1.
The biomass yield from substrate (Yxs), g·g−1 was estimated as (Equation (10)):
Y xs = X S
where ΔX—obtained biomass concentration (g·L−1) can be calculated from the increase of biomass in the well from the start of the cultivation until the moment of substrate depletion and ΔS—consumed substrate (g·L−1), in our case, can be calculated from the limiting substrate concentration.
Therefore, by limiting the cultivation by a single nutrient, it is possible to estimate the consumption of a particular component. In the present research, glucose, urea, and phosphate limited micro-cultivations that were performed and the following results were obtained (see Table 2).

3.2. Bioreactor Cultivations

Fed-batch cultivations were performed in order to further optimize the medium composition and to obtain maximum Kluyveromyces marxianus biomass concentrations. The initial media composition and its optimised versions are depicted in Table 3. Based on the consumption rate relations obtained from the micro-cultivation experiments, the first rough estimates of necessary glucose, urea, and phosphate concentrations in the growth medium and feeding solution were obtained (see Table 3). The mentioned estimates were used for initial K. marxianus bioreactor fed-batch cultivations. The concentration of phosphorus in the batch medium was increased two-fold in order to ensure sufficient buffer capacity.

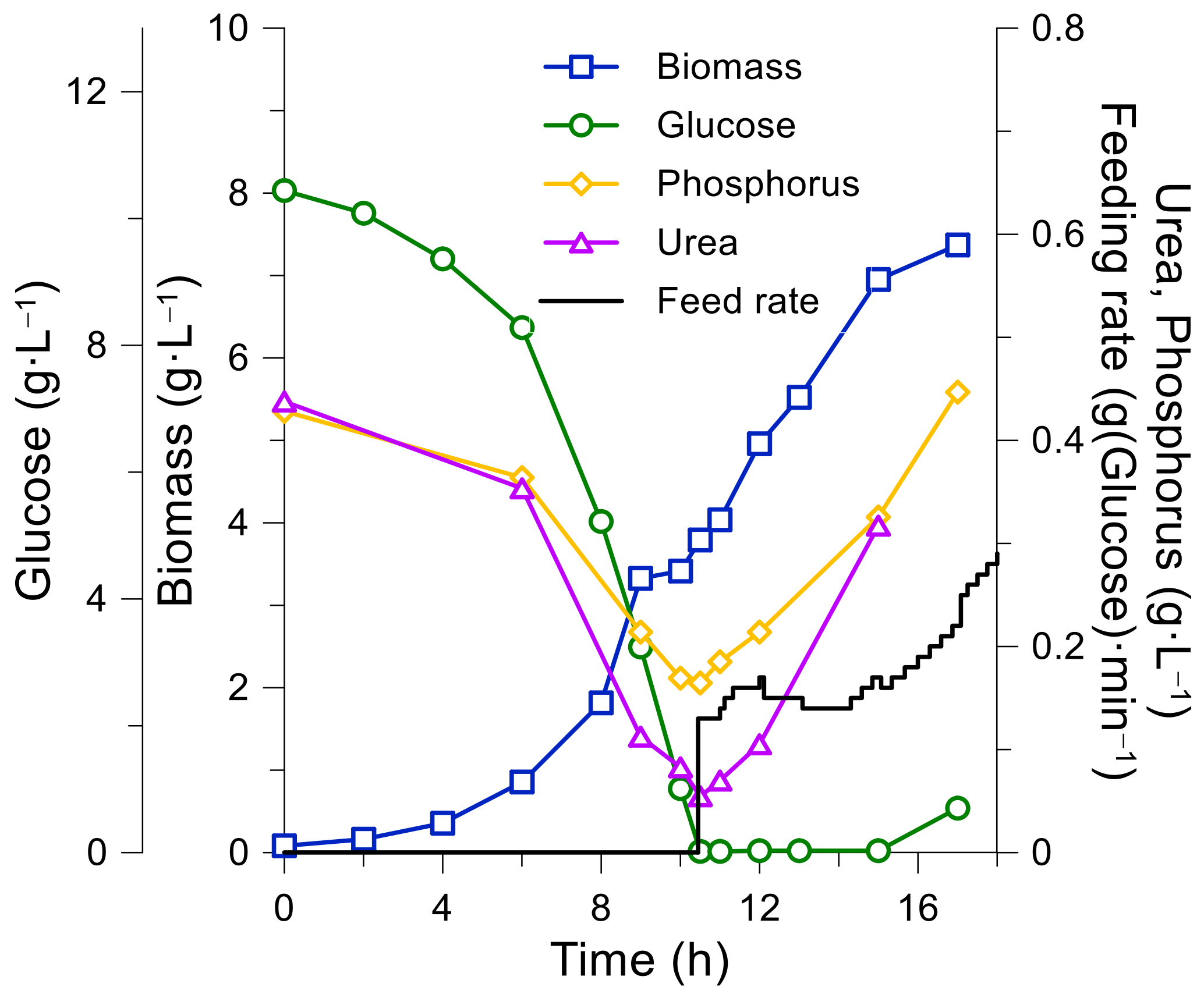

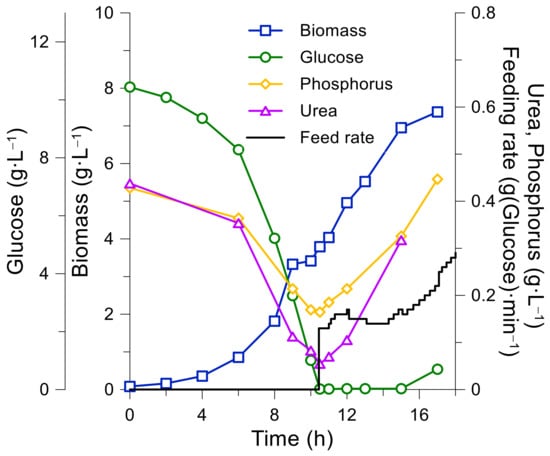

Figure 4 shows the changes in biomass and medium component concentrations during the first K. marxianus bioreactor cultivation (both during the batch and fed-batch phases). The feeding rate was calculated based on the model parameters, which were estimated from the processes batch phase and was set to maintain a specific biomass growth rate of ≤0.2 h−1.
After the fed-batch phase was initiated, the residual glucose concentration remained close to zero. The ethanol production was negligible and, together with high aeration (oxygen remained constant at min 40%—sat.), ensured maximal biomass production. At the end of the batch phase, almost all urea was consumed, while phosphorus was still present in the medium in an ample amount (see Figure 4).
The maximum biomass concentration achieved during the process was 8.8 gDCW·L−1, the biomass growth rate decreased and glucose accumulation began at a biomass concentration of 6.9 gDCW·L−1, which indicates that the process was limited by other medium components. Additionally, phosphorus build-up and nitrogen build-up were observed during the fed-batch phase, which might hamper optimal growth of K. marxianus. An assumption on possible vitamin limitation (especially upon reaching high biomass concentrations) was put forward.

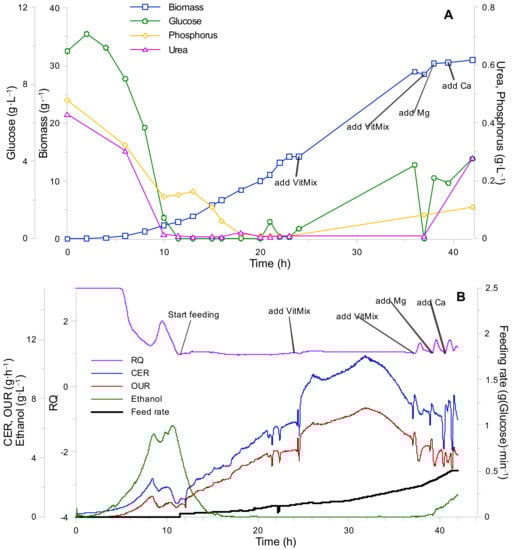

Based on the obtained data from the first bioreactor fed-batch cultivation, the media composition was optimized (see Table 3, Process 2). The second K. marxianus fed-batch process was carried out with an increased vitamin concentration in the batch phase and reduced concentrations of phosphorus and nitrogen in the feeding solution. Dynamics of biomass growth and substrate consumption are depicted in Figure 5.
After initializing the fed-batch phase, urea and phosphorus remained at low concentrations. However, a sudden increase in phosphorous right after the start of the fed-batch phase was noticed. Nevertheless, the phosphorus concentration decreased over time.
No glucose accumulation and ethanol formation were observed until the 23rd h into the process, which means that the entire substrate was spent solely on biomass growth during that period. The biomass yield from glucose during the fed-batch phase was calculated as Yxs = 0.5. The biomass growth rate decrease occurred only after the 23rd process hour, at a biomass concentration of X = 16.6 g·L−1. The latter can be explained by the fact that the concentration of vitamins in the batch medium was increased only 2.5 fold. When a slowdown of a specific growth rate was observed. Based on the decrease in oxygen consumption (see Figure 5В), a vitamin mixture portion (10 mL) was added to the cultivation medium. After vitamin addition, an increase in biomass growth rate, oxygen uptake, ethanol production, and release of CO2 (gas analysis) was observed. Thus, we confirmed that vitamins were the limiting nutrients. The biomass yield from 1 mL of the vitamin mixture was calculated as YXVit = 7.5 g·mL−1.
On the 32nd h into the process, another decrease of biomass growth rate was observed (see Figure 5В). The CO2 production and O2 uptake rates began to decrease and, after the 32nd h glucose, phosphorus and urea started to build-up in the growth medium (see Figure 5A). In addition, ethanol biosynthesis has commenced (see Figure 5В). A portion of vitamin, Mg, and Ca solutions were added to the bioreactor. The addition of vitamin, Mg, and Ca solutions apparently promoted respiration (oxygen uptake increased). Thus, taking into account the positive response of the system toward mentioned component addition, it was assumed that the concentrations of the mentioned compounds was close to their limiting values, which, in turn, created a possibility to roughly estimate the biomass yields from Mg and Ca (were calculated as YXMg = 66 g·g−1 and YXCa = 330 g·g−1, respectively). However, vitamin and Mg/Ca addition, as well as other micro/macro elements (see Appendix C, Figure A2 and Table A1), could not promote further biomass growth. The latter led to a conclusion, in which another nutrient limitation has occurred. One of such nutrients could potentially be Ni2+, which is often included into the composition of synthetic growth mediums for various yeast cultivations [15,25].
Based on the obtained results from the 1st and 2nd cultivations (see Figure 4 and Figure 5), we set up a third process with improved growth medium and feeding solution compositions (see Table 3, Process 3). We increased the content of Ni2+ ions by adding NiSO4·7H2O until a final concentration of 0.003 g·L−1 was added to the growth medium (during the batch phase), while the concentrations of other components were maintained identically to the previous process. During the course of the cultivation, portions of the vitamin mixture, Mg, Ca, and microelement mixture solutions were added into the growth medium. The addition of the mentioned components took place at pre-calculated time points (before the onset of the limiting effect of a specific component took place), with the aim of maintaining a desirable biomass growth rate. The mentioned time points of individual component addition (and amounts) were calculated from the estimated biomass yields from each component.
The result of the third cultivation is shown in Figure 6. During the fed-batch phase, the concentration of glucose, urea, and phosphorus remained at a constant level and no significant accumulation of ethanol was observed. After the 22nd hour (at X = 20 g·L−1), a decrease in biomass growth rate was noticed (was deducted from the biomass growth curve’s slope decrease (see Figure 6А)). The addition of vitamin mixture on the 26th h increased the CER (carbon evolution rate) and OUR (oxygen uptake rate) values for a short period, although shortly after the decrease continued. Simultaneously, the production of ethanol in the system was observed. Based on the mentioned observations and the fact that all essential components were already introduced to the system, it can be concluded that a biomass growth limitation took place due to the main component’s (phosphorus and/or urea) shortage. Taking into account the fact that phosphorus was introduced into the system in excess (in order to maintain appropriate buffer capacity of the solution), and that, due to Ni2+ ion addition to the system the urea uptake was significantly improved, it was assumed that urea deficiency was the main reason for the observed biomass growth rate decrease. The addition of urea to the growth medium (on the 26th h) returned the growth rate, CER, and OUR to their previous values. This can be explained by the fact that, after adding Ni2+ ions to the system, the assimilation of urea was improved, which, in turn, limited the assimilation of other components. The next decrease in biomass growth was observed at the 38th h (at X = 58 g·L−1), which was overcome only by adding a portion of the microelement mixture to the growth medium (necessity was determined based on the gas analysis data). Thus, the biomass yield from microelements was calculated as: YXMicro = 31 g·mL−1. As a result, a final (maximal) biomass concentration obtained during the third fed-batch cultivation was X = 73 g·L−1.
Based on the results obtained during the third fed-batch cultivation, the component concentrations were corrected both in the growth medium and feeding solution (see Table 3, Process 4). Taking into account the systems’ positive response toward urea addition into the growth medium (and no significant urea accumulation) during the 3rd process, the concentration of urea in the batch and feeding solution was increased. Additionally, the feeding solution was supplemented with vitamins and macro/micro components in calculated amounts. During the process, upon reaching a desired biomass concentration, the 2-phenylethanol biosynthesis was induced by swapping the nitrogen source (urea) for 2-phenylalanine. The mentioned biomass concentration (at which the 2-PE synthesis was induced) was calculated so that a maximal 2-phenylethanol productivity would be obtained at a given maximal feeding pump productivity and maximal solubility of 2-phenylalanine in the feeding solution.

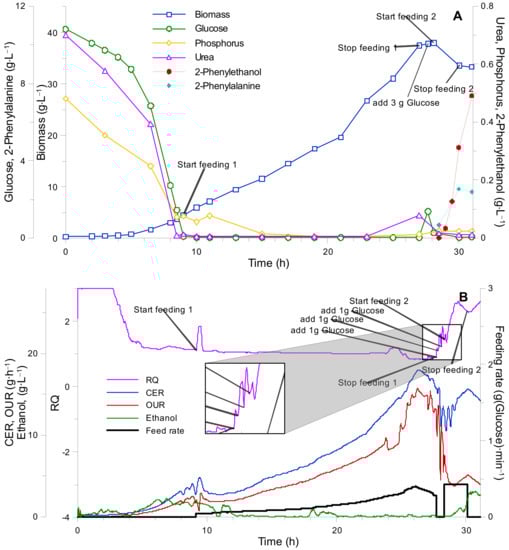

The results of the fourth fed-batch cultivation are depicted in Figure 7. As can be seen from the biomass growth curve (see Figure 7A), as well as CO2 production and O2 uptake curves, no significant decreases in biomass growth rate and accumulation of medium components took place. Upon completion of the first fed-batch phase (right before inducing 2-PE biosynthesis), portions of glucose solution (without any additional components) were introduced into the growth medium in order to facilitate complete urea utilization, which could have accumulated in small amounts in the medium.
The amounts and time points of glucose addition were determined based on the oxygen uptake rate and at-line glucose measurements. When all available nitrogen (in the form of urea) was completely assimilated by the yeast biomass, an increase in glucose concentration and decrease in oxygen uptake was observed. Upon reaching full urea assimilation, a feeding solution supplemented with 2-phenylalanine was introduced into the growth medium.
As can be seen from Figure 7A, the 2-PE production rate was significantly lower than the 2-phenylalanine feeding rate, which inevitably led to an accumulation of the latter in the growth medium. The maximal 2-phenylethanol production rate was achieved at a 2-phenylalanine concentration of approximately 2 g·L−1 and was equal to 0.37 g·L−1·h−1.
Complete datasets on the kinetic and on-line measurements for all laboratory bio-reactor experiments can be found in Table S1

4. Discussion

K. marxianus (a Crabtree negative yeast) is a promising biological system for the production of a wide range of chemicals. Therefore, medium composition optimisation is crucial for the development of biotechnological processes using the mentioned organism. High biomass yield and negligible substrate accumulation during fed-batch cultivations are indicators of optimal substrate concentrations and balanced media composition.
First, a set of cultivations using a microplate reader in a synthetic media with a limited supply of individual nutrients were performed. From the results of mentioned experiments, approximate values for specific K. marxianus biomass yield and growth rate in the given media were derived. From these variables, specific consumption of individual nutrients per unit of biomass (gram dry weight) per unit time (h) was calculated (see Equations (10)–(11) and Table 2).
However, the applied micro-cultivation approach posed minor limitations, which affected the obtained results. First and likely most important is limited oxygen diffusion within the round walled microplate well [26]. Glucose consumption and subsequent biomass growth in Crabtree tree negative yeasts, like K. marxianus, depends on oxygen availability. Typically, when oxygen supply is sufficient, K. marxianus biomass yields from glucose are around 0.5 g·g−1 [27]. However, the value can go down to 0.09 g·g−1 when the oxygen supply is limited [28]. Indeed, in our micro-cultivation experiments, we observed yields of an order of 0.120 g·g−1, while, in the bioreactor experiments with optimal aeration (see Figure 4), the biomass yield was close to 0.5 g·g−1. By overestimating glucose consumption in the micro-cultivation system, we underestimated the urea and phosphate consumption. When calculating the nutrient concentration relations within the growth medium, the following ratios were obtained—C:N:P = 1:0.043:0.005. After performing bioreactor fed-batch cultivation experiments, the mentioned ratios were corrected to 1:0.07:0.011. Thus, the micro-cultivation experiment gave a rough estimate on K. marxianus nutrient consumption and, due to inefficient aeration, the media composition needed to be fine-tuned in bioreactor experiments.
The applied vitamin mixture is included as a separate component in synthetic medias almost unchanged for more than 70 years (reviewed in Reference [29]). Interestingly, not all yeasts are auxotrophic for all vitamins included in the vitamin mixture [29,30]. It seems, that external biotin supplementation is a typical requirement for most yeasts.
From the results of previously described cultivation experiments, it was deduced that the biomass yield from 1 mL of vitamin mixture is roughly 7.5 g·L−1. The mentioned yield value cannot be considered as absolute due to the fact that it is possible to reach a biomass concentration of 8.5 g·L−1 with the same number of vitamins, even though the growth rate starting from a biomass concentration of 7.5 g·L−1 is considerably slowed down. Additionally, multiple experiments were carried out in order to determine the limiting component of the vitamin mixture, which were performed by adding individual vitamins to the growth medium upon registering a biomass growth rate decrease. As a result, it was observed that none of the individual components of the vitamin mixture posed a positive effect on the biomass growth rate (see Appendix C, Figure A3 and Table A1). Furthermore, the addition of the vitamin mixture in quantities, which resulted in final concentrations below 1 g·L−1 in the growth medium, also did not stimulate any growth rate increases. From these observations, it was concluded that the vitamin effect on biomass growth displays a complex characteristic, which implies that biomass growth is stimulated only due to a parallel effect of multiple chemical compounds. Furthermore, it seems that there exists a critical concentration of said chemical compounds, e.g., upon traversing the critical concentration value, the biomass growth rate is significantly limited/boosted.
A shortage of any components necessary for biomass synthesis (oxygen, microelement, vitamin, or nitrogen) can lead to unbalanced growth and overflow carbon metabolism in K. marxianus [25,31]. At the end of the batch phase, we observed accumulation of ethanol, which is a typical overflow metabolite. At the same time, during the batch phase, phosphate accumulated in the medium (consumption was decreased when compared to the fed-batch phase). However, phosphorus as well as ethanol was gradually depleted throughout the feeding phase (by comparing Figure 4, Figure 5 and Figure 6 metabolite and off-gas curves). Therefore, it is assumed that phosphate accumulation and ethanol biosynthesis might be related. The switch from fermentative (glucose) to oxidative (pyruvate, acetaldehyde) substrates leads to a decrease in phosphorous uptake in S. cerevisiae. The phosphorus uptake decreased almost twice when Saccharomyces cerevisiae was cultivated with oxidative rather than fermentative substrates [32]. During the course of bioreactor cultivations, the ethanol accumulation diminished when the urea content in the growth medium was increased for the batch phase (see Figure 7A), thus, improving glucose consumption and lowering overflow metabolism.
Kluyveromyces marxianus is considered a urease-negative yeast and it is argued that the urea uptake in this organism is performed via the urea carboxylase and allophanate hydrolase complex in which the activity is mediated by biotin [15,33,34]. Thus, it was hypothesized that the addition of vitamins to the cultivation medium upon registering a particular cell growth limitation after reaching a biomass concentration of 35 g·L−1 should have promoted the nitrogen uptake, e.g., growth rate increase. However, we did not observe an increase in biomass concentration when adding the vitamin mixture (including biotin) or other macro/micro components in surplus. This observation casts doubt on the K. marxianus urea uptake via the carboxylase pathway. In turn, the addition of nickel to the cultivation environment resulted in a two-fold increase of maximum biomass concentration and increased the urea consumption rate. A positive reaction to nickel may indicate that the assimilation of urea occurs through the urease pathway. On the other hand, previously published studies revealed no urease activity in the Kluyveromyces spp. [15,33,35]. Although, upon further inspection of published literature, it was observed that the applied urease tests identify solely extracellular urease. Unfortunately, no data was found in the literature on the presence of intracellular urease in K. marxianus. The latter may explain the mechanism of urea assimilation. However, to draw a concrete conclusion, further research should be performed to identify the exact mechanism of urea consumption in Kluyveromyces marxianus DSM 5422.
The increase in the rate of nitrogen consumption also positively affected the biomass yield during the batch phase, while reducing ethanol production. Therefore, for cultivations 2 and 4, the biomass yield from glucose increased from 0.35 to 0.43 g.g−1, and the maximum ethanol concentration decreased from 5.6 to 2.2 g·L−1, respectively.
In addition to the balanced uptake of the main cultivation medium components, it is worth noting a significant decrease in the consumption of titrants (used for pH control) during the process. The consumption of the NaOH during the 4th experiment decreased 2.2 fold in comparison to the 2nd experiment and amounted to 60 mg·g−1 DCW. Furthermore, antifoam was not consumed during each performed cultivation, which points to the absence of cell lysis and inhibition of by-product synthesis. In turn, the absence of foam formation promotes the use of online sensors (turbidity or permittivity based) for determining biomass concentrations, as the mentioned sensors are very sensitive to rheological changes of the growth medium.
The maximal obtained biomass concentration was equal to 73 g·L−1, which is comparable to other previously published cultivation results when using synthetic growth mediums [36]. Although, the maximal biomass value can be improved, taking into account the fact that biomass limitation was not reached at the mentioned concentration.
During the biosynthesis phase, the maximum obtained productivity of 2-PE was 0.372 g·L−1·h−1, with a yield of 74%, which is very close to the data presented by other authors [10]. The biomass yield from glucose during the 2nd fed-batch phase (with 2-PHE) was 0.23 g·g−1 and accumulation of 2-phenylalanine was observed. This indicates that the utilization of nitrogen contained in 2-phenylalanine proceeded more slowly in comparison to using urea. Thus, the excess carbon was re-directed toward synthesis of ethanol, which accumulated immediately after initiation of the 2nd feeding stage. The maximum nitrogen utilization rate, and biomass-to-nitrogen yields were 0.0178 g(2-PHE)·g−1 h−1 (0.108 mM(2-PHE)·g−1·h−1), and 4.11 g·g−1, respectively.

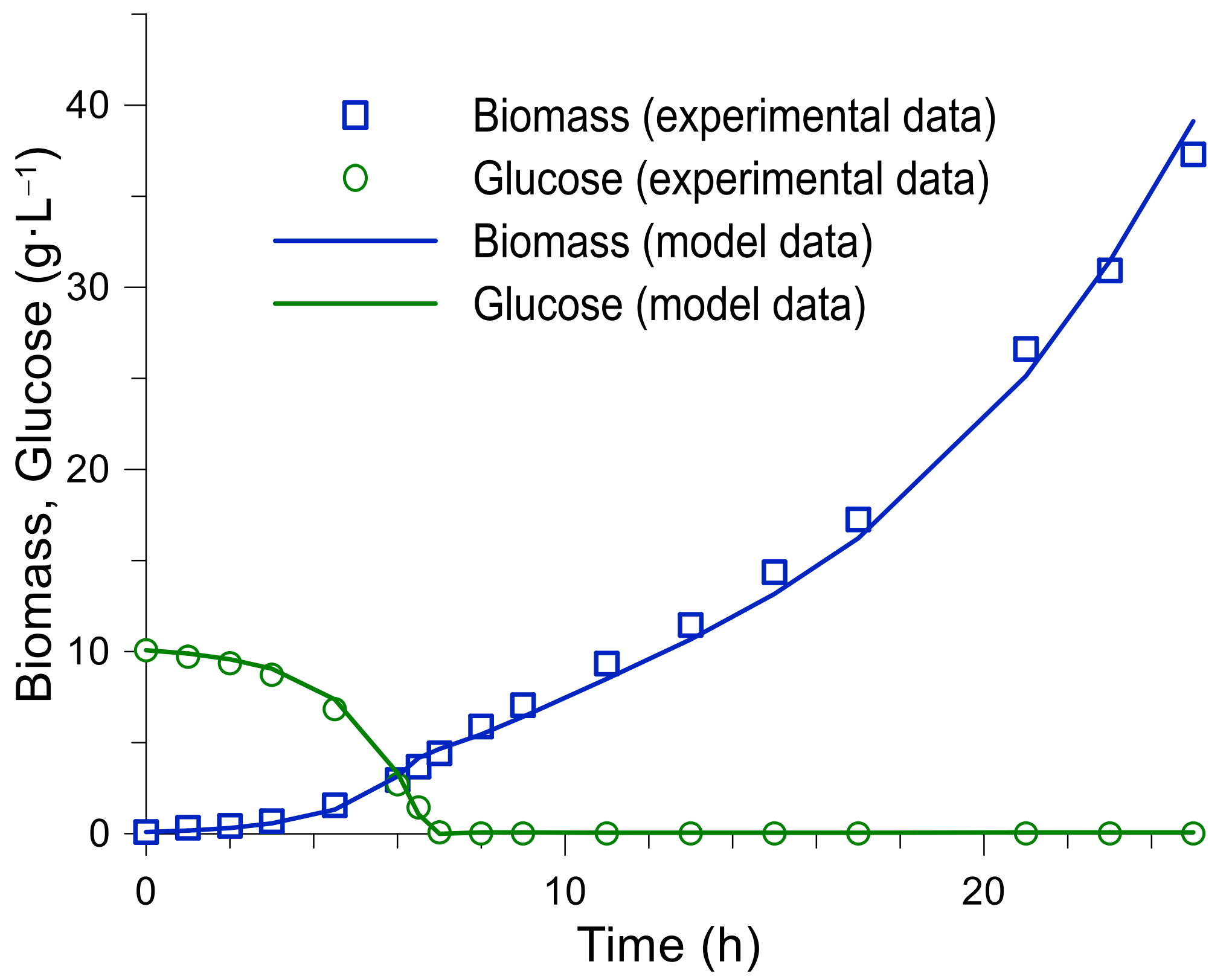

In order to improve the performance of the MPC algorithm, the model parameters were optimized based on the obtained experimental data. The simulation results of the 4th process up to 27 h are presented in Figure 8 and in Table 4. The obtained kinetic constants differ from the real values since they represent only averages and have a complex characteristic. Although the acquired values have sufficient accuracy, WAPEX = 6% to describe the biomass growth to a concentration of 40 g·L−1 at a given specific growth rate of 0.2·h−1.

5. Conclusions

The optimization of synthetic media composition for K. marxianus fed-batch cultivations was successfully performed during the course of the present research. Primarily, the micro-cultivations gave an approximate estimate of specific glucose, urea, and phosphate consumption rates, which was fine-tuned by fermentation experiments. For K. marxianus DSM 5422 fed batch cultivation in synthetic media, we suggest the C:N:P ratio to be 1:0.07:0.011.
The use of optimized composition of the growth medium and feeding solution led to optimal consumption of main nutrients and no accumulation of those were observed. The use of an optimized medium composition reduces accumulation of by-products and substrate, thus, reducing osmotic stress on the cells and promoting biomass growth.
Additionally, the biomass yields from the vitamin mixture (YXVit = 7.5 g·mL−1), microelements (YXMicro = 31 g·mL−1), and other macro-components such as Mg and Ca (YXMg = 66 g·g−1, YXCa = 330 g·g−1) were identified, which makes it possible to estimate the minimum required amounts of components in the growth medium in order to obtain the required amount of biomass.
Unexpectedly, supplementing the growth medium with Ni2+ ions allowed us to elevate the biomass titer up to 70 g·L−1. This is a remarkable achievement, even though the mechanisms showing how Ni2+ improves K. marxianus biomass production is yet to be elucidated.
Urea is a proton neutral nitrogen source. The consumption of urea lowered use of titrants (for pH and/or foam level control) and eased the control of the fermentation process.
After a biomass production phase in the fed batch process, a 2-PE synthesis phase was launched. The 2-PE production reached 0.372 g·L−1·h−1, with an overall production effectivity of 74% from substrate 2-phenylalanine. This result is similar to other optimization results and demonstrates acceptable catalytical activity of obtained biomass from the optimized fed batch process.
The mathematical model parameters, which were obtained through process modelling, describe the experimental data with acceptable accuracy (WAPEX = 6%) and allow the calculation of the feeding rate and process reference trajectories for the application of a model’s predictive control.

Supplementary Materials

Author Contributions

Conceptualization, K.D. and J.L. Methodology, K.D. and J.L. Software, K.D. Validation, K.D. and J.L. Formal Analysis, K.D. and J.L. Investigation, K.D., J.L., A.S. (Arturs Suleiko), A.S. (Anastasija Suleiko), R.V., J.K., and R.S. Resources, O.G. and J.L. Data Curation, K.D. and J.L. Writing—Original Draft Preparation, K.D., J.L., and A.S. (Arturs Suleiko). Writing—Review & Editing, K.D., J.L., and A.S. (Arturs Suleiko). Visualization, K.D. Supervision, K.D. and J.L. Project Administration, K.D. and J.L. Funding Acquisition, O.G., J.L., and K.D. All authors have read and agreed to the published version of the manuscript.

Funding

Konstantins Dubencovs, Anastasija Suleiko, Arturs Suleiko, Oskars Grigs, and Rita Scerbaka were supported by Bio-economic grant “MarksKultOpt” from the Latvian State Institute of Wood Chemistry. Reinis Vangravs and Jana Kassaliete were supported by the Latvian Council of Science, Project LZP-2018/2-0213. Janis Liepins was supported by the State Education Development agency of Republic of Latvia PostDoc Project 1.1.2/1/16/067. Konstantins Dubencovs and Arturs Šuleiko were supported by the European Regional Development Fund (ERDF) within the framework of the project “Competence Center of Smart Materials and Technologies no. 1.2.1.1/18/a/007”.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Mathematic model flow rate equations (Equations (A1):
F s = ( σ   · X   ·   V + F   ·   S )   /   ( S f S )
Fb is the base addition rate (mL·min−1) used for pH control. It is considered to be proportional to the growth rate.
F b = Y X b 1   ·   μ s   ·   X   ·   V
YXb—is the biomass yield from base, g·g−1, Faf is the antifoam addition rate (mL·min−1) used for foam control and is proportional to the growth rate.
F af = Y Xaf 1   ·   μ s ·   ( X   -   X crit )   ·   V ;   if   X   <   X crit ;   F af = 0   X   <   X crit ;   F af = 0
YXaf—is the biomass yield from antifoam, g·g−1. Xcrit—the minimal concentration of biomass, g·L−1, when the supply of an antifoam is required, Fc is the carbon loss rate (g·min−1) during the respiration.
F c = M CO 2 - M O 2 M O 2 ·   OUR   ·   V
where M CO 2 ,   M O 2 —molar masses of СО2 and О2, respectively, g·M−1. OUR is the oxygen uptake rate.
OUR = Y OX   ·   m s     · X + O m   ·   X
where YOX—is the biomass yield from oxygen, g·g−1, Om—maintenance coefficient, g·g−1·h−1, Fe are the evaporation rate, the Fsmp is the rate (mL·min−1) of the weight change due to sampling, and t is the time.

Appendix B

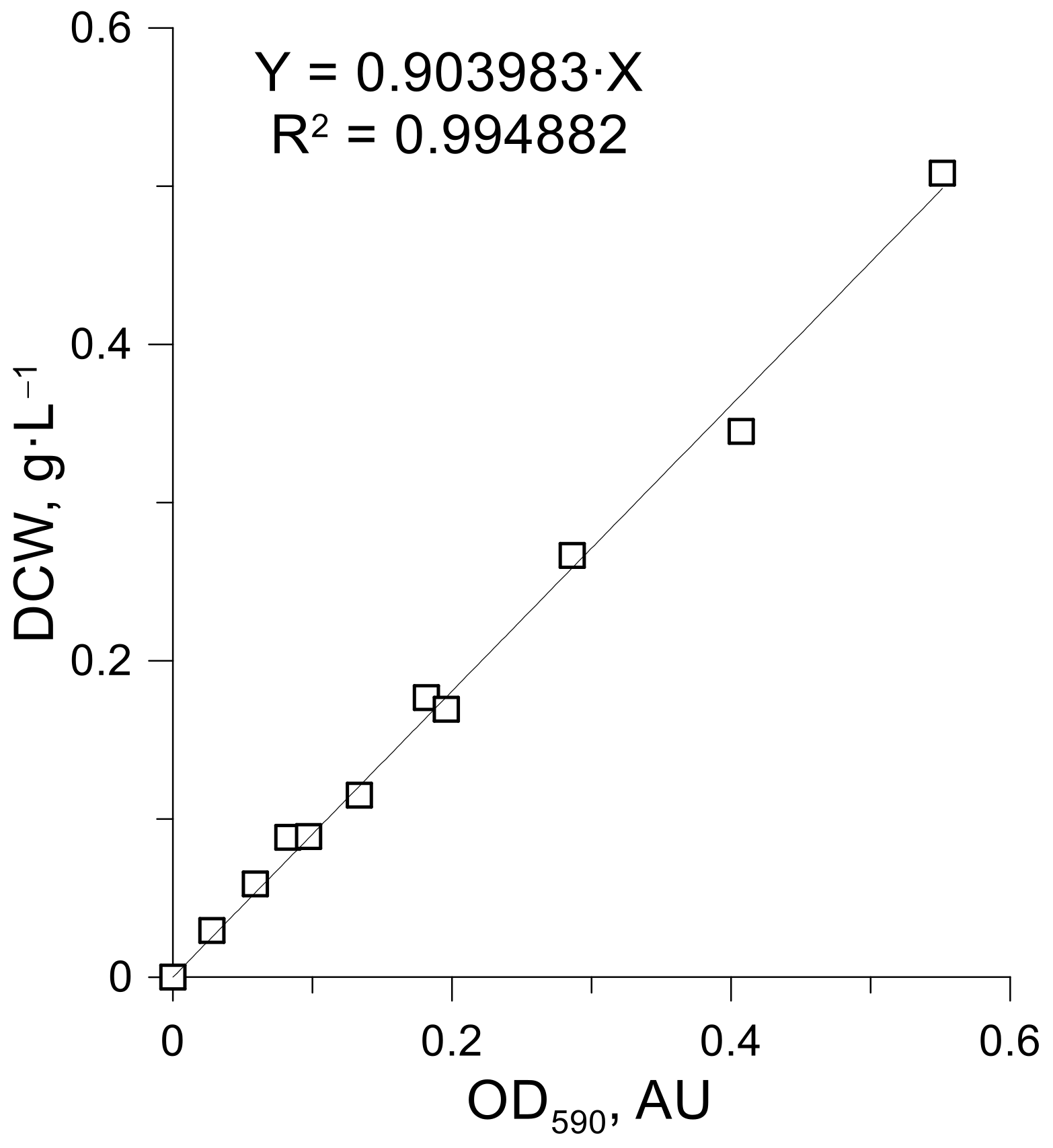

Figure A1. Calibration curve of OD590 vs. DCW for micro-cultivation experiments.
Figure A1. Calibration curve of OD590 vs. DCW for micro-cultivation experiments.
Fermentation 07 00062 g0a1

Appendix C

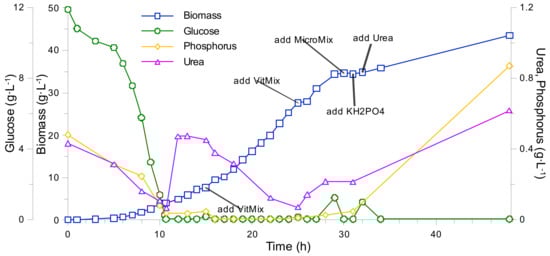

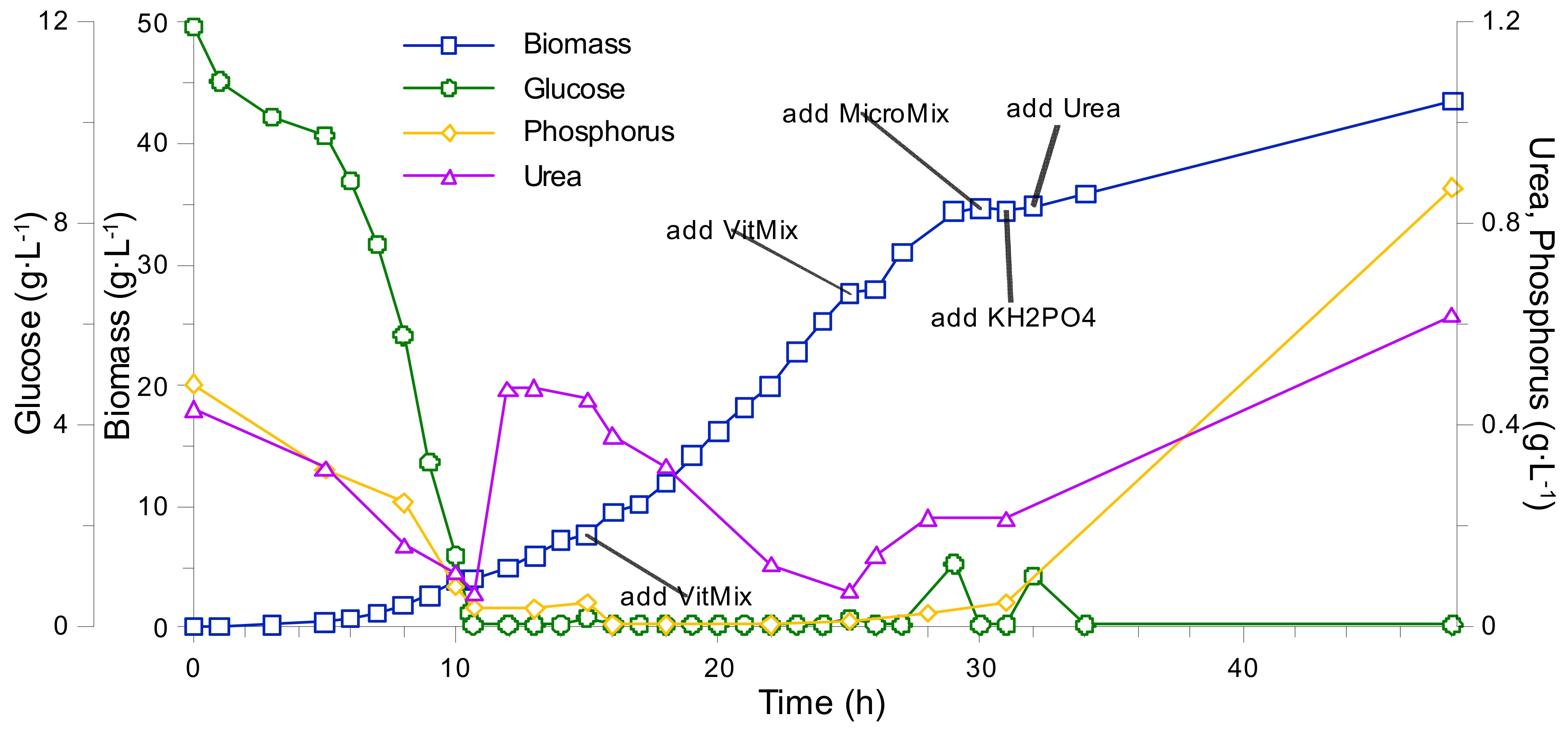

Figure A2. K. marxianus (MicroMix doped) bioreactor fed-batch cultivation. Tests of biomass growth response to vitamin and micro component mixture, and KH2PO4/urea solution addition. Growth media composition can be found in Table A1.
Figure A2. K. marxianus (MicroMix doped) bioreactor fed-batch cultivation. Tests of biomass growth response to vitamin and micro component mixture, and KH2PO4/urea solution addition. Growth media composition can be found in Table A1.
Fermentation 07 00062 g0a2

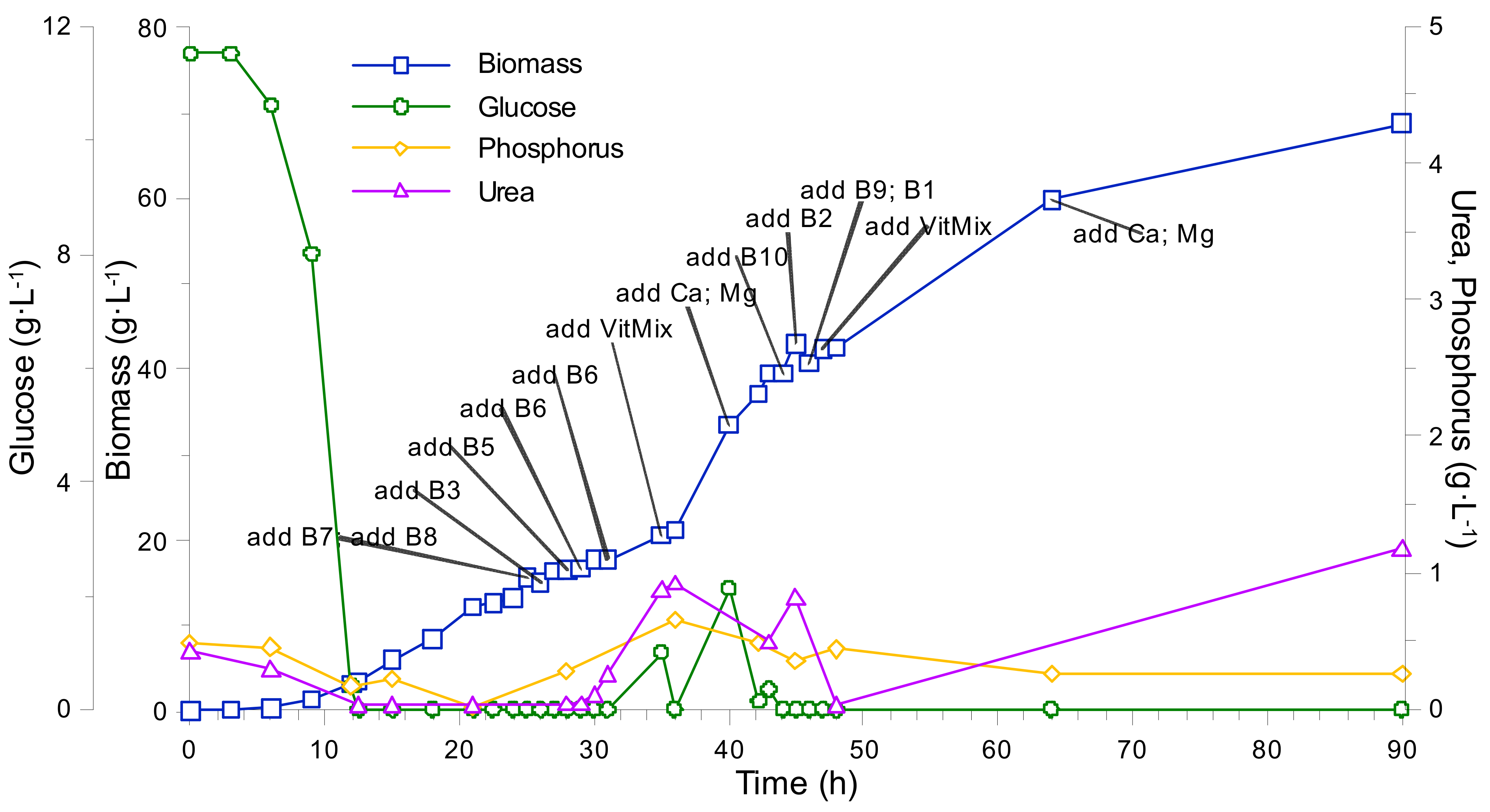

Figure A3. K. marxianus (vitamin and Ni2+ doped) bioreactor fed-batch cultivation. Tests of biomass growth response to individual vitamin and Ni2+ addition.
Figure A3. K. marxianus (vitamin and Ni2+ doped) bioreactor fed-batch cultivation. Tests of biomass growth response to individual vitamin and Ni2+ addition.
Fermentation 07 00062 g0a3
Table A1. Cultivation medium and feeding solution compositions.
Table A1. Cultivation medium and feeding solution compositions.
MicroMix Doped ProcessVitamin Doped Process
ComponentsBatch, g·L−1F-batch, g·L−1Batch, g·L−1F-batch, g·L−1
Glucose (g·L−1)10.040010.0400
Urea (g·L−1)0.4317.140.4315
KH2PO4 (g·L−1)0.48120.4811
MgSO4·7H2O (g·L−1)0.510.51
CaCl2 (g·L−1)0.10.10.10.1
NaCl (g·L−1)0.10.10.10.1
aMicroMix, mL·L−1112.50
bVitMix, mL·L−1112.50
NiSO4·7H2O (g·L−1)000.00030
a—MicroMix—Micro component mixture. b—VitMix—Vitamin mixture.

References

  1. Nielsen, J. Yeast systems biology: Model organism and cell factory. Biotechnol. J. 2019. [Google Scholar] [CrossRef] [Green Version]
  2. Hagman, A.; Säll, T.; Piškur, J. Analysis of the yeast short-term Crabtree effect and its origin. FEBS J. 2014. [Google Scholar] [CrossRef] [Green Version]
  3. Martynova, J.; Kokina, A.; Kibilds, J.; Liepins, J.; Scerbaka, R.; Vigants, A. Effects of acetate on Kluyveromyces marxianus DSM 5422 growth and metabolism. Appl. Microbiol. Biotechnol. 2016. [Google Scholar] [CrossRef]
  4. Karim, A.; Gerliani, N.; Aïder, M. Kluyveromyces marxianus: An emerging yeast cell factory for applications in food and biotechnology. Int. J. Food Microbiol. 2020. [Google Scholar] [CrossRef] [PubMed]
  5. Pentjuss, A.; Stalidzans, E.; Liepins, J.; Kokina, A.; Martynova, J.; Zikmanis, P.; Mozga, I.; Scherbaka, R.; Hartman, H.; Poolman, M.G.; et al. Model-based biotechnological potential analysis of Kluyveromyces marxianus central metabolism. J. Ind. Microbiol. Biotechnol. 2017. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Morrissey, J.P.; Etschmann, M.M.W.; Schrader, J.; de Billerbeck, G.M. Cell factory applications of the yeast Kluyveromyces marxianus for the biotechnological production of natural flavour and fragrance molecules. Yeast 2015. [Google Scholar] [CrossRef]
  7. Wittmann, C.; Liao, J.C. Industrial Biotechnology: Products and Processes; Wiley-VCH: Weinheim, Germany, 2016. [Google Scholar]
  8. Freeman, A.; Woodley, J.M.; Lilly, M.D. In situ product removal as a tool for bioprocessing. Nat. Biotechnol. 1993. [Google Scholar] [CrossRef] [PubMed]
  9. Etschmann, M.M.W.; Bluemke, W.; Sell, D.; Schrader, J. Biotechnological production of 2-phenylethanol. Appl. Microbiol. Biotechnol. 2002. [Google Scholar] [CrossRef]
  10. Mihal, M.; Veres, R.; Markos, J.; Stefuca, V. Intensification of 2-phenylethanol production in fed-batch hybrid bioreactor: Biotransformations and simulations. Chem. Eng. Proces. 2012. [Google Scholar] [CrossRef]
  11. Lukondeh, T.; Ashbolt, N.J.; Rogers, P.L. Fed-batch fermentation for production of Kluyveromyces marxianus FII 510700 cultivated on a lactose-based medium. J. Ind. Microbiol. Biotechnol. 2005. [Google Scholar] [CrossRef] [PubMed]
  12. Roberts, T.M.; Kaltenbach, H.M.; Rudolf, F. Development and optimisation of a defined high cell density yeast medium. Yeast 2020. [Google Scholar] [CrossRef]
  13. Kuprijanov, A.; Schaepe, S.; Simutis, R.; Lübbert, A. Model predictive control made accessible to professional automation systems in fermentation technology. Biosyst. Inf. Technol. 2013. [Google Scholar] [CrossRef]
  14. Castrillo, J.I.; de Miguel, I.; Ugalde, U.O. Pr oton production and consumption pathways in yeast metabolism. A chemostat culture analysis. Yeast 1995. [Google Scholar] [CrossRef] [PubMed]
  15. Löser, C.; Urit, T.; Gruner, E.; Bley, T. Efficient growth of Kluyveromyces marxianus biomass used as a biocatalyst in the sustainable production of ethyl acetate. Energy Sustain. Soc. 2015. [Google Scholar] [CrossRef] [Green Version]
  16. Hahn-Hägerdal, B.; Karhumaa, K.; Larsson, C.U.; Gorwa-Grauslund, M.; Görgens, J.; van Zyl, W.H. Role of cultivation media in the development of yeast strains for large scale industrial use. Microb. Cell Fact. 2005. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Rodrigues, D.; Pillaca-Pullo, O.; Torres-Obreque, K.; Flores-Santos, J.; Sánchez-Moguel, I.; Pimenta, M.V.; Basi, T.; Converti, A.; Lopes, A.M.; Monteiro, G.; et al. Fed-batch production of Saccharomyces cerevisiae L-Asparaginase II by recombinant Pichia pastoris MUTs strain. Front. Bioeng. Biotechnol. 2019. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Saldanha, A.J.; Brauer, M.J.; Botstein, D. Nutritional homeostasis in batch and steady-state culture of yeast. Mol. Biol. Cell. 2004. [Google Scholar] [CrossRef] [Green Version]
  19. Martínez, O.; Sánchez, A.; Font, X.; Barrena, R. Bioproduction of 2-phenylethanol and 2-phenethyl acetate by Kluyveromyces marxianus through the solid-state fermentation of sugarcane bagasse. Appl. Microbiol. Biotechnol. 2018. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Doi, E.; Shibata, D.; Matoba, T. Modified colorimetric ninhydrin methods for peptidase assay. Anal. Biochem. 1981. [Google Scholar] [CrossRef]
  21. Fawcett, J.K.; Scott, J.E. A rapid and precise method for the determination of urea. J. Clin. Pathol. 1960. [Google Scholar] [CrossRef] [Green Version]
  22. Weatherburn, M.W. Phenol-Hypochlorite Reaction for Determination of Ammonia. Anal. Chem. 1967. [Google Scholar] [CrossRef]
  23. Saheki, S.; Takeda, A.; Shimazu, T. Assay of inorganic phosphate in the mild pH range, suitable for measurement of glycogen phosphorylase activity. Anal. Biochem. 1985. [Google Scholar] [CrossRef]
  24. Grigs, O.; Galvanauskas, V.; Dubencovs, K.; Vanags, J.; Suleiko, A.; Berzins, T.; Kunga, L. Model predictive feeding rate control in conventional and single-use lab-scale bioreactors: A study on practical application. Chem. Biochem. Eng. Q. 2016. [Google Scholar] [CrossRef]
  25. Urit, T.; Stukert, A.; Bley, T.; Löser, C. Formation of ethyl acetate by Kluyveromyces marxianus on whey during aerobic batch cultivation at specific trace element limitation. Appl. Microbiol. Biotechnol. 2012. [Google Scholar] [CrossRef] [PubMed]
  26. Funke, M.; Diederichs, S.; Kensy, F.; Müller, C.; Büchs, J. The Baffled Microtiter Plate: Increased Oxygen Transfer and Improved Online Monitoring in Small Scale Fermentations. Biotechnol. Bioeng. 2009. [Google Scholar] [CrossRef] [PubMed]
  27. Fonseca, G.G.; Gombert, A.K.; Heinzle, E.; Wittmann, C. Physiology of the yeast Kluyveromyces marxianus during batch and chemostat cultures with glucose as the sole carbon source. Yeast Research. 2007. [Google Scholar] [CrossRef] [Green Version]
  28. Signori, L.; Passolunghi, S.; Ruohonen, L.; Porro, D.; Branduardi, P. Effect of oxygenation and temperature on glucose-xylose fermentation in Kluyveromyces marxianus CBS712 strain. Microb. Cell Fact. 2014. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Perli, T.; Wronska, A.K.; Ortiz-Merino, R.A.; Pronk, J.T.; Daran, J.M. Vitamin requirements and biosynthesis in Saccharomyces cerevisiae. Yeast 2020. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Burkholder, P.R.; McVeigh, I.; Moyer, D. Studies on Some Growth Factors of Yeasts. J. Bacteriol. 1944. [Google Scholar] [CrossRef] [Green Version]
  31. Urit, T.; Manthey, R.; Bley, T.; Löser, C. Formation of ethyl acetate by Kluyveromyces marxianus on whey: Influence of aeration and inhibition of yeast growth by ethyl acetate. Eng. Life Sci. 2013. [Google Scholar] [CrossRef]
  32. Stoppani, A.O.M.; Bennun, A.; de Pahn, E.M. Effect of 2,4-dinitrophenol on Krebs cycle and phosphate metabolism in baker’s yeast. Arch. Biochem. Biophys. 1964. [Google Scholar] [CrossRef]
  33. Large, P.J. Degradation of organic nitrogen compounds by yeasts. Yeast 1986. [Google Scholar] [CrossRef]
  34. Fan, C.; Chou, C.Y.; Tong, L.; Xiang, S. Crystal structure of urea carboxylase provides insights into the carboxyltransfer reaction. J. Bio.l Chem. 2012. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Nahvi, I.; Moeini, H. Isolation and Identification of Yeast Strains with High Beta-galactosidase Activity from Dairy Products. Biotechnology 2004. [Google Scholar] [CrossRef]
  36. Nor, Z.M.; Tamer, M.I.; Scharer, J.M.; Moo-Young, M.; Jervis, E.J. Automated fed-batch culture of Kluyveromyces fragilis based on a novel method for on-line estimation of cell specific growth rate. Biochem. Eng. J. 2001. [Google Scholar] [CrossRef]
Figure 1. Communication (information exchange) diagram of the fed-batch control system.
Figure 1. Communication (information exchange) diagram of the fed-batch control system.
Fermentation 07 00062 g001
Figure 2. Model predictive control (MPC) operation principle. Tk—actual point k in time, Tk−1—Past (measured values), Tk+1—Future (predicted values).
Figure 2. Model predictive control (MPC) operation principle. Tk—actual point k in time, Tk−1—Past (measured values), Tk+1—Future (predicted values).
Fermentation 07 00062 g002
Figure 3. Urea limitation effect on K. marxianus biomass growth during micro-cultivations. Urea concentration varied from 0–2.1 mM, culture growth was recorded as OD590 (A). Growth rate (first derivative) from the culture absorbance data was calculated and plotted over time (B). The tipping point of the first derivative trend is the moment when the limiting nutrient is depleted. Each cultivation plot is the average of four parallel well measurements. Standard deviations are not shown, but they do not exceed 5%.
Figure 3. Urea limitation effect on K. marxianus biomass growth during micro-cultivations. Urea concentration varied from 0–2.1 mM, culture growth was recorded as OD590 (A). Growth rate (first derivative) from the culture absorbance data was calculated and plotted over time (B). The tipping point of the first derivative trend is the moment when the limiting nutrient is depleted. Each cultivation plot is the average of four parallel well measurements. Standard deviations are not shown, but they do not exceed 5%.
Fermentation 07 00062 g003
Figure 4. K. marxianus first bioreactor fed-batch cultivation using the initial growth media and feeding solution compositions (see Table 3, Process 1).
Figure 4. K. marxianus first bioreactor fed-batch cultivation using the initial growth media and feeding solution compositions (see Table 3, Process 1).
Fermentation 07 00062 g004
Figure 5. K. marxianus second bioreactor fed-batch cultivation. (A) Biomass growth and cultivation medium component (glucose, urea, phosphorus) uptake curves. (B) Gas analysis data (RQ—respiratory quotient, CER—carbon evolution rate, OUR—oxygen uptake rate, ethanol concentration, and feeding rate).
Figure 5. K. marxianus second bioreactor fed-batch cultivation. (A) Biomass growth and cultivation medium component (glucose, urea, phosphorus) uptake curves. (B) Gas analysis data (RQ—respiratory quotient, CER—carbon evolution rate, OUR—oxygen uptake rate, ethanol concentration, and feeding rate).
Fermentation 07 00062 g005
Figure 6. K. marxianus bioreactor cultivation 3. process. (A) Biomass growth and cultivation medium component (glucose, urea, phosphorus) uptake curves. (B) Gas analysis data (RQ—respiratory quotient, CER—carbon evolution rate, OUR—oxygen uptake rate, ethanol concentration, and feeding rate).
Figure 6. K. marxianus bioreactor cultivation 3. process. (A) Biomass growth and cultivation medium component (glucose, urea, phosphorus) uptake curves. (B) Gas analysis data (RQ—respiratory quotient, CER—carbon evolution rate, OUR—oxygen uptake rate, ethanol concentration, and feeding rate).
Fermentation 07 00062 g006
Figure 7. K. marxianus fourth bioreactor fed-batch cultivation. (A) Biomass growth and cultivation medium component (glucose, urea, phosphorus) uptake curves. (B) Gas analysis data (RQ—respiratory quotient, CER—carbon evolution rate, OUR—oxygen uptake rate, ethanol concentration, and feeding rate).
Figure 7. K. marxianus fourth bioreactor fed-batch cultivation. (A) Biomass growth and cultivation medium component (glucose, urea, phosphorus) uptake curves. (B) Gas analysis data (RQ—respiratory quotient, CER—carbon evolution rate, OUR—oxygen uptake rate, ethanol concentration, and feeding rate).
Fermentation 07 00062 g007
Figure 8. K. marxianus fourth bioreactor fed-batch cultivation. Process modelling results.
Figure 8. K. marxianus fourth bioreactor fed-batch cultivation. Process modelling results.
Fermentation 07 00062 g008
Table 1. Media concentration for micro-cultivation experiments.
Table 1. Media concentration for micro-cultivation experiments.
Glucose Limited
mM
Urea Limited
mM
Phosphate Limited *Phosphate Limited *
mM
Glucose0, 3.47, 6.9, 13.89, 27.7827.78 27.78
Urea2.10, 0.21, 0.42, 0.63, 1.0, 2.1 2.1
KH2PO47.357.35KH2PO40, 0.009, 0.018, 0.027, 0.045, 0.091
MgSO4 *7H2O22Na2SO40.7
CaCl2 *2H2O0.60.6CaCl2 *2H2O0.6
NaCl1.71.7KCl2.5
MgCl22
* In the case of phosphate limited medium, alterations in other mineral salt components had to be introduced, since, together with phosphate, a potential limitation of potassium might set in. To exclude this possibility, we introduced KCl and swapped NaCl and MgSO4 with Na2SO4 and MgCl2.
Table 2. K. marxianus cultivation process parameters obtained via micro-cultivations.
Table 2. K. marxianus cultivation process parameters obtained via micro-cultivations.
ParameterCNP
YXS (g·g−1)0.122.8589.7
µmax (h−1)0.1290.1320.092
σ (g·g−1·h−1)1.0730.0460.01
C: N: P10.0430.005
Based on the obtained results, the optimal molar ratio for carbon, nitrogen, and phosphorus was identified to be C:N:P = 1:0.043:0.005.
Table 3. Cultivation medium and feeding solution compositions.
Table 3. Cultivation medium and feeding solution compositions.
Process 1Process 2Process 3Process 4
ComponentsBatchF-batchBatchF-batchBatchF-batchBatchF-batch 1F-batch 2
Glucose (g·L−1)10.040010.040010.040010.040080
2-PHE (g·L−1)0000000015
Urea (g·L−1)0.4317.140.43150.43150.7200
KH2PO4 (g·L−1)0.4819.130.48110.48110.48112.2
MgSO4·7H2O (g·L−1)0.510.510.510.550.5
CaCl2 (g·L−1)0.10.10.10.10.10.10.10.80.08
NaCl (g·L−1)0.10.10.10.10.10.10.10.80.08
aMicroMix, mL·L−1112.502.502.5101
bVitMix, mL·L−1112.502.502.5454.5
NiSO4·7H2O (g·L−1)00000.000300.00030.00060
a—MicroMix—Micro-component mixture. b—VitMix—Vitamin mixture.
Table 4. Parameters of Equations (6–7) determined from the fourth K. marxianus bioreactor cultivation.
Table 4. Parameters of Equations (6–7) determined from the fourth K. marxianus bioreactor cultivation.
ParametersValueDimension
Yxs0.449g·g−1
σmax1.43g·g−1·h−1
Ks0.183g·L−1
Ksi,100g·L−1
KXmax104g·L−1
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Dubencovs, K.; Liepins, J.; Suleiko, A.; Suleiko, A.; Vangravs, R.; Kassaliete, J.; Scerbaka, R.; Grigs, O. Optimization of Synthetic Media Composition for Kluyveromyces marxianus Fed-Batch Cultivation. Fermentation 2021, 7, 62. https://doi.org/10.3390/fermentation7020062

AMA Style

Dubencovs K, Liepins J, Suleiko A, Suleiko A, Vangravs R, Kassaliete J, Scerbaka R, Grigs O. Optimization of Synthetic Media Composition for Kluyveromyces marxianus Fed-Batch Cultivation. Fermentation. 2021; 7(2):62. https://doi.org/10.3390/fermentation7020062

Chicago/Turabian Style

Dubencovs, Konstantins, Janis Liepins, Arturs Suleiko, Anastasija Suleiko, Reinis Vangravs, Jana Kassaliete, Rita Scerbaka, and Oskars Grigs. 2021. "Optimization of Synthetic Media Composition for Kluyveromyces marxianus Fed-Batch Cultivation" Fermentation 7, no. 2: 62. https://doi.org/10.3390/fermentation7020062

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
