Customised Microporous Carbon 3D Structures with Good Mechanical Properties and High Nitrogen Content Obtained from Whey Powders

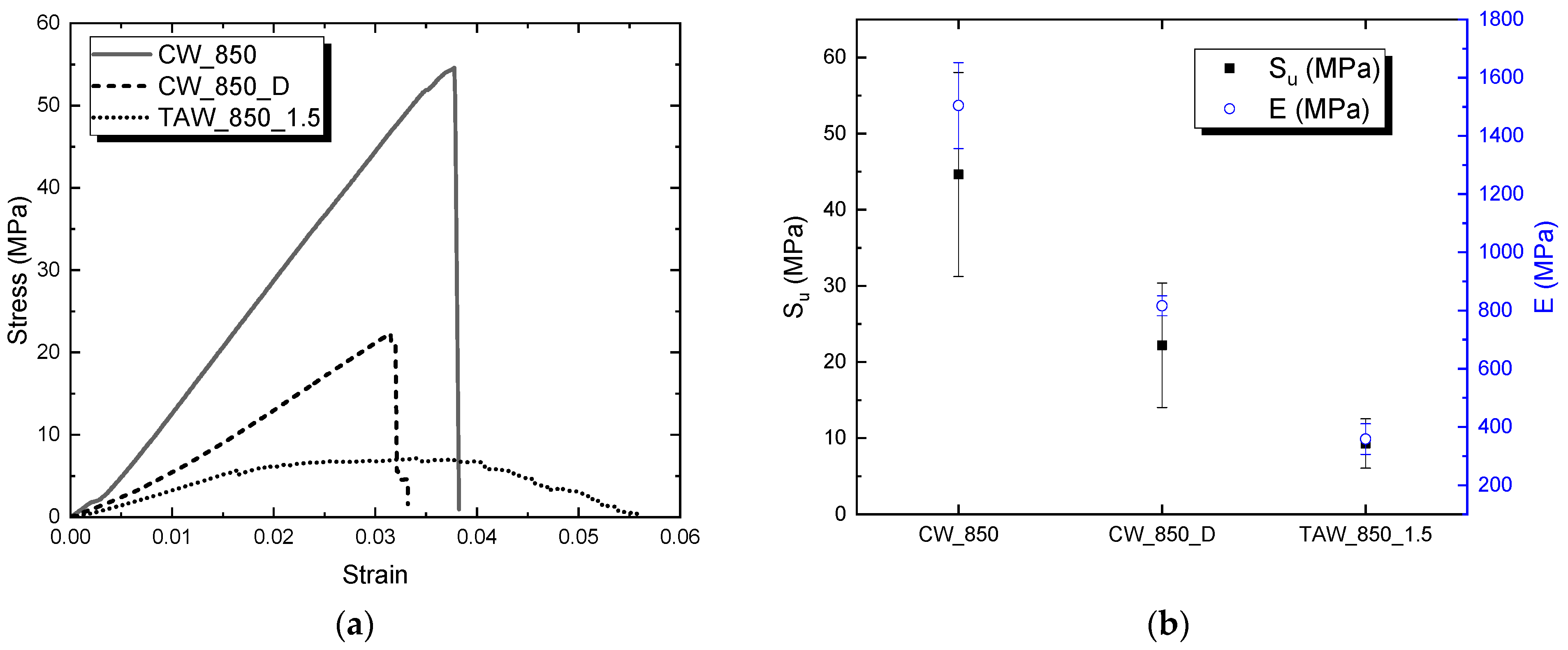

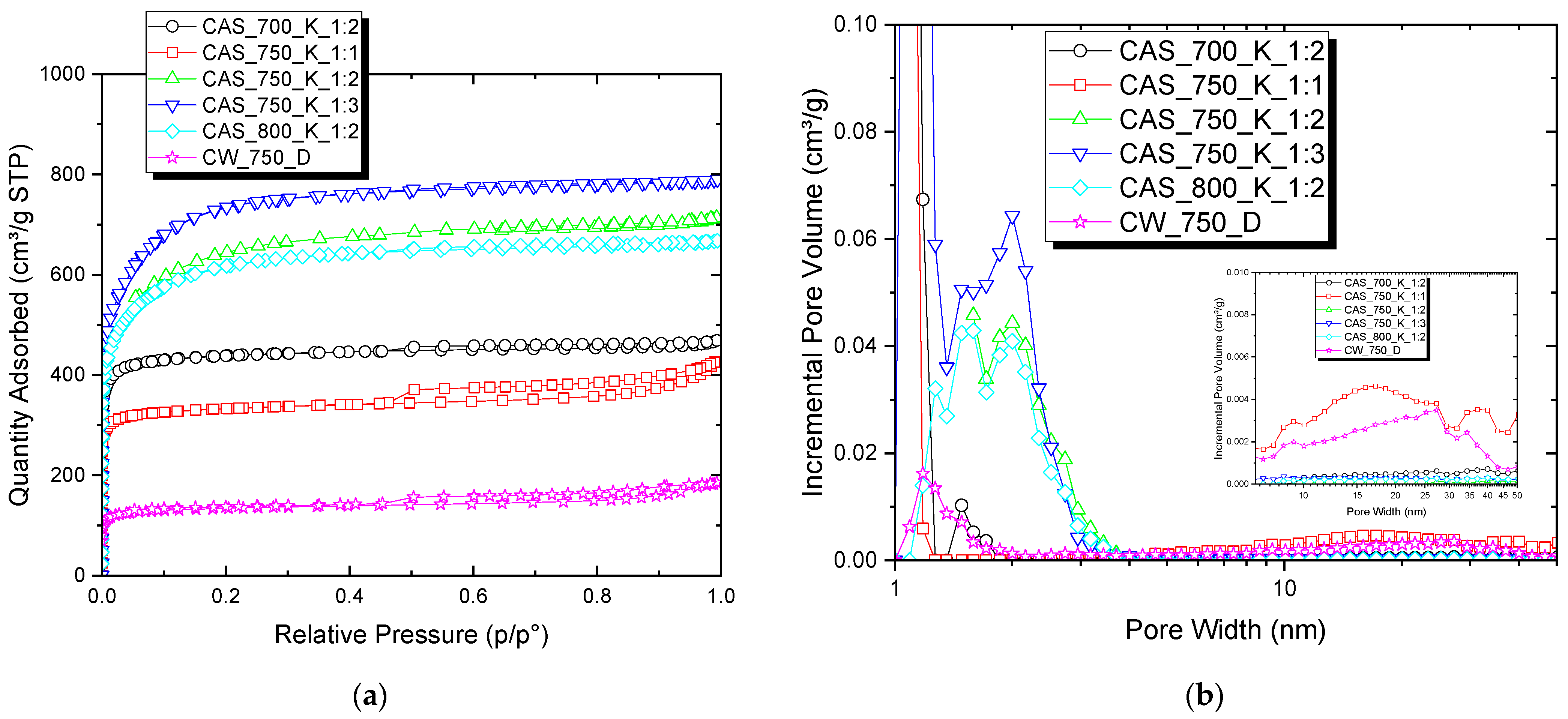

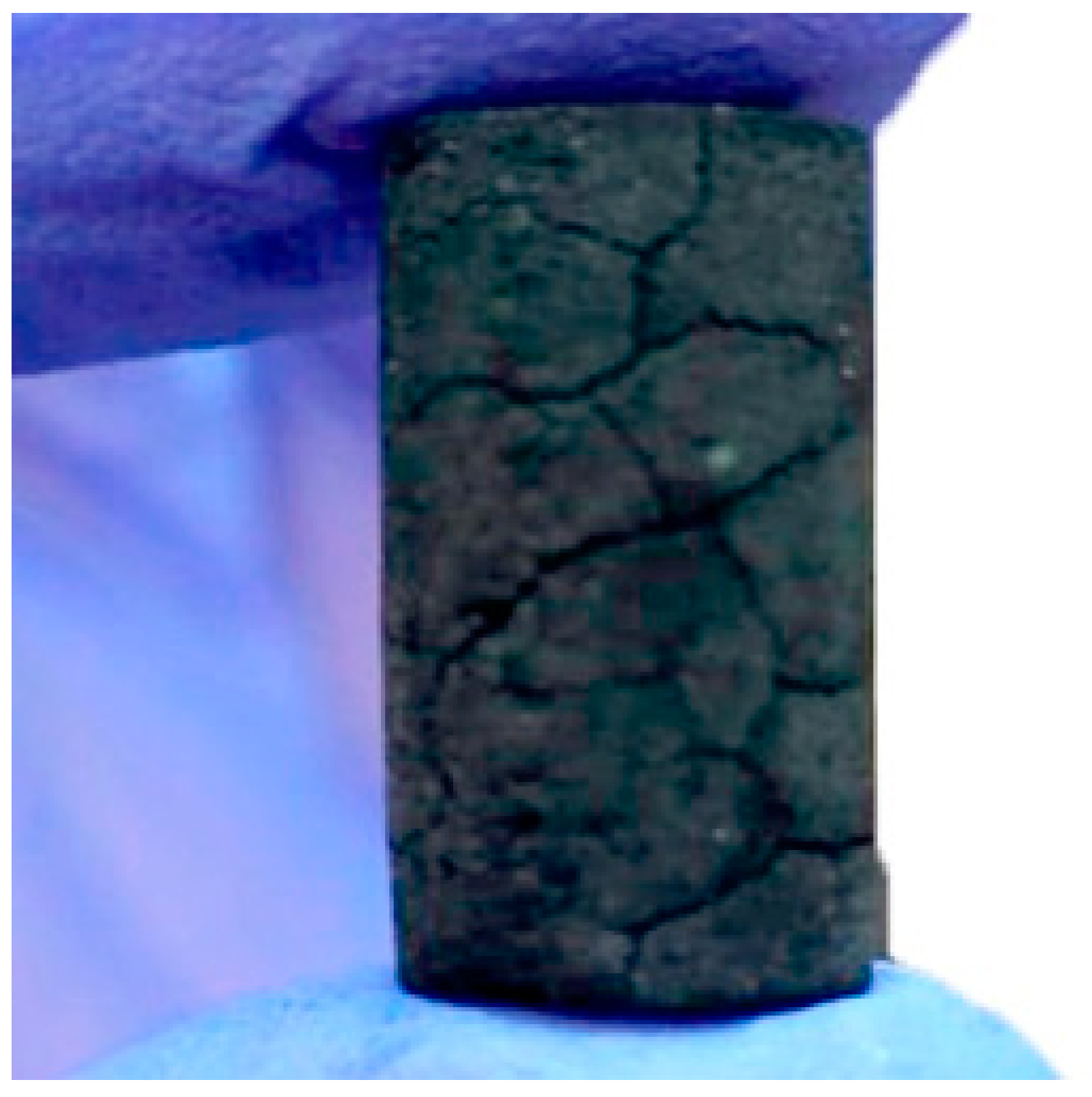

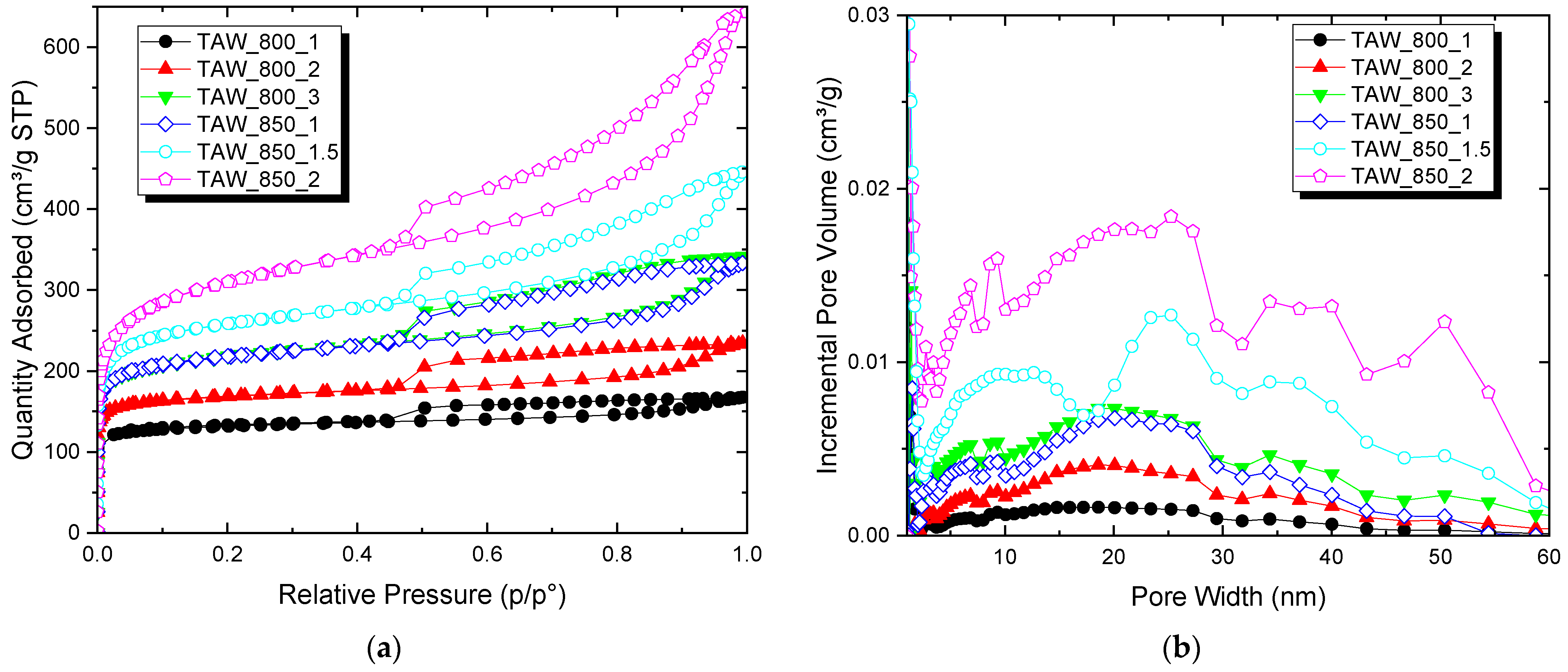

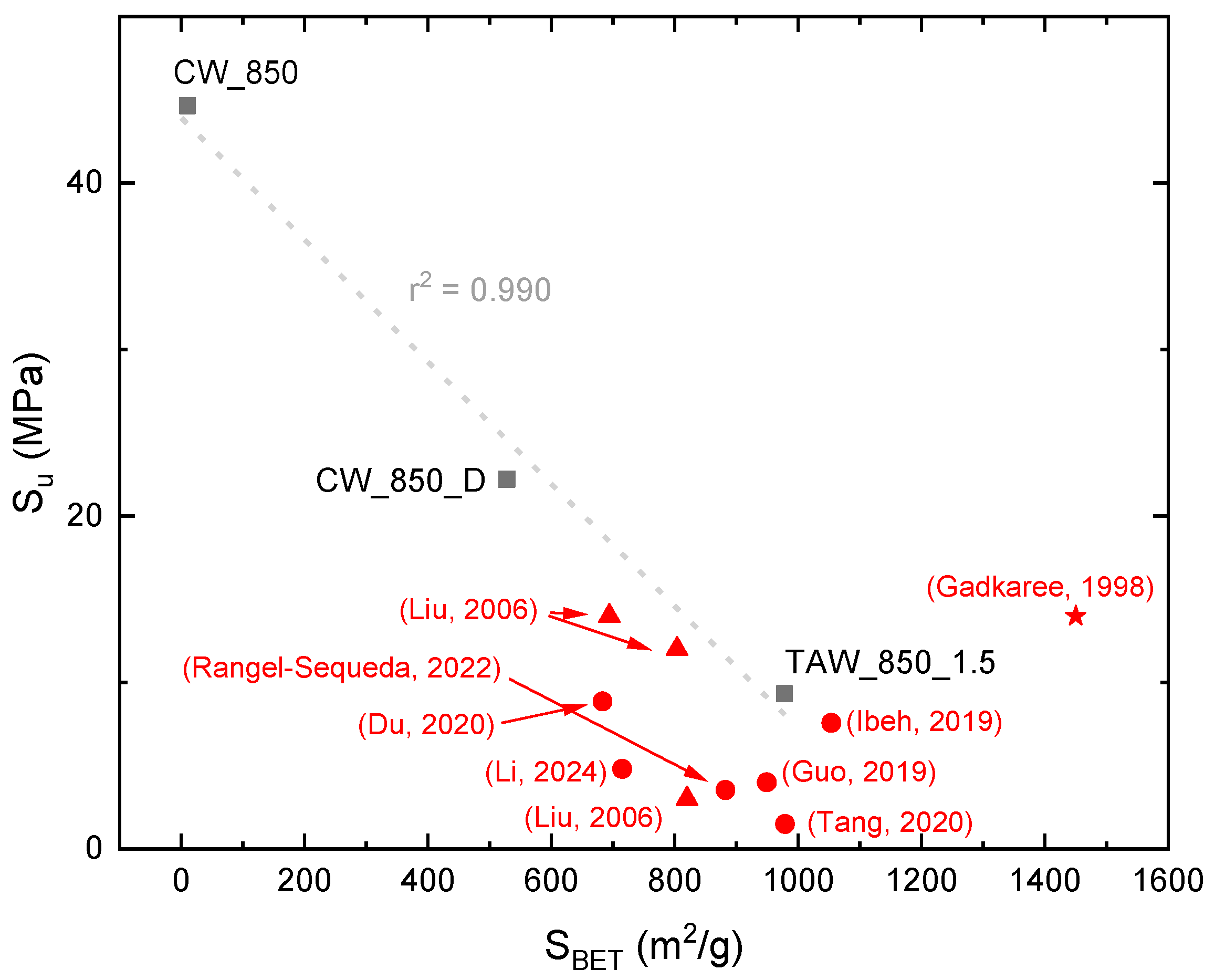

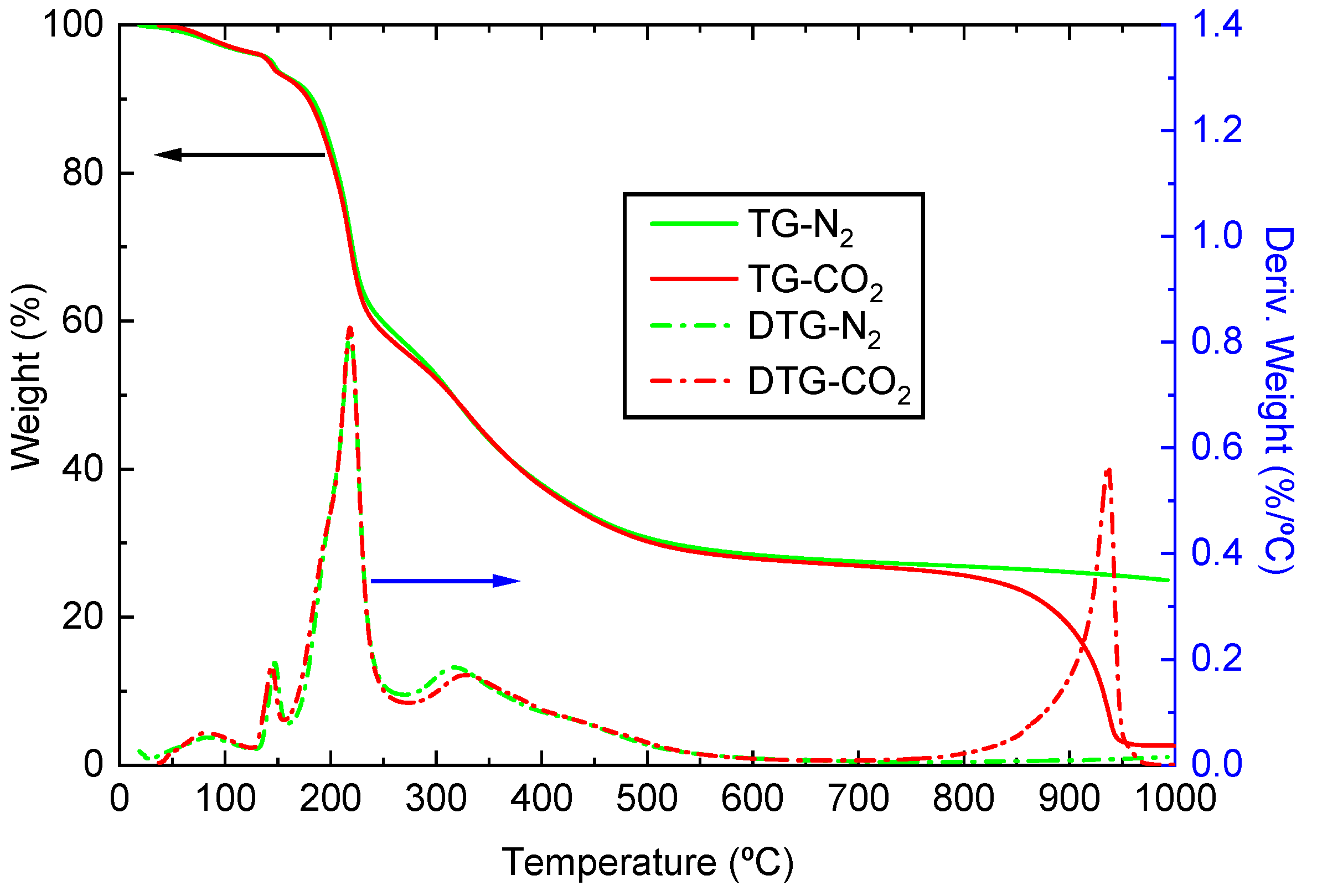

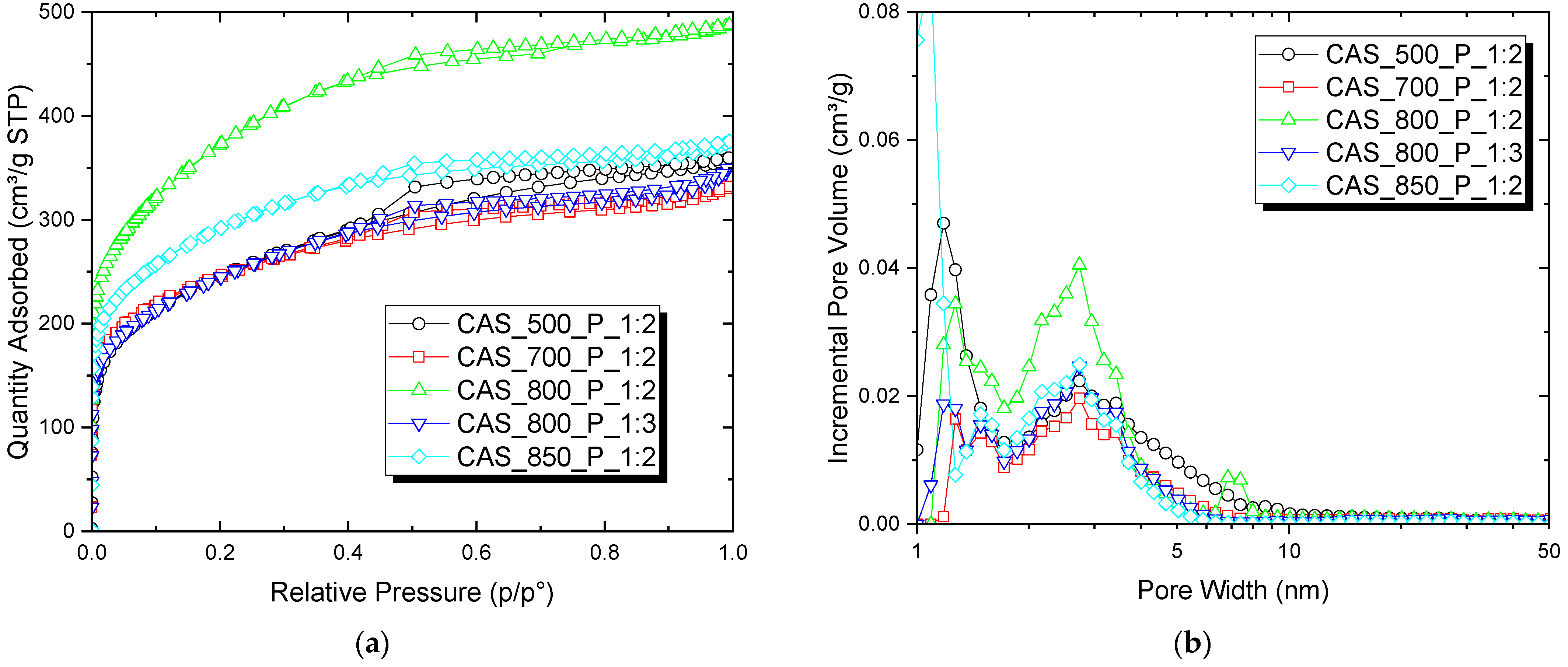

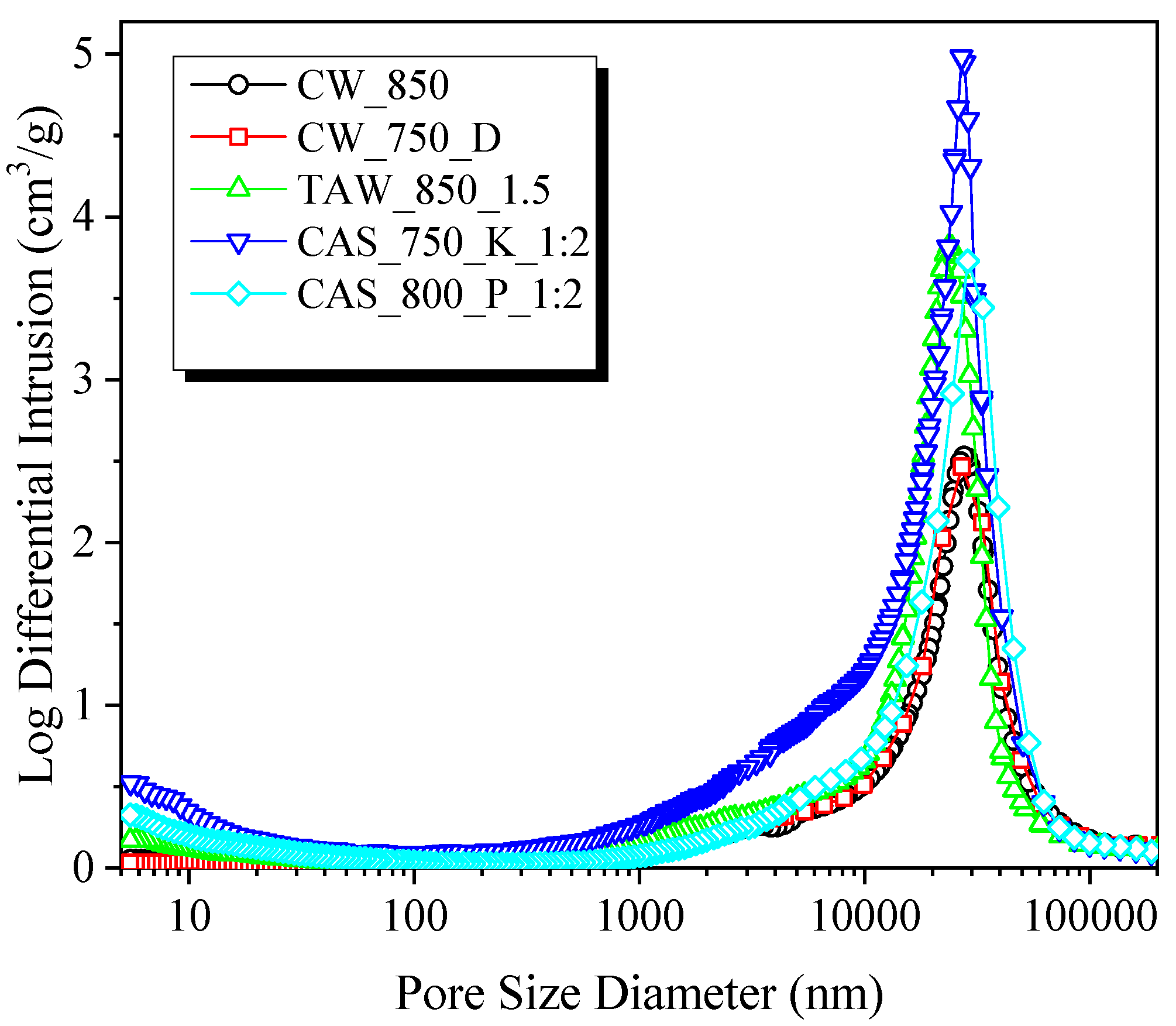

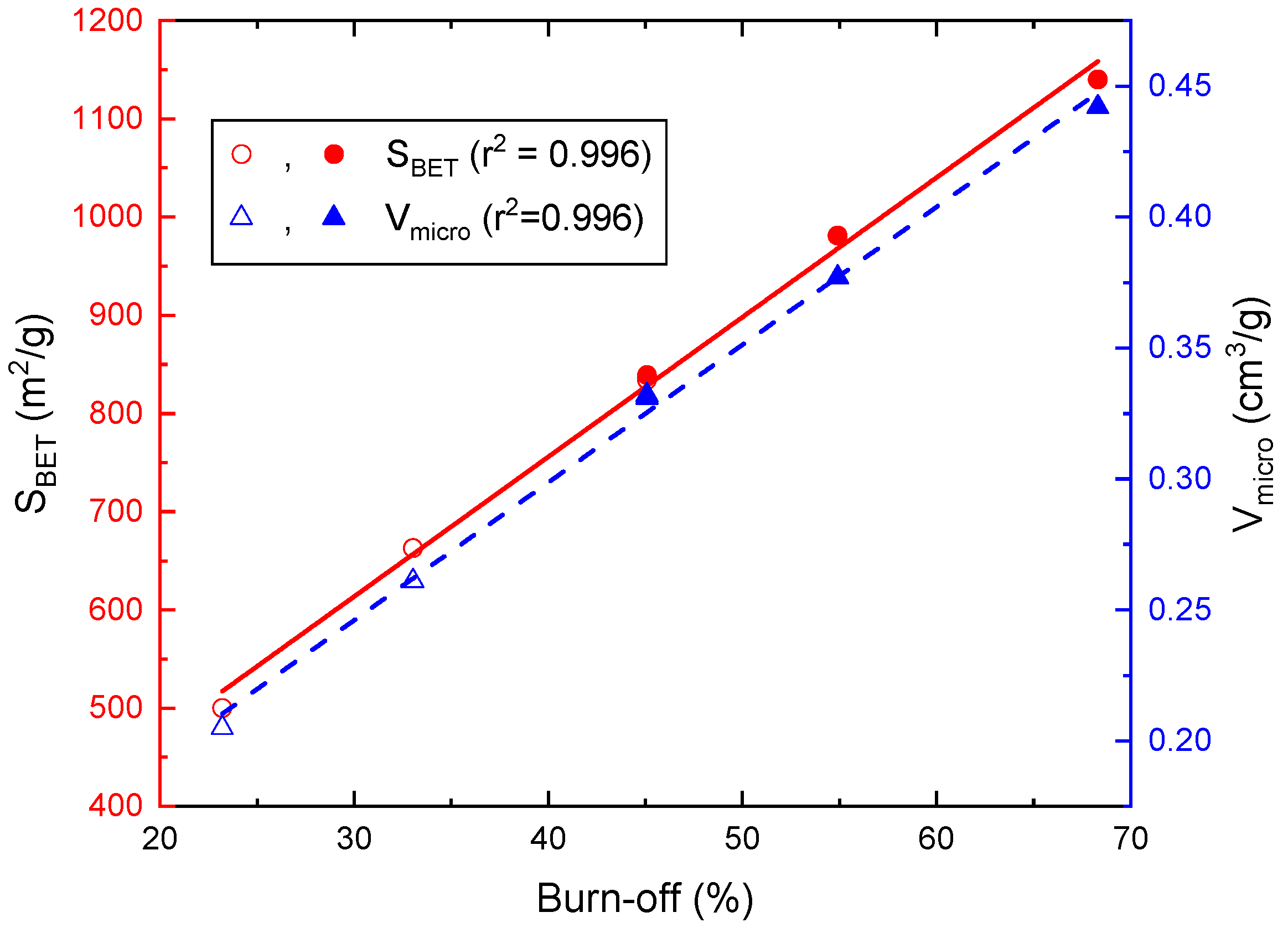

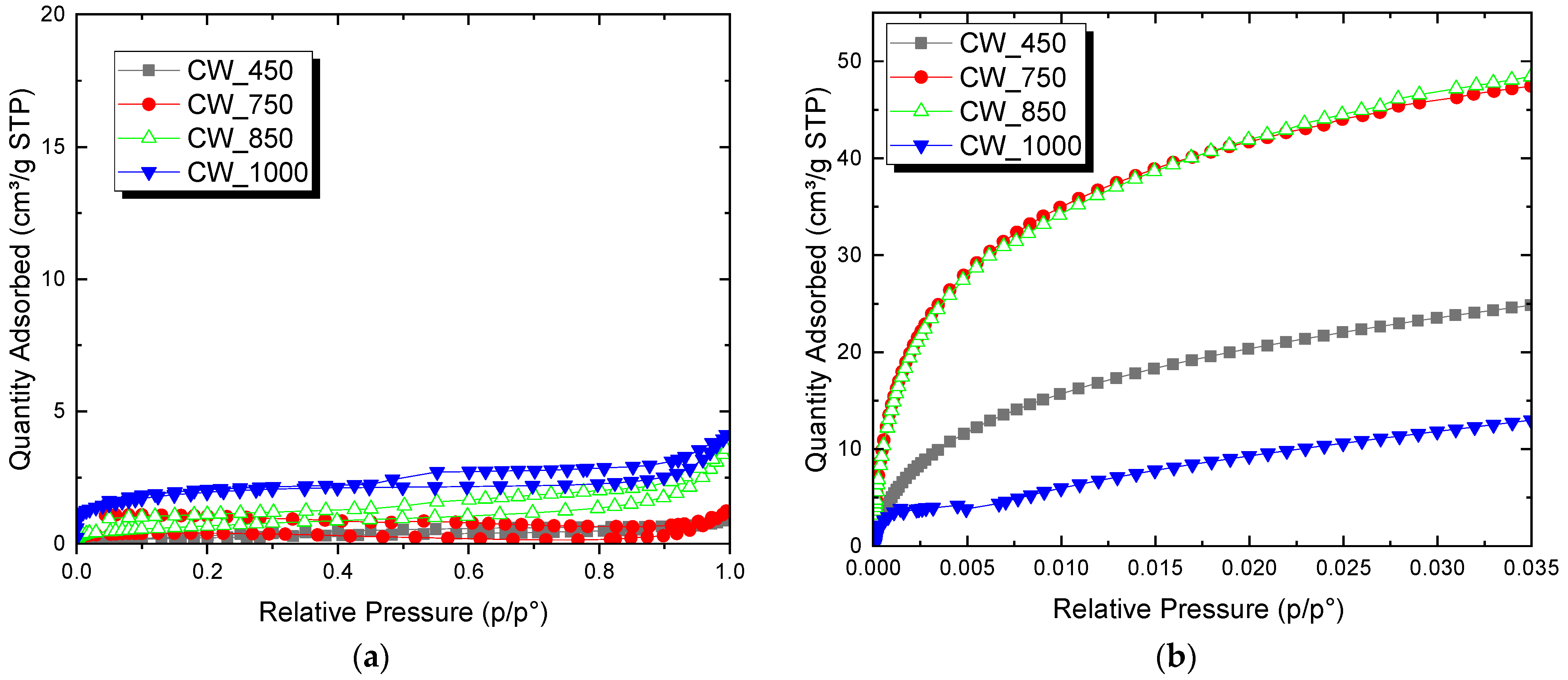

Novel customised carbon monoliths with a high specific surface area were synthesised by carbonisation plus activation of dehydrated whey powders, a biomass byproduct of the dairy industry. The whey powders were casted directly by pouring them into a desired mould. After a pseudo-sintering process promoted by the self-reaction of the whey components (mostly lactose and whey proteins) at moderate temperatures (ca. 250 °C), 3D porous carbons were obtained. The process did not require any binder or external overpressure to prepare the 3D porous carbons. Upon thermal activation with CO₂ or chemical activation with H₃PO₄ and KOH, the shape of the monolithic structure was preserved after the development of a microporous network (S_BET up to 2400 m²/g). Both thermal and chemical activation had little effect on the macroporosity of the monoliths. Activation of these 3D carbons had to be performed with care to avoid heterogeneous skin/core activation and/or overactivation. Highly porous monoliths (S_BET of 980 m²/g; open porosity of 70%) with outstanding compressive strength (10 MPa) could be obtained by thermal activation (CO₂) of whey monoliths at 850 °C for 1.5 h. Additionally, the use of whey as a precursor provided the carbon monolith with a relatively high nitrogen content (ca. 3 wt.%).
