Stepping into the 21st century, “graphene fever” swept the world due to the discovery of graphene, made of single-layer carbon atoms with a hexagonal lattice. This wonder material displays impressive material properties, such as its electrical conductivity, thermal conductivity, and mechanical strength, and it also possesses unique optical and magnetic properties. Many researchers see graphene as a game changer for boosting the performance of various applications. Emerging consumer electronics and electric vehicle technologies require advanced battery systems to enhance their portability and driving range, respectively. Therefore, graphene seems to be a great candidate material for application in high-energy-density/high-power-density batteries. The “graphene battery”, combining two Nobel Prize-winning concepts, is also frequently mentioned in the news and articles all over the world. This review paper introduces how graphene can be adopted in Li-ion/Li metal battery components, the designs of graphene-enhanced battery materials, and the role of graphene in different battery applications.

1. Introduction

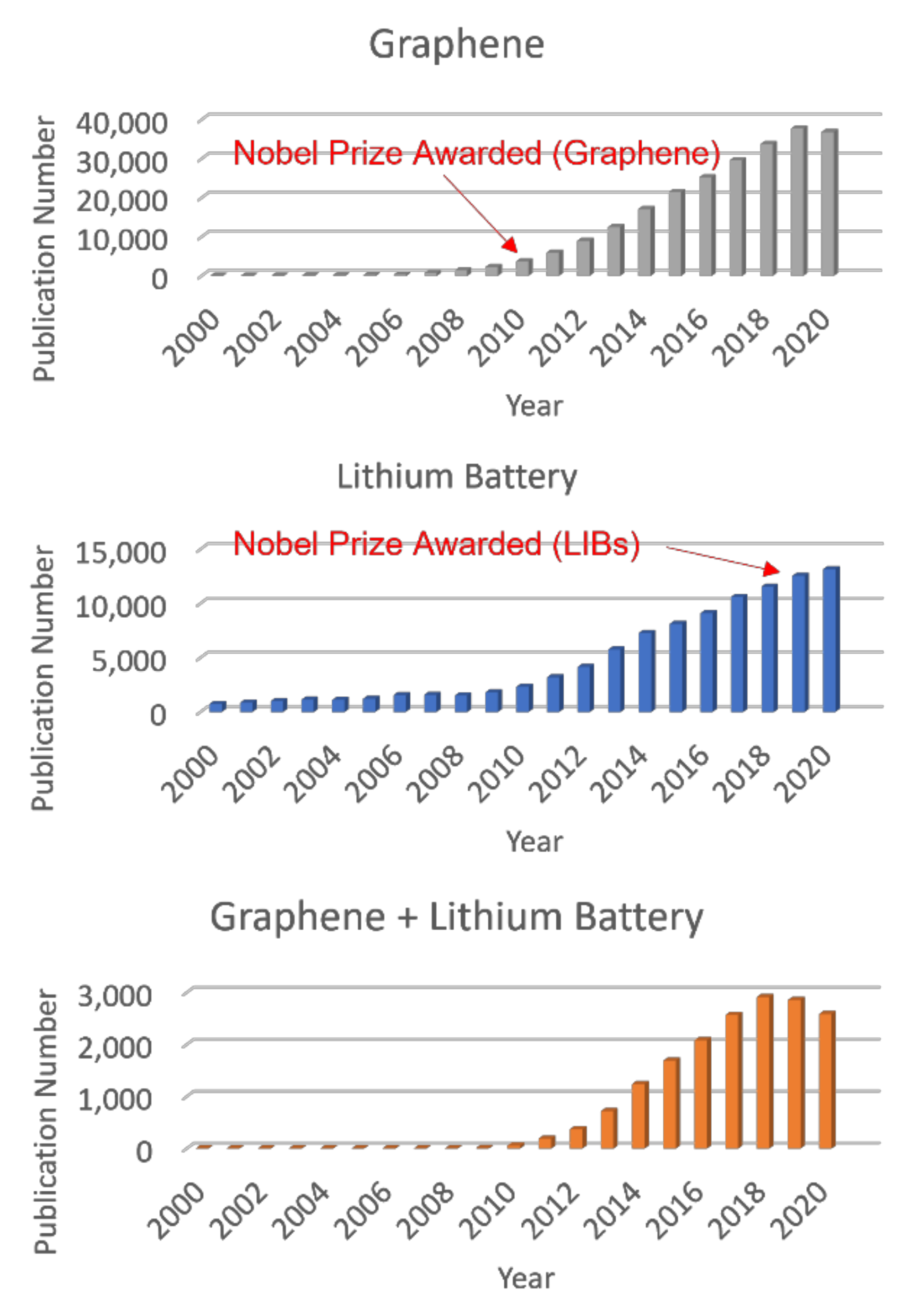

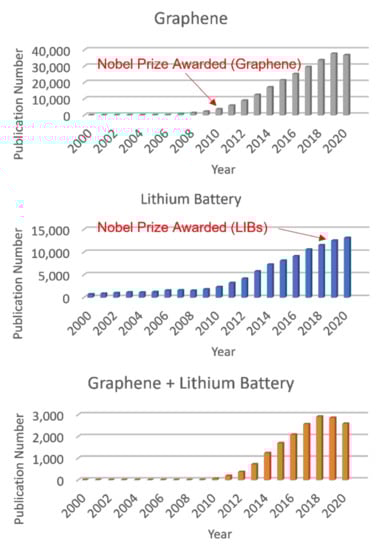

Graphene, a one-atom-thick, 2D carbon material, was first discovered in the early 2000s [1,2]. Due to graphene’s overwhelming performance advantages regarding its electrical, thermal, mechanical, optical, and magnetic properties, it drew tremendous attention from researchers in many different fields. A considerable number of application developers tried to utilize graphene to boost performance in their devices, including that of battery applications. Figure 1 shows the number of academic publications related to graphene and lithium batteries (lithium-ion and lithium metal batteries) after 2000. In fact, both fields had the same growing trend of publication number, exhibiting an explosive growth of research interest in graphene- and lithium-based battery technologies in recent years. It is clear to see that graphene studies started to substantially increase right after the Nobel Prize in Physics was awarded in 2010 [3]. The lithium battery research field also displayed a similar rise in its publication number over the last decade, exhibiting its popularity due to the public’s desire for a better battery. The pioneers who developed lithium-ion batteries also won the 2019 Nobel Prize in Chemistry [4]. In 2018, more than 25% of lithium battery publications were related to graphene. Using graphene has benefits in advancing battery material performance. In industry, the mainstream applications of lithium-ion batteries gradually shifted from cell phones and portable consumer electronics to transportation and grid storage applications. These novel applications strongly rely on the advancement of battery technologies to expand their capability for more features and a longer operation time, and graphene technologies always remain under consideration for use in next-generation batteries.

The development of battery technology is relatively slower than that of other technologies because the material selections of battery components are limited. As anode or cathode materials are present in rechargeable lithium-ion batteries, they need to be active within a certain voltage window to insert or extract lithium ions, and their structures need to be stable after hundreds or even thousands of charge/discharge cycles [5,6]. Current conventional graphite anode materials and lithium cobalt oxide materials, which were developed in the early 1990s [7], still exist in major smart phone battery applications. This shows how difficult it is to replace battery materials even after extensive developments over three decades. Electrochemically inactive battery components, such as separators and current collectors, are also important for battery performance. Although separators and current collectors are not active materials in electrochemical reactions, appropriate graphene modifications can still improve their safety features, cycle life, and the power density of the battery [8,9]. In this review, we introduce the structural designs/processing methods of graphene-enhanced battery components and share the recent developments of graphene applications in anodes, cathodes, separators, and current collectors.

2. Designs and Methods of Integrating Graphene into Battery Components

As a wonder material, graphene possesses many unique properties [10,11,12,13]. The thinnest known material can modify coated material without increasing it too much in thickness. Graphene is also the strongest material ever measured, making it an excellent candidate to reinforce the mechanical strength of composite materials. Moreover, the ultrahigh electrical and thermal conductivities in two dimensions are the most adopted properties in practical applications. Graphene can sustain current densities six orders of magnitude higher than that of copper [10]. Record heat transfer capability means graphene is frequently used in thermal dissipation and cooling applications. The impermeability of graphene also expands its use for sealing and anti-leakage purposes. Graphene’s extremely large surface area facilitates absorption, including that of liquids, ions, molecules, etc. [12,14]. In addition, the hydrophobicity of graphene can be utilized to enable water-resistant and self-cleaning functions [13]. The chemical inertness of graphene makes it a great anti-corrosion coating material as well [13]. Researchers have been employing these impressive characteristics of graphene to boost battery component performance via smart designs and synthesis methods. In this review paper, the cases of graphene serving as an active material in batteries will not be discussed, and the topics of focus are more related to graphene as a performance booster (coatings, additives, minor ingredients in composites, etc.) for battery components.

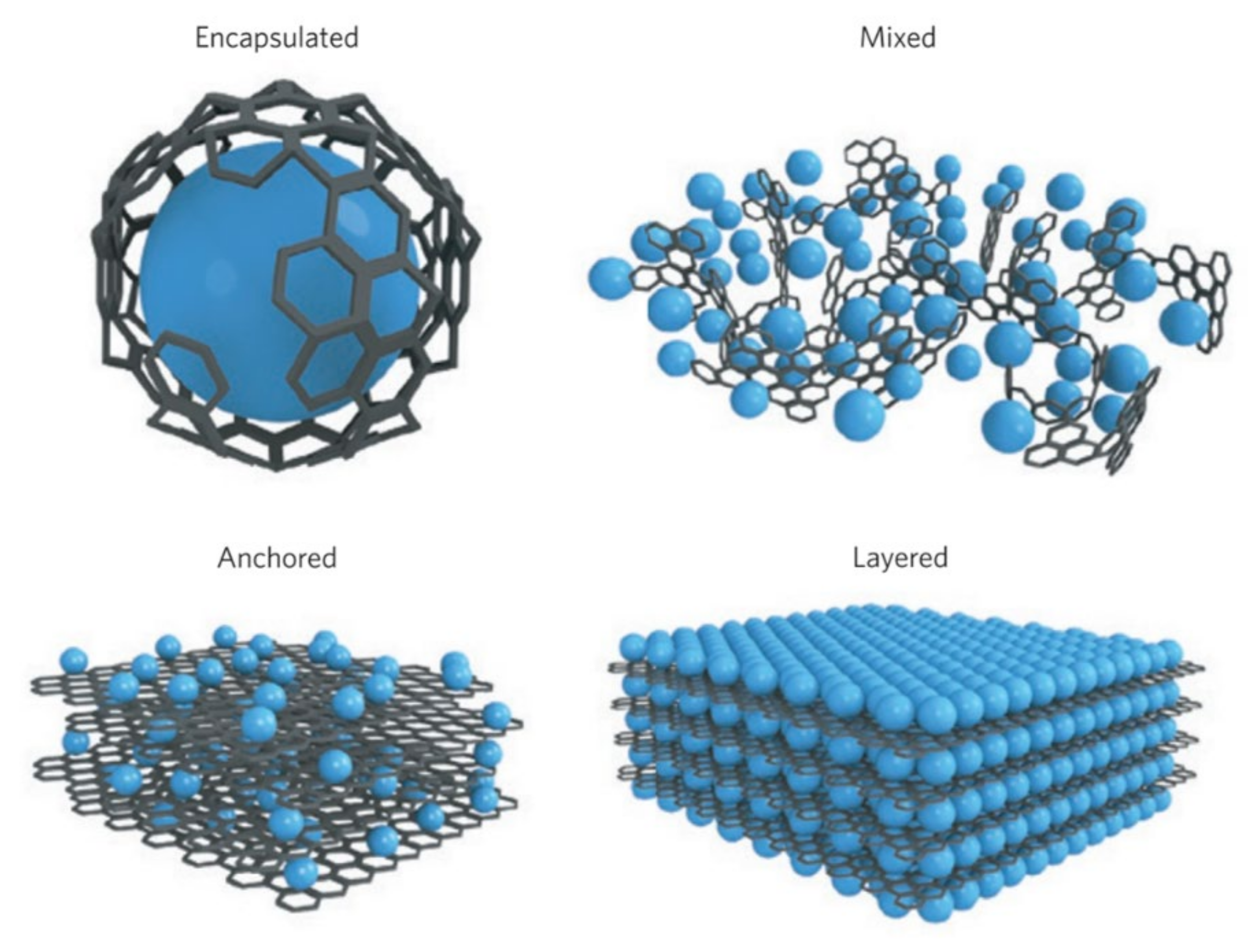

There are many ways to integrate graphene into battery components. The main idea is to make sure graphene can be well dispersed in the composite material, so a homogeneous structure of the multi-phase material can be obtained. Figure 2 summarizes a few typical structural designs of graphene composites [15,16].

The encapsulated type shows that graphene fully wraps the composite material particle. This can change the surface property of original particles and ensure excellent graphene dispersibility. Due to the large surface area of graphene, the quantity of graphene added does not necessarily need to be large. In addition, the encapsulated design can introduce void space into the structure, which is critical to buffer the expansion of certain electrode materials. However, voids in the battery composite materials will reduce the volumetric energy density and power density, so a balance between energy density, powder density, volume change, and cycle life must be considered. To synthesize this type of composite material, solid-state processing may not guarantee a good dispersion, thus liquid-state dispersing methods followed by specific particle granulating/atomizing/drying processes could be a better choice [17].

The mixed type is a random distribution of graphene within the composite material. Unlike the encapsulated type, there might be an agglomeration of graphene sheets or composite particles in the mixed type, which could degrade the graphene performance and efficacy. However, the preparation of mixed-type graphene composite materials should have a much lower cost if simple solid-state or liquid-state mixing methods are used. This design can be used for cost-sensitive applications [18].

The anchored design is usually used when the composite material is synthesized using graphene as the substrate. Large-surface-area graphene sheets can serve as good seeding planes for the composite material to precipitate and grow. During the synthesis process, the homogeneous dispersion between graphene and the composite material can be maintained if the nucleating and growing mechanisms are concentration controlled. In the initial stage of synthesis, the graphene sheets have to be deagglomerated to avoid graphene re-stacking and therefore lower the usage of graphene [19,20].

The layered design is majorly employed in structures with a flat surface, such as thin-film electrodes, separators, and current collectors. The thin coating of graphene can significantly improve the electrical/thermal/mechanical/optical properties and anti-corrosion behavior of the coated material. Layer-by-layer methods can be applied to make sandwiched or multi-layer structures considering application requirements. Chemical vapor deposition (CVD) is a powerful method to make a continuous graphene coating on the surface but requires vacuum environments, which bring up concerns of scalability. Using a graphene dispersion to coat the material surface can be cost-effective, but this may introduce defects located in the overlapping areas of smaller graphene sheets [21,22,23,24].

There have been many synthetic methods developed to incorporate graphene in composite materials [17,20,22,25,26]. Nevertheless, some of the manufacturing processes can only be carried out in a lab and are questionable in terms of scaling up [25,26,27,28]. The precursor of graphene materials can be in gas phase using the CVD process (bottom-up) or bulk/powdery graphite materials using the exfoliation process (top-down). The CVD technique can make defect-free graphene perfectly deposited on the flat substrate, but it is not suitable for making powdery composite materials such as battery anode and cathode materials. On the other hand, CVD processing is widely adopted in the semiconductor industry since the chip making cost is based on the calculation of each microchip occupying only a tiny area, which is affordable since the amount of coating materials used is small. On the contrary, powdery materials possess a much larger surface area compared to that of microchips, indicating a much larger amount of coating materials used. The powder also needs to be agitated during processing, otherwise it will lead to an inhomogeneous graphene coating. This will make the CVD graphene coating process more complicated and significantly increase the manufacturing cost because the powdery materials are always priced by weight, not area, which makes CVD an unfavorable manufacturing method for graphene composite electrode materials [29,30].

Therefore, the strategy of using bulk graphite as the starting material looks like a feasible means to realize scalable synthesis. Here, we summarize a few scalable synthetic routes in Figure 3. There are at least three routes to obtain graphene sheets directly from the graphite.

First, high-energy mechanical milling can be adopted to exfoliate graphite [31]. The shear force along the 2D directions can delaminate graphene sheets, although single-layer graphene is still difficult to obtain in this way. Adding the composite material into the milling container will initiate the graphene coating process. With appropriate milling time and energy, the graphene sheets will then attach to the surface of the composite material. The only post-process would be the removal of milling media. This method is suitable for making mixed-type graphene composites, which is very simple, easy to scale up, and low-cost in terms of raw material and processing. Some drawbacks of mechanically exfoliated graphene are (1) the quality of graphene sheets could be inconsistent due to mixing up of single-layer and multi-layer graphene, (2) the binding force between graphene sheets and the composite material could be weak, (3) both the particle size of the composite material and the lateral flake size of graphene will be reduced, and (4) defects and impurities could be introduced during the high-energy milling process.

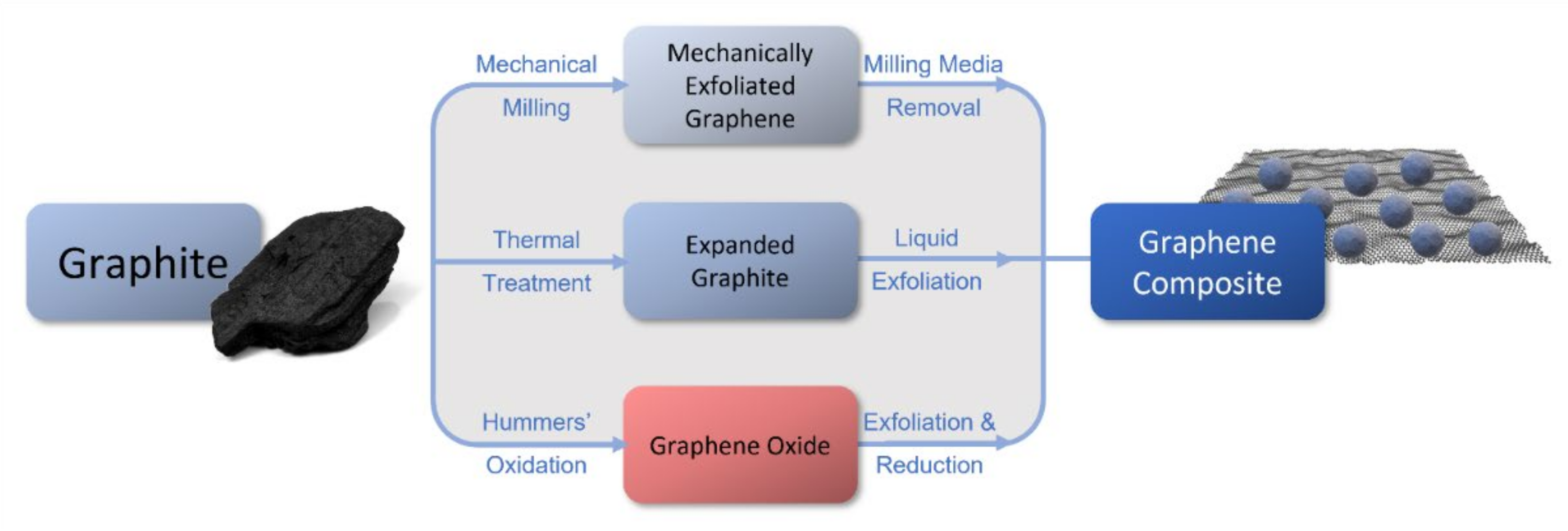

Second, graphite after proper thermal treatments will transform into expanded graphite. Graphite in an expanded state is much easier to exfoliate in solvents by sonication-assisted, surfactant-assisted, or polymer-assisted liquid-phase exfoliation [32]. After a well-dispersed graphene solution has been made, the composite material will then be added into the bath for the incorporation process. Anchored-type graphene composite materials can be synthesized using this method by precipitating active materials onto the graphene sheets after the exfoliation process in the solution. This method shares the same concern as graphene prepared by mechanical milling, where the binding force will not be strong without further treatments. Another disadvantage is that the yield of single-layer graphene could be relatively low, even though it can be classified in the liquid-phase dispersion state.

Third, graphite can be oxidized by employing Hummers’ method [33]. The oxygen located in the interlayer between graphene oxide (GO) sheets can assist the segregation of graphene layers in solvents [34]. The oxygen group on the surface can also serve as the functional group to avoid graphene re-stacking and create a bonding with the composite material. This feature facilitates the combination between graphene oxides and composite materials due to their function group interactions, which is favorable for the synthesis of encapsulated-type or layered-type composites. There is a post-reduction process to obtain graphene in the composite by either the thermal reduction method or chemical reduction methods. The composite materials might be impacted by thermal or chemical treatments, thereby limiting their applicability [35,36,37]. Incomplete GO reduction will also deteriorate the conductivity of the as-synthesized graphene. The shortcomings of utilizing GO are (1) strong oxidants are employed, which are not environmentally friendly, and (2) many defects could be created during the oxidation reaction.

3. Graphene-Enhanced Anode Materials

Graphite-based anode materials have been used for a long time in lithium-ion batteries. Due to their lithium-ion intercalation capability, graphite anodes exhibit highly efficient lithium-ion storage performance with excellent reversibility during charge/discharge [38]. A solid electrolyte interface (SEI) layer is formed on the surface of graphite during lithiation, which not only suppresses the co-intercalation of electrolyte solvents into the layered interspace in between the graphitic honeycomb lattice but also passivates the active graphite surface to avoid continuous electrolyte decomposition [39]. However, the specific capacity of commercial graphite anodes has already reached its theoretical limit (372 mA h g⁻¹). To develop an advanced high-energy-density lithium-ion battery, replacing graphite with a high-capacity anode material is inevitable. Utilizing graphene to decorate novel anode materials can improve electrical conductivity, stabilize interfacial reactions, and maintain structural integrity.

3.1. Graphene-Enhanced Alloy-Type Anode Materials

Alloy-type anode materials are promising candidates for next-generation lithium-ion batteries because of their high specific capacity and safety characteristics [40]. Most alloy-type anode materials can take multiple lithium-ions per atom during the lithiation process. Silicon attracted a lot of attention due to its high theoretical capacity (4200 mA h g⁻¹ calculated based on the final product Li_4.4Si) and abundance on Earth. Nevertheless, silicon is a semiconductor, requiring conductive additives, usually carbon-based materials, to ensure low resistance for smooth electrochemical reactions [41]. While silicon is lithiated and transformed into Li_4.4Si alloy, the volume expansion is huge (320%) and therefore leads to particle pulverization [40,42]. This swelling behavior will result in not only gap formation within the crack area, which substantially increases the internal resistance, but also SEI reformation during repeated cycles that consumes excess active lithium ions [41,43,44]. From the perspective of electrodes, the irregular volume expansion could induce electrode delamination and thereby kill the battery. Many researchers have spent much time and effort using graphene to tackle the aforementioned challenges [41,45,46,47,48,49,50,51,52,53,54,55,56,57,58].

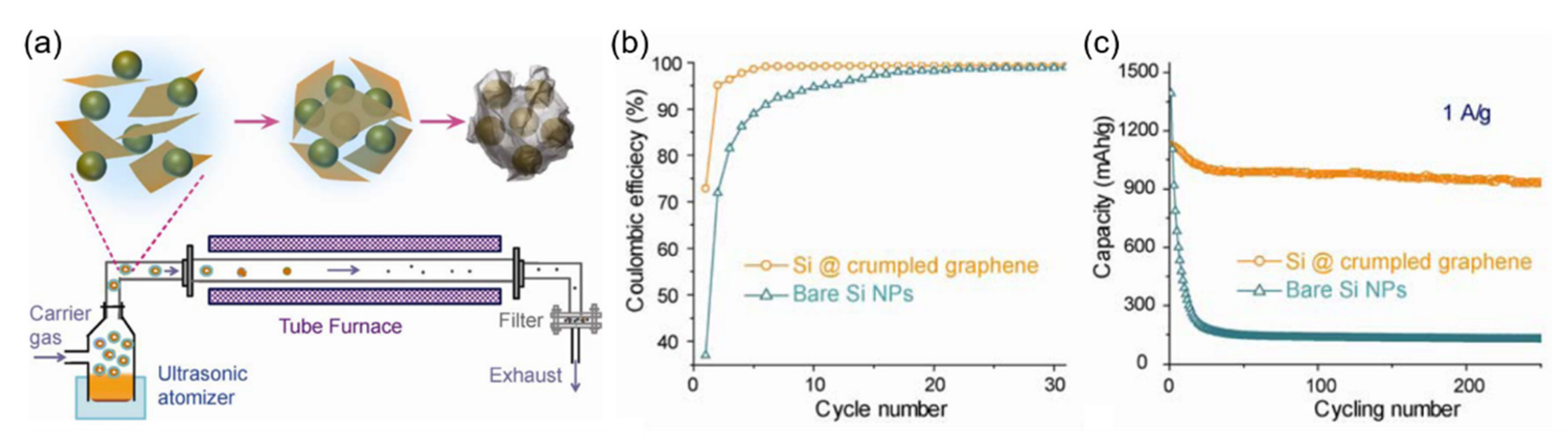

Luo et al. prepared an aqueous GO and silicon nanoparticle dispersion first, and then used an ultrasonic atomizer to create a mist of aerosol droplets, which passed through the tube furnace for the following drying and heat reduction processes [56]. The aerosol droplets shrank during drying and formed denser crumpled graphene balls with silicon particles inside after reduction (Figure 4a). In Figure 4b, the Si@crumpled graphene anode material gave much better initial Coulombic efficiency (ICE) and cycling Coulombic efficiency than the bare silicon nanoparticles for the first 20 cycles, resulting from the anode surface protection of graphene. Without the surface stabilization enabled by graphene, the SEI grown on the silicon nanoparticles will repeatedly fracture and rebuild cycle by cycle, consuming a lot of lithium ions and electrolyte and generating a very thick and poorly conductive SEI layer. Figure 4c exhibits the poor cycle life of the unprotected bare silicon nanoparticles originating from the SEI overgrowth. In contrast, the Si@crumpled graphene anode outperformed the pristine silicon anode in cycling reversibility due to the surface stabilization enabled by graphene.

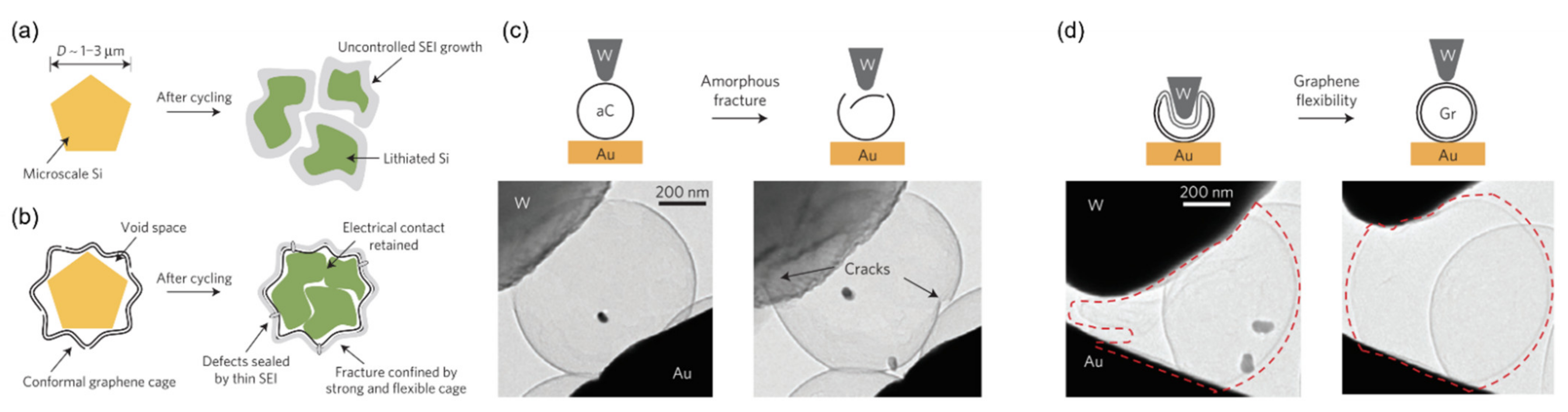

Li et al. utilized silicon microparticles as the anode material, which has well-known disadvantages such as structural pulverization and uncontrolled SEI growth after lithiation, as shown in Figure 5a [42,50]. This is the classic failure mechanism of micron-sized silicon anode materials generating inactive silicon clusters after cycling. The authors developed a mechanically flexible graphene cage to accommodate the silicon microparticles with reserved void space (Figure 5b). Although the lithiated silicon microparticles still fractured, the pulverized particles were confined within the conformal graphene cage. Thus, the electrical contact of active silicon was retained, and the SEI only grew onto the surface of graphene. The defects located on the graphene cage served as lithium-ion pathways, which were sealed by the thin SEI after cycling. Figure 5c,d compare the mechanical strength between the amorphous carbon shell and the graphene cage. It is clear to see that the amorphous carbon was broken after pressure was applied by a tungsten tip. On the contrary, the graphene cage showed an outstanding flexibility under the same pressure, which could recover its original shape after the pressure was released. The flexible graphene cage demonstration was solid proof for accommodating the volume expansion of silicon and other alloy-type anode materials.

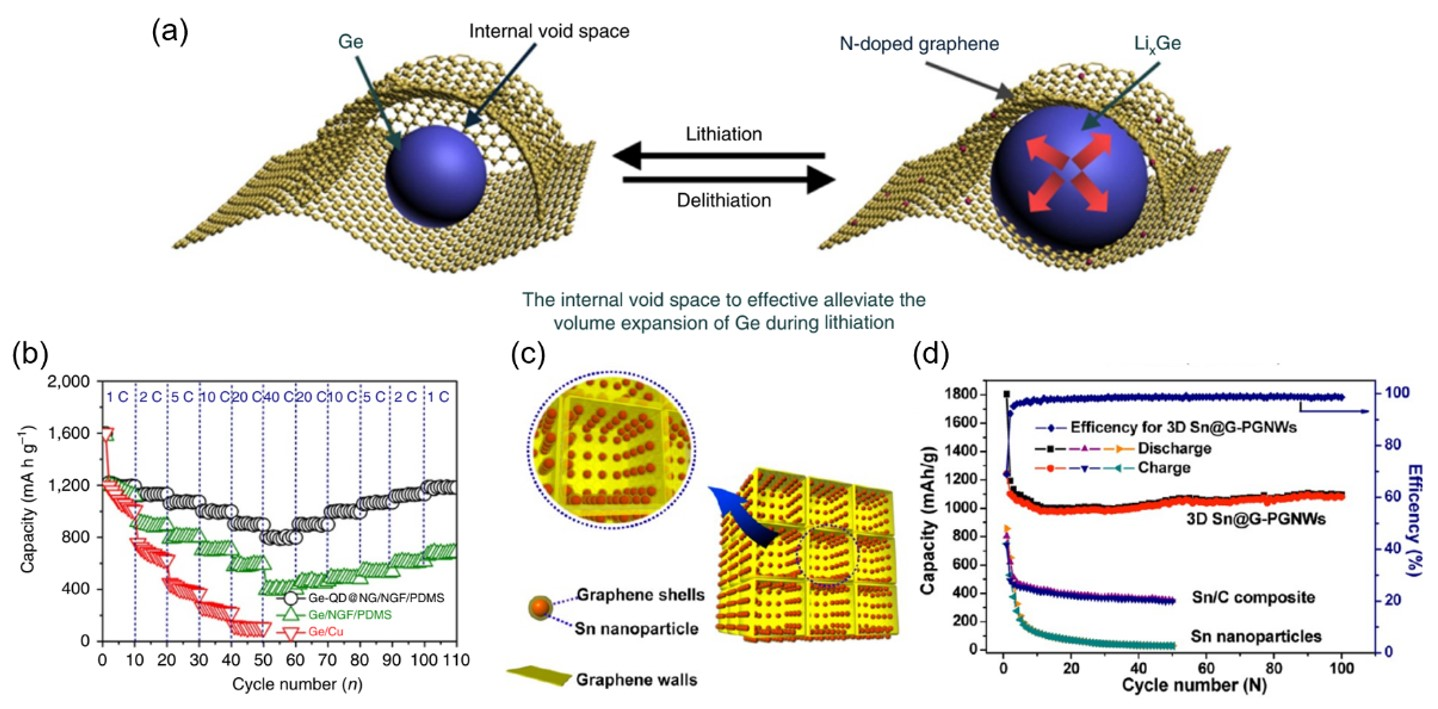

Other group IV elements such as germanium and tin are also good alloy-type anode materials [60,61,62,63,64,65,66,67]. Mo et al. designed a 3D N-doped graphene foam to encapsulate germanium particles exhibited in Figure 6a [60]. Internal void space was included to create the yolk–shell structure. Extra void space can buffer the volume expansion when germanium is alloyed with lithium, so the secondary particle size was controlled. Nevertheless, if the density of anode particles is too low, high volumetric energy density may not be achieved. The gap between the internal active material and graphene could also lead to poor conductivity, which can influence the rate capability. It was reported that the nitrogen doping in graphene can improve its reversible capacity of lithium storage and increase the wettability of electrodes in electrolytes [68]. Figure 6b compares the rate performance of various germanium anode designs. The graphene yolk–shell nanoarchitecture (Ge-QD@NG/NGF/PDMS) outperformed the other two samples and showed excellent high-rate performance and cycling stability. With the 3D N-doped graphene foam structure, the germanium anode delivered a capacity of over 800 mA h g⁻¹ at 40 C (charge/discharge within 90 s) without capacity degradation. The graphene framework can promote fast charge transfer and ensure smooth electrochemical reactions even under high current density.

Qin et al. used graphene to coat tin nanoparticles to make the core–shell structure, and built an external 3D graphene network to accommodate the graphene–Sn composite anode material (Figure 6c) [64]. The graphene shell can guarantee good electronic pathways, and the external 3D graphene network can provide abundant space for the active tin to freely expand during lithiation, thereby stabilizing the electrochemical reactions. Figure 6d compares the cycle performance of different tin anodes, and the one with the graphene network structure (3D Sn@G-PGNWs) shows the best performance among all in terms of specific capacity (>1000 mA h g⁻¹) and capacity retention.

3.2. Graphene-Enhanced Conversion-Type Anode Materials

Besides alloy-type anode materials, there are conversion-type anodes that can also deliver high specific capacity in lithium-ion batteries, originating from the multi-ion lithiation of metal compounds (M_aX_b) [69]. Similar to alloy-type anodes, conversion-type anodes also suffer from the disadvantage of particle pulverization during charge and discharge cycles. The major difference between conversion-type and alloy-type anodes is that the metal ions in conversion-type anodes will be reduced to element metal, and the anions will undergo the lithiation process, which will then form multiple phases (metal particles along with lithium oxide/sulfide) in the structure. The boundary located at the interface of two different phases may create defects, which would be the cracking points when the internal stress accumulates during lithiation/delithiation. Lithium oxide and lithium sulfide can serve as adequate lithium-ion conductors in the structure, but they are electrical insulators with a very high resistance. One challenge of conversion-type anode materials is that their intrinsic electrical and ionic conductivity are both poor [69], where the incorporation of graphene can be very helpful.

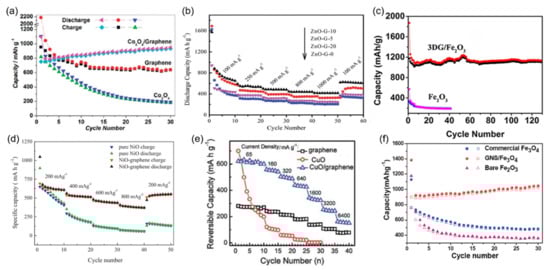

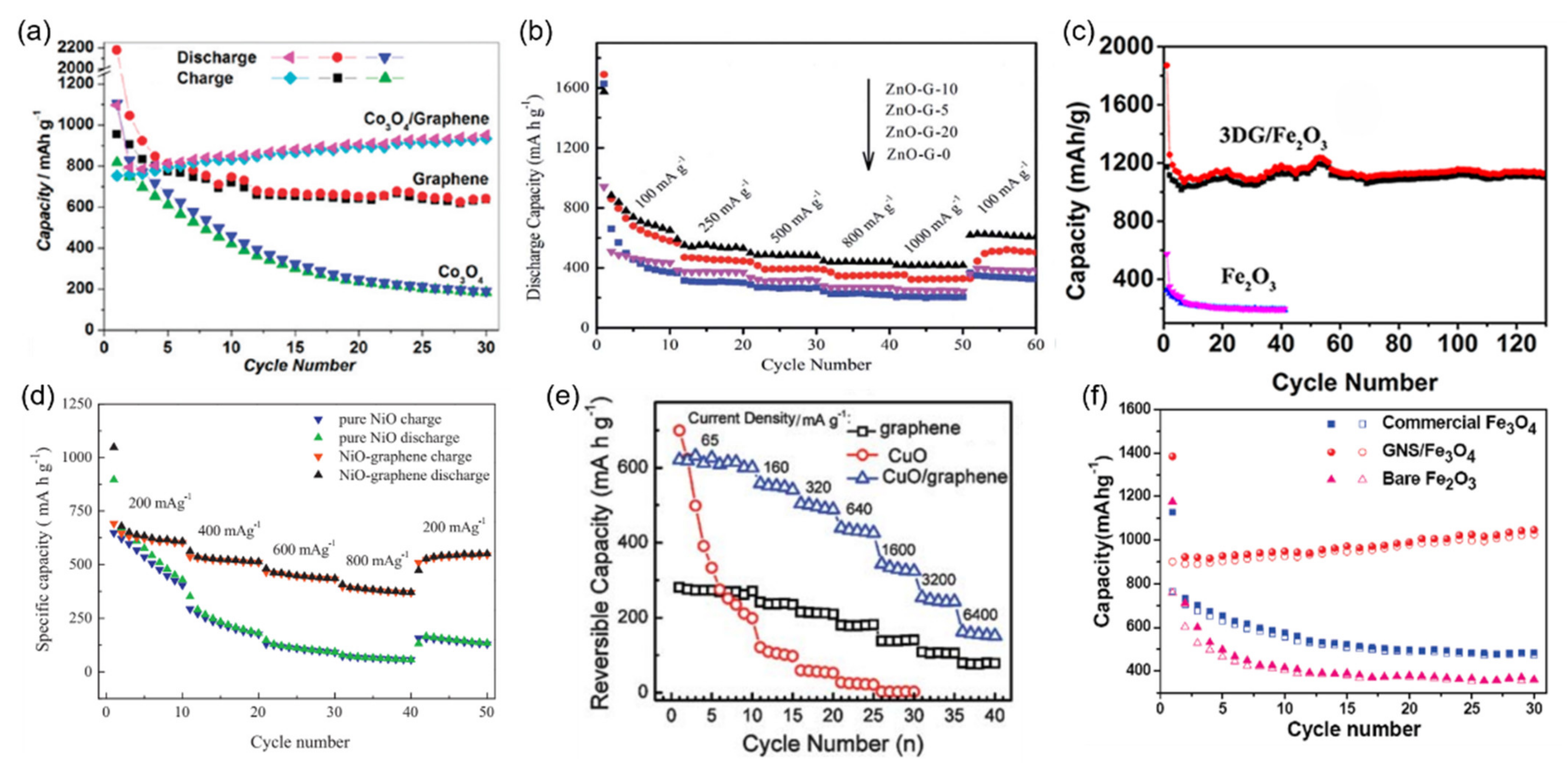

Figure 7 shows the battery performance comparisons of several oxide-based conversion anode materials with appropriate designs of graphene decoration/modifications. Cobalt oxides [70,71], iron oxides [72,73,74], nickel oxides [75], copper oxides [76,77], manganese oxides [78,79], zinc oxides [80], and tin oxides [81,82] all have better specific capacity than that of graphite anodes while they form composites with graphene. Graphene can retain the structural change even if the active material pulverizes. Most of the graphene-enhanced metal oxide anode materials exhibit much lower electrochemical impedance than that of the pristine ones. As a result, graphene/metal oxide composite materials have greater active material utilization, better rate performance, and a longer cycle life compared to the graphene-free counterparts.

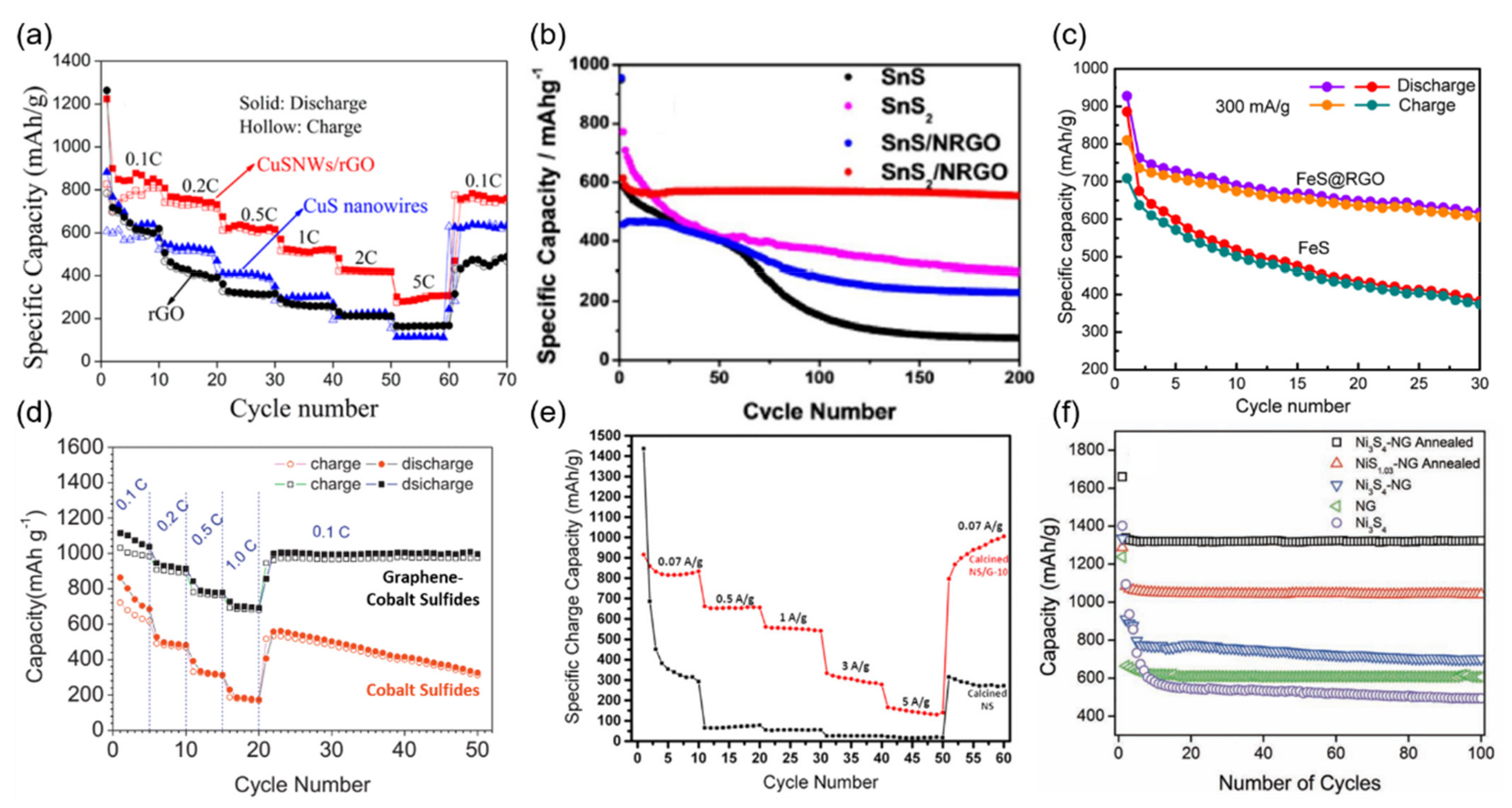

The same improvements can also be found in metal sulfide anode materials after graphene modifications [83,84,85,86,87,88,89,90]. Figure 8 exhibits several conversion-type metal sulfide-based anode materials, and they all show better specific capacity, rate capability, and cycle stability with the assistance of graphene materials. Much lower impedance was observed in the graphene/metal sulfide composite materials during cycling, leading to smooth electrochemical reactions and good lithium-ion storage capability in these anodes. However, a concern of conversion-type metal sulfide anode materials is that the lithiated product, lithium sulfide (Li₂S), is highly reactive with the moisture in the air. The unwanted reaction will generate toxic hydrogen sulfide (H₂S) gas, which is lethal even when just inhaling a small quantity of it. This will raise some safety concerns when using sulfide-type anode materials and must be addressed before widespread commercialization.

The graphene-enhanced conversion-type anode materials possess high reversible capacity, safe operating voltages, and multiple choices of compositional designs. However, the low ICE issue has remained since the formation of Li₂O and Li₂S may not be fully reversible. Employing suitable prelithiation strategies could be a viable means to solve this problem.

3.3. Graphene-Enhanced Lithium Metal and Lithiated Anode Materials

Lithium metal anodes are among the most promising next-generation anode candidate for high-energy-density rechargeable batteries. Their extremely high specific capacity and the lowest standard reduction potential make them invincible in the race of boosting battery energy density [91,92]. Adopting lithium metal or lithiated anodes can also enable lithium-free cathode materials (e.g., sulfur or air cathodes), which can deliver much higher capacity compared to conventional cathodes. However, after several decades of development, lithium metal anodes are still in lab-scale demonstration stages. Many challenges remain, such as uncontrolled lithium plating/stripping, dendritic and dead lithium formation, huge volume change between charge/discharge states, and repeated unstable SEI formation [91,92,93,94,95]. The surface of highly reactive lithium metal must be passivated, otherwise the continuous side reactions occurring at the interface between the lithium anode and electrolyte will keep deteriorating battery performance [94,95]. Many approaches using graphene to modify lithium metal and lithiated anodes have been reported with positive results [96,97,98,99,100,101,102,103,104,105,106,107,108,109].

First of all, highly conductive graphene with ultralarge surface area can play an important role as an excellent substrate to store lithium metal. Good electrical conductivity can promote fast charge transfer, and the continuous graphene network structure can uniformly distribute currents during electrochemical reactions, which can alleviate severe lithium dendrite formation. The issue of volume change between charge and discharge can be addressed by designing the void structure in the graphene–lithium metal composite architecture. Achieving a stable SEI is always the biggest challenge in non-graphite high-capacity anode systems (e.g., Si and Li). Although graphene can serve as a graphite-like interface for coated active anode materials, the brittle characteristic of the SEI layer makes it unsustainable during the volume change of the anode structure. Therefore, a more rigid artificial SEI layer is necessary to pair with graphene for stable SEI growth on lithium metal anodes.

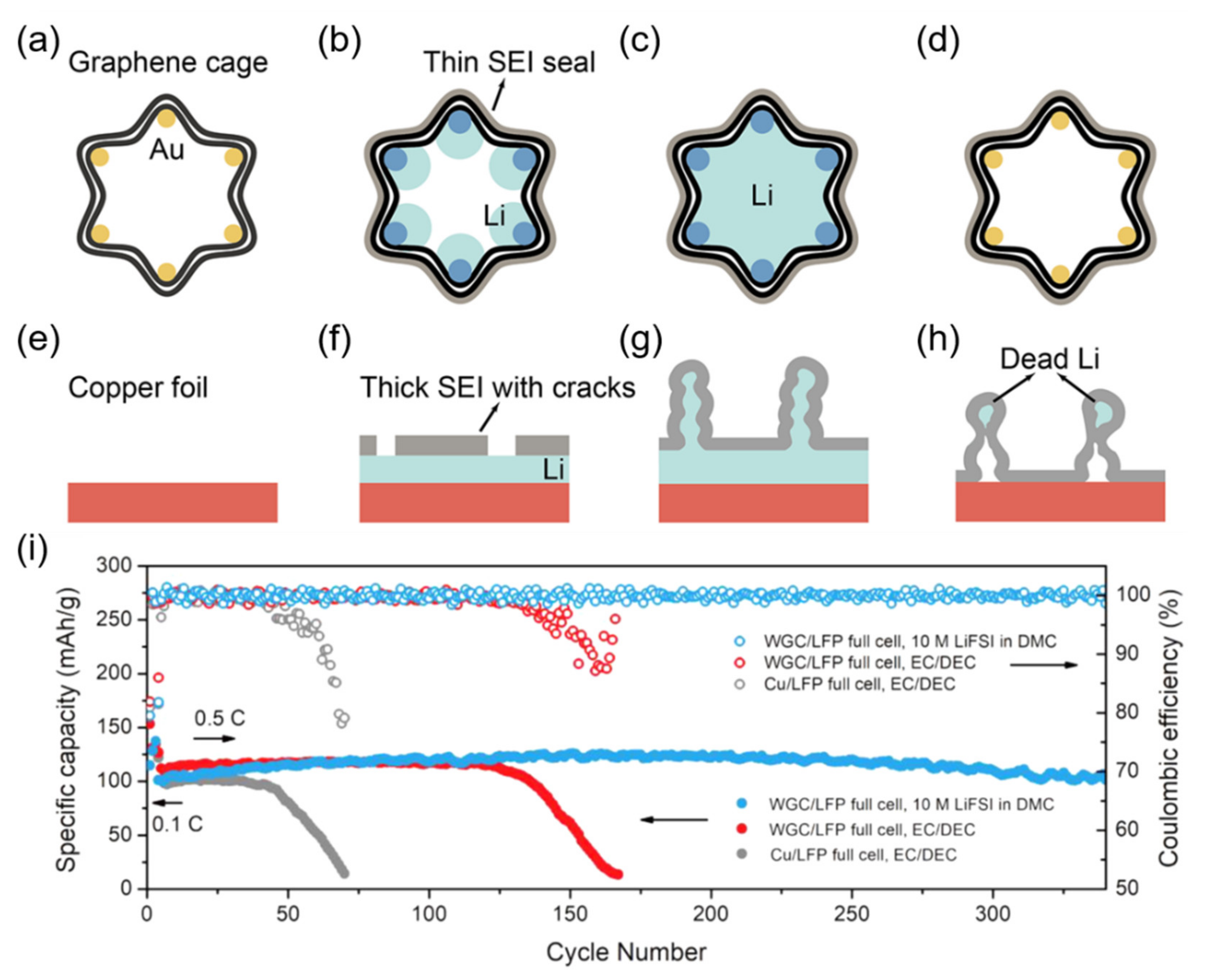

Wang et al. synthesized a graphene cage embedded with gold particles as the container to store lithium metal [97]. Figure 9a–d reveal lithium deposition and stripping using a graphene cage as the matrix. Since gold is a lithiophilic seeding material, lithium metal will prioritize its precipitation around the gold particles. The lithium metal will continue to deposit and fill in the internal space of the graphene cage. During the delithiation process, the lithium metal will be stripped away, and the graphene cage architecture is maintained. The graphene cage surface can offer a stable environment to form a thin SEM seal, and the internal void of the graphene cage can buffer the volume change during cycling. On the other hand, when the lithium metal plates onto the bare copper foil, a thick SEI layer forms with cracks. After extended cycles, a dendritic structure can be found in the lithium metal anode, and dead lithium will gradually be generated, leading to a serious capacity decay. The lithium plating and stripping behavior on the copper current collector are illustrated in Figure 9e–h. The graphene cage design has excellent structural stability, resulting in a good cycle life for over 300 cycles in lithium metal batteries when an appropriate high-concentration LiFSI electrolyte formulation was employed at the same time (Figure 9i). Even if using the graphene cage design alone without the LiFSI electrolyte, the graphene-enhanced lithium metal anode can still extend the cycle life to at least three times longer.

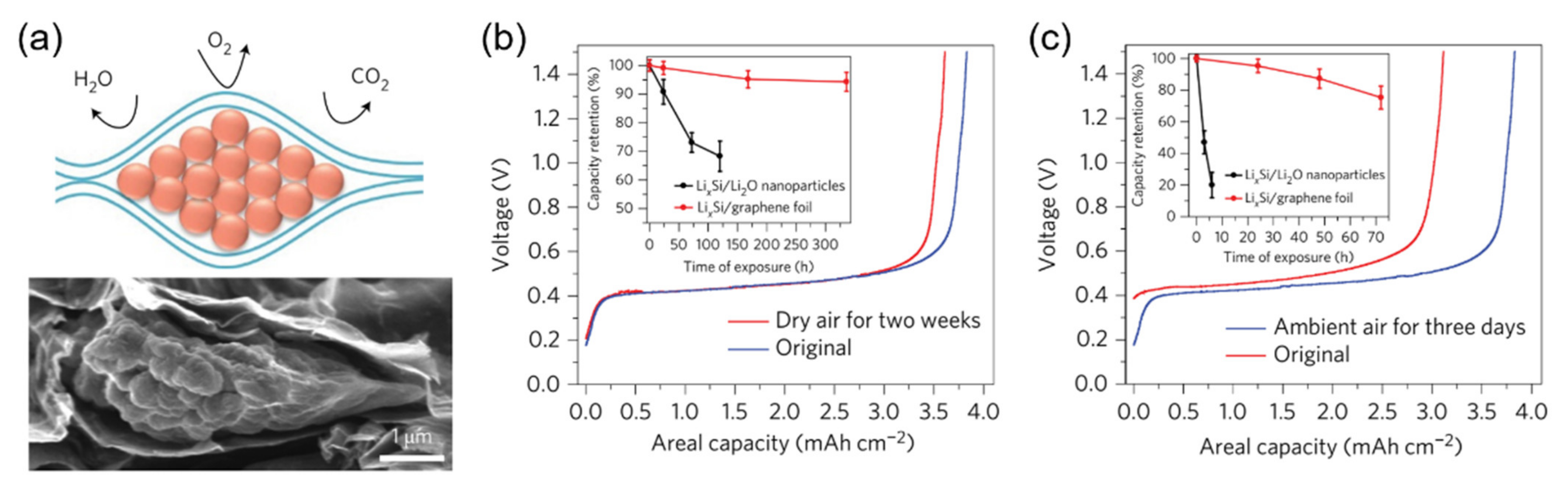

Graphene can protect lithiated anode materials as well. Figure 10a exhibits a graphene-protected lithiated silicon anode that is capable of rejecting gas penetration [98]. The gases in the air such as water, oxygen, and carbon dioxide will react with lithium metal and lithiated compounds to form LiOH, Li₂O, and Li₂CO₃, which reduce the reversible anode capacity when they are assembled in cells. Figure 10b compares the capacity of lithiated silicon (Li_xSi) anode materials with and without the graphene protection when placed in a dry room for two weeks. The air in the dry room contains oxygen with reduced moisture. Unlike the bare Li_xSi anode, the graphene-encapsulated Li_xSi showed very stable capacity retention after two weeks of storage in the dry room, maintaining more than 90% of initial capacity. The results of a similar comparison in an ambient air environment can be seen in Figure 10c. Both anode samples exhibited faster capacity degradation due to the existence of moisture in the air. Nevertheless, the graphene-protected Li_xSi anode can still hold over 70% of initial capacity after resting for three days in ambient air, whereas the capacity of bare Li_xSi anode suddenly dropped to less than 20% just after six hours of storage.

Here, graphene exhibits excellent sealing capability which blocks the gas penetration to protect lithiated compounds. This allows the operation of graphene-protected lithiated anodes in standard battery-grade dry rooms without adopting complicated processing methods that may require vacuum or inert gas systems. The outstanding sealing performance also makes graphene a good anti-leakage additive that can be used in the food-packaging and tire industries [110].

4. Graphene-Enhanced Cathode Materials

4.1. Graphene-Enhanced Cathode Materials for Lithium-Ion Batteries

Lithium cobalt oxide (LiCoO₂, LCO) is the first commercialized cathode material for lithium-ion batteries. However, its comparatively high cost and the toxicity of cobalt are decreasing its market share, especially from the perspective of emerging electric vehicles and grid-level energy storage applications. Other cathode materials such as spinel lithium manganese oxide, olivine lithium transition-metal phosphates, and other layered metal oxides are gradually penetrating the market. The industry soon acknowledged that it was hard for a single cathode material to meet all requirements of different applications because of its intrinsic property limitations, for instance, density, voltage versus Li/Li⁺, thermal stability, and electrical/ionic conductivity. Due to the uncertainty of how to choose an appropriate cathode material, corresponding studies to improve the variety of cathode materials have become one of the most active research areas. One topic that attracts much attention is solving the issue that all aforementioned non-LCO cathode materials have in common: low electrical conductivity. As a result, more conductive additives need to be added to electrodes in order to deliver the full capacity of these active materials, especially for high C-rate applications. The most common conductive additives to enhance the electrical conductivity at the electrode level are carbon blacks. Novel conductive additives such as carbon nanotubes (CNTs) and graphene have also been increasingly adopted in the battery industry. These conductive additives are considered as inactive components (i.e., do not contribute to the capacity) in the cathode. Furthermore, some studies pointed out that these conductive additives can cause irreversible lithium-ion loss at a higher voltage. Thus, their content in the cathode would be “the less the better”. From this point of view, graphene as an emerging conductive additive has come under the spotlight. Graphene has the highest electrical conductivity (thanks to the sp²-bonded carbon atoms arranged in a hexagonal 2D lattice) and surface-to-mass ratio [111]. In comparison with carbon blacks, which are spherical nanoparticles, graphene can form plane-to-plane contact, instead of point-to-point contact, with active materials. Under the same percentage of additive content, graphene can more readily enable additional continuous pathways to allow electrons to freely travel within the electrode. Zhang et al. studied the percolation thresholds of graphene added to the lithium titanate oxide (LTO) anode [112]. The results indicated that the LTO anode containing 5 wt.% of graphene greatly outperformed the LTO anode with 15 wt.% of carbon black, owing to graphene’s substantially low percolation threshold and high electrical conductivity. Although this study focused on the LTO anode, similar results can also be found in other cathode-related literature. For instance, Jiang et al. used 5 wt.% of reduced graphene oxide (rGO) and 5 wt.% of carbon black as the conductive additives, and mixed them with the LiNi_1/3Mn_1/3Co_1/3O₂ (NMC333) cathode material and PVDF binder into a slurry, which was then pasted onto the current collector and formed an electrode. Compared to the control sample, which used 10 wt.% of carbon black, the addition of rGO significantly reduced the charge transfer resistance due to the improved electrical conductivity. The rate capability tests also showed that 5 wt.% of rGO significantly enhanced the capacity, especially when the C-rate was greater than 6 C (110 mA h g⁻¹ versus nearly no capacity from the rGO-free electrode) [113]. Liu et al. also compared the rate performance of a lithium iron phosphate (LiFePO₄, LFP) electrode with 1 wt.% of rGO/10 wt.% of acetylene black and a control sample (with 11 wt.% acetylene black) at 1 C, 5 C, 10 C, and 20 C. The former exhibited a reduced polarization and outperformed the latter in terms of reversible capacity at every tested C-rate [114]. The size and thickness of graphene when used as the conductive additive also influenced the general electrochemical performance of the cathode. This can be again explained by the percolation theory. The percolation threshold V_G is given by:

V_G = (27πD²t)/[4(D + D_IP)³]

(1)

where D and t are the diameter and thickness of graphene nanosheets; D_IP is the interparticle distance when electron hopping happens; and D_IP = 10 nm is generally assumed according to the quantum mechanical tunneling mechanism [112]. Since D >> D_IP is usually the case, Zhang et al. further reduced Equation (1) to:

V_G ≈ (21.2t)/D

(2)

This denotes that the percolation threshold is inversely proportional to the graphene nanosheet’s aspect ratio, meaning that the larger size and fewer layers of graphene should be more beneficial for lowering the content of graphene required to construct a continuous conductive network throughout the electrode.

Nevertheless, it was observed that the experimental results often deviated from the predicted values using Equation (2), and it seemed that a larger size of graphene was not always better. Hsu et al. reported the rate performance comparison of the NMC electrodes utilizing graphene in different lateral sizes (13 and 28 μm, denoted as GN-13 and GN-28; the thickness of both graphene nanosheets is similar) as the conductive agents [115]. The specific capacities of 189.2 and 114.2 mA h g⁻¹ at 0.1 C and 2 C, respectively, were achieved with GN-13, which are higher than those with GN-28 (179.4 and 6 mA h g⁻¹ at 0.1 C and 2 C, respectively). The latter even underperformed with the electrode solely with Super P conductive carbon black when the C-rate was 1 C or higher. The authors found that the Li⁺ diffusion coefficient of GN-13 was higher than that of GN-28 and suggested that the longer Li⁺ diffusion pathway was responsible for the lower capacity of GN-28. Tian et al. also measured the percolation thresholds of LiNi_0.8Mn_0.1Co_0.1O₂ (NMC811) electrodes with graphene or carbon black as conductive fillers, and the former displayed a higher value than the latter [116]. Their results actually indicated that the electrodes with the graphene additive exhibited lower specific capacity than that with the carbon black even when they were of the same mass fraction. The authors attributed it to a classic issue when using graphene as a conductive additive: graphene nanosheets tend to aggregate. Another team who studied the percolation thresholds of electrodes with graphene or carbon black reported an opposite result and highlighted the importance of an electrode preparation procedure to prevent graphene from aggregating in order to make the best of graphene as a conductive additive [117]. It is notable that the graphene powder used by Tian et al. consisted of many “defect-free” flakes. While the defect-free graphene means the structural integrity of graphene which ensures excellent electron transport, it also means that Li-ions are not allowed to diffuse through its basal plane (~10⁻¹¹ cm² s⁻¹), which can result in insufficient Li⁺ migration channels, thereby deteriorating overall cell performance, especially rate capability [118]. Several methods, such as electron beam or argon ion irradiation [119,120] and the nanoparticle-assisted etching process [121], to introduce vacancies (one type of defect) by removing carbon atoms from graphene might be potential solutions, and the related works have been well summarized by Sun et al. [118].

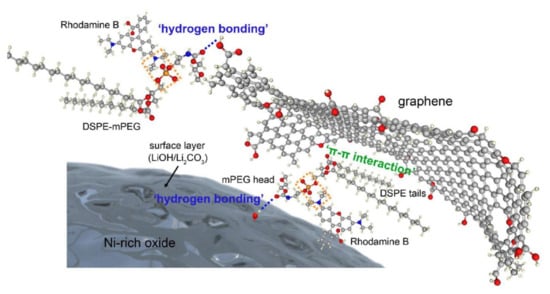

Graphene can not only be used as a conductive additive by simply being mixed into the slurry and then forming an electrode with cathode materials and binders, but can also participate the synthesis of cathode materials to shape their morphology or modify surface properties such as graphene-enhanced anode materials introduced in Section 3. These types of studies became rather popular when LFP started to attract much attention from the industry due to its advantages, such as low cost, better thermal stability, and environmental benignity. LFP has to be synthesized in an inert or reduced atmosphere, which is an ideal environment to incorporate graphene or GO, if used as the precursor of graphene, to form composites and take advantage of graphene’s high electrical conductivity. A variety of synthesis methods, such as co-precipitation [122], hydrothermal [123], in situ solvothermal [124], spray drying [125], electrospinning [126], and microwave-assisted [127] synthetic routes, were reported to produce graphene- or rGO-enhanced LFP composites. The main benefits of synthesizing LFP in the presence of graphene or GO have been concluded as (1) improved high-rate performance due to the intimate contact between graphene and active materials (they can be chemically bonded in some cases), (2) less effort required to form homogeneous mixtures of graphene and LFP nanoparticles (no aggregation effect that negatively impacts the electrochemical performance), and (3) possibly less iron dissolution from LFP in electrolytes in the case of active particles being encapsulated by graphene or rGO. The electrochemical performance of the graphene-enhanced (or rGO-enhanced) LFP composites has been summarized multiple times and can be reviewed in [111,118,128,129,130].

Forming graphene/layered metal oxide cathode composites is more challenging. LiNi_xMn_yCo_1−x−yO₂ series have become attractive because of their high gravimetric capacity, lower cost compared to LCO, and lower toxicity of Ni and Mn [131]. LiNi_1/3Mn_1/3Co_1/3O₂ (NMC333) and LiNi_0.5Mn_0.3Co_0.2O₂ (NMC532) have long been widely used in industry, but in recent years, the research interests have shifted to those with higher Ni content (Ni-rich) such as LiNi_0.6Mn_0.2Co_0.2O₂ (NMC622) and LiNi_0.8Mn_0.1Co_0.1O₂ (NMC811) owing to their substantial capacity enhancement [132]. The most common method to synthesize NMC cathode materials is co-precipitation, followed by a heat treatment (usually >700 °C). It has been reported that, during synthesis, the choice of atmoshere for the heat treatment can greatly influence the surface structural stability and electrochemical performance. For example, Shim et al. synthesized LiNi_0.80Co_0.15Mn_0.05O₂, which is very similar to NMC811, under two atmosphere conditions (oxygen and air) [133]. NiO rock-salt, which has poor Li⁺ ion conductivity, was found only in the sample prepared in air, particularly on the surface of the particles. The authors supposed that the existence of NiO would be the cause of its inferior performance. After years of efforts, it has been acknowledged that while the NMC with Ni content <0.5 can be synthesized in air or an inert gas environment, NMC622 would need to be synthesized in air, and NMC811 or those with Ni content >0.8 have to be calcined in oxygen in order to prevent the formation of NiO. Since graphene or GO will be burnt off at such a high temperature in air or oxygen, it is impossible to incorporate them in the synthesis process of NMC622 or NMC811, not like what can be achieved for graphene/LFP composites. Ni-rich NMCs as well as LiNi_1−x−yCo_xAl_yO₂ (NCA) are also sensitive to H₂O [132], and therefore the spray drying process using GO aqueous solution is not an ideal approach either. Nevertheless, a few attempts have been made to produce graphene–NMC composites with improved performance. Jan et al. successfully prepared the graphene–NMC811 composite by firstly grinding graphene and the as-prepared NMC811 powder, followed by dispersing the mixtures in ethanol by ultrasonication and drying [134]. Compared to pristine NMC811, the graphene composite exhibited higher capacity at 5 C (127 vs. 160 mA h g⁻¹, respectively) and a better cycle life. Park et al. produced a conformal graphene coating on NCA and NMC811 particles by employing an amphiphilic surfactant, 1,2-distearoylsn-glycero-3-phosphoethanolamine-N-[methoxy(polyethyleneglycol) (DSPE-mPEG), which acts as a glue to bind the hydrophobic basal plane of graphene to the hydrophilic lithium hydroxide or lithium carbonate on the surface of NCA or NMC811 particles, as shown in Figure 11 [135]. Their results showed that the conformal graphene coating could eliminate the necessity of adding carbon blacks as conductive additives and thus a high active material content (99 wt.%) and, as a result, a high electrode density (~4.3 g cm⁻³ vs. ~3.3 g cm⁻³ for 96 wt.% NCA electrode with the carbon black) were achieved. The areal capacity and volumetric capacity of the graphene-enhanced NCA can be greatly improved by ~38% and ~34%, respectively, when matching against the electrode with the carbon black.

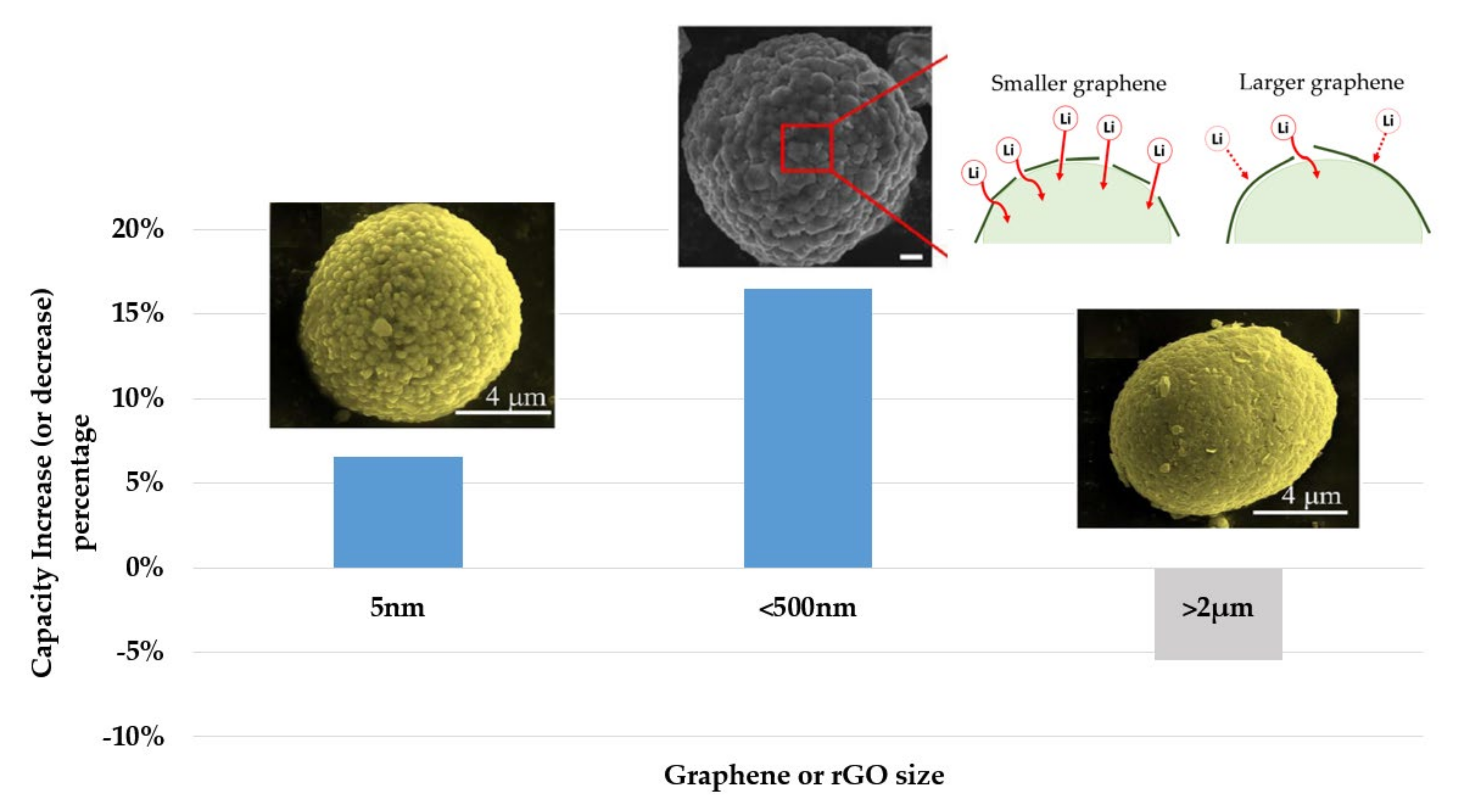

Similar to the aforementioned size issue of graphene as a conductive additive, the size of the graphene coating on NMC or NCA composites also seems to be an important factor that affects the electrochemical performance. He et al. prepared graphene nanodots (~5 nm in diameter) and rGO (~2 μm)-coated NCA [136]. The rate capability testing results of the two samples demonstrated opposite effects when compared to the pristine NCA: the sample coated with graphene nanodots showed improvement in capacity at all tested C-rates, while the rGO-coated sample displayed a lower capacity than that of the pristine sample at all tested C-rates. We summarize the results from two studies [135,136] that both used 0.5 wt.% graphene (or rGO) coating on NCA particles and present a visual comparison in Figure 12. The Y-axis represents the percentage of capacity changes defined as [(specific capacity of the coated sample)—(specific capacity of the non-coated sample)] divided by (specific capacity of the non-coated sample) at 0.1 C. The SEM micrographs clearly showed a more compact coating when the larger graphene (rGO) was used as the coating material. Since, again, Li⁺ ions can only diffuse either through defects or along the edges of graphene nanosheets [137,138,139], a homogeneous coating with smaller graphene would possibly provide more Li⁺ ion diffusion channels, thereby leading to positive effects in the layered lithium metal oxides in terms of electrochemical performance, as suggested by He et al. [136].

Studies that compared the capacities of pristine layered lithium metal oxides and their graphene or rGO composites in various structures, such as as cathode materials for Li-ion batteries, are summarized in

Table 1. The capacities of pristine layered lithium metal oxides and their graphene/rGO composites as cathode materials for Li-ion batteries.

Name	Graphene Content	Structure Type	Capacity 1 (Control Sample)	Capacity 1 (Composite)	Ref.
NMC811/rGO	5.5 wt.%	Mixed	158	185	[134]
NMC811/Graphene	0.5 wt.%	Encapsulated	175	190	[135]
NMC333/rGO	10 wt.%	Mixed	158	175	[131]
NMC333/rGO	9 wt.% (before reduction)	Encapsulated	112	163	[140]
NMC333/Graphene	2.3 wt.%	Encapsulated	123	135	[141]
NCA/rGO	0.5 wt.%	Mixed	168	180	[142]
NCA/Graphene	0.5 wt.%	Encapsulated	119	188	[135]
NCA/Graphene nanodot	0.5 wt.%	Encapsulated	150	175	[136]
LLNMC/rGO	1.5 wt.%	Encapsulated	150	230	[143]
LLNMC/Graphene	0.5 wt.%	Anchored	140	215	[144]
LLNMC/rGO	4.9 wt.%	Encapsulated	75	160	[145]

¹ Specific capacity (mA h g⁻¹) at room temperature and 1 C. Control sample means the sample without graphene or rGO. Some numbers were extracted from the figures in the references by our best efforts.

.

To sum up, graphene has been proved as a promising material to improve the performance of cathode materials for Li-ion batteries. However, several factors such as lateral size, thickness, and defect concentration of graphene should be carefully determined in order to achieve the optimal performance of graphene-enhanced cathode materials. The balance between the numbers of Li⁺ ion diffusion and continuous electron pathways is of paramount importance when one is considering how to best use graphene within the cathode. In addition to directly mixing graphene with cathode materials and binders to fabricate electrodes, many creative methods have been reported to be effective in producing composites with various structures. However, one will also need to scrutinize the cost and production scalability of these methods when it comes to commercialization.

4.2. Graphene-Enhanced Sulfur Cathode Materials

Sulfur is an emerging cathode material that has a high specific capacity (1675 mA h g⁻¹) and is very cheap due to its abundance on Earth [146,147]. The roadblocks that hinder the practical applications of sulfur cathodes include that (1) sulfur is highly insulating, (2) the sulfur intermediates during electrochemical reactions, polysulfides, are easily dissolved in the electrolyte, and (3) the volume expands when sulfur transforms into lithium sulfide, resulting in an unstable electrode structure. To solve these problems, the mainstream approach is utilizing porous carbon host materials to accommodate sulfur, which can not only provide sufficient electron/ion channels but also lock polysulfide species in the matrix by the capillary action and absorption capability of the pore structure [146,147].

The structure of graphene is tunable via various processing methods, and it can be made porous for impregnation with sulfur as cathode materials. Many publications reported improved battery performance using graphene as the framework or coating material for sulfur cathodes [16,148,149,150,151,152,153,154,155,156,157,158]. Papandrea et al. used rGO sheets to build a 3D graphene framework to encapsulate sulfur as the cathode (Figure 13a,b) [148]. Graphene here functions as the conductive network and the active sulfur container, bifunctionally stabilizing the electrochemical reactions of lithium sulfur batteries. The authors also observed the motion of melted sulfur migrating within the graphene framework by employing in situ SEM techniques (Figure 13c–f). Melted sulfur was found gradually migrating out from its matrix but was obviously confined by the graphene wall structure without flowing out of the framework. This is a clear evidence that graphene possesses excellent sealing performance not only for gases (described in the previous section of the graphene-enhanced lithiated anode [98]) but also for liquid-phase materials. Other potential non-battery applications could utilize this unique behavior of graphene to trap substances that melt, vaporize, or sublime during reactions.

5. Graphene-Enhanced Separators

Since graphene is a 2D material with self-assembly ability, it can easily coat any flat substrate to make double-layer or multi-layer structures. Instead of coating on electrodes, fabricating a laminated structure on separators is an alternative option. Ceramic-coated separators are well-commercialized battery components in lithium-ion batteries with optimal safety features [159,160]. After applying ceramic coatings, the thermal stability and mechanical strength of separators are significantly enhanced. There are also numerous academic research studies showing that using a graphene coating instead of a ceramic coating can improve the performance of lithium metal and lithium sulfur batteries [161,162,163,164,165,166,167,168,169,170,171]. Since the polyolefin-based separators cannot withstand high temperatures, the processing of graphene coating will need additional attention to avoid thermal treatments, otherwise the separators may melt or become deformed.

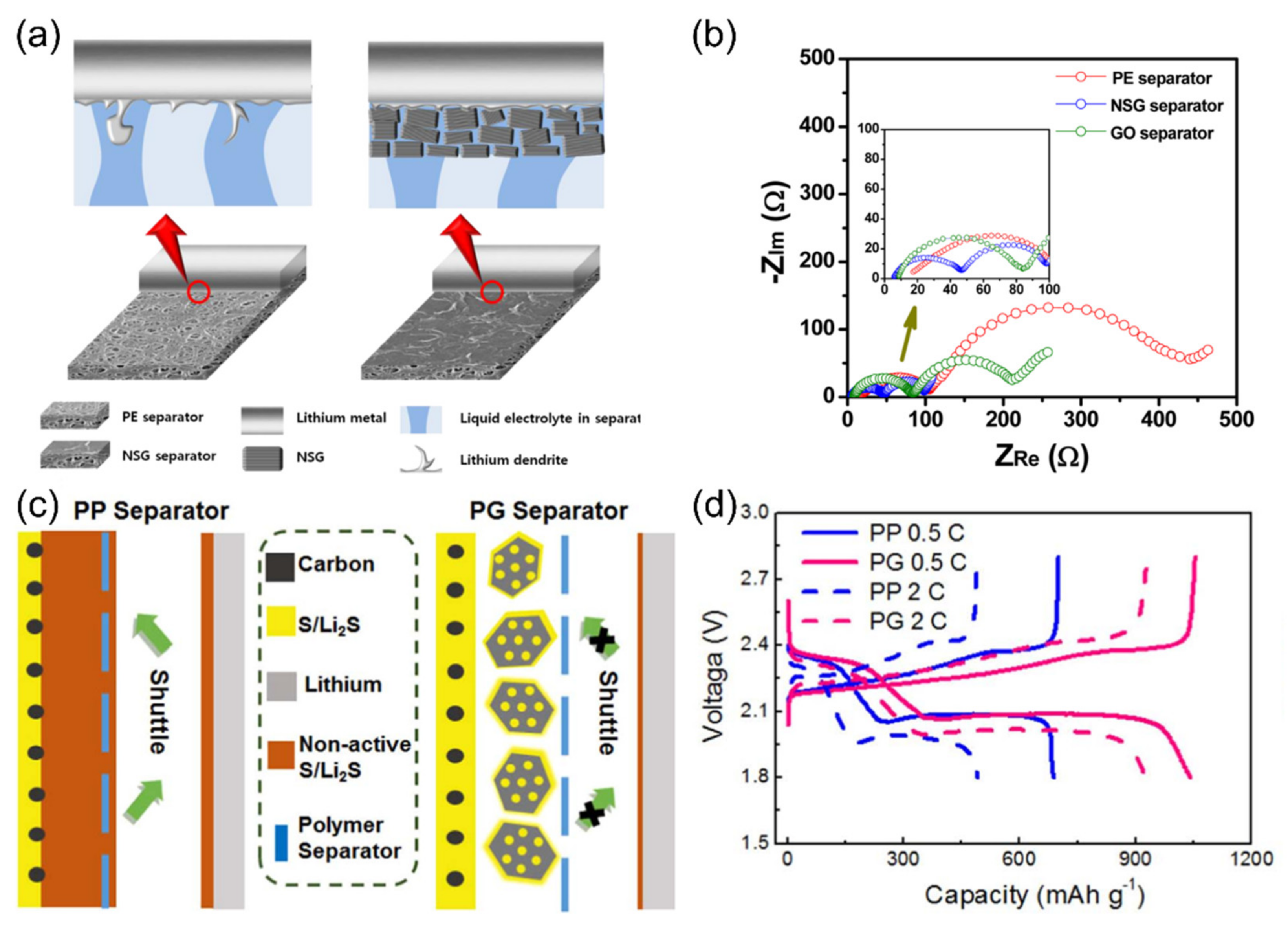

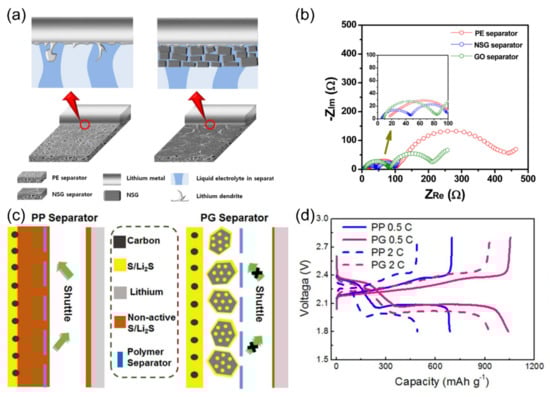

Shin et al. employed a nitrogen and sulfur co-doped graphene-coated (NSG) separator toward the lithium metal anode side to suppress the lithium dendrite formation during cycling [165]. The dendritic lithium is a permanent safety issue because sharp lithium tips could puncture the separator, leading to cell internal short circuit. The application of graphene on the separator can assist in uniformly distributing current, stabilizing the reaction interface, and minimizing the impact of the pore structure on the separator (Figure 14a). The pore contact area will give less pressure and more electrolyte contact points over the lithium metal surface than the other area covered with polyolefin materials, causing heterogeneous lithium deposition. With the graphene coating on the separator, the pressure and electrolyte distribution become homogeneous, making the interfacial reactions on the lithium metal more stable. Among the cells, the one with the NSG separator provided the lowest interfacial resistances after 200 cycles (Figure 14b) due to the formation of a more stable SEI layer which can support more efficient ion transport during extended cycling [165].

The shuttle effect is notorious in lithium sulfur battery systems, resulting from the soluble polysulfides moving back and forth between the lithium metal anode and sulfur cathode [146,147]. The incessant migration of polysulfide ions will induce a non-stop charging behavior in the cell. An effective method called “interlayer configuration” was developed to tackle this issue by placing a porous carbonaceous material in between the sulfur cathode and separator [172,173]. This interlayer can be further integrated into the separator architecture to streamline lithium sulfur cell manufacturing [174,175,176]. Zhai et al. used a porous graphene-coated (PG) polymer separator in lithium sulfur batteries, but toward the sulfur cathode side shown, as shown in Figure 14c [167]. The significant enhancement of electron/lithium-ion transfer offered by the PG separator was confirmed by remarkably reduced overpotential shown in the galvanostatic charge–discharge curves, especially at a higher C-rate (Figure 14d) [167]. Thanks to the tunable structure of graphene material design, the graphene with a porous structure sticking on the separator can efficiently absorb the polysulfides migrating from the sulfur cathode and reutilize the trapped sulfur species in the following cycles, which evidently prolong the cycle life and reduce the capacity degradation of lithium sulfur cells.

6. Graphene-Enhanced Current Collectors

Current collectors have been found to be an essential component that can influence the performance of lithium-ion batteries. Aluminum and copper foils are selected as the current collectors for the cathode and anode, respectively, because of their relatively low cost and high electrical conductivity. General issues of these two commonly used current collectors are (1) the corrosion of Al current collectors, which can lead to internal resistance increase, serious self-discharge, and possible micro-short circuit induced by Al fragments under extensive cycles [177,178], at a relatively high potential, (2) poor adhesion between current collectors and electrode materials, and (3) comparatively high mass ratio (9–10 wt.%) in the battery [118].

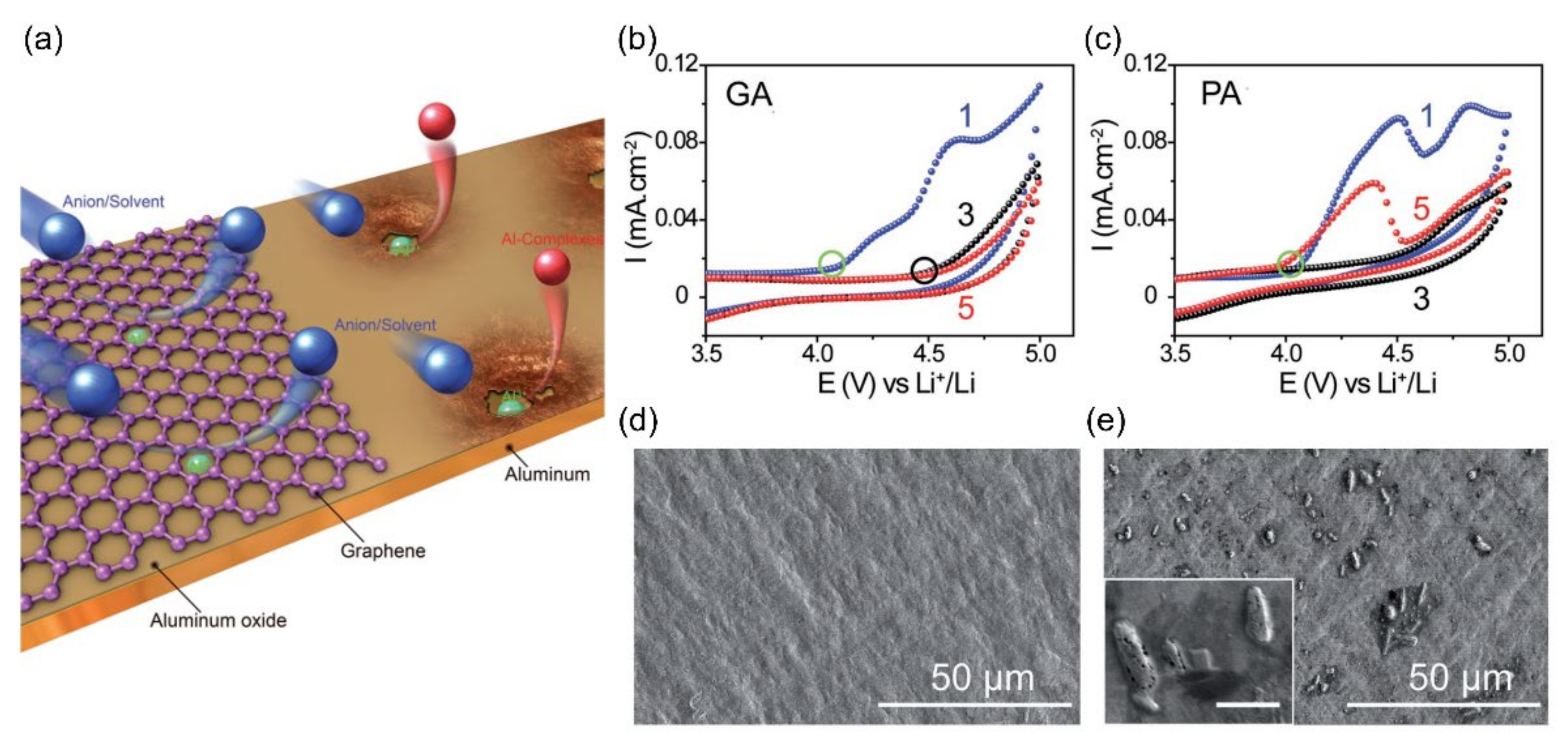

The root cause of Al current collector corrosion was generally believed to be the decomposition of LiPF₆ salt in electrolytes [179]. Recently, Ma et al. found that the corrosion of Al foils was triggered by the electrochemical oxidation of solvent molecules such as ethylene carbonate and a coupled electrochemical–chemical reaction [180]. A few studies have reported an anti-corrosion effect from the success of adopting a graphene coating on the surface of Al current collectors (Figure 15a) [177]. For example, Wang et al. directly grew a multilayer graphene film (5~10 nm) on the Al current collector via plasma-enhanced chemical vapor deposition (PECVD) [177]. They used LiMn₂O₄/LiPF₆ as a model system to investigate the anti-corrosion effect of the graphene-coated current collector. Figure 15b,c compare the CV curves of Al current collectors with and without the graphene passivation layer in LiPF₆ electrolyte at the 1st, 3rd, and 5th cycle. With the pristine Al (PA) current collector, the upturn inflection voltage increases dramatically at the 5th cycle, implying the local breakdown of the protective passive layers [177]. In contrast, the upturn inflection voltage of graphene-armored Al (GA) foil is significantly elevated up to ≈4.5 V (vs. Li⁺/Li), exhibiting excellent stability toward anodic corrosion [177]. The results clearly showed that with a graphene coating, no appreciable change appeared on the surface of Al current collector, while many “scars” were observed on the pristine sample (Figure 15d,e). Similar results were reported by several other groups, where a graphene or GO coating was applied via different methods such as electro-spraying [181], CVD growth followed by transfer using thermal release tapes [182], and spin-coating [183]. All three groups presented improved long-term electrochemical performance from the graphene-coated Al current collectors.

As a battery component that bridges electrode materials and external circuits, good interfacial contact, meaning stronger adhesion and lower contact resistance, is essential to the battery performance, especially for high C-rate applications. Kim et al. demonstrated that with a graphene coating layer, the adhesion strength can be significantly enhanced if it is of an appropriate thickness [182]. Lastly, despite the key role of current collectors, they are still inactive materials that have a significant mass fraction in a battery. Some alternative types of current collectors such as free-standing graphene-based papers and graphene-coated plastic films have been proposed [184,185]. More related studies have been previously summarized in ref. [118].

7. Summary and Outlook

Graphene is a wonder material with ultrahigh electrical/thermal conductivity, good mechanical strength, large surface area, special sealing performance, and structural tunability. The synthesis of graphene composite materials can be modified considering the processing requirements and raw material limitations. The idea is to utilize the advantages of graphene without degrading raw materials during the production of composite materials.

Due to the tunable nature of graphene structures and processing methods, it can combine with anodes, cathodes, separators, and current collectors to make advanced battery components for lithium-ion and lithium metal batteries. The commercialization of graphene technologies is an ongoing process in industry. There are already plenty of graphene-enhanced battery-related products in the energy storage market. The high cost of single-layer graphene may inhibit the practicality of its large-scale production, but some applications may be capable of gaining improvements by employing few-layer graphene materials. As a result, the commercialization of graphene technologies largely depends on their cost-effectiveness.

The challenges of graphene applications remain, including producing graphene with good performance by adopting low-cost production techniques, the performance improvement that has to be directly proportional to the cost of graphene added, and the advancement of large-scale processing technologies.
