Review of Cryogenic Carbon Capture Innovations and Their Potential Applications

Abstract

Our ever-increasing interest in economic growth is leading the way to the decline of natural resources, the detriment of air quality, and is fostering climate change. One potential solution to reduce carbon dioxide emissions from industrial emitters is the exploitation of carbon capture and storage (CCS). Among the various CO₂ separation technologies, cryogenic carbon capture (CCC) could emerge by offering high CO₂ recovery rates and purity levels. This review covers the different CCC methods that are being developed, their benefits, and the current challenges deterring their commercialisation. It also offers an appraisal for selected feasible small- and large-scale CCC applications, including blue hydrogen production and direct air capture. This work considers their technological readiness for CCC deployment and acknowledges competing technologies and ends by providing some insights into future directions related to the R&D for CCC systems.

1. Introduction

The continuous search for economic growth is causing the decline of natural resources, the detriment of air quality, and is fostering climate change. These effects have at last been taken seriously, which has led to new targets to reduce our impact on the planet. Achieving net zero emissions, as set by the UK, France, Denmark and New Zealand to be by 2050 and in Sweden by 2045, will need the exploitation of carbon capture, utilisation, and storage (CCUS) more than ever. This has been reaffirmed in the recent UK government plan for a green industrial revolution, which aims to make two CCUS industrial clusters operational by the mid-2020s and capture 10 Mt of carbon dioxide a year by 2030 [1]. Figure 1 shows the different CO₂ separation technologies that are currently available. Carbon capture has focused on mature technologies, such as chemical absorption using amine-based solvents, but the large volumes of solvent that are used require significant thermal energy for regeneration. This shortcoming is promoting research on emerging technologies including membranes, calcium looping, catalysed sorbents, algae-based capture, direct air capture, and liquefaction [2], but most of these technologies face different technological challenges and are at different and/or lower technology readiness levels.

Low temperature CO₂ capture technologies, often called cryogenic carbon capture, relies on phase change, thus separating the CO₂ from the gas in the form of a liquid or solid [3]. The definition of ‘cryogenics’ refers more strictly to the processes that occur at temperatures below 120 K, e.g., in the condensation of nitrogen and oxygen, whilst above 120 K typically refers to conventional refrigeration; however, the term is often used to imply low temperature separation [4]. Thus, the review of cryogenics below 120 K is outside the scope of this work dedicated to CO₂ applications, and they have been extensively reviewed for the liquefaction of natural gas [5] and air separation units (ASU) that use multi-column cryogenic distillation to generate oxygen, nitrogen and argon elsewhere [6]. The low temperature or cryogenic separation process has been less popular because of it is too expensive or energy intensive or because it has a restricted range of potential applications. This method offers various benefits such a high purity product, avoids the need for toxic chemicals, and can be applied to a range of CO₂ concentrations. Thus, this work aims to critically assess the different cryogenic technical options for carbon capture, and in particular, presents its potential small- and large-scale applications in order to draw recommendations and future directions.

Novelty and Research Strategy

This work reviews peer-reviewed journal papers and other peer-reviewed sources such as reports, thesis dissertations, book chapters, and conference proceedings within a period from 2010 to May 2021. Scopus and Web of Science Several were used as recognised databases to access the resources. This study reviews the advances and opportunities that cryogenic carbon capture (CCC) offers to mitigate CO₂ emissions and to its potential applications should the technology reach a commercialization stage.

Table 1. Search categories and keywords.

Category	Keywords	Total Articles
cryogenic separation	cryogenic carbon capture, CO2 desublimation, CO2 anti-sublimation, cryogenic CO2 separation	62 1–73 2
blue hydrogen	Cryogenic purification, cryogenic separation, hydrogen separation	19 1–10 2

¹ Scopus, ² Web of Science.

presents the strategy for the literature search grouped by categories and by using the indicated keywords. It was found the largest publication activity was from Brigham Young University, Universiti Teknologi Petronas, and the University of Tsukuba. Any unrelated source was eliminated, leaving a total of 92 articles. A total of three review papers have previously covered some aspects of cryogenic carbon capture: (i) Berstad, Anantharaman and Nekså [3] presented a review of carbon capture methods and technologies, including low temperature methods with more emphasis for the treatment of oxy-derived flue gases by partial condensation or distillation; CO₂ desublimation was briefly reviewed; (ii) Maqsood, Mullick, Ali, Kargupta and Ganguly [9] provided a clear distinction between conventional and emerging cryogenic CO₂ separation technologies; and (iii) a more recent work from Song, Liu, Deng, Li and Kitamura [2] offered an updated review of CCC methods with particular emphasis on the treatment of fossil fuel combustion sources. However, in order to compete with more mature options, CCC would need to overcome challenges related to the availability of cold energy sources, capture costs, and impurities. Thus, this work explores applications for CCC beyond the treatment of coal-fired and/or natural gas sources. This paper reviews applications that best fit CCC systems for both small-scale applications such as biogas upgrading and onboard carbon capture as well as for large-scale applications such as blue hydrogen production.

2. Types of Systems for Cryogenic Carbon Capture

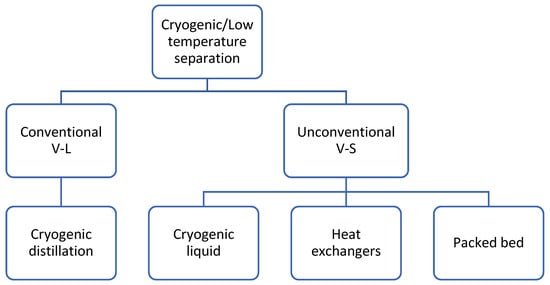

Cryogenic carbon capture involves a physical separation process based on the differences between the boiling points and the desublimation properties of the components in the gas mixture. Therefore, phase equilibria data are indispensable to define the pressure—the temperature conditions in which the CO₂ in a mixture remains as a liquid, gas or solid. Figure 2 illustrates the dew and bubble curves and solid–vapour data for CO₂–CH₄ mixtures with varying CO₂ content. The two regions provide two different types of cryogenic methods: liquid–vapour separation, or conventional cryogenic methods (above 193 K), and solid–vapour separation, or nonconventional methods (the region under the black solid curve) [2]. Figure 3 shows the existing and emerging methods for cryogenic carbon capture, which will be discussed further. There are also hybrid technologies not discussed here that can be found elsewhere [9]. Since cryogenic separation offers high CO₂ recovery rates and purity levels, this technology is gaining considerable attention.

2.1. Conventional V-L Separation

Cryogenic distillation is a well-established technology that achieves separation based on the different boiling points of CO₂ and the gas components in the mixture. This method has been used for natural gas purification, where the CO₂ is removed in the liquid phase. However, it is an energy-intensive method due to the high pressure employed and the requirement that solid formation be avoided to protect equipment and prevent clogging. To avoid CO₂ solidification, extractive distillation, or “Ryan Holmes” technology, makes use of heavier hydrocarbons (e.g., ethane), which increases the solubility of CO₂ in the liquid phase, operating temperature, and relative volatility, facilitating separation [10].

Gas-to-liquid carbon dioxide separation is well recognized as the advanced technology for the purification and compression of CO₂ captured in oxy-combustion. A CO₂-rich flue gas derived from oxy-combustion is ideal for integration with a carbon dioxide purification unit (CPU) for low temperature CO₂ separation. Previous work has evaluated CO₂ removal in a two-stage compression at approximately 15 and 30 bar and by the partial condensation and separation of the resulting vapour and liquid phases [11]. The required purity and recovery are accomplished by the fine-tuning of the operating temperatures and pressures and the inclusion of additional flash separation stages to remove the lower boiling point O₂/N₂/Ar components [12]. For a high purity CO₂ product for enhanced oil recovery (EOR) applications, in addition to the flash separation stages, a further stripping column is needed to reduce the oxygen content to 100 ppm [11]. This low temperature separation method is recommended for streams with a CO₂ concentration higher than 50% to limit refrigeration and energy consumption. The other shortcoming is that a CPU requires expensive methods to reduce water content to trace levels to avoid plugging caused by ice, the formation of solid CO₂ on the heat exchanger surface, and/or an increase in the pressure drop [13].

2.2. Unconventional V-S Separation

The relatively large energy requirements of conventional cryogenic distillation make vapour–solid (V–S) separation an attractive solution. A study that compared the two options found that for a gas mixture with a concentration of 70% vol. CO₂, the energy requirement for a conventional extractive cryogenic distillation network was 1472 kJ/kg CO_2, and the energy requirement for a cryogenic packed bed was 810 kJ/kg CO₂ [14].

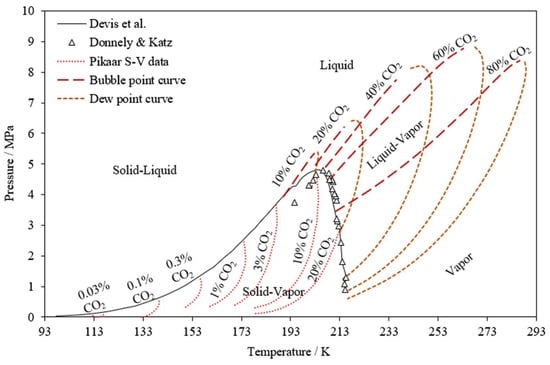

Low-temperature carbon capture based on solid–vapour equilibria takes advantage of solid formation, which is undesirable in cryogenic distillation and requires reaching temperatures at which CO₂ will frost. Achieving desublimation conditions entails contact with a cold medium; therefore, different options to attain the cold conditions that are needed are presented here.

2.2.1. Heat Exchangers for Cryogenic Separation

Heat exchangers are key unit operations for cryogenic industrial applications, such as process cooling, the separation and distillation of gas mixtures, and liquefaction for transportation and storage. The overall energy performance of the system is mostly assessed based on the requirements of the compressors. Therefore, cryogenic heat exchangers are designed to operate with high effectiveness with relatively small temperature differences to compensate for the large heat transfer areas needed and high initial costs. This leads to high manufacturing and installation costs as well as the need for cost-effective heat exchangers to limit the range of the heat exchangers that could be used. Heat exchangers for cryogenic applications include coil-wound heat exchangers used in industrial air liquefaction; plate heat exchangers, including multi-stream plate fin heat exchangers (MPFHE); and regenerative heat exchangers, which are more compatible with energy storage technologies [15].

For the cryogenic separation of CO₂ using heat exchangers, a system that employs three heat exchangers was developed [16]. The first heat exchanger precools the rich CO₂ stream down to −100 °C, with a colder lean CO₂ stream of −125 °C in a gas/gas brazed heat exchanger. The other two act as an intermittent frosting process to capture CO₂ solids on the fins of the heat exchange at a temperature between −100 and −120 °C and as a CO₂ defrosting process using a heating stream at −50 °C to recover liquid and gas CO₂. Due to frost growth during the frosting step, the defrosting process is needed to maintain acceptable pressure losses on the gas-side circulation. Thus, a thermal swing process is employed, which switches between frosting and defrosting conditions, which can cause challenges for continuous operation. In addition, the CO₂ frost layer on heat exchanger surface affects the heat transfer, requiring more cooling and thus reducing its efficiency.

Stirling Coolers

Song, Kitamura, Li and Ogasawara [17] proposed the use of Stirling coolers in a cryogenic CO₂ capture system. The system makes use of three Stirling coolers (SC). The first one is used to precool the feed gas to condense moisture. The second SC is the freezing tower, where the CO₂ freezes, and the third SC is used for cryogenic CO₂ storage. The attained specific energy consumption with a CO₂ recovery of 95% is estimated as 2.62 MJ_el/kg CO₂ and is reduced to 1.37 MJ_el/kg CO₂ with heat integration, including the capture and compression work [18]. Thus, this system suffers similar issues with the growth of the CO₂ frost layer as the use of heat exchangers.

2.2.2. Cryogenic Liquids

As an alternative to heat exchangers, the flue gas containing CO₂ can be directly contacted with a cryogenic liquid, causing the flue gas to form solid CO₂ particles in a staged desublimating column. The CO₂ that is dissolved in the contacting liquid will form a slurry, which then goes through filtration and will subsequently provide a CO₂ pure product [19,20]. The contact liquid is used to provide cooling by direct contact whilst preventing CO₂ from freezing on surfaces and to aid in the transport of frost CO₂ as a slurry. Isopropane has been chosen based on holding low the vapour pressures need to be to minimise losses by evaporation [20]. Since solid CO₂ is filtered, the contact liquid can be recycled with the aim of creating a closed loop, and only a slight loss of contact liquid is anticipated. The direct liquid–gas contact can be achieved through a bubbling column for pilot-scale applications, a spray tower for larger or full industrial-scale applications, or a fluidised bed column with the potential for large-scale application but that has not been tested yet [19]. Through modelling work, it an energy penalty of 0.74 MJ_el/kg CO₂ with 90% CO₂ capture was reported.

Cryogenic carbon capture with an external cooling loop (CCC-ECL) uses heat exchange to desublime CO₂ frost. The flue gas first passes through a dryer that removes the water content from the flue gas, the dry flue gas then passes through a heat exchanger and is mixed with a contact liquid, where 99% of the CO₂ is desublimed out of the gas phase. The heat exchanger cooling is supplied via an external cooling loop refrigerant. After the CO₂ solid is separated from the gas stream and the contact liquid, the CO₂ solid stream is pressurised to 70–80 bar. After this compression stage, the CO₂ solid stream and the CO₂ lean gas stream pass through a second heat exchanger, which provides energy recovery to the ECL refrigerant and melts the CO₂ solid stream into a high pressure liquid stream [21,22]. The CCC-ECL process overcomes some of the limitations of heat exchangers, such as the reduction of the rate of heat transfer due to the CO₂ frost layer formation on the heat exchanger surface. The solid handling is improved by forming a slurry of contact liquid with solid CO₂; however, this process depends on the selection of the contact liquid, which should have a low vapor pressure to avoid loss via evaporation as well as not pose environmental or human harm.

2.2.3. Packed Beds

Packed beds filled with cold bed material have been used as a heat transfer surface for CO₂ capture [14,23]. Cryogenically cooled nitrogen gas is fed into the packed bed to precool bed material as a cooling step. Once the precooling step is complete, the nitrogen cooling gas flow is stopped, and a simulated flue gas containing CO₂ is fed into the packed column. When the flue gas containing CO₂ is sufficiently cooled by the bed material, the CO₂ desublimates onto the surface of the bed material to form a frost. The CO₂ frost will continue to grow on the surface of the bed material until the bed material reaches saturation. When the bed material becomes saturated, the CO₂ frost will begin to form on the fresh bed material that is further into the capture column. This leads to a frost front that advances through the packed column. The rate at which the frost front advances through the column is called the frost front velocity. The capture column is saturated with CO₂ frost when the frost front advances through the capture column and requires a regeneration step to remove the CO₂ frost from the packed bed. Tuinier et al. [24] performed a numerical study of three packed beds operating in parallel cycling between the capture, regeneration, and cooling steps to create a pseudo-continuous process. The cooling duty is dependent on the initial bed temperature and the concentration of CO₂ in the flue gas but typically ranges between 1.2–2.6 MJ_el/kg CO₂ [24].

Moving Packed Beds

Willson et al. [25] proposed the use of a moving packed bed of cold bed material to capture CO₂ without using multiple packed beds operating in cycles. The moving packed bed captures CO₂ frost on the surface of the bed material. Bed material is drawn out of the capture column using a screw conveyor and transported into a sublimation unit, the CO₂ frost is sublimed and captured for later storage, and the bed material is recirculated into a bed precooler unit and back into the capture column. This operation prevents the excessive accumulation of CO₂ frost within the capture column. The moving bed capture process has been experimentally demonstrated with proposed further work to integrate the cooling and regeneration steps into the moving bed, but this has not been tested yet [26].

The estimated specific energy of CO₂ capture was calculated by Willson et al. for a number of different applications, the most effective application being biogas upgrading with a specific energy of 263 kWh/tonne CO₂ (0.95 MJ/kg CO₂) [25].

2.2.4. Other Methods

Compressed Flue Gas

Cryogenic carbon capture with compressed flue gas (CCC-CFG) moderately compresses the flue gas to 5–7 bar before heat exchange and expands the flue gas after heat exchange to desublime CO₂ frost [27]. This process uses a dryer to remove water content from the flue gas and then uses a heat exchanger to desublime CO₂. Similar to the CCC-ECL process, the heat exchanger recovers energy using the pressurised solid CO₂ stream, which cools the incoming flue gas, and the solid CO₂ melts. This heat exchange step sufficiently cools the flue gas to desublime approximately 75% of CO₂ out of the gas phase. After the expansion of the compressed flue gas, 99% of the CO₂ is separated out of the gas phase.

Table 2. Comparison of energy duties for various carbon capture technologies.

Carbon Capture Method	Energy Duty (MJ/kgCO2)	Reference
Cryogenic liquids	0.74 (electrical)	[19]
Stirling coolers	1.37 (electrical)	[18]
Cryogenic distillation	1.47	[14]
Cryogenic packed bed	1.2–2.6 (electrical)	[24]
Cryogenic moving bed	0.95	[25]
Absorption	0.87–4.2	[29]
Adsorption	0.36–4.2	[30]
Membranes	0.239–1	[28]
Oxy-Fuel combustion	1.15–2.02	[30]

compares different CCC technologies including other carbon capture technologies such as absorption, adsorption, and membranes. It is shown here that CCC provides a competitive energy duty compared to a range of available CCS technologies, whilst membrane separation provides the most attractive energy duty through the use of vacuum configurations as the driving force [28]. CCC technologies are still in various stages of technological readiness level (TRL) and require further development and large-scale demonstrations to increase confidence in the technology.

CCC is not a universally applicable technology; however, there are feasible applications where cryogenic separation is advantageous compared to other technologies. The most feasible applications where cryogenic separation is advantageous are discussed next.

3. Feasible Applications for Cryogenic Separation

3.1. Small-Scale Applications

3.1.1. Shipping Decarbonisation

The recognition that the maritime sector emits about 3.1% of global GHG emissions has helped the International Maritime Organization (IMO) commit to reduce CO₂ emissions from international shipping by at least 40% by 2030 and by at least 50% by 2050 compared to 2008 emissions [31]. Among the different options to reduce the emissions of GHGs from the shipping sector, e.g., fuel switching to LNG or alternative fuels such as biofuels, methanol, and hydrogen, have been proposed [32]. Balcombe, Brierley, Lewis, Skatvedt, Speirs, Hawkes and Staffell [32] concluded that decarbonisation using LNG will require a combination of efficiency measures to achieve the target of a 50% reduction of GHG emissions, and bio-based fuels that struggle to prove sustainable source availability will rely more on efficiency measures to reduce their consumption. Thus, exhaust gas treatment via carbon capture offers advantages to avoid changes in engines.

An onboard carbon capture and storage (OCCS) system is a solution to treat exhaust gases emitted from the internal combustion engines on board of ships. The stored CO₂ can be unloaded at ports and is then stored underground or undergoes methanation [33].

OCCS offers an option that avoids changes to or the replacement of ship engines. However, most of the literature on carbon capture for shipping applications is related to chemical adsorption using amine-based solvents. For example, Feenstra, Monteiro, van den Akker, Abu-Zahra, Gilling and Goetheer [34] proposed solvent-based carbon capture in diesel and LNG-fuelled vessels (1280 kW dual fuel Wärtsilä 8L20DF and 3000 kW Wärtsilä 6L34DF). They used MEA as a reference case, which was evaluated against 30 wt.% aqueous piperazine (PZ). PZ showed lower costs compared to MEA cases due to the higher pressure used in the desorption process and the consequently lower CO₂ compression costs. They concluded after an evaluation of equipment weight with stored CO₂ that the carbon capture unit could be fit onboard the ship following space reconfiguration. Awoyomi, Patchigolla and Anthony [35] proposed scrubbing using aqueous ammonia for the simultaneous CO₂ capture and the removal of SO₂ from the flue gas from a 10,800 kW Wärtsilä 9L46F marine diesel engine. Through waste heat recovery, they found that a 70% CO₂ capture rate at 85% load is achievable. They showed that a 75% carbon capture rate is possible to recover heat using the WHRS (waste heat recovery system) for use in the reboiler (ammonia requires less heat for regeneration than MEA), but 12.88% more fuel was needed to deliver the same power output of 8.7 MWe at an 85% load due to the power requirements for CO₂ capture and compression for storage.

Thus, the potential for OCCS using chemical solvents has encouraged the exploration of cryogenic carbon capture. As an example, the advanced cryogenic carbon capture (A3C) process has been evaluated for shipping applications. Two case studies were assessed: an LNG fuelled pure car and truck carrier (12,614 kW dual-fuel 7S60ME-C10.5-GI two stroke diesel engine) and a hybrid diesel (1200 kW engine that burns marine gas oil, MGO)-electric/battery ferry. The study found that the integration of the A3C process into new built or retrofitted vessels is feasible. However, the A3C process showed an impact on the total fuel consumption, which increased by 17% for LNG and by 24% for MGO when capturing 90% of carbon emissions from the main and the auxiliary engines and an additional load on the vessel by the liquid CO₂ storage tanks. The report concludes that the cost of the A3C process for shipping could be up to 50% lower than the conversion of vessels to use zero carbon fuels [36]. More recently, Chart Industries Inc. acquired Sustainable Energy Solutions (SES), and they have signed an agreement with the Norwegian company TECO 2030 to jointly develop an OCCS solution using Cryogenic Carbon Capture ^TM (CCC) technology [37].

In the UK context, CCC could aid in the decarbonisation of marine transport to reach the targets set in the UK Maritime 2050 strategy for 50% reduction of GHG emissions by 2050 [38], whilst avoiding major design changes needed in order to switch fuel sources to ammonia or hydrogen as proposed in the Clean Maritime Plan [39]. This is an important sector in the UK economy since transport by sea involves around 95% of imports and exports, 25% of the energy supply, and 48% of food supply.

3.1.2. Biogas Upgrading

Upgrading biogas from waste such as manure [40], sewage sludge, or municipal waste to a higher methane content to produce ‘biomethane’ is of interest in countries with schemes that support its use as a vehicle fuel or for injection into the natural gas grid. Europe is the world’s leading producer of biomethane, with 367 biomethane anaerobic digestion (AD) plants with a total upgrading capacity of 310,000 m³/h of raw biogas in 2014 [41].

Water scrubbing/absorption and amine-based chemical absorption are the most common upgrading technologies. Cryogenic/low-temperature upgrading technologies are still under development; however, they deliver a high methane purity with minimal methane loss (<1%) and a high purity captured CO₂ that usually shows up to 98% purity [42]. Though cryogenic distillation is the preferred method [42,43,44], it has been reported to consume a total specific energy of 1.79 MJ/kg CO₂ (0.35 kWh/Nm³ of raw biogas) to produce biomethane at a 95.56% capture rate. Most efforts have focused towards the avoidance of dry ice formation caused by CO₂ cryogenic separation due to potential operation problems caused by the blockage of pipes or other equipment [42]. However, a liquefaction process offers opportunities to deliver liquid biomethane (LBM) by freezing CO₂ with a reduced energy consumption of 0.65 kWh/Nm³ of processed raw biogas, which is equivalent to the 5.2 MJ/kg of LBM that is produced [45].

Biogas composition mainly consists of methane and CO₂, but it also contains trace contaminants such as H₂S, organics, and siloxanes. The drying and precooling stages of CCC systems provide the conditions for the removal of benzene, whilst siloxanes are fully removed simultaneously during the CO₂ removal step [46]. Alternatively to biogas upgrading, biogas could be employed directly in micro gas turbines, and the exhaust gases could be treated by post-combustion carbon capture technologies such as cryogenic carbon capture, which could lead to negative net emissions [47].

3.2. Large-Scale Applications

3.2.1. Blue Hydrogen Production

For low-carbon hydrogen production using fossil fuels, CCS technology is essential to produce the so-called ‘blue’ hydrogen in order to minimise CO₂ emissions. High-purity hydrogen of 90–98% can be attained in large-scale hydrogen production plants through cryogenic distillation with hydrogen recovery of 96% [48]. The principle used here is based on the partial condensation of the impurities in the off-gas generated during hydrogen production at low temperatures. The steam methane reformer or refinery off-gas is a mixture of CH₄, CO₂, CO, and other light hydrocarbons whose boiling points are relatively higher than that of hydrogen and therefore condense when the temperature is reduced significantly. Depending on the optimal operating conditions of the production plant, various refrigeration methods can be employed.

Joule–Thomson expansion of condensed hydrocarbon has been reportedly applied for refinery plant off-gas to meet the refrigeration requirement for cryogenic separation at an optimal feed pressure, gas rate, and hydrogen content of 2.8 MPa, 5000 m³/h, and less than 80%, respectively [49]. Aasadnia, Mehrpooya and Ghorbani [50] used a Joule–Brayton propane unit and an auxiliary nitrogen unit to provide cold energy for the cryogenic separation of hydrogen from a feed gas containing nitrogen, methane, ethane, propane, and benzene in order to produce a high-purity hydrogen. The two refrigeration units, the Joule–Brayton propane and the nitrogen units, delivered refrigeration at −155 °C and −40 °C, respectively. It was observed that the amount of hydrogen in the feed gas has an effect on the energy demand of the process in terms of energy required for compression and liquefying the nitrogen refrigerant. A 68% increase in the mole fraction of hydrogen in the feed gas inversely led to a 38% reduction in the energy consumed in the process. An increased pressure of the hydrogen-rich stream was reported to have increased the energy consumed by the propane unit and, consequently, the specific energy due to the resulting high temperature of the stream. There was also a rise in the cryogenic nitrogen that was required and an accompanying reduction in hydrogen recovery rate [50].

Conventional cryogenic distillation is a matured separation technology for hydrogen production just like pressure swing adsorption (PSA) technology. Although it benefits from higher hydrogen recovery compared to the PSA technology predominantly used in hydrogen production plants, its major drawback is the high energy demand required for hydrogen separation and purification leading to increased costs [48,51,52]. In addition, an initial step is necessary to remove water, CO, CO₂, and H₂S (if present) from the feed gas in order to prevent component holdup at low temperatures [53]. This has consequently led to a decline in the adoption of cryogenic distillation as a separation technology to purify hydrogen from reformer or refinery off-gas.

Recent efforts have progressed towards the combination of conventional cryogenic distillation with other hydrogen separation technologies such as PSA and membranes to improve the capture of CO₂ generated during hydrogen production. Due to the increased energy demand required to obtain high-purity hydrogen from the cryogenic separation method, Agrawal, Auvil, DiMartino, Choe and Hopkins [54] proposed a combined membrane/cryogenic hybrid system. Cryogenic separation can improve hydrogen recovery, and the membrane system can achieve high-purity hydrogen when both systems are combined effectively. With refrigeration supplied by liquid nitrogen, a thermodynamic analysis of the hybrid cryogenic/membrane system was performed. It was observed that an increased concentration of hydrogen in the feed gas directly impacted the thermodynamic efficiency of the cryogenic process, with efficiency dropping from approximately 35% to 20% to produce hydrogen streams of purities of 70% and 96.5%, respectively. The power requirement reported for the hybrid system was approximately 65% of that needed if the whole system were a completely cryogenic process. Although the hybrid system requires an additional membrane separation unit, the refrigeration for the cryogenic part has less refrigeration demand compared to an all-cryogenic system, thereby resulting in a lower capital cost for the hybrid system [54].

In their work, Kurokawa, Shirasaki and Yasuda [55] demonstrated a CO₂ capture caused by cryogenic separation using a high hydrogen production efficiency membrane reactor off-gas, which produces hydrogen from natural gas, and 90% CO₂ was captured. The efficiency of the combined system was reported to be 78.6% with CO₂ emissions reduced by 50% compared to conventional technology. A sensitivity analysis of the system conducted using a process simulator showed that the efficiency of the system falls with the decreasing temperature of the gas–liquid separator due to the high energy needed for the refrigeration unit to lower the phase separator temperature and subsequently improve the rate of CO₂ recovery from the off-gas.

Lin, He, Sun, Kniep, Ng, Baker and Merkel [56] evaluated and conducted a techno-economic analysis on a membrane/cryogenic hybrid system used for hydrogen production and CO₂ capture. A total of three hydrogen production methods were considered: coal oxy-fired GE gasifier in an integrated gasification combined cycle (IGCC), a methane reformer/PSA process, and a coal air-blown IGCC power plant. The feed gas for the hybrid unit adopted for hydrogen purification and CO₂ capture was the PSA off-gas generated by the methane reformer/PSA process and the syngas produced from both IGCC power plants. It was reported that the performance of the hybrid system depends on the CO₂ capture target, process stream conditions, and membrane properties. In the methane reforming plant, it was revealed that the concentration of separated CO₂ increases at a faster rate than the compressor when the CO₂ capture rate is increased, resulting in a rise in the cost of refrigeration. The optimum capture rate was disclosed to be 80%, above which there is a substantial increase in the power consumed and, subsequently, the cost of the produced CO₂ liquid. However, a high concentration of CO₂ in PSA off-gas as well as high CO₂/H₂ membrane selectivity was shown to have made cryogenic separation easier, leading to lower capital cost.

Similarly, Kim, Berstad, Anantharaman, Straus, Peters and Gundersen [57] optimised and compared three refrigeration methods for the cryogenic separation of CO₂ from a membrane reactor off-gas (retentate) containing hydrogen, CO, CO₂, and CH₄. The three separate cryogenic systems that use two-component refrigerants (composed of propane cycle and ethane cycle), single mixed refrigerant (comprising a mixture of methane, ethane, propane and butane), and Joule–Thomson expansion to liquify the reactor off-gas were simulated in Aspen HYSYS. Results indicated that the single mixed refrigerant design had the largest energy efficiency, while the Joules–Thomson system gave the highest power consumption due to the compression work required to increase the pressure of the retentate. It was, however, concluded that the Joule–Thomson system can be applied for retentate gas lean in CO₂, while the two-component refrigerants system can be considered for CO₂ rich gas retentate.

A hybrid system is already being demonstrated on an industrial scale. For instance, Air Liquide’s CRYOCAP™ hydrogen technology has already been deployed on a small industrial scale and uses cryogenic technology and membranes to purify the CO₂ present in PSA off-gas in a conventional steam methane reforming plant. In this concept, the reformer product stream is sent to the PSA to first separate the hydrogen. The PSA off-gas is then directed to the combined membrane-cryogenic distillation unit to separate and purify CO₂ present in the PSA off-gas. There was a reported increase in hydrogen recovery, with more than 97% of CO₂ from the syngas being captured [58,59]. In addition, ongoing research to perfect CO₂ removal from flue gas makes use of their hybrid cryogenic technology, which combines PSA to produce a pre-concentrated CO₂ stream and cryogenic method to further separate the concentrated CO₂ stream from lighter gases [60]. When compared to amine technologies, CRYOCAP™ FG, for concentrated flue gases displayed a high CO₂ capture rate of 90%, whereas the amine-based CO₂ capture technology exhibited a 69–74% CO₂ capture. Although demonstrated to be more economical than amine-based separation, this PSA-Cryogenic hybrid technology is not yet demonstrated at industrial scale and is rated at TRL 6.

In more recent research considering unconventional cryogenic liquid technology, Yurata and his team [61] illustrated the feasibility of de-sublimating carbon dioxide before hydrogen liquefaction for CO₂-H₂ separation. In their approach, two de-sublimation columns were used simultaneously to subject the feed gas to a cold environment, where CO₂ solidifies on the internal surface and subsequent heating to release CO₂ and H₂. Thereafter, the separate gas streams were liquified for storage and transportation. The energy demand of this process was compared toH₂-CO₂ separation technologies (membrane, PSA and MEA absorption) integrated with a liquefaction step downstream. It was proven that the de-sublimation method showed the lowest energy requirement. However, this process is not yet as widespread as the conventional cryogenic distillation.

3.2.2. Direct Air Capture (DAC)

The removal of CO₂ from air was first commercialised in the 1950s as a means to pre-treat the air before undergoing cryogenic air separation [62]. In the late 1990s, CO₂ removal from air (400 ppm CO₂), now known as direct air capture (DAC), was explored to mitigate climate change, particularly from dispersed CO₂ emitters or relatively small emitters [63]. DAC systems mostly involve solid sorbents or aqueous solutions. Aqueous solvents benefit from continuous operation but require costly regeneration systems. Carbon Engineering is one of the companies developing an aqueous DAC process; in their process, CO₂ is first removed using a KOH solution, and the CO₃⁻² is then precipitated with Ca⁺² to form CaCO₃, which is then calcined to release the CO₂ [62].

Direct air capture could also be achieved by using cryogenic separation via CO₂ desublimation. Baxter, Baxter and Burt [27] have assessed the cryogenic potential on various CO₂ compositions representing different sources of CO₂. They reported that for a gas stream with a 14% CO₂ content on a dry basis, a temperature of approximately −119 °C would be required, whilst a much lower CO₂ content of 1% would only decrease the temperature to −136 °C for a conservative 90% CO₂ capture efficiency. If their reported temperatures are extrapolated to 400 ppm CO₂, a lower temperature of around −157 °C would be required. Thus, the cooling that is needed is achievable and less than what is necessary in air separation units (e.g., temperatures between −183 °C and −196 °C).

4. Challenges for Commercialisation

4.1. Technology Readiness Level (TRL)

Cryogenic carbon capture is in the early stages of development. For example, Stirling coolers have only been tested at laboratory scale using solely CO₂/N₂ binary gas mixtures [17,64]. This system needs to be scale up to pilot or large-scale applications and be applied to different industrial CO₂ emissions (such as power plants, cement, and steel, which represent different CO₂ concentrations and the inclusion of impurities).

PMW Technology has demonstrated the capture step of the moving packed bed technology called A3C. The current technological readiness level of the A3C process is TRL 3, with a capture efficiency of 93% and higher [26]. Further development of the A3C process is expected to focus on the integration of the bed cooler, the capture column, and the bed sublimer into a combined continuous system.

Sustainable Energy Solutions (SES) has developed the Cryogenic Carbon Capture ™ (CCC) technology that claims to reduce CO₂ emissions from fossil-fuelled power plants by 95–99% [65]. SES has developed a direct-contact phase-change (DCPC) dryer for the simultaneous cooling and drying of the feed gas. The DCPC has been tested with a lithium chloride/water brine and a potassium acetate/water solution. For further cooling, they have used an ethanol/water solution or a methanol/water solution without freezing at the low temperatures that are needed [22]. More recently, SES has tested the CCC ^TM pilot demonstration unit to capture at least 95% of CO₂ from a slipstream of 1 tonne per day (TPD) at the Cementos Argos’ Roberta cement plant near Calera, Alabama and at the PacifiCorp Hunter coal-fired power plant near Castle Dale, Utah for nine months [65,66], which moves the technology to at least TRL 5. The company has plans to scale up the CCC-ECL process to a small commercial unit of 20–100 TPD after Chart Industries has acquired SES.

A technology that makes use of heat exchangers for the frosting and defrosting of CO₂ followed by biomethane liquefaction is being commercialised by Cryo Pur. The process upgrades biogas into LBM (or bio-LNG). Their first commercial unit was installed in 2017 at Greenville Energy in Northern Ireland and operates at 3 tonnes of bio-LNG per day (i.e., treating 300 Nm³/h raw biogas) [67]. Thus, this is the most advanced CCC process, with a TRL of at least 6.

4.2. Competing Technologies

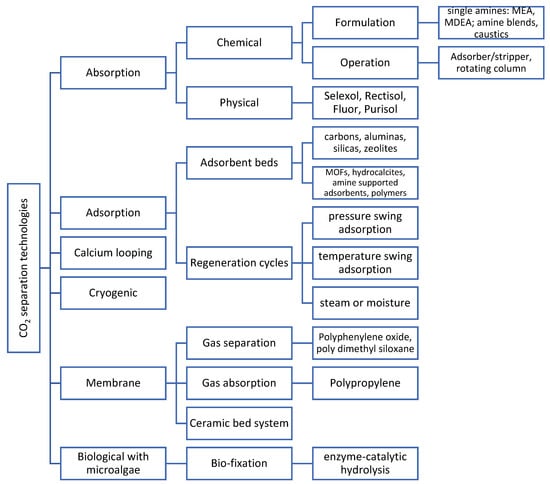

It is out of the scope of this work to review all of the other alternative carbon capture methods and separation processes shown in Figure 1. Others have published in-depth reviews that can be found in [68,69,70].

Table 3. Characteristics of cryogenic carbon capture relative to other carbon capture technologies.

Technology	Cryogenic Packed Bed	Adsorption	Absorption	Membrane
Advantages	CO2 can be recovered at high purity Capable of operating at atmospheric pressure	Mature technology Low cost of sorbents Sorbents can be regenerated and reused	Most available solvents are cheap and suitable for high-temperature applications	High purity and recovery of CO2 Short startup time and low energy requirement Low-cost separation of CO2
Disadvantages	Uneconomical for dilute CO2 feed streams Feed composition must be stripped of water in order to prevent ice plugging High energy requirement due to cooling	High energy penalty imposed by high pressure requirement for CO2 adsorption and temperature for sorbent regeneration. Periodic sorbent regeneration easily leads to quick degradation of sorbents and subsequent replacement	High energy penalty due to sorbent regeneration Large capital cost resulting from plant equipment size and high-performance sorbent	Low selectivity for CO2 capture Capital intensive for large scale application Low activity observed when CO2 concentration in feed stream is less than 20% Not suitable for high-temperature operating condition
Scale	Small to large	Large	Large	Small to medium
Capture Cost/tCO2	USD 55–130	USD 50–150	USD 40–100	USD 15–55
CO2 recovery	99.99%	80–95%	60–95%	60–90%
Energy consumption (GJ/tCO2)	2.4–5.2 GJ/tCO2	4–6 GJ/tCO2	2.3–9.2 GJ/tCO2	0.5–6 GJ/tCO2
Reference	[2,24,82]	[13,60,83,84]	[83,84,85,86]	[56,86,87]

compares cryogenic carbon capture against more mature technologies, such as absorption and adsorption, highlighting their benefits and disadvantages.

In terms of hydrogen production, a comprehensive work that has gathered and compared the cost of hydrogen and capital costs for H₂ production found that the costs of SMR with CCS are comparable or even lower than alternative methods such as gasification with and without CCS, nuclear thermolysis, and electrolysis [71]. All technological options are needed to reach the ambition target of net zero emissions by 2050, and CCS is indeed essential for the reduction of industrial emissions and hydrogen production.

Another emerging technology is sorption enhanced steam methane reforming (SE-SMR), a process intensification of steam methane reforming, which involves the in situ removal of CO₂ produced during hydrogen production from a hydrocarbon source such as natural gas in a single reactor [72]. CO₂ separation is usually done using a high-temperature solid sorbent such as calcium oxide (CaO) which can be regenerated by temperature swing or pressure swing to produce pure CO₂ stream [73]. With the sorbent capture cost going as low as USD 9– 11 per tonne of CO₂ captured, a pure hydrogen stream of up to 99% can be attained [74,75]. This technology is already being demonstrated at the pilot stage. The BioZEG pilot plant developed by ZEG Power AS employs the concept of SE-SMR to produce hydrogen from hydrocarbon fuels. The plant, which integrates solid fuel oxide technology (20 kW_e) with hydrogen production (30 kW_H), is reported to have a potential of 100% CO₂ capture and 80% energy efficiency [76]. Hynor Lillestrøm have deployed a small-scale hydrogen production technology that currently integrates the sorption enhanced process for hydrogen production at their hydrogen station. The SER prototype capable of producing 12.5 Nm³/h hydrogen from biogas at high carbon capture is currently operated by IFE Hynor in their lab [77]. The Gas Technology Institute (GTI) has successfully demonstrated a 71 kW_th integrated hydrogen production and carbon capture plant in the US. The facility was reported to achieve hydrogen purity of ~92% and 90% CO₂ capture [78]. For information on the wide range of hydrogen production technologies available and under development, please refer to other reviews [79,80,81].

4.3. Incentives

The need for CCS Research, Development, and Demonstration (RD&D) policy is key, particularly for emerging technologies such as CCC systems. In the US, legislation in the Section 45Q tax credit (45Q) for carbon oxide sequestration defined the value of USD 35/tCO₂ for EOR and non-EOR COx use and USD 50/tCO₂ for COx secure geologic storage in 2018. More recently, the CCUS Tax Credit Amendments Act rised the 45Q credit value from USD 50 to USD 120 per metric ton for DAC plants that securely store CO₂ in saline geologic formations and from USD 35 to USD 75/tonne for DAC facilities with CO₂ storage in oil and gas fields [88].

Although the Netherlands is committed to reduce 14 Mton per year of CO₂ by 2030 and recognises the substantial role of CCS to achieve their target, the country has capped CCS efforts to 7.2 Mton of CO₂ capture to keep CCS as a transition technology particularly for difficult industries (e.g., cement). Thus, after 2035, there will be no more subsidies for fossil fuels, with a maximum subsidy of EUR 63/tonne of CO₂ for CCS [89]. The company Carbon Collectors proposes collecting CO₂ at customer site and then transporting it by ship to the nearest CO₂ storage location [90].

For DAC, current studies have reported costs between USD 124 and USD 325 per metric tonne of CO₂ removed from the atmosphere for the first million tons of installed capacity. The costs exclude CO₂ compression and storage. For the US, support and policies for DAC are predicted to drop levelized costs through technological improvements, economies of scale, and mass production to between USD 85 and USD 261 per metric ton of CO₂ at 7–9 MMt of capture capacity by 2030 [91].

4.4. Challenges and Perspectives

CCS technologies are key to achieving industrial decarbonisation and meet net zero carbon targets. Current CCS technologies have reported varying costs depending on the application, e.g., USD 40–60/tonne CO₂ for the power sector and USD 200/tonne CO₂ for the cement sector [92], and advances should decrease costs as CCS is more intensely deployed. It has been estimated that the current annual carbon capture of 40 Mt of CO₂, with 26 operating CCS facilities, should increase to 5.6 Gt by 2050 to decarbonise not only the power sector but also hard to abate industries such as steel, cement, chemical industries [93]. The grand capacity that would be needed would create opportunities for projects of different scales and not just for foundation industries—one of the largest UK emitters with 50 Mt of CO₂ per year.

Due to the benefits of economies of scale, many countries, including the UK, USA, Canada, and Norway are creating hubs and clusters of concentrated industrial regions where shared compression, dehydration, transport, and storage will aid in decreasing unit costs and risks by synergies from multiple customers and suppliers of CCS networks [93].

For small-scale emitters, such as small enterprises or ships, novel and compact solutions are needed to minimise costs and space requirements. Cryogenic carbon capture could offer such solutions. In addition, CCC employed to upgrade biogas provides a means for negative emissions, and this application is more relevant when liquified biomethane and/or CO₂ are the desired products. The amount of CO₂ captured is suitable for decentralised solutions that are distant to CCS clusters as well as for CO₂ use (CCU), e.g., for the synthesis of chemicals and production of building materials.

In order to assess the environmental effects of introducing CCS/CCU technologies, life cycle assessment (LCA) is a well-established tool for evaluating their impacts. So far, LCA for chemical absorption, oxy-combustion, chemical and calcium looping, and pre-combustion have been reported [94]. Thus, it is evident that emerging CCC technologies need LCA studies to be conducted without delay to support their relevance as low carbon solutions.

5. Conclusions

Carbon capture and storage is a technological option needed for the transition to the full elimination of fossil fuels and for the removal of carbon dioxide emissions for industries whose processes emit CO₂. This review specifically covered cryogenic carbon capture (CCC) due to its benefits as a physical separation method. Different CCC methods that are mostly under development were presented, including their current challenges in deterring their commercialisation. It also offers an appraisal for selected feasible small- and large-scale CCC applications, including blue hydrogen production and direct air capture. This work provides an overview of the current status of CCC systems, including their technological readiness for CCC deployment and acknowledges competing technologies.
