BMIM-BF₄ RTIL: Synthesis, Characterization and Performance Evaluation for Electrochemical CO₂ Reduction to CO over Sn and MoSi₂ Cathodes

Abstract

Development of a practicable artificial photosynthesis process has been considered today as one of the top-most research priorities to address the problems related to the global warming and the associated social cost of carbon, and to develop the renewable fuels employable in place of fossil fuels. For this purpose, a simple and inexpensive route has been devised to synthesize a high-purity bmim[BF₄] to employ as a helper catalyst to promote the electrochemical CO₂ reduction (ECR) to CO formation over Sn and MoSi₂ cathodes. The rates of CO₂ reduction over Sn and MoSi₂ cathodes have been determined to be >110 mA/cm² during cyclic voltammetry. The CO formation at a current density of >100 mA/cm² in the ECR reaction is very essential to consider this reaction for industrial practice when the required electricity derived from sunlight is available at an affordable price. The bmim[BF₄] mediated ECR reaction over Sn and MoSi₂ cathodes has been identified to be a revere reaction of CO oxidation in air. The experiments with isotopic ¹³CO₂ confirmed that CO₂ is the only source of CO formation in the ECR reaction. The underlying reaction mechanism in bmim[BF₄] mediated ECR reaction over Sn has been presented and discussed in this article.

1. Introduction

Today, the electrochemical carbon dioxide (CO₂) reduction (ECR) to fuel chemicals, such as, CO, methanol, etc., using electricity derived from sunlight, which is popularly known as the artificial photosynthesis (AP) process, is considered as one of the top most research priorities to address the problems related to the (i) CO₂ associated global warming, and the associated social cost of carbon, (ii) to store the renewable and surplus energy in high energy density liquid fuels employable directly in place of petrol (gasoline) and diesel in the present existing energy distribution infrastructure (i.e., internal combustion (IC) engines) so that there would not be any severe economical consequences while transforming from fossil fuel energy dependency to non-fossil fuel, renewable and solar energy dependency and (iii) to arrest the depletion of fossil fuels, mainly the important resource of crude oil required for future generations [1,2,3,4,5,6,7,8,9,10]. Furthermore, today, >80% of the global primary energy requirement is met from fossil fuels, and this is the reason for the increased concentration of CO₂ in the atmosphere to the extent of >400 ppm today [11]. This anthropogenic atmospheric CO₂ reacts with seawater when it comes into contact with the surface of seawater, which is spread across more than 70% of the earth surface, at an hydration equilibrium constant (Kr) of 1.7 × 10⁻³ thereby leading to the formation of bicarbonates and carbonates of calcium, sodium and magnesium in the seawater as per the reactions shown in Equations (1)–(9) while releasing two protons (H⁺) for every CO₂ molecule reacted with water into the seawater thus contributing to the acidification of seawater [1,2,3,4,5,6,7,8,9,10,11,12,13]. This latter process is popularly called “ocean acidification”, which is responsible for the formation of biological calcium carbonate minerals [14]. As of today, the readily available technology to address the problems related to the CO₂ associated global warming and the social cost of carbon, and to avoid the acidification of seawater, is the “CO₂ sequestration”, which is also called “carbon capture and storage (CCS)” [12,13]. It is known that when CO₂ is pumped into deep seawater below 3500 m from top of the seawater surface as a part of the CCS process, a stable CO₂ clathrate (Equation (10)), is formed, which is a snow-like crystalline substance composed of H₂O ice and CO₂, under the pressure of >350 bar and temperature of 3 °C, which are present at below 3500 m deep seawater [13]. Recently, Matter et al. [12] reported a new CO₂ sequestration process. In this latter process, when a mixture of water and CO₂ is pumped 540 m deep into the Iceland rocks, this acidic solution causes the leaching of the Mg and Ca metals out of the basalt rocks and converts them into MgCO₃ and CaCO₃ rocks. These latter rocks have been found to be stable for more than a two-year period. The cost of this new CO₂ sequestration process has been estimated to be about 18 USD for disposing off a ton of CO₂ gas.

CO_2(aq) + H₂O_(aq) ⇆ H₂CO_3(aq) (K_r = 1.7 × 10⁻³)

(1)

[CO_2(aq)] ⇆ H⁺ + HCO₃⁻ ([H⁺][HCO₃⁻] = K_a1[CO_2(aq)]) (pK_a1 = 6.363 at 25 °C and I = 0)

(2)

HCO₃⁻ ⇆ H⁺ + CO₃²⁻ ([H⁺][CO₃²⁻] = K_a2[HCO₃⁻]) (pK_a2 = 10.329 at 25 °C and I = 0)

(3)

HCO₃⁻ + Na⁺ ⇆ NaHCO₃

(4)

CO₃²⁻ + 2Na⁺ ⇆ Na₂CO₃

(5)

CO₃²⁻ + Mg²⁺ ⇆ MgCO₃

(6)

CO₃²⁻ + Ca²⁺ ⇆ CaCO₃

(7)

2HCO₃⁻ + Mg²⁺ ⇆ Mg(HCO₃)₂

(8)

2HCO₃⁻ + Ca²⁺ ⇆ Ca(HCO₃)₂

(9)

CO₂ + 8H₂O ⇆ CO₂·8H₂O (<10 °C and >45 bar)

(10)

Although, at present, the CO₂ sequestration into the deep seawater is the only available option to address the CO₂ associated global warming problem, the conversion of CO₂ into fuel and other value added chemicals by following the carbon capture and utilization (CCU) process can be considered a more beneficial one [13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28]. The CCS process apart from being expensive (when CO₂ is transported from far distances) and laborious, it irreversibly blocks the important resource of C₁ carbon in the form of CO₂ clathrate in deep seawater, which cannot be used for any of the human beneficial activities. In fact, the CO₂ shall be participated in the natural carbon cycle that is required for the sustainability of life on the earth surface. Furthermore, the CO₂ to be sequestered is normally captured at major outlets such as thermal power plants, cement industry, steel factories, gas refineries, etc., which are situated most often far away from those sites used for sequestration [15,16]. In certain places like those in Europe, transportation in pipelines to the storage sites is quite difficult, and it will increase the cost of the process by at least 15–20%, which is considered to be unacceptable. The Department of Energy (DOE), USA, suggests that the transportation of CO₂ in tankers on the road is not acceptable if the distance is more than 100 km. In the total CCS process, about 35–40% is the transportation and storage costs. This cost would be between 35 and 50 €/ton for the early commercial phase (after year 2020) and between 60 and 90 €/ton during the demonstration phase, when transportation of CO₂ is made by pipelines for distances not over 200–300 km. This cost would be further increased if the transportation was made by the road [15,16]. Of course, it can be well-understood that the CCU process is meaningful only if the energy required for driving the thermodynamic energy consuming CO₂ conversion to fuel chemicals is obtained from any of the available renewable energy resources at an affordable cost. In addition to that, today, none of the existing industrial CO₂ conversion processes has the ability to consume all of the CO₂ gas generated at all major outlets across the globe as the consumption of products formed in these processes is limited in the present society. Furthermore, these industrial CO₂ conversion processes cannot store any external energy in the form of chemical bonds of products formed in them as these reactions proceed by utilizing the chemical potentials of the reactants as they are exothermic, stoichiometric, neutralization, spontaneous and energy releasing ones in nature [1,8,10,15,16,19,20,21,22,23]. Whereas, energy storing CO₂ conversion processes such as electrochemical CO₂ reduction (ECR) to CO, etc., are yet to be fully developed to practice at industry for commercial purposes [8,9,10,15,23].

Since, ΔG° values of CO₂ reduction to CO and methanol [8,17] are positive (ΔG = −RT lnk and ΔG = ΔH−TΔS; where R: universal gas constant (8.314 J/mol K); T: temperature in Kelvin; H: enthalpy (J/mol) and S: entropy (J/K)), these reduction reactions can store external energy in the products formed. Furthermore, the E⁰ of one electron reduced CO₂ to CO₂^•− intermediate formation is about −1.90 V vs. NHE, whereas, the E⁰ of two-electrons reduced CO formation with two-protons (H⁺) and two-electrons (e⁻) is only about −0.17 V vs. NHE [8,17,23]. These E⁰ values suggest that a catalytic system is required to bypass one-electron reduced CO₂^•− intermediate formation in the ECR to CO formation reaction so that the wastage of at least 1.73 V as an overpotential for every CO molecule formed can be avoided. The CO gas formed in the ECR reaction, and the H₂ obtained from water in an electrolyzer can be employed to synthesize methanol, which in turn can be converted into a synthetic petrol (gasoline) by following an industrially practiced methanol-to-gasoline (MTG) process [1,23]. The commercial methanol is produced at a pressure of p = 50–100 bar and temperature of 200–300 °C over the Cu/ZnO/Al₂O₃ catalyst [1,18]. The cathodic systems such as, Sn, Au, Ag, Bi, MoS₂, etc., employed in conjunction with an imidazolium-based room temperature ionic liquid (RTIL) helper catalysts such as 1-butyl-3-methylimidazolium tetraflouroborate (bmim[BF₄]) have been identified to be catalytic systems capable of bypassing the formation of a single-electron reduced CO₂^•− intermediate in the ECR reaction to form CO at much lower overpotentials with considerably high selectivity and product formation rate [2,3,4,5,23,24,25,26,27,28]. Among various inexpensive base metal cathodes employed so far for performing the ECR to CO formation reaction, only Sn in conjunction with bmim[BF₄] has been identified to be a simple, and very efficient electrocatalytic system. Recently, the relatively inexpensive Mo [29], MoS₂ [2], MoO₂ [30] and Mo₂CTx MXenes (MXenes are a family of two-dimensional transition metal carbide/nitride materials with metallic-like conductivity, and with a general formula of M_n+1X_nT_x, where M represents an early transition metal, X is carbon and/or nitrogen, with n in the range of 1–4 and T_x represents surface termination groups including –O, –F, etc.) [31] in comparison to noble metal cathodes have also been found to be excellent electrocatalytic systems to perform ECR to form methanol, CO, etc., under different reaction conditions. However, in comparison to Mo, the MoS₂ has exhibited higher activity for CO formation when it was employed in conjunction with bmim[BF₄] RTIL in terms of the product selectivity, Faradaic efficiency (FE) and overpotential required. However, the MoS₂ deposited by following chemical vapor deposition on a conductive carbon surface from Mo and S cannot be as robust as the Mo metal electrode in terms of physical integrity [2]. At high turbulent conditions, which are prevalent during industrial practice of the ECR reaction at pressures exceeding >50 bar, the MoS₂ can be peeled off from the surface of electrically conductive carbon substrate. The molybdenum disilicide, MoSi₂, is another compound popularly known as the Kanthal^® Super heating element to the materials scientists. It is a unique material combining the best properties of metallic and ceramic materials, and can be synthesized by following an expensive self-propagating high-temperature synthesis (SHS) route using Mo and Si starting powders [32], and it can be fully densified into strong objects in different shapes by introducing a considerable amount of porosity in them by following the conventional powder processing and sintering routes. Like, a metallic material, MoSi₂ has good heat and electrical conductivity, and like ceramics, it withstands corrosion and oxidation, and has low thermal expansion. It can withstand about 1900 °C in the open-air atmosphere. In this study, for the first time, MoSi₂ was investigated as a cathode in conjunction with bmim[BF₄] RTIL to perform the ECR reaction in a non-aqueous aprotic catholyte solution separated by a nafion membrane from an anolyte solution of 0.5 M sodium phosphate (pH = 7.4) buffer containing 0.5 mM Co²⁺ ions and compared its electrocatalytic performance with the one obtained over the Sn cathode under identical reaction conditions [23,28].

Nevertheless, by involving very expensive bmim[BF₄] RTIL as a helper catalyst, it is not possible to devise an inexpensive ECR process to produce CO for commercial purposes. Since, none of the reported methods in the literature are straight forward to synthesize high-purity colorless bmim[BF₄] RTIL from locally available inexpensive starting raw materials (1-bromobutane (BB) and 1-methylimidazole (MI)) as summarized in

Table 1. The procedures reported for the synthesis of high-purity bmim[BF₄], Bmim[PF₆], bmim[Br] and bmim[Cl] from 1-methylimidazole (MI), 1-bromobutatne (BB), 1-chlorobutatne (CB), KBF₄, KPF₆ and NaBF₄ reactants ^†.

IL Synthesized	Reactants	Reaction Procedure	Ref.
Bmim[Br]	MI and BB	Refluxing reactants mixture (RM) at 70 °C for 48 h	[33]
Bmim[Br]	MI and BB	Refluxing RM at <40 °C for 24 h	[34]
Bmim[Cl]	MI and CB	Refluxing RM at 70 °C for 7 days	[35]
Bmim[Cl]	MI and CB	Refluxing RM in acetonitrile (MeCN) at 80 °C for 48 h	[35,36]
Bmim[BF4]	Bmim[Br] and NaBF4	Refluxing RM in acetone at 40 °C for 10 h and extraction with DCM	[33]
Bmim[BF4]	Bmim[Cl] and KBF4	Stirred RM in H2O at RT † for 2 h and vacuum separation with DCM	[35,36]
Bmim[BF4]	Bmim[Cl] and NaBF4	Stirred RM in H2O at 45 °C for 15 min, and distillation with DCM	[37]
Bmim[BF4]	Bmim[Br] and NaBF4	Refluxing RM at <25 °C for 3 h and continuous liquid–liquid extraction with DCM	[34]
Bmim[PF6]	Bmim[Cl] and KPF6	Stirred RM in H2O at RT for 2 h and vacuum separation with DCM	[35]

^† RT–room temperature.

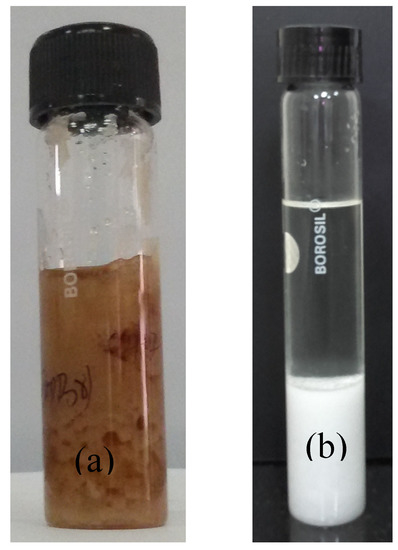

[33,34,35,36,37], in this article, a simple and straight forward synthetic route is reported. In this new route, the water employed to decolorize the bmim[Br] intermediate formed out of BB and MI starting reactants with the help of activated charcoal was removed by following the freeze drying technique for the first time, which is known for selectively removing the water from high-boiling point organic reaction mixtures at relatively faster rates.

Furthermore, the reaction conditions needed to extract bmim[BF₄] RTIL by following a continuous liquid–liquid extraction technique from the reaction mixture containing inorganic byproducts such as, NaBr, KBr, etc., using dichloromethane (DCM) as an extraction solvent is not reported clearly in the existing literature.

In view of the above, the main objective of the present study was to devise a simple and straight forward route for the synthesis of high-purity bmim[BF₄] using locally available inexpensive starting raw materials. Accordingly, an high-purity bmim[BF₄] was synthesized and was thoroughly characterized by means of ¹H- and ¹³C-NMR, FT-IR, mass spectral and inductively coupled plasma-optical emission spectrometry (ICP-OES ) techniques, and finally evaluated its efficacy as an helper catalyst (i.e., as a mediator) to promote the ECR to CO formation reaction over Sn as well as MoSi₂ bulk monolith cathodes as this latter reaction is a part of an important AP process. For comparison purposes, a commercially available high-purity (≥97.0%) bmim[BF₄] RTIL procured from Aldrich, St. Louis, MO, USA was also utilized in this investigation.

2. Materials and Methods

2.1. Synthesis of 1-Butyl-3-methylimidazolium Tetraflouroborate (bmim[BF₄])

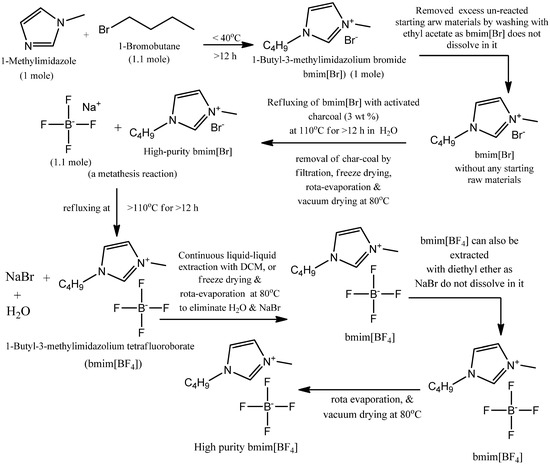

The detailed procedure involved in the synthesis of bmim[BF₄] RTIL is schematically shown in Scheme 1. In a typical experiment, 27 mL n-bromobutane (BB; 98% purity, stabilized with silver wire, Sisco Research Laboratories (SRL), Mumbai, India) was slowly introduced into 11 mL freshly distilled 1-methylimidazole (MI; Tokyo Chemical Industry (TCI), Tokyo, Japan) solution taken in a 500 mL 2-neck round bottom (RB) flask fitted with a dropping (i.e., equalization) funnel and stirred for >48 h while maintaining the reaction temperature below 40 °C. The ratio maintained between MI and BB was 1:1.5, respectively [33]. The resultant 1-butyl-3-methylimidazolium bromide (bmim[Br]) yellowish-white solid (Figure 1a) was washed thrice with excess amount of ethyl acetate (EA; 98.0% pure, SQ, Fisher-Scientific, Qualigens, Mumbai, India; each time with 200 mL) to remove the unreacted starting raw materials as bmim[Br] does not dissolve in EA. Finally, the decolorization of bmim[Br] was accomplished by dissolving it in about 250 mL of deionized water taken in a 1000 mL borosil glass beaker, to which about 3–5 g of activated charcoal (decolorizing agent; activated carbon, 400 superior extra pure, AR grade, SRL, Mumbai, India) was introduced and then refluxed at 100 °C with vigorous stirring for >24 h. The activated charcoal was then filtered off using a Buchner funnel containing two numbers of 125 mm diameter (ϕ) Whatman filter papers (grade 41 and 42, Whatman^TM, Ashless GE Healthcare Life Science, Marlborough, MA, USA) to obtain a very clear transparent solution, which was then sprayed into liquid N₂ present in a 1000 mL vacuum (Dewar) flask. The resultant transparent solid was then dried on a freeze drying machine overnight to become a clear transparent solution. Thus, obtained solution was further subjected to a rotary evaporation at 80 °C, and then placed in a vacuum oven (Lindberg Blue, 3M, St. Paul, Minnesota, USA) maintaining at 80 °C overnight to obtain white colored pure bmim[Br] solid (Figure 1b).

The bmim[BF₄] RTIL was prepared by performing a metathesis reaction between the above-synthesized bmim[Br] solid, and sodium tetrafluoroborate (NaBF₄; 98.5%, SRL, Mumbai). In a typical experiment, about 25 g bmim[Br] was dissolved in about 250 mL deionized water, which was then added with 13 g NaBF₄ (slightly excess than the stoichiometric requirement). The resultant solution was vigorously stirred at room temperature for >24 h, and washed with diethyl ether (DEE) using a separating funnel leaving the sodium bromide (NaBr; a byproduct formed in this reaction; confirmed by XRD analysis, Figure S1) in the water layer [33]. Then, the DEE was evaporated on a rota-evaporator to obtain pure bmim[BF₄] RTIL, which was then dried at 70 °C overnight in a vacuum oven (Lindberg Blue, USA). Alternatively, the clear aqueous solution mixture of bmim[Br] and NaBF₄ (13 g) in 250 mL deionized water was also stirred at room temperature (RT) for 24 h, and then transferred into a continuous liquid–liquid extraction apparatus (Figure S2) and extracted bmim[BF₄] with dichloromethane (DCM; anhydrous, ≥99.8%, contains 40–150 ppm amylene as a stabilizer, Sigma-Aldrich) solvent for about 48 h. The DCM solution was then filtered through a plug of silica (100 g), and removed it on a rota-evaporator to obtain a high-purity bmim[BF₄] RTIL with >95% yield. Henceforth, the bmim[BF₄] synthesized in this study is referred to as ARCI-bmim[BF₄], and the one procured from Aldrich, USA is referred to as Aldrich-bmim[BF₄].

2.2. Electrochemical Experiments

ECR reactions were performed using controlled potential bulk electrolysis (CPBE) as well as cyclic voltammetry (CV) techniques using a three-electrode based Metrohm (PGSTAT 302N, Autolab B.V., Kanaalweg 29G, 3526 KM, Utrecht, The Netherlands) electrochemical workstation. The potentials in non-aqueous aprotic catholyte solution were measured using Ag/0.01 M Ag⁺ (AgNO₃, 99.1% pure, SQ, Fisher-Scientific, Mumbai, India), and thus obtained potentials are then converted into NHE (normal hydrogen electrode) using Equation (11) [23,28,38,39].

E(NHE) = E(Ag/(0.01 M Ag⁺) + 0.548 V

(11)

The reference electrode (Ag/0.01 M Ag⁺) was calibrated by following a reported procedure as elaborated in the supporting information file (Figure S3) [40]. The electrolyte solution prepared by mixing high-purity and fully dried MeCN (Chromosol V^® Plus, for HPLC, >99.9%, Sigma-Aldrich), St. Louis, MO, USA, n-Bu₄NPF₆ (0.1 M, ≥99.0%, Sigma-Aldrich) and bmim-BF₄ (20 mM; synthesized in this study) was employed in the CV experiment. Prior to the experiment, for about 30–45 min, the electrolyte solution was purged with either Ar (>99.9%, Production Needs Gases (Pvt) Ltd., Hyderabad, India) or ¹²CO₂ (99.99%, M/s. Sicgil India (Pvt) Ltd., Chennai, India) at 50 sccm to remove gaseous impurities if any are present while vigorously stirring it on a magnetic stirrer in a single-compartment electrochemical (EC) cell depending on the nature of the reaction to be carried out. The CV recordings were made at a scanning rate of 10–100 mV/s [23,28,38]. While recording CV, the gas being sent into the electrolyte solution was used as a blanket on the headspace of the electrolyte solution at a pressure slightly excessive than that of the atmospheric one so that no gas impurities such as, oxygen, moisture, etc., can enter into the electrolyte solution from the environment. The MeCN drying was performed by storing it over anhydrous sodium carbonate (Na₂CO₃, ≥99.0%, Sigma-Aldrich, St. Louis, MO, USA) for more than a week while stirring it occasionally. After that, it was twice subjected to a fractional distillation operation under reduced Ar pressure before storing it in a dark colored bottle under Ar gas. The residual moisture from MeCN was removed by passing it through a column of Al₂O₃ (grade 1, Merck) treated under vacuum at 360 °C. In order to compensate the evaporation of MeCN from the electrolyte solution during purging with the gas, the gas was passed through MeCN placed in a 500 mL volume glass-trap apparatus. The surface activation or regeneration, or purification of metal electrodes was accomplished by polishing them using an Al₂O₃ powder (an average particle size of 0.05 μm) slurry prepared using Millipore (ultrahigh-purity) water, and the surface cleaning of these polished metal electrodes was achieved by performing a sonication operation for 5 min in ultra-high purity Millipore water [23,28,38]. The geometric area of Sn and MoSi₂ working electrodes (WEs) was about <2 square millimeters, and a Pt wire with a diameter of about 0.5 mm (ϕ) procured from M/s. BASi, USA, was employed as auxiliary or counter electrode (AE or CE). The electrode Sn (>99.8%) metal was supplied by M/s. Tirupati Metals, Fathenagar, Hyderabad, whereas, the MoSi₂ was a centre cut-portion of used Kanthal Super 1900 heating element [41].

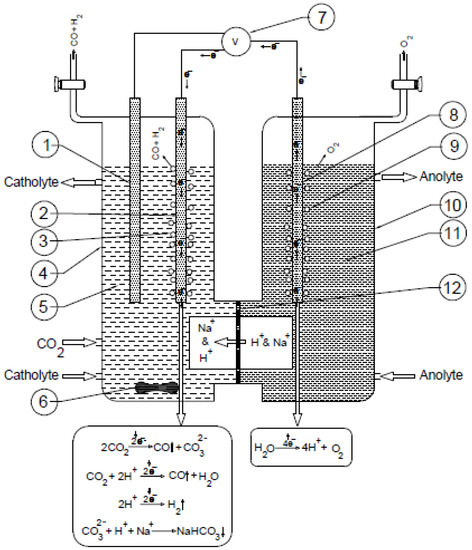

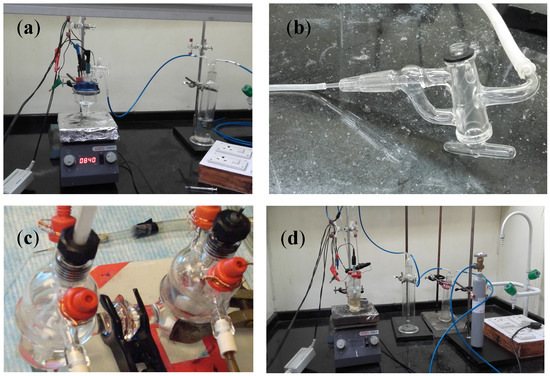

The CPBE experiments of ECR was performed in an all-glass gas-tight two-compartment electrochemical cell separated by a nafion (Alfa Aesar, Nafion^® N-1178, 0.180 mm thick, ≥0.90 meq/g exchange capacity, R_f[OCF₂CF(CF₃)₂]_nOCF₂CF₂SO₃H, 15 cm × 15 cm) membrane at room temperature at a reduction potential of −1.952 V vs. NHE [23,28,38]. The catholyte solution employed was a mixture of MeCN + n-Bu₄NPF₆ (0.1 M) + bmim[BF₄] (50 mM; either in house synthesized or the one procured from Aldrich, St. Louis, MO, USA with a purity of ≥97.0%; 91508-5G) saturated or/and continuously purged with ¹²CO₂ or ¹³CO₂ (99 atom% ¹³C, <3 atom% ¹⁸O, ¹³C labeled carbon dioxide ¹³CO₂, 364592-10L, Sigma-Aldrich, St Louis, MO, USA) gas at a rate of 50 sccm [28]. An anolyte solution employed was a buffer (pH = 7.4) solution of sodium phosphate (NaPi; 0.5 M) containing Co²⁺ ions (0.5 mM; cobaltous nitrate, Co(NO₃)₂·6H₂O, 97–100% pure, SQ, Fisher-Scientific, Qualigens, Mumbai, India). Refer supporting information (SI) file to know the procedure employed to prepare 0.5 M NaPi buffer (pH = 7.4) solution. Similar to the CV experiments, the catholyte solution employed in the CPBE was also purified by purging the gas prior to the experiment. The active geometric areas of cathode (a cut portion of Sn metal sheet, and MoSi₂ 8 mm diameter cylindrical shape rod that was vertically cut into two-layers along the length of the rod using an Isomet 1000 Precision Cutter, BUEHLER, Stuttgart, Germany) and anode (Pt foil) employed were 1.5 cm² and 4–5 cm², respectively [28]. During the experiments, about 0.1 mL of headspace gas was withdrawn into a deaerated gas-tight glass-syringe (Hamilton make) through a rubber septum (Suba-seal septa, Aldrich), and was injected into gas chromatography (GC; Agilent Technologies, 7890A, GC system, G3440A, Serial # CN10521016)–mass spectrometry (MS; Agilent Technologies, 5975C, inert XL EI/CI MSD with Triple-Axis Detector, G3174A, Serial # US10494610) equipment fitted with a capillary column (0.530 mm × 30 m, 50 micron, −60 to 300 °C, HP-MOLSIEVE, 19095P-MSO, Agilent Technologies, Inc., USA) packed with 5 Å molecular sieves to separate and detect the CO, H₂, O₂ and N₂ gases using the thermal conductivity detection (TCD) method coupled with mass-spectral analysis [28]. Contamination of the headspace by air leak was quantified by determining the N₂ present in the headspace areas of both the compartments (using the N₂ peak on GC traces). The yield, FE, TOF (turn-over-frequency) and the number of moles of product gases formed are determined as per the procedures described in SI [28].

2.3. Material Characterization

¹H-NMR spectra were recorded at 300, 400 or 500 MHz, and the ¹³C-NMR spectra at 100 or 125 MHz in CDCl₃ + DMSO for the determination of molecular structures and conformations. For all NMR analysis, approximately 30 mg of the ARCI-bmim[Br], or Aldrich-bmim[BF₄] was added into a 5 mm NMR tube. ¹H-NMR data in ppm (δ) from the internal standard (tetramethyl silane, TMS, 0.0 ppm), chemical shift (multiplicity, integration) and the ¹³C-NMR data (internal standard CDCl₃) in ppm (δ) were reported. The values of ¹H-NMR spectral lines and the coupling constants are given in hertz (Hz). The mass spectra were recorded by using a high-resolution Q-TOF mass spectrometer. The micrographs were recorded using a scanning electron microscope (SEM; JSM–5410, JEOL, Akishima, Tokyo, Japan) with an energy dispersive scanning (Sigma 3.42 Quaser, Kevex, Mahwah, NJ, USA) attachment for qualitative and quantitative microanalysis. The FT-IR spectrum of bmim[BF₄] was recorded using Thermo Nicolet Nexus 670 Fourier Transform Infrared Spectrometer, Waltham, MA, USA, containing the detector of DTGS KB with a KBr beam splitter and the resolution of 4 cm⁻¹. The sample preparation method employed was a neat mode. In order to identify whether Na impurity in the form of NaBr present in ARCI-bmim[BF₄] and in Aldrich-bmim[BF₄], they were analyzed by ICP-OES- using Thermo Scientific™ iCAP™ 7400 ICP-OES, Thermo Fisher Scientific, USA, instrument containing iTEVA Security software. The moisture impurity from bmim[BF₄] was removed by placing it in a vacuum (1 × 10⁻³ torr) over at 80 °C overnight. The ICP-OES measurement parameters employed are as follows: frequency, 27.12 MHz; power, 1.15 kW; demountable quartz torch, Ar/Ar/Ar; coolant gas, Ar, 12.0 L min⁻¹; auxiliary gas, Ar, 0.5 L min⁻¹; nebulizer gas flow, Ar, 1.0 L min⁻¹; nebulizer pressure, 2.4 bar; sample flow rate into glass spray chamber, 0.5 L min⁻¹ and wavelength range of the monochromator 165–460 nm. The sample digestion system employed was the Microwave Reaction System (CEM Corporation, Matthews, NC, USA) containing one touch MARS 6 software. For this purpose, the 1 mL bmim[BF₄] was mixed with 9 mL HNO₃ (65%, Suprapur^®, Merck, Germany) and 3 mL HClO₄ (perchloric acid, 70%, AR/ACS, Finar, Andheri (E), Mumbai), and was digested using conditions as follows: power: 800 W; ramp: 20 min; holding time: 15 min and temperature: 210 °C.

3. Results

3.1. Characteristics of Bmim[Br] and Bmim[BF₄]

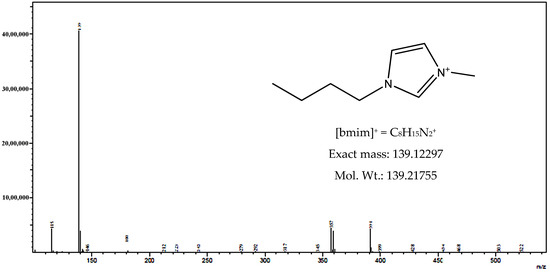

¹H- and ¹³C-NMR spectra of the ARCI-bmim[Br] white solid compound, ARCI-bmimBF₄] and Aldrich-bmim[BF₄] colorless RTILs are given in Figures S4a,b, S5a,b and S6a,b, respectively. For clarity purposes, the ¹H- and ¹³C-NMR signal positions (δ in ppm) and the multiplicity of these signals revealed by [bmim]⁺ (1-butyl-3-methylimidazolium cation; Scheme 2) of bmim[Br] and bmim[BF₄] RTILs are summarized in

Table 2. ¹H- and ¹³C-NMR spectral data of [bmim]⁺ group of ARCI-bmim[Br], ARCI-bmim[BF₄] and Aldrich-bmim[BF₄] ^†.

Compound	Analysis	NMR Signal Position δ in Ppm) of [bmim]+ Group ¥ (Multiplicity ‡)
		C2 (1H)	C4 (1H)	C5 (1H)	C6 (2H)	C7 (2H)	C8 (2H)	C9 (3H)	C10 (3H)
bmim[Br]	1H-NMR	9.708 (s)	7.306 (s)	7.454 (s)	4.288 (t)	1.874 (quint)	1.425 (sext)	0.958 (t)	4.063 (s)
bmim[BF4]	1H-NMR	9.40 (s)	7.40 (s)	7.46 (s)	4.25 (t)	1.87 (quint)	1.36 (sext)	0.95 (t)	4.02 (s)
bmim[BF4] ‡	1H-NMR	8.838 (s)	7.22 (s)	7.32 (s)	4.20 (t)	1.866 (quint)	1.36 (sext)	0.96 (t)	3.962 (s)
bmim[Br]	13C-NMR	137.001	121.975 (d)	123.564 (d)	49.759 (d)	32.002	19.344	13.329	36.545
bmim[BF4]	13C-NMR	135.47	121.722 (d)	123.075 (d)	48.90 (d)	31.193	18.542	12.591	35.521
bmim[BF4] ‡	13C-NMR	136.59	121.931 (d)	123.514 (d)	49.875 (d)	31.865	19.374	13.294	36.315

^† Refer to the experimental section to know the recording conditions of ¹H- and ¹³C-NMR spectra. ^‡ Multiplicities are indicated as follows: s = singlet; br s = broad singlet; d = doublet; dd = doublet of doublet; t = triplet; q = quadruplet; qunit = quintuplet; sext = sextuplet; sept = septuplet and m = multiplet. ^¥ Eight different carbon atoms of the [bmim]⁺ group: C₂ (1H and C of ring between two N atoms); C₄ (1H and C of ring attached to N₍₂₎ with methyl group); C₅ (1H and C of ring attached to N₁ with butyl group); C₆ (2H and 1st C of butyl group attached to N₁); C₇ (2H and 2nd C of butyl group attached to N₁); C₈ (2H and 3rd C of butyl group attached to N₍₁₎); C₉ (3H and 4th C of butyl group attached to N₍₁₎) and C₁₀ (3H and C of methyl group attached to N₍₂₎). Aldrich-bmim[BF₄] (≥97.0%, 91508-5G) procured from Aldrich, St. Louis, MO, USA.

.

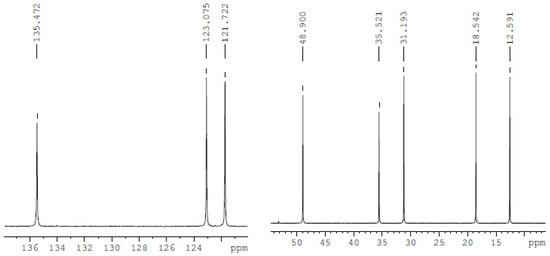

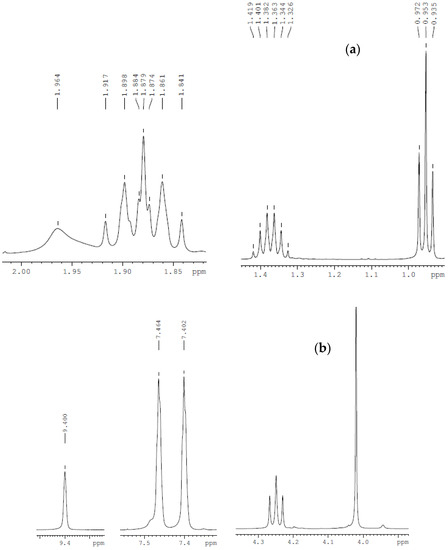

Furthermore, in order to analyze the multiplicity of ¹H- and ¹³C-NMR signals revealed by ARCI-bmim[BF₄], its high resolution spectral images recorded at smaller scales are given in Figure 2a,b and Figure 3, respectively. A closer look into all these six different types of NMR spectra and into the data of Table 2 suggest that ARCI-bmim[Br] and ARCI-bmim[BF₄] have the chemical composition of the 1-butyl-3-methylimidazolium (i.e., [bmim]⁺; Scheme 2) cation. Furthermore, the ¹H- and ¹³C-NMR signals of in-house synthesized bmim[Br] as well as bmim[BF₄] match very well with those revealed by Aldrich-bmim[BF₄]. Furthermore, these analytical data are in line to those reported in the literature for bmim[BF₄] [33]. Furthermore, the signal positions (δ in ppm) and the multiplicity of various NMR signal shown in Figure 2 and Figure 3 suggest that the ARCI-bmim[BF₄] is indeed bmim[BF₄] RTIL and it does not contain any other organic impurities in it [33]. The slight difference noted for the NMR signal pertaining to the proton attached to the C₂ carbon of imidazolium ring of ARCI-bmim[BF₄] and Aldrich-[BF₄] (Table 2—column 3) can be explained as follows: the NMR signal of the proton attached to C₂ carbon undergoes shifting that is strongly influenced by the hydrogen bonding with the compounds present around this C₂ carbon as it is the most acidic proton compared with the other two protons attached to C₄ and C₅ carbon atoms of the imidazolium ring [42]. In a study, Chen et al. [43], found that the proton NMR chemical shifts for the C₂ carbon of the imidazolium ring of ionic liquids occurs due to a more complex mixture of interionic interactions between the ring and the anion including hydrogen bonding interactions. It can be seen from the Table 2 data of the present study that the bmim[Br]’s C₂ proton chemical shift is relatively higher than those of bmim[BF₄] RTILs. The presence of small amounts of bmim[Br] as an impurity in the ARCI-bmim[BF₄] can result in the observed small chemical shift differences.

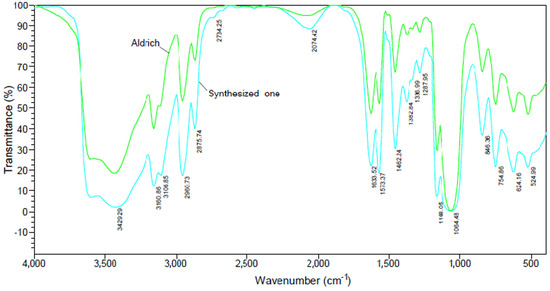

Figure 4 presents the FT-IR spectra of both ARCI-bmim[BF₄] and Aldrich-bmim[BF₄]. In general, it can be seen that both of the RTILs revealed the same kind of FT-IR transmission bands and the difference is only in the percentage of transmission. These results suggest that the functional groups and chemical bonds present in both of these RTILs are the same. The presence of all the functional groups of bmim[BF₄] that cause IR bands are seen in the FT-IR spectra given in Figure 4. The medium range and relatively narrow bands with a transmittance of only about 15% and 40% seen at wave numbers of 2960 and 2876 cm⁻¹, which are attributed to C–H aliphatic symmetric and asymmetric stretching vibrations and the strong inplane bending vibrations with a transmittance of only about 5% at 1168 and 1064 cm⁻¹ wave numbers are attributed to the methyl groups [33,44]. The strong and broad peaks seen in the range of 2875–3600 cm⁻¹ are attributed to the quaternary amine salt formation with tetrafluoroborate (BF₄⁻) of bmim[BF₄].

The transmittance bands present between the wave numbers 1633 and 1462 cm⁻¹ are attributed to the C=N stretching of the imidazolium ring. Peaks appeared at wave numbers around 754 and 624 cm⁻¹ are attributed to the C–N stretching vibration [33,44]. The prominent FT-IR transmittance bands of various modes of sodium bromide (NaBr), which form as a byproduct during synthesis of bmim[BF₄], appear at wave numbers of 2957 cm⁻¹, 2946 cm⁻¹, 2928 cm⁻¹, 2855 cm⁻¹, 1624 cm⁻¹, 1617 cm⁻¹, 1464 cm⁻¹ and 1378 cm⁻¹ with a typical percentage transmittance of 5%, 6%, 4%, 9%, 34%, 32%, 25% and 38%, respectively [44]. None of the transmittance bands of Figure 4 match with those of NaBr with those kinds of percentage transmittance. Thus, the information gained from the FT-IR study is in line to the ones obtained from ¹H- and ¹³C-NMR studies, which revealed that the in-house synthesized RTIL in this study was indeed bmim[BF₄]. Its mass spectral (m⁺/z) study (Figure 5) also confirms that the synthesized ARCI-bmim[BF₄] RTIL is indeed bmim[BF₄] as the m/z value of its bmim⁺ [M + H]⁺ moiety was recorded as 139.129 [33,44].

The ICP-OES studies revealed that the ARCI-bmim[BF₄] obtained in the continuous liquid–liquid extraction process contained about 32 ppm (i.e., 0.0032%) sodium (Na), whereas, the one obtained in a process without involving continuous liquid–liquid extraction step revealed the presence of about 46 ppm (i.e., 0.0046%) Na. On the other hand, the Aldrich-bmim[BF₄] exhibited the presence of about 20 ppm (i.e., 0.002%) Na.

3.2. Bmim[BF₄] Mediated ECR Reaction over MoSi₂ and Sn Cathodes

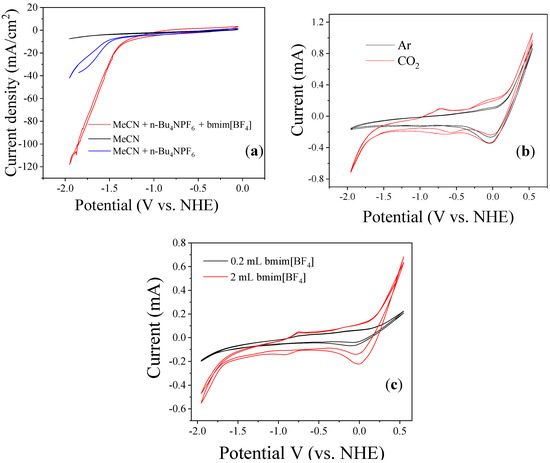

The CV recorded at 100 mV/s through 0 to −2.0 V vs. NHE for MoSi₂ WE dipped in the CO₂ saturated electrolyte solution made of either pure MeCN, MeCN + n-Bu₄NPF₆ (0.1 M) or MeCN + n-Bu₄NPF₆ + ARCI-bmim[BF₄] (20 mM) are presented in Figure 6a. It can be clearly seen from this figure that the higher current densities at considerably lower onset reduction potentials were generated over MoSi₂ WE when dipped in the CO₂ saturated MeCN electrolyte solution added with both n-Bu₄NPF₆ and bmim[BF₄] in comparison to those generated after dipping in either pure MeCN or in MeCN added with only the supporting electrolyte, n-Bu₄NPF₆ (0.1 M) but not the helper catalyst, bmim[BF₄]. These results indicate that the bmim[BF₄] helper catalyst is essential for achieving the current densities exceeding 100 mA/cm², which is a prerequisite for considering this process for commercial practice at industry. The CV recorded at the same 100 mV/s through 0.5 to −2.0 V vs. NHE for MoSi₂ WE (having a different exposed area to the electrolyte) after dipping in either Ar or CO₂ saturated electrolyte solution made of MeCN + n-Bu₄NPF₆ (0.1 M) + bmim[BF₄] (20 mM) are presented in Figure 6b. It can be seen from this figure that the higher current generation at lower onset reduction potentials was primarily due to the CO₂ reduction reaction as the amount of current generated for the electrolyte solution saturated with Ar is considerably lower than that of the one generated for the CO₂ saturated electrolyte. The current generated in the Ar saturated electrolyte has been reported to be due to the irreversible reduction of bmim[BF₄] or due to the hydrogen evolution reaction (HER) [2,4]. Since, in the present case, there is no water in the employed electrolyte solution, the generated current could be attributed mainly to the reduction of the bmim[BF₄] helper catalyst. As can be seen from Figure 6c, the current generation due to CO₂ reduction increased with the concentration of bmim[BF₄] in the catholyte solution. Furthermore, no change in the catalytic activity was also noted when the recycled bmim[BF₄] was employed for ECR reaction performed via CV over MoSi₂ WE (results not shown here).

The CV recorded at 100 mV/s through 0.5 to −2.0 V vs. NHE for Sn WE dipped in the electrolyte solution consists of MeCN and n-Bu₄NPF₆ (0.1 M) added with and without bmim[BF₄] (20 mM) after purging the electrolyte solution with either Ar or CO₂ gas indicate higher current densities at relatively lower onset reduction potentials for the electrolyte solution purged with CO₂ (red and green lines) in comparison to the one purged with the Ar gas (black and blue lines; Figure 7). It can also be seen that the presence of bmim[BF₄] had enhanced the generation of current densities. The peaks seen for electrolytes purged with CO₂ gas have been attributed to the CO₂ reduction reaction, whereas, those seen for electrolytes purged with Ar gas are attributed to the bmim[BF₄]’s irreversible reduction reaction and/or to the hydrogen evolution reaction (HER) as mentioned in the above-paragraph for MoSi₂ WE [1,2,3,4,5]. Rosenthal et al. [3] have also observed similar results for Sn WE nanoparticles deposited on a glassy carbon electrode (GCE) in CO₂ gas purged electrolyte solution of MeCN, n-Bu₄NPF₆ (0.1 M) and bmim[BF₄] (20 mM). It has been widely reported that for electrochemical reactions, which generate gaseous products, to be commercially successful for industrial practice, the products shall be formed at a rate of >100 mA/cm² current density [17,45,46,47,48]. The generation of about −110 mA/cm² (green line) at −1.052 V vs. NHE for CO₂ purged MeCN, n-Bu₄NPF₆ (0.1 M) and bmim[BF₄] (20 mM) was noted over Sn cathode (Figure 7 green line).

To confirm the reduction potential seen in the green line of Figure 6 and red line of Figure 7 was indeed due to the ECR reaction, the CPBE experiments were also conducted at −1.952 V vs. NHE in a two-compartment EC cell separated by nafion membrane by using the Sn or MoSi₂ bulk monolith cathode immersed in an catholyte solution made of MeCN, n-Bu₄NPF₆ (0.1 M) and ARCI-bmim[BF₄] (50 mM), which was purged and saturated with CO₂ gas and separated from an anolyte solution of 0.5 M NaPi (pH = 7.4) + 0.5 mM Co²⁺ ions immersed with a Pt foil anode [46]. The expected reaction sequence that can occur in this CPBE experiment is schematically presented in Scheme 3 [1,2,3,4,5], and the FE, TOF and yield values of the products formed in these CPBE experiments are given in

Table 3. Results obtained in CPBE experiments carried out using Ar or CO₂ saturated and continuously purged catholyte solution of MeCN + 0.1 M n-Bu₄NPF₆ + 50 mM bmim[BF₄] over the Sn bulk-monolith cathode at an applied potential of −1.952 V vs. NHE that was separated from the Pt foil anode immersed in an anolyte solution of 0.5 M NaPi (pH = 7.4) buffer containing 0.5 mM Co²⁺ ions by the nafion membrane ^†.

Entry	CPBE Time (min)	Current Density (Ma/Cm2)	Charge Density (C/Cm2)	FE (%; ±0.2)		Selectivity (%; ±1)		Mixture of CO + H2	Yield of CO (%)	Gases Formed (μMoles/Cm2/H; ±1)
				H2	CO	H2	CO	TOF (1/s)		H2	CO
1. ‡	60	21.8	46.3	97.0	0	>98	0	0.75	0	232.7	0
2. ¥	160	7.80	35.0	5.1	79.9	6	94	0.75	75.10	3.468	54.33
3.	180	27.5	180.0	3.8	91.2	4	96	0.75	87.55	11.81	283.52
4. §	160	16.8	258.0	4.62	87.87	5	95	0.75	83.47	23.18	440.50
5. ϕ	160	14.7	39.5	6.67	76.63	8	92	0.75	70.49	3.667	51.37
6. ‽	20	16.5	44.6	3.8	91.2	4	96	0.75	87.55	3.401	54.66

^† The procedures employed to determine the values of FE, TOF, yield and selectivity as well as the amounts of gases formed are described in the supporting information (SI) file; ^‡ the catholyte solution involved was saturated and continuously purged with high purity Ar gas; ^¥ the catholyte solution involved was just saturated with CO₂ gas but not continuously purged during entire CPBE experiment; ^§ involved Aldrich-bmim[BF₄] instead of ARCI-bmim[BF₄]; ^ϕ catholyte solution employed was a mixture of 90 vol.% MeCN + 0.1 M n-Bu₄NPF₆ + 50 mM bmim[BF₄] and 10 vol.% distilled water and ^‽ involved isotopic ¹³CO₂ gas as a reactant to form ¹³CO gas.

.

In a CPBE experiment performed as per the reaction conditions given in Table 3: 1st row (i.e., in the absence of CO₂ gas), the formation of O₂ and H₂ gases (Figure S7a-(A)) on the surfaces of the Pt anode and Sn cathode, respectively, was noted. In addition to O₂ evolution, a black/gray thin film formation on the surface of Pt anode was also noted [38,46]. This black/gray thin film has been identified to be a cobalt phosphate water oxidation catalyst (WOC), whose thickness was found to increase with the increase of CPBE time [38]. The presence of cobalt phosphate WOC as shown in Figure 8, whose SEM micrographs and energy dispersive analysis with X-rays (EDAX) spectrum are inserted in the current density and charge density profiles generated during its in situ formation on the surface of the Pt anode in the CPBE experiment conducted as per the reaction conditions given in Table 3: 1st row is very important to lower the overpotentials associated with water oxidation reaction (WOR) [38,46]. When the CPBE was performed in the presence of CO₂ gas (Table 3: 2nd row), the same O₂ evolution was observed in the headspace area of anodic compartment together with the formation of the black/gray colored thin film on the surface of anode, but in the headspace area of the cathodic compartment, instead of only H₂ gas, the formation of both CO (>95%) and H₂ (<5%) gases was noted (Figure S7a-(B)) [23,28]. The thermal conductivity response of H₂ gas was found to be almost 25 times higher than that of the one exhibited by CO gas (Figure S7b). The current density generation in this CPBE experiment was found to be strongly influenced by the concentration of CO₂ present in the catholyte solution [23,28]. When the catholyte solution was just saturated with CO₂ gas but not continuously purged during the entire CPBE experiment, a decrease in the current density values was noted after about 50 min of experiment, whereas, when the CO₂ gas was continuously purged during the entire CPBE experiment (Table 3: 3rd row), no decrease in the value of the current density until the completion of the experiment was noted [28]. A FE_CO of 91.2%, yield of 75.10%, a TOF of about 0.75 s⁻¹ were noted when the CPBE experiment was conducted as per the reaction conditions given in Table 3: 3rd row for 180 min with a selectivity of 96% for CO and of 4% for H₂ formed over the surface of Sn bulk monolith cathode [28]. This observed TOF value is comparable with the one observed by Masel et al. [4]. The TOF values of 1–10 s⁻¹ are necessary for an ECR reaction to be practiced commercially [3]. No noticeable difference was observed in the results when ARCI-bmim[BF₄] was replaced with Aldrich-bmim[BF₄] CPBE (Table 3: 4th row).

The profile of the current generated over the MoSi₂ cathode during the CPBE experiment performed at an applied potential of −1.952 V vs. NHE in an all-glass two-compartment gas-tight electrochemical cell using a CO₂ saturated and continuously purged catholyte solution of MeCN + 0.1 M n-Bu₄NPF₆ + 50 mM ARCI-bmim[BF₄] separated from the Pt foil anode dipped in an anolyte solution of 0.5 M sodium phosphate (NaPi) buffer (pH = 7.4) containing 0.5 mM Co²⁺ ions by a nafion membrane is given in Figure 9a as a function of the reaction time. Unlike the profiles generated over the Sn bulk monolith cathode under identical reaction conditions as reported elsewhere [28], for which the current generation was continuously increased until the completion of the CPBE period, whereas, in the present case, the current generated was almost constant over the surface of MoSi₂ cathode until the completion of the CPBE experiment performed for a period of about 40 min. A closer observation into these two separate results suggested that the current generation increases non-linearly with the reaction progress time until establishing the steady state conditions if the rate of CO₂ consumption is very high, which in turn is manifested by the continuous formation of a white precipitation in the catholyte solution with the progress of the CPBE period [28]. Recently, considerably high electrochemical CO₂ reduction activities were reported over various Mo based cathodic systems. In a study, Oh and Hu [30] have reported that CO₂ can be reduced to a mixture of products consisting of CO, formate and oxalate with varied concentrations depending on the reaction conditions employed over MoO₂/Pb in conjunction with 0.3M bmim[BF₆] at a temperature of −20 °C or 21 °C with overpotentials as low as 40 mV. In another study, Asadi et al. [2] could reduce CO₂ to CO over MoS₂ insrted in a CO₂ saturated catholyte solution made of 4 mole% aqueous bmim[BF₄] RTIL at a overpotential of only 54 mV with a FE of >95%, and current density of 40 mA/cm². Yet, in another study, Handoko et al. [31] have reported that Mo₂CT_x MXenes can activate CO₂ and reduce it to form formic acid with a selectivity of about 32.6% at a rate formation of 2.5 mA/cm² current density at 1.3 V vs. SHE. The different catalytic activities observed over Mo, MoO₂, MoS₂, Mo₂CT_x MXenes, etc., in comparison to MoSi₂ can be attributed to the presence of different kinds of catalytically active sites on these molybdenum based cathodic systems. These results suggest that similar to the Mo metal cathode, the MoSi₂ can also be employed as a physically robust cathodic system in conjunction with bmim[BF₄] RTIL for the ECR to CO formation reaction with reasonably high catalytic activity.

The Tafel slopes generated for CV measured over WEs made of Sn (as shown in Figure 7 by a green colored line), and of MoSi₂ (as shown in Figure 6a by a red colored line) dipped in CO₂ saturated and blanketed solution of MeCN + 0.1 M n-Bu4NPF₆ + 20 mM bmim[BF₄] against Pt wire CE at a scanning rate of 100 mV/s according to a relation given in Equation S9 are presented in Figure 9b. A closer look into these Tafel slope values indicate that both are higher than the value of 118 mV/decade, suggesting that the one-electron transfer reaction is not the rate-determining step for this reaction. The overpotentials associated with the Sn cathode (as can be seen from Figure 7) were much lower than the one exhibited by MoSi₂ cathode as can be seen from Figure 6a. The higher Tafel slope value (360 mV/decade) noted for MoSi₂ cathode suggests that there is a large resistance for exchanging of electrons (e⁻) between the electrode surface and the reactive species present in the electrolyte solution [28].

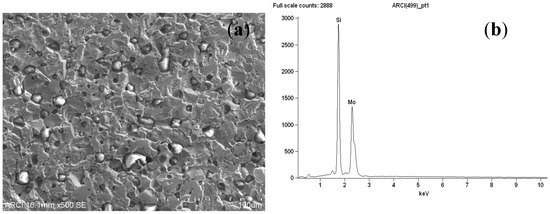

The SEM micrograph of the centre cut-portion of the MoSi₂ heating element employed as the cathode to perform the ECR to CO formation reaction, and its corresponding EDAX spectrum are given in Figure 10a,b, respectively. The EDAX spectrum indicates that this sample was indeed the MoSi₂ and no other elemental signals as impurities can be seen from this spectrum. The SEM micrograph shown in Figure 10a matched very well with those reported for MoSi₂ sintered body [32]. A very small fraction of porosity (<3%) and the presence of no glassy phase near grain boundaries suggest that the employed MoSi₂ was a high-purity and high-density body. From this micrograph, the presence of some pores formed due to the grain pull mechanism can also be seen. Nevertheless, when ECR reaction activity exhibited by Sn and MoSi₂ cathodes were compared, although both of them exhibited current densities exceeding >100 mA/cm² during CV measurements, the overpotential associated with Sn was much lower than the one noted for MoSi₂.

Surprisingly, the in situ formation of a white solid substrate along with CO and H₂ gases on the surface of the Sn cathode during CPBE of bmim[BF₄] mediated ECR was also noted, whose concentration in the cathodic compartment was continuously increased with the increase of the CPBE time. When the CPBE was performed for a period of 180 min as per the reaction conditions given in Table 3: 3rd row, the complete catholyte solution was filled with white precipitate, which was characterized to be a pure compound of NaHCO₃ by XRD analysis (Figure S8) [45]. The formation of CO together with formic acid (HCOOH) on the interface of Sn/SnO at −0.7 V vs. RHE was reported by Chen and Kanan [48] when the CO₂ saturated aqueous NaHCO₃ catholyte was separated from the same aqueous NaHCO₃ anolyte solution by a nafion membrane upon the electrochemical reduction.

To determine the influence of water on the product formation in the ECR reaction over the Sn cathode, another CPBE experiment was also performed as per Table 3: 5th row reaction conditions, in which about 10 vol.% of the catholyte solution made of MeCN, n-Bu₄NPF₆ (0.1 M) and bmim[BF₄] (50 mM) was replaced with pure distilled water, and the white precipitate formed in the cathodic compartment was analyzed by XRD and FT-IR techniques. For comparison purposes, the XRD pattern and FT-IR spectrum of the white compound in situ formed in CPBE as per Table 3: 5th row reaction conditions were compared with those of HCOONa formed out of NaOH and HCOOH in Figure 11 and Figure 12, respectively, together with those recorded for the white compound formed in the catholyte solution containing no water (i.e., in the CPBE experiment conducted as per the conditions given in Table 3: 3rd row).

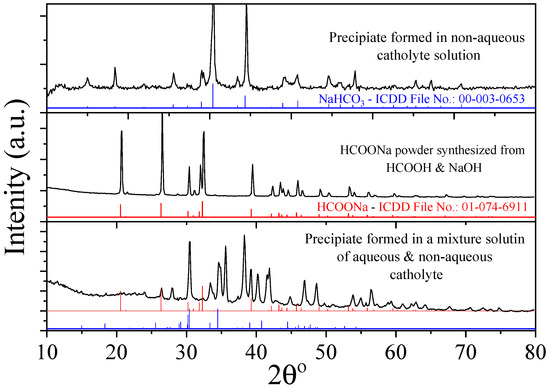

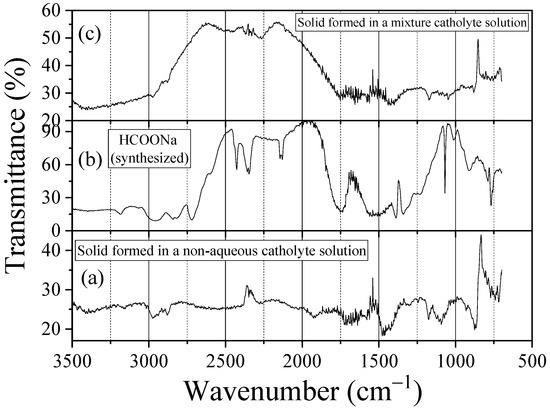

A close observation at XRD patterns (Figure 11) and FT-IR spectra (Figure 12) reveals that the presence of water in the catholyte solution promotes the formation of formic acid (i.e., in this case it is sodium formate) as well along with the formation of NaHCO₃ on the surface of Sn cathode in the bmim[BF₄] mediated ECR reaction [48]. Hass et al. [45] have reported that the cations such as, Na⁺, Co²⁺, etc., present in the anolyte solution are transported via the nafion membrane during the CPBE experiment until all of them are completely transported from the anolyte to catholyte solution leaving only pure water as the anolyte solution.

Owing to its planar XY₃ structure, CO₃²⁻ ion exhibited D_3h point group symmetry, its ν₁, ν₃ and ν₄ modes were Raman active and ν₂, ν₃ and ν₄ were IR active [49]. Due to the presence of carbonyl (−C=O) and hydroxyl (−OH) groups, NaHCO₃ exhibited a slightly broad and medium range IR transmission band between 1680 and 1750 cm⁻¹, and another medium range broad IR band between 3230 and 3550 cm⁻¹, respectively [49]. The formic acid owing to its C−H and O−H bonds exhibited IR bands in the range of 2850–3300 cm⁻¹, and 2500–3000 cm⁻¹, respectively. The white precipitate formed in the CPBE reaction as per Table 3: 3rd row reaction conditions exhibited an IR transmission band around 1720 cm⁻¹ and another wide band with a medium height between 3000 and 3500 cm⁻¹, which indicate the presence of the NaHCO₃ compound (Figure 12). On the other hand, the white precipitate formed in the water-containing catholyte solution (Table 3: 5th row reaction conditions) exhibited IR bands due to the presence of both NaHCO₃ and HCOOH compounds. These results suggest that the non-aqueous aprotic catholyte solution of MeCN, n-Bu₄NPF₆ (0.1 M) and bmim[BF₄] (50 mM) do not support the formation of any other product including HCOOH except for the formation of CO and H₂ gases together with NaHCO₃ when the 0.5 M NaPi (pH = 7.4) buffer containing 0.5 mM Co²⁺ ions was employed as the anolyte solution and was separated by a nafion membrane upon reduction over the Sn cathode at −1.952 V vs. NHE [11,50].

The ¹H-NMR spectral investigation (spectrum given two different scales in Figure S9a,b of catholyte solution of the CPBE experiment performed as per Table 3: 3rd row reaction conditions after separating the solid substance from it by a filtration process and rota-evaporation) indicates the presence of no other compounds other than MeCN, n-Bu₄NPF₆, and bmim[BF₄], which are the components of catholyte solution. The HCOOH and HCCONa compounds exhibited an NMR singlet signal at a δ value of 9.6 ppm, whereas, Figure S9b revealed no NMR signals at the δ value of 9.6 ppm. These results indicate that no liquid products are formed in bmim[BF₄] mediated ECR reaction, when it is performed over the Sn cathode under reaction conditions given in Table 3: 3rd row.

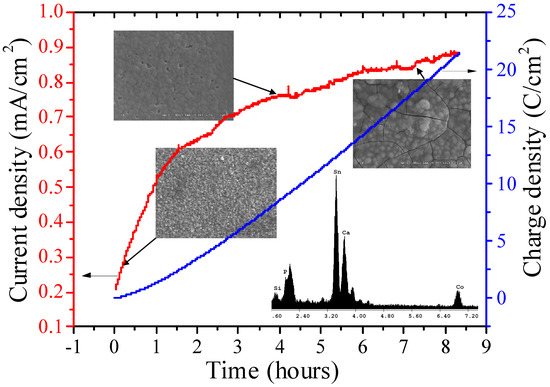

The SEM of the fresh surface of Sn cathode and after it was employed as a cathode to perform the CPBE reaction as per the Table 3: 3rd row reaction conditions are presented in Figure 13a,b, respectively, whose XRD patterns are given in Figure 13c. A closer look into the morphological features of the Sn cathode before and after employing it as a cathode in the ECR reaction indicates that the Sn cathode was physically and morphologically quite stable and did not undergo any noticeable changes after CO₂ underwent reduction to CO gas or after H₂ and NaHCO₃ formation occurred on its surface [3,51,52,53,54]. XRD patterns of Sn also revealed the same information that is obtained from SEM analysis.

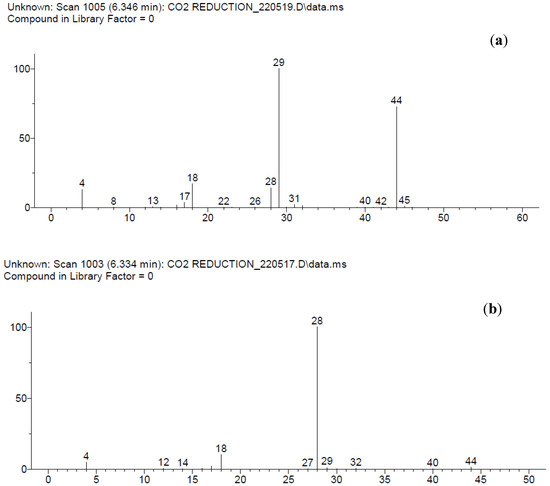

To confirm whether CO was formed out of only CO₂ gas or from any other organic matter that was present in the reaction medium, a separate CPBE experiment was also conducted as per the conditions given in Table 3: 6th row, in which an isotopic ¹³C-CO₂ gas was used as a reactant. The mass spectra of CO gases formed in the CPBE experiments performed as per the reaction conditions given in 6th and 3rd rows of Table 3 are given in Figure 14a,b, respectively. The presence of the little fraction of ¹²C-CO gas (m/z⁺ = 28.1; Figure 14a) in ¹³C-CO₂ gas involved CPBE experiment can be seen with the rest being only due to ¹³C-CO gas (m/z⁺ = 29.1). Thus, the ECR experiments conducted in this study using isotopic ¹³C-CO₂ gas confirmed that CO was the product of only CO₂ gas and not the product of any other organic matter present in the system. Figure 15 shows the digital photographs of various electrochemical cells and apparatus employed to perform ECR reactions in this study including those with isotopic ¹³C-CO₂ gas (the ¹³C-CO₂ isotopic gas cylinder can be seen from Figure 15d.

The catholyte solution pH change information can also be used to assess whether the NaHCO₃ compound can form or not on the surface of the Sn cathode in the bmim[BF₄] ECR reaction when performed via CPBE according to the reaction conditions given in Table 3: 2nd to 5th rows. When the CPBE experiment was performed as per Table 3: 5th row conditions, the initial pH of the catholyte solution made of 65 mL MeCN + 0.1M n-Bu₄NPF₆ + 50 mM bmim[BF₄] and 10 mL distilled water was about 2.02, whose pH was increased to 7.8 after 3 h of CPBE, and to 8.38 after another additional 3 h. Whereas, the pH of the MeCN was 5.8, and the pH of MeCN + 0.1 M n-Bu₄NPF₆ + 50 mM bmim[BF₄] was about 3.39, whose pH was raised to about 6.82 after performing CPBE experiment for 6 h according to Table 3: 3rd row conditions. This pH rise of catholyte solution suggests that a basic compound, in this study, NaHCO₃ as confirmed by the XRD study, is in situ formed in the bmim[BF₄] mediated ECR reaction when performed over the Sn cathode after dipping it in a CO₂ saturated and purged non-aqueous aprotic solvent based catholyte solution that was separated from the aqueous 0.5 M NaPi (pH = 7.4) buffer solution containing 0.5 mM Co²⁺ ions by nafion membrane at −1.952 V vs. NHE.

The in situ formed H₂O and NaHCO₃ can dissolve together in the catholyte solution, and cause the rise of solution pH as both H₂O and MeCN were highly miscible. The particles of NaHCO₃ settled down at the bottom of the catholyte solution in the cathodic compound when its particle size grew to the extent where they were pulled down by the gravitational force.

The KHCO₃ formation during an ECR reaction performed in an aqueous KHCO₃ solution employed as both an anolyte and catholyte and separated by a nafion (i.e., proton exchange) membrane was also noted by Haas et al., [45]. It was reported that in this aqueous KHCO₃ electrolyte, the reaction proceeded as per the sequence given in Equations (12)–(14), whereas, the reaction given in Equation (14) was most unlikely to take place as 2HCO₃⁻_(aq) did not pass through the proton exchange nafion membrane to undergo the oxidative splitting to form CO₂ and H₂O in combination with protons (H⁺) present over there.

Cathodic reaction: 3CO₂ + H₂O + 2e⁻ → CO↑ + 2HCO₃⁻ _(aq)

(12)

Anodic reaction: H₂O − 2e⁻ → ½ O₂↑ + 2H⁺

(13)

Anodic reaction: 2HCO₃⁻ _(aq) + 2H⁺ → 2CO₂↑+ H₂O

(14)

The results obtained in the CV measurements in water-free CO₂ purged electrolyte formed out of MeCN, n-Bu₄NPF₆ (0.1 M) and bmim[BF₄] (20 mM) over Sn WE as presented in Figure 7 as the green line, and the results obtained in CPBE experiments as summarized in Table 3 that include (i) H₂ (5%; as per Equation (15)) + CO (95%) gases formation, (ii) NaHCO₃ and CO formation in almost 1:1 ration, (iii) transportation of Co²⁺ and Na⁺ ions along with protons (H⁺) through nafion membrane from the anolyte to catholyte solution, (iv) low hydration equilibrium constant (K_r = 1.7 × 10⁻³) for CO₂ + H₂O → H₂CO₃ reaction at 25 °C (Equation (1)) and (v) the acid dissociation constants of H₂CO₃ (Equations (2) and (3)) suggest that protons (H⁺) formed in the WOR on the surface of the Pt anode in the anodic compartment cannot participate in the bmim[BF₄] mediated ECR to CO formation reaction over the Sn cathode as per the reaction given in Equation (16). This is due to the fact that if the ECR reaction proceeds as per Equation (16), then there cannot be any formation of H₂ gas as all the electrons (e⁻) generated from water in the WOR (Equation (17)) are consumed in the CO formation itself (Equation (16)) and no electrons (e⁻) shall be available to react with protons (H⁺) to form H₂ gas as per Equation (15), whereas, the formation up to 5% H₂ was noted when CPBE experiments were conducted as per the conditions given in Table 3: 2nd to 5th rows. This is due to the fact that if ECR reaction proceeds as per Equation (16), two-electrons (e⁻) are required to form each CO molecule, whereas, in corresponding and simultaneously and concurrently occurring WOR on the surface of the Pt anode in the anodic compartment, two-electrons (e⁻) are generated along with two-protons (H⁺) as per Equation (15). In fact, all the electrons (e⁻) that travel from anode to cathode via an external circuit cannot receive an equivalent number of protons (H⁺) from the anodic compartment to the cathodic compartment via the nafion membrane, as there is competition from Co²⁺ and Na⁺ cations as well as to the transportation of protons (H⁺). These results suggest that the CO formation in this ECR reaction can be assumed to be an electrochemical reverse reaction of CO oxidation in air to form CO₂ gas that does not involve any protons (H⁺) in the oxidation process.

2H⁺ + 2e⁻ → H₂↑; E⁰ = 0 V vs. NHE

(15)

CO₂ + 2H⁺ + 2e⁻ → CO↑ + H₂O; E⁰ = −0.10 V vs. NHE

(16)

2H₂O → 4H⁺ + 4e⁻ + O₂↑; E⁰ = −1.23 + 0.059 (pH) V vs. NHE

(17)

The CO₂ reduction activity noted in CV (Figure 7 green line) measurements performed in water-free non-aqueous aprotic catholyte solution also suggests that CO₂ can undergo reduction in the absence of protons (H⁺). As up to 5% H₂ formation was noted in CPBE experiments as shown in Table 3, the ECR might not occur as per the reaction given in Equation (16). In addition to that the prevalent reaction conditions during CPBE experiments performed as per the reaction conditions given in Table 3 do not allow the formation of NaHCO₃ according to the reactions given in Equations (2)–(4) (refer to the introduction part) as the hydration equilibrium constant (K_r) was very low (1.7 × 10⁻³ (Equation (1)), at which, only a small fraction of CO₂ gas pumped into the catholyte solution could react with H₂O (if water is in situ formed as per the reaction given in Equation (16)) to form H₂CO₃ at a very low reaction rate (slow kinetics).

Actually, the majority of the CO₂ gas pumped into the catholyte solution was not converted into H₂CO₃, and it will remain as CO₂ gas only. In the absence of any catalyst, the CO₂ hydration equilibrium is reached quite slowly. Furthermore, the rate constants for CO₂ + H₂O → H₂CO₃ (forward reaction) and H₂CO₃ → CO₂ + H₂O (reverse reaction) were 0.039 s⁻¹ and 23 s⁻¹, respectively. Apart from these, the pK_a1 is 6.363 (i.e., at a pH of 6.363, only 50% of H₂CO₃ formed in the catholyte solution is dissociated into HCO₃⁻ ions and protons (H⁺)). In such a case, the lower number of HCO₃⁻ and Na⁺ ions present in the catholyte solution could not lead to the formation of NaHCO₃ in a 1:1 ration with CO gas formed. Furthermore, in these reaction conditions, CO₃²⁻ could not form as pK_a2 is about 10.329 as shown in Equation (3) (introduction part).

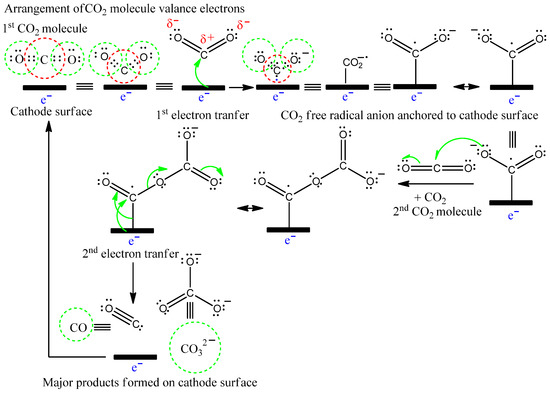

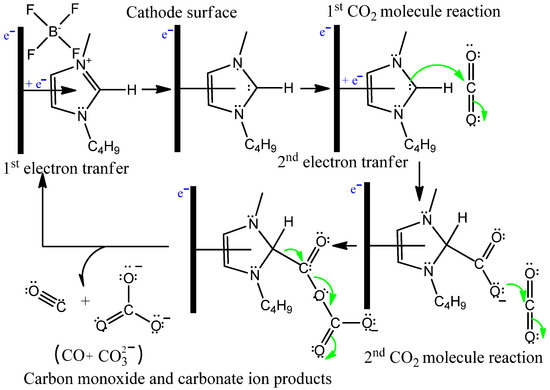

In view of the above mentioned reasons, the bmim[BF₄] mediated ECR to CO formation reaction over the Sn cathode in non-aqueous aprotic catholyte solution can be considered as a reverse reaction of CO oxidation in air as it can occur as per the reaction sequence as shown in Equations (18)–(20), and this reaction cannot proceed as per the reaction mechanism proposed by Wang et al. [54] (Scheme S1) but as per the one given in Scheme 4 and Scheme 5 [55,56,57,58,59,60].

2CO₂ + 2e⁻ → CO↑ + CO₃²⁻; E⁰ = −0.449 V vs. NHE

(18)

CO₃²⁻ → CO₂ + ½ O₂↑ + 2e⁻; E⁰ = −0.883 V vs. NHE

(19)

The net reaction: CO₂ → CO + ½ O₂; E⁰ = −1.33 V vs. NHE

(20)

Medina-Ramos et al. [3] and Chen and Kanan [48] have explained the role of Sn on efficient reduction of CO₂ to CO. It has been identified that the interface of Sn/SnO thin layers are the actual catalytically active sites that activate the CO₂ molecule [48]. It has been established that in the absence of the desired reducing atmosphere, at potentials higher than those of the standard reduction potential (SRP), still some oxide groups are present on the surface of metal cathodes [59]. Such oxide layers present on the surface of the Sn cathode could be responsible for the noted high activity for the bmim[BF₄] mediated ECR to CO formation reaction performed in an aprotic non-aqueous catholyte solution.

4. Conclusions

An high-purity bmim[BF₄] RTIL was synthesized by following a simple and inexpensive route, and thoroughly characterized by means of ¹H- and ¹³C-NMR, FT-IR, mass and ICP-OES techniques. The electrocatalytic activity of synthesized bmim[BF₄] was established vis-a-vis Aldrich-bmim[BF₄] for ECR to CO formation over Sn and MoSi₂ bulk monolith cathodes. No noticeable difference was noted for ECR to CO formation activity when the ARCI-bmim[BF₄] was replaced by Aldrich-bmim[BF₄]. When the CO₂ purged aprotic non-aqueous catholyte solution of MeCN, n-Bu₄NPF₆ (0.1 M) and bmim[BF₄] (50 mM) was separated by a nafion membrane from the anolyte solution of 0.5 M sodium phosphate (NaPi) buffer (pH = 7.4) containing with 0.5 mM Co²⁺ ions, and subjected to a reduction process at an applied potential of −1.952 V vs. NHE (i.e., at 622 mV overpotential) against the Pt foil anode in a CPBE experiment, the formation of CO with a selectivity of 96%, current density of 27 mA/cm², faradaic efficiency of 91.2% and yield of 87.55% was noted. The bmim[BF₄] mediated ECR to CO formation has been identified to be an electrochemical reverse reaction of CO oxidation in air that does not involve protons (H⁺) in the reduction process. Isotopic ¹³C-CO₂ gas involved CPBE experiments revealed that CO is a product of only CO₂ gas and not from any of the other organic matter present in the reaction mixture. The catalytic activity of the MoSi₂ cathode was found to increase with the increased concentration of the bmim[BF₄] helper catalyst in the catholyte solution under a given applied reduction potential. Similar to the fresh bmim[BF₄] RTIL, the recycled one also exhibited the same activity for the ECR to CO formation reaction over the MoSi₂ cathode under identical reaction conditions. The onset reduction potential noted for the ECR reaction over the Sn cathode is considerably lower than the one revealed by MoSi₂ under identical reaction conditions.
