Dual pH- and Temperature-Responsive Fluorescent Hybrid Materials Based on Carbon Dot-Grafted Triamino-Tetraphenylethylene/N-Isopropylacrylamide Copolymers

Abstract

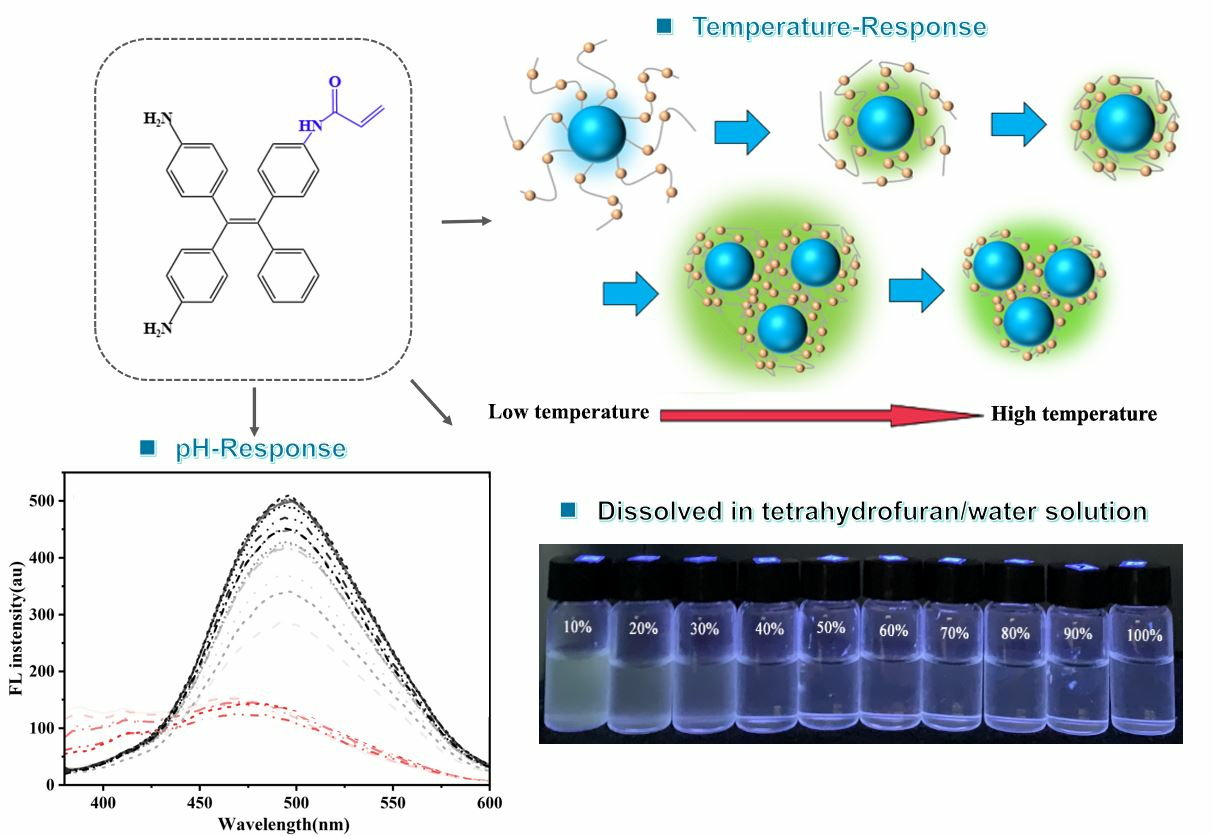

Carbon dots (CDs), a class of carbon-based fluorescent nanomaterials, have garnered significant attention due to their tunable optical properties and functional versatility. In this study, we developed a hybrid material by grafting pH- and temperature-responsive copolymers onto CDs via reversible addition-fragmentation chain-transfer (RAFT) polymerization. Triamino-tetraphenylethylene (ATPE) and N-isopropylacrylamide (NIPAM) were copolymerized at varying ratios and covalently linked to CDs, forming a dual-responsive system. Structural characterization using FTIR, ¹H NMR, and TEM confirmed the successful grafting of the copolymers onto CDs. The hybrid material exhibited pH-dependent fluorescence changes in acidic aqueous solutions, with emission shifting from 450 nm (attributed to CDs) to 500 nm (aggregation-induced emission, AIE, from ATPE) above a critical pH threshold. Solid films of the hybrid material demonstrated reversible fluorescence quenching under HCl vapor and recovery/enhancement under NH₃ vapor, showing excellent fatigue resistance over multiple cycles. Temperature responsiveness was attributed to the thermosensitive poly(NIPAM) segments, with fluorescence intensity increasing above 35 °C due to polymer chain collapse and ATPE aggregation. This work provides a strategy for designing multifunctional hybrid materials with potential applications in recyclable optical pH/temperature sensors.

1. Introduction

Carbon dots (CDs), a class of carbon-based nanomaterials, exhibit unique advantages such as biocompatibility [1], cost-effectiveness [2], and tunable surface chemistry [3], enabling their applications in bioimaging [4], photodynamic therapy [5], and catalysis [6]. Despite these merits, their broader implementation in sensing technologies is constrained by moderate quantum yields and processing limitations [7,8]. The abundant hydroxyl/carboxyl surface groups on CDs facilitate functionalization strategies [9,10,11,12]. Through reversible addition-fragmentation chain transfer (RAFT) polymerization, we previously demonstrated the grafting of homopolymers/copolymers onto CDs to enhance processability and expand functionality [13,14,15,16,17,18]. The discovery of aggregation-induced emission (AIE) by Tang et al. (2001) revolutionized luminescent material design [19]. Tetraphenylethylene (TPE) derivatives have since emerged as superior AIE fluorophores due to their synthetic accessibility and photophysical properties [20,21,22,23,24]. Unlike conventional fluorophores prone to aggregation-caused quenching, TPE derivatives exhibit suppressed emission in solution but intense luminescence upon aggregation, attributed to restricted intramolecular rotation that minimizes non-radiative decay [19]. Despite these advantages, TPE’s hydrophobicity limits its aqueous applications. Strategic integration with water-soluble polymers or small molecules—particularly through amino-functionalization (–NH₂)—enables pH-responsive fluorescence behavior for sensing applications [25]. Concurrently, poly(N-isopropylacrylamide) (PNIPAM), a thermoresponsive polymer with a lower critical solution temperature (LCST) of 30–34 °C [26], undergoes reversible hydrophilic-to-hydrophobic transitions, making it ideal for stimuli-responsive systems [27,28].

Building upon previous developments where we grafted TPE-NIPAM copolymers onto CDs to prepare AIE nanoparticles [16], we encountered limitations in aqueous dispersion due to TPE’s inherent hydrophobicity. To address this, we used triamino-tetraphenylethylene (ATPE), a hydrophilic and pH-responsive TPE derivative. Through controlled copolymerization of ATPE and NIPAM at optimized molar ratios followed by covalent grafting onto CDs surfaces, we successfully engineered a novel stimuli-responsive hybrid material system. The resulting composite demonstrates pH-responsive aqueous dispersibility and thermoresponsive fluorescence switching. Under acidic conditions (pH < pKa), protonation of ATPE stabilizes materials dispersion through electrostatic repulsion, effectively suppressing the AIE effect. Conversely, at elevated pH (pH > pKa), deprotonation induces ATPE aggregation via hydrophobic interactions, leading to progressively enhanced AIE-driven fluorescence at 500 nm.

Concurrently, the hybrid material exhibits temperature-dependent behavior governed by the LCST transition of PNIPAM (32 °C). Above the LCST, PNIPAM chains undergo a hydrophilic-to-hydrophobic transition, promoting intermolecular association of ATPE units and activating AIE fluorescence. Below the LCST, polymer chain rehydration disassembles the aggregates, quenching the AIE effect. Remarkably, both pH- and temperature-triggered transitions demonstrate full reversibility over multiple cycles, as evidenced by dynamic light scattering (DLS) and fluorescence spectroscopy. This dual-stimuli responsiveness-combining pH-modulated dispersibility and temperature-controlled AIE activation establishes the hybrid material as a promising candidate for sensing applications requiring environmental adaptability and signal reversibility.

2. Experimental

2.1. Materials

Sodium ethylenediaminetetraacetate dihydrate (EDTA), S-1-dodecyl-S′-(α,α′-dimethyl-α″-acetic acid) trithiocarbonate (DATC), 4-dimethylaminopyridine (DMAP), azobisisobutyronitrile (AIBN), and N,N′-dicyclohexylcarbodiimide (DCC) were purchased from Sigma-Aldrich Trading Co., Ltd. (Shanghai, China). and used as received. ATPE and NIPAM were obtained from Hunan Weijia New Materials Co., Ltd. (Changsha, China). Dichloromethane (CH₂Cl₂), acryloyl chloride, triethylamine, and tetrahydrofuran (THF) were provided by Aladdin Reagent Co., Ltd. (Shanghai, China) Distilled water was used in the experiment. All reagents and solvents were of reagent grade and purified or dried by standard methods before use.

2.2. Preparation of the Hybrid Materials

2.2.1. Synthesis of CDs

CDs were synthesized via a bottom-up hydrothermal method following a previously reported procedure [15,16,17]. Briefly, 5.0 g of EDTA and 30 mL of deionized water were placed in a high-pressure reactor, which was then sealed and heated in an oven at 220 °C for 48 h. After cooling to room temperature, the reaction mixture was filtered, and the filtrate was concentrated by rotary evaporation to yield a yellow gel-like product. The product was dissolved in anhydrous ethanol, stirred and filtered to remove insoluble residues. This dissolution-filtration-evaporation cycle was repeated three times to obtain pure yellow CDs powder for further use.

2.2.2. Grafting of Chain Transfer Agents (CDs-DATC)

The grafting protocol was implemented as previously described [15,16,17]. In a centrifuge tube, 1 g of CDs, 400 mg of DCC, 200 mg of DMAP, and 100 mg of DATC were vacuum-dried at 60 °C for 24 h to remove moisture. The mixture was then dissolved in CH₂Cl₂ and stirred for 7 days at room temperature under light-shielding conditions (DCC as a dehydrating agent and DMAP as a catalyst). After removing CH₂Cl₂ by rotary evaporation at 60 °C, the product was dissolved in ethanol, filtered to remove impurities and concentrated again. The crude product was further purified by dialysis (MWCO: 500 Da) in absolute ethanol for 3 days (with solvent replacement every 8 h). Finally, the yellow CDs-DATC solution was rotary-evaporated to dryness, weighed and stored for subsequent use.

2.2.3. Synthesis of Acrylamido ATPE (Acr-ATPE)

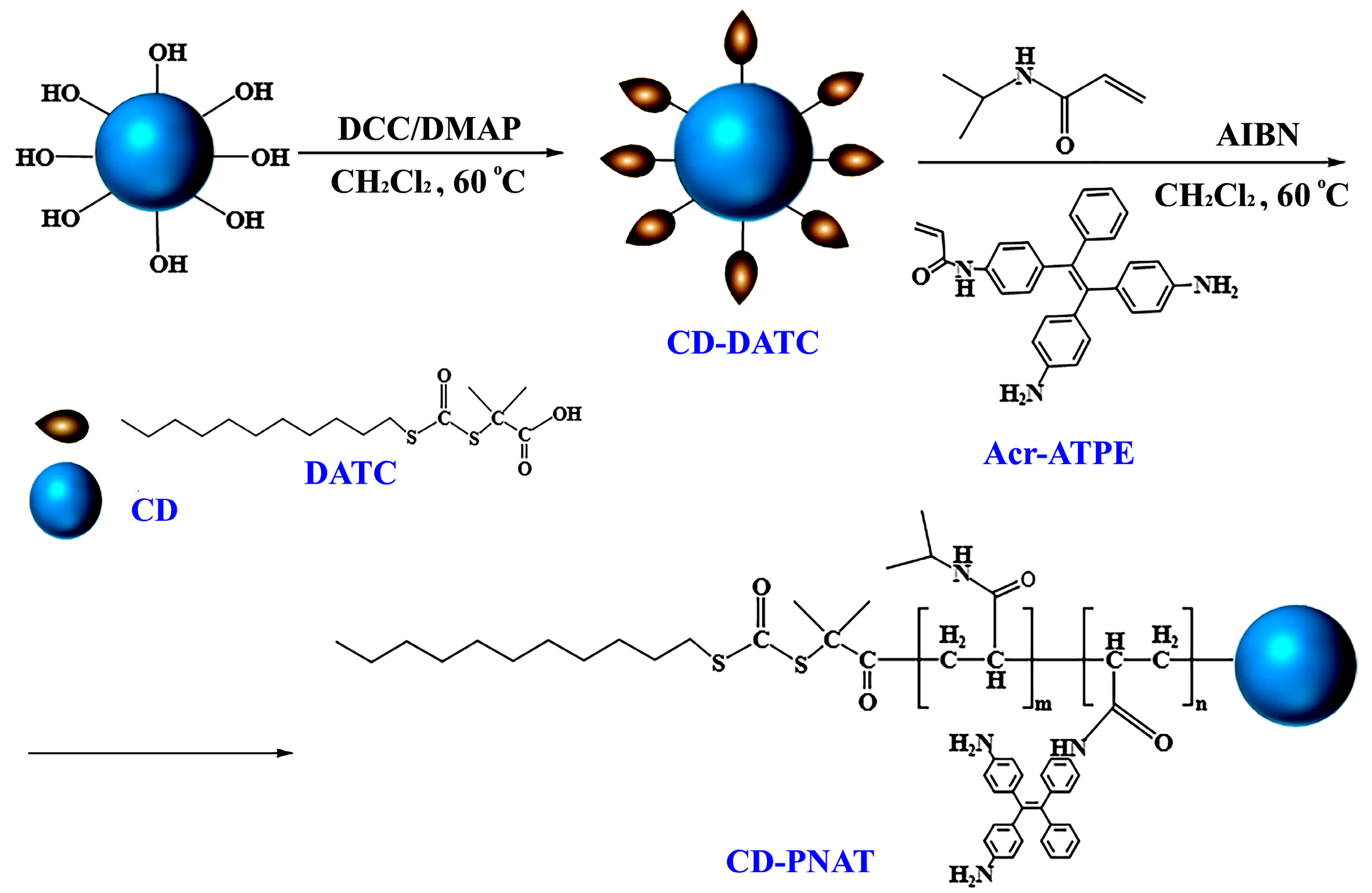

The synthesis route is shown in Scheme 1. In a 250 mL round-bottom flask, 100 mg of ATPE was dissolved in CH₂Cl₂ and stirred in an ice bath for 10 min. Then, 7.1 μL of acryloyl chloride and 12.2 μL of triethylamine were added dropwise via a syringe, and the reaction was stirred at room temperature under light-shielding conditions for 4 h. After filtration and solvent removal by rotary evaporation, the product was washed three times with deionized water and vacuum-dried at 60 °C to yield a dark green solid (Acr-ATPE).

2.2.4. Preparation of CDs Grafted with Triamino-Tetraphenylethylene/N-Isopropylacrylamide Copolymers (CDs-PNAT)

Briefly, 10 mg of CDs-DATC, 0.1 mg of AIBN, 50 mg of NIPAM, and varying weight ratios of Acr-ATPE were dispersed in THF in a single-necked flask. The mixture was transferred to a custom ampoule, degassed via freeze-pump-thaw cycles (×6) under nitrogen and flame-sealed under vacuum. Polymerization was carried out at 70 °C for 24 h. The resulting product was precipitated in petroleum ether, refrigerated and centrifuged. The collected solid was redissolved in THF and reprecipitated three times and then vacuum-dried to obtain CDs-PNAT1-4 (denoting different Acr-ATPE ratios; see Table S1).

2.3. Characterizations

¹H NMR spectra were recorded on a Bruker AM-400S spectrometer (400 MHz, Karlsruhe, Germany). Fourier-transform infrared (FTIR) spectra were acquired using a Bruker Tensor 27 spectrophotometer (KBr pellet method, Karlsruhe, Germany). Fluorescence spectra were measured on a Hitachi F-4500 spectrometer (10 mm quartz cuvette, 90° detection geometry). TEM imaging was performed on a JEOL JEM-2010 microscope (Tykyo, Japan). Dynamic light scattering (DLS) was conducted on a Malvern Zetasizer Nano ZS90 (Malvern, UK).

3. Results and Discussion

3.1. Structure Characterizations of the Hybrid Materials

3.1.1. FTIR Spectroscopy and ¹H NMR Spectrum

The chemical structural evolution of hybrid materials was systematically characterized using FTIR spectroscopy. As illustrated in Figure S1, CDs exhibited a broad absorption band at 3500–3250 cm⁻¹, characteristic of O–H stretching vibrations. In contrast, CDs-DATC displayed distinct absorption features in the 2960–2850 cm⁻¹ region, corresponding to aliphatic C–H stretching vibrations of saturated hydrocarbons. The emergence of a diagnostic band at 1053 cm⁻¹, attributable to C=S bond stretching, confirmed successful covalent grafting of DATC moieties onto the CDs surface.

For CDs-PNAT hybrid materials, two prominent absorption bands were observed in the N–H stretching region (at 3350–3200 cm⁻¹), consistent with primary amine functionalities. A well-defined peak at 3066 cm⁻¹ arose from aromatic C–H stretching vibrations, while the absorption at 1462 cm⁻¹ corresponded to benzene ring skeletal vibrations. Notably, a strong absorption band at 1654 cm⁻¹ was assigned to amide carbonyl (C=O) stretching in the –CONH– linkage. Furthermore, the presence of isopropyl groups was evidenced by two symmetric absorption bands at 1350 cm⁻¹, arising from C–H bending vibrations.

Complementary ¹H NMR analysis (Figure S2) of CDs-PNAT in deuterated chloroform (CDCl₃) provided additional structural validation. Resonances below δ = 2 ppm were assigned to aliphatic protons (–CH₃, –CH₂–, and –CH–) within the N-isopropylacrylamide segments. The amide protons (–CONH–) manifested as a multiplet spanning δ = 4.08–4.17 ppm. Diagnostic aromatic proton resonances for benzoxazine-bound ArH appeared as three distinct peaks at δ = 5.61, 6.25, and 6.75 ppm, while the primary amine (–NH₂) resonance emerged at δ = 5.80–5.98 ppm. Collectively, these spectral features confirm the successful covalent conjugation of ATPE/NIPAM copolymers onto the CDs surfaces through well-defined chemical linkages.

3.1.2. Morphologies of CDs-PNAT

By observing the characteristic micro-morphology and combining the results of FTIR and ¹H NMR spectroscopy, we could further verify whether the copolymers of ATPE and NIPAM were successfully incorporated into the chemical structure of the CDs surfaces. As a key method for investigating morphological transitions in materials, TEM provided detailed imaging of their structural features.

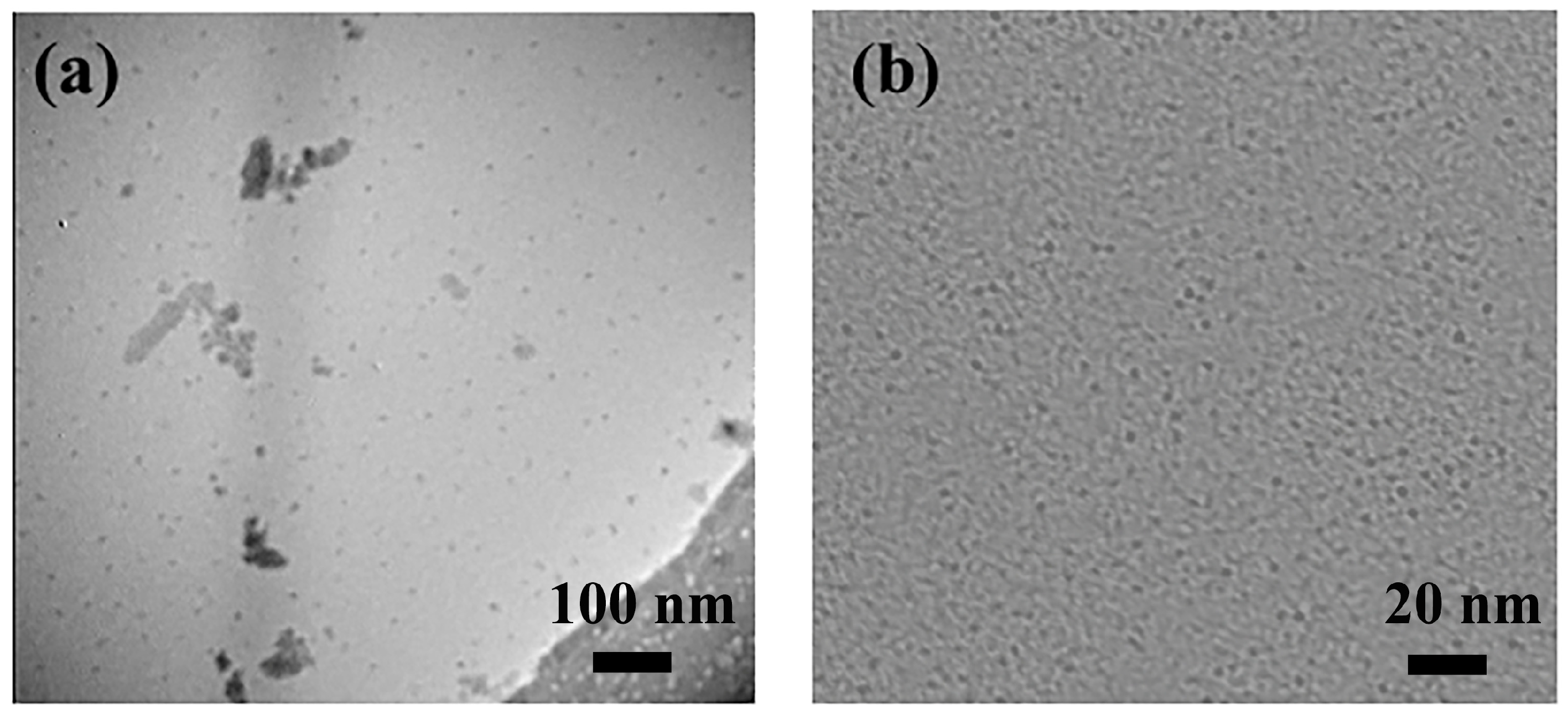

Figure 1 illustrates the morphological differences between CDs and CDs-PNATs. The CDs exhibited a uniform size distribution, averaging around 2 nm. In contrast, CDs-PNATs showed a size range of approximately 20–30 nm, with relatively homogeneous dispersion. The notable increase in particle size compared to bare CDs suggests that copolymers grafting led to an expansion of the CDs’ surface. These findings further confirm the successful grafting of copolymer chains onto the CDs’ surface.

3.2. Fluorescence Performances

3.2.1. Characterization of Fluorescence Performances

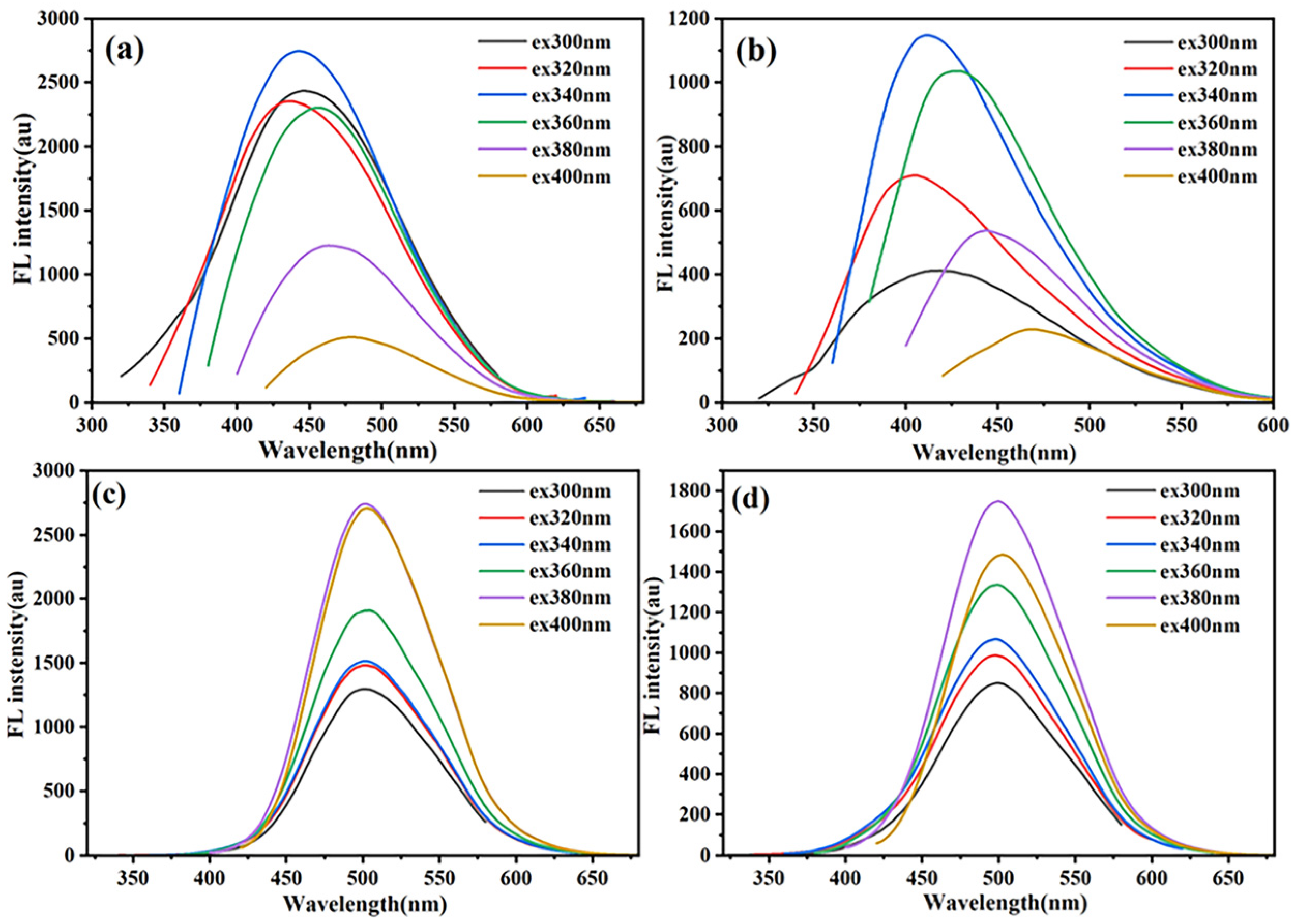

As evidenced by the fluorescence spectra in Figure 2, CDs-PNAT1 and CDs-PNAT2 dispersed in an aqueous solution (pH = 4.8) exhibited excitation-dependent bathochromic shifts in their emission maxima, whereas CDs-PNAT3 and CDs-PNAT4 maintained stable emission profiles centered at 500 nm across varying excitation wavelengths. The observed divergence arose from pH-dependent states of ATPE units in CDs-PNATs. At pH < pKa, protonated ATPE maintained dispersion through electrostatic repulsion, suppressing AIE. At pH > pKa, deprotonation induced ATPE aggregation via hydrophobic interactions, enhancing AIE fluorescence at 500 nm. As shown in Figure S3, the complementary data indicate that the pristine CDs exhibited characteristic excitation-wavelength-dependent red shifts, with a maximum emission at 425 nm under 360 nm excitation, which is consistent with the conventional fluorescence behavior of carbon dots.

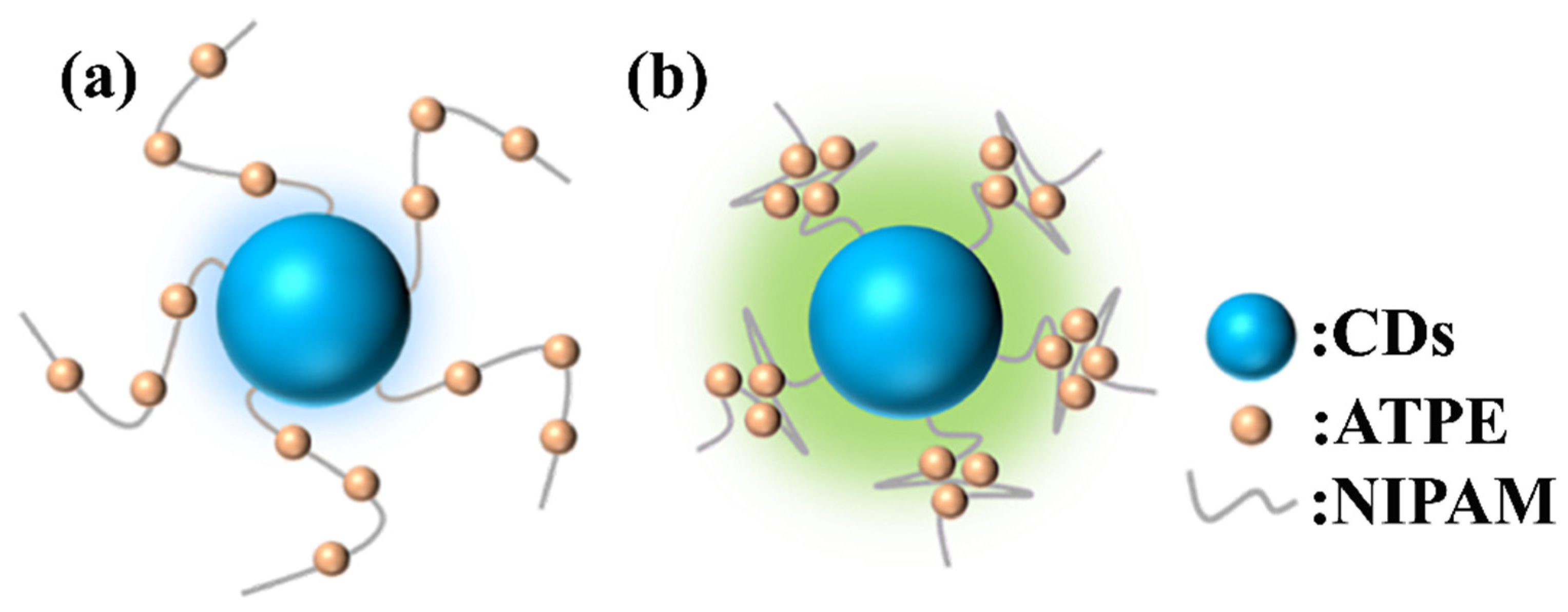

The distinct photophysical responses stem from structural variations in surface-grafted polymers. As illustrated in Figure 3, CDs-PNAT1 and CDs-PNAT2, bearing lower phenylamino group densities adopt extended polymer chain conformations in acidic media (Figure 3a). This extended state facilitates near-complete protonation of phenylamino residues, suppressing ATPE aggregation, thereby minimizing AIE contributions. Consequently, their emission profiles predominantly reflect intrinsic CD fluorescence. In contrast, CDs-PNAT3 and CDs-PNAT4 with higher phenylamino densities exhibit restricted chain extension due to steric and electrostatic repulsions, leading to partial protonation and subsequent ATPE aggregation (see Figure 3b). This structural reorganization triggers pronounced AIE effects, dominating the emission spectra and obscuring the underlying CDs fluorescence through intensity amplification.

To decouple AIE contributions from intrinsic CDs emission, comparative studies were conducted in THF, a solvent inhibiting ATPE aggregation. Figure S4 reveals that all CDs-PNAT hybrid materials in THF exhibit excitation-dependent emission shifts analogous to pristine CDs, with no AIE-related stabilization at 500 nm. This solvent-dependent contrast conclusively attributes the 500 nm emission band observed in acidic aqueous media to AIE-active ATPE aggregates rather than CD-based fluorescence.

3.2.2. pH-Responsive Fluorescence Behavior

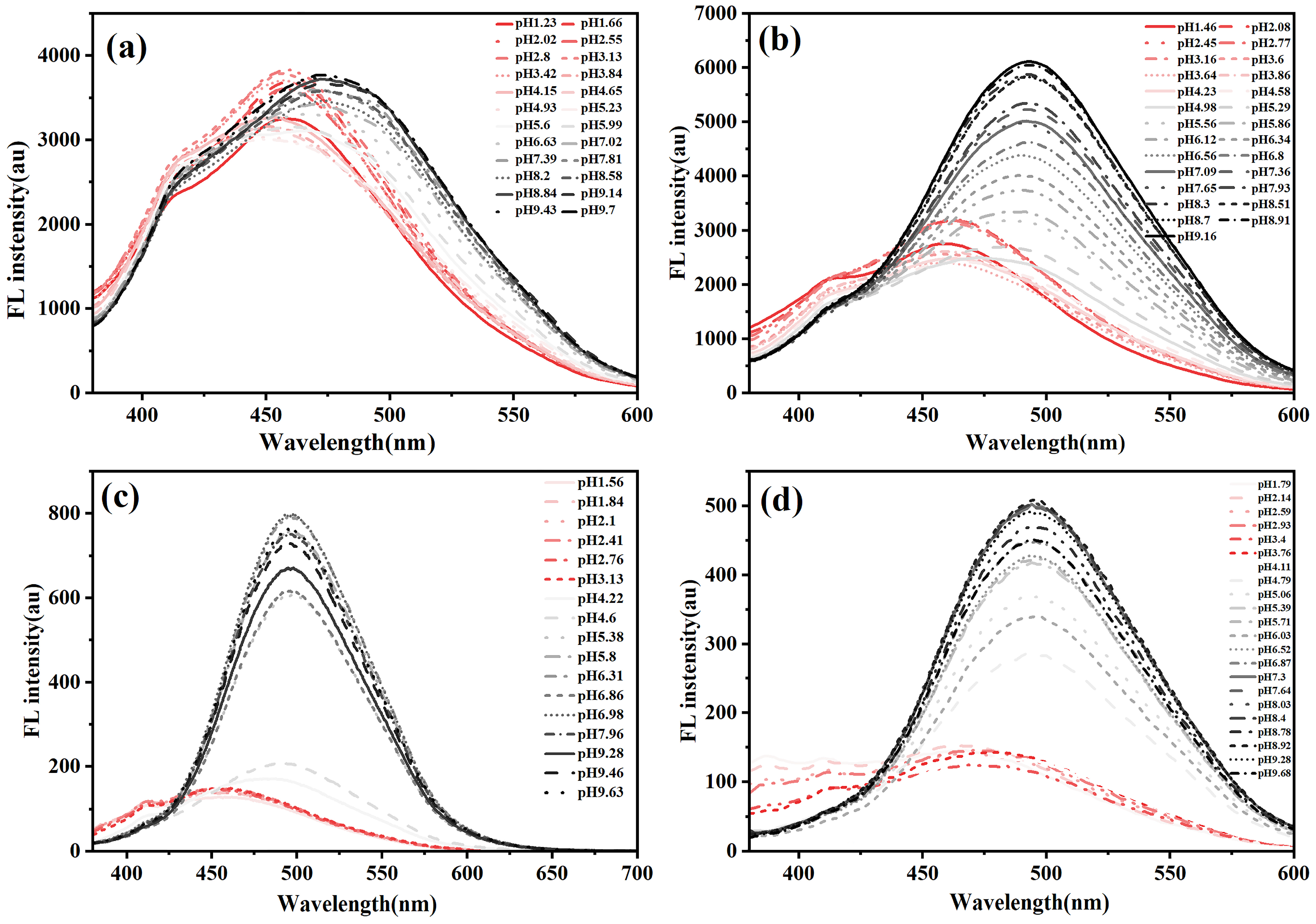

On the basis of the above characterization of fluorescence performances, in the subsequent study of fluorescence response performance, we uniformly adopted 360 nm as the excitation wavelength. The protonation of exposed phenylamino moieties on ATPE groups within CDs-PNATs significantly modulated their hydrophilicity, as evidenced by pH-dependent fluorescence spectral shifts. Figure 4 demonstrates the evolution of fluorescence profiles across varying pH conditions. For CDs-PNAT1 (see Figure 4a), emission maxima remained stable at 450 nm below pH = 5.23, with minimal intensity fluctuations (<10% RSD), indicative of unperturbed CD-dominated fluorescence. This observation aligns with the extended polymer chain conformations under acidic conditions that suppress the AIE effect of ATPE.

Above the critical pH threshold (pH > 5.23), a bathochromic shift to 500 nm occurred, accompanied by 3.2-fold intensity enhancement, confirming AIE dominance. CDs-PNAT2 exhibited analogous behavior (see Figure 4b) with a lower transition pH (at 4.98), attributable to elevated phenylamino density, enabling earlier deprotonation-induced aggregation. In contrast, CDs-PNAT3 and CDs-PNAT4 (see Figure 4c,d) displayed lower transition pH values (at 4.22 and 4.11, respectively), consistent with their elevated phenylamino content requiring stronger acidity for complete protonation.

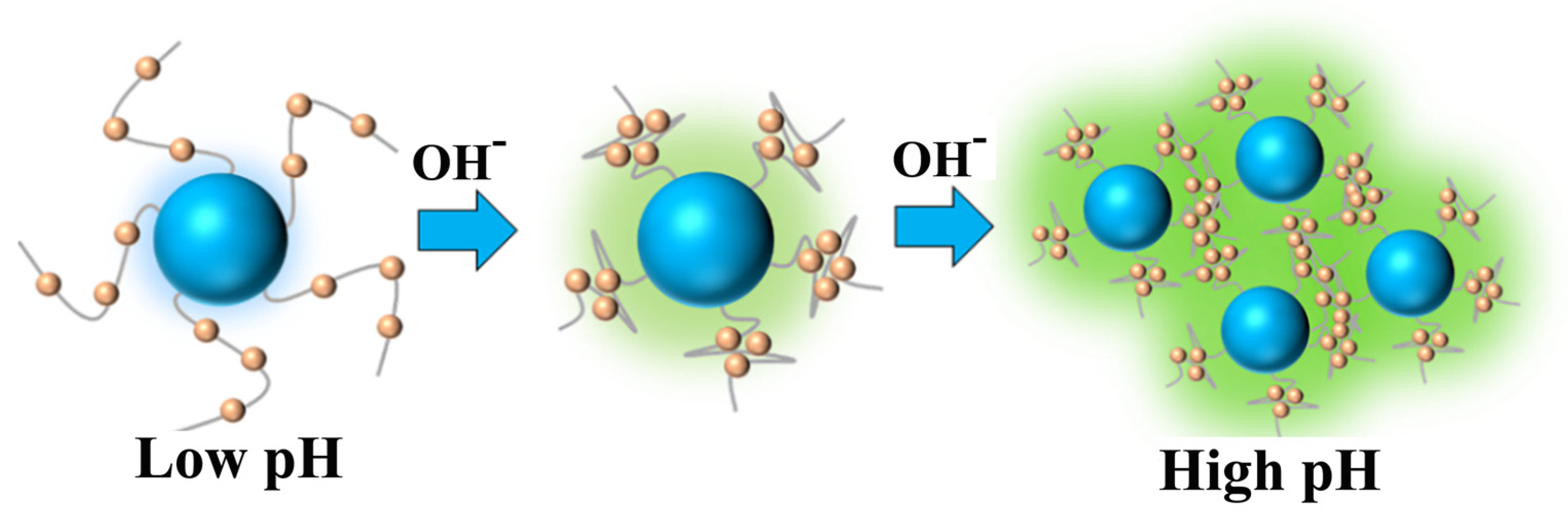

Figure 5 schematically illustrates the pH-dependent aggregation mechanism. Below critical pH thresholds, full protonation of phenylamino groups generates electrostatic repulsion forces, maintaining ATPE moieties in disaggregated states. Under these conditions, fluorescence originates solely from discrete CDs (λ_em = 450 nm). Exceeding the threshold pH initiates progressive deprotonation, reducing surface charge and enabling ATPE aggregation through hydrophobic interactions, thereby activating AIE (λ_em = 500 nm).

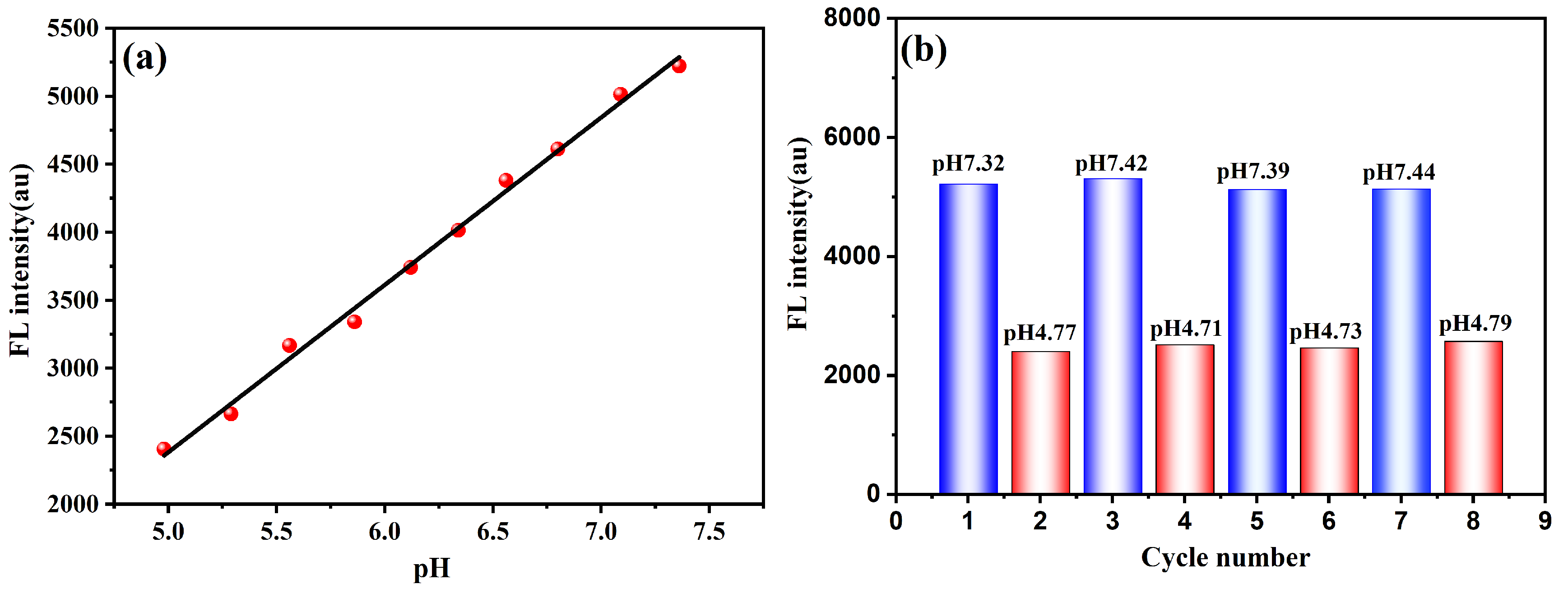

Notably, CDs-PNAT2 exhibited a linear fluorescence enhancement (R² = 0.994) within pH = 4.7–7.3 (see Figure 6a), described as:

I = 123pH + 3800°

where I represents the fluorescence intensity at 500 nm. Cyclic tests (see Figure 6b) revealed >95% signal recovery over 4 cycles, demonstrating exceptional reversibility for reusable pH sensing applications.

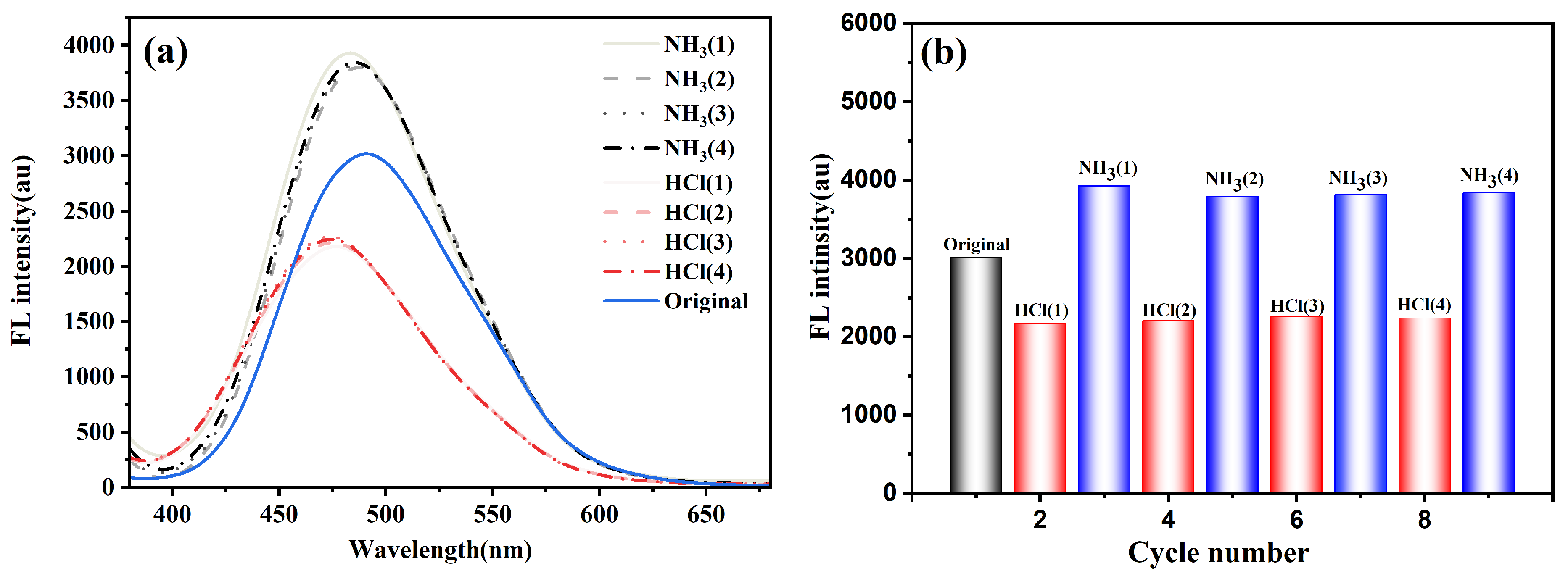

Solid films exhibited stimuli-responsive behavior upon HCl/NH₃ vapor exposure (see Figure S5). CDs-PNAT1/2 films showed dual emission at 475 nm (CDs) and 500 nm (weak AIE), with intensity modulation ratios of about 2 upon acid/base cycling. The attenuated AIE contribution correlates with low ATPE content. Conversely, CDs-PNAT3/4 films displayed pure AIE emission at 500 nm, achieving enhanced intensity upon NH₃ exposure due to deprotonation-induced aggregation. CDs-PNAT3 films demonstrated optimal responsiveness sustaining 95% initial intensity after 4 fumigation cycles (see Figure 7), suggesting that the CDs-PNAT3 solid film exhibited a distinct response to the pH vapor. Hence, we contend that the CDs-PNAT3 solid film could function as a rather sensitive and recyclable pH vapor sensor.

3.2.3. Fluorescence Responsiveness to Temperatures

The copolymer-grafted CDs incorporate both pH-responsive ATPE units and thermosensitive poly(NIPAM) segments. This dual-functional design enables the CDs-PNATs hybrid materials to exhibit fluorescence responsiveness to both pH and temperature variations.

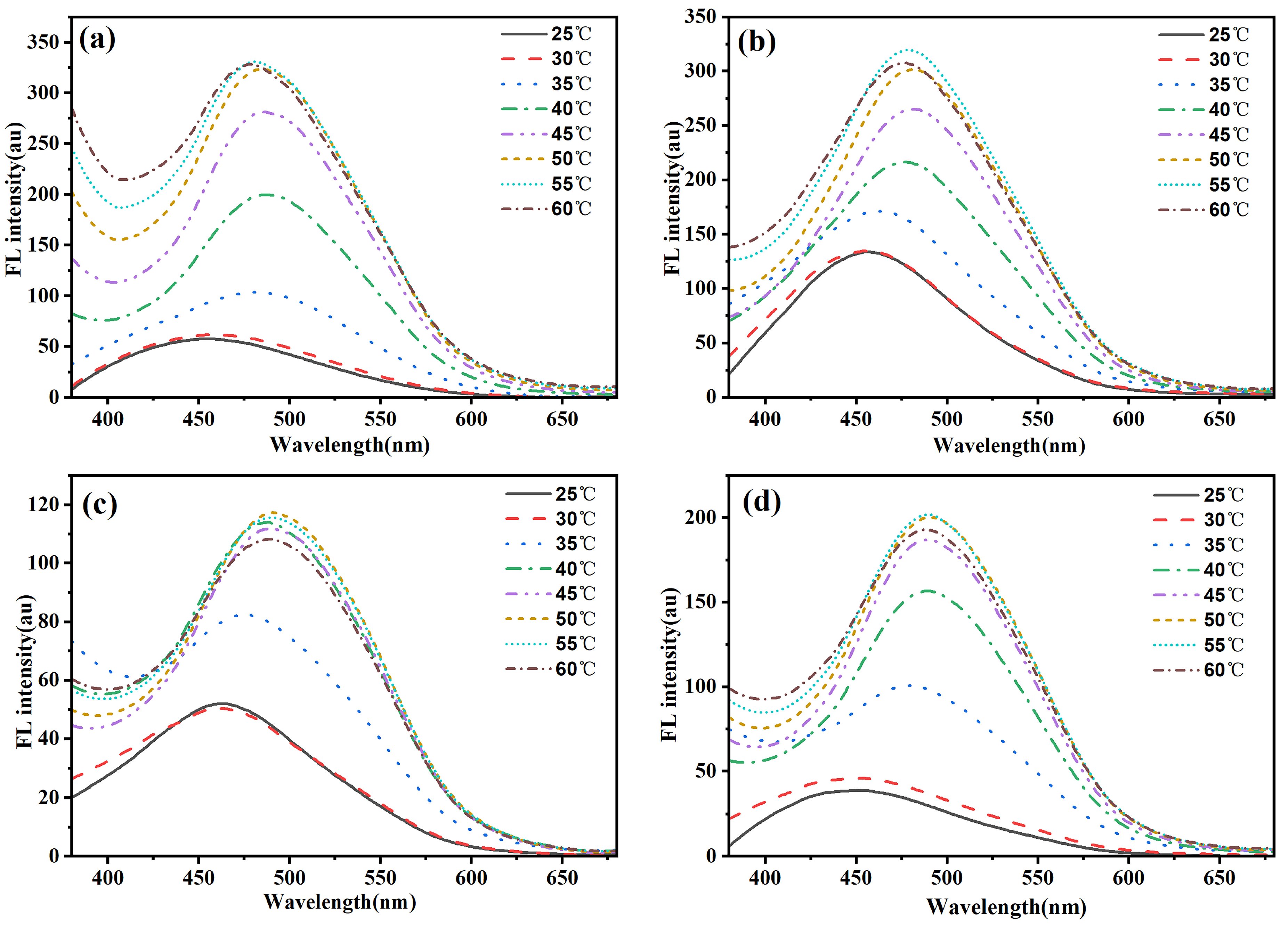

We systematically investigated the temperature-dependent fluorescence behavior of CDs-PNATs in acidic aqueous solutions (pH = 4.11) through programmed heating/cooling cycles (25–60 °C). As shown in Figure 8, CDs-PNAT1 and CDs-PNAT2 exhibited emission peaks at 450 nm within 25–35 °C during heating. A distinct bathochromic shift to 500 nm occurred upon exceeding 40 °C, with complete reversibility (450 nm recovery) upon cooling to 25 °C (see Figure S6). Similarly, CDs-PNAT3 and CDs-PNAT4 displayed analogous spectral shifts but with lower transition thresholds (at 30 °C during heating), confirming universal temperature responsiveness across all CDs-PNATs. Notably, the differential fluorescence transition temperatures observed across CD-PANT systems could stem from both varying APTE content and structure-specific pH modulation of LCST behavior in the polymers [29]. These observations demonstrate that ATPE units exhibit AIE when temperatures surpass the LCST, regardless of the heating/cooling direction.

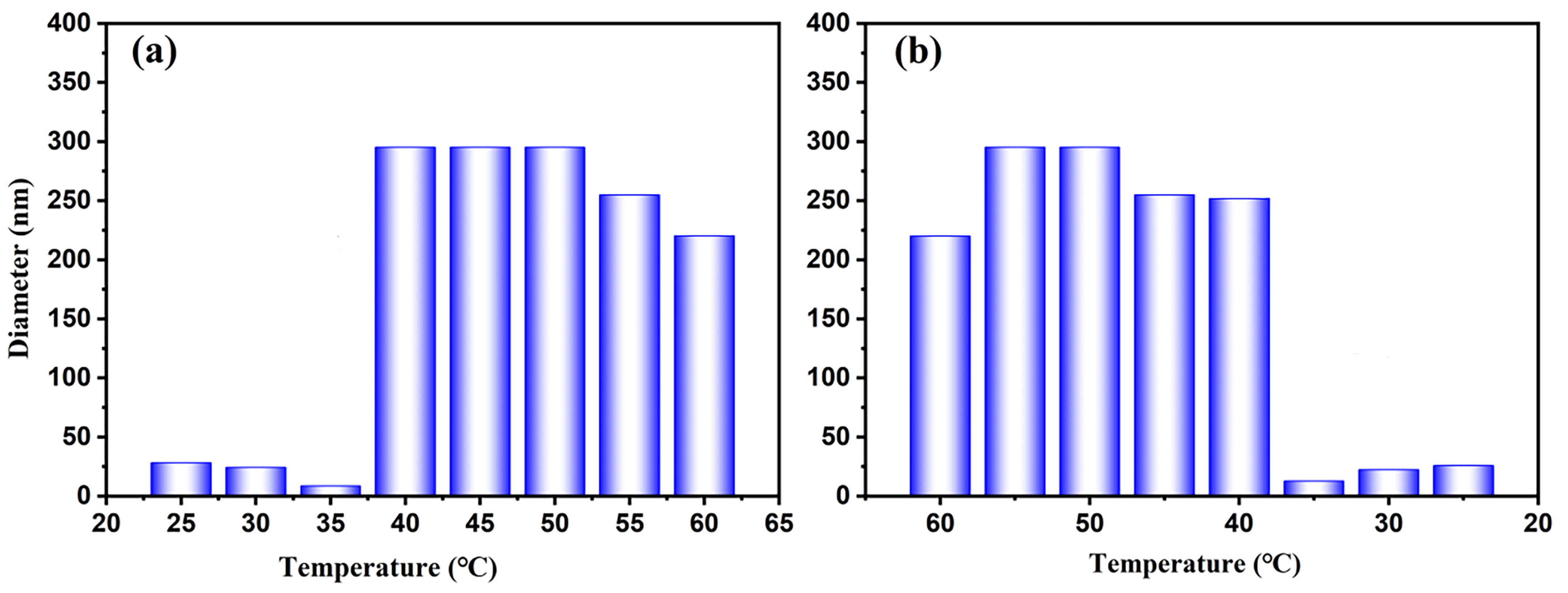

The AIE mechanism was further elucidated by monitoring hydrodynamic diameter variations (see Figure 9). CDs-PNAT4 maintained stable nanoparticles (about 30 nm) during initial heating (25–35 °C), as shown in Figure 9a. Upon reaching the LCST (32 °C), the diameter abruptly decreased to 15 nm at 35 °C due to PNIPAM chain collapse, followed by a dramatic increase to 300 nm at 40 °C through hydrophobic-driven supramolecular assembly. Remarkably, the original particle size (30 nm) was fully restored upon cooling to 25 °C, demonstrating exceptional reversibility (see Figure 9b).

This thermoresponsive behavior originates from PNIPAM’s conformational transitions. When the temperature is below the LCST, the hydrated polymer chains maintain extended conformations that effectively suppress ATPE aggregation through steric stabilization [30,31]. As the temperature rises above the LCST, the hydrophobic chain collapse exposes ATPE moieties, triggering the formation of AIE-active aggregates characterized by strong emission at 500 nm. At elevated temperatures exceeding 40 °C, enhanced interparticle interactions promote the formation of large-scale aggregates while simultaneously intensifying the AIE effects through strengthened molecular packing and restricted intramolecular motions [32,33,34]. During cooling, hydrophilic chain rehydration dissociates ATPE aggregates, restoring the initial 450 nm emission. DLS-confirmed size recovery validates the system’s thermodynamic reversibility, with complete fluorescence and structural reset achieved within each thermal cycle.

4. Conclusions

The copolymers of ATPE and NIPAM were successfully grafted onto the surface of CDs, resulting in the formation of hybrid CDs-PNATs materials. These CDs-PNATs demonstrated dual fluorescence responsiveness to pH and temperature variations. Notably, a distinct pH threshold governed their fluorescence behavior: when the pH was below this threshold, the fluorescence emission peak at 450 nm originated from the CDs, whereas above the threshold, a redshifted emission peak at 500 nm emerged due to the AIE effect of ATPE. The threshold pH value decreased with increasing ATPE content, which correlated directly with the elevated number of phenylamino groups on ATPE. Cyclic fumigation tests with pH/NH₃ vapor revealed that the CDs-PNAT3 solid film exhibited high sensitivity and recyclability as a dual-mode sensor. Furthermore, the fluorescence emission peaks of CDs-PNATs shifted reversibly from 450 to 500 nm upon heating from 25 to 50 °C and recovered to the original wavelength upon cooling back to 25 °C, demonstrating excellent thermal cycling stability. These findings highlight the potential of CDs-PNATs as promising candidates for temperature and pH sensing applications. There are still some areas in the current work that needs improvement and further research. It is necessary to explore how to achieve the controllable structural formation of the hybrid material in the solutions for their fluorescence responsiveness. We will further explore the correlation mechanism between pKa values and AIE performance in our future work. Furthermore, the application of the hybrid material as a sensor deserves further investigation to fully explore its potential.
