Open AccessReview

Circular RNAs: Potential Applications as Therapeutic Targets and Biomarkers in Breast Cancer

Department of Biochemistry, University of Otago, Dunedin 9016, New Zealand
*
Author to whom correspondence should be addressed.
Non-Coding RNA 2021, 7(1), 2; https://doi.org/10.3390/ncrna7010002
Received: 11 December 2020 / Revised: 26 December 2020 / Accepted: 31 December 2020 / Published: 5 January 2021

Abstract

Circular RNAs (circRNAs) are a class of non-coding RNAs that form a covalently closed loop. A number of functions and mechanisms of action for circRNAs have been reported, including as miRNA sponge, exerting transcriptional and translational regulation, interacting with proteins, and coding for peptides. CircRNA dysregulation has also been implicated in many cancers, such as breast cancer. Their relatively high stability and presence in bodily fluids makes cancer-associated circRNAs promising candidates as a new biomarker. In this review, we summarize the research undertaken on circRNAs associated with breast cancer, discuss circRNAs as biomarkers, and present circRNA-based therapeutic approaches.
Keywords: circular RNA (circRNA); non-coding RNA; breast cancer; biomarker; therapeutic target circular RNA (circRNA); non-coding RNA; breast cancer; biomarker; therapeutic target

1. Introduction

Breast cancer (BC) is the most frequently diagnosed cancer and the leading cause of cancer death among females in over 100 countries [1]. According to the Global Cancer Statistics 2018, about 2.1 million females are newly diagnosed with the disease annually (24.2% of total cases), and more than 60,000 deaths are caused by BC (15.0%) [1]. In addition, incidence rates for BC have been rising in the last decade and have far exceeded those of other cancers in both developed and developing countries [2]. Breast cancer can be broadly classified into different subtypes based on the presence (+) or absence (-) of estrogen receptor (ER), progesterone receptor (PR), and human epidermal growth factor receptor 2 (HER2) [3]. Luminal subtypes are hormone receptor positive, whereas the HER2+ subtype is defined by overexpression of HER2 [3]. In triple negative breast cancer (TNBC), all three receptors are absent (ER−/PR−/HER2−) [4]. Compared to luminal and HER2 subtypes, TNBC is more invasive, has higher metastatic potential, and is associated with worse prognosis [4]. While some targeted therapies are available for luminal (endocrine therapy) [5] and HER2 (trastuzamab) subtypes [6], treatment options are limited for TNBC [7]. Currently, poly(ADP-ribose) polymerase inhibitors (PARPi) and immunotherapy (atezolizumab, pembrolizumab) are available for TNBC, but their application is restricted to a small subset of TNBC patients [7,8,9]. Overall, morbidity and mortality of BC remain high, in particular due to drug resistance and disease recurrence, indicating the need for new therapeutic targets and biomarkers [10].
Non-coding RNAs (ncRNAs) are a class of RNA molecules that have been well-demonstrated to play key roles in BC progression by impacting cell growth, metabolism, epithelial–to-mesenchymal transition (EMT), metastasis, or drug resistance [11]. A recent addition to the world of non-coding regulatory molecules is the class of circular RNAs (circRNAs). CircRNAs were originally discovered in 1976 as viroid RNA and were believed to be by-products of aberrant RNA splicing with little functional potential [12]. Recently, circRNAs have resurfaced and garnered attention due to the availability of high-throughput sequencing, with more than 183,000 circRNAs identified in humans thus far [13,14,15,16]. About 10% of all expressed genes (both coding and non-coding) are able to produce circRNAs [17]. They lack terminal 5′ caps and 3′ poly-A tails and are a stable and conserved class of RNA molecules [16,18]. CircRNAs are classified into three groups: exonic, intronic, and exon–intronic [19]. The expression of circRNAs is highly cell type- and tissue-specific [20,21], and some circRNAs are more abundant than their linear counterparts [22]. Additionally, no clear correlation has been detected between the abundance of circRNAs and their corresponding linear RNAs [20,22,23]. These observations suggest that circRNAs are likely functional and not mere by-products of RNA processing.
CircRNAs have been described to be associated with several diseases, including cancer [24], which lends support to examination of these molecules as functional moieties. Recently, circRNAs have garnered interest as potential novel diagnostic and prognostic biomarkers for BC due to their presence in many human bodily fluids, such as plasma and saliva [25]. Furthermore, circRNAs are highly enriched and stable in extracellular vesicles (EVs), particularly in tumor-derived EVs [26]. Thus, the potential functional roles of circRNA are becoming a novel focus in cancer research, with the aim of exploiting these transcripts as new biomarkers or therapeutic targets. This review summarizes recent advances in the field of circRNAs associated with BC progression, and discusses potential applications of circRNAs as biomarkers and therapeutic targets.

2. Biogenesis, Discovery, and Biological Functions of CircRNAs

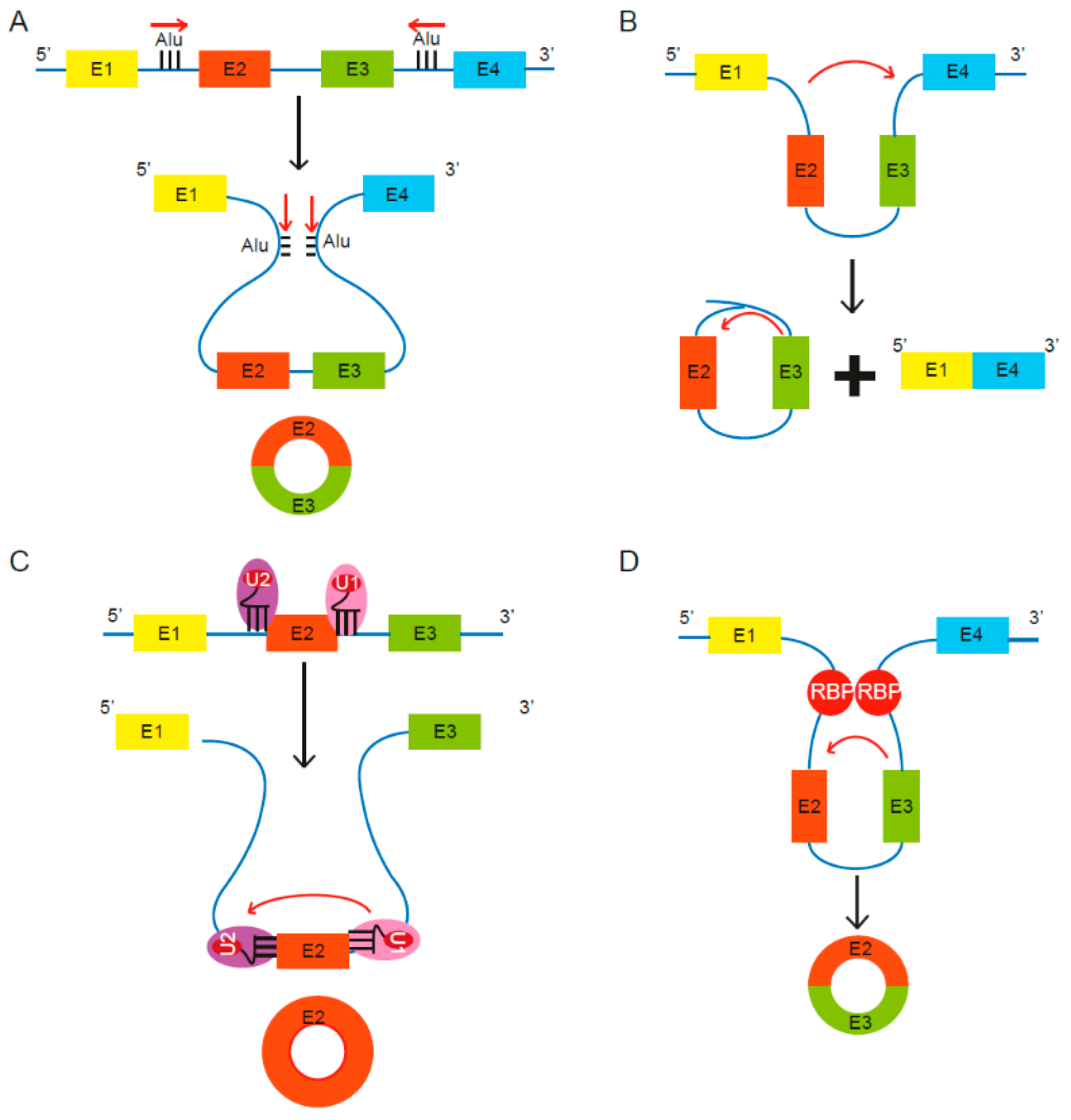

2.1. Biogenesis of CircRNAs

CircRNA biogenesis can be broadly classified into two types: lariat driven or aided by either the spliceosomal machinery or RNA binding proteins (RBPs) (Figure 1).
Lariat driven circRNA biogenesis can occur via short, complementary repeat elements in flanking introns, which have been reported to be critical for circularization of intervening exons for some circRNAs [13] (Figure 1A). Alternatively, lariat-driven circRNA biogenesis can involve “exon skipping,” commonly associated with the splicing of pre-mRNA [27] (Figure 1B). In an exon-skipping event, a single pre-mRNA transcript can yield both a linear spliced mRNA and a circRNA comprising the skipped exons [27]. This process involves the generation of a lariat intermediate containing the excised exons, after which the introns in the lariat are removed [25], leading to a circRNA as well as a linear transcript devoid of the skipped exon(s) [31]. In canonical splicing, a 5′ splice site is recognized by U1 small nuclear ribonucleoprotein (snRNP), U2 snRNP binds the upstream polypyrimidine tract and branch point sequence, and cross-exon interactions are mediated by factors such as serine and arginine-rich (SR) proteins [28]. The cross-exon interactions are subsequently replaced with cross-intron interactions to enable complete assembly of the spliceosome and generation of linear RNA [28]. However, limited spliceosomal activity encourages a shift from canonical splicing to back-splicing that produces single-exon circRNAs, as cross-exon interactions are not replaced with cross-intron interactions (Figure 1C) [28]. Lastly, some studies revealed the involvement of certain RNA binding proteins (RBPs) in the process of RNA circularization [29,30] (Figure 1D). Splicing factors such as Quaking (QKI) and Muscleblind (Mbl) are known to facilitate and enhance circRNA production [29,30].

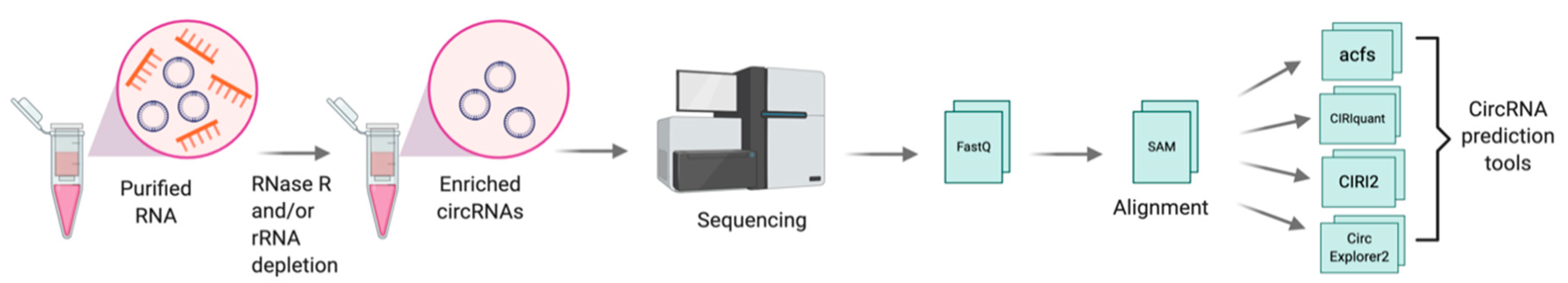

2.2. Discovery and Detection of CircRNAs

The first step towards the discovery of circRNAs involves the generation of non-polyadenylated transcriptomes. CircRNAs are enriched by depleting ribosomal RNA (rRNA) from total RNA, followed by an optional treatment with RNase R, a 3′-to-5′ exonuclease that preferentially digests linear RNAs, thereby allowing the enrichment of circular RNAs [32]. Libraries are prepared using a stranded total RNA library kit, coupled to paired-end high-throughput RNA sequencing (RNA-seq) [32]. Specific computational pipelines such as acfs [33], CIRIquant [34], CIRI2 [35], and CircExplorer2 [36] are designed to identify reads spanning the back-spliced junctions in reverse orientation (details outlined in Figure 2). To validate and quantify circRNAs in a targeted manner, qRT-PCR using primers designed to the back-spliced junctions can be applied [14].

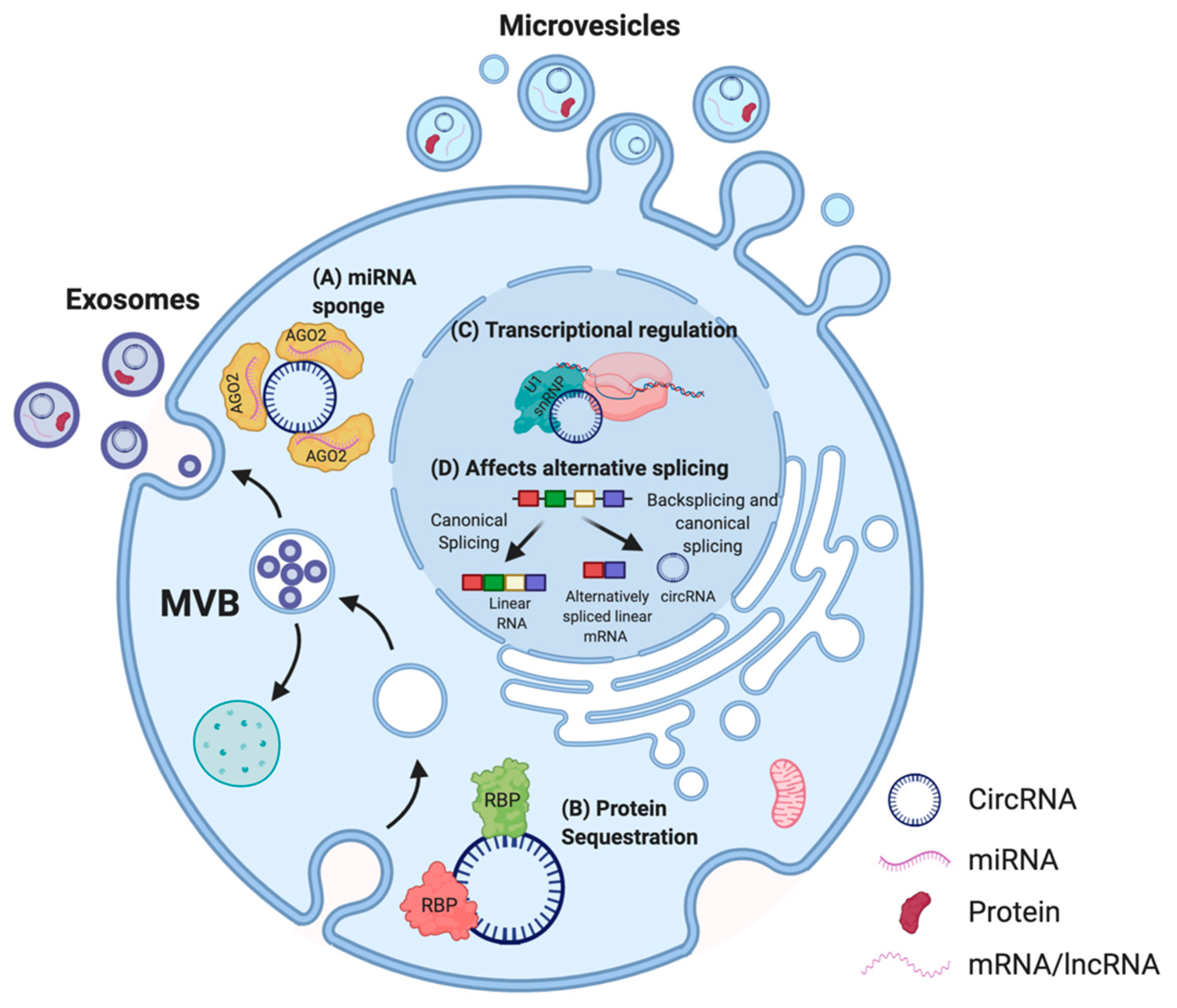

2.3. Mechanism of Action of CircRNAs

Evidence showing tissue-specific expression, high abundance, and stability has solidified the case for a functional potential of circRNAs in the cell [16]. Proposed functions of circRNAs are dependent on their sub-cellular localization in the cell [37] (Figure 3).
Thus far, the most commonly described and well-characterized function of circRNAs is their ability to act as micro RNA (miRNA) sponges. Multiple studies reported that circRNAs comprise binding sites for miRNAs, thereby acting as a molecular decoy and inhibiting the functions of those miRNAs on their mRNA targets [15,45,46,47]. This association between circRNAs and miRNAs has also been linked to several human diseases, including osteoarthritis [48], diabetes [49], neurodegenerative pathologies [38], and several cancers [50,51,52,53,54,55]. Other circRNAs were described to contain binding sites for RBPs, and may function as scaffolds to facilitate protein interactions, to regulate protein function, or to sequester the bound protein [56,57]. For instance, circFOXO3, a circRNA downregulated in cancer cells, forms an RNA–protein complex with cyclin-dependent kinase 2 (CDK2) and p21, which disrupts the interaction of CDK2 with cyclin A and cyclin E, and subsequently blocks cell cycle progression [39]. Thus, some circRNAs are able to sequester proteins in the cytoplasm and prevent their entry into the nucleus. In addition, circRNAs have been demonstrated to regulate the expression of their parental genes in a cis-acting manner [58]. CircPAIP2 influences the transcription of its parental gene by interacting with the U1 snRNP and RNA polymerase II (RNA Pol II) (Figure 3) [40]. The binding of circRNAs to RNA Pol II can also affect alternative splicing [41]. A recent study also highlighted the biological significance of circSCAR, which localizes to mitochondria and may be a valuable therapeutic target for immunometabolic disorders [59]. Moreover, recent studies indicated that EV encapsulated synthetic or endogenous circRNAs can be transferred into acceptor cells, and these circRNAs retain their bioactivity after the transfer [42,43,44]. As numerous studies suggest that EVs play a crucial role in cell-to-cell communication [60], uncovering the roles of EV-associated circRNAs may be a useful addition to the development of new diagnostic and treatment approaches [61].

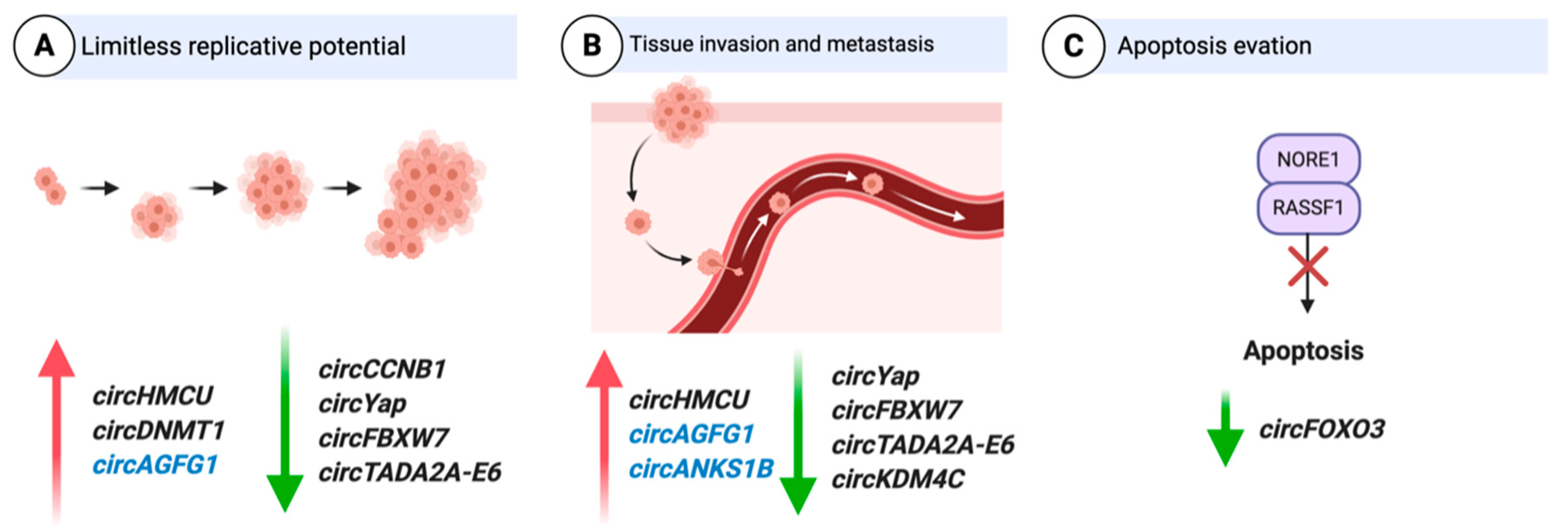

3. Function of CircRNAs in Breast Cancer

A number of circRNAs have been implicated in the development of BC [52,62,63,64,65] and can be broadly categorized into two types: oncogenic circRNAs and tumor-suppressor circRNAs. Regardless of whether circRNAs act as promoters or inhibitors of BC progression, the mechanism generally impacts cell proliferation, invasion, apoptosis, and drug resistance. Some circRNAs have been well studied, and their function deciphered in regard to how they are involved in different hallmarks of BC such as proliferation, apoptosis, and activating invasion and metastasis [66]. Examples of circRNAs associated with various hallmarks of BC and with well-studied mechanisms of action are described below (Figure 4).

3.1. CircRNAs as Oncogenes

3.1.1. Cell Cycle

CircHMCU: A gene expression omnibus (GEO) microarray dataset (GSE111504) obtained using parental MDA-MB-231 cells and corresponding lung metastatic cells (MDA-MB-231-LM2; LM2), was reanalyzed to identify circRNAs associated with BC metastasis [52]. CircHMCU was upregulated in LM2 cells compared to the parental MDA-MB-231 cells, and further validation using qRT-PCR-confirmed high circHMCU levels in BC tissues and correlation with poor prognosis [52]. Further studies revealed that circHMCU significantly promotes the proliferation and metastasis of BC cells both in vitro and in vivo [52]. Mechanistically, binding sites for the let-7 family of miRNAs were found on circHMCU, which was validated by RNA immunoprepitation (RIP) and luciferase reporter assays [52]. The let-7 miRNA family is a well-known tumor suppressor and is responsible for the repression of several oncogenes, which include MYC, HMGA2, and CCND1 [52]. Functional studies indicate that circHMCU acts as a miRNA sponge for let-7 and modulates BC proliferation and metastasis via regulating the expression of MYC, HMGA2, and CCND1 [52].
CircAGFG1: CircAGFG1 was found to be upregulated in TNBC tissues compared to matched adjacent normal tissues [67], and levels of the circRNA correlated with clinical stage, pathological grade, and poor prognosis of patients with TNBC [67]. Gain- and loss-of-function models using overexpression and RNA interference (RNAi) strategies indicated that circAGFG1 promotes TNBC cell proliferation, mobility, and invasion in vitro as well as tumorigenesis and metastasis in vivo [67]. Potential targets of circAGFG1 were identified using miRNA target prediction software and binding sites were found for miR-195-5p [67]. Interaction between circAGFG1 and miR-195-5p was confirmed using an RNA-FISH assay in TNBC cells and tissues, and using luciferase reporter assays [67]. It was revealed that the mRNA of the cell cycle regulator CCNE1 also contains binding sites for miR-195-5p, and that knockdown (KD) of circAGFG1 leads to decreased expression of CCNE1 in TNBC cells [67]. Thus, the findings from this study suggest that circAGFG1 might sponge miR-195-5p to modulate CCNE1 expression, leading to tumorigenesis and development of TNBC [67].

3.1.2. Epithelial-to-Mesenchymal Transition (EMT)

CircWWC3: Zinc finger E-box binding homeobox 1 (ZEB1) is a transcription factor and an important driver of BC progression [68]. Meng et al. attempted to identify ZEB1-regulated circRNAs in BC [69]. CircWWC3 was one out of 15 identified circRNAs found to be upregulated following ZEB1 transfection in a TNBC cell line using a circRNA microarray [69]. ZEB1 was found to upregulate circWWC3 expression but not the linear WWC3 mRNA expression [69]. WWC3 is a tumor suppressor that is downregulated in cancer and low WWC3 expression is associated with poor prognosis of cancer patients [70]. Meng et al. demonstrated that linear WWC3 mRNA levels were associated with good prognosis and inhibited BC cell growth and metastasis [69]. In contrast, elevated circWWC3 levels were associated with poor prognosis in BC patients and exhibited oncogenic functions in BC [69]. These findings indicate that the competition of circWWC3 with the linear WWC3 mRNA promotes the progression of BC [69]. Silencing of circWWC3 using siRNA significantly suppressed proliferation, migration, and invasion of BC cells [70]. Moreover, small hairpin RNA (shRNA)-mediated KD of circWWC3 partially antagonized ZEB1-mediated BC growth and metastasis in vivo [69]. Mechanistically, circWWC3 upregulates multiple oncogenes associated with the Ras signaling pathway by acting as a miRNA sponge for miR-26b-3p and miR-660-3p, as confirmed by luciferase reporter assays and RIP [69]. These oncogenes include EGFR, GRB2, PAK4, MAPK1, and AKT1 [69]. Taken together, ZEB1-mediated upregulation of circWWC3 promotes BC progression through activation of the Ras signaling pathway [69].
CircANKS1B:CircANKS1B was significantly upregulated in TNBC tissues compared to adjacent normal tissues as identified by RNA-seq [65]. Increased circANKS1B expression was associated with lymph node metastasis and advanced clinical stage, and served as an independent predictor of the overall survival of BC patients [65]. Functional studies revealed that circANKS1B promoted BC invasion and metastasis both in vitro and in vivo by inducing EMT, but had no effect on cell growth [65]. Mechanistically, circANKS1B abundantly sponged miR-148a-3p and miR-152-3p to increase the expression of the transcription factor USF1 [65]. USF1 upregulates TGF-β1 expression, resulting in activating TGF-β1/Smad signaling to promote EMT [65]. Additionally, Zeng et al. further demonstrated that circANKS1B biogenesis in BC was promoted by the splicing factor ESRP1, whose expression was also regulated by USF1 [65].

3.1.3. Hypoxia

CircDENND4C: In order to identify hypoxia-associated circRNAs in BC, a panel of six previously reported hypoxia-associated circRNAs in endothelial cells was selected from published literature [71]. Hypoxia-inducible transcription factor alpha (HIF-1α) is a transcription factor that is activated under hypoxia, and high levels of HIF-1α correlate with poor prognosis in BC patients [72]. Induction of hypoxia in BC cells led to elevated levels of circDENN4C, and KD of HIF-1α reduced circDENND4C expression [71]. Although siRNA-mediated KD of circDENN4C resulted in reduced proliferation under hypoxic conditions, no phenotypic changes were observed under normoxia [71]. These findings indicate that circDENND4C manifests its function in regulating proliferation only in HIF1α-dependent-hypoxia, but not in normoxic environments [71]. In clinical specimens of BC, circDENND4C expression was more abundant in the tumor tissues than in adjacent non-cancerous tissues, and large-sized tumors showed increased circDENND4C expression levels compared to smaller-sized tumors [71]. A follow-up study using luciferase reporter assays and RIP to understand the underlying mechanism confirmed that circDENN4C acts as a miRNA sponge for miR-200b and miR-200c [73]. Rescue experiments revealed that KD of miR-200b and miR-200c attenuated the anti-cancer role of circDENND4C in BC under hypoxia, indicating that the circRNA regulates BC progression by sponging miR-200b and miR-200c [73].
CircRNF20: Comparative RNA-seq of primary tumors and adjacent normal tissue revealed upregulation of circRNF20 in BC [74]. Increased circRNF20 levels are associated with poor clinical outcome in BC [74]. ShRNA KD of circRNF20 repressed proliferation and resulted in reduced glucose uptake, lactate production, and ATP levels in BC cells [74]. RNA-FISH and luciferase reporter assays confirmed that circRNF20 interacts with miR-487a, acting as miRNA sponge. This miRNA targets the 3′-UTR of HIF-1α. Moreover, HIF-1α binds to the promoter of the hexokinase II (HK2) gene and promotes its transcription [74]. In conclusion, this finding illustrates the vital role of circRNF20 in BC progression and the Warburg effect [74].

3.1.4. Autophagy

CircDNMT1: Increased expression of circDNMT1 was identified in eight BC cell lines and in patients with BC using a microarray approach [75]. SiRNA-mediated silencing of circDNMT1 inhibited cell proliferation and survival [75]. Ectopic expression of circDNMT1 increased the proliferative and survival capacities of BC cells by stimulating cellular autophagy [75]. CircDNMT1-mediated autophagy led to inhibition of cellular senescence and increased tumor xenograft growth [75]. Ectopically expressed circDNMT1 interacted with both p53 and AUF1 and promoted nuclear translocation of both proteins [75]. Nuclear translocation of p53 induced cellular autophagy, whereas AUF1 nuclear translocation reduced DNMT1 mRNA instability and led to increased DNMT1 translation [75]. Subsequently, it was found that functional DNMT1 translocated into the nucleus and inhibited p53 transcription [75]. Computational algorithms revealed that both p53 and AUF1 bind to different regions of circDNMT1 [75]. Taken together, these findings indicate that highly expressed circDNMT1 regulates oncogenic proteins in BC cells by direct interaction [75].
CircCDYL: High-throughput sequencing of BC tissues with different autophagic levels led to identification of circCDYL [62]. Clinically, data from three independent cohorts showed a strong correlation of circCDYL expression levels and prognosis, as well as clinical response to therapy [62]. ShRNA-mediated KD of circCDYL demonstrated reduced proliferation, indicating that the circRNA promotes BC progression in vivo via autophagy [62]. Investigation into the mechanism of action was undertaken initially by analyzing for potential miRNA binding sites, followed by circCDYL pulldown and miRNA pulldown assays to confirm miR-1275 as a direct interacting partner of circCDYL [62]. Targets of miR-1275 include ULK1 and ATG7 mRNAs, which are associated with initiation of autophagy and autophagosome formation, respectively [62]. Subsequent experiments using miR-1275 inhibitors restored ATG7 and ULK1 expression after circCDYL KD, suggesting that this circRNA regulates the expression of the two genes by acting as a miR-1275 decoy [62].

3.1.5. Invasion

CircSKA3: CircSKA3 was identified as a highly expressed circRNA using microarray analysis of eight BC cell lines, and increased expression was further validated in BC patient samples compared to normal breast [76]. Loss- and gain-of-function experiments using siRNAs and circSKA3 expression constructs indicated that circSKA3 induced both invadopodium formation and cell invasion in gelatin degradation assays [76]. CircSKA3 pull-down and immunoprecipitation of cell lysates revealed Tks5 and ITGB1 as direct binding partners [76]. Tks5 is required for the formation of invapodia and is a critical requirement for the invasiveness of BC cells [77]. ITGB1 is associated with enhanced features of cancer stem cells (CSCs), which include EMT, metastasis, and resistance to chemotherapy [78]. Follow-up experiments using cell fractionation and RNA-FISH combined with immunofluorescence validated the interaction between circSKA3, Tks5, and ITGB1 [76]. Furthermore, site-directed mutagenesis and immunoprecipitation confirmed putative binding sites for Tks5-ITGB1 on circSKA3 that had previously been identified by bioinformatic analysis [76]. They further isolated circSKA3-Tks5-ITGB1 in invadopodium fractions and demonstrated that this circRNA-protein complex could be potentiating cell invasion [76].
Taken together, these studies suggest that circRNAs play a vital role in driving BC progression (summarized in Table 1) and indicate their potential as emerging therapeutic targets.

3.2. CircRNAs as Tumor Suppressors

3.2.1. Cell Cycle

CircCCNB1: Expression levels of different circRNAs in BC patients relative to the adjacent normal tissues were analyzed using a microarray, and expression of circCCNB1 was found to be downregulated in cancer tissues [79]. CCNB1 is a regulator of mitosis, and high levels of CCNB1 are found in many cancers including BC [79]. Ectopic expression of circCCNB1 decreased proliferation and survival, but increased apoptosis [79]. RIP assays using a probe targeting circCCNB1 identified direct binding of H2AX and p53 in p53 wild-type cells [79]. Interestingly, similar studies using HTB126 BC cells, which carry a missense mutation for p53, revealed that circCCNB1 formed a different complex, involving H2AX and BCLAF1 [79], a H2AX-dependent tumor suppressor [84]. Thus, this mechanism is specific to p53 mutant cells, as wild-type p53 has a greater affinity to H2AX, resulting in BCLAF1 binding to BCL2 instead and facilitating proliferation [79]. In the presence of mutant p53, BCLAF1 preferentially interacts with H2AX and circCCNB1 to induce apoptosis [79].
A follow-up study revealed that this circRNA can also interact with CCNB1 and CDK1 [80]. In a normal cell, CCNB1 and CDK1 form a complex, allowing CCNB1 to function as an all-or-none switch for cell mitosis [85]. CCNB1 and CDK1 are both highly expressed in BC [86,87]. Cells transfected with circCCNB1 followed by pull-down studies using circCCNB1 probes revealed CDK1 and CCNB1 as its binding partners [80]. Cell fractionation studies further revealed that expression of circCCNB1 decreased nuclear localization of CCNB1 and CDK1 [80]. The authors suggest that circCCNB1 forms a complex with CCNB1 and CDK1, thereby preventing their translocation to the nucleus and suppressing the proliferation and survival of cancer cells [80]. In addition, ectopic expression of circCCNB1 in vivo inhibited tumor growth and extended mouse viability [80]. However, these in vivo experiments were not performed with BC cells, but using B16 mouse melanoma cells stably transfected with circCCNB1 and injected intraperitoneally [80]. Overall, these results have added to the role of circCCNB1 in suppressing tumor progression in vitro and in vivo [80].
CircFBXW7: CircFBXW7 was found downregulated in TNBC cell lines compared to normal tissue and other BC subtypes, and low expression of circFBXW7 was associated with poor clinical outcome in 473 breast cancer patients [81]. Additionally, circFBXW7 was negatively correlated with tumor size and lymph node metastasis, and it was an independent prognostic factor for TNBC patients [81]. Both in vitro and in vivo assays revealed that circFBXW7 significantly suppressed cell proliferation and migration [81]. Mechanistic studies demonstrated that circFBXW7 acts as a miRNA sponge for miR-197-3p to relieve the silencing of FBXW7 [81]. FBXW7 is a crucial component of ubiquitin ligase and is considered a potent tumor suppressor, as most of its target substrates can function as potential growth promoters, including c-Myc, Notch, cyclin E, c-JUN, and KLF5 [88]. In addition, circFBXW7 encodes the short protein FBXW7-185aa, which increases FBXW7 protein levels [81]. A previous study in glioma implicated that the short protein FBXW7-185aa interacts with the deubiquitinating enzyme USP28, preventing USP28 from binding to FBXW7 and antagonizing USP28-induced c-Myc stabilization [89]. Consistent with findings from the previous study [89], USP28 overexpression in BC cells reduced FBXW7 expression and suppressed FBXW7-185aa-induced c-Myc destabilization [81]. These findings indicate that circFBXW7 upregulates FBXW7 expression two-fold: by removing miR-197-3p from the cellular pool, and via the small protein FBXW7-185aa, ultimately leading to suppression of TNBC progression [81].

3.2.2. EMT

CircKDM4C: CircKDM4C was identified in a microarray as downregulated in metastatic BC compared to non-metastatic BC [64]. CircKDM4C levels were further examined in a cohort of BC patients and decreased expression was confirmed in BC samples compared to matched adjacent normal tissue [64]. Additionally, lower circKDM4C expression was associated with poor prognosis and metastasis in BC [64]. Functionally, siRNA-mediated KD of circKDM4C repressed BC proliferation, metastasis, and doxorubicin resistance in vitro and in vivo [64]. Mechanistically, it was identified as a miR-548p sponge using dual-luciferase activity assays and AGO2 RIP [64]. PBLD is a direct target of miR-548p, which functions as a tumor suppressor in BC [64]. PBLD was previously studied in hepatocellular carcinoma and was found to be a negative regulator of various tumor progression-related signaling pathways, such as MAPK signaling, EMT, and angiogenesis [90]. KD of PBLD increased proliferation of BC cells, further establishing the role of PBLD as a tumor suppressor in BC [64]. Moreover, miR-548p overexpression was able to reverse circKDM4C-induced attenuation of malignant phenotypes, and decreased expression of PBLD in BC cells [64].

3.2.3. Invasion

CircYAP: CircYAP was identified as a negative regulator of YAP, a key component of the Hippo signaling pathway, which plays a crucial role in tumorigenesis [91]. Overexpression of circYAP in BC cells significantly decreased YAP protein expression, but did not affect YAP mRNA levels and suppressed the proliferation, migration, and colony formation of BC cells in vitro [82]. RIP and RNA pull-down assays indicated that circYAP binds to YAP mRNA and the translation initiation-associated proteins eIF4G and PABP [82]. Overexpression of circYAP abolished the interaction of PABP on the polyA tail with eIF4G on the 5’-cap of YAP mRNA, which led to the suppression of YAP translation initiation [82]. Individually blocking the binding sites of circYAP on YAP mRNA, or mutating the binding sites on circYAP for PABP and eIF4G induced YAP translation [82]. Dysregulation of circYAP expression was further confirmed in BC patient tissue [82]. This study uncovered a novel molecular mechanism in the regulation of YAP and implicated a new function of a circular RNA [82].

3.2.4. Apoptosis

CircFOXO3: Of all circRNAs mentioned in this review, circFOXO3 is the most well-characterized one. It has been associated with several cancers including BC, and its role in BC has been reviewed in detail previously [39]. CircFOXO3 was initially found to be downregulated in BC cancer cells and patient tumor samples compared to adjacent normal tissue, but significantly upregulated in cancer cells during apoptosis [57]. SiRNA KD of circFOXO3 showed enhanced cell viability and decreased apoptosis [57]. Investigation into the mechanism of action using RIP revealed that circFOXO3 interacted with MDM2 and p53. Ectopic circFOXO3 expression in vitro decreased p53 protein and increased FOXO3 and PUMA levels. Further pull-down experiments using a p53 antibody confirmed the presence of a circFOXO3-p53-MDM2 complex [57]. CircFOXO3 facilitates p53 ubiquitination and degradation by directly binding to both p53 and MDM2 [57]. As a consequence, the capacity of MDM2 to induce ubiquitination and degradation of its other target FOXO3 is decreased, leading to increased stability of the FOXO3 protein. Increased FOXO3 levels then promote expression of PUMA and cell apoptosis [57].

3.2.5. Immune Evasion

CircTADA2A: In a comparison of circRNA microarray data obtained from four TNBC and luminal BC samples, each with three normal mammary gland tissues, circTADA2A-E6 was found to be significantly decreased, and low levels of this circRNA were linked to poor prognosis in BC patients [83]. CircTADA2A-E6 suppressed in vitro cell proliferation, migration, invasion, and clonogenicity, indicating tumor-suppressor capability [83]. CircTADA2A-E6 was described to act as a miR-203a-3p sponge, restoring the expression of the miR-203a-3p target gene SOCS3, a key regulator of cytokine signaling that inhibits BC proliferation [92], resulting in a less aggressive oncogenic phenotype [83].
The examples outlined above indicate that circRNAs can act as effective tumor suppressors in BC (summarized in Table 1). As mentioned previously, owing to their more stable nature [14], tumor-suppressive circRNAs could be ectopically expressed using adenoviral vectors as a way to combat tumor progression, and in this way could be used as cancer therapy [93]. However, in order for circRNAs to be used clinically, a more detailed understanding of their mechanism of action is essential and the development of safe delivery methods required.

4. Clinical Relevance of circRNAs in BC

Effective management of BC requires early diagnosis, reliable prognosis, and close monitoring of disease progression and therapy efficacy [94]. Liquid biopsies are a recently developed alternative to tissue biopsies for initial molecular diagnosis and management of tumor progression, especially throughout the course of treatment [95]. Currently, liquid biopsies are a rapidly expanding class of in vitro diagnostics (IVD) [95]. Nearly all types of molecular and cellular components in human blood have been explored as candidate targets for IVD development. These include circulating tumor cells, EVs, extracellular proteins, peptides, hormones, metabolites, extracellular DNA and their methylated and hydroxymethylated forms, and extracellular RNAs (exRNAs) [96]. A variety of exRNAs have been detected in human plasma and serum [95]. The repertoire of exRNAs found in biofluids also include long non-coding RNAs (lncRNAs) and circRNAs [97]. While miRNAs and lncRNAs have been studied extensively, circRNAs have not yet been explored in the context of BC to aid disease management and detect recurrence [25]. Due to their potentially higher stability, circRNAs may have an advantage over linear RNAs in regard to their application as biomarkers [97]. Although circRNAs as biomarkers in bodily fluids have been investigated in several types of cancers [25], they are a virtually untapped field in BC. More research is essential to exploit the role of extracellular circRNAs as diagnostic and therapeutic candidates in BC. Examples of some circRNAs with prognostic/diagnostic or therapeutic potential are detailed below.

4.1. CircRNAs as Diagnostic/Prognostic Markers

The majority of the studies on circRNAs associated with cancer focused on tissue biopsies and cell lines, with a wide range of data reported (as reviewed in [25]). A considerable number of published reports on potential circRNA biomarkers initially identified circRNAs dysregulated in cancer tissue, and further investigation revealed that the same signature was mirrored in bodily fluids [25]. One study demonstrated the prognostic potential of the circRNA hsa_circ_0001785 by analyzing circRNA expression profiles in BC peripheral blood [98]. The expression levels of hsa_circ_0001785 was found to have decreased in the plasma samples of post-operative BC patients compared to pre-operative patients [98]. However, the underlying mechanism of hsa_circ_0001785 has not been studied thus far, and it remains elusive whether this circRNA is directly involved in driving BC progression.
Additional examples of circRNAs with potential as biomarkers include some of the above discussed circRNAs. For instance, circHMCU, circDNMT1, circDENND4C, circRNF20, and circSKA3 may prove to be useful as general diagnostic markers for BC, as their expression is upregulated regardless of BC subtype. Similarly, circAGFG1 and circANKS1B may be suitable biomarkers in TNBC, as their expression levels are TNBC-specific. Of these, levels of circAGFG1, circCDYL, and circANKS1B correlated with histological grade, TNM stage, and distant metastasis, which may aid in the staging and grading of BC. Interestingly, none of the circRNAs discussed here have been investigated as candidate biomarkers for liquid biopsy thus far. We suggest that there is a vast untapped potential for circRNAs as diagnostic/prognostic biomarkers in BC.

4.2. CircRNAs as Markers of Drug Resistance

Chemotherapy is an effective method to prevent BC recurrence and metastasis following surgical treatment [99]. However, chemotherapeutic resistance remains a major problem, and a way to track or predict the development of drug resistance would enable better management of BC [100]. To this end, some circRNAs were described as associated with drug resistance (Section 3.2.2), and therefore may be relevant as biomarkers in this space [99]. The mechanism of action in drug resistance has been studied for a number of circRNAs in other types of cancer previously [101,102,103], but only a handful of candidates were investigated in detail in BC. One example of a circRNA involved in drug resistance in BC is the above discussed circKDM4C [64]. Downregulation of circKDM4C inhibits tumor progression and attenuates doxorubicin resistance by acting as a miRNA sponge for miR-548p [64], indicating its potential as a biomarker for doxorubicin resistance.

4.3. CircRNAs as Therapies and Therapeutic Targets in BC

Recent advances in RNA-based therapeutics coupled with aberrant expression of circRNAs in BC makes them attractive therapeutic targets [104]. One possible approach is the design of synthetic circRNAs with multiple binding sites for specific oncogenic proteins or miRNAs, which could be introduced exogenously to restore the normal regulatory network in the cell and limit cancer growth [43,105].
Alternatively, endogenous circRNAs may be suitable as cancer therapies [106]. Some of the tumor-suppressor circRNAs reviewed above are potential candidates to be exploited further as therapeutic tools. CircFOXO3, circCCNB1, circKDM4C, circFBXW, and circTADA2A were all downregulated in patient samples, associated with poor prognosis, and are functionally linked to cancer etiology. A therapeutic approach may involve using circRNA overexpression constructs delivered via adeno-associated virus (AAV) vectors, as these vectors do not integrate into the genome and are currently used in clinical trials [107].
On the other hand, oncogenic circRNAs, including the TNBC-specific circAGFG1 and circANKS1B, may be exploited as novel therapeutic targets for TNBC, which currently lacks extensive treatment options and is associated with poor prognosis [7]. Multiple strategies have been developed to target overexpressed circRNA expression therapeutically, such as degradation mediated via siRNA, shRNA, or modified antisense oligonucleotides (ASOs) complementary to the back-splice junction [108,109]. More stable knockout strategies have also been investigated, including CRISPR/Cas genome editing. A recent addition is the CRISPR/Cas13 system wherein circRNA silencing is attained by targeting Cas13 to the back-splice junction of the circRNA via a specific guide RNA, which is able to distinguish between linear transcripts and circRNAs [110]. In particular, Cas13d, a small variant of Cas13 [111] can possibly be packaged into an AAV vector for delivery into primary cells and mice [112]. However, use of this system in a therapeutic context may not be applicable yet as side effects of Cas13 expression are currently unknown [110].

5. Limitations and Challenges in the Field of CircRNAs in BC

Recently, a lot of research has been undertaken in the field of circRNAs in BC [62,71,75,76]. The majority of published research focuses on the discovery of circRNAs in BC, and functional studies have not been accomplished for most of these molecules [66]. On the path to circRNA discovery, a considerable number of studies have used publicly available datasets such as The Cancer Genome Atlas (TCGA) data [113], which may not be ideal as these RNA-seq libraries were generated using polyA enrichment, thus potentially omitting numerous circRNAs [114]. Generating new datasets specifically aimed at circRNA discovery is essential to annotating the complement of circRNAs in the future.
With regards to the functional roles of circRNAs, investigating the sub-cellular localization of circRNAs is crucial, as this will provide insights into their possible molecular mechanism. While RNA-FISH is an excellent method to determine sub-cellular localization for non-coding RNAs in general, it may be challenging to specifically design tiling sets of probes for some circRNAs due to the limitation of probe design targeting the back-spliced junction [115]. Similarly, limited options to design specific probes generate challenges for pull-down experiments of circRNAs, in particular if the circRNA of interest is also of low abundance in the cell. Increasing sensitivity of detection and single-molecule methods could alleviate these challenges in the future.
While the mechanism of action has been described for some circRNAs in BC, most studies focused on investigating circRNAs as miRNA sponges [63,67,116]. Thus far, few studies have shifted their attention to other potential circRNA interacting partners, such as other classes of RNA or proteins [75]. A detailed understanding of how circRNAs function is still lacking, which is in part due to the lack of robust techniques to study this type of transcript [115].
Nevertheless, circRNAs are being exploited as viable biomarkers in other cancers [117,118] and a clinical trial is currently underway to identify circRNA biomarkers in plasma samples of patients with pancreaticobiliary cancer (clinical trial identifier: NCT04584996) [119]. Thus far, most studies are limited to tissues, and the presence of circRNAs in bodily fluids needs to be investigated further to examine their use as diagnostic/prognostic markers in BC. For circRNAs to be used as therapies or therapeutic targets, safe delivery methods and effective KD strategies need to be developed.

6. Conclusions

Expression levels of specific circRNAs have been demonstrated to correlate with BC progression and subtype, with a number of circRNAs being associated with poor prognosis. Functionally, circRNAs have been found to regulate BC progression by impacting cancer cell proliferation, migration, invasion, and metastasis, and a few seem to be involved in drug resistance. From a mechanistic standpoint, most circRNAs studied thus far seem to act as molecular decoy, most often for miRNA. The enhanced stability of circRNAs together with their presence in bodily fluids will enable their detection in a clinical setting in the future. Overall, circRNAs are an emerging class of potential biomarkers and new therapeutic targets in BC.

Author Contributions

D.S. and S.D.D. conceived, wrote, and edited the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

D.S. is supported by a Ronald Kay Science Fellowship from the Breast Cancer Foundation New Zealand, and the Maurice and Phyllis Paykel Trust. This research was funded by the Royal Society Te Apārangi via a Rutherford Discovery Fellowship awarded to S.D.D. (RDF-UOO1802).

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.
