Full-Size Experimental Assessment of the Aerodynamic Sealing of Low Velocity Air Curtains

Abstract

Vertical air curtains are often used to separate two different zones to reduce contaminant transfer or even to provide aerodynamic sealing from one zone to the other. In this isothermal full-size experimental research work, the contaminant transfer between zones is reduced using an air extraction from the “contaminated” compartment and an air curtain. This work correlates the minimum exhaust air flow rate required to reach the aerodynamic sealing at the opening connecting two different zones with the jet nozzle velocity for small nozzle thicknesses (5 mm, 10 mm and 16 mm), particularly for Reynolds numbers below 3800. Following the experimental study, a general physical law that relates the jet parameters (angle, nozzle thickness and jet velocity at the nozzle) with the average velocity through the opening (for the condition of acceptable contaminant tightness) was obtained. The results showed that the average velocity of the flow across a door protected by an air curtain required to keep the aerodynamic sealing varies linearly with Re. The slope, however, is different below and above Re = 3820.

1. Introduction

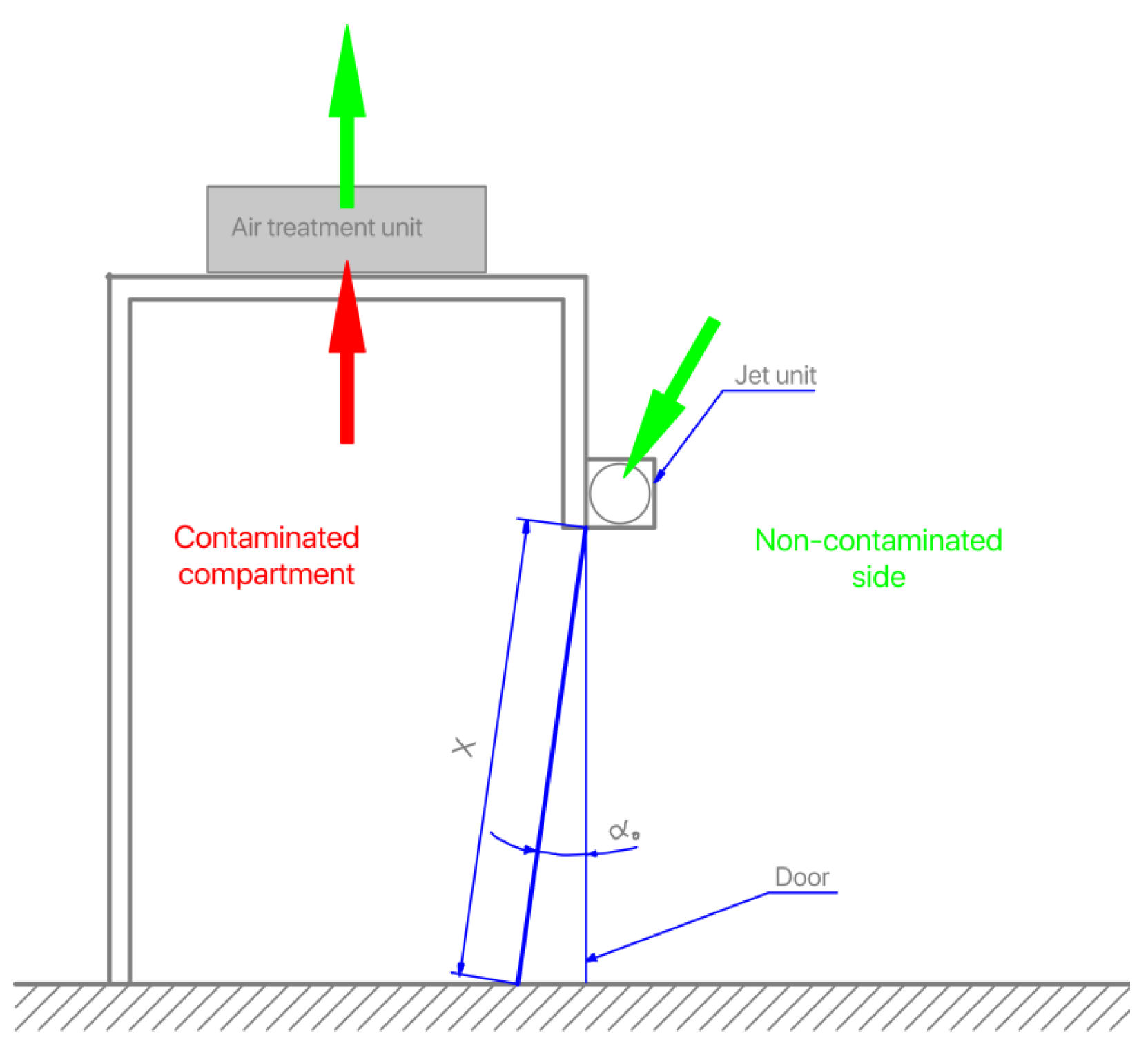

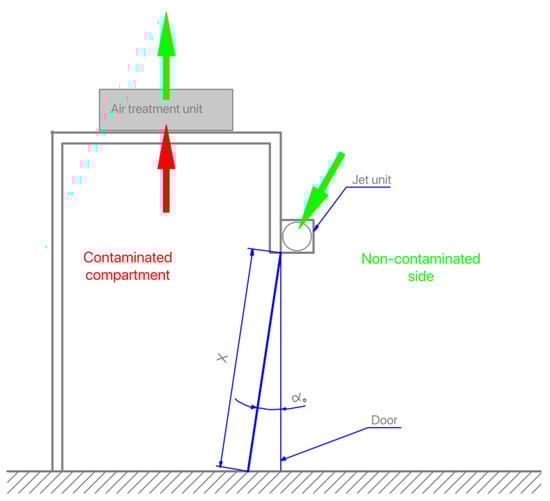

The need of separating different environment zones (limiting heat and mass transfer) is normally addressed using walls and doors. However, in recent decades, the technology of air curtains has emerged as being capable of providing sufficient separation without impairing the movement of people. Air curtains have been used with several objectives, such as Heating, Ventilation and Air Conditioning (HVAC) [1,2,3], smoke control in passageways [4,5] and airborne pollutant and biological control [6,7,8]. Regarding the need to avoid the contaminant spreading, several developments and applications have been reported, namely, in operating rooms [7,9,10,11,12,13,14], for tobacco smoke control [15,16], for protection of art works in museums and of cultural heritage [17,18], in open refrigerated display cabinets [19,20,21], in offices [22], in personalized air curtains [23] and in public transportation [24]. These studies show that air curtains have the potential to reduce the pollutants transferred from one compartment to another.

The Nanoguard2ar project (European Union’s Horizon 2020 research and innovation programme under the Marie Sklodowska-Curie grant agreement N 690968) had, as its main objectives, the goal of developing, designing, testing, validating and demonstrating an innovative nanomaterial-based ‘microbial free’ engineering solution to ensure indoor air quality in buildings. The development of this engineering solution required not only an advanced nanomaterial-based oxidation process to kill bacteria in the air in a compartment, but also an air curtain to provide a separation between the spaces that were to be kept free of cross contamination. The development of the nanomaterial-based technology to clean the air was presented by Danilenko et al. [25] and falls outside the aim of this paper.

The study presented in this paper aims to contribute to the definition of the plane jet characteristics that allow one to achieve the best aerodynamic sealing of the air curtain. The plane jet entrains air from both faces and promotes its turbulent mixing. The downward jet is split into two parts, one flowing to the exterior and another into the interior of the compartment, after impinging the floor. This process promotes the mass transport of the contaminants (although diluted) from one side of the air curtain to the other. To avoid the transport of airborne pollutants (which, in general, may include microorganisms, bacteria, fungus, particles), the air is extracted from the contaminated compartment, which induces a flow crossing the air curtain. This behaviour, in specific conditions, may avoid the flow to be released from the contaminated compartment to the non-contaminated side at the jet impinging zone, as shown in Figure 1 (see Section 2.1 of reference [26] for a more detailed analysis). The air extracted from the contaminated compartment should be decontaminated. In the frame of this research project, a bactericide process based on a nanomaterial was used. It is expensive to carry out the treatment of the “dirty” air removed from the “contaminated” compartment before releasing it to the environment. Considering that the jet entrainment air increases with the volume flow rate at the air curtain nozzle, it is beneficial to use jet velocities that are as low as possible. A more detailed description of these aspects can be found in [27].

For an undisturbed environment (e.g., isothermal flow), it is possible to achieve the aerodynamic sealing through the imposition of a very small uniform horizontal air stream through the opening. In practice, however, some disturbances are likely to occur (e.g., temperature differences, air drafts due to the wind, people crossing the opening), which require, in order to improve the aerodynamic sealing of the opening, the use of an air curtain. In this context, the optimal air curtain is the one that provides an acceptable aerodynamic sealing performance for airborne contaminants but requires the minimum flow rate.

To obtain the exhaust flow rate that provides aerodynamic sealing under different air curtain characteristics, a research program was established, consisting of the following phases: (i) small-scale experiments using water as the work fluid [26]; (ii) Computational Fluid Dynamics (CFD) simulations to verify if the small-scale test results were applicable to a full-size air curtains [28]; (iii) full-size air curtain experiments. The full-size experiments were subdivided into two sets of tests, namely: (iiia) assessment of the aerodynamic sealing for PM10 and comparison with the visual assessment [27] and (iiib) optimisation of the aerodynamic sealing for low Reynolds number jet velocities. The typical dimension of bacteria ranged from 0.5 μm to 5 μm and, for the purpose of the assessment of the aerodynamic sealing, can be associated with the corresponding particle sizes. Therefore, in a previous study [27], the aerodynamic sealing of the curtain for bacteria was analysed for the aerodynamic sealing of PM10 particulate. In the phase (iiia) assessment using PM10, detection was compared with the visual assessment of the aerodynamic sealing using a cold smoke source to validate the visual assessment method, and it was proved that such a method can be used to assess plane jet aerodynamic sealing. In the same study, a limited number of results, obtained at a low Reynolds number for the jet, were also presented, and it was pointed out that the presented data were insufficient to characterize the air curtain aerodynamic sealing under such conditions.

This paper describes the research carried out in phase (iiib), exploring the possibility of using a low nozzle velocity to optimize the use of plane jets for separating two different spaces. It presents a much larger set of results compared to the previous paper [27]. This paper also reviews the previous results obtained by the authors (under both isothermal and high temperature conditions [3,26,27,28,29]) and updates the equations to predict the air curtain sealing performance applicable for both isothermal flow and for when the air curtain is disturbed by heat sources. The contamination was made with cold smoke, and the aerodynamic sealing assessment was visual, as validated in a previous experimental work [27].

The flow, in the air curtain applications at door height openings, is characterized by a turbulent or transition regime. When very low air curtain speeds are used, the air curtain reconstitution time is longer when people walk through the air curtain. This action can increment contaminant leakage through the air curtain. Avoiding using air curtains in a laminar regime can minimize this problem.

The aerodynamic sealing performance of vertical air curtains has been studied by Hayes and Stoecker [30,31,32], who defined the deflection modulus (Dm), which is an indication of the deflection of the air curtain jet and expresses the ratio of the outlet momentum to the transverse forces on the jet [32]. They defined [31] the operation conditions called ‘optimum condition’, in which the air curtain jet reaches the floor, and ‘inflow breakthrough condition’, in which the air curtain flow is curved inwards and does not reach the floor [33,34].

A recent application of this concept was presented by Elicer-Cortés et al. [35]. To study the ability of Double Stream–Twin Jet (DS-TJ) air curtains to confine heat, they performed simulations with imposed low jet velocities to reduce the fan’s power as much as possible, while still ensuring confinement. In the DS-TJ proposed solution, no smoke exhaust from the cell containment zone is provided, besides the smoke recirculated by the hot side aid curtain. Thus, it is not possible to avoid the release of heat from the confinement zone without air extraction due to two phenomena: (i) the heating of the air in the confinement zone causes the expansion of the air and the increase of the volume flow rate and (ii) the outside air is entrained by the air curtain and mixed in the plane jet turbulent flow; therefore, due to continuity, this outside entrained flow rate will be rejected and heat will be transferred to the outside (see [29] for further explanation of the phenomena). Although they showed that the DS-TJ can keep a relevant temperature difference between its two sides, they were not able to confine the smoke near the floor impinging zone, “where larger transfers occurred.” This observation points towards the conclusion that it is not possible to confine the smoke into a dell without any exhaust.

The ideal condition, in our research, corresponds to the limit between the optimum condition and the inflow breakthrough condition (taking Figure 1 as a reference), where the contamination brought to the jet with the air entrained from inside the compartment is mixed up in the jet flow and is rejected to the contaminated compartment. To reach this condition in a compartment, it is necessary to have an air exhaust.

There are several applications of this concept that are aimed at avoiding contaminant spreading. Qi et al. [36] presented a parametric study of air curtain performance based on reduced-scale experiments and full-scale numerical simulations. They found that, when it is operated under the “optimum condition” and “inflow break-through condition”, increasing air curtain supply angle improves the air curtain performance. This aspect is due to the increment of the plane jet momentum component, which alters the momentum balance of the jet split at the floor impinging zone and causes the flow deflected to one side being higher than to the other side. Huang [37] faced the problem of dust containment and removal in a coal mine. An air curtain was used to isolate the cutting head of the digging machine and its rear. There was an air extraction near the cutting head and an air supply in the rear zone of the machine. The author presents the effectiveness of aerodynamic sealing provided by the air curtain. Lv et al. [38] developed an air curtain range hood and studied its beneficial effect on preventing spillage of contaminants to the kitchen. It was found that the variables affecting the performance of the air curtain range hood were the exhaust rate, the intensity of the heat source, the air curtain velocity, the interaction between the air curtain velocity and slot width, the air curtain slot width and the air curtain angle. Compared with range hoods without an air curtain, contaminant removal efficiency was enhanced with the air curtain range hood. Xiao et al. [39] developed a transverse-flow sealing dust control system with four air curtain generators arranged in a square pattern within the region where dust was generated to create end-to-end planar transverse-flow air curtains and achieve aerodynamic sealing. The air suction inlet was located above the dust generating area. The concept of this system is physically similar to the one developed in our research, because they both consider a complementary air extraction from the dusty zone to improve the aerodynamic sealing of the air curtains. It was shown that the dust control efficiency of the soft-sealing system reached 92.6% when the air curtain outlet velocity was 6.27 m/s, the exhaust-to-pressure ratio was 0.6 and the jet angle was 15°. Moreover, they showed that, with a greater air supply and air suction rate, the airflow exhibited a more obvious entrainment effect and stronger dust exhaust and discharge and, simultaneously, the tracing smoke area had a clearer boundary. The key issue for the success of the findings reported by [37,38,39] is the combination of a plane jet with an exhaust on the contaminated side.

These works show the importance of the pressure difference between the exterior and the interior of the compartment, due to the air exhaust. However, none of them presents any law (equation) to relate the aerodynamic sealing of the devices with the air curtain parameters and the air exhaust flow rate. To increase the effectiveness and to reduce air cleaning costs, it is important to reduce, as much as possible, the air curtain velocity. Therefore, the lowest values of air velocity and the corresponding Reynolds number (Re) reported in our research (Re between 175 and 13,245, but most of the test results lay below Re = 4000) are much lower when compared to the corresponding values referred to in these works. In our research, we also obtain a clear relation between the physical parameters of the air curtain (nozzle velocity and thickness) and the aerodynamic sealing. Therefore, to the best of our knowledge, our study constitutes an added value to the research in the field.

The research questions are:

(a)

Is the full-size air curtain able to create an effective aerodynamic sealing of the enclosure for airborne contaminants?

(b)

What is the lowest acceptable nozzle velocity to achieve a practical aerodynamic sealing?

The aerodynamic sealing of an air curtain combined with air extraction (from the contaminated compartment) was previously studied for smoke control in case of fire in the framework of a Portuguese national research project [4,29]; the physical laws that allow the containment of the hot smoke inside the contaminated compartment were developed and the efficacy of the system was shown. In the Nanoguard2ar project, the focus was on the quasi-isothermal aerodynamic sealing for bacteria, which, for the purpose of this study, are considered as particles. Therefore, it was necessary to develop the research on the isothermal case, which is considered a limit condition (in opposition to the work presented in [4,29], which was carried out at high temperature). Previous work, carried out in the framework of the Nanoguard2ar project, showed that sealing can be achieved in a small-scale test rig [26] and developed the corresponding physical laws. It was also shown, by Computational Fluid Dynamics (CFD), that aerodynamic sealing can be expected for full-size applications [28] and it established the equations to predict the air curtain sealing performance applicable, both for isothermal flow and when the air curtain is disturbed by heat sources. This paper reviews and updates these equations in light of the full set of experimental results.

Considering that the typical dimension of bacteria ranges from 0.5 μm to 5 μm, which can be assimilated to the corresponding sized particles, the work previously presented [27] considered that the aerodynamic sealing of the curtain for bacteria could be analysed as the aerodynamic sealing of PM10 and PM2.5 particulate. It was shown, considering the ratio between the outside and inside concentration of PM10 and PM2.5 for different air curtain working parameters (jet nozzle angle and velocity), that the air curtain presents a relevant aerodynamic sealing for PM10 and PM2.5. It was also shown that the minimum air exhaust rate from the compartment to achieve aerodynamic sealing is similar when the assessment is carried out using the ratio between the outside and inside concentration of PM10 and PM2.5 or when using a visual assessment. Therefore, in this work, we adopt a visual assessment of the aerodynamic sealing, having in mind, the problem of bacteria retention inside the compartment.

The objectives of the work of this research are:

To demonstrate that the full-size air curtain can provide an efficient aerodynamic sealing at a low Reynolds number jet flow.

To obtain a general physical law that relates the jet parameters (angle, nozzle thickness and jet velocity at the nozzle) with the exhaust flow rate (for the condition of acceptable contaminant tightness).

The approach described hereafter was followed:

• It was considered that the physics in the case of the “contaminated” compartment, presented in Figure 1, is relevant for analysis of the performance of the air curtain device.
• The results from previous research for the non-isothermal case [4,29] and for the isothermal case [26,27,28] are considered.
• Visual assessment was used to evaluate the sealing performance of the air curtain device considering different working parameters (jet nozzle angle, thickness and velocity), having in mind the assessment of aerodynamic sealing for bacteria.

2. Methods

The same test rig and the same procedures of the tests reported in [27] were used; therefore, this section of the methods is similarly described. The measurement uncertainty analysis for this test rig has already been presented in [29]. The compartment presented in Figure 2 was built for assessing the aerodynamic sealing of a full-size air curtain. The walls were composed of a double 10 mm thick gypsum board with a 50 mm insulation layer inside. To avoid wind disturbances, the experiments were performed in a hangar. Indoor air and cold smoke were exhausted by a fan via a 625 mm × 535 mm opening, which was located near the ceiling in the opposite wall to the door. The exhaust fan was controlled by a variable-frequency drive, and the exhaust volume flow rate at the compartment exhaust opening was correlated by calibration with the displayed frequency (the estimated standard uncertainty of the measurement varied from 0.055 m³/s, for a low flow rate, up to a maximum of 0.084 m³/s, for a flow rate of 0.97 m³/s). The maximum flow rate of the exhaust fan was 0.86 m³/s in these tests. The average door velocity was estimated based on the continuity in relation to exhaust flow rate.

The air curtain fan developed for this research project consists of two crossflow ventilators, which, combined with a plenum chamber and an adjustable nozzle, generate the intended air curtain (See Figure 3, Figure 4 and Figure 5). The ventilators were assembled side by side on a support structure with the rotors aligned. The main criteria when designing this prototype was to minimize the amount of structural and functional elements to be added to the two-ventilator assembly. This was achieved by using the ventilator frame as the structural core of the prototype, thus creating a relatively compact solution. This prototype was designed with the following objectives in mind: (i) reduced weight, while maintaining adequate structural sturdiness; (ii) ease of production; (iii) versatility to provide a wide range of jet configurations in terms of jet orientation, jet thickness and jet velocity. The jet unit prototype allows for jet thickness in the range of 5 mm to 30 mm and plane jet orientations from 0° to 30° in relation to the vertical plane. Depending on nozzle configurations, the jet nozzle velocity starts at 0 m/s and is able to reach 20 m/s.

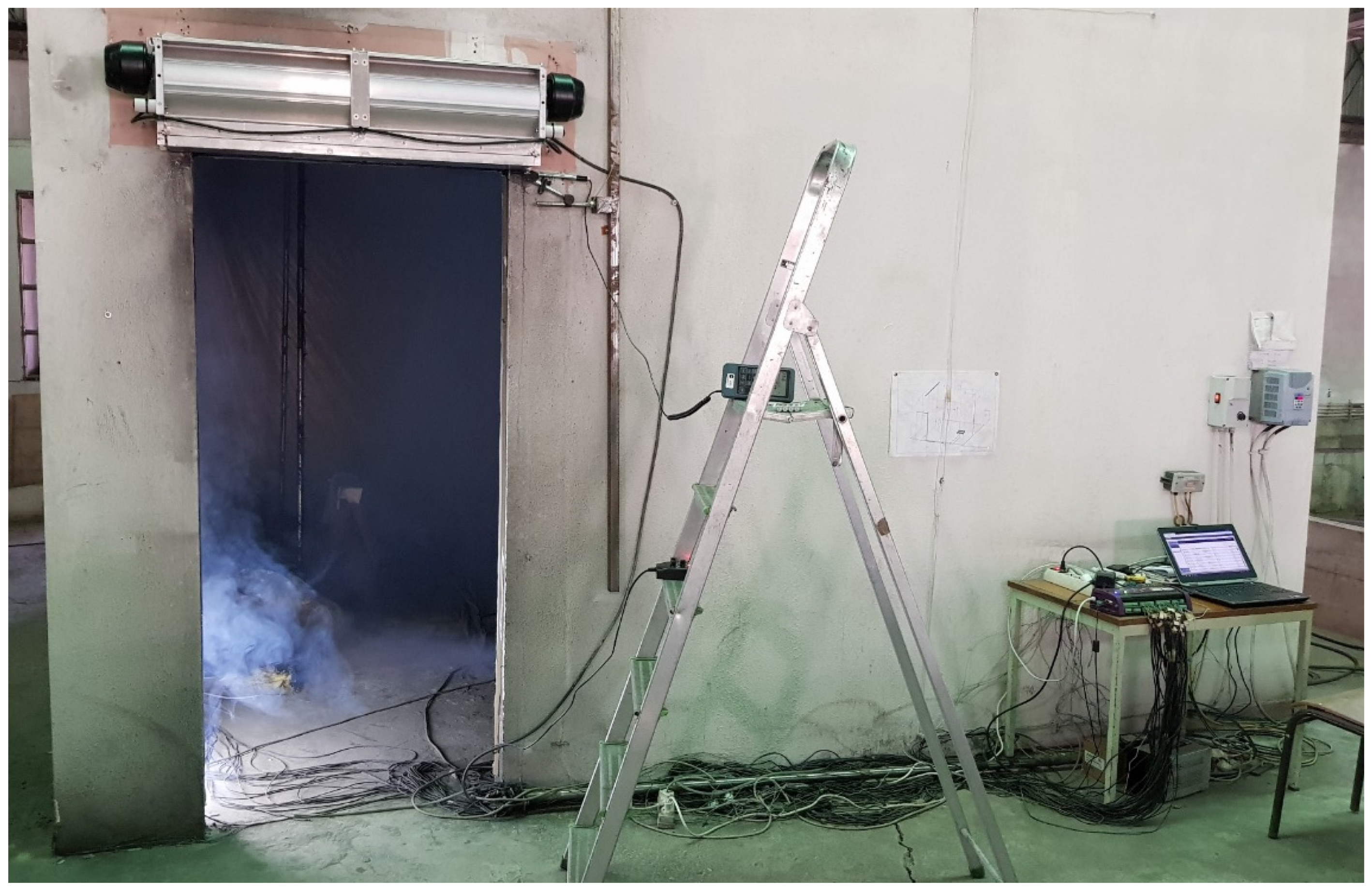

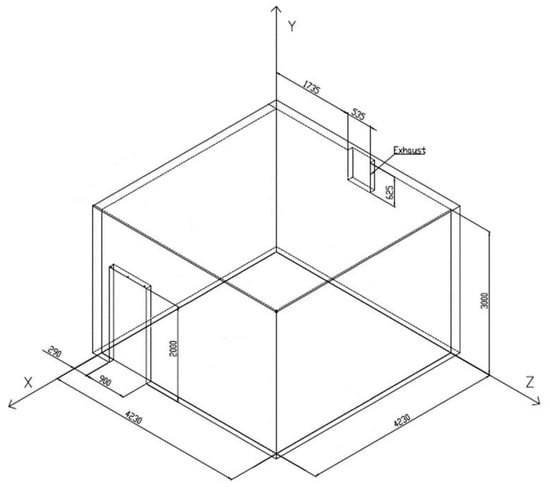

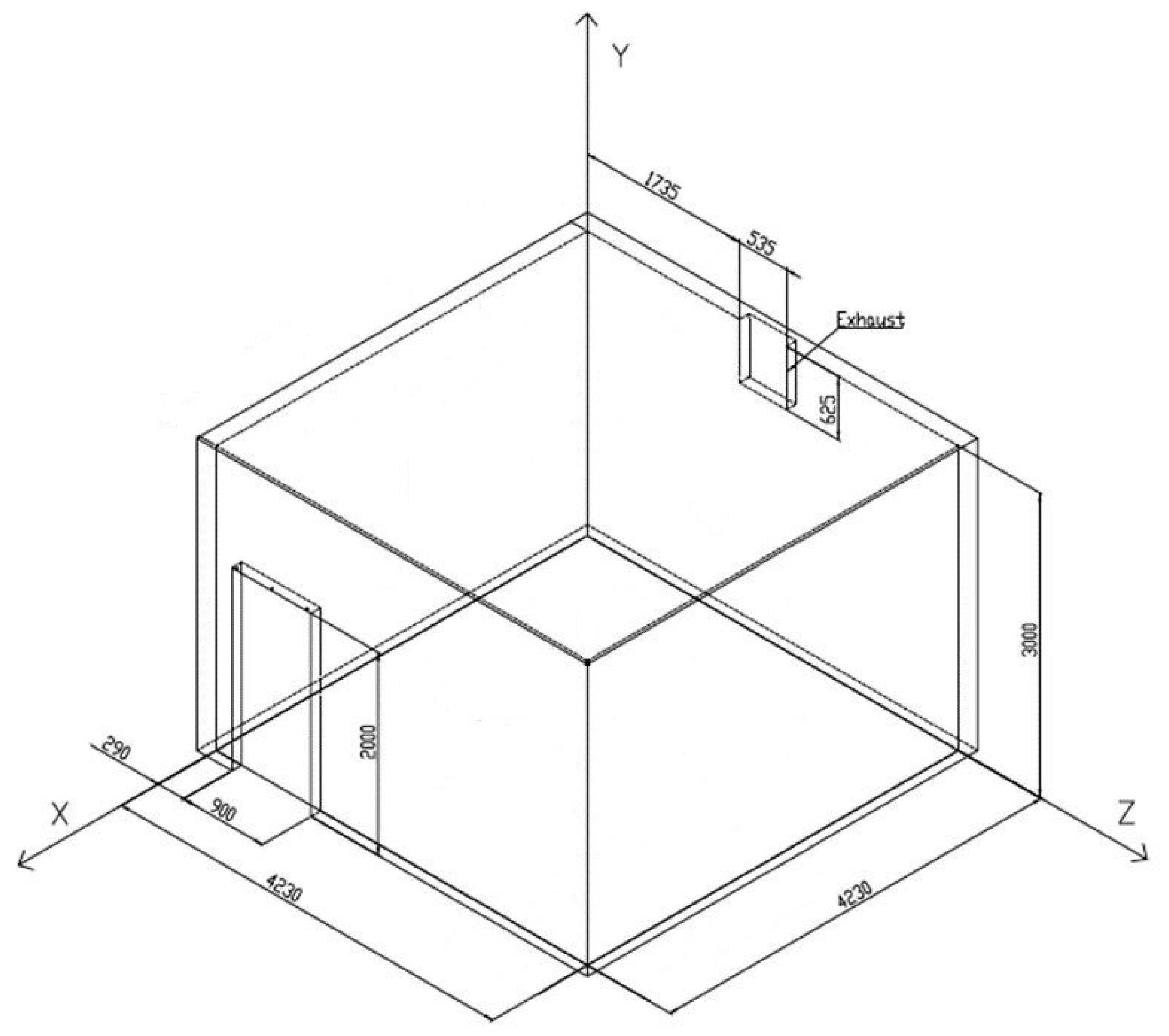

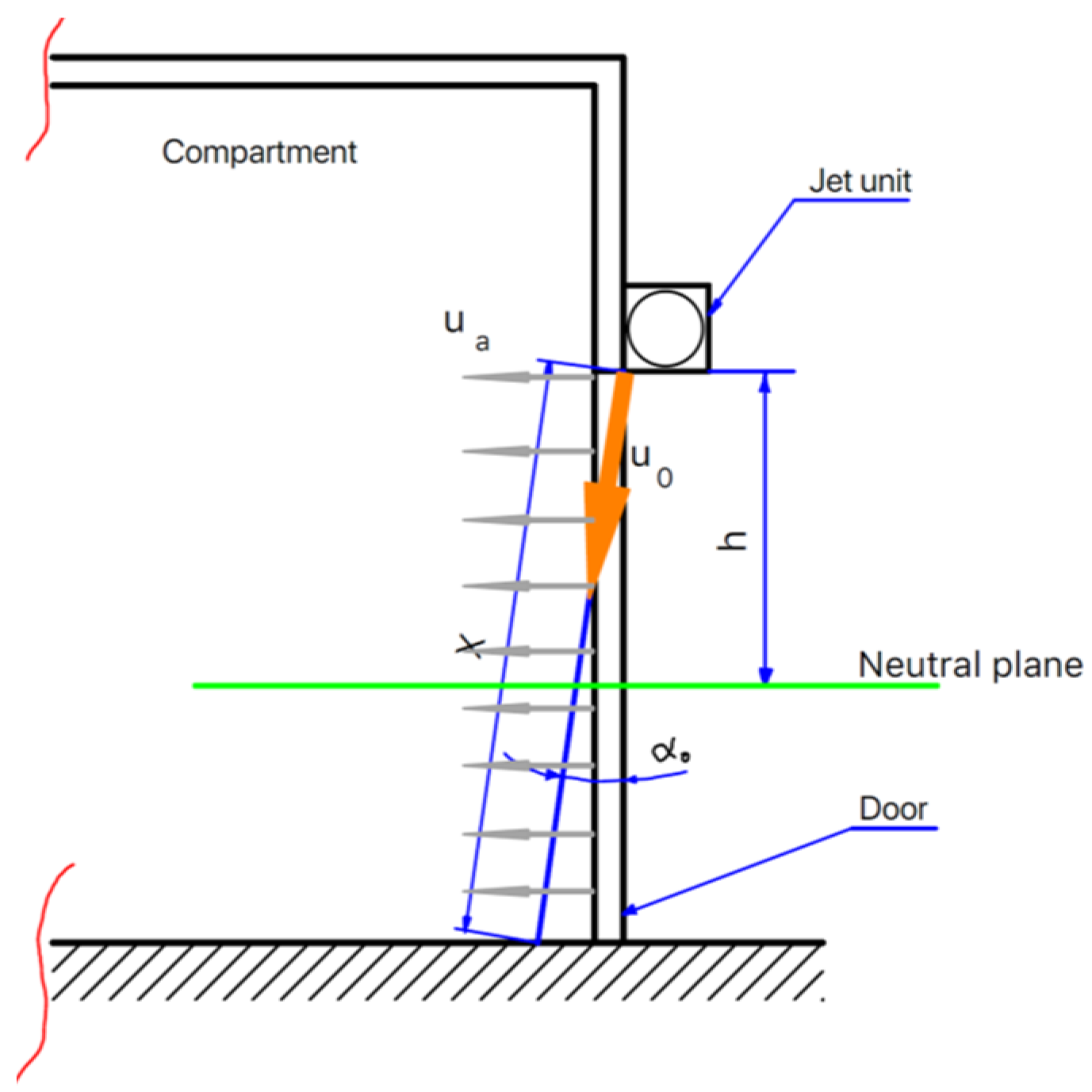

The air curtain fan was suspended on the external side of the soffit of the door (Figure 3). The curtain flow velocity, which was controlled in frequency, was continuously measured with a hot wire anemometer (model Airflow TSI 8455) located at the jet origin. The measurements of this anemometer were correlated with the average jet velocity by calibration (estimated standard uncertainty of 0.46 m/s). The curtain nozzle velocity ranged from 0.0 m/s to 12.0 m/s. In these tests, the nozzle thickness ranged from 5 mm to 16 mm (estimated standard uncertainty of 0.50 mm), and the plane jet angle ranged from 0° to 20° (estimated standard uncertainty of 1°). The plane jet angle was assessed using a sewing thread hanging from the nozzle, which showed the flow direction. The angle measurement was made with a protractor.

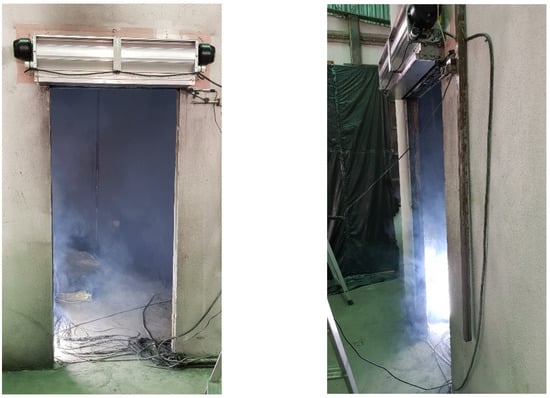

In these experiments a cold smoke source was activated inside the test compartment (Figure 4). An air curtain (plane jet), protecting an open door, was activated and an exhaust fan was also activated (Figure 5). The exhaust flow rate from the compartment and the nozzle jet velocity were reduced as much as possible during each test, while the aerodynamic sealing at the opening was kept. The concentration of PM10 and PM2.5 was assessed in these experiments because the work previously carried out [27] showed that the visual assessment gives similar results. The results corresponding to the lowest exhaust flow rate necessary to obtain the aerodynamic sealing (assessed visually) were retained. In order to make steady state measurements, the waiting time after every change of test parameter was considered. As the exhaust flow rate necessary for these tests is very low, it was noticed that the influence of outside pressure due to the wind through the exhaust fan duct was relevant; therefore, in these tests, the exhaust fan duct released the extraction air to the interior of the hangar where the test compartment was located.

Three sets of tests were carried out, organized by the jet nozzle thickness. They are presented in

Table 1. Conditions of the tests for the 5 mm nominal thickness of the jet nozzle.

	Jet Nozzle Thickness [mm]	Jet Velocity [m/s]	Jet Re	Jet Angle [°]	Exhaust Flow Rate [m3/s]	Door Average Velocity Ua [m/s]
Test 148	4.6	1.60	487	10	0.104	0.058
Test 147	4.6	2.41	733	10	0.112	0.062
Test 149	4.6	3.14	954	10	0.116	0.065
Test 146	4.6	4.03	1225	10	0.142	0.079
Test 150	4.6	4.76	1447	10	0.154	0.086
Test 145	4.6	5.73	1742	10	0.159	0.088
Test 151	4.9	0.86	280	20	0.078	0.043
Test 158	4.9	1.55	507	20	0.095	0.053
Test 157	4.9	2.17	709	20	0.108	0.060
Test 156	4.9	2.86	936	20	0.108	0.060
Test 155	4.9	3.79	1239	20	0.121	0.067
Test 154	4.9	4.49	1466	20	0.129	0.072
Test 153	4.9	5.18	1693	20	0.137	0.076
Test 152	4.9	6.03	1970	20	0.167	0.093
Test 166	4.8	0.55	175	5	0.137	0.076
Test 165	4.8	1.20	383	5	0.125	0.069
Test 164	4.8	2.02	650	5	0.091	0.050
Test 163	4.8	2.83	901	5	0.104	0.058
Test 159	4.8	3.73	1186	5	0.112	0.062
Test 162	4.8	4.46	1419	5	0.121	0.067
Test 160	4.8	5.27	1678	5	0.125	0.069
Test 161	4.8	6.09	1937	5	0.142	0.079
Test 167	4.6	1.13	341	15	0.167	0.093
Test 168	4.6	1.77	537	15	0.078	0.043
Test 169	4.6	2.58	781	15	0.095	0.053
Test 170	4.6	3.38	1024	15	0.112	0.062
Test 171	4.6	4.19	1268	15	0.121	0.067
Test 172	4.6	4.99	1512	15	0.133	0.074
Test 173	4.6	5.80	1756	15	0.150	0.083
Test 174	4.6	6.60	2000	15	0.163	0.090
Test 175	5.0	1.00	328	0	0.142	0.079
Test 176	5.0	1.58	517	0	0.129	0.072
Test 177	5.0	2.30	755	0	0.095	0.053
Test 178	5.0	3.02	993	0	0.104	0.058
Test 179	5.0	3.74	1230	0	0.112	0.062
Test 180	5.0	4.46	1467	0	0.121	0.067
Test 181	5.0	5.19	1705	0	0.133	0.074
Test 182	5.0	5.91	1942	0	0.146	0.081

(nominal jet thickness of 5 mm),

Table 2. Conditions of the tests for the 10 mm nominal thickness of the jet nozzle.

	Jet Nozzle Thickness [mm]	Jet Velocity [m/s]	Jet Re	Jet Angle [°]	Exhaust Flow Rate [m3/s]	Door Average Velocity Ua [m/s]
Test 199	9.4	3.62	2241	5	0.188	0.105
Test 200	9.4	3.15	1951	5	0.180	0.100
Test 201	9.4	2.68	1661	5	0.163	0.090
Test 202	9.4	2.21	1371	5	0.154	0.086
Test 203	9.4	1.75	1081	5	0.137	0.076
Test 204	9.4	1.28	791	5	0.125	0.069
Test 205	9.4	0.81	501	5	0.175	0.097
Test 206	9.4	0.62	385	5	0.209	0.116
Test 207	9.2	3.64	2221	10	0.180	0.100
Test 208	9.2	3.17	1934	10	0.163	0.090
Test 209	9.2	2.70	1648	10	0.146	0.081
Test 210	9.2	2.23	1361	10	0.133	0.074
Test 211	9.2	1.76	1075	10	0.125	0.069
Test 212	9.2	1.29	788	10	0.104	0.058
Test 213	9.2	0.67	410	10	0.142	0.079
Test 216	9.5	3.57	2229	0	0.192	0.107
Test 217	9.5	3.11	1942	0	0.184	0.102
Test 218	9.5	2.65	1654	0	0.171	0.095
Test 219	9.5	2.19	1366	0	0.163	0.090
Test 220	9.5	1.73	1079	0	0.159	0.088
Test 221	9.5	1.27	791	0	0.150	0.083
Test 222	9.5	0.81	503	0	0.137	0.076
Test 223	9.8	3.54	2287	15	0.188	0.105
Test 224	9.8	3.07	1987	15	0.175	0.097
Test 225	9.8	2.61	1687	15	0.163	0.090
Test 226	9.8	2.15	1387	15	0.146	0.081
Test 227	9.8	1.68	1088	15	0.137	0.076
Test 228	9.8	1.22	788	15	0.133	0.074
Test 229	9.8	0.76	488	15	0.133	0.074
Test 230	9.7	3.58	2289	20	0.197	0.109
Test 231	9.7	3.10	1979	20	0.188	0.105
Test 232	9.7	2.61	1670	20	0.175	0.097
Test 233	9.7	2.13	1361	20	0.163	0.090
Test 234	9.7	1.65	1051	20	0.159	0.088
Test 235	9.7	1.16	742	20	0.150	0.083
Test 236	9.7	0.68	433	20	0.137	0.076

(nominal jet thickness of 10 mm) and

Table 3. Conditions of the tests for the 16 mm nominal thickness of the jet nozzle.

	Jet Nozzle Thickness [mm]	Jet Velocity [m/s]	Jet Re	Jet Angle [°]	Exhaust Flow Rate [m3/s]	Door Average Velocity Ua [m/s]
Test 237	-	0	0	-	0.201	0.112
Test 238	16.4	3.31	3576	20	0.222	0.123
Test 239	16.4	2.88	3115	20	0.214	0.119
Test 240	16.4	2.46	2653	20	0.205	0.114
Test 241	16.4	2.03	2192	20	0.188	0.105
Test 242	16.4	1.60	1730	20	0.180	0.100
Test 243	16.4	1.17	1269	20	0.171	0.095
Test 244	16.4	0.75	807	20	0.188	0.105
Test 245	15.5	3.42	3511	0	0.226	0.126
Test 246	15.5	2.97	3043	0	0.218	0.121
Test 247	15.5	2.51	2576	0	0.205	0.114
Test 248	15.5	2.06	2109	0	0.188	0.105
Test 249	15.5	1.60	1641	0	0.184	0.102
Test 250	15.5	1.15	1174	0	0.171	0.095
Test 251	15.5	0.69	706	0	0.154	0.086
Test 252	16.6	3.31	3627	5	0.230	0.128
Test 253	16.6	2.86	3135	5	0.226	0.126
Test 254	16.6	2.41	2644	5	0.209	0.116
Test 255	16.6	1.97	2153	5	0.192	0.107
Test 256	16.6	1.52	1661	5	0.180	0.100
Test 257	16.6	1.07	1170	5	0.167	0.093
Test 258	16.6	0.62	679	5	0.159	0.088
Test 259	16.7	3.29	3630	10	0.243	0.135
Test 260	16.7	2.85	3144	10	0.230	0.128
Test 261	16.7	2.41	2659	10	0.209	0.116
Test 262	16.7	1.97	2173	10	0.188	0.105
Test 263	16.7	1.53	1688	10	0.175	0.097
Test 264	16.7	1.09	1202	10	0.163	0.090
Test 265	16.7	0.65	717	10	0.171	0.095
Test 266	16.6	3.31	3640	15	0.239	0.133
Test 267	16.6	2.87	3149	15	0.226	0.126
Test 268	16.6	2.42	2658	15	0.214	0.119
Test 269	16.6	1.97	2167	15	0.192	0.107
Test 270	16.6	1.53	1676	15	0.171	0.095
Test 271	16.6	1.08	1185	15	0.154	0.086
Test 272	16.6	0.63	694	15	0.167	0.093
Test 273	16.6	4.34	4769	15	0.307	0.170
Test 274	16.6	5.77	6341	15	0.353	0.196
Test 275	16.6	7.16	7863	15	0.522	0.290
Test 276	16.6	8.59	9435	15	0.569	0.316
Test 277	16.6	9.98	10,957	15	0.611	0.340
Test 278	16.6	11.41	12,528	15	0.725	0.403
Test 279	16.6	1.08	1185	15	0.171	0.095
Test 280	16.6	0.26	291	15	0.146	0.081
Test 281	-	0	0	-	0.133	0.074
Test 282	16.6	12.06	13,245	15	0.861	0.478

(nominal jet thickness of 16 mm). There were also tests carried out where the air curtain was inactive. Their results are included in Table 3 (tests 237 and 281).

The definition of the Reynolds number currently used for plane jets, $\mathrm{Re}=\left(\overline{{\mathrm{u}}_0}{\mathrm{b}}_0\right)/\mathsf{\nu }$, was considered [40]. Therefore, these full-size tests at low jet velocity (mainly for the nominal jet nozzle thicknesses of 5 mm and 10 mm), with Re ranging from 175 to 2288, were carried out mostly in the transition regime. For the main set of tests with the nominal jet nozzle thickness of 16 mm, the Re ranged from 290 to 3640 for the plane jet angle of 0°, 5°, 10° and 20°. For the angle of 15°, this study was expanded up to an Re of 13,245. Therefore, for the nominal jet thickness, both transition and turbulent regimes are involved.

3. Results

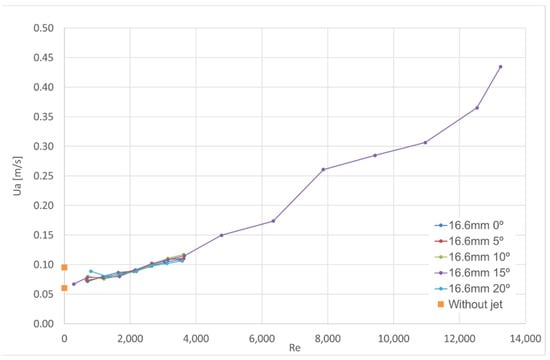

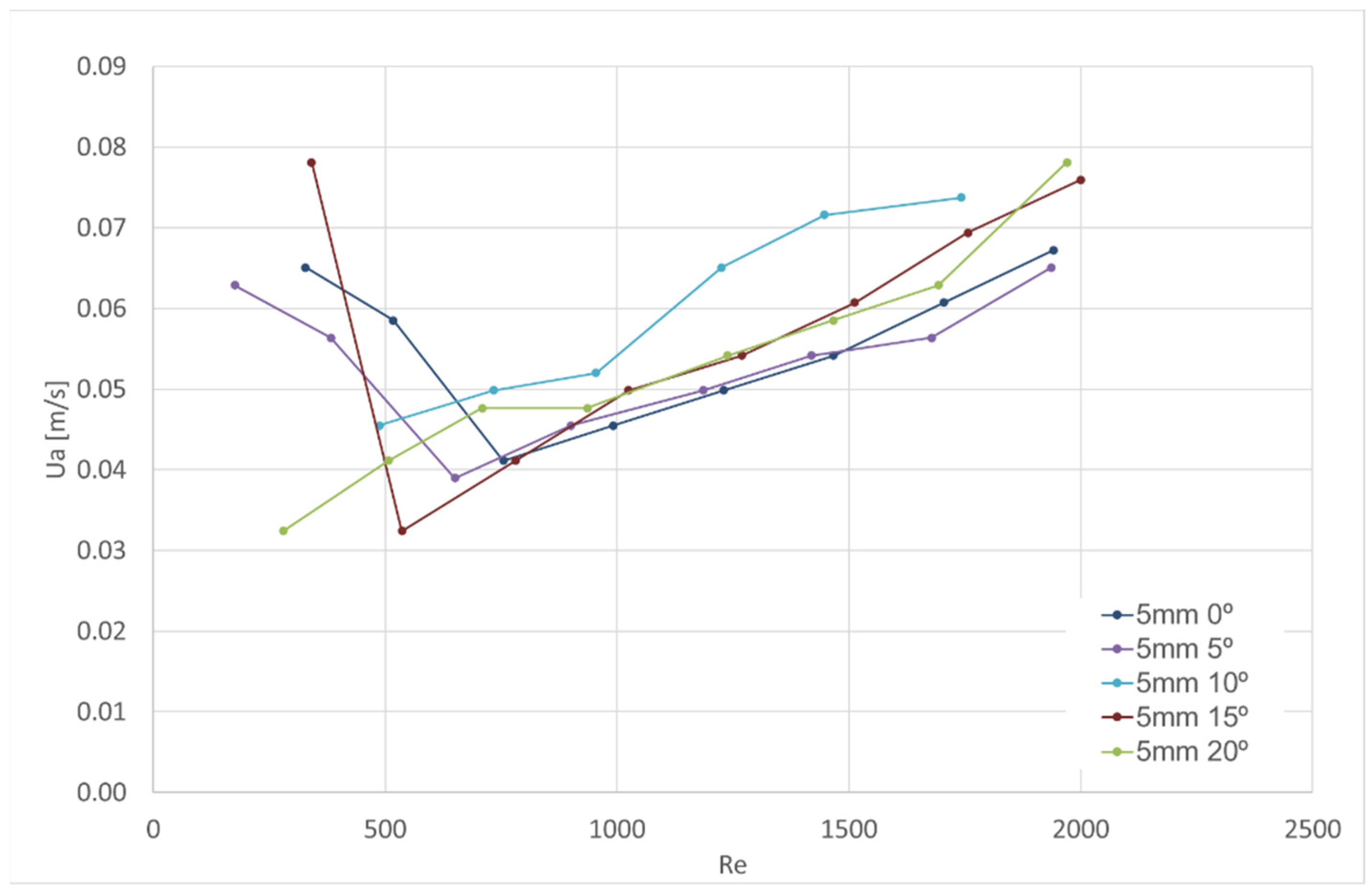

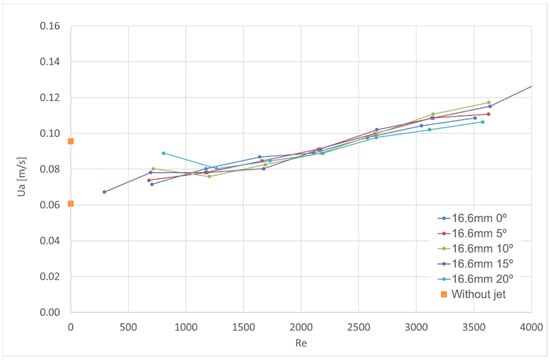

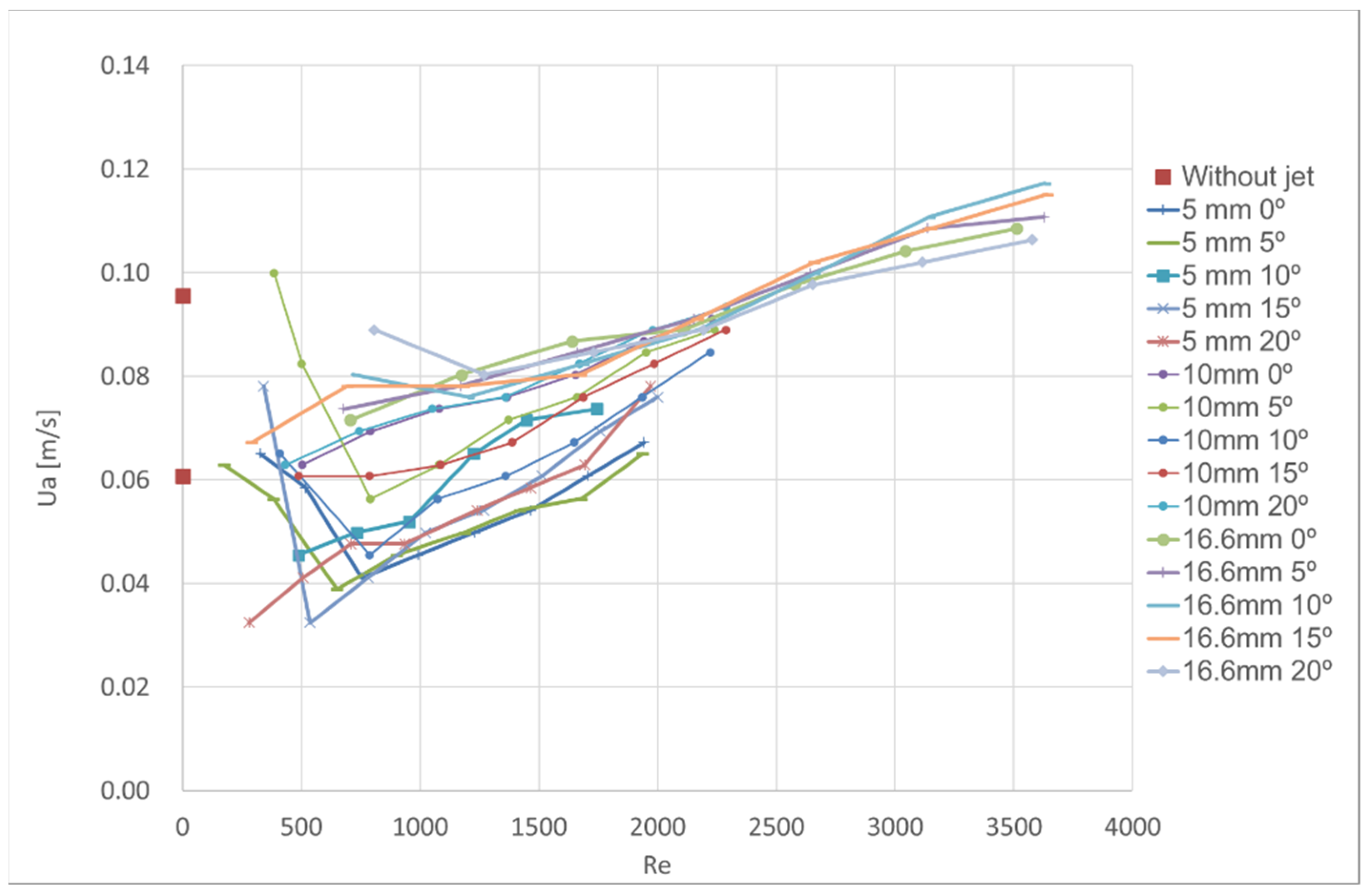

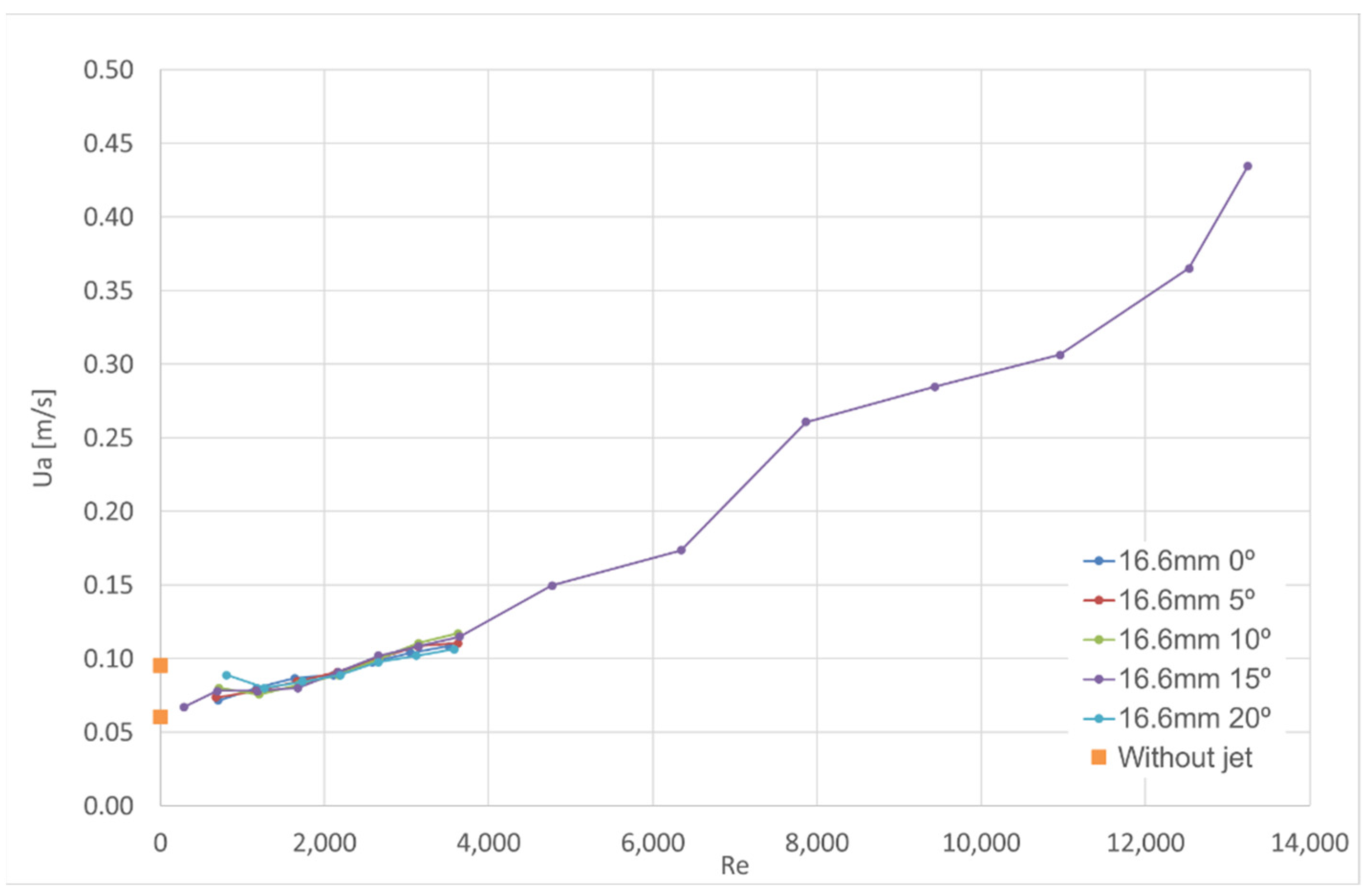

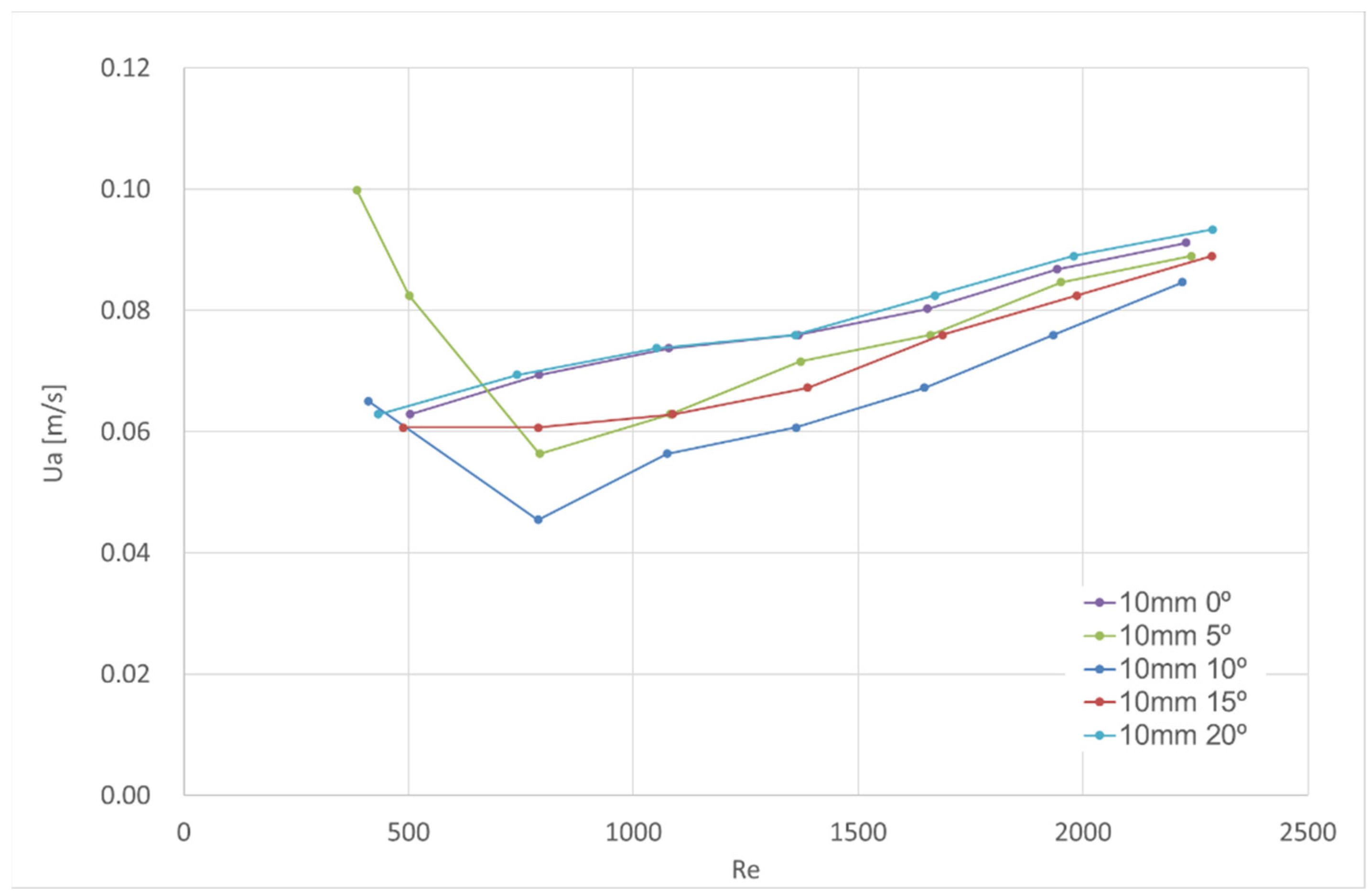

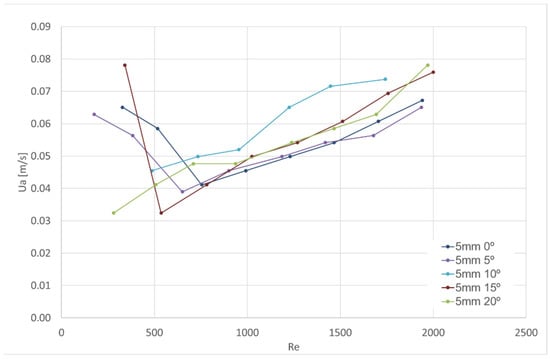

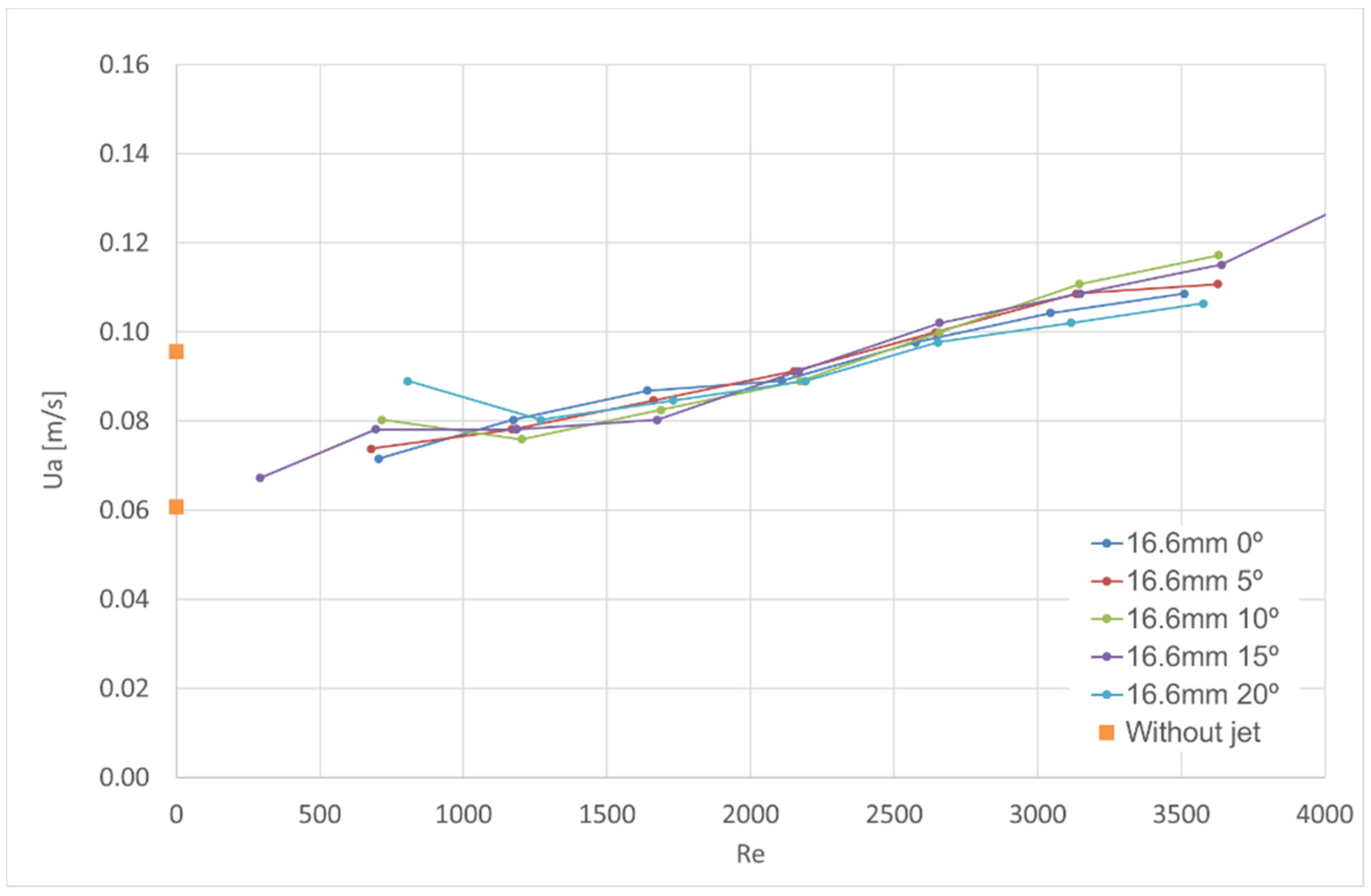

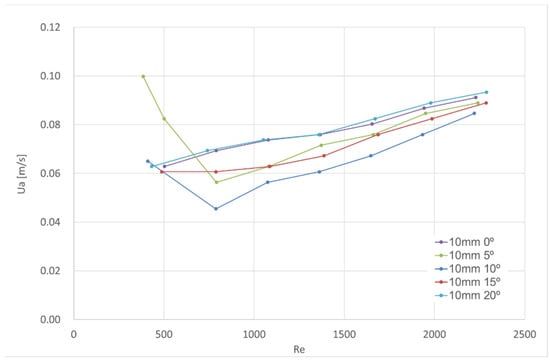

The following figures (Figure 6, Figure 7 and Figure 8) show the relevant experimental results for the 5 mm, 10 mm and 16 mm jet thicknesses. The x-axis corresponds to the plane jet Reynolds number and the y-axis corresponds to the minimum average velocity through the door to obtain the visual aerodynamic sealing. Every figure presents the results for several angles (0°, 5°, 10°, 15° and 20°) between the plane jet and the vertical plane. As the tests for the nozzle thickness of 16.6 mm and angle of 15° were carried out for a wide range of Reynolds numbers, two images present the results: the upper image in Figure 8 shows the whole set of results and the lower image shows the test results for the Reynolds number interval from 0 to 2400.

The results show that the average velocity of the flow across the door ($\overline{{\mathrm{u}}_{\mathrm{a}}}$) needed to avoid the release of the contaminated air (with cold smoke) from the compartment increases linearly with the average jet nozzle velocity ($\overline{{\mathrm{u}}_0}$); thus, it also increases linearly with the Reynolds number. The air flow rate entrained by the plane jet (from both sides), which forms the air curtain, increases with $\overline{{\mathrm{u}}_0}$; therefore, the air plane jet flow rate, when impinging the floor, increases with $\overline{{\mathrm{u}}_0}$. The plane jet reduces the admission of uncontaminated air through the upper part of the protected door; therefore, the incoming air flow is concentrated at the lower part of the door, where it is needed to avoid the plane jet being split when impinging the floor and being rejected to the outside of the compartment. As expected, the $\overline{{\mathrm{u}}_{\mathrm{a}}}$ increases linearly with the plane jet flow rate. Although a zone between the sides of the plane jet (which is tilted to inside due to the incoming flow) and the vertical limits of the door opening seems to be unprotected, the incoming air ($\overline{{\mathrm{u}}_{\mathrm{a}}}$) is sweeping any contaminant leakage inside the compartment when the incoming flow rate is large enough. Additionally, some contaminant (which is entrained from inside to the plane jet, mixed in the plane jet and rejected to the outside in the floor impinging zone) is again captured by the jet entrainment from outside, assisted by the incoming flow rate ($\overline{{\mathrm{u}}_{\mathrm{a}}}$). This limit condition is considered to correspond to “no contaminant leakage” because the contaminant is kept persistently in the air curtain action zone.

The analysis of the results shows that:

The dispersion of the results does not correspond to a sequence (increasing or decreasing) of the plane jet angles, so it was concluded that the jet angle has no significant influence. It was observed that, for low momentum jets, the effect of the compartment exhaust flow rate is a determinant. As the compartment has only one outlet and one inlet opening, the continuity applies and the inlet flow rate through the door is equal to the exhaust flow rate. The momentum of this inlet flow rate is significant enough to impose the deflection of the air curtain approximately to the same angle, independently of the initial angle imposed at the nozzle of the plane jet (only for low momentum jets). This conclusion is in agreement with the results obtained in the CFD analysis carried out by Dias, Gogotsi and Viegas [28], who showed that, with respect to the angle of the jet, it is important to define the flow path near the nozzle, whereas far from the nozzle, the flow path of the jet depends mainly on the extraction flow rate from the compartment.

At thicknesses of 5 mm and 10 mm, there are experimental results showing an inflection (for Re between 800 and 1800), with the average door flow velocity ($\overline{{\mathrm{u}}_{\mathrm{a}}}$) values being higher for lower Reynolds numbers. This behaviour is consistent with the average door velocity value measured for the inactive air curtain condition. For the thickness of 16.6 mm, the number of measurements for Re < 500 is small, which does not allow analysis of this behaviour. This aspect will be analysed in the next section.

4. Discussion

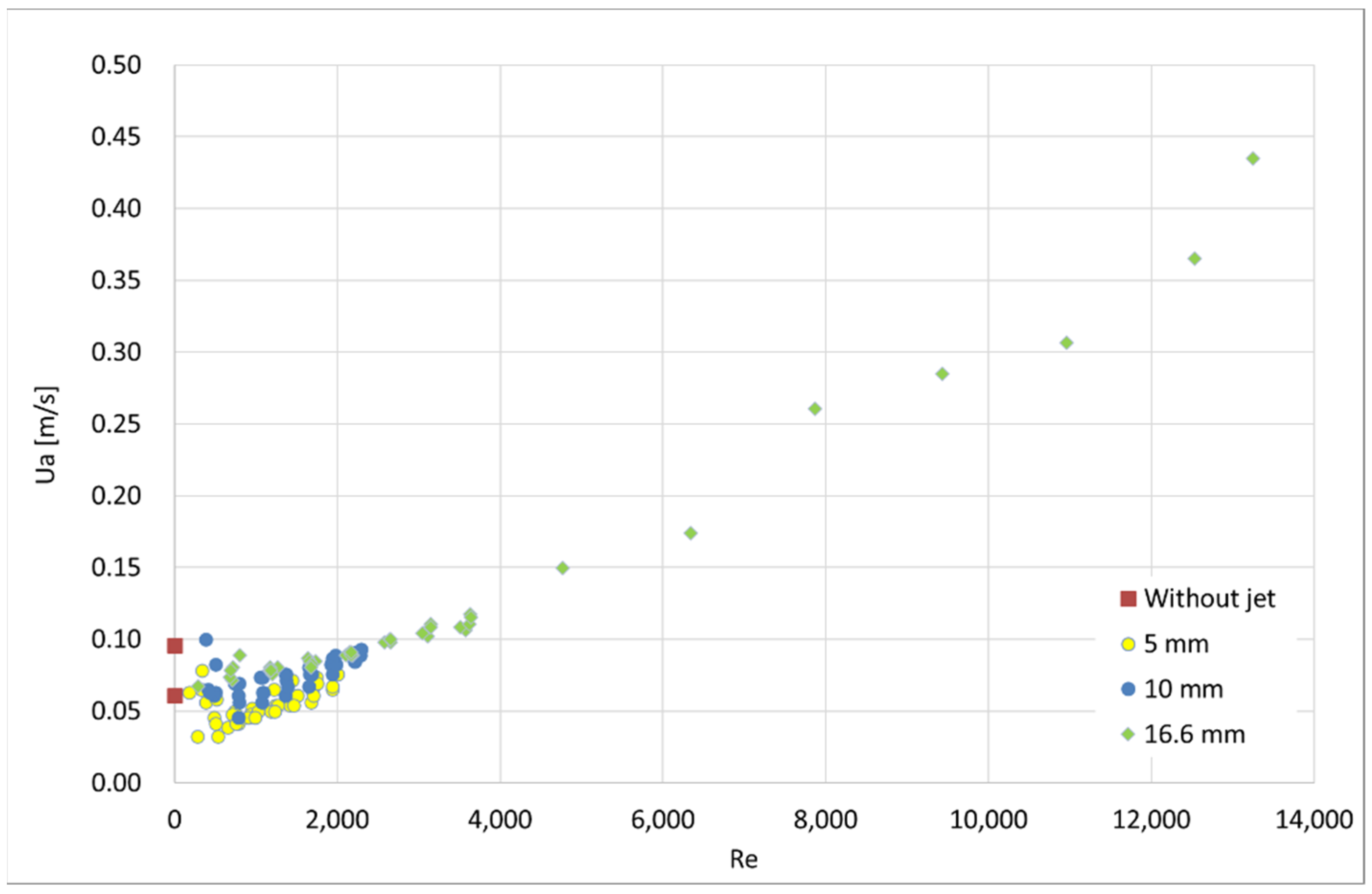

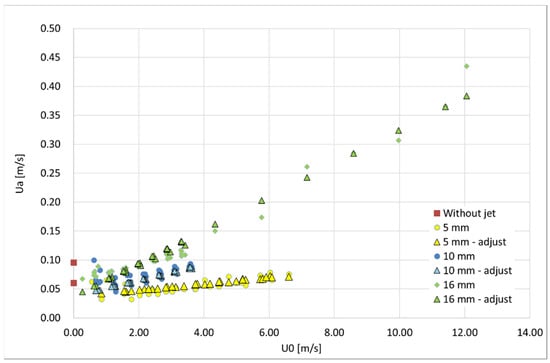

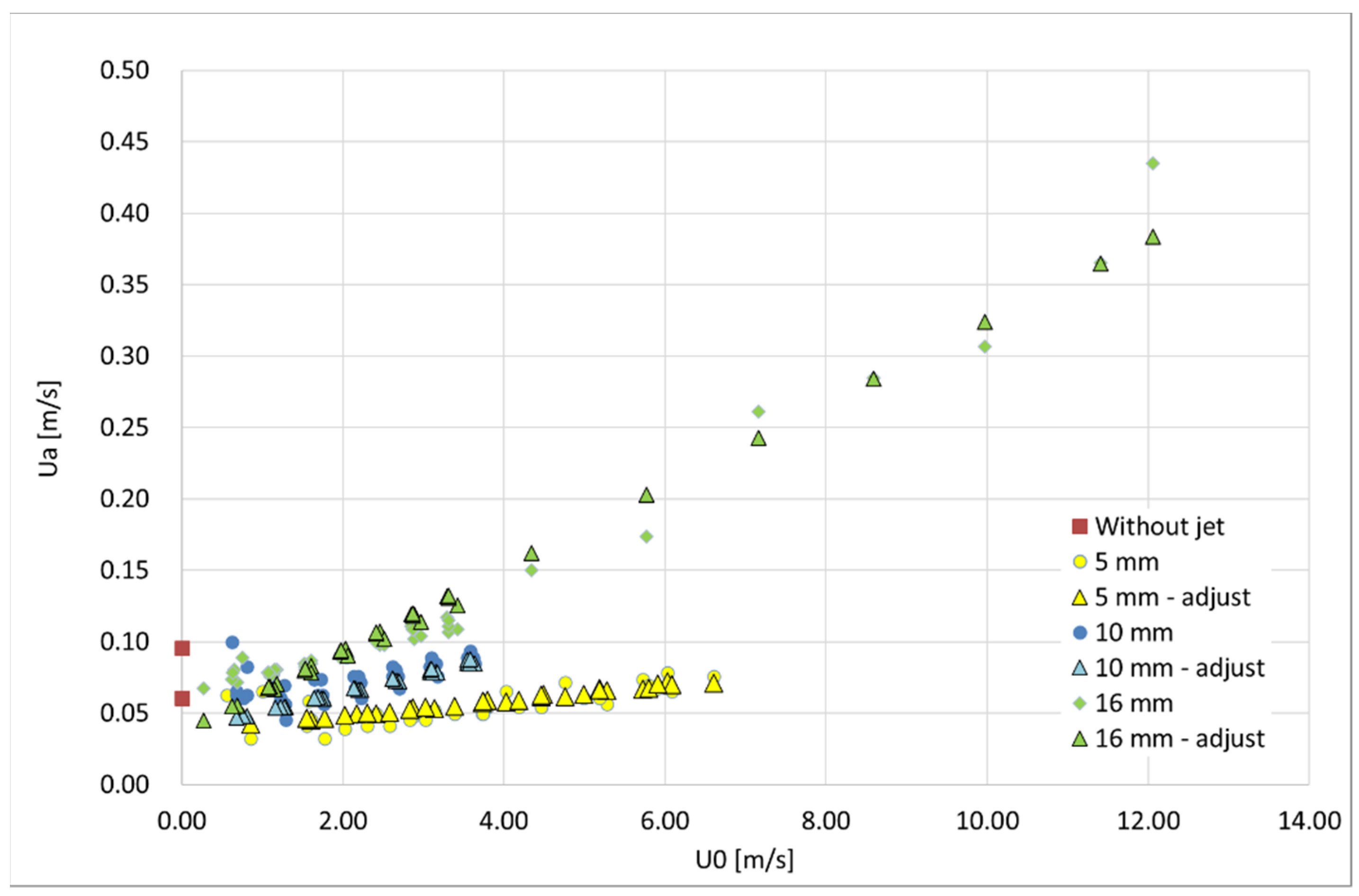

Figure 9 and Figure 10 show the sets of results, in the first case (0 ≤ Re < 3700) according to jet angle and nozzle thickness and, in the second case (0 ≤ Re < 14,000), only according to nozzle thickness.

The pictures show that:

The average door velocity value increases with the jet thickness.

It is confirmed that the average door velocity values for low Reynolds numbers (Re < 800) are consistent with the average door velocity value measured for the inactive air curtain condition.

The jet entrains fluid from both sides, but only the flow rate coming from the exterior (of the compartment) and the flow rate at the nozzle correspond to the mass intake to the compartment. The aerodynamic sealing at the opening requires that at least this flow rate is extracted from the compartment. This process corresponds to an intrinsic characteristic of the jet and occurs both for isothermal cases and cases where there is a temperature difference between the outside and the inside of the compartment. In [28] (see also [26,29]) it is shown that the aerodynamic sealing may be expressed by Equation (1), where K is an empirical constant.

$$\overline{{\mathrm{u}}_{\mathrm{a}}}=\mathrm{K}\lfloor 0.22\times {\left(\frac{2\times \mathrm{h}}{{\mathrm{b}}_0\times \cos {\mathsf{\alpha }}_0}\right)}^{\frac{1}{2}}+0.5\rfloor \times \overline{{\mathrm{u}}_0}\times \frac{{\mathrm{b}}_0}{\mathrm{h}}$$

(1)

In this case, it is important to assess if the test results can be expressed by such an equation. Although it was concluded that the jet angle (${\mathsf{\alpha }}_0$) has no significant influence on the experimental results, Equation (1) depends on the jet angle. In this equation, the influence for small values of ${\mathsf{\alpha }}_0$ is small; therefore, it is compatible with the test results. The least square fit of Equation (2) was performed on the experimental results:

$$\overline{{\mathrm{u}}_{\mathrm{a}}}=\mathrm{A}\times \lfloor 0.22\times {\left(\frac{2\times h}{b_0\times \cos {\alpha }_0}\right)}^{\mathrm{D}}+\mathrm{C}\rfloor \times \overline{{\mathrm{u}}_0}\times \frac{{\left({\mathrm{b}}_0\right)}^{\mathrm{E}}}{\mathrm{h}}+\mathrm{F}$$

(2)

In order to generate an expression closer to the deduced theory (Equation (1)) the values C = 0.5 and D = 0.5 were imposed. The remaining parameters of Equation (3) were adjusted by the least square method, and the results are presented in Figure 11 (R² = 0.967):

$$\overline{{\mathrm{u}}_{\mathrm{a}}}=22.20\times \lfloor 0.22\times {\left(\frac{2\times \mathrm{h}}{{\mathrm{b}}_0\times \cos {\mathsf{\alpha }}_0}\right)}^{0.5}+0.5\rfloor \times \overline{{\mathrm{u}}_0}\times \frac{{\left({\mathrm{b}}_0\right)}^{1.79}}{\mathrm{h}}+0.037$$

(3)

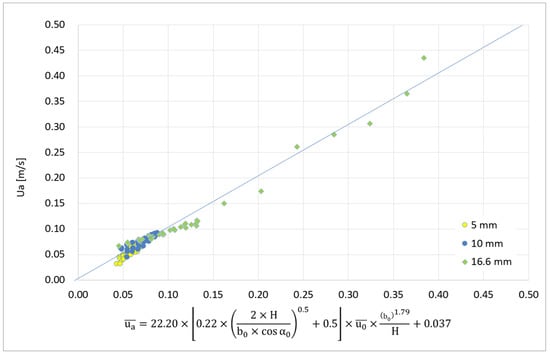

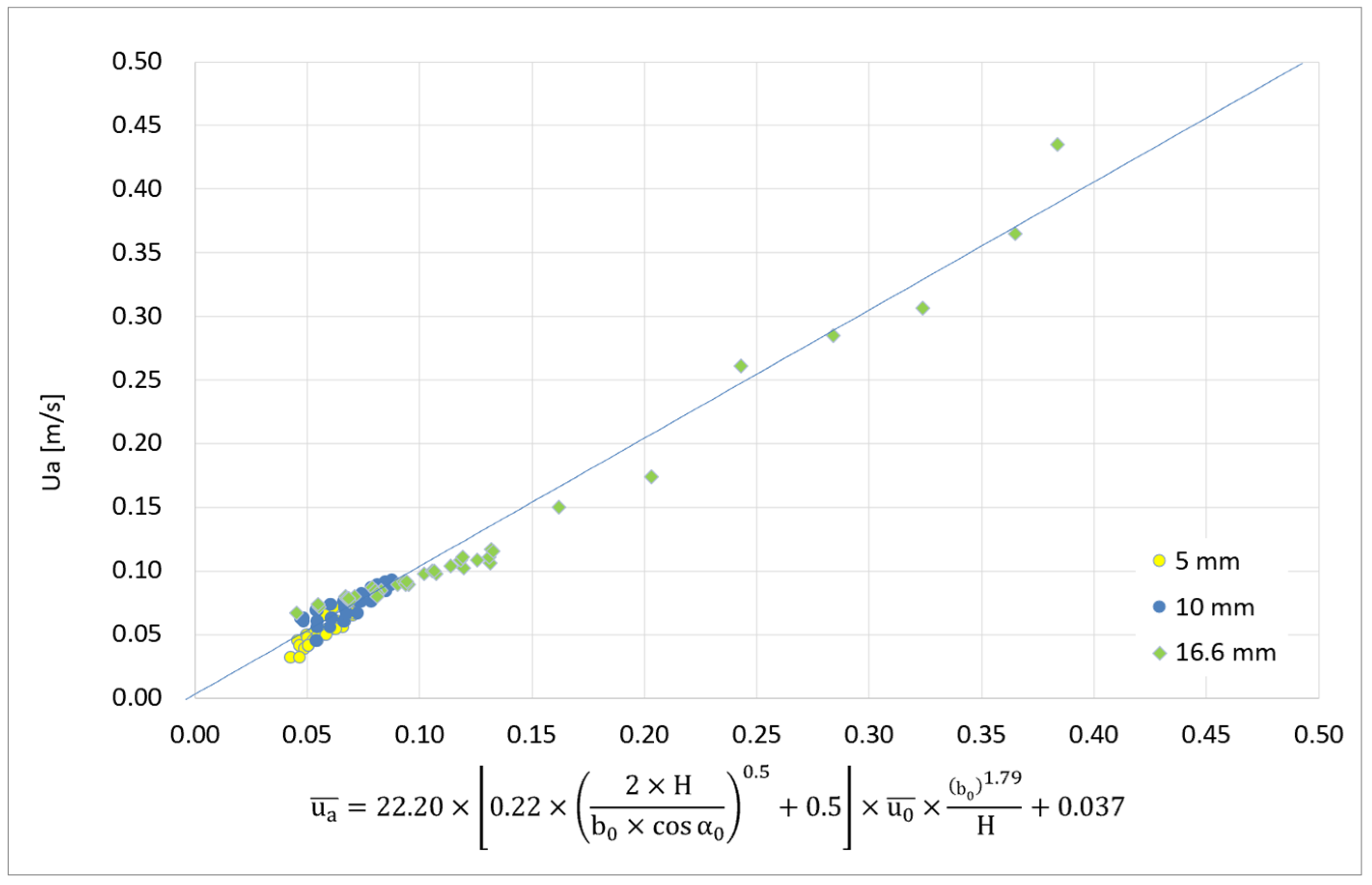

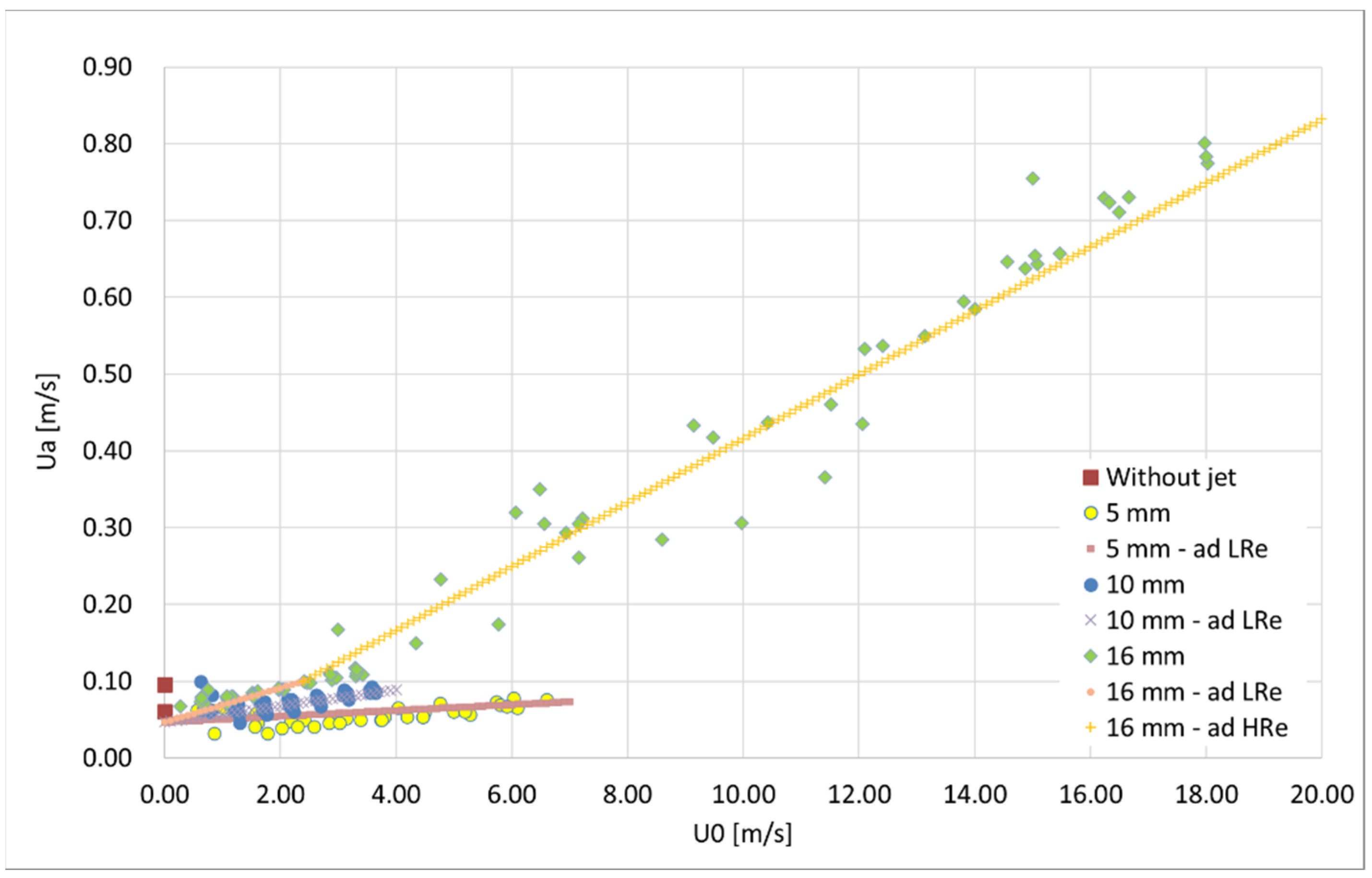

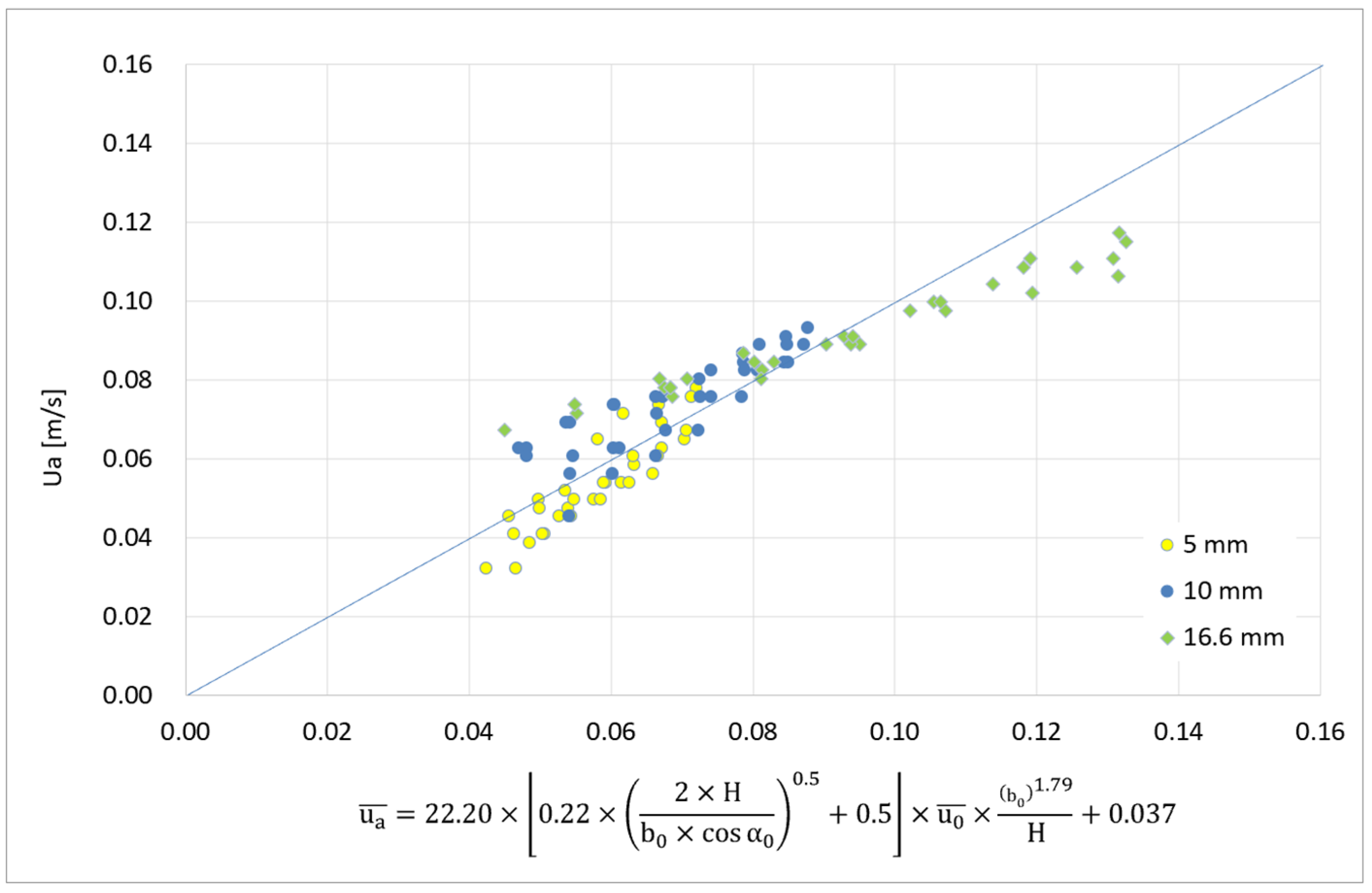

Figure 12 presents a graph with the experimental results, with the average flow velocity at the opening ($\overline{{\mathrm{u}}_{\mathrm{a}}}$) as a function of the jet velocity at the nozzle ($\overline{{\mathrm{u}}_0}$) compared with the predictions obtained with Equation (3).

The sensitivity analysis of Equation (3) to the parameter thickness, ${\mathrm{b}}_0$, height, h, and angle, ${\mathsf{\alpha }}_0$, was carried out. The values of the parameters $\overline{{\mathrm{u}}_0}=12\mathrm{m}/\mathrm{s}$, ${\mathrm{b}}_0=0.016 \mathrm{m}$, $h=2 \mathrm{m}$ and ${\mathsf{\alpha }}_0=0$ were taken as a reference for the value of $\overline{{\mathrm{u}}_{\mathrm{a}}}$.

When ${\mathrm{b}}_0=0.005 \mathrm{m}$, the value of $\overline{{\mathrm{u}}_{\mathrm{a}}}$ is 29% of the reference. When $h=3 \mathrm{m}$, the value of $\overline{{\mathrm{u}}_{\mathrm{a}}}$ is 82% of the reference. When ${\mathsf{\alpha }}_0=20$, the value of $\overline{{\mathrm{u}}_{\mathrm{a}}}$ is 2.5% higher than the reference. These results show that the sensitivity of $\overline{{\mathrm{u}}_{\mathrm{a}}}$ to ${\mathsf{\alpha }}_0$ is very small, which is in accordance with the experimental results (see Figure 8). The sensitivity of $\overline{{\mathrm{u}}_{\mathrm{a}}}$ to the range of thickness values adopted is high, as can be observed in Figure 12.

5. General Aerodynamic Sealing

The paper [27] presented the results corresponding to the lowest exhaust flow rate necessary to obtain the aerodynamic sealing (assessed visually) in full-size isothermal tests for the jet nozzle thickness of 16.2 mm, for the jet angle varying from 22.5° and 30° and for Reynolds numbers in the range of 6500 to 19,400. That paper also presented test results where particulate matter sensors had been positioned inside and outside the compartment to assess the particulate matter concentration inside and outside. The ratio between outside and inside concentration was analysed to assess the aerodynamic sealing of the air curtain. In those experiments, different extract flow rates were used to obtain variable aerodynamic sealing. For every set of tests (with the same angle, the same thickness and the same velocity), only the results of the test with the lowest exhaust flow rate for the best aerodynamic sealing were considered. In the final presentation of the test results, the average velocity through the door replaced the exhaust flow rate. This replacement was made to present the results using only local quantities directly influencing the flow at the door protected by the air curtain. This set of results is reproduced in Figure 13, together with the test results presented previously in this paper for the thickness of 16.6 mm and jet angle ranging from 0° to 20°.

It is found that:

The most recent results (jet nozzle thickness of 16.6 mm) differ slightly from previous results.

This divergence is due to the isolation of the exhaust from the (outside) wind action, which reduced disturbances in the door and allowed aerodynamic sealing for lower average door velocity.

This divergence does not preclude the finding that the results are aligned along a straight line, except for low Reynolds numbers.

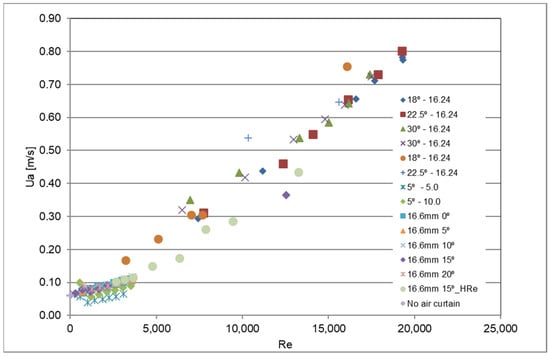

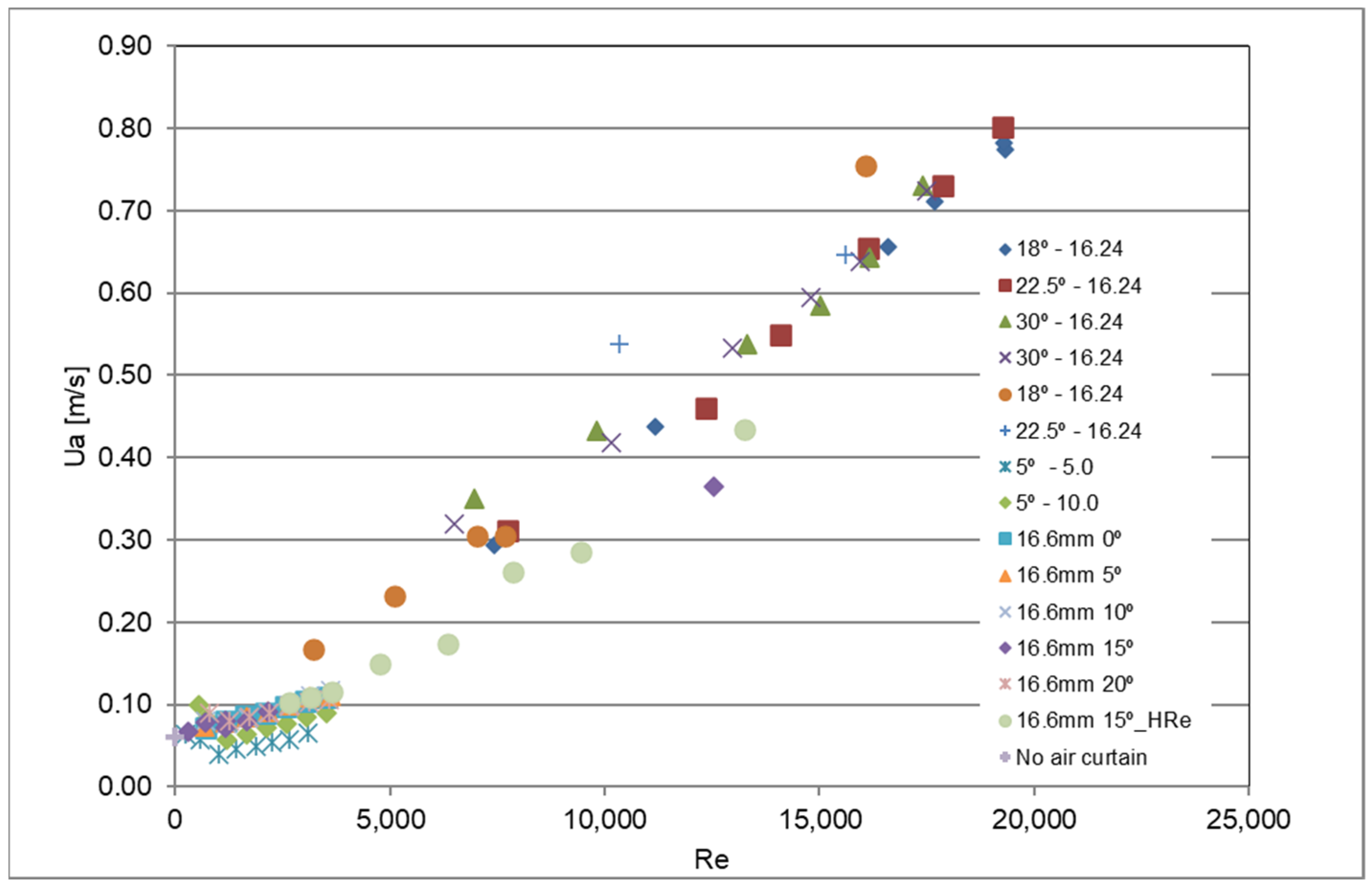

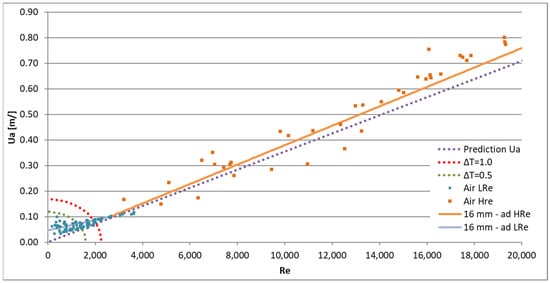

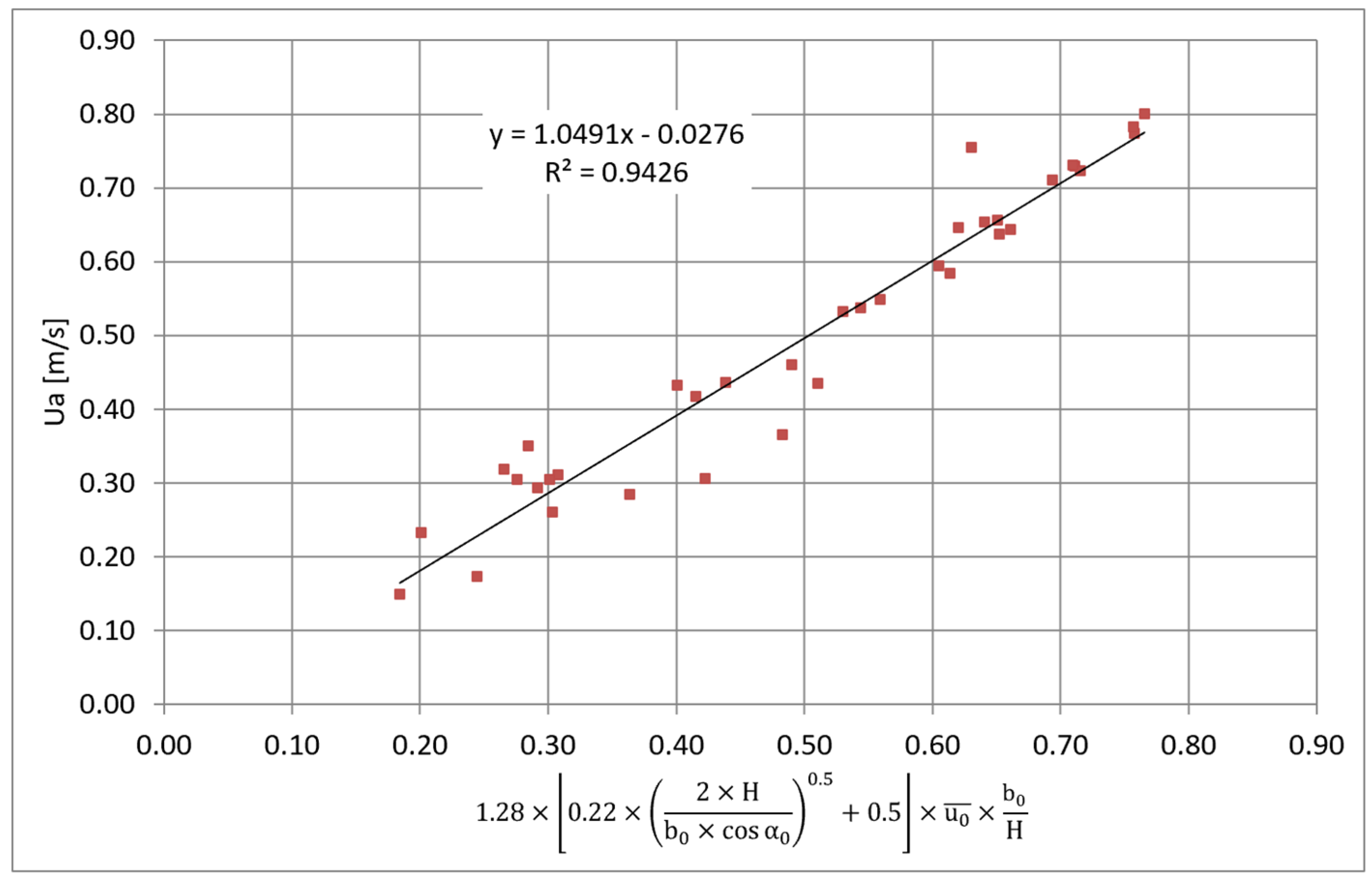

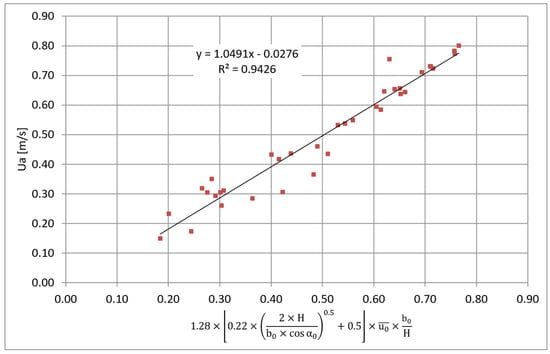

In Figure 14 and Figure 15, the same set of results presented in Figure 13 are shown, except that the results obtained for 18° and 22.5° (both for the jet thickness of 16.2), as well as the result for the case where the exhaust fan was inactive, are significantly above the line. The results obtained for low Reynolds numbers (Re < 3820) present a different behaviour, as shown in Figure 13. Therefore, we will use different functions for Reynolds numbers above and below 3820. The best fit for the results corresponding to a Reynolds number above 3820 is presented in Figure 14, showing that R² = 0.94. The corresponding equation is (4):

$$\overline{{\mathrm{u}}_{\mathrm{a}}}=1.28\times \lfloor 0.22\times {\left(\frac{2\times \mathrm{h}}{{\mathrm{b}}_0\times \cos {\mathsf{\alpha }}_0}\right)}^{\frac{1}{2}}+0.5\rfloor \times \overline{{\mathrm{u}}_0}\times \frac{{\mathrm{b}}_0}{\mathrm{h}}$$

(4)

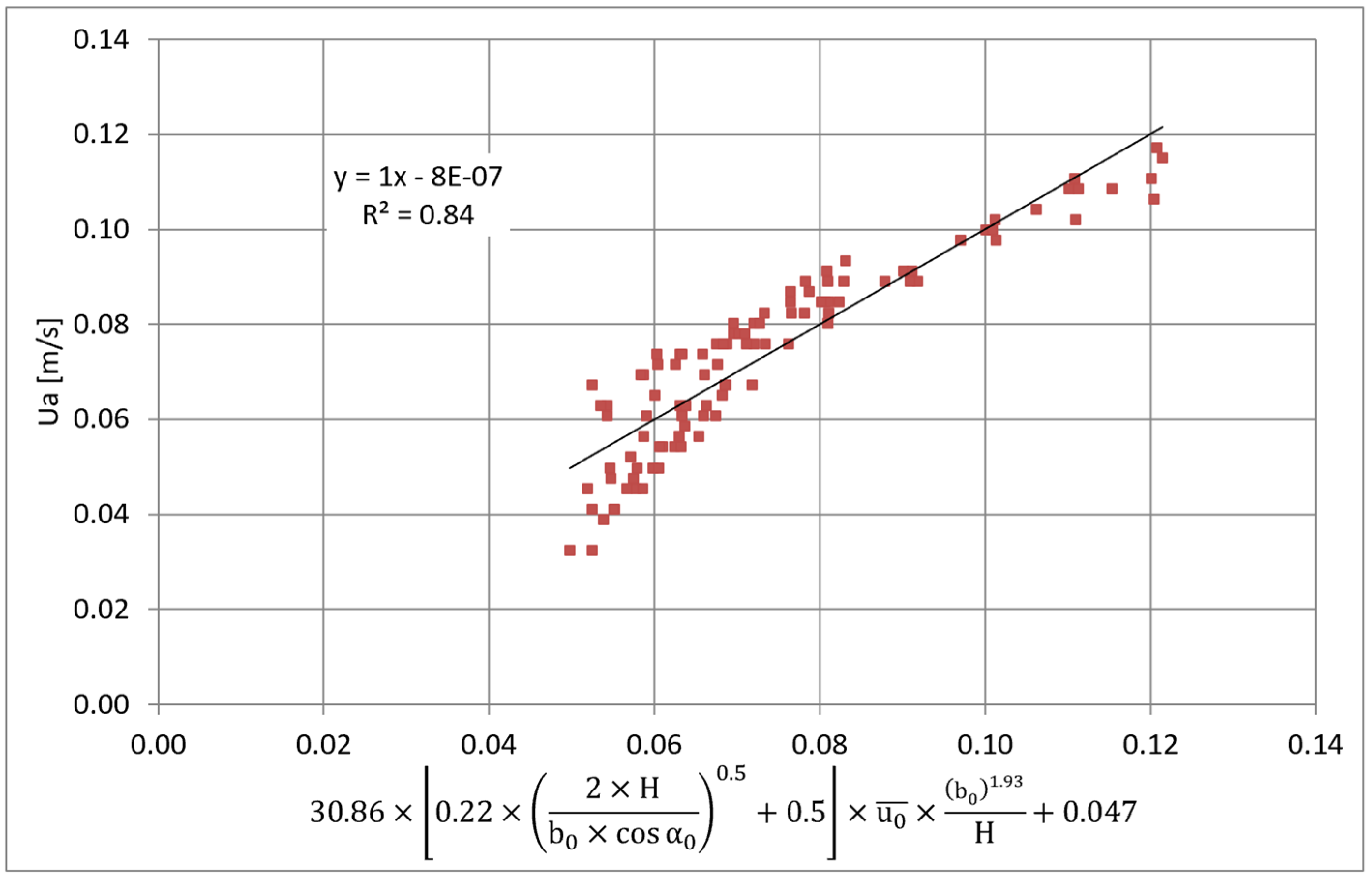

The best fit for the results corresponding to the Reynolds numbers below 3820 is presented in Figure 15, showing that R² = 0.83 (this lower value is due to the inclusion of the test results obtained without the external wind effect). The corresponding equation is (5).

$$\overline{{\mathrm{u}}_{\mathrm{a}}}=30.86\times \lfloor 0.22\times {\left(\frac{2\times \mathrm{h}}{{\mathrm{b}}_0\times \cos {\mathsf{\alpha }}_0}\right)}^{0.5}+0.5\rfloor \times \overline{{\mathrm{u}}_0}\times \frac{{\left({\mathrm{b}}_0\right)}^{1.93}}{\mathrm{h}}+0.047$$

(5)

Finally, Figure 16 shows the comparison of the predictions carried out with Equations (4) and (5) with the test results.

Using previous small-scale saltwater test results [4], the average velocity of the flow through the door, $\overline{{\mathrm{u}}_{\mathrm{a}}}$, which is necessary to avoid contaminant transport through the plane jet, was related to the plane jet characteristics by Equation (6). Although the effect of buoyancy was important in these tests, the behaviour shown by Equation (6) only corresponds to the intrinsic characteristics of the jet, as presented in Equation (1) and subsequent equations. The comparison of the curves obtained with Equations (4) (named “16 mm—ad HRe” in the figure), (5) (named “16 mm—ad LRe” in the figure) and (6) (named “Prediction Ua” in the figure) is presented in Figure 17 [26], together with the test results. Figure 17 confirms that the curves of Equations (4) and (6) show a similar trend.

$$\overline{{\mathrm{u}}_{\mathrm{a}}}=1.178\times \lfloor 0.22\times {\left(\frac{2\times \mathrm{h}}{{\mathrm{b}}_0\times \cos {\mathsf{\alpha }}_0}\right)}^{\frac{1}{2}}+0.5\rfloor \times \overline{{\mathrm{u}}_0}\times \frac{{\mathrm{b}}_0}{\mathrm{h}}$$

(6)

A previous research project [29] analysed the possibility of using air curtains to prevent smoke flow from fire compartments. Full-size experiments were developed, and several conditions were tested to assess aerodynamic sealing (smoke-tightness). The smoke temperature during the tests ranged from 182 °C to 351 °C, the angle measured between the curtain plane and the vertical plane ranged from 18° to 26°, the nozzle thickness ranged from 17 mm to 45 mm and the velocity at the nozzle ranged from 8.3 m/s to 19.9 m/s. During the tests, the air curtain’s nozzle was positioned as in the tests reported in this paper (horizontally at the top outside edge of a permanent opening, generating an approximately vertical downward jet through the opening). It was concluded that it is possible to achieve an aerodynamic sealing (smoke-tightness), provided that the adequate plane jet parameters and the compartment’s smoke exhaust were correctly adjusted. According to this analysis, the smoke-tightness lower limit corresponds to equation $\mathrm{B}={\mathsf{\Delta }\mathrm{P}}_{\mathrm{a}}/{\mathsf{\Delta }\mathrm{P}}_{\mathrm{s}}=-0.30\overline{{\mathrm{u}}_{\mathrm{a}}}/{\mathrm{u}}_{\mathrm{a}\_\min }+1.25$ (with $1.30\le \overline{{\mathrm{u}}_{\mathrm{a}}}/{\mathrm{u}}_{\mathrm{a}\_\min }\le 1.67$), which allows relating the smoke exhaust flow rate to the nozzle air curtain velocity (see Equation (8)).

$${\mathrm{u}}_{\mathrm{a}\_\min }=\lfloor 0.22\times {\left(\frac{2\times \mathrm{h}}{{\mathrm{b}}_0\times \cos {\mathsf{\alpha }}_0}\right)}^{\frac{1}{2}}+0.5\rfloor \times \overline{{\mathrm{u}}_0}\times \frac{{\mathrm{b}}_0}{\mathrm{h}}$$

(7)

$$\overline{{\mathrm{u}}_0^{}}\ge \sqrt{\frac{{\mathrm{Bgh}}^2\left(1-\frac{{\mathrm{T}}_0}{{\mathrm{T}}_1}\right)-\mathrm{h}\overline{{\mathrm{u}}_{\mathrm{a}}^2}}{{\mathrm{b}}_0\sin {\propto }_0}}$$

(8)

Equation (7) has the same physical meaning as that presented for Equations (6) and (8) and expresses the pressure balance at the door (the balance of the dynamic pressure of the jet, the dynamic pressure of the average velocity at the door and the smoke pressure). The aerodynamic sealing at the door should respect the two physical restrictions arising from these equations. ${\mathrm{T}}_0$ and ${\mathrm{T}}_1$ are, respectively, the absolute temperatures outside and inside the compartment. The variable g is the gravity acceleration.

Considering the definition of Equation (7), it is clear that Equation (6), obtained for saltwater, expresses the same physical process, being $\overline{{\mathrm{u}}_{\mathrm{a}}}/{\mathrm{u}}_{\mathrm{a}\_\min }=1.178$. It is now clear that the results obtained for small-scale modelling can be used in a full-size prototype.

Equation (6) shows a development compatible with Equations (4) and (5) (but the dependence of $\overline{{\mathrm{u}}_{\mathrm{a}}}$ on $\overline{{\mathrm{u}}_0}$ is not the same). Nonetheless, Equations (4) and (5) require a higher flow rate through the door to reach the aerodynamic sealing of the curtain than the one predicted by Equation (6). It is important to note that, even under such different test conditions (with or without buoyancy), a similar trend can be observed.

We also admit that the analytical model [29], obtained for high temperature differences (fire smoke control case), is still valid for low temperatures. According to that model, if $\overline{{\mathrm{u}}_{\mathrm{a}}}/{\mathrm{u}}_{\mathrm{a}\_\min }=1.178$, it will be possible to obtain $\mathrm{B}={\mathsf{\Delta }\mathrm{P}}_{\mathrm{a}}/{\mathsf{\Delta }\mathrm{P}}_{\mathrm{s}}=1.27$. Furthermore, Equation (8) can be expressed in terms of the Reynolds number, as shown in Equation (9).

$$\mathrm{Re}\ge \sqrt{\left[\frac{{\mathrm{Bgh}}^2\left(1-\frac{{\mathrm{T}}_0}{{\mathrm{T}}_1}\right)-\mathrm{h}\overline{{\mathrm{u}}_{\mathrm{a}}^2}}{{\mathrm{b}}_0\sin {\propto }_0}\right]}\times \frac{{\mathrm{b}}_0}{\mathsf{\nu }}$$

(9)

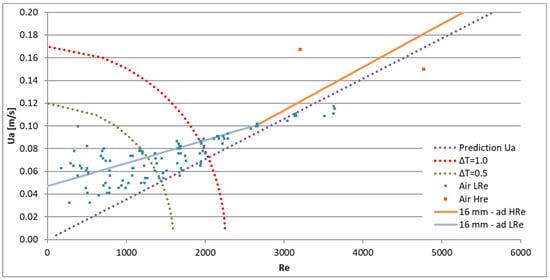

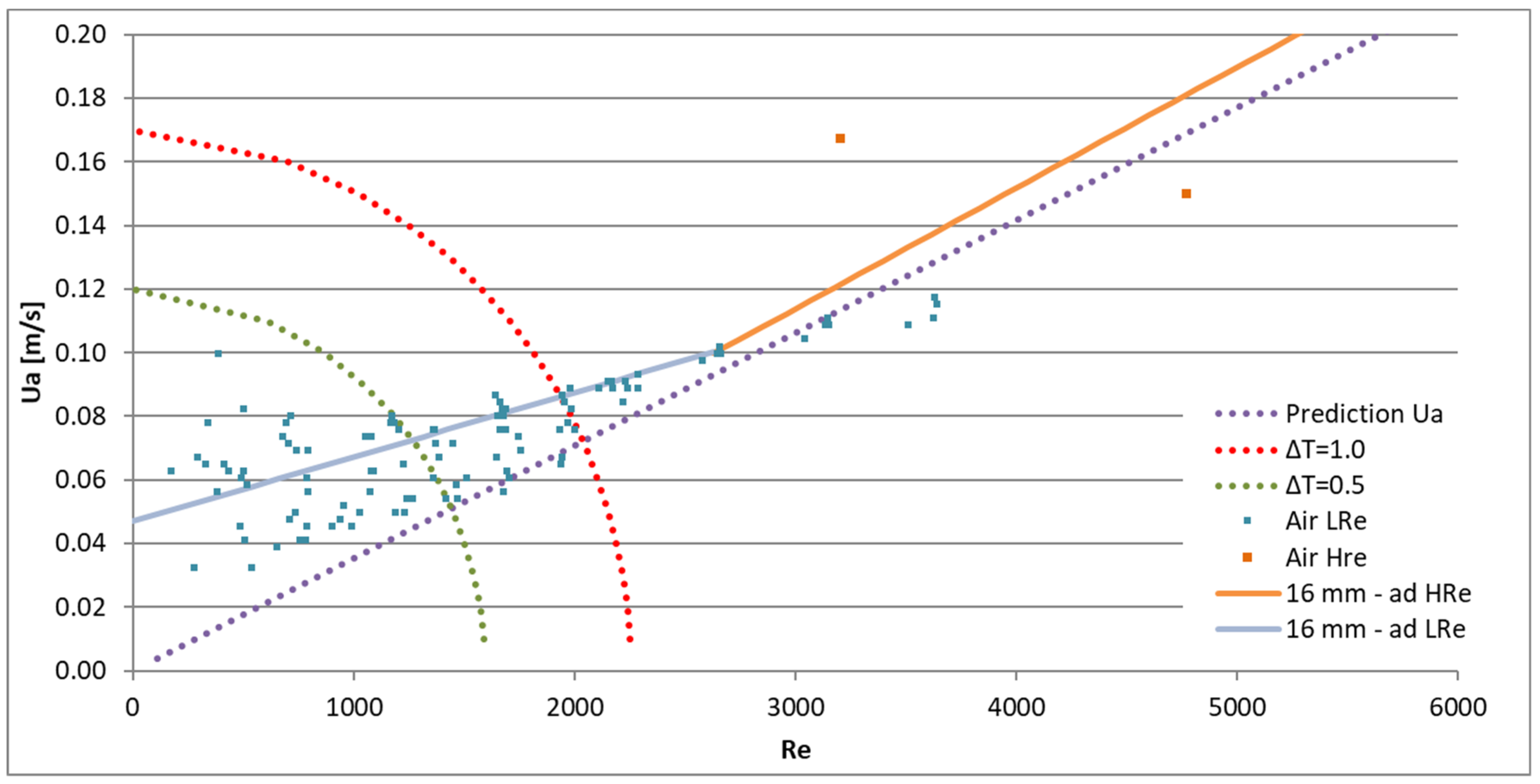

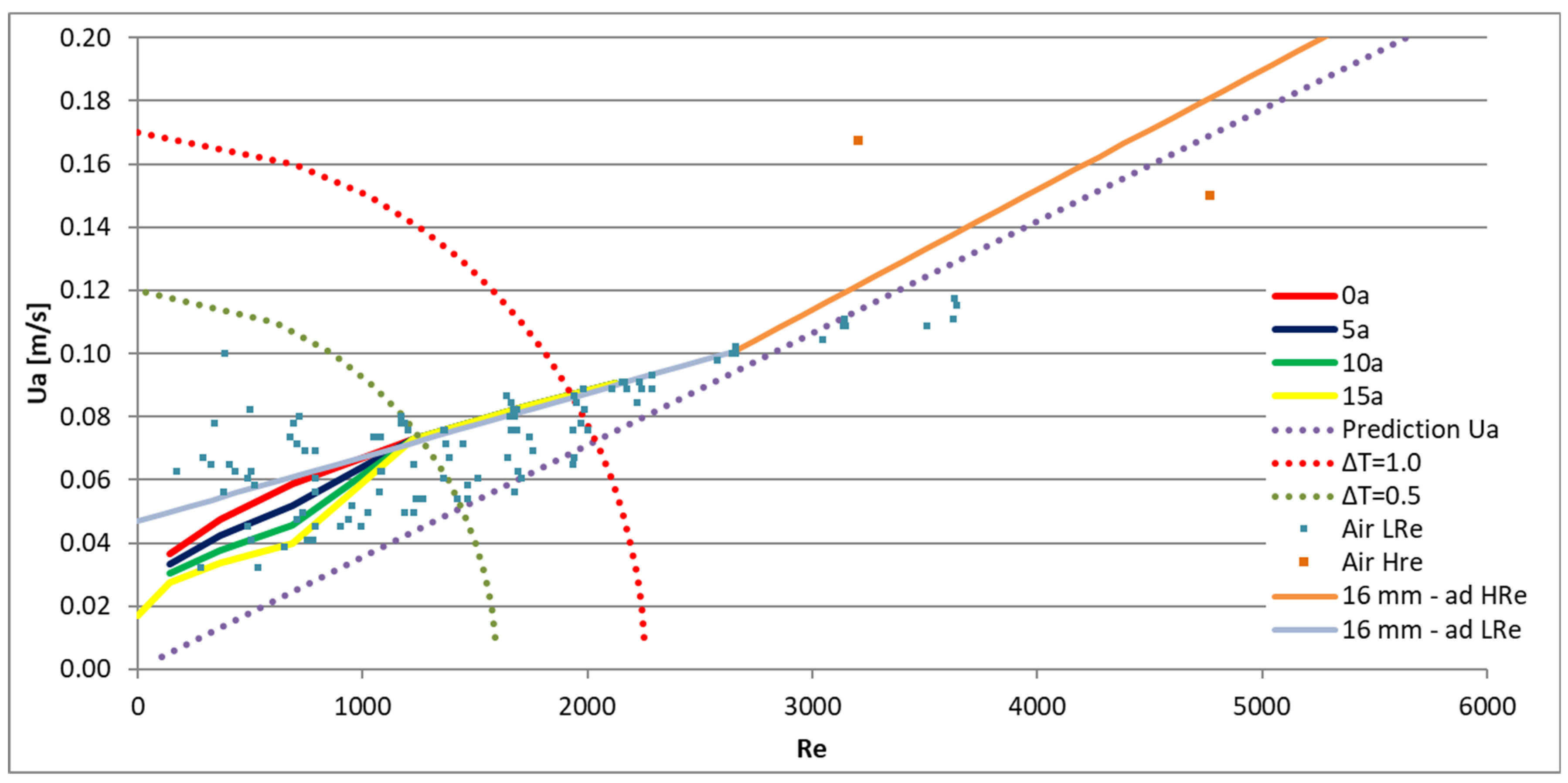

Figure 17 also includes Equation (9), applied for temperature differences of 1.0 K and 0.5 K. The dotted straight line (“Prediction Ua”) corresponds to Equation (6); this line corresponds to the contaminant tightness, which depends on the turbulent behaviour of the air curtain (which also occurs for the isothermal flow). Above this line, the exhaust flow rate is supercritical, and then an aerodynamic sealing (contaminant tightness) is obtained. The curved dotted lines (the temperature difference between the exterior and the interior of the compartment) represent the limit of the aerodynamic sealing when a temperature difference exists (Equation (9)); in the direction of the graphic origin, the buoyancy flow is too strong and there is no aerodynamic sealing (loss of contaminant tightness). Equation (9) is presented in the graph for the case of ${\mathrm{b}}_0=16\mathrm{mm}$ and h = 0.66 m (the predicted location of the neutral plane below the door soffit; the door being 2 m high, see Figure 3). This condition must be considered together with the condition due to the turbulent behaviour of the air curtain (also occurring for the isothermal flow) (Equation (6)). Therefore, it must be assumed that only the zone above the dotted line is relevant. The figure shows that, when there is a disturbance due to different temperatures inside and outside the compartment, the adoption of an air curtain allows the reduction of the average velocity through the door ($\overline{{\mathrm{u}}_{\mathrm{a}}}$).

Figure 17 clearly shows that, only for the isothermal flow, it is possible to avoid the contaminant transport through the opening by imposing a very low exhaust flow rate in the “contaminated” compartment ($\overline{{\mathrm{u}}_{\mathrm{a}}}$ = 0.047 m/s, from Equation (5)). Even for a very small temperature difference (e.g., ΔT = ${\mathrm{T}}_1-{\mathrm{T}}_0$ = 0.5), the required exhaust flow rate in the “contaminated” compartment is higher with the air curtain inactive than with the air curtain active. The inflection exhibited by the test results (for Re between 800 and 1800), with the average door flow velocity ($\overline{{\mathrm{u}}_{\mathrm{a}}}$) values being higher for lower Reynolds numbers (see Figure 6 and Figure 7), is consistent with the possibility that the aerodynamic sealing during these tests had been influenced by a small temperature difference between the inside and the outside of the test compartment.

Finally, in Figure 18, the small-scale water test results reported by Viegas, Oliveira and Aelenei [26] are also included. The curves 5a to 15a correspond, respectively, to nozzle angles from 5° to 15°. In these tests, it was possible to find that the hydrodynamic sealing of the water curtain obeys Equation (10), where ${\mathrm{u}}_{{\mathrm{a}}_{\left({\mathrm{u}}_0=0\right)}}=0.0024$. The value ${\mathrm{u}}_{{\mathrm{a}}_{\left({\mathrm{u}}_0=0\right)}}$ corresponds to the minimum velocity at the door necessary to obtain the hydrodynamic sealing of the water curtain. This velocity must be higher than the transport velocity due to the diffusion process. In this case, we are working with the fluid air, where the diffusivity values differ from those of water. If we replace ${\mathrm{u}}_{{\mathrm{a}}_{\left({\mathrm{u}}_0=0\right)}}=0.0024$ with another value in the range obtained in the full-size tests for air (e.g., ${\mathrm{u}}_{{\mathrm{a}}_{\left({\mathrm{u}}_0=0\right)}}=0.017$), it is possible to obtain a good agreement between Equation (5) and the results of Equation (10) for an angle of 0°. However, we recall that the lowest value obtained in the full-size tests with air as the working fluid was ${\mathrm{u}}_{{\mathrm{a}}_{\left({\mathrm{u}}_0=0\right)}}=0.074$ and that the variable $\overline{{\mathrm{u}}_{\mathrm{a}}}$ does not show a relevant dependence on the angle of the jet. However, Viegas, Oliveira and Aelenei [26] state that Equation (11) represents the balance between the momentum of the flow through the door (corresponding to the exhaust mass flow rate of the ‘contaminated’ compartment) and the momentum of the flow rate rejected (after the jet impinges the floor) to the ‘non-contaminated’ side. They showed that Equation (11) is close to the experimental results only for the jet angle of 15° and for Re < 1224. They suggested that the balance expressed by Equation (11), although relevant for low Re, is not applicable for higher Re due to the processes related to the turbulent behaviour of the jet at the floor impingement zone. Regarding the intersection of Equation (11) with Equation (5) and considering an angle of 15°, it would be expected that the test results could approach Equation (11) for Re < 580 (if ${\mathrm{b}}_0=5\mathrm{m}\mathrm{m}$), for Re < 960 (if ${\mathrm{b}}_0=10\mathrm{m}\mathrm{m}$) and for Re < 1500 (if ${\mathrm{b}}_0=16\mathrm{m}\mathrm{m}$). Figure 6, Figure 7 and Figure 8 show that the experimental results below these limits are scarce and could have been disturbed by small temperature differences. Although the full-size test results are compatible with the behaviour obtained in small-scale water tests, the full-size test results do not clearly evidence the same behaviour; therefore, deeper research is needed.

$$\overline{{\mathrm{u}}_{\mathrm{a}}}=\{\begin{array}{c}0.0564\times {\left(1.00-\sin \mathsf{\alpha }\right)}^{}\times {\overline{{\mathrm{u}}_0}}^{0.5}+{\mathrm{u}}_{{\mathrm{a}}_{\left({\mathrm{u}}_0=0\right)}}\mathrm{i}\mathrm{f}\mathrm{R}\mathrm{e}\le 1224\\ 0.0564\times {\overline{{\mathrm{u}}_0}}^{0.5}+{\mathrm{u}}_{{\mathrm{a}}_{\left({\mathrm{u}}_0=0\right)}}\mathrm{i}\mathrm{f}\mathrm{R}\mathrm{e}>1224\end{array}$$

(10)

$$\overline{{\mathrm{u}}_{\mathrm{a}}}=\overline{{\mathrm{u}}_0}\times {\left[\frac{{\mathrm{b}}_0}{\mathrm{h}}\times \frac{1-\sin {\mathsf{\alpha }}_0}{2}\right]}^{0.5}$$

(11)

6. Conclusions

From this research, it was possible to obtain the following conclusions:

A set of experiments including jet Reynolds numbers (Re) ranging from 175 to 19,300 showed that the average velocity of the flow across the door protected by an air curtain necessary to retain aerodynamic sealing varies linearly with Re. The slope, however, is different below (see Equation (5)) and above (see Equation (4)) Re = 3820.

The main dependence on the Re is due (in these tests) to the jet nozzle thickness.

The angle of the air curtain relating to the vertical plane of the door did not show a significant influence in these tests. This agrees with the conclusions of Dias, Gogotsi and Viegas [28], obtained by CFD simulations, which showed that the angle of the jet is important to define the flow path near the nozzle whereas, far from the nozzle, the flow path of the jet depends mainly on the extraction flow rate from the compartment.

The isothermal full-size test results obtained in this research (the results presented here and those presented by Viegas et al. [27]) are in accordance with the results obtained for buoyancy driven tests [4,29], and the slope of Equation (5) is consistent with the small-scale results presented by Viegas, Oliveira and Aelenei [26].

As a general conclusion, these test results show that an air curtain is suitable for providing an acceptable aerodynamic sealing of the protected opening, when complemented with an air exhaust from the “contaminated compartment”, and a law (Equations (4) and (5)) to predict the needed average velocity of the flow across the door for jet nozzle Re between 175 to 19,300 is presented.
