# Vadasz Number Effects on Convection in a Horizontal Porous Layer Subjected to Internal Heat Generation and G-Jitter

^{1}

^{2}

## Abstract

**:**

## 1. Introduction

## 2. Problem Formulation

**V**, T and ${\mathrm{p}}_{\mathrm{r}}$ represent the dimensionless filtration velocity vector, temperature and reduced pressure, respectively, whilst ${\widehat{\mathbf{e}}}_{\mathbf{z}}$, is the unit vector in the z- direction. In the previous work [9], the author has put forward a motivation for specific cases when the Vadasz number is small and can be retained. In the instance of liquid metals this could be the case. In the current study when considering a high temperature reactor for the proof of concept geometry, an average porosity of ${\mathrm{\varphi}}^{*}\approx 0.4$, a Prandtl number $\mathrm{Pr}=0.7$, characteristic permeability ${\mathrm{k}}_{0}^{*}\approx 0.704$ and calculated Darcy number $\mathrm{D}\mathrm{a}\approx 0.155$ yields a Vadasz number $\mathrm{V}\mathrm{a}=1.81$. This implies that for systems involving gas reactors and porous media, there are instances in which the Vadasz number is close to unity and can be retained in the momentum equation. The solutions for the basic temperature and flow field is given as ${\mathrm{T}}_{\mathrm{B}}=\mathrm{B}+\mathrm{A}\mathrm{z}-1/2{\mathrm{z}}^{2}$ and ${\mathrm{V}}_{\mathrm{B}}=0$, where A and B are constants that may be determined, based on the imposed boundary for the various cases shown in Table 1. Since we will consider the derivative of the basic temperature in the energy equation, the value for the constant B is not required, and therefore will not be presented in Table 1.

## 3. Linear Stability Analysis

## 4. Results and Discussion

## 5. Conclusions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Horton, C.W.; Rogers, F.T. Convection currents in a porous medium. J. Appl. Phys.
**1945**, 16, 367–370. [Google Scholar] [CrossRef] - Lapwood, E.R. Convection of a fluid in a porous medium. Math. Proc. Camb. Philos. Soc.
**1948**, 44, 508–521. [Google Scholar] [CrossRef] - Wooding, R.A. Rayleigh instability of a thermal boundary layer in a flow through a porous medium. J. Fluid. Mech.
**1960**, 9, 183–192. [Google Scholar] [CrossRef] - Palm, E.; Weber, J.E.; Kvernvold, O. On steady convection in a porous medium. J. Fluid. Mech.
**1972**, 54, 153–161. [Google Scholar] [CrossRef] - Vadasz, P. Natural convection in porous media induced by the centrifugal body force—The solution for small aspect ratio. J. Energy Resour. Technol.
**1992**, 114, 250–254. [Google Scholar] [CrossRef] - Vadasz, P. Centrifugally generated free convection in a rotating porous box. Int. J. Heat Mass Transfer.
**1994**, 37, 2399–2404. [Google Scholar] [CrossRef] - Vadasz, P. Stability of free convection in a narrow porous layer subject to rotation. Int. Commun. Heat Mass Transfer.
**1994**, 21, 881–890. [Google Scholar] [CrossRef] - Vadasz, P. Stability of free convection in a rotating porous layer distant from the axis of rotation. Transp. Porous Media
**1996**, 23, 153–173. [Google Scholar] [CrossRef] - Vadasz, P. Coriolis effect on gravity driven convection on a rotating porous layer heated from below. J. Fluid. Mech.
**1998**, 376, 351–375. [Google Scholar] [CrossRef] - Govender, S. Coriolis effect on the linear stability of convection in a porous layer placed far away from the axis of rotation. Transp. Porous Media
**2003**, 51, 315–326. [Google Scholar] [CrossRef] - Govender, S. Oscillatory convection induced by gravity and centrifugal forces in a rotating porous layer distant from the axis of rotation. Int. Journal of Eng. Science
**2003**, 41, 539–545. [Google Scholar] [CrossRef] - Straughan, B. A sharp nonlinear stability threshold in rotating porous convection. Proc. Royal Soc. Lond.
**2001**, 457, 87–93. [Google Scholar] [CrossRef] - Govender, S. Stability of convection in a gravity modulated porous layer heated from below. Transp. Porous Media
**2004**, 57, 103–112. [Google Scholar] [CrossRef] - Govender, S. Linear stability of gravity modulated convection in a porous layer heated from below: Transition from synchronous to subharmonic solutions. Transp. Porous Media
**2005**, 59, 215–225. [Google Scholar] [CrossRef] - Govender, S. Stability of gravity driven convection in a cylindrical porous layer heated from below. Transp. Porous Media
**2006**, 63, 489–502. [Google Scholar] [CrossRef] - Govender, S. Vibration effects on convection in a rotating fluid saturated porous layer distant from the axis of rotation. Int. J. Heat Mass Transf.
**2019**, 141, 112–115. [Google Scholar] [CrossRef] - Gasser, R.D.; Kazimi, M.S. Onset of convection in a porous medium with internal heat generation. J. Heat Transf.
**1976**, 20, 49–54. [Google Scholar] [CrossRef] - Tveitereid, M. Thermal convection in a horizontal porous layer with internal heat sources. Int. J. Heat Mass Transf.
**1977**, 20, 1045–1050. [Google Scholar] [CrossRef] - Sherin, A.M.; Prabhamani, R.P. Effect of a variable gravity field on convection in an anisotropic porous medium with internal heat source and inclined temperature gradient. J. Heat Transf.
**2003**, 124, 144–150. [Google Scholar] - Bhadauria, B.S.; Kumar, A.; Kumar, N.C.; Sacheti, N.C.; Chandran, P. Natural convection in a rotating anisotropic porous layer with internal heat. Transp. Porous Med.
**2011**, 90, 687–905. [Google Scholar] [CrossRef] - Bhadauria, B.S.; Hashim, I.; Siddheshwar, P.G. Study of heat transport in a porous medium under g-gitter and internal heating effects. Transp. Porous Media
**2013**, 96, 21–37. [Google Scholar] - Kiran, P. Nonlinear throughflow and internal heating effects on vibrating porous medium. Alex. Eng. J.
**2016**, 55, 757–767. [Google Scholar] [CrossRef] [Green Version] - Kiran, P. Throughflow and g-gitter effects on binary fluid saturated porous medium. Appl. Math Mech.
**2015**, 36, 1285–1304. [Google Scholar] [CrossRef] - Kiran, P. Throughflow and gravity modulation effects on heat transport in a porous medium. J. Appl. Fluid Mech.
**2016**, 9, 1105–1113. [Google Scholar] [CrossRef] - Vanishree, R.K. Effects of throughflow and internal heat generation on a thermos convective instability in in an anisotropic porous medium. J. Appl. Fluid Mech.
**2014**, 7, 581–590. [Google Scholar] - Yadav, D.; Wang, J.; Lee, J. Onset of Darcy-Brinkman convection in a rotating porous layer induced by purely internal heating. J. Porous Media
**2017**, 20, 691–706. [Google Scholar] [CrossRef] - Mahajan, A.; Nandal, R. Stability of an anisotropic porous layer with internal heat source and Brinkman effects. Spec. Top. Rev. Porous Media
**2019**, 10, 65–87. [Google Scholar] [CrossRef] - Storesletten, L.; Rees, D.A.S. Onset of convection in an inclined anisotropic porous layer with internal heat generation. Fluids
**2019**, 4, 1–18. [Google Scholar] - Strauhgan, B. Stability and Wave Motion in Porous Media; Applied Mathematical Sciences Series; Springer: New York, NY, USA, 2008; Volume 165, pp. 1–453. [Google Scholar]
- Nield, D.; Bejan, A. Convection in Porous Media, 4th ed.; Springer: New York, NY, USA, 2017; pp. 1–983. [Google Scholar]
- Gresho, P.M.; Sani, R.L. The effects of gravity modulation on the stability of a heated fluid layer. J. Fluid. Mech.
**1970**, 40, 783–806. [Google Scholar] [CrossRef] - Govender, S. Destabilising a fluid saturated gravity modulated porous layer heated from above. Transp. Porous Media
**2005**, 59, 215–225. [Google Scholar] [CrossRef]

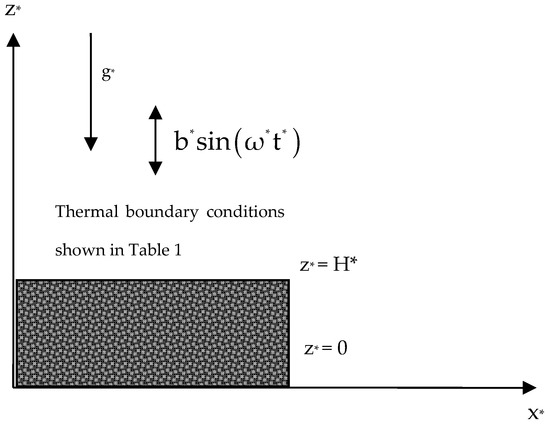

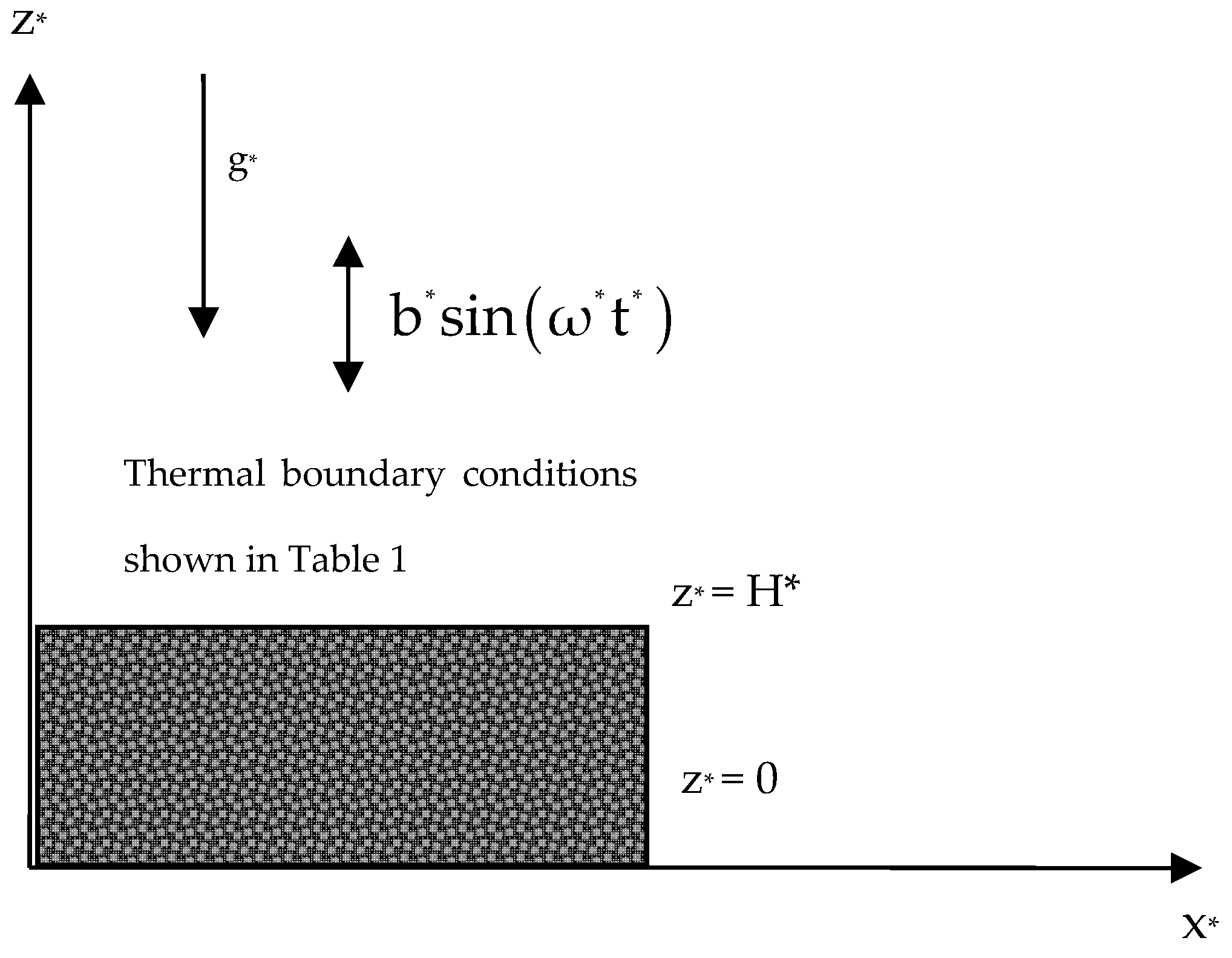

**Figure 1.**Illustration of vibrating porous layer with thermal boundary conditions shown in Table 1.

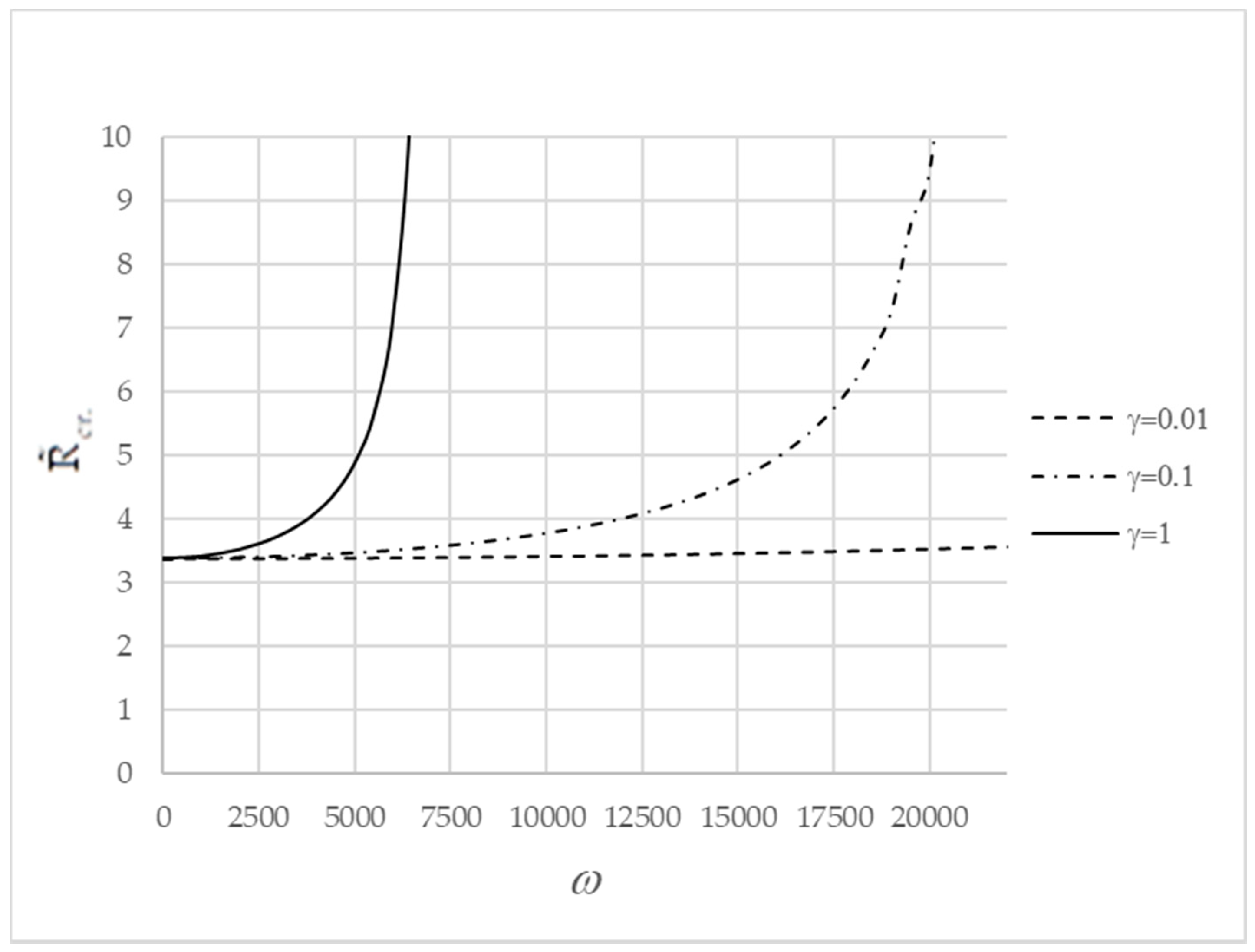

**Figure 2.**Case 3: Critical Rayleigh number versus vibration frequency for selected values of Vadasz number (A = −0.5).

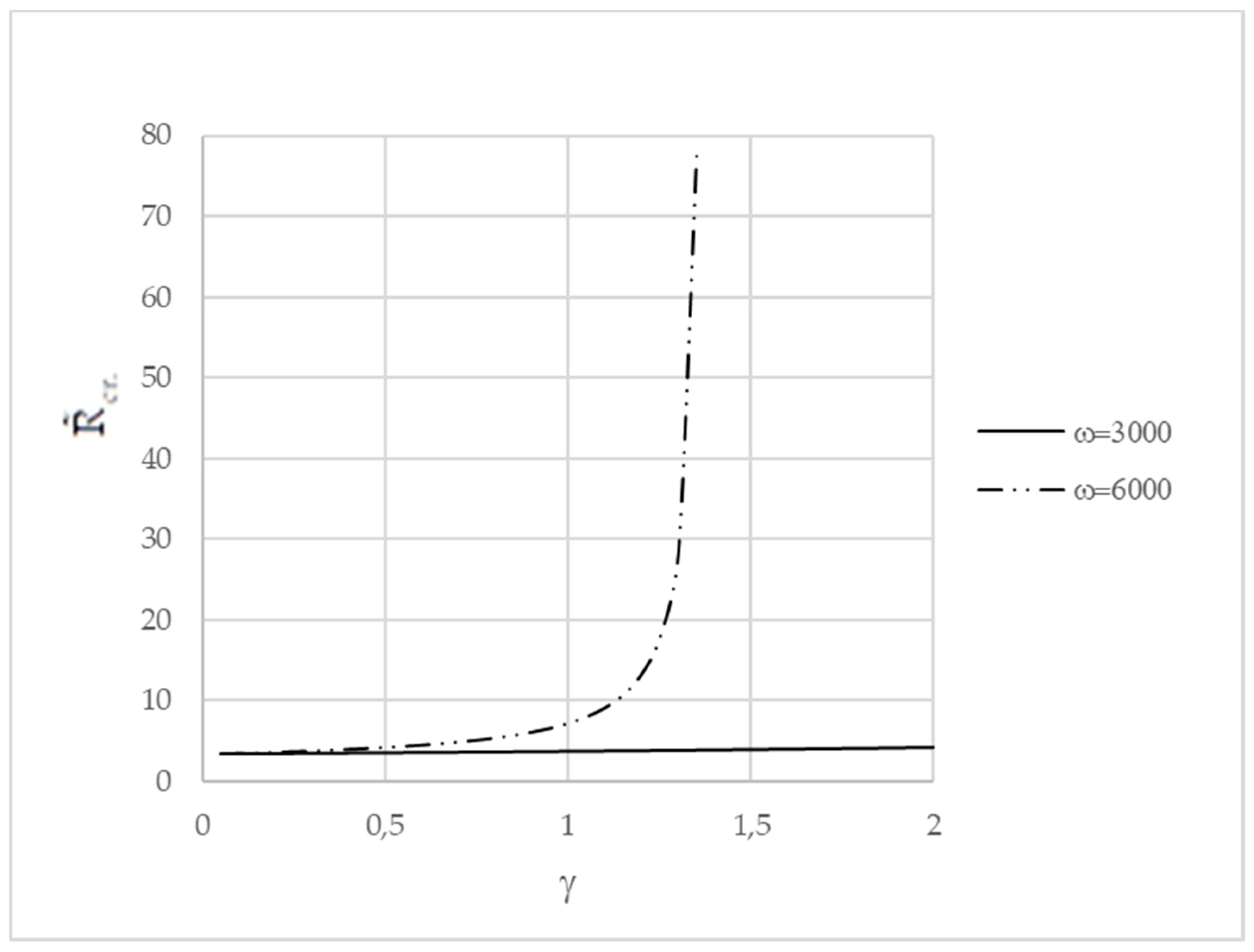

**Figure 3.**Critical Rayleigh number versus scaled Vadasz number at selected values of vibration frequency (Case 3: A = −0.5).

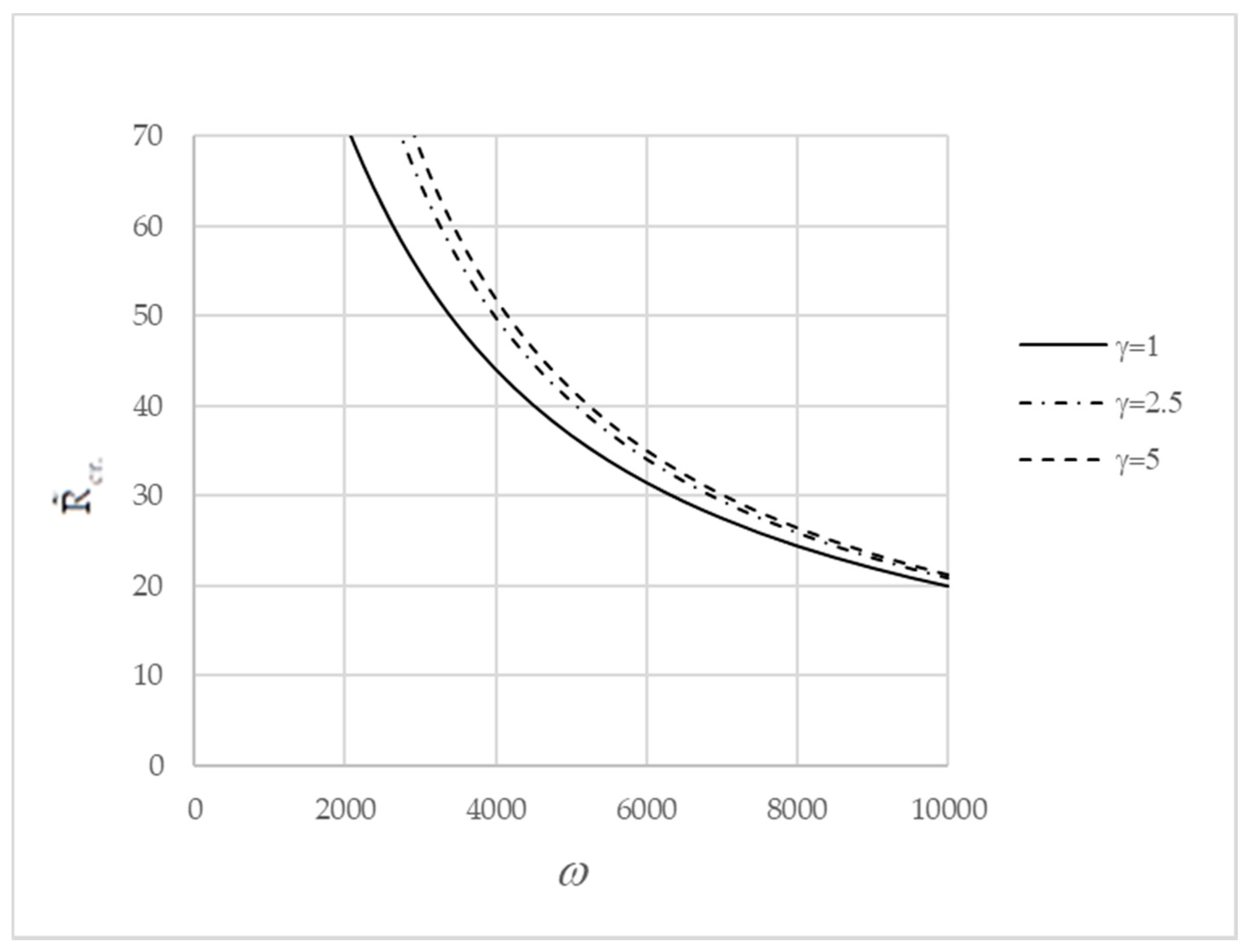

**Figure 4.**Critical Rayleigh number versus scaled Vadasz number at selected values of vibration frequency (Case 4: A = 1.5).

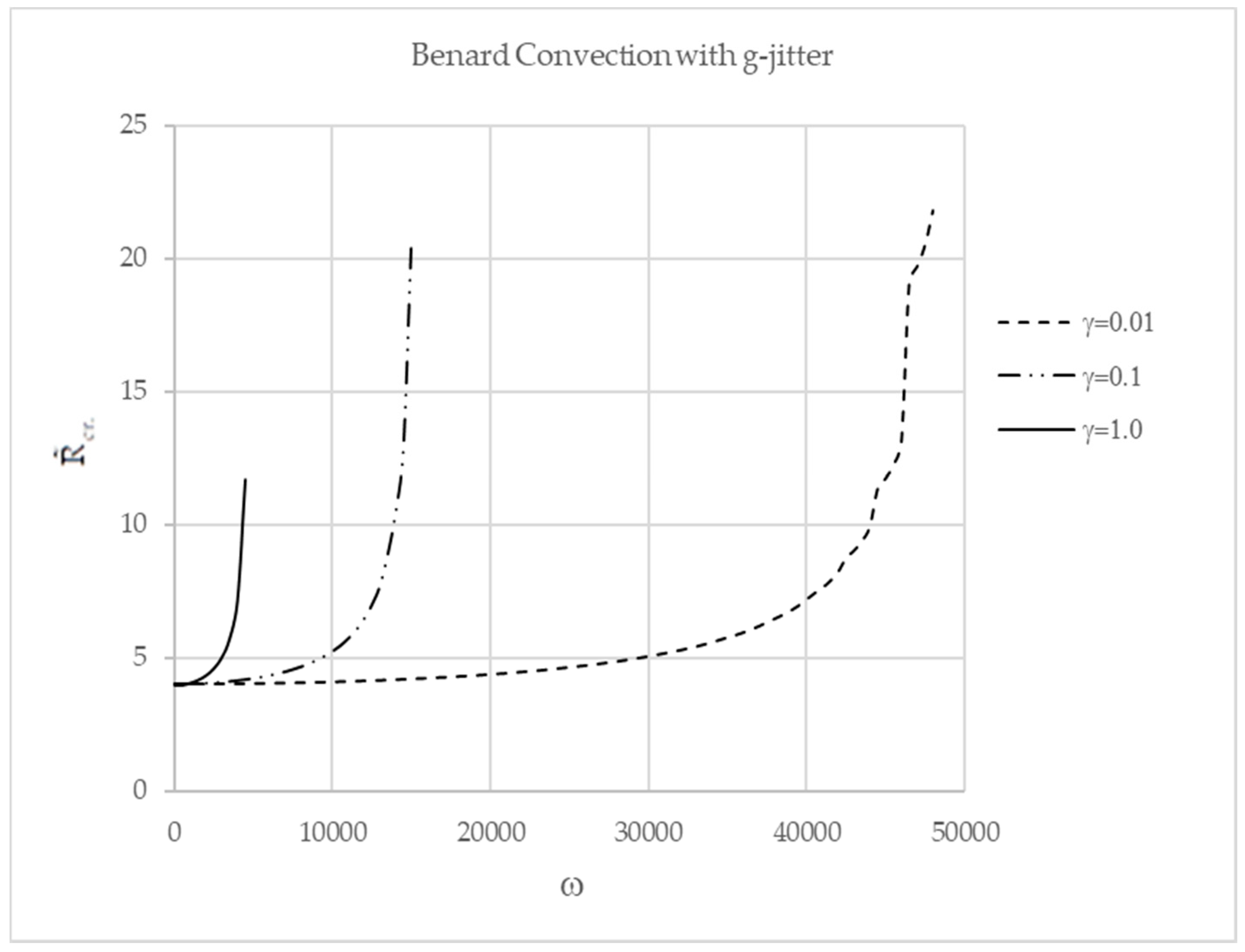

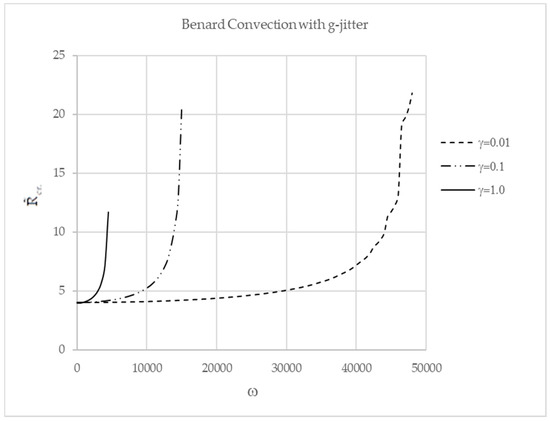

**Figure 5.**Benard Convection with g-jitter: Critical Rayleigh number versus vibration frequency at selected values of Vadasz number (no internal heat generation).

Case | Boundary Condition | A | Description |
---|---|---|---|

1 | $z=0:\frac{d{T}_{B}}{dz}=0$$z=1:{T}_{B}=0$ | 0 | Adiabatic bottom wall/Perfectly conducting top wall |

2 | $z=0:{T}_{B}=0$$z=1:{T}_{B}=0$ | $\frac{1}{2}$ | Perfectly conducting top and bottom walls |

3 | $z=0:{T}_{B}=1$$z=1:{T}_{B}=0$ | $-\frac{1}{2}$ | Perfectly conducting top and bottom walls |

4 | $z=0:{T}_{B}=0$$z=1:{T}_{B}=1$ | $\frac{3}{2}$ | Perfectly conducting top and bottom walls |

5 | $z=0:{T}_{B}=0$$z=1:\frac{d{T}_{B}}{dz}=0$ | 1 | Adiabatic top wall/Perfectly conducting bottom wall |
