# Onset of Primary and Secondary Instabilities of Viscoelastic Fluids Saturating a Porous Layer Heated from below by a Constant Flux

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

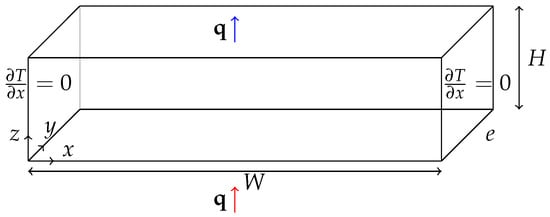

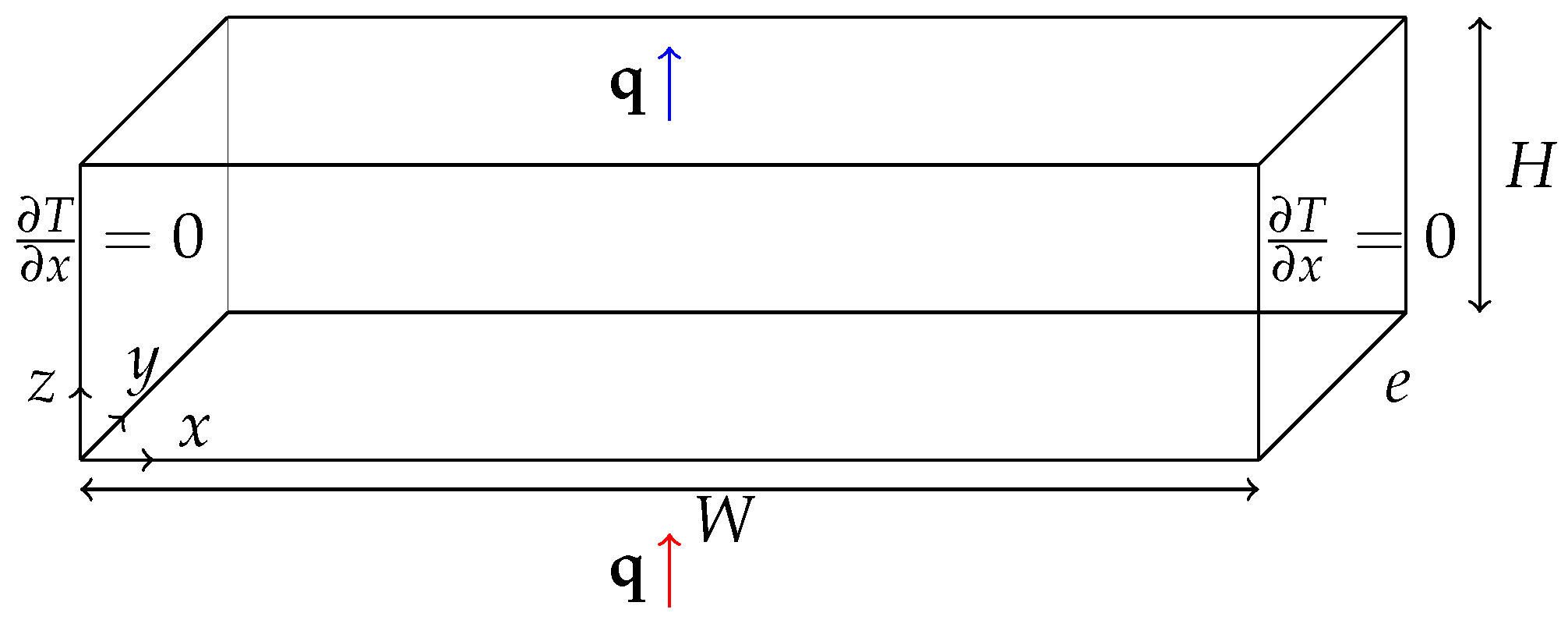

## 2. Mathematical Formulation

## 3. Primary Stationary and Oscillatory Instabilities

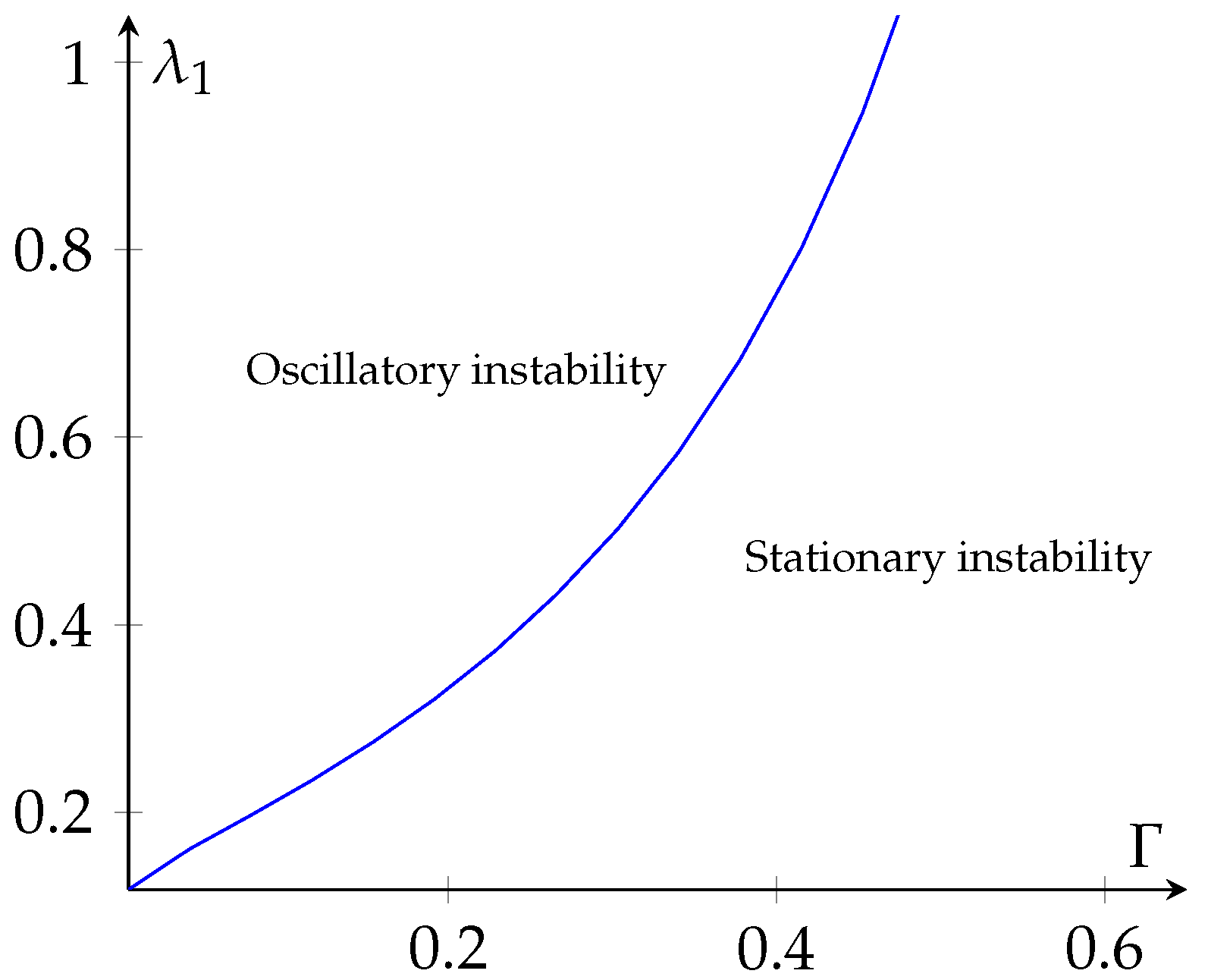

#### 3.1. Infinite Aspect Ratios

#### 3.2. Effect of Lateral Confinement on Pattern Selection

## 4. Secondary Instabilities

#### 4.1. Nonlinear Solution and Formulation of Its Linear Stability

#### 4.2. Results for Newtonian Fluids

#### 4.3. Results for Viscoelastic Fluids

#### 4.3.1. Hopf Bifurcation to Transverse Rolls

#### 4.3.2. Bifurcation to Steady or Oscillatory Longitudinal Rolls

## 5. Conclusions

## Author Contributions

## Conflicts of Interest

## References

- Kim, M.C.; Lee, S.B.; Kim, S.; Chung, B.J. Thermal instability of viscoelastic fluids in porous media. Int. J. Heat Mass Transf.
**2003**, 46, 5065–5072. [Google Scholar] [CrossRef] - Yoon, D.; Kim, M.C.; Choi, C.K. The onset of oscillatory convection in a horizontal porous layer saturated with viscoelastic liquid. Transp. Porous Media
**2004**, 55, 275–284. [Google Scholar] [CrossRef] - Bertola, V.; Cafaro, E. Thermal instability of viscoelastic fluids in horizontal porous layers as initial value problem. Int. J. Heat Mass Transf.
**2006**, 49, 4003–4012. [Google Scholar] [CrossRef] - Hirata, S.C.; Ella Eny, G.; Ouarzazi, M.N. Nonlinear pattern selection and heat transfer in thermal convection of a viscoelastic fluid saturating a porous medium. Int. J. Therm. Sci.
**2015**, 95, 136–146. [Google Scholar] [CrossRef] - Hirata, S.C.; Ouarzazi, M.N. Three-dimensional absolute and convective instabilities in mixed convection of a viscoelastic fluid through a porous medium. Phys. Lett. A
**2010**, 374, 2661–2666. [Google Scholar] [CrossRef] - Alves, L.S.B.; Barletta, A.; Hirata, S.; Ouarzazi, M.N. Effects of viscous dissipation on the convective instability of viscoelastic mixed convection flows in porous media. Int. J. Heat Mass Transf.
**2014**, 70, 586–598. [Google Scholar] [CrossRef] - Delenda, N.; Hirata, S.C.; Ouarzazi, M.N. Primary and secondary instabilities of viscoelastic mixtures saturating a porous medium: Application to separation of species. J. Non-Newton. Fluid Mech.
**2012**, 181, 11–21. [Google Scholar] [CrossRef] - Fu, C.J.; Zhang, Z.Y.; Tan, W.C. Numerical simulation of thermal convection of a viscoelastic fluid in a porous square box heated from below. Phys. Fluids
**2007**, 19, 104107. [Google Scholar] [CrossRef] - Taleb, A.; Ben Hamed, H.; Ouarzazi, M.N.; Beji, H. Analytical and numerical analysis of bifurcations in thermal convection of viscoelastic fluids saturating a porous square box. Phys. Fluids
**2016**, 28, 053106. [Google Scholar] [CrossRef] - Niu, J.; Fu, C.J.; Tan, W.C. Stability of thermal convection of an Oldroyd-B fluid in a porous medium with Newtonian heating. Phys. Lett. A
**2010**, 374, 4607–4613. [Google Scholar] [CrossRef] - Nield, D.A. Onset of thermohaline convection in a porous medium. Water Resour. Res.
**1968**, 4, 553–560. [Google Scholar] [CrossRef] - Nield, D.A.; Bejan, A. Convection in Porous Media; Springer: New York, NY, USA, 2006. [Google Scholar]
- Mamou, M.; Mahidjiba, A.; Vasseur, P.; Robillard, L. Onset of convection in an anisotropic porous medium heated from below by a constant heat flux. Int. Commun. Heat Mass Trans.
**1998**, 25, 799–808. [Google Scholar] [CrossRef] - Mojtabi, A.; Rees, D.A.S. The effect of conducting bounding plates on the onset of Horton-Rogers-Lapwood convection. Int. J. Heat Mass Trans.
**2011**, 54, 293–301. [Google Scholar] [CrossRef] [Green Version] - Falsaperla, P.; Mulone, G.; Straughan, B. Rotating porous convection with prescribed heat flux. Int. J. Eng. Sci.
**2010**, 48, 685–692. [Google Scholar] [CrossRef] - Falsaperla, P.; Giacobbe, A.; Mulone, G. Double diffusion in rotating porous media under general boundary conditions. Int. J. Heat Mass Trans.
**2012**, 55, 2412–2419. [Google Scholar] [CrossRef] - Kimura, S.; Vynnycky, M.; Alavyoon, F. Unicellular natural circulation in a shallow horizontal porous layer heated from below by a constant flux. J. Fluid Mech.
**1995**, 294, 231–257. [Google Scholar] [CrossRef] - Skartsis, L.; Khomami, B.; Kardos, J.L. Polymeric flow through fibrous media. J. Rheol.
**1992**, 36, 589–620. [Google Scholar] [CrossRef] - Joseph, D.D. Fluid Dynamics of Viscoelastic Liquids; Springer: New York, NY, USA, 1990. [Google Scholar]
- Khuzhayorov, B.; Auriault, J.L.; Royer, P. Derivation of macroscopic filtration law for transient linear viscoelastic fluid flow in porous media. Int. J. Eng. Sci.
**2000**, 38, 487–504. [Google Scholar] [CrossRef] - Bejan, A. The boundary layer regime in a porous layer with uniform heat flux from the side. Int. J. Heat Mass Transf.
**1983**, 26, 1339–1346. [Google Scholar] [CrossRef] - Vasseur, P.; Satish, M.G.; Robillard, L. Natural convection in a thin, inclined, porous layer exposed to a constant heat flux. Int. J. Heat Mass Transf.
**1987**, 30, 537–549. [Google Scholar] [CrossRef] - Sen, M.; Vasseur, P.; Robillard, L. Multiple steady states for unicellular natural convection in an inclined porous layer. Int. J. Heat Mass Transf.
**1987**, 30, 2097–2113. [Google Scholar] [CrossRef]

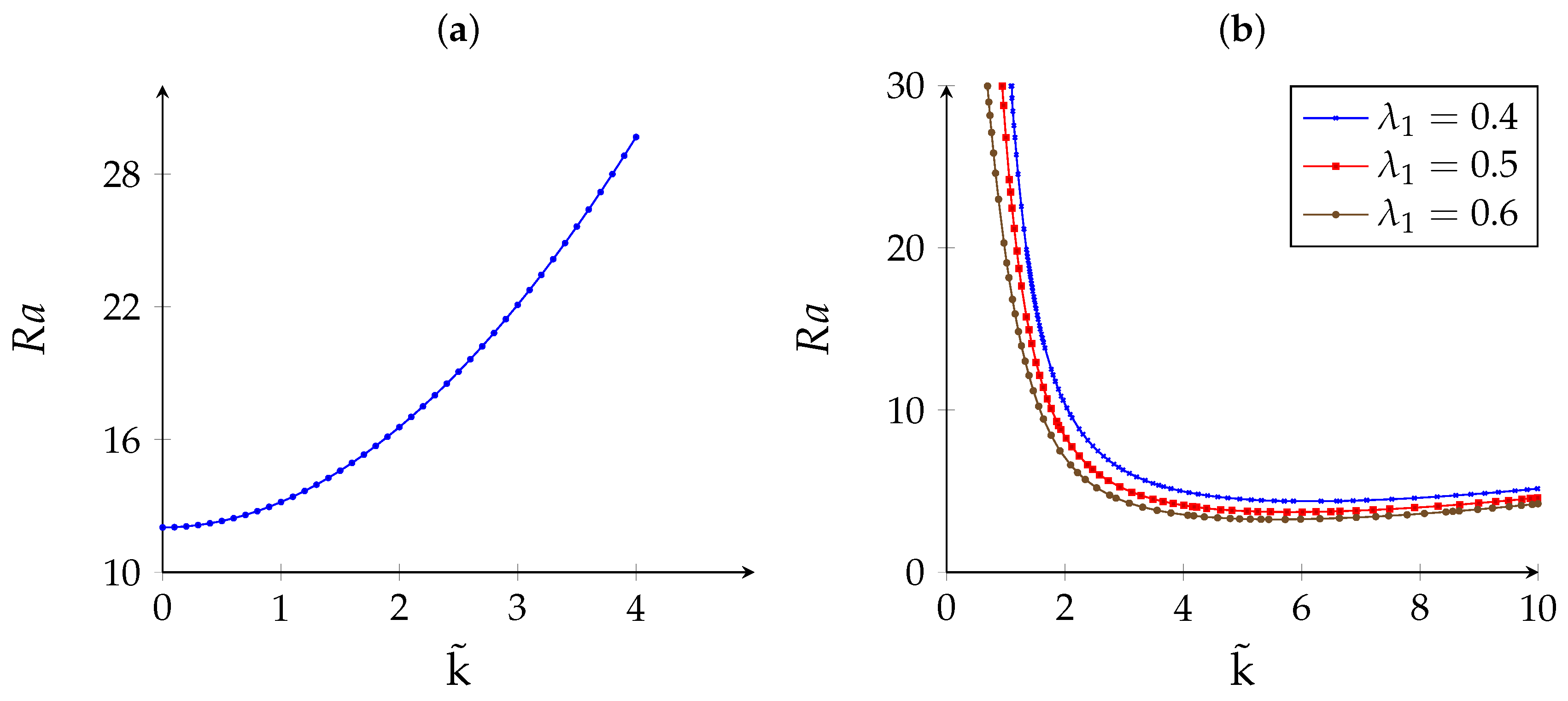

**Figure 3.**Neutral stability curves: (

**a**) stationary instability, which exists independently of viscoelastic parameters; (

**b**) oscillatory instability, which may develop first depending on viscoelastic parameters.

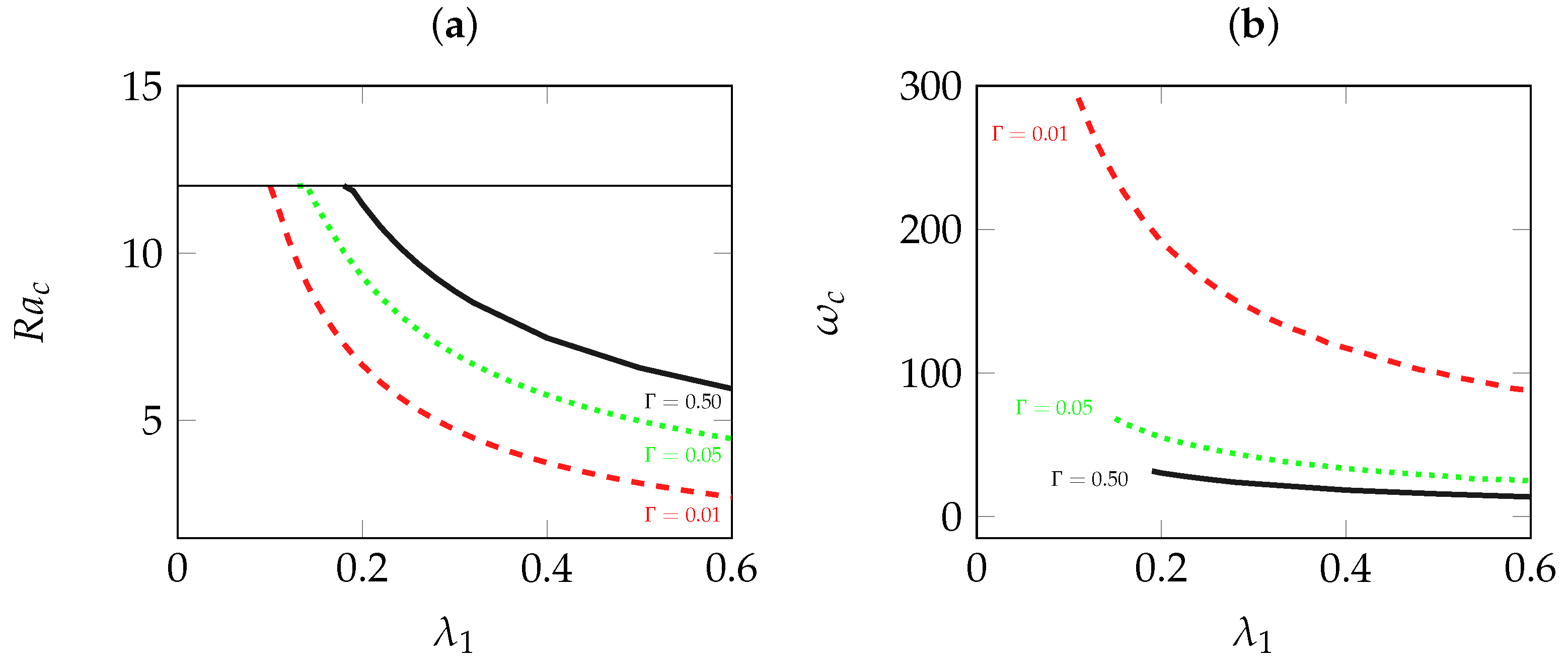

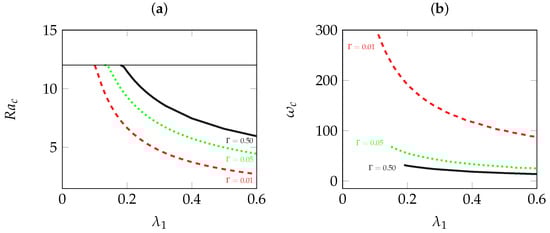

**Figure 4.**(

**a**) Critical Rayleigh number and (

**b**) critical frequency at the onset of oscillatory convection as a function of ${\lambda}_{1}$ for different values of $\mathsf{\Gamma}$. The line $Ra=12$ in (a) corresponds to the critical Rayleigh number at the onset of stationary convection.

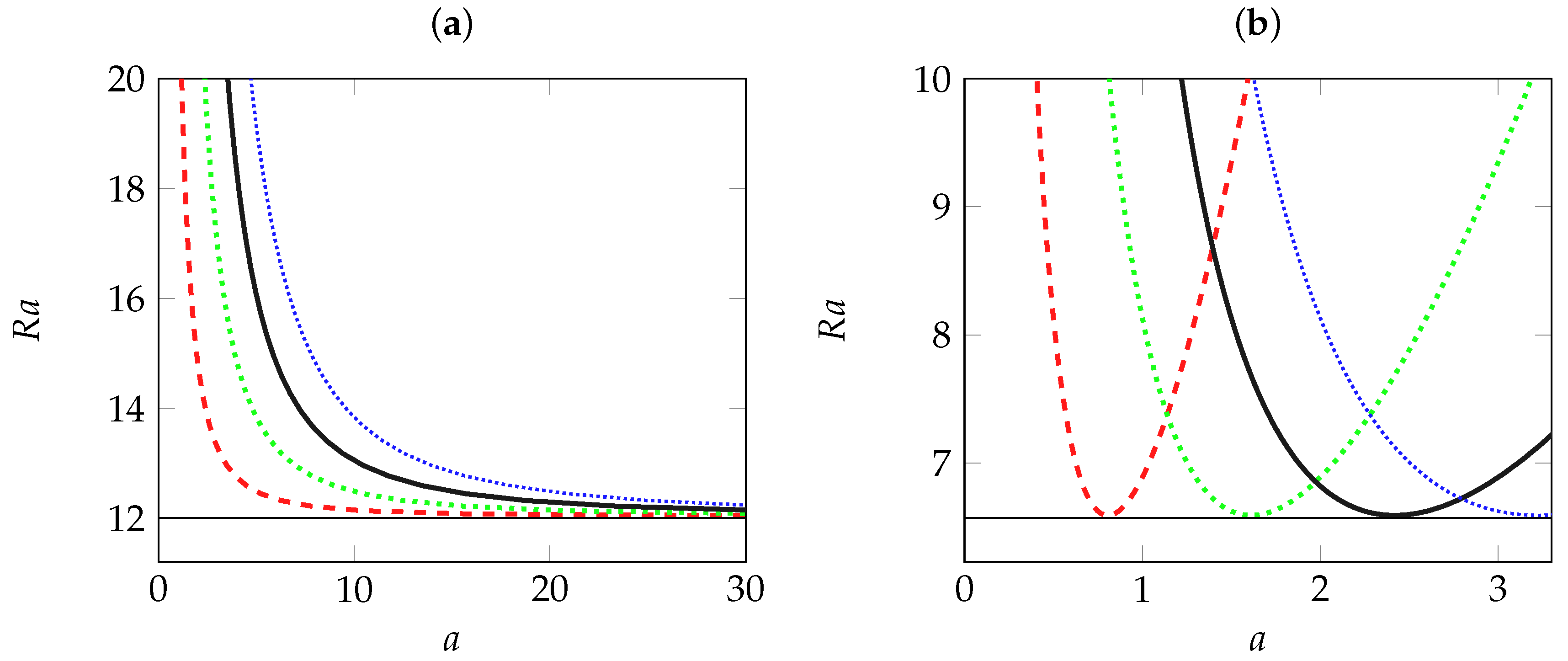

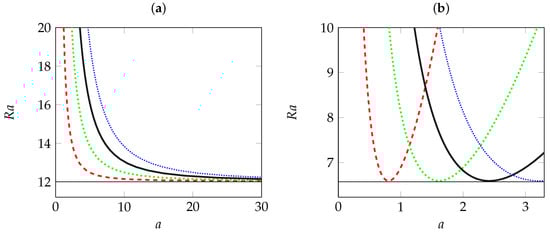

**Figure 5.**Critical Rayleigh number against the lateral aspect ratio with different numbers of rolls ($L=1$: red dashed curve; $L=2$: green dotted curve; $L=3$: black dash dotted curve; and $L=4$: blue densely-dotted curve): (

**a**) steady longitudinal rolls that exist independently of viscoelastic parameters; (

**b**) oscillatory longitudinal rolls for $\mathsf{\Gamma}=0.1$ and ${\lambda}_{1}=0.5$. In both figures, the horizontal lines indicate the corresponding critical Rayleigh number for transverse rolls.

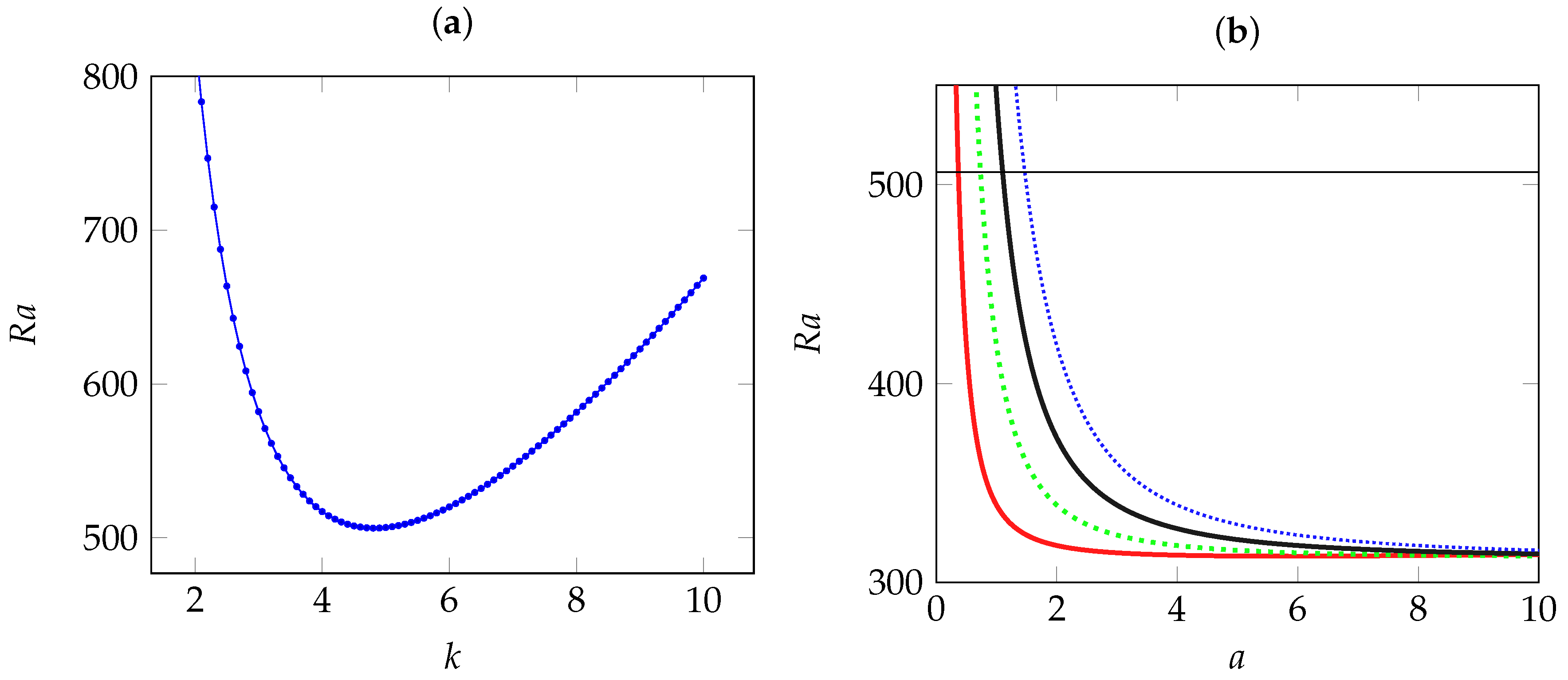

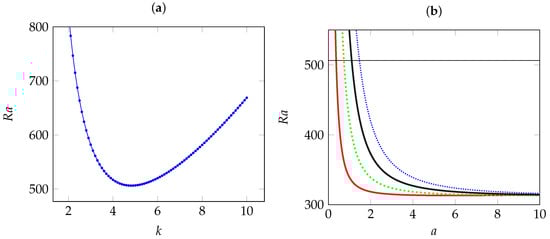

**Figure 6.**Newtonian fluids: (

**a**) neutral stability curve at the onset of oscillatory transverse rolls; (

**b**) critical Rayleigh number at the onset of steady longitudinal rolls against the lateral aspect ratio with different numbers of rolls ($L=1$: red dashed curve; $L=2$: green dotted curve; $L=3$: black dash dotted curve; and $L=4$: blue densely-dotted curve). The horizontal line corresponds to the threshold of oscillatory transverse rolls.

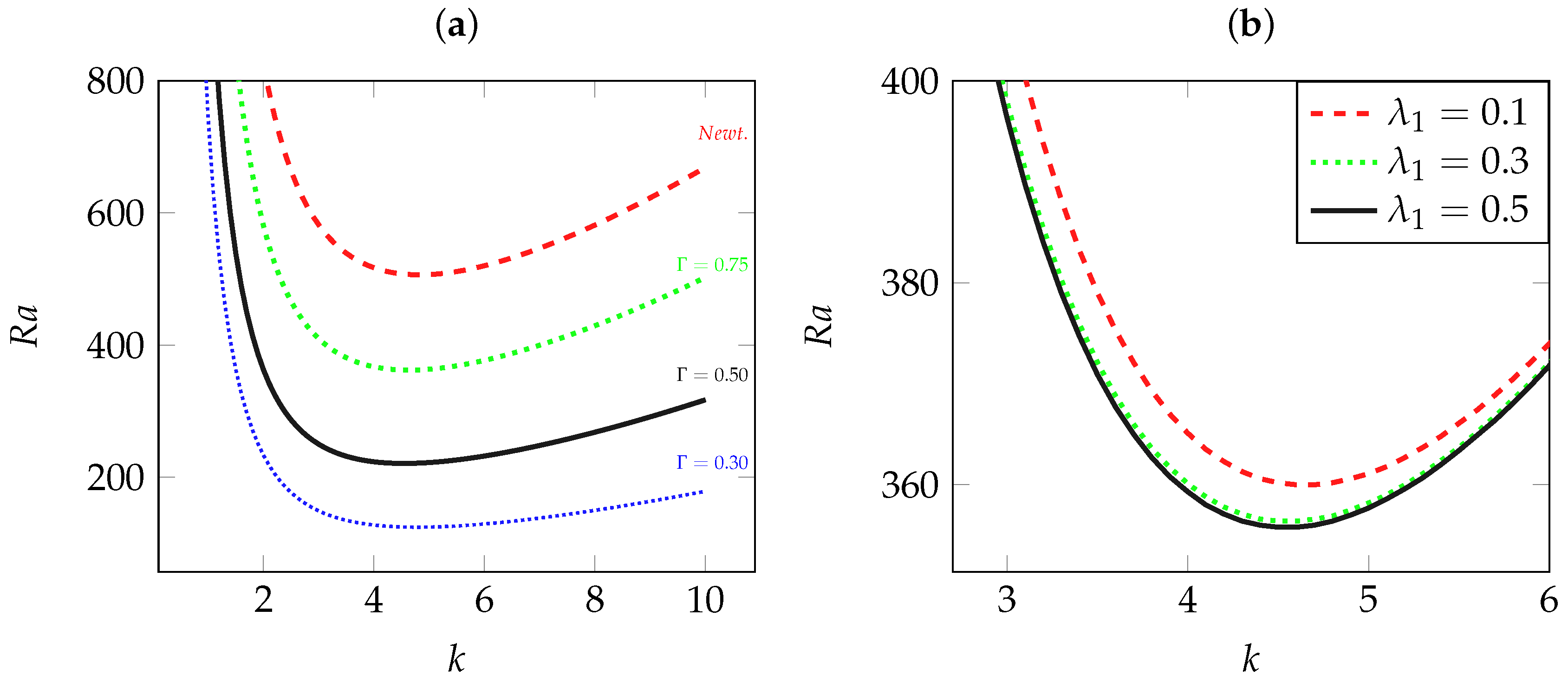

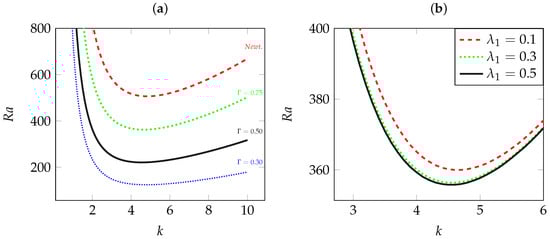

**Figure 7.**Critical Rayleigh number for the destabilization of fully-developed flow against the wave number k with $l=0$ for Newtonian fluids (Newt) and for viscoelastic solutions with: (

**a**) ${\lambda}_{1}=0.1$ and $\mathsf{\Gamma}=0.75;0.5;0.3$; (

**b**) $\mathsf{\Gamma}=0.75$ and ${\lambda}_{1}=0.1;0.3;0.5$.

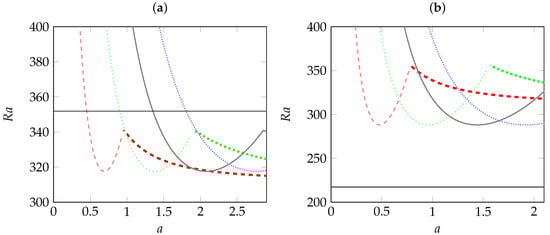

**Figure 8.**Critical Rayleigh number for the onset of steady (ultra thick curves) and oscillatory (thick curves) longitudinal rolls as a function of aspect ratio a for different numbers L of rolls ($L=1$: red dashed curve; $L=2$: green dotted curve; $L=3$: black dash-dotted curve; $L=4$: blue densely-dotted curve). (

**a**) $\mathsf{\Gamma}=0.75$ and ${\lambda}_{1}=0.3$; (

**b**) $\mathsf{\Gamma}=0.5$ and ${\lambda}_{1}=0.1$. The horizontal line corresponds to the threshold of oscillatory transverse rolls.

**Table 1.**Critical Rayleigh number $R{a}_{c2}^{T}$, frequency ${\omega}_{c2}^{T}$ and wave number ${k}_{c2}^{T}$ at the onset of moving transverse rolls as a secondary instability for ${\lambda}_{1}=0.1$ and different values of $\mathsf{\Gamma}$.

$\mathsf{\Gamma}$ | ${\mathit{Ra}}_{\mathit{c}\mathbf{2}}^{\mathit{T}}$ | ${\mathit{\omega}}_{\mathit{c}\mathbf{2}}^{\mathit{T}}$ | ${\mathit{k}}_{\mathit{c}\mathbf{2}}^{\mathit{T}}$ |
---|---|---|---|

Newtonian | 506.27 | 138.24 | 4.8 |

0.75 | 358.62 | 115.209 | 4.660 |

0.70 | 329.48 | 110.448 | 4.630 |

0.65 | 300.89 | 105.918 | 4.610 |

0.60 | 272.90 | 101.395 | 4.590 |

0.55 | 245.58 | 96.897 | 4.570 |

0.50 | 219.04 | 92.825 | 4.570 |

0.45 | 193.39 | 88.902 | 4.575 |

0.40 | 168.81 | 85.603 | 4.610 |

0.35 | 145.47 | 83.112 | 4.685 |

0.30 | 123.55 | 81.578 | 4.805 |

**Table 2.**Critical Rayleigh number $R{a}_{c2}^{T}$, frequency ${\omega}_{c2}^{T}$ and wave number ${k}_{c2}^{T}$ at the onset of moving transverse rolls as a secondary instability for $\mathsf{\Gamma}=0.75$ and different values of ${\lambda}_{1}$.

${\mathit{\lambda}}_{\mathbf{1}}$ | ${\mathit{Ra}}_{\mathit{c}\mathbf{2}}^{\mathit{T}}$ | ${\mathit{\omega}}_{\mathit{c}\mathbf{2}}^{\mathit{T}}$ | ${\mathit{k}}_{\mathit{c}\mathbf{2}}^{\mathit{T}}$ |
---|---|---|---|

0.7 | 354.21 | 110.819 | 4.545 |

0.6 | 354.31 | 110.979 | 4.550 |

0.5 | 354.45 | 111.042 | 4.550 |

0.4 | 354.66 | 111.251 | 4.555 |

0.3 | 355.05 | 111.642 | 4.565 |

0.2 | 355.83 | 112.584 | 4.590 |

0.1 | 358.62 | 115.209 | 4.660 |

**Table 3.**Critical Rayleigh number $R{a}_{c2}^{L}$, frequency ${\omega}_{c2}^{L}$ and wave number ${k}_{c2}^{L}$ at the onset of oscillatory longitudinal rolls as the secondary instability for different values of $\mathsf{\Gamma}$ and ${\lambda}_{1}$.

${\mathit{\lambda}}_{\mathbf{1}}$ | $\mathsf{\Gamma}$ | ${\mathit{Ra}}_{\mathit{c}\mathbf{2},\mathbf{osc}}^{\mathit{L}}$ | ${\mathit{\omega}}_{\mathit{c}\mathbf{2}}^{\mathit{L}}$ | ${\mathit{k}}_{\mathit{c}\mathbf{2}}^{\mathit{L}}$ | ${\mathit{R}}_{\mathit{c}\mathbf{2}}^{\mathit{T}}$ | ${\mathit{R}}_{\mathit{c}\mathbf{2},\mathit{s}}^{\mathit{L}}$ |
---|---|---|---|---|---|---|

Newtonian | - | - | - | 506.27 | 313.107 | |

0.1 | 0.75 | 426.27 | 1.53 | 5.8 | 358.62 | 313.107 |

0.3 | 0.75 | 317.55 | 3.58 | 4.5 | 355.03 | 313.107 |

0.5 | 0.75 | 291.34 | 2.65 | 3.9 | 354.45 | 313.107 |

0.1 | 0.6 | 333.47 | 12.35 | 6.3 | 272.90 | 313.107 |

0.1 | 0.5 | 288.08 | 17.53 | 6.5 | 219.04 | 313.107 |

0.1 | 0.3 | 194.20 | 33.62 | 7.0 | 123.55 | 313.107 |
