# Thermoreversible Gelation with Supramolecularly Polymerized Cross-Link Junctions

## Abstract

**:**

## 1. Introduction

## 2. Theoretical Method

#### 2.1. Self-Association

#### 2.2. Linear Growth of the Cross-Link Junctions

#### 2.3. Chain/Ring Supramolecular Cross-Link Junctions

## 3. Metallo-Supramolecular Cross-Link Junctions

#### 3.1. Ladder Model

#### 3.2. Egg-Box Model

## 4. Discussion

## 5. Conclusions

- (1)
- Chain model: In addition to the sol–gel transition, there occurs a polymerization transition at a certain concentration just after the gel point is passed under a fixed temperature. The transition is not a true phase transition in the sense that it is not accompanied by any singularity in the physical properties. In particular, the average chain length grows to infinity only in the inaccessible limit of complete reaction. However, its variation becomes sharper and sharper with the cooperativity parameter, leading eventually to a singularity at finite reactivity. The increasing sharpness of the sol–gel transition with cooperativity parameter, in particular sharp rise of the gel fraction, makes the experimental detection of the gel point easier.
- (2)
- Chain/ring model: Under a certain simple condition on the association constants, a new phase transition occurs at a low temperature (large $\lambda $) deep in the postgel region, where the average length of rings goes to infinity. There appears a discontinuity in the physical properties at this condensation point of rings. The average molecular weight of the cross-linked polymers, the extinction probability, and the gel fraction all stay constant below this temperature. The transition is analogous to the Bose–Einstein condensation of an ideal Bose gas where a finite fraction of particles falls into the condensate of zero momentum.
- (3)
- Ladder model: A ladder is one of the simplest structures of multi-nuclear metal-coordinated complexes. As a function of the composition u of metal ions, there occur two transitions: one from sol to gel at a low value ${u}_{1}$, and the other from gel back to sol at a higher value ${u}_{2}$ (reentrant gel–sol transition). In the gel phase between them, there is a composition u at which the gel fraction reaches a maximum (optimal gel point). The average length of the ladder increases around this optimal gel point, but is limited within a finite value, and hence there is no polymerization transition. The ratio $\mu $ between the intra-layer association constant and the inter-layer one plays a role of the cooperativity parameter. The transitions become sharper with its decrease.
- (4)
- Egg-box model: Overall variation in physical observables is the same as the ladder model, although there are some quantitative differences. For instance, the gel fraction becomes asymmetric in the postgel region.

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Guenet, J.M. Thermoreversible Gelation of Polymers and Biopolymers, 2nd ed.; Academic Press, Harcourt Brace Jovanovich Publishers: London, UK, 1992. [Google Scholar]
- Nijenhuis, K. Thermoreversible Networks; Advances in Polymer Science Series; Springer: Berlin/Heidelberg, Germany, 1997; Volume 130, pp. 1–252. [Google Scholar]
- Winter, H.H.; Mours, M. Rheology of Polymers near Liquid–Solid Transitions. Adv. Polym. Sci.
**1997**, 134, 165–234. [Google Scholar] - Tanaka, F. Polymer Physics—Applications to Molecular Association and Thermoreversible Gelation; Cambridge University Press: Cambridge, UK, 2011. [Google Scholar]
- Zhang, J.; Hu, Y.; Li, Y. Gel Chemistry: Interactions, Structures and Properties; Springer: Singapore, 2018. [Google Scholar]
- Thakur, V.K.; Thakur, M.K. Polymer Gels: Science and Fundamentals, 1st ed.; Springer: Singapore, 2018. [Google Scholar]
- Thakur, V.K.; Thakur, M.K. Hydrogels: Recent Advances, 1st ed.; Springer: Singapore, 2018. [Google Scholar]
- Nakano, S.; Ogiso, T.; Kita, R.; Shinyashiki, N.; Yagihara, S.; Yoneyama, M.; Katsumoto, Y. Thermoreversible gelation of isotactic-rich poly(N-isopropylacrylamide) in water. J. Chem. Phys.
**2011**, 135, 114903. [Google Scholar] [CrossRef] [PubMed] - Taylor, M.L.; Paul Tomlins, P.; Sahota, T.S. Thermoresponsive Gels. Gels
**2017**, 3, 4. [Google Scholar] [CrossRef] [PubMed] - Zhang, K.; Kun Xue, K.; Loh, X.J. Thermo-Responsive Hydrogels: From Recent Progress to Biomedical Applications. Gels
**2021**, 7, 77. [Google Scholar] [CrossRef] [PubMed] - Wang, C.; Hashimoto, T.; Chuang, Y.-C.; Tanaka, T.; Chang, Y.-P.; Yang, T.-W.; Huang, M.-T. Physical Gelation of Aqueous Solutions of Atactic Poly(N-isopropylacrylamide). Macromolecules
**2022**, 55, 9152–9167. [Google Scholar] [CrossRef] - Chuang, Y.-C.; Wang, Y.; Wang, C. Physical Gels of Atactic Poly(N-isopropylacrylamide) in Water: Rheological Properties and As-Derived Spinodal Temperature. Gels
**2023**, 9, 288. [Google Scholar] [CrossRef] - Patrickios, C.S. Amphiphilic Polymer Co-Networks: Synthesis, Properties, Modelling and Applications; Royal Society of Chemistry: London, UK, 2020. [Google Scholar]
- Terech, P.; Weiss, R.G. Low Molecular Mass Gelators of Organic Liquids and the Properties of Their Gels. Chem. Rev.
**1997**, 97, 3133–3159. [Google Scholar] [CrossRef] - Weiss, R.G.; Terech, P. Molecular Gels: Materials with Self-Assembled Fibrillar Networks; Springer: Dordrecht, The Netherlands, 2006; p. 978. [Google Scholar]
- Weiss, R.G. Controlling Variables in Molecular Gel Science: How Can We Improve the State of the Art? Gels
**2018**, 4, 25. [Google Scholar] [CrossRef] - Weiss, R.G. Molecular Gels, Structure and Dynamics; Royal Society of Chemistry, Monograph in Supramolecular Chemistry: London, UK, 2018. [Google Scholar]
- Guenet, J.M. Organogels: Thermodynamics, Structure, Solvent Role and Properties; Springer International Publishing: New York, NY, USA, 2016. [Google Scholar]
- Liu, X.L.; Li, J.L. Soft Fibrillar Materials: Fabrication and Applications; Wiley-VCH: Hoboken, NJ, USA, 2013. [Google Scholar]
- Babu, S.S.; Praveen, V.K.; Ajayaghosh, A. Functional π-Gelators and Their Applications. Chem. Rev.
**2014**, 114, 1973–2129. [Google Scholar] [CrossRef] - Basu, N.; Chakraborty, A.; Ghosh, R. Carbohydrate Derived Organogelators and the Corresponding Functional Gels Developed in Recent Time. Gels
**2018**, 4, 52. [Google Scholar] [CrossRef] - Morris, J.; Bietsch, J.; Bashaw, K.; Wang, G. Recently Developed Carbohydrate Based Gelators and Their Applications. Gels
**2021**, 7, 24. [Google Scholar] [CrossRef] - Annable, T.; Buscall, R.; Ettelaie, R.; Whittlestone, D. The Rheology of Solutions of Associating Polymers: Comparison of Experimental Behavior with Transient Network Theory. J. Rheol.
**1993**, 37, 695–726. [Google Scholar] [CrossRef] - Annable, T.; Buscall, R.; Ettelaie, R.; Shepherd, P.; Whittlestone, D. Influence of Surfactants on the Rheology of Associating Polymers in Solution. Langmuir
**1994**, 10, 1060–1070. [Google Scholar] [CrossRef] - Yekta, A.; Xu, B.; Duhamel, J.; Adiwidjaja, H.; Winnik, M.A. Fluorescence Studies of Associating Polymers in Water: Determination of the Chain End Aggregation Number and a Model for the Association Process. Macromolecules
**1995**, 28, 956–966. [Google Scholar] [CrossRef] - Kujawa, P.; Watanabe, H.; Tanaka, F.; Winnik, F.M. Amphiphhilic Telechelic Poly(N-isopropylacrylamide) in Water: From Micelles to Gels. Eur. Phys. J. E
**2005**, 17, 129–137. [Google Scholar] [CrossRef] [PubMed] - Kujawa, P.; Segui, F.; Shaban, S.; Diab, C.; Okada, Y.; Tanaka, F.; Winnik, F.M. Impact of End-Group Association and Main-Chain Hydration on the Thermosensitive Properties of Hydrophobically Modified Telechelic Poly(N-isopropylacrylamide) in Water. Macromolecules
**2006**, 39, 341–348. [Google Scholar] [CrossRef] - Kujawa, P.; Tanaka, F.; Winnik, F.M. Temperature-Dependent Properties of Telechelic Hydrophobically Modified Poly(N-isopropylacrylamides) in Water: Evidence from Light Scattering and Fluorescence Spectroscopy for the Formation of Stable Mesoglobules at Elevated Temperatures. Macromolecules
**2006**, 39, 3048–3055. [Google Scholar] [CrossRef] - Kujawa, P.; Aseyev, V.; Tenhu, H.; Winnik, F.M. Temperature-Sensitive Properties of Poly(N-isopropylacrylamides) Mesoglobules Formed in Dilute Aqueous Solutions Heated above Their Demixing Point in Water: Evidence from Light Scattering and Fluorescence Spectroscopy for the Formation of Stable Mesoglobules at Elevated Temperatures. Macromolecules
**2006**, 39, 7686–7693. [Google Scholar] - Dudowicz, J.; Freed, K.F.; Douglas, J.F. Lattice model of living polymerization. I. Basic thermodynamic properties. J. Chem. Phys.
**1999**, 111, 7116–7130. [Google Scholar] [CrossRef] - Douglas, J.F.; Dudowicz, J.; Freed, K.F. Lattice model of equilibrium polymerization. VII. Understanding the role of “cooperativity” in self-assembly. J. Chem. Phys.
**2008**, 128, 224901. [Google Scholar] [CrossRef] - Greef, T.F.A.D.; Smulders, M.M.J.; Wolffs, M.; Schenning, A.P.H.J.; Sijbesma, R.P.; Meijer, E.W. Supramolecular Polymerization. Chem. Rev.
**2009**, 109, 5687–5754. [Google Scholar] [PubMed] - O’Donnell, A.D.; Salimi, S.; Hart, L.R.; Babra, T.S.; Greenland, B.W.; Hayes, W. Applications of supramolecular polymer networks. React. Funct. Polym.
**2022**, 172, 105209. [Google Scholar] [CrossRef] - Yan, T.; Schröter, K.; Herbst, F.; Binder, W.H.; Thurn-Albrecht, T. Nanostructure and Rheology of Hydrogen-Bonding Telechelic Polymers in the Melt: From Micellar Liquids and Solids to Supramolecular Gels. Macromolecules
**2014**, 47, 2122–2130. [Google Scholar] [CrossRef] - Ahmadi, M.; Seiffert, S. Coordination Geometry Preference Regulates the Structure and Dynamics of Metallo-Supramolecular Polymer Networks. Macromolecules
**2021**, 54, 1388–1400. [Google Scholar] [CrossRef] - Ahmadi, M.; Nicolella, P.; Seiffert, S. Network Percolation in Transient Polymer Networks with Temporal Hierarchy of Energy Dissipation. Macromolecules
**2022**, 55, 9960–9971. [Google Scholar] [CrossRef] - Breul, K.; Kissel, S.; Seiffert, S. Sticker Multivalency in Metallo-supramolecular Polymer Networks. Macromolecules
**2021**, 54, 8407–8422. [Google Scholar] [CrossRef] - Piepenbrock, M.-O.M.; Lloyd, G.O.; Clarke, N.; Steed, J.W. Metal- and Anion-Binding Supramolecular Gels. Chem. Rev.
**2010**, 110, 1960–2004. [Google Scholar] [CrossRef] - Xia, D.; Wang, P.; Ji, X.; Khashab, N.M.; Sessler, J.L.; Huang, F. Functional Supramolecular Polymeric Networks: The Marriage of Covalent Polymers and Macrocycle-Based Host–Guest Interactions. Chem. Rev.
**2020**, 120, 6070–6123. [Google Scholar] [CrossRef] - Fukui, K.; Yamabe, T. A General Theory of Gel Formation with Multifunctional Interunit Junctions. Bull. Chem. Soc. Jpn
**1967**, 40, 2052–2063. [Google Scholar] [CrossRef] - Tanaka, F.; Stockmayer, W.H. Thermoreversible Gelation with Junctions of Variable Multiplicity. Macromolecules
**1994**, 27, 3943–3954. [Google Scholar] [CrossRef] - Tanaka, F. Thermoreversible Gelation Interfering with Phase Separation in Multicomponent Mixtures of Associating Polymers. Macromolecules
**2022**, 55, 5233–5248. [Google Scholar] [CrossRef] - Flory, P.J. Thermodynamics of High Polymer Solutions. J. Chem. Phys.
**1942**, 10, 51–61. [Google Scholar] [CrossRef] - Flory, P.J. Principles of Polymer Chemistry; Cornell University Press: Ithaca, NY, USA, 1953. [Google Scholar]
- Tanaka, F. Thermoreversible Gelation with Two-Component Mixed Cross-Link Junctions of Variable Multiplicity in Ternary Polymer Solutions. Gels
**2021**, 7, 89. [Google Scholar] [CrossRef] [PubMed] - Flory, P.J. Molecular Size Distribution in Three Dimensional Polymers I. Gelation. J. Am. Chem. Soc.
**1941**, 63, 3083–3090. [Google Scholar] [CrossRef] - Flory, P.J. Molecular Size Distribution in Three Dimensional Polymers II. Trifunctional Branching Units. J. Am. Chem. Soc.
**1941**, 63, 3091–3096. [Google Scholar] [CrossRef] - Flory, P.J. Molecular Size Distribution in Three Dimensional Polymers III. Tetrafunctional Branching Units. J. Am. Chem. Soc.
**1941**, 63, 3096–3100. [Google Scholar] [CrossRef] - Stockmayer, W.H. Theory of Molecular Size Distribution and Gel Formation in Branched-Chain Polymers. J. Chem. Phys.
**1943**, 11, 45–55. [Google Scholar] [CrossRef] - Stockmayer, W.H. Theory of Molecular Size Distribution and Gel Formation in Branched Polymers II. General Cross Linking. J. Chem. Phys.
**1944**, 12, 125–131. [Google Scholar] [CrossRef] - Stockmayer, W.H. Molecular Distribution in Condensation Polymers. J. Polym. Sci.
**1952**, 4, 69–71. [Google Scholar] [CrossRef] - Gordon, M. Good’s Theory of Cascade Processes applied to the Statistics of Polymer Distribution. Proc. R. Soc. Lond. A
**1962**, 268, 240–257. [Google Scholar] - Good, I.J. The Number of Individuals in the Cascade Process. Proc. Camb. Phil. Soc.
**1949**, 45, 360–363. [Google Scholar] [CrossRef] - Good, I.J. Cascade theory and molecular weight averages of the sol fraction. Proc. R. Soc. Lond. A
**1963**, 272, 54–59. [Google Scholar] - Columbus, I.; Eren, N.; Elitsur, R.; Davidovich-Pinhas, M.; Shenhar, R. Branched Supramolecular Copolymers: Inducing Branching in Bisurea-Based Monomers Using Multi-Sulfonate Molecules. Macromolecules
**2022**, 55, 472–487. [Google Scholar] [CrossRef] - Jacobson, H.; Stockmayer, W.H. Intramolecular Reaction in Polycondensations. I. The Theory of Linear Systems. J. Chem. Phys.
**1950**, 18, 1600–1606. [Google Scholar] [CrossRef] - Jacobson, H.; Beckmann, C.O.; Stockmayer, W.H. Intramolecular Reaction in Polycondensations. II. Ring-Chane Equilibrium in Polydecamethylene Adipate. J. Chem. Phys.
**1950**, 18, 1607–1612. [Google Scholar] [CrossRef] - Poland, D.; Scheraga, H.A. Phase Transitions in One Dimension and the Helix-Coil Transition in Polyamino Acids. J. Chem. Phys.
**1966**, 45, 1456–1463. [Google Scholar] [CrossRef] - Poland, D.; Scheraga, H.A. Theory of Helix-Coil Transitions in Biopolymers; Academic Press: New York, NY, USA; London, UK, 1970. [Google Scholar]
- Truesdell, C. On a Function which Occurs in the Theory of the Structure of Polymers. Ann. Math.
**1945**, 46, 144–157. [Google Scholar] [CrossRef] - Mayer, J.E.; Mayer, M.G. Statistical Mechanics; John Wiley & Sons, Inc.: New York, NY, USA, 1940; Chapter 14c. [Google Scholar]
- London, F. Superfluids; John Wiley & Sons, Inc.: New York, NY, USA, 1954; Section 7; Volume II. [Google Scholar]
- Fang, Y.; Al-Assaf, S.; Phillips, G.O.; Nishinari, K.; Funami, T.; Williams, P.A.; Li, L. Multiple Steps and Critical Behaviors of the Binding of Calcium to Alginate. J. Phys. Chem. B
**2007**, 111, 2456–2462. [Google Scholar] [CrossRef] - Sikorski, P.; Mo, F.; Skjåk-Brœk, G.; Stokke, B.T. Evidence for Egg-Box-Compatible Interactions in Calcium-Alginate Gels from Fiber X-ray Diffraction. Biomacromolecules
**2007**, 8, 2098–2103. [Google Scholar] [CrossRef] - Donati, I.; Benegas, J.; Paoletti, S. On the Molecular Mechanism of the Calcium-Induced Gelation of Pectate. Different Steps in the Binding of Calcium Ions by Pectate. Biomacromolecules
**2021**, 22, 5000–5019. [Google Scholar] [CrossRef] - Eldridge, J.E.; Ferry, J.D. Studies on the Cross-Linking Process in Gelatin Gels. III. Dependence of Melting Point on Concentration and Molecular Weight. J. Phys. Chem.
**1954**, 58, 992–995. [Google Scholar] [CrossRef] - Tanaka, F.; Nishinari, K. Junction Multiplicity in Thermoreversible Gelation. Macromolecules
**1996**, 29, 3625–3628. [Google Scholar] [CrossRef] - de Gennes, P.G. Scaling Concepts in Polymer Physics; Cornell University Press: Ithaca, NY, USA, 1979; Chapter 1. [Google Scholar]
- Lips, A.; Clark, A.H.; Cutler, N.; Durand, D. Measurement of cooperativity of binding of calcium to neutral sodium pectate. Food Hydrocoll.
**1991**, 5, 87–99. [Google Scholar] [CrossRef] - Tanaka, F.; Nakagawa, Y.; Ohta, S.; Ito, T. Thermoreversible gelation with ion-binding cross-links of varible multiplicity. J. Chem. Phys.
**2019**, 150, 174904. [Google Scholar] [CrossRef] [PubMed]

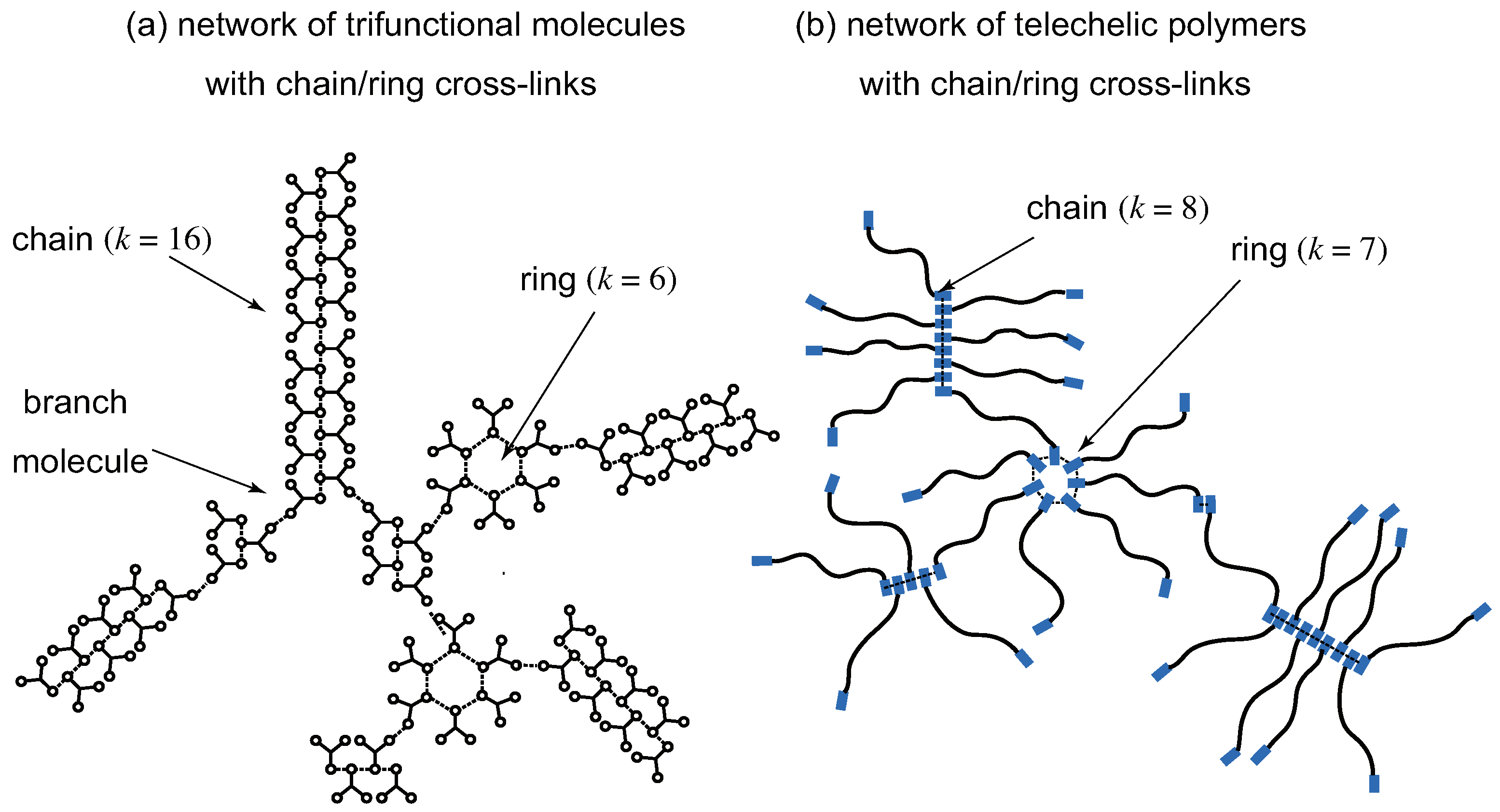

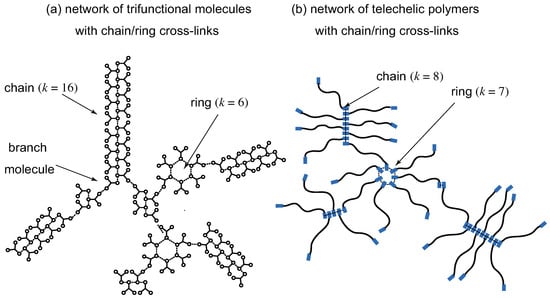

**Figure 1.**(

**a**) A network of a tree type consisting of low molecular weight trifunctional ($f=3$) molecules with cross-link junctions of linear chains and rings. A chain of the length k (dotted line) is regarded as a connected cross-link junction of multiplicity k. Similarly, each ring of the length k is regarded as a cross-link junction of multiplicity k in the loop form. There are branching points where the primary reactive molecules have more than one reacted functional groups. The smallest ring has the size $k=3$. (

**b**) A network consisting of high molecular weight bifunctional ($f=2$) molecules (telechelic polymers) with coexisting cross-link junctions of linear chains and rings. Functional groups (low-mass gelators) are shown by the blue thick rods at the ends of molecules.

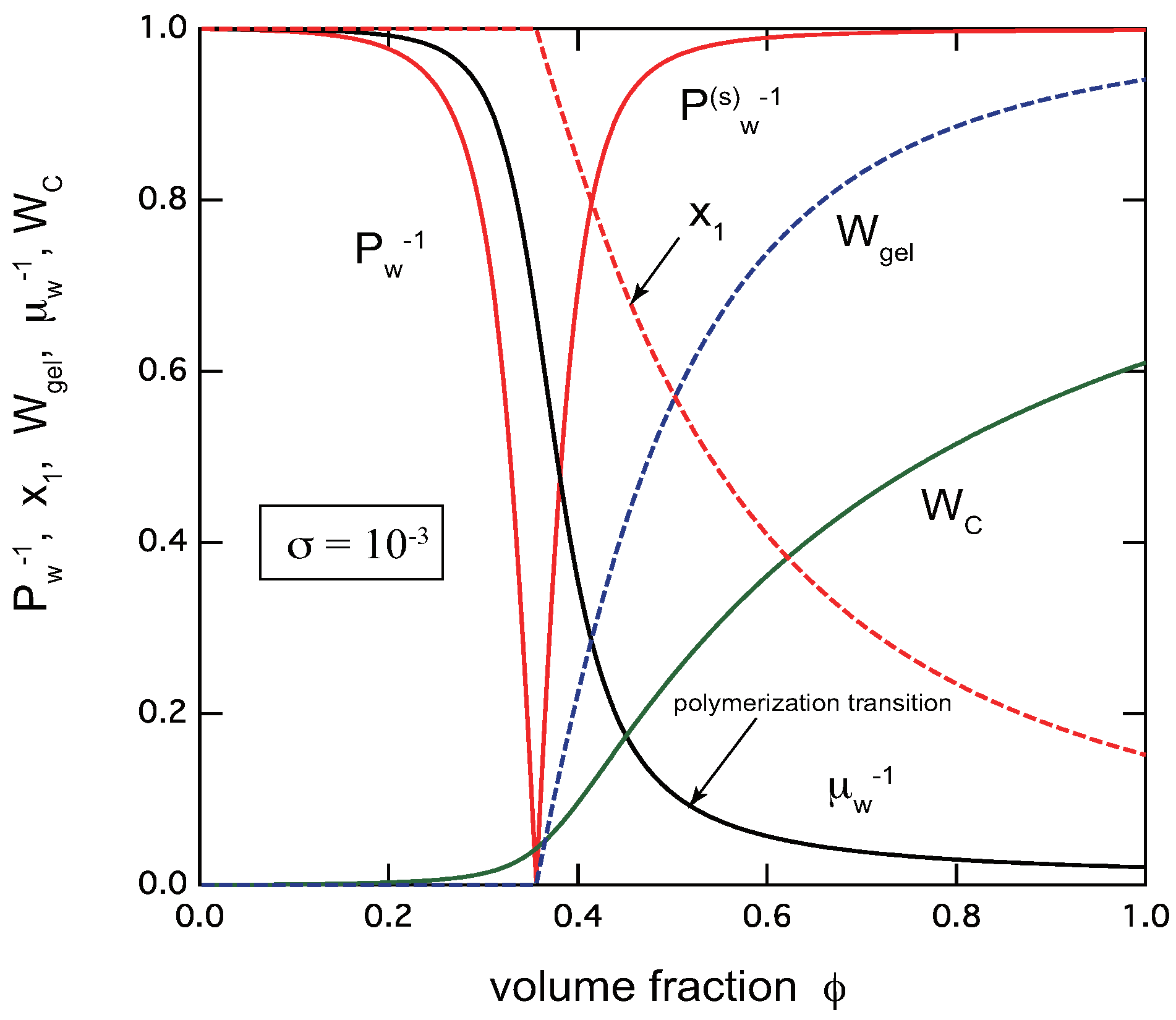

**Figure 2.**The reciprocal weight-average molecular weight (red solid lines) ${P}_{\mathrm{w}}^{-1}$ in the pregel region, and ${{P}_{\mathrm{w}}^{\left(s\right)}}^{-1}$ in the postgel region, the gel fraction ${W}_{\mathrm{gel}}$ (blue broken line), the extinction probability ${x}_{1}$ (red broken line), the reciprocal average chain length ${{\overline{\mu}}_{\mathrm{w}}}^{-1}$ (black line), and the fraction ${W}_{\mathrm{C}}$ of the reacted functional groups (green line) plotted against the volume fraction of the primary molecules for $f=3,n=6,\lambda =5.0$. The cooperativity parameter is fixed at $\sigma ={10}^{-3}$. The sol–gel transition is very sharp. There is a polymerization point just after the gel point is passed.

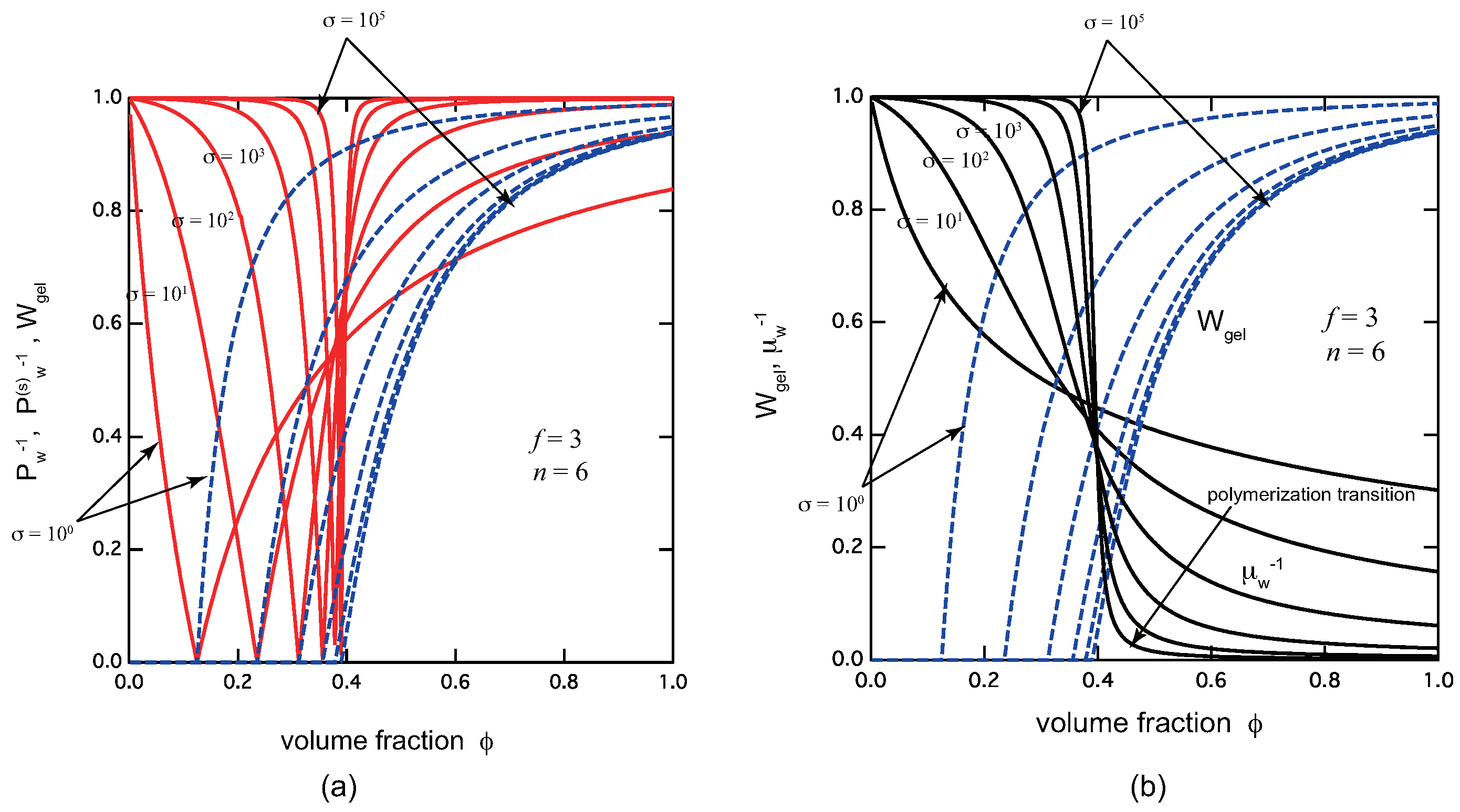

**Figure 3.**(

**a**) The reciprocal weight-average molecular weight (red solid lines) ${P}_{\mathrm{w}}^{-1}$ in the pregel region, and ${{P}_{\mathrm{w}}^{\left(s\right)}}^{-1}$ in the postgel region, and the gel fraction ${W}_{\mathrm{gel}}$ (blue broken lines) plotted against the volume fraction of the primary molecules. (

**b**) The reciprocal average chain length ${\overline{\mu}}_{\mathrm{w}}^{-1}$ (black lines), and the gel fraction ${W}_{\mathrm{gel}}$ (blue broken lines) plotted against the volume fraction of the primary molecules, both for $f=3,n=6,\lambda =5.0$. The cooperativity parameter is varied from curve to curve from $\sigma ={10}^{0}$ to $\sigma ={10}^{-5}$. Both the sol–gel transition and the polymerization transition become sharper and sharper with decrease in the cooperativity parameter.

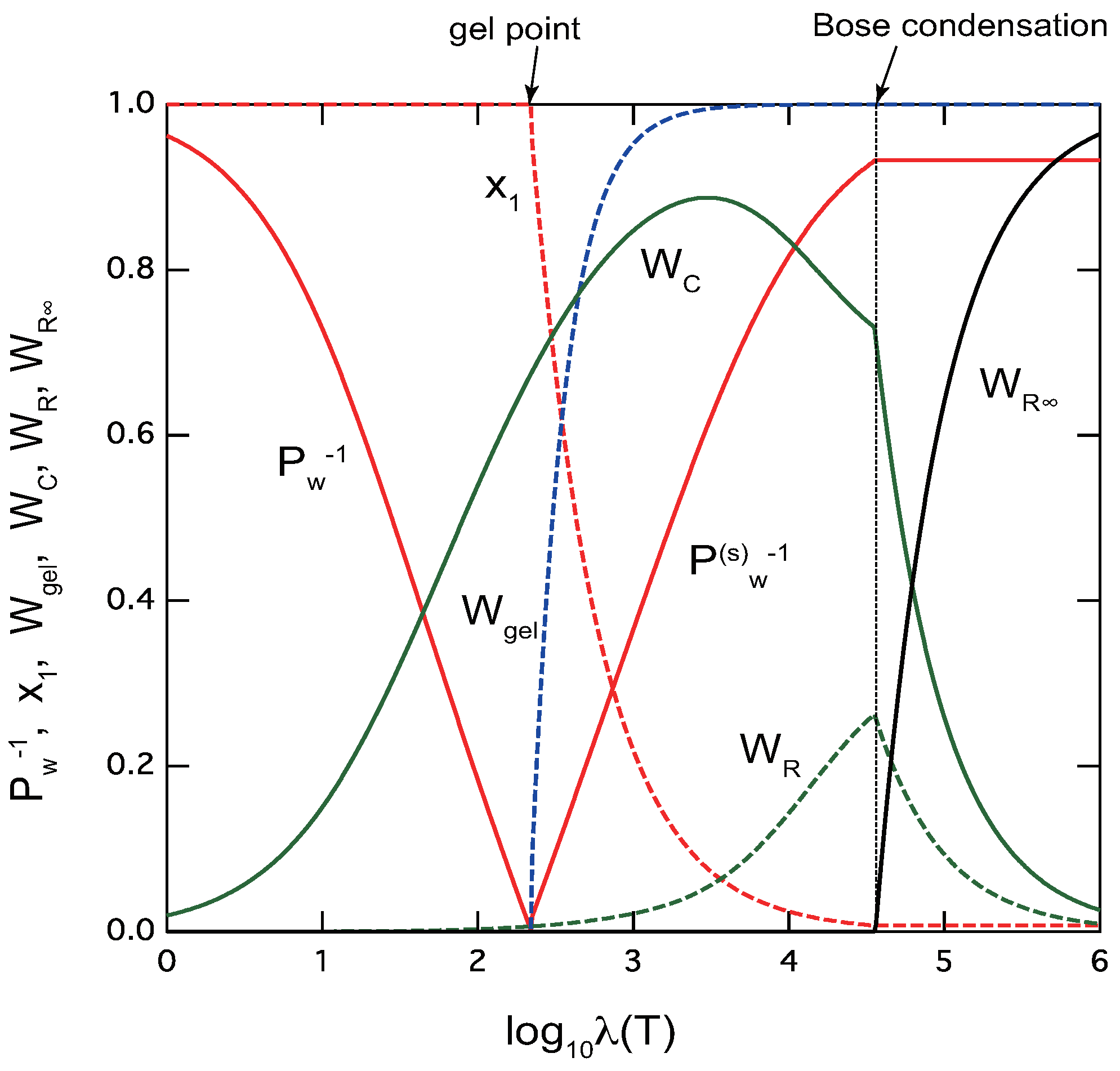

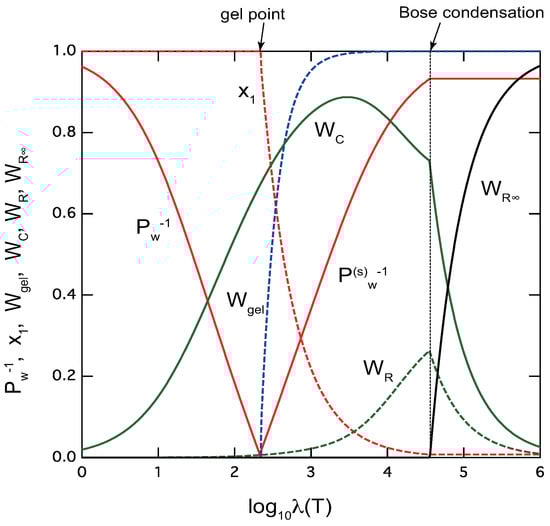

**Figure 4.**Variation of physical properties characteristic to ring/chain competing TRG of telechelic polymers ($f=2,n=30$) plotted against the strength $\lambda $ of the association constant. The reciprocal of the weight-average molecular weight ${{P}_{\mathrm{w}}}^{-1}$ (red line) of the three-dimensional cross-linked polymers in the pregel region, that of the sol parts ${{P}_{\mathrm{w}}^{\left(s\right)}}^{-1}$ (red line) in the postgel region are shown. In the postgel region, we also plot gel fraction ${W}_{\mathrm{gel}}$ (blue broken line), and extinction probability ${x}_{1}$ (red broken line). The fraction of chain cross-links ${W}_{\mathrm{C}}$ (green line), and that of ring cross-links ${W}_{\mathrm{R}}$ (green broken line) are plotted in both regions. The fraction of infinite rings ${{W}_{\mathrm{R}}}_{\infty}$ (black line) start to appear at deep point inside the postgel region. The cooperativity parameters are fixed at ${\sigma}_{C}=3.00,{\sigma}_{R}=0.05$. In this model calculation, TRG occurs at $log\lambda =2.3$, while the second transition (BEC of rings) takes place at $log\lambda =4.6$, deep in the postgel region.

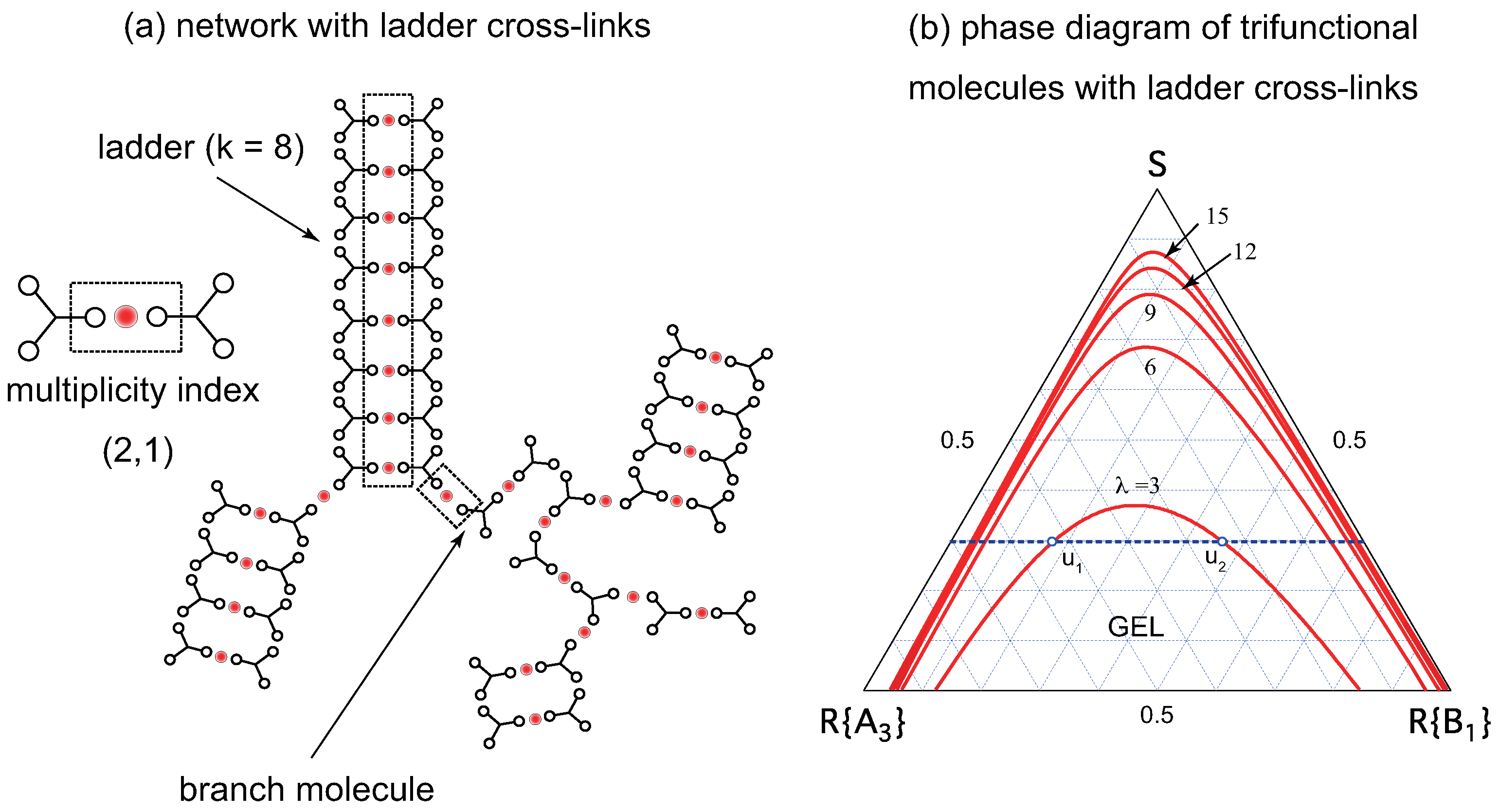

**Figure 5.**(

**a**) Network structure with cross-link junctions of ladder form made up of trifunctional ($f=3$) low-mass ($n=6$) molecules. The cross-linker (metal ion) is shown by a red sphere. The elementary unit of a cross-link is a sandwich complex with multiplicty index $(2,1)$. A network is made up of ladder cross-links and branch molecules [55] bearing more than one reacted functional groups. (

**b**) Ternary phase diagram for the ladder model of low-mass ($n=6$) trifunctional ($f=3$) molecules showing reentrant sol–gel–sol transition (red lines). The association constant $\lambda $ of the ladder unit is changed from curve to curve at a constant ratio $\mu =1.0$. For a given solute volume fraction $\varphi $, there are two composition ${u}_{1}$ and ${u}_{2}$ for the gel point; the former from sol to gel, and the latter from gel to sol.

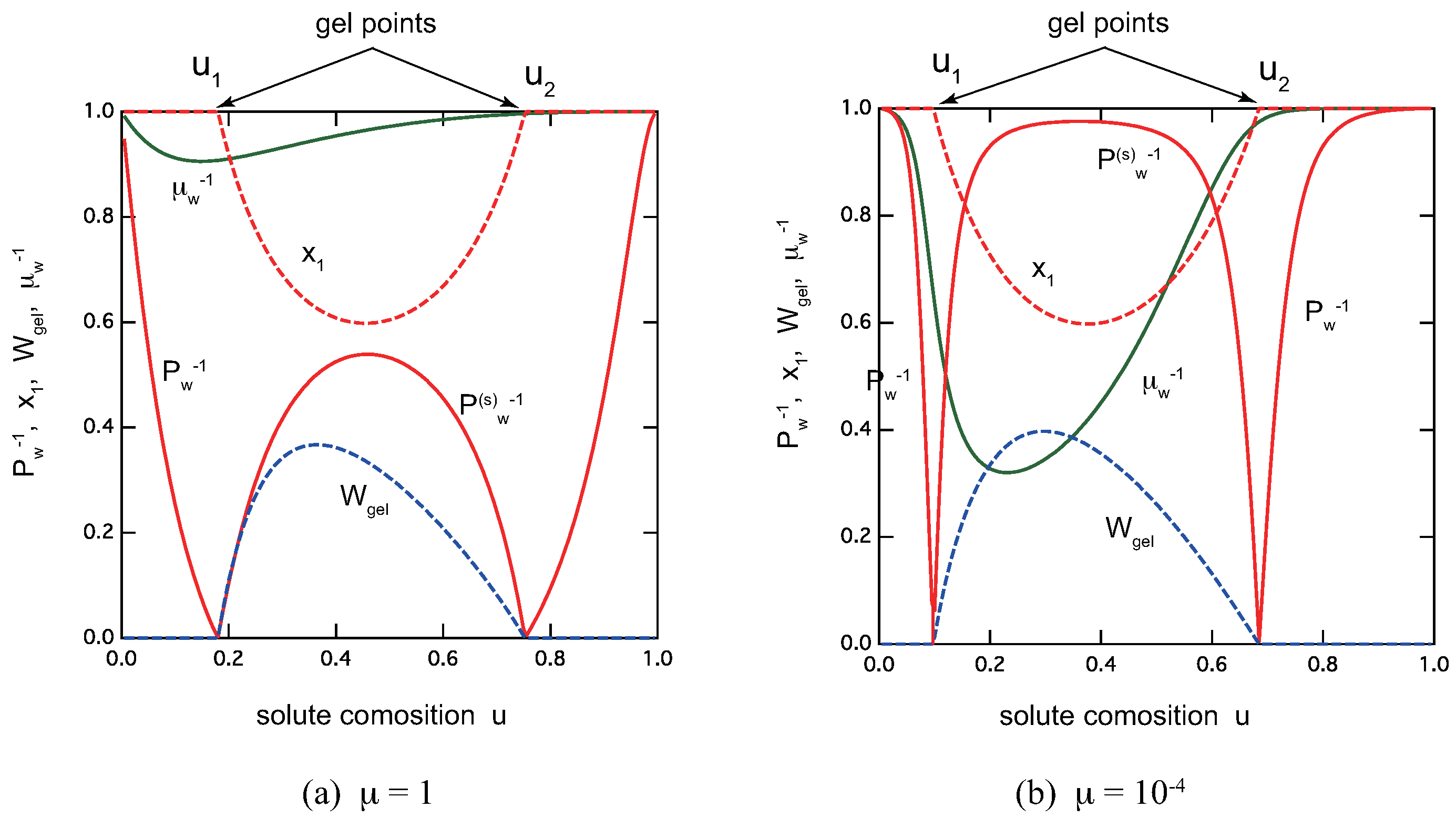

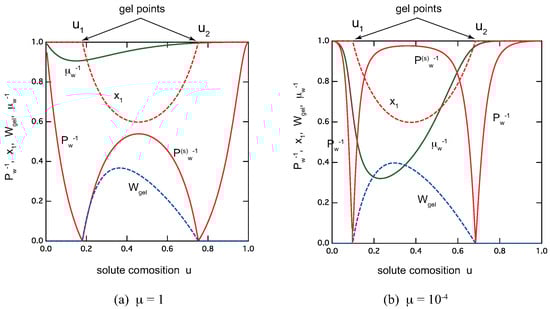

**Figure 6.**Reentrant TRG with ladder cross-link junctions for trifunctional ($f=3$) low-mass (${n}_{A}=6$) molecules. (

**a**) $\mu =1.0,\lambda =8.0$, (

**b**) $\mu ={10}^{-4},\lambda =5.5\times {10}^{-3}$. There are a pregel region ($u<{u}_{1}$), a postgel region (${u}_{1}<u<{u}_{2}$), and a reentrant sol region (${u}_{1}<u$). The average molecular weight ${P}_{\mathrm{w}}^{-1}$ in the sol region, ${{P}_{\mathrm{w}}^{\left(s\right)}}^{-1}$ in the gel region, and the gel fraction ${W}_{\mathrm{gel}}$, the extinction probability ${x}_{1}$ of the functional group A, the average length ${{\overline{\mu}}_{\mathrm{w}}}^{-1}$ of the ladder cross-link junctions, all plotted as functions of the solute composition u. The total solute volume fraction is fixed at $\varphi =0.3$.

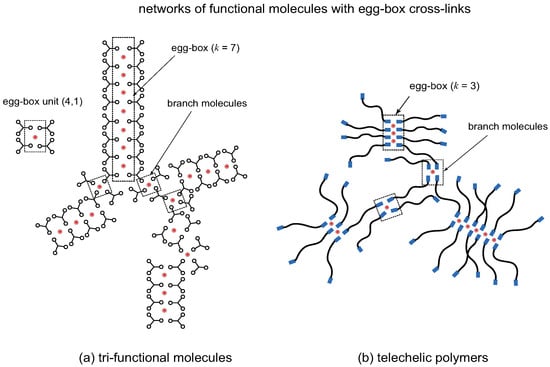

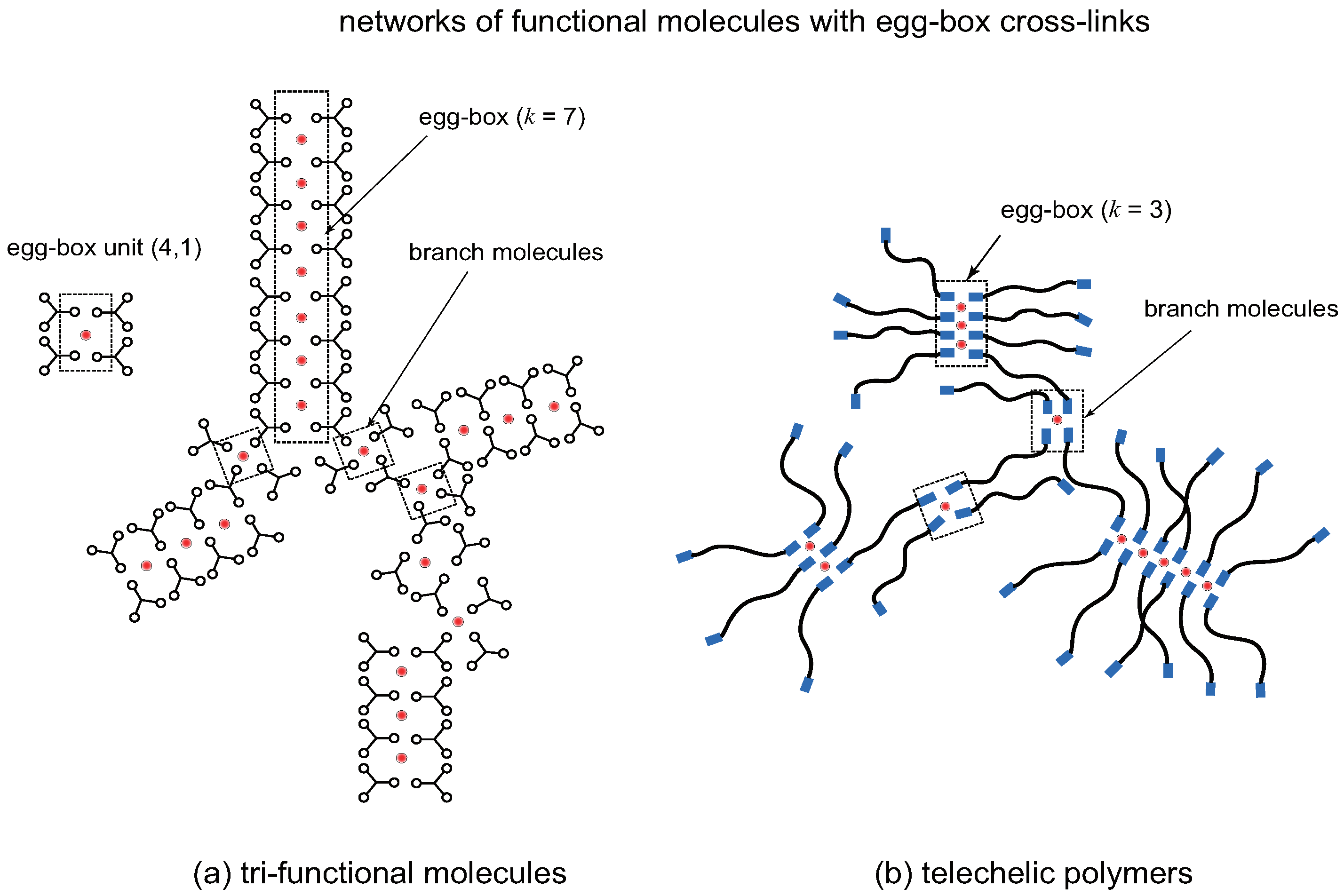

**Figure 7.**Networks formed by egg-box cross-link junctions made up of (

**a**) trifunctional low-mass ($f=3,{n}_{A}\sim 1$) molecules, (

**b**) telechelic polymers ($f=2,{n}_{A}>>1$). Cross-linkers (metal ions) are indicated by red spheres. The elementary unit of a cross-link is an egg-box complex with multiplicity index $(4,1)$. A network is made up of linear assembly of egg-boxes and branch molecules bearing more than one reacted functional groups A.

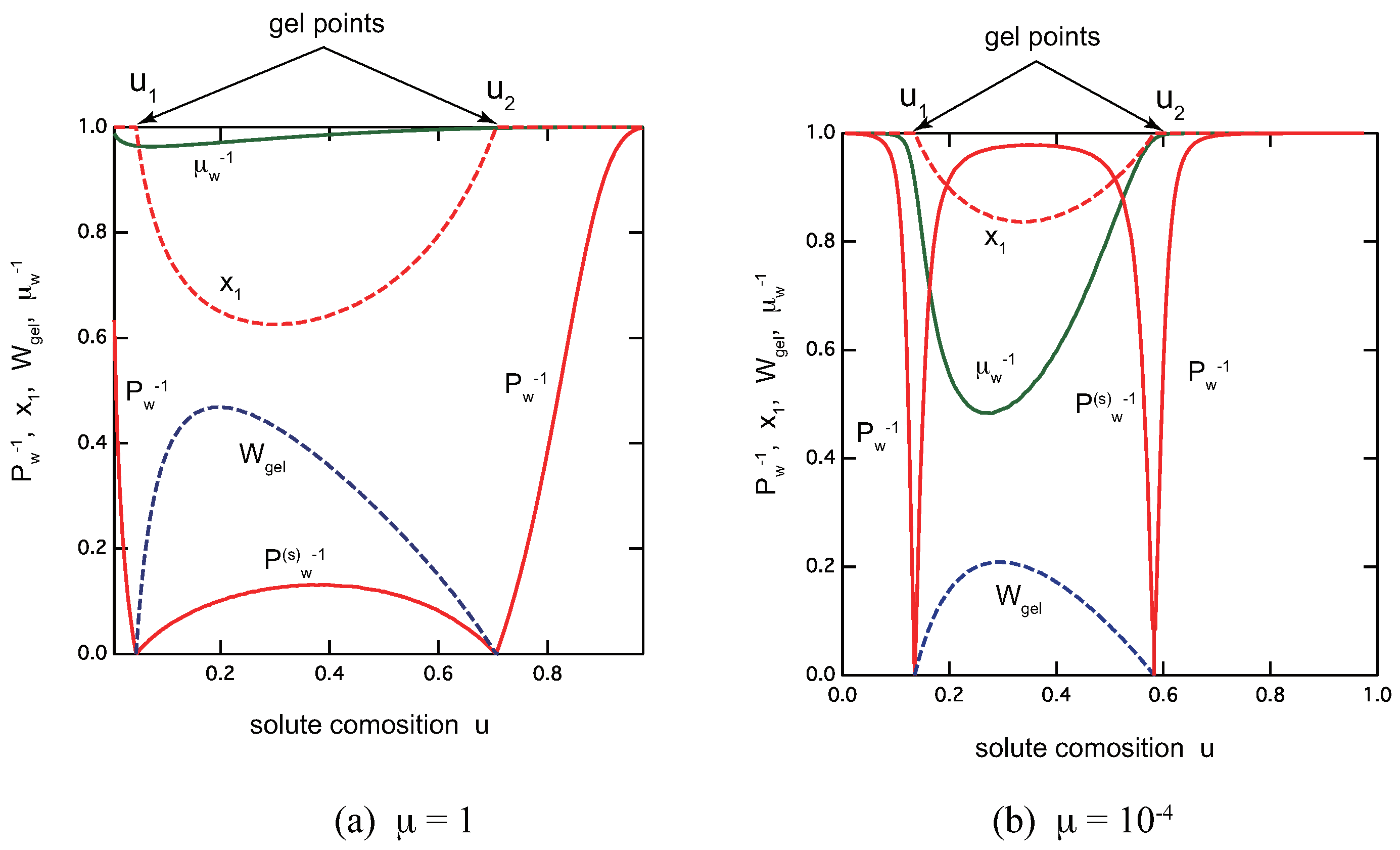

**Figure 8.**Rentrant TRG with egg-box cross-link junctions for telechelic polymers. (
