Review

Recent Advances and Progress of Conducting Polymer-Based Hydrogels in Strain Sensor Applications

by
Vinh Van Tran
1,
Kyungjun Lee
1,
Thanh Ngoc Nguyen
2,* and
Daeho Lee
1,*
1
Department of Mechanical Engineering, Gachon University, Seongnam 13120, Republic of Korea
2
NTT Hi-Tech Institute, Nguyen Tat Thanh University, 300A Nguyen Tat Thanh, Ward 13, District 4, Ho Chi Minh City 700000, Vietnam
*
Authors to whom correspondence should be addressed.
Gels 2023, 9(1), 12; https://doi.org/10.3390/gels9010012
Submission received: 1 December 2022 / Revised: 16 December 2022 / Accepted: 21 December 2022 / Published: 25 December 2022
(This article belongs to the Special Issue Advances in Gel-Based Devices and Flexible Electronics)
Browse Figures
Review Reports Versions Notes

Abstract

:
Conducting polymer-based hydrogels (CPHs) are novel materials that take advantage of both conducting polymers and three-dimensional hydrogels, which endow them with great electrical properties and excellent mechanical features. Therefore, CPHs are considered as one of the most promising platforms for employing wearable and stretchable strain sensors in practical applications. Herein, we provide a critical review of distinct features and preparation technologies and the advancements in CPH-based strain sensors for human motion and health monitoring applications. The fundamentals, working mechanisms, and requirements for the design of CPH-based strain sensors with high performance are also summarized and discussed. Moreover, the recent progress and development strategies for the implementation of CPH-based strain sensors are pointed out and described. It has been surmised that electronic skin (e-skin) sensors are the upward tendency in the development of CPHs for wearable strain sensors and human health monitoring. This review will be important scientific evidence to formulate new approaches for the development of CPH-based strain sensors in the present and in the future.

1. Introduction

Smart wearable and stretchable strain sensing devices have been broadly developed for various applications including health monitoring, human motion detection, sensory skin, and soft robotics because they can recognize subtle changes under external stimuli and record them in electrical signals [1,2,3]. Up to now, various materials such as metals or metal oxides, graphene and its derivatives, carbon nanotubes (CNTs), carbon blacks, nanofibers, and nanoparticles have been employed for fabricating flexible sensors [4]. However, these materials lack stretchability, stability, and adhesion, thus highly limiting their utility in strain sensors and human health monitoring [5,6]. In addition, wearable strain sensors also demand a high self-healing ability for extending their lifetime, durability, and biocompatibility for long-time integration on the human skin and in tissues [7]. Hydrogels are three-dimensional polymers with porous structures that can endow them with good flexibility and stretchability [8,9]. Moreover, they also exhibit biocompatibility and good mechanical properties, which are similar to human skin tissues [10]. Therefore, hydrogels have been recently regarded as potential substrates for the design of flexible and stretchable strain sensors [11,12].
Conductive hydrogels are defined as special hydrogels which have a high conductivity due to integration of conductive materials into the hydrogel matrix [13]. A variety of conductive materials such as graphite materials, carbon nanotubes (CNTs), free ions, liquid metals, and conducting polymers (CPs) have been used for the synthesis of conductive hydrogels. Among them, CPs have been regarded as one of the most promising materials for the development of conductive hydrogels due to their good electrical properties and soft mechanical properties [14]. Conducting polymer-based hydrogels (CPHs) has also been demonstrated as a promising platform for the design of wearable and stretchable strain sensors in practical applications. Most previous review papers have focused on general discussions about conductive hydrogels with a wide range of conducting materials [15,16,17,18] or different applications in supercapacitors [19], biomedical electronics [20], adsorbents, and drug delivery [21]. To our knowledge, there has been no published comprehensive review of the studies on CPHs in strain sensing applications. Therefore, this study intends to provide significant scientific evidence as well as emphasize the importance of CPHs in strain sensing sensors and human health monitoring. Here, this review gives a critical review of outstanding properties and synthetic technologies, along with the recent progress of CPH-based strain sensors in human motion monitoring. Moreover, the fundamentals, principles, and working mechanisms are also summarized and discussed deeply. In view of the contributions in scientific research and the industrial development of CPHs, we hope that this study will benefit the discovery of potential approaches for the development and implementation of CPHs in practical strain sensors.

2. Properties of CPHs

CPHs have been commonly used in sensing applications because they possess many outstanding properties, which are summarized in Table 1. This section discusses some of the distinction features of CPHs, which render them suitable for wearable and stretchable strain sensors.

2.1. Electrical Conductivity

Conventional hydrogels often show an intrinsic ionic conductivity from 10−5 to 10−1 S/cm in physiological conditions [22], which is 6–9 orders of magnitude lower than the conductivity of metals [23], while, CPHs offer both electronic and ionic conductivity, which renders them as potential materials in electronic sensing devices [24]. The conductivity of CPHs varies from 0.3 to 27 S/m depending on the types of conductive polymers or doped materials [25]. Undoped polymers have low conductivities (10−6–10−10 S·cm−1) at the boundary region between semiconductor sand insulators, while dopped polymers show much higher conductivities (>104 S·cm−1) [14]. For improvement of the electrical properties, highly conductive materials such as carbon-based materials (e.g., graphite materials and CNTs ), free ions, conjugated polymers, or liquid metals have often been incorporated into the polymer network [26]. CPHs have highly electric conductivity due to the presence of ionic and/or electronic conductive fillers into the hydrogel matrix. CPHs prepared by doping with metal salts or ionic liquids have the lowest conductivity, while CPHs containing conductive nanomaterials such as carbon- and metal-based materials and MXene exhibit both ionic and electronic conductivity and their conductivity is 1–5 orders of magnitude higher [20]. Due to their high conductivity, CPHs provide a wide strain range, high gauge factor (GF), and good stability for strain sensor devices, which broadly extends their practical application in wearable devices.

2.2. Mechanical Properties

Compared to conventional hydrogels with brittleness, CPHs showed good mechanical properties with tunability. The porosity of CPHs can highly influence their mechanical properties because the porosity can affect the free volume content, size, connectivity, and surface properties [27]. CPHs with a hollow nanosphere structure and porous nanostructures can achieve good mechanical properties. As an example, Zhang et al. prepared a highly stretchable porous polyvinyl alcohol (PVA) hydrogel possessing both high tensile and compressive strains, 400% and 80%, respectively (Figure 1a) [28]. The outstanding mechanical properties of the porous CPHs can be ascribed to the novel binary network structure or physically cross-linked networks. In addition, porous CPH enables the excellent mechanical properties to be displayed due to hydrogen bonding interactions and crystallization points [29].
Good mechanical strength is considered as one of the most crucial factors for CPH-based strain sensors as well for maintaining their integrity and capability under various stress conditions. Their mechanical properties have been significantly improved by employing a double network (DN) method. The DN-based CPHs show outstanding mechanical strength and elasticity owing to the special features in their contrasting structural networks, strong interpenetrating network entanglement, and efficient energy dissipation [30]. In the DN approach, two polymers with completely different or opposite physical characteristics form an interconnected network [31]. The first network is a rigid framework and the second one is a ductile substance. Therefore, DN-CPHs are mainly constructed from two interpenetrating cross-linked networks which are connected into a soft material matrix and their mechanical features can be easily tuned by varying the compositions of each network. The DN-CPHs exhibit excellent mechanical properties because of the sacrificial bond of the first network, promoting energy dissipation and providing a large extension to protect the second network under high stress conditions [32]. DN-CPHs can be both tough and soft with high failure tensile stress and strain, hardness, and toughness [31,33,34]. As an illustration, Zhao et al. developed a multifunctional ionic DN-CPH with good stretchability by a combination of oxide sodium alginate (OSA), aminated gelatin (AG), and acrylic acid (AA) (Figure 1b) [35]. The physical metal coordination and dynamic Schiff base bonds strengthen this CPHs’ stretchability.
Gels 09 00012 g001 550

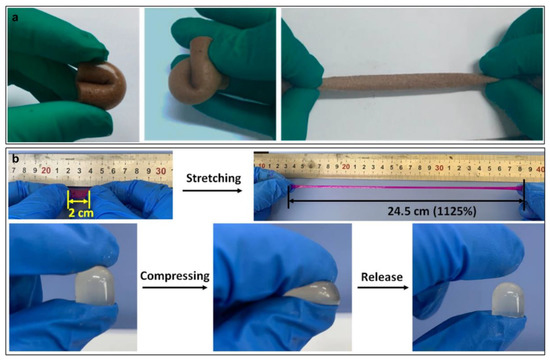

Figure 1. (a) Porous CPHs with PVA and GO exhibit extraordinary mechanical properties: bend, curl and stretch (reprinted with permission from ref. [28]); and (b) mechanical features of PAA–OSA–AG hydrogels under manual stretching and compressing (reprinted with permission from ref. [35]).
Figure 1. (a) Porous CPHs with PVA and GO exhibit extraordinary mechanical properties: bend, curl and stretch (reprinted with permission from ref. [28]); and (b) mechanical features of PAA–OSA–AG hydrogels under manual stretching and compressing (reprinted with permission from ref. [35]).
Gels 09 00012 g001

2.3. Self-Healing Property

Sensor electronic devices can lose or reduce performance in cases of mechanical damage or under repeated deformation, resulting in the shortening of their service life. Therefore, the self-healing properties are also one of the most important characteristics for CPH-based sensor devices. CPHs with a good self-healing ability can repair their structure, mechanical properties, or other functionalities after damage [36]. Generally, the self-healing ability of CPHs can be attributed by two main types of covalent bonds including dynamic covalent bonds [37,38] and non-covalent bonds. The non-covalent bonds can include various types, i.e., host−guest interaction, metal coordination, a hydrogen bond, and hydrophobic interaction [39,40,41]. In comparison with covalent bonds, the dynamic covalent bonds exhibit both reversibility and stability [42]. Therefore, dynamic covalent bonds including imine bonds [43,44], acylhydrazone bonds [45,46], phenylboronate esters [47,48], disulfide bonds [38,49], and Diels−Alder reactions [46,49] are often preferred for the fabrication of self-healing CPHs. From these, the imine bond from the Schiff base reaction has been widely utilized for the dynamic covalent bond because of its simplicity and the lack of a requirement for catalyst assistance [50]. Moreover, the Schiff base reaction can be processed simply and fast under neutral conditions and without external stimulus. For instance, Lei et al. recently prepared a biocompatible gelatin-based self-healing CPH using the imine bond obtained by the Schiff base reaction between gelatin and cellulose (CMC) without an additional cross-linking agent (Figure 2a) [36]. Due to a large number of amino groups in gelatin, the Schiff base cross-linkages can be promoted to form a hydrogel by the dynamic imine bonds between gelatin and CMC, which resulted in the high flexibility and softness of hydrogels under pressing and bending. Moreover, the hydrogel can self-heal after cutting and rejoining in 30 min and the healed hydrogel can withstand significant tension (Figure 2b). The healing proficiency can reach 90% after 60 min healing. Therefore, CPHs can possess excellent self-healing characteristics.

2.4. Adhesion Property

In addition to their excellent mechanical characteristics, CPHs also possess enough adhesion ability which is a crucial feature for sensitive sensing capabilities. Due to strong and stable adhesion on the substrates and devices, the interfacial failures and functionality loss of CPHs can be inhibited, which substantially increases the reliability and efficacy of the sensor devices [51]. Moreover, CPHs can be attached to various solid materials in the design of sensing devices, including metals, ceramics, glass, silicon, polymers, or even human skin [52]. Hydrogels are often hydrophilic, while most flexible substrates are hydrophobic. For achieving the strong adhesion properties of CPHs, two main factors need to be adapted: excellent mechanical properties and strong interfacial bonding between the hydrogel and substrate. Therefore, stealth or inert materials have been commonly used for fabricating self-adhesive CPHs because they can prevent biomacromolecule adhesion and still preserve the hydrogel functions [53]. For example, methacrylic acid (MAA) containing vinyl and carboxyl groups in its structure, has been recently introduced in CPHs for enhancement of hydrogels’ adhesion to various substrate surfaces [54]. It has been indicated that the increased adhesion strength of the CPHs to some substrate surfaces (copper, polytetrafluoroethylene, and skin) can be achieved when increasing the amount of MAA due to the polar groups’ interaction between the amide and carboxylic acid on the hydrogel.
CPHs with great adhesion and biocompatibility can be regarded as promising candidates for developing strain sensors in the human health monitoring. The adhesion of CPHs in these applications is ascribed by carboxyl and catechol functional groups in the hydrogel matrix through the formation of hydrogen bonding, hydrophobic action, metal complexation, and π–π stacking with the hydroxyl, carboxyl, and amino groups on the substrates [55]. Moreover, these physical interactions also make CPHs show highly repeatable adhesion. Recently, Ma’s group reported a novel CPH with strong adhesion by using bases in adherent DNA [56]. This self-healing hydrogel was produced by three chemical cross-linking networks including a G−C base pairing hydrogen bond, chemical cross-linking, and an ionic cross-linking dynamic network. This CPH can be strongly adhered to different surfaces (i.e., metals, glass, plastics, natural materials, and animal and human skin) (Figure 3). In addition, the CPH presented a good skin affinity and maintained great adhesion under the deformation process.
Gels 09 00012 g003 550

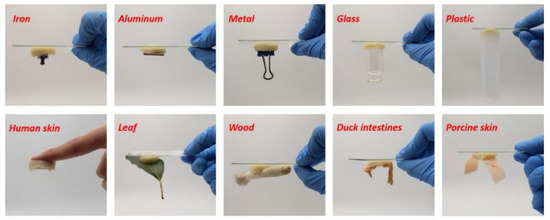

Figure 3. Adhesive property of the CaSA–GAD hydrogel to different surfaces (reprinted with permission from ref. [56]).
Figure 3. Adhesive property of the CaSA–GAD hydrogel to different surfaces (reprinted with permission from ref. [56]).
Gels 09 00012 g003
Table
Table 1. Summary and comparison of the outstanding properties of CPHs for strain sensing applications.
Table 1. Summary and comparison of the outstanding properties of CPHs for strain sensing applications.
Properties of CPHsGeneral DescriptionAdvantages for Strain SensorsRefs
Electrical conductivity
-
The conductivities of CPHs vary from 0.3 to 27 S/m
-
High electric conductivities due to the presence of ionic and/or electronic conductive fillers into the hydrogel matrix
Providing wide strain ranges, high gauge factors (GFs), and excellent stability[20,25,26]
Mechanical properties
-
The mechanical properties are affected by the porosity through free volume content, size, connectivity, and surface properties
-
High tensile and compressive strains, i.e., ~400% and ~80%, respectively
Maintaining the integrity and capability under various stress conditions.[27,28,29]
Self-healing properties
-
The self-healing ability of CPHs can be attributed to two main types of covalent bonds including dynamic covalent bonds and noncovalent bonds
-
The Schiff base reaction is a well-known covalent bond in CPHs
Repairing the structure, mechanical property, or other functionalities after damage[37,38,50]
Adhesion properties
-
Stealth or inert materials are widely used for the preparation of self-adhesive CPHs
-
Carboxyl and catechol functional groups are ascribed for the strong adhesion of CPHs
Inhibiting interfacial failures and functionality loss of CPHsIncreasing the reliability and efficacy [51,52,53,54]

3. Preparation Methods of CPHs

3.1. Blending or Doping

Direct doping or blending conducting components into hydrogel matrices has been considered as one of the most common and simple techniques for the preparation of CPHs. In this approach, traditional hydrogels are mixed with metal-based particles, carbon nanoparticles, and conducting polymers during the polymerization of conductive polymers [17]. For instance, Zhu et al. successfully fabricated a polyion complex/polyaniline (PIC/PANI) composite CPH using the simple blending method [57]. The CPH was prepared by mixing a conducting phase polymer (PANI) with a PIC matrix and phytic acid (Figure 4a) and the obtained hybrid hydrogels showed the high conductivity and the viscoelasticity of the tough matrix. It has been demonstrated that this facile method can be possible for the large-scale and fast fabrication of CPHs. Nonetheless, the mixing or doping strategy exhibited several disadvantages such as aggregation of the conductive components, reduced mechanical performance, low conductivity, and transparency because of the high specific surface energy of the conducting nanomaterials [58]. Therefore, some active agents or surfactants are often introduced to promote the distribution of the dispersed phase and reduce the aggregation through specific molecular interactions between the conducting agents and polymer matrix [59].
Doping engineering has recently been considered as a simple and effective technique for the synthesis and modulation of CPHs [60]. In this approach, some vital features of CPHs, i.e., electronic features, microstructures, and structural-derived mechanical properties can easily be modulated and tuned by varying dopants or doping levels during the synthesis process. For instance, one-dimensional nanostructured polypyrrole (PPy)-based CPHs were effectively controlled by using a rational dopant counterion, copper phthalocyanine-3,4′,4″,4‴-tetrasulfonic acid tetrasodium salt (CuPcTs) (Figure 4b) [61]. The CuPcTs play a dual role (dopant and gelator) to make self-assembly with the PPy in nanostructured CPHs. Interestingly, using the doping approach, the PPy CPHs enable fabrication on a large scale with the uniform morphology of 1D nanofibers. In addition, various CPH morphologies, i.e., nanoparticles, nanofibers, and foam-like nanostructures, can be tailored by using the different structures of CuPcTs dopant molecules because of the steric effects and electrostatic interaction (Figure 4c). The use of doping engineering can produce smart CPHs with controllable properties, which are expected to have great potential for applications in various sensor technologies [62]. The doping method has been regarded as one of the most vital strategies to tailor and improve the conductivity, mechanical strength, and stability of CPHs [63,64]. Among numerous dopants, polymer dopants have gained more popularity and polymer-doped CPHs are great candidates to develop electronic skin (e-skin)-based applications [65].
Gels 09 00012 g004 550

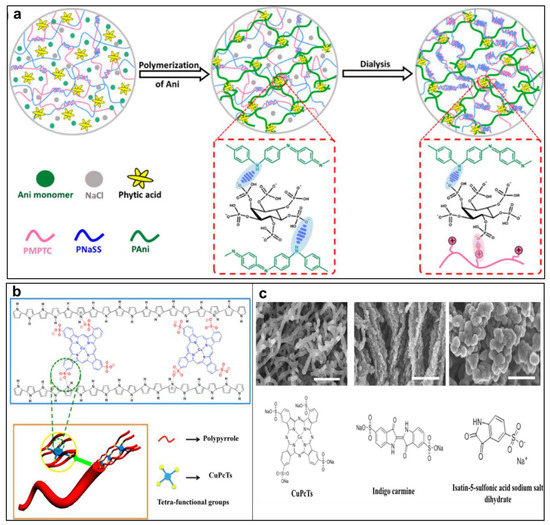

Figure 4. (a) The preparation process of the PIC/PANI composite hydrogel by blending of PANI, phytic acid, and NaCl (reprinted with permission from ref. [57]); (b) synthesis of nanostructured PPy CPHs using a doping method; and (c) SEM images of various nanostructured PPy hydrogels with different doping agents (reprinted with permission from ref. [61]).
Figure 4. (a) The preparation process of the PIC/PANI composite hydrogel by blending of PANI, phytic acid, and NaCl (reprinted with permission from ref. [57]); (b) synthesis of nanostructured PPy CPHs using a doping method; and (c) SEM images of various nanostructured PPy hydrogels with different doping agents (reprinted with permission from ref. [61]).
Gels 09 00012 g004

3.2. Copolymerization

In the case of the polymer-based doping method, CPHs are prepared by polymerization of CP monomers onto the nanostructured insulating hydrogel templates. Alternatively, another approach has been employed for preparation of CPHs by copolymerizing CPs and insulating polymers to form a composite hydrogel. In other words, the copolymerization reaction generates CPHs by taking the unique properties of monomers, polymer chains, or components in the resultant hydrogel composite [66,67]. The copolymerization has been widely employed for fabricating CPHs which possess multifunctional features, i.e., conductivity, stretchability, stability, self-healing properties, and biocompatibility [68,69]. Among various copolymerization approaches, direct copolymerization is of great significance in the synthesis of CPHs due to its simplicity and efficiency. In this technique, monomers are simply mixed at a specific ratio and the reaction is activated by adding gelators or changing the external conditions [70]. This approach can offer a facile methodology to produce CPHs with the desired properties by controlling the content of monomers during the copolymerization process. For instance, Jiang et al. developed a mechanical-tunable CPH by copolymerizing functionalized poly (ethylene dioxythiophene) (f-PEDOT) with two vinyl monomers, acrylic acid (AA) and hydroxyethyl methacrylate (HEMA) (Figure 5) [71]. The results demonstrated that the physical properties of this CPH, i.e., swelling ratios and mechanical characteristics, enable it to be easily tailored by modifying the chemical composition of the hydrogel network during the polymerizing process. Compared with other advanced techniques, however, copolymerization also showed several disadvantages such as low mechanical strength [72] and a lack of long-term stability and practical applicability [73].

3.3. Advanced Techniques for the Preparation of CPHs

The development of novel synthetic technologies has been one of the most important strategies in the improvement of CPHs’ practical applications. It is still a huge challenge for the preparation of CPHs which possess the desired architectures and satisfy the requirements of real applications. Three-dimensional printing technology has recently gained great attention and is considered as an emerging versatile additive manufacturing technology in the design of CPHs due to its advantages of rapid prototyping and customizability [74,75]. Compared with traditional techniques, 3D printing technology exhibits some superior advantages: a facile operation procedure, precise structural control, and cost-effectiveness [76]. In this technology, CPHs with 3D structures and various functionalities enable them to be formed ingeniously and individually by a layer-by-layer printing process [77,78]. Three-dimensional printing technologies are generally classified into five main types based on their design and working mechanism, including: stereolithography (SL), digital light processing (DLP), bioplotting, inkjet printing, and optical printing method [79,80]. Among them, SL and DLP are two methods that show a high spatial resolution, commercialization, and practical applications [81]. Nonetheless, SL has two drawbacks: long-time processing and high cost. In contrast, DLP technology shows short-time, low-cost, high-accuracy, and multi-material processing [15,82], thus it has been employed as an outstanding model of 3D printing technology in the fabrication of CPHs. For instance, Caprioli et al. used a commercial DPL printer to prepare a 3D CPH with an excellent self-healing ability [83]. In another study, Wei et al. also designed a bioinspired CPH by incorporating CNTs into a hydrogel matrix of polyacrylic acid (PAA) and sodium alginate (SA) using DLP printing technology (Figure 6) [84]. Due to the 3D printing method, this bioinspired CPH showed excellent stretchability and multiple conductivities and was easily integrated in a strain sensor with simultaneous piezoresistive and piezocapacitive performances. In addition, the CPH can be explored as an advanced hydrogel in multifunctional skin-like smart wearable devices [84].

4. Design Principles and Working Mechanism of Wearable Flexible CPH-Based Strain Sensors

CPHs have been proven to be a great candidate for strain sensor applications because they can sensitively respond to external stimuli by changing their electrical properties and network structures. Specifically, the conductive network of CPHs will be denser or sparser as a pressure or strain is applied, respectively, resulting in a decrease or increase in resistance or conductivity (Figure 7a) [16,85]. Moreover, a synergistic effect between the hydrogel matrix and conductive networks plays an important role in the sensing performance of strain sensors. Sensitivity is a critical parameter for evaluating the performance of CPH strain sensor devices, which highly depends on the network structures. The limit of changed conductivity and gauge factor (GF) are two main factors used to measure the sensitivity of strain sensors. As mentioned above, the former is induced by the density or integrity, while the latter comes from the breaking or deformation of the CPH network. Therefore, a wonderful balance of these two factors should be deeply considered when designing a CPH strain sensor. Moreover, repeatability is also another important parameter which presents the stable response of strain sensors.
These days, numerous CPHs have been applied to design flexible and wearable strain sensors for monitoring human activities and health. A wide range of human physiological signals, i.e., heartbeat, breath, expression changes, finger touch, peristole, vocal-cord vibration, and joint bending are able to be recognized and recorded timely and accurately using CPH-based strain sensors [86,87,88,89]. These CPH strain sensors precisely transform small strains from joints, the epidermis, and cardiac tissue into electronic signals. They are also wearable and stretchable sensors attached to the human skin to measure the movement signals of different body parts in real time. For human movement and health monitoring applications, there are different working mechanisms which can be assigned for the excellent sensing performance of wearable CPH-based strain sensors, such as piezoresistivity, disconnection, the tunneling phenomenon, crack propagation, and piezo capacitance [3,90,91,92]. CPHs prepared by composites of CPs with semiconductors, CNTs and metal oxides often work on the piezoresistivity mechanism [85]. The disconnection mechanism is known as separating overlapped, rigid conductive fillers in the CPH matrix, while the tunneling effect occurs when the closely spaced conductive fillers (nanographene, CNT, and Ag nanowire) are disentangled in the CPH network [93,94]. Finally, crack propagation happens as a layer of conductive fillers in the hydrogel network is damaged and recovered under stretching [91]. For enhancing the working range and sensitivity, CPH-based strain sensors are often designed based on the integration of several sensing mechanisms [94].
The piezoresistivity mechanism is considered as one of the most important working mechanisms in CPH-based strain sensors. Figure 7b presents a detailed illustration of the piezoresistivity of a PVA–PPy CPH strain sensor [91]. When applying a small strain, the deformation of the PVA network results in a local crack in the conductive PPy paths, increasing the resistance. However, the released stress will recover these cracks as well as resistance. In the piezoresistivity mechanism, the conductor content plays an important role in the sensing performance. A low or excessive number of conductors (PPy) in the hydrogel matrix will cause the easy destruction or blockage of the conductive paths, leading to reduced change in resistance and poor sensitivity under small strain. The sufficient content of conductors makes the conductive paths of the CPH network reversibly crack and recover under the stretching/releasing process, resulting in high sensitivity and good repeatability.
Gels 09 00012 g007 550

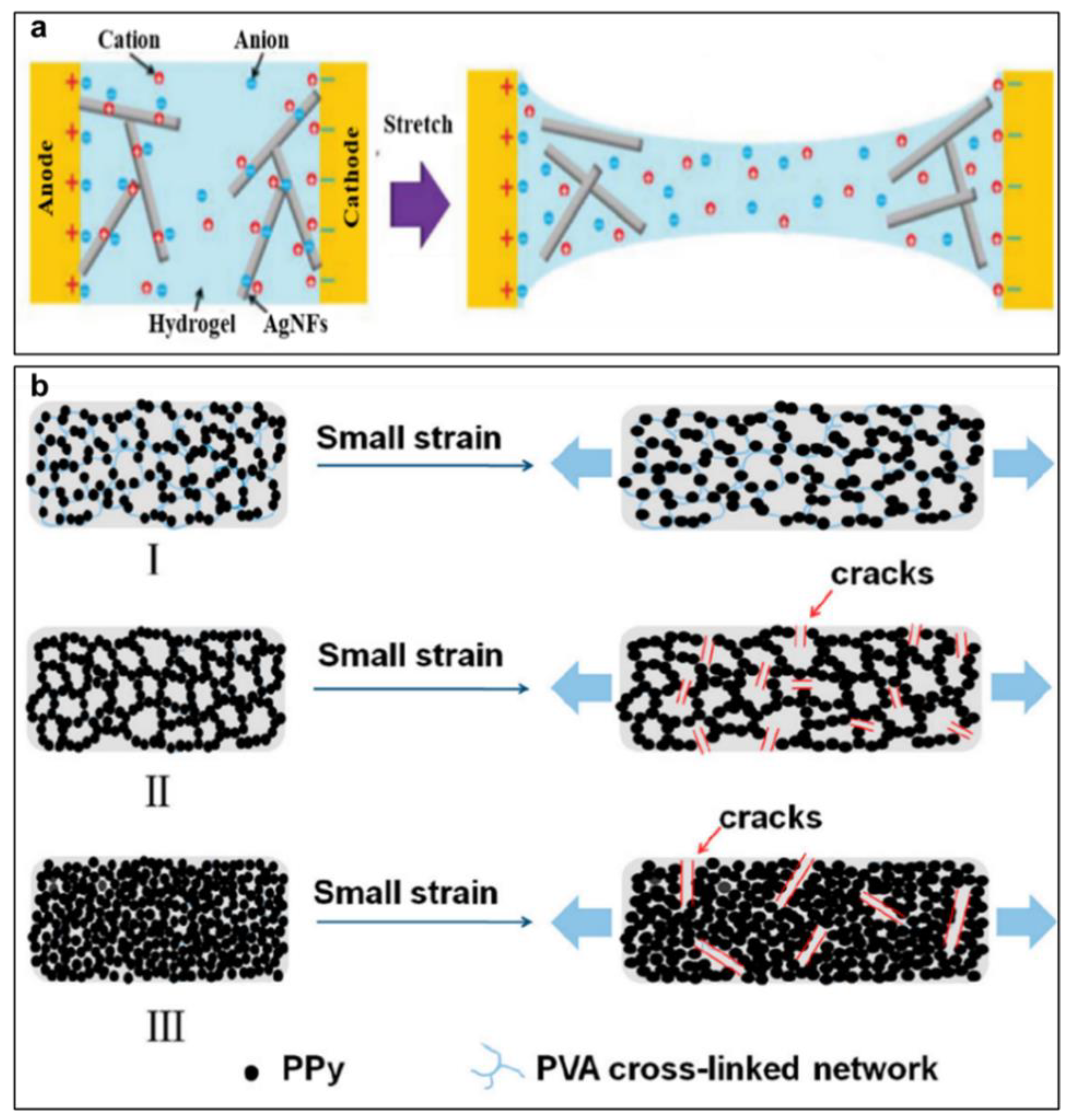

Figure 7. (a) Schematical illustration of a strain sensor based on CPHs (reprinted with permission from ref. [16]); and (b) the piezoresistivity mechanism of a PVA–PPy strain sensor when applying small strain (reprinted with permission from ref. [91]).
Figure 7. (a) Schematical illustration of a strain sensor based on CPHs (reprinted with permission from ref. [16]); and (b) the piezoresistivity mechanism of a PVA–PPy strain sensor when applying small strain (reprinted with permission from ref. [91]).
Gels 09 00012 g007

5. Recent Advancements of CPH-Based Strain Sensors

5.1. MXenes-CPH-Based Strain Sensors

MXenes are known as the thriving family of transition metal carbides/carbonitrides which possess hydrophilic surfaces and high electrical conductivity [95,96]. They have been recently regarded as potential materials for the design of electromechanical strain sensors with a high sensing capacity owing to their extraordinary mechanical features as well as the largely changed interlayer distance under external stimuli [97,98,99]. Moreover, due to their high specific surface area and abundance in surface functional groups such as–OH, –F, and –O, MXenes nanosheets can be uniformly distributed in the hydrogel network by formation of negatively charged surfaces [100]. Furthermore, these hydrophilic surfaces considerably enhance the mechanical characteristics of CPHs (i.e., elastic modulus and stretchability) due to the formation of a typical clay–polymer network structure [101]. In addition, the large number of hydrogen bonds in the hydrogel matrix are introduced by the high density of surface functional groups, leading to a significant improvement in the self-healing ability of hydrogels [102]. Compared with other commonly used materials in the design of CPHs such as metal- or carbon-based nanoparticles, MXenes show superior advantages owing to the combination of metal conductivity, a larger specific surface area, and excellent stability [103,104,105,106,107]. Therefore, MXenes have been recently employed as revolutionary materials for enhancement of the mechanical properties and conductivities of CPHs [95]. MXenes are often used as conductive fillers in hydrogels.
MXenes have been combined with a wide range of polymers to prepare CPHs for the development of wearable strain sensors. For instance, Li et al. prepared a multifunctional epidermal sensor by combining the MXene (Ti3C2Tx) with a PAA polymer [108]. Due to the presence of MXenes, this CPH sensor exhibited highly stretchable, self-healing, and degradable abilities, as well as a sensitive and fast response to human motions. Luan’s group also demonstrated that the combination of MXenes with a PAM/SA double-network hydrogel produced an CPH-based strain sensor with good tensile properties (2000%) and excellent electrical stability [109]. In another study, Zhang et al. developed an MXene CPH with extremely high stretchability and instantaneous self-healability by integrating it with a PVA network [110]. Moreover, this hydrogel also showed excellent conformability and adhesion to human skin. The results confirmed that the addition of MXene nanosheets considerably increased the strain sensitivity of the CPH. In addition, without a complex circuit design and unique capabilities, the MXene/PVA hydrogel was employed as the sensing film for advanced sensing applications (Figure 8), including: signature recognition, individual handwriting, and vocal sensing. These results indicated that MXene-CPHs will be promising materials for the development of wearable electronics, point-of-care testing, and soft robotics in human motion and health monitoring.

5.2. CPH Strain Sensor for Electronic Skin (E-Skin) Devices

Artificial e-skin refers to flexible, stretchable, and self-healing electronics simulating the functionalities of human skin to perceive subtle stimulus signals [111]. E-skins with multimodality, high flexibility, and biocompatibility have recently attracted great attention in the development of soft robotics, prosthetics, and human−machine interfaces [112,113,114]. For precise stimulus recognition and the detection of multi-signals, multimodal sensing platforms have been integrated into stretchable and transparent e-skin devices [115,116]. Moreover, this is necessary for the development of wearable, attachable, or implantable e-skin devices effectively integrating with the human skin for practical applications [117]. In particular, e-skin strain sensors need to sensitively convert external stimuli to electric signals for identification of the precise position where they are attached [118].
Owing to outstanding transparency (99% visible-light transmission) and minimal variation in their conductive properties under minor strain–stress loops, CPHs have been considered as a potential material for the design of e-skin devices [119,120]. Such CPH e-skin devices are constructed by a flexible electronic device containing a hydrogel film and two or three electrodes, and they are attached to human skin [120]. Moreover, CPHs also have stretchability, biocompatibility, a self-healing ability, and long-term stability, which renders them completely suitable for the fabrication of smart devices that can be transplanted onto the human body [121,122]. Therefore, CPHs have started to be used for the development of e-skin microsensors with multi-functions (e.g., good adhesion, high elasticity, good compatibility, fast response, and human skin-like protective performance) in a diversity of fields such as artificial intelligence, human health detection, and soft robotics [123,124,125]. Recently, CPHs have been demonstrated as an ideal platform for e-skin sensors with good stretchability like human skin and strong adhesion on human tissue, which reduces interface resistance and motion artifacts. Moreover, skin irritation, rubefaction, and pain problems during the use of CPH e-skin devices were also avoided. For instance, Liu and co-workers successfully prepared a skin-biocompatible CPH containing large hydrogen bonds by combining PVA, phytic acid (PA), and gelatin (Gel) [126]. The PVA/PA/Gel (PPG) composite CPH hydrogel exhibited good adhesion, easy detachability, and good adaptability during wrist stretching and bending (Figure 9a,b). The PPG hydrogel also showed better features than commercial hydrogels (Figure 9c). In addition, the PPG hydrogel e-skin sensor was regarded as having valuable application prospects to recognize electrophysiological signals in human motion and health monitoring due to its high transparency, breathability, antimicrobial activity, low cost, and recyclability.

6. Conclusions

CPHs possess many superior features in both electrical and mechanical properties over conventional hydrogels as well as other materials, which qualifies them as a potential platform for the design of wearable and stretchable strain sensors in human health monitoring. They have both electronic and ionic conductivity. Moreover, CPHs exhibit high mechanical strength and stretchability, which can also be tunable in a simple manner. The self-healing property is also one of the most crucial and interesting characteristics of CPHs, which allows them to repair their structure and functionalities. Finally, their excellent adhesion ability and biocompatibility are distinct features as well that have increasingly gained attention among the general public and the scientific community in the design of strain sensor devices for human motion detection and health monitoring. For the preparation technologies of CPHs, doping or blending and copolymerizing methods are common and simple techniques used to synthesize composite-based CPHs or improve the conductivity of CPHs based on conventional hydrogels. On the other hand, the technique of 3D printing is considered as an advanced technology to produce CPHs with novel structures and remarkable features. The use of MXenes and the design of e-skin devices for human heath monitoring are promising development strategies for the fabrication and application of CPHs in strain sensors. However, there have been several challenges and there are additional future directions for the development of CPHs in advanced strain sensor devices: (i) the development of advanced CPHs that possess all the following characteristics, i.e., biocompatibility, strong mechanical properties, anti-freezing properties, strong adhesion, a self-powered ability, ultrafast self-healing and recovery, and transparence; and (ii) CPH-based sensors need to be highly responsive and correctly distinguish tiny human motions such as heart beats for employment in practical applications in human health care.

Author Contributions

Conceptualization, V.V.T., K.L., T.N.N. and D.L.; writing—original draft preparation, T.N.N., K.L. and V.V.T.; writing—review and editing, T.N.N., V.V.T. and D.L.; visualization, V.V.T., K.L., T.N.N. and D.L.; supervision, T.N.N. and D.L.; project administration, D.L.; funding acquisition, D.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was financially supported by the National Research Foundation of Korea (NRF) grant funded by the Korea Government (MSIT) (NRF-2021R1A2C2004109). This research was also supported by the Gachon University Research Fund of 2020 (GCU-202008470001) and the Korea Institute for Advancement of Technology (KIAT) grant funded by the Korea Government (MOTIE) (P0020612, 2022 The Competency Development Program for Industry Specialist).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wan, P.; Wen, X.; Sun, C.; Chandran, B.K.; Zhang, H.; Sun, X.; Chen, X. Flexible Transparent Films Based on Nanocomposite Networks of Polyaniline and Carbon Nanotubes for High-Performance Gas Sensing. Small 2015, 11, 5409–5415. [Google Scholar] [CrossRef] [PubMed]
  2. Ryu, S.; Lee, P.; Chou, J.B.; Xu, R.; Zhao, R.; Hart, A.J.; Kim, S.-G. Extremely Elastic Wearable Carbon Nanotube Fiber Strain Sensor for Monitoring of Human Motion. ACS Nano 2015, 9, 5929–5936. [Google Scholar] [CrossRef]
  3. Amjadi, M.; Kyung, K.-U.; Park, I.; Sitti, M. Stretchable, Skin-Mountable, and Wearable Strain Sensors and Their Potential Applications: A Review. Adv. Funct. Mater. 2016, 26, 1678–1698. [Google Scholar] [CrossRef]
  4. Souri, H.; Banerjee, H.; Jusufi, A.; Radacsi, N.; Stokes, A.A.; Park, I.; Sitti, M.; Amjadi, M. Wearable and Stretchable Strain Sensors: Materials, Sensing Mechanisms, and Applications. Adv. Intell. Syst. 2020, 2, 2000039. [Google Scholar] [CrossRef]
  5. Cai, G.; Wang, J.; Qian, K.; Chen, J.; Li, S.; Lee, P.S. Extremely Stretchable Strain Sensors Based on Conductive Self-Healing Dynamic Cross-Links Hydrogels for Human-Motion Detection. Adv. Sci. 2017, 4, 1600190. [Google Scholar] [CrossRef] [Green Version]
  6. Xia, S.; Song, S.; Jia, F.; Gao, G. A flexible, adhesive and self-healable hydrogel-based wearable strain sensor for human motion and physiological signal monitoring. J. Mater. Chem. B 2019, 7, 4638–4648. [Google Scholar] [CrossRef]
  7. Guo, Y.; Zheng, K.; Wan, P. A Flexible Stretchable Hydrogel Electrolyte for Healable All-in-One Configured Supercapacitors. Small 2018, 14, 1704497. [Google Scholar] [CrossRef]
  8. Van Tran, V.; Park, D.; Lee, Y.-C. Hydrogel applications for adsorption of contaminants in water and wastewater treatment. Environ. Sci. Pollut. Res. 2018, 25, 24569–24599. [Google Scholar] [CrossRef]
  9. Van Tran, V.; Wi, E.; Shin, S.Y.; Lee, D.; Kim, Y.A.; Ma, B.C.; Chang, M. Microgels based on 0D-3D carbon materials: Synthetic techniques, properties, applications, and challenges. Chemosphere 2022, 307, 135981. [Google Scholar] [CrossRef]
  10. Zou, Y.; Liu, R.; Zhong, W.; Yang, W. Mechanically robust double-crosslinked network functionalized graphene/polyaniline stiff hydrogels for superior performance supercapacitors. J. Mater. Chem. A 2018, 6, 8568–8578. [Google Scholar] [CrossRef]
  11. Xia, S.; Song, S.; Gao, G. Robust and flexible strain sensors based on dual physically cross-linked double network hydrogels for monitoring human-motion. Chem. Eng. J. 2018, 354, 817–824. [Google Scholar] [CrossRef]
  12. Si, Y.; Wang, L.; Wang, X.; Tang, N.; Yu, J.; Ding, B. Ultrahigh-Water-Content, Superelastic, and Shape-Memory Nanofiber-Assembled Hydrogels Exhibiting Pressure-Responsive Conductivity. Adv. Mater. 2017, 29, 1700339. [Google Scholar] [CrossRef]
  13. Cong, J.; Fan, Z.; Pan, S.; Tian, J.; Lian, W.; Li, S.; Wang, S.; Zheng, D.; Miao, C.; Ding, W.; et al. Polyacrylamide/Chitosan-Based Conductive Double Network Hydrogels with Outstanding Electrical and Mechanical Performance at Low Temperatures. ACS Appl. Mater. Interfaces 2021, 13, 34942–34953. [Google Scholar] [CrossRef]
  14. Le, T.-H.; Kim, Y.; Yoon, H. Electrical and Electrochemical Properties of Conducting Polymers. Polymers 2017, 9, 150. [Google Scholar] [CrossRef] [Green Version]
  15. Liu, K.; Wei, S.; Song, L.; Liu, H.; Wang, T. Conductive Hydrogels—A Novel Material: Recent Advances and Future Perspectives. J. Agric. Food Chem. 2020, 68, 7269–7280. [Google Scholar] [CrossRef]
  16. Tang, L.; Wu, S.; Qu, J.; Gong, L.; Tang, J. A Review of Conductive Hydrogel Used in Flexible Strain Sensor. Materials 2020, 13, 3947. [Google Scholar] [CrossRef]
  17. Peng, Q.; Chen, J.; Wang, T.; Peng, X.; Liu, J.; Wang, X.; Wang, J.; Zeng, H. Recent advances in designing conductive hydrogels for flexible electronics. InfoMat 2020, 2, 843–865. [Google Scholar] [CrossRef] [Green Version]
  18. Qin, T.; Liao, W.; Yu, L.; Zhu, J.; Wu, M.; Peng, Q.; Han, L.; Zeng, H. Recent progress in conductive self-healing hydrogels for flexible sensors. J. Polym. Sci. 2022, 60, 2607–2634. [Google Scholar] [CrossRef]
  19. Bashir, S.; Hasan, K.; Hina, M.; Ali Soomro, R.; Mujtaba, M.A.; Ramesh, S.; Ramesh, K.; Duraisamy, N.; Manikam, R. Conducting polymer/graphene hydrogel electrodes based aqueous smart Supercapacitors: A review and future prospects. J. Electroanal. Chem. 2021, 898, 115626. [Google Scholar] [CrossRef]
  20. Guo, X.; Li, J.; Wang, F.; Zhang, J.-H.; Zhang, J.; Shi, Y.; Pan, L. Application of conductive polymer hydrogels in flexible electronics. J. Polym. Sci. 2022, 60, 2635–2662. [Google Scholar] [CrossRef]
  21. Stejskal, J. Conducting polymer hydrogels. Chem. Pap. 2017, 71, 269–291. [Google Scholar] [CrossRef]
  22. Yang, C.; Suo, Z. Hydrogel ionotronics. Nat. Rev. Mater. 2018, 3, 125–142. [Google Scholar] [CrossRef]
  23. Keplinger, C.; Sun, J.-Y.; Foo, C.C.; Rothemund, P.; Whitesides, G.M.; Suo, Z. Stretchable, Transparent, Ionic Conductors. Science 2013, 341, 984–987. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Lu, B.; Yuk, H.; Lin, S.; Jian, N.; Qu, K.; Xu, J.; Zhao, X. Pure PEDOT:PSS hydrogels. Nat. Commun. 2019, 10, 1043. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Li, L.; Meng, J.; Zhang, M.; Liu, T.; Zhang, C. Recent advances in conductive polymer hydrogel composites and nanocomposites for flexible electrochemical supercapacitors. Chem. Commun. 2022, 58, 185–207. [Google Scholar] [CrossRef]
  26. Ohm, Y.; Pan, C.; Ford, M.J.; Huang, X.; Liao, J.; Majidi, C. An electrically conductive silver–polyacrylamide–alginate hydrogel composite for soft electronics. Nat. Electron. 2021, 4, 185–192. [Google Scholar] [CrossRef]
  27. Guo, B.; Ma, Z.; Pan, L.; Shi, Y. Properties of conductive polymer hydrogels and their application in sensors. J. Polym. Sci. B Polym. Phys. 2019, 57, 1606–1621. [Google Scholar] [CrossRef] [Green Version]
  28. Zhang, Z.; Zheng, Z.; Zhao, Y.; Hu, J.; Wang, H. Highly stretchable porous composite hydrogels with stable conductivity for strain sensing. Compos. Sci. Technol. 2021, 213, 108968. [Google Scholar] [CrossRef]
  29. Di, X.; Ma, Q.; Xu, Y.; Yang, M.; Wu, G.; Sun, P. High-performance ionic conductive poly(vinyl alcohol) hydrogels for flexible strain sensors based on a universal soaking strategy. Mater. Chem. Front. 2021, 5, 315–323. [Google Scholar] [CrossRef]
  30. Chen, Q.; Chen, H.; Zhu, L.; Zheng, J. Fundamentals of double network hydrogels. J.f Mater. Chem. B 2015, 3, 3654–3676. [Google Scholar] [CrossRef]
  31. Chen, Q.; Zhu, L.; Chen, H.; Yan, H.; Huang, L.; Yang, J.; Zheng, J. A Novel Design Strategy for Fully Physically Linked Double Network Hydrogels with Tough, Fatigue Resistant, and Self-Healing Properties. Adv. Funct. Mater. 2015, 25, 1598–1607. [Google Scholar] [CrossRef]
  32. Gong, J.P. Why are double network hydrogels so tough? Soft Matter 2010, 6, 2583–2590. [Google Scholar] [CrossRef]
  33. Lee, H.-R.; Kim, C.-C.; Sun, J.-Y. Stretchable Ionics—A Promising Candidate for Upcoming Wearable Devices. Adv. Mater. 2018, 30, 1704403. [Google Scholar] [CrossRef]
  34. Yang, C.H.; Chen, B.; Lu, J.J.; Yang, J.H.; Zhou, J.; Chen, Y.M.; Suo, Z. Ionic cable. Extreme Mech. Lett. 2015, 3, 59–65. [Google Scholar] [CrossRef] [Green Version]
  35. Zhao, L.; Ke, T.; Ling, Q.; Liu, J.; Li, Z.; Gu, H. Multifunctional Ionic Conductive Double-Network Hydrogel as a Long-Term Flexible Strain Sensor. ACS Appl. Polym. Mater. 2021, 3, 5494–5508. [Google Scholar] [CrossRef]
  36. Lei, J.; Li, X.; Wang, S.; Yuan, L.; Ge, L.; Li, D.; Mu, C. Facile Fabrication of Biocompatible Gelatin-Based Self-Healing Hydrogels. ACS Appl. Polym. Mater. 2019, 1, 1350–1358. [Google Scholar] [CrossRef]
  37. Tseng, T.-C.; Hsieh, F.-Y.; Theato, P.; Wei, Y.; Hsu, S.-H. Glucose-sensitive self-healing hydrogel as sacrificial materials to fabricate vascularized constructs. Biomaterials 2017, 133, 20–28. [Google Scholar] [CrossRef]
  38. Guo, R.; Su, Q.; Zhang, J.; Dong, A.; Lin, C.; Zhang, J. Facile Access to Multisensitive and Self-Healing Hydrogels with Reversible and Dynamic Boronic Ester and Disulfide Linkages. Biomacromolecules 2017, 18, 1356–1364. [Google Scholar] [CrossRef]
  39. Nakahata, M.; Takashima, Y.; Yamaguchi, H.; Harada, A. Redox-responsive self-healing materials formed from host–guest polymers. Nat. Commun. 2011, 2, 511. [Google Scholar] [CrossRef] [Green Version]
  40. Darabi, M.A.; Khosrozadeh, A.; Mbeleck, R.; Liu, Y.; Chang, Q.; Jiang, J.; Cai, J.; Wang, Q.; Luo, G.; Xing, M. Skin-Inspired Multifunctional Autonomic-Intrinsic Conductive Self-Healing Hydrogels with Pressure Sensitivity, Stretchability, and 3D Printability. Adv. Mater. 2017, 29, 1700533. [Google Scholar] [CrossRef]
  41. Ghoorchian, A.; Simon, J.R.; Bharti, B.; Han, W.; Zhao, X.; Chilkoti, A.; López, G.P. Bioinspired Reversibly Cross-linked Hydrogels Comprising Polypeptide Micelles Exhibit Enhanced Mechanical Properties. Adv. Funct. Mater. 2015, 25, 3122–3130. [Google Scholar] [CrossRef]
  42. Deng, G.; Tang, C.; Li, F.; Jiang, H.; Chen, Y. Covalent Cross-Linked Polymer Gels with Reversible Sol−Gel Transition and Self-Healing Properties. Macromolecules 2010, 43, 1191–1194. [Google Scholar] [CrossRef]
  43. Lü, S.; Gao, C.; Xu, X.; Bai, X.; Duan, H.; Gao, N.; Feng, C.; Xiong, Y.; Liu, M. Injectable and Self-Healing Carbohydrate-Based Hydrogel for Cell Encapsulation. ACS Appl. Mater. Interfaces 2015, 7, 13029–13037. [Google Scholar] [CrossRef] [PubMed]
  44. Ding, F.; Wu, S.; Wang, S.; Xiong, Y.; Li, Y.; Li, B.; Deng, H.; Du, Y.; Xiao, L.; Shi, X. A dynamic and self-crosslinked polysaccharide hydrogel with autonomous self-healing ability. Soft Matter 2015, 11, 3971–3976. [Google Scholar] [CrossRef] [PubMed]
  45. Wei, Z.; Yang, J.H.; Liu, Z.Q.; Xu, F.; Zhou, J.X.; Zrínyi, M.; Osada, Y.; Chen, Y.M. Novel Biocompatible Polysaccharide-Based Self-Healing Hydrogel. Adv. Funct. Mater. 2015, 25, 1352–1359. [Google Scholar] [CrossRef]
  46. Yu, F.; Cao, X.; Du, J.; Wang, G.; Chen, X. Multifunctional Hydrogel with Good Structure Integrity, Self-Healing, and Tissue-Adhesive Property Formed by Combining Diels–Alder Click Reaction and Acylhydrazone Bond. ACS Appl. Mater. Interfaces 2015, 7, 24023–24031. [Google Scholar] [CrossRef]
  47. Yesilyurt, V.; Webber, M.J.; Appel, E.A.; Godwin, C.; Langer, R.; Anderson, D.G. Injectable Self-Healing Glucose-Responsive Hydrogels with pH-Regulated Mechanical Properties. Adv. Mater. 2016, 28, 86–91. [Google Scholar] [CrossRef] [Green Version]
  48. Yetisen, A.K.; Jiang, N.; Fallahi, A.; Montelongo, Y.; Ruiz-Esparza, G.U.; Tamayol, A.; Zhang, Y.S.; Mahmood, I.; Yang, S.-A.; Kim, K.S.; et al. Glucose-Sensitive Hydrogel Optical Fibers Functionalized with Phenylboronic Acid. Adv. Mater. 2017, 29, 1606380. [Google Scholar] [CrossRef]
  49. Pepels, M.; Filot, I.; Klumperman, B.; Goossens, H. Self-healing systems based on disulfide–thiol exchange reactions. Polym. Chem. 2013, 4, 4955–4965. [Google Scholar] [CrossRef]
  50. Tseng, T.-C.; Tao, L.; Hsieh, F.-Y.; Wei, Y.; Chiu, I.-M.; Hsu, S.-h. An Injectable, Self-Healing Hydrogel to Repair the Central Nervous System. Adv. Mater. 2015, 27, 3518–3524. [Google Scholar] [CrossRef]
  51. Inoue, A.; Yuk, H.; Lu, B.; Zhao, X. Strong adhesion of wet conducting polymers on diverse substrates. Sci. Adv. 2020, 6, eaay5394. [Google Scholar] [CrossRef] [Green Version]
  52. Yuk, H.; Zhang, T.; Lin, S.; Parada, G.A.; Zhao, X. Tough bonding of hydrogels to diverse non-porous surfaces. Nat. Mater. 2016, 15, 190–196. [Google Scholar] [CrossRef] [Green Version]
  53. Zhang, D.; Tang, Y.; Zhang, Y.; Yang, F.; Liu, Y.; Wang, X.; Yang, J.; Gong, X.; Zheng, J. Highly stretchable, self-adhesive, biocompatible, conductive hydrogels as fully polymeric strain sensors. J. Mater. Chem. A 2020, 8, 20474–20485. [Google Scholar] [CrossRef]
  54. Sun, F.; Huang, X.; Wang, X.; Liu, H.; Wu, Y.; Du, F.; Zhang, Y. Highly transparent, adhesive, stretchable and conductive PEDOT:PSS/polyacrylamide hydrogels for flexible strain sensors. Colloids Surf. A: Physicochem. Eng. Asp. 2021, 625, 126897. [Google Scholar] [CrossRef]
  55. Zhou, Z.; Yuan, W.; Xie, X. A stretchable and adhesive composite hydrogel containing PEDOT:PSS for wide-range and precise motion sensing and electromagnetic interference shielding and as a triboelectric nanogenerator. Mater. Chem. Front. 2022, 6, 3359–3368. [Google Scholar] [CrossRef]
  56. Ma, X.; Wang, C.; Yuan, W.; Xie, X.; Song, Y. Highly Adhesive, Conductive, and Self-Healing Hydrogel with Triple Cross-Linking Inspired by Mussel and DNA for Wound Adhesion and Human Motion Sensing. ACS Appl. Polym. Mater. 2021, 3, 6586–6597. [Google Scholar] [CrossRef]
  57. Zhu, F.; Lin, J.; Wu, Z.L.; Qu, S.; Yin, J.; Qian, J.; Zheng, Q. Tough and Conductive Hybrid Hydrogels Enabling Facile Patterning. ACS Appl. Mater. Interfaces 2018, 10, 13685–13692. [Google Scholar] [CrossRef]
  58. Xu, J.; Wang, D.; Fan, L.; Yuan, Y.; Wei, W.; Liu, R.; Gu, S.; Xu, W. Fabric electrodes coated with polypyrrole nanorods for flexible supercapacitor application prepared via a reactive self-degraded template. Org. Electron. 2015, 26, 292–299. [Google Scholar] [CrossRef]
  59. Guo, Q.; Chen, J.; Wang, J.; Zeng, H.; Yu, J. Recent progress in synthesis and application of mussel-inspired adhesives. Nanoscale 2020, 12, 1307–1324. [Google Scholar] [CrossRef]
  60. Ma, Z.; Shi, W.; Yan, K.; Pan, L.; Yu, G. Doping engineering of conductive polymer hydrogels and their application in advanced sensor technologies. Chem. Sci. 2019, 10, 6232–6244. [Google Scholar] [CrossRef]
  61. Wang, Y.; Shi, Y.; Pan, L.; Ding, Y.; Zhao, Y.; Li, Y.; Shi, Y.; Yu, G. Dopant-Enabled Supramolecular Approach for Controlled Synthesis of Nanostructured Conductive Polymer Hydrogels. Nano Lett. 2015, 15, 7736–7741. [Google Scholar] [CrossRef] [PubMed]
  62. Pan, L.; Chortos, A.; Yu, G.; Wang, Y.; Isaacson, S.; Allen, R.; Shi, Y.; Dauskardt, R.; Bao, Z. An ultra-sensitive resistive pressure sensor based on hollow-sphere microstructure induced elasticity in conducting polymer film. Nat. Commun. 2014, 5, 3002. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Ding, H.; Zhong, M.; Kim, Y.J.; Pholpabu, P.; Balasubramanian, A.; Hui, C.M.; He, H.; Yang, H.; Matyjaszewski, K.; Bettinger, C.J. Biologically Derived Soft Conducting Hydrogels Using Heparin-Doped Polymer Networks. ACS Nano 2014, 8, 4348–4357. [Google Scholar] [CrossRef] [PubMed]
  64. Chakraborty, P.; Guterman, T.; Adadi, N.; Yadid, M.; Brosh, T.; Adler-Abramovich, L.; Dvir, T.; Gazit, E. A Self-Healing, All-Organic, Conducting, Composite Peptide Hydrogel as Pressure Sensor and Electrogenic Cell Soft Substrate. ACS Nano 2019, 13, 163–175. [Google Scholar] [CrossRef] [PubMed]
  65. Li, C. Towards conductive hydrogels in e-skins: A review on rational design and recent developments. RSC Adv. 2021, 11, 33835–33848. [Google Scholar] [CrossRef]
  66. Balint, R.; Cassidy, N.J.; Cartmell, S.H. Conductive polymers: Towards a smart biomaterial for tissue engineering. Acta Biomater. 2014, 10, 2341–2353. [Google Scholar] [CrossRef]
  67. Fu, F.; Wang, J.; Zeng, H.; Yu, J. Functional Conductive Hydrogels for Bioelectronics. ACS Mater. Lett. 2020, 2, 1287–1301. [Google Scholar] [CrossRef]
  68. Mandal, S.; Seth, A.; Yadav, V.; Kumari, S.; Kumar, M.; Ojha, U. Nanocomposite Grafted Stretchable and Conductive Ionic Hydrogels for Use as Soft Electrode in a Wearable Electrocardiogram Monitoring Device. ACS Appl. Polym. Mater. 2020, 2, 618–625. [Google Scholar] [CrossRef]
  69. Liang, Y.; Zhao, X.; Hu, T.; Chen, B.; Yin, Z.; Ma, P.X.; Guo, B. Adhesive Hemostatic Conducting Injectable Composite Hydrogels with Sustained Drug Release and Photothermal Antibacterial Activity to Promote Full-Thickness Skin Regeneration During Wound Healing. Small 2019, 15, 1900046. [Google Scholar] [CrossRef]
  70. Han, X.; Xiao, G.; Wang, Y.; Chen, X.; Duan, G.; Wu, Y.; Gong, X.; Wang, H. Design and fabrication of conductive polymer hydrogels and their applications in flexible supercapacitors. J. Mater. Chem. A 2020, 8, 23059–23095. [Google Scholar] [CrossRef]
  71. Jiang, L.; Gentile, C.; Lauto, A.; Cui, C.; Song, Y.; Romeo, T.; Silva, S.M.; Tang, O.; Sharma, P.; Figtree, G.; et al. Versatile Fabrication Approach of Conductive Hydrogels via Copolymerization with Vinyl Monomers. ACS Appl. Mater. Interfaces 2017, 9, 44124–44133. [Google Scholar] [CrossRef]
  72. Cui, C.; Fu, Q.; Meng, L.; Hao, S.; Dai, R.; Yang, J. Recent Progress in Natural Biopolymers Conductive Hydrogels for Flexible Wearable Sensors and Energy Devices: Materials, Structures, and Performance. ACS Appl. Bio Mater. 2021, 4, 85–121. [Google Scholar] [CrossRef]
  73. Zhao, Y.; Liu, B.; Pan, L.; Yu, G. 3D nanostructured conductive polymer hydrogels for high-performance electrochemical devices. Energy Environ. Sci. 2013, 6, 2856–2870. [Google Scholar] [CrossRef]
  74. Jordan, R.S.; Frye, J.; Hernandez, V.; Prado, I.; Giglio, A.; Abbasizadeh, N.; Flores-Martinez, M.; Shirzad, K.; Xu, B.; Hill, I.M.; et al. 3D printed architected conducting polymer hydrogels. J. Mater. Chem. B 2021, 9, 7258–7270. [Google Scholar] [CrossRef]
  75. Huang, Q.; Zhu, Y. Printing Conductive Nanomaterials for Flexible and Stretchable Electronics: A Review of Materials, Processes, and Applications. Adv. Mater. Technol. 2019, 4, 1800546. [Google Scholar] [CrossRef]
  76. Wang, X.; Jiang, M.; Zhou, Z.; Gou, J.; Hui, D. 3D printing of polymer matrix composites: A review and prospective. Compos. B Eng. 2017, 110, 442–458. [Google Scholar] [CrossRef]
  77. Zhou, L.-Y.; Fu, J.; He, Y. A Review of 3D Printing Technologies for Soft Polymer Materials. Adv. Funct. Mater. 2020, 30, 2000187. [Google Scholar] [CrossRef]
  78. Zhang, X.N.; Zheng, Q.; Wu, Z.L. Recent advances in 3D printing of tough hydrogels: A review. Compos. B Eng. 2022, 238, 109895. [Google Scholar] [CrossRef]
  79. Chiappone, A.; Fantino, E.; Roppolo, I.; Lorusso, M.; Manfredi, D.; Fino, P.; Pirri, C.F.; Calignano, F. 3D Printed PEG-Based Hybrid Nanocomposites Obtained by Sol–Gel Technique. ACS Appl. Mater. Interfaces 2016, 8, 5627–5633. [Google Scholar] [CrossRef]
  80. Distler, T.; Boccaccini, A.R. 3D printing of electrically conductive hydrogels for tissue engineering and biosensors—A review. Acta Biomater. 2020, 101, 1–13. [Google Scholar] [CrossRef]
  81. Lee, M.P.; Cooper, G.J.T.; Hinkley, T.; Gibson, G.M.; Padgett, M.J.; Cronin, L. Development of a 3D printer using scanning projection stereolithography. Sci. Rep. 2015, 5, 9875. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  82. Derby, B. Printing and Prototyping of Tissues and Scaffolds. Science 2012, 338, 921–926. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  83. Caprioli, M.; Roppolo, I.; Chiappone, A.; Larush, L.; Pirri, C.F.; Magdassi, S. 3D-printed self-healing hydrogels via Digital Light Processing. Nat. Commun. 2021, 12, 2462. [Google Scholar] [CrossRef] [PubMed]
  84. Wei, J.; Xie, J.; Zhang, P.; Zou, Z.; Ping, H.; Wang, W.; Xie, H.; Shen, J.Z.; Lei, L.; Fu, Z. Bioinspired 3D Printable, Self-Healable, and Stretchable Hydrogels with Multiple Conductivities for Skin-like Wearable Strain Sensors. ACS Appl. Mater. Interfaces 2021, 13, 2952–2960. [Google Scholar] [CrossRef] [PubMed]
  85. Shao, L.; Li, Y.; Ma, Z.; Bai, Y.; Wang, J.; Zeng, P.; Gong, P.; Shi, F.; Ji, Z.; Qiao, Y.; et al. Highly Sensitive Strain Sensor Based on a Stretchable and Conductive Poly(vinyl alcohol)/Phytic Acid/NH2-POSS Hydrogel with a 3D Microporous Structure. ACS Appl. Mater. Interfaces 2020, 12, 26496–26508. [Google Scholar] [CrossRef]
  86. Trung, T.Q.; Ramasundaram, S.; Hwang, B.-U.; Lee, N.-E. An All-Elastomeric Transparent and Stretchable Temperature Sensor for Body-Attachable Wearable Electronics. Adv. Mater. 2016, 28, 502–509. [Google Scholar] [CrossRef]
  87. Wang, Z.; Guan, X.; Huang, H.; Wang, H.; Lin, W.; Peng, Z. Full 3D Printing of Stretchable Piezoresistive Sensor with Hierarchical Porosity and Multimodulus Architecture. Adv. Funct. Mater. 2019, 29, 1807569. [Google Scholar] [CrossRef]
  88. Tee, B.C.-K.; Chortos, A.; Dunn, R.R.; Schwartz, G.; Eason, E.; Bao, Z. Tunable Flexible Pressure Sensors using Microstructured Elastomer Geometries for Intuitive Electronics. Adv. Funct. Mater. 2014, 24, 5427–5434. [Google Scholar] [CrossRef]
  89. Ge, G.; Zhang, Y.; Shao, J.; Wang, W.; Si, W.; Huang, W.; Dong, X. Stretchable, Transparent, and Self-Patterned Hydrogel-Based Pressure Sensor for Human Motions Detection. Adv. Funct. Mater. 2018, 28, 1802576. [Google Scholar] [CrossRef]
  90. Shin, S.-H.; Lee, W.; Kim, S.-M.; Lee, M.; Koo, J.M.; Hwang, S.Y.; Oh, D.X.; Park, J. Ion-conductive self-healing hydrogels based on an interpenetrating polymer network for a multimodal sensor. Chem. Eng. J. 2019, 371, 452–460. [Google Scholar] [CrossRef]
  91. Shi, W.; Han, G.; Chang, Y.; Song, H.; Hou, W.; Chen, Q. Using Stretchable PPy@PVA Composites as a High-Sensitivity Strain Sensor To Monitor Minute Motion. ACS Appl. Mater. Interfaces 2020, 12, 45373–45382. [Google Scholar] [CrossRef]
  92. Dai, S.; Wang, S.; Yan, H.; Xu, J.; Hu, H.; Ding, J.; Yuan, N. Stretchable and self-healable hydrogel-based capacitance pressure and strain sensor for electronic skin systems. Mater. Res. Express 2019, 6, 0850b9. [Google Scholar] [CrossRef]
  93. Han, L.; Lu, X.; Wang, M.; Gan, D.; Deng, W.; Wang, K.; Fang, L.; Liu, K.; Chan, C.W.; Tang, Y.; et al. A Mussel-Inspired Conductive, Self-Adhesive, and Self-Healable Tough Hydrogel as Cell Stimulators and Implantable Bioelectronics. Small 2017, 13, 1601916. [Google Scholar] [CrossRef]
  94. Cai, Y.; Qin, J.; Li, W.; Tyagi, A.; Liu, Z.; Hossain, M.D.; Chen, H.; Kim, J.-K.; Liu, H.; Zhuang, M.; et al. A stretchable, conformable, and biocompatible graphene strain sensor based on a structured hydrogel for clinical application. J. Mater. Chem. A 2019, 7, 27099–27109. [Google Scholar] [CrossRef]
  95. Naguib, M.; Mochalin, V.N.; Barsoum, M.W.; Gogotsi, Y. 25th Anniversary Article: MXenes: A New Family of Two-Dimensional Materials. Adv. Mater. 2014, 26, 992–1005. [Google Scholar] [CrossRef]
  96. Naguib, M.; Mashtalir, O.; Carle, J.; Presser, V.; Lu, J.; Hultman, L.; Gogotsi, Y.; Barsoum, M.W. Two-Dimensional Transition Metal Carbides. ACS Nano 2012, 6, 1322–1331. [Google Scholar] [CrossRef]
  97. Ma, Y.; Liu, N.; Li, L.; Hu, X.; Zou, Z.; Wang, J.; Luo, S.; Gao, Y. A highly flexible and sensitive piezoresistive sensor based on MXene with greatly changed interlayer distances. Nat. Commun. 2017, 8, 1207. [Google Scholar] [CrossRef] [Green Version]
  98. Cai, Y.; Shen, J.; Ge, G.; Zhang, Y.; Jin, W.; Huang, W.; Shao, J.; Yang, J.; Dong, X. Stretchable Ti3C2Tx MXene/Carbon Nanotube Composite Based Strain Sensor with Ultrahigh Sensitivity and Tunable Sensing Range. ACS Nano 2018, 12, 56–62. [Google Scholar] [CrossRef]
  99. Ramanavicius, S.; Ramanavicius, A. Progress and Insights in the Application of MXenes as New 2D Nano-Materials Suitable for Biosensors and Biofuel Cell Design. Int. J. Mol. Sci. 2020, 21, 9224. [Google Scholar] [CrossRef]
  100. Alhabeb, M.; Maleski, K.; Anasori, B.; Lelyukh, P.; Clark, L.; Sin, S.; Gogotsi, Y. Guidelines for Synthesis and Processing of Two-Dimensional Titanium Carbide (Ti3C2Tx MXene). Chem. Mater. 2017, 29, 7633–7644. [Google Scholar] [CrossRef]
  101. Zhao, L.Z.; Zhou, C.H.; Wang, J.; Tong, D.S.; Yu, W.H.; Wang, H. Recent advances in clay mineral-containing nanocomposite hydrogels. Soft Matter 2015, 11, 9229–9246. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  102. Zhang, H.; Xia, H.; Zhao, Y. Poly(vinyl alcohol) Hydrogel Can Autonomously Self-Heal. ACS Macro Lett. 2012, 1, 1233–1236. [Google Scholar] [CrossRef] [PubMed]
  103. Liu, H.; Du, C.; Liao, L.; Zhang, H.; Zhou, H.; Zhou, W.; Ren, T.; Sun, Z.; Lu, Y.; Nie, Z.; et al. Approaching intrinsic dynamics of MXenes hybrid hydrogel for 3D printed multimodal intelligent devices with ultrahigh superelasticity and temperature sensitivity. Nat. Commun. 2022, 13, 3420. [Google Scholar] [CrossRef] [PubMed]
  104. Li, Y.; Yan, J.; Liu, Y.; Xie, X.-M. Super Tough and Intelligent Multibond Network Physical Hydrogels Facilitated by Ti3C2Tx MXene Nanosheets. ACS Nano 2022, 16, 1567–1577. [Google Scholar] [CrossRef] [PubMed]
  105. Zhang, Z.; Tang, L.; Chen, C.; Yu, H.; Bai, H.; Wang, L.; Qin, M.; Feng, Y.; Feng, W. Liquid metal-created macroporous composite hydrogels with self-healing ability and multiple sensations as artificial flexible sensors. J. Mater. Chem. A 2021, 9, 875–883. [Google Scholar] [CrossRef]
  106. Zhang, M.; Deng, F.; Tang, L.; Wu, H.; Ni, Y.; Chen, L.; Huang, L.; Hu, X.; Lin, S.; Ding, C. Super-ductile, injectable, fast self-healing collagen-based hydrogels with multi-responsive and accelerated wound-repair properties. Chem. Eng. J. 2021, 405, 126756. [Google Scholar] [CrossRef]
  107. He, F.; You, X.; Gong, H.; Yang, Y.; Bai, T.; Wang, W.; Guo, W.; Liu, X.; Ye, M. Stretchable, Biocompatible, and Multifunctional Silk Fibroin-Based Hydrogels toward Wearable Strain/Pressure Sensors and Triboelectric Nanogenerators. ACS Appl. Mater. Interfaces 2020, 12, 6442–6450. [Google Scholar] [CrossRef]
  108. Li, X.; He, L.; Li, Y.; Chao, M.; Li, M.; Wan, P.; Zhang, L. Healable, Degradable, and Conductive MXene Nanocomposite Hydrogel for Multifunctional Epidermal Sensors. ACS Nano 2021, 15, 7765–7773. [Google Scholar] [CrossRef]
  109. Luan, H.; Zhang, D.; Xu, Z.; Zhao, W.; Yang, C.; Chen, X. MXene-based composite double-network multifunctional hydrogels as highly sensitive strain sensors. J. Mater. Chem. C 2022, 10, 7604–7613. [Google Scholar] [CrossRef]
  110. Zhang, Y.-Z.; Lee, K.H.; Anjum, D.H.; Sougrat, R.; Jiang, Q.; Kim, H.; Alshareef, H.N. MXenes stretch hydrogel sensor performance to new limits. Sci. Adv. 2018, 4, eaat0098. [Google Scholar] [CrossRef]
  111. Zhang, S.; Li, S.; Xia, Z.; Cai, K. A review of electronic skin: Soft electronics and sensors for human health. J. Mater. Chem. B 2020, 8, 852–862. [Google Scholar] [CrossRef]
  112. Anikeeva, P.; Koppes, R.A. Restoring the sense of touch. Science 2015, 350, 274–275. [Google Scholar] [CrossRef]
  113. Gao, W.; Emaminejad, S.; Nyein, H.Y.Y.; Challa, S.; Chen, K.; Peck, A.; Fahad, H.M.; Ota, H.; Shiraki, H.; Kiriya, D.; et al. Fully integrated wearable sensor arrays for multiplexed in situ perspiration analysis. Nature 2016, 529, 509–514. [Google Scholar] [CrossRef] [Green Version]
  114. Kaltenbrunner, M.; Sekitani, T.; Reeder, J.; Yokota, T.; Kuribara, K.; Tokuhara, T.; Drack, M.; Schwödiauer, R.; Graz, I.; Bauer-Gogonea, S.; et al. An ultra-lightweight design for imperceptible plastic electronics. Nature 2013, 499, 458–463. [Google Scholar] [CrossRef]
  115. Ho, D.H.; Sun, Q.; Kim, S.Y.; Han, J.T.; Kim, D.H.; Cho, J.H. Stretchable and Multimodal All Graphene Electronic Skin. Adv. Mater. 2016, 28, 2601–2608. [Google Scholar] [CrossRef]
  116. Park, J.; Kim, M.; Lee, Y.; Lee, H.S.; Ko, H. Fingertip skin-inspired microstructured ferroelectric skins discriminate static/dynamic pressure and temperature stimuli. Sci. Adv. 2015, 1, e1500661. [Google Scholar] [CrossRef] [Green Version]
  117. Lee, Y.H.; Kweon, O.Y.; Kim, H.; Yoo, J.H.; Han, S.G.; Oh, J.H. Recent advances in organic sensors for health self-monitoring systems. J. Mater. Chem. C 2018, 6, 8569–8612. [Google Scholar] [CrossRef]
  118. Kweon, O.Y.; Samanta, S.K.; Won, Y.; Yoo, J.H.; Oh, J.H. Stretchable and Self-Healable Conductive Hydrogels for Wearable Multimodal Touch Sensors with Thermoresponsive Behavior. ACS Appl. Mater. Interfaces 2019, 11, 26134–26143. [Google Scholar] [CrossRef]
  119. Lipomi, D.J.; Vosgueritchian, M.; Tee, B.C.K.; Hellstrom, S.L.; Lee, J.A.; Fox, C.H.; Bao, Z. Skin-like pressure and strain sensors based on transparent elastic films of carbon nanotubes. Nat. Nanotechnol. 2011, 6, 788–792. [Google Scholar] [CrossRef]
  120. Kim, C.-C.; Lee, H.-H.; Oh, K.H.; Sun, J.-Y. Highly stretchable, transparent ionic touch panel. Science 2016, 353, 682–687. [Google Scholar] [CrossRef]
  121. Gonzalez, M.A.; Simon, J.R.; Ghoorchian, A.; Scholl, Z.; Lin, S.; Rubinstein, M.; Marszalek, P.; Chilkoti, A.; López, G.P.; Zhao, X. Strong, Tough, Stretchable, and Self-Adhesive Hydrogels from Intrinsically Unstructured Proteins. Adv. Mater. 2017, 29, 1604743. [Google Scholar] [CrossRef] [PubMed]
  122. Lee, Y.-Y.; Kang, H.-Y.; Gwon, S.H.; Choi, G.M.; Lim, S.-M.; Sun, J.-Y.; Joo, Y.-C. A Strain-Insensitive Stretchable Electronic Conductor: PEDOT:PSS/Acrylamide Organogels. Adv. Mater. 2016, 28, 1636–1643. [Google Scholar] [CrossRef] [PubMed]
  123. Huang, H.; Han, L.; Li, J.; Fu, X.; Wang, Y.; Yang, Z.; Xu, X.; Pan, L.; Xu, M. Super-stretchable, elastic and recoverable ionic conductive hydrogel for wireless wearable, stretchable sensor. J. Mater. Chem. A 2020, 8, 10291–10300. [Google Scholar] [CrossRef]
  124. Wang, Y.; Huang, H.; Wu, J.; Han, L.; Yang, Z.; Jiang, Z.; Wang, R.; Huang, Z.; Xu, M. Ultrafast Self-Healing, Reusable, and Conductive Polysaccharide-Based Hydrogels for Sensitive Ionic Sensors. ACS Sustain. Chem. Eng. 2020, 8, 18506–18518. [Google Scholar] [CrossRef]
  125. Zhao, C.; Liu, L.; Guo, M.; Sun, Z.; Chen, Y.; Wu, Y.; Li, Y.; Xiang, D.; Li, H.; Li, Z. Double-network hydrogel-based stretchable, adhesive, and conductive e-skin sensor coupled human skin-like biocompatible and protective properties. Colloids Surf. A Physicochem. Eng. Asp. 2022, 652, 129803. [Google Scholar] [CrossRef]
  126. Liu, W.; Xie, R.; Zhu, J.; Wu, J.; Hui, J.; Zheng, X.; Huo, F.; Fan, D. A temperature responsive adhesive hydrogel for fabrication of flexible electronic sensors. Npj Flex. Electron. 2022, 6, 68. [Google Scholar] [CrossRef]
Gels 09 00012 g002 550

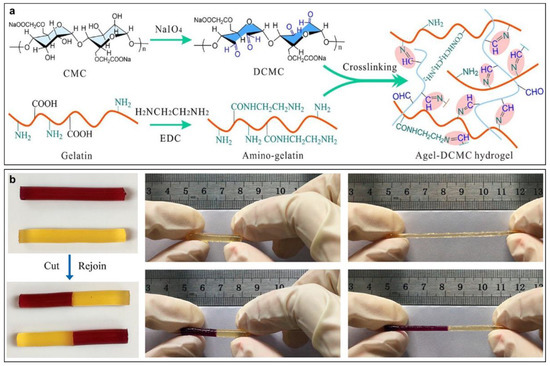

Figure 2. (a) Fabrication route of self-healing gelatin−cellulose (CMC) hydrogel based on the Schiff base reaction; (b) a cut hydrogel self-heals after rejoining; and the stretching ability of the healed hydrogel (reprinted with permission from ref. [36]).
Figure 2. (a) Fabrication route of self-healing gelatin−cellulose (CMC) hydrogel based on the Schiff base reaction; (b) a cut hydrogel self-heals after rejoining; and the stretching ability of the healed hydrogel (reprinted with permission from ref. [36]).
Gels 09 00012 g002
Gels 09 00012 g005 550

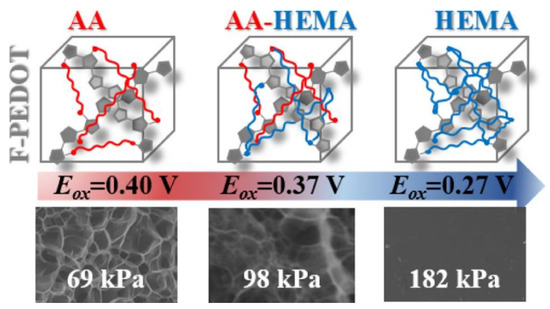

Figure 5. Fabrication process of conducting hydrogels using a copolymerization approach with vinyl monomers (reprinted with permission from ref. [71]).
Figure 5. Fabrication process of conducting hydrogels using a copolymerization approach with vinyl monomers (reprinted with permission from ref. [71]).
Gels 09 00012 g005
Gels 09 00012 g006 550

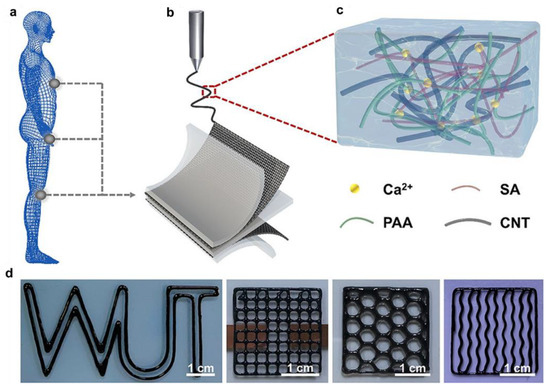

Figure 6. The process was used to prepare the Ca–PAA-=–SA–CNTs hydrogel-based strain sensor: (a) Detecting human body movements; (b) 3D printed process for preparation of the Ca-PAA-SA-CNTs hydrogels and skin-like strain sensor; (c) Ca-PAA-SA-CNTs hydrogels; (d) 3D printing of Ca-PAA-SA-CNTs hydrogels in various patterns. (reprinted with permission from ref. [84]).
Figure 6. The process was used to prepare the Ca–PAA-=–SA–CNTs hydrogel-based strain sensor: (a) Detecting human body movements; (b) 3D printed process for preparation of the Ca-PAA-SA-CNTs hydrogels and skin-like strain sensor; (c) Ca-PAA-SA-CNTs hydrogels; (d) 3D printing of Ca-PAA-SA-CNTs hydrogels in various patterns. (reprinted with permission from ref. [84]).
Gels 09 00012 g006
Gels 09 00012 g008 550

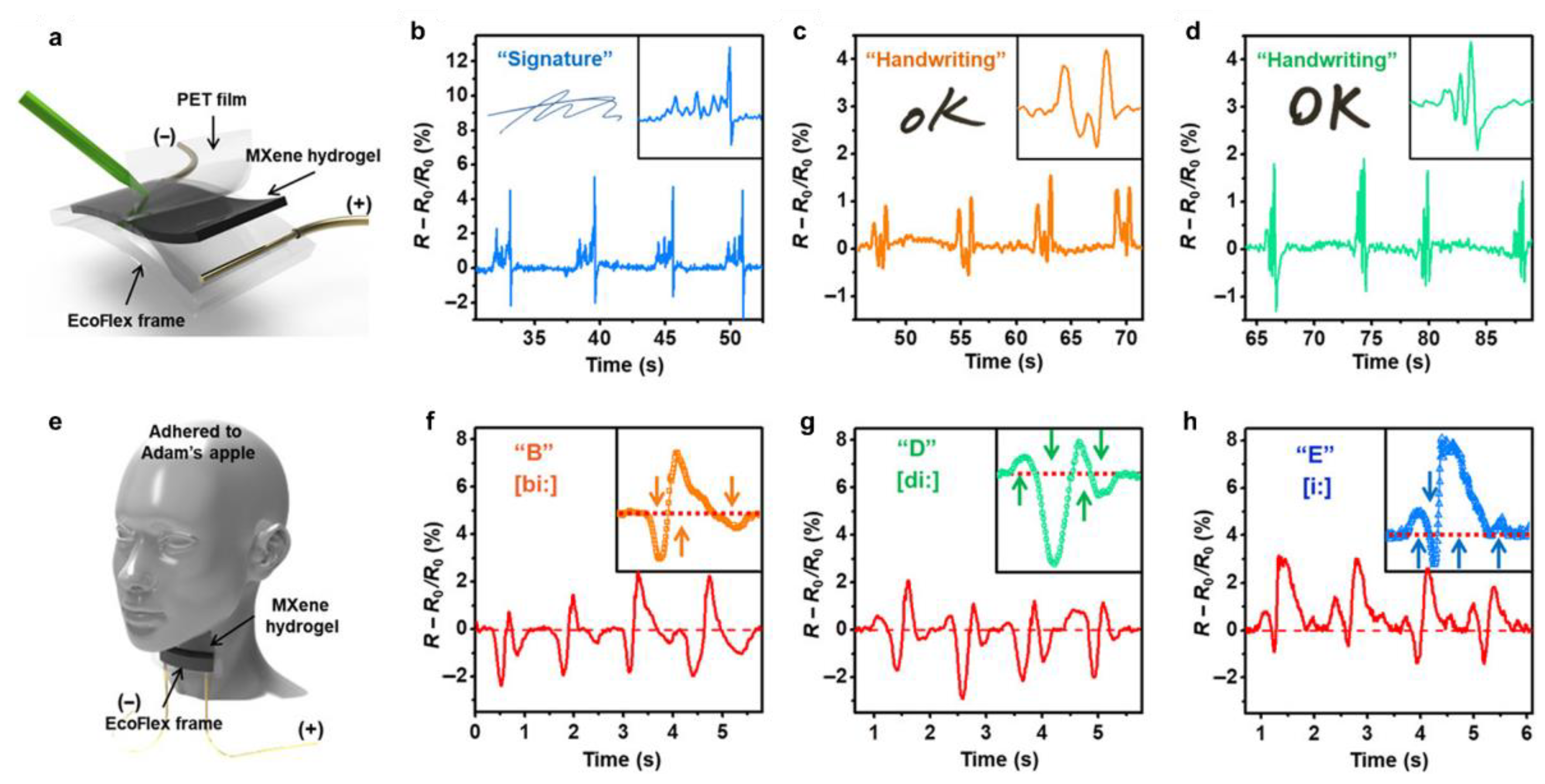

Figure 8. Advancement in strain sensors based on MXenes/PVA hydrogel: (a) schematical illustration of signature sensing; changed resistance to (b) signature; and (c,d) handwriting. (e) Schematical illustration of vocal sensing. (f–h) Changed resistance in responding to similar sounding letters (reprinted with permission from ref. [105]).
Figure 8. Advancement in strain sensors based on MXenes/PVA hydrogel: (a) schematical illustration of signature sensing; changed resistance to (b) signature; and (c,d) handwriting. (e) Schematical illustration of vocal sensing. (f–h) Changed resistance in responding to similar sounding letters (reprinted with permission from ref. [105]).
Gels 09 00012 g008
Gels 09 00012 g009 550

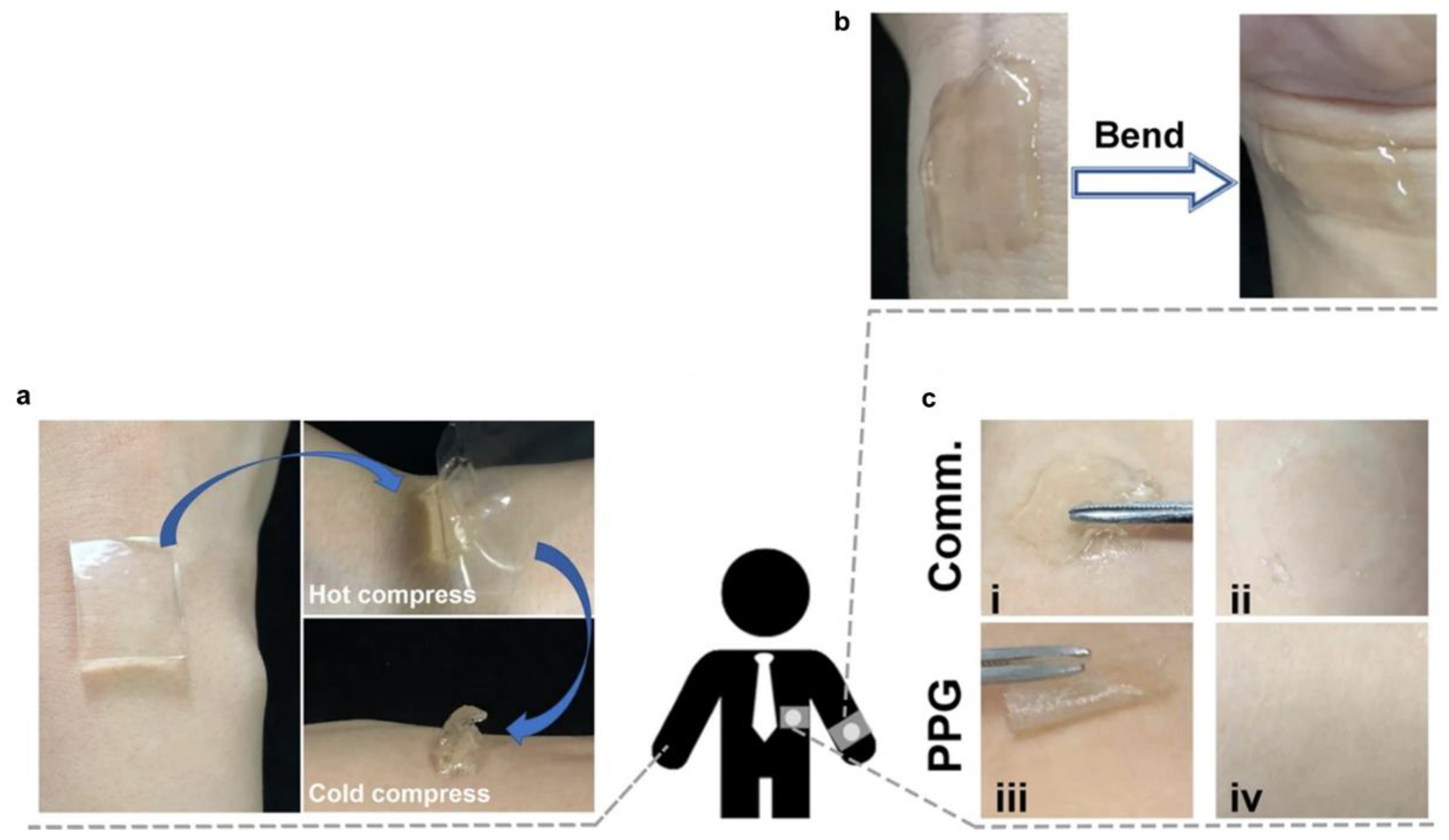

Figure 9. PPG hydrogel-based strain e-skin sensor: (a) photographs of PPG CPH adhering to and peeling off of the skin; (b) adaptability of PPG CPH to human skin; and (c) photographs of a commercial hydrogel product (i,ii) and PPG CPH (iii,iv) which are peeled off from the human skin (reprinted with permission from ref. [126]).
Figure 9. PPG hydrogel-based strain e-skin sensor: (a) photographs of PPG CPH adhering to and peeling off of the skin; (b) adaptability of PPG CPH to human skin; and (c) photographs of a commercial hydrogel product (i,ii) and PPG CPH (iii,iv) which are peeled off from the human skin (reprinted with permission from ref. [126]).
Gels 09 00012 g009
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Tran, V.V.; Lee, K.; Nguyen, T.N.; Lee, D. Recent Advances and Progress of Conducting Polymer-Based Hydrogels in Strain Sensor Applications. Gels 2023, 9, 12. https://doi.org/10.3390/gels9010012

AMA Style

Tran VV, Lee K, Nguyen TN, Lee D. Recent Advances and Progress of Conducting Polymer-Based Hydrogels in Strain Sensor Applications. Gels. 2023; 9(1):12. https://doi.org/10.3390/gels9010012

Chicago/Turabian Style

Tran, Vinh Van, Kyungjun Lee, Thanh Ngoc Nguyen, and Daeho Lee. 2023. "Recent Advances and Progress of Conducting Polymer-Based Hydrogels in Strain Sensor Applications" Gels 9, no. 1: 12. https://doi.org/10.3390/gels9010012

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
