Composite Contrast Enhancement of Hydrogel-Based Implants for Photon-Counting Computed Tomography Studies

by
Evgeniya V. Suslova
1,*,
Denis A. Shashurin
2,*,
Konstantin I. Maslakov
1,
Stepan Yu. Kupreenko
1,
Tatyana O. Luneva
1,
Oleg S. Medvedev
2,3 and
Georgy A. Chelkov
4
1
Department of Chemistry, Lomonosov Moscow State University, Leninskie Gory 1 Bld. 3, 119991 Moscow, Russia
2
Faculty of Medicine, Lomonosov Moscow State University, Lomonosovsky Ave. 27 Bld. 10, 119991 Moscow, Russia
3
Research and Educational Resource Center for Immunophenotyping, Digital Spatial Profiling and Ultrastructural Analysis Innovative Technologies, RUDN University, 6 Miklukho-Maklaya St., 117198 Moscow, Russia
4
Joint Institute for Nuclear Research, Joliot-Curie 6, 141980 Dubna, Russia
*
Authors to whom correspondence should be addressed.
Gels 2024, 10(12), 807; https://doi.org/10.3390/gels10120807
Submission received: 10 November 2024 / Revised: 4 December 2024 / Accepted: 5 December 2024 / Published: 8 December 2024
(This article belongs to the Special Issue Advanced Hydrogels for Biomedical Applications)
Browse Figures
Versions Notes

Abstract

:
Hydrogels have a wide range of medical applications, including use within implantable systems. However, when used in implants, their visibility under conventional medical imaging techniques is limited, creating safety risks for patients. In the current work, we assessed the possibility of enhancing hydrogels using Ln-based contrasting agents to facilitate their visualization in photon-counting computed tomography (PCCT). The contrast enhancement of gelatin, polyacrylamide (PAM), and silicone shells of implants was assessed. A novel synthetic route for producing cross-linked nanosized Ln2O3 with polyacrylamide was proposed and discussed in detail. Several prototypes of silicone implants, including silicone shell and gelatin or PAM filling with different combinations of contrasting agents, were produced and assessed in phantom PCCT studies.

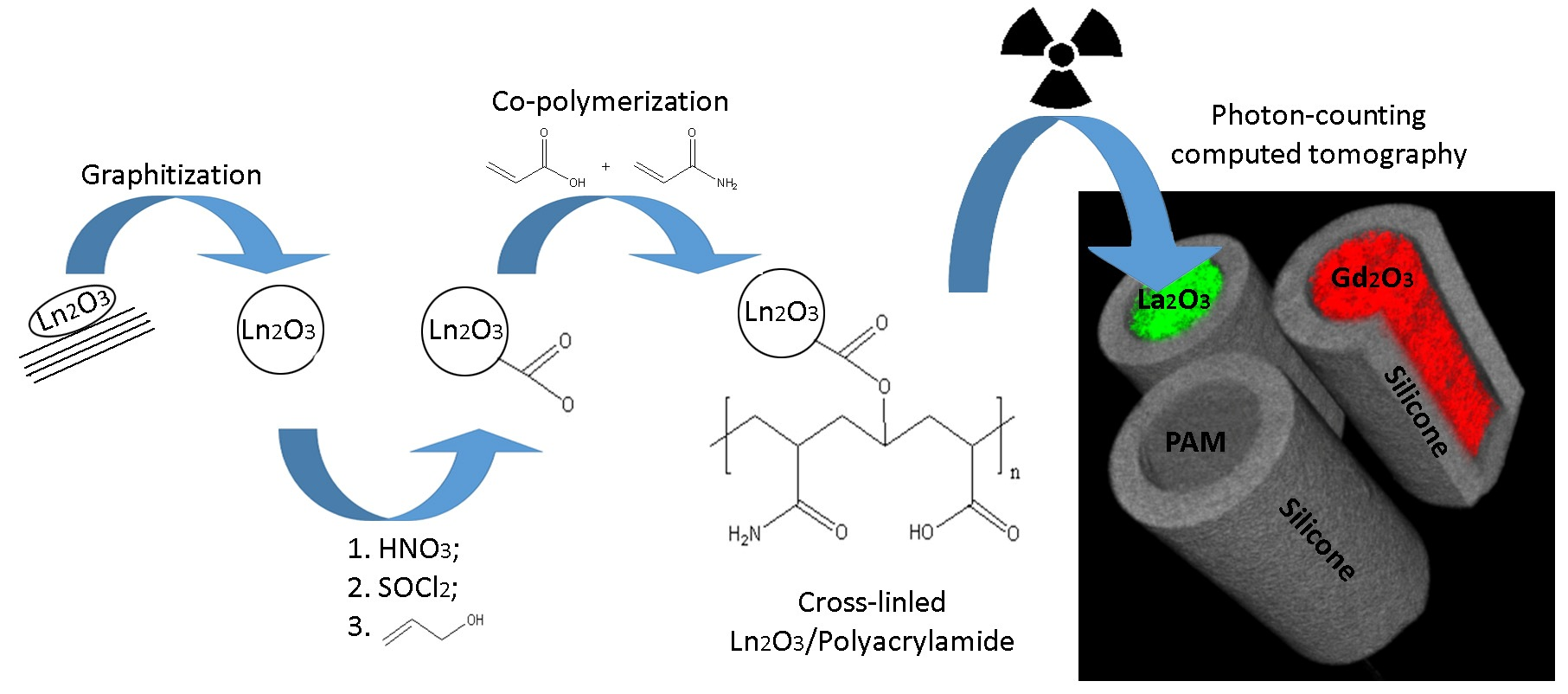

Graphical Abstract

1. Introduction

Hydrogels have a wide range of medical applications [1]. Their tunable physico-chemical properties, relative biocompatibility [2], stability, and biodegradability make them suitable for use as pharmaceutical substances, drug delivery systems [3], inner fillings of implantable systems, or even as shell-less implantable sensors [4].
Despite this, hydrogels have a significant disadvantage that introduces risk when used for medical purposes, especially as implant materials. They are only partially visible through conventional medical imaging methods such as ultrasound, X-ray, or magnetic resonance imaging (MRI) [5,6]. This complicates the regular assessment of a gel-filled implant and the timely diagnosis of its malfunctions, such as ruptures with extracapsular leakage of the inner material [7].
One potential solution for this can be the addition of compounds with high X-ray attenuation coefficients to hydrogels, enhancing their visibility with roentgenological and some other imaging methods [8,9]. The compound most commonly used as a contrasting agent for X-ray imaging is iodine [10]. Hydrogels or similar biomaterials can be contrasted by iodinated fragments of tyrosine residues [11], wholly aliphatic iodinated polyesters [12], iodinated polyurethane [13], or covalently iodinated polymethacrylate [14], facilitating their visualization in biomedical studies by computed tomography (CT). Hydrogels can also be contrasted by barium, bismuth sulfate [15], or even radioactive isotopes such as 111In3+, making them suitable for complex diagnostic studies using single-photon emission computed tomography (SPECT) and positron emission tomography (PET) [16].
The modification of hydrogels with elements possessing high X-ray attenuation coefficients [17] proves particularly effective when coupled with advanced diagnostic methods such as photon-counting computed tomography (PCCT) combining CT with elements of X-ray spectroscopy [18]. It provides a visualization of the inner structures of study objects, accounting not only for their average X-ray attenuation but also their unique X-ray attenuation spectra, giving insights into their chemical composition and making it possible to distinguish between areas with comparable roentgenological density but different elemental contents [19,20]. PCCT has been extensively used in biomedical research and is now being introduced into clinical practice. Over 30 clinical trials assessing PCCT capabilities in comparison with conventional (energy-integrative) CT scanners in different indications have been published [21,22]. PCCT allows the simultaneous use of multiple contrast agents (CAs), including elements not present in the human body (i.e., lanthanides La, Nd, Eu, Gd, Dy, Ho, Er, Yb, Lu [23,24,25,26,27,28], Hf [29], Ta [24], Bi [30], W [30], and Au [31]) for separate visualizations of different contrasted structures within a single assessment. This means that the implementation of such contrasting agents into the filling of the implants can not only enhance their visualization but also enable differentiation from components of the same or different implants, which can be critical for assessing their condition.
The CAs of special interest for PCCT studies are lanthanides (Ln). This group has similar chemical properties but different K-edge energies, leading to different X-ray attenuation spectra. So, the same synthetic processes can be used to produce different CAs and contrast-enhanced materials for subsequent simultaneous visualization by PCCT [23].
The most common CA belonging to lanthanides is Gd, which is actively used as a contrast enhancement in MRI studies [32] and is probed as a reserve CA for CT studies in patients with severe allergic reactions to standard iodinated contrasts [33]. It is also considered promising for dual-mode CT/MRI studies [34]. Gd contrasts used in clinical practice typically have the structure of chelate complexes of Gd3+ with polycarbonate acids [35]. More recently, considerable advances have also been made in developing Gd-based CAs in the form of nanoparticles, coated or stabilized by proteins, saccharides, lipids, or inorganic matrices consisting of carbon or SiO2 [36]. CA nanoparticles demonstrate comparable or higher contrasting properties in MRI or CT studies compared to molecular contrasts [37,38]. Such CAs are also considered to have low cytotoxicity [39,40]. This is attributed to their high chemical stability and low release of free Gd3+ ions which are considered the primary mechanism of Gd-induced toxicity [41]. However, it should be noted that most of the studies evaluated Gd3+ concentrations below 100 mg·L−1, while commercially available Gd contrasts (i.e., gadavist [42]) are administered in doses leading to blood Gd3+ concentrations exceeding 200 mg·L−1. Gd-based nanoparticle CAs may have different mechanisms of toxicity independent of the release of Gd3+ [43], indicating the need for further research on their possible toxic effects in different modes of administration. Other lanthanides have been probed and studied as potential CAs to a much lesser extent.
The goal of the current work was to assess the possibility and effectiveness of the contrast enhancement of prototype implants based on gelatin or polyacrylamide (PAM) fillings and silicone shells by Ln2O3 (Ln = La, Gd, and Yb). We assessed the possibility of introducing Ln2O3 into the PAM matrix during the co-polymerization of monomers or into the commercially available bi-component silicone during molding. We developed novel synthetic routes, making it possible to (1) decrease the size of Ln2O3 nanoparticles and (2) establish the covalent bonding of these particles to PAM to ensure stability and uniform distribution of the contrasts. The resulting compounds were assessed by physico-chemical methods and tested in PCCT studies of the prototype implants.

2. Results and Discussion

2.1. Calibration of Material Determination by PCCT and Material Choice for Contrasted Implants

Hybrid pixel detectors used in PCCT have a limited number of energy thresholds and relatively low energy resolution. Consequently, the resulting X-ray attenuation spectra significantly differ from those produced using theoretical data or more precise experimental methods [44]. This requires calibration of the PCCT device and its analysis software for the determination of specific materials or chemical elements anticipated in the study objects. During calibration, a unique attenuation profile for selected energy thresholds and their dependency on concentration is created for each material. These profiles are then compared with the actual profile of each voxel of the 3D reconstruction, and the material with the most fitting profile is defined and quantified [45].

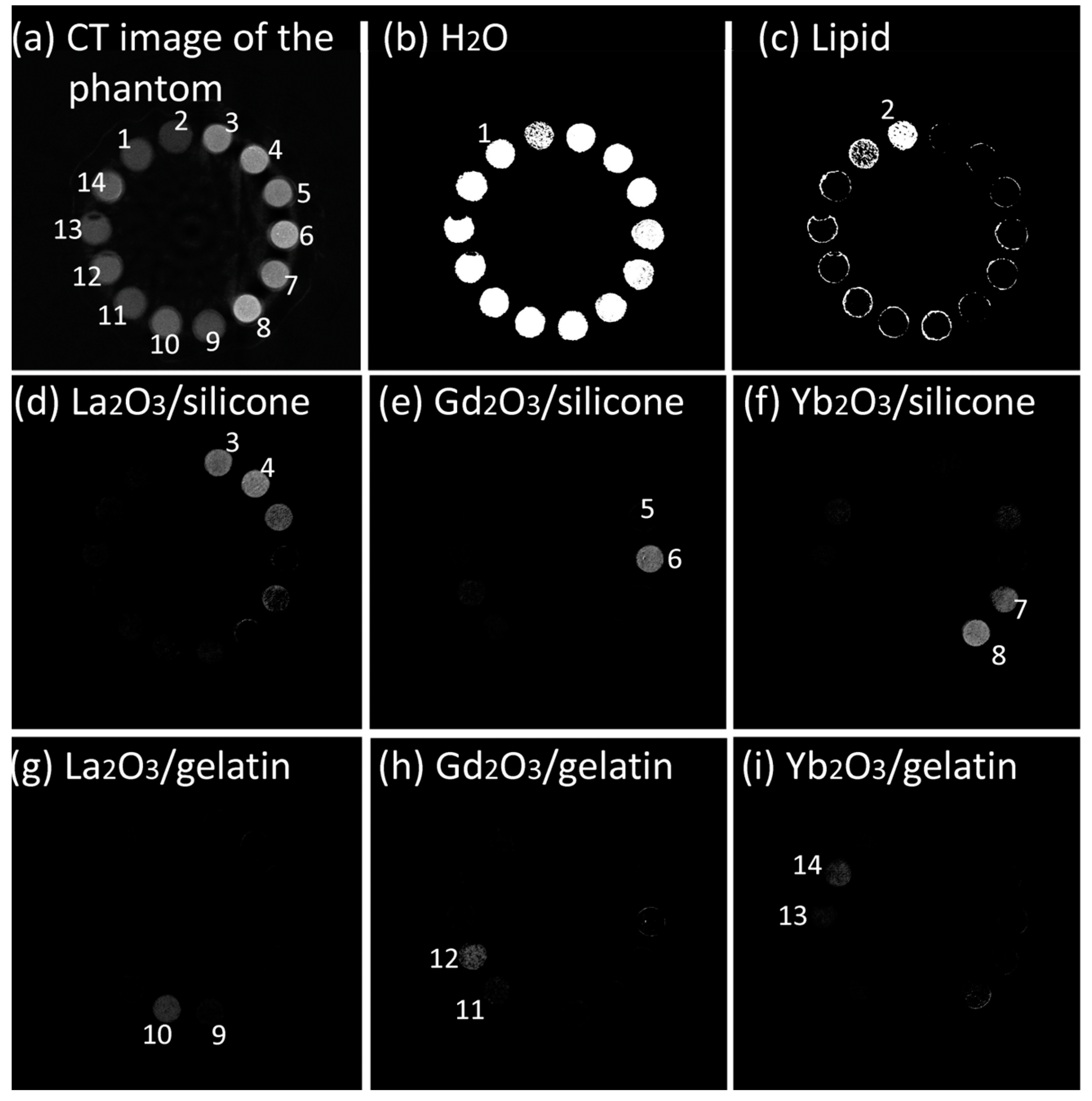

Our pilot studies revealed that simple calibration using only water solutions of the contrasting elements was insufficient for the accurate determination of Ln2O3-containing silicones due to the impact of Si on the X-ray attenuation spectra of the Si-containing materials [46]. Therefore, for implant prototypes incorporating both contrasted gelatin fillings and silicone shells, separate calibration profiles of Ln-containing gelatins and silicones were produced using a phantom, including two samples of each material in two concentrations (Figure 1a). The concentrations were chosen based on our previous studies confirming that the lowest range for Ln detection and quantification by PCCT using reference samples is 2.5–5 mg·mL−1 [23,25]. Thirty reconstructed transversal slides were used. The analysis of the calibration applied reversely to the reconstruction phantom (Figure 1b–i) confirmed that all Ln2O3-containing gelatins could be determined accurately, as well as Gd2O3- and Yb2O3-containing silicones. La2O3-containing silicone demonstrated determination artifacts, likely due to the low K-edge energy of La diminishing the La component in the X-ray attenuation spectrum of the contrasted silicone (Figure 1d). This material was excluded from further studies.
Studies using PAM-based implant prototypes not requiring the determination of contrasted silicones have been conducted with simper calibration using La(NO3)3 and Gd(NO3)3 solutions. The calibration process also included Ca(C2H3O2)2 solutions to support the determination of Ca structures (i.e., bones) in future studies, as well as H2O and lipid samples mandated by the calibration algorithm.

2.2. Preparation and Phantom PCCT Studies of Gelatin-Filled Implant Models

Silicone shells were prepared from two-component molding silicone, Best Mold PL 15, with a Pt catalyst (SP Polymer, Russia) cured at room temperature. The components were mixed in a 1:1 volume ratio and poured into polytetrafluoroethylene cylindrical custom molds with a diameter of 12 and a length of 25 mm. Ln2O3 (Ln = La, Gd, and Yb) was added to the liquid silicone with a Ln content of 20 mg·mL−1 in the silicone where required. In some cases, hard gelatin capsules of ~1 mL were used to fix the inner space. The shells were solidified for at least 24 h. Gelatin fillers were prepared by mixing 20 mg·mL−1 of La2O3 with 5 wt.% gelatin. Gelatin solutions were poured into the prepared silicone shells, refrigerated to ensure gelling, and then sealed with silicone or Ln2O3-doped silicone sheets.
The phantom PCCT studies were performed in two steps. First, the survey scans including the phantom with all implants were performed to confirm the possibility of simultaneous determination of the composition and visualization of the components of the multiple implants (Table 1 and Figure 2). Second, the chosen implants were scanned separately and reconstructed with a higher resolution. The resulting images were assessed in a 37–48 keV energy window (used as an illustration of an energy-integrative scan because this energy range prevails in the emission spectra of the X-ray source) and with qualitative material determination.

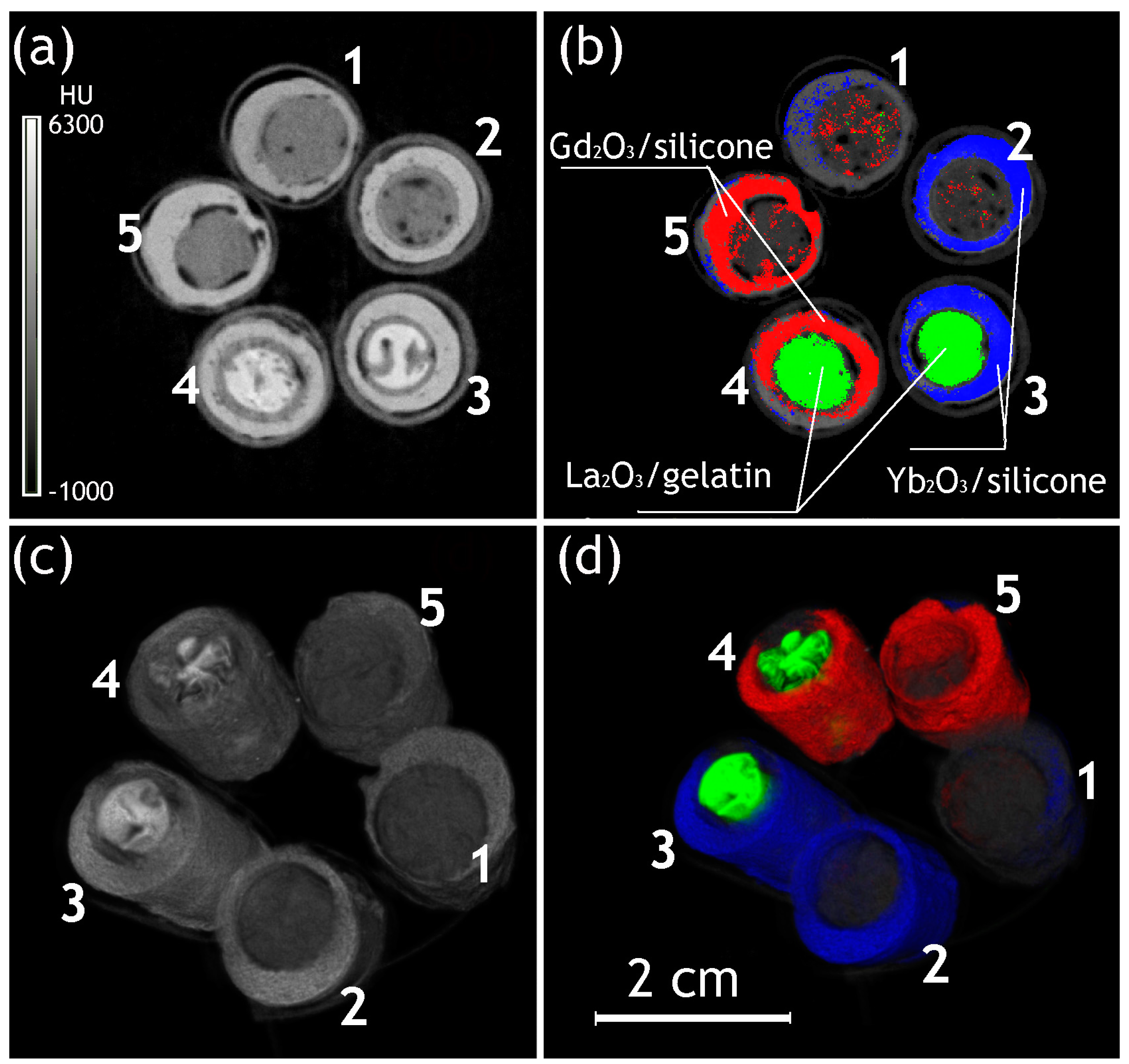

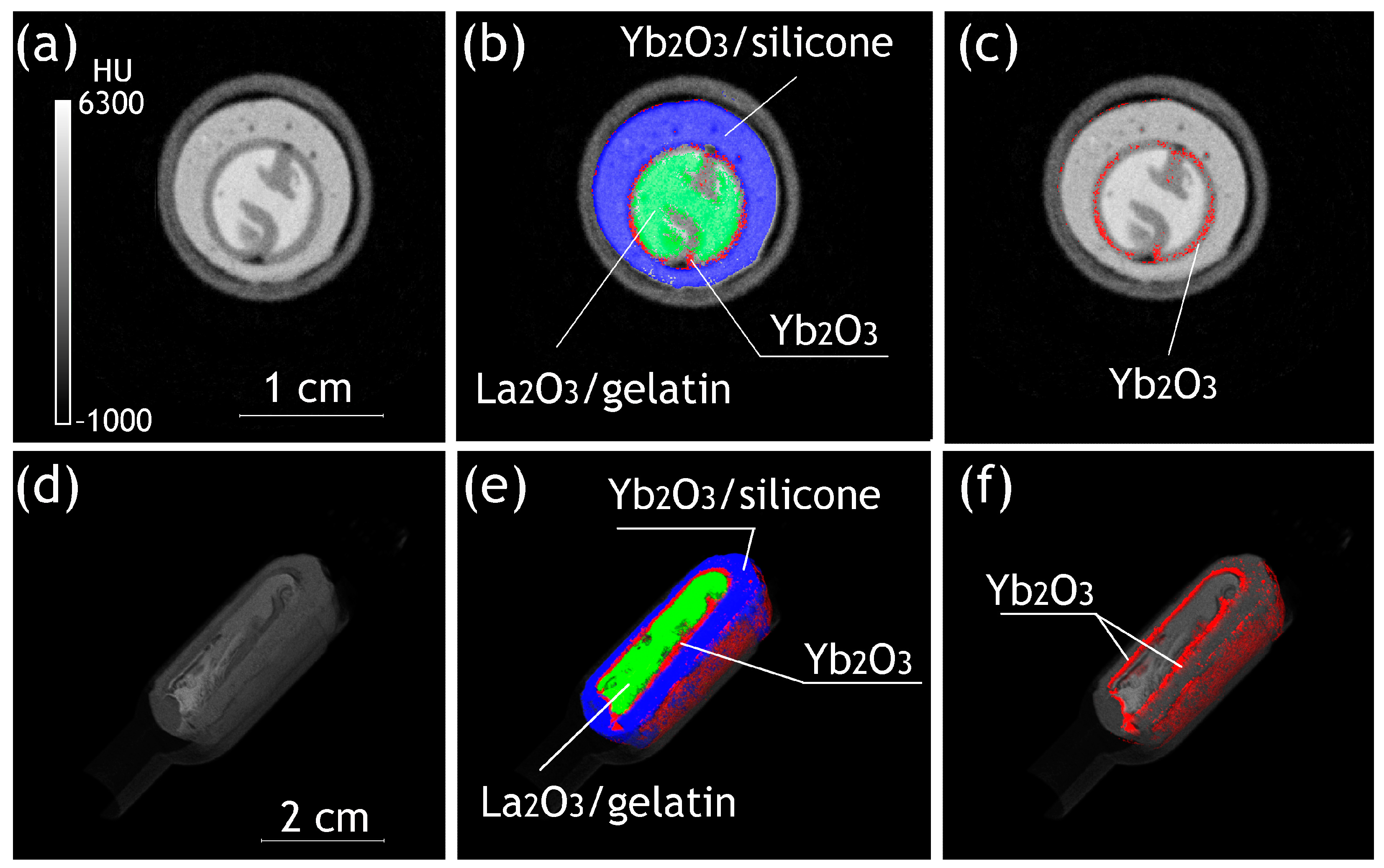

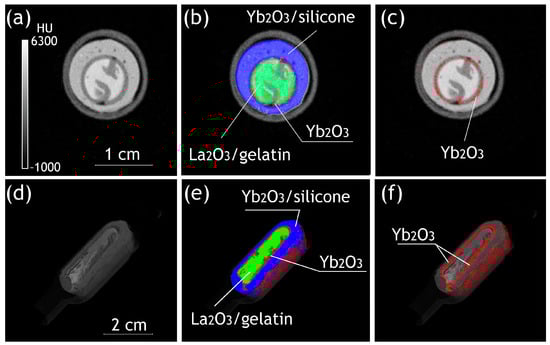

The images of the 3D reconstruction of gelatin–silicone models are presented in Figure 2, and the CT numbers of the materials are summarized in Table 1. A review of the energy-integrative images produced without material determination confirmed the visualization and, to a certain extent, separation of the implant components, including the silicone shells, inner material (including heterogeneities potentially caused by gelatin shrinkage during gelling), and partially gelatin capsules, where they remained stable (Figure 2a,c). La-contrasted gelatin had a higher radiodensity than raw gelatin, but the different types of silicone shells could not be distinguished from each other.
The same images produced with the determination of materials provided higher visibility of all components, with a clear delineation of the shells from the inner materials (Figure 2b,d).
Despite the relatively positive results of the survey scans, the subsequent scans of individual gelatin–silicone implants revealed substantial abnormalities in contrast distribution in their components. The material determination scan of the implant with an Yb-contrasted silicone shell (Figure 3) revealed the presence of small particles of Yb2O3 not bound with the silicone at both the inner and outer sides of the shell (Figure 3b,c,e,f), potentially appearing as a result of the precipitation of Yb2O3 particles at the wall of the mold during the solidification of the silicone and indicating a risk to material stability and toxicity in the case of implementation. This approach to contrast enhancement was considered sub-optimal.

2.3. Synthesis and Characterization of Cross-Linked Ln2O3/PAM Samples

Following the study of gelatin-filled implants, the possibility of contrasting PAM was assessed. The introduction of Ln2O3 particles into the PAM matrix without chemical modification was not successful due to heavy oxides flaking from the reaction mixture (Figure S1, Supplementary Materials). It was concluded that the size of Ln2O3 particles should be reduced and that these particles should be subsequently coated by carbon shells forming a core–shell structure with functional surface reactive groups to ensure the covalent bonding and uniform distribution of Ln2O3 in the PAM matrix.
The concept of using carbon shells for a better distribution of Ni and Fe particles in PAM was previously presented in [47]. Hydrogels based on PAM with Ag@carbon nanotubes were described in [48]. Composites of fullerene [49], carbon dots [50], multi-walled carbon nanotubes [51,52], graphene oxide [53,54], and graphite [55] with PAM, including cross-linked carbon/PAM samples [56], have also been described. However, considering the physico-chemical properties of Ln2O3, we proposed functionalizing the carbon shell in Ln2O3@C core–shell nanoparticles with allylic groups. These groups containing the C=C bond react with acrylic acid and acrylamide via the radical polymerization process with the formation of covalent bonds.

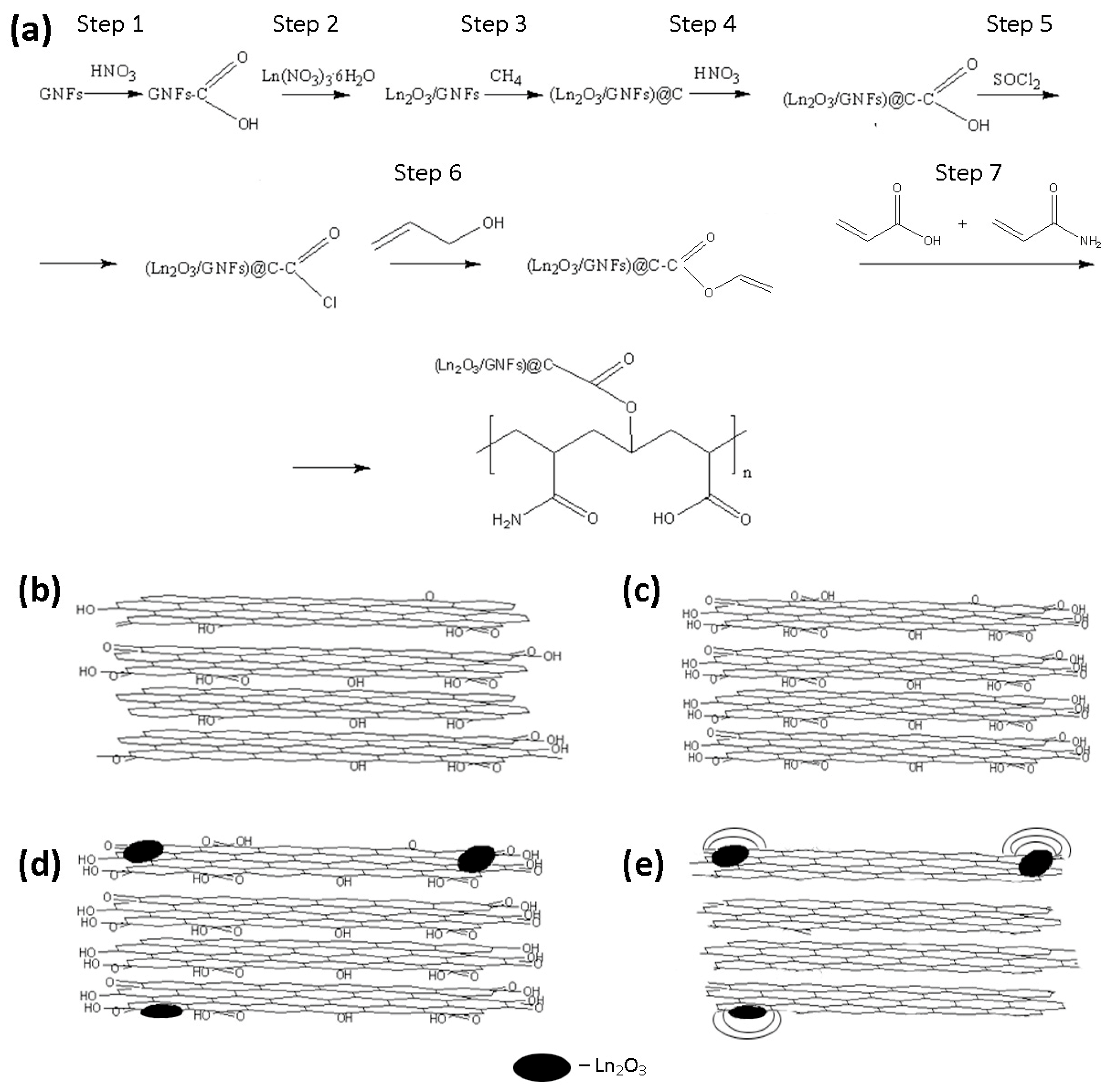

The general scheme, including the seven steps of the synthetic route, is presented in Figure 4. Nanosized Ln2O3 particles could be produced by stabilization using graphene nanoflakes (GNFs). GNFs are graphitic-like flat particles with a size of ~15 × 15 nm (Figure 5a) consisting of 7–10 stacked graphene layers (Figure 5b).
Composite Ln2O3/GNFs could be obtained through the impregnation of GNFs with a Ln(NO3)3·6H2O solution and the further decomposition of nitrate under an inert atmosphere, as described in our previous works [23,25]. The sizes of Ln2O3 particles synthesized through the above-mentioned route were 1–2 nm according to transmission electron microscopy (TEM) (Figure 5c). Subsequent graphitization by the pyrolytic decomposition of CH4 produced (Ln2O3/GNFs)@C core–shell particles, which was also confirmed by TEM (Figure 5d). The surface-oxidized (Ln2O3/GNFs)@C_ox samples were produced by (Ln2O3/GNFs)@C oxidation with HNO3 vapors. The core–shell structure and the size of the Ln2O3 core in the (Ln2O3/GNFs)@C_ox particles were preserved (Figure 5e). It should be noted that the GNF structure was saved after all the processes and surface reactions. The structure of GNF particles is clearly demonstrated in Figure S2 in the Supplementary Materials. The composition and physico-chemical properties of Ln2O3/GNFs, (Ln2O3/GNFs)@C, and (Ln2O3/GNFs)@C_ox (Ln = La and Gd), based on X-ray photoelectron spectroscopy (XPS), electron paramagnetic resonance (EPR), Raman spectra, TEM, and thermogravimetry/differential scanning calorimetry (TG/DSC) data, are partially reported in [23,57,58,59].
The surface of (Gd2O3/GNFs)@C_ox was further modified by reacting first with SOCl2 to produce an acyl chloride, and then with sodium alloxide to produce an ester. The synthesis of a nanodiamond and CNTs with surface acyl chloride groups was previously described in [60,61]. The product of the reaction of (Gd2O3/GNFs)@C-COCl with sodium alloxide was investigated by IR spectra (Figure 6). The spectra of (Gd2O3/GNFs)@C-COOCH2C2H3 were comparable with those of (Gd2O3/GNFs)@C_ox (Figure 6). The observed spectra were in good agreement with the spectral data for different oxidized carbon nanomaterials, such as graphene oxide [62,63], oxidized carbon nanotubes [64], and oxidized GNFs specifically (Figure 6). A wide line at 1710 cm−1 corresponds to the valent vibrations of the C=O fragment in the carboxyl groups. The lines at 1080 and 3130 cm−1 correspond to C-OH bonds in both carboxylic and hydroxyl groups. The lines at ~500–550 cm−1 should be associated with the Gd-O bond [65,66].

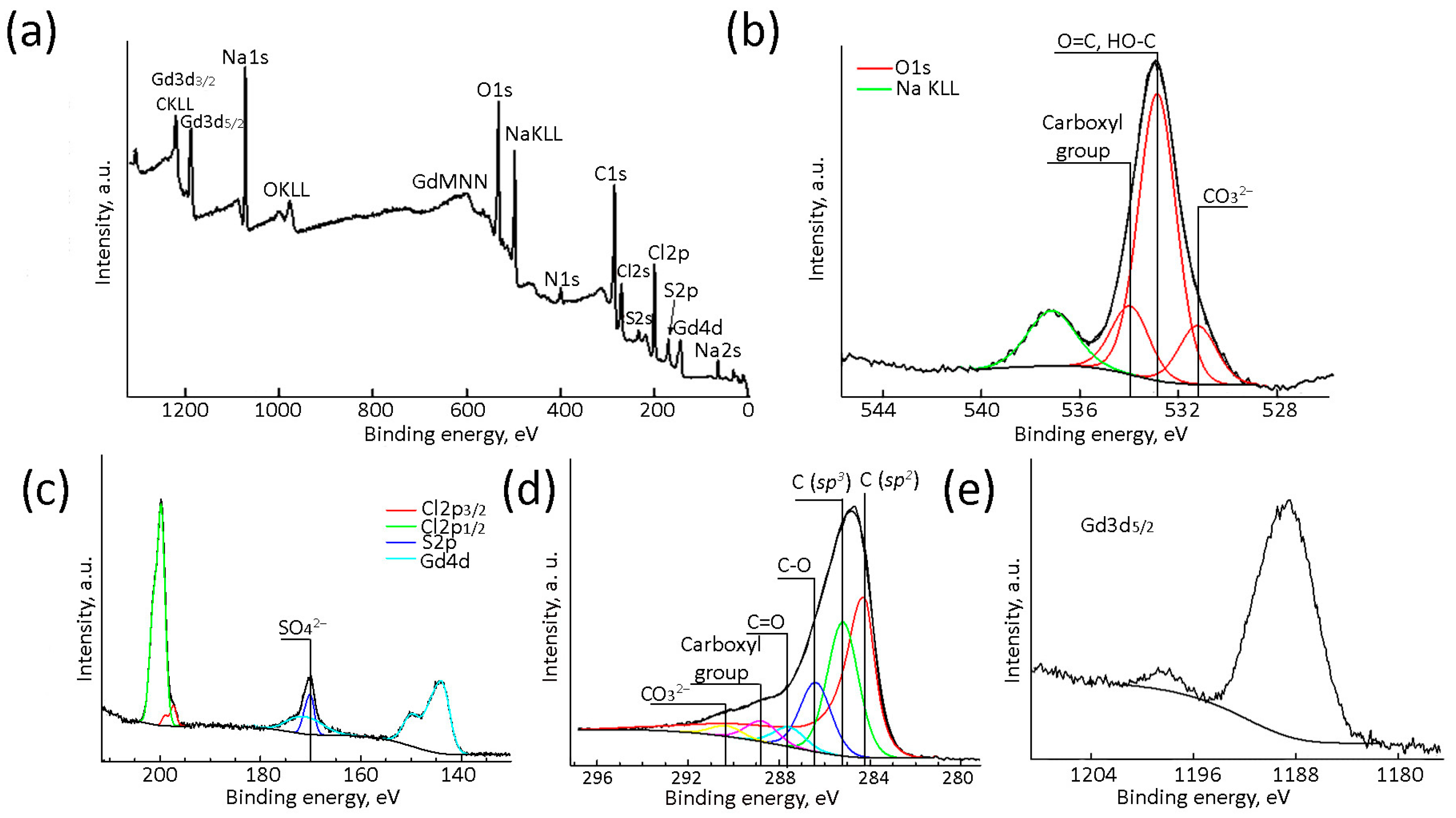

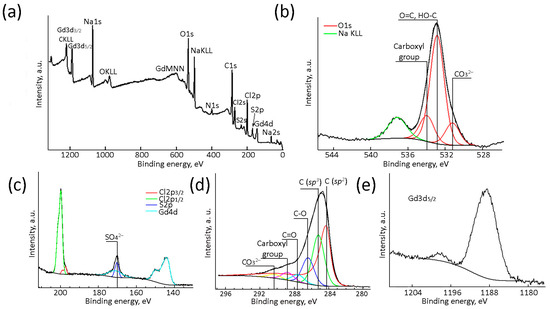

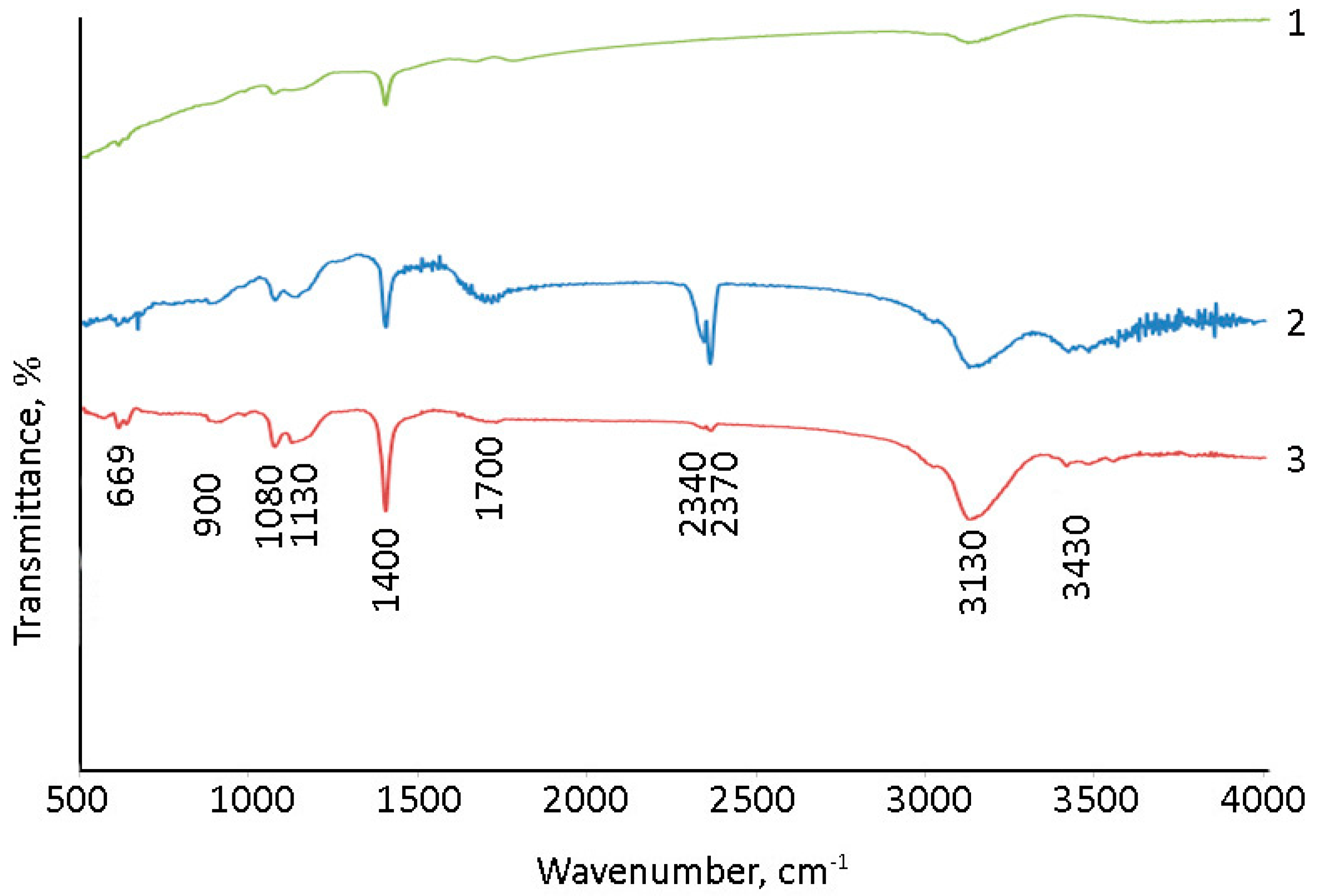

The chemical composition and the nature of atoms in the (Gd2O3/GNFs)@C-COOCH2C2H3 composition were confirmed by XPS (Figure 7). The sample consisted of 57.4 at.% C, 16.1 at.% O, 3.5 at.% Gd, 7.4 at.% Na, 9.8 at.% Cl, 3.9 at.% N, and 1.8 at.% S (Figure 7a). The sample contained NaCl (Figure 7b,c) and Na2SO4 (Figure 7c) as by-products of a metathesis reaction between (Gd2O3/GNFs)@C-COCl and NaOCH2C2H3 according to step 6 and the formation of acyl chloride via step 5 (Figure 4). Nitrogen atoms were predominantly found in the form of oxides (Figure S3, Supplementary Materials) and remained in the product after the surface oxidation phase [57,59]. High-resolution deconvoluted C1s XPS spectra of (Gd2O3/GNFs)@C-COOCH2C2H3 (Figure 7d) contained different carbon species with binding energies of 284.4, 285.2, 286.4, 287.6, 288.8, and 290.3 eV corresponding to sp2- and sp3-hybridized C, C–O, ketone C=O, and hydroxyl C(O)O groups and CO32−. This confirmed the presence of all possible carbon groups expected in (Gd2O3/GNFs)@C-COOCH2C2H3. The CO32− group in the spectra was presumably related to Gd carbonate (Figure 7e) [67] which was formed as the primary Gd phase [23]. This assumption is supported by O1s XPS spectra showing binding energies of 531.2, 532.9, and 534.0 eV corresponding to CO32−, C=O/C-OH, and COO- groups (Figure 7b).

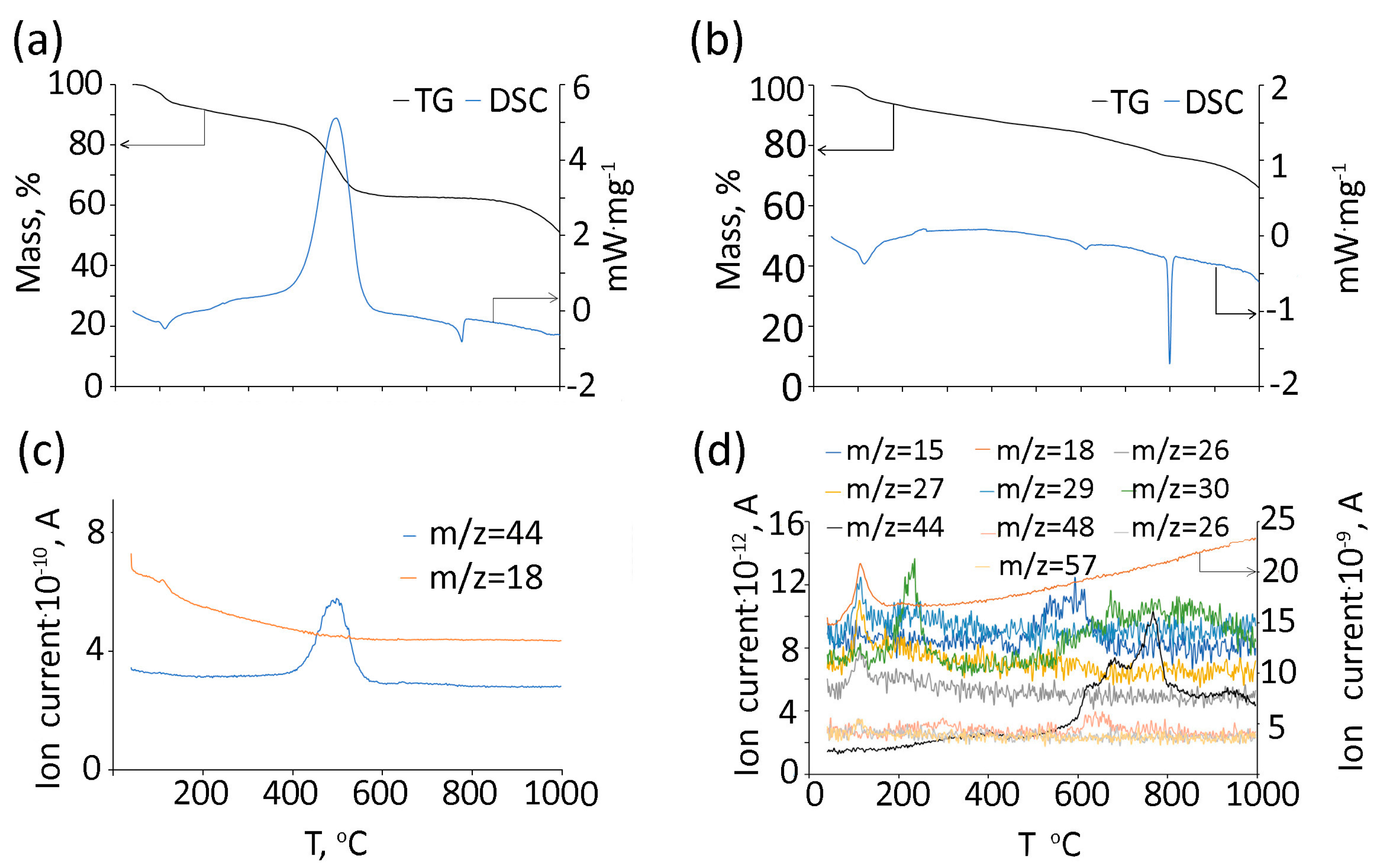

TG/DSC data of (Gd2O3/GNFs)@C-COOCH2C2H3 with mass-spectra of evolved gasses for the measurements in the air and Ar atmosphere are depicted in Figure 8a,c and Figure 8b,d, respectively. During heating in an oxidizing atmosphere, adsorption water is released with heat absorption (Figure 8a,c). Then, the carbon shell burns with an intense release of heat and CO2 peaking at approximately 500 °C. This is followed by an endothermic peak caused by the melting of NaCl, a by-product of the synthesis process. At temperatures above 800 °C, the salt decomposes, releasing chlorine. The residual mass of 50% corresponds to Gd2O3. In an inert atmosphere, the composition of gaseous products is more complex (Figure 8b,d). Water (m/z = 18, 17, and 16) and carbon dioxide (m/z = 44, 12, and 45) are released in a wide temperature range. The peak of water release is observed at a temperature slightly above 110 °C. There are also peaks for m/z = 29 (C2H5+), 27 (C2H3+), and 26 (C2H2+). Amidst background noise, peaks are also observed for m/z = 57(C3H5O+) and 56 (C3H4O+). Above 130 °C, the m/z = 30 peak begins to appear, reaching its maximum at around 230 °C. At approximately 590 °C, the maximum ion current for m/z = 15 (CH3+) is observed. Between 600 and 700 °C, SO2 is released (m/z = 64, 48) due to the by-product of synthesis in accordance with XPS data. The maximum CO2 emission is observed near 770 °C, but it is released over a much broader temperature range compared to an oxidizing atmosphere (Figure 8d).

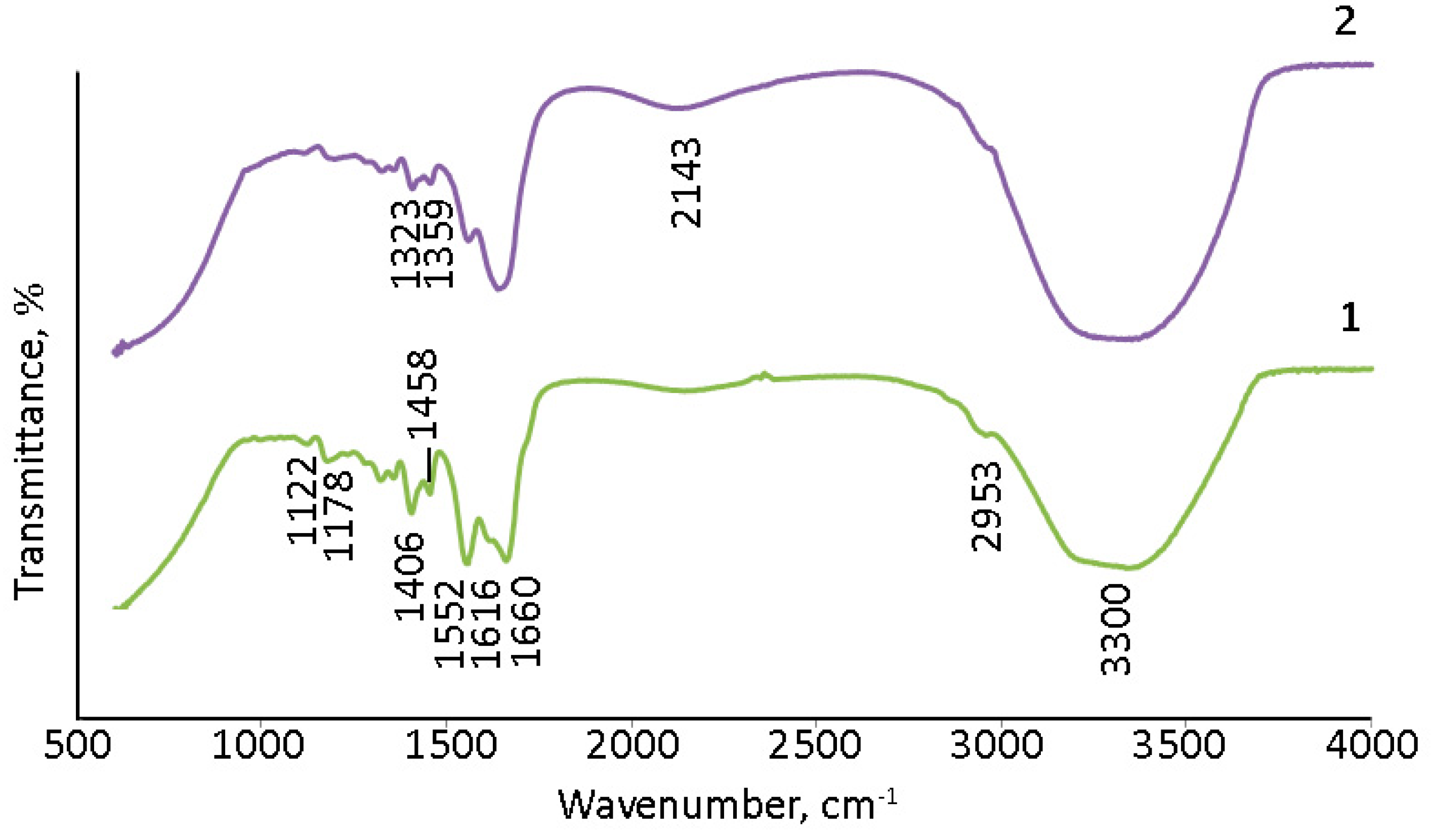

The surface modification of (Gd2O3/GNFs)@C particles by allylic groups improves their degree of dispersion in solvents [60], and they serve as functional groups reacting with the monomers acrylic acid and acrylamide via radical mechanism polymerization [60]. The IR spectra of PAM and (Gd2O3/GNFs)@C-COOCH2C2H3/PAM are presented in Figure 9. The spectra of PAM and PAM with cross-linked Gd2O3, i.e., (Gd2O3/GNFs)@C-COOCH2C2H3 particles, are similar. The interpretation of the IR spectra was based on [68,69]. The wide lines at 3300 cm−1 correspond to H2O and amide NH2 asymmetric stretching groups. The lines at 2953 and 1406 cm−1 are associated with C-H asymmetric and symmetric stretching, respectively. The lines at 1660 and 1616 cm−1 correspond to the stretching of primary and secondary amide C=O groups. C–O–C groups could contribute to the lines at 1178 and 1178 cm−1. The lines at ~1350 cm−1 could be interpreted as unreacted C=C groups and C–O–H in plane bending because of their comparable wavenumbers [68].
PAM has a unique property, namely the ability to adsorb water with swelling [70,71]. The swelling of PAM and the cross-linked Ln2O3/PAM composite was evaluated according to the increase in the weight of samples after water sorption. Two hundred milliliters of distilled water was added to a solid weighed portion of 0.50 g of the polymer sample and kept for 24 h, after which it was filtered through a sieve with a mesh size of 0.5 mm, and the weight of the swollen residue was determined. The swelling values of PAM and Gd2O3/PAM were 420 and 320 g·g−1. The densities of PAM and the (Ln2O3/GNFs)@C-COOCH2C2H3/PAM (Ln = La, Gd) composites determined as the ratio between their mass and volume were 1.27, 1.04, and 1.20 g·mL−1, accordingly. The qualitative determination of Gd in the water solution demonstrated the absence of Gd, which indirectly indicates the binding of Gd2O3 to the polymer matrix.

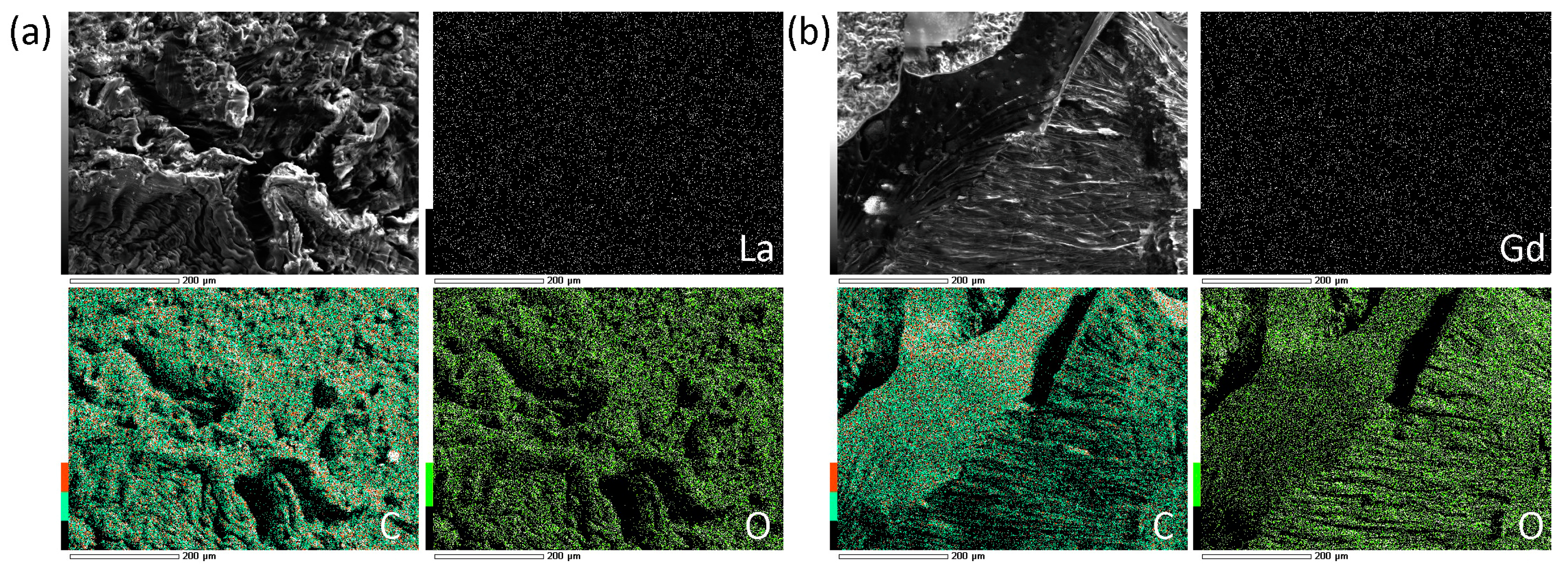

The uniformity of Ln2O3 distribution in the PAM matrix was confirmed by scanning electron microscopy (SEM) images and surface element mapping (Figure 10). The contents of La and Gd were 0.61 and 0.30 wt.% according to EDX data, which are in good agreement with the synthesis process.

2.4. Preparation and Phantom PCCT Studies of PAM-Filled Implant Models

PAM implant models were produced from standard silicone tubing filled by (Ln2O3/GNFs)@C-COOCH2C2H3/PAM (Ln = La or Gd) or PAM and sealed using silicone. The implants were solidified for 24 h before studying them. The PCCT studies were performed in one step (without survey scans) due to a smaller number of implants requiring assessment. The energy-integrative reconstructions were produced from a separate scan with a single energy threshold of 30 keV.

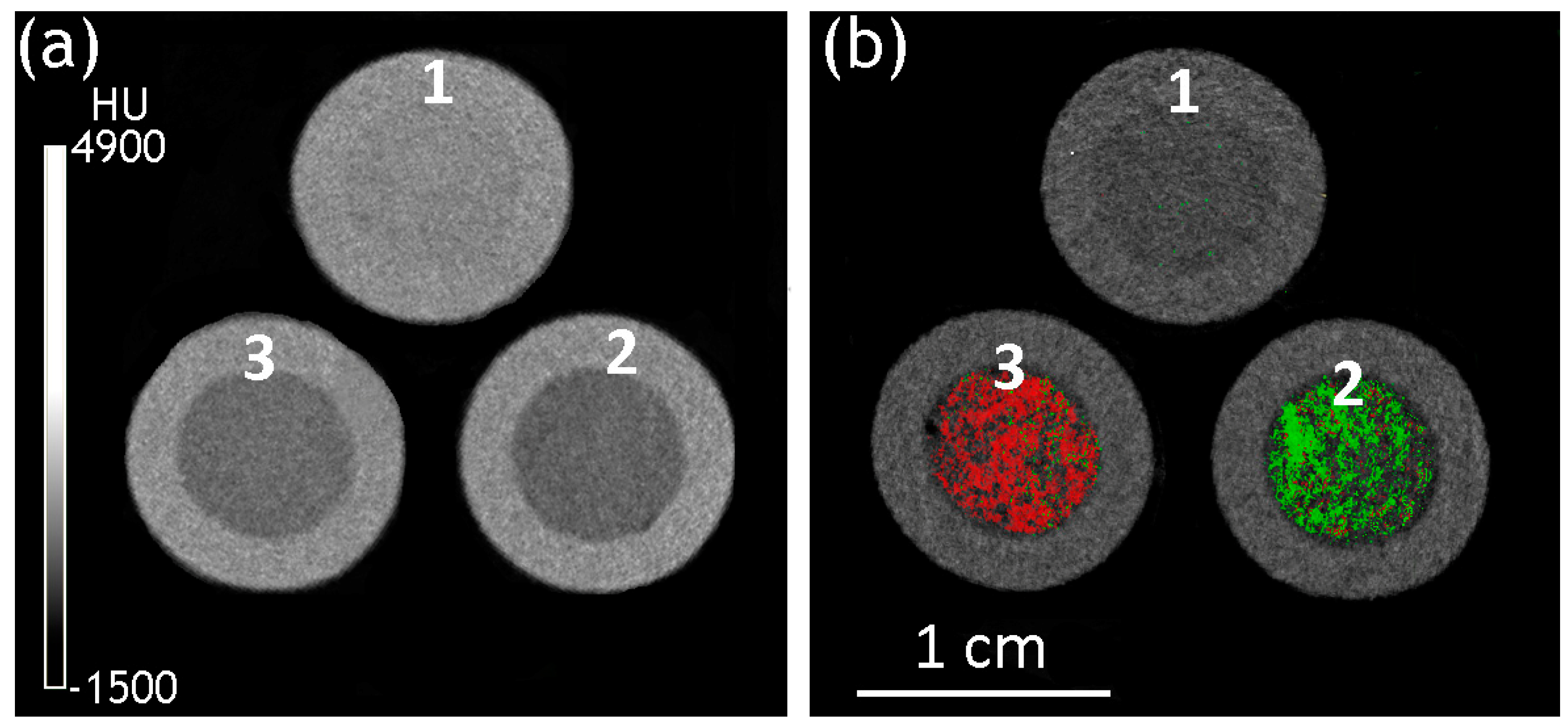

The transversal slices of the reconstructed implant models with a silicone shell and (Ln2O3/GNFs)@C-COOCH2C2H3/PAM Ln = La (a) and Gd (b) filler are presented in Figure 11. In both cases, the fillers and shells could be visualized. No visible abnormalities were detected in the distribution of the CA. The average X-ray attenuation coefficient (Table 2) of both (Ln2O3/GNFs)@C-COOCH2C2H3/PAM fillers was lower compared to raw PAM, which could be explained by the presence of low-density GNFs compensating for the higher attenuation of the Ln component of the material. However, the contrasted fillers had characteristic attenuation spectra, making it possible to separate them from the silicone shells and from each other.
The visualization and successful Ln determination in PAM fillings were performed with a Ln concentration in (Ln2O3/GNFs)@C-COOCH2C2H3/PAM of 4.5 mg·mL−1. In our past works, we demonstrated that the lower concentration threshold for Ln determination by PCCT was ~2.5 mg·mL−1 [23], while further optimization of material determination algorithms allows for it to be reduced to under ~1 mg·mL−1 [44]. This confirms the higher potential of Ln contrast enhancement compared to other approaches, such as iodine-based contrasts [72], requiring higher CA concentrations (>4 mg·mL−1 iodine in clinical applications) and not allowing the simplified production of multiple CAs for simultaneous visualization. This also confirms the high potential of the proposed materials from a biocompatibility perspective. Their core–shell structure provides additional shielding for Ln nanoparticles, which is expected to decrease their cytotoxicity compared to simpler nanoparticles with direct contact between Ln and biological media [73]. However, the biocompatibility of the contrasted materials requires further comprehensive studies due to the different nature of possible exposure compared to the commonly studied contrasts for short-term IV administration.

3. Conclusions

The results of this study demonstrate that Ln2O3 contrasting can be an effective method for the visualization of hydrogel-based implants for diagnostic studies involving CT or PCCT. Various combinations of Ln can be used, although the suitability and effectiveness of each individual combination should be confirmed through calibration experiments. The inclusion of CA particles into the components of the implant at the stage of polymerization without covalent bonding may give sub-optimal results due to the redistribution of the contrast, including the dissemination of the contrast at the surface of the implant. Covalent bonding of the CA into the hydrogel structure with the formation of the new cross-linked Ln2O3/PAM composite increases the uniformity of its distribution in the material and increases its stability. Ln2O3/PAM composites can be visualized with specific Ln determination in implantable systems with Ln concentrations below 5 mg·mL−1, demonstrating their high potential compared to other contrast enhancement approaches. The structure of the proposed materials allows for low cytotoxicity to be anticipated, although this requires further comprehensive studies due to their different uses and possible mechanisms of exposure compared to the Ln-based nanoparticle contrasts described in the literature.

4. Materials and Methods

4.1. Synthesis of Cross-Linked Ln2O3/PAM Samples

The general scheme of the synthetic route, including seven steps, and models of component structures are shown in Figure 3. The synthesis and product characterization of steps 1–4 are described in detail in our previous works [57,58,59]. Steps 5–7 were originally described for modifying the nanodiamond surface in [60] and customized for the composites produced in step 4.

4.1.1. Synthesis of Contrast Agents

In brief, GNFs were synthesized by the pyrolysis of hexane (99.8%, Reachim) at 900 °C in the presence of a MgO template according to [74]. MgO was removed by boiling in HCl (99.9%, Reachim). The obtained GNFs were washed with distilled water and dried at 110 °C.
Step 1. GNFs were oxidized by HNO3 (Component-Reaktiv) refluxing for 1 h to produce a GNFs_ox sample. The content of oxygen on the GNFs_ox surface was 11.1 at.% [59].
Step 2. Then, the GNFs_ox samples were impregnated with Ln(NO3)3·6H2O (Ln = La and Gd) (99%, China Northern Rare Earth Group High-Tech Co., Ltd., Baotou, China) ethanolic solution. The solvent was evaporated slowly using an ultrasound bath. After that, the solid sediment was heated at 400 °C with nitrogen (99.999%, NII KM, Moscow, Russia) flow for 45 min to decompose nitrate and obtain a Ln2O3/GNF composite [23].
Step 3. The core–shell structure (Ln2O3/GNFs)@C was achieved by methane decomposition over Ln2O3/GNFs particles [58]. The Ln2O3/GNFs sample was placed into the fixed-bed reactor, purged with nitrogen, and heated to 450 °C. After that, methane (99.99% Moscow Gas Processing Plant, Moscow, Russia) was passed through the reaction mixture for 15–20 min. The product (Ln2O3/GNFs)@C was used without purification.
Step 4. The surface oxidation of (Ln2O3/GNFs)@C particles was performed via HNO3 gas phase treatment according to recommendations [57,59]. The (Ln2O3/GNFs)@C sample was put into the open glass vessel and treated with HNO3 vapors for 1 h. Adsorbed HNO3 was washed by dt. H2O, and the resulting product (Ln2O3/GNFs)@C_ox was dried at 110 °C.
Step 5. The next surface modification process for (Ln2O3/GNFs)@C_ox involved the substitution of the hydroxyl group in a carboxylic group with a chlorine atom to produce acyl chloride. For this purpose, 1.0 g of (Ln2O3/GNFs)@C_ox was placed in a round-bottomed double-crested bowl equipped with a thermometer and a reflux condenser. Fifty milliliters of SOCl2 was added. The reaction mixture was refluxed at 80 °C for 24 h. The unreacted SOCl2 was evaporated to produce acyl chloride (Ln2O3/GNFs)@C-COCl.
Step 6. The synthesis of the ester was carried out through the reaction of acyl chloride (Ln2O3/GNFs)@C-COCl with sodium alloxide. Metallic Na in the amount of 0.46 g was added to 50 mL of allylic alcohol (>99%, Himkraft Ltd., Kaliningrad, Russia). After the reaction, the NaOCH2C2H3 solution was dropped to (Ln2O3/GNFs)@C-COCl under an Ar (99.993%, Logica Ltd., Moscow, Russia) atmosphere. The reaction mixture was refluxed for 8 h; the solid product (Ln2O3/GNFs)@C-COOCH2C2H3 was centrifugated at 6000 rpm and washed with ethylacetate two times. The product was kept at 0 °C in the dark until the next stage.

4.1.2. Synthesis of PAM

PAM was synthesized according to the standard procedure of the copolymerization of potassium acrylate, acrylamide, and the crosslinking agent N,N′-methylenebisacrylamide with (NH4)2S2O8 as a catalyst of the radical polymerization process [75,76,77]. Acrylic acid (99.98%, Vekton, St. Petersburg, Russia) in the amount of 7.1 g was dissolved in 20 mL of water and neutralized to pH 7 with 50 mL of a KOH solution. Acrylamide (99.9%, Vekton, St. Petersburg, Russia) in the amount of 9.12 g was dissolved in 40 mL of H2O. Both solutions were combined, and then 0.0270 g of N,N′-methylenebisacrylamide (99.99%, Amresco LLC, Boise, ID, USA) was added. The mixture was blown by Ar. Solid (NH4)2S2O8 (99%, Ruschem, Moscow, Russia) was added. The reaction mixture was heated to 50 °C to trigger the gelling reaction and then self-heated to 90 °C. The product was washed with water and dried at 130 °C for 10 h.

4.1.3. Synthesis of Ln2O3/PAM Composites

The composites of PAM with Ln2O3 (Ln = La, Gd, and Yb) (99.99%, China Northern Rare Earth Group High-Tech Co., Ltd., Baotou, China) were synthesized by sewing the suspended composites in the PAM matrix via the copolymerization of monomers according to [78]. Solid Ln2O3 was added to the water solution of potassium acrylate and acrylamide (the concentration of monomers was in accordance with the previous synthesis description) with vigorous stirring. The mass content of Ln2O3 varied from 5 to 25 wt.%. N2 was blown out, and a water solution of N,N′-methylenebisacrylamide was titrated to the reaction mixture. The polymerization reaction started after Na2S2O8 addition. However, in all cases, Ln2O3 flaked out.
Step 7. A cross-linked sample, (Gd2O3/GNFs)@C-COOCH2C2H3/PAM, was obtained by adding solid (Gd2O3/GNFs)@C-COOCH2C2H3 powder into the reaction mixture of potassium acrylate, acrylamide, and N,N′-methylenebisacrylamide before the copolymerization process. The mixture was intensively stirred and purged with Ar for 20 min. (NH4)2S2O8 was added as an initial agent. The reaction was generally similar to the synthesis of polyacrylamide. The contents of Ln in the composition of (Ln2O3/GNFs)@C-COOCH2C2H3/PAM were 0.39 and 0.30 wt.% for the La and Gd composites, respectively.

4.2. Methods

The thermal stability of (Gd2O3/GNFs)@C-COOCH2C2H3 was studied using a simultaneous thermal analyzer, STA 449 C Jupiter, combined with a quadrupole mass-spectrometer, QMS 403 C Aeolos (both NETZSCH, Selb, Germany). The material in the Al2O3 crucible was heated at a rate of 10 °C·min−1 from 40 to 1000 °C, both in oxidizing (airflow of 80 mL·min−1) and inert (Ar flow of 80 mL·min−1) atmospheres. The weighing block was purged with a flow of argon protective gas of 40 mL·min−1. The signals of thermogravimetry (TG), differential thermogravimetry (DTG), differential scanning calorimetry (DSC), and ion currents corresponding to certain m/z ratios of evolved gasses were recorded during the heating process. A baseline correction was applied for the TG/DSC curves using the measurement with an empty crucible.
The morphology and particle size were studied by SEM using JEOL JSM-6390LA and JEOL JCM-6000 instruments (JEOL Ltd., Tokyo, Japan). TEM images were obtained using JEOL 2100 F/Cs (Jeol, Tokyo, Japan) operating at 200 kV and equipped with a UHR pole tip as well as a spherical aberration corrector (CEOS, Heidelberg, Germany) and EEL spectrometer (Gatan, Munich, Germany).
The materials were studied using an FTIR spectrometer, FSM 1202 (Infraspek, Moscow, Russia). Transmission spectra were obtained by accumulating 30 scans with a resolution of 4 cm−1. Powdered samples were pressed into tablets with KBr (98.5%, BLD Pharmatech Ltd. China, Shanghai, China) using a hydraulic press (OMEC, Brescia, Italy). A reference spectrum was registered from a pure KBr pellet. Polyacrylamide samples were pressed to a ZnSe crystal of the multi-reflection ATR accessory.
The XPS spectra were recorded on an Axis Ultra DLD spectrometer (Kratos Analytical, Manchester, UK) using monochromatic AlKα radiation (1486.7 eV). The pass energies of the analyzer were 160 eV for survey spectra and 40 eV for high-resolution scans. The relative error for the element concentrations was about 5%.

4.3. PCCT Studies

PCCT studies were conducted using a MARS Bioimaging microtomograph (MARS Bioimaging Ltd., Christchurch, New Zealand) equipped with 2 Medipix 3RX CZT pixel detectors [79] with a sensor size of 14 mm × 14 mm and a thickness of 1 mm. The material determination scans of the gelatin-filled implant prototypes were performed with energy thresholds of 7, 25, 37, 48, 58, 72, 80, and 90 keV, which were chosen based on the K-edge energies of the studied Ln (38.9, 50.2, and 61.3 keV for La, Gd, and Yb, respectively). The scans of the PAM-filled implant prototypes were performed with energy thresholds of 7, 25, 36, 48, and 60 keV since only La and Gd were used. The images illustrating the energy-integrative reconstructions were produced using a 37–48 keV energy window (for gelatin-filled implant prototypes) or by separate scans within a single energy threshold at 30 keV (for PAM-filled implant prototypes). The scans were performed in continuous circular mode with automated flat field correction, a geometric magnification of 1.7, and rotation steps of 1° in survey and calibration scans and 0.5° in the scans of individual implants. The reconstruction was performed with a voxel size of 0.12 mm for survey scans and 0.06 mm for calibration scans and scans of individual implants. Because of the detector size, the total scanning time in all studies was approximately 70 min, including 55 min for acquiring the actual projections and 15 min for acquiring the flat field data for all camera positions (up to 4 for each position of the sample). Scanning was performed with temperature conditioning, keeping the detector temperature under 16 °C. Visualization was performed using the Mars Vision 2.0 software (MARS Bioimaging Ltd., Christchurch, New Zealand). The energy-integrative attenuation data were additionally translated into the Hounsfield scale using additional water samples scanned with the same parameters. The CT numbers (HU values) were measured from transversal slices for the area of at least 2 mm2 and presented as mean ± SD.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/gels10120807/s1, Figure S1: SEM images of PAM (a) and mixture of La2O3 (b) and Gd2O3 (c) with PAM synthesized during polymerization of acrylic acid and acrylamide in presence of Ln2O3. Figure S2: HRTEM (a,b) and HAADF-STEM (c) images with EELS spectra of (Gd2O3/GNFs)@C-COOCH2C2H3 (d). Figure S3: N1s XPS spectra of (Gd2O3/GNFs)@C-COOCH2C2H3.

Author Contributions

Conceptualization, E.V.S. and D.A.S.; methodology, K.I.M., S.Y.K. and T.O.L.; validation, D.A.S. and G.A.C.; formal analysis, E.V.S., K.I.M., S.Y.K. and T.O.L.; investigation, E.V.S., D.A.S. and T.O.L.; resources, G.A.C.; writing—original draft preparation, E.V.S., D.A.S. and K.I.M.; writing—review and editing, E.V.S., D.A.S., K.I.M., S.Y.K. and G.A.C.; visualization, E.V.S. and D.A.S.; supervision, G.A.C. and O.S.M.; project administration, O.S.M. and G.A.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Russian Science Foundation, grant number 22-15-00072.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article/supplementary material. Further inquiries can be directed to the corresponding authors.

Acknowledgments

The authors thank Sergey Maximov and Dmitry Stolbov for the TEM and SEM images and acknowledge the support from the “Nanochemistry and Nanomaterials” Equipment Center under the Lomonosov Moscow State University Program of Development.

Conflicts of Interest

The authors declare no conflicts of interest.
