Characterization of the Fungitoxic Activity on Botrytis cinerea of N-phenyl-driman-9-carboxamides

by
Ricardo Melo
1,
Verónica Armstrong
2,
Freddy Navarro
3,
Paulo Castro
3,
Leonora Mendoza
3,* and
Milena Cotoras
3,*
1
Núcleo de Química y Bioquímica, Facultad de Estudios Interdisciplinarios, Universidad Mayor, Santiago 8580745, Chile
2
Departamento de Química Orgánica, Facultad de Química, Pontificia Universidad Católica de Chile, Santiago 7820436, Chile
3
Laboratorio de Micología, Facultad de Química y Biología, Universidad de Santiago de Chile, Santiago 7820436, Chile
*
Authors to whom correspondence should be addressed.
J. Fungi 2021, 7(11), 902; https://doi.org/10.3390/jof7110902
Submission received: 23 September 2021 / Revised: 22 October 2021 / Accepted: 22 October 2021 / Published: 26 October 2021
(This article belongs to the Special Issue Infection Mechanisms of Botrytis cinerea and Compounds with Antifungal Activity)
Browse Figures
Review Reports Versions Notes

Abstract

:
A total of 12 compounds were synthesized from the natural sesquiterpene (-) drimenol (compounds 4 to 15). The synthesized compounds corresponded to N-phenyl-driman-9-carboxamide derivatives, similar to some fungicides that inhibit the electron-transport chain. Their structures were characterized and confirmed by 1H NMR, 13C NMR spectroscopy, and mass spectrometry. Compounds 5 to 15 corresponded to novel compounds. The effect of the compounds on the mycelial growth of Botrytis cinerea was evaluated. Methoxylated and chlorinated compounds in the aromatic ring (compounds 6, 7, 12, and 13) exhibited the highest antifungal activity with IC50 values between 0.20 and 0.26 mM. On the other hand, the effect on conidial germination of B. cinerea of one methoxylated compound (6) and one chlorinated compound (7) was analyzed, and no inhibition was observed. Additionally, compound 7 decreased 36% the rate of oxygen consumption by germinating conidia.

1. Introduction

Botrytis cinerea is a facultative phytopathogenic fungus causing grey mold disease in a wide range of hosts. It infects aerial parts of the plants such as leaves, stems, fruits, and flowers of 586 genera of vascular plants, representing over 1400 ornamental and agriculturally important plant species. [1]. Due to the economic losses caused by this pathogen and the difficulties in its control, B. cinerea infection represents one of the main phytosanitary problems worldwide [2,3].
The use of synthetic fungicides is the main strategy to control this pathogen. The mechanisms of action of these fungicides are as diverse as their structures [4]. Succinate dehydrogenase inhibitors (SDHI), belonging to the carboxamide family, are the most used fungicides to control B. cinerea [5]. These compounds can bind to the union site of the ubiquinone in the Complex II of the mitochondrial electron chain transport through hydrophobic interactions among the aromatic ring of the fungicide and a proline residue and two tryptophan residues of the Complex II. On the other hand, a hydrogen bond is produced among the carbonyl group of the fungicide and a tyrosine residue of Complex II. These interactions interrupt electronic transport from [3Fe–4S] cluster to ubiquinone in Complex II, affecting the cellular respiration in B. cinerea [5,6,7].
Resistance of B. cinerea to fungicides is a permanent problem [8,9,10,11], so various strategies have been developed, such as increasing the doses of fungicides and the use of alternative fungicides [12,13,14]. Secondary metabolites are an option for searching for new fungicides since some of these compounds or their derivatives have exhibited fungitoxic activity against B. cinerea [15,16,17,18], which shows a strong relationship between some functional groups in its structure with fungitoxic activity [19,20,21,22,23]. Drimane sesquiterpenes are secondary metabolites with bicyclic skeletons that present numerous biological activities [24]. It has been reported that drimenol, obtained from Canelaceas (Canellaceae) species, showed cytotoxic, antibacterial, antifungal, and anti-inflammatory activity. [24]. It was also determined that drimenal has a higher fungitoxic activity than drimenol, both extracted from the bark of winter cinnamon (Drimys winteri Forst.), with IC50 of 81.8 μg/mL (0.37 mmol/L) and >125 μg/mL (>0.6 mmol/L), respectively [25]. The increase in fungitoxic activity observed with drimenal is not observed when drimenol is acetylated, while the epoxy acetate derivative shows a decrease in fungitoxic activity concerning drimenol [26].
This study proposed to analyze the antifungal activity against B. cinerea of 12 SDHI-like compounds synthesized from drimenol by reaction between this compound and substituted anilines. Furthermore, we analyzed the possible mode of action of two of the most active compounds on B. cinerea.

2. Materials and Methods

2.1. General Conditions

Reagents used in synthesis were obtained from Sigma-Aldrich Co. (St. Louis, MO, USA). Organic solvents were obtained from Merck Química Chilena (Santiago, Chile). Column chromatography was carried out using Gel 60 (0.063–0.200 mm) (Merck, Darmstadt, Germany), and thin-layer chromatography (TLC) was performed on Merck Kiesegel 60 F254 0.2 cm.
Synthesis of the compounds was carried out from natural (-)drimenol extracted from the bark of winter cinnamon [27], provided by the Natural Product Laboratory of the Universidad Católica de Chile.
A Thermo Scientific gas chromatography coupled with a mass spectrometer (GC-MS) system (GC model: Trace 1300 and MS model: TSQ8000Evo) (Waltham, MA, USA) was used to analyze the samples. The separation was performed on a 60 mm × 0.25 mm internal diameter fused silica capillary column coated with 0.25 µm film Rtx-5MS. The oven temperature was maintained at 40 °C for 5 min, and then set from 40 to 80 °C at 5 °C/min, then from 80 to 300 °C at 30 °C/min, and finally maintained at 300 °C for 25 min. A splitless injection was used with helium as a carrier gas, and the flow rate was 1.2 mL/min. Mass spectra were recorded over a range of 40 to 400 atomic mass units at 0.2 s/scan, the solvent cut time was 11 min, and the ionization energy was 70 eV.

2.2. Synthesis of Compounds

2.2.1. Synthesis of Driman-11-ol (2)

Palladium/carbon (10%) was added to a solution of drimenol (1) (2.25 mmol) dissolved in methanol p.a. (50 mL). This mixture was treated with molecular hydrogen for 4 h, and the mixture was filtered out. The solvent was concentrated under vacuum to afford crude reaction, and then it was purified through column chromatography using hexane:acetate 8:2 as mobile phase. The NMR signals (see Appendix A) were compared with previous reports [28,29,30].

2.2.2. Synthesis of Driman-11-oic Acid (3)

Jones reagent (CrO3/H2SO4) drops were added to a solution of (2) (2.23 mmol) in acetone p.a (50 mL) until the obtention of a permanent orange coloration in the solution. The mixture was concentrated in a vacuum to obtain a green crude which was then extracted with ethyl acetate. This extract was concentrated in a vacuum, and an acid-base extraction was carried out. The organic phase was evaporated to dryness, obtaining driman-11-oic acid (3) as a white-colored solid. The NMR signals analysis (see Appendix A) showed that these signals correlate with previous reports [31].

2.2.3. Synthesis of Drimancarboxamide Derivatives

Compound 3 (0.42 mmol) was dissolved in the minimum amount of thionyl chloride (SOCl2) and three drops of N,N-dimethylformamide (DMF). The solution was refluxed for 3 h, then was distilled at reduced pressure and dissolved in dichloromethane (CH2Cl2). 0.42 mmol of the corresponding aniline (1:1 to chloride compound synthesized from (3)) and 0.42 mmol of triethylamine in CH2Cl2 anhydrous were added drop by drop. The mixture remained at 0 °C. The product of the reaction was purified through column chromatography. Anilines used were: aniline, 3,4-dichloroaniline, 3,4-dimethoxyaniline, 3,4-dimethylalanine, 3,5-dichloroaniline, 3,5-dimethoxyaniline, 3-chloroaniline, 4-chloraniline, 3-methylaniline, 4-methylaniline, 3-methoxyaniline, and 4-methoxyaniline. Thus, 12 compounds were obtained (compounds 4 to 15).

2.2.4. Spectroscopic Data of Compounds 4–15

2,5,5,8a-tetramethyl-N-phenyldecahydronaphthalene-1-carboxamide or N-phenyl-driman-9-carboxamide (4); light yellow solid, yield 40%, and m.p.:194 °C. 1H NMR (400 MHz, CDCl3) δ 7.43 (2H, d, J = 8.1 Hz, Ha`), 7.20 (2H, t, J = 7.7 Hz, Hb`), 6.99 (1H, t, J = 6.9 Hz, Hc`), 1.07 (3H, s, CH3), 0.81 (3H, d, J = 6.5 Hz, CH3), 0.79 (3H, s, CH3), 0.77 (3H, s, CH3). 13C NMR (100 MHz, CDCl3) δ 171.67 (C=O), 137.17 (C1`), 127.86 (C3`), 122.88 (C4`), 118.84 (C2`), 61.10 (C1), 55.45 (C4a), 41.17 (C6), 38.93 (C8), 37.30 (C8a), 33.44 (C3), 32.44 (CH3–C2), 32.20 (C5), 31.55 (CH3–C5), 20.54 (C2), 17.12 (C4), 16.41 (C7), 16.11 (CH3–C8a), 15.11 (CH3–C5). GC-MS RI(Rtx-5ms) = 2809.6, C21H31NO EI-MS m/z: 93 (100); 123 (31.14); 135 (28.12); 205 (46.93); 220 (27.3); [M]+ = 313 (26.63).
2,5,5,8a-tetramethyl-N-(3,4-dimethylphenyl)decahydronaphthalene-1-carboxamide or N-(3,4-dimethylphenyl)-driman-9-carboxamide (5); purple solid, yield 37%, and m.p.:157 °C. 1H NMR (400 MHz, CDCl3) δ 7.27 (1H, d, J = 2.1 Hz, Ha`), 7.12 (1H, dd, J = 8.1, 2.1 Hz, Hc`), 6.94 (1H, d, J = 8.1 Hz, Hb`),2.12 (6H, s, CH3 (C3`) CH3 (C4`)), 1.07 (3H, s, CH3), 0.8 (3H, d, J = 6.5 Hz, CH3), 0.79 (3H, s, CH3), 0.77 (3H, s, CH3). 13C NMR (100 MHz, CDCl3) δ171.11 (C=O), 136.07 (C3′), 134.56 (C1′), 131.32 (C4′), 128.80 (C5′), 120.37 (C2′), 116.46 (C6′), 66.80 (C1), 53.64 (C4a), 41.07 (C6), 39.61 (C8), 36.80 (C8a),34.57 (C3), 32.58 (CH3–C2), 32.22 (C5), 29.00 (C2), 20.79 (CH3-C5), 20.59, 19.92 (CH3–C8a), 18.81 (CH3–C3′), 18.13, 17.70 (CH3–C4′), 13.51 (CH3–C5). GC-MS RI(Rtx-5ms) = 2971.5, C23H33NO EI-MS m/z: 121 (100); 122 (17.10); 123 (12.93); 163 (21.16); [M]+ = 341 (20.21).
2,5,5,8a-tetramethyl-N-(3,4-dimethoxyphenyl)decahydronaphthalene-1-carboxamide or N-(3,4-dimethoxyphenyl)-driman-9-carboxamide (6); brown oil, and 40% yield. 1H NMR (200 MHz, CDCl3) δ7.41 (1H, d, J = 1.8 Hz, Ha`), 6.86 (1H, dd, J = 8.2, 1.7 Hz, Hc`), 6.75 (1H, d, J = 8.2 Hz, Hb`), 3.83 (6H, s, OMe (C3`), OMe (C4`)), 1.14 (3H, s, CH3), 0.90 (3H, s, CH3), 0.86 (3H, s, CH3), 0.85 (3H, s, CH3). 13C NMR (100 MHz, CDCl3) δ 172.34 (C=O), 149.01 (C3`), 145.61 (C4`), 131.80 (C1`), 111.65 (C6`), 111.31 (C5`), 104.86 (C2`), 67.90 (C9), 56.21 (OMe–C4`), 55.90 (OMe–C3`), 54.74 (C4a), 42.16 (C6), 40.71 (C8), 37.91 (C8a), 35.68 (C3), 33.70 (C5), 33.33 (CH3-C2), 30.12 (C2), 21.90 (CH3–C5), 21.68 (CH3–C8a), 21.07 (C4), 18.81 (C7), 14.64 (CH3–C5). GC-MS RI(Rtx-5ms) = 3137.7, C23H35NO3 EI-MS m/z: 69 (10.6); 138 (16.96); 153 (100); 154 (10.01); [M]+ = 373 (16.48).
2,5,5,8a-tetramethyl-N-(3,4-dichlorophenyl)decahydronaphthalene-1-carboxamide or N-(3,4-dichlorophenyl)-driman-9-carboxamide (7); orange oil, and 40% yield. 1H NMR (400 MHz, CDCl3) δ 7.75 (1H, s, Ha`), 7.31 (2H, d, J = 1.1 Hz, Hb` y Hc`), 1.12 (3H, s, CH3), 0.86 (3H, s, CH3), 0.85 (3H, s, CH3), 0.84 (3H, s, CH3). 13C NMR (101 MHz, CDCl3) δ 172.73 (C11), 137.32 (C1`), 132.80 (C3`), 130.49 (C5`), 127.36 (C4`), 121.84 (C2`), 119.36 (C6`), 68.07 (C9), 54.80 (C5), 42.16 (C6), 40.88 (C1), 38.10 (C10), 35.64 (C7), 33.71 (C4), 33.39 (C13), 30.21 (C8), 21.92 (C14), 21.69 (C12), 21.03 (C6), 18.82 (C2), 14.65 (C15). GC-MS RI(Rtx-5ms) = 3162.1, C21H29Cl2NO EI-MS m/z: 69 (43.47); 97 (43.23); 123 (56.37); 137 (46.52); 193 (100); [M]+ = 381 (10.56); [M+2]+ = 383 (7.36); [M+4]+ = 385 (1.27).
2,5,5,8a-tetramethyl-N-(3,5-dimethoxyphenyl)decahydronaphthalene-1-carboxamide or N-(3,5-dimethoxyphenyl)-driman-9-carboxamide (8); orange solid, 30% yield, and m.p.: 121°C. 1H NMR (400 MHz, CDCl3) δ 6.78 (d, J = 1.7 Hz, 2H, Ha`), 6.20 (t, J = 2.2 Hz, 1H, Hb`), 3.76 (s, 6H, 2 OMe), 1.10 (d, J = 7.4 Hz, 3H, CH3), 0.86 (s, 6H, 2CH3), 0.84 (s, 3H, CH3). 13C NMR (101 MHz, CDCl3) δ 179.88 (C11), 161.41(C3′, C5′), 140.53 (C1′), 98.50 (C2′), 98.30 (C6′), 96.91 (C4’), 59.66 (C1), 56.89 (CH3–C3′), 56.29 (CH3–C5′), 55.77 (C4a), 42.51 (C6), 39.92 (C8a), 38.74 (C8), 37.63 (C3), 34.38 (C2), 33.56 (C5), 32.99 (CH3–C5), 31.91 (CH3–C5), 21.97 (C4), 21.97 (CH3–C2), 18.52 (C7), 16.48 (CH3–C8a). GC-MS RI(Rtx-5ms) = 3221.3, C23H35NO3 EI-MS m/z: 69.08(10.54); 153 (100); 154 (15.54); 195 (12.39); [M]+ = 373 (11.57).
2,5,5,8a-tetramethyl-N-(3,5-dichlorophenyl)decahydronaphthalene-1-carboxamide or N-(3,5-dichlorophenyl)-driman-9-carboxamide (9); white solid, yield 33%, and m.p.:180 °C. 1H NMR (400 MHz, CDCl3) δ 7.46 (d, J = 1.1 Hz, 2H, Ha`), 7.02 (d, J = 1.4 Hz, 1H, Hb`), 1.32 (s, 3H, CH3), 1.20 (d, J = 7.5 Hz, 3H, CH3), 0.85 (s, 3H, CH3), 0.84 (s, 3H, CH3). 13C NMR (101 MHz, CDCl3) δ 173.59 (C=O), 140.41, 135.46, 124.16, 118.57, 62.45, 56.84, 42.56, 40.38, 38.76, 34.77, 33.82, 33.61, 32.93, 21.95, 18.51, 17.80, 17.52, 16.57. GC-MS RI(Rtx-5ms) = 3044.8, C21H29Cl2NO EI-MS m/z: 49 (22.33); 69 (68.07); 97 (83.77); 123 (91.99); 193 (100); [M]+ = 381 (16.29); [M+2]+ = 383 (10.53); [M+4]+ = 385 (1.87).
2,5,5,8a-tetramethyl-N-(4-methylphenyl)decahydronaphthalene-1-carboxamide or N-(4-methylphenyl)-driman-9-carboxamide (10); white solid, yield 30%, and m.p.:176 °C. 1H NMR (400 MHz, CDCl3) δ 7.41–7.35 (m, 2H, Ha`), 7.14 (s, 1H, NH), 7.09 (d, J = 8.1 Hz, 2H, Hb`), 2.30 (s, 3H, Ar–CH3), 1.35 (s, 3H, CH3), 1.22 (d, J = 7.4 Hz, 3H, CH3), 0.86 (s, 3H, CH3), 0.86 (s, 3H, CH3). 13C NMR (101 MHz, CDCl3) δ 172.46 (C=O), 135.65 (C1′), 133.45 (C4′), 129.36 (C3′C5′), 119.97 (C2′C6′), 68.00 (C1), 62.14 (C4a), 56.52 (C6), 54.74 (C8a), 42.25 (C8), 39.99 (C3), 38.35 (C2), 34.51 (C5), 33.24 (CH3–C5), 32.62 (CH3–C8a), 21.58 (CH3–C4′), 20.82 (C4), 18.18 (CH3–C2), 17.47 (C7), 16.14 (CH3–C5). GC-MS RI(Rtx-5ms) = 2909.6, C22H33NO EI-MS m/z: 69 (9.43); 106 (8.98); 107 (100); 108 (9.31); [M]+ = 327 (5.95).
2,5,5,8a-tetramethyl-N-(3-methylphenyl)decahydronaphthalene-1-carboxamide or N-(3-methylphenyl)-driman-9-carboxamide (11); white solid, yield 30%, and m.p.:173 °C. 1H NMR (400 MHz, CDCl3) δ 7.43 (d, J = 7.0 Hz, 1H, Hd`), 7.24–7.12 (m, 3H, Hc´, Ha`, NH), 6.89 (t, J = 5.9 Hz, 1H, Hb`), 2.32 (s, 3H, Ar–CH3), 1.36 (s, 3H, CH3), 1.23 (d, J = 7.4 Hz, 3H, CH3), 0.87 (s, 3H, CH3), 0.86 (s, 3H, CH3). 13C NMR (101 MHz, CDCl3) δ 172.62 (C=O), 138.86 (C3`), 138.15 (C1`), 128.69 (C5`), 124.69 (C4`), 120.60 (C2`), 116.94 (C6`), 68.15 (C1), 62.25 (C4a), 56.53 (C6), 42.24 (C8a), 40.02 (C8), 38.36 (C3), 34.52 (C2), 33.47(CH3–C2), 32.63(CH3–C5), 21.58 (CH3–C3`), 18.18 (C4), 17.47 (CH3–C8a), 17.14 (C7), 16.14 (CH3–C5). GC-MS RI(Rtx-5ms) = 2882.4, C22H33NO EI-MS m/z: 69 (11.32); 107 (100); 108 (12.27); 123 (10.59); 149 (14.12); [M]+ = 327 (12.25).
2,5,5,8a-tetramethyl-N-(4-methoxyphenyl)decahydronaphthalene-1-carboxamide or N-(4-methoxyphenyl)-driman-9-carboxamide (12); white solid, yield 37%, and m.p.:124 °C. 1H NMR (400 MHz, CDCl3) δ 7.32 (d, J = 8.3 Hz, 2H, Ha`), 6.74 (d, J = 8.4 Hz, 2H, Hb`), 3.69 (s, 3H, Ar-O-Me), 1.27 (s, 3H, CH3), 1.15 (d, J = 7.4 Hz, 3H, CH3), 0.78 (s, 6H, 2CH3); 13C NMR (101 MHz, CDCl3) δ 172.57 (C=O), 156.12 (C4`), 131.40 (C1`), 121.85 (C2`), 114.03 (C3`), 61.86 (C1), 56.50 (OMe–C3′), 55.49 (C4a), 42.24 (C6), 39.97 (C8a), 38.30 (C8), 34.52 (C3), 33.47 (C5), 33.23 (C2), 32.61 (CH3–C2), 21.58 (CH3–C5), 18.19 (C4), 17.47 (CH3–C8a), 17.17 (C7), 16.16 (CH3–C5). GC-MS RI(Rtx-5ms) = 3060.4, C22H33NO2 EI-MS m/z: 69 (9.10); 108 (10.26); 123 (100); 124 (12.09); [M]+ = 343 (10.47).
2,5,5,8a-tetramethyl-N-(3-methoxyphenyl)decahydronaphthalene-1-carboxamide or N-(3-methoxyphenyl)-driman-9-carboxamide (13); white solid, yield 37%, and m.p.:127 °C. 1H NMR (400 MHz, CDCl3) δ 7.31 (s, 1H, NH), 7.20–7.13 (m, 2H, Ha`, Hc`), 6.94 (d, J = 7.9 Hz, 1H, Hb`), 6.63 (d, J = 7.4 Hz, 1H, Hd`), 3.79 (s, 3H, Ar–O–CH3), 1.35 (s, 3H, CH3), 1.22 (d, J = 7.4 Hz, 3H, CH3), 0.86 (s, 6H, 2CH3). 13C NMR (101 MHz, CDCl3) δ 178.61 (C=O), 172.65 (C3`), 139.53 (C1`), 129.54 (C5`), 111.82 (C6`), 109.92 (C4`), 105.32 (C2`), 64.51 (C1), 56.52 (OMe–C3′), 55.32 (C4a), 42.23 (C6), 40.00 (C8a), 38.36 (C8), 34.49 (C3), 33.47 (C5), 32.60 (C2), 21.58 (CH3–C2), 18.17 (CH3–C5), 17.46 (C4), 17.14 (CH3–C8a), 16.16 (C7), 14.48 (CH3–C5). GC-MS RI(Rtx-5ms) = 2957.6, C22H33NO2 EI-MS m/z: 69 (10.58); 123 (100); 124 (11.32); 165 (9.50) [M]+ = 343 (10.27).
2,5,5,8a-tetramethyl-N-(4-chlorophenyl)decahydronaphthalene-1-carboxamide or N-(4-chlorophenyl)-driman-9-carboxamide (14), white solid, yield 35%, and m.p.:181 °C. 1H NMR (400 MHz, CDCl3) δ 7.45 (d, J = 8.1 Hz, 2H, Ha`), 7.25 (d, J = 8.5 Hz, 2H, Hb`), 1.97 (d, J = 4.1 Hz, 1H, H-C9), 1.34 (s, 3H, CH3), 1.21 (d, J = 8.0 Hz, 3H, CH3), 0.86 (s, 3H, CH3), 0.86 (s, 3H, CH3). 13C NMR (101 MHz, CDCl3) δ 172.63(C=O), 136.73 (C1`), 128.88 (C3`C4`), 121.09 (C2`), 62.25 (C1), 56.53 (C4a), 42.20 (C6), 40.05 (C8a), 38.38 (C8), 34.46 (C3), 33.46 (C5), 33.24 (C2), 32.59 (CH3–C2), 21.56 (CH3–C5), 18.15 (CH3–C8a), 17.43 (C4), 17.09 (C7), 16.12 (CH3–C5). GC-MS RI(Rtx-5ms) = 3024.5, C21H30ClNO EI-MS m/z: 69 (59.81); 81.1 (46.52); 97 (56.88); 109 (44.15); 123 (60.75); 127 (100); 137 (47.33); 193 (50.09); 205 (64.29); 220 (70.66); [M]+ = 347 (17.83); [M+2]+ = 349 (6.13).
2,5,5,8a-tetramethyl-N-(3-chlorophenyl)decahydronaphthalene-1-carboxamide or N-(3-chlorophenyl)-driman-9-carboxamide (15); white solid, yield 35%, and m.p.:204 °C. 1H NMR (400 MHz, CDCl3) δ 7.66 (s, 1H, NH), 7.29 (d, J = 8.3 Hz, 1H, Hd`), 7.20 (m, 2H, Ha`, Hc`), 7.04 (d, J = 7.9 Hz, 1H, Hb`), 1.98 (d, J = 4.2 Hz, 1H, H-C9), 1.34 (s, 3H, CH3), 1.21 (d, J = 7.4 Hz, 3H, CH3), 0.86 (s, 3H, CH3), 0.85 (s, 3H, CH3). 13C MR (101 MHz, CDCl3) δ 172.73 (C=O), 137.32 (C1`), 132.80 (C3`), 130.49 (C5`), 127.36 (C4`), 121.84 (C2`), 119.36 (C6`), 68.07 (C1), 54.80 (C4a), 42.16 (C4), 40.88 (C8), 38.10 (C8a), 35.64 (C3), 33.71 (C5), 33.39 (CH3–C2), 30.21 (C2), 21.92 (CH3–C5), 21.69 (CH3–C8a), 21.03 (C4), 18.82 (C7), 14.65 (CH3–C5). GC-MS RI(Rtx-5ms) = 3005.3, C21H30ClNO EI-MS m/z: 69 (82.53); 81 (63.65); 97 (83.41); 109 (66.19); 123 (100); 137 (71.73); 193 (75.81); 205 (82.95); 220 (87.76); [M]+ = 347 (36.53); [M+2]+ = 349 (12.26).
All spectra are accompanied in Figure S1.

2.3. Fungal Isolate and Culture Conditions

Botrytis cinerea isolate G29 originally isolated from naturally infected grapes (Vitis vinifera) [32] was used in this study. The fungus was grown in the dark on malt-yeast extract agar medium (2% (w/v) malt extract, 0.2% (w/v) yeast extract and 1.5% (w/v) agar), on soft agar medium (2% (w/v) malt extract, 0.2% (w/v) yeast extract, and 0.6% (w/v) agar) or in liquid minimum medium (1 g L−1 KH2PO4, 0.5 g L−1 K2HPO4, 0.5 g L−1 MgSO4 × 7H2O, 0.5 g L−1 KCl, 0.001 g L−1 FeSO4 × 7H2O, and 4.6 g L−1 ammonium tartrate) The culture media was adjusted to pH 6.0 and supplemented with 1% glucose (Merck Millipore, Darmstadt, Germany).

2.4. Determination of the Antifungal Activity of Compounds against B. cinerea

The effect of the compounds on the mycelial growth of B. cinerea was determined as described by Mendoza et al. (2015) [22]. Compounds dissolved in acetone at final concentrations of 0.09, 0.18, 0.36 mmol/L for drimenol, and 0.06, 0.12, 0.24 mmol/L for compounds 4–15 were added to Petri dishes containing malt-yeast extract agar medium. The final acetone concentration was identical in the control and treatment assays. After acetone evaporation in a laminar flow cabinet, the culture medium was inoculated with 0.5 cm agar disks from an actively growing culture of B. cinerea. Cultures were incubated in the dark at 22 °C. Mycelium diameter was measured daily, and results were expressed as IC50, determined by the inhibition of radial growth against compound concentrations using Probit analysis. Each experiment was done at least in triplicate.
Also, the effect of synthesized compounds on conidia germination was determined. Conidia germination assays were carried out on microscope slides coated with soft agar medium (2 mm thickness). Culture media were inoculated with dry conidia obtained from sporulated mycelia. Slides were placed in a humid chamber (90% relative humidity) and incubated in the dark at 22 °C. The number of germinated conidia was counted at 1-h intervals through microscope observation. The germination percentage was calculated by counting germinated conidia in five microscope fields containing approximately one hundred conidia. Conidia with a germinative tube length similar to conidial diameter were considered germinated conidia, according to the protocol described by Mendoza et al. (2015) [22]. Each assay was performed at least in triplicate.

2.5. Evaluation of Possible Mode of Action on B. cinerea of the Most Active Synthesized Compounds

The effects of one of the most active compounds on oxidative phosphorylation and oxygen consumption by germinating conidia in B. cinerea were evaluated.

2.5.1. Effect of Salicylhydroxamic Acid (SHAM) on Mycelial Growth of B. cinerea

The effect of SHAM, an inhibitor of the cyanide-resistant respiration pathway in fungal mitochondria [33], at 5 mM or compounds 6 and 7 at 0.29 mM plus 5 mM SHAM was evaluated on the mycelial growth of B. cinerea as described in 2.4. Each assay was performed at least in triplicate.

2.5.2. Effect of Compounds on Oxygen Consumption

The commercial kit MitoXpress®-Xtra was used as described by Diepart et al. (2010) [34] to quantify the oxygen consumption with some modifications. In a 96-well plate, 1 × 105 conidia/mL were inoculated in 200 µL of Minimum Medium, and the culture was incubated at 22 °C overnight.
After the incubation, the culture medium was removed, and 150 µL of fresh Minimum Medium was added. Then, 10 µL of culture medium was added to “solvent control” wells, 10 µL of antimycin A (100 µM) to “AA control” wells, and 10 µL of compound 6 or 7 at 0.29 mM to “treatment” wells. In the “GO control” wells, 10 µL of glucose oxidase (1 mg/mL) were added to wells containing 150 µL of fresh Minimum Medium without conidia. Later, 10 µL of MitoXpress®-Xtra was added to each well, and the wells were covered immediately with 100 µL of mineral oil. Fluorescence intensity was measured at 22 °C in a multimodal-microplate reader, model Synergy HT (BioTek Instruments, Winooski, VT, EE.UU) using standard 340 nm excitation and 645 nm emission filters. Fluorescence intensity was measured every 2 min for 120 min. The rate of oxygen consumption was determined from the slope of fluorescence in the time through linear regression. The values were corrected concerning the blank and normalized with the initial intensity.

3. Results and Discussion

3.1. Synthesis and Structural Determination

A total of 12 new drimancarboxamides were synthesized through a four-step route (Figure 1). The synthesized compounds are shown in Figure 2, which contain both an aromatic and a sesquiterpenoid part. Compounds 5 to 15 corresponded to novel compounds. All compounds were obtained in yields between 30 and 40%.
The structural determination of reaction intermediaries 2 and 3 was performed by comparing 1H NMR and 13C NMR spectra with previous reports [28,29,30,31]. The analysis of compounds 4–15 was centered on the 1H NMR and 13C NMR signals of the aromatic ring and the GC-MS data because the signals of the decalinic ring did not vary (see Section 2.2.4). When using compound 4 as a reference, two triplets (δ 7.20 and δ 6.99) and one doublet (δ 7.43) were observed in the aromatic zone of the 1H NMR spectrum. In the compounds substituted in R1 and R2, the signal pattern changed to one singlet and two doublets, whereas in the compounds substituted in R1 and R3, only three singlets were observed, while in the compounds substituted in R2, two doublets appeared, and in the compounds substituted in R1 one singlet, two doublets, and a multiplet. In addition, in compounds with methyl or methoxy groups, the number of carbon atoms in the molecule can be seen in the 13C NMR spectrum.
Signal assignments and compound structures proposal was made from the analysis of two-dimensional homonuclear (COSY) and heteronuclear (HSQC and HMBC) (Section 2.2). Finally, the GC-MS analysis identified the molecular ion of each compound, which led to the proposal of the structure presented in Figure 2.

3.2. Determination of the Antifungal Activity of Compounds against B. cinerea

3.2.1. The Effect on Mycelial Growth

All synthesized compounds showed antifungal activity against B. cinerea in solid media, which increased when the aromatic ring was substituted (Table 1). However, drimenol only slowed the growth of B. cinerea under the conditions tested, similar to observed by Scher and colleagues [25].
Data represent the mean of three different experiments ± standard deviation.
The effect of substitutions in the aromatic ring on biological activity has been widely described, and it is associated with the donor or attractor capacity of electrons [35,36,37]. The synthesized compounds with substitutions of methoxyl and chloride groups in R2 and R3 positions exhibited the highest fungitoxic activity on B. cinerea (6, 7, 12, and 13). The methoxyl group in ortho and para positions is a strong activator of the ring due to its contribution to electronic density, while the methyl group is a weak activator, and the antifungal activity was lower than methoxyl. In chlorine as a substituent, the inductive effect predominates, behaving as an electro-attractor.
The methoxylated compounds with substitutions in R2 and/or R3 (6, 12, and 13) exhibited similar IC50 values, but methoxyl in R1 and R3 (compound 8) showed less antifungal activity. In the case of chlorinated compounds (7, 9, 14, and 15), the number and position of the substitution appear to be necessary for their fungitoxic activity, compound 7 is the most active, with substitutions on positions R2 and R3 of the aromatic ring, while compound 9 (chlorine in R1 and R3) has the lowest activity among the chlorinated compounds. In both cases, substituent in position R1 decreased the activity, while with the substituent in a position para to amide, the highest fungitoxic activity was achieved (compound 7), except for compound 13 (methoxyl in R3).
The results suggest that the electro-attractor role of chlorine and the possibility of forming hydrogen bonds of the oxygen from the methoxyl group of the compounds could be important properties for the fungitoxic activity against B. cinerea. However, the synthesis of more compounds is required to establish the relationship between the position and amount of chlorines and methoxyl groups. Besides, studies about the effect of aromatic ring substituents on the properties of molecules do not consider only the electronic aspects but also steric factors and the possibility to interact through the formation of hydrogen bonds with amino acid residues in the active site of the enzymes [38].
The presence of aromatic rings with substitutions of chlorines is a common characteristic in some fungicides. The diverse action mechanisms of these fungicides have been described as damage of cytoskeleton (fluopicolide) or alteration in the cellular respiration (pyribencarb, boscalid) [39,40,41].
Figure 3 shows a comparison of the effect of the most active synthesized compounds (6 and 7) and the precursor drimenol on the mycelial growth of B. cinerea. During the first three days, drimenol produced a similar effect to compounds 6 and 7. Then, the inhibitory effect of drimenol decreased, reaching a growth maximum similar to the control, which suggests that the fungus could detoxify itself from the compound. It has been described that this fungus can detoxify itself using degradative (biotransformation) and non-degradative mechanisms [19,20,21,42,43]. On the other hand, on the 10th day of incubation in the presence of compounds 6 and 7, B. cinerea did not reach maximum growth. It is probably more difficult for B. cinerea to detoxify itself from these kinds of compounds.

3.2.2. The Effect on Conidia Germination

The effect of compounds on conidial germination was evaluated. Compounds 6 and 7 at 0.15 mM and 0.29 mM did not inhibit conidial germination (Melo, Ricardo. Universidad Mayor, Santiago, Chile. The experiments were carried out as indicated in Section 2.4, but no differences were observed in germination between the presence of the synthesized compounds concerning the control, 2018). Moreover, deformations or morphologic alterations in germinative tubes were not observed as it has previously been reported with other compounds [44].

3.3. Evaluation of Possible Mode of Action on B. cinerea

3.3.1. Effect of SHAM on Mycelial Growth of B. cinerea

The effect of compounds 6 and 7 as possible inhibitors of the mitochondrial electron transport was analyzed. For this, the mycelial growth in the presence of compounds 6 or 7, and 5 mM SHAM, an inhibitor of the alternative oxidase (AOX) [33], was evaluated (Figure 4). When the principal route of electron transport in oxidative phosphorylation is inhibited, reactive oxygen species (ROS) are produced, which activate AOX. This enzyme acts as a bypass so the oxygen can receive the electrons, recovering the capacity to produce ATP by fungal cells [45,46,47].
SHAM inhibited the B. cinerea mycelial growth. When SHAM and compounds 6 or 7 acted together, the inhibition of mycelial growth was higher. After seven days of incubation, the fungal growth was 25% in relation to the control.
There are several cases where a similar behavior was observed and in which the electron-transport chain was affected in B. cinerea. When the fungus was incubated with 4,4-dimethylanthracene-1,9,10(4H)-trione, which affects the electron-transport chain in the presence of 5 mM SHAM, an inhibition of mycelial growth of 95% was observed [43]. The antifungal activity of 2-allylphenol, a phenolic compound obtained from the fruit-like structure of Ginkgo biloba L., increased when 10 mg/mL of SHAM was added to the media [48]. The behavior is also similar when azoxystrobin and antimycin A, well-known inhibitors of mitochondrial electronic transport, are used [49]. The decrease of the mycelial growth when the fungus was treated with the synthesized compounds indicates that the compounds would affect the mitochondrial electron-transport chain.

3.3.2. Effect of Compounds on Oxygen Consumption

The effect of compound 7 on oxygen consumption of germinating conidia was also evaluated. The fluorescence signal of MitoXpress®-Xtra is inversely proportional to the oxygen concentration in the suspension, so the increment in oxygen consumption by germinating conidia increases the fluorescence [50]. Figure 5 shows relative fluorescence intensity in the time of germinating conidia suspensions treated with compound 7 and the controls.
The curve slope corresponding to treatment with compound 7 at 0.20 mM shows that the oxygen consumption velocity was 36% lesser than control, while antimycin A reduced oxygen consumption velocity by 85%. This effect indicates that compound 7 would inhibit the mitochondrial electron-transport chain, causing a decrease in oxygen consumption.
The rate of oxygen consumption in B. cinerea was reduced by 46% when the fungus was treated with 2-alylphenol (640 mM), while treated with antimycin A, the rate was reduced by 77% [48]. On the other hand, it has been reported that 5,7-dihydroxy-3,8-dimethoxyflavone, a flavonoid isolated from resinous exudates of Pseudognaphalium robustum, also inhibits the oxygen consumption in B. cinerea by 35.4% [51]. The results of the oxygen consumption test and those carried out with SHAM suggest that at least compound 7 would cause an inhibitory effect in the electron-transport chain.

4. Conclusions

A series of 12 new carboxamide-type compounds were synthesized from natural sesquiterpene drimenol. All of these compounds inhibited the mycelial growth of B. cinerea. Ring substituents modified the fungitoxic effect of the compounds, and the most active compounds were 6, 7, 12, and 13. Compounds 6 and 7 showed a behavior similar to known inhibitors of the electron transport chain when they act in conjunction with SHAM.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/jof7110902/s1, Figure S1: NMR spectra of compounds 4–15.

Author Contributions

Conceptualization, R.M., V.A., L.M. and M.C.; methodology, R.M., V.A., L.M. and M.C.; validation, R.M., V.A., L.M. and M.C.; formal analysis, R.M.; investigation, V.A., L.M. and M.C.; resources, L.M. and M.C.; data curation, R.M.; writing—original draft preparation, R.M., P.C. and F.N.; writing—review and editing, F.N. and P.C.; supervision, L.M. and M.C.; project administration, L.M. and M.C.; funding acquisition, L.M. and M.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by FONDECYT, grant number 1130389, and FONDEF, grant number CA12i10054.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Driman-11-ol (2): a white-coloured crystalline solid, yield 90%, and m.p.:106 °C. 1H NMR (200 MHz, CDCl3) δ 3.87 (1H, dd, J = 10.7, 4.6 Hz, Ha-C11), 3.59 (1H, dd, J = 10.7, 4,5 Hz, Hb-C11), 0.96 (3H, d, J = 7.5 Hz, 12-Me), 0.86 (6H, s, 13-Me and 14-Me), 0.82 (3H, s, 15-Me).13C NMR (50 MHz, CDCl3) δ 61.02 (C11), 56.50 (C5), 55.71 (C9), 41.96 (C3), 39.89 (C1), 37.56 (C10), 34.46 (C7), 33.57 (C14), 33.24 (C4), 28.51 (C8), 21.63 (C13), 18.39 (C6), 17.49 (C2), 17.08 (C17), 15.60 (C12).
Driman-11-oic acid (3): a white-colored solid, 70% yield, and m.p: 130 °C. 1H NMR (200 MHz, CDCl3) δ 2.29 (1H, m), 1.21 (3H, s, CH3), 1.10 (3H, d, J = 7.2 Hz, CH3), 0.86 (3H, s, CH3), 0.84 (3H, s, CH3). 13C NMR (50 MHz, CDCl3) δ 180.36 (C11), 59.33 (C9), 55.87 (C5), 42.09 (C3), 39.49 (C1), 37.22 (C10), 33.97 (C7), 33.43 (C4), 33.18 (C13), 31.52 (C8), 21.59 (C14), 18.12 (C12), 17.29 (C15), 17.26 (C6), 16.11 (C2).

References

  1. Elad, Y.; Vivier, M.; Fillinger, S. Botrytis, the Good, the Bad and the Ugly. In Botrytis—The Fungus, the Pathogen and Its Management in Agricultural Systems; Fillinger, S., Elad, Y., Eds.; Springer International Publishing: Cham, Switzerland, 2016; pp. 1–15. [Google Scholar]
  2. Williamson, B.; Tudzynski, B.; Tudzynski, P.; van Kan, J.A.L. Botrytis cinerea: The cause of grey mould disease. Mol. Plant Pathol. 2007, 8, 561–580. [Google Scholar] [CrossRef]
  3. Dean, R.; van Kan, J.A.L.; Pretorius, Z.A.; Hammond-Kosack, K.E.; Di Pietro, A.; Spanu, P.D.; Rudd, J.J.; Dickman, M.; Kahmann, R.; Ellis, J.; et al. The Top 10 fungal pathogens in molecular plant pathology. Mol. Plant Pathol. 2012, 13, 414–430. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Castro, P.; Mendoza, L.; Vásquez, C.; Pereira, P.C.; Navarro, F.; Lizama, K.; Santander, R.; Cotoras, M. Antifungal Activity against Botrytis cinerea of 2,6-Dimethoxy-4-(phenylimino)cyclohexa-2,5-dienone Derivatives. Molecules 2019, 24, 706. [Google Scholar] [CrossRef] [Green Version]
  5. Leroux, P.; Gredt, M.; Leroch, M.; Walker, A.-S. Exploring Mechanisms of Resistance to Respiratory Inhibitors in Field Strains of Botrytis cinerea, the Causal Agent of Gray Mold. Appl. Environ. Microbiol. 2010, 76, 6615–6630. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Avenot, H.F.; Michailides, T.J. Progress in understanding molecular mechanisms and evolution of resistance to succinate dehydrogenase inhibiting (SDHI) fungicides in phytopathogenic fungi. Crop. Prot. 2010, 29, 643–651. [Google Scholar] [CrossRef]
  7. Yankovskaya, V.; Horsefield, R.; Törnroth, S.; Luna-Chavez, C.; Miyoshi, H.; Léger, C.; Byrne, B.; Cecchini, G.; Iwata, S. Architecture of Succinate Dehydrogenase and Reactive Oxygen Species Generation. Science 2003, 299, 700–704. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Bertetti, D.; Garibaldi, A.; Gullino, M.L. Resistance of Botrytis cinerea to fungicides in Italian vineyards. Commun. Agric. Appl. Biol. Sci. 2008, 73, 273–282. [Google Scholar] [PubMed]
  9. Yourman, L.F.; Jeffers, S.N. Resistance to Benzimidazole and Dicarboximide Fungicides in Greenhouse Isolates of Botrytis cinerea. Plant Dis. 1999, 83, 569–575. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Zhang, C.Q.; Liu, Y.H.; Zhu, G.N. Detection and characterization of benzimidazole resistance of Botrytis cinerea in greenhouse vegetables. Eur. J. Plant Pathol. 2009, 126, 509–515. [Google Scholar] [CrossRef]
  11. Liu, S.; Che, Z.; Chen, G. Multiple-fungicide resistance to carbendazim, diethofencarb, procymidone, and pyrimethanil in field isolates of Botrytis cinerea from tomato in Henan Province, China. Crop. Prot. 2016, 84, 56–61. [Google Scholar] [CrossRef]
  12. Esterio, M.; Auger, J.; Ramos, C.; García, H. First Report of Fenhexamid Resistant Isolates of Botrytis cinerea on Grapevine in Chile. Plant Dis. 2007, 91, 768. [Google Scholar] [CrossRef]
  13. Latorre, B.A.; Torres, R. Prevalence of isolates of Botrytis cinerea resistant to multiple fungicides in Chilean vineyards. Crop. Prot. 2012, 40, 49–52. [Google Scholar] [CrossRef]
  14. Fillinger, S.; Walker, A.-S. Chemical Control and Resistance Management of Botrytis Diseases. In Botrytis—The Fungus, the Pathogen and Its Management in Agricultural Systems; Fillinger, S., Elad, Y., Eds.; Springer: Cham, Switzerland, 2016; pp. 189–216. [Google Scholar]
  15. Aqil, F.; Zahin, M.; Ahmad, I.; Owais, M.; Khan, M.S.A.; Bansal, S.S.; Farooq, S. Antifungal Activity of Medicinal Plant Extracts and Phytocompounds: A Review. In Combating Fungal Infections; Springer: Berlin, Germany, 2010; pp. 449–484. [Google Scholar]
  16. Jacometti, M.A.; Wratten, S.D.; Walter, M. Review: Alternatives to synthetic fungicides forBotrytis cinereamanagement in vineyards. Aust. J. Grape Wine Res. 2010, 16, 154–172. [Google Scholar] [CrossRef]
  17. Tripathi, P.; Dubey, N. Exploitation of natural products as an alternative strategy to control postharvest fungal rotting of fruit and vegetables. Postharvest Biol. Technol. 2004, 32, 235–245. [Google Scholar] [CrossRef]
  18. Wilson, C.L.; Solar, J.M.; El Ghaouth, A.; Wisniewski, M.E. Rapid Evaluation of Plant Extracts and Essential Oils for Antifungal Activity Against Botrytis cinerea. Plant Dis. 1997, 81, 204–210. [Google Scholar] [CrossRef] [Green Version]
  19. Aleu, J.; Hanson, J.R.; Galán, R.H.; Collado, I.G. Biotransformation of the fungistatic sesquiterpenoids patchoulol, ginsenol, cedrol and globulol by Botrytis cinerea. J. Mol. Catal. B Enzym. 2001, 11, 329–334. [Google Scholar] [CrossRef]
  20. Aleu, J.; Galán, R.H.; Collado, I.G. Biotransformation of the fungistatic sesquiterpenoid isoprobotryan-9α-ol by Botrytis cinerea. J. Mol. Catal. B Enzym. 2002, 16, 249–253. [Google Scholar] [CrossRef]
  21. Cotoras, M.; Folch, C.; Mendoza, L. Characterization of the Antifungal Activity on Botrytis cinerea of the Natural Diterpenoids Kaurenoic Acid and 3β-Hydroxy-kaurenoic Acid. J. Agric. Food Chem. 2004, 52, 2821–2826. [Google Scholar] [CrossRef] [PubMed]
  22. Mendoza, L.; Sepúlveda, C.; Melo, R.; Cotoras, M. Characterization of the Antifungal Activity Against Botrytis Cinerea of Sclareol and 13-Epi-Sclareol, Two Labdane-Type Diterpenoids. J. Chil. Chem. Soc. 2015, 60, 3024–3028. [Google Scholar] [CrossRef] [Green Version]
  23. Melo, R.; Sanhueza, L.; Mendoza, L.; Cotoras, M. Characterization of the fungitoxic activity onBotrytis cinereaof the aristolochic acids I andII. Lett. Appl. Microbiol. 2019, 68, 48–55. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Jansen, B.J.M.; de Groot, A. Occurrence, biological activity and synthesis of drimane sesquiterpenoids. Nat. Prod. Rep. 2004, 21, 449–477. [Google Scholar] [CrossRef] [PubMed]
  25. Scher, J.M.; Speakman, J.-B.; Zapp, J.; Becker, H. Bioactivity guided isolation of antifungal compounds from the liverwort Bazzania trilobata (L.) S.F. Gray. Phytochemistry 2004, 65, 2583–2588. [Google Scholar] [CrossRef]
  26. Robles-Kelly, C.; Rubio, J.; Thomas, M.; Sedán, C.; Martinez, R.; Olea, A.F.; Carrasco, H.; Taborga, L.; Silva-Moreno, E. Effect of drimenol and synthetic derivatives on growth and germination of Botrytis cinerea: Evaluation of possible mechanism of action. Pestic. Biochem. Physiol. 2017, 141, 50–56. [Google Scholar] [CrossRef] [PubMed]
  27. Muñoz-Concha, D.; Vogel, H.; Yunes, R.; Razmilic, I.; Bresciani, L.; Malheiros, A. Presence of polygodial and drimenol in Drimys populations from Chile. Biochem. Syst. Ecol. 2007, 35, 434–438. [Google Scholar] [CrossRef]
  28. Mori, K.; Takaishi, H. Synthesis of Mono- and Sesquiterpenoids, XV Synthesis of (-)-Warburganal, an Insect Antifeedant. Eur. J. Org. Chem. 1989, 1989, 695–697. [Google Scholar] [CrossRef]
  29. Moreno-Osorio, L.; Espinoza, L.; Cuellar, M.; Preite, M. LTA-mediated synthesis and complete assignment of1H and13C NMR data of two natural 11-nordrimanes: Isonordrimenone and polygonone. Magn. Reson. Chem. 2007, 45, 993–996. [Google Scholar] [CrossRef]
  30. Derita, M.; Montenegro, I.; Garibotto, F.; Enriz, R.D.; Fritis, M.C.; Zacchino, S.A. Structural Requirements for the Antifungal Activities of Natural Drimane Sesquiterpenes and Analogues, Supported by Conformational and Electronic Studies. Molecules 2013, 18, 2029–2051. [Google Scholar] [CrossRef] [PubMed]
  31. Göhl, M.; Seifert, K. Synthesis of the Sesquiterpenes Albicanol, Drimanol, and Drimanic Acid, and the Marine Sesquiterpene Hydroquinone Deoxyspongiaquinol. Eur. J. Org. Chem. 2014, 2014, 6975–6982. [Google Scholar] [CrossRef]
  32. Muñoz, G.; Hinrichsen, P.; Brygoo, Y.; Giraud, T. Genetic characterisation of Botrytis cinerea populations in Chile. Mycol. Res. 2002, 106, 594–601. [Google Scholar] [CrossRef]
  33. Mitani, S.; Araki, S.; Takii, Y.; Ohshima, T.; Matsuo, N.; Miyoshi, H. The Biochemical Mode of Action of the Novel Selective Fungicide Cyazofamid: Specific Inhibition of Mitochondrial Complex III in Phythium spinosum. Pestic. Biochem. Physiol. 2001, 71, 107–115. [Google Scholar] [CrossRef] [Green Version]
  34. Diepart, C.; Verrax, J.; Calderon, P.B.; Feron, O.; Jordan, B.F.; Gallez, B. Comparison of methods for measuring oxygen consumption in tumor cells in vitro. Anal. Biochem. 2010, 396, 250–256. [Google Scholar] [CrossRef]
  35. Hansch, C.; Fujita, T. p-σ-π Analysis. A Method for the Correlation of Biological Activity and Chemical Structure. J. Am. Chem. Soc. 1964, 86, 1616–1626. [Google Scholar] [CrossRef]
  36. Charton, M. Electrical Effect Substituent Constants for Correlation Analysis. In Progress in Physical Organic Chemistry; Taft, R.W., Ed.; John Wiley & Sons, Inc.: New York, NY, USA, 1981; pp. 119–251. [Google Scholar]
  37. Meadows, D.C.; Sanchez, T.; Neamati, N.; North, T.W.; Gervay-Hague, J. Ring substituent effects on biological activity of vinyl sulfones as inhibitors of HIV-1. Bioorg. Med. Chem. 2007, 15, 1127–1137. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Zhu, D.; Rios, B.E.; Rozzell, J.D.; Hua, L. Evaluation of substituent effects on activity and enantioselectivity in the enzymatic reduction of aryl ketones. Tetrahedron Asymmetry 2005, 16, 1541–1546. [Google Scholar] [CrossRef]
  39. Leroux, P. Recent Developments in the mode of action of fungicides. Pestic. Sci. 1996, 47, 191–197. [Google Scholar] [CrossRef]
  40. Hollomon, D.W. New Fungicide Modes of Action Strengthen Disease Control Strategies. Outlooks Pest Manag. 2010, 21, 108–112. [Google Scholar] [CrossRef]
  41. Kataoka, S.; Takagaki, M.; Kaku, K.; Shimizu, T. Mechanism of action and selectivity of a novel fungicide, pyribencarb. J. Pestic. Sci. 2010, 35, 99–106. [Google Scholar] [CrossRef] [Green Version]
  42. Aleu, J.; Hanson, J.R.; Galán, A.R.H.; Collado, I.G. Biotransformation of the Fungistatic Sesquiterpenoid Patchoulol by Botrytis cinerea. J. Nat. Prod. 1999, 62, 437–440. [Google Scholar] [CrossRef] [PubMed]
  43. Mendoza, L.; Ribera, A.; Saavedra, A.; Silva, E.; Araya-Maturana, R.; Cotoras, M. Action mechanism for 3β-hydroxykaurenoic acid and 4,4-dimethylanthracene-1,9,10(4H)-trione onBotrytis cinerea. Mycologia 2015, 107, 661–666. [Google Scholar] [CrossRef]
  44. Adrian, M.; Jeandet, P.; Veneau, J.; Weston, L.A.; Bessis, R. Biological Activity of Resveratrol, a Stilbenic Compound from Grapevines, Against Botrytis cinerea, the Causal Agent for Gray Mold. J. Chem. Ecol. 1997, 23, 1689–1702. [Google Scholar] [CrossRef]
  45. Vanlerberghe, G.C.; McIntosh, L. ALTERNATIVE OXIDASE: From Gene to Function. Annu. Rev. Plant Biol. 1997, 48, 703–734. [Google Scholar] [CrossRef]
  46. Wood, P.M.; Hollomon, D.W. A critical evaluation of the role of alternative oxidase in the performance of strobilurin and related fungicides acting at the Qo site of Complex III. Pest Manag. Sci. 2003, 59, 499–511. [Google Scholar] [CrossRef] [PubMed]
  47. Van Aken, O.; Giraud, E.; Clifton, R.; Whelan, J. Alternative oxidase: A target and regulator of stress responses. Physiol. Plant. 2009, 137, 354–361. [Google Scholar] [CrossRef] [PubMed]
  48. Gong, S.; Hao, J.; Xia, Y.; Liu, X.; Li, J. Inhibitory effect of bionic fungicide 2-allylphenol on Botrytis cinerea (Pers. ex Fr.) in vitro. Pest Manag. Sci. 2009, 65, 1337–1343. [Google Scholar] [CrossRef]
  49. Inoue, K.; Tsurumi, T.; Ishii, H.; Park, P.; Ikeda, K. Cytological evaluation of the effect of azoxystrobin and alternative oxidase inhibitors in Botrytis cinerea. FEMS Microbiol. Lett. 2011, 326, 83–90. [Google Scholar] [CrossRef] [PubMed]
  50. Hynes, J.; Hill, R.; Papkovsky, D.B. The use of a fluorescence-based oxygen uptake assay in the analysis of cytotoxicity. Toxicol. Vitr. 2006, 20, 785–792. [Google Scholar] [CrossRef]
  51. Cotoras, M.; Mendoza, L.; Muñoz, A.; Yáñez, K.; Castro, P.; Aguirre, M.J. Fungitoxicity against Botrytis cinerea of a Flavonoid Isolated from Pseudognaphalium robustum. Molecules 2011, 16, 3885–3895. [Google Scholar] [CrossRef] [Green Version]
Jof 07 00902 g001 550

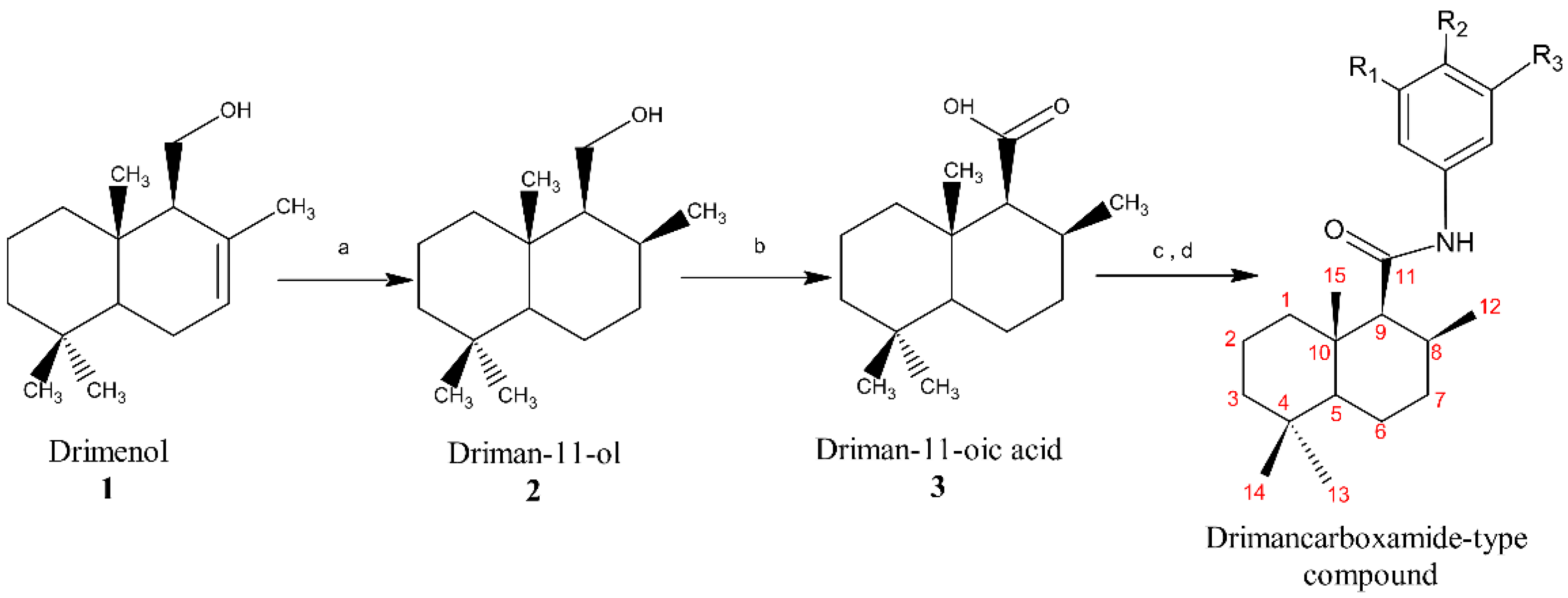

Figure 1. Route of synthesis of drimancarboxamide -type compounds. a. H2, Pd/C; b. acetone; CrO3, H2SO4; c. SOCl2, DMF; d. aniline, triethylamine, CH2Cl2.
Figure 1. Route of synthesis of drimancarboxamide -type compounds. a. H2, Pd/C; b. acetone; CrO3, H2SO4; c. SOCl2, DMF; d. aniline, triethylamine, CH2Cl2.
Jof 07 00902 g001
Jof 07 00902 g002 550

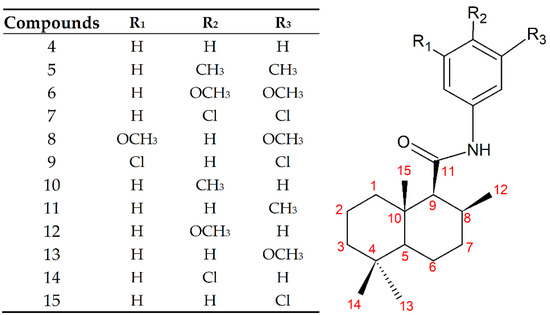

Figure 2. Synthesized compounds.
Figure 2. Synthesized compounds.
Jof 07 00902 g002
Jof 07 00902 g003 550

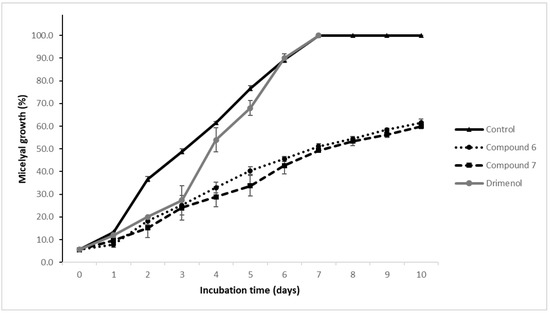

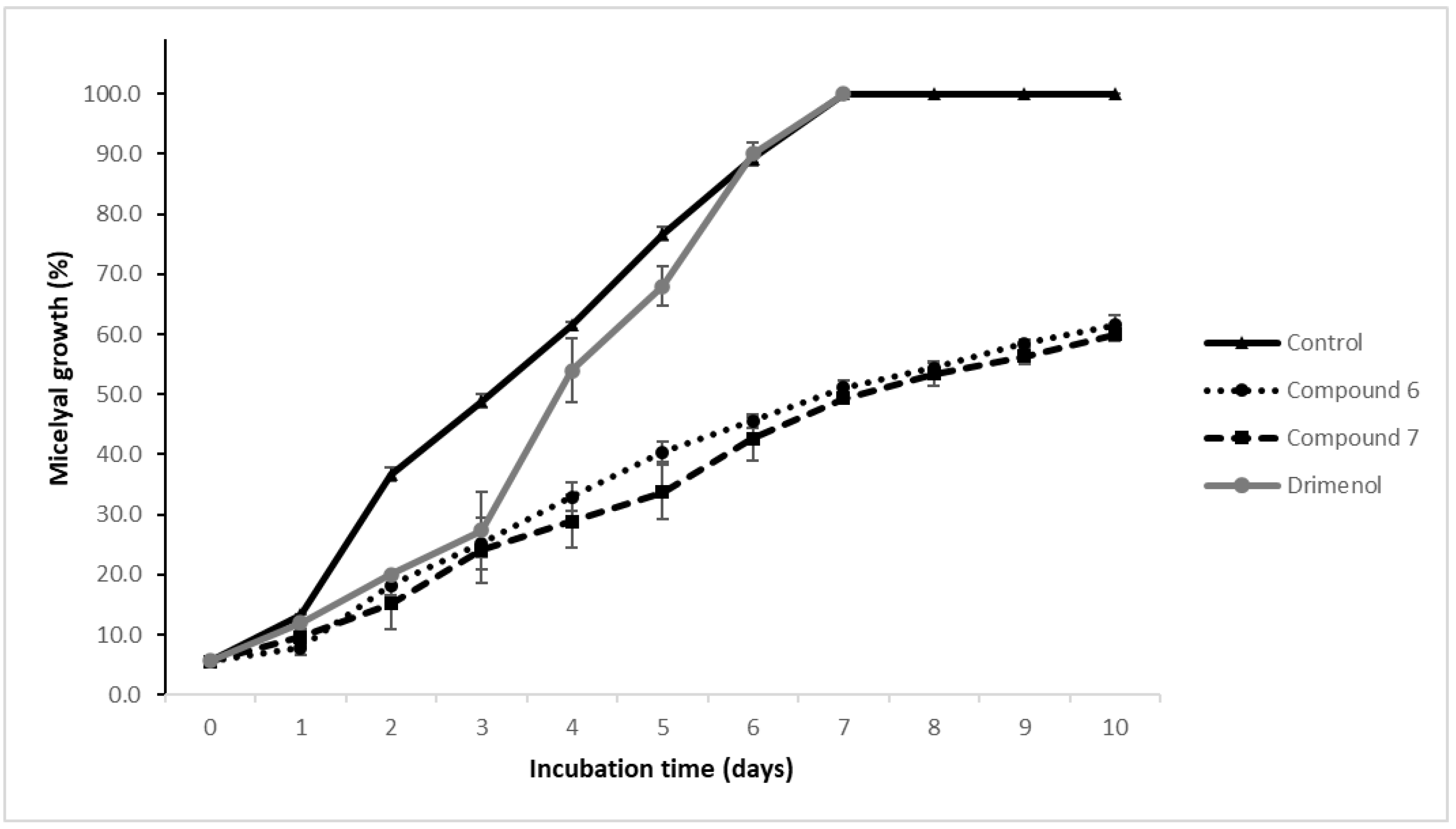

Figure 3. Effect of drimenol, compounds 6 and 7 (0.29 mM) on mycelial growth of B. cinerea. The data correspond to three independent assays in triplicate. The bars correspond to the standard deviation.
Figure 3. Effect of drimenol, compounds 6 and 7 (0.29 mM) on mycelial growth of B. cinerea. The data correspond to three independent assays in triplicate. The bars correspond to the standard deviation.
Jof 07 00902 g003
Jof 07 00902 g004 550

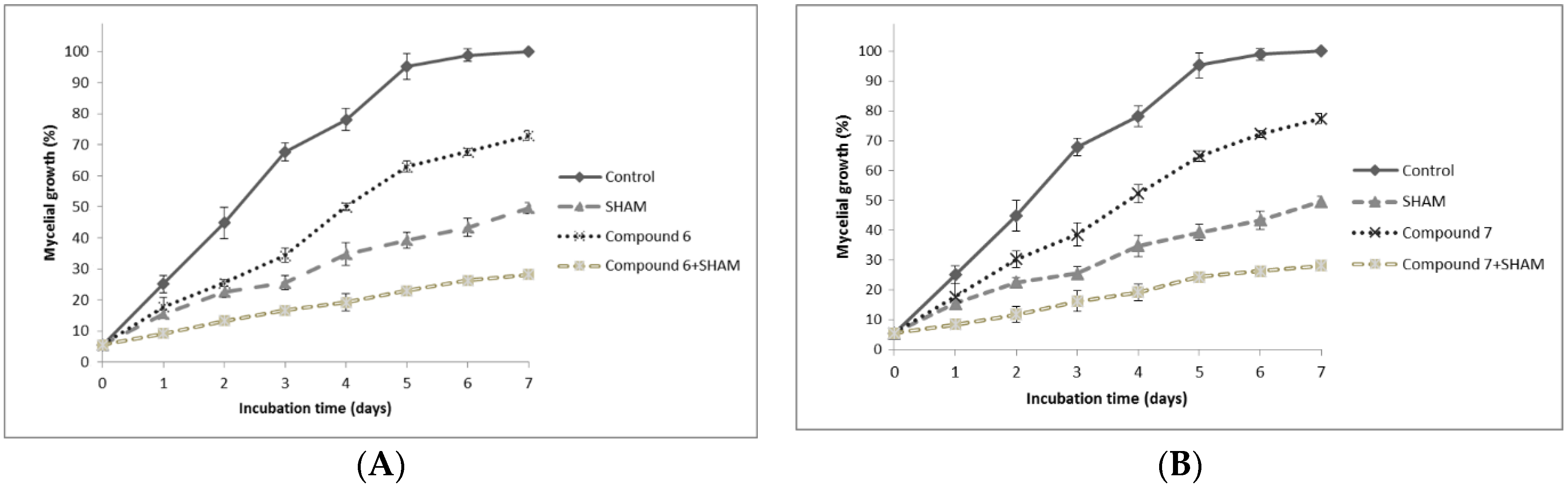

Figure 4. Effect of compound 6 (A) and compound 7 (B) at a concentration of 0.26 and 0.20 mM, respectively, on B. cinerea mycelial growth in the presence or absence of SHAM. Data shown correspond to three independent essays. Each essay was done in triplicate, and bars correspond to standard deviations.
Figure 4. Effect of compound 6 (A) and compound 7 (B) at a concentration of 0.26 and 0.20 mM, respectively, on B. cinerea mycelial growth in the presence or absence of SHAM. Data shown correspond to three independent essays. Each essay was done in triplicate, and bars correspond to standard deviations.
Jof 07 00902 g004
Jof 07 00902 g005 550

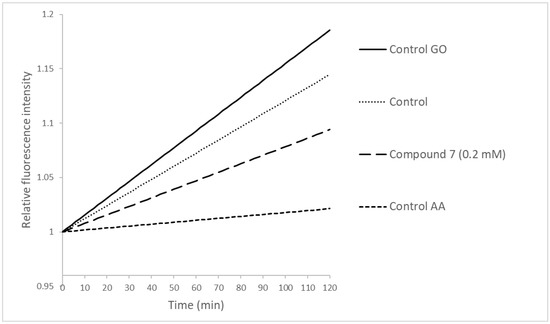

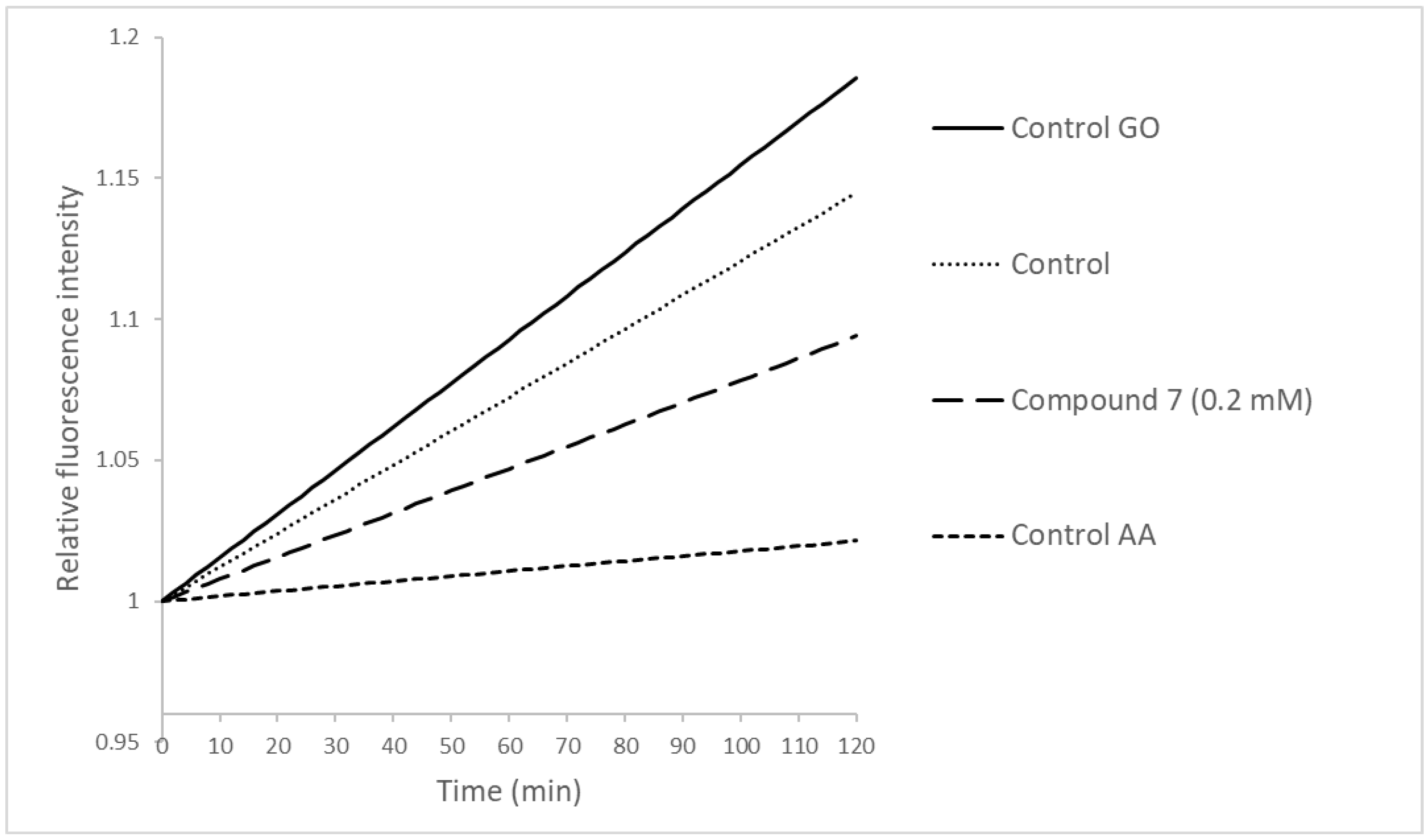

Figure 5. Effect of compound 7 on the oxygen consumption rate measured by MitoXpress fluorescence. “Control GO” corresponds to samples without conidia and glucose oxidase enzyme as the positive control. “Control AA” corresponds to conidia treated with antimycin A (a respiratory chain inhibitor). Control corresponds to conidia without any treatment. Two independent assays were done. Each assay was done in triplicate.
Figure 5. Effect of compound 7 on the oxygen consumption rate measured by MitoXpress fluorescence. “Control GO” corresponds to samples without conidia and glucose oxidase enzyme as the positive control. “Control AA” corresponds to conidia treated with antimycin A (a respiratory chain inhibitor). Control corresponds to conidia without any treatment. Two independent assays were done. Each assay was done in triplicate.
Jof 07 00902 g005
Table
Table 1. Fungitoxicity on B. cinerea of the synthesized compounds.
Table 1. Fungitoxicity on B. cinerea of the synthesized compounds.
CompoundsIC50 (mmol/L)
drimenol-
469.90 ± 4.60
55.18 ± 0.41
60.26 ± 0.04
70.20 ± 0.02
81.31 ± 0.13
98.17 ± 0.37
104.59 ± 0.32
116.04 ± 0.17
120.23 ± 0.03
130.26 ± 0.06
140.32 ± 0.03
153.53 ± 0.16
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Melo, R.; Armstrong, V.; Navarro, F.; Castro, P.; Mendoza, L.; Cotoras, M. Characterization of the Fungitoxic Activity on Botrytis cinerea of N-phenyl-driman-9-carboxamides. J. Fungi 2021, 7, 902. https://doi.org/10.3390/jof7110902

AMA Style

Melo R, Armstrong V, Navarro F, Castro P, Mendoza L, Cotoras M. Characterization of the Fungitoxic Activity on Botrytis cinerea of N-phenyl-driman-9-carboxamides. Journal of Fungi. 2021; 7(11):902. https://doi.org/10.3390/jof7110902

Chicago/Turabian Style

Melo, Ricardo, Verónica Armstrong, Freddy Navarro, Paulo Castro, Leonora Mendoza, and Milena Cotoras. 2021. "Characterization of the Fungitoxic Activity on Botrytis cinerea of N-phenyl-driman-9-carboxamides" Journal of Fungi 7, no. 11: 902. https://doi.org/10.3390/jof7110902

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
