Evidence of Aortopathy in Mice with Haploinsufficiency of Notch1 in Nos3-Null Background

by
Sara N. Koenig
1,2,
Kevin M. Bosse
1,
Holly A. Nadorlik
1,2,
Brenda Lilly
1,2 and
Vidu Garg
1,2,3,*
1
The Center for Cardiovascular and Pulmonary Research and Heart Center, Nationwide Children's Hospital, 700 Children's Drive, Columbus, OH 43205, USA
2
Department of Pediatrics, The Ohio State University, 700 Children's Drive, Columbus, OH 43205, USA
3
Department of Molecular Genetics, The Ohio State University, 484 West 12th Avenue, Columbus, OH 43210, USA
*
Author to whom correspondence should be addressed.
J. Cardiovasc. Dev. Dis. 2015, 2(1), 17-30; https://doi.org/10.3390/jcdd2010017
Submission received: 24 October 2014 / Revised: 20 February 2015 / Accepted: 25 February 2015 / Published: 9 March 2015
(This article belongs to the Special Issue Semilunar Valve Development and Disease)
Browse Figures
Versions Notes

Abstract

:
Thoracic aortic aneurysms (TAA) are a significant cause of morbidity and mortality in humans. While the exact etiology is unknown, genetic factors play an important role. Mutations in NOTCH1 have been linked to bicuspid aortic valve (BAV) and aortopathy in humans. The aim of this study was to determine if haploinsufficiency of Notch1 contributes to aortopathy using Notch1+/−; Nos3−/− mice. Echocardiographic analysis of Notch1+/−; Nos3−/− mice reveals effacement of the sinotubular junction and a trend toward dilation of the aortic sinus. Furthermore, examination of the proximal aorta of Notch1+/−; Nos3−/− mice reveals elastic fiber degradation, a trend toward increased matrix metalloproteinase 2 expression, and increased smooth muscle cell apoptosis, features characteristic of aneurysmal disease. Although at a lower penetrance, we also found features consistent with aortopathic changes in Notch1 heterozygote mice and in Nos3-null mice. Our findings implicate a novel role for Notch1 in aortopathy of the proximal aorta.

1. Introduction

Dissection and rupture of thoracic aortic aneurysms has an incidence of approximately 7 in 100,000 people per year [1]. Thoracic aortic aneurysms (TAA) are often asymptomatic, leading to the high rate of dissection and rupture. Aortic aneurysms are defined as dilation of the aorta to 50% greater than its normal. Histological examination of an aneurysmal aorta demonstrates vascular smooth muscle cell apoptosis and disorganization of the extracellular matrix (ECM) with increased collagen deposition, elastin degradation and increased levels of matrix metalloproteinases.
Aneurysms of the thoracic aorta can occur in the following four main locations—aortic root, ascending, transverse, and descending aorta (Figure 1). Aneurysms of the aortic root can be further localized to the aortic annulus, sinuses of Valsava and the sinotubular junction (STJ) (Figure 1). The clinical phenotype of TAA in genetic syndromes suggests that aneurysms located at varying sites of the thoracic aorta may have different etiologic mechanisms [2], and this may be dictated by contributing embryonic cell lineages (Figure 1). Aneurysms involving the sinuses of Valsava and the STJ are typical for patients with Marfan syndrome [3], who harbor mutations in FIBRILLIN1 [4,5,6,7], and in individuals with familial mutations in ACTA2 [8] and MYH11 [9]. While in Fabry disease (α Galactosidase A deficiency), patients present with aortic dilation of the sinuses of Valsava and/or the ascending aorta [10]. Individuals with vascular Ehlers-Danlos syndrome [11] (COL3A1) and Loeys-Dietz syndrome (mutations in TGFBR1, TGFBR2, and SMAD3) [12] present with aneurysms throughout the thoracic aorta. Patients with non-syndromic bicuspid aortic valve (BAV) [13,14] usually have aneurysms of the ascending aorta and uncommonly, will have dilation of the aortic annulus, sinuses of Valsava and STJ [15,16]. In BAV that is associated with Turner syndrome, aneurysms are consistently found in the sinuses, STJ and ascending aorta [17,18,19].
Mutations in NOTCH1 were first reported in familial BAV and calcific aortic valve disease, and interestingly, a subset of these patients also had dilation of the ascending aorta [20], which is referred to as bicuspid aortopathy [15]. Bicuspid aortopathy is associated with histological changes similar to those observed with TAA [15]. NOTCH1 encodes a transmembrane receptor that signals through cell-cell contact and is essential for cardiovascular development [21]. Notch1 is critical for normal vascular development, as homozygote knock-out mice die at embryonic day 10.5 due to vascular endothelial defects [22,23]. Notch1 is also expressed throughout the cardiac outflow tract and has been shown to be required for proper valve development [20,24,25]. Alterations in Notch1 signaling have been reported in BAV patients with TAA [26,27,28]; however, the role of Notch1 signaling in TAAs of patients with tricuspid aortic valves is unclear [29].
We recently reported a new highly penetrant mouse model for BAV by backcrossing Notch1+/− into an endothelial nitric oxide synthase (Nos3)-null background [30]. The development of ascending aortic dilation has not been investigated in this murine model of BAV. Here, we show that Notch1+/−; Nos3−/− adult mice develop aortic dilation specifically with early effacement of the STJ, defined as a loss of a distinct border between the aortic sinus and proximal ascending aorta. This dilation is accompanied by histologic features of aortic aneurysms, including elastic fiber degeneration and an increase in apoptosis and a trend toward increased matrix metalloproteinase 2 (MMP2) expression in aortic smooth muscle cells. Furthermore, we find that the aortic root dilation is independent of hemodynamically significant aortic valve disease consistent with an embryologic origin for BAV-associated aortopathy. Additionally, we have found some features consistent with aortopathy in both Nos3−/− and Notch1+/− mice. Nos3−/− mice display effacement of STJ, albeit at a significantly lower frequency than Notch1+/−; Nos3−/− mice. Alternatively, histological and molecular abnormalities exist within the aorta of Notch1+/− mice, including irregular elastin fibers. These data suggest that Notch1 signaling plays a role in the development of aortopathic changes in the ascending aorta.
Jcdd 02 00017 g001 1024

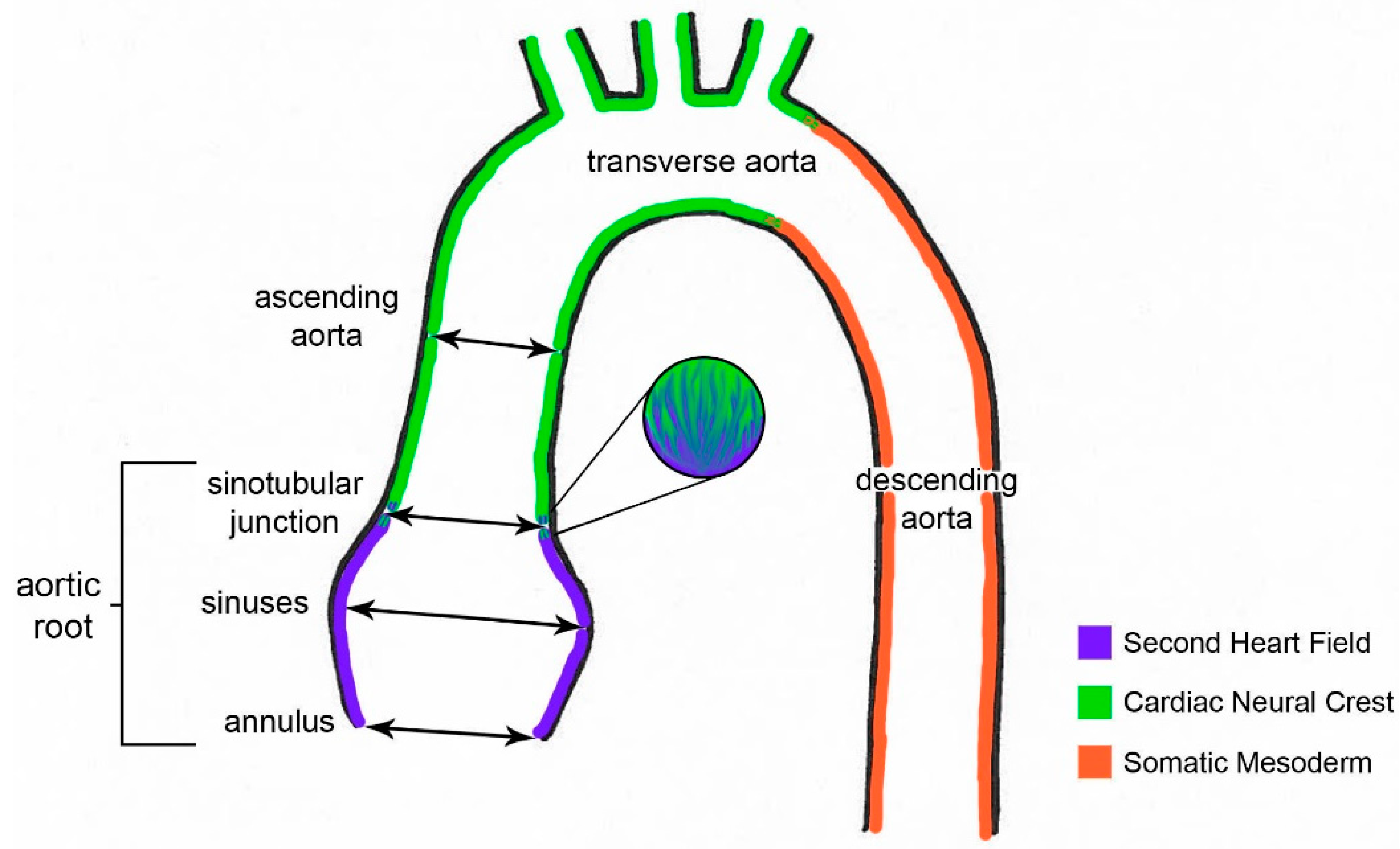

Figure 1. Cell lineages that contribute to the smooth muscle cells lining the ascending, transverse and descending regions of thoracic aorta are shown in schematic [31,32,33,34]. Location of echocardiographic measurements of annulus, sinus, and sinotubular junction, and ascending aorta are also shown.
Figure 1. Cell lineages that contribute to the smooth muscle cells lining the ascending, transverse and descending regions of thoracic aorta are shown in schematic [31,32,33,34]. Location of echocardiographic measurements of annulus, sinus, and sinotubular junction, and ascending aorta are also shown.
Jcdd 02 00017 g001

2. Experimental Section

2.1. Mice

All experiments were approved by the Institutional Animal Care and Use Committee at the Research Institute at Nationwide Children’s Hospital. Nos3−/− and Notch1+/− mice were genotyped as originally described [22,35]. Nos3−/− mice were bred to Nos3−/−; Notch1+/− mice to obtain wildtype, Notch1+/−, Nos3−/−, and Notch1+/−; Nos3−/− littermates.

2.2. Echocardiography

Transthoracic echocardiography was performed using a VEVO 2100 Ultrasound System as previously described [30]. Briefly, mice were sedated briefly with 3% isoflurane, and then titrated to 1%–2% isoflurane to maintain heart rate between 400 and 500 beats per minute. Aortic diameters were measured from parasternal long axis B-mode images (Figure 2) during systole at designated locations (Figure 1). Aortic flow velocity was measured with pulse-wave Doppler across the aortic valve. STJ angle was measured using the STJ as the vertex with arms extending to the sinus and ascending aorta. The greatest angle of the left or right side was chosen. All data points are an average of three measurements.
Jcdd 02 00017 g002 1024

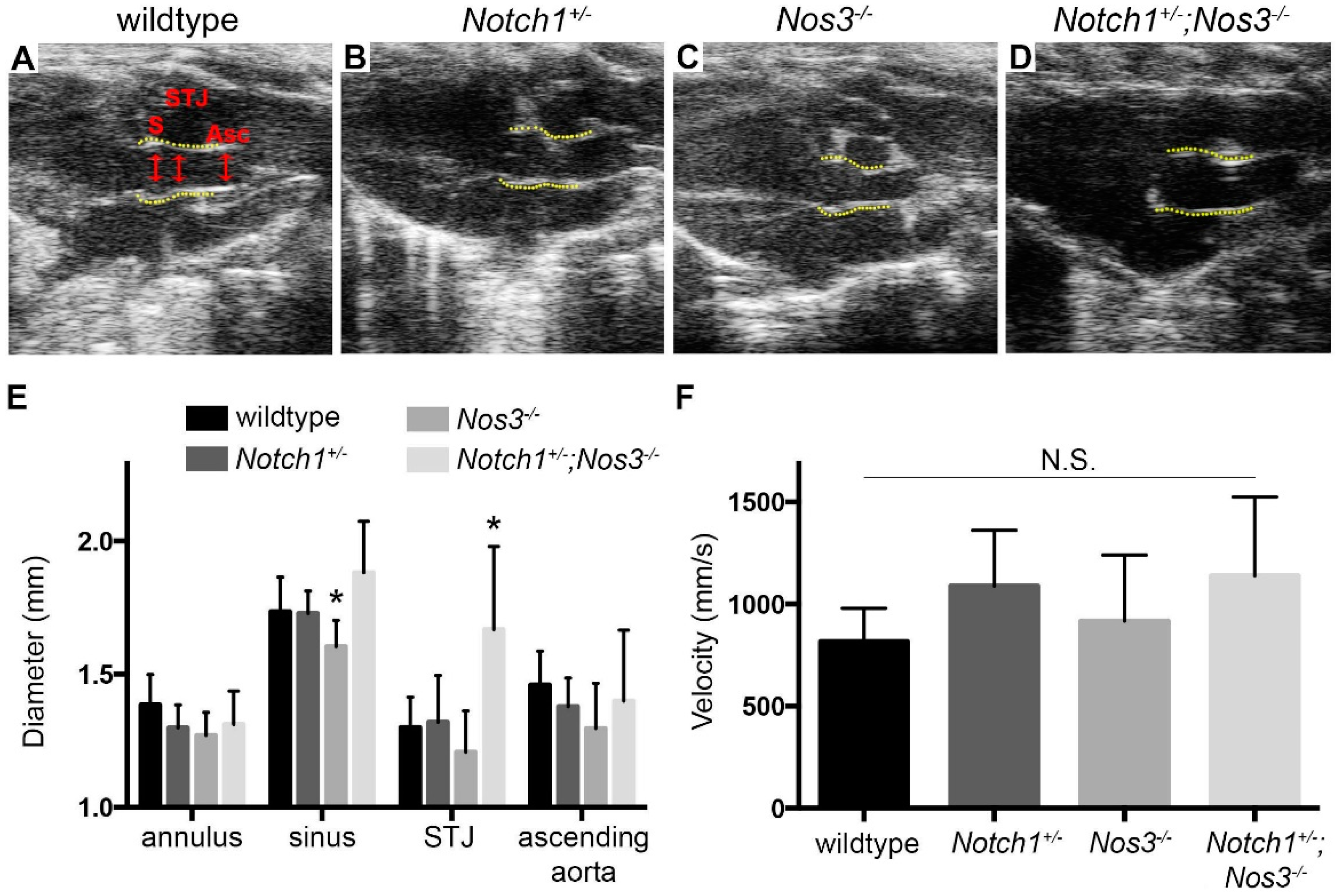

Figure 2. Loss of sinotubular junction in Notch1+/−; Nos3−/− mice. Representative echocardiographic images of ascending aorta at 3 months of age are shown in (A–D); S, sinus; STJ, sinotubular junction; Asc, ascending aorta. The aortic annulus, aortic sinus, STJ, and ascending aorta are outlined in yellow; (E) Aortic diameters at 6 months of age showing a trend of aortic sinus dilation and a significant increase in diameter of STJ in Notch1+/−; Nos3−/− mice compared to wildtype, Notch1+/−, and Nos3−/− mice. * p-value < 0.05 (F) Velocity (mean and standard deviation) across aortic valve at 6 months of age for each genotype is shown. No evidence of stenosis (defined as velocity > 2000 mm/s) was noted.
Figure 2. Loss of sinotubular junction in Notch1+/−; Nos3−/− mice. Representative echocardiographic images of ascending aorta at 3 months of age are shown in (A–D); S, sinus; STJ, sinotubular junction; Asc, ascending aorta. The aortic annulus, aortic sinus, STJ, and ascending aorta are outlined in yellow; (E) Aortic diameters at 6 months of age showing a trend of aortic sinus dilation and a significant increase in diameter of STJ in Notch1+/−; Nos3−/− mice compared to wildtype, Notch1+/−, and Nos3−/− mice. * p-value < 0.05 (F) Velocity (mean and standard deviation) across aortic valve at 6 months of age for each genotype is shown. No evidence of stenosis (defined as velocity > 2000 mm/s) was noted.
Jcdd 02 00017 g002

2.3. Tissue Fixation and Histology

Experimental animals were euthanized and mouse hearts were perfused in a consistent manner with 1 mL of 10% formalin using a 5 mL syringe into the left ventricle. Serial sections were stained with hematoxylin and eosin, elastin stain kit (Sigma HT25A), Masson’s trichrome, and immunohistochemistry (Santa Cruz ImmunoCruz sc-2018 or Cell Signaling 8114, 8125, 8112, and 8059) with primary antibodies against MMP2 (Abcam, ab37150, 1:500), Caspase-3 (Cell Signaling, 9661, 1:300), activated Notch1 (abcam, ab8925, 1:500), and α-Smooth Muscle Actin (Sigma Aldrich, A2547, 1:500). Integrated density was determined using the IHC Toolbox plugin for ImageJ [36].

2.4. Elastin Quantification and Basic Morphometrics

Images of elastin stained tissue sections were measured (3 images per animal), and measurements were repeated 5 times in different areas of each image. (n = 3 wildtype, 3 Notch1+/−, 3 Nos3−/−, and 4 Notch1+/−; Nos3−/− mice). Gross images of the aorta were measured at the aortic root, ascending aorta, aortic arch, and descending aorta (n = 4 per genotype). All measurements were made in a blinded fashion in regards to the genotype.

2.5. TGF-β1 ELISA

Blood was collected from the left ventricle prior to perfusion fixation at the time of euthanasia, and platelet-poor plasma was isolated from the blood. The ELISA kit was purchased from R&D systems (MB100B). TGF-β1 was activated in plasma (according to instructions) prior to assay.

2.6. Statistics

Statistical analysis was performed using Student’s t-tests and one-way ANOVA for echocardiographic and gross diameter measurements and basic morphometrics, and Fisher’s exact test for incidence of STJ effacement. Statistical significance was determined based on a p-value < 0.05.

3. Results and Discussion

3.1. Effacement of Sinotubular Junction and Aortic Root Dilation in Notch1+/−; Nos3−/− Mice

In order to determine if Notch1+/−; Nos3−/− mice develop aneurysms of the ascending aorta, we bred Nos3−/− mice to Nos3−/−; Notch1+/− compound heterozygotes to obtain wildtype, Notch1+/−, Nos3−/− and Notch1+/−; Nos3−/− littermates. As expected, Notch1 expression was decreased in Notch1+/− and Notch1+/−; Nos3−/− mice by immunohistochemistry (Supplemental Figure 1). Echocardiographic measurement of the ascending aorta of Notch1+/−; Nos3−/− mice at 3 months of age revealed effacement of the STJ in 5 out 5 animals (100%) (Table 1, Figure 2D). Interestingly, effacement of the STJ was also seen in a subset of Notch1+/− and Nos3−/− mice but at a statistically significant lower frequency (Table 1, Figure 2). At this time point, there was no difference in mean aortic diameter between genotypes [37]. Follow up echocardiographic examination at 6 months of age demonstrated a similar frequency of STJ effacement (Table 1, Supplementary Figure 2) except for one additional Nos3−/− mouse had developed STJ effacement. Consistent with this, the aortic sinus-ascending aortic angle was increased in Notch1+/−; Nos3−/− mice at 6 months of age (Supplementary Figure 2Q). At 6 months, the diameter of the STJ was significantly higher in Notch1+/−; Nos3−/− mice than controls (Figure 2E). The aortic sinus significantly larger in the Notch1+/−; Nos3−/− mice than the Nos3−/− mice (p value = 0.0016), but this trend was not statistically significant in wildtype or Notch1+/− mice (p value > 0.1). The velocity across the aortic valve was not statistically different among all four genotypes (Figure 2F).
Table
Table 1. Effacement of Sinotubular Junction by Genotype. Fraction of mice with STJ effacement is shown at 3 and 6 months of age, * p value <0.05.
Table 1. Effacement of Sinotubular Junction by Genotype. Fraction of mice with STJ effacement is shown at 3 and 6 months of age, * p value <0.05.
WildtypeNotch1+/−Nos3−/−Notch1+/−; Nos3−/−
3 months0/8 (0%)1/8 (12.5%)3/11 (27.3%)5/5 (100%) *
6 months0/8 (0%)1/8 (12.5%)4/11 (36.4%)5/5 (100%) *

3.2. Notch1+/−; Nos3−/− Mice Display Gross and Histologic Evidence of Aortopathy

Gross examination of the proximal ascending aorta at 8 months of age demonstrated a trend toward dilation of the aortic root (mean diameter = 2.03 ± 0.121 mm) in Notch1+/−; Nos3−/− mice (Figure 3A–E), but this was not statistically significant when compared to littermate controls. Measurements did reveal one out of four Notch1+/− mice with a grossly dilated aortic root (2.7 mm in diameter). Histologic examination of the aorta in all four genotypes was performed (Figure 3F–M). It demonstrated aortic wall abnormalities reminiscent of medial degeneration (as reviewed in [38]) in Notch1+/−; Nos3−/− mice, indicated by increased “empty” space between cells presumably where smooth muscle cell loss has occurred (Figure 3M, arrowheads). This phenotype was not observed in wildtype, Nos3−/−, and Notch1+/− littermates. In addition, we observed diffuse elastin staining in the aorta of Notch1+/− mice similar to the Notch1+/−; Nos3−/− murine aortas. Additionally, Notch1+/−; Nos3−/− mice had elastic fiber degradation, identified by an overall disorganization of the layers (Figure 3Q). The elastin fibers were normal in Nos3−/− and wildtype littermates (Figure 3N–Q).
Jcdd 02 00017 g003a 1024Jcdd 02 00017 g003b 1024
Figure 3. Dilation of proximal ascending aorta in Notch1+/−; Nos3−/− mice. Representative gross images of thoracic aorta at 8 months are shown in (A–D); (E) Quantification of gross aortic root diameter showing a trend for dilation in Notch1+/−; Nos3−/− mice (n = 4 per genotype); N.S., not significant; (F–M) Hematoxylin and eosin stained aortic sections at 400x and 1000x, respectively (F–I, J–M), showing areas of presumed SMC loss in Notch1+/−; Nos3−/− (M, arrowheads). (N–Q) Representative images of elastin stained aortic cross sections at 1000x, illustrating degraded elastin in the Notch1+/− and Notch1+/−; Nos3−/− mice. Scale bar equals 50 microns.
Figure 3. Dilation of proximal ascending aorta in Notch1+/−; Nos3−/− mice. Representative gross images of thoracic aorta at 8 months are shown in (A–D); (E) Quantification of gross aortic root diameter showing a trend for dilation in Notch1+/−; Nos3−/− mice (n = 4 per genotype); N.S., not significant; (F–M) Hematoxylin and eosin stained aortic sections at 400x and 1000x, respectively (F–I, J–M), showing areas of presumed SMC loss in Notch1+/−; Nos3−/− (M, arrowheads). (N–Q) Representative images of elastin stained aortic cross sections at 1000x, illustrating degraded elastin in the Notch1+/− and Notch1+/−; Nos3−/− mice. Scale bar equals 50 microns.
Jcdd 02 00017 g003aJcdd 02 00017 g003b
Although evidence of elastin disorganization was observed, there were no quantifiable differences between genotypes in total aorta thickness, medial thickness, elastic layer thickness, distance between elastic layers, and number of elastic layers (Figure 4).
Jcdd 02 00017 g004a 1024Jcdd 02 00017 g004b 1024

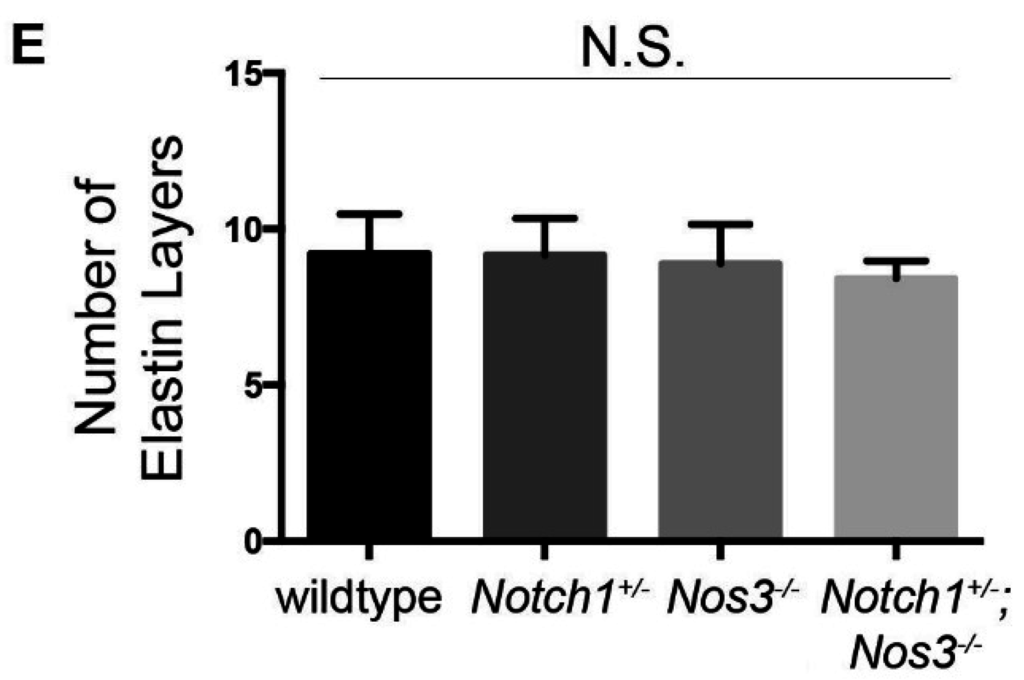

Figure 4. No difference in basic morphometrics of the aortic wall in Notch1+/−; Nos3−/− mice as compared to littermate controls. Quantification of total aortic wall thickness (A); medial thickness (B); elastic layer thickness (C); distance between elastic layers (D); and number of elastin layers (E). N.S., not statistically significant. N = 3 per for each genotype.
Figure 4. No difference in basic morphometrics of the aortic wall in Notch1+/−; Nos3−/− mice as compared to littermate controls. Quantification of total aortic wall thickness (A); medial thickness (B); elastic layer thickness (C); distance between elastic layers (D); and number of elastin layers (E). N.S., not statistically significant. N = 3 per for each genotype.
Jcdd 02 00017 g004aJcdd 02 00017 g004b

3.3. Notch1+/−; Nos3−/− Aortas Display Molecular Evidence of Aortopathy

To determine if the dilated aorta in Notch1+/−; Nos3−/− mice displayed evidence of ECM degradation, we examined the expression of MMP2, an MMP (matrix metalloproteinase) that is commonly overexpressed in aneurysms [39]. In the aorta, MMP2 expression was found to be increased in Notch1+/−; Nos3−/−, and the Notch1+/−; Nos3−/− aortas in comparison to wildtype littermates although it did not reach statistical significance (Figure 5A–D). Another characteristic of aortopathy is smooth muscle cell apoptosis, and therefore, we examined the levels of caspase-3. In the ascending aorta of Notch1+/−; Nos3−/− mice, we found increased expression levels of caspase-3 in comparison to littermates (Figure 5E–H).
Jcdd 02 00017 g005a 1024Jcdd 02 00017 g005b 1024

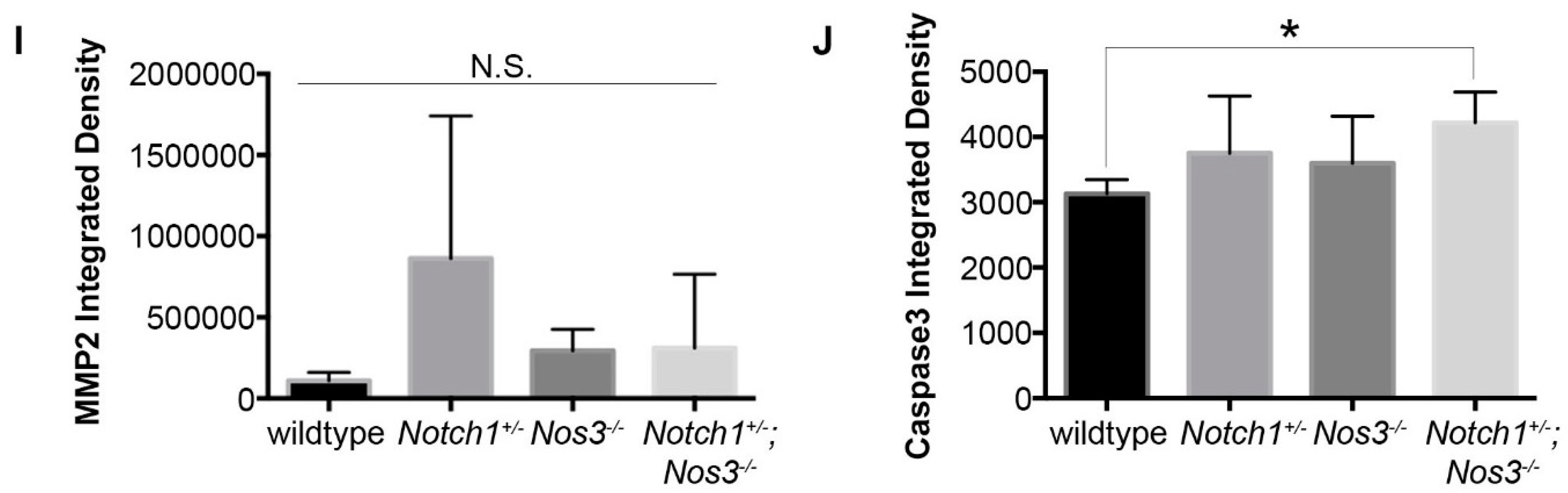

Figure 5. Immunohistochemical evidence of aortopathy in Notch1+/−; Nos3−/− mice. MMP2 protein expression is increased in Notch1+/−; Nos3−/−, Nos3−/−, and Notch1+/− in comparison to wildtype (A–D, I). Caspase-3 protein expression is increased in Notch1+/−; Nos3−/− in comparison to littermates, * p value < 0.05 (E–H, J). Scale bar equals 50 microns.
Figure 5. Immunohistochemical evidence of aortopathy in Notch1+/−; Nos3−/− mice. MMP2 protein expression is increased in Notch1+/−; Nos3−/−, Nos3−/−, and Notch1+/− in comparison to wildtype (A–D, I). Caspase-3 protein expression is increased in Notch1+/−; Nos3−/− in comparison to littermates, * p value < 0.05 (E–H, J). Scale bar equals 50 microns.
Jcdd 02 00017 g005aJcdd 02 00017 g005b

3.4. Significance

Thoracic aortic aneurysms are a significant cause of morbidity and mortality in adults, and are particularly prevalent in the BAV population. There is substantial interest in discerning the hemodynamic and genetic influences in aortic aneurysm development in these patients. In this study, we have identified a specific mouse model (Notch1+/−; Nos3−/−) which develops dilation of the aortic sinus and effacement of the STJ, characteristics which are proposed to have genetic origins in humans [15]. STJ effacement is usually not an isolated clinical phenomenon, and it is possible that significant aortic dilation would be observed if these mice were further aged. We have also, for the first time, described pathologic changes suggestive of an ascending aortopathy in a subset of Notch1 heterozygote and Nos3-null mice, with effacement of the STJ and a trend toward increased MMP2 expression, although no evidence of dilation was observed in either Notch1+/− mice and Nos3−/− at 6 months of age. Overall, these findings suggest inherent defects in the aorta of Notch1+/− and Nos3−/− mice which when combined result in dilation of the aortic root, characterized by classic signs of aneurysm such as medial and elastic fiber degradation and an increased expression of MMP2 and caspase-3.
Effacement of the STJ is noteworthy when considering the embryonic smooth muscle cell lineages that contribute to the thoracic aorta. SMCs in the aortic root are primarily derived from the anterior heart field [32], whereas SMCs in the ascending aorta are primarily derived from the cardiac neural crest [33] (Figure 1). It has been suggested by several investigators that SMCs have different signaling mechanisms that are dependent on their embryonic lineage [31]. While the derivation of the SMCs in the thoracic aorta is split, the endothelial cells are all derived from mesoderm-derived angioblasts (reviewed in [40]). The endothelial lining of the aorta is critical to the maintenance of SMCs and the overall aortic wall. Endothelial cells provide extracellular matrix, inhibit SMC proliferation, and release nitric oxide to aid in vasodilation. Notch1 is predominantly located in endothelial cells throughout the adult cardiovascular system [41]. It is possible that the loss of endothelial nitric oxide and Notch1 specifically affects the STJ because at this point of lineage divergence, SMC response to endothelial cell signals differs. For example, blood flow patterns normally differ between the aortic root and the ascending aorta [42], and endothelial cells signal to SMCs in response to flow patterns [43]. Because the STJ is a heterogeneous population of anterior heart field-derived and cardiac neural-crest derived SMCs (Figure 1) and endothelial cell-SMC signaling is lineage specific, the aortic wall at the STJ could be more susceptible to disrupted endothelial cell signaling than the aortic root or the ascending aorta, both of which have homogenous SMC populations.
TGF-β expression is known to be increased in many TAA patients [44], although its exact mechanism of action in aneurysmal development is unclear [45]. Total (active and inactive) circulating TGF-β1, a transcriptional target of TGF-β signaling, was assayed in the Notch1+/−; Nos3−/− mice, but no clear differences were found (Supplemental Figure 3A). Although MMP2 expression, a transcriptional target of the TGF-β signaling pathway, was increased in our mouse model, we did not find changes in the expression of phosphorylated SMAD2 (Supplemental Figure 3B). It is possible that with age and more severe disease, an increase in circulating TGF-β1 would be more readily measureable.

4. Limitations

While our study is the first to describe an aortopathic phenotype in Notch1+/−; Nos3−/− mice, it has several limitations. First, the mice were only aged to eight months and therefore the identified differences in the compound mutant mice were not dramatic. Additional studies examining the aorta after pharmacologic treatment to induce hypertension (angiotensin II or phenylephrine infusion) of Notch1+/− and Notch1+/−; Nos3−/− may give a more definitive picture of the role on Notch1 in this disease. Secondly, it has been suggested that the more common location of aneurysms in BAV patients which are localized to the ascending aorta are due to hemodynamic effects, while those localized to the aortic root are attributed to genetic factors (Figure 1, reviewed in [15]). Consistent with this notion, the Notch1+/−; Nos3−/− mice did not demonstrate abnormal hemodynamics (Figure 2F). We were unable to examine the aortic valve morphology in the Notch1+/−, Nos3−/− and Notch1+/−; Nos3−/− mice, a significant limitation of this study. In our experience, the most reliable method to characterize aortic valve morphology is to dissect the aortic valve with an attached cuff of the proximal aorta as this allows for direct visual inspection and mechanical manipulation to determine cusp fusion [30]. This type of analysis does not allow for histological examination of the diseased portion of the aorta since it was directly adjacent to the valve. Lastly, our model involves the disruption of the Notch1 signaling pathway and therefore these findings may not be relevant to all BAV associated aortopathy.

5. Conclusions

In conclusion, this study describes a new mouse model of aortopathy that includes effacement and dilation of the STJ and a trend toward dilation of the aortic sinus, although this was not significant. Our murine model suggests that STJ effacement may be an early indicator of aortopathy that has embryologic origins and molecular basis. This model has histological and molecular features consistent with ascending aortic aneurysms, including elastin degradation, smooth muscle cell apoptosis, and increased MMP2 expression. Additionally, we have described more subtle and less penetrant pathological changes in the aorta of the Nos3−/− and Notch1+/− mice.

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/2308-3425/2/1/0017/s1.

Acknowledgments

The authors would like to acknowledge Nianyuan Huang for her technical assistance in management of the mouse colony for this project. The project described was supported by Award Number Grant TL1TR001069 from the National Center for Advancing Translational Sciences. The content is solely the responsibility of the authors and does not necessarily represent the official views of the National Center for Advancing Translational Sciences or the National Institutes of Health. This project was also supported by Saving tiny Hearts Society and Nationwide Children’s Hospital Research Institute.

Author Contributions

Sara N. Koenig contributed to experimental design, data collection, analysis, and manuscript preparation. Kevin M. Bosse and Brenda Lilly assisted with data interpretation and made critical contributions to the manuscript. Holly A. Nadorlik assisted with echocardiographic analysis. Vidu Garg contributed to experimental design, analysis, and manuscript preparation.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Clouse, W.D.; Hallett, J.W., Jr.; Schaff, H.V.; Spittell, P.C.; Rowland, C.M.; Ilstrup, D.M.; Melton, L.J., 3rd. Acute aortic dissection: Population-based incidence compared with degenerative aortic aneurysm rupture. Mayo Clin. Proc. 2004, 79, 176–180. [Google Scholar] [CrossRef] [PubMed]
  2. Paterick, T.E.; Humphries, J.A.; Ammar, K.A.; Jan, M.F.; Loberg, R.; Bush, M.; Khandheria, B.K.; Tajik, A.J. Aortopathies: Etiologies, genetics, differential diagnosis, prognosis and management. Am. J. Med. 2013, 126, 670–678. [Google Scholar] [CrossRef] [PubMed]
  3. Romaniello, F.; Mazzaglia, D.; Pellegrino, A.; Grego, S.; Fiorito, R.; Ferlosio, A.; Chiariello, L.; Orlandi, A. Aortopathy in marfan syndrome: An update. Cardiovasc. Pathol. 2014, 23, 261–266. [Google Scholar] [CrossRef] [PubMed]
  4. Kainulainen, K.; Pulkkinen, L.; Savolainen, A.; Kaitila, I.; Peltonen, L. Location on chromosome 15 of the gene defect causing marfan syndrome. N. Engl. J. Med. 1990, 323, 935–939. [Google Scholar] [CrossRef] [PubMed]
  5. Lee, B.; Godfrey, M.; Vitale, E.; Hori, H.; Mattei, M.G.; Sarfarazi, M.; Tsipouras, P.; Ramirez, F.; Hollister, D.W. Linkage of marfan syndrome and a phenotypically related disorder to two different fibrillin genes. Nature 1991, 352, 330–334. [Google Scholar] [CrossRef] [PubMed]
  6. Maslen, C.L.; Corson, G.M.; Maddox, B.K.; Glanville, R.W.; Sakai, L.Y. Partial sequence of a candidate gene for the marfan syndrome. Nature 1991, 352, 334–337. [Google Scholar] [CrossRef] [PubMed]
  7. Dietz, H.C.; Cutting, G.R.; Pyeritz, R.E.; Maslen, C.L.; Sakai, L.Y.; Corson, G.M.; Puffenberger, E.G.; Hamosh, A.; Nanthakumar, E.J.; Curristin, S.M.; et al. Marfan syndrome caused by a recurrent de novo missense mutation in the fibrillin gene. Nature 1991, 352, 337–339. [Google Scholar] [CrossRef] [PubMed]
  8. Guo, D.C.; Pannu, H.; Tran-Fadulu, V.; Papke, C.L.; Yu, R.K.; Avidan, N.; Bourgeois, S.; Estrera, A.L.; Safi, H.J.; Sparks, E.; et al. Mutations in smooth muscle alpha-actin (ACTA2) lead to thoracic aortic aneurysms and dissections. Nat. Genet. 2007, 39, 1488–1493. [Google Scholar] [CrossRef] [PubMed]
  9. Zhu, L.; Vranckx, R.; Khau van Kien, P.; Lalande, A.; Boisset, N.; Mathieu, F.; Wegman, M.; Glancy, L.; Gasc, J.M.; Brunotte, F.; et al. Mutations in myosin heavy chain 11 cause a syndrome associating thoracic aortic aneurysm/aortic dissection and patent ductus arteriosus. Nat. Genet. 2006, 38, 343–349. [Google Scholar] [CrossRef] [PubMed]
  10. Barbey, F.; Qanadli, S.D.; Juli, C.; Brakch, N.; Palacek, T.; Rizzo, E.; Jeanrenaud, X.; Eckhardt, B.; Linhart, A. Aortic remodelling in fabry disease. Eur. Heart J. 2010, 31, 347–353. [Google Scholar] [CrossRef] [PubMed]
  11. Pepin, M.; Schwarze, U.; Superti-Furga, A.; Byers, P.H. Clinical and genetic features of ehlers-danlos syndrome type IV, the vascular type. N. Engl. J. Med. 2000, 342, 673–680. [Google Scholar] [CrossRef] [PubMed]
  12. Loeys, B.L.; Schwarze, U.; Holm, T.; Callewaert, B.L.; Thomas, G.H.; Pannu, H.; de Backer, J.F.; Oswald, G.L.; Symoens, S.; Manouvrier, S.; et al. Aneurysm syndromes caused by mutations in the tgf-beta receptor. N. Engl. J. Med. 2006, 355, 788–798. [Google Scholar] [CrossRef] [PubMed]
  13. Gurvitz, M.; Chang, R.K.; Drant, S.; Allada, V. Frequency of aortic root dilation in children with a bicuspid aortic valve. Am. J. Cardiol. 2004, 94, 1337–1340. [Google Scholar] [CrossRef] [PubMed]
  14. Cecconi, M.; Manfrin, M.; Moraca, A.; Zanoli, R.; Colonna, P.L.; Bettuzzi, M.G.; Moretti, S.; Gabrielli, D.; Perna, G.P. Aortic dimensions in patients with bicuspid aortic valve without significant valve dysfunction. Am. J. Cardiol. 2005, 95, 292–294. [Google Scholar] [CrossRef] [PubMed]
  15. Verma, S.; Siu, S.C. Aortic dilatation in patients with bicuspid aortic valve. N. Engl. J. Med. 2014, 370, 1920–1929. [Google Scholar] [CrossRef] [PubMed]
  16. Nistri, S.; Sorbo, M.D.; Marin, M.; Palisi, M.; Scognamiglio, R.; Thiene, G. Aortic root dilatation in young men with normally functioning bicuspid aortic valves. Heart 1999, 82, 19–22. [Google Scholar] [CrossRef] [PubMed]
  17. Lopez, L.; Arheart, K.L.; Colan, S.D.; Stein, N.S.; Lopez-Mitnik, G.; Lin, A.E.; Reller, M.D.; Ventura, R.; Silberbach, M. Turner syndrome is an independent risk factor for aortic dilation in the young. Pediatrics 2008, 121, e1622–e1627. [Google Scholar] [CrossRef] [PubMed]
  18. Mortensen, K.H.; Hjerrild, B.E.; Stochholm, K.; Andersen, N.H.; Sorensen, K.E.; Lundorf, E.; Horlyck, A.; Pedersen, E.M.; Christiansen, J.S.; Gravholt, C.H. Dilation of the ascending aorta in turner syndrome—A prospective cardiovascular magnetic resonance study. J. Cardiov. Magn. Reson. 2011, 13, 24. [Google Scholar] [CrossRef]
  19. Olivieri, L.J.; Baba, R.Y.; Arai, A.E.; Bandettini, W.P.; Rosing, D.R.; Bakalov, V.; Sachdev, V.; Bondy, C.A. Spectrum of aortic valve abnormalities associated with aortic dilation across age groups in turner syndrome. Circul. Cardiovasc. Imaging 2013, 6, 1018–1023. [Google Scholar] [CrossRef]
  20. Garg, V.; Muth, A.N.; Ransom, J.F.; Schluterman, M.K.; Barnes, R.; King, I.N.; Grossfeld, P.D.; Srivastava, D. Mutations in Notch1 cause aortic valve disease. Nature 2005, 437, 270–274. [Google Scholar] [CrossRef] [PubMed]
  21. De la Pompa, J.L.; Epstein, J.A. Coordinating tissue interactions: Notch signaling in cardiac development and disease. Dev. Cell 2012, 22, 244–254. [Google Scholar] [CrossRef] [PubMed]
  22. Swiatek, P.J.; Lindsell, C.E.; del Amo, F.F.; Weinmaster, G.; Gridley, T. Notch1 is essential for postimplantation development in mice. Genes Dev. 1994, 8, 707–719. [Google Scholar] [CrossRef] [PubMed]
  23. Krebs, L.T.; Xue, Y.; Norton, C.R.; Shutter, J.R.; Maguire, M.; Sundberg, J.P.; Gallahan, D.; Closson, V.; Kitajewski, J.; Callahan, R.; et al. Notch signaling is essential for vascular morphogenesis in mice. Genes Dev. 2000, 14, 1343–1352. [Google Scholar] [PubMed]
  24. Jain, R.; Rentschler, S.; Epstein, J.A. Notch and cardiac outflow tract development. Ann. N. Y. Acad. Sci. 2010, 1188, 184–190. [Google Scholar] [CrossRef] [PubMed]
  25. Jain, R.; Engleka, K.A.; Rentschler, S.L.; Manderfield, L.J.; Li, L.; Yuan, L.; Epstein, J.A. Cardiac neural crest orchestrates remodeling and functional maturation of mouse semilunar valves. J. Clin. Investig. 2011, 121, 422–430. [Google Scholar] [CrossRef] [PubMed]
  26. McKellar, S.H.; Tester, D.J.; Yagubyan, M.; Majumdar, R.; Ackerman, M.J.; Sundt, T.M., 3rd. Novel Notch1 mutations in patients with bicuspid aortic valve disease and thoracic aortic aneurysms. J. Thorac. Cardiovasc. Surg. 2007, 134, 290–296. [Google Scholar] [CrossRef] [PubMed]
  27. Kent, K.C.; Crenshaw, M.L.; Goh, D.L.; Dietz, H.C. Genotype-phenotype correlation in patients with bicuspid aortic valve and aneurysm. J. Thorac. Cardiovasc. Surg. 2013, 146. [Google Scholar] [CrossRef]
  28. Sciacca, S.; Pilato, M.; Mazzoccoli, G.; Pazienza, V.; Vinciguerra, M. Anti-correlation between longevity gene SirT1 and Notch signaling in ascending aorta biopsies from patients with bicuspid aortic valve disease. Heart Vessels 2013, 28, 268–275. [Google Scholar] [CrossRef] [PubMed]
  29. Zou, S.; Ren, P.; Nguyen, M.; Coselli, J.S.; Shen, Y.H.; LeMaire, S.A. Notch signaling in descending thoracic aortic aneurysm and dissection. PLoS One 2012, 7, e52833. [Google Scholar] [CrossRef] [PubMed]
  30. Bosse, K.; Hans, C.P.; Zhao, N.; Koenig, S.N.; Huang, N.; Guggilam, A.; LaHaye, S.; Tao, G.; Lucchesi, P.A.; Lincoln, J.; et al. Endothelial nitric oxide signaling regulates Notch1 in aortic valve disease. J. Mol. Cell Cardiol. 2013, 60, 27–35. [Google Scholar] [CrossRef] [PubMed]
  31. Sinha, S.; Iyer, D.; Granata, A. Embryonic origins of human vascular smooth muscle cells: Implications for in vitro modeling and clinical application. Cell. Mol. Life Sci. 2014, 71, 2271–2288. [Google Scholar] [CrossRef] [PubMed]
  32. Verzi, M.P.; McCulley, D.J.; de Val, S.; Dodou, E.; Black, B.L. The right ventricle, outflow tract, and ventricular septum comprise a restricted expression domain within the secondary/anterior heart field. Dev. Biol. 2005, 287, 134–145. [Google Scholar] [CrossRef] [PubMed]
  33. Jiang, X.; Rowitch, D.H.; Soriano, P.; McMahon, A.P.; Sucov, H.M. Fate of the mammalian cardiac neural crest. Development 2000, 127, 1607–1616. [Google Scholar] [PubMed]
  34. Wasteson, P.; Johansson, B.R.; Jukkola, T.; Breuer, S.; Akyurek, L.M.; Partanen, J.; Lindahl, P. Developmental origin of smooth muscle cells in the descending aorta in mice. Development 2008, 135, 1823–1832. [Google Scholar] [CrossRef] [PubMed]
  35. Shesely, E.G.; Maeda, N.; Kim, H.S.; Desai, K.M.; Krege, J.H.; Laubach, V.E.; Sherman, P.A.; Sessa, W.C.; Smithies, O. Elevated blood pressures in mice lacking endothelial nitric oxide synthase. Proc. Natl. Acad. Sci. USA 1996, 93, 13176–13181. [Google Scholar] [CrossRef] [PubMed]
  36. Shu, J.; Qiu, G.; Ilyas, M. Immunohistochemistry (IHC) image analysis toolbox. Available online: http://rsb.info.nih.gov/ij/plugins/ihc-toolbox/index.html (accessed on 4 March 2015).
  37. Koenig, S.N.; Garg, V. Aortic diameter measurements of 3 month old Notch1+/−; Nos3−/− mice. Nationwide Children’s Hospital: Columbus, OH, USA, Unpublished data. 2014. [Google Scholar]
  38. Tadros, T.M.; Klein, M.D.; Shapira, O.M. Ascending aortic dilatation associated with bicuspid aortic valve: Pathophysiology, molecular biology, and clinical implications. Circulation 2009, 119, 880–890. [Google Scholar] [CrossRef] [PubMed]
  39. Lindsay, M.E.; Dietz, H.C. Lessons on the pathogenesis of aneurysm from heritable conditions. Nature 2011, 473, 308–316. [Google Scholar] [CrossRef] [PubMed]
  40. Choi, K.; Kennedy, M.; Kazarov, A.; Papadimitriou, J.C.; Keller, G. A common precursor for hematopoietic and endothelial cells. Development 1998, 125, 725–732. [Google Scholar] [PubMed]
  41. Takeshita, K.; Satoh, M.; Ii, M.; Silver, M.; Limbourg, F.P.; Mukai, Y.; Rikitake, Y.; Radtke, F.; Gridley, T.; Losordo, D.W.; et al. Critical role of endothelial Notch1 signaling in postnatal angiogenesis. Circ. Res. 2007, 100, 70–78. [Google Scholar] [CrossRef] [PubMed]
  42. Hope, T.A.; Markl, M.; Wigstrom, L.; Alley, M.T.; Miller, D.C.; Herfkens, R.J. Comparison of flow patterns in ascending aortic aneurysms and volunteers using four-dimensional magnetic resonance velocity mapping. JMRI 2007, 26, 1471–1479. [Google Scholar] [CrossRef] [PubMed]
  43. Chien, S. Mechanotransduction and endothelial cell homeostasis: The wisdom of the cell. Am. J. Physiol. Heart Circ. Physiol. 2007, 292, H1209–H1224. [Google Scholar] [CrossRef] [PubMed]
  44. Hillebrand, M.; Millot, N.; Sheikhzadeh, S.; Rybczynski, M.; Gerth, S.; Kolbel, T.; Keyser, B.; Kutsche, K.; Robinson, P.N.; Berger, J.; et al. Total serum transforming growth factor-beta1 is elevated in the entire spectrum of genetic aortic syndromes. Clin. Cardiol. 2014, 37, 672–679. [Google Scholar] [CrossRef] [PubMed]
  45. Gillis, E.; van Laer, L.; Loeys, B.L. Genetics of thoracic aortic aneurysm: At the crossroad of transforming growth factor-beta signaling and vascular smooth muscle cell contractility. Circ. Res. 2013, 113, 327–340. [Google Scholar] [CrossRef] [PubMed]
