Article

Quantitative Single-Cell Transcript Assessment of Biomarkers Supports Cellular Heterogeneity in the Bovine IVD

by
Kangning Li
1,
Devin Kapper
2,
Sumona Mondal
2,
Thomas Lufkin
1 and
Petra Kraus
1,*
1
Department of Biology, Clarkson University, 8 Clarkson Ave, Potsdam, NY 13699, USA
2
Department of Mathematics, Clarkson University, 8 Clarkson Ave, Potsdam, NY 13699, USA
*
Author to whom correspondence should be addressed.
Vet. Sci. 2019, 6(2), 42; https://doi.org/10.3390/vetsci6020042
Submission received: 6 April 2019 / Revised: 5 May 2019 / Accepted: 9 May 2019 / Published: 12 May 2019
(This article belongs to the Special Issue Molecular and Cell Biological Innovations to Advance Veterinary Animal Research)
Browse Figures
Versions Notes

Abstract

:
Severe and chronic low back pain is often associated with intervertebral disc (IVD) degeneration. While imposing a considerable socio-economic burden worldwide, IVD degeneration is also severely impacting on the quality of life of affected individuals. Cell-based regenerative medicine approaches have moved into clinical trials, yet IVD cell identities in the mature disc remain to be fully elucidated and tissue heterogeneity exists, requiring a better characterization of IVD cells. The bovine coccygeal IVD is an accepted research model to study IVD mechano-biology and disc homeostasis. Recently, we identified novel IVD biomarkers in the outer annulus fibrosus (AF) and nucleus pulposus (NP) of the mature bovine coccygeal IVD through RNA in situ hybridization (AP-RISH) and z-proportion test. Here we follow up on Lam1, Thy1, Gli1, Gli3, Noto, Ptprc, Scx, Sox2 and Zscan10 with fluorescent RNA in situ hybridization (FL-RISH) and confocal microscopy. This permits sub-cellular transcript localization and the addition of quantitative single-cell derived values of mRNA expression levels to our previous analysis. Lastly, we used a Gaussian mixture modeling approach for the exploratory analysis of IVD cells. This work complements our earlier cell population proportion-based study, confirms the previously proposed biomarkers and indicates even further heterogeneity of cells in the outer AF and NP of a mature IVD.

1. Introduction

Cell-based tissue regeneration approaches to address degeneration of intervertebral discs (IVD) are a glimpse of hope for a large percentage of the population suffering from severe and chronic lower back pain due to age or injury related degenerative disc disease (DDD). The IVD is a tissue of strength, resilience and capable of reducing the impact of movement on the rigid vertebral bodies that stabilize our spine [1]. In this field of regenerative medicine, strategies are pursued to refurbish ailing IVDs with autologous or allogenic cells, derived either from the disc itself or other sources, with special interest in mesenchymal stem cells (MSC) derived from bone marrow, articular cartilage or adipose tissue. Alternatively, strategies to stimulate intrinsic disc cells through the injection of growth factors or the use of gene therapy to replace degenerating extracellular matrix (ECM) molecules are envisioned as ways to “rejuvenate” IVD function as a shock absorber in the spinal joints [2,3,4,5,6]. On first glance the IVD might appear as an anatomically simple structure, comprised of concentric rings in the annulus fibrosus (AF) and gradually transitioning towards a central nucleus pulposus (NP) [1,7,8]. However, compared to other vertebrate organs, the IVD is unique in many ways: The avascular nature of the IVD is reflected in a lack of coloration (see Figure 1A in [3]) and the few remaining cells in the mature IVD are embedded in a vast amount of ECM, likely experiencing only minor cell-cell contact [3]. These few resident cells within the outer AF and NP of mature IVDs display a heterogeneous profile when assessed on a single-cell level for their transcriptional activities [2,3]. Given several ongoing clinical trials [5,9,10,11] and an alarming emergence of stem cell tourism worldwide [12] there remains a need to further characterize these cells on a molecular level, should they be the subject or target of regenerative treatments [3,13,14,15].
Animals, especially Mus musculus, have long been extremely helpful as model organisms to study human development and genetic mutations underlying congenital diseases [16]. While important work has been accomplished in mouse to understand the early notochord to NP transition [17,18,19], the cell composition of the NP of mature caudal IVDs differs significantly between human and rodents or porcine [3,13,20] and points to alternative animal models like Bos Taurus. Respecting the 3R guidelines in research—replacement, reduction, and refinement—bovine tails are an ideal IVD source, as abattoirs often discard them. Bovine coccygeal discs provide a very suitable research model to study cell populations of the mature healthy IVD (Figure 1 in [20]). The coccygeal bovine IVD of a skeletally mature animal is considered similar to a human lumbar disc of a healthy young adult on an anatomical, histological, biochemical and biomechanical level [13,20,21,22,23,24] and represents an ethically more acceptable tissue source to study healthy cells compared to human IVD tissue.
In need for further characterization of resident cells in the mature IVD, we recently proposed a set of novel IVD biomarkers based on the proportion of cells within the outer AF and NP tissue of bovine coccygeal IVDs being either positive or negative for the proposed biomarker transcript [3]: Laminin1 (Lam1) belongs to a group of glycoproteins of high molecular weight and is present in the ECM of the basal lamina with the ability to bind to collagens, integrins and proteoglycans [25]. Glioma-associated oncogene 1 (Gli1) and 3 (Gli3) belong to a family of transcription factors (TF) known as downstream mediators of hedgehog signaling [26,27,28]. Notochord (Noto) is a homeobox TF involved in early notochord development, acts downstream of brachyury [29] and is conserved during notochord development. Noto cell lineage tracing in mouse indicated that the NP originates from the notochord [30]. Scleraxis (Scx) is a basic helix-loop-helix TF otherwise found in connective tissues including tendons and ligaments and is implicated in skeletogenesis during mouse embryonic development [31,32]. Sex determining region Y-box 2 (Sox2) is essential for pluripotency of stem cells and involved with self-renewal capacity [33,34]. Zscan10 (Zinc finger and SCAN (SRE-ZBP, CTfin51, AW-1 and Number 18 cDNA) domain containing) is a TF and proposed multipotency marker in mouse [35]. Tyrosine phosphate receptor type C (Ptprc or CD45) and thymocyte differentiation antigen 1 (Thy1 or CD90), are part of a marker panel defining multipotent mesenchymal stromal cells [36,37].
Analyzing these genes with RNA in situ hybridization (RISH), we point to heterogeneity among cells within the outer AF or NP, which is typically not accounted for by methods involving cell pooling for RNA extraction, such as qRT-PCR, microarray expression profiling or non-single-cell RNA sequencing [2,3,38]. Here, we also explore the use of fluorescent (FL) transcript tagging to allow for transcript quantification of proposed biomarkers through both population averaging and single-cell analysis and we propose that this analysis based on FL values enables further evaluation of cellular heterogeneity within the population of cells actively transcribing a biomarker. Lastly, we provide evidence that transcriptional heterogeneity in the mature IVD is not simply attributable to cells undergoing senescence.

2. Materials and Methods

All procedures were performed according to ethical standards of Clarkson University (NIH Office of Laboratory Animal Welfare PHS Approved Animal Welfare Assurance Clarkson University-Assurance Number D16-00780 (A4536-01). No human material was included in this study.

2.1. Tissue Collection and IVD Isolation

Tails of skeletally mature bovine animals were retrieved fresh from local abattoirs, transported on ice and processed within two hours. All procedures were carried out strictly under ribonuclease free conditions [39]. Coccygeal IVDs were isolated and fixed in 4% (w/v) paraformaldehyde (PFA), dehydrated through a gradient of ethanol baths and embedded in paraffin [40]. Sections with a thickness of 7 µm were cut on a rotary microtome and mounted on VistaVisionTMHistobondR glass slides (VWR, Radnor, PA, USA) [41].

2.2. Scanning Electron Microscopy (SEM)

IVDs were fixed overnight using 2.5% (v/v) glutaraldehyde (EMS, Hatfield, PA, USA) in 0.1 M sodium cacodylate solution (EMS) at 4 °C, followed by 0.1 M sodium cacodylate incubation at 4 °C overnight. Then the IVDs were gently dehydrated in 50%, 60%, 70%, 80%, 90%, and 100% ethanol baths. Initial air-drying was followed by freeze-drying overnight before the IVDs were Au/Pd sputter coated and examined with a JEOL JSM-7400F scanning electron microscope (JEOL Ltd., Akishima, Tokyo, Japan) at 1500× magnification.

2.3. Fluorescent RNA in situ Hybridization (FL-RISH) and Immunohistochemistry (IHC)

Templates for RNA probes were amplified by polymerase chain reaction (PCR) from bovine genomic DNA as described [3]. The enzymatic activity of T7 RNA polymerase facilitated labeling of RNA antisense probes with a digoxigenin (DIG) epitope (Roche, Basel, Switzerland) essentially as described in [20]. The epitope was detected by an anti-digoxin primary antibody (JIR, West Grove, PA, USA) and visualized with an Alexa-488 secondary antibody (JIR), while nuclei were stained with 4′,6-diamidino-2-phenylindole (DAPI) (Thermo Fisher, Waltham, MA, USA). Experiments omitting the use of a probe or the primary antibody served as controls for unspecific binding. For a combined FL-RISH/IHC analysis, a polyclonal rabbit anti-Ki67 antibody (Thermo Fisher) was added after the RISH washing steps and visualized with an Alexa-647 secondary antibody (Thermo Fisher). To visualize subcellular locations of mRNA transcripts as well as for Ki67 protein detection, cells were imaged at 63× magnification with zoom factor 3 using a DMi8 confocal microscope (Leica, Wetzlar, Germany).

2.4. Selection of Investigated Biomarkers

Previously we had investigated 50 genes based on their occurrence in IVD related literature [17,36,42,43,44] or based on data from our work in Mus musculus [9,35,45,46,47,48,49,50]. Through RNA in situ hybridization (AP-RISH) and z-proportion test we had identified a total of three predominantly outer AF and fifteen predominantly NP associated transcripts, confirming several existing biomarkers such as Col1a1 in the outer AF and Acan in the NP. Of those 18 genes, two were novel biomarkers in the outer AF (Lam1 and Thy1) and eight in NP tissue (Gli1, Gli3, Noto, Scx, Ptprc, Sox2, Zscan10 and Klhl14as (LOC101904175)) [3]. Here, using FL-RISH in a modified approach, we extended our analysis of the nine protein-encoding novel biomarkers to provide quantification of mRNA transcript levels per cell.

2.5. Data Collection and Analysis

For transcript quantification of each proposed biomarker we chose 20 random fields of view within the outer AF and NP of three IVDs to capture fluorescent signal intensities, similar to the approach taken for Col2a1 and LOC101904175 [3]. Quantitative transcript data was collected under 40× magnification on a DMi8 confocal microscope (Leica) as maximum projection of four z-stack images. Background was accounted for through thresholding in Image J. Total fluorescence for each cell was calculated in Image J as the product of mean fluorescence and area values. For each biomarker and IVD, the mean total fluorescence was established for cells in the outer AF and NP, analyzed for significance using Student’s t-test and graphed with GraphPad PRISM 5 (GraphPad, San Diego, CA, USA).
The Kernel density estimates of the data were graphed in R using a log2 transformation of the total fluorescence intensity for each transcriptionally active cell. The Shapiro–Wilk test was employed to assess the validity of a normality assumption for the data collected. When the data was not normally distributed, k-means clustering was performed to see if the data could be fit to a mixture of Gaussian populations using the expectation-maximization (EM) algorithm. Subsequently, if cells were found to be normally distributed within the sub-clusters, no further subdivision was pursued and the resulting Gaussian mixture model (GMM) was kept. Of note, we have excluded the possibility of artificial sub-clustering due to technical errors through natural data clustering. That is, we found those clusters to be uncorrelated with the frame number or individual IVD sections (Figure S1).

3. Results

3.1. Morphology of Outer AF and NP Cells in their ECM Environment

Cells of the mature AF and NP reside in a large amount of ECM. Fibers of structural molecules in the ECM appear aligned in a linear manner in the outer AF and show a more crisscross pattern in the NP (Figure 1). NP cells are typically of round appearance and often described as chondrocyte-like. Larger and smaller cell bodies are seen side-by-side indicating morphological heterogeneity. Often long, bulging cell protrusions are visible in vivo and in vitro (Figure 1 and [2,20]). Cells in the AF are elongated, resembling more the shape of fibroblasts (Figure 1). This difference in cell morphology was also reflected by the shape of the cell nuclei, which is typically elongated in cells of the outer AF and round in NP cells as seen after DAPI staining (Figure 2).

3.2. Subcellular Transcript Localization of Proposed Biomarkers in Outer AF and NP Cells

Owing to the high resolution of confocal imaging and the availability of 3D manipulation software tools, the intracellular location of gene transcripts could be visualized after FL-RISH and imaging at 63× magnification (Figure 2). According to the dogma of biology, primary protein encoding mRNA transcripts are first generated in the nucleus, processed and then exported into the cytoplasm for translation. As shown here, some transcripts were mostly localized in the nucleus (Thy1, Ptprc and Sox2 in cells of the outer AF), some were found predominantly in the cytoplasm (Gli1 in outer AF cells and Zscan10 in both cell types analyzed) and others were typically found in both cellular compartments (Thy 1 in outer AF cells, Gli1, Ptprc and Sox2 in NP cells or Gli3, Noto and Scx in both cell types) (Figure 2). The intracellular transcript localization of the transcription factors Gli1, Gli3, Sox2 and Zscan10 showed distinct bright foci, while transcripts of the other genes analyzed often had a more homogeneous appearance (Figure 2).

3.3. Confirmation of Biomarkers Using Transcript Quantification Through Population Averaging

We further investigated our recently proposed protein-encoding biomarkers in the outer AF (Lam1 and Thy1) and NP tissue (Gli1, Gli3, Noto, Scx, Ptprc, Sox2 and Zscan10) using fluorescent tagging of the transcripts (FL-RISH) and confocal imaging (Figure 3 and Table 1 and Table S1). We first used the approach of identifying positive and negative cells and subjected these data to z-proportion analysis (Table 1). Next, using transcript quantification per cell, and comparing the mean of the cell population average for total fluorescence in the outer AF and NP, the proposed outer AF biomarkers Lam1 and Thy1 alongside the proposed NP biomarkers were confirmed as significant using data generated by FL-RISH (Figure 3, Table 1 and Table S1).

3.4. Transcriptional Heterogeneity in IVD Cells is Not a Sole Consequence of Cell Cycle Arrest

Heterogeneity was confirmed with the FL-RISH approach as shown for Zscan10 expression in the AF and Ptprc expression in the NP (Figure 2) and by z-proportion analysis (Table 1). We also performed a combined FL-RISH and FL-IHC analysis using Ki67 as an indicator for cells in the active phase of the cell cycle (Figure 4). As shown here for Gli1, Gli3, Sox2 and Zscan10, we found Ki67 positive NP-cells in both the presence and absence of these transcripts.

3.5. Single Cell Transcript Analysis Indicates Further Heterogeneity in Transcriptionally Active Cells.

To further investigate the pool of transcriptionally active cells and to provide assessment of cell heterogeneity with single-cell resolution, the total fluorescence intensity of each positive cell was graphed using a Kernel density distribution plot. Some of our biomarkers showed a non-normal distribution in transcriptionally active outer AF cells: Gli3, Noto, and Zscan10 (Figure 5A) or NP cells: Thy1, Gli1, Gli3, Scx, Sox2 and Zscan10 (Figure 5B) as determined through the use of the Shapiro–Wilk test; k-means clustering was performed when data was not normally distributed to fit data to a Gaussian mixture model (GMM) (Tables S2 and S3). Using this approach and assessing one gene at a time we identified distinct sub-populations with at least a two-fold difference of transcript levels as represented by the total fluorescence intensity of Gli3, Noto and Zscan10 expressing cells in the outer AF cell population (Figure 6A) and for Thy1, Gli1, Gli3, Scx, Sox2 and Zscan10 in the NP cell population (Figure 6B).

4. Discussion

Discogenic, severe and chronic lower back pain due to disc trauma and degeneration is a debilitating condition that patients, once affected, often have to endure for a significant part of their life. So far, partial alleviation of symptoms but no complete cure or full restoration of athletic abilities or lifestyle choices is available [51,52]. Cell therapy-based regenerative medicine holds promises to delay or revert the degeneration of aging or injured body parts and animal studies as well as clinical trials for IVD regeneration are ongoing (www.clinicaltrials.gov) [9,10,11,53]. At the same time a more profound understanding of the pathophysiology of DDD and the cell types involved is required [37]. DDD is accompanied by a decrease in proteoglycan and collagen II synthesis alongside the degeneration of existing collagen II and an increase of collagen I in the NP [15,54,55,56,57,58]. In the context of pathophysiology, a recent study suggested a link between iron deficiency and DDD [59], while on the contrary, an iron-overload and related free radical generation was considered a factor leading to DDD in patients with beta thalassemia major [60]. With regards to IVD development, progress has come from transgenic mouse models pointing to the contribution of notochord cells to the NP; however, in the mature human or bovine NP those cells are not retained to the same extent as they are in mouse or other rodents [3,17,18,19,20,61,62]. The degeneration of ECM macromolecules like glycosaminoglycans (GAG) and the resulting loss of hydration could be a consequence thereof [7,8,11,55,63,64]. Nowadays human NP and AF cells are commercially available (www.sciencellonline.com), however their original fate and gene expression patterns might change in vitro without appropriate ECM and 3D-culture systems in place, as seen for primary bovine cells derived from IVD tissue and maintained in monolayer culture [20]. Furthermore, ethical concerns preclude transgenic lineage tracing of human IVD cells or higher primates in vivo, and not all animal models studied provide accurate cell composition, disc size or loadbearing conditions in the adult [11,52]. The bovine coccygeal IVD is an accepted research model to study cells in the environment of a healthy IVD, resembling closely the histological characteristics of a human lumbar IVD from a healthy young adult [20,21,22,23].
Aside from their exposure to mechanical, physical and chemical constraints [55,65,66,67,68] AF and NP cells exist like eremites in unique microenvironments. Cells in the mature IVD are sparse, either isolated or present as small cell clusters embedded in a vast amount of ECM (Figure 1) and [3,58,69], with their survival depending on the diffusion of nutrients or signaling cues through the extensive meshwork of ECM molecules [13,70,71]. Morphological heterogeneity has been described: NP cells are typically of round appearance with larger and vacuoled or smaller cell bodies, notochord cell-derived or chondrocyte-like, while cells in the AF are elongated, resembling more the shape of fibroblasts (Figure 1) and [3,6,61,62,69,72,73,74]. An ongoing debate concerns the fate of notochord cells during maturation of the human or bovine NP [13,62,75]. Are those cells replaced over time by migrants from adjacent AF or endplate tissue, as suggested in a mouse injury model [76], and do they subsequently undergo a change in morphology in response to differences in ECM stiffness and fiber alignment between the AF and NP, or do notochord cells eventually differentiate into small chondrocyte-like cells as indicated by qRT-PCR on two morphologically different cell populations which maintain expression of genes like KRT19 and T (brachyury) as a population [13,37]. We have previously identified positive and negative cells for T expression in cells of the AF and NP, however, with no significant difference in cell population proportions, indicating that assessment of heterogeneity within a cell population remains important to address the question of NP cell origin and heterogeneity [3], whether within their native environment or in culture. We have frequently isolated and propagated bovine cells from the outer AF and the NP through non-enzymatic explant outgrowth culture [20,77]. These cells exhibit some criteria established for mesenchymal stem cells, but continue to display heterogeneity when phenotyped by a selection of transcripts, by morphology or by cell movement [2,20,77,78,79]. In this context others and we find morphological, molecular and “behavioral” differences in vivo and in vitro pointing to at least two cell populations within the outer AF and NP [2,3,61,68,73]. Since a more complex heterogeneity is apparent on the transcriptome level, the molecular identities and developmental origins of cells remaining in the healthy mature human or bovine IVD still need to be addressed further. Hence, the definition of biomarkers to identify AF and NP cells is of strong interest to the field [3,20,44,61,80,81]. In an attempt to contribute to the molecular characterization of IVD cells, we recently proposed a set of novel bovine IVD biomarkers out of 50 genes investigated by chromogenic AP-RISH using a cell population proportion based approach, where transcriptional heterogeneity was indicated through cells expressing (denoted positive) or not expressing (denoted negative) a gene transcript within the same tissue type [3]. These genes were expressed in a significantly larger proportion of cells in the outer AF (Lam1, Thy1) or NP (Gli1, Gli3, Noto, Ptprc, Scx, Sox2 and Zscan10). Other biomarkers previously proposed by others in the AF, like Col1a1 or in the NP, like Acan, Col1a2, Col2a1, Krt18, Krt19, Shh and Ca12 were also confirmed with our approach, while some did not show any significant difference in the proportion of positive cells between the outer AF and NP, for example Foxf1, Hif1a, Krt8, Snap25, Sox5, Sox6, Sox9, Pax1, T and Tmnd. Since our approach to analyze cell population proportions had differed from the common practice of cell pooling and expression profiling of cell population averages which uses methods like microarray, RNAseq or qRT-PCR [42,43,44],we developed here a modification of AP-RISH by using fluorescently tagged RNA probes in combination with statistical data analysis that facilitated both, analysis by cell averaging to be comparable to existing data and single-cell assessment. For comparison of our AP- and FL-RISH data, we initially also identified positive and negative cells and subjected the data to z-proportion analysis and observed a similar trend as described before (Table 1 and [3]). The FL-RISH based method can be applied in vitro and to cells in their natural surroundings in vivo, as demonstrated here. Both RISH methods confirmed Lam1 and Thy1 as potential AF and Gli1, Gli3, Noto, Scx, Ptprc, Sox2 and Zscan10 as potential NP biomarkers. To demonstrate that the observed transcriptional heterogeneity cannot simply be attributed to cells leaving the active phase of the cell cycle, we used the widely accepted cell proliferation marker Ki67 [82,83] in combination with FL-RISH analysis of our proposed biomarkers. We have demonstrated that cells without mRNA expression of the analyzed biomarker are not necessarily in G0. Instead, this transcriptional heterogeneity supports sub-populations within outer AF and NP cells. Additionally, by using a combination of FL-RISH and a GMM approach to further analyze the transcriptionally active cells in their native environment, we noticed for some transcripts in cells of the NP (Thy1, Gli1, Gli3, Scx, Sox2 and Zscan10) or the outer AF (Gli3, Noto and Zscan10), additional heterogeneity based on fluorescent intensities and hence transcript levels. While neither Gli3, Noto, nor Zscan10 are considered AF-specific, neither is Thy1 considered a NP biomarker, the indication of further heterogeneity could point to mixed cell sub-populations of shared developmental origin.
Despite strong evidence pointing to heterogeneity of outer AF and NP cells in the mature IVD, currently most expression profiling data available for the IVD is based on cell pooling and population averaging technologies [14,42,43,44,81,84]. Here, by using FL-RISH with single cell resolution, we focused on the further evaluation and quantification of our recently proposed novel biomarkers identified through chromogenic AP-RISH and z-proportion analysis [3]. Previously, we provided a detailed comparison of our data on biomarkers to work by Minogue et al. [42,43] and van den Akker et al. [44], as seen in Table 2 of Li et al. [3]. We hypothesized that RNA extraction from pooled cells as source for microarray or qRT-PCR transcriptome profiling could explain some of the noted differences especially for biomarkers identified through microarray technology [85]. An observation from an earlier study suggested Krt8, Krt18 and Krt19 as uniquely expressed in embryonic and fetal notochord cells in the human spine [86]. We identified Krt8, Krt18 and Krt19 positive cells in both outer AF and NP tissue of mature bovine IVDs by AP-RISH, yet only Krt18 and Krt19 were expressed by a significantly larger proportion of cells in the NP [3]. Other markers like OVOS2, GDF10, GPC3, HBB or NCAM1, which were identified as human NP-specific over articular cartilage (AC) were not part of our initial panel of 50 genes and not investigated in our studies [3,13,15,42,43,61,62,87,88]. Classically known markers of the chondrogenic lineage like Col2a1, Acan and Sox9 have often been used to identify mature NP cells [13,89], yet taking cellular heterogeneity into account, Sox9 was not detected in a significantly higher proportion of cells in the NP over the AF in our previous study [3]. Recently, a different set of biomarkers was proposed based on a meta-analysis of the membranome, comparing transcripts of retrovirally immortalized, clonal cell lines derived through enzymatic tissue digestion with datasets of primary human AF and NP cells acquired in an earlier study [81]. The study proposed CLDN11, TMEFF2, CA12, ANAX2, CD44, EFNA1, NETO2 and SLC2A1 as NP-specific cell surface markers to assess cellular heterogeneity of NP cells in vivo and suggested CHIC1, COLEC12, LPAR1, LRP4, LRP5 and FZD2 as markers to define cellular heterogeneity in AF cells. The immortalized NP cell lines were previously employed by this group to identify human NP subpopulations through qRT-PCR based expression profiling, pointing to FOXF1 and CA12 as useful markers with significant difference between clonal subtypes [90]. The approach to focus on the membranome is helpful as cell sorting based on cell surface proteins is often used to isolate different cell types [91], however, effects on gene expression through random retroviral insertion as well as comparing expression profiles obtained through different array platforms can be challenging [85]. A different microarray-based transcriptome analysis of human embryonic and fetal notochord cells recently aimed to identify regulators of IVD development [84]. The identified notochord specific markers CD24, STMN2, RTN1, PRPH, CXC12, IGF1, ISL1, CLDN1, THBS2 and MAP1B were mostly down regulated in adult NP cells, with the exception of the latter. Using cell pooling for RNA extraction and genome wide microarray analysis another recent study also focused on the molecular discrimination between human AF and NP tissue suggesting six novel NP markers: CDKN2B, ARAP2, ERFE, DSC3, DEFB1, SPTLC3 and five novel AF markers: OLFML2A, ANKRD29, EMCN, ADGRL4 and LDB2 with a significant difference in expression levels between the two tissue types [14]. While we confirmed several existing biomarkers established by others through methods employing cell pooling, the minimal overlap with biomarkers of recent studies is not surprising, as the methods, tissue sources and objectives varied between study designs and none of these more recently proposed biomarkers other than Ca12 overlapped with our initial panel of 50 investigated genes [3], which led to the further investigation of the nine biomarkers Lam1, Thy1, Gli1, Gli3, Noto, Ptprc, Scx, Sox2 and Zscan10 presented here. While we cannot draw any further conclusions at this point, it would be interesting to investigate the novel markers proposed in the studies above in the context of cellular heterogeneity going forward.
Lastly, the combination of FL-RISH and the high resolution of confocal imaging allows for a glimpse at sub-cellular transcript location. It is known for some transcripts, like non-coding RNAs, that transcript location could point to regulatory functions [92]. In case of protein-coding mRNAs, an association between cytoplasmic location and function is also considered and found conserved between bacteria, yeast and higher eukaryotic cells [93,94,95]. Less information is available regarding a role of nuclear locations of primary RNA transcripts during processing prior to the export into the cytoplasm for translation. However sub-nuclear hotspots like the nucleoi for ribosomal RNA synthesis and assembly [96] or nuclear speckles, affiliated with the pre-mRNA splicing machinery [97] have been described. Interesting transcript accumulations as seen for the transcription factors Sox2 (NP), Zscan10 (AF, NP) or Gli3 (AF, NP) could point to the proximity of such functional nuclear domains and possibly indicate active transcription and processing of transcripts. The novel markers Lam1, Thy1, Gli1, Gli3, Noto, Ptprc, Scx, Sox2 and Zscan10 suggested here in our study, should be considered as addition to a growing repertoire of biomarker panels for future characterization of outer AF and NP cells along with morphological and cell behavior data, like cell movement, velocity and clustering ability [2].

5. Conclusions

Future regenerative cell-based therapies are of great potential if a safe outcome is predictable. Whole genome transcriptome analysis is a powerful screening tool to identify novel biomarkers, however phenotyping and genotyping of heterogeneous cell populations with single-cell assessment is an important quality control measure in achieving this predictability. Animal research models like the bovine IVD are invaluable tools to better characterize resident cells within a healthy IVD environment. FL-RISH in combination with confocal microscopy and statistical data analysis can provide both, transcript analysis through population averaging and on a single-cell level. Both were used here to confirm our previously proposed biomarkers Lam1, Thy1, Gli1, Gli3, Noto, Ptprc, Scx, Sox2 and Zscan10. We believe that a combination of the many biomarkers that have been established so far and those that will be determined in the future will be helpful to clarify the molecular identity of cells in the mature IVD, however, data re-assessment from a cell-by-cell perspective taking heterogeneity into account might become necessary.

Supplementary Materials

The following are available online at https://www.mdpi.com/2306-7381/6/2/42/s1, Figure S1: Kernel density estimates by intervertebral disc (IVD) for nine proposed biomarkers in (A) cells of the outer annulus fibrosus (AF) and (B) nucleus pulposus (NP) derived from three sections of a mature bovine IVD. Laminin1 (Lam1); Thymocyte differentiation antigen 1 (Thy1); Glioma-associated oncogene 1 (Gli1); Glioma-associated oncogene 3 (Gli3); Notochord (Noto); Tyrosine phosphate receptor type C (Ptprc); Scleraxis (Scx); Sex determining region Y-box 2 (Sox2); Zinc finger and SCAN domain containing (Zscan10). Table S1: Data for the population average of transcript expression for nine proposed biomarkers in cells of the outer annulus fibrosus (AF) and nucleus pulposus (NP) of a mature bovine IVD. Laminin1 (Lam1); Thymocyte differentiation antigen 1 (Thy1); Glioma-associated oncogene 1 (Gli1); Glioma-associated oncogene 3 (Gli3); Notochord (Noto); Tyrosine phosphate receptor type C (Ptprc); Scleraxis (Scx); Sex determining region Y-box 2 (Sox2); Zinc finger and SCAN domain containing (Zscan10). Table S2: Descriptive statistics and normality tests for total fluorescence and log-transformed total fluorescence for nine proposed biomarkers in cells of the outer AF and NP of a mature bovine IVD. Shapiro–Wilk tests reveal that log-transformed data is more normally distributed, while k-means clustering is implemented to fit the other data to a Gaussian mixture model. Cluster descriptive statistics are reported when data is not normally distributed. Laminin1 (Lam1); Thymocyte differentiation antigen 1 (Thy1); Glioma-associated oncogene 1 (Gli1); Glioma-associated oncogene 3 (Gli3); Notochord (Noto); Tyrosine phosphate receptor type C (Ptprc); Scleraxis (Scx); Sex determining region Y-box 2 (Sox2); Zinc finger and SCAN domain containing (Zscan10). Table S3: Data for kernel density estimates by IVD for nine proposed biomarkers. Laminin1 (Lam1); Thymocyte differentiation antigen 1 (Thy1); Glioma-associated oncogene 1 (Gli1); Glioma-associated oncogene 3 (Gli3); Notochord (Noto); Tyrosine phosphate receptor type C (Ptprc); Scleraxis (Scx); Sex determining region Y-box 2 (Sox2); Zinc finger and SCAN domain containing (Zscan10).

Author Contributions

Conceptualization, K.L., D.K., T.L. and P.K.; methodology, K.L., P.K. and D.K.; validation, K.L. and D.K.; formal analysis, D.K.; resources, T.L.; writing: P.K.; K.L., D.K.; T.L. and S.M.; original draft preparation, P.K., D.K. and K.L.; writing—review and editing, P.K., D.K., K.L., T.L., and S.M.

Funding

This work was supported by the Bayard and Virginia Clarkson Endowment Fund granted to Thomas Lufkin.

Acknowledgments

We thank Willard and Sons (Heuvelton, NY, USA), Tritown Meat Packing (Brasher Falls, NY, USA) and Peter Braun of Woodcrest Dairy (Lisbon, NY, USA), for providing us with bovine tails. We are very grateful for the intellectual input of Shantanu Sur and technical advice by Darren Sipes and Lara Varden.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Humzah, M.D.; Soames, R.W. Human intervertebral disc: structure and function. Anat Rec. 1988, 220, 337–356. [Google Scholar] [CrossRef] [PubMed]
  2. Kraus, P.; Li, K.; Sipes, D.; Varden, L.; Yerden, R.; Henderson, A.; Sur, S.; Lufkin, T. Single-Cell Phenotyping of Complex Heterogeneous Tissue. In Handbook of Single Cell Technologies; Santra, T.S., Tseng, F.-G., Eds.; Springer: Singapore, 2019; pp. 1–17. [Google Scholar]
  3. Li, K.; Kapper, D.; Youngs, B.; Kocsis, V.; Mondal, S.; Kraus, P.; Lufkin, T. Potential biomarkers of the mature intervertebral disc identified at the single cell level. J. Anat. 2019, 234, 16–32. [Google Scholar] [CrossRef] [PubMed]
  4. Stergar, J.; Gradisnik, L.; Velnar, T.; Maver, U. Intervertebral disc tissue engineering: A brief review. Bosn. J. Basic. Med. Sci. 2019. [Google Scholar] [CrossRef] [PubMed]
  5. Smith, L.J.; Silverman, L.; Sakai, D.; Le Maitre, C.L.; Mauck, R.L.; Malhotra, N.R.; Lotz, J.C.; Buckley, C.T. Advancing cell therapies for intervertebral disc regeneration from the lab to the clinic: Recommendations of the ORS spine section. JOR Spine 2018, 1, e1036. [Google Scholar] [CrossRef] [PubMed]
  6. McCann, M.R.; Bacher, C.A.; Seguin, C.A. Exploiting notochord cells for stem cell-based regeneration of the intervertebral disc. J. Cell Commun. Signal 2011, 5, 39–43. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Eyre, D.R.; Muir, H. Types I and II collagens in intervertebral disc. Interchanging radial distributions in annulus fibrosus. Biochem. J. 1976, 157, 267–270. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Bron, J.L.; Helder, M.N.; Meisel, H.J.; Van Royen, B.J.; Smit, T.H. Repair, regenerative and supportive therapies of the annulus fibrosus: achievements and challenges. Eur. Spine J. 2009, 18, 301–313. [Google Scholar] [CrossRef] [PubMed]
  9. Sivakamasundari, V.; Lufkin, T. Stemming the Degeneration: IVD Stem Cells and Stem Cell Regenerative Therapy for Degenerative Disc Disease. Adv. Stem. Cells 2013, 2013. [Google Scholar] [CrossRef]
  10. Pennicooke, B.; Moriguchi, Y.; Hussain, I.; Bonssar, L.; Hartl, R. Biological Treatment Approaches for Degenerative Disc Disease: A Review of Clinical Trials and Future Directions. Cureus 2016, 8, e892. [Google Scholar] [CrossRef] [PubMed]
  11. Oehme, D.; Goldschlager, T.; Ghosh, P.; Rosenfeld, J.V.; Jenkin, G. Cell-Based Therapies Used to Treat Lumbar Degenerative Disc Disease: A Systematic Review of Animal Studies and Human Clinical Trials. Stem Cells Int. 2015, 2015, 946031. [Google Scholar] [CrossRef] [PubMed]
  12. Brown, C. Stem cell tourism poses risks. CMAJ 2012, 184, E121–122. [Google Scholar] [CrossRef]
  13. Rodrigues-Pinto, R.; Richardson, S.M.; Hoyland, J.A. Identification of novel nucleus pulposus markers: Interspecies variations and implications for cell-based therapiesfor intervertebral disc degeneration. Bone Joint Res. 2013, 2, 169–178. [Google Scholar] [CrossRef]
  14. Schubert, A.K.; Smink, J.J.; Arp, M.; Ringe, J.; Hegewald, A.A.; Sittinger, M. Quality Assessment of Surgical Disc Samples Discriminates Human Annulus Fibrosus and Nucleus Pulposus on Tissue and Molecular Level. Int. J. Mol. Sci. 2018, 19, 1761. [Google Scholar] [CrossRef]
  15. Rutges, J.; Creemers, L.B.; Dhert, W.; Milz, S.; Sakai, D.; Mochida, J.; Alini, M.; Grad, S. Variations in gene and protein expression in human nucleus pulposus in comparison with annulus fibrosus and cartilage cells: potential associations with aging and degeneration. Osteoarthritis Cartilage 2010, 18, 416–423. [Google Scholar] [CrossRef] [Green Version]
  16. Kraus, P.; Sivakamasundari, V.; Xing, X.; Lufkin, T. Generating mouse lines for lineage tracing and knockout studies. Methods Mol. Biol. 2014, 1194, 37–62. [Google Scholar] [CrossRef]
  17. Choi, K.S.; Harfe, B.D. Hedgehog signaling is required for formation of the notochord sheath and patterning of nuclei pulposi within the intervertebral discs. PNAS 2011, 108, 9484–9489. [Google Scholar] [CrossRef] [Green Version]
  18. Choi, K.S.; Lee, C.; Harfe, B.D. Sonic hedgehog in the notochord is sufficient for patterning of the intervertebral discs. Mech. Dev. 2012, 129, 255–262. [Google Scholar] [CrossRef]
  19. Smits, P.; Lefebvre, V. Sox5 and Sox6 are required for notochord extracellular matrix sheath formation, notochord cell survival and development of the nucleus pulposus of intervertebral discs. Development 2003, 130, 1135–1148. [Google Scholar] [CrossRef] [Green Version]
  20. Kraus, P.; Yerden, R.; Kocsis, V.; Lufkin, T. RNA in situ hybridization characterization of non-enzymatic derived bovine intervertebral disc cell lineages suggests progenitor cell potential. Acta Histochem. 2017. [Google Scholar] [CrossRef]
  21. Oshima, H.; Ishihara, H.; Urban, J.P.; Tsuji, H. The use of coccygeal discs to study intervertebral disc metabolism. J. Orthop. Res. 1993, 11, 332–338. [Google Scholar] [CrossRef]
  22. Demers, C.N.; Antoniou, J.; Mwale, F. Value and limitations of using the bovine tail as a model for the human lumbar spine. Spine (Phila Pa 1976) 2004, 29, 2793–2799. [Google Scholar] [CrossRef]
  23. Beckstein, J.C.; Sen, S.; Schaer, T.P.; Vresilovic, E.J.; Elliott, D.M. Comparison of animal discs used in disc research to human lumbar disc: axial compression mechanics and glycosaminoglycan content. Spine (Phila Pa 1976) 2008, 33, E166–173. [Google Scholar] [CrossRef]
  24. Michalek, A.J. A growth-based model for the prediction of fiber angle distribution in the intervertebral disc annulus fibrosus. Biomech. Model Mechanobiol. 2019. [Google Scholar] [CrossRef] [PubMed]
  25. Ekblom, M.; Falk, M.; Salmivirta, K.; Durbeej, M.; Ekblom, P. Laminin isoforms and epithelial development. Ann. N. Y. Acad. Sci. 1998, 857, 194–211. [Google Scholar] [CrossRef]
  26. Ahn, S.; Joyner, A.L. In vivo analysis of quiescent adult neural stem cells responding to Sonic hedgehog. Nature 2005, 437, 894–897. [Google Scholar] [CrossRef] [PubMed]
  27. Buttitta, L.; Mo, R.; Hui, C.C.; Fan, C.M. Interplays of Gli2 and Gli3 and their requirement in mediating Shh-dependent sclerotome induction. Development 2003, 130, 6233–6243. [Google Scholar] [CrossRef] [Green Version]
  28. Shin, S.H.; Kogerman, P.; Lindstrom, E.; Toftgard, R.; Biesecker, L.G. GLI3 mutations in human disorders mimic Drosophila cubitus interruptus protein functions and localization. PNAS 1999, 96, 2880–2884. [Google Scholar] [CrossRef]
  29. Abdelkhalek, H.B.; Beckers, A.; Schuster-Gossler, K.; Pavlova, M.N.; Burkhardt, H.; Lickert, H.; Rossant, J.; Reinhardt, R.; Schalkwyk, L.C.; Muller, I.; et al. The mouse homeobox gene Not is required for caudal notochord development and affected by the truncate mutation. Genes Dev. 2004, 18, 1725–1736. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. McCann, M.R.; Tamplin, O.J.; Rossant, J.; Seguin, C.A. Tracing notochord-derived cells using a Noto-cre mouse: Implications for intervertebral disc development. Dis. Model Mech. 2012, 5, 73–82. [Google Scholar] [CrossRef]
  31. Cserjesi, P.; Brown, D.; Ligon, K.L.; Lyons, G.E.; Copeland, N.G.; Gilbert, D.J.; Jenkins, N.A.; Olson, E.N. Scleraxis: A basic helix-loop-helix protein that prefigures skeletal formation during mouse embryogenesis. Development 1995, 121, 1099–1110. [Google Scholar]
  32. Shukunami, C.; Takimoto, A.; Oro, M.; Hiraki, Y. Scleraxis positively regulates the expression of tenomodulin, a differentiation marker of tenocytes. Dev. Biol. 2006, 298, 234–247. [Google Scholar] [CrossRef] [Green Version]
  33. Niwa, H.; Ogawa, K.; Shimosato, D.; Adachi, K. A parallel circuit of LIF signalling pathways maintains pluripotency of mouse ES cells. Nature 2009, 460, 118–122. [Google Scholar] [CrossRef] [PubMed]
  34. Takahashi, K.; Yamanaka, S. Induction of pluripotent stem cells from mouse embryonic and adult fibroblast cultures by defined factors. Cell 2006, 126, 663–676. [Google Scholar] [CrossRef]
  35. Kraus, P.; Sivakamasundari, V.; Yu, H.B.; Xing, X.; Lim, S.L.; Adler, T.; Pimentel, J.A.; Becker, L.; Bohla, A.; Garrett, L.; et al. Pleiotropic functions for transcription factor zscan10. PLoS ONE 2014, 9, e104568. [Google Scholar] [CrossRef]
  36. Dominici, M.; Le Blanc, K.; Mueller, I.; Slaper-Cortenbach, I.; Marini, F.; Krause, D.; Deans, R.; Keating, A.; Prockop, D.; Horwitz, E. Minimal criteria for defining multipotent mesenchymal stromal cells. The International Society for Cellular Therapy position statement. Cytotherapy 2006, 8, 315–317. [Google Scholar] [CrossRef]
  37. Lyu, F.J.; Cheung, K.M.; Zheng, Z.; Wang, H.; Sakai, D.; Leung, V.Y. IVD progenitor cells: a new horizon for understanding disc homeostasis and repair. Nat. Rev. Rheumatol. 2019, 15, 102–112. [Google Scholar] [CrossRef]
  38. Wang, W.; Lo, P.; Frasch, M.; Lufkin, T. Hmx: an evolutionary conserved homeobox gene family expressed in the developing nervous system in mice and Drosophila. Mech. Dev. 2000, 99, 123–137. [Google Scholar] [CrossRef]
  39. Lohnes, D.; Dierich, A.; Ghyselinck, N.; Kastner, P.; Lampron, C.; LeMeur, M.; Lufkin, T.; Mendelsohn, C.; Nakshatri, H.; Chambon, P. Retinoid receptors and binding proteins. J. Cell Sci. Suppl. 1992, 16, 69–76. [Google Scholar] [CrossRef]
  40. Kraus, P.; Lufkin, T. Mammalian Dlx homeobox gene control of craniofacial and inner ear morphogenesis. J. Cell Biochem. 1999, Suppl 32–33, 133–140. [Google Scholar] [CrossRef]
  41. Chen, X.; Li, X.; Wang, W.; Lufkin, T. Dlx5 and Dlx6: an evolutionary conserved pair of murine homeobox genes expressed in the embryonic skeleton. Ann. N. Y. Acad. Sci. 1996, 785, 38–47. [Google Scholar] [CrossRef]
  42. Minogue, B.M.; Richardson, S.M.; Zeef, L.A.; Freemont, A.J.; Hoyland, J.A. Transcriptional profiling of bovine intervertebral disc cells: implications for identification of normal and degenerate human intervertebral disc cell phenotypes. Arthritis Res. Ther. 2010, 12, R22. [Google Scholar] [CrossRef]
  43. Minogue, B.M.; Richardson, S.M.; Zeef, L.A.; Freemont, A.J.; Hoyland, J.A. Characterization of the human nucleus pulposus cell phenotype and evaluation of novel marker gene expression to define adult stem cell differentiation. Arthritis Rheum. 2010, 62, 3695–3705. [Google Scholar] [CrossRef] [Green Version]
  44. Van den Akker, G.G.H.; Koenders, M.I.; van de Loo, F.A.J.; van Lent, P.; Blaney Davidson, E.; van der Kraan, P.M. Transcriptional profiling distinguishes inner and outer annulus fibrosus from nucleus pulposus in the bovine intervertebral disc. Eur. Spine J. 2017, 26, 2053–2062. [Google Scholar] [CrossRef] [Green Version]
  45. Chatterjee, S.; Kraus, P.; Sivakamasundari, V.; Xing, X.; Yap, S.P.; Jie, S.; Lufkin, T. A conditional mouse line for lineage tracing of Sox9 loss-of-function cells using enhanced green fluorescent protein. Biotechnol. Lett. 2013, 35, 1991–1996. [Google Scholar] [CrossRef] [PubMed]
  46. Kraus, P.; Sivakamasundari, V.; Olsen, V.; Villeneuve, V.; Hinds, A.; Lufkin, T. Klhl14 antisense RNA is a target of key skeletogenic transcription factors in the developing intervertebral disc. Spine (Phila Pa 1976) 2019, 44, E260–E268. [Google Scholar] [CrossRef] [PubMed]
  47. Chatterjee, S.; Sivakamasundari, V.; Yap, S.P.; Kraus, P.; Kumar, V.; Xing, X.; Lim, S.L.; Sng, J.; Prabhakar, S.; Lufkin, T. In vivo genome-wide analysis of multiple tissues identifies gene regulatory networks, novel functions and downstream regulatory genes for Bapx1 and its co-regulation with Sox9 in the mammalian vertebral column. BMC Genomics 2014, 15, 1072. [Google Scholar] [CrossRef] [PubMed]
  48. Lee, W.J.; Chatterjee, S.; Yap, S.P.; Lim, S.L.; Xing, X.; Kraus, P.; Sun, W.; Hu, X.; Sivakamasundari, V.; Chan, H.Y.; et al. An Integrative Developmental Genomics and Systems Biology Approach to Identify an In Vivo Sox Trio-Mediated Gene Regulatory Network in Murine Embryos. Biomed. Res. Int. 2017, 2017, 8932583. [Google Scholar] [CrossRef] [PubMed]
  49. Sivakamasundari, V.; Kraus, P.; Jie, S.; Lufkin, T. Pax1(EGFP): New wildtype and mutant EGFP mouse lines for molecular and fate mapping studies. Genesis 2013, 51, 420–429. [Google Scholar] [CrossRef]
  50. Sivakamasundari, V.; Kraus, P.; Sun, W.; Hu, X.; Lim, S.L.; Prabhakar, S.; Lufkin, T. A developmental transcriptomic analysis of Pax1 and Pax9 in embryonic intervertebral disc development. Biol. Open 2017, 6, 187–199. [Google Scholar] [CrossRef]
  51. Murray, C.J.; Atkinson, C.; Bhalla, K.; Birbeck, G.; Burstein, R.; Chou, D.; Dellavalle, R.; Danaei, G.; Ezzati, M.; Fahimi, A.; et al. The state of US health, 1990-2010: burden of diseases, injuries, and risk factors. JAMA 2013, 310, 591–608. [Google Scholar] [CrossRef]
  52. Daly, C.; Ghosh, P.; Jenkin, G.; Oehme, D.; Goldschlager, T. A Review of Animal Models of Intervertebral Disc Degeneration: Pathophysiology, Regeneration, and Translation to the Clinic. Biomed. Res. Int. 2016, 2016, 5952165. [Google Scholar] [CrossRef]
  53. Kraus, P.; Lufkin, T. Implications for a Stem Cell Regenerative Medicine Based Approach to Human Intervertebral Disk Degeneration. Front. Cell Dev. Biol. 2017, 5, 17. [Google Scholar] [CrossRef]
  54. Lyons, G.; Eisenstein, S.M.; Sweet, M.B. Biochemical changes in intervertebral disc degeneration. Biochim. Biophys. Acta 1981, 673, 443–453. [Google Scholar] [CrossRef]
  55. Antoniou, J.; Steffen, T.; Nelson, F.; Winterbottom, N.; Hollander, A.P.; Poole, R.A.; Aebi, M.; Alini, M. The human lumbar intervertebral disc: evidence for changes in the biosynthesis and denaturation of the extracellular matrix with growth, maturation, ageing, and degeneration. J. Clin. Invest. 1996, 98, 996–1003. [Google Scholar] [CrossRef]
  56. Urban, J.P.; Roberts, S. Degeneration of the intervertebral disc. Arthritis Res. Ther. 2003, 5, 120–130. [Google Scholar] [CrossRef] [Green Version]
  57. Sakai, D.; Andersson, G.B. Stem cell therapy for intervertebral disc regeneration: obstacles and solutions. Nat. Rev. Rheumatol. 2015, 11, 243–256. [Google Scholar] [CrossRef] [PubMed]
  58. Lama, P.; Le Maitre, C.L.; Harding, I.J.; Dolan, P.; Adams, M.A. Nerves and blood vessels in degenerated intervertebral discs are confined to physically disrupted tissue. J. Anat. 2018, 233, 86–97. [Google Scholar] [CrossRef]
  59. Zhang, C.; Wang, B.; Zhao, X.; Li, X.; Lou, Z.; Chen, X.; Zhang, F. Iron deficiency accelerates intervertebral disc degeneration through affecting the stability of DNA polymerase epsilon complex. Am. J. Transl. Res. 2018, 10, 3430–3442. [Google Scholar] [PubMed]
  60. Haidar, R.; Musallam, K.M.; Taher, A.T. Bone disease and skeletal complications in patients with beta thalassemia major. Bone 2011, 48, 425–432. [Google Scholar] [CrossRef] [PubMed]
  61. Risbud, M.V.; Schoepflin, Z.R.; Mwale, F.; Kandel, R.A.; Grad, S.; Iatridis, J.C.; Sakai, D.; Hoyland, J.A. Defining the phenotype of young healthy nucleus pulposus cells: Recommendations of the Spine Research Interest Group at the 2014 annual ORS meeting. J. Orthop. Res. 2015, 33, 283–293. [Google Scholar] [CrossRef] [PubMed]
  62. Risbud, M.V.; Shapiro, I.M. Notochordal cells in the adult intervertebral disc: new perspective on an old question. Crit. Rev. Eukaryot. Gene Expr. 2011, 21, 29–41. [Google Scholar] [CrossRef]
  63. Bushell, G.R.; Ghosh, P.; Taylor, T.F.; Akeson, W.H. Proteoglycan chemistry of the intervertebral disks. Clin. Orthop. Relat. Res. 1977, 115–123. [Google Scholar] [CrossRef]
  64. Sng, J.; Lufkin, T. Emerging stem cell therapies: treatment, safety, and biology. Stem Cells Int. 2012, 2012, 521343. [Google Scholar] [CrossRef]
  65. Urban, J.P.; Holm, S.; Maroudas, A.; Nachemson, A. Nutrition of the intervertebral disk. An in vivo study of solute transport. Clin. Orthop. Relat. Res. 1977, 101–114. [Google Scholar] [CrossRef]
  66. Wuertz, K.; Godburn, K.; Neidlinger-Wilke, C.; Urban, J.; Iatridis, J.C. Behavior of mesenchymal stem cells in the chemical microenvironment of the intervertebral disc. Spine (Phila Pa 1976) 2008, 33, 1843–1849. [Google Scholar] [CrossRef]
  67. Liang, C.Z.; Li, H.; Tao, Y.Q.; Zhou, X.P.; Yang, Z.R.; Li, F.C.; Chen, Q.X. The relationship between low pH in intervertebral discs and low back pain: a systematic review. Arch. Med. Sci. 2012, 8, 952–956. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  68. Choi, H.; Johnson, Z.I.; Risbud, M.V. Understanding nucleus pulposus cell phenotype: a prerequisite for stem cell based therapies to treat intervertebral disc degeneration. Curr. Stem Cell Res. Ther. 2015, 10, 307–316. [Google Scholar] [CrossRef] [PubMed]
  69. Errington, R.J.; Puustjarvi, K.; White, I.R.; Roberts, S.; Urban, J.P. Characterisation of cytoplasm-filled processes in cells of the intervertebral disc. J. Anat. 1998, 192 (Pt 3), 369–378. [Google Scholar] [CrossRef] [Green Version]
  70. Huang, Y.C.; Urban, J.P.; Luk, K.D. Intervertebral disc regeneration: do nutrients lead the way? Nat. Rev. Rheumatol. 2014, 10, 561–566. [Google Scholar] [CrossRef] [PubMed]
  71. Bedore, J.; Leask, A.; Seguin, C.A. Targeting the extracellular matrix: matricellular proteins regulate cell-extracellular matrix communication within distinct niches of the intervertebral disc. Matrix. Biol. 2014, 37, 124–130. [Google Scholar] [CrossRef]
  72. Walmsley, R. The development and growth of the intervertebral disc. Edinb. Med. J. 1953, 60, 341–364. [Google Scholar]
  73. Trout, J.J.; Buckwalter, J.A.; Moore, K.C. Ultrastructure of the human intervertebral disc: II. Cells of the nucleus pulposus. Anat. Rec. 1982, 204, 307–314. [Google Scholar] [CrossRef]
  74. Trout, J.J.; Buckwalter, J.A.; Moore, K.C.; Landas, S.K. Ultrastructure of the human intervertebral disc. I. Changes in notochordal cells with age. Tissue Cell 1982, 14, 359–369. [Google Scholar] [CrossRef]
  75. Chen, J.; Yan, W.; Setton, L.A. Molecular phenotypes of notochordal cells purified from immature nucleus pulposus. Eur. Spine J. 2006, 15 Suppl 3, S303–311. [Google Scholar] [CrossRef]
  76. Tanaka, M.; Sakai, D.; Hiyama, A.; Arai, F.; Nakajima, D.; Yokoyama, K.; Mochida, J. Evidence of Nonnotochordal Origin in Chondrocyte-like Cells of the Nucleus Pulposus Appearing in Early Stage Disk Degeneration in the Mouse Model. Global Spine J. 2012, 2. [Google Scholar] [CrossRef]
  77. Kraus, P.; Lufkin, T. Bovine annulus fibrosus cell lines isolated from intervertebral discs. Genom. Data 2016, 10, 83–84. [Google Scholar] [CrossRef] [Green Version]
  78. Kraus, P.; Kocsis, V.; Williams, C.; Youngs, B.; Lufkin, T. Plate in situ hybridization (PISH) as a time and cost effective RNA expression assay to study phenotypic heterogeneity in a population of cultured murine cells at single cell resolution. Biotechnol. Lett. 2015, 37, 1573–1577. [Google Scholar] [CrossRef]
  79. Kraus, P.; Yerden, R.; Sipes, D.; Sur, S.; Lufkin, T. A quantitative and qualitative RNA expression profiling assay for cell culture with single cell resolution. Cytotechnology 2018, 70, 185–192. [Google Scholar] [CrossRef] [PubMed]
  80. Thorpe, A.A.; Binch, A.L.; Creemers, L.B.; Sammon, C.; Le Maitre, C.L. Nucleus pulposus phenotypic markers to determine stem cell differentiation: fact or fiction? Oncotarget 2016, 7, 2189–2200. [Google Scholar] [CrossRef]
  81. Akker, G.; Eijssen, L.M.T.; Richardson, S.M.; Rhijn, L.W.V.; Hoyland, J.A.; Welting, T.J.M.; Voncken, J.W. A Membranome-Centered Approach Defines Novel Biomarkers for Cellular Subtypes in the Intervertebral Disc. Cartilage 2018. [Google Scholar] [CrossRef] [PubMed]
  82. Scholzen, T.; Gerdes, J. The Ki-67 protein: from the known and the unknown. J. Cell Physiol. 2000, 182, 311–322. [Google Scholar] [CrossRef]
  83. Gerdes, J.; Schwab, U.; Lemke, H.; Stein, H. Production of a mouse monoclonal antibody reactive with a human nuclear antigen associated with cell proliferation. Int. J. Cancer 1983, 31, 13–20. [Google Scholar] [CrossRef] [PubMed]
  84. Rodrigues-Pinto, R.; Ward, L.; Humphreys, M.; Zeef, L.A.H.; Berry, A.; Hanley, K.P.; Hanley, N.; Richardson, S.M.; Hoyland, J.A. Human notochordal cell transcriptome unveils potential regulators of cell function in the developing intervertebral disc. Sci. Rep. 2018, 8, 12866. [Google Scholar] [CrossRef]
  85. Kraus, P.; Xing, X.; Lim, S.L.; Fun, M.E.; Sivakamasundari, V.; Yap, S.P.; Lee, H.; Karuturi, R.K.; Lufkin, T. Mouse strain specific gene expression differences for illumina microarray expression profiling in embryos. BMC Res. Notes 2012, 5, 232. [Google Scholar] [CrossRef] [PubMed]
  86. Rodrigues-Pinto, R.; Berry, A.; Piper-Hanley, K.; Hanley, N.; Richardson, S.M.; Hoyland, J.A. Spatiotemporal analysis of putative notochordal cell markers reveals CD24 and keratins 8, 18, and 19 as notochord-specific markers during early human intervertebral disc development. J. Orthop. Res. 2016, 34, 1327–1340. [Google Scholar] [CrossRef] [PubMed]
  87. Lv, F.; Leung, V.Y.; Huang, S.; Huang, Y.; Sun, Y.; Cheung, K.M. In search of nucleus pulposus-specific molecular markers. Rheumatology (Oxford) 2014, 53, 600–610. [Google Scholar] [CrossRef]
  88. Power, K.A.; Grad, S.; Rutges, J.P.; Creemers, L.B.; van Rijen, M.H.; O’Gaora, P.; Wall, J.G.; Alini, M.; Pandit, A.; Gallagher, W.M. Identification of cell surface-specific markers to target human nucleus pulposus cells: expression of carbonic anhydrase XII varies with age and degeneration. Arthritis Rheum. 2011, 63, 3876–3886. [Google Scholar] [CrossRef] [PubMed]
  89. Sive, J.I.; Baird, P.; Jeziorsk, M.; Watkins, A.; Hoyland, J.A.; Freemont, A.J. Expression of chondrocyte markers by cells of normal and degenerate intervertebral discs. Mol. Pathol. 2002, 55, 91–97. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  90. Van den Akker, G.G.; Surtel, D.A.; Cremers, A.; Rodrigues-Pinto, R.; Richardson, S.M.; Hoyland, J.A.; van Rhijn, L.W.; Welting, T.J.; Voncken, J.W. Novel immortal human cell lines reveal subpopulations in the nucleus pulposus. Arthritis Res. Ther. 2014, 16, R135. [Google Scholar] [CrossRef]
  91. Risbud, M.V.; Guttapalli, A.; Tsai, T.T.; Lee, J.Y.; Danielson, K.G.; Vaccaro, A.R.; Albert, T.J.; Gazit, Z.; Gazit, D.; Shapiro, I.M. Evidence for skeletal progenitor cells in the degenerate human intervertebral disc. Spine (Phila Pa 1976) 2007, 32, 2537–2544. [Google Scholar] [CrossRef]
  92. Salviano-Silva, A.; Lobo-Alves, S.C.; Almeida, R.C.; Malheiros, D.; Petzl-Erler, M.L. Besides Pathology: Long Non-Coding RNA in Cell and Tissue Homeostasis. Noncoding RNA 2018, 4, 3. [Google Scholar] [CrossRef] [PubMed]
  93. Buxbaum, A.R.; Haimovich, G.; Singer, R.H. In the right place at the right time: visualizing and understanding mRNA localization. Nat. Rev. Mol. Cell. Biol. 2015, 16, 95–109. [Google Scholar] [CrossRef]
  94. Eliscovich, C.; Singer, R.H. RNP transport in cell biology: the long and winding road. Curr. Opin. Cell Biol. 2017, 45, 38–46. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  95. Mofatteh, M.; Bullock, S.L. SnapShot: Subcellular mRNA Localization. Cell 2017, 169, 178–178.e171. [Google Scholar] [CrossRef] [PubMed]
  96. Sirri, V.; Urcuqui-Inchima, S.; Roussel, P.; Hernandez-Verdun, D. Nucleolus: the fascinating nuclear body. Histochem. Cell Biol. 2008, 129, 13–31. [Google Scholar] [CrossRef] [PubMed]
  97. Spector, D.L.; Lamond, A.I. Nuclear speckles. Cold Spring Harb. Perspect. Biol. 2011, 3. [Google Scholar] [CrossRef] [PubMed]
Vetsci 06 00042 g001 550

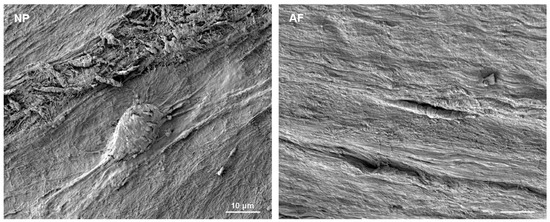

Figure 1. Scanning electron microscope (SEM) image of a mature bovine nucleus pulposus (NP) and outer annulus fibrosus (AF) indicates different cell morphologies and the vast extent of extracellular matrix (ECM) those cells reside in. Scale bar reflects 10 μm and is equivalent for both photos.
Figure 1. Scanning electron microscope (SEM) image of a mature bovine nucleus pulposus (NP) and outer annulus fibrosus (AF) indicates different cell morphologies and the vast extent of extracellular matrix (ECM) those cells reside in. Scale bar reflects 10 μm and is equivalent for both photos.
Vetsci 06 00042 g001
Vetsci 06 00042 g002 550
Figure 2. Fluorescent RNA in situ hybridization (FL-RISH) showing the transcripts (green) of nine proposed biomarkers with subcellular resolution in the outer AF and NP of a mature bovine intervertebral discs (IVD) at 63× magnification and zoom factor 3. Nuclei are visualized with DAPI (blue). Laminin1 (Lam1); Thymocyte differentiation antigen 1 (Thy1); Glioma-associated oncogene 1 (Gli1); Glioma-associated oncogene 3 (Gli3); Notochord (Noto); Tyrosine phosphate receptor type C (Ptprc); Scleraxis (Scx); Sex determining region Y-box 2 (Sox2); Zinc finger and SCAN (SRE-ZBP, CTfin51, AW-1 and Number 18 cDNA) domain containing transcription factor 10 (Zscan10). Scale bar reflects 10 μm.
Figure 2. Fluorescent RNA in situ hybridization (FL-RISH) showing the transcripts (green) of nine proposed biomarkers with subcellular resolution in the outer AF and NP of a mature bovine intervertebral discs (IVD) at 63× magnification and zoom factor 3. Nuclei are visualized with DAPI (blue). Laminin1 (Lam1); Thymocyte differentiation antigen 1 (Thy1); Glioma-associated oncogene 1 (Gli1); Glioma-associated oncogene 3 (Gli3); Notochord (Noto); Tyrosine phosphate receptor type C (Ptprc); Scleraxis (Scx); Sex determining region Y-box 2 (Sox2); Zinc finger and SCAN (SRE-ZBP, CTfin51, AW-1 and Number 18 cDNA) domain containing transcription factor 10 (Zscan10). Scale bar reflects 10 μm.
Vetsci 06 00042 g002
Vetsci 06 00042 g003 550

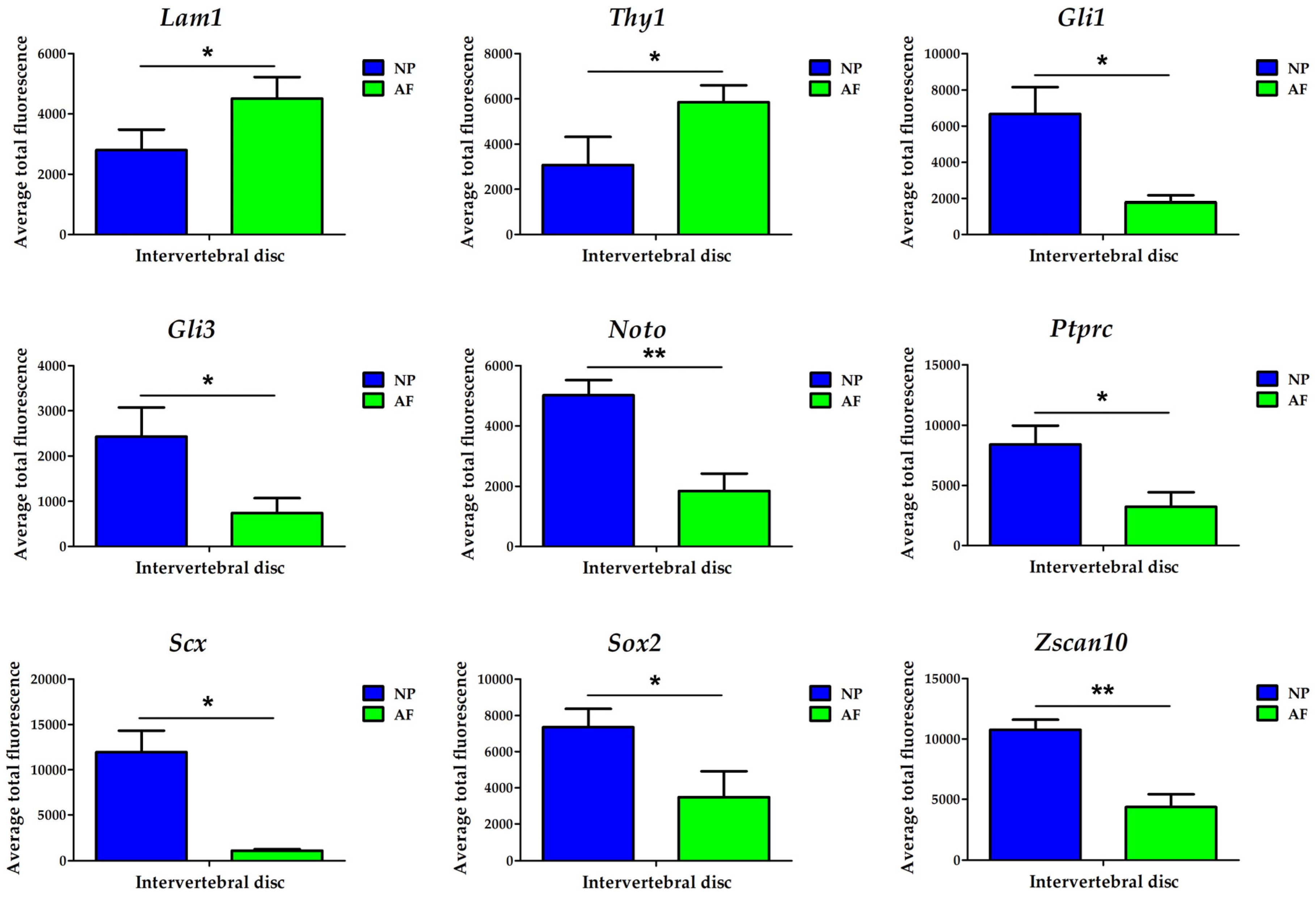

Figure 3. Quantification of nine proposed biomarkers in the outer AF (green) and NP (blue) of a mature bovine IVD using a population averaging approach. Statistical significance was determined using Student’s t-test. Cell types are reflected on the x-axis while the average total fluorescence is displayed on the y-axis. * p < 0.05 and ** p < 0.01. Laminin1 (Lam1); Thymocyte differentiation antigen 1 (Thy1); Glioma-associated oncogene 1 (Gli1); Glioma-associated oncogene 3 (Gli3); Notochord (Noto); Tyrosine phosphate receptor type C (Ptprc); Scleraxis (Scx); Sex determining region Y-box 2 (Sox2); Zinc finger and SCAN (SRE-ZBP, CTfin51, AW-1 and Number 18 cDNA) domain containing transcription factor 10 (Zscan10).
Figure 3. Quantification of nine proposed biomarkers in the outer AF (green) and NP (blue) of a mature bovine IVD using a population averaging approach. Statistical significance was determined using Student’s t-test. Cell types are reflected on the x-axis while the average total fluorescence is displayed on the y-axis. * p < 0.05 and ** p < 0.01. Laminin1 (Lam1); Thymocyte differentiation antigen 1 (Thy1); Glioma-associated oncogene 1 (Gli1); Glioma-associated oncogene 3 (Gli3); Notochord (Noto); Tyrosine phosphate receptor type C (Ptprc); Scleraxis (Scx); Sex determining region Y-box 2 (Sox2); Zinc finger and SCAN (SRE-ZBP, CTfin51, AW-1 and Number 18 cDNA) domain containing transcription factor 10 (Zscan10).
Vetsci 06 00042 g003
Vetsci 06 00042 g004 550
Figure 4. Combined FL-RISH and immunohistochemistry (IHC) showing RNA transcripts (green) and Ki67 protein (magenta) in cells of the nucleus pulposus of a mature bovine IVD. DAPI (blue) labels the nucleus. Ki67 indicates active phases of the cell cycle, or cells that are not in G0). Images shown at 63× magnification and zoom factor of three. Glioma-associated oncogene 1 (Gli1); Glioma-associated oncogene 3 (Gli3); Sex determining region Y-box 2 (Sox2); Zinc finger and SCAN (SRE-ZBP, CTfin51, AW-1 and Number 18 cDNA) domain containing transcription factor 10 (Zscan10). Scale bar reflects 10 μm.
Figure 4. Combined FL-RISH and immunohistochemistry (IHC) showing RNA transcripts (green) and Ki67 protein (magenta) in cells of the nucleus pulposus of a mature bovine IVD. DAPI (blue) labels the nucleus. Ki67 indicates active phases of the cell cycle, or cells that are not in G0). Images shown at 63× magnification and zoom factor of three. Glioma-associated oncogene 1 (Gli1); Glioma-associated oncogene 3 (Gli3); Sex determining region Y-box 2 (Sox2); Zinc finger and SCAN (SRE-ZBP, CTfin51, AW-1 and Number 18 cDNA) domain containing transcription factor 10 (Zscan10). Scale bar reflects 10 μm.
Vetsci 06 00042 g004
Vetsci 06 00042 g005 550

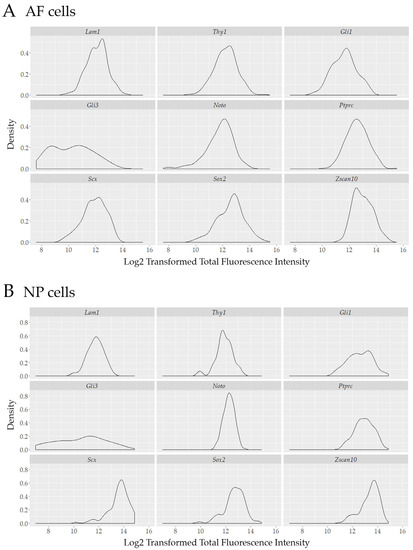

Figure 5. Kernel density estimates for nine proposed biomarkers in (A) cells of the outer AF and (B) NP of a mature bovine IVD illustrating the potential heterogeneity within the group of transcriptionally active cells. Cell density on the y-axis is plotted against the log2 transformation of the total fluorescence intensity on the x-axis. Laminin1 (Lam1); Thymocyte differentiation antigen 1 (Thy1); Glioma-associated oncogene 1 (Gli1); Glioma-associated oncogene 3 (Gli3); Notochord (Noto); Tyrosine phosphate receptor type C (Ptprc); Scleraxis (Scx); Sex determining region Y-box 2 (Sox2); Zinc finger and SCAN (SRE-ZBP, CTfin51, AW-1 and Number 18 cDNA) domain containing transcription factor 10 (Zscan10).
Figure 5. Kernel density estimates for nine proposed biomarkers in (A) cells of the outer AF and (B) NP of a mature bovine IVD illustrating the potential heterogeneity within the group of transcriptionally active cells. Cell density on the y-axis is plotted against the log2 transformation of the total fluorescence intensity on the x-axis. Laminin1 (Lam1); Thymocyte differentiation antigen 1 (Thy1); Glioma-associated oncogene 1 (Gli1); Glioma-associated oncogene 3 (Gli3); Notochord (Noto); Tyrosine phosphate receptor type C (Ptprc); Scleraxis (Scx); Sex determining region Y-box 2 (Sox2); Zinc finger and SCAN (SRE-ZBP, CTfin51, AW-1 and Number 18 cDNA) domain containing transcription factor 10 (Zscan10).
Vetsci 06 00042 g005
Vetsci 06 00042 g006 550

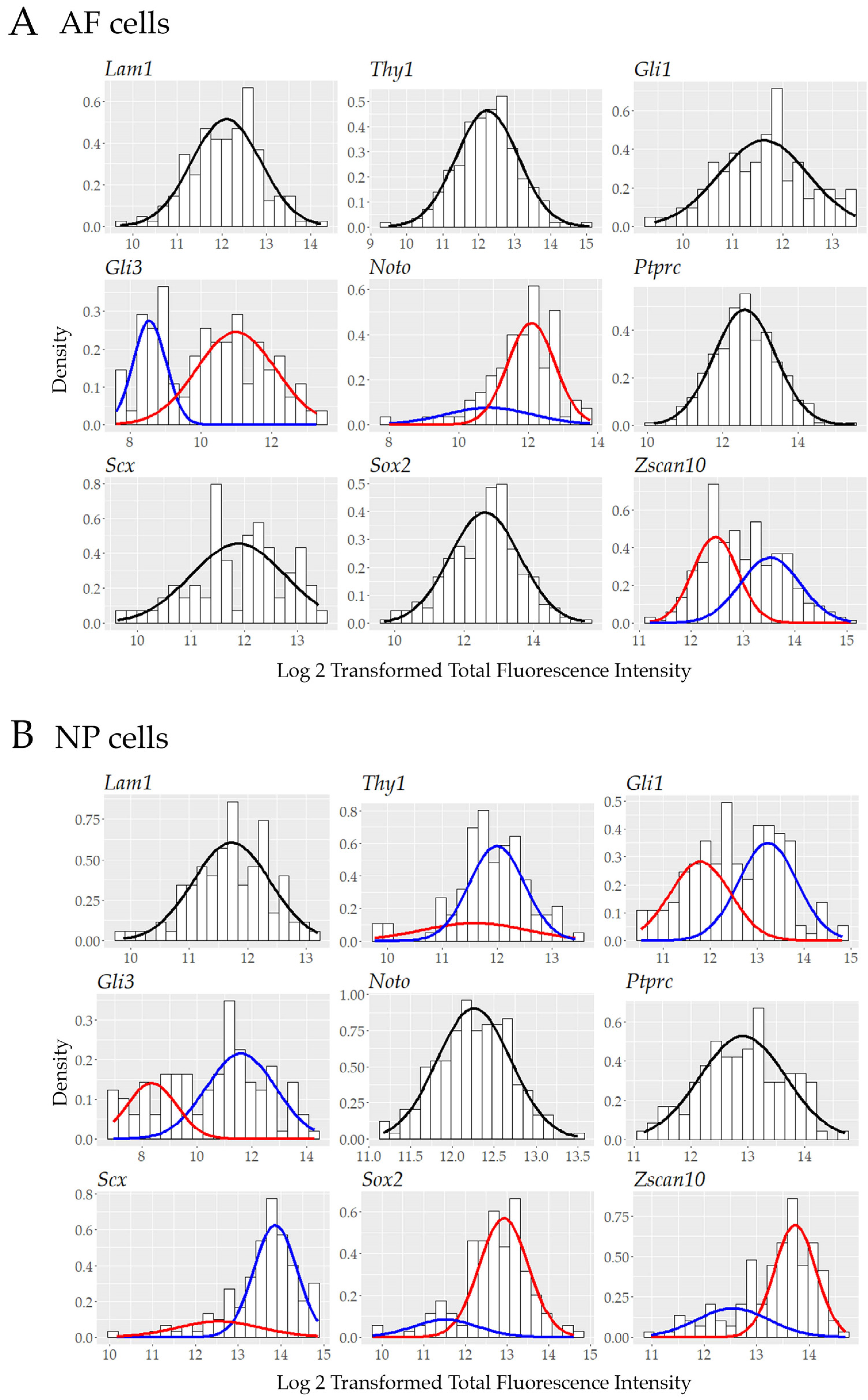

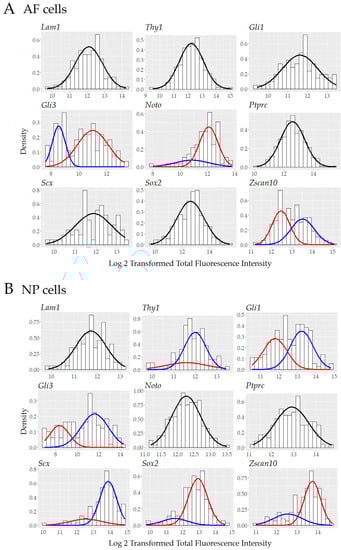

Figure 6. Gaussian mixture model and histograms of data for nine proposed biomarkers in (A) cells of the outer AF and (B) NP of a mature bovine IVD fitted to one or two Gaussian distributions using the expectation-maximization algorithm depending on the normality of the data. Laminin1 (Lam1); Thymocyte differentiation antigen 1 (Thy1); Glioma-associated oncogene 1 (Gli1); Glioma-associated oncogene 3 (Gli3); Notochord (Noto); Tyrosine phosphate receptor type C (Ptprc); Scleraxis (Scx); Sex determining region Y-box 2 (Sox2); Zinc finger and SCAN (SRE-ZBP, CTfin51, AW-1 and Number 18 cDNA) domain containing transcription factor 10 (Zscan10)
Figure 6. Gaussian mixture model and histograms of data for nine proposed biomarkers in (A) cells of the outer AF and (B) NP of a mature bovine IVD fitted to one or two Gaussian distributions using the expectation-maximization algorithm depending on the normality of the data. Laminin1 (Lam1); Thymocyte differentiation antigen 1 (Thy1); Glioma-associated oncogene 1 (Gli1); Glioma-associated oncogene 3 (Gli3); Notochord (Noto); Tyrosine phosphate receptor type C (Ptprc); Scleraxis (Scx); Sex determining region Y-box 2 (Sox2); Zinc finger and SCAN (SRE-ZBP, CTfin51, AW-1 and Number 18 cDNA) domain containing transcription factor 10 (Zscan10)
Vetsci 06 00042 g006
Table
Table 1. Comparison of NP/AF ratio data for nine proposed biomarkers in cells of the outer annulus fibrosus (AF) and nucleus pulposus (NP) of a mature bovine IVD generated through z-proportion test and population averaging comparing data from Li et al [3] using RNA in situ hybridization (AP-RISH) (purple) and this work using Fluorescent RNA in situ hybridization (FL-RISH) (green). Laminin1 (Lam1); Thymocyte differentiation antigen 1 (Thy1); Glioma-associated oncogene 1 (Gli1); Glioma-associated oncogene 3 (Gli3); Notochord (Noto); Tyrosine phosphate receptor type C (Ptprc); Scleraxis (Scx); Sex determining region Y-box 2 (Sox2); Zinc finger and SCAN (SRE-ZBP, CTfin51, AW-1 and Number 18 cDNA) domain containing transcription factor 10 (Zscan10).
Table 1. Comparison of NP/AF ratio data for nine proposed biomarkers in cells of the outer annulus fibrosus (AF) and nucleus pulposus (NP) of a mature bovine IVD generated through z-proportion test and population averaging comparing data from Li et al [3] using RNA in situ hybridization (AP-RISH) (purple) and this work using Fluorescent RNA in situ hybridization (FL-RISH) (green). Laminin1 (Lam1); Thymocyte differentiation antigen 1 (Thy1); Glioma-associated oncogene 1 (Gli1); Glioma-associated oncogene 3 (Gli3); Notochord (Noto); Tyrosine phosphate receptor type C (Ptprc); Scleraxis (Scx); Sex determining region Y-box 2 (Sox2); Zinc finger and SCAN (SRE-ZBP, CTfin51, AW-1 and Number 18 cDNA) domain containing transcription factor 10 (Zscan10).
BiomarkerAP-RISH and z-Proportion TestFL-RISH and z-Proportion TestFL-RISH and Population Averaging
NP/AF Ratio NP/AF Ratio FL in NP/FL in AF Ratio
Lam10.30.80.6
Thy10.20.70.5
Gli12.22.03.8
Gli31.52.03.3
Noto4.32.42.7
Ptprc2.32.22.6
Scx2.23.410.8
Sox23.22.22.1
Zscan101.62.02.5

Share and Cite

MDPI and ACS Style

Li, K.; Kapper, D.; Mondal, S.; Lufkin, T.; Kraus, P. Quantitative Single-Cell Transcript Assessment of Biomarkers Supports Cellular Heterogeneity in the Bovine IVD. Vet. Sci. 2019, 6, 42. https://doi.org/10.3390/vetsci6020042

AMA Style

Li K, Kapper D, Mondal S, Lufkin T, Kraus P. Quantitative Single-Cell Transcript Assessment of Biomarkers Supports Cellular Heterogeneity in the Bovine IVD. Veterinary Sciences. 2019; 6(2):42. https://doi.org/10.3390/vetsci6020042

Chicago/Turabian Style

Li, Kangning, Devin Kapper, Sumona Mondal, Thomas Lufkin, and Petra Kraus. 2019. "Quantitative Single-Cell Transcript Assessment of Biomarkers Supports Cellular Heterogeneity in the Bovine IVD" Veterinary Sciences 6, no. 2: 42. https://doi.org/10.3390/vetsci6020042

APA Style

Li, K., Kapper, D., Mondal, S., Lufkin, T., & Kraus, P. (2019). Quantitative Single-Cell Transcript Assessment of Biomarkers Supports Cellular Heterogeneity in the Bovine IVD. Veterinary Sciences, 6(2), 42. https://doi.org/10.3390/vetsci6020042

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
