A New Multi-Temporal Forest Cover Classification for the Xingu River Basin, Brazil
1
Applied Remote Sensing Laboratory, Department of Geography, McGill University, Montreal, QC H3A 0B9, Canada
2
Flight Research Lab, National Research Council of Canada, Ottawa ON K1A 0R6, Canada
3
Laboratório de Ictiologia de Altamira, Universidade Federal do Pará, Altamira PA 68372040, Brazil
*
Author to whom correspondence should be addressed.
Received: 26 June 2019 / Accepted: 30 July 2019 / Published: 1 August 2019

Abstract

:

Abstract

We describe a new multi-temporal classification for forest/non-forest classes for a 1.3 million square kilometer area encompassing the Xingu River basin, Brazil. This region is well known for its exceptionally high biodiversity, especially in terms of the ichthyofauna, with approximately 600 known species, 10% of which are endemic to the river basin. Global and regional scale datasets do not adequately capture the rapidly changing land cover in this region. Accurate forest cover and forest cover change data are important for understanding the anthropogenic pressures on the aquatic ecosystems. We developed the new classifications with a minimum mapping unit of 0.8 ha from cloud free mosaics of Landsat TM5 and OLI 8 imagery in Google Earth Engine using a classification and regression tree (CART) aided by field photographs for the selection of training and validation points.

Dataset

10.6084/m9.figshare.8303669

Dataset license

CC-BY 4.0
Keywords:
Landsat imagery; land cover change; deforestation; biodiversity; conservation; Xingu river basin

1. Summary

Ongoing deforestation in the tropics is a well-known threat to biodiversity [1,2,3]. Species with restricted ranges are particularly at risk of extinction from habitat loss [4]. Global- and regional-scale maps developed to analyze large-scale trends (e.g., [5,6,7,8]) do not necessarily capture the small-scale changes experienced by restricted range species. Therefore, these areas require the development of detailed land cover datasets that allow for a better understanding of historical and current environmental threats (e.g., deforestation, mining, etc.).
In addition to their high biodiversity, Amazonian forests are also important contributors to drivers of global atmospheric circulation [9] and climate change mitigation [10]. The Xingu River basin encompasses the fourth largest catchment area of the Amazon. It is known for its high fish biodiversity, with an estimated 600 species, 10% of them endemic to this river basin with many remaining to be described [11,12,13,14]. Several ethnic groups inhabit a mosaic of indigenous lands in a large part of the basin, contributing greatly to a slower rate of deforestation than is seen in unprotected Xingu basin headwaters [15,16,17]. The health of the riparian ecosystems is linked to changes in the overall forest cover and has a direct impact the unique fish biota [18]. In order to assess the rapid changes that the Xingu River basin has experienced over the last four decades, we developed a forest/non-forest classification system for four time periods from 1989 to 2018 as a case study applicable elsewhere in the tropics. These datasets were produced from cloud free surface reflectance mosaics of Landsat TM5 and Landsat 8-OLI images, classified with a classification and regression tree (CART) in Google Earth Engine.

2. Data Description

The four classifications are available for download in Geotiff format (30 m pixel size) (Figure 1). Each classification is in a geographic projection (latitude/longitude) with WGS84 datum. Pixels represent one of three classes: forest (1), water (2), or non-forest (3). Our definition of forest is “areas with approximately greater than 30% tree canopy cover”, which is consistent with the Brazilian definition [19]. The implementation of this definition was based on approximately 3000 field photographs (see Section 3). The non-forest class encompasses all land covers and land uses that are not considered forest or open water. The water class represents exposed surface water.

3. Methods

The forest cover classifications were created for a 1.3M km2 area encompassing the Xingu River basin, Brazil, representing circa 1989, 2000, 2010, and 2018 from Landsat imagery (TM5 and OLI 8) (Table 1). The area crosses the borders of five states: Pará, Mato Grosso, Amazonas, Tocantins, and Goiás (Figure 1). The USGS Landsat Surface Reflectance Tier 1 imagery collection was queried through Google Earth Engine (Table 1). Clouds and cloud shadows were masked using the pixel QA bands to create a cloud free composite of the median surface reflectance for each reference period. In order to achieve cloud free composites for such a large area in the tropics which is prone to persistent cloud cover, the composites represent periods spanning 1985–1989, 1995–2000, 2005–2010, and 2017–2018. A classification and regression tree (CART) [20] was trained in Google Earth Engine for each mosaic, based on user-generated points split 70/30 for training and validation.
For the most recent mosaic, the training and validations points were selected based on photographs taken during four field expeditions in 2015–2018. The photographs were taken along the Xingu River (by boat) from Vitória do Xingu, north of São Félix do Xingu (400 km straight line distance to the south) (Figure 2). Additional photographs were taken along the PA-415 road between Altamira and Vitória do Xingu and along the BR 230 (Transamazônica) highway between Altamira and an unnamed settlement near the river’s natural diversion to the west, above the entrance to the Volta Grande, where the river drains from the Brazilian shield to the Amazonian lowlands. In the south, photographs were taken along primary roads and rivers (Culuene, Suiá Missu, Darro, Curuá) in an area bounded by Canarana (SE), Sorriso (SW), Castelo do Sonhos (NW), and halfway downstream the Suiá Missu towards its confluence with the Xingu River (NE). The photographs allowed for an understanding of the landscape from the satellite imagery in order to improve differentiation between the forest and non-forest classes. Based on the landscape in the most recent imagery, these photographs were also used to visualize interpretations of the previous years’ mosaics for the manual selection of training points and validation points.
After classification, a minimum mapping unit (MMU) of 90 m × 90 m (0.8 ha) was applied. Based on the field expeditions, this MMU is reasonable for capturing the majority of the forest fragments in the region. First, a standard sieve routine was applied in ENVI 5.2 to remove isolated pixels. Only pixel groupings of six or more were retained, followed by a clump routine to improve the spatial coherence (e.g., fill in the holes left by the sieve operation). With a kernel of 3 × 3 pixels, the routine first performs a dilation, followed by an erosion. The end result is a clumping of adjacent similarly classified pixels.
Confusion matrices for the four datasets (Table 2, Table 3, Table 4 and Table 5) indicate a high accuracy for all three classes. The ground truth data allowed for selecting training points that represent the expected variability of the classes (Figure 2). Nevertheless, these confusion matrices represent the maximum accuracy, and with additional ground truth data, classification errors may be found in areas with rapid land cover change (e.g., secondary growth in abandoned clearings).

4. Limitations

Users must be aware that due to the pixel size of the satellite imagery, smaller bodies of water and narrow rivers/streams could not be classified (Figure 3). The smaller tributaries where the water is often narrower than a single pixel and may have extensive vegetation covering the banks are not included in the classifications. The MMU of ~1 ha also means that very small forest and non-forest patches will have been sieved out of the classifications. Furthermore, because each classification is representative of the median reflectance for the time period, small temporal scale changes in land cover may not be represented.

5. Conclusions

We describe a new multi-temporal classification for the Xingu River basin, Brazil. This dataset was created through the classification of Landsat TM5 and OLI 8 imagery in Google Earth Engine. The Landsat archive allowed for consistency in the classifications over the four periods. The purpose of creating these localized classifications is to address the need for accurate forest cover change data in a region with high biodiversity as well as rapid land cover change due to anthropogenic factors including deforestation, hydro-electric dam impoundment, mega-scale agriculture, extensive cattle ranching, and population growth. The inclusion of field photographs in the training of the CART models allowed for the local variability of the classes to be taken into account, an aspect difficult to do on a global scale. This classification does not rely on other reference datasets, and as such, potential errors in other data sets are not propagated further. For future studies, and to address the limitations of the spatial resolution of these data (e.g., underestimation of small water bodies), other global optical satellite image collections (e.g., Sentinel-2) or radar data from archived (e.g., RADARSAT-2) or new data (e.g., RADARSAT Constellation Mission) should be investigated.

Author Contributions

O.L., L.S., M.K. and J.P.A.-M. collected the field data. M.K. carried out the analysis. All authors contributed to the writing and editing of the manuscript.

Funding

Natural Sciences and Engineering Research Council of Canada, and Discovery Grant Program to Kalacska and CNPq Universal Project #486376/2013-3 to Sousa.

Acknowledgments

We thank Márcio Vieira, Damilton Rodrigues de Costa (Dani) and Antônio Silva de Oliveira (Toninho) for their help in the field. We also thank two anonymous reviewers for their comments to improve our manuscript.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Dale, V.H.; Pearson, S.M.; Offerman, H.L.; Oneill, R.V. Relating patterns of land-use change to faunal biodiversity in the Central Amazon. Conserv. Biol. 1994, 8, 1027–1036. [Google Scholar] [CrossRef]
  2. Turner, I.M. Species loss in fragments of tropical rain forest: A review of the evidence. J. Appl. Ecol. 1996, 33, 200–209. [Google Scholar] [CrossRef]
  3. Westman, W.E.; Strong, L.L.; Wilcox, B.A. Tropical deforestation and species endangerment: The role of remote sensing. Landsc. Ecol. 1989, 3, 97–109. [Google Scholar] [CrossRef]
  4. Pimm, S.L. The dodo went extinct (and other ecological myths). Ann. Mo. Bot. Gard. 2002, 89, 190–198. [Google Scholar] [CrossRef]
  5. De Almeida, C.A.; Coutinho, A.C.; Esquerdo, J.C.D.; Adami, M.; Venturieri, A.; Diniz, C.G.; Dessay, N.; Durieux, L.; Gomes, A.R. High spatial resolution land use and land cover mapping of the Brazilian Legal Amazon in 2008 using Landsat-5/TM and MODIS data. Acta Amaz. 2016, 46, 291–302. [Google Scholar] [CrossRef]
  6. DeFries, R.S.; Townshend, J.R.G.; Hansen, M.C. Continuous fields of vegetation characteristics at the global scale at 1-km resolution. J. Geophys. Res. Atmos. 1999, 104, 16911–16923. [Google Scholar] [CrossRef]
  7. Hansen, M.C.; Potapov, P.V.; Moore, R.; Hancher, M.; Turubanova, S.A.; Tyukavina, A.; Thau, D.; Stehman, S.V.; Goetz, S.J.; Loveland, T.R.; et al. High-Resolution Global Maps of 21st-Century Forest Cover Change. Science 2013, 342, 850–853. [Google Scholar] [CrossRef] [PubMed]
  8. Shimada, M.; Itoh, T.; Motooka, T.; Watanabe, M.; Shiraishi, T.; Thapa, R.; Lucas, R. New global forest/non-forest maps from ALOS PALSAR data (2007–2010). Remote Sens. Environ. 2014, 155, 13–31. [Google Scholar] [CrossRef]
  9. Malhi, Y.; Roberts, J.T.; Betts, R.A.; Killeen, T.J.; Li, W.H.; Nobre, C.A. Climate change, deforestation, and the fate of the Amazon. Science 2008, 319, 169–172. [Google Scholar] [CrossRef] [PubMed]
  10. Pereira, J.C.; Viola, E. Catastrophic Climate Risk and Brazilian Amazonian Politics and Policies: A New Research Agenda. Glob. Environ. Politics 2019, 19, 93–103. [Google Scholar] [CrossRef]
  11. Barbosa, T.A.P.; Benone, N.L.; Begot, T.O.R.; Goncalves, A.; Sousa, L.; Giarrizzo, T.; Juen, L.; Montag, L.F.A. Effect of waterfalls and the flood pulse on the structure of fish assemblages of the middle Xingu River in the eastern Amazon basin. Braz. J. Biol. 2015, 75, S78–S94. [Google Scholar] [CrossRef] [PubMed]
  12. Camargo, M.; Giarrizzo, T.; Isaac, V. Review of the geographic distribution of fish fauna of the Xingu river basin, Brazil. Ecotropica 2004, 10, 123–147. [Google Scholar]
  13. Dagosta, F.C.P.; De Pinna, M. The fishes of the Amazon: Distribution and biogeographical patterns, with a comprehensive list of species. Bull. Am. Mus. Nat. Hist. 2019, 431, 163. [Google Scholar] [CrossRef]
  14. Fitzgerald, D.B.; Perez, M.H.S.; Sousa, L.M.; Goncalves, A.P.; Py-Daniel, L.R.; Lujan, N.K.; Zuanon, J.; Winemiller, K.O.; Lundberg, J.G. Diversity and community structure of rapids-dwelling fishes of the Xingu River: Implications for conservation amid large-scale hydroelectric development. Biol. Conserv. 2018, 222, 104–112. [Google Scholar] [CrossRef]
  15. Da Silva, J.M.C.; Rylands, A.B.; Da Fonseca, G.A.B. The fate of the Amazonian areas of endemism. Conserv. Biol. 2005, 19, 689–694. [Google Scholar] [CrossRef]
  16. Schwartzman, S.; Boas, A.V.; Ono, K.Y.; Fonseca, M.G.; Doblas, J.; Zimmerman, B.; Junqueira, P.; Jerozolimski, A.; Salazar, M.; Junqueira, R.P.; et al. The natural and social history of the indigenous lands and protected areas corridor of the Xingu River basin. Philos. Trans. R. Society B-Biol. Sci. 2013, 368. [Google Scholar] [CrossRef] [PubMed]
  17. Garcia, E.; Ramos, F.S.V.; Mallmann, G.M.; Fonseca, F. Costs, Benefits and Challenges of Sustainable Livestock Intensification in a Major Deforestation Frontier in the Brazilian Amazon. Sustainability 2017, 9, 158. [Google Scholar] [CrossRef]
  18. Frederico, R.G.; Olden, J.D.; Zuanon, J. Climate change sensitivity of threatened, and largely unprotected, Amazonian fishes. Aquat. Conserv. Mar. Freshw. Ecosyst. 2016, 26, 91–102. [Google Scholar] [CrossRef]
  19. Gilbert, N. Forest definition comes under fire. Nat. News 2009. [Google Scholar] [CrossRef]
  20. Breiman, L.; Friedman, J.; Stone, C.J.; Olshen, R.A. Classification and Regression Trees; Taylor and Francis Group: Boca Raton, FL, USA, 1984. [Google Scholar]

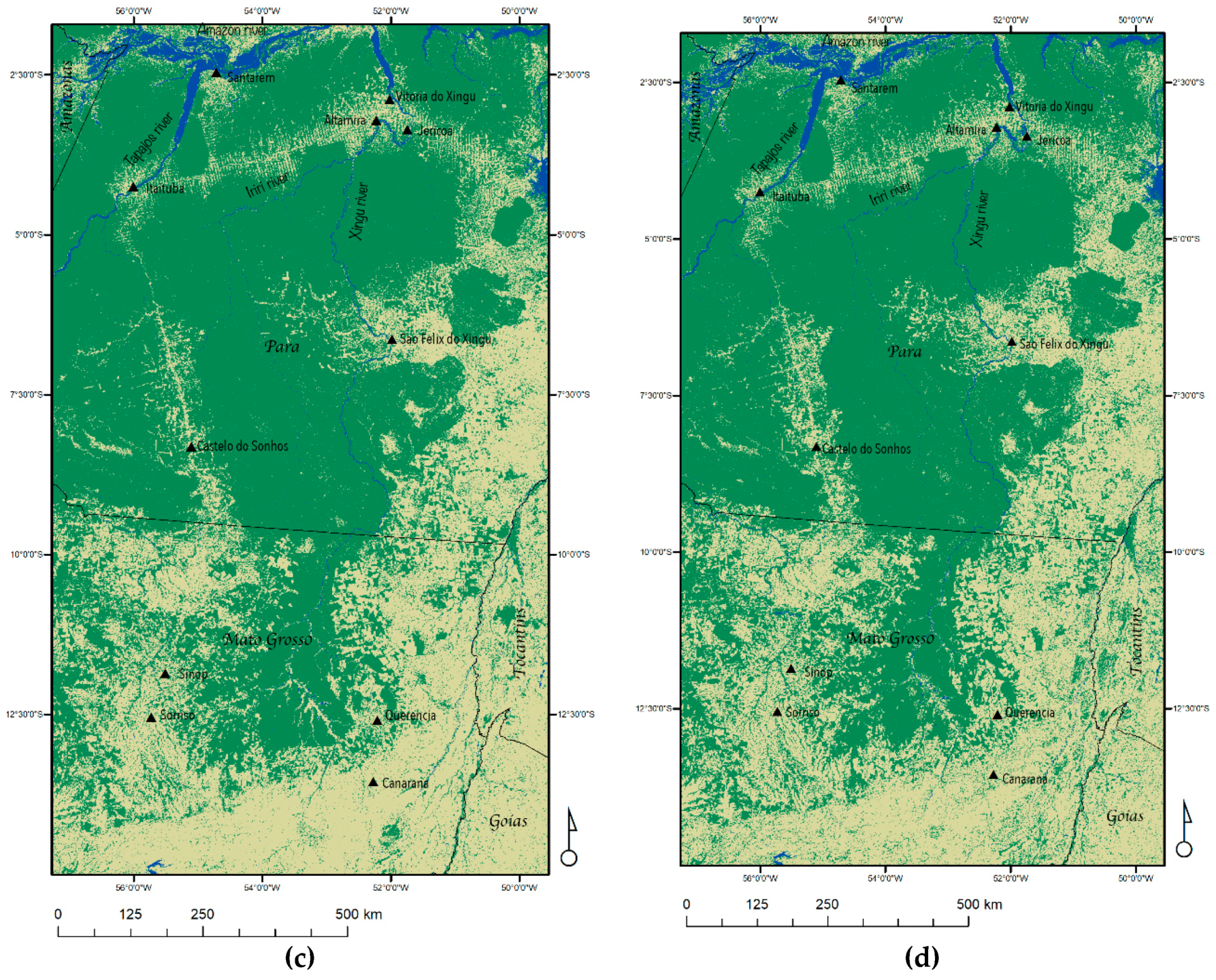

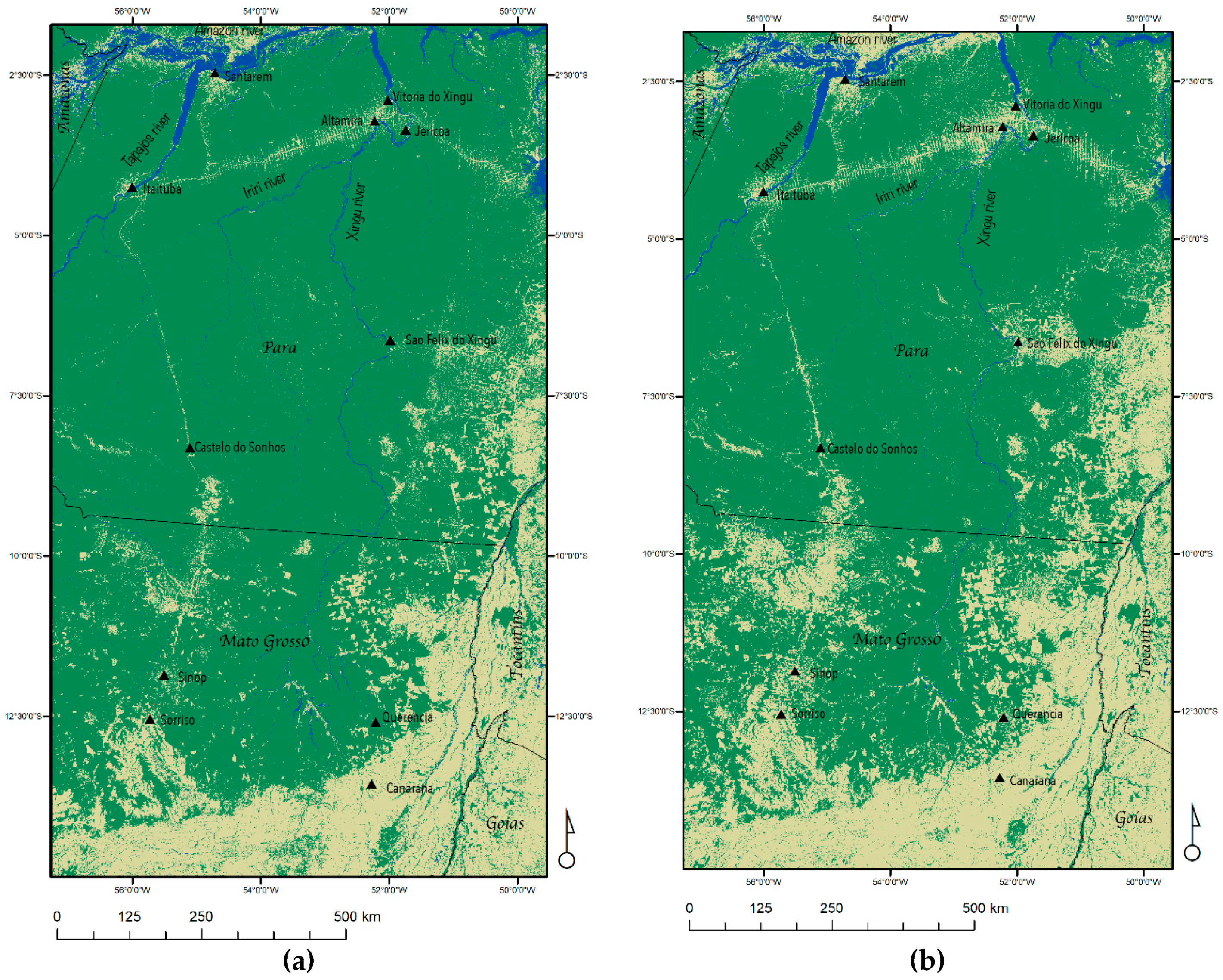

Figure 1. Four classifications of forest cover for the Xingu river basin for (a) circa 1989, (b) circa 2000, (c) circa 2010, and (d) circa 2018 from Landsat TM5 and OLI 8 imagery. Boundaries of states, larger rivers, and landmarks including cities and the Jericoá rapids are shown for reference.
