Application of Numerical and Experimental Modeling to Improve the Efficiency of Parshall Flumes: A Review of the State-of-the-Art

Department of Civil Engineering, University of Ottawa, Ottawa, ON K1N 6N5, Canada
Department of Civil Engineering, Inonu University, Malatya 44000, Turkey
Author to whom correspondence should be addressed.
Hydrology 2022, 9(2), 26;
Received: 30 December 2021 / Revised: 3 February 2022 / Accepted: 4 February 2022 / Published: 6 February 2022
(This article belongs to the Section Hydrological and Hydrodynamic Processes and Modelling)


One of the primary steps in managing the flow in an open channel is determining its properties. Empirical equations are developed to provide further information regarding the flow in open channels. Obtaining such experimental equations is expensive and time consuming; therefore, alternative solutions have been sought. Over the last century, the Parshall flume, a static measuring device with no moving parts, has played a significant role in measuring the flow in open channels. Many researchers have focused their interest on studying the application of Parshall flumes in various fields like irrigation and wastewater management. Although various scholars used experimental results to enhance the rating equation of the Parshall flume, others used an alternative source of data to recalibrate the height–discharge relation equation using numerical simulation. Computational Fluid Dynamic (CFD) software is becoming popular nowadays as computing hardware has advanced significantly within the last few decades, making it possible to go beyond the limited resolution that was experienced in the past. Multiple CFD models, depending on their availability, either open-source or commercially licensed, have been used to perform numerical simulations on different configurations of flumes, especially Parshall flumes, to produce water level results. Regarding various CFD tools that have been used, i.e., FLOW-3D, Ansys Fluent, or OpenFOAM, after precise calibration with experimental data, it has been determined that the output is reliable and can be implemented to the actual scenarios. The benefit of using this technique to produce results is the ability of the CFD approach to adjust the initial conditions, like flow velocity or structural geometry, where necessary. With respect to channel size and the condition of the site where the flume is located, the choices are narrowed to the specific Parshall flume suitable to the situation. It is not always possible to select the standard Parshall flume; therefore, engineers provide some modification to the closest flume size and provide a new rating curve to produce accurate flowrates. This review has been performed on the works of a number of scholars who targeted the application of numerical simulation and physical experimental data in Parshall flumes to either enhance the existing rating equation or propose further modification to the structure’s geometry.

1. Introduction

From ancient times, the allocation of appropriate amounts of water among the various sectors of society was a crucial task to be managed by local authorities. Different methods and devices were implemented to perform this task. As time passed, more accuracy was demanded as complaints arose about the performance of basic early measuring devices for water under field conditions such as open channels. Several parameters are considered when designing and building the ideal flow measuring device. According to Ref. [1], seven major criteria should be taken into account. Accuracy is the most important element, while the budget required to build such a device should be adequate. In addition, the device should also be easy to operate. The measuring device must operate for long periods with minimum maintenance costs and be free of any moving parts. Due to the low maintenance cost requirement, sediments and debris must be able to pass freely through without clogging the measuring device. Figure 1 and Figure 2 show two different sizes of a measuring device called the Parshall flume.
The Parshall flume is one of the measuring flumes that has been widely used over the last century. It is a modified Venturi flume that was first proposed by Parshall in 1936 when a negative slope was added to the flat bed of the Venturi flume at the throat section [4]. The flume worked on the principle of critical depth. The water enters at the convergence section of the Parshall flume and is guided through the wing walls at the entrance toward the throat section, the congestion part of the flume designed to accelerate the flow to achieve supercritical flow. The bottleneck was accompanied by the sudden steep drop in the flume bed followed by a negative slope that worked as a decelerator, starting at the beginning of the divergence section. Various modifications of the Venturi flume were studied over the years, but the Parshall flume gained popularity due to being well organized and accurate. Other flumes like the Cutthroated flume, a Venturi flume with no throat section, has a sudden transition between convergence piece and divergence part. The Montana flume, another modification of the Parshall flume, which only contains the convergence and throat section, is another example of a modified Venturi flume. In this modification, the divergence part is omitted as it was deemed unnecessary.
Regardless of which type of flume was chosen to measure the flow, the flowrate was derived from a mathematical relationship between the water level and discharge. The relationship was provided for each type of flume with different variable values due to variation in size. The quality of the physical experiment to derive the mathematical relationship for each flume directly affects the accuracy of the obtained flowrate. Therefore, with respect to various sources of error during physical experiments, it is difficult to neglect their results on the outcome. Human error and uncalibrated device error were among the most common errors that have been improved over the last few decades by introducing more digital sensors instead of human observations. High precision manufacturing processes have now been implemented and are responsible for producing more accurate devices, i.e., measuring devices that result in fewer device errors.
Alternatives to the complicated procedures mentioned above have always been desired by engineers and researchers. More flexibility was needed in the design of such devices that worked under different circumstances. As one of the best economic solutions, moneywise and timewise, implementing numerical models to be run on super-computers to simulate the behavior of flow by solving the flow equations has drawn significant attention.
One reliable and fast approach introduced to substitute for physical experiments on hydraulic devices, i.e., Parshall flumes, is the Computational Fluid Dynamic (CFD) software. CFD models have been advanced within recent decades as computer processors have become more powerful. Different approaches to solve the Navier–Stokes equations of flow were proposed by various scholars over this period. Approaches like the Reynolds Average Navier–Stokes (RANS), Large Eddy Simulation (LES), and Detached Eddy Simulation (DES) were used by numerous researchers, and various secondary methods were proposed under each approach.
Using computational fluid dynamic software provides such accurate results that it eliminates the need of acquiring experimental observation. The purpose of replicating a downscaled physical model is to study the actual behavior of the specific structure under other flow conditions such that a proper safety factor is ensured in the design stage of a structure in order to withstand against any extreme conditions. For example, when designing dams, considering the possibility of having a large amount of rainfall that can occur with 100 or 1000 years return period is often required. Using numerical modeling made it almost unnecessary to use any type of physical material to build the downscaled model, while providing the freedom to take into account any unforeseen condition that might threaten the integrity of the structure in the short or long term of its life span. Additionally, it provides significant freedom to change the initial conditions, the boundary conditions, or make necessary changes to the computational mesh of the numerical model. Hence, CFD plays a significant role against under- or over-designed hydraulic structures that can affect the environment (aquatic ecosystem) or generate major dangers posed by their failure.
Based on several applications of different CFD models, the quality of the results in comparison to the actual laboratory tests were well accepted. Hence, the use of numerical simulation was approved by many scholars.
The objective of this paper is to (i) provide the reader with an introduction to the principles and applications of Parshall flumes, as well as to the most common types of modified flumes such as the Venturi and cutthroat flumes, (ii) present a typical algorithm to calculate the discharge using head discharge equation, (iii) specifically examine the work of previous researchers using numerical models to enhance the design and efficiency of the Parshall flume, (iv) examine selected previous studies on physical experiments to demonstrate the performance of their modifications to this type of flume; (v) present a comprehensive explanation of the various components of the numerical models used, including mesh generation, boundary conditions, initial conditions, postprocessing and error analysis, numerical methods, etc. Figure 3 illustrates the schematic design of a Parshall flume.

2. Parshall Measuring Flume

In order to determine the discharge in open channel flow, various hydraulic structures are used, such as different types of weirs, orifices, spillways, as well as the Parshall measuring flume. Among different measuring devices, the Parshall flume provides more accurate discharge value by taking advantage of the principle of critical flow. The design of the geometry of the Parshall flume allows flow entering the throat section, a narrow section with parallel walls, due to the gradual contraction of the entrance and the steep slope of the throat’s bed, to be forced to change to critical flow, with a Froude number equal to one. Using the principle of critical flow leads to find more accurate discharge measurement in open channel flow.
One of the main advantages of the Parshall flume over other types of measuring devices is that the relative head loss is much smaller in the case of the Parshall flume when compared to the classical weirs. Additionally, the ability to pass the debris through is another important advantage.
The accuracy of some of the flume results are able to compete with those obtained from weirs i.e., ±2–5%. Among different flumes, the Parshall and Montana flumes have exhibited ± 3–5% more accuracy than weirs, alongside cutthroat flume with a value of ±3% [5].

2.1. Types of Parshall Flume

Various types of flumes were developed over the past century as measuring tools in open channel flow. One of the early measurement flumes are the Venturi flumes, which have three main sections: the converging, contraction, and diverging sections. As previously mentioned, the idea of using a specially-designed flume is to alter the flow into the critical regime. The contraction section of the flume is responsible to deliver this change to the flow.
The Parshall flume, a modified version of the Venturi flume, was the result of extensive modifications to the original design. The introduction of the bed elevation within the throat section accelerates the flow more efficiently compared to its predecessor (Venturi). Other researchers made various modifications to the Parshall flume by removing its diverging section (this was termed the Montana flume), and removed the throat section and named it the Cutthroat flume. The rating equations vary depending on the type of modified Parshall flume and flow conditions, i.e., free flow or submerged flow.
Free flow refers to the condition when the water level downstream of the flume has no effect on slowing down the overall flow speed. By contrast, the submerged condition is when the water level at downstream section increases and subsequently directly reduces the flow speed at the upstream section, hence creating a backwater effect.

2.2. Rating Equations for Parshall Flume

This section tries to provide some insight on the different mathematical relationships that were proposed to calculate the flowrate with respect to the widths of flume’s throat and the type of flow, whether it is a free flow or a submerged flow. The key parameters in the equations are the head value at a specific location along the flume (within the contraction section for free flow) or in submerged flow, the ratios of two head values at different locations i.e., a point within the contraction section ( H a ) and another point within the converging section ( H b ).
Parshall flumes with free flow condition from 1 to 8 ft. are designed following Equation (1) [6]
Q = 4 W H a 1.522 W 0.026
where the discharge is denoted by Q (cfs), the width of contraction section is W , and H a is the water level in the throat section. The equation works with imperial units.
Equation (2) is used for the same range flows, but for submerged flow conditions [6].
Q = 4 W H a 1.522 W 0.026 { { H a { 1.8 K } 1.8 2.45 } 4.57 3.14 K + 0.093 K } W 0.815
where K is the ratio of H b / H a (referred to as degree of submergence); H a is the primary staff gauge reading while H b is the secondary readings in feet. The equation works with imperial units.
Parshall [6] proposed Equation (3) for the flumes larger than 10 ft. in throat size up to 40 ft. with free flow condition;
Q = ( 3.6875 W + 2.5 ) H a 1.6
where Q is the rate of discharge (cfs), W is the width of flume throat, and H a is the head measurement.

3. Numerical Modeling in CFD

In order to setup a computational fluid dynamic model, a few steps must be taken: Pre-Processing, Processing, and Post-Processing.
The Pre-Processing stage includes the mesh generation and defining the initial and boundary conditions.
Mesh generation is performed either by block-mesh (in OpenFOAM) or using other applications in order to provide a solid watertight mesh that has no flaws in terms of overlapping, gaps, or sharp angles.
As one of the key parameters to obtain an accurate numerical simulation model, the focus was on the appropriate selection of the cell sizes. This process is referred to as mesh sensitivity analysis. Figure 4 demonstrates the mesh sensitivity analysis performed by Ref. [7].
Boundary conditions are responsible for defining the properties of the computation domain edges in terms of permeability and specifying the point of entry and exit of the fluid in block-mesh. The atmosphere edge in the model is defined by boundary conditions as well. On the other hand, the properties of the flow at the entrance and exit (i.e., speed, direction, and acceleration) are set by initial conditions.
The processing stage uses various solvers to recruit different schemes (i.e., discretization of the interpolation terms), discretize the temporal term, the gradient terms, etc.
Post-processing involves the use of other software to interpret the results from the previous stage. Paraview, for example, [7,8] is used to plot the numerical results. As an example, it uses the streamline and contour type of plots beside the slice and threshold functions.
Finally, results from the numerical models are examined against available experimental result using various error analysis methods such as the absolute error method, the standard error of estimate (SEE), the root mean square error (RMSE), the central root mean square error (CRMSE), etc.

3.1. Governing Equations

The Navier–Stokes equations, a system of equations to solve the incompressible fluid motion in three-dimensional coordinates, is implemented in the numerical simulations by various CFD models. The system consists of equations for continuity and momentum. The Navier–Stokes equations are described as follows [9,10]:
u x + v y + w z = 0
u t + u u x + v u y + w u z = 1 ρ p x + ν 2 u
v t + u v x + v v y + w v z = 1 ρ p y + ν 2 v
w t + u w x + v w y + w w z = 1 ρ p z + ν 2 w g
where p denotes total pressure and ρ represents density, the velocity in three-dimensional directions is represented by u , v , and w , t denotes time, and g is the gravitational acceleration. The following equation is used to obtain the ρ value.
ρ = α ρ 1 + ( 1 α ) ρ 2
The two involved phases, i.e., air and water, in fluid motion are represented by ρ 1 and ρ 2 , respectively. Depending on where the point is selected, the α value varies from 1 to 0. The presence of water requires α = 1 while 0 represents the presence of air. The best value to represent the surface would be the average value.
And, finally, 2 is obtained from Equation (9),
2 = 2 x 2 + 2 y 2 + 2 z 2

3.2. Equation of the Free Surface

As the dominant method for analyzing the free surface, Volume of Fluid (VoF) is implemented in the majority of CFD models. Figure 5 shows the basic illustration of how VoF works within the mesh grid. As mentioned above, the assigned value for the full presence of air is 0, while in contrast, 1 is used when there is no air, i.e., the presence of water. Hence, the average value in between represents the zero-pressure boundary, i.e., fluid surface. The following equation is used by VoF:
α t + ( α u ) x + ( α v ) y + ( α w ) z = 0

4. Literature Review

4.1. Numerical Studies

Ref. [8] studied the results of models using 7 different turbulence models to investigate which one performed the best when simulating a Parshall flume. The simulations were constructed based on experimental setup by Ref. [12] where the water level was recorded. OpenFOAM, an open-source Computational Fluid Dynamic (CFD) software package was utilized to solve the flow equations. The turbulence models were chosen from three different main methods, i.e., Reynolds Average Navier–Stokes (RANS), Large Eddy Simulation (LES), and Detached Eddy Simulation (DES). The VOF method was implemented to reveal the boundary between fluid and air. Considering all different approaches to solve the flow equations, the performance of each turbulence model was evaluated by calculating the standard average error. This was done for 7 well-distributed cross-sections along the flume by comparing simulation results with experimental data. Results of the comparison revealed that the best performance was achieved with the standard k ε model from the RANS family, followed by the Dynamic one-equation approach from the LES approach.
Due to the variety of the turbulence models used in the study by Heyrani et al., the latter was considered to be one of the most comprehensive resources to study the application of numerical modeling in Venturi flumes, specifically the Parshall flume. Overall, the results from all turbulence models were considered acceptable due to the low error percentage values, i.e., less than 2.53%, where the highest was recorded for k ω SST and k ω SST-DES from RANS and DES families, respectively. The authors showed that due to the fluctuations recorded at the first cross-section, the average error percentage recorded was higher. Figure 6 shows the comparison between the numerical data versus the experimental results.
In conclusion, the application of numerical modeling as a tool to enhance the hydraulic design of hydraulic structures was highly recommended by Heyrani et al. [8]. This was mainly due to the time and cost saving nature of the CFD approach. Additionally, the reasonably low computational resource allocation for numerical modeling of the Parshall flume made it a good candidate to be applied in order to rectify complicated engineering challenges.
The implementation of nonlinear turbulence models in OpenFOAM was pursued by Ref. [7] in conjunction with their previous comprehensive study on 7 linear turbulence models. Three different turbulence models, i.e., Shih et al. (1998) [13] Quadratic k ε Model (SQ), Lien, 1996 [14] Cubic Turbulence Model (LC) and v 2 f , from the RANS family were selected to simulate the flow in a modified 3-in Parshall flume. The modification was focused on the throat section parameters, i.e., the width, the length, and the overall bed drop of the throat. Various flowrates were used in the simulation model, as the experimental data were available in the other study, Ref. [8], mentioned above. A comparison was made between numerical and experimental data. The maximum average error was obtained by SQ model, i.e., 8.69%, while the v 2 f model provided an average error value of 1.79%, the lowest among not only the three nonlinear models used in this study, but also the seven linear models that were used previously by Heyrani et al. [8] in another study, with the same experimental setup.
The authors concluded that the use of CFD software with a non-linear turbulence model to simulate the flow in Parshall flumes was feasible due to the quality of the results and the amount of time spent to achieve them. The level of accuracy within not only the three nonlinear models, but also the other linear turbulence models used previously were considered acceptable, as all of the average error values were below 3% except the SQ model. Hence, it was recommended that the CFD results be implemented for any further modifications in the design of Parshall flumes, as the numerical simulations closely mimic the actual scenarios. Figure 7 is an example of what was discussed above regarding the numerical simulation reliability.
Ref. [15] conducted a study on the effects of nonstandard conditions with respect to Parshall flumes. The most common criteria that are neglected by scholars are the presence of longitudinal bed slope at the placement location and the existence of distortion in the velocity profile upstream of the flume’s entrance. The Parshall flume used in Ref. [15] experiments was a 6-in flume. As a simulation tool, SOLA-FLUMP, a three-dimensional, free-surface finite-difference code was utilized to rectify the errors that arose due to such non-structural issues. The use of SOLA-FLUMP is strictly limited to the cases where non-submerged flows are passing through Parshall flumes. The comparison of the simulation results and experimental data were reported to be good even though the viscosity parameter in the model was neglected.
Implementing a V-Notch Weir in the system provides a flowrate reading with an accuracy of up to 1.25% when calibration was done in place. There was a modification on the entrance wing-walls that made the flume geometry different from the standard one. One of the reasons for this modification was to improve the simplicity of the model’s performance, while it was claimed that shifting the wingwall’s location to 2.44 m upstream of the inlet entry point did not make any changes to the flume’s overall performance. It was also highlighted that due to lack of computational resources, the numerical simulations were all performed on symmetric geometry around the centerline of the flume. Asymmetric simulations were possible to achieve with improvements of the computational hardware. The authors concluded that the SOLA-FLUMP code was accurate enough to be used as a resource to provide guidelines for the use of Parshall flumes in nonstandard situations.
Ref. [11] compiled numerous numerical simulations and physical experiments to investigate the accuracy of two field-scaled Parshall flumes placed in a parallel setup. The application of two flumes (0.91 and 1.22 m) was used as a tool to measure the flow rate in a wastewater system in Minnesota. VFS-Geophysics code, an open-source simulation model that was available in-house to the researchers, was used to develop the numerical simulations. Volume of Fluid (VOF), Large Eddy Simulation (LES), and level-set methods were also used as numerical tools to determine the water surface level and turbulent flow, as two-phase flow conditions were assumed. A combination of LES and level-set methods provided instantaneous water level values at any point in the flume.
Overall, the study was conducted over four different flowrates, i.e., 500, 700, 1000, and 1500 L / s , where the total number of nodes in the grid system was reported as 6.5 million nodes. The experimental study was carried out using dye dilution method along with different flowrate measurement devices to determine the discharge passing through Parshall flumes. The authors reported that the best discharge results were obtained using an interval of one hour for time-averaged flow rate data. The main objective in the comparison of numerical results and experimental data in this study was to demonstrate that the numerical model is a reliable method of finding the margin of error of the full-scale flume under working condition; also, it is an applicable tool to determine the range of water surface level fluctuations over the Parshall flume. The comparison between simulation results and experimental data showed up to 8% variation in one Parshall flume’s rating curve, while the other one demonstrated a 3% error at high flow rates. The error increased up to 10% when low discharge was introduced to the second flume. Figure 8 illustrates the grid system on the Side A (right) Parshall flume in the parallel system.
In a study by Ref. [16], the advantages of using a flume, specifically a short-throat flume, was explored. It was highlighted that the application of a flume or flume set with smaller size to provide more accurate discharge control at the inlet of the field was neglected by different researchers. The TruVOF technique together with the principles of critical flow were implemented in a 76 mm wide flume in FLOW-3D. The Re-Normalization group (RNG) k ε turbulence model was used in the numerical simulation to evaluate the hydraulic performance of the flume under 16 different conditions. The maximum discharge of up to 40 L/s was assumed during the experiments. Simulation results were then compared to the time-averaged flow field, flow pattern, Froud number, and velocity distribution. The results of the application of a portable short-throat flume revealed lower head loss compared to the long-throat flume. Moreover, free flow condition confirmed less head loss versus having submerged condition.
A short throat flume with a flat bottom was used in their study. There were, in total, 11 cross-sections considered as the data collection points, starting with 259 mm width at cross-section 1 to 178 mm width at the last cross-section. The throat size of 76 mm was recorded for cross-sections 5 to 9. The comparison of results indicated that a ± 10% error is unavoidable. In addition, the constructed regression model used to illustrate the relation between the upstream depth and discharge in various tested conditions showed an error of 9.16%, a value that is acceptable when it comes to the flow measurement in irrigation areas. With respect to the long-throat flume, the head loss of a portable short-throat flume in the field was determined to be considerably low. Further, head loss under the free flow condition was less than the one under the submerged flow condition of portable short-throat flume with a flat base in the field.
In another study by Ref. [17], by developing a numerical model, the importance of consideration of the fluid viscosity was explored. The focus of the study was on flow with low discharge in a Parshall flume. As mentioned in the paper, the original rating equation by Parshall paid no attention to the fluid viscosity for low discharge flows. Therefore, a numerical model was introduced for four different sizes of Parshall flume to predict the fluid viscosity’s effect on the depth–discharge relation. The use of the original rating equation along with several experimental data shows an overprediction of discharge. This happened for a discharge of around less than 15% of the maximum rated discharge for the flume. Moreover, inconsistency was up to 25% when the flume operated within its recommended flowrate. Therefore, the coefficients of the initial rating equation were reconstructed for low discharges using the numerical results. It was highlighted that the simulation results were in perfect accordance with experimental data.
The numerical model was constructed based on two concepts of energy conservation and the formation of the boundary layer on the sides and bed of the Parshall flume. The physical Parshall flume model used for experimental investigation could accommodate two different setups: 3- and 6-in, which acted as a 1/4 scale model of 1- and 2-ft setups. The flowrate was measured for each experiment with a calibrated Venturi meter, a separate procedure in addition to the main experiments. Alternative rating equation coefficients were proposed for various Parshall flumes when the flow is in submerged condition at low discharge, but it was recommended that the original Parshall’s equation constants be used for higher flowrates.
Ref. [18] investigated the importance of maintaining the main design parameters as originally proposed for the Parshall flume. The proper design criteria from Parshall himself can lead to discharge accuracy of ± 3–5%. Meanwhile, the negligence of common parameters, such as specifying the correct location for head measurement upstream and the selection of the proper wingwalls design at the entrance, caused the rating curve to be produced with inaccurate discharge results. As an example, a possible error of up to 60% was unavoidable when the submergence condition was not fully considered with no free-flow condition involved. In addition, measuring the flow head upstream anywhere but the specific location proposed by Parshall can also introduce an error of up to 60%. Therefore, to rectify the issue of applying nonstandard Parshall flumes in flow measurements over free-flow conditions, numerical simulation was utilized as a cost saving tool to provide numerus flow parameters over various sizes of Parshall flumes. The CFD results were investigated to provide a procedure to correct the flowrate for different sizes of flumes ranging from 2- to 8-ft. The application of CFD in this study was considered as an alternative to the traditional build–test method, which was considered inefficient with respect to over-allocation of some resources such as time and cost.
The results and procedures provided by Heiner and Barfuss followed the approach of collecting the head measurement at different points on the wingwalls and centerline anywhere within the convergence section except the standard location. For each flume size studied by Heiner and Barfuss, three different wingwall arrangements were considered, i.e., standard radius wingwall, 45-degree wingwall, and no wingwall. The CFD model used was FLOW-3D, while the VOF method was used to determine the boundary condition of the free surface. The FAVOR method was implemented to distinguish the boundary line between solid surfaces and the flow.
Ref. [19] validated the application of the numerical modeling by providing the correction coefficient for different sizes of Parshall flumes. Common problems in nonstandard Parshall flumes include dislocation of staff gauge and the presence of undefined entrance conditions such as different wingwall arrangements in the flumes, which can increase the calculated flowrate error up to 60%. Introducing a suitable correction factor, in the majority of cases, was able to produce results of (±) 3–5% in error and improve the biased data of the rating curve. The correction value was obtained by using data from a physical model of a 61 cm Parshall flume. Geometrical dissimilarity across the various sizes of Parshall flumes made it impossible to implement a single calibrated equation to remove the biases from the calculated flow rates of all nonstandard flumes. Therefore, numerical modeling was employed to rectify this problem.
Up to 18 cross sections within the converging area of a Parshall flume were defined to evaluate water level, while various wingwall configurations were introduced to the flume, i.e., radius of curvature of entrance wingwalls, 45-degree angled, and no wingwall. Multiple locations within the cross sections were chosen to record the water surface data: at centerline, close to side walls, and at the sides attached to the stilling well. In total, 54 points were designated to be studied. The locations of the cross sections were selected based on the data collected during a field visit to the nonstandard flumes.
FLOW-3D was used as the CFD tool while the VOF method was implemented to provide the free surface of the flow. As wall function, the Fractional Area/Volume Obstacle Representation (FAVOR) method was chosen. In order to minimize the simulation time, the channel was only defined up to the beginning of the downstream section. Running the simulation only for the left side of the longitudinal centerline allowed further reduction in computational time since the geometry of the flume was symmetric. Due to the ability of RNG k ε model to simulate hydraulic jumps, this turbulence model was used in FLOW-3D. Based on 10 s time averaged data of water surface, pressure, and velocity, a small deviation was observed against the instantaneous data. Based on the study on wingwall configuration, a ± 5% deviation was expected to occur in the measured flow. The use of a numerical model was recommended by Ref. [19], based on the good performance of the numerical results, i.e., deviation of 5% for 90 to 95% of the data, against bias corrected physical findings.
Ref. [20] investigated the sources of flow problems in short-throated flumes. The empirical models that were derived from physical experiments were pointed out to be a fundamental tool in constructing the rating curve of the flume. The quality and efficiency of the derived equation is in direct proportion to the size of the samples collected under different conditions, i.e., flume sizes and flow discharges. The conventional approaches, such as hydrostatic pressure method, were incapable of modeling the hydraulic characteristics of flows passing through Venturi flumes. Instead, a one-dimensional model was used to simulate the flow and clarify various characteristics of the flow, such as water level and pressure gradient over various sections. Finally, measured data were compared against the simulated data. The comparison between numerical and experimental data confirmed good model performance.
The study was divided into two main categories. For an open channel flow, a high-order model was developed with no consideration of pressure or vertical velocity assumptions for the flow. It was claimed that the one-dimensional model had higher computational efficiency than the 2D non-hydrostatic and quasi-3D numerical models. With respect to simplicity in application, it was considered as computationally efficient. The capability in providing the rating curve via a convenient method for free flow condition in flumes like Venturi and Parshall made the proposed model even more competent.
The other pertinence of this study was the provision of numerical simulation for short-throated flumes with or without bottom hump. Total losses of energy considered in the study were due to the flow turbulence and roughness of the walls and floor, where it was believed that surface friction caused the majority of the losses. Overall, the results from the proposed one-dimensional model satisfied the free flow data in a Parshall flume as well as in the other short-throated flumes when compared with the 2D model results. Figure 9 illustrates the comparison of simulation results and experimental data.
Ref. [21] studied available approaches to reduce the head loss in flumes by introducing three curve-designed flumes. The new flumes were formed as the result of alteration in the contraction ratio of the flume using the concept of critical flow to minimize the head losses. According to Ref. [21], contraction ratio was defined as the ratio of the throat’s cross-sectional area to the area of the channel’s cross-section. A comparison was carried out for various hydraulic parameters such as water level, Froude number, velocity distribution, and head loss over the physical model and numerical simulation for curved flumes. The analysis revealed an overall error of 4.7% in the water level, which was considered acceptable. The results also showed a sudden decrease in discharge due to the submerged condition at the beginning of the divergence section. This happened shortly after the flow gained speed along the contraction section. A gradual increase in the contraction ratio resulted in a decrease in the depth of water and an increase in the Froude number upstream. The best result of maximum head loss was 38.4% while 26.41 L/s flowrate was passing through the curved flume’s throat with a contraction ratio of 0.4. It was emphasized by the authors that compared to other flumes, the results from curved flumes were superior. In addition, a new formula to provide the rating curve of the proposed flumes was constructed based on dimensional analysis method, and this led to accurate results.
Fluent software was used as CFD with implementation of VOF method to illustrate the free surface of the flow. Due to the presence of the curved surface within the flume, an unstructured mesh was chosen to define its geometry within CFD. The standard k ε turbulence model was selected to solve the flow equations for 12 different flow rates, i.e., 5 L/s to 27.19 L/s over three different curved flumes having various contraction ratios, i.e., 0.4, 0.5, and 0.6. The authors concluded that due to smaller head loss in curved flumes, higher flow capacity was expected to pass compared to the airfoil-shaped flume under the same conditions.
Ref. [22] used numerical modeling to simulate the three-dimensional (3-D) flow field in a Parshall flume and two other flumes using the VOF method. The data from physical experiments were used to evaluate the accuracy of simulated results in order to determine the efficiency of the CFD approach. FLOW-3D software was chosen as the CFD tool, while the standard k ε turbulence model was selected to simulate the flow. The implementation of FLOW-3D was due to its reliability, as verified by various researchers. A U-shaped channel with a radius of 0.2 and 0.45 m in depth was used to accommodate the Parshall flume with a throat size of 0.152 m and a contraction ratio of 0.763. The velocity of the flow and the turbulent kinetic energy were assessed at 4 different cross sections, with the flowrate set to 40 L/s. The largest error in the comparison was found to be 2.3 mm or 1.07%. The overall head loss of the Parshall flume was observed in the throat section and especially in the divergence section where the hydraulic jump was formed.
It was concluded that the head loss of the Parshall flume in a U-shaped channel was far greater than the other two flumes, i.e., 3.3 times bigger than the parabolic flume and 1.16 times greater than the long-throated flume. Therefore, the parabolic flume was found to be the most accurate measuring tool in the study. The rating curve relationship for different channel gradients was also proposed.
In a study by Ref. [23], several parameters in four different flumes were numerically and experimentally investigated. ANSYS Fluent software such as the CFD tool and standard k ε turbulence model, along with the VOF method, were used to provide the results for 144 simulations across various flume configurations with different contraction ratios. The correlation between the contraction ratio, i.e., 0.4, 0.5, and 0.6, the discharge, i.e., 4.83 to 27.15 L/s, and depth upstream, were analyzed. Figure 10 illustrates different setups on different types of flumes. The formula to evaluate the discharge was obtained through this correlation. To avoid the effect of flow fluctuations on the water level readings, the flumes were placed 3 m downstream in the 12 m long rectangular channel in the laboratory. The comparison was carried out across the flume’s centerline for the discharge, and a few different constrains were used, such as: Froude number and water depth upstream, critical submergence degree, and velocity gradient, along with the head loss. In the critical state, the ratio of the water depth from downstream to upstream was considered as the critical submergence degree. The authors stated that in sewer monitoring systems and irrigation systems in agriculture, the lowest head loss and backwater were expected, while an acceptable large value of critical submergence degree is required.
Satisfactory results of the comparison of all four flume designs were reported. Figure 11 illustrates the basic schematic of the flumes used in this study. The head loss in the cutthroat flume was found to be the smallest while an error of 3.17% was recorded in the flume’s discharge comparison. Overall, the variance in the simulation and experimental discharge values in all four flumes did not exceed 5%, which satisfied the discharge measurement requirements. It was concluded that with the simulation setup mentioned earlier, the comparison of experimental results and the numerical data showed that a 10% error was unavoidable. It was mentioned that more numerical studies can lead to the achievement of better flume shape designs.
A study on the numerical modeling of a Montana flume, a Parshall flume with no divergent section, under submerged flow condition, was undertaken by Ref. [24] to calibrate and evaluate the accuracy of the flume. The motivation behind this research was the fact that numerous Montana flumes during several field visits were observed to have submerged flow condition while no adjustment is available for them. Based on the experiments carried out, the Montana flume under free flow condition provided very similar results to the Parshall flume in the same size class. However, when submerged condition is introduced, a discharge underestimation of up to 15% in the submerged-flow equation of Parshall flume was observed. Moreover, a discharge overestimation of 56% occurred when the free-flow equation of the Parshall flume was implemented. Therefore, an independent process to adjust the biased flow rate during submerged flow condition was illustrated by comparison between physical and numerical data on a 6-in Montana flume. Next, the method of calibration of the numerical model based on the physical data was extended to nine other Montana flumes with sizes of up to 8 ft under the same submerged flow condition.
The CFD model used in this study was FLOW-3D, while the turbulence model used was RNG k ε due to its reputation for for accuracy when defining the flows that have strong shear regions and low-intensity turbulent flow. For submerged flow condition of the Montana flume, the model reached steady state after 27 s, while it was mentioned that most simulations required only 15 s. To indicate different areas, i.e., water, air, or solid in the model, the VOF (Volume of Fluid) and Fractional Area Volume Obstacle Representation (FAVOR) methods were used. Additionally, a no-slip condition was used for the wall shear boundaries.
Since Parshall flumes cause a drop in water head, Ref. [25] proposed a new flume design. The flume, with no throat section, was to be installed in trapezoidal channels that were widely used in China for irrigation channels for agricultural purposes. Figure 12 provides the schematic of the proposed flume. To determine the efficiency of the new cutthroat flume, FLOW-3D software was implemented as the CFD simulation tool using the RNG k ε turbulence model. The method used to distinguish water from air at the surface of the flow was the TruVOF technique, while the mesh was generated using the Fractional Area Volume Obstacle Representation (FAVOR) method to define the rigid boundaries. Different flowrates of up to 75 L/s were applied in the simulation model in order to evaluate the hydraulic performance of the newly designed flume. To compare the simulated CFD result, physical experiments were carried out on the same size and condition of the cutthroat flumes defined in CFD. Acceptable errors of less than 10% were reported when the observed time-averaged flow rate and simulated flow velocity gradient were compared. It was also noted that the velocity near the walls was lower than the flow velocity at the center of the flume.
Increase and decrease were indicated in the results of averaged longitudinal flow velocity and Froud number, respectively, over convergence and divergence sections. As an example, a Froud number of less than 0.5 was calculated just before the throat congestion section. The objective of the study was achieved when the results indicated that only 9% of the total head was recorded as being lost. The cutthroat flume worked significantly better when the cross-section of the channel was trapezoidal compared to rectangular. In accordance with the relationship between discharge and upstream depth, a regression model was developed. Under various working situations, the regression model showed satisfactory results with up to 2.06% error, which was considered to be an acceptable relative value.
In conclusion, the authors strongly recommended the use of a trapezoidal cutthroat flume in order to improve the accuracy of the discharge measurement, while no significant flow head loss was expected to occur.
A study by Ref. [26] explored the application of numerical modeling in a Parshall flume to determine the appropriate size of the flume for different applications. The aim of this study was to use numerical simulation (FLOW-3D) to determine the efficiency of the empirical equation provided by the International Standard Organization (ISO) (ISO9826) for the Parshall flumes with low standard grades. The water level at the upstream and downstream ends were measured during the experimental phase.
The width of the water channel used for the experiment was 0.8 m while Parshall flumes with the throat section sizes of 0.3 and 0.152 m were placed into it. The entrance values of the convergence section were reported as 0.64 and 0.4 m, respectively, while 0.5 and 0.39 m were the widths of the downstream side of the divergence section, respectively. Unique boundary conditions at upstream and downstream ends of the flume with respect to the experimental setup were defined as well for the numerical simulation. The measurement of the flowrate was carried out using a triangular weir that was installed upstream.
The comparison between experimental and numerical simulation results revealed that the error was less than 4%. A new empirical model for flow was proposed using numerical simulation results. The calibration of the new model using the measured flowrate exhibited an error of up to 2.3%. It was concluded that the low error value proved that the proposed model can be used to determine the proper size of a Parshall flume.
Ref. [27] investigated the use of a cutthroat flume to measure the discharge of the supercritical flow. In order to construct a suitable relationship, various physical experiments were done on the cutthroat flume to provide adequate amounts of data for regression analysis. Compared to the Venturi flume and Parshall flume, the application of a cutthroat flume was mentioned as being more popular in measuring the flow in open channels. This is due to the simplicity of its geometry; hence it is cost effective to construct this specific type of flume for supercritical flow. The proposed relationship between water head ( H a   ) and flow ( Q ) was developed based on regression analysis and it was demonstrated to perform well. It could be implemented in any cutthroat flume with the same specifications and still provide high quality results. In the experimental laboratory, a flume with square cross-section having dimensions of 0.6 m depth, 0.6 m width, and 21 m length was used to house a cutthroat flume with throat size of 0.34 m. The width of the converging and diverging sections was 0.58 and 0.36 m, respectively. To achieve supercritical flow and avoid any effect of the water turbulence on the cutthroat flume, the flume was placed 13.65 m downstream of the 21 m channel with the same slope of 1.05% for all the experiments.
It was concluded by the authors that if the supercritical flow formed at the throat section, the application of the cutthroat flume as a tool to measure the supercritical flow discharge was satisfactory. Therefore, it was deemed unnecessary to convert the flow type from supercritical to subcritical while measuring the discharge. With respect to the location where the supercritical flow formed within the flume, i.e., at the throat section or downstream of that section, two different relationships were proposed.
Ref. [28] performed extensive research on long-throated flume designs to increase flow measurement efficiency by implementing a software program. The application of a long-throated flume, due to its significant reduction of head-loss and low cost of fabrication, was proposed as an alternative solution for implementing various kinds of flumes with contraction sections. This revealed potential capabilities in measuring different flow types more economically and flexibly.
The calibration was done using computer software in order to eliminate the need for laboratory experiments. The possibility of creating non-modular flow in the flume where the ratio of the width to length of crest is relatively great introduced discrepancies between the numerical and experimental data. Additionally, the generated suction effect at the end of the throat section that was observed during experiments affected the reading of that section, and this could easily influence the accuracy of the results provided by the rating equation for numerical and experimental results.
The proposed designs were calibrated to achieve the maximum accuracy. To achieve full potential of the flume, two essential parameters in each design were required, i.e., (1) providing enough freeboard, and (2) maintaining the Froude number in the approach channel as low as possible to guarantee a turbulent flow in the throat section.
In order to produce a successful long-throated design with width-contraction, FLOW3D was used by the US Bureau of Reclamation to simulate 4- and 2-ft modified Parshall flumes. Various flowrates were used in simulations to provide the rating curve that well described the relation between head and discharge in the long-throated flume. The comparison of the results from CFD and WinFlume software on an 8-ft Parshall flume revealed an acceptable error variation of less than 2%.
The authors also eliminated two common issues in the implementation of long-throated flumes. They recommended that adding a ramp at the control section could rectify the suction effect challenges, and that keeping the length to width ratio of the crest to 2:1 or higher can minimize the other obstacles to using the long-throated flume as an accurate measuring device.
Ref. [29] used the CFD approach to find a suitable contraction design on the flume to accurately calibrate the Acoustic Doppler velocity meters (ADVMs). The purpose of this research was to find the linear relationship between average velocity of the contraction’s cross section and the sample velocity measured by the upward-facing ADVM. Accuracy improvement of the ADVM with elimination of the in-situ calibration was part of the objective as well. While the contraction section was removed from the flume, the flow was measured to calibrate the CFD software. The contraction section was responsible for creating the Rapidly Varied Flow (RVF), known as a non-uniform type of flow in the open channel that forces a rapid depth change over a small section of the flume.
The flume was 1.215 m in width and depth while having 86 m length with a 0.2% bed slope. The section occupied for this experiment as the testing region was 54 m in total length. It was capable of handling a maximum flowrate of 0.86 m 3 / s . FLOW-3D was implemented as CFD software to provide the appropriate design for channel contraction. Three different contraction setups were proposed and tested, using CFD to find the most appropriate design.
The surface roughness of the whole length of the channel was calibrated by comparing the velocity from the experimental test on 36 cross-sections against the numerical results corresponding to the same locations of the cross-sections. The roughness value ( k s = 0.0002   m ) was iteratively set to achieve the minimum error in the comparison. This value was the exact value for the roughness of the steel’s painted surface of the current flume used in this experiment. The results revealed that the Coefficient of Variation of the Root Mean Squared Error (CVRMSE) values for similar scenarios varied from 4 to 8%. It was concluded that the lack of CFD’s ability due to the limitations of computer resources was one of the reasons for inadequate performance. The other reason was the existence of measurement errors known as the measuring device error.
Ref. [30] conducted a study to estimate the applicability of Parshall flumes (PF) and modified Parshall flumes (MPF) in determining the oxygenation rate of surface water. In this study, the usefulness of three different modeling techniques—artificial neural network (ANN), fuzzy logic (FL), and adaptive neurofuzzy inference system (ANFIS)—were examined.
The researchers used a dataset of 50 experiments. According to the results they obtained, the ANN model was found as suitable to predict the oxygen transfer efficiency E20 in PF and MPF. The ANN model also provided better predictive performance than the FL and ANFIS models. They also reported that the Gaussian membership function-based (MF) models had better results than the gbell MF-based models. According to the results of the sensitivity analysis, they suggested that q and K play important roles in estimating the oxygenation rate. Table 1 provides a summary of the papers using numerical method.

4.2. Experimental Studies

The application of a small Parshall flume to measure supercritical flow was investigated by Ref. [31]. Experiments with multiple configurations, i.e., 15 different setups, were performed for 82 test conditions to study the accuracy of the results of two different sizes of Parshall flumes, i.e., 6- and 9-in. In order to modify the flume’s relationship, alterations in various parameters such as approach channel slope, roughness, and flume convergence were considered. To provide conditions for 82 experiments, various slopes ranging from 4 to 7% were incorporated, with different flowrates from 0.028 to 0.112 m 3 / s for two different flume sizes along with changes in other parameters of the flow.
While the flow was maintained in unsubmerged condition, the accuracy of the flumes to measure the supercritical and subcritical flows was determined to be ±5%. The relationship used to measure the flow in the flume was enhanced to incorporate various parameters such as channel slope, roughness, and the condition of the convergence section. To determine supercritical flow, an equation was proposed. Additionally, in order to distinguish properly between different regimes of flow, a Froude ratio indicator was established.
The developed relationship was applicable only to Parshall flumes with throat width sizes of 12-in or smaller while flume slopes of up to 7% were considered in the process of collecting experimental data; hence, it is not recommended to use the equation for larger gradients. The Parshall flume was located 12.2 m downstream in a 0.61 m wide, 18.3 m long channel with adjustable bed slope. The condition of the approach flow was determined by various parameters within the upstream section of the flume such as roughness. Overall, 13 cross-sections were chosen to record the water surface elevation.
The authors concluded that it was not possible at that time to come up with one single relationship for both flow regimes, i.e., supercritical and subcritical; instead, for each flow type, different equations were developed. In addition, it was important to carefully observe the condition of the hydraulic flow at the beginning and/or the end of the converging section. As an example, based on the observations during the experiments, the hydraulic flow condition could affect the creation of the hydraulic jump further downstream of the Parshall flume while the same configuration was followed.
In a study by Ref. [12], the performance of a modified 3-inch Parshall flume was investigated in relation to the process of flow aeration. The lack of highly turbulent flow in rivers and man-made channels causes a reduction in Dissolved Oxygen (DO) ratios. The introduction of hydraulic structures such as throated flumes, cascades, and weirs has been proposed as a solution to this problem in channels and rivers. In the experimental setup used by Ref. [12], deoxygenation took place chemically in a storage tank at the beginning of the system. The DO was measured upon entrance and exit of the flume in order to record the increase in DO after the flow passed through the flume.
Flumes were installed in a rectangular channel with dimensions of 0.4 m in width and 0.6 m in height with the length of 5 m. Fluid with various flow rates, i.e., 10, 20, 30, and 40 L/s, were set to pass through 27 modified Parshall flumes. With respect to flow in critical regions of the flume, eight locations were selected to collect the water level data using a mobile digital point gauge. The shape variation of the Venturi flumes was specified based on the size of their throat width, throat length and the sill height. The results of water surface level and DO were recorded in the study for a total number of 108 physical experiments.
It was concluded that in channels having low or zero gradient, the implementation of Parshall flumes or any type of throated flume capable of introducing turbulence to the flow was recommended by the author. The presence of hydraulic jump that was caused by the flume geometry design was one of the key elements in the DO increment process.
Ref. [32] used a 5-ft full-scale Parshall flume to determine an accurate relationship to estimate discharge of supercritical flow. The objective of the study was to evaluate if Parshall flumes with various sizes greater than 12-in could be sufficiently calibrated to determine the flowrate of supercritical flows. Across 11 different experiments, i.e., 3 subcritical and 8 supercritical, the discharge range was set between 3.07 and 30.15 cfs, and the variation in Froud number was recorded as between 0.67 and 1.31. A comparison of the experimental data with the results of the current equation used for subcritical and supercritical flows led to the development of a new rating relationship that was applied for only supercritical flows in large Parshall flumes.
In the experimental setup, the Parshall flume was placed downstream of a 17.1 m length channel with the width of 4.88 m and a slope of 4.38%. The water level and velocity were measured at three points on the center line of the flume, in addition to 16 different cross-sections that were located in the upstream channel.
The rating equation provided acceptable results when used for Parshall flumes with sizes similar to the one chosen in this study. It was mentioned that unsubmerged free-flow condition was considered during all experiments. It was concluded that accurate flow measurement with various sizes of Parshall flumes, i.e., up to 5-ft, for different types of flow, especially supercritical flow, was possible with only 4.52% error. It was also recommended to perform physical tests on different sizes of Parshall flumes, i.e., 9-in and greater up to 5-ft, to validate the derived relationship for supercritical flow.
Ref. [33] worked on the determination of uncertainty in flow rate measurement with Parshall channels. They used the Monte Carlo Method (MCM). The researchers presented the main uncertainties and explained the mathematical models and parameters. They reported the measurement uncertainty components with the help of MCM simulations.
In their study, the input sizes and the uncertainties of the measured flow rate were evaluated separately. Regarding the measurement uncertainty, they considered the following parameters: reference equipment calibration; repeatability; resolution of both the reference equipment and the equipment installed in the calibrated system; zero setting; linearity of scale; aging deviations and bias; vertical angular deviations (longitudinal and transverse); air temperature compensation (correction applied to the speed of sound); pressure and vapor pressure in the air; echo interference (noise interference); surface irregularity (due to unstable flow conditions); fluid properties (viscosity, density, non-Newtonian behavior; etc.); sub-surface thin layers of sediment; and stability of the installation (influence of wind and other sources of vibration).
The researchers showed that the common use of fixed model parameters underestimates the uncertainty of measurement, ranging from 8 to 12%, depending on the correlation effect.
Ref. [34] produced different sizes of Parshall flumes with different throat widths and tested them in the laboratory under free flow conditions. They determined the discharge coefficient and exponent and developed a single equation for different channel sizes.
The researchers tested four different sizes of Parshall flumes with throat widths of 0.052, 0.076, 0.152, and 0.229 cm in an open channel measuring 9.45 × 0.60 × 0.55 m. They measured upstream heads and velocities in the experiments.
According to the results of their experiments for flow rates ranging from 0.004 to 0.138 m3/s, they proposed a new empirical formula that provides the depth–discharge relationship. They reported that this equation is suitable for simple and small Parshall Flumes under free flow conditions. In their paper, four different sizes of Parshall flumes, having different throat widths were fabricated and tested in the laboratory under free-flow condition. The coefficient of discharge and exponent were determined and a single equation for the different flume sizes was developed. The relationship is simple and suitable to use for small Parshall Flumes.
Ref. [35] performed a study to accurately estimate the flow rate of a low flow season in Korea. They used a Parshall Flume and reviewed its applicability. In their study, they installed a Parshall Flume in an actual river and measured the flow rate obtained from the flow rate formula and velocity measurements, which were stated to be very accurate when compared to the flow rate computation results. They estimated the flow rate and compared it with the actual flow rate of the Parshall Flume.
They mentioned that in comparison with the directly measured flow rate as measured by flow velocity, the flow rate measured by the Parshall Flume possessed higher accuracy. The researchers reported that the flow rate formula based on the state discharge rating curve equation results showed an error of approximately 14%. They also stated that the usage of calculation by the state discharge rating curve equation at low flow rates leads to a greater error than the Parshall Flume, and in order to calculate the accurate low flow rate, the flow rate measured by the Parshall Flume should be preferred.
As a result, the authors concluded that the flow rate measured by the Parshall Flume had a very high accuracy and reliability.
Ref. [36] studied the Parshall flume and the Montana flume, which have the same calibration procedures under normal free-flow conditions, and tested their calibrations under submerged flows.
They conducted the tests at the Utah Water Research Laboratory on an acrylic 15.2 cm (6-in) flume. The researchers stated that the standard Parshall flume rating curve overpredicted flow rates in the submerged Montana flume by up to 48%. They also stated that Parshall submergence corrections were applied to the submerged Montana flume, and flow rates were under predicted by up to 19%. The study developed submerged flow rate correction factors specifically for a Montana flume, and the paper also demonstrated how to apply the corrections.
Ref. [37] aimed to determine the limits of application of traditional critical flow theory in the study of Venturi flumes. The researchers conducted this study to account for the influence of the slope and curvature of streamlines on the head–discharge relationship in Venturi weirs with short throats, and to evaluate the discharge coefficient as a function of the radius of curvature of the upstream energy, throat length, throat width, and inlet arc constriction. They proposed an empirical equation. As a result of the study, they reported that this empirical equation is valid up to a deviation of 8% compared to the traditional approach and can be used in engineering applications. Table 2 provides a basic summary of the experimental studies.

5. Discussion

Based on the thorough analysis of various studies concerning the measurement of flow in open channels using Parshall flumes and other similar types of flumes, it should be emphasized that the majority of the numerical modeling studies were carried out on nonstandard Parshall flumes rather than on the standard ones.
Various turbulence models have been used by different scholars. Among the researchers, Refs. [7,16,19,21,22,23], the K ε turbulent model, both the standard and RNG versions, are implemented the most. It has been applied to the standard Parshall flume, cutthroat and short-throat flumes. Heyrani et al. 2021 [8] extended the use of K ε model by implementing another version of the K ε turbulent model, i.e., realizable K ε beside the earlier versions. In one specific case, the K ε model was used by Sun et al. 2020 [21], for a modified flume with curved contraction walls. The results demonstrate good correlation between numerical and experimental findings. Considering the various articles reviewed in this paper, it is found that the K ε model is deemed to be the most reliable turbulence model among different turbulence models like K ω , Smagorinsky, etc.
In an overview of the numerical articles that implement the computational fluid dynamic software, using the three-dimensional modeling is observed in few articles [7,8,11,23,25]. The possibility of generating a 3-D mesh and solving the flow equation in three-dimensional modeling is due to the advancement of the computer processors within the past decades. The volume of calculations is in direct proportion to the desired resolution for the models. Using higher resolution will result in more explicit findings. The Large Eddy Simulation (LES) and Detached Eddy Simulations are addressed in Ref. [8] and provide quality results, since in these methods the presence of small eddies is considered in the calculation. Therefore, it is recommended to choose fine mesh size in LES and DES modeling to be able to get more accurate findings on the mechanics of the flow.
Application of non-linear models by Ref. [7] shows promising results with the least error possible in comparison to the linear methods that are used by other scholars in different studies. Additionally, the VOF method to determine the water surface level is implemented by the majority of the researchers [7,8,11,19,22,23,24,25].
Most of the articles in the numerical section are focused on numerical simulation of either Parshall flume or its modified versions, such as cutthroat and short-throated flumes. On the other hand, Montana measuring flume was only used by Ref. [24] to be simulated numerically while the submerged flow condition was experienced. This is due to the negligence of the studying the behavior of Montana flume using numerical models in different articles. Therefore, in future studies, it is recommended to focus more on Montana measuring flume as well.
According to Refs. [17,32], the Parshall flume’s rating equation does not work accurately when there is supercritical flow, and it is unreliable when low discharges pass through the flume since the presence of fluid viscosity is neglected in the equation that was first proposed by Parshall himself. Therefore, improvement of the height–discharge relationship, known as the rating curve, in the standard Parshall flume will increase the efficiency of the system in the design stage when precise information is demanded for further adjustments for its various applications, i.e., wastewater treatment plant design or design of a specific hydraulic structure.
According to the investigation of the articles mentioned, there is limited use of various turbulence models in numerical simulation in the literature. More studies should be conducted on the application of not only RANS models, but also LES and DES models in order to provide in-depth information regarding turbulent models from all major methods. Apart from the articles by Heyrani et al., 2021 [7,8], the rest of the researchers used either the standard k ε or RNG k ε , or otherwise did not specify the turbulence model they implemented in their study. Providing a comprehensive study, covering all the appropriate turbulence models will be crucial for the future use of CFD.
In addition, it was found that due to limitations in numerical simulation resources, i.e., insufficient computational hardware, some researchers preferred to perform only partial simulations. Therefore, the reliability of the results has more room to be improved. The use of different CFD models was also observed in various cases as some used commercial software while open-source software was implemented by others. The accessibility of CFD to a wide range of researchers is quite important. Therefore, more flume related applications of open-source CFD models like OpenFOAM are recommended due to their availability to a vast number of people.
Some of the researchers relied on the results from numerical simulations with no further verification against the experimental data. Therefore, with respect to the available resources, the use of experimental data is recommended in addition to the simulation results.
One of the highlights of using numerical simulation to study the behavior of flow in open channels is the freedom to choose the appropriate size of a Parshall flume depending on different conditions. Simulating flow in a Parshall flume can help engineers to efficiently select the proper size of a Parshall flume suitable for specific situations.
One of the parameters used to assess the quality of the experimental or numerical studies is analyzing the effect of various input values on the model. Among the articles that were reviewed in this paper, a number of scholars [7,8,21,22,23,25] specified more details of the inputs that were assumed, such as the flowrate value, while there is a large gap identified in other researchers’ work with respect to detailed parameters specifications.
As a first step in setting up a numerical model, it is important to define a sealed mesh with no gaps and overlaps. In order to build up the mesh, two options are available: either choose a structured mesh, where the dominant shape of the mesh cells is organized, or use an unstructured mesh, e.g., with triangular/tetrahedral geometry of the mesh cells. Depending on the geometry, it is recommended to choose an unstructured mesh such as in the work of Khosronejad et al. [11] and Sun et al. [23] where, due to the shape of the block-mesh, the researchers used unstructured meshes. In a previous study by Heyrani et al. [7,8] and Ran et al. [25], due to the straight edges and surfaces of their modeled hydraulic structure, the structured mesh was chosen.
While the mesh of the geometry is constructed by block-mesh or other types of software, one should carefully deal with the boundary between the structure and the water in contact with various surfaces; this is termed as wall tracking algorithm. The VOF method presented earlier in this paper demonstrates this technique to differentiate the interface between the water and atmosphere. Another type of joint surface in numerical model is when the flow flows through the hydraulic structure, i.e., passing the water flow from Parshall flume. The Fractional Area Volume Obstacle Representation (FAVOR) method was used by various scholars [19,24,25], while Boundary Fitted Mesh method implemented by Refs. [7,8,21,23] delineates the boundary between the flow and any rigid object in the path of the flow.
Various CFD software were used by scholars and engineers to solve flow equations for various flow measuring devices. As mentioned earlier, the resolution of mesh is essential to provide as accurate as possible results. Using a powerful computer processor can determine whether, with a given resolution of the mesh, it is possible to capture the smallest eddies or not. The accessibility of the current CFD software in the market is also directly determined by the availability of the software to the target audience. One of the parameters to choose the CFD model is to consider the price paid for its license, whether it is an open-source software like OpenFOAM or if it is a licensed registered software like FLOW-3D. Although there has not been any study to compare their capability in numerical modeling in the context of Parshall flumes, considering the same block-mesh, initial conditions, boundary conditions, numerical method, etc., depending on the computational resources available to the researcher [7,8] it is preferable to use open-source software such as OpenFOAM, while the FLOW-3D is the chosen CFD by some other scholars.

6. Conclusions

This review has covered numerous articles focusing on implementing numerical modeling to enhance the efficiency of Parshall flumes or Cutthroat flumes, and others based on the physical experimental results—they all tried to validate the numerical relationship, or the modifications introduced to the Parshall flume. Based on what was discussed in this review article, the following points are highlighted below.
  • The application of numerical modeling is considered to be a reliable technique to provide fast and accurate results with minimum cost in terms of time and money.
  • The efficiencies of various Computational Fluid Dynamic (CFD) software programs have been well described by different scholars who demonstrated the accuracy of results of their numerical models. The reliability of these models made their application popular among researchers and engineers who have access to suitable computer processors. The freedom to alter, as needed, the geometry of the modeled hydraulic structure adds to the popularity of numerical modeling.
  • Laboratory tests are useful in conjunction with the results of the numerical models, as the accuracy of the CFD models’ output can be determined via the data obtained physically on the same setup. It is important to calibrate the mathematical relationship that was used for the Parshall flume to provide the flowrate since the entrance condition and upstream flow type directly affect the precision of the height–discharge relationship. Nevertheless, choosing inappropriate equations and constants with respect to the type of flow and hydraulic jump, whether it is submerged or not, can trigger inaccurate flowrate results.
  • Due to the accessibility of testing facilities to the majority of engineers and researchers, most of the time, building and testing methods for small scale models are not as expensive as for large projects. However, for larger projects, numerical models are typically less expensive than physical models. Additionally, the application of hydraulic structures, i.e., large scale Parshall flumes, requires the consideration of different scenarios to assess the tolerance of the structure under unforeseen harsh conditions. For example, choosing a Parshall flume as a measuring device for a wide-open channel requires extensive study on the hydrology of the region to understand the extreme weather conditions over the life span of the structure. The return period should be selected based on the codes and regulations that are available in various versions from different municipalities.
  • Since having access to high performance processors is essential to run numerical models, in some articles, it was highlighted that to tackle the deficit of limited access to proper computer hardware, the proposed structures were usually designed with a symmetrical shape. Therefore, only one side of the symmetrical structure was modeled to deal with the limited computational resources. Although this method provides reasonable results, the reliability of this technique requires greater validation, particularly for LES and DES simulations, since the behavior of the fluid in motion is highly turbulent.
  • Based on the review of numerous articles, for further study, the use of CFD models is recommended to perform numerical modeling on various sizes of Parshall flumes since there is a gap in the current state of application of the existing numerical modeling for this type of flume. A large number of turbulence models exist that have not yet been used to simulate the flow in Parshall flumes.
  • Parshall flume is a flow measuring device that does not require energy to operate. The only vital energy to operate is taken from the water flow. As was explained earlier in this paper, the primary water level at throat section is used to calculate the discharge when there is free flow. The water level in the converging section determines the degree of submergence when submerged flow is experienced. These water level values are directly used to determine the flowrate using the rating equation explained in Section 2.2. Using the flow energy to convert the water level into discharge is highly useful in Parshall flumes. Therefore, the authors advocate that such systems are used to retrofit the open channels in agricultural section, wastewater treatment plants, and also encourage different industrial sectors to substitute the current electrical flowmeters with Parshall flumes whenever feasible and applicable.

Author Contributions

Conceptualization, A.M. and I.N.; Data curation, M.H.; Formal analysis, M.H.; Funding acquisition, A.M. and I.N.; Investigation, M.H. and O.F.D.; Methodology, A.M. and I.N.; Project administration, A.M. and I.N.; Resources, M.H.; Software, M.H., A.M. and I.N.; Supervision, A.M. and I.N.; Validation, M.H.; Visualization, M.H.; Writing—original draft, M.H. and O.F.D.; Writing—review & editing, A.M. and I.N. All authors have read and agreed to the published version of the manuscript.


This research was supported by funding provided by Discovery (NSERC) Grants to Prof. Majid Mohammadian and Prof. Ioan Nistor (210282).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Part or all of the data is available by the corresponding author upon request.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Cone, V.M. The Venturi Flume; U.S. Government Printing Office: Washington, DC, USA, 1917.
  2. 20-Foot Concrete Parshall Flume with Radius Wing Walls. Available online: (accessed on 12 January 2021).
  3. Fiberglass 6-Inch Parshall Flume with Gauge. Available online: (accessed on 12 January 2021).
  4. Parshall, R.L. The Parshall Measuring Flume; Colorado State College, Colorado Experiment Station: Fort Collins, CO, USA, 1936. [Google Scholar]
  5. Selecting Between a Weir and a Flume. 2022. Available online: (accessed on 29 December 2021).
  6. Parshall, R.L. The Improved Venturi Flume. Trans. Am. Soc. Civ. Eng. 1928, 89, 841–851. [Google Scholar] [CrossRef]
  7. Heyrani, M.; Mohammadian, A.; Nistor, I. Numerical Simulation of Flow in Parshall Flume Using Selected Nonlinear Turbulence Models. Hydrology 2021, 8, 151. [Google Scholar] [CrossRef]
  8. Heyrani, M.; Mohammadian, A.; Nistor, I.; Dursun, O.F. Numerical Modeling of Venturi Flume. Hydrology 2021, 8, 27. [Google Scholar] [CrossRef]
  9. Alfonsi, G. Reynolds-Averaged Navier–Stokes Equations for Turbulence Modeling. Appl. Mech. Rev. 2009, 62, 040802. [Google Scholar] [CrossRef]
  10. Imanian, H.; Mohammadian, A. Numerical Simulation of Flow over Ogee Crested Spillways under High Hydraulic Head Ratio. Eng. Appl. Comput. Fluid Mech. 2019, 13, 983–1000. [Google Scholar] [CrossRef][Green Version]
  11. Khosronejad, A.; Herb, W.; Sotiropoulos, F.; Kang, S.; Yang, X. Assessment of Parshall Flumes for Discharge Measurement of Open-Channel Flows: A Comparative Numerical and Field Case Study. Measurement 2020, 167, 108292. [Google Scholar] [CrossRef]
  12. Dursun, O.F. An Experimental Investigation of the Aeration Performance of Parshall Flume and Venturi Flumes. KSCE J. Civ. Eng. 2016, 20, 943–950. [Google Scholar] [CrossRef]
  13. Shih, T.-H.; Liu, N.-S.; Chen, K.-H. A Non-Linear k-Epsilon Model for Turbulent Shear Flows. In Proceedings of the 34th AIAA/ASME/SAE/ASEE Joint Propulsion Conference and Exhibit, Cleveland, OH, USA, 13 July 1998; p. 3983. [Google Scholar]
  14. Lien, F.S. Low-Reynolds-Number Eddy-Viscosity Modelling Based on Non-Linear Stress-Strain/Vorticity Relations. In Proceedings of the 3rd Symposium on Engineering Turbulence Modelling and Measurement, Heraklion, Greece, 27 May 1996. [Google Scholar]
  15. Davis, R.W.; Deutsch, S. A Numerical-Experimental Study of Parhall Flumes. J. Hydraul. Res. 1980, 18, 135–152. [Google Scholar] [CrossRef]
  16. Xiao, Y.; Wang, W.; Hu, X.; Zhou, Y. Experimental and Numerical Research on Portable Short-Throat Flume in the Field. Flow Meas. Instrum. 2016, 47, 54–61. [Google Scholar] [CrossRef]
  17. Wright, S.J.; Tullis, B.P.; Long, T.M. Recalibration of Parshall Flumes at Low Discharges. J. Irrig. Drain. Eng. 1994, 120, 348–362. [Google Scholar] [CrossRef]
  18. Heiner, B.; Barfuss, S.L. Parshall Flume Discharge Corrections: Wall Staff Gauge and Centerline Measurements. J. Irrig. Drain. Eng. 2011, 137, 779–792. [Google Scholar] [CrossRef]
  19. Savage, B.M.; Heiner, B.; Barfuss, S. Parshall Flume Discharge Correction Coefficients through Modelling. Proc. ICE Water Manag. 2013, 167, 279–287. [Google Scholar] [CrossRef]
  20. Zerihun, Y.T. A Numerical Study on Curvilinear Free Surface Flows in Venturi Flumes. Fluids 2016, 1, 21. [Google Scholar] [CrossRef]
  21. Sun, B.; Zhu, S.; Yang, L.; Liu, Q.; Zhang, C.; Zhang, J. ping Experimental and Numerical Investigation of Flow Measurement Mechanism and Hydraulic Performance on Curved Flume in Rectangular Channel. Arab. J. Sci. Eng. 2020. [Google Scholar] [CrossRef]
  22. Hu, H.; Huang, J.; Qian, Z.; Huai, W.; Yu, G. Hydraulic Analysis of Parabolic Flume for Flow Measurement. Flow Meas. Instrum. 2014, 37, 54–64. [Google Scholar] [CrossRef]
  23. Sun, B.; Yang, L.; Zhu, S.; Liu, Q.; Wang, C.; Zhang, C. Study on the Applicability of Four Flumes in Small Rectangular Channels. Flow Meas. Instrum. 2021, 80, 101967. [Google Scholar] [CrossRef]
  24. Willeitner, R.P.; Barfuss, S.L.; Johnson, M.C. Using Numerical Modeling to Correct Flow Rates for Submerged Montana Flumes. J. Irrig. Drain. Eng. 2013, 139, 586–592. [Google Scholar] [CrossRef]
  25. Ran, D.; Wang, W.; Hu, X. Three-Dimensional Numerical Simulation of Flow in Trapezoidal Cutthroat Flumes Based on FLOW-3D. Front. Agric. Sci. Eng. 2018, 5, 168–176. [Google Scholar] [CrossRef][Green Version]
  26. Kim, S.-Y.; Lee, J.-H.; Hong, N.-K.; Lee, S.-O. Numerical Simulation for Determining Scale of Parshall Flume. Proc. Korea Water Resour. Assoc. Conf. 2010, 719–723. [Google Scholar]
  27. Tekade, S.A.; Vasudeo, A.D.; Ghare, A.D.; Ingle, R.N. Measurement of Flow in Supercritical Flow Regime Using Cutthroat Flumes. Sadhana 2016, 41, 265–272. [Google Scholar] [CrossRef]
  28. Wahl, T.L.; Replogle, J.A.; Wahlin, B.T.; Higgs, J.A. New Developments in Design and Application of Long-Throated Flumes. In Proceedings of the Joint Conference on Water Resource Engineering and Water Resources Planning and Management, Minneapolis, MN, USA, 30 July–2 August 2000. [Google Scholar]
  29. Howes, D.J.; Burt, C.M.; Sanders, B.F. Subcritical Contraction for Improved Open-Channel Flow Measurement Accuracy with an Upward-Looking ADVM. J. Irrig. Drain. Eng. 2010, 136, 617–626. [Google Scholar] [CrossRef][Green Version]
  30. Tiwari, N.K.; Sihag, P. Prediction of Oxygen Transfer at Modified Parshall Flumes Using Regression Models. ISH J. Hydraul. Eng. 2020, 26, 209–220. [Google Scholar] [CrossRef]
  31. Thornton, C.I.; Smith, B.A.; Abt, S.R.; Robeson, M.D. Supercritical Flow Measurement Using a Small Parshall Flume. J. Irrig. Drain. Eng. 2009, 135, 683–692. [Google Scholar] [CrossRef]
  32. Cox, A.L.; Thornton, C.I.; Abt, S.R. Supercritical Flow Measurement Using a Large Parshall Flume. J. Irrig. Drain. Eng. 2013, 139, 655–662. [Google Scholar] [CrossRef]
  33. Ribeiro, Á.S.; Sousa, J.A.; Simões, C.; Martins, L.L.; Dias, L.; Mendes, R.; Martins, C. Parshall Flumes Flow Rate Uncertainty Including Contributions of the Model Parameters and Correlation Effects. Meas. Sens. 2021, 18, 100108. [Google Scholar] [CrossRef]
  34. Singh, J.; Mittal, S.K.; Tiwari, H.L. Discharge Relation for Small Parshall Flume in Free Flow Condition. Int. J. Res. Eng. Technol. 2014, 3, 317–321. [Google Scholar]
  35. Kim, S.-D.; Lee, H.-J.; Oh, B.-D. Investigation on Application of Parshall Flume for Flow Measurement of Low-Flow Season in Korea. Meas. Sci. Rev. 2010, 10, 111. [Google Scholar] [CrossRef]
  36. Willeitner, R.P.; Barfuss, S.L.; Johnson, M.C. Montana Flume Flow Corrections under Submerged Flow. J. Irrig. Drain. Eng. 2012, 138, 685–689. [Google Scholar] [CrossRef][Green Version]
  37. Dufresne, M.; Vazquez, J. Head–Discharge Relationship of Venturi Flumes: From Long to Short Throats. J. Hydraul. Res. 2013, 51, 465–468. [Google Scholar] [CrossRef]

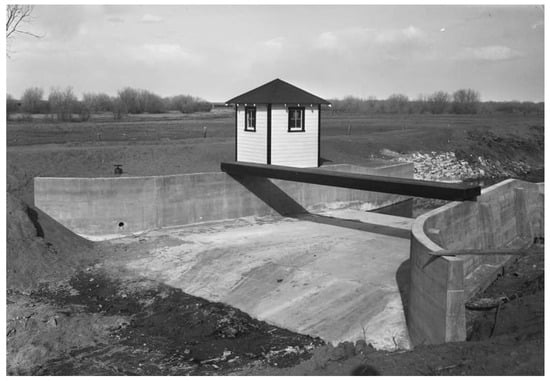

Figure 1. Parshall flume measuring structure, installed [2].
Figure 1. Parshall flume measuring structure, installed [2].
Hydrology 09 00026 g001

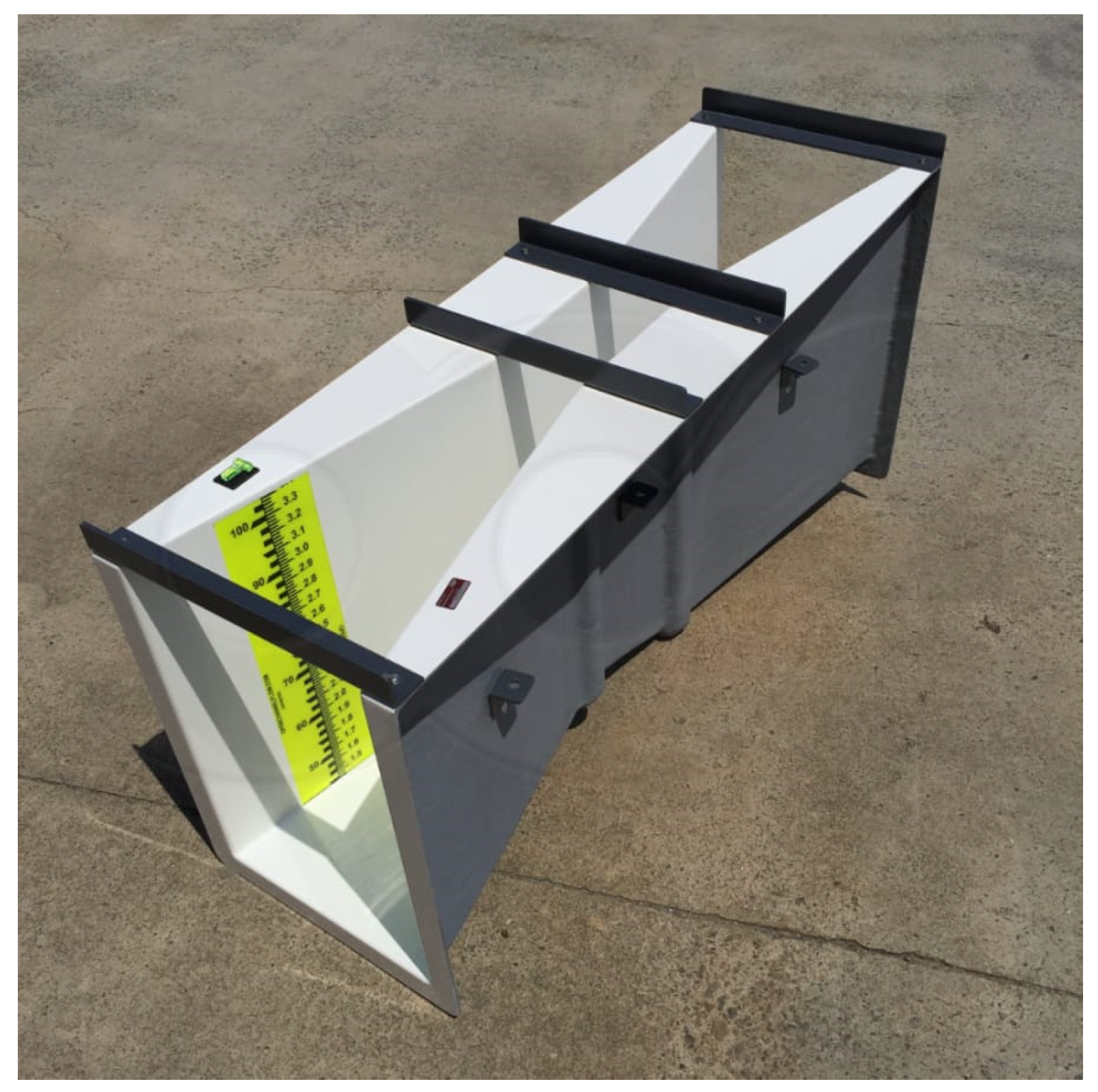

Figure 2. Parshall flume measuring structure, uninstalled [3].
Figure 2. Parshall flume measuring structure, uninstalled [3].
Hydrology 09 00026 g002

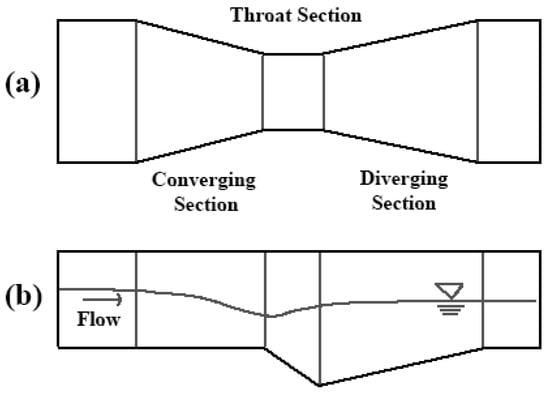

Figure 3. Sketch of Parshall Flume basic design (a) is top view and (b) is cross sectional side view.
Figure 3. Sketch of Parshall Flume basic design (a) is top view and (b) is cross sectional side view.
Hydrology 09 00026 g003

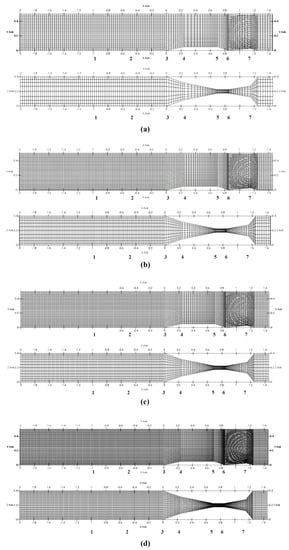

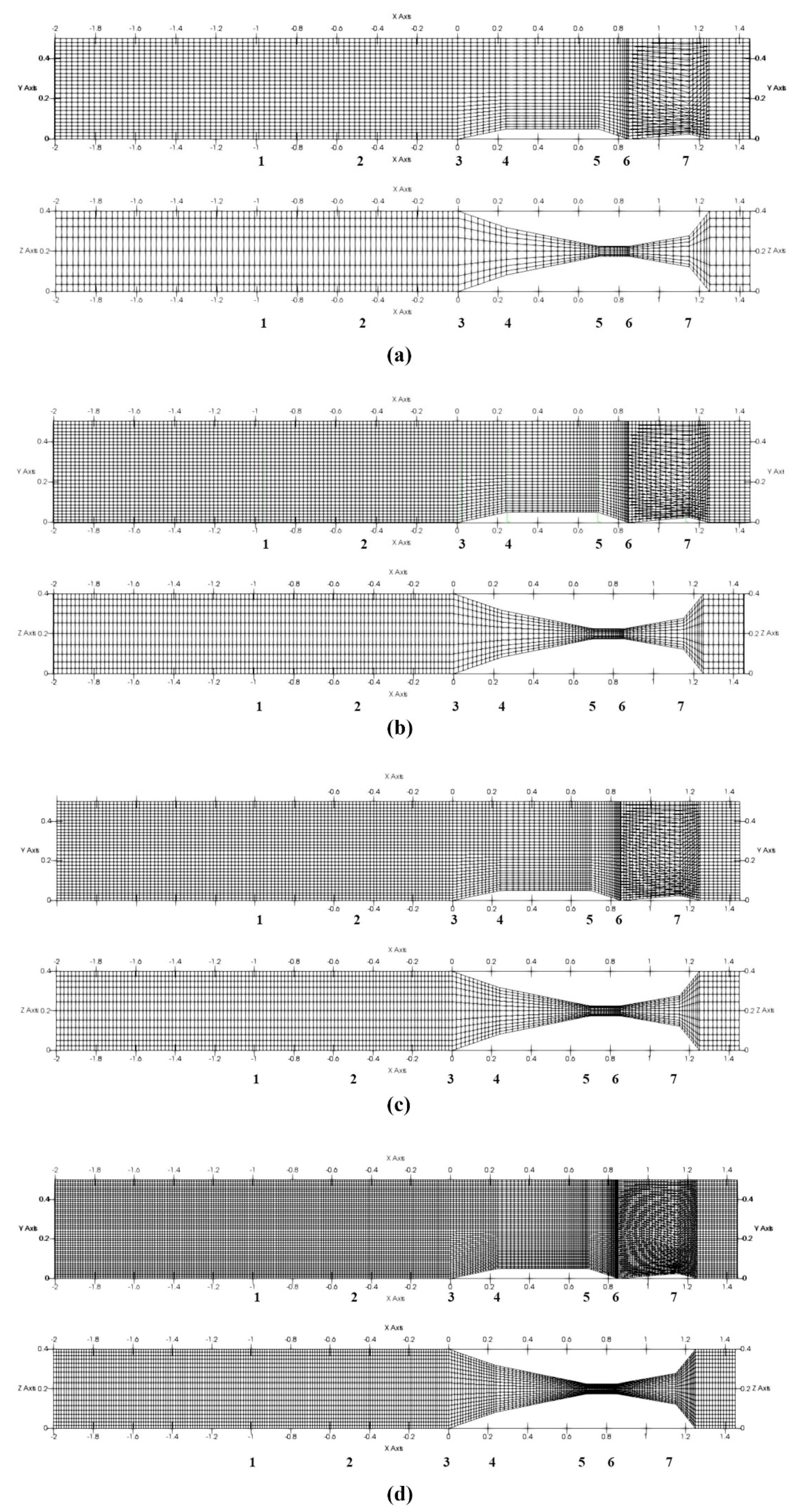

Figure 4. Mesh sensitivity analysis: top view and side view of the Parshall flume: (a) contains 27,000 cells; (b) 52,000 cells; (c) 75,000 cells; (d) 270,000 cells. The C setup was used in their simulation [7].
Figure 4. Mesh sensitivity analysis: top view and side view of the Parshall flume: (a) contains 27,000 cells; (b) 52,000 cells; (c) 75,000 cells; (d) 270,000 cells. The C setup was used in their simulation [7].
Hydrology 09 00026 g004

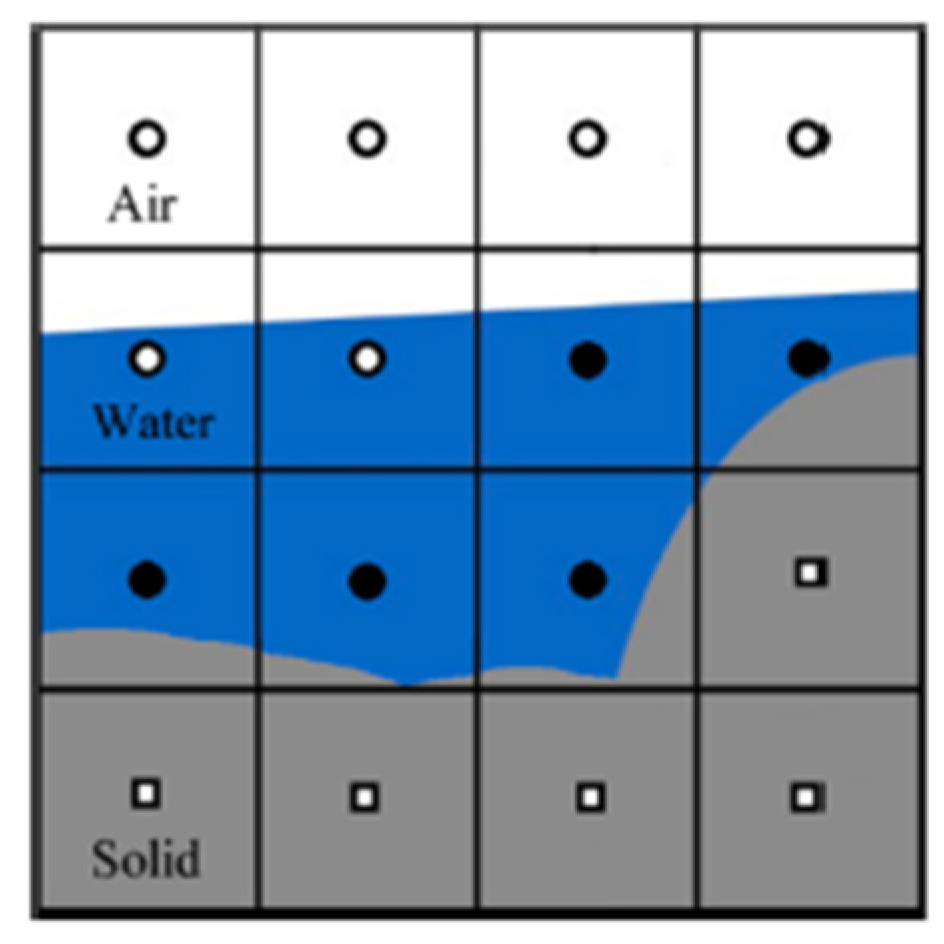

Figure 5. Basic Illustration of VoF method (Reprinted with permission from Ref. [11]. 2020 ELSEVIER).
Figure 5. Basic Illustration of VoF method (Reprinted with permission from Ref. [11]. 2020 ELSEVIER).
Hydrology 09 00026 g005

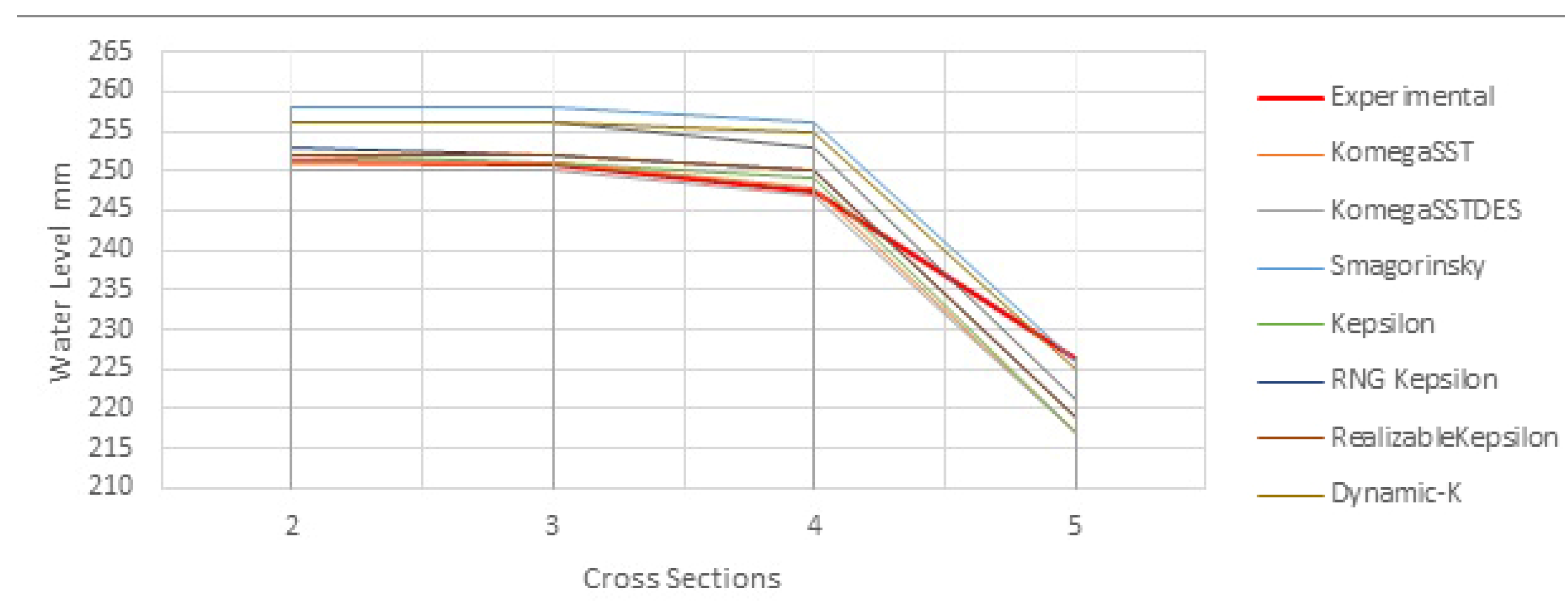

Figure 6. Comparison between numerical data and experimental results [8].
Figure 6. Comparison between numerical data and experimental results [8].
Hydrology 09 00026 g006

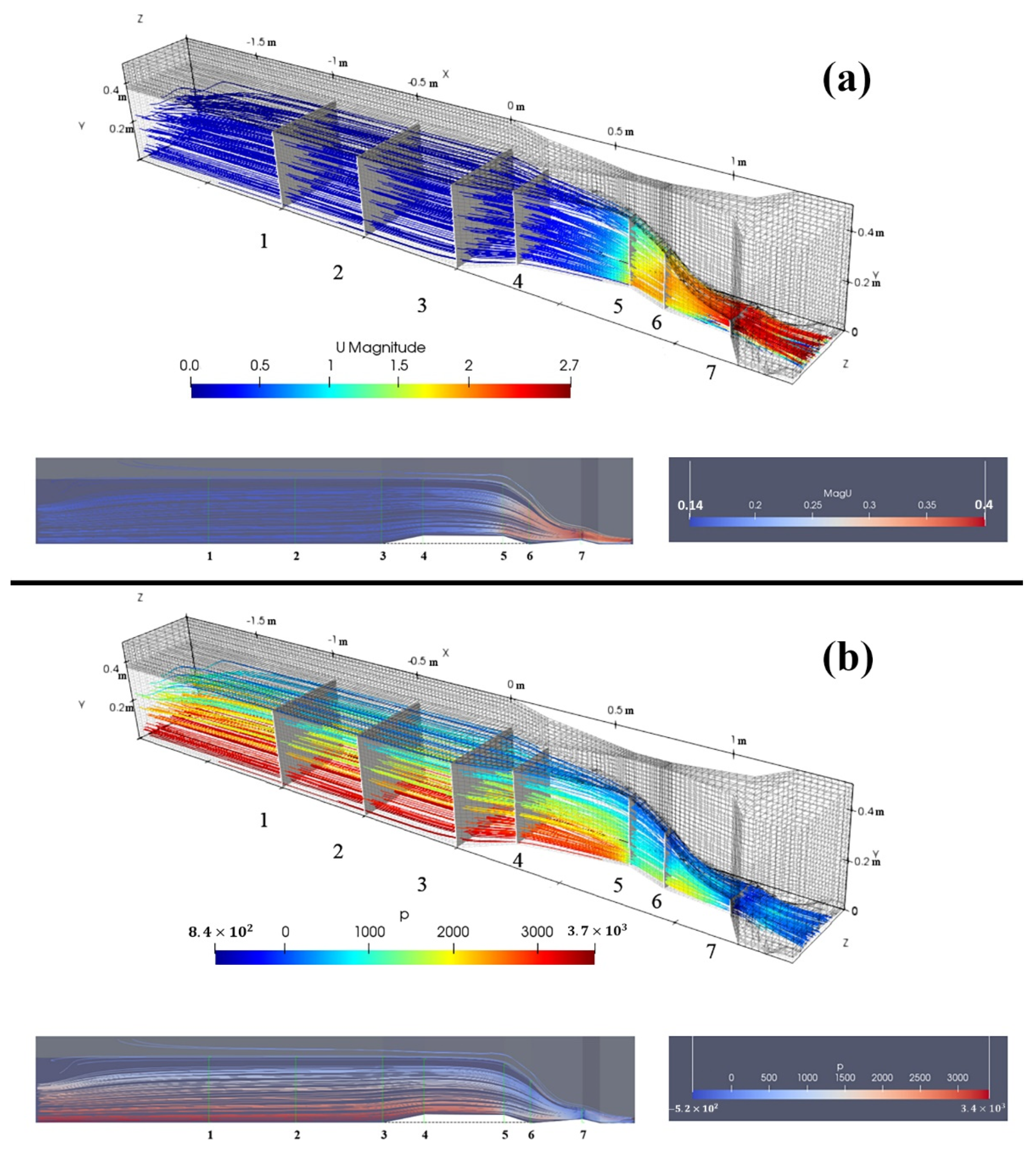

Figure 7. The simulated velocity (a) and simulated pressure pattern (b) across the Parshall flume. The patterns match the physical behavior of actual Parshall flumes [7].
Figure 7. The simulated velocity (a) and simulated pressure pattern (b) across the Parshall flume. The patterns match the physical behavior of actual Parshall flumes [7].
Hydrology 09 00026 g007

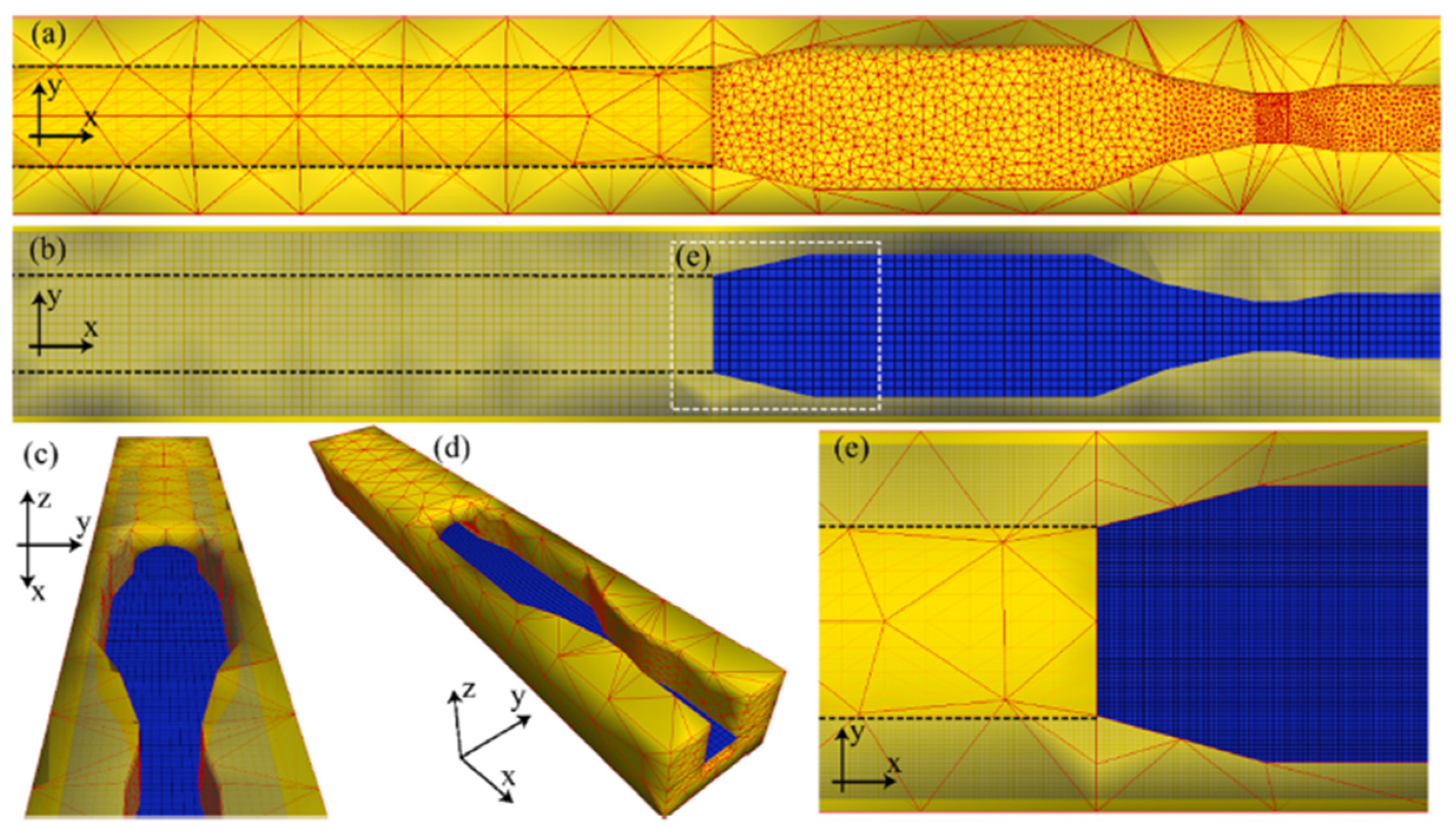

Figure 8. Computational grid system in the Side A flume. (a) contains a triangular grid system (b) demonstrates the rectangular grid system. (c,d) are three-dimensional schematics showing the superimposed grid system. (e) magnifies the dashed section in (b). (Reprinted with permission from Ref. [11]. 2020 ELSEVIER). ).
Figure 8. Computational grid system in the Side A flume. (a) contains a triangular grid system (b) demonstrates the rectangular grid system. (c,d) are three-dimensional schematics showing the superimposed grid system. (e) magnifies the dashed section in (b). (Reprinted with permission from Ref. [11]. 2020 ELSEVIER). ).
Hydrology 09 00026 g008

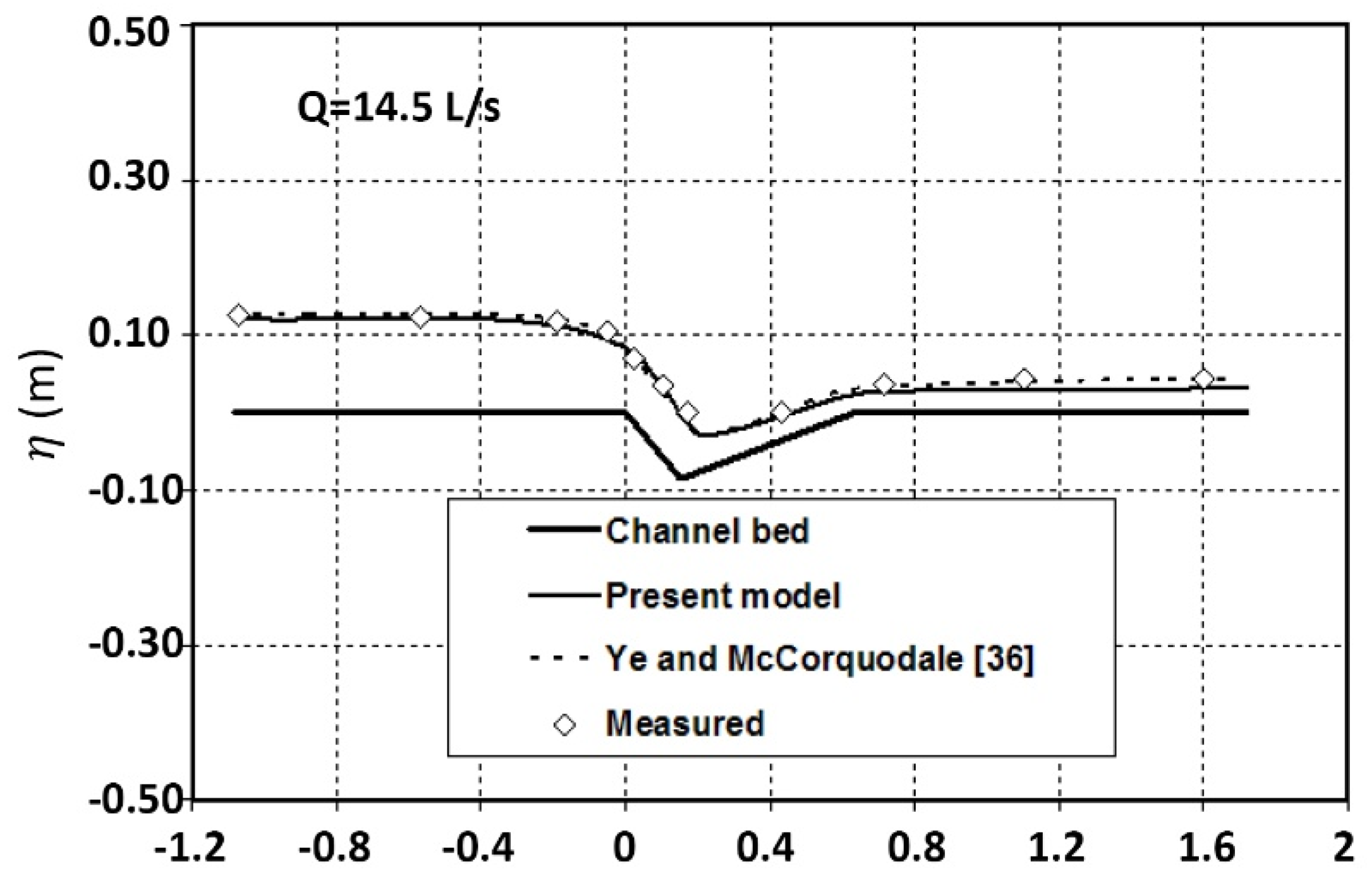

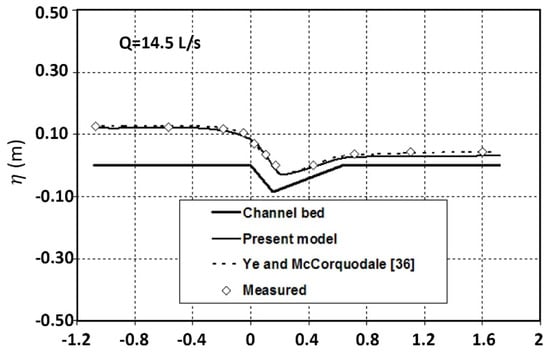

Figure 9. Consistency in the simulated data and physical results [20].
Figure 9. Consistency in the simulated data and physical results [20].
Hydrology 09 00026 g009

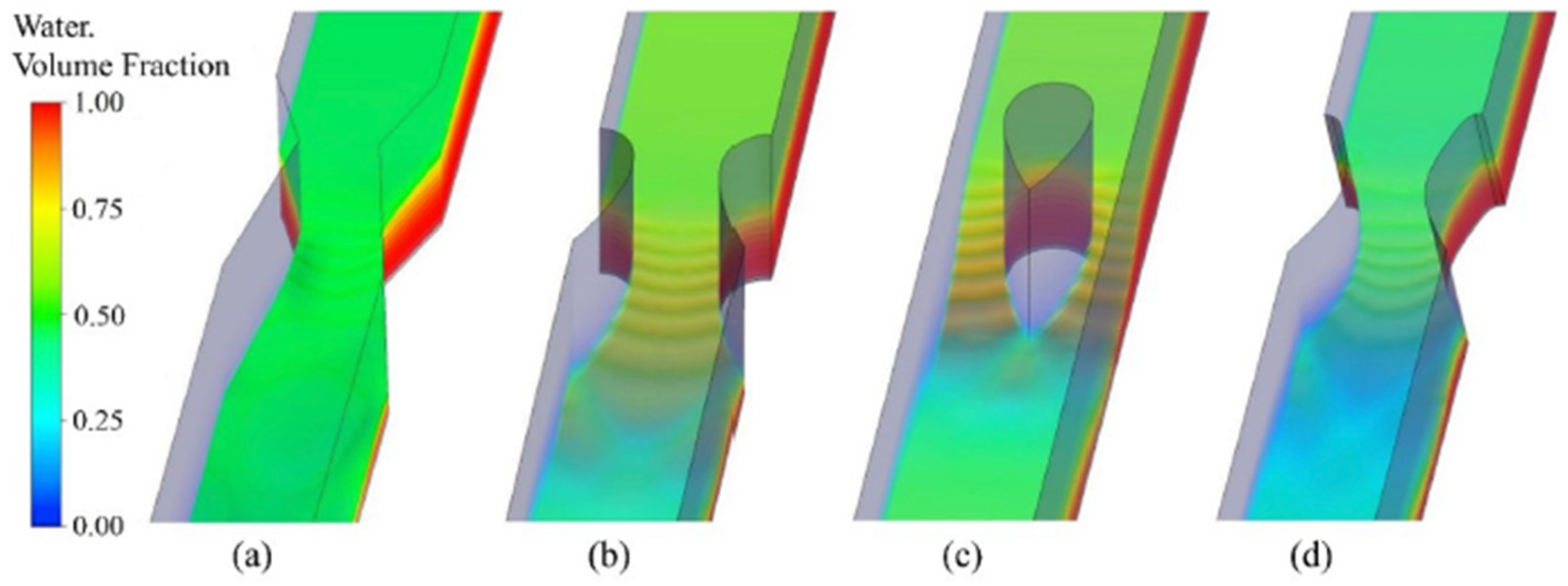

Figure 10. The results of flow patterns in different flumes; (a) Cutthroat flume, (b) airfoil-shaped flume, (c) airfoil pillar-shaped flume, (d) optimized airfoil-shaped flume [23].
Figure 10. The results of flow patterns in different flumes; (a) Cutthroat flume, (b) airfoil-shaped flume, (c) airfoil pillar-shaped flume, (d) optimized airfoil-shaped flume [23].
Hydrology 09 00026 g010

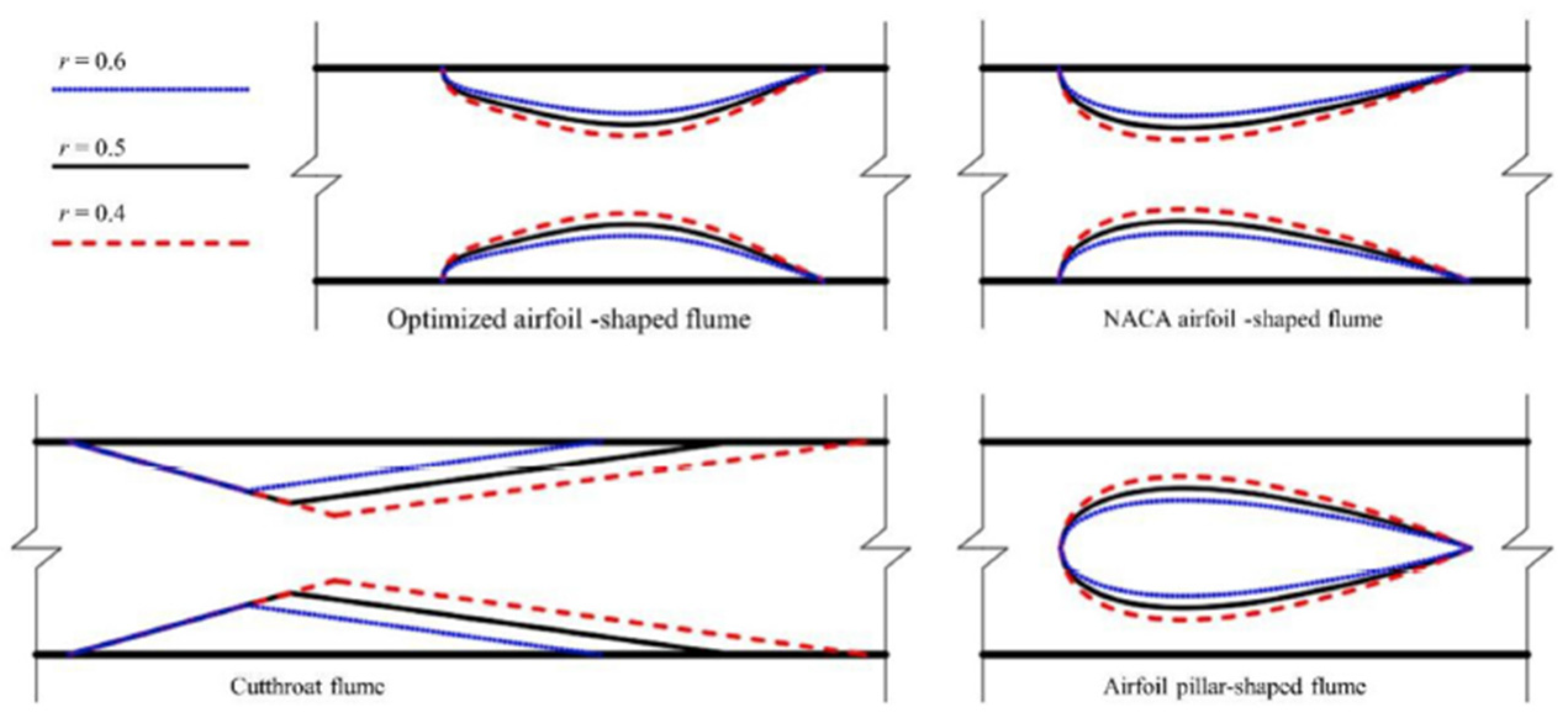

Figure 11. Experimental setup: contraction ratio used on each flume [23].
Figure 11. Experimental setup: contraction ratio used on each flume [23].
Hydrology 09 00026 g011

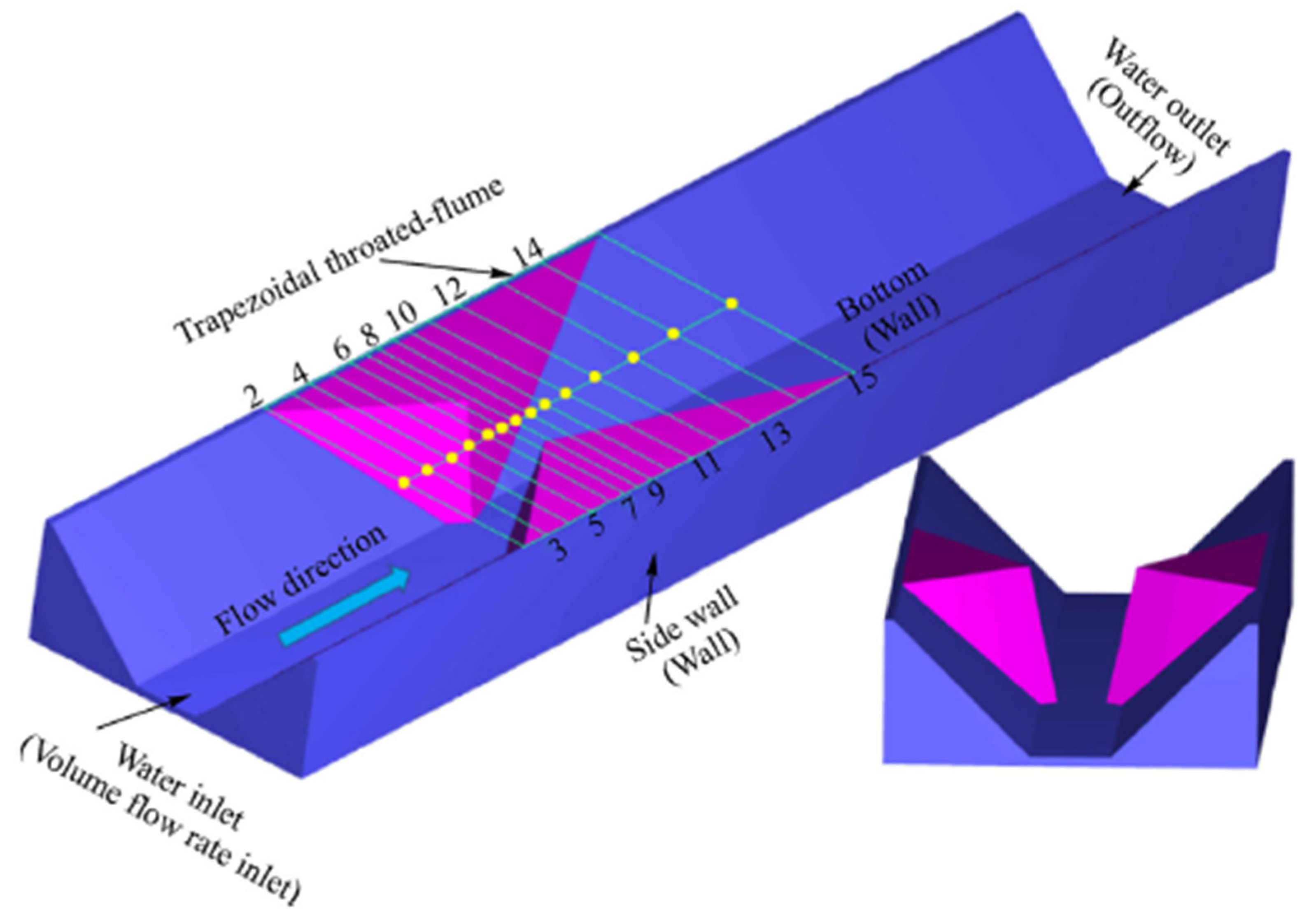

Figure 12. Entire flume geometry [25].
Figure 12. Entire flume geometry [25].
Hydrology 09 00026 g012
Table 1. Summary of the articles that contributed in the numerical category.
Table 1. Summary of the articles that contributed in the numerical category.
CategoriesArticle #CFDTurbulence ModelFlume TypeStandard/NonstandardFree SurfaceWall FunctionSubmergenceFlowrate
Numerical[7]OpenFOAMSQ/LC/V2-fParshallNonstandardVOF methodStandardUnsubmerged20 L/s
[8]OpenFOAM7 Turbulence ModelsParshallNonstandardVOF method StandardUnsubmerged20–30 L/s
[21]Ansys FluentStandard K-EpsilonCurvedNonstandardUNSPECIFIEDUNSPECIFIEDSubmerged5–27.19 L/s
[19]FLOW-3DRNG KepsilonParshallNonstandardVOF method FAVOR methodUNSPECIFIEDUNSPECIFIED
[23]Ansys FluentStandard KEpsilonCutthroatNonstandardVOF method UNSPECIFIEDUNSPECIFIED4.8–27.15 L/s
[25]FLOW-3DRNG KepsilonNew designNonstandardTruVOF methodFAVOR methodUNSPECIFIEDup to 75 L/s
[24]FLOW-3DRNG KepsilonMontanaStandardVOF method FAVOR methodSubmergedUNSPECIFIED
[22]FLOW-3DStandard KEpsilonParshallStandardVOF method No-SlipUNSPECIFIED40 L/s
Table 2. Summary of the articles that contributed to the experimental section.
Table 2. Summary of the articles that contributed to the experimental section.
CategoriesArticle #Flume TypeStandard/NonstandardHigh/Low Discharge
Experimental[12]ParshallNonstandardLow to High
[32]ParshallStandardSupercritical flow
[27]CutthroatStandardSupercritical flow
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Heyrani, M.; Mohammadian, A.; Nistor, I.; Dursun, O.F. Application of Numerical and Experimental Modeling to Improve the Efficiency of Parshall Flumes: A Review of the State-of-the-Art. Hydrology 2022, 9, 26.

AMA Style

Heyrani M, Mohammadian A, Nistor I, Dursun OF. Application of Numerical and Experimental Modeling to Improve the Efficiency of Parshall Flumes: A Review of the State-of-the-Art. Hydrology. 2022; 9(2):26.

Chicago/Turabian Style

Heyrani, Mehdi, Abdolmajid Mohammadian, Ioan Nistor, and Omerul Faruk Dursun. 2022. "Application of Numerical and Experimental Modeling to Improve the Efficiency of Parshall Flumes: A Review of the State-of-the-Art" Hydrology 9, no. 2: 26.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
