Extending the Design Life of the Palm Jumeirah Revetment Considering Climate Change Effects
Abstract
1. Introduction
2. Materials and Methods
2.1. Study Area
2.2. Setting of Definitions
2.2.1. Service Lifetime
2.2.2. Performance Criteria
- Armor stability: the damage level is set as the initiation of armor damage, with Sd = 2 in Van Der Meer’s formula for the 100-year return period event.
- Toe stability: the damage level is set for the toe stability as the start of damage, with Nod = 0.5.
- Filter criteria: to ensure the long-term stability of the revetment, the filter criteria limits are defined as found in the Rock Manual [15].
- Overtopping criteria: overtopping is the average discharge rate of water along the breakwater per linear meter. In this study, the overtopping criteria at the wave wall of the revetment for the 1-year and 100-year return events are set as 0.03 L/s/m and 1.00 L/s/m, respectively, based on the original design criteria.
2.2.3. Revetment Crest Level
2.2.4. Design Wave Heights
2.3. Climate Change Scenarios
2.4. Upgrading
- Adding an extra armor layer
- Adding an extra armor layer with a milder slope
- Adding a flat berm
- Adding a submerged breakwater offshore
3. Results

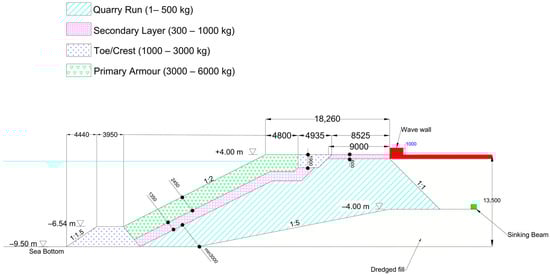

3.1. Assessment of the Existing Structure
3.1.1. Armor Stability
3.1.2. Toe Stability
3.1.3. Overtopping
3.1.4. Filter Design
3.2. Proposed Solutions

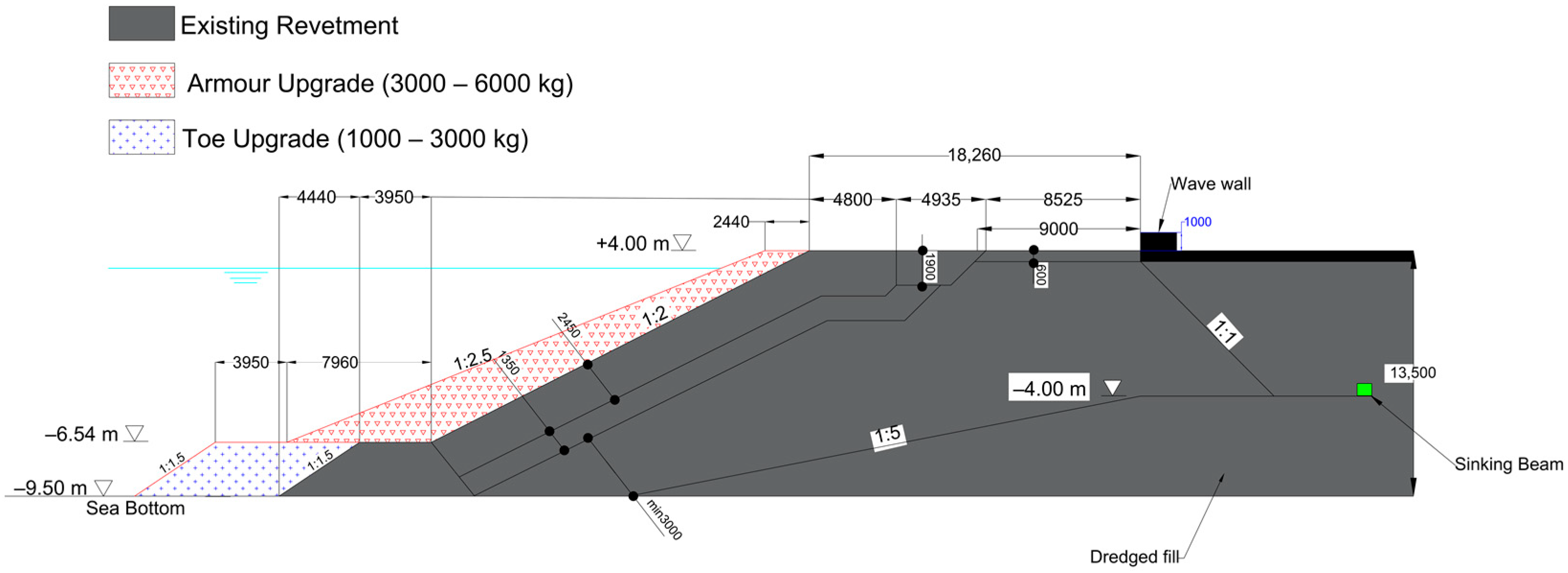

3.2.1. Solution 1: Extra Armor Layer with a Milder Slope

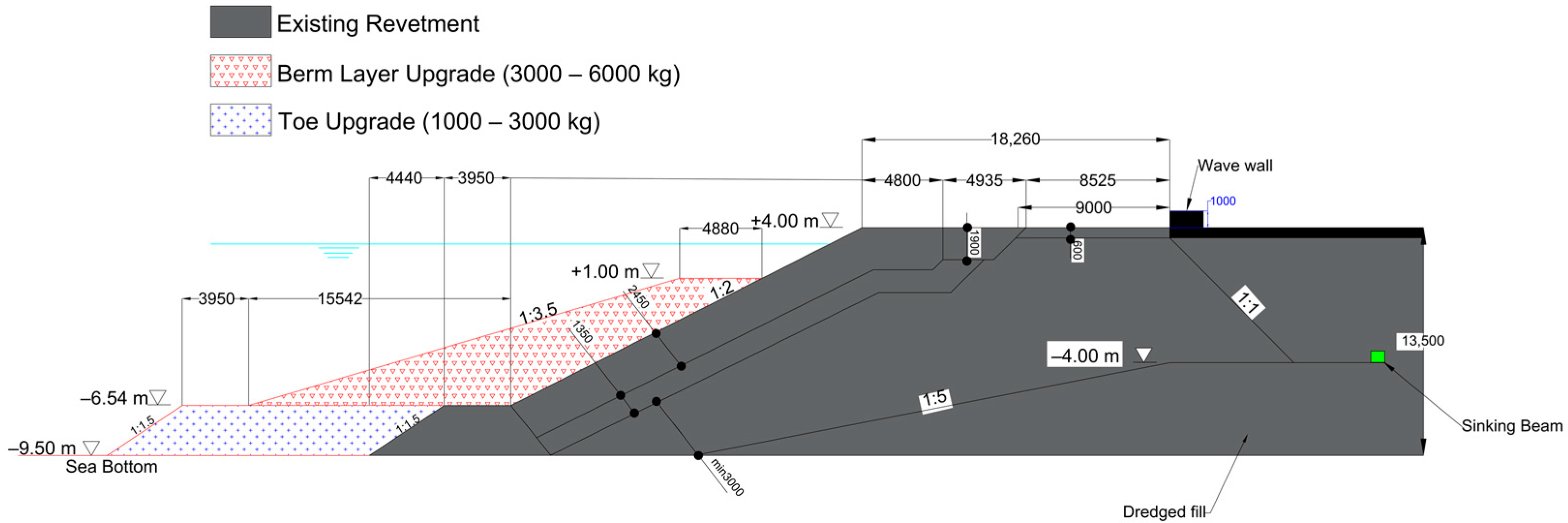

3.2.2. Solution 2: Flat Berm

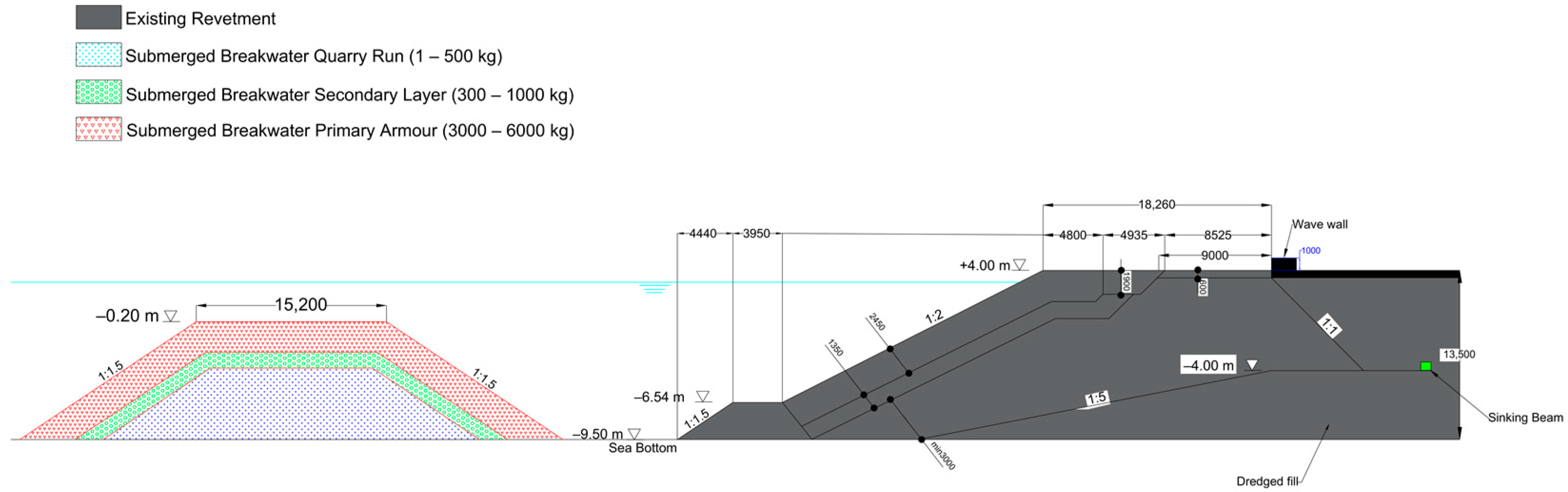

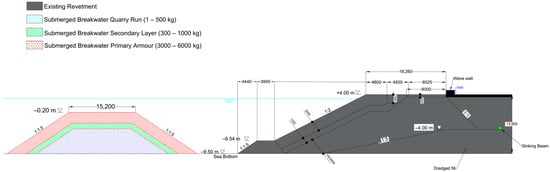

3.2.3. Solution 3: Submerged Breakwater on the Foreshore
4. Discussion
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Campos, Á.; Castillo, C.; Molina-Sanchez, R. Damage in Rubble Mound Breakwaters. Part I: Historical Review of Damage Models. J. Mar. Sci. Eng. 2020, 8, 317. [Google Scholar] [CrossRef]
- Stagnitti, M.; Iuppa, C.; Musumeci, R.; Foti, E. Catania Harbor Breakwater: Physical Modelling of The Upgraded Structure. In Proceedings of the virtual Conference on Coastal Engineering, Online, 6–9 October 2020. [Google Scholar]
- Galiatsatou, P.; Makris, C.; Prinos, P. Optimized Reliability Based Upgrading of Rubble Mound Breakwaters in a Changing Climate. J. Mar. Sci. Eng. 2018, 6, 92. [Google Scholar] [CrossRef][Green Version]
- Burcharth, H.F.; Andersen, T.L.; Lara, J.L. Upgrade of Coastal defence structures against increased loadings caused by climate change: A first methodological approach. Coast. Eng. 2014, 87, 112–121. [Google Scholar] [CrossRef]
- Vousdoukas, M.I.; Voukouvalas, E.; Annunziato, A.; Giardino, A.; Feyen, L. Projections of extreme storm surge levels along Europe. Clim. Dyn. 2013, 47, 3171–3190. [Google Scholar] [CrossRef][Green Version]
- Griggs, G.; Reguero, B.G. Coastal Adaptation to Climate Change and Sea-Level Rise. Water 2021, 13, 2151. [Google Scholar] [CrossRef]
- Cea, L.; Costabile, P. Flood Risk in Urban Areas: Modelling, Management and Adaptation to Climate Change. A Review. Hydrology 2022, 9, 50. [Google Scholar] [CrossRef]
- Chow, A.C.H.; Sun, J. Combining Sea Level Rise Inundation Impacts, Tidal Flooding and Extreme Wind Events along the Abu Dhabi Coastline. Hydrology 2022, 9, 143. [Google Scholar] [CrossRef]
- Toimil, A.; Losada, I.J.; Nicholls, R.J.; Dalrymple, R.A.; Stive, M.J.F. Addressing the challenges of climate change risks and adaptation in coastal areas: A review. Coast. Eng. 2020, 156, 103611. [Google Scholar] [CrossRef]
- Esteban, M.; Takagi, H.; Takagi, T. Sea level rise and the increase in rubble mound breakwater damage. Coast. Struct. 2013, 47, 3171–3190. [Google Scholar]
- Hellebrand, S.; Fernandez, J.; Stive, R. Case Study: Design of Palm Island No. 1 Dubai. Terra Et Aqua 96 2004, 47, 14–20. [Google Scholar]
- Eldrup, M.; Andersen, T.; Burcharth, H. Desk Study Tools for Upgrade of Breakwaters against Increased Loadings Caused by Climate Change. Clim. Dyn. 2013, 47, 3171–3190. [Google Scholar]
- Koftis, T.; Galiatsatou, P.; Prinos, P.; Karambas, T. An Integrated Methodological Approach For The Upgrading Of Coastal Structures Due To Climate Change Effects. In Proceedings of the 36th IAHR World Congress, Hague, The Netherlands, 28 June–3 July 2015. [Google Scholar]
- Cavalcante, G.H.; Vieira, F.; Abouleish, M.; Atabay, S.; Campos, E.; Bento, R. Environmental aspects of semi-closed lagoons in the Sharjah coastline during spring/neap tides, southern Arabian/Persian Gulf coast. Reg. Stud. Mar. Sci. 2021, 46, 101896. [Google Scholar] [CrossRef]
- CIRIA; CUR. CETMEF Physical processes and design tools. In The Rock Manual. The Use of Rock in Hydraulic Engineering, 2nd ed.; C683, CIRIA: London, UK, 2007; pp. 481–772. [Google Scholar]
- Vieira, F.; Cavalcante, G.; Campos, E.; Taveira-Pinto, F. Wave energy flux variability and trend along the United Arab Emirates coastline based on a 40-year hindcast. Renew Energy 2020, 160, 1194–1205. [Google Scholar] [CrossRef]
- Elkersh, K.; Atabay, S.; Yilmaz, A. Extreme Wave Analysis for the Dubai Coast. Hydrology 2022, 19, 144. [Google Scholar] [CrossRef]
- Church, J.A.; Clark, P.U.; Cazenave, A.; Gregory, J.M.; Jevrejeva, S.; Levermann, A.; Merrifield, M.A.; Milne, G.A.; Nerem, R.S.; Nunn, P.D.; et al. Sea Level Change. In Climate Change 2013: The Physical Science Basis. Contribution of Working Group I to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change; Stocker, T.F., Qin, D., Plattner, G.-K., Tignor, M., Allen, S.K., Boschung, J., Nauels, A., Xia, Y., Bex, V., Midgley, P.M., Eds.; Cambridge University Press: Cambridge, NY, USA, 2013; pp. 1137–1216. [Google Scholar]
- SwanOne User Manual, Version 1.3.; TU Delft: Delft, The Netherlands, 2018; Available online: www.kennisbank-waterbouw.nl (accessed on 20 March 2023).
- Van der Meer, J.W.; D’Angremond, K.; Gerding, E. Toe structure stability of rubble mound breakwaters. In Advances in Coastal Structures and Breakwaters; Clifford, J.E., Ed.; Thomas Telford: London, UK, 1995. [Google Scholar]
- Van Der Meer, J.W.; Allsop, N.W.H.; Bruce, T.; De Rouck, J.; Kortenhaus, A.; Pullen, T.; Schüttrumpf, H.; Troch, P.; Zanuttigh, B. Manual on Wave Overtopping of Sea Defences and Related Structures. An Overtopping Manual Largely Based on European Research, but for Worldwide Application, 2nd ed. 2018. Available online: www.overtopping-manual.com (accessed on 20 March 2023).
- Formentin, S.M.; Zanuttigh, B.; Van der Meer, J.W. A Neural Network Tool for Predicting Wave Reflection, Overtopping and Transmission. Coast. Eng. J. 2018, 59, 31. [Google Scholar] [CrossRef]
- Zanuttigh, B.; Formentin, S.M.; Van der Meer, J.W. Prediction of extreme and tolerable wave overtopping discharges through an advanced neural network. Ocean. Eng. 2016, 127, 7–22. [Google Scholar] [CrossRef]
- Van Gent, M.R. Rock stability of rubble mound breakwaters with a berm. Coast. Eng. 2013, 78, 35–45. [Google Scholar] [CrossRef]
- Gao, J.; Ma, X.; Dong, G.; Chen, H.; Liu, Q.; Zang, J. Investigation on the effects of Bragg reflection on harbor oscillations. Coast. Eng. 2021, 170, 103977. [Google Scholar] [CrossRef]
Return Period (Years) | Hm0 (m) | Tp (s) |
---|---|---|
1 | 3.00 | 8.7 |
100 | 4.37 | 10.3 |
Model | DHWL 1-Year | DLWL 1-Year | DHWL 100 Years | DLWL 100 Years |
---|---|---|---|---|
Water level | +2.52 | 0 | +3.12 | 0 |
Spectral significant wave height—Hm0 (m) | 2.86 | 2.86 | 4.23 | 3.66 |
Peak period—RTP (S) | 8.96 | 8.96 | 10.0 | 10.0 |
Mean absolute wave period—TM01 (S) | 6.9 | 6.2 | 7.0 | 6.3 |
Period based on first negative moment of energy spectrum—TMM10 (S) | 7.6 | 7.0 | 8.0 | 7.5 |
Direction spreading of waves—DSPR (Deg) | 30 | 30 | 30 | 27 |
Water depth—DEPTH (m) | 12.02 | 9.50 | 12.63 | 9.58 |
Mean wave height of the highest 1/3rd of the waves—H1/3 (m) | 2.91 | 2.96 | 4.39 | 3.78 |
Wave height exceeded by 2% of the waves—H2% (m) | 4.08 | 3.82 | 5.47 | 4.60 |
Scenarios | Hs (m) | ht (m) | h (m) | Dn50 (m) | M50 (kg) |
---|---|---|---|---|---|
1-year | 3.0 | 6.5 | 9.5 | 0.50 | 333 |
100-year | 3.8 | 6.6 | 9.6 | 0.58 | 537 |
Armor (3–6 t) | Filter (0.3–1 t) | Core (1–500 kg) | |
---|---|---|---|
NLL | 3000 | 300 | 1 |
NUL | 6000 | 1000 | 1000 |
M50 | 5800 | 671 | 64 |
D10 | 1.28 | 0.61 | 0.12 |
D15 | 1.32 | 0.64 | 0.15 |
D60 | 1.47 | 0.78 | 0.40 |
D85 | 1.54 | 0.84 | 0.61 |
Dn50 | 1.22 | 0.63 | 0.29 |
Filter Criteria | Armor (3–6 t) | Filter (0.3–1 t) | Core (1–500 kg) | Limits |
---|---|---|---|---|
Migration, M50f/M50b | 6.92 | - | - | <15–20 |
Interface stability, D15f/D85b | 1.57 | 1.05 | - | <5 |
Internal stability, D60/D10 | 1.15 | 1.28 | 3.33 | <10 |
Permeability, D15f/D15b | - | 4.27 | - | >1 |
