Hydrogen and CNT Production by Methane Cracking Using Ni–Cu and Co–Cu Catalysts Supported on Argan-Derived Carbon

by
Fernando Cazaña
1,
Zainab Afailal
2,
Miguel González-Martín
1,
José Luis Sánchez
2,
Nieves Latorre
1,
Eva Romeo
1,
Jesús Arauzo
2 and
Antonio Monzón
1,*
1
Departamento de Ingeniería Química y Tecnologías del Medio Ambiente, Instituto de Nanociencia y Materiales de Aragón, CSIC-Universidad de Zaragoza, 50018 Zaragoza, Spain
2
Departamento de Ingeniería Química y Tecnologías del Medio Ambiente, Instituto de Ingeniería de Aragón (I3A), Universidad de Zaragoza, 50018 Zaragoza, Spain
*
Author to whom correspondence should be addressed.
ChemEngineering 2022, 6(4), 47; https://doi.org/10.3390/chemengineering6040047
Submission received: 30 May 2022 / Revised: 15 June 2022 / Accepted: 21 June 2022 / Published: 27 June 2022
(This article belongs to the Special Issue A Themed Issue in Honor of Prof. Dr. Vicente Rives)
Browse Figures
Review Reports Versions Notes

Abstract

:
The 21st century arrived with global growth of energy demand caused by population and standard of living increases. In this context, a suitable alternative to produce COx-free H2 is the catalytic decomposition of methane (CDM), which also allows for obtaining high-value-added carbonaceous nanomaterials (CNMs), such as carbon nanotubes (CNTs). This work presents the results obtained in the co-production of COx-free hydrogen and CNTs by CDM using Ni–Cu and Co–Cu catalysts supported on carbon derived from Argan (Argania spinosa) shell (ArDC). The results show that the operation at 900 °C and a feed-ratio CH4:H2 = 2 with the Ni–Cu/ArDC catalyst is the most active, producing 3.7 gC/gmetal after 2 h of reaction (equivalent to average hydrogen productivity of 0.61 g H2/gmetal∙h). The lower productivity of the Co–Cu/ArDC catalyst (1.4 gC/gmetal) could be caused by the higher proportion of small metallic NPs (<5 nm) that remain confined inside the micropores of the carbonaceous support, hindering the formation and growth of the CNTs. The TEM and Raman results indicate that the Co–Cu catalyst is able to selectively produce CNTs of high quality at temperatures below 850 °C, attaining the best results at 800 °C. The results obtained in this work also show the elevated potential of Argan residues, as a representative of other lignocellulosic raw materials, in the development of carbonaceous materials and nanomaterials of high added-value.

1. Introduction

The potential applications of the carbonaceous nanomaterials (CNMs), for example, carbon nanotubes (CNTs), carbon nanofibers (CNFs) or graphene, due to their unique mechanical, electronic, chemical and physical properties, have motivated the enormous research effort carried out during the last few decades in almost all fields of nanoscience and nanotechnology [1,2,3,4,5,6,7,8].
Among the currently available technologies for the production of CNTs, the catalytic decomposition of light hydrocarbons in the gas (or vapor) phase stands as the most interesting method to satisfy the large potential demand, due to its easy scalability for production at large-scale and low-cost [9,10]. If the carbon source used is methane, the co-production of pure hydrogen is an additional and very relevant advantage due to the increasing necessity of the COx-free hydrogen in the actual energetic, environmental and political scenario [11,12,13,14]. Significant efforts were made to find the most suitable operating conditions and catalyst compositions to provide both, high carbon and hydrogen yields, and the necessary selectivity and quality for the desired carbon structure. However, the application of this process is still limited because of the rapid deactivation of the catalysts commonly employed [13,15,16].
Several metallic and also non-metallic (generally carbon materials) components of the catalysts were tested in the reaction of methane cracking. Thus, catalysts based on transition metals such as Ni, Fe, and Co are the most active, can operate at moderate temperature, and are also able to produce valuable CNMs as co-product [17,18,19,20,21,22]. The incorporation of a second metal as a catalytic promoter was reported to have positive effects on the activity and stability [23,24,25,26]. In previous studies, we demonstrated that an appropriate design of the catalyst composition and an adequate selection of the operating conditions (mainly temperature and CH4/H2 feed-ratio) allows not only the control of hydrogen yield in the catalytic decomposition of methane (CDM) reaction but also of the selectivity towards the desired carbonaceous nanomaterials [27]. Thus, reaction temperatures below 800–850 °C favor the formation of CNTs [27], while temperatures above 900–950 °C are more prone to produce graphene-related materials (GRMs) [24,28], depending on the catalyst composition.
Moreover, the increasing concern for the environment is leading to the study of new processes to obtain high added-value products and materials using renewable natural bioresources [11,29,30,31]. In this concern, one of the natural resources that can be used is the shells of argan (Argania Spinosa), a waste coming from the use of the kernels of their nuts for the production of argan oil, one of the most expensive vegetable oils in the world. The argan fruits are principally produced in Morocco and Tunisia, with an estimated production of 80,000 tons per year [32].
In this regard, the use of vine shoots wastes and cellulose as raw materials for the preparation of carbon-based supports of metallic catalysts is being investigated in our group [24,30,33,34]. These catalysts, prepared by controlled thermal decomposition of the impregnated raw materials (e.g., argan shells) with the metallic precursors exhibited high catalytic performance due to the good dispersion of metallic nanoparticles and the controlled textural properties of the support [35,36,37]. This technique easily allows converting hierarchical structures formed by a biological process into inorganic materials with high potential for different applications due to their porous texture developed during the preparation [38,39,40,41,42]. In addition, as the natural raw resource is previously impregnated with metallic catalytic precursors, the catalyst is obtained in one step [24]. The possibility of using different raw materials and metals makes this method a very useful and versatile tool to prepare mono or multimetallic supported catalysts with a wide range of compositions [24,35,37].
Thus, the ultimate goal is to demonstrate that it is possible to prepare proper catalytic supports using lignocellulosic residua (“Biomass Derived Carbons—BDC”), without very low commercial value, such as the “Argan Derived Carbon—ArDC” used here. The objective is to use these sustainable supports as an alternative to the traditional metallic oxides, such as silica or alumina, which have a large environmental and economic impact. In this context, we present here the results of the use of Ni–Cu and Co–Cu catalysts supported by Argan-Derived Carbon (ArDC) on the reaction of catalytic decomposition of methane to produce COx-free hydrogen and carbon nanomaterials.
The composition of the active phases (Ni–Cu and Co–Cu) was chosen based on previous works with the aim of obtaining different materials such as carbon nanotubes [27], or even graphene-related materials (GRMs) [24]. As a means to optimize the productivity and also the quality of the carbonaceous material formed, the effect of the main operating conditions during the reaction, i.e., feed composition and reaction temperature, was investigated.

2. Materials and Methods

2.1. Catalysts Preparation

Ni–Cu and Co–Cu/ArDC catalysts were prepared by thermal decomposition under reductive atmosphere of milled Argan shells, as described elsewhere [36]. First, the dried Argan shell was impregnated by incipient wetness with the appropriate amount of an aqueous solution containing the precursor salts (Ni(NO3)2∙6H2O provided by Alfa Aesar, Co(NO3)2∙6H2O and Cu(NO3)2∙3H2O provided by Sigma-Aldrich), to obtain a nominal weight composition of 5%Ni−1.35%Cu (atomic ratio Ni/Cu = 4) and 5%Co−1.35%Cu (atomic ratio Co/Cu = 4) with respect to the initial amount of Argan shell. After impregnation, the solid was dried at 100 °C overnight under 100 mL/min N2 and thermally decomposed at 800 °C under reductive atmosphere (15% H2/85% N2) for 75 min with a heating rate of 50 °C/min. Finally, the catalyst was milled and sieved obtaining a particle size distribution ranging from 80 µm to 200 µm. These values are selected to avoid any internal diffusion limitations. The presence of the external limitations is also minimized by using high flow rates (700 mL/min, equivalent to 1680 mL/gcat.h).

2.2. Catalytic Decomposition of Methane

The catalytic decomposition of methane (CDM) was used to obtain carbon nanotubes (CNTs) at atmospheric pressure in a quartz thermobalance (CI Precision Ltd., Salisbury, UK, model MK2, https://www.ciprecision.com/ accessed on 20 February 2022) operated as a continuous fixed-bed differential reactor. In order to ensure the integrity of the equipment, and avoid any corrosive damage to the head of the balance, a continuous flow of inert gas was used, N2 in our case. On the other part, the objective of introducing hydrogen into the feed mixture is to investigate its effect on the activity and stability of the catalysts during the reaction. In absence of H2, the deactivation of the catalyst is very rapid.
Carbon mass evolution and temperature reaction were usually recorded during 120 min of reaction. The temperature range studied was 750–950 °C while the feed gas composition was varied from 0.5 to 3 of CH4:H2 ratio, using N2 as balance gas (total flow rate 700 mL/min). In a characteristic experiment, 25 mg of the catalyst was placed into a copper mesh sample holder and then, the sample was heated at 10 °C/min under N2 flow (700 mL/min) until reaching the reaction temperature. Once the desired reaction temperature was achieved, the reactive gas mixture CH4/H2/N2 (700 mL/min) was fed into the reactor keeping constant the temperature during the reaction. Finally, the sample was cooled down to room temperature under N2.

2.3. Catalysts and Carbonaceous Nanomaterials Characterization

The metal content of both catalysts was calculated by thermogravimetric analysis under oxidative atmosphere (air, 50 mL/min) in a Mettler Toledo TGA/SDTA 851 equipment. The desired amount of catalyst (~10 mg) was heated from 35 °C to 1000 °C with a heating rate of 10 °C/min. The final percentage of Ni–Cu and Co–Cu was determined considering the nominal metal quantity incorporated and the resulting mixture of metal oxides obtained upon combustion of the ArDC support during the TGA-air experiment.
Specific surface area and porosity values for both catalysts were obtained from N2 adsorption–desorption isotherms measured at −196 °C using a TriStar 3000 instrument. Previous to the analysis, the catalysts were degassed at 200 °C for 8 h. BET specific surface area was calculated in the relative pressure range of P/P0 = 0.01–0.10. Total pore volume was obtained at the maximum relative pressure reached by the adsorption branch (P/P0 > 0.985), while the micropore volume was estimated by the t-plot method. Crystalline phase identification of the fresh catalysts was performed by X-ray diffraction (XRD) in a Rigaku D/Max 2500 apparatus from 5° to 90° 2θ degrees using Cu Kα radiation (λ = 1.5406 Å).
Morphological and structural information on the carbonaceous nanomaterials grown was obtained by electron microscopy. Transmission electron microscopy (TEM) images were acquired using an FEI Tecnai T-20 microscope operated at 200 kV. Scanning electron microscopy (SEM) and energy-dispersive X-ray spectroscopy (EDS) analysis were carried out in an FEI Inspect F50 microscope.
The carbonaceous structure of the Argan-derived carbon support and the quality of the CNTs obtained were characterized by Raman spectroscopy in a WiTec Alpha300 confocal Raman microscope using a 532 nm laser excitation beam. The intensity ratios ID/IG, I2D/IG of the characteristic D (~1350 cm−1), G (~1580 cm−1), and 2D (~2690 cm−1) bands from different sample spots (5 spectra) were used to evaluate the defects in the structure of the carbonaceous nanomaterials obtained.

3. Results

3.1. Fresh Catalyst Characterization

The Ni–Cu/ArDC and Co–Cu/ArDC catalysts were synthesized with nominal contents (wt%) of 5% Ni and 1.35% Cu and 5% Co and 1.35% Cu, respectively, with respect to the initial amount of milled Argan shell. After synthesis, the amounts of metal, calculated from the TGA-air data, were ca. Ni(16%)–Cu(4%) and Co(18%)–Cu(5%). This increment in the metal content is caused by the weight loss of carbonaceous support during the thermal decomposition of the natural source, a decisive stage to control the dispersion and the final content of the metal nanoparticles in the synthesized catalysts [24].
Information about the crystalline phase of the active metals before the reaction was addressed by the XRD technique in Figure 1. For the Ni–Cu/ArDC catalyst, it is observed that the peaks appearing at 44.3°, 51.6° and 76.0° do not correspond to the metallic Ni (45-1027 JCPDS) or Cu (04–0806 JCPDS) patterns. The shift observed in the 2θ value for these peaks can be associated with the formation of a Ni–Cu alloy [43]. However, the XRD pattern depicted in Figure 1 for Co–Cu/ArDC shows that both Co and Cu were present in metallic form (15–0806 JCPDS for Co0 and 04–0806 JCPDS for Cu0), not observing the formation of an alloy in this case. In addition, the Ni–Cu/ArDC and Co–Cu/ArDC patterns do not show any peak associated with the presence of oxidized species, confirming that the catalysts are completely in the reduced state.
The wide diffraction peak at about 2θ = 26°, attributed to the (002) plane of the hexagonal graphite structure (75–2078 JCPDS), confirms the amorphous nature of the carbonaceous ArDC support.
As it is shown in Figure 1, XRD results indicate that the metallic phases of both catalysts (Ni–Cu and Co–Cu) do not suffer relevant modifications during the reaction. The new peaks at 2θ = 26° correspond to the CNMs formed in each case, being more intense in the Ni–Cu sample, in agreement with the Raman and TEM results presented in the next paragraph.
Morphology of the bulk Ni–Cu/ArDC and Co–Cu/ArDC catalysts was addressed by electron microscopy images presented in Figure 2. The SEM images show the macrostructure and smoothness characteristic of this type of carbonized material for both catalysts prepared. In addition, TEM images obtained for the two fresh catalysts indicate that the metal nanoparticles were well distributed on the ArDC support owing to their characteristic biomorphic textural structure. TEM images were employed to estimate the particle size of the incorporated metals by measuring not less than 500 particles from different sample areas. The Ni–Cu/ArDC sample shows a trimodal metal particle size distribution, finding relatively small particles (~7 nm), intermediate particles (~17 nm) and large particles (~35 nm). Moreover, the Co–Cu/ArDC catalyst shows a bimodal metal particle size distribution with a large number of spherical nanoparticles about 5 nm and a low number of nanoparticles about 31 nm. In both cases, these metal size distributions are a consequence of the heating rate and high temperature used during the catalyst synthesis [36].
Table 1 summarizes the textural properties of the fresh catalysts before reaction. In this Table 1, the values corresponding to the same type of metallic catalysts (Ni–Cu and Co–Cu), but supported on other carbon-based material, carbon derived from cellulose (CDC), and prepared using the same method are also included [24,27]. The main difference was found in the higher microporosity of the catalysts supported by the argan-derived carbon, especially in the case of the Ni–Cu catalyst. In this case, the Ni–Cu/ArDC has a 63% less pore volume but its microporosity is 2.5 times higher than the Co–Cu/ArDC one. Comparing the two catalysts supported by ArDC, both present similar textural properties corresponding to highly microporous materials, although the Ni-based sample has a slightly less developed porosity.
The carbonaceous structure of the fresh catalysts was also characterized by Raman spectroscopy shown in Figure 4. For both catalysts, the characteristic G band attributed to the in-plane vibration of the C sp2-hybridized bonds was observed at ~1590 cm−1, while the D band was associated with defects within the C sp2 network of the carbonaceous support was detected at ~1350 cm−1 [44]. The wideness of these peaks (D and G bands) is a consequence of the different structural contributions of the several kinds of graphitic domains created during the thermal decomposition stage [36,45]. The wide and weak peak at about 2700 cm−1, known as the overtone of the D band, indicates the amorphous nature of the catalyst support, which is in agreement with the XRD results shown in Figure 1.

3.2. Catalytic Decomposition of Methane

3.2.1. Influence of Reaction Temperature

The effect of the reaction temperature on the activity, productivity and morphology of the CNMs grown on both catalysts was evaluated in the interval from 750 °C to 950 °C, using a CH4/H2 ratio equal to 2 (28.6%CH4/14.3%H2/57.1%N2). Figure 3 shows the evolution along time of the carbon concentration, mC (gC/gmetal), at different reaction temperatures for Ni–Cu/ArDC (Figure 3a) and Co–Cu/ArDC (Figure 3b). In addition, the summary of the results of activity and productivity after 2 h of reaction time for both catalysts is presented in Table 2.
For both samples, an increase in the carbon productivity (or space–time carbon yield, calculated as the carbon concentration, mC, at a given time divided by that reaction time) is observed, and also in the initial carbon growth rate (rC0, measured from the initial slope of the mC vs. time curves in Figure 3) as the temperature passes from 750 °C to 900 °C, see Table 2. Thus, in the case of Ni-based catalyst, both the carbon productivity at 2 h and the initial reaction rate reached their maximum values, 1.87 and 12.60 gC/gmetal∙h, respectively, at 900 °C. At higher temperatures, the intense deactivation suffered for the catalyst after an initial short period of time of around 5 min, see Figure 3a, caused a continuous decrease in the reaction rate. Consequently, the final productivity of the catalyst is severely decreased in these conditions, attaining a value of 1.29 gC/gmetal∙h at 950 °C.
In fact, the results shown in Figure 3 indicates that the reaction rate is continuously decreasing along the time on stream for all the conditions studied and also that the Co-based catalyst is less active than the Ni-based. Therefore, the decay of the catalyst activity occurs in all the cases and during all the time on stream. The value of carbon productivity attained at the end of one experiment of 2 h is the average of the decreasing reaction rates along the time, consequently, the carbon productivities are always lower than rC0, see Table 2. The ratio between the carbon productivity and rC0 can be taken as an indicative index of the severity of the deactivation suffered in a given experiment.
As regards the effect of reaction temperature, considering that both phenomena, the reaction and the deactivation, are activated processes; an increase in the temperature will augment both rates, see Figure 3c. However, the lower value carbon productivity attained at high temperatures, e.g., 950 °C for the Ni–Cu catalyst, is a consequence of the prevalence in this case of the deactivation over the main reaction, due to the higher value of the activation energy of the deactivation process [27]. This fact implies that the observed activation energy becomes apparently negative (ca. −30 kJ/mol), as a consequence of the deactivation of the catalyst which indicates the change in the slope of the line drawn in the high-temperature zone.
This fact is confirmed for both catalysts by the continuous decrease in the temperature of the dimensionless ratio “Carbon productivity/rC0” shown in Table 2. In addition, it is also interesting to note that for both catalysts, at the higher temperatures studied, the initial reaction rate, which corresponds to a fresh (not deactivated) catalyst situation, does not follow the expected trend of an activated phenomenon, and the value obtained at 950 °C for Ni–Cu, 11.22 gC/gmetal∙h is even lower than that obtained at 900 °C, see Table 2 and Figure 3c. This fact can be explained by a change in the catalyst selectivity towards the formation of a different type of carbon nanomaterial in these conditions, as can be seen in the characterization results section [27,30,46,47].
The effect of reaction temperature on the performance of Co–Cu/ArDC is qualitatively similar to the Ni–Cu catalyst, but the maximum value of carbon productivity (0.74 gC/gmetal∙h) and rCO (2.28 gC/gmetal∙h)) appears at a lower temperature, 850 °C, and therefore the transition of the selectivity to the formation of different carbonaceous products is produced at lower temperatures. In this regard, the apparent activation energies of the initial reaction rate, rC0, are 155 kJ/mol for Ni–Cu/ArDC and 194 kJ/mol for Co–Cu/ArDC, see Figure 3c. These results obtained considering only the values of rC0 in Table 2 below the maximum, confirm the better performance of the Ni–Cu/ArDC catalyst in this reaction. Furthermore, these values of the apparent activation energies are both lower than those obtained in this reaction with a Co–Cu/CDC catalyst in the same interval of temperatures, 221.7 kJ/mol.
The presence of Cu is always beneficial in increasing the activity and lifetime of the monometallic catalysts based on Ni or Co [25]. In comparison with the metals, Cu presents quite lower solubility of the carbon atoms, and also a lower methane dissociation rate (hydrogen atom abstraction from the adsorbed methane molecules). These facts reduce the formation of amorphous carbon deposits (i.e., deactivating carbon) explaining the increase in the net rate of reaction in presence of Cu.
On the other side, although the procedure of preparation of the catalyst is the same, the behavior of the different metals, Ni–Cu vs. Co–Cu, during the stage of thermal decomposition under a reductive atmosphere is clearly different. Thus, the results in Table 1 (Textural properties) and in Figure 1 and Figure 2 reveal some important differences. During the thermal decomposition of the Argan shells impregnated with the metallic precursors, the process that really occurs is fast catalytic pyrolysis that decomposes both the metallic and the carbon precursors, producing an in situ pyrolysis–gasification of the evolving raw material (Argan). The different catalytic activity of Ni for the pyrolysis compared to Co, and also the ability of the Ni and Cu to form an alloy, explain the different structural properties of the carbon formed, and also the different nanoparticle size distributions presented in Figure 2. Consequently, the higher activity of Ni–Cu catalyst with respect to the Co–Cu sample can be due to the different metallic nanoparticle size distribution of these catalysts, shown on the inserts in Figure 2. Thus, the Co–Cu/ArDC sample, Figure 2b, contains a larger amount of small metal nanoparticles (<5 nm), while the quantity of the small particles is significantly lower for the Ni-based catalyst. The catalyst synthesis method used here determines the porous structure of the carbonaceous support developed and therefore the metallic particle size distribution [36,48]. If the microporosity of the support formed is very high, as in the case of the Co–Cu, a large fraction of the smaller metallic nanoparticles is confined to the internal structure of these micropores, remaining embedded inside the carbon matrix. In these conditions, the diffusion of the methane molecules to the exposed surface of the metallic nanoparticles is hindered, and consequently, the growth of the CNMs is slowed down [36]. Moreover, it was demonstrated that very small metallic NPs yield low growth rates and fast deactivation. On the contrary, if the NPs are very large, they have low activity due to the low exposed area, indicating the existence of an optimum size to maximize the catalyst activity [49]. The formation of an alloy in the case of the Ni–Cu catalyst extends the lifetime of the catalyst in this reaction, minimizing the formation of amorphous carbon deposits, which finally contribute to the decay of the catalyst activity [50,51,52]. The coupling of all these factors explains the higher activity of Ni-based catalysts in comparison to the Co catalysts.
In general, the amount of carbon formed should increase with the metal loading, but as obtained here, this result also depends on the nanoparticle size distribution, the potential formation of an alloy, and the textural properties of the support. Thus, the Co-based catalyst has a higher metal loading (18% of Co + 5% of Cu, wt%) than the Ni sample (16% of Ni + 5% of Cu, wt%) and yet it is much less productive. Therefore, the effect of metal loading on catalyst productivity is clearly modified by the particle size distribution and the textural properties of the support, which are controlled during the catalyst preparation stage. Furthermore, the higher solubility of carbon atoms on the Ni–Cu nanoparticles also explains the higher productivity of this catalyst, but the lower selectivity for the formation of pristine CNTs, as in the case of the Co-based catalyst.
In terms of hydrogen productivity at 2 h, the values attained are 0.61 g H2/gmetal∙h with Ni–Cu/ArDC at 900 °C; and 0.25 g H2/gmetal∙h at 850 °C for Co–Cu/ArDC. All these results demonstrate the great potential of the argan residue in the development of proper catalytic supports for hydrogen production by the decomposition of methane.
Figure 4a,b show the Raman spectra of the samples after reaction at increasing temperatures, from 750 °C to 950 °C, using a feed-ratio CH4/H2 = 2 (28.6 % CH4, 14.3 % H2, 57.1 % N2). For both catalysts, it was observed the appearance of a maximum value of IG/ID ratio. In the case of Ni–Cu catalyst, this maximum is more intense and occurs at around 850 °C. The variation of this ratio in the case of the Co–Cu is less intense, and the maximum appears at around 900 °C.
Chemengineering 06 00047 g004a 550Chemengineering 06 00047 g004b 550

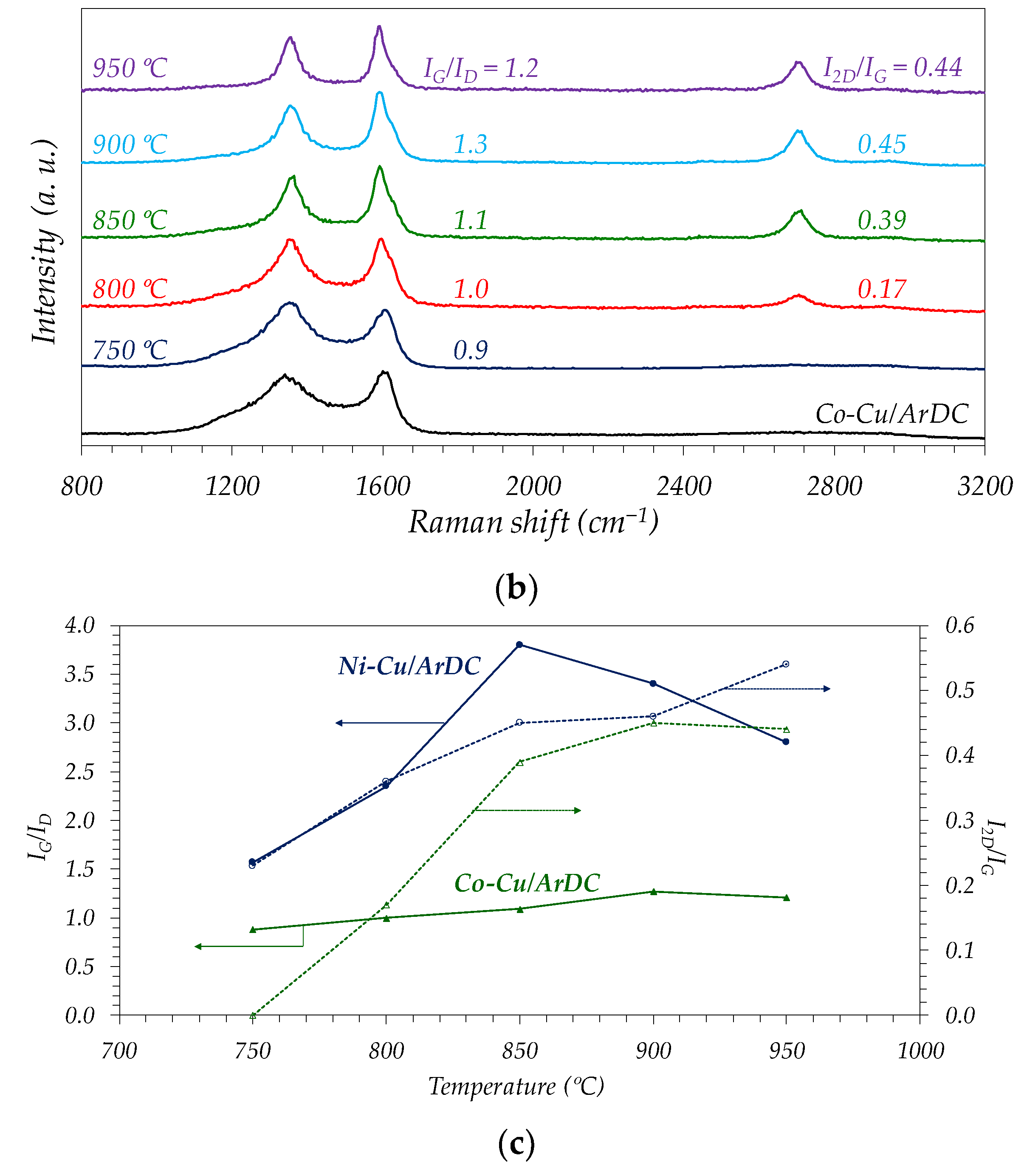

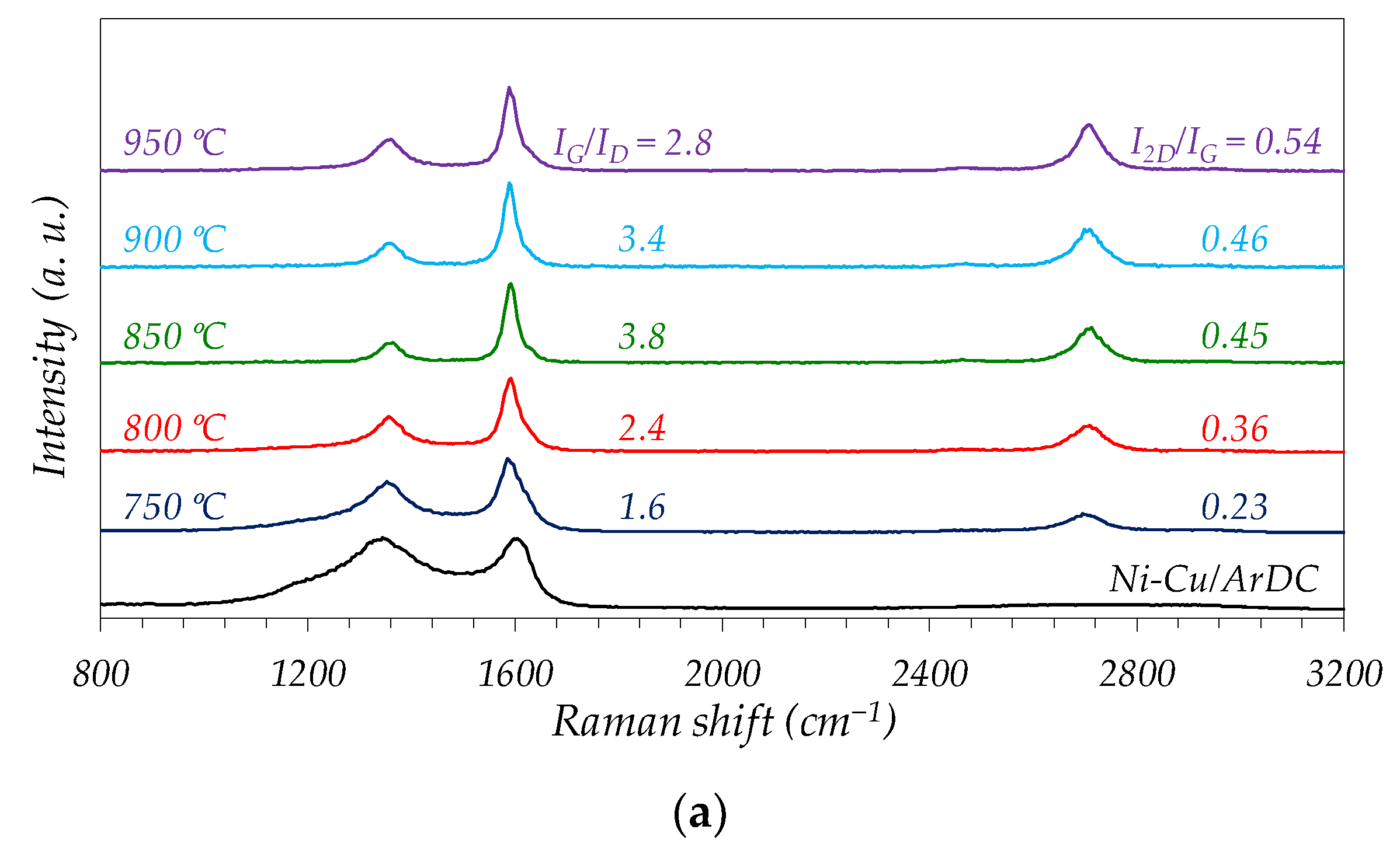

Figure 4. Influence of temperature on the Raman results of the used catalysts: (a) Ni–Cu/ArDC; (b) Co–Cu/ArDC, (c) IG/ID (solid symbols) and I2D/IG (open symbols) ratios.
Figure 4. Influence of temperature on the Raman results of the used catalysts: (a) Ni–Cu/ArDC; (b) Co–Cu/ArDC, (c) IG/ID (solid symbols) and I2D/IG (open symbols) ratios.
Chemengineering 06 00047 g004aChemengineering 06 00047 g004b
These results are in agreement with the variation of the kinetic regime observed in Figure 3c. At low temperatures (till 850 °C), there is an increase in the intensity of the G band, related to the increase in the productivity, and a decrease in the D band, as a consequence of an increase in the size and crystallinity (i.e., fewer defects) of the graphitic domains of the obtained carbon material.
Above this point, the change of tendency in the evolution of the IG/ID ratio is due to a dramatic modification of the nature of carbon formed in agreement with the kinetic results, see Figure 3, and TEM observations, see Figure 5 and Figure 6. On the other hand, as temperature augments, the separation between the D and G bands becomes clearer, and the intermediate shoulder between both bands (corresponding to the original carbon support) almost disappeared as a result of the increase in the surface coverage by the CNMs grown, which was risen with the reaction temperature (Figure 3).
As regards the evolution of the I2D/IG ratio, for the Ni–Cu/ArDC sample, the rise of this ratio suggests that the materials obtained at increasing temperatures are of nature more graphitic, with larger in-plane crystallite sizes (La) [24]. The values obtained, I2D/IG < 0.50, suggest that such graphitic nanostructures, which encapsulate the metallic NPs, have more than five stacked layers of graphene [53].
Figure 5 and Figure 6 show the images of electron microscopy, SEM and TEM, of both catalysts after the reaction at the different temperatures studied. As was detected by the kinetic experiments, Figure 3, and the Raman results, Figure 4, these SEM and TEM images confirm the change in the structure and morphology observed as the temperature is increased. For the Ni–Cu/ArDC, the transition temperature is placed in the interval of 800–850 °C, and for the Co–Cu/ArDC, the change is between 800 and 850 °C. In the case of the Ni-based catalyst, Figure 5, until 800 °C the CNMs are mainly composed of CNTs and CNFs with a high proportion of defects as was also indicated by the Raman results. At temperatures above this point, the materials produced are of graphitic nature, that are encapsulating the metal nanoparticles, which are embedded inside these thick and short nanofibers. For the Co-based catalyst, Figure 6, at 750 °C the formation of pristine CNTs is still incipient, and these types of materials are formed, maintaining excellent quality, till 800 °C. From this temperature, the TEM and Raman results show a slight decrease in the quality, but the majority of products still are the CNTs. These results demonstrate that metallic catalysts supported on carbon derived from lignocellulosic residues, such as argan shells, are excellent candidates to produce CNTs of good quality, comparable to that obtained using commercial cellulose [27].

3.2.2. Influence of Feed Composition

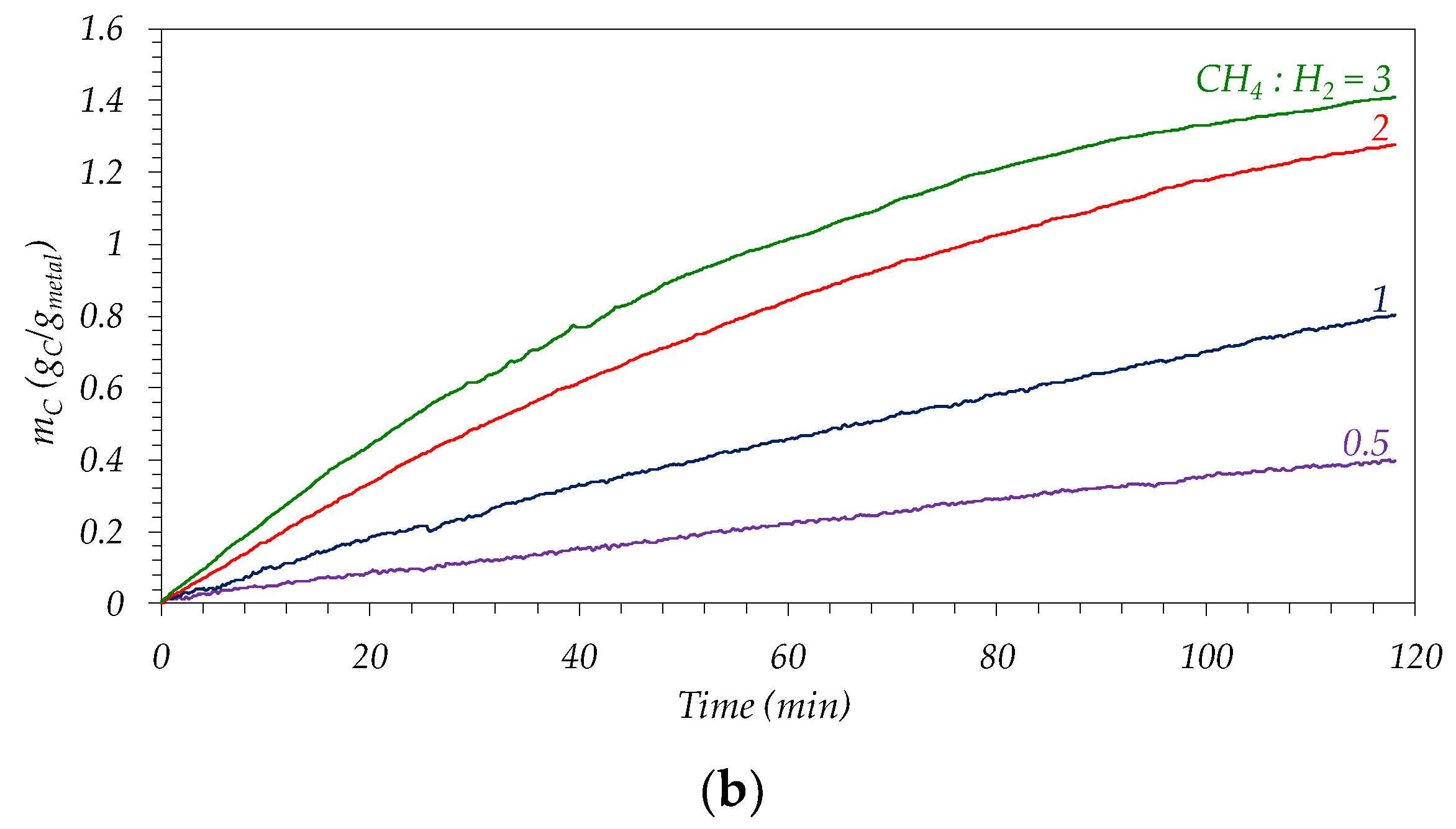

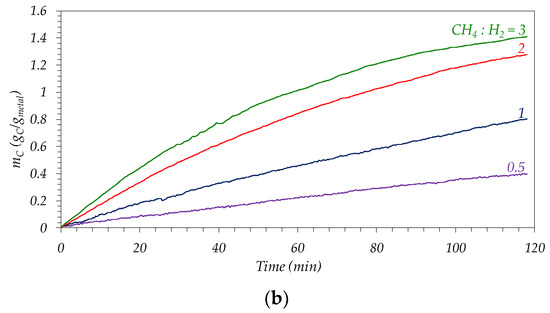

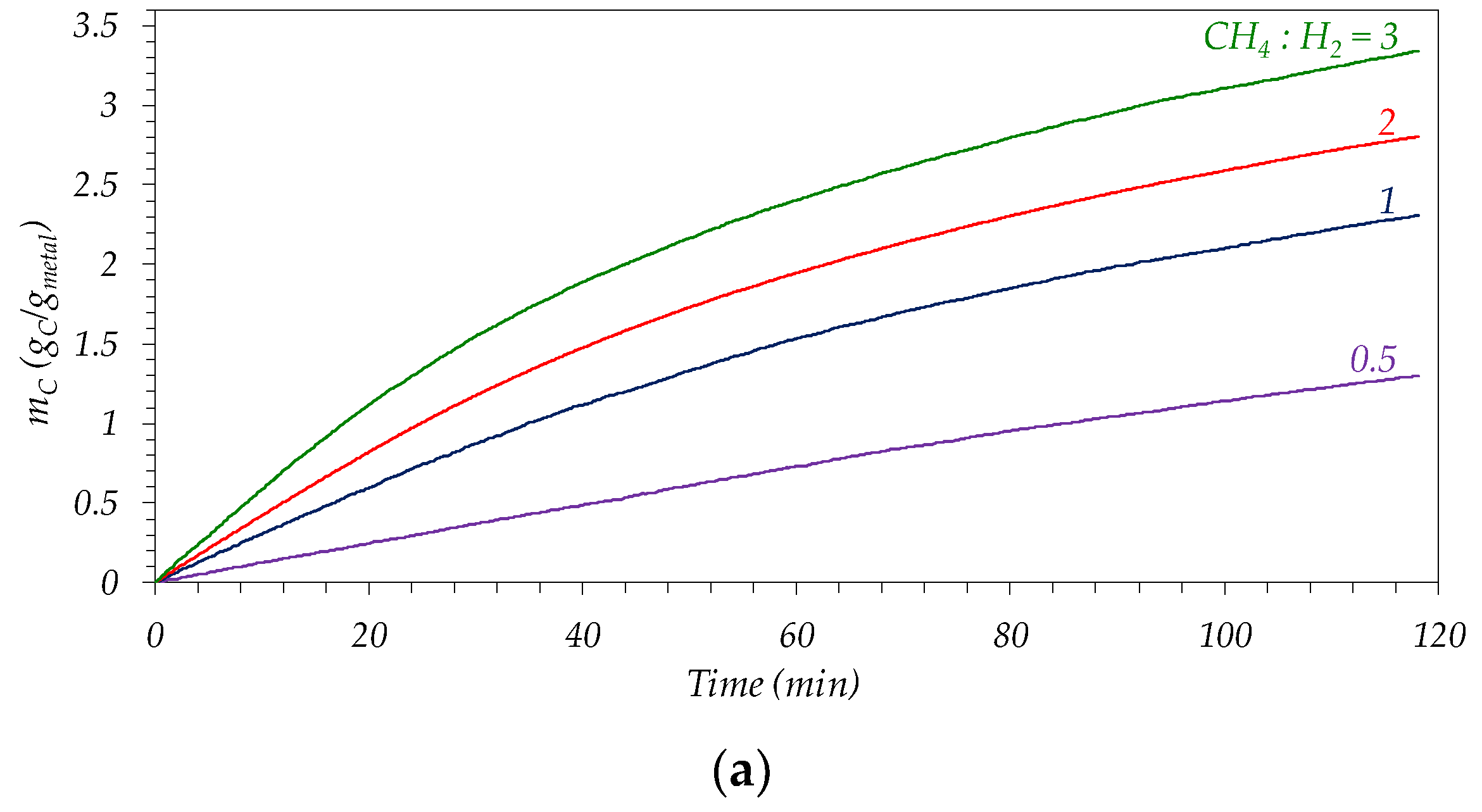

The effect of the feed gas composition on the carbon production and morphology of the grown carbonaceous materials was evaluated by varying the CH4:H2 ratio from 0.5 to 3 for both catalysts. All the experiments were carried out at 800 °C given that at this temperature the selectivity towards CNTs was the highest, as just described in the previous section. Figure 7 and Table 3 show that both the reaction rate and the carbon productivity after 2 h of reaction increase with the CH4:H2 ratio in the interval studied.
As in the study of the effect of reaction temperature, the Ni-based catalyst is more active and productive that the Co catalyst at all the ratios studied. As was previously discussed, the higher proportion of small metallic NPs (<5 nm) in the Co–Cu/ArDC catalyst leaves this fraction of the metal buried in the micropores of the support, diminishing the activity of the catalyst. In addition, these small nanoparticles are less active to catalyze the formation of the CNTs. Therefore, these results give the clue for the optimization of the metallic particle size distribution of the catalyst, which is determined by the duration and the final temperature used during the thermal decomposition stage [36,48,54,55].
The maximum values of carbon productivity, 1.67 gC/gmetal∙h for Ni–Cu/ArDC and 0.71 gC/gmetal∙h for Co–Cu/ArDC, are obtained at the highest ratio CH4:H2, see Table 3. However, the quotient “carbon productivity/rC0” continuously decreases as the CH4:H2 rises, indicating that the enhancement of both processes (carbon growth and catalyst deactivation) due to the methane content, is higher for the deactivation rate than for the carbon growth rate. That means that the apparent kinetic order with respect to methane is higher in the case of the deactivation rate.
These facts are explained considering that during the reaction of methane decomposition, the increase in methane amount in the feed enhances the carburization of the metallic nanoparticles, growing the number of carbon atoms dissolved in them and thus favoring the carbon precipitation at the metal–support interface [24,56,57]. At the same time, the presence of large amounts of carbon atoms on the exposed surface of the metallic nanoparticle, which is the situation corresponding to high methane concentrations, also favors the formation of encapsulating graphitic nanostructures that cause the catalyst deactivation. The balance between the rates of reaction and of the deactivation is quite similar for both catalysts, as is shown by the evolution of the ratio carbon productivity/rC0, see Table 3, indicating the apparent orders of reaction for CH4 and H2 are similar for both catalysts.

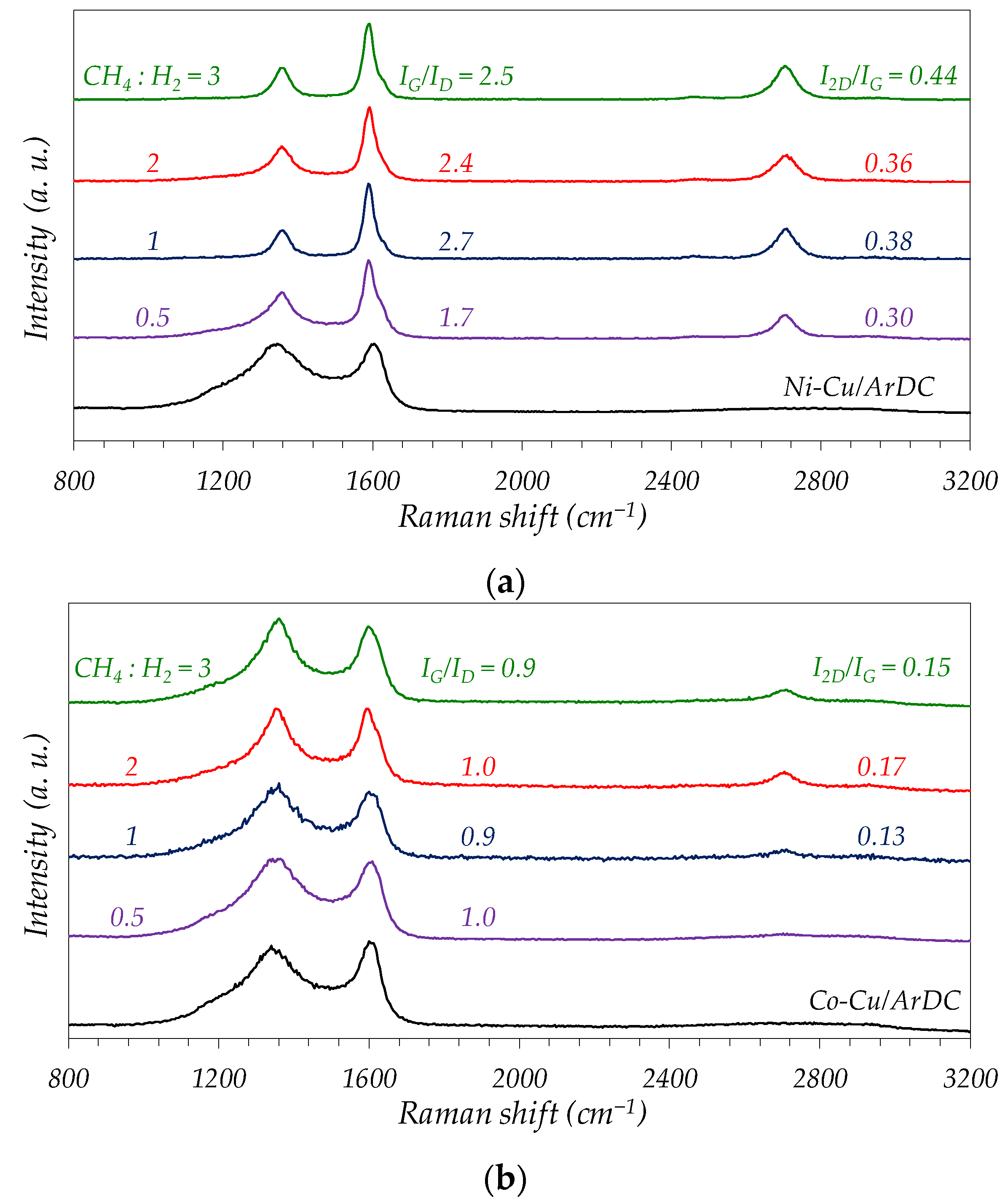

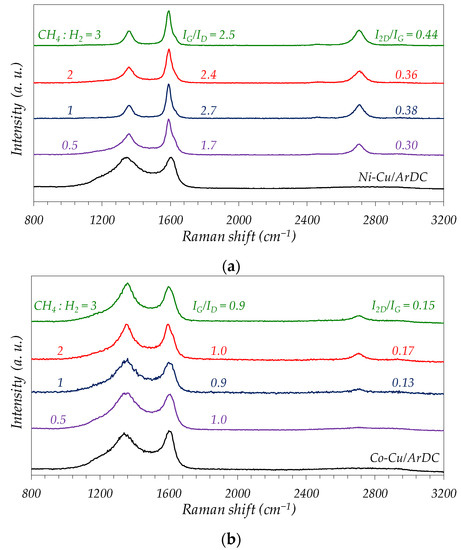

As regards the results with the Co-based catalyst, the Raman spectra in Figure 8b are indicating the high selectivity of this catalyst for the formation of carbon nanotubes, and there are no significant differences among the spectra obtained at the different CH4:H2 ratios. However, for the case of CH4:H2 = 0.5, the Raman result is very similar to that obtained with the fresh catalyst, indicating the low coverage of the catalyst surface by the CNTs grown due to the low carbon productivity obtained under this reaction condition, see Figure 7 and Table 3.
Figure 9 and Figure 10 show the electron microscopy, SEM and TEM, results of the carbonaceous nanomaterials obtained at 800 °C using different CH4:H2 ratios for both catalysts. In the case of the Ni–Cu/ArDC, and in agreement with the kinetic results (see Figure 7a), the images in Figure 9 show that the increase in the methane concentration boosts the quantity, length and especially the thickness of the carbon materials grown, that in this case are mainly CNFs.
As was discussed previously, a large proportion of methane in the feed promotes the carburization step of the metallic NPs, growing the number of carbon atoms dissolved in them and thus favoring the carbon precipitation and growth. However, at the reaction temperature used (800 °C), the main part of carbon produced is in form of CNFs instead of CNTs, even at the low methane content experiment (CH4:H2 = 0.5).
In the case of Co-based catalyst, SEM and TEM results presented in Figure 10, are in total agreement with the Raman results, obtaining the selective formation of CNTs. Thus, at low methane contents (CH4:H2 = 0.5) the formation of CNTs is very incipient, see Figure 10, in accordance with the corresponding Raman spectra in Figure 8b. In these conditions of low partial pressure of methane, the low chemical potential for the carburization of the metallic NPs slows down the diffusion and precipitation of CNTs and therefore the amount and length of the CNTs formed are very low, being only detectable by TEM, see Figure 10.

4. Conclusions

In this work, Ni(16%)–Cu(4%) and Co(18%)–Cu(5%) catalysts supported on carbon derived from Argan shells (ArDC) were proved to be active and selective for the production of carbonaceous nanomaterials and hydrogen via catalytic decomposition of methane. The most active catalyst was the Ni-based, reaching maximum carbon productivity of 1.87 gC/gmetal∙h at 900 °C, while the best productivity of the Co-based catalyst was 0.74 gC/gmetal∙h at 850 °C, in both cases with a CH4:H2 =2. These results are comparable to those obtained with catalysts supported on commercial cellulose-derived carbon.
The higher activity of the Ni catalyst is explained in terms of the different particle size distribution and the average size of the metallic NPs. Thus the Co-based catalyst presents a large proportion of small NPs, which are less active due to the effect of the diffusional restrictions caused by the presence of these smaller NPs in the micropores of the support. On the other hand, the formation of an alloy in the case of the Ni–Cu catalyst extends the lifetime of the catalyst minimizing the formation of amorphous carbon deposits, which finally cause the decay of the catalyst activity.
The kinetic results indicate that both catalysts present a maximum in the CNMs productivity with the reaction temperature. This maximum is given at around 900 °C for the catalyst based on Ni, and at 850 °C for the catalysts based on Co. In both cases, this behavior can be attributed to the fact that an increment in the reaction temperature promotes a rapid diffusion of the carbon atoms through the metal nanoparticles. This fact increases the carbon precipitation rate at the metal catalyst support interface, favoring the formation of the carbonaceous nanomaterials. At temperatures above the maximum, the deactivation of the catalyst by the formation of encapsulating graphitic structures is boosted, decreasing the carbon productivity. On the other hand, the increment in the CH4:H2 ratio produces an increase in the CNMs productivity for the two catalysts. The increase in methane partial pressure enhances the carburization of the exposed surface of the metallic nanoparticles, increasing the number of carbon atoms dissolved in them and thus favoring the carbon precipitation at the metal–support interface.
Regarding the type of carbonaceous nanomaterials obtained in the function of the operational conditions, at temperatures below 800 °C, the Ni–Cu/ArDC catalyst is selective mainly for the production of CNFs. SEM, TEM and Raman results indicate that the highest graphitic character of these CNFs was obtained at 800 °C using a CH4:H2 = 3. In the case of the Co–Cu catalyst, operating at temperatures below 850 °C, the main solid product obtained was carbon nanotubes.
The amount of carbon formed should increase with the metal loading, but as obtained here, this result also depends on the nanoparticle size distribution, the potential formation of an alloy, and the textural properties of the support. Thus, the Co-based catalyst has a higher metal loading (18% of Co + 5% of Cu, wt%) than the Ni sample (16% of Ni + 5% of Cu, wt%) and yet it is less productive. Therefore, the effect of metal loading on catalyst productivity is clearly modified by these factors, which are controlled during the catalyst preparation stage. Furthermore, the higher solubility of carbon atoms on the Ni–Cu nanoparticles also explains the higher productivity of this catalyst, but the lower selectivity for the formation of pristine CNTs, as in the case of the Co-based catalyst.
In summary, although the Co-based catalyst is less productive than the Ni-based one, their high selectivity to the CNTs formation confirms the elevated potential of the Co-based catalyst supported on carbon derived from renewable lignocellulosic residues, such as argan shells, for the production of valuable CNMs by CCVD of methane. However, in terms of productivity of hydrogen and carbon, the Ni–Cu/ArDC is the more active and therefore the more interesting for the production of COx-free hydrogen.

Author Contributions

Conceptualization, J.L.S., N.L., E.R., J.A. and A.M.; methodology, F.C., Z.A., M.G.-M., J.L.S., N.L., E.R., J.A. and A.M.; validation, F.C., J.L.S., N.L., E.R., J.A. and A.M.; formal analysis, J.A. and A.M.; investigation, F.C., Z.A., M.G.-M., J.L.S., N.L., E.R., J.A. and A.M.; resources, N.L., E.R., J.A. and A.M.; data curation, F.C., N.L., E.R. and A.M.; writing—original draft preparation, F.C. and A.M.; writing—review and editing, N.L., E.R., J.A. and A.M.; visualization, F.C., E.R., J.A. and A.M.; supervision, J.L.S., N.L., E.R., J.A. and A.M.; project administration, J.A. and A.M.; funding acquisition, N.L., J.A. and A.M. All authors have read and agreed to the published version of the manuscript.

Funding

Grant PID2020-113809RB-C31 funded by MCIN/AEI/10.13039/501100011033; grant PLEC2021-008086 funded by MCIN/AEI/10.13039/501100011033 and by the European Union NextGenerationEU/PRTR; grant PRE2018-086557 funded by MCIN/AEI/10.13039/501100011033 and by ESF Investing in your future.

Data Availability Statement

Not applicable.

Acknowledgments

The authors would like to acknowledge the use of Servicio General de Apoyo a la Investigación-SAI and Laboratorio de Microscopías Avanzadas-LMA, Universidad de Zaragoza.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dresselhaus, M.S.; Dresselhaus, G.; Hone, J. (Eds.) Carbon Nanotubes: Synthesis, Structure, Properties and Applications; Springer: Berlin/Heidelberg, Germany, 2001. [Google Scholar]
  2. Serp, P.; Corrias, M.; Kalk, P. Carbon nanotubes and nanofibers in catalysis. Appl. Catal. A 2003, 253, 337–358. [Google Scholar] [CrossRef]
  3. Terrones, M. Science and Technology of the Twenty-First Century: Synthesis, Properties, and Applications of Carbon Nanotubes. Annu. Rev. Mater. Res. 2003, 33, 419–501. [Google Scholar] [CrossRef]
  4. Ding, S.; Xiang, Y.; Ni, Y.Q.; Kumar Thakur, V.; Wang, X.; Han, B.; Ou, J. In-situ synthesizing carbon nanotubes on cement to develop self-sensing cementitious composites for smart high-speed rail infrastructures. Nano Today 2022, 43, 101438. [Google Scholar] [CrossRef]
  5. Zhou, X.; Wang, Y.; Gong, C.; Liu, B.; Wei, G. Production, structural design, functional control, and broad applications of carbon nanofiber-based nanomaterials: A comprehensive review. Chem. Eng. J. 2020, 402, 126189. [Google Scholar] [CrossRef]
  6. Bai, Y.; Yue, H.; Wang, J.; Shen, B.; Sun, S.; Wang, S.; Wang, H.; Li, X.; Xu, Z.; Zhang, R.; et al. Super-durable ultralong carbon nanotubes. Science 2020, 369, 1104–1106. [Google Scholar] [CrossRef]
  7. Hills, G.; Lau, C.; Wright, A.; Fuller, S.; Bishop, M.D.; Srimani, T.; Kanhaiya, P.; Ho, R.; Amer, A.; Stein, Y.; et al. Modern microprocessor built from complementary carbon nanotube transistors. Nature 2019, 572, 595–602. [Google Scholar] [CrossRef]
  8. Kumar, S.; Saeed, G.; Zhu, L.; Nam Hui, K.; Hoon Kim, N.; Hee Lee, J. 0D to 3D carbon-based networks combined with pseudocapacitive electrode material for high energy density supercapacitor: A review. Chem. Eng. J. 2021, 403, 126352. [Google Scholar] [CrossRef]
  9. Rao, R.; Pint, C.L.; Islam, A.E.; Weatherup, R.S.; Hofmann, S.; Hart, A.J. Carbon Nano-tubes and Related Nanomaterials: Critical Advances and Challenges for Synthesis toward Mainstream Commercial Applications. ACS Nano 2018, 12, 11756–11784. [Google Scholar] [CrossRef] [Green Version]
  10. Pinilla, J.L.; de Llobet, S.; Moliner, R.; Suelves, I. Ni-Co bimetallic catalysts for the simultaneous production of carbon nanofibres and syngas through biogas decomposition. Appl. Catal. B Environ. 2017, 200, 255–264. [Google Scholar] [CrossRef]
  11. Gómez-Pozuelo, G.; Pizarro, P.; Botas, J.A.; Serrano, D.P. Hydrogen production by catalytic methane decomposition over rice husk derived silica. Fuel 2021, 306, 121697. [Google Scholar] [CrossRef]
  12. Fan, Z.; Weng, W.; Zhou, J.; Gu, D.; Xiao, W. Catalytic decomposition of methane to produce hydrogen: A review. J. Energy Chem. 2021, 58, 415–430. [Google Scholar] [CrossRef]
  13. Dipu, A.L. Methane decomposition into COx-free hydrogen over a Ni-based catalyst: An overview. Int. J. Energy Res. 2021, 45, 9858–9877. [Google Scholar] [CrossRef]
  14. Qian, J.X.; Chen, T.W.; Enakonda, L.R.; Liu, D.B.; Basset, J.M.; Zhou, L. Methane decomposition to pure hydrogen and carbon nano materials: State-of-the-art and future perspectives. Int. J. Hydrogen Energy 2020, 45, 15721–15743. [Google Scholar] [CrossRef]
  15. Sanchez-Bastardo, N.; Schlogl, R.; Ruland, H. Methane Pyrolysis for CO2-Free H2 Production: A Green Process to Overcome Renewable Energies Unsteadiness. Chem. Ing. Technik. 2020, 92, 1596–1609. [Google Scholar] [CrossRef]
  16. Jia, J.; Wang, Y.; Tanabe, E.; Shishido, T.; Takehira, K. Carbon fibers prepared by pyrolysis of methane over Ni/MCM-41 catalyst. Micropor. Mesopor. Mat. 2003, 57, 283–289. [Google Scholar] [CrossRef]
  17. Jourdain, V.; Bichara, C. Current understanding of the growth of carbon nanotubes in catalytic chemical vapour deposition. Carbon 2013, 58, 2–39. [Google Scholar] [CrossRef] [Green Version]
  18. Helveg, S.; López-Cartes, C.; Sehested, J.; Hansen, P.L.; Clausen, B.S.; Rostrup-Nielsen, J.R.; Abild-Pedersen, F.; Nørskov, J.K. Atomic-scale imaging of carbon nanofibre growth. Nature 2004, 427, 426–429. [Google Scholar] [CrossRef]
  19. Pudukudy, M.; Yaakob, Z. Methane decomposition over Ni, Co and Fe based monometallic catalysts supported on sol gel derived SiO2 microflakes. Chem. Eng. J. 2015, 262, 1009–1021. [Google Scholar] [CrossRef]
  20. Alves Silva, J.; Oliveira Santos, J.B.; Torres, D.; Pinilla, J.L.; Suelves, I. Natural Fe-based catalysts for the production of hydrogen and carbon nanomaterials via methane decomposition. Int. J. Hydrogen Energy 2021, 46, 35137–35148. [Google Scholar] [CrossRef]
  21. Zhou, L.; Reddy Enakonda, L.; Li, S.; Gary, D.; Del-Gallo, P.; Mennemann, C.; Basset, J.M. Iron ore catalysts for methane decomposition to make COx free hydrogen and carbon nano material. J. Taiwan Inst. Chem. Eng. 2018, 87, 54–63. [Google Scholar] [CrossRef]
  22. Awadallah, A.E.; Aboul-Enein, A.A.; Kandil, U.F.; Reda Taha, M. Facile and large-scale synthesis of high quality few-layered graphene nano-platelets via methane decomposition over unsupported iron family catalysts. Mater. Chem. Phys. 2017, 191, 75–85. [Google Scholar] [CrossRef]
  23. Latorre, N.; Cazaña, F.; Martínez-Hansen, V.; Royo, C.; Romeo, E.; Monzón, A. Ni-Co-Mg-Al catalysts for hydrogen and carbonaceous nanomaterials production by CCVD of methane. Catal. Today 2011, 172, 143–151. [Google Scholar] [CrossRef]
  24. Cazaña, F.; Latorre, N.; Tarifa, P.; Labarta, J.; Romeo, E.; Monzón, A. Synthesis of graphenic nanomaterials by decomposition of methane on a Ni-Cu/biomorphic carbon catalyst. Kinetic and characterization results. Catal. Today 2018, 299, 67–79. [Google Scholar] [CrossRef] [Green Version]
  25. Lin, X.; Zhu, H.; Huang, M.; Wan, C.; Li, D.; Jiang, L. Controlled preparation of Ni–Cu alloy catalyst via hydrotalcite-like precursor and its enhanced catalytic performance for methane decomposition. Fuel Process. Technol. 2022, 233, 107271. [Google Scholar] [CrossRef]
  26. Tezel, E.; Eren Figen, H.; Baykara, S.Z. Hydrogen production by methane decomposition using bimetallic Ni–Fe catalysts. Int. J. Hydrogen Energy 2019, 44, 9930–9940. [Google Scholar] [CrossRef]
  27. Henao, W.; Cazaña, F.; Tarifa, P.; Romeo, E.; Latorre, N.; Sebastian, V.; Delgado, J.J.; Monzón, A. Selective synthesis of carbon nanotubes by catalytic decomposition of methane using Co-Cu/cellulose derived carbon catalysts: A comprehensive kinetic study. Chem. Eng. J. 2021, 404, 126103. [Google Scholar] [CrossRef]
  28. Cazaña, F.; Latorre, N.; Tarifa, P.; Royo, C.J.; Sebastián, V.; Romeo, E.; Centeno, M.A.; Monzón, A. Performance of AISI 316L-stainless steel foams towards the formation of graphene related nanomaterials by catalytic decomposition of methane at high temperature. Catal. Today 2022, 383, 236–246. [Google Scholar] [CrossRef]
  29. Elmouwahidi, A.; Zapata-Benabithe, Z.; Carrasco-Marín, F.; Moreno-Castilla, C. Activated carbons from KOH-activation of argan (Argania spinosa) seed shells as supercapacitor electrodes. Bioresour. Technol. 2012, 111, 185–190. [Google Scholar] [CrossRef]
  30. Azuara, M.; Latorre, N.; Villacampa, J.I.; Sebastián, V.; Cazaña, F.; Romeo, E.; Monzón, A. Use of Ni Catalysts Supported on Biomorphic Carbon Derived From Lignocellulosic Biomass Residues in the Decomposition of Methane. Front. Energy Res. 2019, 7, 34. [Google Scholar] [CrossRef]
  31. Dahbi, M.; Kiso, M.; Kubota, K.; Horiba, T.; Chafik, T.; Hida, K.; Matsuyama, T.; Komaba, S. Synthesis of hard carbon from argan shells for Na-ion batteries. J. Mater. Chem. A 2017, 5, 9917. [Google Scholar] [CrossRef]
  32. Harhar, H.; Gharby, S.; Ghanmi, M.; El Monfalouti, H.; Guillaume, D.; Charrouf, Z. Composition of the Essential Oil of Argania spinosa (Sapotaceae) Fruit Pulp. Nat. Prod. Commun. 2010, 5, 1934578X1000500626. [Google Scholar] [CrossRef] [Green Version]
  33. Santos, J.L.; Mäki-Arvela, P.; Monzón, A.; Murzin, D.Y.; Centeno, M.A. Metal catalysts supported on biochars: Part I synthesis and characterization. Appl. Catal B Environ. 2020, 268, 118423. [Google Scholar] [CrossRef]
  34. Santos, J.L.; Mäki-Arvela, P.; Wärnå, J.; Monzón, A.; Centeno, M.A.; Murzin, D.Y. Hydrodeoxygenation of vanillin over noble metal catalyst supported on biochars: Part II: Catalytic behaviour. Appl. Catal B Environ. 2020, 268, 118425. [Google Scholar] [CrossRef]
  35. Cazaña, F.; Jimaré, M.T.; Romeo, E.; Sebastián, V.; Irusta, S.; Latorre, N.; Royo, C.; Monzón, A. Kinetics of liquid phase cyclohexene hydrogenation on Pd–Al/biomorphic carbon catalysts. Catal. Today 2015, 249, 127–136. [Google Scholar] [CrossRef]
  36. Cazaña, F.; Galetti, A.; Meyer, C.; Sebastián, V.; Centeno, M.A.; Romeo, E.; Monzón, A. Synthesis of Pd-Al/biomorphic carbon catalysts using cellulose as carbon precursor. Catal. Today 2018, 301, 226–238. [Google Scholar] [CrossRef]
  37. Tarifa, P.; Megías-Sayago, C.; Cazaña, F.; González-Martín, M.; Latorre, N.; Romeo, E.; Delgado, J.J.; Monzón, A. Highly Active Ce- and Mg-Promoted Ni Catalysts Supported on Cellulose-Derived Carbon for Low-Temperature CO2 Methanation. Energy Fuels 2021, 35, 17212–17224. [Google Scholar] [CrossRef]
  38. Mann, S. Biomineralization: Principles and Concepts in Bioinorganic Materials Chemistry; Oxford University Press: Oxford, UK, 2001. [Google Scholar]
  39. Will, J.; Zollfrank, C.; Kaindl, A.; Sieber, H.; Grei, P. Biomorphic ceramics: Technologies based on nature. Keram. Z 2010, 62, 114. [Google Scholar]
  40. Zuo, C.-Y.; Li, Q.S.; Peng, G.R.; Xing, G.Z. Manufacture of biomorphic Al2O3 ceramics using filter paper as template. Prog. Nat. Sci. Mater. Int. 2011, 21, 455–459. [Google Scholar] [CrossRef] [Green Version]
  41. Luo, J.; Xu, H.; Liu, Y.; Chu, W.; Jiang, C.; Zhao, X. A facile approach for the preparation of biomorphic CuO–ZrO2 catalyst for catalytic combustion of methane. Appl. Catal. A Gen. 2012, 423, 121–129. [Google Scholar] [CrossRef]
  42. Chakraborty, R.; RoyChowdhury, D. Fish bone derived natural hydroxyapatite-supported copper acid catalyst: Taguchi optimization of semibatch oleic acid esterification. Chem. Eng. J. 2013, 215, 491–499. [Google Scholar] [CrossRef]
  43. Wu, Q.; Duchstein, L.D.L.; Chiarello, G.L.; Christensen, J.M.; Damsgaard, C.D.; Elkjær, C.F.; Wagner, J.B.; Temel, B.; Grunwaldt, J.D.; Jensen, A.D. In Situ Observation of Cu–Ni Alloy Nanoparticle Formationby X-Ray Diffraction, X-Ray Absorption Spectroscopy, and Transmission Electron Microscopy: Influence of Cu/Ni Ratio. Chem. Cat. Chem. 2014, 6, 301–310. [Google Scholar]
  44. Malard, L.M.; Pimenta, M.A.; Dresselhaus, G.; Dresselhaus, M.S. Raman spectroscopy in graphene. Phys. Rep. 2009, 473, 51–87. [Google Scholar] [CrossRef]
  45. Rhim, Y.R.; Zhang, D.; Fairbrother, D.H.; Wepasnick, K.A.; Livi, K.J.; Bodnar, R.J.; Nagle, D.C. Changes in electrical and microstructural properties of microcrystalline cellulose as function of carbonization temperature. Carbon 2010, 48, 1012–1024. [Google Scholar] [CrossRef]
  46. Latorre, N.; Cazaña, F.; Sebastián, V.; Royo, C.; Romeo, E.; Monzón, A. Effect of the Operating Conditions on the Growth of Carbonaceous Nanomaterials over Stainless Steel Foams. Kinetic and Characterization Studies. Int. J. Chem. React. Eng. 2017, 15, 20170121. [Google Scholar] [CrossRef]
  47. Ahmad, M.; Silva, S.R.P. Low temperature growth of carbon nanotubes—A review. Carbon 2020, 158, 24–44. [Google Scholar] [CrossRef]
  48. Galetti, A.; Barroso, M.N.; Monzón, A.; Abello, M.C. Synthesis of Nickel Nanoparticles Supported on Carbon Using a Filter Paper as Biomorphic Pattern for Application in Catalysis. Mater. Res. 2015, 18, 1278–1283. [Google Scholar] [CrossRef] [Green Version]
  49. Chen, D.; Christensen, K.O.; Ochoa-Fernández, E.; Yu, Z.; Tøtdal, B.; Latorre, N.; Monzón, A.; Holmen, A. Synthesis of carbon nanofibers: Effects of Ni crystal size during methane decomposition. J. Catal. 2005, 229, 82–96. [Google Scholar] [CrossRef]
  50. Zhu, J.; Jia, J.; Kwong, F.L.; Ng, D.H.L. Synthesis of bamboo-like carbon nanotubes on a cop-per foil by catalytic chemical vapor deposition from ethanol. Carbon 2012, 50, 2504–2512. [Google Scholar] [CrossRef]
  51. Jia, Y.; Wu, P.Y.; Fang, F.; Zhou, S.S.; Peng, D.Y. Synthesis and characterization of un-branched and branched multi-walled carbon nanotubes using Cu as catalyst. Solid State Sci. 2013, 18, 71–77. [Google Scholar] [CrossRef]
  52. Mohana Krishna, V.; Somanathan, T. Efficient strategy to Cu/Si catalyst into vertically aligned carbon nanotubes with Bamboo shape by CVD technique. Bull. Mater. Sci. 2016, 39, 1079–1084. [Google Scholar] [CrossRef] [Green Version]
  53. Calizo, I.; Bejenari, I.; Rahman, M.; Liu, G.; Balandin, A.A. Ultraviolet Raman microscopy of single and multilayer graphene. J. Appl. Phys. 2009, 106, 043509. [Google Scholar] [CrossRef] [Green Version]
  54. Santos, J.L.; Centeno, M.A.; Odriozola, J.A. Reductant atmospheres during slow pyrolysis of cellulose: First approach to obtaining efficient char-based catalysts in one pot. J. Anal. Appl. Pyrolysis 2020, 148, 104821. [Google Scholar] [CrossRef]
  55. Ramirez, A.; Gevers, L.; Bavykina, A.; Ould-Chikh, S.; Gascon, J. Metal Organic Framework-Derived Iron Catalysts for the Direct Hydrogenation of CO2 to Short Chain Olefins. ACS Catal. 2018, 8, 9174–9182. [Google Scholar] [CrossRef]
  56. Monzón, A.; Lolli, G.; Cosma, S.; Mohamed, S.B.; Resasco, D.E. Kinetic Modeling of the SWNT Growth by CO Disproportionation on CoMo Catalysts. J. Nanosci. Nanotechnol. 2008, 8, 6141–6152. [Google Scholar] [CrossRef]
  57. Latorre, N.; Romeo, E.; Cazaña, F.; Ubieto, T.; Royo, C.; Villacampa, J.I.; Monzón, A. Carbon Nanotube Growth by Catalytic Chemical Vapor Deposition: A Phenomenological Kinetic Model. J. Phys. Chem. C 2010, 114, 4773–4782. [Google Scholar] [CrossRef]
Chemengineering 06 00047 g001 550

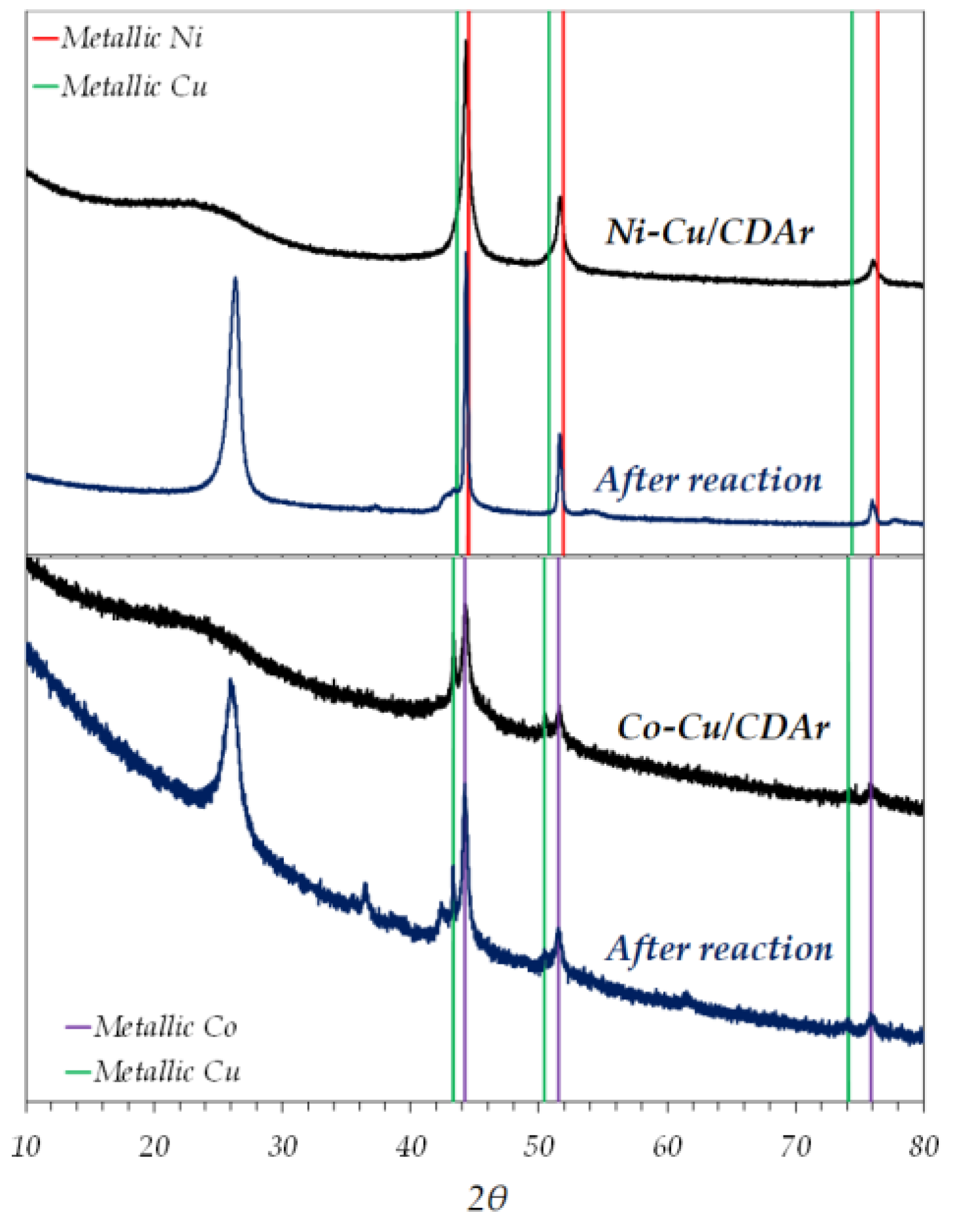

Figure 1. XRD patterns of fresh and used catalysts (800 °C; CH4/H2/N2(%): 28.6/14.3/57.1).
Figure 1. XRD patterns of fresh and used catalysts (800 °C; CH4/H2/N2(%): 28.6/14.3/57.1).
Chemengineering 06 00047 g001
Chemengineering 06 00047 g002 550

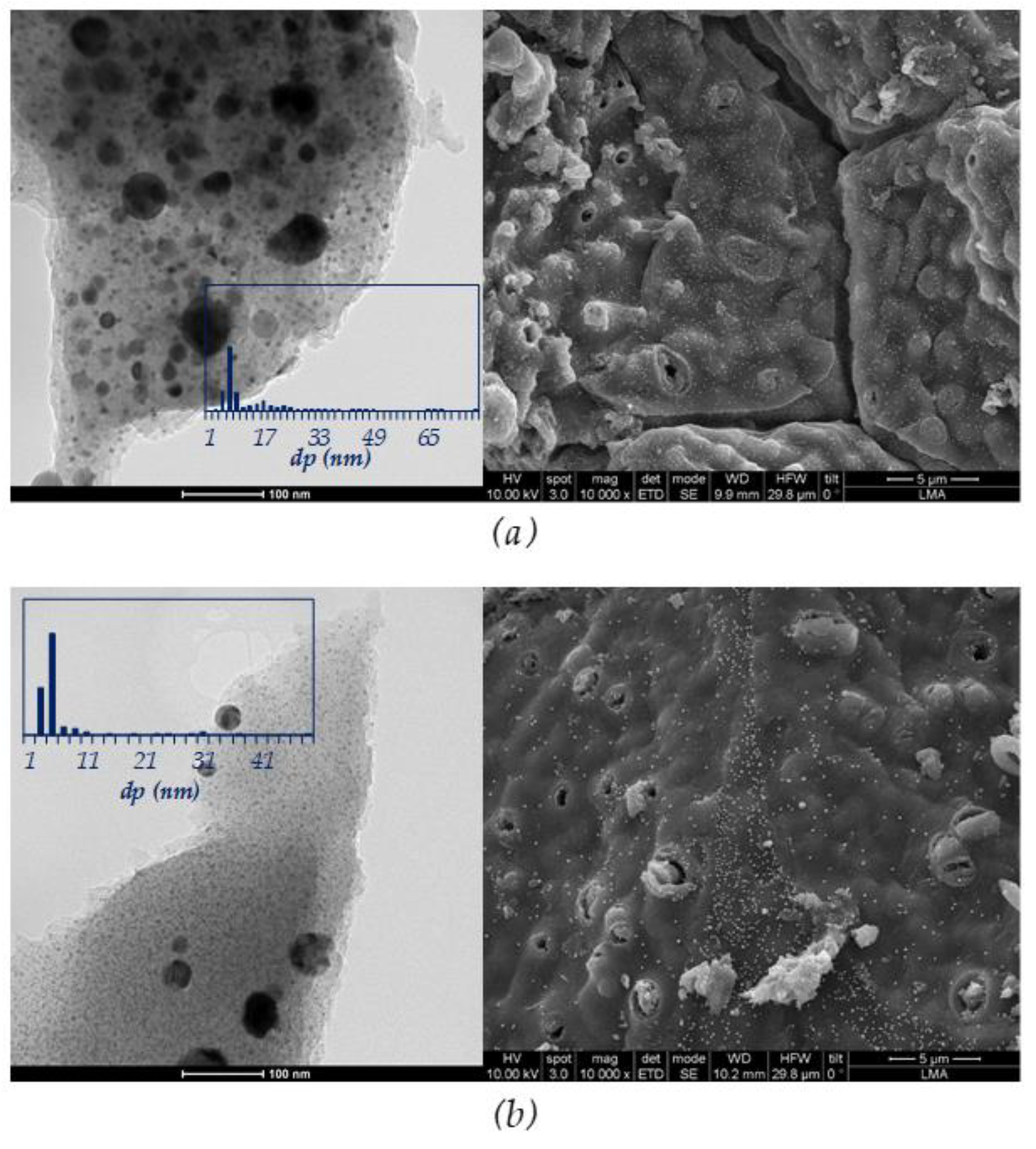

Figure 2. Electron microscopy study of the fresh catalysts: (a) Ni–Cu/ArDC (b) Co–Cu/ArDC.
Figure 2. Electron microscopy study of the fresh catalysts: (a) Ni–Cu/ArDC (b) Co–Cu/ArDC.
Chemengineering 06 00047 g002
Chemengineering 06 00047 g003a 550Chemengineering 06 00047 g003b 550

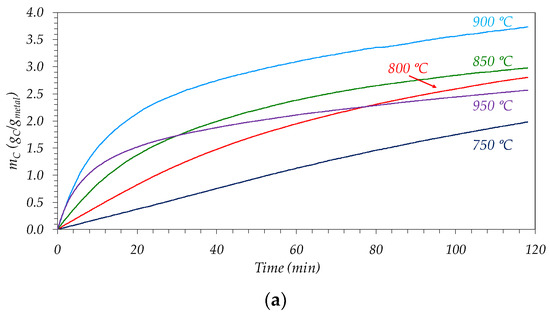

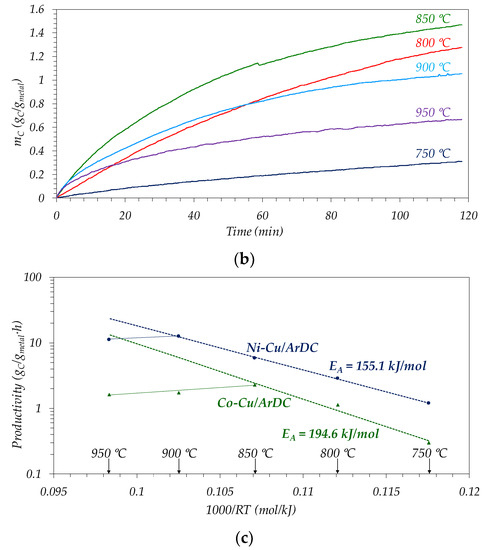

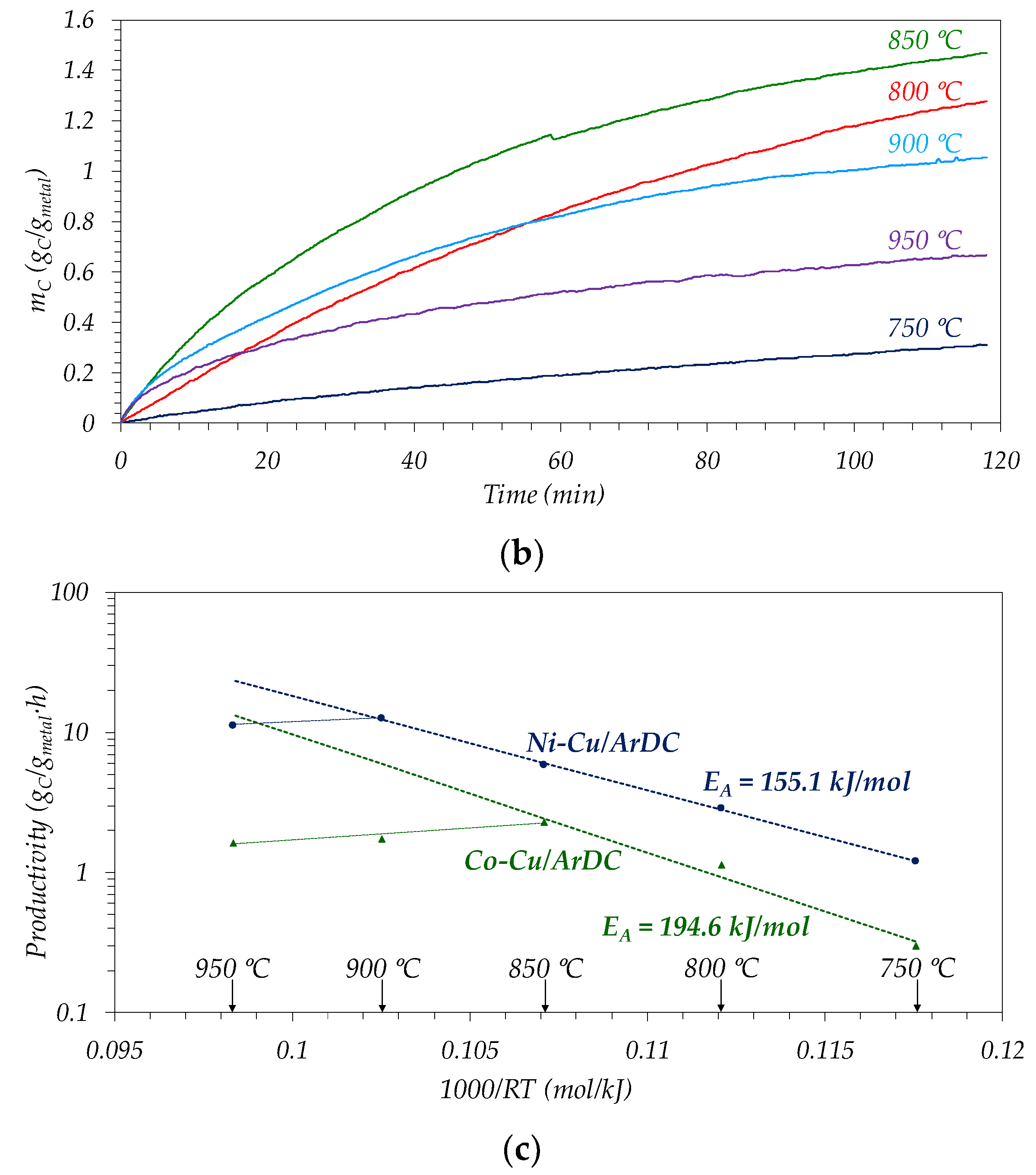

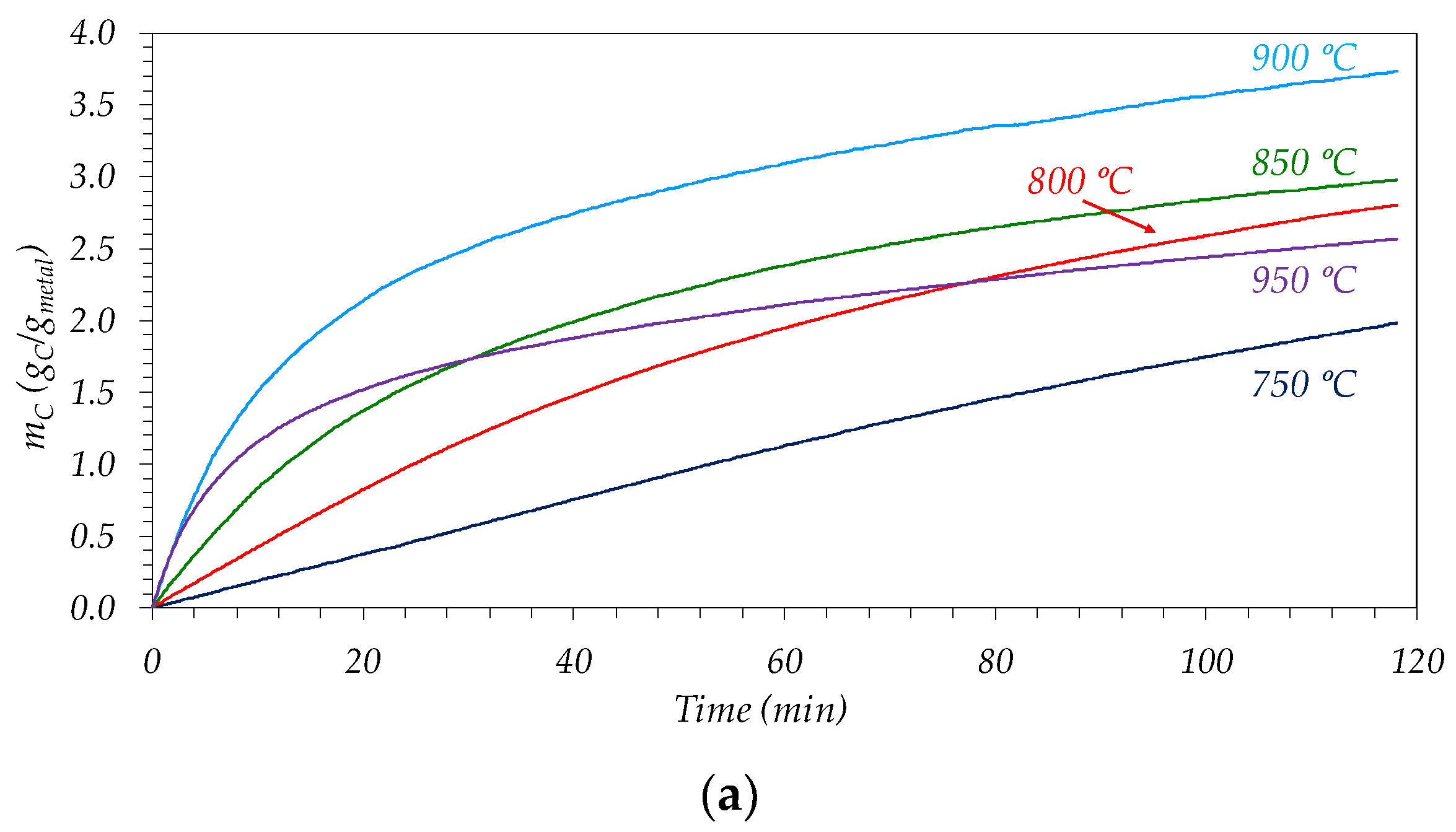

Figure 3. Influence of reaction temperature on evolution of carbon concentration, mC: (a) Ni–Cu/ArDC; (b) Co–Cu/ArDC; (c) Final productivity at 2 h (Dashed line: Arrhenius plot).
Figure 3. Influence of reaction temperature on evolution of carbon concentration, mC: (a) Ni–Cu/ArDC; (b) Co–Cu/ArDC; (c) Final productivity at 2 h (Dashed line: Arrhenius plot).
Chemengineering 06 00047 g003aChemengineering 06 00047 g003b
Chemengineering 06 00047 g005 550

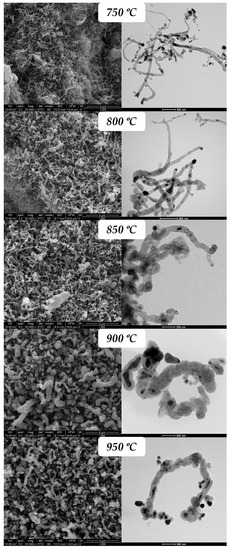

Figure 5. SEM and TEM images of the carbonaceous nanomaterials grown at different reaction temperatures for Ni–Cu/ArDC. Feed composition(%): CH4/H2/N2:28.6/14.3/57.1.
Figure 5. SEM and TEM images of the carbonaceous nanomaterials grown at different reaction temperatures for Ni–Cu/ArDC. Feed composition(%): CH4/H2/N2:28.6/14.3/57.1.
Chemengineering 06 00047 g005
Chemengineering 06 00047 g006 550
Figure 6. SEM and TEM images of the carbonaceous nanomaterials grown at different reaction temperatures for Co–Cu/ArDC. Feed composition (%):CH4/H2/N2.: 28.6/14.3/57.1.
Figure 6. SEM and TEM images of the carbonaceous nanomaterials grown at different reaction temperatures for Co–Cu/ArDC. Feed composition (%):CH4/H2/N2.: 28.6/14.3/57.1.
Chemengineering 06 00047 g006
Chemengineering 06 00047 g007a 550Chemengineering 06 00047 g007b 550
Figure 7. Influence of CH4/H2 feed-ratio on the evolution of carbon concentration along time: (a) Ni–Cu/ArDC; (b) Co–Cu/ArDC.
Figure 7. Influence of CH4/H2 feed-ratio on the evolution of carbon concentration along time: (a) Ni–Cu/ArDC; (b) Co–Cu/ArDC.
Chemengineering 06 00047 g007aChemengineering 06 00047 g007b
Chemengineering 06 00047 g008 550
Figure 8. Raman spectra obtained for (a) Ni–Cu/ArDC and (b) Co–Cu/ArDC. Influence of feed composition (CH4:H2 ratio). Reaction temperature: 800 °C.
Figure 8. Raman spectra obtained for (a) Ni–Cu/ArDC and (b) Co–Cu/ArDC. Influence of feed composition (CH4:H2 ratio). Reaction temperature: 800 °C.
Chemengineering 06 00047 g008
Chemengineering 06 00047 g009 550
Figure 9. SEM and TEM images of the carbonaceous nanomaterials grown at different CH4:H2 ratios for Ni–Cu/ArDC. Reaction temperature: 800 °C.
Figure 9. SEM and TEM images of the carbonaceous nanomaterials grown at different CH4:H2 ratios for Ni–Cu/ArDC. Reaction temperature: 800 °C.
Chemengineering 06 00047 g009
Chemengineering 06 00047 g010 550
Figure 10. SEM and TEM images of the carbonaceous nanomaterials grown at different CH4:H2 ratios for Co–Cu/ArDC. Reaction temperature: 800 °C.
Figure 10. SEM and TEM images of the carbonaceous nanomaterials grown at different CH4:H2 ratios for Co–Cu/ArDC. Reaction temperature: 800 °C.
Chemengineering 06 00047 g010
Table
Table 1. Textural properties of the fresh catalysts.
Table 1. Textural properties of the fresh catalysts.
SampleBET Area
(m2/g)		Pore Vol. 1
(cm3/g)		µpore Vol. 2
(cm3/g)		µpore Vol. (%)
Ni–Cu/ArDC4040.1680.13882
Co–Cu/ArDC4330.1820.16490
Ni–Cu/CDC [24]3430.4510.14833
Co–Cu/CDC [27]4380.2060.16078
1 Total pore volume at P/P0 > 0.989. 2 Estimated with the t-plot method.
Table
Table 2. Influence of temperature on the initial reaction rate and carbon productivity *.
Table 2. Influence of temperature on the initial reaction rate and carbon productivity *.
Temperature
(°C)		Ni–Cu/ArDCCo–Cu/ArDC
rC0
(gC/gmetal·min)		Carbon Product.
(gC/gmetal·h) *		Carbon
Product./rC0		rC0
(gC/gmetal·min)		Carbon Product.
(gC/gmetal·h) *		Carbon
Product./rC0
7501.20.990.830.30.160.52
8002.91.400.491.10.640.56
8505.91.490.252.30.740.32
90012.61.870.151.70.530.30
95011.221.290.111.60.340.21
* Carbon productivity after 2 h of reaction.
Table
Table 3. Influence of CH4/H2 feed-ratio on the initial reaction rate and carbon productivity.
Table 3. Influence of CH4/H2 feed-ratio on the initial reaction rate and carbon productivity.
CH4:H2Ni–Cu/ArDCCo–Cu/ArDC
rC0
(gC/gmetal·min)		Carbon Product.
(gC/gmetal·h) *		Carbon
Product./rC0		rC0
(gC/gmetal·min)		Carbon Product.
(gC/gmetal·h) *		Carbon
Product./rC0
0.50.80.650.830.20.200.83
12.01.160.570.60.400.67
22.91.400.491.10.640.56
34.11.670.411.60.710.45
* Carbon productivity after 2 h of reaction.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Cazaña, F.; Afailal, Z.; González-Martín, M.; Sánchez, J.L.; Latorre, N.; Romeo, E.; Arauzo, J.; Monzón, A. Hydrogen and CNT Production by Methane Cracking Using Ni–Cu and Co–Cu Catalysts Supported on Argan-Derived Carbon. ChemEngineering 2022, 6, 47. https://doi.org/10.3390/chemengineering6040047

AMA Style

Cazaña F, Afailal Z, González-Martín M, Sánchez JL, Latorre N, Romeo E, Arauzo J, Monzón A. Hydrogen and CNT Production by Methane Cracking Using Ni–Cu and Co–Cu Catalysts Supported on Argan-Derived Carbon. ChemEngineering. 2022; 6(4):47. https://doi.org/10.3390/chemengineering6040047

Chicago/Turabian Style

Cazaña, Fernando, Zainab Afailal, Miguel González-Martín, José Luis Sánchez, Nieves Latorre, Eva Romeo, Jesús Arauzo, and Antonio Monzón. 2022. "Hydrogen and CNT Production by Methane Cracking Using Ni–Cu and Co–Cu Catalysts Supported on Argan-Derived Carbon" ChemEngineering 6, no. 4: 47. https://doi.org/10.3390/chemengineering6040047

APA Style

Cazaña, F., Afailal, Z., González-Martín, M., Sánchez, J. L., Latorre, N., Romeo, E., Arauzo, J., & Monzón, A. (2022). Hydrogen and CNT Production by Methane Cracking Using Ni–Cu and Co–Cu Catalysts Supported on Argan-Derived Carbon. ChemEngineering, 6(4), 47. https://doi.org/10.3390/chemengineering6040047

Article Metrics

Back to TopTop
