Experimental Study on Absorption Behavior and Efficiency of Brine in Hazardous Gas Absorption Treatment

Abstract

There have been studies recently on bubble-column scrubbers with low cost and high efficiency for the absorption and treatment of hazardous gases in the event of a chemical spill. Bubble columns are vulnerable to freezing at temperatures below zero because the absorbents generally do not circulate. To address this issue, this study focused on the applicability, absorbed amount, and performance of brine as an absorbent. Under three different temperatures, i.e., −5 °C, −8 °C and −10 °C we examined brine (NaCl, CaCl₂, and MgCl₂) by varying the concentration required at each temperature. Following the experiments, CaCl₂ brine was determined as the optimal brine for its absorption performance and affordability. Based on the experimental results, the absorption performance for ammonia, ethylene oxide, and methylamine, which are hazardous and water-soluble gases among accident preparedness substances (APS), was tested by using ASEPN PLUS. Our results suggested although the efficiency dropped by about 5% to 25% when brine was used as an absorbent, it can be used at the low temperatures because the gas solubility increased with decreasing temperature. Therefore, if brine, as an alternative, is used at temperatures about 15 °C, it can operate efficiently and stably without deterioration in the absorption performance. Given our experimental results and design data on the absorbed amount and absorbent replacement period for major hazardous gases are utilized to prevent bubble columns from freezing, it can be commercially used for small and medium-sized enterprises because it can help reduce installation and operation costs.

1. Introduction

Although scrubbers are mainly used to absorb and treat hazardous gases in chemical plants, the burdens of operation, installation costs, and site selection are high to treat temporarily discharged hazardous gases. With such limitations, small and medium-sized enterprises (SMEs) have no choice but to discharge them into the atmosphere. Therefore, there have been studies on bubble-column scrubbers with low-cost and high-efficiency for temporarily-released gases with hydrophilic properties [1,2].

However, bubble columns can easily freeze at temperatures below zero because the absorbents do not generally circulate and stay within the devices. Failure to treat hazardous gases due to the freeze of the absorbents can lead to serious damages in terms of environment and safety, such as fire and explosion. To address this issue, brine can be an alternative absorbent in bubble columns [3,4]. Brine is an electrolyte containing a high-concentration solution of salt and has a lower freezing point than water, and is mainly used as a heat transfer medium in chemical plants [5,6]. However, it is difficult to use brine as an absorbent in practice because there has been a lack of design data such as the absorption performance, absorbent replacement period, and so on [7]. Therefore, this study aims to find the optimal brine which helps prevent freezing and analyze its effect and performance by conducting several experiments. Besides, a process simulation was carried out by using ASPEN PLUS to provide significant design data for major hazardous gases and other conditions [8].

2. Research Purpose and Methodology

Our research consists of two parts: a hazardous gas absorption experiment using brine as an absorbent and a process simulation for the experimental verification and expanded application to major hazardous gases by using ASPEN PLUS. In the first experiment, instead of hazardous gases, relatively safe CO₂ was absorbed into brine (NaCl, CaCl₂, and MgCl₂), which are mainly used in the field [9,10]. The optimal brine was determined by analyzing the absorbed amount, absorption efficiency, and so on. The experimental results were verified by comparing them with the simulated values from ASPEN PLUS run under the same conditions. Then, we expanded the application to different conditions (temperature, the volume of absorbents, etc.) and other major hazardous gases in addition to CO_2. Based on this, we derived design data applicable to the practice, including the absorption behavior and absorbent replacement period, and so on.

2.1. Experiment on Hazardous Gas Absorption Using Brine as an Absorbent

2.1.1. Experimental Device

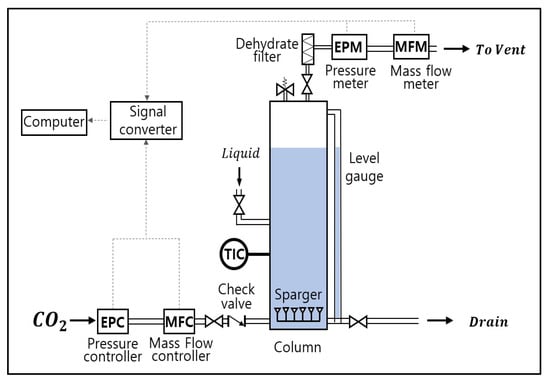

As shown in (Figure 1), the experimental device consists of a column, a cylinder, measurement and control devices (EPC, MFC, PT, and FT), a sparger, etc. CO₂ relatively less poisonous and accessible gas was used for the experiment [11].

The column was made of stainless material (SUS 304) in consideration of the impact of head pressure, etc. According to the bubble column scale-up design criteria, it was designed in the size of $230\times 230\times 1350 {\mathrm{mm}}^3$ (diameter based on the circular cross-sectional area ($D_c$) 260 mm, height 1350 mm (liquid height)) [12]. The diameter of the sparger orifice ($d_0$) was $5 \mathrm{mm}$, the pitch between the orifices was $20 \mathrm{mm}$. The size of the gas inflow pipe was $1/4″ \mathrm{SWL}$, $1/2″ \mathrm{SWL}$ for the gas discharge pipe, and $1/2″ \mathrm{PT}-\mathrm{F}$ for the pipe that liquid(water) flows in and out. A dehydrating filter was installed in the path, where gas at the upper part of the column is released, to reduce the measurement error due to the inflow of water vapor [13].

In order to control the pressure and flow rate of the inflow gases and measure the pressure and flow rate of the discharged gases, EPC and MFC were installed at the front of the column, and PT and FT at the rear of the column. In the column body, TIC was installed to maintain a constant temperature and a level gauge to measure the level inside the column. In addition, a safety valve (0.7 bar) was attached to prevent safety accidents due to over-pressure.

2.1.2. Experimental Conditions and Methods

For the analysis of the absorption performance by temperature, three different temperatures were set, i.e., −5 °C, −8 °C and −10 °C in consideration of the temperature by region in winter in Korea [14,15]. The concentration of brine required at each temperature was calculated using the freezing point depression equation as shown (

Table 1. The Amount of Chemical Substances Required for Experiment.

Substance	Solution	Temperature (°C)	Molarity (M)
NaCl	A	−5	1.30
	B	−8	2.06
	C	−10	2.55
CaCl2	A	−5	0.87
	B	−8	1.38
	C	−10	1.71
MgCl2	A	−5	0.88
	B	−8	1.38
	C	−10	1.71

). Further, in order to prevent the absorbents from freezing, we varied the concentration for each absorbent required at different temperatures, i.e., A at −5 °C, B at −8 °C, and C at −10 °C. Based on this, we prepared 70 L of solution and tested it at 25 °C, 1 atm. Then, CO₂ gas was injected into the solution through the sparger at a flow rate of 5 L/min and a pressure of 0.5 bar for 120 min. As shown in (

Table 2. Experimental Types and Conditions.

	Experiment No.	Condition (25 °C, 1 atm)
Experiment set (10 set)	Experiment 1	Tap water
	Experiment 2	NaCl	Solution A
	Experiment 3		Solution B
	Experiment 4		Solution C
	Experiment 5	CaCl2	Solution A
	Experiment 6		Solution B
	Experiment 7		Solution C
	Experiment 8	MgCl2	Solution A
	Experiment 9		Solution B
	Experiment 10		Solution C

), a total of ten experiments were conducted for each brine substance and by concentration level.

2.2. Verification and Expanded Application by Using ASPEN PLUS

2.2.1. Verification of Brine Gas Absorption Test Results

The verification test was conducted by comparing the experimental results with the simulated results from ASPEN PLUS, inputting the same conditions as the previous test. FTRUE (true component mole flow rate in liquid phase) property in the Mixture tool was used, which shows saturated molarity based on the amount of gas in the mixed solution [16]. Besides, all reactions, including components that could occur through the Electrolytes Template and Electrolyte Wizard, were entered. As for the method, NRTL was employed as in the experimental conditions, which can be considered suitable for low pressure (1~10 bar), light gas, polar component, Henry’s law, and ideal gas. Using the FTRUE property of the Mixture tool, all the amounts of apparent components used in the experiment were input to calculate the values.

2.2.2. Expanded Application to Major Hazardous Gases by Using ASPEN PLUS

Based on the previous verification test results from ASPEN PLUS, we expanded the application to other major harmful gases. Among the 97 APSs, ammonia, ethylene oxide, and methylamine were selected, which are water-soluble, flammable, hazardous, and exist as gases at room temperature [17]. Substances that react with water to generate hazardous substances were excluded. The three chemical substances were examined with the same approach as the previous CO₂ simulation with ASPEN PLUS.

3. Research Results

3.1. Experiment on Hazardous Gas Absorption Using Brine as an Absorbent

Determination of the Optimal Brine

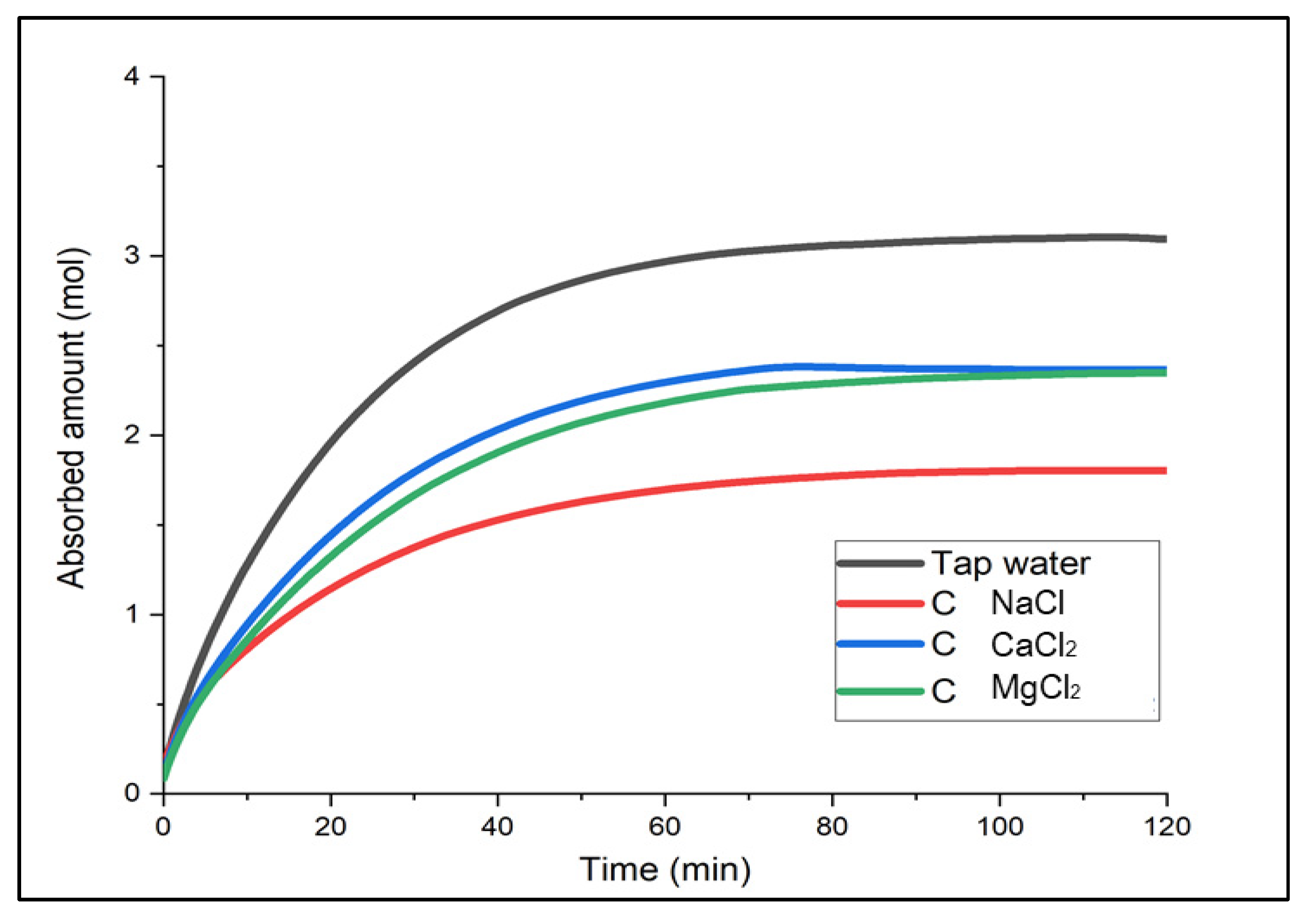

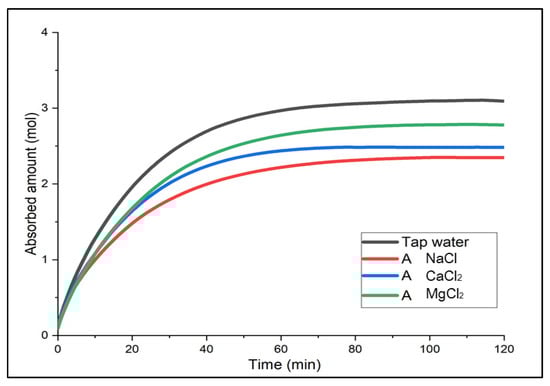

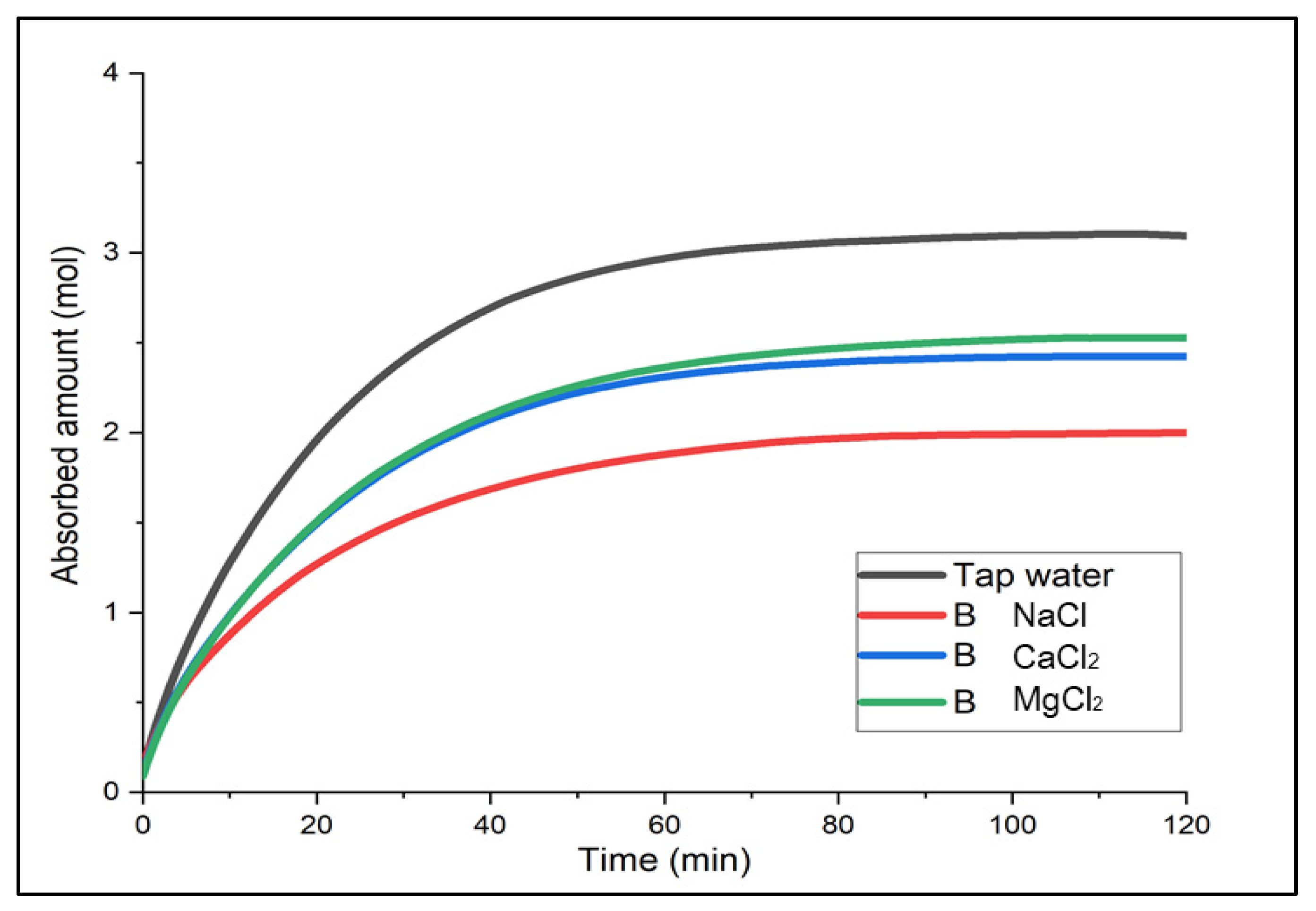

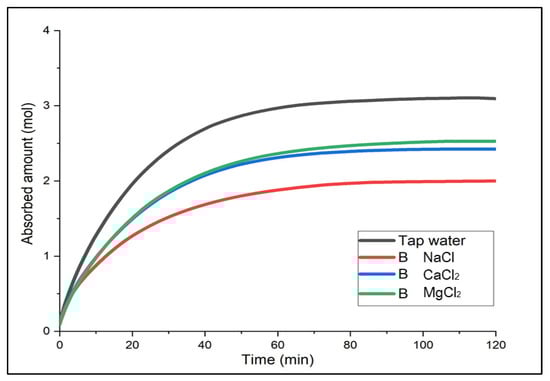

For the determination of the optimal brine, the gas solubility over time was compared when each brine solution required at the same temperature was used as an absorbent. The results are shown in (Figure 2, Figure 3 and Figure 4). Not only to analyze the absorbed amount (mol) saturated for two hours but also to determine a chemical substance that could show a faster absorption rate and higher performance in the early stage of a chemical accident and could be more useful for accident response, either the absorbed amount or efficiency for 20 min after gas supply was mainly compared.

First, Solution A with the smallest electrolyte concentration indicated high gas solubility in the order of MgCl₂ > CaCl₂ > NaCl [18]. For the first 20 min, the absorbed amount of CO₂ (mol) between CaCl₂ and MgCl₂ was similar, with 1.65 mol and 1.68 mol, respectively, but there was a difference in solubility value as CaCl₂ was saturated first. In Solution B and C, the saturation time was the fastest for CaCl_2. In Solution B, CaCl₂ and MgCl₂ showed a similar trend for about 40 min; after two hours, there was a slight difference in solubility, and CaCl₂ showed the greatest solubility in Solution C. To summarize, although overall, the solubility of CaCl₂ and MgCl₂ was similar, CaCl₂ indicated better performance in the earlier phase. In particular, CaCl₂ did not show a large difference in the gas solubility even with the different concentration levels. This implies that it would be easier to use at temperatures below zero because it does not require changing the concentration level of the solution when the temperature changes. Moreover, it is relatively economical and accessible. Hence, CaCl₂ was considered the optimal brine in terms of the initial absorption performance, affordability and properties, and absorption performance deviation by different concentration levels.

3.2. Verification and Expanded Application by Using ASPEN PLUS

3.2.1. Verification of Brine Gas Absorption Test Results

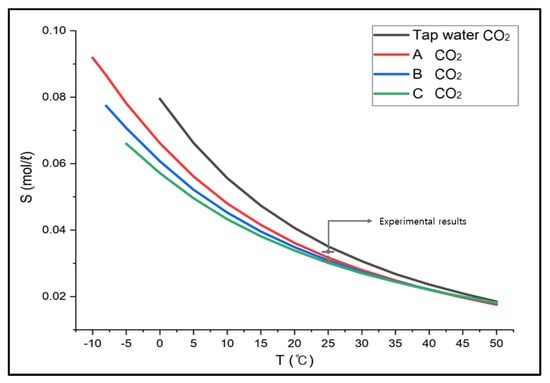

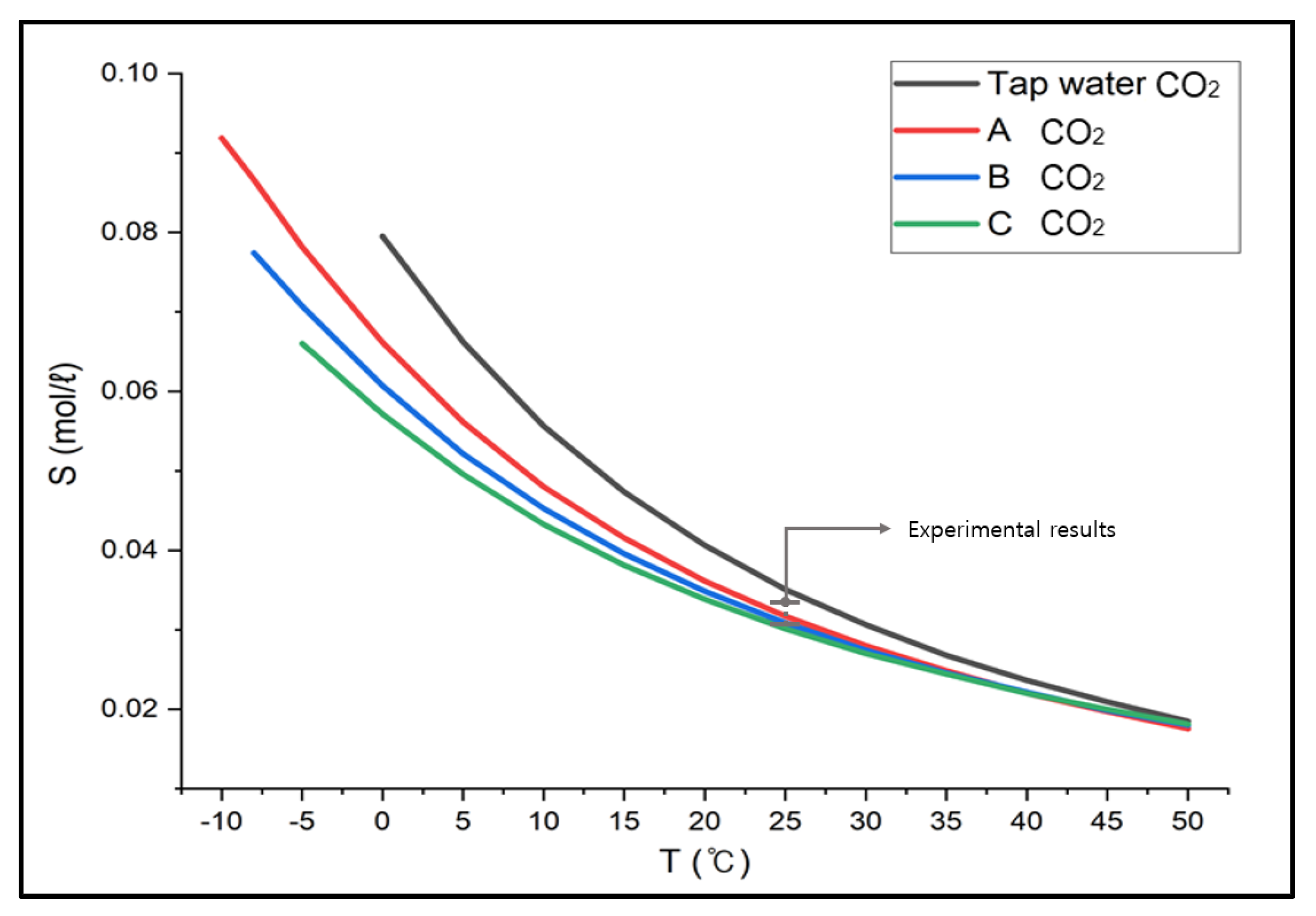

We compared the CO₂ absorption performance in CaCl₂ brine, which was determined as the optimal brine earlier, with the simulated values from ASPEN PLUS. First, our experimental results indicated that the solubility of CO₂ in CaCl₂ brine was 0.0355 mol/L in Solution A, 0.0347 mol/L in Solution B, and 0.0338 mol/L in Solution C. On the other hand, the simulated results from ASPEN PLUS showed 0.0317 mol/L in Solution A, 0.0309 mol/L in Solution B, and 0.0301 mol/L in Solution C. The experimental results and errors were in the range between 10.70% and 10.95%. The errors could be estimated because the amount of the absorbent solutions could gradually decrease, and the absorption concentration could increase relatively when the absorbent solutions were partially mixed with liquid drops during the CO₂ flow. The results between the actual experiments and the ASPEN simulation were similar, implying it can be further applied to other hazardous gases and different conditions. (Figure 5) describes the result of CO₂ gas solubility in CaCl₂ brine between −10 °C and −50 °C. It suggests the solubility of CO₂ decreased as the concentration and temperature increased [19,20].

3.2.2. Expanded Application to Major Hazardous Gases by Using ASPEN PLUS

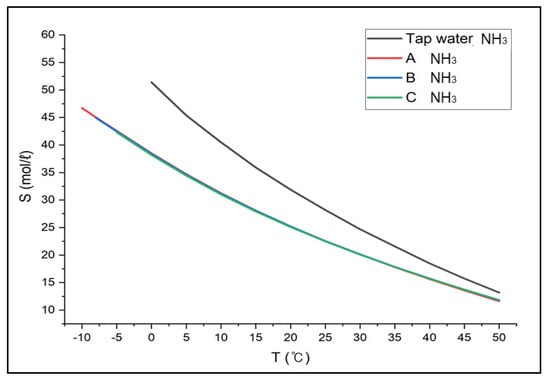

Based on the verification test results from ASPEN PLUS, we expanded the application to major hazardous gases, i.e., ammonia, ethylene oxide, and methylamine. Ammonia showed the solubility of 46.73 mol/L~11.61 mol/L (between −10 °C and 50 °C) in Solution A, 44.94 mol/L~11.79 mol/L (between −8 °C and 50 °C) in Solution B (between −8 °C and 50 °C), 42.30 mol/L~11.84 mol/L (between –5 °C and 50 °C) in Solution C, respectively in Figure 6. The solubility in tap water was 51.40 mol/L~13.18 mol/L (between 0 °C and 50 °C), and the solubility in brine was decreased by about 20% compared to that in tap water. In addition, the gas solubility in tap water at 25 °C was the same as in brine between 13 °C and 15 °C. This suggests the absorption efficiency would not drop even if the absorbent solution were replaced with brine from tap water.

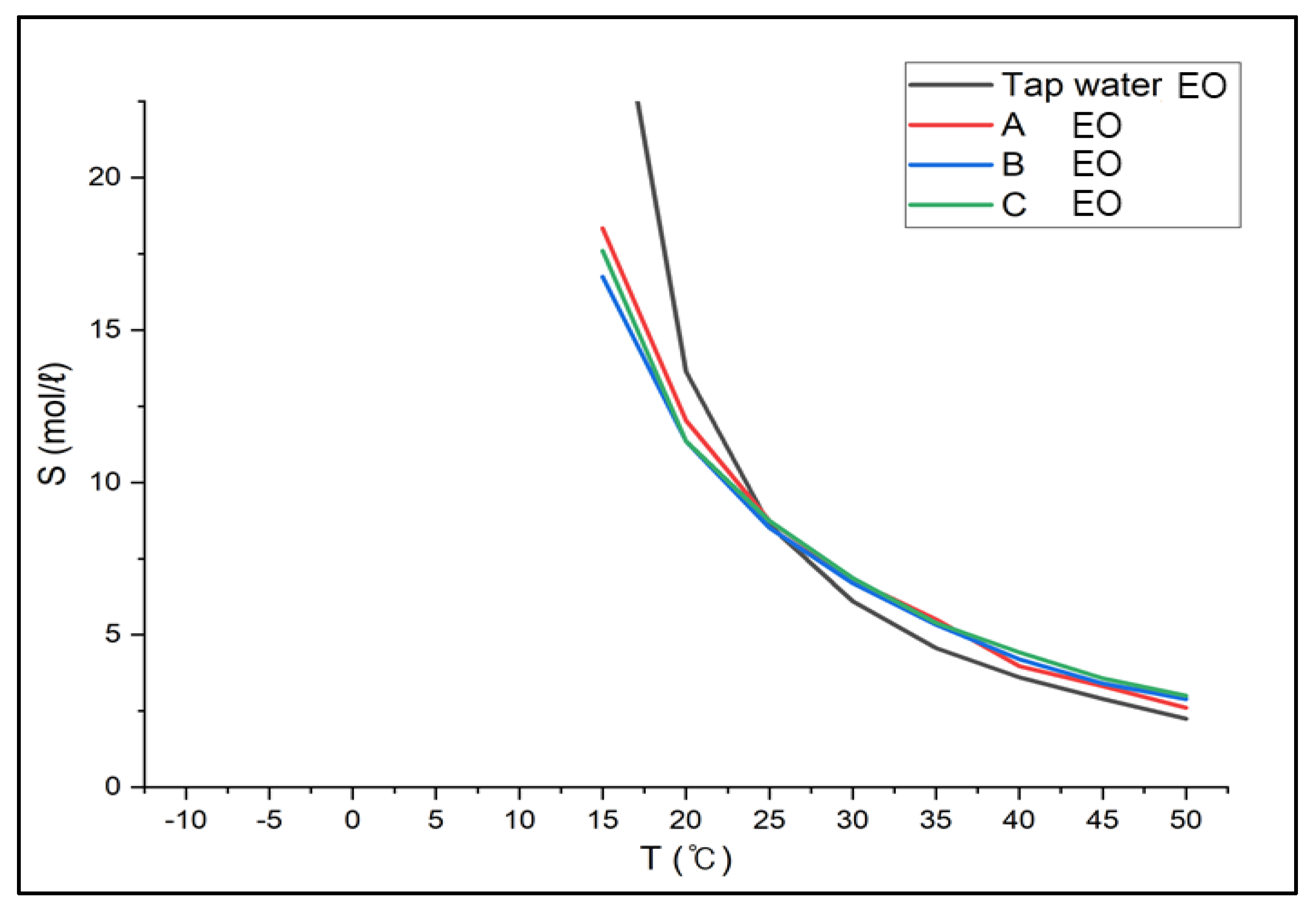

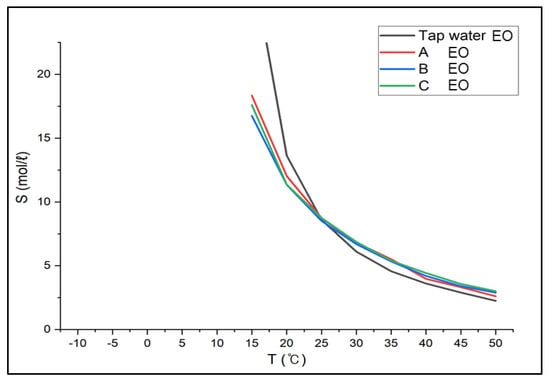

Since the boiling point of ethylene oxide is 10.7 °C and does not exist as gas below the boiling point, the results below approximately 15 °C were not considered. The results between 15 °C and 50 °C showed the solubility of 18.33~2.61 mol/L in Solution A, 16.74~2.89 mol/L in Solution B, 17.59~3.01 mol/L in Solution C in Figure 7. The solubility in tap water was 28.88~2.25 mol/L (between 0 °C and 50 °C), which was higher than the solubility in brine at low temperatures, but the solubility in tap water became lower than in brine as the temperature increased above 25 °C. Because the solubility of ethylene oxide in brine at a temperature below 25 °C was greater than in tap water at 25 °C, implying it is acceptable to replace the absorbent at any time regardless of temperatures below zero.

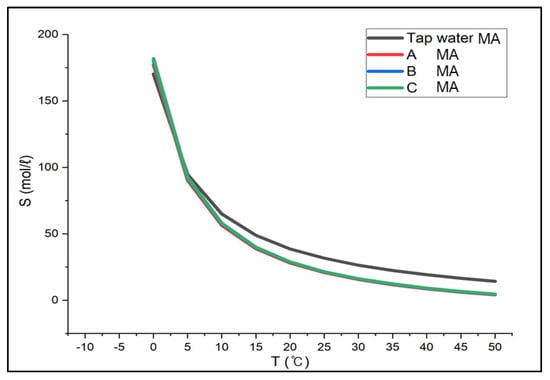

Similarly, for methylamine, when examining the results between 0 °C and 50 °C, which is above the boiling point, the solubility in Solution A was 177.24~4.07 mol/L, 180.28~4.44 mol/L in Solution B, 181.86~4.63 mol/L in Solution C, respectively. The solubility in tap water was 170.28~14.24 mol/L (0~50 °C) in Figure 8. Although the solubility in brine and tap water was similar at low temperatures, there was a difference of about 10 mol/L at higher temperatures. When brine was used as an absorbent, the solubility decreased by about 33%. In addition, the gas solubility in tap water at 25 °C was the same as in brine between 16 °C and 19 °C, suggesting that the absorption efficiency would not decrease even if the absorbent were replaced with brine from tap water.

4. Conclusions and Discussion

This study examined the solubility of CO₂ in brine. Based on the results, the solubility of the difficult-to-test hazardous gases was analyzed by using ASPEN PLUS. The results are as follows.

• When comparing the three different brines after varying the concentration required at different temperatures (−5 °C, −8 °C and −10 °C), CaCl₂ brine was considered the most practical in terms of performance, affordability, and accessibility.
• When CaCl₂ brine was used as an absorbent, the solubility of carbon dioxide decreased by about 25%, ammonia by about 20%, ethylene oxide by about 1%, and methylamine by about 33% compared to the solubility in tap water. However, since the gas solubility indicated higher values at low temperatures, no effort would be needed to increase the solubility.
• If the absorbent for bubble columns were substituted with brine (for carbon dioxide between 10 and 15 °C, for ammonia between 13 and 15 °C, for methylamine between 16 and 19 °C, and not required for ethylene oxide) at the temperatures about 15 °C, the bubble columns could operate stably and effectively without deterioration of the absorption efficiency.

Based on our experiments and simulations, design data such as the absorption properties for each hazardous gas and absorbent replacement period can be selectively considered according to the characteristics of each business premise. Since the result values in this study were theoretical values estimated by the thermodynamic model formula of the simulation program, it may differ from the actual situation. Therefore, in practice, it should be designed and operated with a conservative approach. This study estimated the saturation concentration of hazardous gases, and it can be applied to substances requiring absorption treatment at workplaces. However, it should be noted that the result values stand for the solubility in a saturated state, so it may be difficult to know the absorption performance for a certain set time or the amount of absorption over the time in the event of a chemical spill [21]. This can be obtained by simulating a dynamic modeling of the absorption rate r with the gas-liquid mass transfer theory [22].

It should be admitted that bubble columns have lower absorption performance than packed towers or scrubbers because they simply absorb bubbles with a sparger. However, if it were applied to substances that are temporarily discharged and absorbed well into water, unnecessary energy use such as continuous electric energy and pump power can be reduced. In addition, since the freezing issue of the absorbents at temperatures below zero can be resolved by using brine, which is relatively affordable and simple, installation and operation costs can be minimized so it can be commercially used for SMEs.
