Article

Investigation of Thermal Behavior of Layered Double Hydroxides Intercalated with Carboxymethylcellulose Aiming Bio-Carbon Based Nanocomposites

by
Vagner R. Magri
1,
Alfredo Duarte
1,
Gustavo F. Perotti
1,2 and
Vera R.L. Constantino
1,*
1
Departamento de Química Fundamental, Instituto de Química, Universidade de São Paulo (USP), Av. Prof. Lineu Prestes 748, São Paulo CEP 05508-000, SP, Brazil
2
Instituto de Ciências Exatas e Tecnologia, Universidade Federal do Amazonas (UFAM), Rua Nossa Senhora do Rosário 3863, Itacoatiara CEP 69103-128, AM, Brazil
*
Author to whom correspondence should be addressed.
ChemEngineering 2019, 3(2), 55; https://doi.org/10.3390/chemengineering3020055
Submission received: 31 March 2019 / Revised: 17 May 2019 / Accepted: 27 May 2019 / Published: 1 June 2019
(This article belongs to the Special Issue Advanced Applications of Layered Double Hydroxides)
Browse Figures
Versions Notes

Abstract

:
Carboxymethylcellulose (CMC), a polymer derived from biomass, was intercalated into layered double hydroxides (LDH) composed by M2+/Al3+ (M2Al-CMC, M = Mg or Zn) and evaluated as precursors for the preparation of biocarbon-based nanocomposites by pyrolysis. M2Al-CMC hybrids were obtained by coprecipitation and characterized by X ray diffraction (XRD), vibrational spectroscopies, chemical analysis, and thermal analysis coupled to mass spectrometry. Following, pyrolyzed materials obtained between 500–1000 °C were characterized by XRD, Raman spectroscopy, scanning electron microscopy (SEM) and energy dispersive spectroscopy (EDS). Above 600 °C, Raman spectra of all samples showed the presence of graphitic carbon, which plays a role in the degree of crystallinity of produced inorganic phases (for comparison purposes, M2Al-CO3 materials were investigated after calcination in the same experimental conditions). XRD patterns of Mg2Al-CMC pyrolyzed between 600–1000 °C showed poorly crystallized MgO and absence of spinel reflections, whereas for Zn2Al-CMC, it was observed well crystallized nanometric ZnO at 800 °C, and ZnAl2O4 and γ-Al2O3 phases at 1000 °C. Above 800 °C, the carbothermic reaction was noticed, transforming ZnO to zinc vapour. This study opens perspectives for nanocomposites preparation based on carbon and inorganic (mixed) oxides through precursors having organic-inorganic interactions at the nanoscale domain.

1. Introduction

More than forty minerals have been identified as layered double hydroxide (LDH) phases which structures are analogous to brucite mineral, Mg(OH)2 [1]. In nature, partial replacement of magnesium ions by Al3+, Fe3+, Cr3+, Mn3+ or Co3+ produces an excess of positive charges in the structure that are neutralized by simple counter ions such as carbonate, hydroxide, sulphate or chloride. In some minerals, divalent cations like Zn2+, Ni2+, Fe2+ or Mn2+ are present instead of magnesium. These materials are also called as hydrotalcite-type compounds given that the first identified LDH phase was nominated hydrotalcite (due to its textural resemblance with talc) [2].
The chemical composition of LDH materials is usually represented by the general formula [(M2+(1−x)M3+x)(OH)2]x+[Am−x/m·nH2O]x− and denoted as M2+RM3+-A, where M is the metal ion, R is the M2+/M3+ molar ratio and Am− is a hydrated anion [2,3]. The M2+/M3+ molar ratio in the minerals is usually 3 or 2 as for example in hydrotalcite ([Mg6Al2(OH)16]CO3·4H2O) and quintinite ([Mg4Al2(OH)12]CO3·3H2O), respectively [1]. In LDH structure, hydroxide ions are in a hexagonal close-packed arrangement in two adjacent planes in such a way that octahedral sites are occupied by metal cations (Figure 1a). The octahedral are edge-sharing along the crystallographic axes a and b, forming two-dimensional (2D) structures as shown in Figure 1b [3]. Positive layers are stacked along the c-axis and the anions are intercalated between them [3]. Different layers stacking of the same material can produce LDH structures with different dimensions along c direction, i.e., distinct polytypes: 3R (rhombohedral symmetry) or 2H (hexagonal symmetry) [3].
From the 1970s, synthetic materials similar to LDH minerals have been prepared in a laboratory and characterized by increasingly advanced physicochemical techniques [4]. Such materials are very versatile in terms of the chemical composition of layers, as well as M2+/M3+ molar ratio, and a great number of combinations with different anions can be employed in LDH synthesis. Instead of simple anions, LDH hybrid materials can be synthesized by the intercalation of polyoxometalates [5], anionic metal complexes [6] and organic species like drugs, dyes, amino acids, synthetic polymers and biopolymers [4,7,8]. Owing to their compositional versatility, a variety of LDH with different physical-chemical properties can be obtained for diverse applications, ranging from heterogeneous catalysis [9], environmental remediation [10], energy production [11], drug carrier and diagnosis in medicine [12] up to nanoreactors for prebiotic life [13].
LDH organic-inorganic hybrid materials have significant potential as precursors for nanocomposites based on mixed metal oxides (MMO) and carbonaceous species (C). Through calcination, LDH can be converted into oxides (MOx) and spinels (M1M2O4) which display M2+–O2− and M3+–O2− acid-basic sites, high specific surface area, well dispersed metals and fine tuning interface of components species suitable for adsorption and/or heterogeneous catalysis in a wide range of reactions [14,15,16]. Some studies have reported the preparation of MMO/C composites by the bottom-up method where an organic source is carbonized within the confined space between LDH layers [17]. This approach reduces the number of synthetic steps compared to the physical mixture of pre-prepared LDH and nanocarbon form (e.g., carbon nanotubes or graphene oxide), allowing isolation of porous carbon and yielding more homogeneous materials at submicroscale, fostering synergistic effects. Metal oxides (or hydroxides) and carbonaceous materials show exciting adsorption and catalytic properties suitable for applications in environmental remediation or development of sensors [17].
In this study, LDH materials composed by zinc, magnesium and aluminum cations intercalated with carboxymethylcellulose (CMC) polymer were chosen to investigate the thermal preparation of MMO/C composites. CMC is a water-soluble anionic polymer obtained through chemical modification of cellulose polysaccharide, the most abundant natural polymer [18]. Such polymer is constituted by a chain of glucose rings connected by β-1,4 glycosidic linkages between C(1) and C(4) of adjacent units, with a carboxymethyl-substituted group mainly at C(6) position (Figure 1c). As a biomass derivative, CMC is a low-cost, abundant and sustainable source for biocarbon production and, as an anionic polyelectrolyte, can be intercalated into LDH structure. Small organic species intercalated into LDH can be volatilized even under pyrolytic conditions precluding the carbon formation. The usage of polymeric organic species increases the possibility of carbon production in a non-oxidizing atmosphere.
Few studies were reported about systems comprising LDH and CMC but none of them focused on the preparation of MMO/C nanocomposites. Mg1.15Al-CMC material was prepared by exfoliation of nitrate-LDH in formamide and posterior restacking in a sodium CMC solution also in the organic solvent [19]. Later M2Al-CMC (M = Mg, Zn, Cu, Ni) materials were isolated by coprecipitation method [20,21].
In this work, composite materials based on MMO/C were prepared at four temperature values (500, 600, 800 and 1000 °C) through pyrolysis of M2Al-LDH (M = Mg2+ or Zn2+) intercalated with CMC, as represented in Figure 2. LDH materials constituted by Mg2+/Al3+ and Zn2+/Al3+ were chosen owing to dissimilar characteristics as thermal stability [22] and topological transformation from LDH to MMO [23,24]. Otherwise, for comparison purposes, LDH materials containing intercalated carbonate instead of CMC were also prepared to investigate the probable influence of CMC on the inorganic phases achieved in the pyrolysis process. Nanocomposites comprising of graphitic carbon, metal oxides and spinel phases were produced within the 600–1000 °C range. For the LDH hybrid material containing Zn2+ ions, ZnO nanocrystals were observed when pyrolysis was performed at 800 °C; zinc oxide underwent a carbothermic reaction at higher temperatures. Whereas, XRD pattern of Mg2Al-CMC exhibited only MgO phase within the 600–1000 °C range, indicating that pyrolyzed CMC hindered the spinel phase crystallization.

2. Materials and Methods

2.1. Chemicals

Magnesium nitrate hexahydrate (Mg(NO3)2·6H2O, Merck), aluminum nitrate nonahydrate (Al(NO3)3·9H2O, Merck), zinc nitrate hexahydrate (Zn(NO3)2·6H2O, Merck), magnesium chloride hexahydrate (MgCl2·6H2O, Sigma-Aldrich), aluminum chloride hexahydrate (AlCl3·6H2O, Sigma-Aldrich), zinc chloride (ZnCl2, Sigma-Aldrich), sodium hydroxide (NaOH, Sigma-Aldrich), sodium carbonate (Na2CO3, Merck), sodium carboxymethylcellulose—CMC (90 kDa, Degree of substitution 0.7, Sigma-Aldrich) were used without further purification. Deionized water was used in all experimental procedures.

2.2. Preparation of LDH-CMC Hybrid Materials

The intercalation of CMC polymer into LDH was carried out by co-precipitation method and the best experimental conditions are described ahead. For the preparation of the Mg2Al-CMC sample, 3.070 g of CMC was solubilized into 250 mL of deionized water and the pH value of the solution was adjusted to 9.5 by the addition of NaOH 0.2 mol·L−1 solution. Afterwards, 250 mL of an aqueous solution containing 16.67 mmol of MgCl2·6H2O and 8.83 mmol of AlCl3·6H2O was added dropwise to CMC solution under a nitrogen atmosphere and vigorous stirring. The pH value was maintained constant by the addition of NaOH 0.2 mol·L−1 solution. The co-precipitation reaction was carried at 60 °C and, after the complete addition of the metal cations solution, the suspension was maintained for 6 h at 60 °C. The white precipitate was centrifuged, washed four times with deionized water and dried at room temperature under reduced pressure.
For the preparation of the Zn2Al-CMC sample, 20 g of CMC was solubilized into 850 mL of deionized water and the pH value of the solution was adjusted to 7.5 by the addition of NaOH 0.5 mol·L−1 solution. Afterwards, 520 mL of an aqueous solution containing 41.20 mmol of ZnCl2 and 21.41 mmol of AlCl3·6H2O was added dropwise to CMC solution under a nitrogen atmosphere, vigorous stirring and at room temperature. The pH value was maintained constant by the addition of NaOH 0.5 mol·L−1 solution. After addition of the metal cations solution, the suspension was dialyzed for 3 days changing the water after each 12 h. The white precipitate was then freeze dried.
For comparison purpose, Mg2+/Al3+ and Zn2+/Al3+ LDH materials intercalated with carbonate anion (Mg2Al-CO3 and Zn2Al-CO3) were synthesized as described by Miyata [25] with modifications. Typically, the pH value of 250 mL of water was adjusted to 9.5 (for Mg2Al-CO3) or 9.0 (for Zn2Al-CO3) by the addition of Na2CO3 0.2 mol·L−1 solution. To this solution, 250 mL of a solution containing 16.67 mmol of Mg(NO3)2·6H2O (or Zn(NO3)2·6H2O) and 8.33 mmol of AlCl3·6H2O was added dropwise under stirring. The co-precipitation reaction was carried out at an ambient atmosphere and room temperature. The pH value was maintained constant by the addition of Na2CO3 0.2 mol·L−1 solution. After addition of the metal cations solutions, the suspension was maintained under stirring at ambient atmosphere and room temperature for 2 h. The white precipitate was centrifuged, washed five times with deionized water, one time with ethanol and dried at room temperature under reduced pressure.

2.3. Preparation of MMO/C Composites

Mg2Al-CMC and Zn2Al-CMC precursors were pyrolyzed on a Shimadzu TGA-50 furnace under a molecular nitrogen flow of 50 mL min−1, using alumina crucibles and a heating rate of 10 °C min−1, at temperatures of 500, 600, 800 and 1000 °C. For comparison purpose, Mg2Al-CO3 and Zn2Al-CO3 were calcined under nitrogen flow using the same parameters. Besides, Mg2Al-CMC and Zn2Al-CMC precursors were also calcined under synthetic air at 1000 °C, using the same conditions described to pyrolysis at N2 environment. Afterwards, heated samples were stored in a desiccator containing silica gel under reduced pressure.

2.4. Physical Measurements

Elemental chemical analysis (carbon and hydrogen) were performed on a Perking Elmer model 2400 analyzer. Magnesium, zinc and aluminum contents were determined in triplicate by inductively coupled plasma optical emission spectroscopy (ICP OES) on a Spectro Arcos spectrometer. Both analyses were performed at the Central Analítica of Instituto de Química da Universidade de São Paulo (CA-IQUSP).
Mass spectrometry coupled to simultaneous thermogravimetric analysis and differential scanning calorimetry (TG-DSC-MS) were performed on a Netzsch thermoanalyzer model TGA/DSC 409 PC Luxx coupled to an Aëolos 403 C mass spectrometer under synthetic air or N2 flow of 50 mL min−1 employing alumina crucibles and a heating rate of 10 °C·min−1.
X ray diffraction (XRD) patterns of powdered samples were recorded on a Bruker diffractometer model D8 DISCOVER equipped with Nickel-filtered CuKα radiation (0.15418 nm), operating at 40 kV, 30 mA, sample rotating at 20 rpm, from 1.5 to 70° (2θ) at 0.05° intervals, 3 s per interval.
Fourier transform infrared (FTIR) spectra of powdered samples were recorded in the 4000–400 cm−1 range on a Bruker Alpha spectrometer using a single bounce attenuated total diffuse reflectance (ATR) mode with a diamond crystal. Fourier transform Raman (FT-Raman) spectra were recorded on an FT-Raman Bruker FRS-100/S instrument using 1064 nm excitation radiation (Nd3+/YAG laser) and liquid nitrogen cooled Ge detector. Raman spectra of pyrolyzed samples were recorded in the 3500–100 cm−1 range on a Renishaw inVia instrument coupled to a confocal Leica microscope and a CCD detector, using 532 nm excitation radiation (Nd3+/YAG laser).
Scanning Electron (SEM) micrographs were collected using a JEOL JSM7401F instrument, equipped with a field emission gun (FEG). Accelerating voltages (kV) are reported on each micrograph. Energy Dispersive X ray Spectra (EDS) were collected simultaneously on a Thermo Fischer Scientific detector, Pioneer model, 30 mm² Si Crystal, coupled to a Noran System Six signal processor (NSS). Powder samples were pulverized onto carbon conductive tapes prior to SEM imaging.

3. Results and Discussion

3.1. Characterization of LDH-CMC Hybrid Materials

XRD patterns of LDH-CO3 and LDH-CMC synthesized samples showed profiles characteristic of layered double hydroxides (Figure 3). LDH-CO3 samples are more crystalline than LDH-CMC, as evidenced by the high intensity and narrow diffraction peaks which can be indexed assuming a hexagonal cell with rhombohedral symmetry (3R polytype) and R-3m space group. The reflections observed at 2θ values below 30° are assigned to the (00l) planes that are related to interlayer distance (dbasal) and the cell parameter c (Figure 1b). The reflection observed in 2θ values in the region of 60° is attributed to the (110) plane related to the cell parameter a that gives the average distance between metal cations in the layer. The presence of broad XRD peaks associated with both (003) and (110) planes of LDH-CMC samples indicates that the crystal dimensions are both reduced in the crystallographic directions a and c in comparison to LDH-CO3 materials [26]. Table S1 (Supplementary Materials) shows the 2θ values, the respective interplane distances (dhkl) and the calculated unit cell parameters for LDH materials. For Zn2Al-CO3 and Mg2Al-CO3 samples, the d003 spacing values were respectively 0.754 nm and 0.765 nm. Samples Zn2Al-CMC and Mg2Al-CMC showed a shift of 003 diffraction peaks to 2.492 and 1.715 nm, respectively, indicating an expansion of the interlayer space in order to accommodate the macromolecules.
XRD pattern of Mg2Al-CMC sample prepared by Yadollahi and Namazi [20] presented d003 spacing value equal to 1.73 nm while Zn2Al-CMC sample reported by Yadollahi et al. [21] showed the d003 value of 1.58 nm. Considering that CMC is a polymer that may present different arrangements, the proposal of a conformation for the chains between the LDH layers is not straightforward. The basal spacing difference between Mg2Al-CMC and Zn2Al-CMC materials prepared in this work may be related to the higher water and CMC contents in the zinc matrix. The calculated d110 values for Zn2Al-CO3 and Zn2Al-CMC were 0.153 nm, while for Mg2Al-CO3 and Mg2Al-CMC were 0.152 nm and 0.151 nm, respectively, which means that the molar ratio between the metal cations is similar in the samples. These points will be discussed later when chemical elemental analysis will be presented.
XRD pattern of NaCMC exhibits mainly one broad peak around 2θ value of 20° (Figure S1, Supplementary Materials) which is associated with the low degree of organization of the macromolecules [27]. Considering the XRD patterns of LDH-CMC samples, it is observed a broad hump at (2θ) 20° that could suggest that part of the polymer chains might not be confined within the interlayer space but rather adsorbed over LDH particles. XRD patterns of M2Al-CMC (M2+ = Mg, Zn, Ni, Cu) samples reported in the literature [21] also showed a broad peak in the same region.
The infrared and FT-Raman spectra of Zn2Al-CO3 and Mg2Al-CO3 are shown in Figure 4. The discussion about vibrational data is presented in Supplementary Materials, as well as a tentative attribution of the main vibrational bands (Table S2).
The spectroscopic characterization of sodium CMC and LDH-CMC samples was evaluated by FTIR-ATR and FT-Raman spectroscopies (Figure 4). Spectra of the polymer and hybrid materials are very similar, and the results clearly indicate the presence of CMC in the LDH structure. A tentative attribution regarding cellulose and carboxymethylcellulose spectroscopic data is presented in Table 1. The NaCMC bands attributed to antisymmetric and symmetric stretching of carboxylate groups are noticed at 1585 cm−1 (νasCOO−) and 1412 cm−1 (νsCOO−), respectively. In the LDH-CMC spectra, the νasCOO− band is shifted to 1577 cm−1. The ΔνCOO− values calculated by the formula ΔνCOO− = νas − νs are very close to that one of NaCMC, indicating an electrostatic interaction of carboxylate groups with LDH layers. Bands in the 1100–980 cm−1 region are assigned to stretching and bending vibration of C–O bond from the glycosidic ring and hydroxyl groups. FT-Raman spectra of NaCMC and the hybrid materials show very similar bands. The band at 2907 cm−1 is related to C–H stretching, at 1118 cm−1 is attributed to symmetric stretching of C(1)–O–C(4) group and ring breathing, and at 918 cm−1 is assigned to bending C(5)C(6)–H and HC(6)O.
Thermal analysis technique indicated significant changes in the CMC thermal profile before and after the intercalation process. In the pristine form and under N2 atmosphere, NaCMC exhibits four events of mass loss until 1000 °C (Figure S2, Supplementary Materials). The first event, endothermic, occurring from room temperature up to about 170 °C is attributed to the release of a total of 7.3 % of the initial mass as water molecules (release of fragment m/z = 18) presented initially in the hydrophilic polymer. According to TGA and DSC data, the polymer decomposition occurs in two exothermic steps [35,36]. The first step, steeper, in the 240–320 °C range, promotes release of water (m/z = 18), decarboxylation with CO2 (m/z = 44) release and a low amount of C3H5 (m/z = 41); the second step, in the 320–530 °C range, yields a charred residue. The last event of mass loss, also endothermic, recorded above 800 °C can be related to the decomposition of carbonaceous matter to Na2CO3 [35]. CMC used in this study has 0.7 of the degree of substitution (DS) of carboxymethyl group and, as a result, the repeating unit (RU) can be represented by C6H10O5(C2H2O2Na)0.7. Considering this composition, the expected percentage of Na2CO3 residue (13.7%) is very close to the experimental value (13.5%) obtained by TGA analysis (Figure S2).
The knowledge of the thermal behavior of carbonate LDH phases and the products produced in distinct temperatures is important to contrast with thermal properties of LDH-CMC precursors. According to TGA-MS results, for both carbonate-based layered structures, three main events of mass loss can be described (Figure 5). The first event, ranging from room temperature up to 220 °C is related to the release of interlayer and adsorbed water molecules [37], as indicated for MS curve (release of m/z = 18 fragment). The initial structure is proven to be modified even at temperatures above 100 °C owing to the detection of growing quantities of m/z = 44 (CO2) fragment in MS analysis. In the second event of mass loss at temperatures above 200 °C, composition integrity of the layered structure is severely affected owing to the release of water molecules (m/z = 18) through a mechanism known as dehydroxylation [37]. For Zn2Al-CO3, the onset temperature for dehydroxylation was observed at a lower temperature (215 °C) in comparison to Mg2Al-CO3 (282 °C), and thus it can be inferred that the Mg2Al-CO3 structure is thermally more stable than the analogous phase of zinc.
Around the same temperature value and at higher temperatures, the release of m/z = 44 fragment (CO2) is intensified for Mg2Al-CO3 as the third event of mass loss (decarbonation process) occurs. At around 480 °C, dehydroxylation is ended for Mg2Al-CO3 sample but carbonate decomposition (release of m/z = 44 fragment) is still observed at temperatures up to 700 °C (even though the majority of carbonate decomposes at around 440 °C). On the other hand, Zn2Al-CO3 material exhibits a distinct thermal behavior. Even though it dehydroxylates and is partially decarbonated (since the m/z = 44 fragment analysis reveals the increase of CO2 detection above 200 °C), only a small fraction of carbonate ions is released. Just at temperature values higher than 520 °C, m/z = 44 fragment is detected in large quantities in an apparent two distinct mechanisms of mass loss up to 840 °C. Such differences in the decarbonation process for Zn2Al-CO3 compared to Mg2Al-CO3 can be a direct consequence of the occurrence of dehydroxylation of the Zn-based LDH at lower temperatures than the thermal decomposition of carbonate, which allows the coordination of CO32− ion to metals present in the formed mixed oxide structure, increasing the anion thermal stability [22,23]. As the temperature of the analysis is increased, after dehydroxylation of the LDH is completed, it is formed an amorphous M2+(Al)O oxide phase, followed by the formation of crystalline oxide phases. Above temperature values of 500 and 800 °C, spinel phases are obtained respectively for Zn2Al-CO3 and Mg2Al-CO3 [23,38,39].
For Zn2Al-CMC, the dehydration step occurs within the 30–250 °C temperature range, closely followed by Mg2Al-CMC in the 30–225 °C range according to the increase in the amount of the m/z = 18 (H2O) fragment detected (Figure 5). The second event of mass loss (from 250 to 380 °C) is related to the thermal decomposition of polymer chains through release of water molecules (m/z = 18) from hydroxyl groups in the polymer composition and decarboxylation of side groups (m/z = 44) for both layered systems, according to DTG data. Although the beginning of this decomposition event is not significantly shifted towards higher temperatures, when pristine NaCMC is compared to the intercalated polymer into LDH galleries, it is noticed that the polymer decomposition event exhibits larger thermal range after immobilization. Hence, the interaction between both inorganic and organic phases delays the start of polymer fragmentation.
Above 380 °C, MS curves of M2Al-CMC phases are altered substantially depending on the composition of the inorganic layers (Figure 5). At higher temperature values, glucose chains undergo fragmentation in both LDH samples yielding not only water and carbon dioxide molecules but also C3H5 fragments (m/z = 41). Even though the beginning of this event is around the same value for both Mg and Zn-based LDH, it is observed that this second decomposition step is extended to a wider temperature range for Mg2Al-CMC (380–605 °C) than for Zn2Al-CMC (380–520 °C). Mass changes are negligible above 605 °C for Mg-based hybrid material (Figure 5). On the other hand, the TGA curve of Zn2Al-CMC reveals one event of mass loss above 760 °C which is not observed in the same experiment conducted at air atmosphere (data not shown). This observation is surprising considering that it is expected the release of less volatile compounds at N2 atmosphere than at molecular oxygen environment. The ascription of this event will be clarified ahead in view of XRD and SEM data of pyrolyzed materials.
Based on the dehydration process observed by TGA and data from the chemical elementary analysis, a formula is proposed for LDH-CO3 and LDH-CMC materials synthesized in this work (Table S3). Experimental M2+/Al3+ molar ratio is very close to the nominal value for carbonate or CMC intercalated LDH materials. Precursor hybrid materials present about 20–22% in mass of carbon element.

3.2. Characterization of MMO/C Composites

LDH-CMC samples pyrolyzed at 500, 600, 800 and 1000 °C (MMO/C nanocomposites) were evaluated by Raman spectroscopy to assess the type of carbonaceous material obtained (Figure 6). Raman spectra of both LDH-CMC pyrolyzed at 500 °C still show fluorescence that suppressed vibrational bands, as observed for NaCMC and LDH-CMC precursors (Figure S3).
The characteristic spectral profile of graphitic materials is observed for samples obtained in the 600–1000 °C range (Figure 6): bands D (1340–1350 cm−1), G (1590–1600 cm−1) and 2D (2500–2800 cm−1). Band G is assigned to the in plane stretching of the C=C bonds (Csp2) and is characteristic for all forms of sp2 carbon. Band D is attributed to ring breathing and requires defects for its activation [40,41,42]. However, besides the graphitic bands, Raman spectra of pyrolyzed samples at 600 °C also exhibit shoulders attributed to amorphous hydrogenated carbonaceous material at 1180 cm−1 (C–H in aromatic ring structure and correlated to a rich sp3 structure), 1430 cm−1 (aromatic ring breathing for rings containing more than two fused aromatic rings), and 1250 cm−1 (rich sp3 structure as an aryl-alkyl C–C (like polyacetylene) bonded to aromatic species) [42,43]. These bands disappear with temperature increasing up to 1000 °C. The intensity ratio between bands D and G (ID/IG) is also increased with temperature progression, pointing out dehydrogenation of carbonaceous material and intensification of aromatic rings [43]. Hence, amorphous carbon is produced between 500 and 600 °C, and yield a more organized structure as the temperature is further increased.
FTIR-ATR spectra of LDH-CMC pyrolyzed materials exhibit weak bands assigned to the organic polymer (Figure 7). A significant change is observed at 1150–990 cm−1 region, attributed to C–O–C and C–O vibration modes of glycoside rings and to hydroxyl groups, indicating their conversion to other compounds as the temperature is increased. In general, bands observed bellow 900 cm−1 are assigned to vibrational modes of M–O bonds as already discussed in Supplementary Materials (Table S2). For comparison purpose, the FTIR-ATR spectra of LDH-CO3 calcined samples (Figure S4) and the discussion about the results are presented in Supplementary Materials.
To investigate the differences between the thermal transformations of Mg2Al-LDH and Zn2Al-LDH materials, XRD patterns of samples calcined between 500–1000 °C under N2 flow were recorded (Figure 8). Zn2Al-CMC pyrolyzed and Zn2Al-CO3 calcined at 500 and 600 °C are converted into a poor crystalized ZnO phase. However, at higher temperature values, the products from pyrolysis are very distinctive indicating an influence of the organic polymer in the structure and composition of the inorganic portion of the produced composite. ZnO phase produced from the hybrid LDH at 800 °C is significantly more crystalline than that one obtained from Zn2Al-CO3. On the other hand, Zn2Al-CO3 is transformed into a well crystalized ZnO and ZnAl2O4 (spinel) phases at 1000 °C, while XRD pattern of Zn2Al-CMC presents peaks attributed to ZnAl2O4 and poor crystalized γ-Al2O3 phase. From 800 to 1000 °C, Zn2Al-CMC material seems to lose the ZnO phase and this event should be correlated to that one noticed by thermal analysis in the same temperature range (Figure 5).
XRD patterns of Mg2Al-CMC pyrolyzed between 500–1000 °C indicate the formation MgO phase which crystallinity is increased with the temperature evolution (Figure 8). Similarly, Mg2Al-CO3 sample calcined between 500–800 °C shows reflections of MgO. However, when calcined at 1000 °C, MgO and MgAl2O4 (spinel) phases are observed. The organic polymer intercalated into LDH modified the degree of organization of the inorganic portion of pyrolyzed products. If calcined under an air atmosphere at 1000 °C, both LDH-CMC materials produce metal oxide and spinel phases (Figure S5a) likewise LDH-CO3 samples under nitrogen atmosphere (Figure 8). In addition, whereas the Mg2Al-CMC sample calcined under synthetic air presented less residual mass than that calcined under N2 at 1000 °C, as it is expected due to carbonized matter, curiously the opposite was observed for Zn2Al-CMC sample (Figure S5b).
It can be proposed that graphitic carbonaceous material formed during the pyrolysis of hybrid LDH, and evidenced by Raman spectroscopy (Figure 6), hinders the formation of crystalline spinel phase in the obtained MMO/C nanocomposites, and allows the production of well crystallized ZnO particles at lower temperatures compared to Zn2Al-CO3. Besides that, comparing the results of thermal analysis (Figure 5), Raman spectroscopy (Figure 6) and XRD (Figure 8), it is proposed that a carbothermic reaction is occurring between 800–1000 °C, i.e., ZnO is reduced to metal form by carbon (from CMC pyrolysis) and released as vapour (zinc boiling point is 920 °C), as represented by the following chemical equation:
ZnO(s) + C(gr) → Zn(v) + CO(g).
Metal zinc is produced by five industrial processes involving mainly the pyrometallurgical method. Carbon is mixed with ZnO and heated at about 1000–1300 °C to produce the metal in the vapour phase [44]. The presence of aluminum oxide at Zn2Al-CMC pyrolyzed at 1000 °C can indicate the partial reduction of spinel phase as observed for the mineral gahnite (a zinc aluminate of ZnAl2O4 composition) in the presence of carbon [45]. Hence, a spinel phase decomposition could be represented by the following chemical equation:
ZnAl2O4(s) + C(gr) → Al2O3(s) + Zn(v) + CO(g).
A discussion about thermodynamic aspects of reaction (1) can be found in Supplementary Materials (Tables S4 and S5). The carbothermic reaction can explain the disappearance of ZnO diffraction peaks (Figure 8) and the formation of γ-Al2O3 phase. As it is expected, under synthetic air this reaction is not observed because CMC is fully decomposed at 600 °C (data not shown). To the best of our knowledge, this is the first time that carbothermic reaction is reported for zinc-LDH intercalated with organic species.
SEM micrographs shown different morphological transition from LDH to oxides phases according to M2+ cation composition (M2+ = Mg2+ or Zn2+). The micrographs of LDH-CMC precursor samples (Figure 9a,b) exhibit a lack of surface distinction among particles, showing up as a continuous mass. This observation can be interpreted as a consequence of small particles formation as already suggested by XRD patterns (Figure 3); morphology of LDH-CMC samples are very distinct of M2Al-CO3 phases, which interparticle frontiers are usually easily distinguished (Figure S6). The presence of the polymer chains also on the external surfaces of LDH particles can contribute to the continuous mass aspect seen in the images. Through an agglomeration process, which occurs along with the sedimentation of particles from reactional media, high surface energies acting over a large number of very small particles can generate such aspect, and behave as a cohesive mass.
Morphological alterations are evident when the pyrolysis process is carried out at 800 °C, producing distinguishable particles at a nanoscale (Figure 9c–f). Thermal decomposition of Zn2Al-CMC agglomerates gives rise to denser and zinc/oxygen richer particles as shown respectively by brighter secondary electron contrast (Figure 9c) and EDS spectra (Figure S7). Zn2Al-CMC pyrolyzed at 800 °C is composed mainly by well-defined crystallites reaching up to hundreds of nanometers in size and connected though their grain boundaries (Figure 9e). These observations agree with its respective XRD pattern (Figure 6), which evidences the arising of a high crystalline ZnO phase. In comparison, the absence of prominent morphologies is noticed for Mg2Al-CMC pyrolyzed at 800 °C (Figure 9d), the sole new feature is the peeling appearance (Figure 9f). Possibly CMC thermal decomposition promotes the weakening and rupture of interfacial interactions among particles, previously acting as an interparticle connector; the subsequent gas evolution from polymer decomposition and matrix dehydroxylation (Figure 5) can also corroborate to the breakdown of the cohesive mass.
A new set of superficial transformations takes place when Zn2Al-CMC material is pyrolyzed at 1000 °C (Figure 9g). The zinc rich phase previously observed at 800 °C completely vanishes and a new one emerges, as can be visually depicted mostly as a collection of anisotropic acicular nanocrystals, assembled as branched particles onto the MMO/C composite surface. Besides, EDS spectra collected from this sample reveal considerable decrease in Zn signal (Figure S8). This observation is indicative of ZnO depletion owing to the carbothermic reduction, as suggested by thermal analysis (Figure 5), and XRD pattern recorded for Zn2Al-CMC pyrolyzed at 1000 °C (Figure 8). When comparing EDS spectra of acicular particles (Figure S8) to those observed at 800 °C, it is observed an inversion in the intensity between Zn and Al peaks. Branched particles produce EDS spectra with higher aluminum and oxygen intensities compared to those collected from their vicinity, indicating they are composed by Al2O3 (higher Al and O content) as observed by XRD for Zn2Al-CMC pyrolyzed at 1000 °C (Figure 8). The superficial features of Mg2Al-CMC pyrolyzed at 800 °C are preserved when heated up to 1000 °C (Figure 9h). Also, no significant changes are detected in Mg/Al/O composition by EDS spectroscopy (data not shown) for samples obtained at both high temperature values.
Nanocomposites prepared in this study from a carbon precursor derived from biomass intercalated between LDH based on magnesium and aluminum in the 600–1000 °C range can be explored as adsorbent or catalyst. For example, composite constituted by MgO and biochar obtained by the electrochemical method, which was used for phosphate removal from water [46]. Nanocomposites obtained by Zn2Al-CMC pyrolysis in the 600–800 °C range produce incrusted ZnO particles in a matrix of graphitic carbon and spinel phase. Zinc oxide is a semiconductor with potential to be employed in devices for energy production such as dye-sensitized solar cells [47].

4. Conclusions

LDH materials intercalated with CMC polymer, a carbon source derived from biomass, were evaluated as a precursor for the preparation of MMO/C nanocomposites. Best experimental conditions were achieved to get carbon chains between the LDH layers to assure an organic-inorganic interaction at a nanoscale domain. Pyrolysis step conducted above 600 °C produced materials comprising graphitic carbon, which structural organization is increased at higher temperature values. In samples obtained from Mg2Al-CMC, the biocarbon presence delays the crystallization of MgO when compared to Mg2Al-CO3 calcined at the same temperature, and also precludes the crystallization of MgAl2O4. On the other hand, biocarbon formed from Zn2Al-CMC pyrolyzed at 800 °C promotes the generation of high crystalline ZnO particles if compared to Zn2Al-CO3 calcined at the same temperature, and also prevents crystallization of ZnAl2O4 phase. Above about 880 °C (endothermic peak in DSC curve), ZnO is reduced by graphitic carbon producing zinc vapour (carbothermic reaction); poor crystallized ZnAl2O4 spinel and γ-Al2O3 phases are noticed after pyrolysis at 1000 °C. Considering the results obtained in this study, to prepare nanocomposites constituted by graphitic carbonaceous material and metal oxides from CMC hybrid materials, the temperature range of pyrolysis process should be 600–800 °C for Zn2Al-CMC and 600–1000 °C for Mg2Al-CMC. Future studies should investigate the surface properties of these nanocomposites to explore application in adsorption processes, basic catalysis or photodevices.

Supplementary Materials

The following are available online at https://www.mdpi.com/2305-7084/3/2/55/s1, Figure S1: XRD pattern of sodium carboxymethylcellulose (NaCMC), Figure S2: TG-DSC and DTG-MS curves of sodium carboxymethylcellulose (NaCMC) under N2 atmosphere, Figure S3: Raman spectra (λexc = 532 nm) of NaCMC and LDH-CMC samples, Figure S4: FTIR-ATR spectra of Zn2Al-CO3 and Mg2Al-CO3 samples calcined at 500, 600, 800 and 1000 °C under N2 atmosphere, Figure S5: XRD patterns of M2Al-CMC samples calcined at 1000 °C under synthetic air. Pictures of M2Al-CMC samples calcined at 1000 °C under synthetic air or nitrogen atmosphere, indicating the percentage of residue after each heating process, Figure S6: SEM image of Mg2Al-CO3 sample, Figure S7: EDS spectra of Zn2Al-CMC pyrolyzed at 800 °C, Figure S8: EDS spectra of Zn2Al-CMC pyrolyzed at 1000 °C; Table S1: Interplanar distances dhkl and 2θ (CuKα) values from X-ray diffraction data of LDH-CO3 and LDH-CMC, Table S2: Vibrational data of Zn2Al-CO3 and Mg2Al-CO3, Table S3: Chemical analysis data and proposed formula for LDH-CO3 and LDH-CMC, Table S4: Standard molar thermodynamic parameters of substances at 25 °C, Table S5: Standard molar thermodynamic values for the carbothermic reaction between graphitic carbon and zinc or magnesium oxides at 25 °C. Values are calculated using the data presented in Table S4.

Author Contributions

Conceptualization, V.R.L.C., G.F.P. and V.R.M.; methodology, V.R.L.C., G.F.P. and V.R.M; formal analysis, G.F.P., V.R.M. and A.D.; investigation, G.F.P. and V.R.M.; resources, V.R.L.C.; data curation, V.R.L.C.; writing—original draft preparation, V.R.L.C., G.F.P., V.R.M. and A.D.; writing—review and editing, V.R.L.C., G.F.P., V.R.M. and A.D.; visualization, V.R.L.C., G.F.P., V.R.M. and A.D.; supervision, V.R.L.C.; project administration, V.R.L.C.

Acknowledgments

This study was financed in part by the Coordenação de Aperfeiçoamento de Pessoal de Nível Superior—Brasil (CAPES)—Finance Code 33002010191P0—Química (scholarship to V.R.M.). V.R.L.C. is thankful to the Conselho Nacional de Desenvolvimento Científico e Tecnológico—Brasil for the research grant (CNPq 305446/2017-7). The authors are also grateful to the Fundação de Amparo à Pesquisa do Estado de São Paulo (FAPESP 2011/50318-1) for financial support and to the Laboratório de Espectroscopia Molecular (LEM-USP) for the Raman and FTIR spectra recording.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mills, S.J.; Christy, A.G.; Génin, J.-M.R.; Kameda, T.; Colombo, F. Nomenclature of the hydrotalcite supergroup: Natural layered double hydroxides. Miner. Mag. 2012, 76, 1289–1336. [Google Scholar] [CrossRef]
  2. Cavani, F.; Trifirò, F.; Vaccari, A. Hydrotalcite-type anionic clays: Preparation, properties and applications. Catal. Today 1991, 11, 173–301. [Google Scholar] [CrossRef]
  3. Evans, D.G.; Slade, R.C.T. Structural Aspects of Layered Double Hydroxides. In Structure & Bonding; Springer: Berlin/Heidelberg, Germany, 2006; Volume 119, pp. 1–87. ISBN 3540282793. [Google Scholar]
  4. Taviot-Guého, C.; Prévot, V.; Forano, C.; Renaudin, G.; Mousty, C.; Leroux, F. Tailoring Hybrid Layered Double Hydroxides for the Development of Innovative Applications. Adv. Funct. Mater. 2018, 28, 1703868. [Google Scholar] [CrossRef]
  5. Li, T.; Miras, H.; Song, Y.-F. Polyoxometalate (POM)-Layered Double Hydroxides (LDH) Composite Materials: Design and Catalytic Applications. Catalysts 2017, 7, 260. [Google Scholar] [CrossRef]
  6. Rives, V.; Angeles Ulibarri, M. Layered double hydroxides (LDH) intercalated with metal coordination compounds and oxometalates. Coord. Chem. Rev. 1999, 181, 61–120. [Google Scholar] [CrossRef]
  7. Leroux, F.; Taviot-Guého, C. Fine tuning between organic and inorganic host structure: New trends in layered double hydroxide hybrid assemblies. J. Mater. Chem. 2005, 15, 3628. [Google Scholar] [CrossRef]
  8. Rives, V.; del Arco, M.; Martín, C. Intercalation of drugs in layered double hydroxides and their controlled release: A review. Appl. Clay Sci. 2014, 88–89, 239–269. [Google Scholar] [CrossRef]
  9. Xu, M.; Wei, M. Layered Double Hydroxide-Based Catalysts: Recent Advances in Preparation, Structure, and Applications. Adv. Funct. Mater. 2018, 28, 1802943. [Google Scholar] [CrossRef]
  10. Zubair, M.; Daud, M.; McKay, G.; Shehzad, F.; Al-Harthi, M.A. Recent progress in layered double hydroxides (LDH)-containing hybrids as adsorbents for water remediation. Appl. Clay Sci. 2017, 143, 279–292. [Google Scholar] [CrossRef]
  11. Patel, R.; Park, J.T.; Patel, M.; Dash, J.K.; Gowd, E.B.; Karpoormath, R.; Mishra, A.; Kwak, J.; Kim, J.H. Transition-metal-based layered double hydroxides tailored for energy conversion and storage. J. Mater. Chem. A 2018, 6, 12–29. [Google Scholar] [CrossRef]
  12. Chimene, D.; Alge, D.L.; Gaharwar, A.K. Two-Dimensional Nanomaterials for Biomedical Applications: Emerging Trends and Future Prospects. Adv. Mater. 2015, 27, 7261–7284. [Google Scholar] [CrossRef] [PubMed]
  13. Erastova, V.; Degiacomi, M.T.G.; Fraser, D.; Greenwell, H.C. Mineral surface chemistry control for origin of prebiotic peptides. Nat. Commun. 2017, 8, 2033. [Google Scholar] [CrossRef] [PubMed]
  14. Debecker, D.P.; Gaigneaux, E.M.; Busca, G. Exploring, tuning, and exploiting the basicity of hydrotalcites for applications in heterogeneous catalysis. Chem. A Eur. J. 2009, 15, 3920–3935. [Google Scholar] [CrossRef] [PubMed]
  15. Yang, Z.; Wang, F.; Zhang, C.; Zeng, G.; Tan, X.; Yu, Z.; Zhong, Y.; Wang, H.; Cui, F. Utilization of LDH-based materials as potential adsorbents and photocatalysts for the decontamination of dyes wastewater: A review. RSC Adv. 2016, 6, 79415–79436. [Google Scholar] [CrossRef]
  16. Takehira, K. Recent development of layered double hydroxide-derived catalysts−Rehydration, reconstitution, and supporting, aiming at commercial application. Appl. Clay Sci. 2017, 136, 112–141. [Google Scholar] [CrossRef]
  17. Zhao, M.Q.; Zhang, Q.; Huang, J.Q.; Wei, F. Hierarchical nanocomposites derived from nanocarbons and layered double hydroxides—Properties, synthesis, and applications. Adv. Funct. Mater. 2012, 22, 675–694. [Google Scholar] [CrossRef]
  18. Kukrety, A.; Singh, R.K.; Singh, P.; Ray, S.S. Comprehension on the Synthesis of Carboxymethylcellulose (CMC) Utilizing Various Cellulose Rich Waste Biomass Resources. Waste Biomass Valorization 2018, 9, 1587–1595. [Google Scholar] [CrossRef]
  19. Kang, H.; Huang, G.; Ma, S.; Bai, Y.; Ma, H.; Li, Y.; Yang, X. Coassembly of Inorganic Macromolecule of Exfoliated LDH Nanosheets with Cellulose. J. Phys. Chem. C 2009, 113, 9157–9163. [Google Scholar] [CrossRef]
  20. Yadollahi, M.; Namazi, H. Synthesis and characterization of carboxymethyl cellulose/layered double hydroxide nanocomposites. J. Nanopar. Res. 2013, 15, 1563. [Google Scholar] [CrossRef]
  21. Yadollahi, M.; Namazi, H.; Aghazadeh, M. Antibacterial carboxymethyl cellulose/Ag nanocomposite hydrogels cross-linked with layered double hydroxides. Int. J. Biol. Macromol. 2015, 79, 269–277. [Google Scholar] [CrossRef]
  22. Rocha, M.A.; Petersen, P.A.D.; Teixeira-Neto, E.; Petrilli, H.M.; Leroux, F.; Taviot-Gueho, C.; Constantino, V.R.L. Layered double hydroxide and sulindac coiled and scrolled nanoassemblies for storage and drug release. RSC Adv. 2016, 6, 16419–16436. [Google Scholar] [CrossRef]
  23. Zhao, X.; Zhang, F.; Xu, S.; Evans, D.G.; Duan, X. From layered double hydroxides to ZnO-based mixed metal oxides by thermal decomposition: Transformation mechanism and UV-blocking properties of the product. Chem. Mater. 2010, 22, 3933–3942. [Google Scholar] [CrossRef]
  24. Hobbs, C.; Jaskaniec, S.; McCarthy, E.K.; Downing, C.; Opelt, K.; Güth, K.; Shmeliov, A.; Mourad, M.C.D.; Mandel, K.; Nicolosi, V. Structural transformation of layered double hydroxides: An in situ TEM analysis. NPJ 2D Mater. Appl. 2018, 2, 4. [Google Scholar] [CrossRef]
  25. Miyata, S. Physico-Chemical Properties of Synthetic Hydrotalcites in Relation to Composition. Clays Clay Miner. 1980, 28, 50–56. [Google Scholar] [CrossRef]
  26. Elmoubarki, R.; Mahjoubi, F.Z.; Elhalil, A.; Tounsadi, H.; Abdennouri, M.; Sadiq, M.; Qourzal, S.; Zouhri, A.; Barka, N. Ni/Fe and Mg/Fe layered double hydroxides and their calcined derivatives: Preparation, characterization and application on textile dyes removal. J. Mater. Res. Technol. 2017, 6, 271–283. [Google Scholar] [CrossRef]
  27. Shang, J.; Shao, Z.; Chen, X. Electrical Behavior of a Natural Polyelectrolyte Hydrogel: Chitosan/Carboxymethylcellulose Hydrogel. Biomacromolecules 2008, 9, 1208–1213. [Google Scholar] [CrossRef]
  28. Lee, C.M.; Mohamed, N.M.A.; Watts, H.D.; Kubicki, J.D.; Kim, S.H. Sum-frequency-generation vibration spectroscopy and density functional theory calculations with dispersion corrections (DFT-D2) for cellulose Iα and Iβ. J. Phys. Chem. B 2013, 117, 6681–6692. [Google Scholar] [CrossRef]
  29. Maréchal, Y.; Chanzy, H. The hydrogen bond network in I(β) cellulose as observed by infrared spectrometry. J. Mol. Struct. 2000, 523, 183–196. [Google Scholar] [CrossRef]
  30. Wiley, J.H.; Atalla, R.H. Band assignments in the raman spectra of celluloses. Carbohydr. Res. 1987, 160, 113–129. [Google Scholar] [CrossRef]
  31. Cuba-Chiem, L.T.; Huynh, L.; Ralston, J.; Beattie, D.A. Beattie in Situ Particle Film ATR FTIR Spectroscopy of Carboxymethyl Cellulose Adsorption on Talc: Binding Mechanism, pH Effects, and Adsorption Kinetics. Langmuir 2008, 24, 8036–8044. [Google Scholar] [CrossRef]
  32. Schenzel, K.; Fischer, S. NIR FT Raman spectroscopy—A rapid analytical tool for detecting the transformation of cellulose polymorphs. Cellulose 2001, 8, 49–57. [Google Scholar] [CrossRef]
  33. Barsberg, S. Prediction of vibrational spectra of polysaccharides-simulated IR spectrum of cellulose based on density functional theory (DFT). J. Phys. Chem. B 2010, 114, 11703–11708. [Google Scholar] [CrossRef] [PubMed]
  34. Blackwell, J.; Vasko, P.D.; Koenig, J.L. Infrared and raman spectra of the cellulose from the cell wall of valonia ventricosa. J. Appl. Phys. 1970, 41, 4375–4379. [Google Scholar] [CrossRef]
  35. Basta, A.H.; El-Saied, H. Characterization of polymer complexes by thermal and ir spectral analyses. Polym. Plast. Technol. Eng. 2000, 39, 887–904. [Google Scholar] [CrossRef]
  36. El-Sayed, S.; Mahmoud, K.H.; Fatah, A.A.; Hassen, A. DSC, TGA and dielectric properties of carboxymethyl cellulose/polyvinyl alcohol blends. Phys. B Condens. Matter 2011, 406, 4068–4076. [Google Scholar] [CrossRef]
  37. Constantino, V.R.L.; Pinnavaia, T.J. Basic Properties of Mg2+1−xAl3+x Layered Double Hydroxides Intercalated by Carbonate, Hydroxide, Chloride, and Sulfate Anions. Inorg. Chem. 1995, 34, 883–892. [Google Scholar] [CrossRef]
  38. Belloto, M.; Bernadette, R.; Olivier, C.; John, L.; Dominique, B.; Elkaim, E. A Reexamination of Hydrotalcite Chemistry. J. Phys. Chem. 1996, 100, 8527–8534. [Google Scholar] [CrossRef]
  39. Warringham, R.; Mitchell, S.; Murty, R.; Schäublin, R.; Crivelli, P.; Kenvin, J.; Pérez-Ramírez, J. Mapping the Birth and Evolution of Pores upon Thermal Activation of Layered Hydroxides. Chem. Mater. 2017, 29, 4052–4062. [Google Scholar] [CrossRef]
  40. Dresselhaus, M.S.; Jorio, A.; Hofmann, M.; Dresselhaus, G.; Saito, R. Perspectives on carbon nanotubes and graphene Raman spectroscopy. Nano Lett. 2010, 10, 751–758. [Google Scholar] [CrossRef] [PubMed]
  41. Ferrari, A.C.; Basko, D.M. Raman spectroscopy as a versatile tool for studying the properties of graphene. Nat. Nanotechnol. 2013, 8, 235–246. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Ferrari, A.C.; Robertson, J. Raman spectroscopy of amorphous, nanostructured, diamond–like carbon, and nanodiamond. Philos. Trans. R. Soc. Lond. Ser. A Math. Phys. Eng. Sci. 2004, 362, 2477–2512. [Google Scholar] [CrossRef] [PubMed]
  43. Kim, P.; Johnson, A.; Edmunds, C.W.; Radosevich, M.; Vogt, F.; Rials, T.G.; Labbé, N. Surface functionality and carbon structures in lignocellulosic-derived biochars produced by fast pyrolysis. Energy Fuels 2011, 25, 4693–4703. [Google Scholar] [CrossRef]
  44. Graf, G.G. Zinc. In Ullmann’s Encyclopedia of Industrial Chemistry; Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2000; pp. 717–739. [Google Scholar]
  45. Mardones, J.P. Processing of Spinel-Bearing Compounds for Zinc Extraction. Master’s Thesis, Delft University of Technology, Faculty of Civil Engineering and Geosciences, Delft, The Netherlands, 2012. [Google Scholar]
  46. Jung, K.-W.; Ahn, K.-H. Fabrication of porosity-enhanced MgO/biochar for removal of phosphate from aqueous solution: Application of a novel combined electrochemical modification method. Bioresour. Technol. 2016, 200, 1029–1032. [Google Scholar] [CrossRef] [PubMed]
  47. Vittal, R.; Ho, K.-C. Zinc oxide based dye-sensitized solar cells: A review. Renew. Sustain. Energy Rev. 2017, 70, 920–935. [Google Scholar] [CrossRef]
Chemengineering 03 00055 g001 550

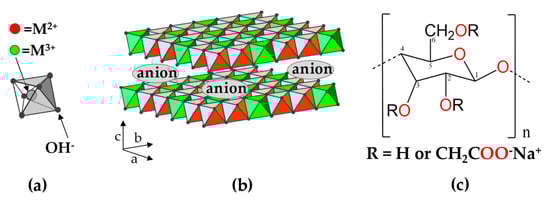

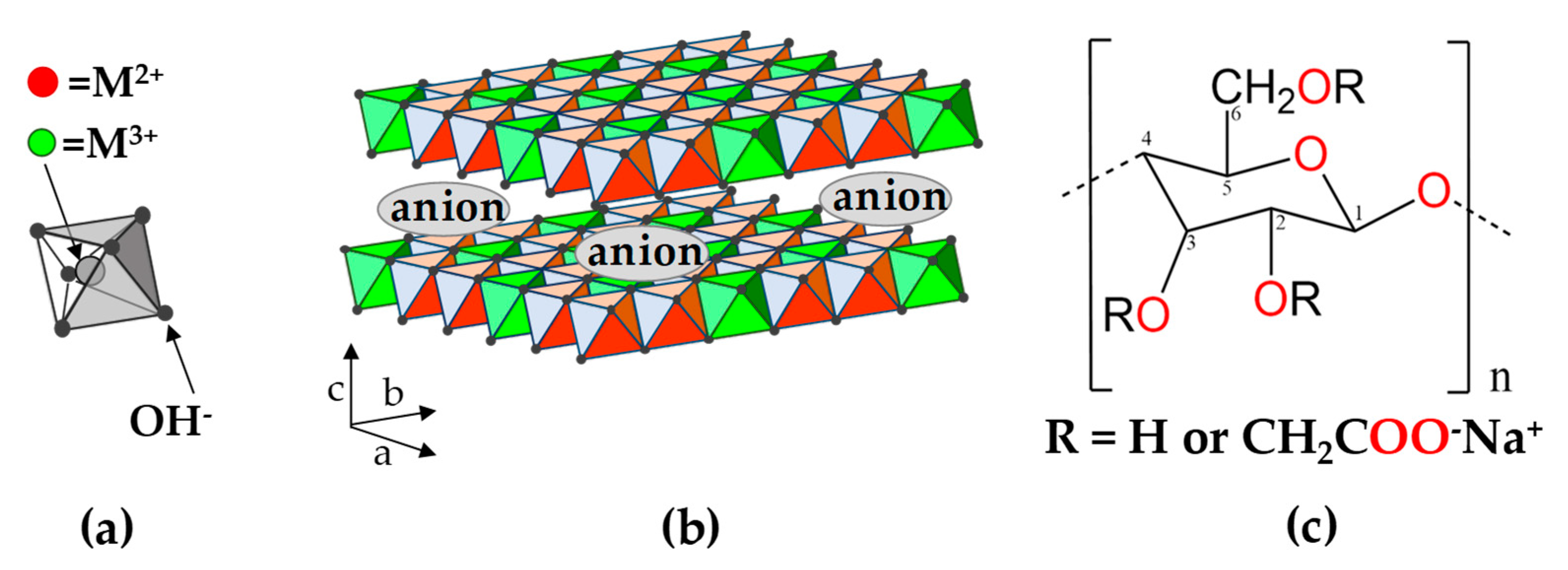

Figure 1. Schematic representation of (a) hydroxide ions coordinated to metal cation in an octahedral arrangement, (b) layered double hydroxide (LDH) structure comprising stacked positive layers intercalated by negative ions, (c) monomeric unit of carboxymethylcellulose (CMC).
Figure 1. Schematic representation of (a) hydroxide ions coordinated to metal cation in an octahedral arrangement, (b) layered double hydroxide (LDH) structure comprising stacked positive layers intercalated by negative ions, (c) monomeric unit of carboxymethylcellulose (CMC).
Chemengineering 03 00055 g001
Chemengineering 03 00055 g002 550

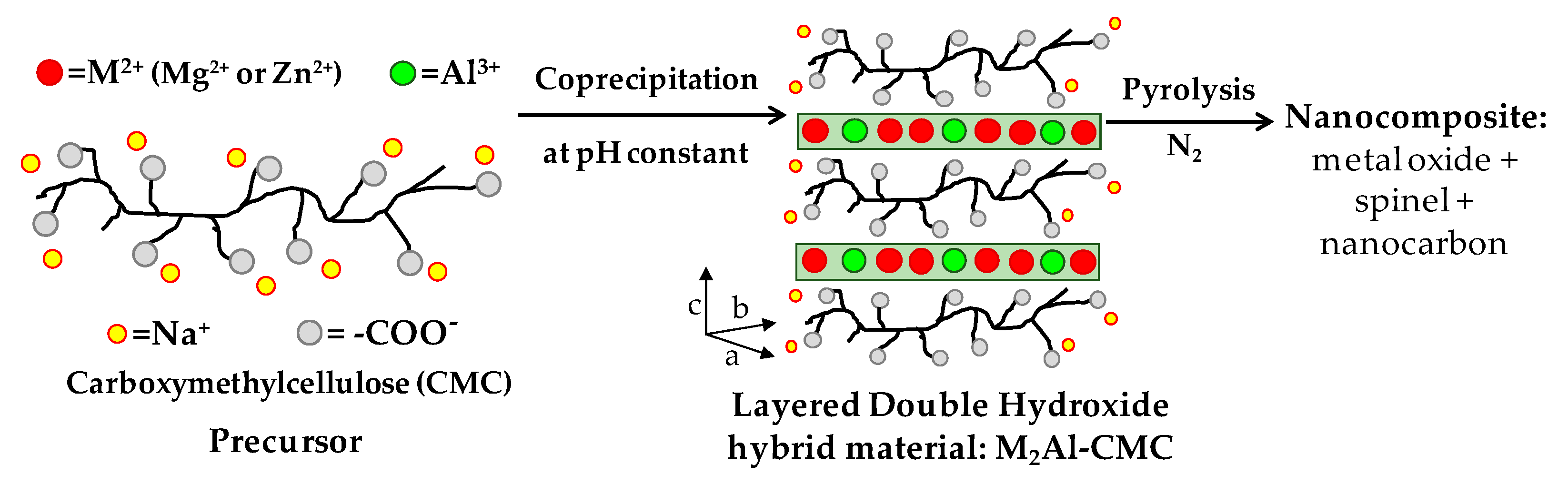

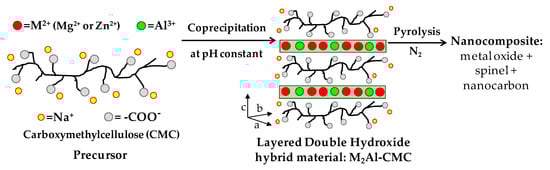

Figure 2. Schematic representation of the two-step synthetic approach used to produce MMO/carbon nanocomposites from layered double hydroxides.
Figure 2. Schematic representation of the two-step synthetic approach used to produce MMO/carbon nanocomposites from layered double hydroxides.
Chemengineering 03 00055 g002
Chemengineering 03 00055 g003 550

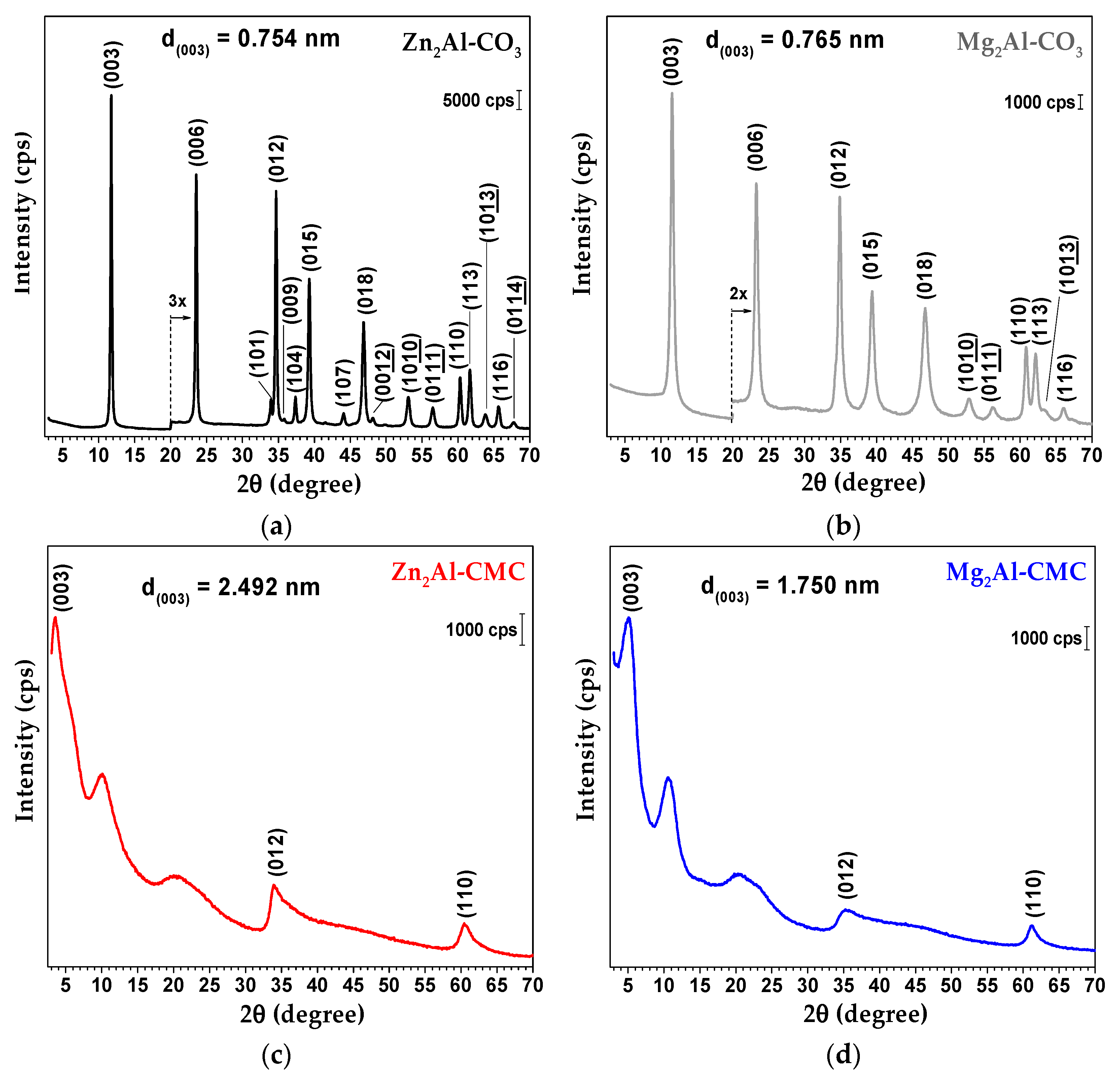

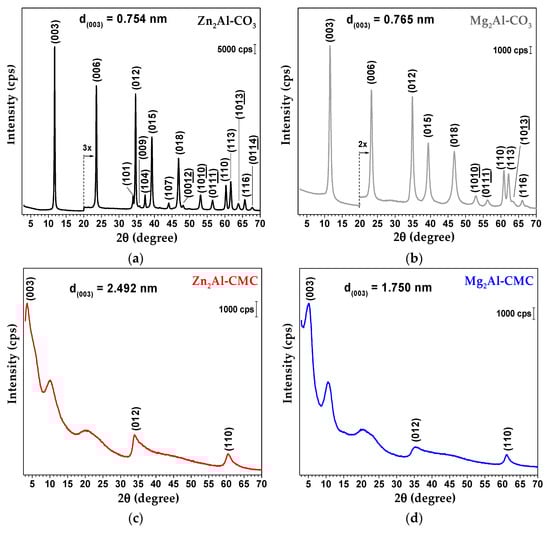

Figure 3. XRD patterns of Zn2Al-CO3 (a), Mg2Al-CO3 (b), Zn2Al-CMC (c) and Mg2Al-CMC (d) samples. The diffration peaks in (a,b) were indexed according to ICSD 190041 and 86655, respectively.
Figure 3. XRD patterns of Zn2Al-CO3 (a), Mg2Al-CO3 (b), Zn2Al-CMC (c) and Mg2Al-CMC (d) samples. The diffration peaks in (a,b) were indexed according to ICSD 190041 and 86655, respectively.
Chemengineering 03 00055 g003
Chemengineering 03 00055 g004 550

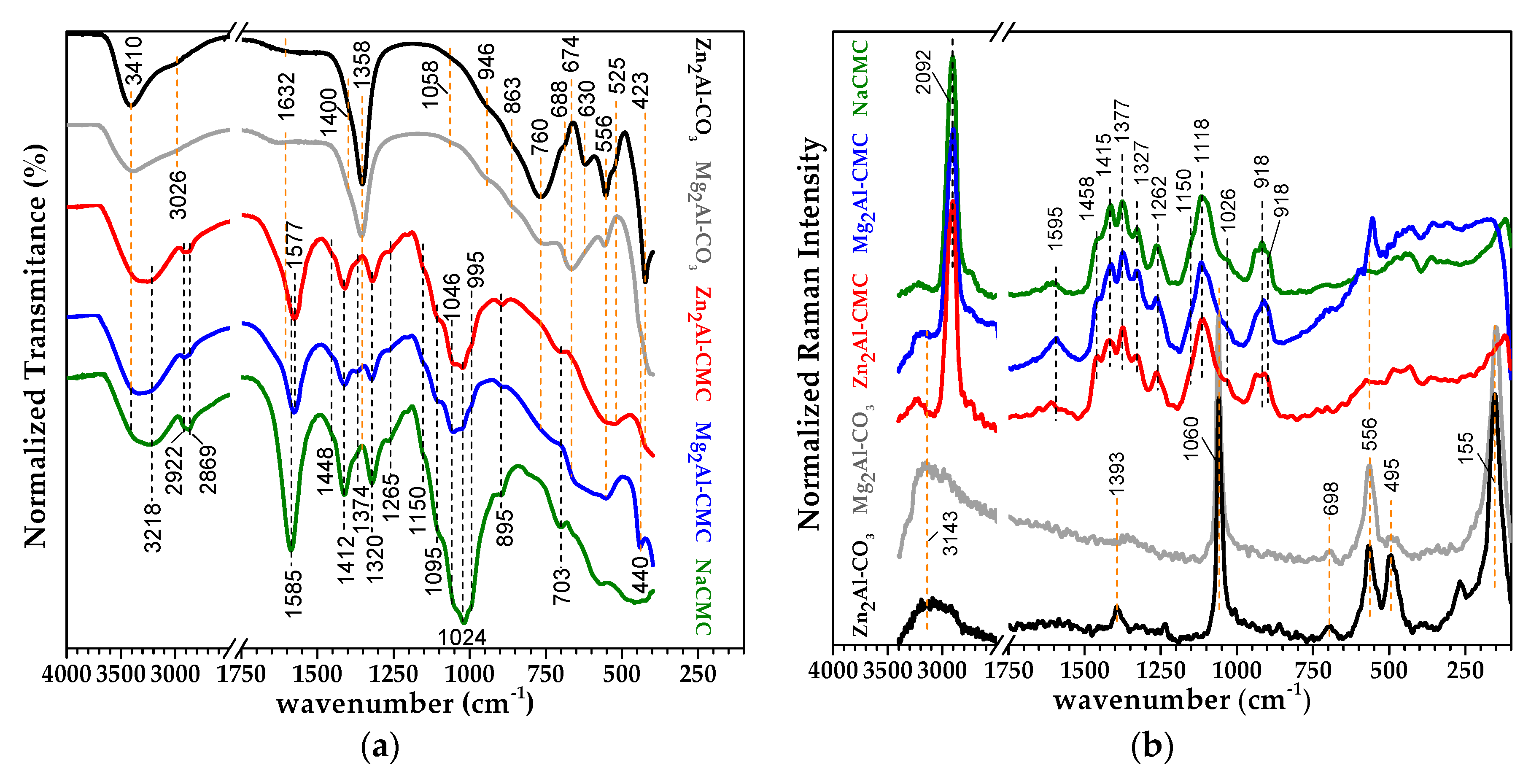

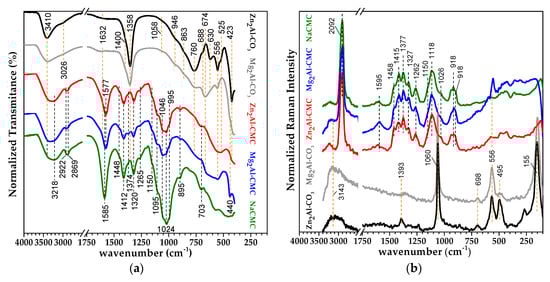

Figure 4. FTIR-ATR (a) and FT-Raman ((b); λexc = 1064 nm) spectra of Zn2Al-CO3 (black), Mg2Al-CO3 (grey), Zn2Al-CMC (red), Mg2Al-CMC (blue) and sodium carboxymethylcellulose (NaCMC, green).
Figure 4. FTIR-ATR (a) and FT-Raman ((b); λexc = 1064 nm) spectra of Zn2Al-CO3 (black), Mg2Al-CO3 (grey), Zn2Al-CMC (red), Mg2Al-CMC (blue) and sodium carboxymethylcellulose (NaCMC, green).
Chemengineering 03 00055 g004
Chemengineering 03 00055 g005 550

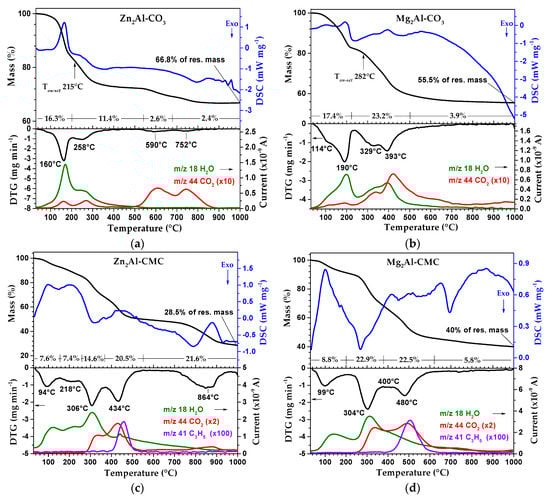

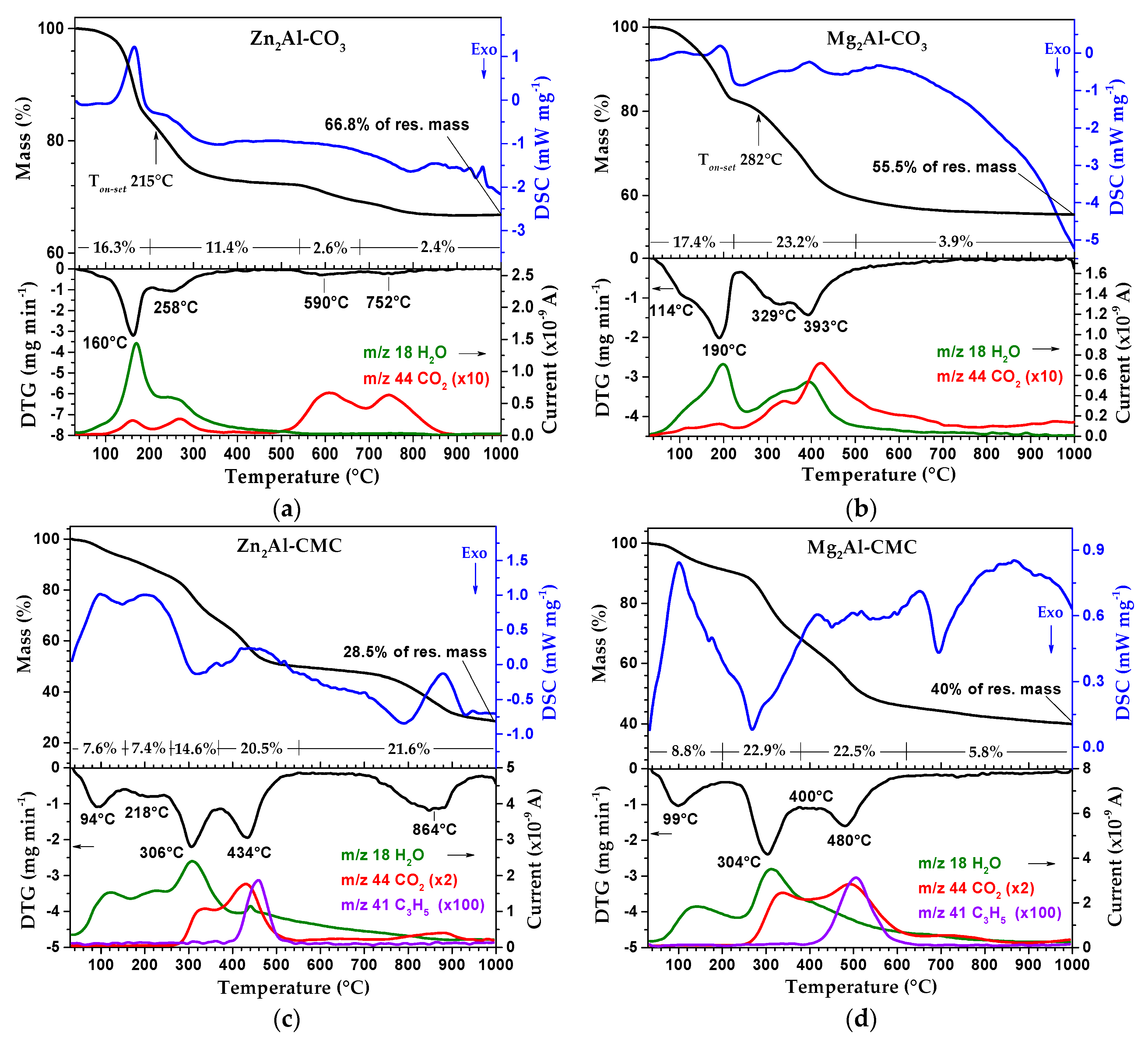

Figure 5. TG-DSC and DTG-MS curves of Zn2Al-CO3 (a), Mg2Al-CO3 (b), Zn2Al-CMC (c) and Mg2Al-CMC (d) samples under N2 atmosphere.
Figure 5. TG-DSC and DTG-MS curves of Zn2Al-CO3 (a), Mg2Al-CO3 (b), Zn2Al-CMC (c) and Mg2Al-CMC (d) samples under N2 atmosphere.
Chemengineering 03 00055 g005
Chemengineering 03 00055 g006 550

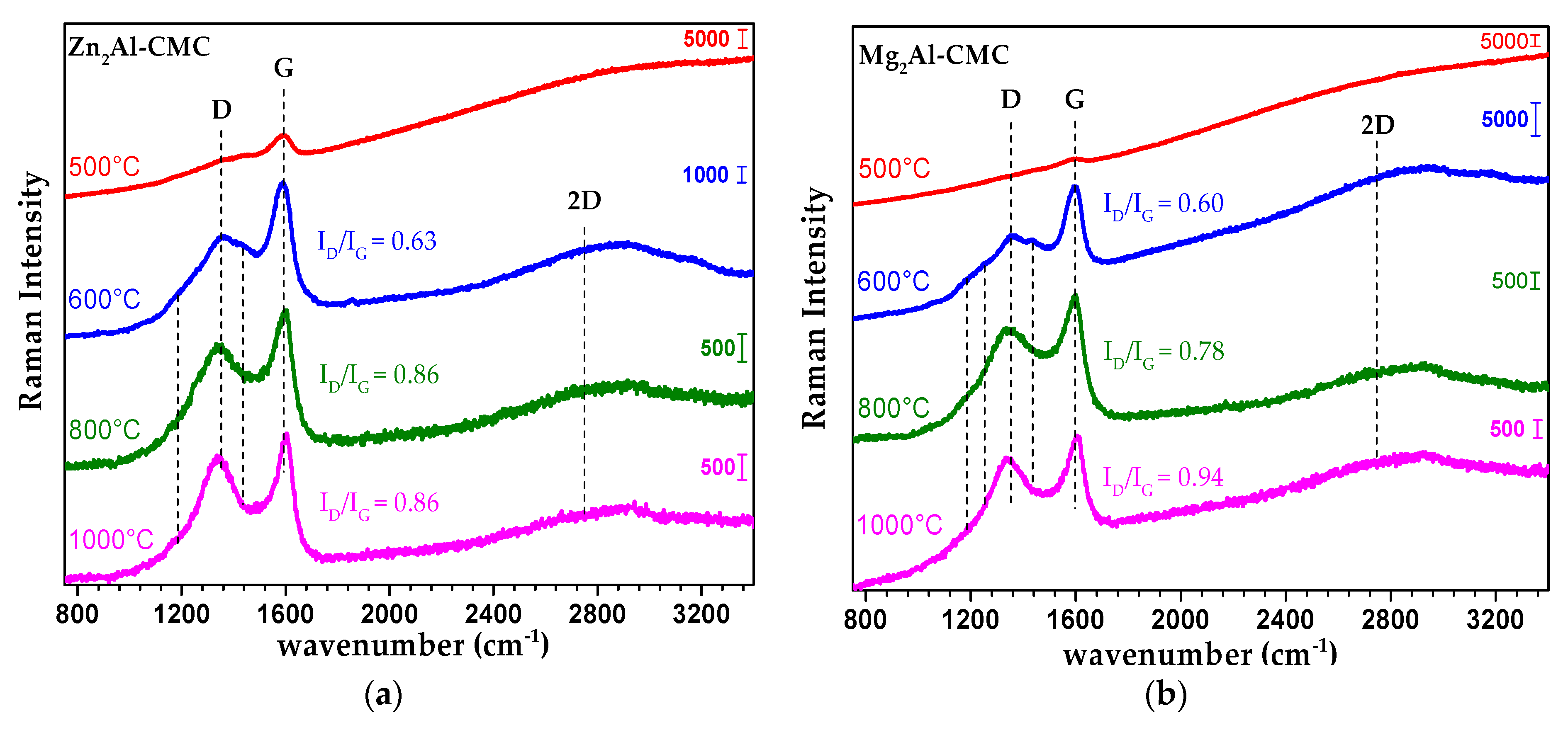

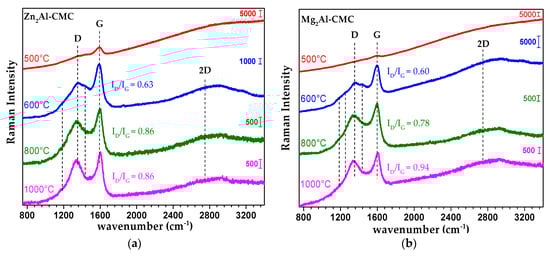

Figure 6. Raman spectra of Zn2Al-CMC (a) and Mg2Al-CMC (b) samples pyrolyzed at 500, 600, 800 and 1000 °C under N2 atmosphere (λexc = 532 nm).
Figure 6. Raman spectra of Zn2Al-CMC (a) and Mg2Al-CMC (b) samples pyrolyzed at 500, 600, 800 and 1000 °C under N2 atmosphere (λexc = 532 nm).
Chemengineering 03 00055 g006
Chemengineering 03 00055 g007 550

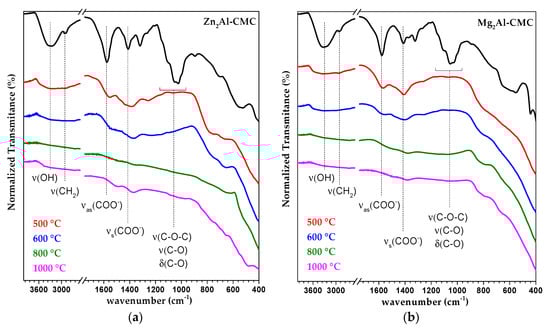

Figure 7. FTIR-ATR spectra of Zn2Al-CMC (a) and Mg2Al-CMC (b) samples pyrolyzed at 500, 600, 800 and 1000 °C under N2 atmosphere.
Figure 7. FTIR-ATR spectra of Zn2Al-CMC (a) and Mg2Al-CMC (b) samples pyrolyzed at 500, 600, 800 and 1000 °C under N2 atmosphere.
Chemengineering 03 00055 g007
Chemengineering 03 00055 g008 550

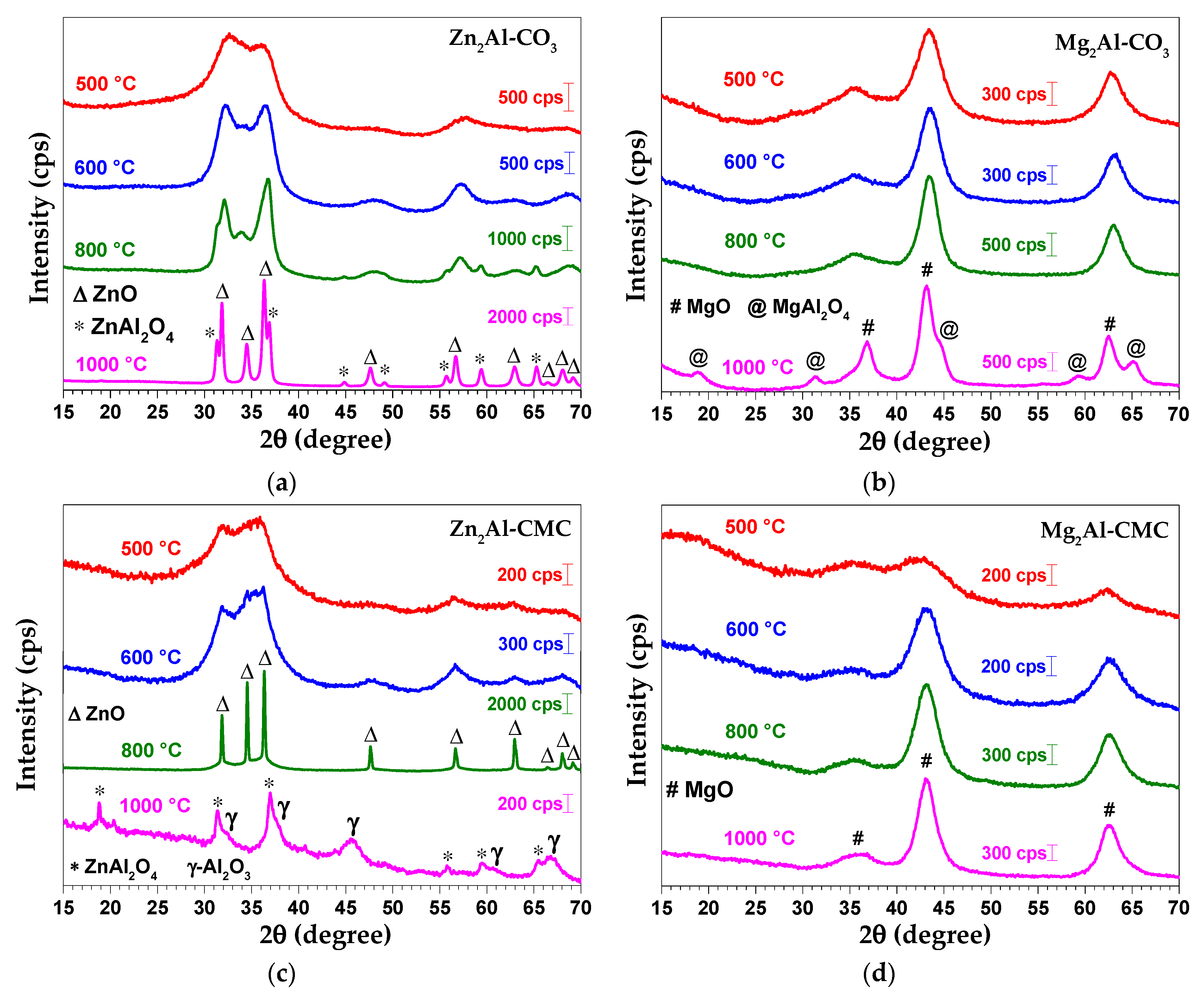

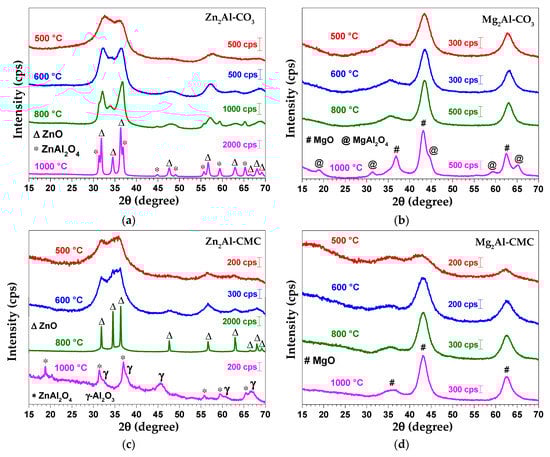

Figure 8. XRD patterns of Zn2Al-CO3 (a), Mg2Al-CO3 (b), Zn2Al-CMC (c) and Mg2Al-CMC (d) samples pyrolyzed at 500, 600, 800 and 1000 °C under N2 atmosphere. The phases were indicated according to ZnO (wurtzita; ICSD 26170), ZnAl2O4 (ICSD 75091), MgO (periclase; ICSD 9863), MgAl2O4 (ICSD 31373) and γ-Al2O3 (ICSD 249140).
Figure 8. XRD patterns of Zn2Al-CO3 (a), Mg2Al-CO3 (b), Zn2Al-CMC (c) and Mg2Al-CMC (d) samples pyrolyzed at 500, 600, 800 and 1000 °C under N2 atmosphere. The phases were indicated according to ZnO (wurtzita; ICSD 26170), ZnAl2O4 (ICSD 75091), MgO (periclase; ICSD 9863), MgAl2O4 (ICSD 31373) and γ-Al2O3 (ICSD 249140).
Chemengineering 03 00055 g008
Chemengineering 03 00055 g009 550

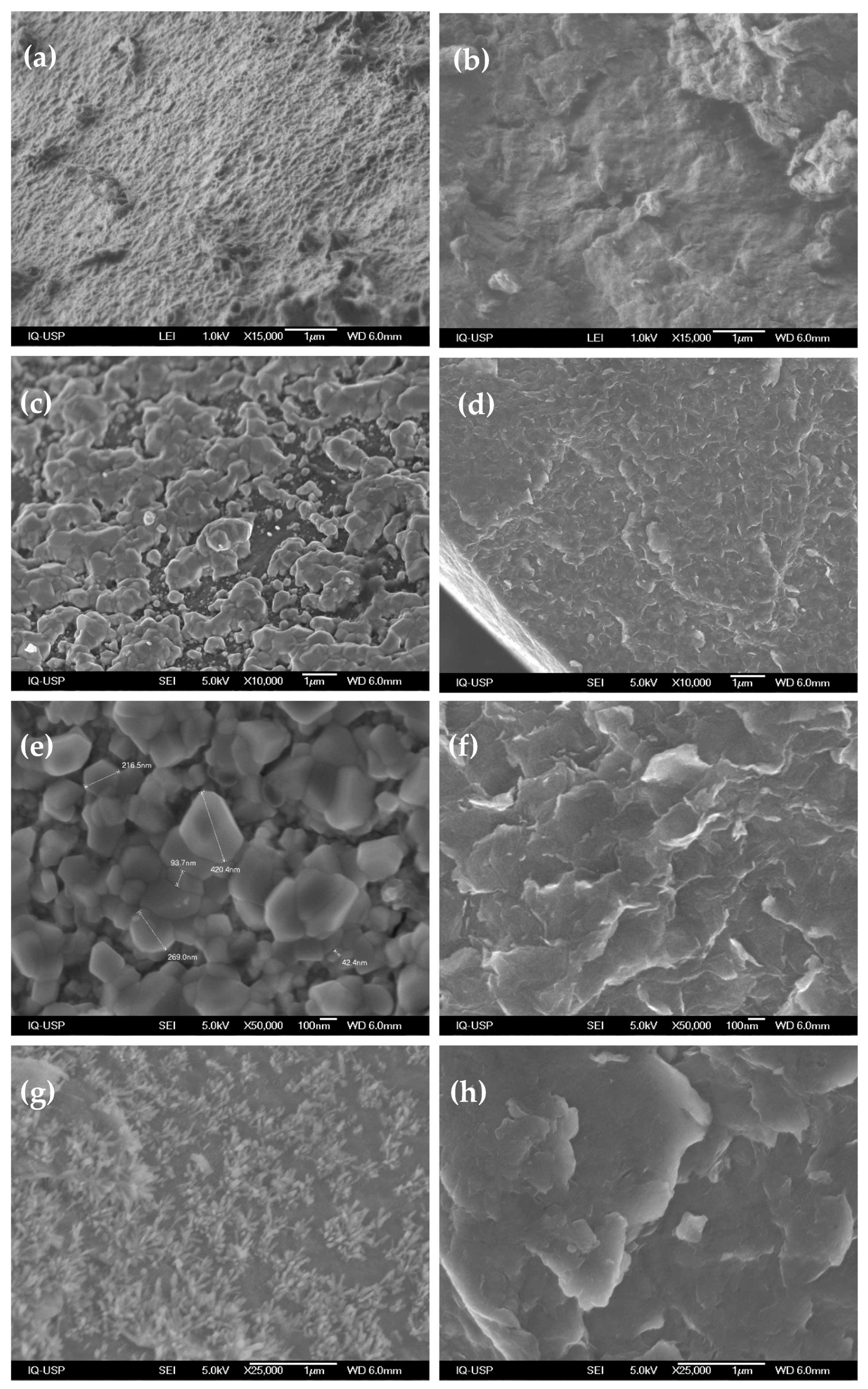

Figure 9. SEM micrographs of MMO/C samples obtained from Zn2Al-CMC (left) and Mg2Al-CMC (right) as synthesized (a,b) and pyrolyzed at 800 (c–f) and 1000 °C (g,h).
Figure 9. SEM micrographs of MMO/C samples obtained from Zn2Al-CMC (left) and Mg2Al-CMC (right) as synthesized (a,b) and pyrolyzed at 800 (c–f) and 1000 °C (g,h).
Chemengineering 03 00055 g009
Table
Table 1. Vibrational spectroscopic data of sodium carboxymethylcellulose.
Table 1. Vibrational spectroscopic data of sodium carboxymethylcellulose.
RamanIRTentative of AttributionReference
3400–32003600–3300 (bb)νOH free or hydrogen bonded[28,29,30]
2902--νCH[28,30]
--2922νasC(6)H2[28]
--2869νsC(6)H2[28]
15951585νasCOO-[31]
1458(sh)--δscC(6)H2[30,32]
--1448(sh)δscCH2 and δipCOH[29,32]
1415--δCH2 and δCCH, δHCO, δCOH[30,32]
--1412νsCOO-[31]
13771374(sh)δCH2 and δCCH, δHCO, δCOH[30,32]
13271320δwC(6)H2 and δCCH, δHCO, δCOH[30,32]
12621264δtwC(6)H2 and δCCH, δHCO, δCOH[30,32]
1150(sh)1150(sh)νasC-C and νasC-O (ring breathing)[29,32]
1118--νsC(1)-O-C(4) and s ring breathing[32]
--1095(sh)νC(2)-O[29,33]
--1046(sh)δC(6)-O and δC(5)-O[33]
1026(sh)1019δC(3)-O[33]
--995 (sh)νC(1)-O[33]
918--δC(5)C(6)-H and δHC(6)O[30]
896895δC(1)-H[32]
703δrkCH2 and δoopCOH (C6 and C3)[29,34]
bb = broad band; sh = shoulder; ν = stretching; as = antisymmetric; s = symmetric; δ = bending; w = wagging; tw = twisting; sc = scissoring; ip = in-plane; oop = out-of-plane; rk = rocking.

Share and Cite

MDPI and ACS Style

Magri, V.R.; Duarte, A.; Perotti, G.F.; Constantino, V.R.L. Investigation of Thermal Behavior of Layered Double Hydroxides Intercalated with Carboxymethylcellulose Aiming Bio-Carbon Based Nanocomposites. ChemEngineering 2019, 3, 55. https://doi.org/10.3390/chemengineering3020055

AMA Style

Magri VR, Duarte A, Perotti GF, Constantino VRL. Investigation of Thermal Behavior of Layered Double Hydroxides Intercalated with Carboxymethylcellulose Aiming Bio-Carbon Based Nanocomposites. ChemEngineering. 2019; 3(2):55. https://doi.org/10.3390/chemengineering3020055

Chicago/Turabian Style

Magri, Vagner R., Alfredo Duarte, Gustavo F. Perotti, and Vera R.L. Constantino. 2019. "Investigation of Thermal Behavior of Layered Double Hydroxides Intercalated with Carboxymethylcellulose Aiming Bio-Carbon Based Nanocomposites" ChemEngineering 3, no. 2: 55. https://doi.org/10.3390/chemengineering3020055

APA Style

Magri, V. R., Duarte, A., Perotti, G. F., & Constantino, V. R. L. (2019). Investigation of Thermal Behavior of Layered Double Hydroxides Intercalated with Carboxymethylcellulose Aiming Bio-Carbon Based Nanocomposites. ChemEngineering, 3(2), 55. https://doi.org/10.3390/chemengineering3020055

Article Metrics

Back to TopTop
