Solid-Phase Extraction Based on Captiva EMR-Lipid for Determination of 19 Aromatic Amine Antioxidants and Two p-Phenylenediamine Quinones in Human Plasma
1
Guangdong Key Laboratory of Environmental Pollution and Health, College of Environment and Climate, Jinan University, Guangzhou 511443, China
2
School of Information Engineering, Guangdong Meizhou Vocational and Technological College, Meizhou 514011, China
3
College of Resources and Environmental Engineering, Guizhou University, Guiyang 550025, China
*
Author to whom correspondence should be addressed.
Toxics 2026, 14(3), 187; https://doi.org/10.3390/toxics14030187
Submission received: 30 January 2026
/
Revised: 15 February 2026
/
Accepted: 22 February 2026
/
Published: 24 February 2026
(This article belongs to the Special Issue Emerging Contaminants in Industrial Hotspots: Characterization, Environmental Fate, Human Exposure, and Risk Assessment)
Abstract
A robust analytical method based on Captiva EMR-Lipid solid-phase extraction and HPLC-MS/MS was developed and validated for the simultaneous determination of 19 aromatic amine antioxidants (AAs) and two p-phenylenediamine-derived quinones (PPD-Qs) in human plasma. The optimized protocol effectively removed phospholipid interferences from complex blood matrix, significantly mitigating ion suppression and improving the recovery of hydrophobic AAs compared to conventional liquid–liquid extraction. Method validation demonstrated good accuracy (spike recoveries: 73.0–96.8%), precision (RSD < 11%), and sensitivity with method detection limits ranging from 0.81 to 21 pg/mL. The method was successfully applied to plasma samples from 20 adults, in which 11 AAs were detected at total concentrations of 240–710 pg/mL. Diphenylamine derivatives, particularly bis(4-tert-butylphenyl)amine (DBDPA) and diphenylamine (DPA), were identified as the predominant compounds, contributing over 69% of the total AA burden. No PPDs or PPD-Qs were detected, which may be attributed to their biotransformation and urinary excretion, as well as the limited sample size. This study provides a comprehensive biomonitoring tool for assessing combined human exposure to multiple AAs and establishes a foundation for further investigation into their health implications.
1. Introduction
Aromatic amine antioxidants (AAs) are a class of chemical additives widely used in industrial and consumer goods sectors, primarily to prevent oxidative degradation of polymer materials (e.g., rubber, plastics) and lubricants caused by heat, oxygen, and light, thereby extending product life and maintaining performance stability [1]. Based on their specific chemical structures, AAs are classified into diphenylamines (DPAs), p-phenylenediamines (PPDs), and naphthylamines (NPAs). Currently, several AAs such as 4,4′-bis(phenylisopropyl)diphenylamine (diAMS), N-phenyl-1-naphthylamine (PANA), and N-(1,3-dimethylbutyl)-N′-phenyl-p-phenylenediamine (6PPD) are listed as High-Production-Volume chemicals by the U.S. Environmental Protection Agency [2]. With increasing market demand in rubber, plastics, and related fields, the annual production and consumption of AAs continue to grow [3]. However, substantial evidence indicates that these chemicals pose non-negligible potential health risks. Some AAs and their transformation products have been confirmed to exhibit aquatic lethal toxicity, developmental toxicity, mammalian organ toxicity, and neurotoxicity, among others [4,5,6,7,8]. A prominent example is the oxidation product of 6PPD, 6PPD-quinone (6PPD-Q), identified as a key toxicant causing acute mortality in coho salmon [9]. In the ECHA industry classifications, it is labeled as H400, indicating that it is very toxic to aquatic life [10]. In early-life stage tests with fathead minnows, both DPA and PANA caused teratogenic and lethal effects, with lethality being the more sensitive endpoint [11]. In a study on wild mammals, the toxicity of DPA was primarily targeted to the kidneys, leading to reduced urinary concentrating capacity and potentially resulting in dehydration and anemia. Additionally, reproductive and developmental impairments were observed across multiple species [7]. Consequently, with rising production and use, the potential threats of AAs to ecosystems and human health are attracting increasing attention in environmental science and public health research.
Through industrial production and daily consumption activities, AAs can enter the environment via multiple pathways, including product wear, waste disposal, and others [12,13]. Recent environmental monitoring studies have detected AAs in various environmental media, such as atmospheric particulate matter, surface water, sediments, soil, and indoor/outdoor dust [14,15,16,17]. More notably, these compounds are not only present in the external environment but have also been shown to enter the human body through multiple routes—inhalation, diet, dermal contact—resulting in internal exposure. Numerous biomonitoring studies have detected various AAs and their transformation products in human samples, including urine, blood, breast milk, and even cerebrospinal fluid [18,19,20,21,22], providing direct evidence of human body burden and internal translocation. Human blood, as a key medium for the transport, distribution, and metabolism of chemicals within the body, can more comprehensively reflect recent and long-term exposure levels of individuals, serving as an important biomarker for health risk assessment [23].
Current research on detecting AAs in human blood primarily focuses on a few high-concern PPD compounds, such as 6PPD and its transformation product 6PPD-Q. Analytical methods predominantly employ high-performance liquid chromatography-tandem mass spectrometry (HPLC-MS/MS), which has become a mainstream technique for trace organic pollutant analysis due to its high sensitivity and selectivity [24,25,26]. However, existing studies on the analysis of AAs in blood often employ relatively simplistic sample pretreatment procedures for blood, such as protein precipitation followed by direct injection, or only basic steps like liquid–liquid extraction (LLE) or freeze-lipid removal [19,20,22,27], lacking in-depth purification tailored to the complex blood matrix. The human blood matrix is highly complex, containing substantial endogenous substances such as proteins, phospholipids, cholesterol, and fatty acids. These matrix components, especially phospholipids, can cause significant ion suppression or enhancement effects in electrospray ionization-mass spectrometry analysis, severely interfering with accurate identification and quantification of target compounds, and potentially leading to instrument contamination and reduced sensitivity [28].
Therefore, developing a sample pretreatment method for blood that efficiently removes interfering substances such as phospholipids while enabling simultaneous accurate determination of multiple AAs and their important transformation products is crucial for comprehensively assessing human exposure levels and related health risks. Solid-phase extraction (SPE), offering advantages such as low solvent consumption, high clean-up efficiency, and simple operation, has become a mainstream pretreatment technique for the analysis of trace organic compounds in complex biological matrices. The novel enhanced matrix removal–lipid SPE sorbent (Captiva EMR-Lipid) selectively adsorbs and efficiently removes lipids from samples through a mechanism combining size exclusion and hydrophobic interactions with the long aliphatic chains of lipids, while maximizing the recovery of target analytes. Building on this, we developed and optimized a method integrating Captiva EMR-Lipid SPE with HPLC-MS/MS, achieving for the first time simultaneous extraction, purification, and determination of 19 AAs (covering DPAs, PPDs, and NPAs) and 2 key PPD-derived quinones (PPD-Qs). The established method addresses gaps in existing approaches, significantly improving analytical accuracy and precision. It provides a robust analytical tool for the systematic and comprehensive assessment of combined human exposure to multiple AAs, laying a solid methodological foundation for future large-scale population biomonitoring and in-depth toxicological risk research.
2. Materials and Methods
2.1. Chemicals and Reagents
The target analytes in this study encompass 19 commercially prevalent AAs, including DPAs, PPDs, and NPAs, as well as 2 PPD-Qs. A complete list of the target compounds, including their abbreviations, CAS numbers, chemical structures, and basic physicochemical properties, is provided in Table A1. Authentic standards were purchased from Tokyo Chemical Industry (Tokyo, Japan), J&K Scientific (Beijing, China), AccuStandard (New Haven, CT, USA), and Cambridge Isotope Laboratories (Andover, MA, USA), with purities > 98%. Methanol and acetonitrile (HPLC grade) used in the experiments were obtained from Fisher Scientific (Fair Lawn, NJ, USA). Ultrapure water was prepared using a Milli-Q Integral system. Captiva EMR-Lipid (3 mL, 300 mg) for SPE was purchased from Agilent Technologies (Santa Clara, CA, USA).
2.2. Sample Collection
Blood samples were collected from 20 randomly recruited volunteers at Zhujiang Hospital of Southern Medical University in 2020. Approximately 10 mL of blood was drawn from each volunteer using vacuum blood collection tubes. Each blood sample was immediately centrifuged thoroughly at 4 °C to separate plasma from red blood cells. The resulting plasma samples were stored at −80 °C until chemical analysis. The study protocol was approved by the ethics committee of Jinan University, and written informed consent was obtained from all participants.
2.3. Standard Solutions
Twenty-one standard compounds were accurately weighed and dissolved in methanol, acetonitrile, or other appropriate solvents to prepare individual primary stock solutions at a concentration of 10 mg/mL. These primary stock solutions were then diluted with methanol to obtain secondary stock solutions at 100 μg/mL. Aliquots from each secondary stock solution were mixed and further diluted with acetonitrile to prepare a mixed standard solution at 1 μg/mL. The mixed standard solution was serially diluted to prepare a calibration curve at concentrations of 100, 50, 10, 5, 1, 0.5, 0.1, 0.05, and 0.01 ng/mL.
2.4. Sample Pretreatment
LLE protocol: 5 ng of each standard was spiked into 0.5 mL of plasma and allowed to equilibrate. Subsequently, 2 mL of acetonitrile and 0.2 g of NaCl were added to induce protein precipitation and phase separation. The mixture was vortexed, sonicated for 20 min, and centrifuged. The supernatant was collected, and the extraction was repeated twice. The combined supernatants were then treated with 20 μL of 1 mmol/L glutathione to prevent oxidation of PPDs, concentrated to 0.5 mL under a gentle stream of nitrogen, and analyzed.
Captiva EMR-Lipid clean-up: To each 0.5 mL plasma sample, 2 mL of acetonitrile was added for ultrasound-assisted extraction. After centrifugation, the supernatant was loaded onto a Captiva EMR-Lipid SPE cartridge. The cartridge was then eluted with 2.5 mL of acetonitrile-water mixture (4:1, v/v). The combined loading solution and eluate were collected, followed by the addition of 0.4 g NaCl. After vortex mixing and centrifugation, the upper acetonitrile layer was transferred. Glutathione (20 μL, 1 mmol/L) was added, and the solution was concentrated under a gentle stream of nitrogen to 0.5 mL. Finally, the extract was filtered through a 0.22 μm PTFE filter prior to analysis.
2.5. Instrument Analysis
Nineteen AAs and two PPD-Qs were quantified using an ExionLC AC high-performance liquid chromatography system coupled with a Triple Quad 5500 mass spectrometer (AB SCIEX, Framingham, MA, USA). Chromatographic separation was performed on an XBridge BEH C8 column (2.5 μm, 2.1 mm × 100 mm, Waters, Milford, MA, USA) with an injection volume of 5 μL. The column temperature was maintained at 40 °C. The mobile phase consisted of 0.1% formic acid in water (A) and methanol (B). The elution gradient was programmed as follows, 0–1.5 min, 10% B; 4–15 min, 100% B; and 15.1–20 min, 10% B, at a flow rate of 0.3 mL/min. To minimize contamination of the mass spectrometer, a six-port valve was used to divert the effluent to waste during periods when no target analytes were eluting. The mass spectrometer was operated in positive electrospray ionization (ESI) mode with multiple reaction monitoring (MRM). The ion spray voltage was set to 5500 V, the ion source temperature to 550 °C, the curtain gas pressure to 40 psi, and both the nebulizer gas and auxiliary heater gas pressures to 40 psi. Optimized MS/MS parameters for all target analytes are summarized in Table 1, and their representative chromatograms are presented in Figure 1.
2.6. Validation Procedure
The proposed method was validated in terms of accuracy, precision, and matrix effects, while its linearity, limit of detection (LOD), and limit of quantification (LOQ) were also evaluated. Method accuracy was assessed via procedural blanks and spike recovery experiments. Procedural blanks were prepared by replacing plasma samples with ultrapure water and subjecting them to the same pretreatment process. Spike recovery was calculated as follows: Recovery (%) = [(measured concentration in spiked sample − measured concentration in unspiked sample)/spiked concentration] × 100%. Precision was evaluated as the relative standard deviation (RSD) of the spike recovery results. Matrix effect (ME) was calculated as: ME (%) = [(measured concentration in post-extraction spiked sample − measured concentration in unspiked sample)/spiked concentration] × 100%. The spiking concentration was 5000 pg/mL. Method linearity was evaluated based on the coefficient of determination (R2) obtained from linear regression of calibration curves within the concentration range of 0.01–100 ng/mL. The LOD and LOQ were defined as the concentrations corresponding to signal-to-noise ratios of 3 and 10, respectively. If a target analyte was detected in procedural blanks, the LOD and LOQ were alternatively set to 3 times and 10 times the standard deviation of the blank measurements, respectively.
2.7. Data Analysis
Chromatographic peaks were integrated using Analyst 1.6.3 (AB SCIEX), and the corresponding peak areas were applied to the calibration curves for quantifying target analytes. DNODPA and DTODPA, as well as PANA and PBNA, are isomeric compounds that share identical precursor and product ions in mass spectrometry and could not be chromatographically separated. Consequently, they were quantified collectively. Statistical analysis was conducted using SPSS 27 (IBM Corporation, Armonk, NY, USA). For analyte concentrations measured below the LOD and LOQ, the values were substituted with LOD (or LOQ) multiplied by the detection frequency (DF).
3. Results and Discussion
3.1. Optimization of Instrument Conditions
In our previous study, the chromatographic and mass spectrometric conditions for the 21 target AAs and PPD-Qs were systematically optimized [13]. The chromatographic optimization included the selection of mobile phase composition, type and concentration of mobile phase additives, column type, and gradient elution profile. Mass spectrometric optimization encompassed ion source parameters (such as spray voltage, ion source temperature, nebulizer gas, heater gas, and curtain gas) and compound-dependent parameters (including collision energy and declustering potential). Based on the established method, the present study further introduced the use of a six-port switching valve to control the chromatographic effluent, allowing only the eluent within the retention time window of the target analytes to enter the mass spectrometer. This configuration effectively prevents highly hydrophilic substances, such as salts, from entering and contaminating the mass spectrometer.
3.2. Optimization of Pre-Treatment Method
The spike recoveries of 19 AAs and 2 PPD-Qs were evaluated using an LLE protocol. As shown in Figure 2, under the LLE-only procedure, the recoveries of all target analytes ranged from 43.5% to 94.4%. Among them, BDPA, DNODPA/DTODPA, DM-AD, and PANA/PBNA exhibited recoveries below 60%. After excluding insufficient extraction efficiency or significant analyte loss during the process, the low recoveries were likely attributable to ion suppression caused by lipids in the blood matrix during mass spectrometric analysis. This hypothesis was further supported by the relatively higher recoveries (ranging from 74.0% to 87.7%) observed for the more hydrophilic PPDs and PPD-Qs, which tend not to co-elute with lipids in the chromatographic separation, and are therefore generally less susceptible to lipid interference [29,30].
To achieve satisfactory recoveries for all target analytes in practical analyses, it was necessary to introduce a cleanup step prior to instrumental analysis. The extraction protocol was therefore modified as follows: after adding acetonitrile to the plasma sample to induce protein precipitation, the mixture was loaded onto a Captiva EMR-Lipid SPE cartridge for targeted lipid removal. Subsequent phase separation and concentration were performed using the same procedure described above. With this improvement, the recoveries of the previously low-recovery analytes increased significantly, with mean values all exceeding 70%. The overall recovery range for all analytes improved to 73.5–96.1%. These results demonstrate that the removal of lipid during the Captiva EMR-Lipid SPE process effectively mitigated ion suppression caused by blood matrix without introducing substantial analyte loss. Consequently, the inclusion of Captiva EMR-Lipid SPE as a clean-up step in plasma sample pretreatment was adopted, and further validation of this optimized method was carried out.
3.3. Method Validation
A comprehensive methodological validation was performed for the established analytical method, which combines Captiva EMR-Lipid cleanup with HPLC-MS/MS for the determination of 19 AAs and 2 PPD-Qs in human plasma. Table 2 summarizes the procedural blanks introduced during sample preparation, the recoveries at spiked levels of 5000 pg/mL and 2500 pg/mL, and the matrix effects for all target analytes (n = 3). No target analytes were detected in the procedural blanks. At both spiking levels, the recoveries of AAs and PPDs ranged from 73.0% to 96.8%, with relative standard deviations (RSDs) of recovery between 2.6% and 11%, demonstrating acceptable accuracy and precision of the method. The matrix effects for the target analytes fell within 74.4% to 93.7%, further indicating that matrix interference was effectively mitigated. The linearity parameters of the calibration curves for the 19 AAs and 2 PPD-Qs, as well as the LODs and LOQs, are presented in Table 3. All calibration curves exhibited R2 ≥ 0.996 (Figure A1), indicating good linearity across their linear ranges. The LODs and LOQs ranged from 0.813 to 20.9 pg/mL and from 2.71 to 69.7 pg/mL, respectively. Compared with previously reported methods, the developed method successfully incorporated DPAs and NPAs in addition to PPDs and PPD-Qs. These compounds have been overlooked in human exposure studies, and the method achieved satisfactory recoveries and comparable LOQs (Table 4). These findings indicate the potential of the established method for analyzing trace levels of AAs and PPDs in plasma.
3.4. Actual Plasma Sample Detection
The established method was applied to the analysis of plasma samples collected from 20 general adults. Figure 3 presents the MRM chromatograms of blank plasma, spiked plasma, and a representative real plasma sample. Eleven AAs were detected, and the statistical results and distributions of their concentrations are presented in Table 5 and Figure A2. The total concentration of the 11 detected AAs in plasma ranged from 240 to 710 pg/mL, with a median concentration of 400 pg/mL. DPA, DBDPA, BDPA, PANA/PBNA, diAMS, and DNODPA/DTODPA were frequently detected in the samples, with detection frequencies (DF) > 60%; among these, DPA and DBDPA were detected in all samples. DBDPA was the predominant AA in plasma, with a median concentration of 180 pg/mL and an average contribution of 47.2%, followed by DPA (21.9%), PANA/PBNA (11.8%), and DNODPA/DTODPA (8.6%). No PPDs or PPD-Qs were detected, which is consistent with previously reported low detection rates of PPDs and PPD-Qs in blood [19]. This observation can be attributed to their biotransformation in vivo and excretion via urine [18,22]. While this study is limited by its small sample size, these results demonstrate that the general adult population is likely widely exposed to multiple AAs, with DPAs which have received relatively little attention, contributing to a non-negligible internal burden. The capability of the present method to analyze a broad spectrum of AAs can provide a more comprehensive assessment of combined human exposure than previous methods that primarily targeted PPD-related compounds.
4. Conclusions
In this study, we observed that when the LLE method commonly used for analyzing PPDs and PPD-Qs in blood was applied to AAs including DPAs, NPAs, and PPDs, the lack of a cleanup step resulted in significant ion suppression during mass spectrometric analysis due to matrix interference, particularly for several hydrophobic AAs. To address this, a robust and sensitive analytical method based on Captiva EMR-Lipid SPE cleanup combined with HPLC-MS/MS was developed and validated for the simultaneous determination of 19 AAs and 2 PPD-Qs in human plasma. The method was successfully applied to plasma samples from a general adult population, leading to the detection of 11 AAs. This work provides a validated tool for biomonitoring multiple AAs and PPD-Qs in human blood, offers preliminary insights into the internal exposure profile of AAs in the general population, and establishes a methodological foundation for future large-scale studies aimed at assessing associated health risks and elucidating human exposure pathways.
Author Contributions
Conceptualization, data curation, methodology, and writing—original draft, B.L.; supervision and writing—review and editing, Q.D. and Z.P.; methodology and investigation, L.Z.; conceptualization, methodology, supervision, and writing—review and editing, B.D. All authors have read and agreed to the published version of the manuscript.
Funding
The present study was financially supported by the National Natural Science Foundation of China (42477398, 22276071, and U25A20824), the Guangdong Basic and Applied Basic Research Foundation (2024A1515030109), the Chang Jiang Scholars Program (T2023281), the Guizhou Provincial Key Technology R&D Program (Qian Kehe Support [2025] General 096), and the Fundamental Research Funds for the Central Universities (21624218).
Institutional Review Board Statement
The ethics committee of Jinan University and the hospital approved and supervised the research protocol (approval number 003/2021, date of approval: 10 February 2021).
Informed Consent Statement
Informed consent was obtained from all subjects involved in this study.
Data Availability Statement
The original contributions presented in this study are included in the article. Further inquiries can be directed towards the corresponding author.
Acknowledgments
The authors would like to thank the hospital staff for their invaluable support in collecting blood samples for this study.
Conflicts of Interest
The authors declare no conflicts of interest.
Appendix A
Table A1.
Full names, abbreviations, chemical structures, CAS numbers, molecular weight (MW), and basic physicochemical properties of 19 AAs and 2 PPD-Qs.
Table A1.
Full names, abbreviations, chemical structures, CAS numbers, molecular weight (MW), and basic physicochemical properties of 19 AAs and 2 PPD-Qs.
| Full Name | Abbreviation | Chemical Structure | CAS NO. | MW | LogKow 1 |
|---|---|---|---|---|---|
| Diphenylamine | DPA |  | 122-39-4 | 169.23 | 3.50 |
| 4-tert-Butyldiphenylamine | BDPA |  | 4496-49-5 | 225.34 | 5.20 |
| Bis(4-tert-butylphenyl)amine | DBDPA |  | 4627-22-9 | 281.44 | 7.11 |
| 4,4′-Dioctyldiphenylamine | DNODPA |  | 101-67-7 | 393.66 | 11.26 |
| 4,4′-Di-tert-octyldiphenylamine | DTODPA |  | 15721-78-5 | 393.66 | 10.82 |
| 4,4′-Bis(1,1-dimethylbenzyl) diphenylamine | diAMS |  | 10081-67-1 | 405.59 | 8.51 |
| 2-Nitrodiphenylamine | 2NO2-DPA |  | 119-75-5 | 214.22 | 3.66 |
| 4-Nitrodiphenylamine | 4NO2-DPA |  | 836-30-6 | 214.22 | 3.74 |
| 2,4-Dinitrodiphenylamine | 24NO2-DPA |  | 961-68-2 | 259.22 | 3.50 |
| Diphenylbenzidine | DPB |  | 531-91-9 | 336.44 | 6.35 |
| 9,9-Dimethylacridan | DM-AD |  | 6267-02-3 | 209.29 | 4.14 |
| N-Phenyl-1-naphthylamine | PANA |  | 90-30-2 | 219.29 | 4.20 |
| N-Phenyl-2-naphthylamine | PBNA |  | 135-88-6 | 219.29 | 4.38 |
| 6-Ethoxy-2,2,4-trimethyl-1,2-dihydroquinoline | AW |  | 91-53-2 | 217.31 | 3.87 |
| N-(1,3-Dimethylbutyl)-N′-phenyl-p-phenylenediamine | 6PPD |  | 793-24-8 | 268.40 | 4.68 |
| N-Isopropyl-N′-phenyl-p-phenylenediamine | IPPD |  | 101-72-4 | 226.32 | 3.28 |
| N,N′-Diphenyl-p-phenylenediamine | DPPD |  | 74-31-7 | 260.34 | 4.04 |
| N-Cyclohexyl-N-phenyl-benzene-1,4-diamine | CPPD |  | 101-87-1 | 266.39 | 4.64 |
| N,N′-Di-2-naphthyl-p-phenylenediamine | DNPD |  | 93-46-9 | 360.46 | 6.39 |
| 2-[(1,3-Dimethylbutyl)amino]-5-(phenylamino)-2,5-cyclohexadiene-1,4-dione | 6PPD-Q |  | 2754428-18-5 | 298.39 | 3.98 |
| 2-[(1-Methylethyl)amino]-5-(phenylamino)-2,5-cyclohexadiene-1,4-dione | IPPD-Q |  | 68054-73-9 | 256.31 | 2.58 |
1 The logKow values were predicted by EPI Suite 4.1.

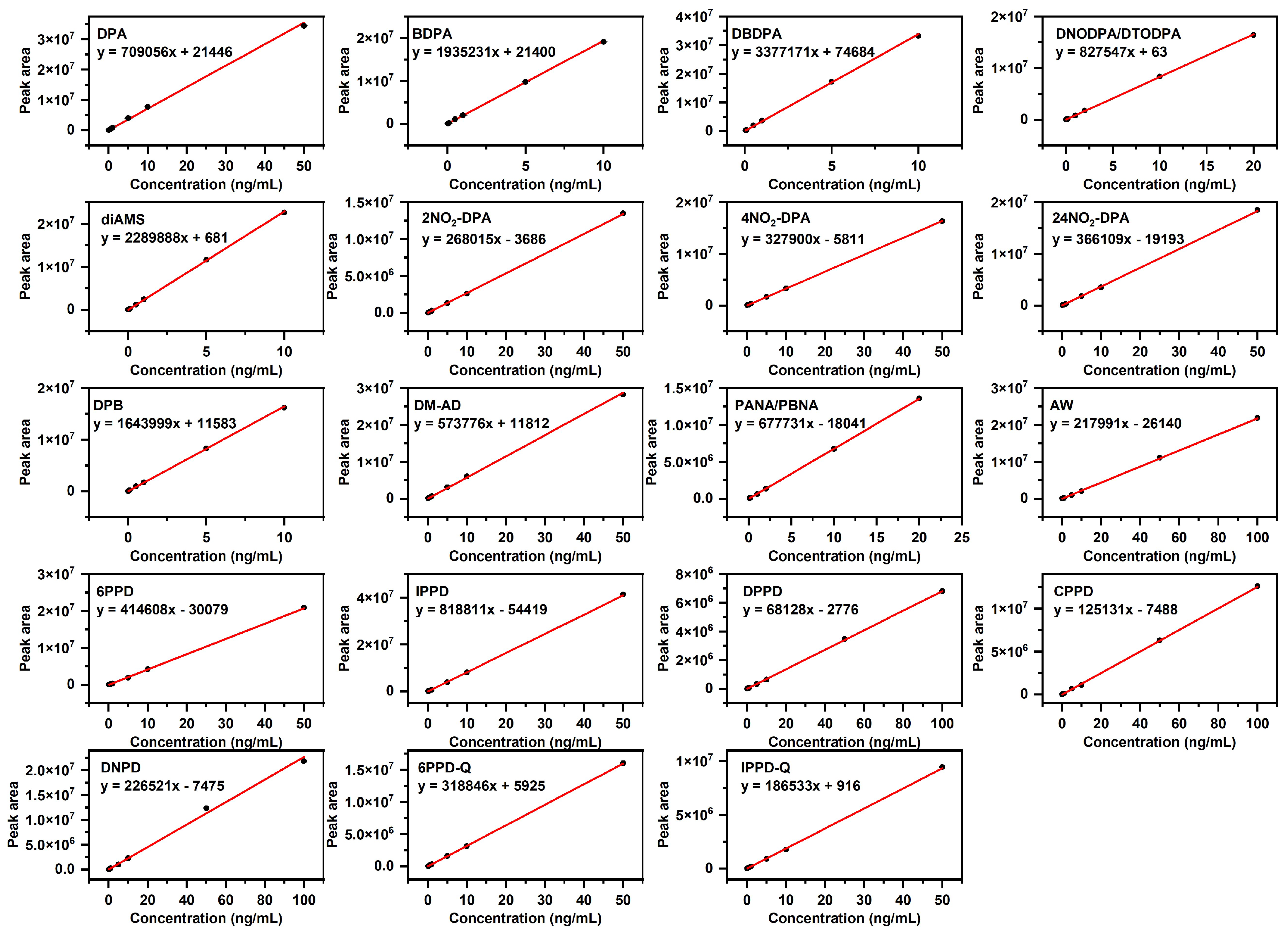

Figure A1.
Calibration curves for the 19 AAs and 2 PPD-Qs.

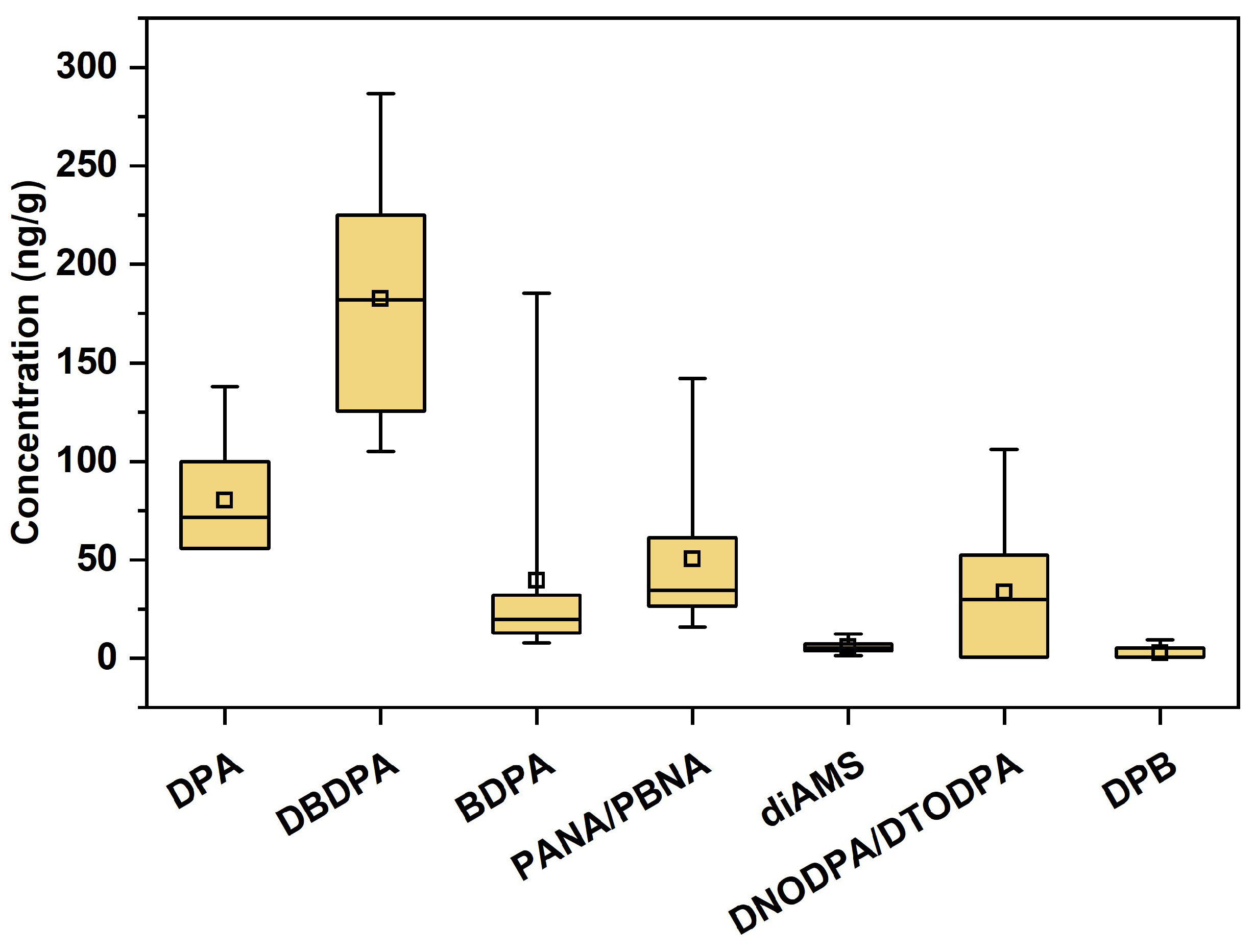

Figure A2.
Boxplot of the concentration distributions of the nine quantified AAs in plasma. The boxes represent the 25th, 50th, and 75th percentiles, respectively. Squares indicate the mean values. The whiskers denote the 5th and 95th percentiles, respectively.
Figure A2.
Boxplot of the concentration distributions of the nine quantified AAs in plasma. The boxes represent the 25th, 50th, and 75th percentiles, respectively. Squares indicate the mean values. The whiskers denote the 5th and 95th percentiles, respectively.
References
- Jin, R.; Venier, M.; Chen, Q.; Yang, J.; Liu, M.; Wu, Y. Amino antioxidants: A review of their environmental behavior, human exposure, and aquatic toxicity. Chemosphere 2023, 317, 137913. [Google Scholar] [CrossRef]
- U.S. EPA. CDR Database. Available online: https://www.epa.gov/chemical-data-reporting/access-chemical-data-reporting-data (accessed on 30 January 2026).
- Analysis of the Development Status of China’s Antioxidant Industry in 2023. Available online: https://www.huaon.com/channel/trend/999461.html (accessed on 27 January 2026).
- Lo, B.P.; Marlatt, V.L.; Liao, X.; Reger, S.; Gallilee, C.; Ross, A.R.S.; Brown, T.M. Acute Toxicity of 6PPD-Quinone to Early Life Stage Juvenile Chinook (Oncorhynchus tshawytscha) and Coho (Oncorhynchus kisutch) Salmon. Environ. Toxicol. Chem. 2023, 42, 815–822. [Google Scholar] [CrossRef]
- Feng, Y.; Xian, H.; Bai, R.; Li, Z.; Li, H.; Zhang, L.; Huang, X.; Huang, Y.; Liang, B.; Deng, Y.; et al. Multi-omics insights into 6PPD- and 6PPDQ-induced gut-liver axis disruption and non-alcoholic fatty liver disease progression in zebrafish (Danio rerio). J. Hazard. Mater. 2025, 495, 138822. [Google Scholar] [CrossRef]
- Zhong, L.; Peng, W.; Liu, C.; Gao, L.; Chen, D.; Duan, X. IPPD-induced growth inhibition and its mechanism in zebrafish. Ecotoxicol. Environ. Saf. 2022, 239, 113614. [Google Scholar] [CrossRef] [PubMed]
- Arenal, C.A.; Sample, B.E. Wildlife Toxicity Assessment for Diphenylamine. In Wildlife Toxicity Assessments for Chemicals of Military Concern; Elsevier: Amsterdam, The Netherlands, 2015; pp. 439–464. [Google Scholar]
- Hyun, S.-A.; Park, J.-H.; Ko, M.Y.; Min, E.; Kim, M.; Kang, S.-W.; Ka, M. Human cardiac organoids highlight cardiotoxicity of the tire rubber antioxidant 6PPD. Ecotoxicol. Environ. Saf. 2025, 308, 119496. [Google Scholar] [CrossRef]
- Tian, Z.; Zhao, H.; Peter, K.T.; Gonzalez, M.; Wetzel, J.; Wu, C.; Hu, X.; Prat, J.; Mudrock, E.; Hettinger, R.; et al. A ubiquitous tire rubber–derived chemical induces acute mortality in coho salmon. Science 2021, 371, 185–189. [Google Scholar] [CrossRef]
- ECHA. ECHA Chemicals Database. Available online: https://chem.echa.europa.eu/100.374.478/overview?searchText=2754428-18-5 (accessed on 13 February 2026).
- Prosser, R.S.; Parrott, J.L.; Galicia, M.; Shires, K.; Sullivan, C.; Toito, J.; Bartlett, A.J.; Milani, D.; Gillis, P.L.; Balakrishnan, V.K. Toxicity of sediment-associated substituted phenylamine antioxidants on the early life stages of Pimephales promelas and a characterization of effects on freshwater organisms. Environ. Toxicol. Chem. 2017, 36, 2730–2738. [Google Scholar] [CrossRef]
- Tian, L.; Zhao, S.; Zhang, R.; Lv, S.; Chen, D.; Li, J.; Jones, K.C.; Sweetman, A.J.; Peng, P.a.; Zhang, G. Tire Wear Chemicals in the Urban Atmosphere: Significant Contributions of Tire Wear Particles to PM2.5. Environ. Sci. Technol. 2024, 58, 16952–16961. [Google Scholar] [CrossRef] [PubMed]
- Liang, B.; Li, J.; Du, B.; Pan, Z.; Liu, L.-Y.; Zeng, L. E-Waste Recycling Emits Large Quantities of Emerging Aromatic Amines and Organophosphites: A Poorly Recognized Source for Another Two Classes of Synthetic Antioxidants. Environ. Sci. Technol. Lett. 2022, 9, 625–631. [Google Scholar] [CrossRef]
- Cao, G.; Wang, W.; Zhang, J.; Wu, P.; Zhao, X.; Yang, Z.; Hu, D.; Cai, Z. New Evidence of Rubber-Derived Quinones in Water, Air, and Soil. Environ. Sci. Technol. 2022, 56, 4142–4150. [Google Scholar] [CrossRef]
- Geng, N.; Hou, S.; Sun, S.; Cao, R.; Zhang, H.; Lu, X.; Zhang, S.; Chen, J.; Zhang, Y. A Nationwide Investigation of Substituted p-Phenylenediamines (PPDs) and PPD-Quinones in the Riverine Waters of China. Environ. Sci. Technol. 2025, 59, 3183–3192. [Google Scholar] [CrossRef]
- Hu, J.; Xu, T.-W.; Zhang, Y.; Xiao, M.-Y.; Meng, B.; Kolodeznikov, V.E.; Petrova, N.N.; Mukhin, V.V.; Zhang, Z.-F.; Tang, Z.-H.; et al. Amine antioxidants in water, ice, sediment and soil from the Songhua Wetland, Northeast China: Occurrence and fate. Sci. Total Environ. 2025, 959, 178199. [Google Scholar] [CrossRef] [PubMed]
- Wu, Y.; Venier, M.; Hites, R.A. Broad Exposure of the North American Environment to Phenolic and Amino Antioxidants and to Ultraviolet Filters. Environ. Sci. Technol. 2020, 54, 9345–9355. [Google Scholar] [CrossRef] [PubMed]
- Du, B.; Liang, B.; Li, Y.; Shen, M.; Liu, L.-Y.; Zeng, L. First Report on the Occurrence of N-(1,3-Dimethylbutyl)-N′-phenyl-p-phenylenediamine (6PPD) and 6PPD-Quinone as Pervasive Pollutants in Human Urine from South China. Environ. Sci. Technol. Lett. 2022, 9, 1056–1062. [Google Scholar] [CrossRef]
- Liu, C.; Zhao, X.; Guo, L.; Yu, Q.; Zhang, W.; Peng, Z.; Gao, Y.; Gong, X.; Li, P.; Jiao, H.; et al. Emerging N-(1,3-dimethylbutyl)-N′-phenyl-p-phenylenediamine (6PPD) and 6PPD quinone in paired human plasma and urine from Tianjin, China: Preliminary assessment with demographic factors. J. Hazard. Mater. 2024, 476, 134818. [Google Scholar] [CrossRef]
- Yang, Y.; Meng, W.; Zhang, Y.; Meng, W.; Li, J.; Liu, W.; Su, G. Characterizing the Metabolism of Tire Rubber-Derived p-Phenylenediamine Quinones to Identify Potential Exposure Biomarkers in Humans. Environ. Sci. Technol. 2024, 58, 18098–18108. [Google Scholar] [CrossRef]
- Liang, B.; Ge, J.; Deng, Q.; Li, Y.; Du, B.; Guo, Y.; Zeng, L. Occurrence of Multiple Classes of Emerging Synthetic Antioxidants, Including p-Phenylenediamines, Diphenylamines, Naphthylamines, Macromolecular Hindered Phenols, and Organophosphites, in Human Milk: Implications for Infant Exposure. Environ. Sci. Technol. Lett. 2024, 11, 259–265. [Google Scholar] [CrossRef]
- Han, M.; Xia, K.; Xue, Y.; Yue, F.; Li, J.; Kang, F.; Zhu, B.; Hu, L.; Liu, Q.; Xie, Z.; et al. Emergence of More Potent PPD-Qs beyond 6PPD-Q in Human Blood and Cerebrospinal Fluid. Environ. Sci. Technol. Lett. 2025, 12, 496–502. [Google Scholar] [CrossRef]
- Paustenbach, D.; Galbraith, D. Biomonitoring: Is body burden relevant to public health? Regul. Toxicol. Pharmacol. 2006, 44, 249–261. [Google Scholar] [CrossRef] [PubMed]
- Zhang, S.; Cheng, Z.; Li, X.; Shi, Y.; Zhu, H.; Zhang, T.; Wang, L.; Sun, H. Trans-Placental Transfer Mechanisms of Aromatic Amine Antioxidants (AAs) and p-Phenylenediamine Quinones (PPD-Qs): Evidence from Human Gestation Exposure and the Rat Uterine Perfusion Model. Environ. Sci. Technol. 2024, 58, 21166–21176. [Google Scholar] [CrossRef]
- Zhang, Z.-F.; Zhang, X.; Sverko, E.; Marvin, C.H.; Jobst, K.J.; Smyth, S.A.; Li, Y.-F. Determination of Diphenylamine Antioxidants in Wastewater/Biosolids and Sediment. Environ. Sci. Technol. Lett. 2020, 7, 102–110. [Google Scholar] [CrossRef]
- Tan, H.; Qiao, X.; Yang, L.; Liang, X.; Tang, S.; Huang, D.; Hale, R.C.; Deng, Y.; Dai, Q.; Xie, P.; et al. Nationwide Occurrence of Synthetic Antioxidants in Household Dust from Regions across China. Environ. Sci. Technol. Lett. 2024, 11, 1370–1376. [Google Scholar] [CrossRef]
- Song, S.; Gao, Y.; Feng, S.; Cheng, Z.; Huang, H.; Xue, J.; Zhang, T.; Sun, H. Widespread occurrence of two typical N, N′-substituted p-phenylenediamines and their quinones in humans: Association with oxidative stress and liver damage. J. Hazard. Mater. 2024, 468, 133835. [Google Scholar] [CrossRef] [PubMed]
- Khoury, S.; El Banna, N.; Tfaili, S.; Chaminade, P. A study of inter-species ion suppression in electrospray ionization-mass spectrometry of some phospholipid classes. Anal. Bioanal. Chem. 2016, 408, 1453–1465. [Google Scholar] [CrossRef]
- King, R.; Bonfiglio, R.; Fernandez-Metzler, C.; Miller-Stein, C.; Olah, T. Mechanistic investigation of ionization suppression in electrospray ionization. J. Am. Soc. Mass Spectrom. 2000, 11, 942–950. [Google Scholar] [CrossRef] [PubMed]
- Little, J.L.; Wempe, M.F.; Buchanan, C.M. Liquid chromatography–mass spectrometry/mass spectrometry method development for drug metabolism studies: Examining lipid matrix ionization effects in plasma. J. Chromatogr. B 2006, 833, 219–230. [Google Scholar] [CrossRef] [PubMed]
Figure 1.
HPLC-ESI (+)-MS/MS multiple reaction monitoring (MRM) chromatograms of a standard mixture containing the 19 AAs and 2 PPD-Qs (10 ng/mL for each). 1. IPPD, 2. CPPD, 3. 6PPD, 4. AW, 5. IPPD-Q, 6. DPA, 7. 4NO2-DPA, 8. 6PPD-Q, 9. 2NO2-DPA, 10. 24NO2-DPA, 11. DPPD, 12. DM-AD, 13. PANA/PBNA, 14. BDPA, 15. DBDPA, 16. DPB, 17. DNPD, 18. diAMS, 19, DNODPA/DTODPA.
Figure 1.
HPLC-ESI (+)-MS/MS multiple reaction monitoring (MRM) chromatograms of a standard mixture containing the 19 AAs and 2 PPD-Qs (10 ng/mL for each). 1. IPPD, 2. CPPD, 3. 6PPD, 4. AW, 5. IPPD-Q, 6. DPA, 7. 4NO2-DPA, 8. 6PPD-Q, 9. 2NO2-DPA, 10. 24NO2-DPA, 11. DPPD, 12. DM-AD, 13. PANA/PBNA, 14. BDPA, 15. DBDPA, 16. DPB, 17. DNPD, 18. diAMS, 19, DNODPA/DTODPA.
Figure 2.
Plasma spiked recovery rates (mean ± SD, n = 3) of 19 AAs and 2 PPD-Qs under liquid–liquid extraction and Captiva EMR-Lipid clean-up.
Figure 2.
Plasma spiked recovery rates (mean ± SD, n = 3) of 19 AAs and 2 PPD-Qs under liquid–liquid extraction and Captiva EMR-Lipid clean-up.
Figure 3.
HPLC-ESI(+)-MS/MS multiple reaction monitoring (MRM) chromatograms of (A) blank plasma, (B) spiked plasma (spiking level: 1 ng/mL) and (C) real plasma. 1. IPPD, 2. CPPD, 3. 6PPD, 4. AW, 5. IPPD-Q, 6. DPA, 7. 4NO2-DPA, 8. 6PPD-Q, 9. 2NO2-DPA, 10. 24NO2-DPA, 11. DPPD, 12. DM-AD, 13. PANA/PBNA, 14. BDPA, 15. DBDPA, 16. DPB, 17. DNPD, 18. diAMS, 19, DNODPA/DTODPA.
Figure 3.
HPLC-ESI(+)-MS/MS multiple reaction monitoring (MRM) chromatograms of (A) blank plasma, (B) spiked plasma (spiking level: 1 ng/mL) and (C) real plasma. 1. IPPD, 2. CPPD, 3. 6PPD, 4. AW, 5. IPPD-Q, 6. DPA, 7. 4NO2-DPA, 8. 6PPD-Q, 9. 2NO2-DPA, 10. 24NO2-DPA, 11. DPPD, 12. DM-AD, 13. PANA/PBNA, 14. BDPA, 15. DBDPA, 16. DPB, 17. DNPD, 18. diAMS, 19, DNODPA/DTODPA.
Table 1.
Optimized ESI (+)-MS/MS parameters for 19 AAs and 2 PPD-Qs.
| Analyte | Quantitative Transition (CE 1, eV) | Confirmation Transition (CE, eV) | DP 2 (eV) | RT 3 (min) |
|---|---|---|---|---|
| DPA | 170.1 > 93.1 (35) | 170.1 > 66.1 (56) | 80 | 8.00 |
| BDPA | 226.2 > 134.1 (37) | 226.2 > 93.0 (56) | 80 | 8.46 |
| DBDPA | 282.2 > 134.2 (46) | 282.2 > 106.0 (69) | 120 | 8.89 |
| DNODPA | 394.3 > 134.3 (53) | 394.3 > 322.3 (55) | 110 | 9.98 |
| DTODPA | 394.3 > 134.3 (53) | 394.3 > 322.3 (55) | 110 | 9.98 |
| diAMS | 406.2 > 196.3 (54) | 406.2 > 91.0 (85) | 80 | 9.26 |
| 2NO2-DPA | 215.1 > 180.1 (26) | 215.1 > 215.0 (10) | 95 | 8.13 |
| 4NO2-DPA | 215.1 > 198.0 (21) | 215.1 > 167.0 (44) | 70 | 8.02 |
| 24NO2-DPA | 260.1 > 167.1 (41) | 260.1 > 139.1 (45) | 160 | 8.19 |
| DPB | 337.2 > 260.1 (38) | 337.2 > 245.1 (34) | 95 | 8.88 |
| DM-AD | 210.1 > 194.1 (30) | 210.1 > 210.0 (12) | 90 | 8.24 |
| PANA | 220.1 > 143.2 (44) | 220.1 > 115.0 (65) | 120 | 8.39 |
| PBNA | 220.1 > 143.2 (44) | 220.1 > 115.0 (65) | 120 | 8.39 |
| AW | 218.2 > 160.1 (46) | 218.2 > 174.1 (40) | 90 | 7.22 |
| 6PPD | 269.2 > 184.1 (28) | 269.2 > 107.1 (62) | 70 | 7.14 |
| IPPD | 227.1 > 184.2 (24) | 227.1 > 212.2 (34) | 120 | 6.86 |
| DPPD | 261.1 > 168.2 (55) | 261.1 > 184.2 (32) | 90 | 8.21 |
| CPPD | 267.2 > 185.0 (35) | 267.2 > 93.1 (59) | 80 | 7.09 |
| DNPD | 361.2 > 218.1 (57) | 361.2 > 234.3 (48) | 100 | 9.01 |
| 6PPD-Q | 299.2 > 241.1 (35) | 299.2 > 215.1 (27) | 60 | 8.03 |
| IPPD-Q | 257.1 > 215.1 (24) | 257.1 > 187.1 (30) | 100 | 7.68 |
1 CE: collision energ. 2 DP: declustering potential. 3 RT: retention time.
Table 2.
Procedural blanks, spike recoveries, matrix effects (MEs), and their relative standard deviations (RSDs) for the 19 AAs and 2 PPD-Qs obtained under the extraction procedure incorporating Captiva EMR-Lipid clean-up.
Table 2.
Procedural blanks, spike recoveries, matrix effects (MEs), and their relative standard deviations (RSDs) for the 19 AAs and 2 PPD-Qs obtained under the extraction procedure incorporating Captiva EMR-Lipid clean-up.
| Analyte | Blank (pg/mL) | Recovery (%) | RSD (%) | Recovery (%) | RSD (%) | ME (%) | RSD (%) |
|---|---|---|---|---|---|---|---|
| Spike Level (5000 pg/mL) | Spike Level (2500 pg/mL) | ||||||
| DPA | ND 1 | 89.2 | 11 | 88.0 | 4.9 | 87.2 | 8.6 |
| BDPA | ND | 92.3 | 4.8 | 90.1 | 4.0 | 91.3 | 1.4 |
| DBDPA | ND | 91.1 | 7.5 | 90.7 | 11 | 88.8 | 6.0 |
| DNODPA/DTODPA | ND | 96.1 | 3.5 | 96.8 | 4.7 | 93.7 | 6.5 |
| diAMS | ND | 87.8 | 11 | 88.1 | 3.7 | 88.0 | 3.7 |
| 2NO2-DPA | ND | 82.3 | 6.9 | 82.5 | 8.1 | 87.6 | 6.9 |
| 4NO2-DPA | ND | 91.1 | 5.4 | 88.8 | 4.8 | 86.8 | 3.7 |
| 24NO2-DPA | ND | 82.6 | 6.1 | 79.1 | 3.5 | 80.4 | 6.2 |
| DPB | ND | 93.9 | 5.1 | 91.2 | 11 | 91.0 | 3.5 |
| DM-AD | ND | 85.0 | 5.5 | 84.0 | 3.6 | 87.9 | 2.5 |
| PANA/PBNA | ND | 73.5 | 4.8 | 74.7 | 5.0 | 80.1 | 9.1 |
| AW | ND | 76.1 | 6.2 | 73.0 | 8.8 | 82.8 | 2.4 |
| 6PPD | ND | 83.0 | 3.5 | 84.2 | 4.2 | 89.5 | 7.2 |
| IPPD | ND | 83.0 | 2.6 | 85.2 | 3.1 | 80.8 | 5.3 |
| DPPD | ND | 85.3 | 6.5 | 83.5 | 5.4 | 79.7 | 6.4 |
| CPPD | ND | 79.8 | 3.3 | 80.7 | 9.7 | 82.4 | 7.6 |
| DNPD | ND | 75.1 | 8.8 | 79.4 | 9.2 | 74.4 | 6.3 |
| 6PPD-Q | ND | 91.7 | 7.9 | 90.8 | 5.9 | 91.1 | 3.5 |
| IPPD-Q | ND | 94.4 | 3.5 | 90.5 | 3.8 | 90.1 | 3.0 |
1 ND: not detectable.
Table 3.
Linear parameters, limits of detection (LODs), and limits of quantification (LOQs) of the established method for the 19 AAs and 2 PPD-Qs.
Table 3.
Linear parameters, limits of detection (LODs), and limits of quantification (LOQs) of the established method for the 19 AAs and 2 PPD-Qs.
| Analyte | Linear Range (ng/mL) | R2 | LOD (pg/mL) | LOQ (pg/mL) |
|---|---|---|---|---|
| DPA | 0.1–50 | 0.997 | 17 | 56 |
| BDPA | 0.05–10 | 0.999 | 3.8 | 13 |
| DBDPA | 0.05–10 | 0.999 | 10 | 34 |
| DNODPA/DTODPA | 0.02–20 | 0.999 | 0.81 | 2.7 |
| diAMS | 0.01–10 | 0.999 | 1.3 | 4.4 |
| 2NO2-DPA | 0.1–50 | 0.999 | 21 | 70 |
| 4NO2-DPA | 0.1–50 | 0.999 | 6.1 | 20 |
| 24NO2-DPA | 0.1–50 | 0.999 | 19 | 64 |
| DPB | 0.01–10 | 0.999 | 1.2 | 4.1 |
| DM-AD | 0.1–50 | 0.999 | 19 | 62 |
| PANA/PBNA | 0.1–20 | 0.999 | 7.8 | 26 |
| AW | 0.1–100 | 0.998 | 18 | 60 |
| 6PPD | 0.1–50 | 0.999 | 7.2 | 24 |
| IPPD | 0.1–50 | 0.999 | 18 | 60 |
| DPPD | 0.1–100 | 0.999 | 21 | 68 |
| CPPD | 0.1–100 | 0.999 | 17 | 56 |
| DNPD | 0.1–100 | 0.996 | 14 | 48 |
| 6PPD-Q | 0.1–50 | 0.999 | 16 | 53 |
| IPPD-Q | 0.1–50 | 0.999 | 16 | 52 |
Table 4.
Comparison of the current work with previous methods for analysis of the amine antioxidant-related chemicals.
Table 4.
Comparison of the current work with previous methods for analysis of the amine antioxidant-related chemicals.
| Matrix | Pretreatment | Instrument | Analyte | Recoveries (%) | LOQs (pg/mL) | Ref. |
|---|---|---|---|---|---|---|
| Whole blood | Freeze-lipid removal | LC-Q-Orbitrap HRMS | Six PPD-Qs | 68.8−97.5 | 19.7−137 | [20] |
| Plasma | LLE | LC-MS/MS | 6PPD and 6PPD-Q | 63 and 73 | 40 and 40 | [19] |
| Serum | LLE | LC-MS/MS | Five PPD-Qs | 77.8−80.2 | 2−26 | [22] |
| Serum | LLE | LC-MS/MS | Two PPDs and two PPD-Qs | 72−121 | 1−10 | [27] |
| Plasma | LLE; SPE | LC-MS/MS | 19 AAs and two PPD-Qs | 73.0−96.8 | 2.7−70 | This study |
Table 5.
Concentrations of AAs and PPD-Qs in 20 plasma samples from general adult (pg/mL).
| Analyte | DF 1 (%) | GM 2 | Median | Mean | Range | AP 3 (%) |
|---|---|---|---|---|---|---|
| DPA | 100 | 76 | 72 | 80 | 56−140 | 21.9 |
| DBDPA | 100 | 170 | 180 | 180 | 100−290 | 47.2 |
| BDPA | 95 | 23 | 20 | 40 | <MQL − 200 | 8.3 |
| PANA/PBNA | 95 | 40 | 35 | 50 | <MQL − 150 | 11.8 |
| diAMS | 90 | 5.0 | 5.3 | 5.9 | <MQL − 13 | 1.5 |
| DNODPA/DTODPA | 65 | 9.5 | 30 | 34 | <MQL − 130 | 8.6 |
| DPB | 45 | <MQL | <MQL | <MQL | <MQL − 9.5 | 0.8 |
| 2NO2-DPA | 5 | <MQL | <MQL | <MQL | <MQL | − |
| 4NO2-DPA | 5 | <MQL | <MQL | <MQL | <MQL | − |
| ∑11AAs | − | 380 | 400 | 380 | 240−710 | − |
1 DF: detection frequency. 2 GM: geometric mean. 3 AP: average proportion.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2026 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license.
Share and Cite
MDPI and ACS Style
Liang, B.; Deng, Q.; Pan, Z.; Du, B.; Zeng, L. Solid-Phase Extraction Based on Captiva EMR-Lipid for Determination of 19 Aromatic Amine Antioxidants and Two p-Phenylenediamine Quinones in Human Plasma. Toxics 2026, 14, 187. https://doi.org/10.3390/toxics14030187
AMA Style
Liang B, Deng Q, Pan Z, Du B, Zeng L. Solid-Phase Extraction Based on Captiva EMR-Lipid for Determination of 19 Aromatic Amine Antioxidants and Two p-Phenylenediamine Quinones in Human Plasma. Toxics. 2026; 14(3):187. https://doi.org/10.3390/toxics14030187
Chicago/Turabian StyleLiang, Bowen, Qing Deng, Zibin Pan, Bibai Du, and Lixi Zeng. 2026. "Solid-Phase Extraction Based on Captiva EMR-Lipid for Determination of 19 Aromatic Amine Antioxidants and Two p-Phenylenediamine Quinones in Human Plasma" Toxics 14, no. 3: 187. https://doi.org/10.3390/toxics14030187
APA StyleLiang, B., Deng, Q., Pan, Z., Du, B., & Zeng, L. (2026). Solid-Phase Extraction Based on Captiva EMR-Lipid for Determination of 19 Aromatic Amine Antioxidants and Two p-Phenylenediamine Quinones in Human Plasma. Toxics, 14(3), 187. https://doi.org/10.3390/toxics14030187
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
