Relation among Mercury, Selenium, and Biomarkers of Oxidative Stress in Northern Pike (Esox lucius)

by
Jason T. Magnuson
* and
Mark B. Sandheinrich
Department of Biology and River Studies Center, University of Wisconsin-La Crosse, La Crosse, WI 54601, USA
*
Author to whom correspondence should be addressed.
Toxics 2023, 11(3), 244; https://doi.org/10.3390/toxics11030244
Submission received: 4 February 2023 / Revised: 22 February 2023 / Accepted: 3 March 2023 / Published: 5 March 2023
(This article belongs to the Special Issue Toxicity of Metal Mixtures to Aquatic Life)
Browse Figures
Versions Notes

Abstract

:
Mercury (Hg) is a toxic environmental contaminant associated with oxidative stress in freshwater fish. A known antagonist to Hg, selenium (Se), may reduce the toxic effects of Hg. In this study, the relation among Se, methylmercury (MeHg), inorganic mercury (IHg), total mercury (THg), and the expression of biomarkers of oxidative stress and metal regulation in livers of northern pike were examined. Livers from northern pike were collected from 12 lakes in Isle Royale National Park, Pictured Rocks National Lakeshore, Sleeping Bear Dunes National Lakeshore, and Voyageurs National Park. The concentrations of MeHg, THg, and Se were measured in liver tissue, and the expression of superoxide dismutase (sod), catalase (cat), glutathione s-transferase (gst), and metallothionein (mt) was assessed. There was a positive relationship between the concentrations of THg and Se, with a Hg:Se molar ratio less than one in all livers examined. There was no significant relation between sod, cat, gst, or mt expression and Hg:Se molar ratios. cat and sod expression were significantly related to increases in percent MeHg, relative to THg; however, gst and mt expression were not significantly altered. This suggests that incorporating biomarkers containing Se may be a better indicator than non-selenium-containing proteins of assessing the long-term effect of Hg and the interactions between Hg and Se in the livers of fish, such as northern pike, especially when molar concentrations of Se are greater than Hg.

1. Introduction

Mercury (Hg) is a toxic compound that exists primarily in three common forms in the environment: elemental mercury (Hg°), inorganic mercury (Hg2+), and methylmercury (MeHg) [1,2]. In addition to natural sources, prominent anthropogenic sources of mercury include chlor-alki plants [3] and atmospheric deposition from coal and artisanal mining [4,5,6]. Highly toxic MeHg is produced primarily by sulfate-reducing bacteria in aquatic environments [7]. Methylmercury bioaccumulates and biomagnifies in aquatic organisms, with exposure to MeHg from water, sediment, and food [7,8]. While fish accumulate only small amounts of Hg2+ [9], MeHg is readily bioavailable to fish. As trophic levels increase, the proportion of total Hg present in organisms as MeHg also increases and represents more than 90% of the mercury present in fish [10,11].
Exposure to environmentally relevant concentrations of MeHg impair growth, development, and reproduction in various vertebrates including birds [12,13], mammals [14,15], reptiles [16,17], and fish [1,7,18,19]. At the cellular level, MeHg causes oxidative stress through the production of reactive oxygen species (ROS), which in turn, causes lipid peroxidation and cell death [20,21,22]. Bioaccumulation and toxicity of MeHg may be ameliorated by other factors, such as selenium, which alters uptake and has a role in redox defense [23].
Selenium (Se) is a known antagonist to Hg, as first demonstrated by Parízek and Ostádalová (1967) [24], and supported by subsequent investigations [2,23,25,26,27,28,29]. Selenium is a naturally occurring element that was first noted for its toxicity, but subsequently acknowledged as an essential trace element required for the synthesis of more than 25 proteins [30,31]. This trace element can be found in a variety of forms, and its chemical form impacts its interaction with Hg [32]. In aquatic environments, Se is commonly found as water-soluble, inorganic selenite (SeO32−) and selenate (SeO42−), and as selenocysteine (SeCys) and selenomethionine (SeMet) [33]. Selenocysteine and SeMet are predominate Se-containing amino acids found in food [23], and reduce MeHg toxicity in fish at a greater rate than dietary selenate [25], which is taken up more slowly in aquatic organisms [34].
Although the binding of Se to Hg is important in reducing Hg toxicity, available Se is reduced by Hg [2], and subsequently considered inaccessible for further protein synthesis [23]. Therefore, it is important to consider molar ratios of Hg:Se, as opposed to just Hg concentrations, when assessing Hg toxicity to organisms. The protective effect of Se occurs when a molar ratio of 1:1 Se to Hg is approached or exceeded [23]. In this 1:1 stoichiometric state, Se decreases or prevents oxidative damage caused by Hg, which at toxic concentrations ultimately changes selenoenzyme activities and levels [28]. Since the bioaccumulation of high amounts of Se may result in selenosis, a narrow margin between safe and toxic exposure to Se exists [35]. A number of compounds and enzymes may mitigate oxidative stress associated with MeHg. These include glutathione (gsh), selenoproteins (e.g., iodothyronine deiodinases (dio), thioredoxin reductases (tr), and glutathione peroxidases (gpx)), superoxide dismutase (sod), catalase (cat), metallothionein (mt), and glutathione s-transferase (gst). However, a lack of clarity in the protective effects of Se against Hg toxicity in fish still remains, which may include altered bioavailability, binding affinity, and influence of overall fish health [36]. Differences in effects observed may also be due to the exposure route and duration in laboratory-based experiments compared to those from field-collected samples.
Chronic exposure to low levels of MeHg poses a threat to the health of wild fish populations. While it is understood that Se can help ameliorate the toxicity of Hg, it is still not understood if examining Hg:Se molar ratios is appropriate for addressing oxidative stress in freshwater fish. Therefore, the objective of this study was to determine the relation among Hg:Se molar ratios in the livers of wild caught northern pike (Esox lucius) and altered expression of sod, cat, gst, and mt when Se was in excess of Hg.

2. Materials and Methods

2.1. Experimental Design

Northern pike were collected from lakes in Isle Royale National Park (ISRO) (lakes Angleworm, Richie, Sargent), Pictured Rocks National Lakeshore (PIRO) (lakes Beaver, Grand Sable, Miners), Sleeping Bear Dunes National Lakeshore (SLBE) (lakes Bass (Benzie County), Bass (Leelanau County), Round), and Voyageurs National Park (VOYA) (lakes Brown, Peary, Ryan, Sand Point) as part of a project investigating mercury contamination of fish in national park units of the western Great Lakes region [37]. Northern pike were collected by angling and with gill nets in May 2011 and May 2012. After capture, fish were euthanized with a sharp blow to the head and cervical dislocation. A small plug of liver was removed with a flame-sterilized cork borer and preserved in RNAlater ® (Life Technologies, Carlsbad, CA, USA). Samples were refrigerated for 24 h and then stored at −20 °C until analysis for gene expression. The remaining portion of liver was placed in a zip-closed plastic bag and frozen in a conventional freezer until analysis for mercury, methylmercury, and total selenium.

2.2. Measures of Gene Expression

Livers (n = 94) were homogenized with polypropylene pestles (USA Scientific, Ocala, FL, USA) and RNA was isolated with an RNeasy Mini Kit (Qiagen, Valencia, CA), following the manufacturer’s instructions. Complementary DNA (cDNA) was synthesized from 1 µg of DNase treated RNA with iScript Reverse Transcription Supermix for RT-qPCR (Bio-Rad, Hercules, CA, USA). The concentrations of cDNA were determined by spectrometry (Nanodrop®, Thermo Fisher Scientific, Waltham, MA, USA). Primer pairs (Table 1) were designed with PrimerQuest software from Integrated DNA Technologies, following the manufacturer’s instructions. A gradient PCR was conducted for all target primers to denote optimal annealing temperature and determined that all products contained a single band. RT-PCR was run on a T100™ Thermal Cycler (Bio-Rad) using the following protocol: a 4 min activation and denaturing step at 95 °C, followed by 30 cycles of a 30 s denaturing step at 95 °C, a 30 s annealing step at 56 °C, and a 30 s synthesis step at 72 °C. A 10 µL qPCR reaction was performed with designed primers using SsoAdvanced Universal SYBR Green Supermix Kit (Bio-Rad), following the manufacturer’s instructions. mRNA expression was normalized to the internal reference primer, ubiquitin, as this gene did not significantly differ between fish sample or location. Each qPCR run was conducted in triplicate using the CFX Manager software, with a ∆∆Ct method used to assess changes in gene expression.

2.3. Mercury Determination

Methylmercury was determined by digesting individual liver samples at 60 °C for 12 h in a 22 mL Teflon vial with 7 mL of 4.5 M nitric acid (adapted from [38]). A 100 µL aliquot of digestate, 100 µL of 4.5 M potassium hydroxide, 50 µL of 1% (w/v) sodium tetraethylborate, 400 µL of 2 M acetate buffer, and deionized water were added to fill a 40 mL borosilicate glass autosampler vial. The vials were analyzed by gas chromatography separation and cold-vapor atomic fluorescence spectrophotometry (CVAFS) [39,40] using a Brooks Rand MERX-M analyzer. Total mercury (THg) was determined from the same digestate used for MeHg analyses. To further oxidize each digestate, 2 mL of 0.2 bromine monochloride was added to the vial, followed by 12 h of heating at 40 °C. Once cooled, 1.0 mL of 12% (w/v) hydroxylamine hydrochloride was added and lightly swirled until a change in color was seen. A 1 mL aliquot of digestate was added to a 40 mL glass autosampler vial, along with 0.10 mL of 12% (w/v) tin (II) chloride and enough deionized water to fill the vial. Total mercury was determined by CVAFS with a Brooks Rand MERX-T analyzer. The concentrations of inorganic mercury (IHg) were estimated by subtracting the concentration of MeHg from THg in each liver. The concentrations of THg and MeHg in livers are reported on a dry weight (dry wt) basis. The accuracy and precision of MeHg and THg determinations were assessed by triplicate analyses of Dolt-2 (dogfish liver) and Tort-2 (lobster hepatopancrease) certified reference materials from the National Research Council of Canada, analytical and procedural blanks, replicate samples, and spiked samples.
The geometric mean concentration (±1 SD) of MeHg was 700.9 ± 22.5 µg/g (n = 7) in Dolt-2 and 151.6 ± 6.9 µg/g (n = 7) in Tort-2. Of the 21 individual analyses of Dolt-2, all but one were within the certified range of 640 µg/g to 746 µg/g. For Tort-2, 18 of 21 individual analyses were within the certified range of 139 µg/g to 165 µg/g. The precision (coefficient of variation) of samples analyzed in triplicate averaged 3.9%. Mean recoveries of MeHg from spiked samples were 101.6%.
The geometric mean concentration (±1 SD) of THg was 2229.4 ± 68.5.5 µg/g (n = 7) in Dolt-2 and 277.2 ± 6.2 µg/g (n = 7) in Tort-2. All 21 individual analyses were within the certified range for Dolt-2 (range 1800 µg/g to 2420 µg/g) and for Tort-2 (range 210 µg/g to 330 µg/g). The precision (coefficient of variation) of samples analyzed in triplicate averaged 3.8%. Mean recoveries of THg from spiked samples were 103%.

2.4. Selenium Determination

Fish livers were digested with HNO3 and analyzed for total Se by inductively coupled plasma mass spectrometry (ICP-MS), following U.S. EPA Method 6020a. Subsamples of freeze-dried, homogenized liver were accurately weighed (±0.001 g) into 68 mL polypropylene vials, to which 10 mL of high-purity HNO3 was added. The vials were covered with polypropylene watch glasses and heated at 95 °C for 6 h in a Class 100 fume hood, after which digestates were diluted to 50 mL with reagent-grade water (>18 MΩ-cm). Digestion batches included three procedural blanks, replicate digestions of DORM-4 (fish protein) and DOLT-2 (dogfish liver), triplicate digestions of >10% of samples, and replicate samples with known additions of Se made prior to sample digestion. Determinations of Se in samples were calibrated against aqueous standards, traceable to the U.S. National Institute of Standards and Technology. The mean (±1 SD) measured concentration of Se in DORM-4 was 3.69 ± 0.17 µg/g (n = 15), with all but one analysis within the certified range of 3.22 µg/g to 3.90 µg/g. All measurements of Se concentration in DOLT-2 were within the certified range of 5.57 µg/g to 6.55 µg/g and averaged 5.97 ± 0.12 µg/g (n = 21). Precision among triplicate digestates averaged 2.4 ± 2.8% relative standard deviation among 24 sets of matched samples, and recovery of known Se additions averaged 99 ± 6% (n = 72). The estimated limit of quantification was 0.11 µg/g, much less than measured Se concentrations in livers.

2.5. Statistical Analysis

Data were analyzed with IBM Statistics for Windows, version 22.0 (IBM Corp., Armonk, N.Y., USA). A non-parametric Kruskal–Wallis test was performed to determine differences among parks sampled, with a Dunn’s post hoc test used to determine differences in gene expression in the livers of northern pike from among the parks. Linear regressions were used to determine the relationship between Se, MeHg, THg, and between gene expression and %MeHg. Spearman pairwise correlations were conducted between normalized gene expression, Se, MeHg, and THg. Due to wedge shaped distributions, quantile regression analysis of genes relative to the molar concentrations of THg and Se was conducted using the program Blossom (version 2005.04.02) [41]. Gene expression outliers were determined if standard deviations were ±2 from the mean. Statistical significance was evaluated at p < 0.05.

3. Results

A total of 96 livers from northern pike were initially analyzed in this study. Standard deviations ± 2 from the mean of normalized gene expression were used to determine outliers. One fish exceeded this limit and was excluded from the results. Due to a limited amount of liver tissue for Se analysis, one additional fish was not included in the results, which resulted in a total of 94 livers analyzed for Se, Hg, and expression of sod, gst, and mt. Furthermore, 92 of 94 livers with detected expression of cat were used in analysis.
There was a significant relation between the concentrations of MeHg and Se (F1,92 = 42.48; p < 0.001; r2 = 0.32; Figure 1) and THg and Se (F1,92 = 80.10; p < 0.001; r2 = 0.47; Figure 2) in livers of northern pike.
Se concentrations ranged from 2.83 µg/g to 19.30 µg/g dry wt (mean = 5.95 ± 2.28), MeHg concentrations ranged from 0.04 µg/g to 8.65 µg/g dry wt (mean = 0.89 ± 1.27), and THg concentrations ranged from 0.20 µg/g to 16.03 µg/g dry wt (mean = 1.63 ± 2.30), with concentrations of Se in excess of Hg in all fish livers examined (Table 2). The highest concentrations of Se, MeHg, and THg were from livers of fish from Voyageurs National Park (VOYA), where there were significantly greater levels of MeHg (F3,93 = 12.29; p < 0.001; Table 2) and THg (F3,93 = 7.30; p < 0.001; Table 2) than those livers of fish from the other parks.
Pairwise correlations determined that sod, cat, mt, and gst normalized mRNA expression were all positively correlated with each other, but unrelated to Se (µmol/g dry wt), MeHg (µmol/g dry wt), or THg (µmol/g dry wt) (Table 3). Metallothionein expression was significantly higher in livers of northern pike from Sleeping Bear Dunes National Lakeshore (SLBE) than those from VOYA (p = 0.031; average 49% higher) and Pictured Rocks National Lakeshore (PIRO) (p = 0.041; average 53% higher), while sod, cat, and gst expression in livers did not significantly differ among parks sampled (p > 0.05; Table 4).
Superoxide dismutase expression was not significantly related to the molar ratios of MeHg:Se (τ 75, p = 0.181), IHg:Se (τ 99, p = 0.480), or THg:Se (τ 99, p = 0.481; Figure 3A), although it was significantly upregulated with increasing percentages of THg as MeHg (τ 90, p = 0.013; Figure 4A). Catalase expression was not significantly altered by MeHg:Se (τ 99, p = 0.215), IHg:Se (τ 99, p = 0.441), or THg:Se (τ 99, p = 0.255; Figure 3B) molar ratios, although it was significantly upregulated with increasing percentages of THg as MeHg (τ 89, p = 0.041; Figure 4B). Expression of gst was not significantly changed with increasing MeHg:Se (τ 99, p = 0.483), IHg:Se (τ 80, p = 0.151), or THg:Se (τ 99, p = 0.524; Figure 3C) molar ratios, and was not significantly altered with an increasing percentage of MeHg (τ 95, p = 0.141).
Metallothionein expression did not change significantly with increasing MeHg:Se (τ 80, p = 0.723), IHg:Se (τ 90, p = 0.183), or THg:Se (τ 99, p = 0.741; Figure 3) molar ratios, and was not significantly altered with an increasing percentage of MeHg (τ 95, p = 0.268). Metallothionein expression was significantly related to Se (µmol/g dry wt) (τ 95, p = 0.041; Table 3). Conversely, sod (τ 85, p = 0.065), cat (τ 85, p = 0.600), and gst expression (τ 90, p = 0.203) were not significantly related to Se (µmol/g dry wt) (Table 3).

4. Discussion

Most studies that use biomarkers to assess the toxicity of Hg in organisms have been primarily lab-based [20,42,43,44,45,46,47], with only limited field application [21,48,49]. Dietary Se is an essential nutrient that is not always administered at environmentally relevant concentrations during toxicity studies in the lab setting. Due to the protective role Se has in reducing effects of Hg toxicity [25,27,29,50], a molar ratio between Hg and Se has been suggested to be a better predictor of Hg toxicity than reporting Hg alone [23,28,51,52,53,54,55,56,57,58]. The protective role of Se to Hg toxicity, however, remains uncertain, particularly due to a lack of studies related to the mechanistic understanding of binding capacity and bioavailability in fish [36,59]. Limitations in the relationship of Hg:Se molar ratios between freshwater and marine species further increases uncertainty, particularly as it relates to fish health.
Selenium concentrations significantly increased relative to THg concentrations in all livers examined, and have been similarly shown to be positively related to Hg concentrations [60,61]. Selenium concentrations were in abundance of Hg in all fish livers examined, with THg concentrations in northern pike livers similar to those collected from Isle Royale (range 0.048 µg/g to 3.074 µg/g wet wt) by Drevnick et al. (2008) [22]. When moles of Se are less than Hg, the sequestration of Se by Hg reduces the available Se needed for proper selenoenzyme synthesis [56], which could elicit other stress-induced systems to remove Hg or catalyze free radicals generated through oxidative stress. However, although Se had a positive relationship with MeHg in livers, there was not a significant correlation. The mechanistic relationship between Se and MeHg has been largely based on mammalian models [36], and additional study is needed to understand how the dysregulation of gene expression relates to Hg:Se molar ratios in fish.
Superoxide dismutase is among the first genes to defend against reactive oxygen species, specifically the superoxide radical (O2−). Superoxide dismutase catalyzes the conversion of O2− into H2O2, which can be converted into non-toxic components. Ji et al. (2006) [62] fed rats a diet of rice containing Hg and Se for 7, 20, 30, and 90 days, with Hg and Se doses increasing relative to exposure time. After day 30, sod activity significantly decreased in rat livers relative to that in control groups, regardless of Hg and Se exposure. This suggests that prolonged exposure to Hg and Se-containing diets could suppress the activity of certain enzymes responsible for cellular response to oxidative stress. To assess the potential effects of Hg to humans, Grotto et al. (2011) [63] fed groups of rats either a diet of conventional rat food (control) or fish contaminated with MeHg. Livers from rats fed fish contaminated with MeHg had a mean Hg concentration of 0.870 ± 0.030 µg/g and a mean Se concentration of 1.9 ± 0.2 µg/g. Similar to northern pike livers, the mean molar Se concentrations in the livers of the rats fed MeHg-contaminated diets were greater than mean molar Hg concentrations. No variation in sod or cat activity were seen between the contaminated fish diet and the control diet, suggesting that Se could have a protective effect against Hg toxicity when in a higher molar concentration than Hg [63]. In contrast, Gonzalez et al. (2005) [42] found that feeding zebrafish a diet with 5 µg and 13.5 µg Hg g−1 for 21 days resulted in a 3-fold and 12-fold increase in the expression of sod. The expression of sod was highest in the liver, suggesting that the basal levels of sod were great enough to protect the cells from oxidative damage due to MeHg exposure.
Similar to Gonzalez et al. (2005) [42], we also observed a similar response in sod expression in livers of northern pike. The expression of sod and cat were expressed at low levels of MeHg as a percentage of THg (%MeHg), which could be representative of a baseline level of enzyme expression. Expression significantly increased with a greater %MeHg. Examining the %MeHg could prove beneficial due to Se having a higher affinity for IHg than MeHg [64], allowing MeHg to potentially induce oxidative stress. There was, however, no significant difference in cat or sod expression when considering Hg and Se individually or Hg:Se molar ratios. Similarly, when exposed to a diet containing MeHg, cat expression did decrease when exposed to diets containing MeHg and Se [65]. This suggests that a threshold exists between MeHg and Se that would prevent other antioxidant defenses from being expressed when Se was in excess of Hg. Graves et al. (2017) [49] examined populations of yellow perch (Perca flavescens) chronically exposed to a gradient of MeHg concentrations in lakes of Kejimkujik National Park. They reported that cat was the only gene that was significantly downregulated in the brains of perch, suggesting oxidative stress was due to Hg contamination. It is possible that other environmental factors, such as Se abundance, could affect these primary response genes associated with oxidative responses and have a role in gene expression. Because Hg is an irreversible inhibitor of selenium-containing proteins [23], selenium-containing enzymes could be a better predictor for Hg toxicity than non-selenium-containing proteins when Se is in a greater molar concentration than Hg and provide more information about the mechanism of interaction between Hg and Se.
Although Se is an efficient scavenger and has a high binding affinity for Hg, gsh and mt have an important role in reducing Hg and oxidative damage associated with Hg toxicity. The gsh system is important in removing ROS generated by oxidative stress as well as converting xenobiotics, such as Hg, into more soluble forms to be excreted. Glutathione s-transferase is an important enzyme in activating sulfhydryl groups on gsh and conjugating Hg to gsh [66]. However, gst expression in livers of northern pike was not significantly correlated with Se, MeHg, THg, or Hg:Se molar ratios. A similar response was seen in walleye (Sander vitreus) from boreal forest lakes in Canada [21]. The activity of gst was not related to THg or MeHg concentrations in the livers of walleye but decreased significantly in livers of yellow perch with increasing MeHg. There was also a great variability in gst activity between the two species and among the lakes sampled [21]. This could suggest that differences in the response of enzyme activity are dependent on fish species and metal concentrations [67].
Metallothionein is an important protein that sequesters heavy metals and removes them from cells. The expression of mt is induced by Hg [46,68], although mt only binds and removes IHg, not MeHg [69]. The expression of mt was not significantly altered with increasing concentrations of Hg but was significantly upregulated with increasing Se concentrations. A similar response was seen in Atlantic cod, where mt expression was unrelated to MeHg exposure but increased with exposure to Se-enriched food [65]. The expression of mt in livers of northern pike was also not significantly related to Hg:Se molar ratios, which may be attributed to a greater molar concentration of Se than Hg and suggests a higher binding affinity of Hg to Se than to mt. It is possible that Se had a protective effect against Hg toxicity due to Hg:Se ratios < 1 in all fish or that the baseline expression of the oxidative stress genes was already elevated due to prolonged exposure to Hg. The adaptive response of oxidative stress genes has been reported previously with metals, metalloids, and additional contaminants of emerging concern [70,71] and in field-collected fish [72,73].

5. Conclusions

As more becomes known about the implication of Se in the diet of Hg-containing organisms with its ability to ameliorate Hg toxicity, using Hg:Se molar ratios when addressing issues with Hg may be important to consider. Incorporating biomarkers containing Se may provide a better means of understanding the interaction between Hg and Se, and the role Hg has in the sequestration of Se, particularly when molar concentrations of Se are greater than Hg. Furthermore, the baseline expression of oxidative stress genes may be greater in areas where northern pike are subjected to prolonged exposure of Hg from atmospheric sources. With a narrow range between Se essentiality and toxicity, further research is needed to understand how these concentrations not only effect different organisms, but how the addition of Hg alters that specified range. Gaining a clearer representation of what those concentrations are, and the interaction they have with Hg, will aid in better assessment of using ecologically relevant concentrations of Se in lab-based studies and give insight into adverse effects of Hg contamination in Se-poor geographic areas.

Author Contributions

Conceptualization, J.T.M. and M.B.S.; Methodology, J.T.M. and M.B.S.; Formal analysis, J.T.M.; Investigation, J.T.M.; Writing-Original Draft, J.T.M.; Writing-Review & Editing, M.B.S.; Visualization, J.T.M.; Supervision, M.B.S.; Project administration, M.B.S.; Funding acquisition, M.B.S. All authors have read and agreed to the published version of the manuscript.

Funding

Financial support for the present study was funded by the Great Lakes Restoration Initiative, Environmental Protection Agency Project Number 222, under Task Agreement J2105100001 of the Great Lakes-Northern Forest Cooperative Ecosystem Studies Unit under Cooperative Agreement H6000082000 between the National Park Service and the University of Minnesota.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We thank Chad Hammerschmidt for Se analysis, and Kristofer Rolfhus, Carleton Folster, Alex Ritchay, and Anne Tronnes for conducting the MeHg and THg analyses.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kidd, K.; Batchelar, K. Mercury. In Homeostasis and Toxicology of Non-Essential Metals; Wood, C.M., Farrell, A.P., Brauner, C.J., Eds.; Elsevier: New York, NY, USA; Academic Press: New York, NY, USA, 2012; Volume 31, pp. 237–295. [Google Scholar] [CrossRef]
  2. Yang, D.-Y.; Chen, Y.-W.; Gunn, J.M.; Belzile, N. Selenium and mercury in organisms: Interactions and mechanisms. Environ. Rev. 2008, 16, 71–92. [Google Scholar] [CrossRef]
  3. Biester, H.; Müller, G.; Schöler, H.F. Binding and mobility of mercury in soils contaminated by emissions from chlor-alkali plants. Sci. Total Environ. 2002, 284, 191–203. [Google Scholar] [CrossRef]
  4. Hammerschmidt, C.R.; Fitzgerald, W.F. Methylmercury in freshwater fish linked to atmospheric mercury deposition. Environ. Sci. Technol. 2006, 40, 7764–7770. [Google Scholar] [CrossRef]
  5. Pacyna, E.G.; Pacyna, J.M.; Sundseth, K.; Munthe, J.; Kindbom, K.; Wilson, S.; Steenhuisen, F.; Maxson, P. Global emission of mercury to the atmosphere from anthropogenic sources in 2005 and projections to 2020. Atmos. Environ. 2013, 44, 2487–2499. [Google Scholar] [CrossRef]
  6. Pacyna, E.G.; Pacyna, J.M.; Steenhuisen, F.; Wilson, S. Global anthropogenic mercury emission inventory for 2000. Atmos. Environ. 2006, 40, 4048–4063. [Google Scholar] [CrossRef]
  7. Wiener, J.G.; Krabbenhoft, D.P.; Heinz, G.H.; Scheuhammer, A.M. Ecotoxicology of mercury. In Handbook of Ecotoxicology, 2nd ed.; Hofman, D.J., Rattner, B.A., Burton, G.A., Jr., Cairns, J.J., Eds.; CRC Press: Boca Raton, FL, USA, 2003. [Google Scholar]
  8. Trudel, M.; Rasmussen, J.B. Modeling the elimination of mercury by fish. Environ. Sci. Technol. 1997, 31, 1716–1722. [Google Scholar] [CrossRef]
  9. Oliveira Ribeiro, C.A.; Rouleau, C.; Pelletier, É.; Audet, C.; Tjälve, H. Distribution kinetics of dietary methylmercury in the Arctic charr (Salvelinus alpinus). Environ. Sci. Technol. 1999, 33, 902–907. [Google Scholar] [CrossRef]
  10. Southworth, G.R.; Turner, R.R.; Peterson, M.J.; Bogle, M.A. Form of mercury in stream fish exposed to high concentrations of dissolved inorganic mercury. Chemosphere 1995, 30, 779–787. [Google Scholar] [CrossRef] [PubMed]
  11. Bloom, N.S. On the chemical form of mercury in edible fish and marine invertebrate tissue. Can. J. Fish. Aquat. Sci. 1992, 49, 1010–1017. [Google Scholar] [CrossRef]
  12. Scheuhammer, A. The chronic toxicity of aluminium, cadmium, mercury, and lead in birds: A review. Environ. Pollut. 1987, 46, 263–295. [Google Scholar] [CrossRef] [PubMed]
  13. Scheuhammer, A.M.; Meyer, M.W.; Sandheinrich, M.B.; Murray, M.W. Effects of environmental methylmercury on the health of wild birds, mammals, and fish. AMBIO 2007, 36, 12–18. [Google Scholar] [CrossRef]
  14. Wren, C.D. A review of metal accumulation and toxicity in wild mammals. Environ. Res. 1986, 40, 210–244. [Google Scholar] [CrossRef]
  15. Wolfe, M.F.; Schwarzbach, S.; Sulaiman, R.A. Effects of mercury on wildlife: A comprehensive review. Environ. Toxicol. Chem. 1998, 17, 146–160. [Google Scholar] [CrossRef]
  16. Burger, J. Trace element levels in pine snake hatchlings: Tissue and temporal differences. Arch. Environ. Contam. Toxicol. 1992, 22, 209–213. [Google Scholar] [CrossRef] [PubMed]
  17. Hopkins, B.C.; Willson, J.D.; Hopkins, W.A. Mercury exposure is associated with negative effects on turtle reproduction. Environ. Sci. Technol. 2013, 47, 2416–2422. [Google Scholar] [CrossRef] [PubMed]
  18. Depew, D.C.; Basu, N.; Burgess, N.M.; Campbell, L.M.; Devlin, E.W.; Drevnick, P.E.; Hammerschmidt, C.R.; Murphy, C.A.; Sandheinrich, M.B.; Wiener, J.G. Toxicity of dietary methylmercury to fish: Derivation of ecologically meaningful threshold concentrations. Environ. Toxicol. Chem. 2012, 31, 1536–1547. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Sandheinrich, M.B.; Wiener, J.G. Methylmercury in freshwater fish: Recent advances in assessing toxicity of environmentaly relevant exposures. In Environmental Contaminants in Biota, 2nd ed.; Beyer, W.N., Meador, J.P., Eds.; CRC Press: Boca Raton, FL, USA, 2011; ISBN 9781420084054. [Google Scholar]
  20. Berntssen, M.H.G.; Aatland, A.; Handy, R.D. Chronic dietary mercury exposure causes oxidative stress, brain lesions, and altered behaviour in Atlantic salmon (Salmo salar) parr. Aquat. Toxicol. 2003, 65, 55–72. [Google Scholar] [CrossRef]
  21. Larose, C.; Canuel, R.; Lucotte, M.; Di Giulio, R.T. Toxicological effects of methylmercury on walleye (Sander vitreus) and perch (Perca flavescens) from lakes of the boreal forest. Comp. Biochem. Physiol. C. Toxicol. Pharmacol. 2008, 147, 139–149. [Google Scholar] [CrossRef]
  22. Drevnick, P.E.; Roberts, A.P.; Otter, R.R.; Hammerschmidt, C.R.; Klaper, R.; Oris, J.T. Mercury toxicity in livers of northern pike (Esox lucius) from Isle Royale, USA. Comp. Biochem. Physiol. C Toxicol. Pharmacol. 2008, 147, 331–338. [Google Scholar] [CrossRef] [Green Version]
  23. Ralston, N.V.C.; Raymond, L.J. Dietary selenium’s protective effects against methylmercury toxicity. Toxicology 2010, 278, 112–123. [Google Scholar] [CrossRef] [PubMed]
  24. Parízek, J.; Ostádalová, I. The protective effect of small amounts of selenite in sublimate intoxication. Experientia 1967, 23, 142–143. [Google Scholar] [CrossRef]
  25. Bjerregaard, P.; Fjordside, S.; Hansen, M.G.; Petrova, M.B. Dietary selenium reduces retention of methyl mercury in freshwater fish. Environ. Sci. Technol. 2011, 45, 9793–9798. [Google Scholar] [CrossRef]
  26. Ganther, A.H.E.; Goudie, C.; Sunde, M.L.; Kopecky, M.J.; Wagner, P.; Oh, S.-H.; Hoekstra, W.G. Selenium: Relation to decreased toxicity of methylmercury added to diets containing tuna. Science 1972, 175, 1122–1124. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Lindh, U.; Johansson, E. Mercury effects of selenium against mercury toxicity as studied in the rat liver and kidney by nuclear analytical techniques. Biol. Trace Elem. Res. 1987, 12, 109–120. [Google Scholar] [CrossRef]
  28. Ralston, N.V.C.; Blackwell, J.L.; Raymond, L.J. Importance of molar ratios in selenium-dependent protection against methylmercury toxicity. Biol. Trace Elem. Res. 2007, 119, 255–268. [Google Scholar] [CrossRef] [PubMed]
  29. Southworth, G.R.; Peterson, M.J.; Ryon, M.G. Long-term increased bioaccumulation of mercury in largemouth bass follows reduction of waterborne selenium. Chemosphere 2000, 41, 1101–1105. [Google Scholar] [CrossRef] [PubMed]
  30. Behne, D.; Weiss-Nowak, C.; Kalcklösch, M.; Westphal, C.; Gessner, H.; Kyriakopoulos, A. Studies on the distribution and characteristics of new mammalian selenium-containing proteins. Analyst 1995, 120, 823–825. [Google Scholar] [CrossRef]
  31. Schwarz, K.; Foltz, C.M. Selenium as an integral part of factor 3 against dietary necrotic liver degeneration. J. Biol. Chem. 1957, 233, 245–251. [Google Scholar] [CrossRef]
  32. Dang, F.; Wang, W.-X. Antagonistic interaction of mercury and selenium in a marine fish is dependent on their chemical species. Environ. Sci. Technol. 2011, 45, 3116–3122. [Google Scholar] [CrossRef]
  33. Janz, D.M. Selenium. In Homeostasis and Toxicology of Essential Metals; Fish Physiology; Wood, C.M., Farrell, A.P., Brauner, C.J., Eds.; Elsevier: New York, NY, USA; Academic Press: New York, NY, USA, 2012; Volume 31, pp. 327–374. [Google Scholar]
  34. Sorensen, M.; Bjerregaard, P. Interactive accumulation of mercury and selenium in the sea star Asterias rubens. Mar. Biol. 1991, 108, 269–276. [Google Scholar] [CrossRef]
  35. Eisler, R. Handbook of Chemical Risk Assessment: Health Hazards to Humans, Plants, and Animals; Lewis Publishers: Boca Raton, FL, USA, 2000; Volume 3. [Google Scholar]
  36. Gerson, J.R.; Walters, D.M.; Eagles-Smith, C.A.; Bernhardt, E.S.; Brandt, J.E. Do Two Wrongs Make a Right? Persistent Uncertainties Regarding Environmental Selenium-Mercury Interactions. Environ. Sci. Technol. 2020, 54, 9228–9234. [Google Scholar] [CrossRef]
  37. Wiener, J.G.; Haro, R.J.; Rolfhus, K.R.; Sandheinrich, M.B.; Bailey, S.W.; Northwick, R.M.; Gostomski, T.J. Bioaccumulative Contaminants in Aquatic Food Webs in Six National Park Units of the Western Great Lakes Region: 2008–2012; CreateSpace Independent: Fort Collins, CO, USA, 2016. [Google Scholar]
  38. Hammerschmidt, C.R.; Fitzgerald, W.F. Methylmercury in mosquitoes related to atmospheric mercury deposition and contamination. Environ. Sci. Technol. 2005, 39, 3034–3039. [Google Scholar] [CrossRef] [PubMed]
  39. Horvat, M.; Liang, L.; Bloom, N.S. Comparison of distillation with other current isolation methods for the determination of methyl mercury compounds in low level environmental samples. Anal. Chim. Acta 1993, 282, 153–168. [Google Scholar] [CrossRef]
  40. Olson, M.L.; Cleckner, L.B.; Hurley, J.P.; Heelan, T.W.; Krabbenhoft, D.P. Resolution of matrix effects on analysis of total and methyl mercury in aqueous samples from the Florida Everglades. Fresenius. J. Anal. Chem. 1997, 358, 392–396. [Google Scholar] [CrossRef]
  41. Cade, B.S.; Noon, B.R. A gentle introduction to quantile regression for ecologists. Front. Ecol. Env. 2003, 1, 412–420. [Google Scholar] [CrossRef]
  42. Gonzalez, P.; Dominique, Y.; Massabuau, J.C.; Boudou, A.; Bourdineaud, J.P. Comparative effects of dietary methylmercury on gene expression in liver, skeletal muscle, and brain of the zebrafish (Danio rerio). Environ. Sci. Technol. 2005, 39, 3972–3980. [Google Scholar] [CrossRef] [PubMed]
  43. Klaper, R.; Carter, B.J.; Richter, C.A.; Drevnick, P.E.; Sandheinrich, M.B.; Tillitt, D.E. Use of a 15 k gene microarray to determine gene expression changes in response to acute and chronic methylmercury exposure in the fathead minnow Pimephales promelas Rafinesque. J. Fish Biol. 2008, 72, 2207–2280. [Google Scholar] [CrossRef]
  44. Klaper, R.; Rees, C.B.; Drevnick, P.; Weber, D.; Sandheinrich, M.; Carvan, M.J. Gene expression changes related to endocrine function and decline in reproduction in fathead minnow (Pimephales promelas) after dietary methylmercury exposure. Environ. Health Perspect. 2006, 114, 1337–1343. [Google Scholar] [CrossRef] [Green Version]
  45. Monteiro, D.A.; Rantin, F.T.; Kalinin, A.L. Inorganic mercury exposure: Toxicological effects, oxidative stress biomarkers and bioaccumulation in the tropical freshwater fish matrinxã, Brycon amazonicus (Spix and Agassiz, 1829). Ecotoxicology 2010, 19, 105–123. [Google Scholar] [CrossRef]
  46. Monteiro, D.A.; Rantin, F.T.; Kalinin, A.L. Dietary intake of inorganic mercury: Bioaccumulation and oxidative stress parameters in the neotropical fish Hoplias malabaricus. Ecotoxicology 2013, 22, 446–456. [Google Scholar] [CrossRef]
  47. Huang, W.; Cao, L.; Ye, Z.; Yin, X.; Dou, S. Antioxidative responses and bioaccumulation in Japanese flounder larvae and juveniles under chronic mercury exposure. Comp. Biochem. Physiol. Part C Toxicol. Pharmacol. 2010, 152, 99–106. [Google Scholar] [CrossRef]
  48. Hinck, J.E.; Blazer, V.S.; Denslow, N.D.; Myers, M.S.; Gross, T.S.; Tillitt, D.E. Biomarkers of contaminant exposure in northern pike (Esox lucius) from the Yukon River Basin, Alaska. Arch. Environ. Contam. Toxicol. 2007, 52, 549–562. [Google Scholar] [CrossRef]
  49. Graves, S.D.; Kidd, K.A.; Batchelar, K.L.; Cowie, A.M.; O’Driscoll, N.J.; Martyniuk, C.J. Response of oxidative stress transcripts in the brain of wild yellow perch (Perca flavescens) exposed to an environmental gradient of methylmercury. Comp. Biochem. Physiol. Part C Toxicol. Pharmacol. 2017, 192, 50–58. [Google Scholar] [CrossRef]
  50. Sørmo, E.G.; Ciesielski, T.M.; Øverjordet, I.B.; Lierhagen, S.; Eggen, G.S.; Berg, T.; Jenssen, B.M. Selenium moderates mercury toxicity in free-ranging freshwater fish. Environ. Sci. Technol. 2011, 45, 6561–6566. [Google Scholar] [CrossRef]
  51. Chen, Y.-W.; Belzile, N.; Gunn, J.M. Antagonistic effect of selenium on mercury assimilation by fish populations near Sudbury metal smelters? Am. Soc. Limnol. Oceanogr. 2001, 46, 1814–1818. [Google Scholar] [CrossRef]
  52. Deng, D.-F.; Teh, F.-C.; Teh, S.J. Effect of dietary methylmercury and seleno-methionine on Sacramento splittail larvae. Sci. Total Environ. 2008, 407, 197–203. [Google Scholar] [CrossRef] [PubMed]
  53. Fung, L.A.H.; Antoine, J.M.R.; Grant, C.N.; Buddo, D.S.A. Evaluation of dietary exposure to minerals, trace elements and heavy metals from the muscle tissue of the lionfish Pterois volitans (Linnaeus 1758). Food Chem. Toxicol. 2013, 60, 205–212. [Google Scholar] [CrossRef]
  54. Kaneko, J.J.; Ralston, N.V.C. Selenium and mercury in pelagic fish in the central North Pacific near Hawaii. Biol. Trace Elem. Res. 2007, 119, 242–254. [Google Scholar] [CrossRef] [PubMed]
  55. Peterson, S.A.; Ralston, N.V.C.; Peck, D.V.; Van Sickle, J.; Robertson, J.D.; Spate, V.L.; Morris, J.S. How might selenium moderate the toxic effects of mercury in stream fish of the western U.S.? Environ. Sci. Technol. 2009, 43, 3919–3925. [Google Scholar] [CrossRef]
  56. Ralston, N.V.C.; Ralston, C.R.; Blackwell, J.L.; Raymond, L.J. Dietary and tissue selenium in relation to methylmercury toxicity. Neurotoxicology 2008, 29, 802–811. [Google Scholar] [CrossRef] [Green Version]
  57. Raymond, L.J.; Ralston, N.V.C. Selenium’s importance in regulatory issues regarding mercury. Fuel Process. Technol. 2009, 90, 1333–1338. [Google Scholar] [CrossRef]
  58. Barone, G.; Storelli, A.; Mallamaci, R.; Storelli, M.M. Comparative Study on Trace Metal Accumulation in Liver of Mediterranean Deep-Sea Fish and Their Selenium/Mercury Molar Ratios. Water Air Soil Pollut. 2017, 228, 211. [Google Scholar] [CrossRef]
  59. Gochfeld, M.; Burger, J. Mercury interactions with selenium and sulfur and the relevance of the Se:Hg molar ratio to fish consumption advice. Environ. Sci. Pollut. Res. 2021, 28, 18407–18420. [Google Scholar] [CrossRef] [PubMed]
  60. Scheuhammer, A.; Wong, A.H.K.; Bond, D. Mercury and selenium accumulation in common loons (Gavia immer) and common mergansers (Mergus merganser) from eastern Canada. Environ. Toxicol. Chem. 1998, 17, 197–201. [Google Scholar] [CrossRef]
  61. Yamashita, Y.; Yamashita, M.; Iida, H. Selenium content in seafood in Japan. Nutrients 2013, 5, 388–395. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Ji, X.; Wang, W.; Cheng, J.; Yuan, T.; Zhao, X.; Zhuang, H.; Qu, L. Free radicals and antioxidant status in rat liver after dietary exposure of environmental mercury. Environ. Toxicol. Pharmacol. 2006, 22, 309–314. [Google Scholar] [CrossRef]
  63. Grotto, D.; Valentini, J.; Serpeloni, J.M.; Monteiro, P.A.P.; Latorraca, E.F.; de Oliveira, R.S.; Antunes, L.M.G.; Garcia, S.C.; Barbosa, F.J. Evaluation of toxic effects of a diet containing fish contaminated with methylmercury in rats mimicking the exposure in the Amazon riverside population. Environ. Res. 2011, 111, 1074–1082. [Google Scholar] [CrossRef] [PubMed]
  64. Khan, M.A.K.; Wang, F. Mercury-selenium compounds and their toxicological significance: Toward a molecular understanding of the mercury-selenium antagonism. Environ. Toxicol. Chem. 2009, 28, 1567–1577. [Google Scholar] [CrossRef] [PubMed]
  65. Olsvik, P.A.; Amlund, H.; Sæle, Ø.; Ellingsen, S.; Skjaerven, K.H. Impact of dietary selenium on methylmercury toxicity in juvenile Atlantic cod: A transcriptional survey. Chemosphere 2015, 120, 199–205. [Google Scholar] [CrossRef]
  66. Armstrong, R.N. Structure, catalytic mechanism, and evolution of the glutathione transferases. Chem. Res. Toxicol. 1997, 10, 2–18. [Google Scholar] [CrossRef] [PubMed]
  67. Elia, A.C.; Galarini, R.; Taticchi, M.I.; Dörr, A.J.M.; Mantilacci, L. Antioxidant responses and bioaccumulation in Ictalurus melas under mercury exposure. Ecotoxicol. Environ. Saf. 2003, 55, 162–167. [Google Scholar] [CrossRef] [PubMed]
  68. Amiard, J.-C.; Amiard-Triquet, C.; Barka, S.; Pellerin, J.; Rainbow, P.S. Metallothioneins in aquatic invertebrates: Their role in metal detoxification and their use as biomarkers. Aquat. Toxicol. 2006, 76, 160–202. [Google Scholar] [CrossRef] [PubMed]
  69. do Nascimento, J.L.M.; Oliveira, K.R.M.; Crespo-Lopez, M.E.; Macchi, B.M.; Maués, L.A.L.; Pinheiro, M.D.C.N.; Silveira, L.C.L.; Herculano, A.M. Methylmercury neurotoxicity and antioxidant defenses. Indian J. Med. Res. 2008, 128, 373–382. [Google Scholar]
  70. Hamilton, P.B.; Rolshausen, G.; Uren Webster, T.M.; Tyler, C.R. Adaptive capabilities and fitness consequences associated with pollution exposure in fish. Philos. Trans. R. Soc. B Biol. Sci. 2017, 372, 20160042. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  71. Stoliar, O.B.; Lushchak, V.I. Environmental Pollution and Oxidative Stress in Fish. In Oxidative Stress—Environmental Induction and Dietary Antioxidants; Lushchak, V.I., Ed.; IntechOpen: Rijeka, Croatia, 2012; pp. 131–166. [Google Scholar]
  72. Birnie-Gauvin, K.; Costantini, D.; Cooke, S.J.; Willmore, W.G. A comparative and evolutionary approach to oxidative stress in fish: A review. Fish Fish. 2017, 18, 928–942. [Google Scholar] [CrossRef]
  73. McFarland, V.A.; Inouye, L.S.; Lutz, C.H.; Jarvis, A.S.; Clarke, J.U.; McCant, D.D. Biomarkers of oxidative stress and genotoxicity in livers of field- collected brown bullhead, Ameiurus nebulosus. Arch. Environ. Contam. Toxicol. 1999, 37, 236–241. [Google Scholar] [CrossRef] [PubMed]
Toxics 11 00244 g001 550

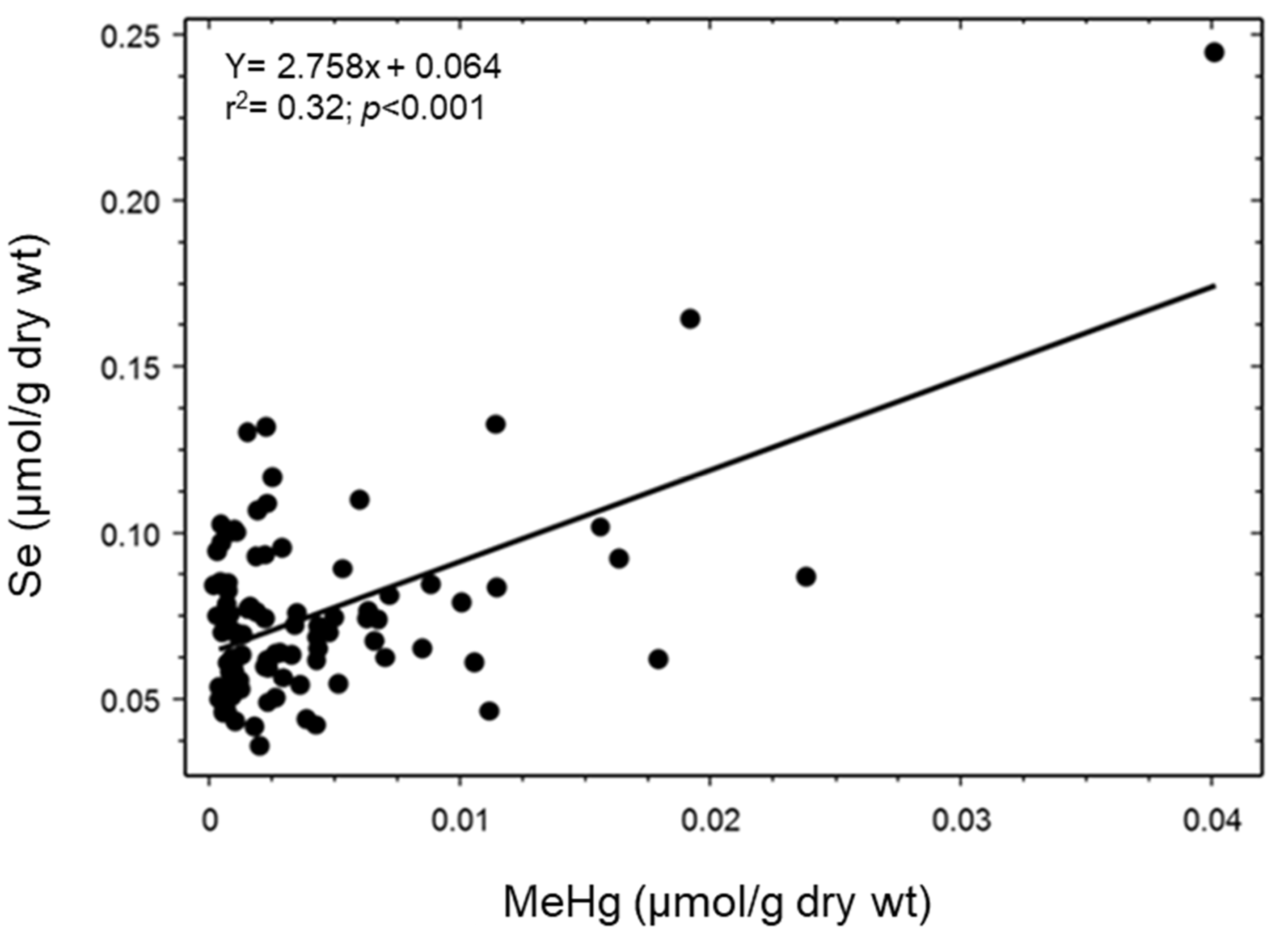

Figure 1. Relation between the concentrations of total selenium (Se) and methylmercury (MeHg) in livers of northern pike (F1,92 = 42.48; p < 0.001; r2 = 0.32; n = 94).
Figure 1. Relation between the concentrations of total selenium (Se) and methylmercury (MeHg) in livers of northern pike (F1,92 = 42.48; p < 0.001; r2 = 0.32; n = 94).
Toxics 11 00244 g001
Toxics 11 00244 g002 550

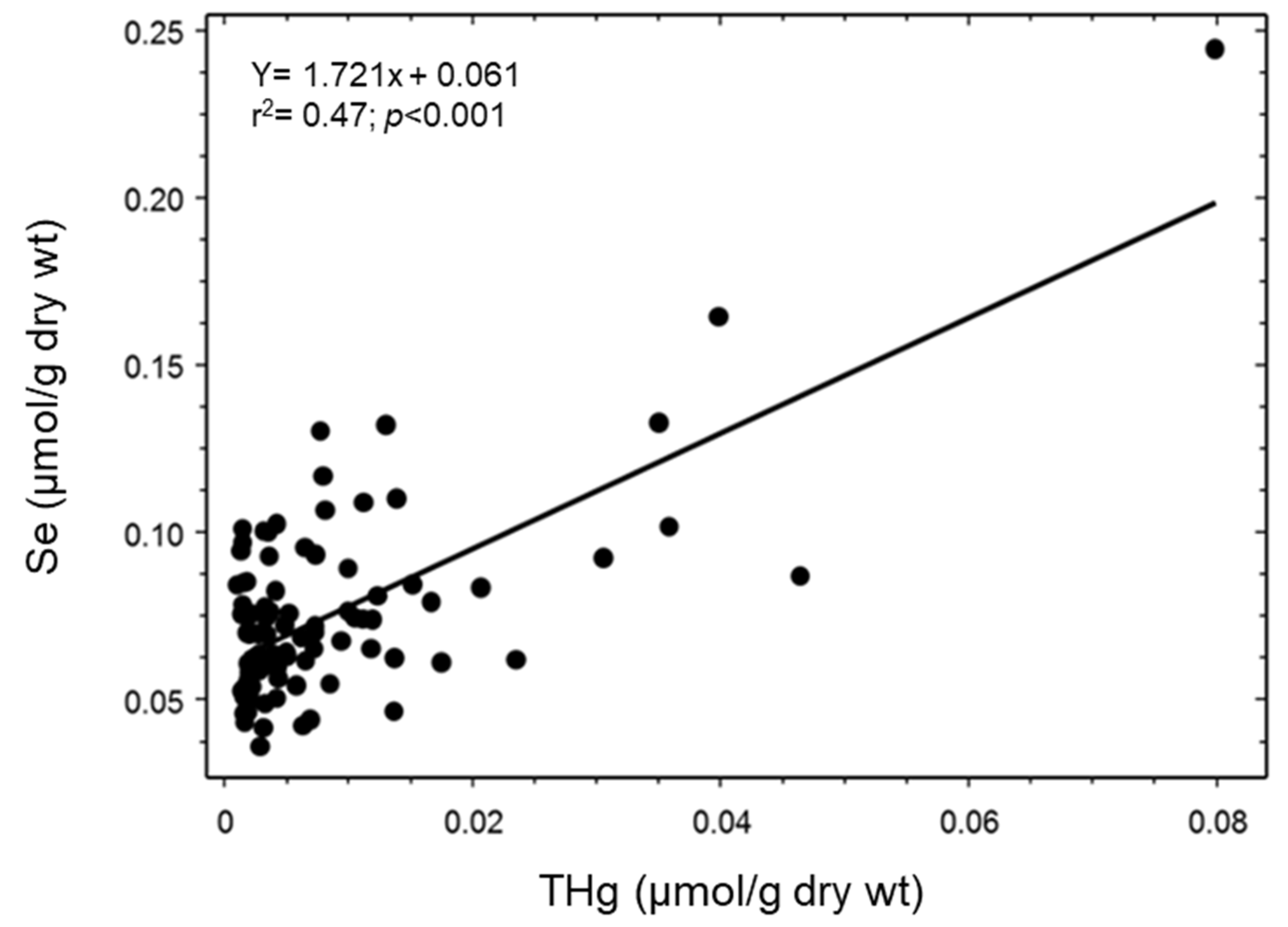

Figure 2. Relation between the concentrations of total selenium (Se) and total mercury (THg) in livers of northern pike (F1,92 = 80.10; p < 0.001; r2 = 0.47; n = 94).
Figure 2. Relation between the concentrations of total selenium (Se) and total mercury (THg) in livers of northern pike (F1,92 = 80.10; p < 0.001; r2 = 0.47; n = 94).
Toxics 11 00244 g002
Toxics 11 00244 g003 550

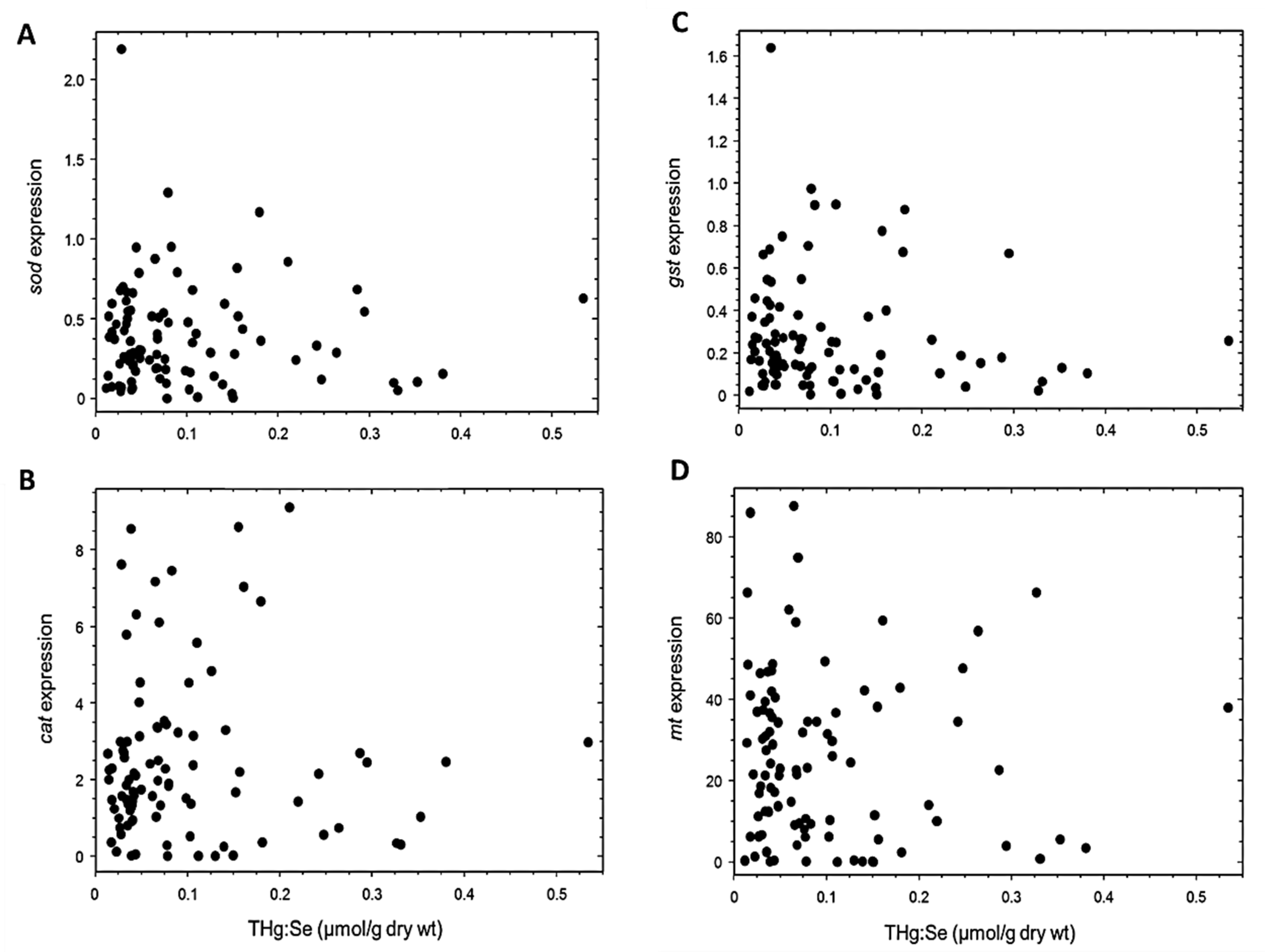

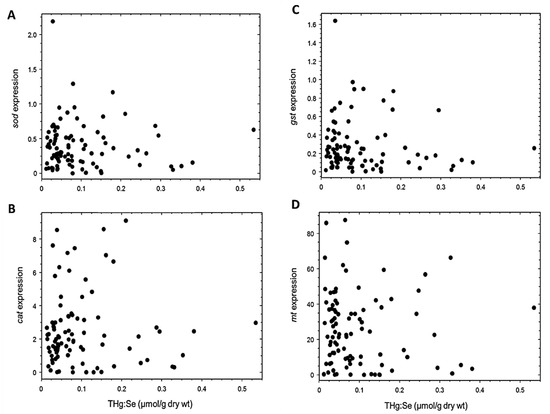

Figure 3. Quantile regression analysis between normalized (A) sod (τ 99; p = 0.481; n = 94), (B) cat (τ 99; p = 0.255; n = 92), (C) gst (τ 99; p = 0.524; n = 94), and (D) mt (τ 99; p = 0.741; n = 94) expression and molar ratio of total mercury to selenium (THg:Se) in livers of northern pike.
Figure 3. Quantile regression analysis between normalized (A) sod (τ 99; p = 0.481; n = 94), (B) cat (τ 99; p = 0.255; n = 92), (C) gst (τ 99; p = 0.524; n = 94), and (D) mt (τ 99; p = 0.741; n = 94) expression and molar ratio of total mercury to selenium (THg:Se) in livers of northern pike.
Toxics 11 00244 g003
Toxics 11 00244 g004 550

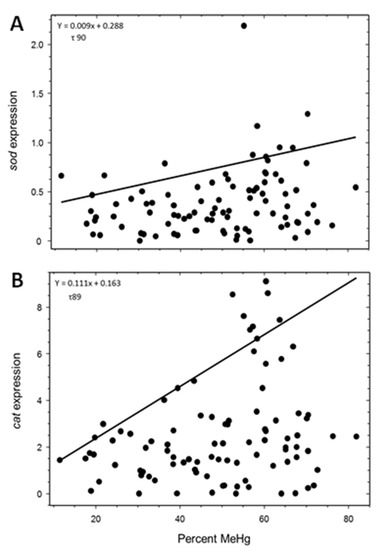

Figure 4. Quantile regression analysis between normalized (A) sod (τ 90; p = 0.013; n = 94) and (B) cat (τ 89; p = 0.041; n = 92) expression and percent total mercury as methylmercury (MeHg) in livers of northern pike.
Figure 4. Quantile regression analysis between normalized (A) sod (τ 90; p = 0.013; n = 94) and (B) cat (τ 89; p = 0.041; n = 92) expression and percent total mercury as methylmercury (MeHg) in livers of northern pike.
Toxics 11 00244 g004
Table
Table 1. Genes and primers used in qPCR analysis of livers in northern pike.
Table 1. Genes and primers used in qPCR analysis of livers in northern pike.
GeneDirectionPrimer (5′–3′)Accession Number
Glutathione s-transferaseForwardGACTTCCCAGAATGGATGAAGGBT07989.1
ReverseTGACTGAAACAGGACCAAATCA
MetallothioneinForwardCTGGATCTTGCAACTGTGGTX59392.1
ReverseCTTGCTGCAACCAGAAGGA
Superoxide dismutase ForwardCGCAGAGGACAAGTACAAAGABT079033.1
ReverseGATGTGGCCTCCTCCATTAAA
CatalaseForwardGTGGGAAAGACCACACCTATCBT045615.1
ReverseGTTTCCCTCGTCAGTGTAGAAC
UbiquitinForwardGCCTTTCCTACCTGACAGTATTCBT079424.1
ReverseAAAGTCAACGCTCCATCTCC
Table
Table 2. Characteristics (mean ± SD) of northern pike collected from Isle Royale National Park (ISRO), Pictured Rocks National Lakeshore (PIRO), Sleeping Bear Dunes National Lakeshore (SLBE), and Voyageurs National Park (VOYA).
Table 2. Characteristics (mean ± SD) of northern pike collected from Isle Royale National Park (ISRO), Pictured Rocks National Lakeshore (PIRO), Sleeping Bear Dunes National Lakeshore (SLBE), and Voyageurs National Park (VOYA).
ParknWet Weight (kg)Total Length (mm)Se (µg/g Dry Weight)MeHg (µg/g Dry Weight)THg (µg/g Dry Weight)THg:Se Molar Ratio
ISRO251.24 ± 0.49572 ± 876.345 ± 2.2990.311 ± 0.4731.034 ± 1.4140.064 ± 0.0496
PIRO261.66 ± 1.27586 ± 1474.935 ± 1.1760.490 ± 0.3660.852 ± 0.6140.068 ± 0.050
SLBE80.77 ± 0.27493 ± 536.156 ± 1.7150.196 ± 0.1100.360 ± 0.1130.023 ± 0.022
VOYA350.86 ± 0.42527 ± 946.371 ± 2.7870.177 ± 1.6922.922 ± 3.1460.181 ± 0.117
Table
Table 3. Spearman correlation for gene expression and selenium (Se), methylmercury (MeHg), and total mercury (THg) in northern pike. The p-value of the test is presented in parentheses.
Table 3. Spearman correlation for gene expression and selenium (Se), methylmercury (MeHg), and total mercury (THg) in northern pike. The p-value of the test is presented in parentheses.
sod
Expression		cat
Expression		mt
Expression		gst
Expression		Se (µmol/g dry wt)MeHg (µmol/g
dry wt)		THg (µmol/g
dry wt)
sod expression1
cat expression0.698 (0.000)1
mt expression0.311 (0.002)0.377 (0.000)1
gst expression0.702 (0.000)0.503 (0.000)0.229 (0.026)1
Se (µmol/g
dry wt)		−0.157 (0.130)−0.092 (0.385)0.197 (0.057)−0.122 (0.240)1
MeHg (µmol/g dry wt)0.021 (0.839)0.114 (0.279)−0.095 (0.364)−0.102 (0.329)0.178 (0.085)1
THg (µmol/g
dry wt)		−0.057 (0.586)0.040 (0.702)−0.065 (0.534)−0.141 (0.175)0.347 (0.001)0.919 (0.000)1
Superoxide dismutase = sod; catalase = cat; metallothionein = mt; glutathione s-transferase = gst.
Table
Table 4. Range and mean (±SD) values of normalized gene expression in northern pike collected from Isle Royale National Park (ISRO), Pictured Rocks National Lakeshore (PIRO), Sleeping Bear Dunes National Lakeshore (SLBE), and Voyageurs National Park (VOYA).
Table 4. Range and mean (±SD) values of normalized gene expression in northern pike collected from Isle Royale National Park (ISRO), Pictured Rocks National Lakeshore (PIRO), Sleeping Bear Dunes National Lakeshore (SLBE), and Voyageurs National Park (VOYA).
Park
Gene Expressed
ISRO
PIRO
SLBE
VOYA
sod0.0003–0.786 n = 25
(0.281 ± 0.205)		0.057–0.950 n = 26
(0.450 ± 0.259)		0.074–2.189 n = 8
(0.671–0.716)		0.004–1.168 n = 35
(0.352 ± 0.279)
cat0.0006–4.015 n = 24
(1.480 ± 0.925)		0.006–8.598 n = 26
(2.896 ± 2.226)		0.354–7.616 n = 8
(2.430 ± 2.208)		0.002–9.109 n = 34
(2.898 ± 2.535)
mt0.142–61.958 n = 25
(24.463 ± 17.326) 		0.133–74.851 n = 26
(22.279 ± 18.595) 		23.095–85.840 n = 8
(47.120 ± 20.385) 		0.036–87.455 n = 35
(24.111 ± 21.974)
gst0.003–1.637 n = 25
(0.315 ± 0.348)		0.048–0.897 n = 26
(0.261 ± 0.222)		0.169–0.973 n = 8
(0.367 ± 0.266)		0.004–0.899 n = 35
(0.233 ± 0.235)
Superoxide dismutase = sod; catalase = cat; metallothionein = mt; glutathione s-transferase = gst.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Magnuson, J.T.; Sandheinrich, M.B. Relation among Mercury, Selenium, and Biomarkers of Oxidative Stress in Northern Pike (Esox lucius). Toxics 2023, 11, 244. https://doi.org/10.3390/toxics11030244

AMA Style

Magnuson JT, Sandheinrich MB. Relation among Mercury, Selenium, and Biomarkers of Oxidative Stress in Northern Pike (Esox lucius). Toxics. 2023; 11(3):244. https://doi.org/10.3390/toxics11030244

Chicago/Turabian Style

Magnuson, Jason T., and Mark B. Sandheinrich. 2023. "Relation among Mercury, Selenium, and Biomarkers of Oxidative Stress in Northern Pike (Esox lucius)" Toxics 11, no. 3: 244. https://doi.org/10.3390/toxics11030244

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
