Comparison of Conventional and Sustainable Lipid Extraction Methods for the Production of Oil and Protein Isolate from Edible Insect Meal

Department of Food Sciences, Institute of Nutrition and Functional Foods (INAF), Laval University, Quebec, QC G1V 0A6, Canada
Author to whom correspondence should be addressed.
Foods 2019, 8(11), 572;
Submission received: 30 September 2019 / Revised: 4 November 2019 / Accepted: 8 November 2019 / Published: 13 November 2019


Edible insects represent an interesting alternative source of protein for human consumption but the main hurdle facing the edible insect sector is low consumer acceptance. However, increased acceptance is anticipated when insects are incorporated as a processed ingredient, such as protein-rich powder, rather than presented whole. To produce edible insect fractions with high protein content, a defatting step is necessary. This study investigated the effects of six defatting methods (conventional solvents, three-phase partitioning, and supercritical CO2) on lipid extraction yield, fatty profiles, and protein extraction and purification of house cricket (Acheta domesticus) and mealworm (Tenebrio molitor) meals. Ethanol increased the lipid extraction yield (22.7%–28.8%), irrespective of the insect meal used or the extraction method applied. Supercritical CO2 gave similar lipid extraction yields as conventional methods for Tenebrio molitor (T. molitor) (22.1%) but was less efficient for Acheta domesticus (A. domesticus) (11.9%). The protein extraction yield ranged from 12.4% to 38.9% for A. domesticus, and from 11.9% to 39.3% for T. molitor, whereas purification rates ranged from 58.3% to 78.5% for A. domesticus and from 48.7% to 75.4% for T. molitor.

1. Introduction

The human population is predicted to increase to 9.6 billion by 2050. This population growth combined with an increase in consumer demand for food protein is expected to nearly double the demand for food [1]. With more than 1900 species, edible insects represent an interesting source of protein for human consumption [1]. Edible insects are widely consumed in many parts of the world and some studies have listed the many advantages of entomophagy compared to conventional livestock production systems. The first is the low environmental impact of edible insect production. Compared to conventional livestock meat, the production of edible insects could reduce land use, water consumption, greenhouse gas emissions, and feed conversion [1]. More specifically, and according to a life cycle assessment, Smetana et al. [2] demonstrated that the production of edible insect-based protein powder is two to five times more environmentally beneficial than the production of animal products such as poultry and meat. Moreover, Oonincx et al. [3] demonstrated that the global warming potential and land uses of edible insect production were lower than for other protein sources. The second advantage is related to their high nutritional value. Edible insects are a good source of proteins (55.0%–70.7% w/w for Acheta domesticus (A. domesticus) and 47.2%–65.3% w/w for Tenebrio molitor (T. molitor), lipids (9.8%–22.8% w/w for A. domesticus and 14.9%–43.1% for T. molitor), minerals (3.6%–9.1% for A. domesticus and 2.7%–4.3% for T. molitor) and essential fatty acids, such as linoleic and linolenic acids [4,5,6].
However, in Western countries, many cultural and psychological barriers stand in the way of consumer acceptance of insects as food [1,7]. Nevertheless, to reduce insect food neophobia, previous studies proposed to insert invisible edible insects into various food preparations [8]. This suggests that incorporation of edible insect powder or ingredients into familiar products could increase acceptance and consumption of edible insects [9,10]. Nevertheless, the production of edible insect ingredients, such as protein concentrates or isolates, is a major challenge for food processing optimization. Indeed, because high lipid content can interfere with protein extraction, it is necessary to include a lipid separation step to enhance protein extraction.
Several lipid extraction methods with conventional solvents are described in the literature. Alternative environmentally friendly solvents, such as methanol and ethanol, are also recommended [11]. Three-phase partitioning (TPP) was first reported to be an efficient method for protein extraction, but it is also a good strategy for extracting oil from oleaginous material such as soybeans, seed kernels or almonds, apricots, and rice bran [12]. Finally, supercritical CO2 (SC-CO2) extraction is another common oil extraction method known for its low operating cost and environmental impact [13]. Several studies have focused on lipid extraction methods applied to insects. Most were performed on wild-caught edible insects using organic solvents for lipid extraction. For example, Tzompa-Sosa et al. [5] extracted lipid fractions from four insect species (T. molitor, Alphitobius diaperinus, A. domesticus, and Blaptica dubia) using Soxhlet, aqueous, and Folch extraction methods. Aqueous extraction of lipid gave the lowest lipid yield for all edible insect types, whereas Soxhlet and Folch produced similar yields. Using T. molitor, Zhao et al. [13] obtained similar defatting efficiencies (lipid extraction yield of about 30%) using ethanol or a mixture of hexane and isopropanol. The application of supercritical CO2 to extractions of T. molitor produced a range of defatting from 21% to 95%, depending on duration, temperature, and pressure applied [14]. This method has many advantages, such as being solvent free and reducing oxidation of lipid components [14]. These previous studies demonstrated that the quality of the lipid extract is greatly affected by the extraction procedure. Consequently, the lipid extraction method must be carefully chosen.
In this context, the aims of the present study are to investigate the impact of the six conventional and alternative defatting methods on 1) the lipid extraction yield and lipid profile recovered, and 2) the protein extraction and purification rates.

2. Materials and Methods

2.1. Insects

House cricket (A. domesticus) and mealworm (T. molitor) meals were provided by Entomo Farm (Norwood, Ontario, Canada). The global composition of these two edible insects is presented in Table 1. The protein content was determined according to the Dumas method [8,15] (Elementar rapid Micro N cube, Langenselbold, Germany), using a conversion factor of 4.76 to convert nitrogen content to protein content, as determined by Janssen et al. [16] for whole insect meal. The ash content was determined by an incineration method (AOAC 938.08) [17], and the chitin content was determined by the method described by Spinelli et al. [18].

2.2. Lipid Extraction Methods

Figure 1 shows the established protocol described in the following sections. Briefly, A. domesticus and T. molitor meals were defatted, in triplicate, using one of six different methods. The resulting oils and defatted fractions were recovered and weighed. Between extraction and analysis, these were kept at −20 °C. Oil samples were kept under a nitrogen atmosphere.

2.2.1. Soxhlet Method

Ten grams of insect meal was deposited in a cellulose cartridge (Fisher Scientific catalog number 12-101-100) and the lipids were extracted for 6 h using a Soxhlet apparatus, as described by Tzompa-Sosa et al. [5]. Four different solvents, hexane, petroleum ether, ethyl acetate, and 95% ethanol, were used for the extractions. After each extraction, the solvent was completely removed using a rotary evaporator (R-215, Büchi, Flawil, Switzerland). The lipid extracts and the defatted insect meals were dried at 50 °C in a vacuum oven for a minimum of 5 h and were kept in a desiccator at room temperature before weighing. Lipid extracts were stored at −20 °C.

2.2.2. Three-Phase Partitioning Method

The TPP extraction method applied to insect meals was adapted from Dutta et al. [12] and Panadare and Rathod [11]. Briefly, 10 g of insect flour was mixed with 60 mL of distilled water. The pH of the solution was adjusted to 4.5 with 0.1 M HCl. Next, 20 g of ammonium sulfate and 60 mL of tert-butanol (t-butanol) were added and the mixture was stirred at 35 °C for 1 h. The mixture was kept at room temperature for 1 h without agitation and centrifuged at 2800× g for 5 min. Supernatants were collected in a pre-weighed round-bottom flask and the t-butanol was evaporated using a rotary evaporator (R-215, Büchi, Flawil, Switzerland). Extractions were performed in triplicate and oil samples were kept under a nitrogen atmosphere at −20 °C until used.

2.2.3. Supercritical Carbon Dioxide

Supercritical CO2 extraction was performed in triplicate at the Centre d’étude des procédés chimiques du Québec (CÉPROCQ) (Montreal, Quebec, Canada) with a laboratory-scale unit, according to the method of Purschke et al. (2017) [14]. Equal masses (15 g each) of insect meal and glass marbles were added to a 500 mL reactor operating at a flow rate of 10 g/mL for 75 min (325 bar, 55 °C). Oil and defatted residue were collected after extraction and weighed. The oil fraction was kept at −20 °C under a nitrogen atmosphere until used.

2.3. Characterization of Fatty Acid Methyl Esters (FAMEs) by Gas Chromatography

Oil fractions were derivatized prior to analysis of FAMEs (fatty acid methyl esters). One drop of extracted oil was introduced into a 10 mL screw cap tube. One mL of hexane was added, followed by 0.5 mL of 0.05 M sodium methanolate. The cap was tightened, and the solution was vortexed before heating in a water bath at 40 °C for 15 min. After heating, 2 mL of hexane and 3 mL of saturated NaCl solution were added. The solution was vortexed again and left at rest until the two phases were separated. The organic phase containing FAMEs was collected (supernatant) and filtered through a glass pipette equipped with 1 cm of anhydrous sodium sulfate. The FAMEs were collected in a clean 10 mL screw cap tube. The aqueous phase was washed twice with an additional 2 mL of hexane. The supernatant was collected after phase separation, filtered in a glass pipette as above, and added to the previous 10 mL tube. Another 5 mL of hexane was added for a final hexane volume of 10 mL, and a FAME concentration of about 1 mg/mL.
One microliter of the FAME solution was injected onto a GC-2010 Plus Gas Chromatograph (Shimadzu, Kyoto, Japan) equipped with a BPX70 column (60 m × 0.25 mm internal diameter × 0.25 µm film thickness; SGE, Melbourne, Australia) and a flame ionization detector (FID). Dihydrogen (H2), at a flow rate of 1.29 mL/min, was the carrier gas. The injector (split ratio 50:1) was maintained at 250 °C with a purge flow of 3 mL/min. The temperature started at 60 °C for 1 min, increased to 190 °C at 5 °C/min, was maintained at 190 °C for 15 min, then finally increased to 240 °C at 5 °C/min where it was maintained for 1 min, for a total program time of 53 min. The FAMEs were identified by comparing the retention time of the peaks with a commercial standard (C4 to C22 GLC-607; Nu-Chek Prep, Elysian, MN, USA). Analyses were performed in triplicate and the data were analyzed with GCsolution software, version 2.32.00 (Shimadzu, Kyoto, Japan).

2.4. Protein Extraction

A. domesticus and T. molitor proteins were extracted according to Zhao et al. [13]. For both insects, 4 g of defatted or regular (control) meal was added to 60 mL of 0.25 M NaOH. The mixture was agitated for 60 min at 40 °C and centrifuged at 3500× g for 20 min at 4 °C. The supernatant was removed, and a second extraction was performed on the residue. Supernatants from the first and second alkaline solubilization were pooled and the pH was adjusted to 4.3–4.5 to induce protein precipitation with 2 M HCl before centrifugation (2500× g, 15 min, 4 °C). After protein precipitation, the supernatant was removed, and the residue containing precipitated proteins was washed twice with distilled water at pH 4.5 and centrifuged (2500× g, 10 min, 4 °C). The residue and the supernatant were freeze-dried. The powders of the two fractions were analyzed using the Dumas combustion method (Elementar rapid Micro N cube, Langenselbold, Germany). A conversion factor of 5.60 was used to convert the nitrogen percentage to protein content of insect protein extract, as determined by Janssen et al. [16]. This conversion factor is different than that used to determine the protein content of the whole insect meal (Table 1), because the non-protein nitrogen (NPN) content is reduced during the protein extraction [16].

2.5. Extraction Yields

For all lipid extraction methods, the oil extraction yield was calculated according to Equation (1):
Oil extraction yield (%) = (mf/mi) × 100
where mf is the mass of extracted fat (g) and mi is the mass of crude A. domesticus and T. molitor meal (g). As proposed by Zhao et al. [14] for T. molitor, the extracted fat was expressed as a percentage the initial mass of edible insect meal samples, which means that the most efficient defatting method could not have a 100% lipid extraction yield.
The protein extraction yield was calculated according to Equation (2) [19]:
Protein extraction yield (%) = ((mr × %Pr)/(md × %Pd)) × 100
where mr represents the mass (g) and %Pr represents the protein content (% w/w) of the residue after protein precipitation, and md and %Pd represent the mass (g) and the protein content (% w/w) of defatted A. domesticus or T. molitor meal (respectively). The protein purity was obtained when determining the nitrogen content of each sample (Elementar rapid Micro N cube, Langenselbold, Germany).

2.6. Statistical Analysis

Statistical analyses were performed using Statistical Analysis System (SAS) University Edition, SAS® Studio 3.5 software. A randomized complete block design with six treatments (different extraction methods) in multiple blocks (n ≥ 3) was used. For each experiment, the experimental unit was A. domesticus or T. molitor meal, which received one treatment. Each experiment was performed in triplicate and results were reported as mean ± standard deviation (SD). Tukey tests (α = 0.05) were used as multiple comparison tests. Statistical analyses were done independently for A. domesticus and T. molitor.

3. Results and Discussion

3.1. Lipid Extraction Yield and Fatty Acid Composition

Table 2 shows the fat extracted (% w/w of the insect meal) from both insect meals obtained from the different defatting methods. The extraction yields were higher for T. molitor (22.1%–28.8% w/w) compared to A. domesticus (11.9%–22.7% w/w). This difference is explained by the fact that crude T. molitor has a higher fat content than A. domesticus (36% w/w [20] vs. 18.6%–22.8% w/w [21]). The results showed that the defatting method significantly impacts the lipid extraction yields for A. domesticus (p < 0.05), unlike for T. molitor (p > 0.05). Significant differences were observed between Soxhlet extractions of A. domesticus, depending on the solvent used (p < 0.05). Ethanol produced the highest lipid extraction rate at 22.7% w/w. The lipid extraction rates for TPP and ethyl acetate were similar, and hexane and SC-CO2 were the least efficient methods for lipid extraction with values of 14.6% and 11.9%, respectively. Further optimization of the SC-CO2 method using co-solvent might improve the extraction yield in a future work, as shown by Rudyk et al. [22] for the extraction of nonfood and nonpolar compounds.
The fatty acid (FA) profiles of lipids extracted from A. domesticus and T. molitor meals are shown in Table 3; Table 4, respectively. For both insects, the three most abundant FAs were palmitic acid (C16:0), vaccenic acid (C18:1V), and linoleic acid (C18:2). For A. domesticus, C18:2, which is an essential fatty acid, represented 29%–36% of the total FA, while C16:0 and C18:1V comprised 26%–31% and 21%–24% of the total FA, respectively. Stearic acid (C18:0) was the fourth most abundant FA of A. domesticus, ranging between 10% and 11% of the total FA.
For T. molitor, C18:1V was the dominant FA at 37%–40% of the total FA. The second most abundant T. molitor FA was C18:2 (33%–37%), followed by C16:0 (18%–19%). Except for these major FAs, the remaining FAs found in both edible insect lipid extracts were detected at very low relative abundance. Some differences were observed, especially the abundance of C14:0, C17:0, C17:1, and C18:1V, which were higher in T. molitor oil extract, or the abundance of C16:0, C18:0, and C18:1 (oleate), which were higher in A. domesticus oil extract. Finally, arachidic (C20:0), transvaccenate (C18:1T), petroselinate (C18:1P), gamma-linolenic (C20:3), and docosahexaenoic (C22:6) acids were detected in A. domesticus oil, but were absent from T. molitor oil.
These results agreed with the work of Tzompa-Sosa et al. [5] who reported that C18:1, C18:2, and C16:0 were the three most abundant FA in four insect species, including T. molitor and A. domesticus. Mariod et al. [21] findings also supported these results as they indicated that the major FA of adult A. domesticus were C18:2 (30%–40%), C18:1 (23%–27%), C16:0 (24%–30%), and C18:0 (7%–11%). They also reported the occurrence of smaller amounts of palmitoleic (C16:1), myristic (C14:0), and linolenic acids (C18:3). Moreover, the proportions of FA obtained from T. molitor larvae with SC-CO2 were close to the results obtained by Purschke et al. [14], who found 18.46% of C16:0, 2.41% of C18:0, 42.14% of C18:1, and 29.00% of C18:2 for the same treatment (325 bar, 55 °C, 75 min).
There were some differences in the FA profiles, depending on the defatting method used. For both edible insects, Soxhlet extraction with ethanol or TPP were the two least efficient methods for extracting C16:0, whereas SC-CO2 was the most efficient. For A. domesticus only, Soxhlet extraction with hexane or TPP extracted more C18:0. Ethanol was the least efficient solvent, but there was no significant difference between ethanol and petroleum ether, ethyl acetate, or SC-CO2. For both insects, SC-CO2 extracted the highest proportion of transvaccenic acid, but no significant difference was observed between Soxhlet extractions with hexane or petroleum ether (or ethyl acetate for T. molitor, exclusively). Like the C18:0 extractions, ethanol was the least efficient extraction method for transvaccenic acid but there was no significant difference (p > 0.05) between this method and TPP (and ethyl acetate for A. domesticus only). Moreover, for both A. domesticus and T. molitor, TPP and Soxhlet extraction with ethanol were the two defatting methods extracting the most C18:2.
With both insects, extraction of the three most abundant FAs showed that ethanol and TPP, two defatting methods using polar solvents (ethanol and t-butanol), are more efficient at extracting C18:2, whereas methods using nonpolar solvents are more efficient at extracting C18:1 and C16:0. These results agree with the findings of Murali et al. [23]. These authors fractionated lipids from Fusarium spp. into polar and nonpolar classes using ethanol (polar) and petroleum ether (nonpolar). They found a higher quantity of C18:2 in the polar lipid fraction, whereas the nonpolar lipid fraction contained more C18:1 [23]. The results obtained in this study also agree with the fact that polyunsaturated fatty acids (PUFA) such as C18:2 are relatively more polar than monounsaturated fatty acids (MUFA) such as C18:1V and long-chain saturated FAs such as C16:0 [24].
As explained previously, ethanol produced the highest fat extraction yield. However, for FA quantification, its efficiency was highly dependent on FA relative polarity. These results show that lipids other than FA also affect the fat extraction yield. Indeed, phospholipids, the second most important lipid in insects, after triglycerides, are polar components and therefore very easily solubilized in a polar solvent, such as ethanol, methanol [20,25], or even t-butanol, used for TPP extraction. Conversely, triacylglycerols or sterol esters have very low polarity and, so, are soluble in nonpolar solvents, such as hexane and ether [25]. It can therefore be hypothesized that all categories of lipids were present in the same proportions for T. molitor, leading to the non-significant differences (p > 0.05) in fat extraction yields observed for the defatting methods under study. However, A. domesticus meal may have contained a higher proportion of polar lipids since methods using polar solvents such as ethanol and t-butanol were significantly more efficient at extracting fat from this insect species. These findings suggest that the most suitable defatting method may differ from one insect to the other, depending on its lipid composition.

3.2. Protein Extraction and Purity

Protein extraction experiments were performed on defatted A. domesticus and T. molitor to generate an enriched protein fraction. Protein concentrations of initial A. domesticus and T. molitor meals were 53% and 45% w/w on a dry basis, respectively. According to Rumpold and Schulter [6], the protein content of A. domesticus meal ranged from 55% to 70%, compared to 47% to 60% for T. molitor. These results are higher than those observed in the present study since they used a protein conversion factor of 6.25. However, it was recently suggested by Janssen et al. [16] that this conversion factor overestimates protein concentration because it includes natural nitrogen-containing polysaccharides such chitin, or chitosan, or inorganic nitrogen such as uric acid, urea, or ammonia [26]. Consequently, a protein conversion factor of 5.60, used in this study, seems more appropriate for evaluating the protein content of the protein extract of whole meal and defatted protein extracts [16]. Assuming an overestimation of protein concentration in the literature, the protein concentrations obtained in this study were comparable [13].
The protein extraction yields are presented in Table 5. Extractions performed on defatted A. domesticus and T. molitor meals were compared to those on the whole meals (Table 1) without defatting to evaluate the importance of defatting to increase protein extraction and protein purity.
Protein extraction was not performed with defatted meals obtained using TPP since ammonium sulfate was used to precipitate the proteins. Ammonium sulfate contains nitrogen, which interferes with the nitrogen analysis to determine protein content. For A. domesticus, there was no significant difference (p > 0.05) in protein purity between the extraction made with the most polar solvent, ethanol (78.5% ± 2.0%), and the least, hexane (74.7% ± 0.3%). No significant were observed either for T. molitor. Yi et al. [7] used aqueous extraction for insect defatting, and after protein extraction of defatted meal following centrifugation, the purity was 50%–61% in the supernatant fraction. The results of this study demonstrated the importance of defatting insect meals and of precipitating proteins after extraction, to obtain protein concentrates with high purity.
Finally, insect protein concentrates and isolates were compared with plant-based proteins. The results are presented in Table 6. The protein extraction yield of insects was quite inferior to vegetal proteins, depending on the extraction method. However, the protein purity of insect extracts can be compared to other protein matrices, but not the whole meal. In fact, the major compositional difference between insect and plant-based matrices is the presence of chitin that has an important structural role in insects [27]. However, chitin in insects, as in crustaceans, is found in a complex matrix made of proteins and fat, rather than in its pure form [27,28]. Consequently, despite the fact that defatting increases the purity of protein extracts, it might be interesting to find a complementary method that would collapse the chitin matrix and, thus, improve protein extraction yields, and the competitiveness of the edible insect industry.

4. Conclusions

The impact of six different defatting methods on lipid extraction, fatty acid composition, and protein extraction from two insect meals were investigated. Ethanol provided the highest fat extraction rate. However, according to fatty acid profiles obtained by gas chromatography, ethanol was less effective at extracting relatively nonpolar fatty acids. Consequently, the choice of defatting methodology should be made according to the fat composition of the edible insect used. The lipid extraction method impacts protein extraction, as defatting performed with ethanol produced a higher protein purity for A. domesticus. Even if eco-friendly alternatives are available (i.e., SC-CO2), there must be a compromise between extraction rate of edible insect macromolecules and sustainability of processing steps. The results also showed that defatting and protein precipitation were important for obtaining good yields and purification rates comparable to results found in the literature for pulse proteins. Furthermore, following this study, it would also be appropriate to optimize the SC-CO2 process, notably with the use of co-solvent, to assess the functional properties of these high-purity protein concentrates and to validate their incorporation into functional foods.

Author Contributions

Writing—original draft preparation, investigation, and data curation, M.L. and V.P.; writing—review and editing, V.P., A.M., J.C., A.G., and A.D.; supervision and project administration, A.D.; funding acquisition, A.D.


This research was funded by Fonds de Recherche du Québec—Nature et technologies, grant number 2018-PR-208090.


The authors would like to thank Yacine Boumghar and Mathieu Sarrazin from Centre d’étude des procédés chimiques du Québec (CEPROCQ, Quebec, Canada) for SC-CO2 extractions, Diane Gagnon and Sophie Fortin (Department of Food Sciences, Université Laval, Quebec, Canada) for their input into this project, and Barb Conway for editing this manuscript.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Huis, A.V.; Itterbeeck, J.V.; Klunder, H.; Mertens, E.; Halloran, A.; Muir, G.; Vantomme, P. Edible Insects, Future Prospects for Food and Feed Security; Food and Agriculture Organization of the United Nations: Rome, Italy, 2013; p. 187. Available online: (accessed on 30 September 2019).
  2. Smetana, S.; Palanisamy, M.; Mathys, A.; Heinz, V. Sustainability of insect use for feed and food: Life Cycle Assessment perspective. J. Clean. Prod. 2016, 137, 741–751. [Google Scholar] [CrossRef]
  3. Oonincx, D.G.A.B.; De Boer, I.J.M. Environmental Impact of the Production of Mealworms as a Protein Source for Humans – A Life Cycle Assessment. PLoS ONE 2012, 7, e51145. [Google Scholar] [CrossRef] [PubMed]
  4. Tan, C.X.; Chong, G.H.; Hamzah, H.; Ghazali, H.M.; Xuan, T.C.; Hean, C.G. Comparison of subcritical CO2 and ultrasound-assisted aqueous methods with the conventional solvent method in the extraction of avocado oil. J. Supercrit. Fluids 2018, 135, 45–51. [Google Scholar] [CrossRef]
  5. Tzompa-Sosa, D.A.; Yi, L.; Van Valenberg, H.J.; Van Boekel, M.A.; Lakemond, C.M. Insect lipid profile: Aqueous versus organic solvent-based extraction methods. Food Res. Int. 2014, 62, 1087–1094. [Google Scholar] [CrossRef]
  6. Rumpold, B.A.; Schlüter, O.K. Nutritional composition and safety aspects of edible insects. Mol. Nutr. Food Res. 2013, 57, 802–823. [Google Scholar] [CrossRef]
  7. Yi, L.; Lakemond, C.M.; Sagis, L.M.; Eisner-Schadler, V.; Van Huis, A.; Van Boekel, M.A. Extraction and characterisation of protein fractions from five insect species. Food Chem. 2013, 141, 3341–3348. [Google Scholar] [CrossRef]
  8. Megido, R.C.; Gierts, C.; Blecker, C.; Brostaux, Y.; Haubruge, E.; Alabi, T.; Francis, F. Consumer acceptance of insect-based alternative meat products in Western countries. Food Qual. Prefer. 2016, 52, 237–243. [Google Scholar] [CrossRef]
  9. Bußler, S.; Rumpold, B.A.; Jander, E.; Rawel, H.M.; Schlüter, O.K. Recovery and techno-functionality of flours and proteins from two edible insect species: Meal worm (Tenebrio molitor) and black soldier fly (Hermetia illucens) larvae. Heliyon 2016, 2, e00218. [Google Scholar] [CrossRef]
  10. Schosler, H.; de Boer, J.; Boersema, J.J. Can we cut out the meat of the dish? Constructing consumer-oriented pathways towards meat substitution. Appetite 2012, 58, 39–47. [Google Scholar] [CrossRef]
  11. Panadare, D.; Rathod, V. Three phase partitioning for extraction of oil: A review. Trends Food Sci. Technol. 2017, 68, 145–151. [Google Scholar] [CrossRef]
  12. Dutta, R.; Sarkar, U.; Mukherjee, A. Process optimization for the extraction of oil from Crotalaria juncea using three phase partitioning. Ind. Crop. Prod. 2015, 71, 89–96. [Google Scholar] [CrossRef]
  13. Zhao, X.; Vázquez-Gutiérrez, J.L.; Johansson, D.P.; Landberg, R.; Langton, M. Yellow Mealworm Protein for Food Purposes - Extraction and Functional Properties. PLoS ONE 2016, 11, 0147791. [Google Scholar] [CrossRef] [PubMed]
  14. Purschke, B.; Stegmann, T.; Schreiner, M.; Jager, H. Pilot-scale supercritical CO2 extraction of edible insect oil from Tenebrio molitor L. larvae—Influence of extraction conditions on kinetics, defatting performance and compositional properties. Eur. J. Lipid Sc. Tech. 2017, 119, 1600134. [Google Scholar] [CrossRef]
  15. Simonne, A.; Simonne, E.; Eitenmiller, R.; Mills, H.; Cresman III, C. Could the dumas method replace the Kjeldahl digestion for nitrogen and crude protein. J. Sci. Food Agric. 1997, 73, 39–45. [Google Scholar] [CrossRef]
  16. Janssen, R.H.; Vincken, J.P.; van den Broek, L.A.M.; Fogliano, V.; Lakemond, C.M.M. Nitrogen-to-protein conversion factors for three edible insects: Tenebrio molitor, Alphitobius diaperinus, and Hermetia illucens. J. Agric. Food Chem. 2017, 65, 2275–2278. [Google Scholar] [CrossRef]
  17. AOAC. Official Methods of Analysis of the Association of Official Analytical Chemists, 15th ed.; Horowitz, W., Ed.; Association of Official Analytical Chemists: Washington, DC, USA, 2008. [Google Scholar]
  18. Spinelli, J.; Lehman, L.; Wieg, D. Composition, processing, and utilization of red crab (Pleuroncodes planipes) as an aquacultural feed ingredient. J. Fish. Res. Board Can. 1974, 31, 1025–1029. [Google Scholar] [CrossRef]
  19. Azagoh, C.; Ducept, F.; Garcia, R.; Rakotozafy, L.; Cuvelier, M.-E.; Keller, S.; Lewandowski, R.; Mezdour, S. Extraction and physicochemical characterization of Tenebrio molitor proteins. Food Res. Int. 2016, 88, 24–31. [Google Scholar] [CrossRef]
  20. Kouřimská, L.; Adámková, A. Nutritional and sensory quality of edible insects. NFS J. 2016, 4, 22–26. [Google Scholar] [CrossRef]
  21. Mariod, A.A.; Mirghani, M.E.S.; Hussein, I.H. Unconventional Oilseeds and Oil Sources, 1st ed.; Elsevier Associated Press: London, UK, 2017; p. 382. [Google Scholar]
  22. Rudyk, S.; Spirov, P.; Hussain, S. Effect of co-solvents on SC-CO2 extraction of crude oil by consistency test. J. Supercrit. Fluid. 2014, 91, 15–23. [Google Scholar] [CrossRef]
  23. Murali, H.S.; Mohan, M.S.; Manja, K.S.; Sankaran, R. Polar and nonpolar lipids and their fatty acid composition of a few Fusarium species. J. Am. Oil Chem. Soc. 1993, 70, 1039–1041. [Google Scholar] [CrossRef]
  24. Japir, A.A.-W.; Salimon, J.; Derawi, D.; Yahaya, B.H.; Bahadi, M.; Al-Shuja’a, S.; Yusop, M.R. A highly efficient separation and physicochemical characteristics of saturated fatty acids from crude palm oil fatty acids mixture using methanol crystallisation method. OCL J. 2018, 25, A203. [Google Scholar] [CrossRef]
  25. Meullemiestre, A.; Breil, C.; Abert-Vian, M.; Chemat, F. Modern Techniques and Solvents for the Extraction of Microbial Oils; Springer: New York, NY, USA, 2015; p. 52. [Google Scholar]
  26. Weihrauch, D.; Donini, A.; O’Donnell, M.J. Ammonia transport by terrestrial and aquatic insects. J. Insect Physiol. 2012, 58, 473–487. [Google Scholar] [CrossRef] [PubMed]
  27. Finke, M.D. Estimate of chitin in raw whole insects. Zoo Biol. 2007, 26, 105–115. [Google Scholar] [CrossRef] [PubMed]
  28. Kramer, K.J.; Hopkins, T.L.; Schaefer, J. Applications of solids NMR to the analysis of insect sclerotized structures. Insect Biochem. Mol. Biol. 1995, 25, 1067–1080. [Google Scholar] [CrossRef]
  29. Stone, A.K.; Karalash, A.; Tyler, R.T.; Warkentin, T.D.; Nickerson, M.T. Functional attributes of pea protein isolates prepared using different extraction methods and cultivars. Food Res. Int. 2015, 76, 31–38. [Google Scholar] [CrossRef]
  30. Boye, J.I.; Aksay, S.; Roufik, S.; Ribereau, S.; Mondor, M.; Farnworth, E.; Rajamohamed, S.H. Comparison of the functional properties of pea, chickpea and lentil protein concentrates processed using ultrafiltration and isoelectric precipitation techniques. Food Res. Int. 2010, 43, 537–546. [Google Scholar] [CrossRef]
  31. Perreault, V.; Henaux, L.; Bazinet, L.; Doyen, A. Pretreatment of flaxseed protein isolate by high hydrostatic pressure: Impacts on protein structure, enzymatic hydrolysis and final hydrolysate antioxidant capacities. Food Chem. 2017, 221, 1805–1812. [Google Scholar] [CrossRef]

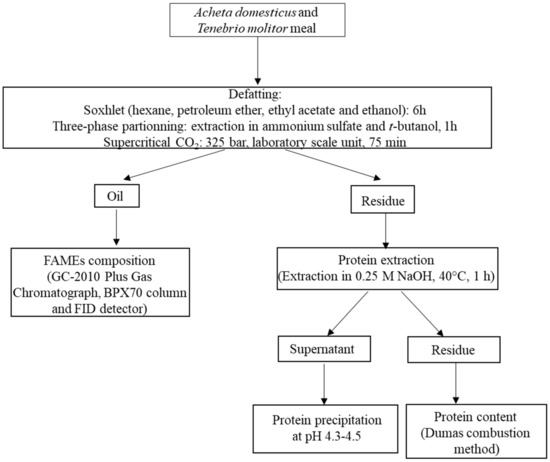

Figure 1. General scheme of experimental procedure.
Figure 1. General scheme of experimental procedure.
Foods 08 00572 g001
Table 1. Physicochemical characterization (% w/w on a dry basis) of Acheta domesticus (A. domesticus) and Tenebrio molitor (T. molitor) meals.
Table 1. Physicochemical characterization (% w/w on a dry basis) of Acheta domesticus (A. domesticus) and Tenebrio molitor (T. molitor) meals.
Insect MealProteinAshChitinOther
(Sugar, Lipid, etc.)
% w/w (dry basis)
A. domesticus53.5 ± 0.35.5 ± 0.15.9 ± 0.635.1 ± 0.6
T. molitor45.7 ± 0.024.3 ± 0.17.2 ± 0.542.9 ± 0.6
Table 2. Lipid extraction yield of A. domesticus and T. molitor meals, according to the defatting method.
Table 2. Lipid extraction yield of A. domesticus and T. molitor meals, according to the defatting method.
Insect MealDefatting MethodExtracted Fat
(% w/w of Sample Mass)
A. domesticusSoxhlet (Hexane)14.6 ± 0.1 c
Soxhlet (Petroleum ether)14.7 ± 0.2 c
Soxhlet (Ethyl acetate)15.1 ± 0.3 b
Soxhlet (Ethanol)22.7 ± 2.9 a
TPP19.3 ± 2.0 ab
SC-CO211.9 ± 1.4 c
T. molitorSoxhlet (Hexane)25.5 ± 0.1 a
Soxhlet (Petroleum ether)24.3 ± 1.2 a
Soxhlet (Ethyl acetate)25.7 ± 0.3 a
Soxhlet (Ethanol)28.8 ± 5.9 a
TPP23.7 ± 2.4 a
SC-CO222.1 ± 0.6 a
SC-CO2: supercritical CO2, TPP: three-phase partitioning. Mean values ± SD with different letters are significantly different (Tukey test, α = 0.05, n = 3).
Table 3. Relative abundance of fatty acid composition from A. domesticus oil.
Table 3. Relative abundance of fatty acid composition from A. domesticus oil.
Fatty AcidRelative Abundance (u.a.)
SaturatedC14:00.81 ± 0.03 b0.83 ± 0.04 b0.81 ± 0.05 b0.69 ± 0.03 c0.60 ± 0.10 c0.95 ± 0.03 a
C16:027.70 ± 1.00 a,b27.50 ± 0.30 a,b26.90 ± 1.10 a,b24.60 ± 0.70 b25.10 ± 2.40 b29.60 ± 0.30 a
C17:00.29 ± 0.01 a0.25 ± 0.02 a0.24 ± 0.03 a,b0.21 ± 0.01 a,b0.10 ± 0.10 b0.22 ± 0.00 a,b
C18:010.30 ± 0.20 a10.14 ± 0.03 a,b10.00 ± 0.30 a,b9.60 ± 0.40 b10.50 ± 0.10 a9.92 ± 0.08 a,b
C20:00.60 ± 0.01 a0.57 ± 0.03 a,b0.57 ± 0.02 a,b0.46 ± 0.04 c0.43 ± 0.06 c0.50 ± 0.02 b,c
MUFAC16:11.17 ± 0.01 a1.14 ± 0.03 a1.12 ± 0.00 a,b1.10 ± 0.03 a,b1.02 ± 0.08 b1.22 ± 0.05 a
C18:1T0.15 ± 0.01 a0.15 ± 0.01 a0.14 ± 0.01 a0.12 ± 0.00 b0.12 ± 0.01 b0.11 ± 0.00 b
C18:1P0.20 ± 0.01 b,c0.19 ± 0.03 b,c0.18 ± 0.02 c0.16 ± 0.02 c0.40 ± 0.10 a,b0.52 ± 0.08 a
C18:1V21.40 ± 0.70 a,b21.10 ± 0.50 a,b20.40 ± 0.40 b19.50 ± 0.40 b20.30 ± 1.30 b22.50 ± 0.40 a
C18:10.58 ± 0.02 a0.54 ± 0.04 a,b0.54 ± 0.04 a,b0.50 ± 0.01 a,b0.47 ± 0.06 b0.60 ± 0.02 a
C20:1----0.10 ± 0.00 b0.11 ± 0.00 a
PUFAC18:230.10 ± 1.10 b,c29.50 ± 0.50 c29.30 ± 0.30 c33.00 ± 0.70 a,b33.60 ± 2.20 a27.40 ± 0.50 c
C18:31.52 ± 0.01 a1.48 ± 0.05 a,b1.46 ± 0.03 a,b1.47 ± 0.05 a,b1.39 ± 0.08 b1.48 ± 0.03 a.b
C20:30.29 ± 0.01 b,c0.28 ± 0.02 c0.30 ± 0.00 b,c0.43 ± 0.04 a0.35 ± 0.04 b0.15 ± 0.01 d
C22:60.14 ± 0.01 b0.14 ± 0.01 b0.15 ± 0.02 b0.15 ± 0.01 b0.17 ± 0.01 a,b0.19 ± 0.01 a
C18:1P: methyl petroselinate, C18:1T: methyl transvaccenate, C18:1V: methyl vaccinate, MUFA: monounsaturated fatty acid, PUFA: polyunsaturated fatty acid, SA: Soxhlet (ethyl acetate), SC-CO2: supercritical CO2, SE: Soxhlet (ethanol), SH: Soxhlet (hexane), SP: Soxhlet (petroleum ether), TPP: three-phase partitioning. Mean values in the same line with different letters are significantly different (Tukey test, α = 0.05, n = 3).
Table 4. Relative abundance of fatty acid composition from T. molitor oil.
Table 4. Relative abundance of fatty acid composition from T. molitor oil.
Fatty AcidRelative Abundance (u.a.)
SaturatedC14:01.65 ± 0.05 b1.64 ± 0.02 b1.60 ± 0.10 b1.67 ± 0.00 b1.58 ± 0.01 b1.72 ± 0.04 a
C16:018.74 ± 0.00 a,b18.77 ± 0.03 a,b18.67 ± 0.05 a,b17.78 ± 0.05 c18.20 ± 0.40 b,c19.10 ± 0.20 a
C17:00.42 ± 0.02 a0.40 ± 0.02 a0.41 ± 0.00 a0.41 ± 0.01 a0.44 ± 0.01 a0.41 ± 0.00 a
C18:02.30 ± 0.01c2.30 ± 0.01 c2.33 ± 0.01 b,c2.80 ± 0.08 a2.62 ± 0.08 a,b2.20 ± 0.20 c
MUFAC16:10.93 ± 0.00 a0.94 ± 0.02 a0.96 ± 0.00 a0.95 ± 0.05 a0.93 ± 0.03 a0.97 ± 0.02 a
C17:10.13 ± 0.00 a0.13 ± 0.01 a--0.11 ± 0.00 a0.12 ± 0.00 a
C18:1V39.74 ± 0.00 a39.74 ± 0.07 a39.70 ± 0.03 a36.94 ± 0.02 b38.10 ± 0.60 b39.80 ± 0.30 a
C18:10.31 ± 0.01 a0.29 ± 0.00 a0.31 ± 0.01 a0.30 ± 0.02 a0.30 ± 0.01 a0.29 ± 0.01 a
PUFAC18:233.76 ± 0.06 c33.70 ± 0.05 c33.80 ± 0.09 c37.00 ± 0.10 a34.70 ± 0.50 b33.40 ± 0.10 c
C18:31.25 ± 0.01 a1.24 ± 0.01 a1.28 ± 0.01 a1.30 ± 0.08 a1.21 ± 0.02 a1.27 ± 0.01 a
C18:1P: methyl petroselinate, C18:1V: methyl vaccinate, MUFA: monounsaturated fatty acid, PUFA: polyunsaturated fatty acid, SA: Soxhlet (ethyl acetate), SC-CO2: supercritical CO2, SE: Soxhlet (ethanol), SH: Soxhlet (hexane), SP: Soxhlet (petroleum ether), TPP: three-phase partitioning. Mean values in the same line with different letters are significantly different (Tukey test, α = 0.05, n = 3).
Table 5. Mass and protein yield of the residue after protein precipitation of A. domesticus and T. molitor, according to the defatting method.
Table 5. Mass and protein yield of the residue after protein precipitation of A. domesticus and T. molitor, according to the defatting method.
Insect MealDefatting MethodProtein Extraction Yield
Protein Purity
A. domesticusWhole meal (without defatting)38.9 ± 1.7 a58.3 ± 0.5 d
Soxhlet (Hexane)32.4 ± 3.8 ab74.7 ± 0.3 ab
Soxhlet (Petroleum ether)33.1 ± 1.0 ab74.3 ± 2.0 b
Soxhlet (Ethyl acetate)31.6 ± 3.0 b74.4 ± 1.2 b
Soxhlet (Ethanol)31.0 ± 4.0 b78.5 ± 2.0 a
SC-CO233.7 ± 1.1 ab70.1 ± 1.9 c
T. molitorWhole meal (without defatting)39.3 ± 0.8 a48.7 ± 0.1 b
Soxhlet (Hexane)33.7 ± 1.6 b74.0 ± 2.2 a
Soxhlet (Petroleum ether)33.5 ± 1.2 b72.7 ± 1.5 a
Soxhlet (Ethyl acetate)33.2 ± 0.6 b75.4 ± 0.5 a
Soxhlet (Ethanol)33.9 ± 3.7 b75.3 ± 0.8 a
SC-CO236.4 ± 1.5 ab72.7 ± 4.1 a
ND: not determined, SC-CO2: supercritical CO2, TPP: three-phase partitioning. Mean values ± SD with different letters are significantly different (Tukey test, α = 0.05, n = 3).
Table 6. Comparison of protein extraction yield and purity between edible insect and several pulse matrices.
Table 6. Comparison of protein extraction yield and purity between edible insect and several pulse matrices.
Protein SourceExtraction MethodProtein Extraction Yield
Protein Purity
A. domesticus1Alkaline solubilization and isoelectric precipitation31.0–38.958.3–78.5
T. molitor1Alkaline solubilization and isoelectric precipitation33.2–39.348.7–75.4
PeaAlkali extraction-isoelectric precipitation62.6–76.783.3–86.9[29]
Salt extraction68.2–74.871.5–79.3
Micellar precipitation30.7–31.181.9–87.8
PeaIsoelectric precipitation55.081.7[30]
LentilIsoelectric precipitation50.3–62.878.2–79.1
ChickpeaIsoelectric precipitation53.7–69.163.9–73.6
FlaxseedHydrolysis with cellulase followed by isoelectric precipitationND82[31]
1 Data obtained in the present study. ND: not determined.
