Characterization of Anthocyanins Including Acetylated Glycosides from Highbush Blueberry (Vaccinium corymbosum L.) Cultivated in Korea Based on UPLC-DAD-QToF/MS and UPLC-Qtrap-MS/MS

by
Ju Hyung Kim
1,2,
Ryeong Ha Kwon
1,
So Ah Kim
1,
Hyemin Na
1,
Jeong-Yong Cho
2,* and
Heon-Woong Kim
1,*
1
Department of Agro-Food Resources, National Institute of Agricultural Sciences, Rural Development Administration, Wanju 55365, Republic of Korea
2
Department of Integrative Food, Bioscience and Biotechnology, Chonnam National University, Gwangju 61186, Republic of Korea
*
Authors to whom correspondence should be addressed.
Foods 2025, 14(2), 188; https://doi.org/10.3390/foods14020188
Submission received: 1 December 2024 / Revised: 28 December 2024 / Accepted: 7 January 2025 / Published: 9 January 2025
(This article belongs to the Special Issue The Development of New Functional Foods and Ingredients: 2nd Edition)
Browse Figures
Review Reports Versions Notes

Abstract

:
In this study, anthocyanin glycosides from nine cultivars of highbush blueberries grown in Korea were characterized using UPLC-DAD-QToF/MS and UPLC-Qtrap-MS/MS. A total of twenty-two derivatives were identified, consisting of mono-glycosides and acetyl-glycosides attached to aglycones, such as cyanidin, peonidin, delphinidin, petunidin, and malvidin. Among them, seven acetylated glycosides were tentatively determined by comparing the related authentic standards and previous reports and presented mass fragmentation, in which the acetyl group remained as the form attached to the sugar without de-esterification in positive ionization mode. The mid-season cultivar ‘New Hanover’ showed the highest total anthocyanin content (1011.7 mg/100 g dry weight) with predominant malvidin and delphinidin glycosides. Particularly, the ‘Patriot’ (early season) recorded the highest proportion of acetylated glycosides (19.7%). Multivariate analysis showed a distinct separation between early and mid-seasons with Draper. Especially, delphinidin 3-O-galactoside (VIP = 1.94) was identified as a marker for mid-season, and malvidin 3-O-glucoside (VIP = 1.79) was identified as a marker for early season. These comprehensive anthocyanin profiles of Korean blueberries will serve as fundamental data for breeding superior cultivars, evaluating and developing related products as well as clinical and metabolomic research.

1. Introduction

Blueberries (Vaccinium spp.), along with bilberries, belonging to the Vaccinium genus of the Ericaceae family, which comprises approximately 400 species, are mainly distributed in Southeast Asia. These species are classified into highbush (V. corymbosum L.), lowbush (V. angustifolium L.), and rabbiteye (V. ashei L.). The blueberries grown in Korea are of the highbush type, which is characterized by cold hardiness and suitability for cultivation [1]. In general, highbush blueberries can be further classified as northern and southern depending on chilling requirements [2], and early-, mid-, and late-season cultivars by harvest time [3]. Early-season cultivars are typically harvested from late May to early June, while mid-season cultivars are harvested from mid to late June, and late-season cultivars are harvested from early to late July [4].
Blueberries are known to be rich in phenolic compounds (anthocyanins and flavonoids), carotenoids, and vitamin C [5], with closely related antioxidant [6], anticancer [7], antidiabetic [8], and cardiovascular disease prevention properties [9]. Anthocyanins are the most abundant and characteristic polyphenols in blueberries, accounting for 35–74% of the total phenolics in blueberries [10]. Blueberry anthocyanins are composed of aglycones, such as delphinidin, cyanidin, petunidin, peonidin, and malvidin, with sugar moieties (glucose, galactose, and arabinose) attached. Among them, malvidin (37–52%) and delphinidin (27–31%) glycosides are the most commonly identified [11,12]. Delphinidin, petunidin, and malvidin derivatives, identified as major components, are closely associated with the blue and purple colors [13]. Additionally, blueberry anthocyanins have antioxidant and anti-inflammatory activities, contributing to various health benefits (Table S2). Acetylated anthocyanins, which are present in small amounts in blueberries, have a structure in which an acetyl group is acylated at the 6″-OH position of glucose or galactose. These compounds are reported to contribute to the intensity and stability of pigments in foods [14] and exhibit antioxidant and β-glucosidase effects [15,16], suggesting applications in functional foods and pharmaceuticals [17].
Recently, studies on the identification of individual anthocyanins have been actively conducted in blueberries using mass spectrometry (MS). A total of 25 anthocyanin glycosides were detected and fragmented through positive ionization mode of ESI-ToF-MS from southern highbush blueberries in the United States [18]. The anthocyanin composition and content in blueberries were distributed differently depending on their cultivar and cultivated condition [19,20]. Although 74 cultivars grown in China were characterized by Chai et al. [21], only total content was provided, without detailed individual components for acetylated glycosides, which account for 0–42% of total anthocyanins. The structural elucidation of acetylated glycosides has rarely been performed through NMR [22] and LC-MS [23,24] analyses. Since the overall quantification of blueberry anthocyanins primarily focused on major groups, such as non-acetylated glycosides [25], these detailed profiles are still limited.
The objective of this study was to rapidly and precisely identify and quantify individual anthocyanins, including acetylated glycosides from nine highbush blueberry cultivars (Reka, Hannah’s Choice, Spartan, Draper, Suziblue, Legacy, New Hanover, Farthing, and Patriot) grown in Korea, based on ultra-performance liquid chromatography–diode array detection–quadrupole time-of-flight mass spectrometry (UPLC-DAD-QToF/MS) and ultra-performance liquid chromatography–hybrid triple Q-linear ion trap mass spectrometry (UPLC-Qtrap-MS/MS) with relative quantification and external quantification methods. In addition, multivariate analysis visualized differences between cultivars and identified discriminant markers critical for cultivar differentiation.

2. Materials and Methods

2.1. Plant Materials

Blueberries (Vaccinium spp.) were obtained from a farm in Anseong-si, Gyeonggi-do (latitude/longitude: 37°0′4.7″ N/127°12′35.7″ E), in June 2023. The samples were collected with the permission of the Rural Development Administration (RDA, Republic of Korea) and identified by the author (Heon-Woong Kim) of this article. Detailed information about each cultivar is provided in Table 1. The experimental research, including the collection of plant material, complied with relevant institutional, national, and international guidelines and legislation. All samples were lyophilized, crushed with a grinding machine, and sieved through a 30-mesh sieve.

2.2. Chemicals

Cyanidin 3-O-arabinoside, cyanidin 3-O-galactoside, cyanidin 3-O-glucoside, delphinidin 3-O-glucoside, malvidin 3-O-galactoside, malvidin 3-O-glucoside, peonidin 3-O-arabinoside, peonidin 3-O-galactoside, peonidin 3-O-glucoside, petunidin 3-O-glucoside, and delphinidin 3,5-di-O-glucoside (delphin) were purchased from Extrasynthese (Genay Cedex, France). Petunidin 3-O-galactoside was provided by Chemfaces (Wuhan, China). LC-MS-grade acetonitrile and water were obtained from Thermo Fisher Scientific (Fair Lawn, NJ, USA), and formic acid from Junsei Chemical Co. (Tokyo, Japan).

2.3. Extraction and Sample Preparation

For UPLC-DAD-QToF/MS and UPLC-QTrap-MS/MS analyses, powdered blueberry (0.5 g) was extracted with 10 mL of 5% formic acid in water using an orbital shaker (for 40 min at 200 rpm) and centrifuged at 2016× g and 10 °C for 15 min (LABOGENE 1580R, Bio-Medical Science Co., Seoul, Republic of Korea). The supernatant was filtered through a 0.45 μm syringe filter and purified using a HyperSep Retain-PEP solid-phase extraction (SPE) cartridge (Thermo Scientific, Bellefonte, PA, USA). In order to remove undesirable components and improve separation and detection in UPLC-MS, the SPE was performed, and the process was as follows: The cartridge was conditioned with methanol (4 mL) and water (8 mL). The samples (0.5 mL) and internal standard solution (delphin, 100 ppm; 1 mL) were loaded into the cartridge and washed with water (6 mL). Finally, the loaded samples were eluted with 1% formic acid in methanol (12 mL) and concentrated using N2 gas, then re-dissolved with 5% formic acid in water (0.5 mL).

2.4. Anthocyanin Identification and Quantification

The tests of anthocyanin derivatives in different blueberry cultivars were comprehensively performed using an UPLC system coupled with a diode array detector (DAD; ACQUITY UPLC™ system, Waters Co., Milford, MA, USA) and a QToF-MS (Xevo G2-S QToF, Waters MS Technologies, Manchester, UK). Chromatographic conditions were as follows: CORTECS UPLC T3 column (2.1 × 150 mm, 1.6 μm, Waters, Wexford, Ireland) and CORTECS UPLC T3 VanGuard™ pre-column (2.1 × 50 mm, 1.6 μm, Waters), representative detection wavelength: cyanidin and peonidin, 515 nm; delphinidin, 520 nm; petunidin and malvidin, 525 nm; flow rate, 0.3 mL/min; column oven temperature, 30 °C; sample injection volume, 1 μL; mobile phase, 5% formic acid in water (A) and 5% formic acid in water/acetonitrile (1:1, v/v) (B). Elution gradient conditions were as follows: 0 min, 10% B; 28 min, 50% B; 33–38 min, 90% B; 43–50 min, 10% B. Mass spectra were simultaneously scanned with the range of 50–1200 m/z in positive ionization mode using an electrospray ionization (+ESI) source, and the parameters used were as follows: capillary voltage, 3500 V; sampling cone voltage, 40 V; extraction cone, 4.0 V; ion source, 120 °C; de-solvation temperature, 500 °C; de-solvation N2 gas flow, 1020 L/h. All standard compounds were externally quantified based on multiple reaction monitoring (MRM) mode using UPLC-QTrap-MS/MS (SCIEX QTrap 4500, SCIEX CO.), whereas other anthocyanins were quantified internally using QToF/MS (Xevo G2-S QToF, Waters MS Technologies, Manchester, UK). The optimizing MRM conditions are shown in Table 2. Through preliminary experiments, delphin, which does not overlap with sample peaks and has a similar structure to blueberry anthocyanins, was selected as the ISTD, and the relative quantification was calculated by comparing the relative peak areas of the compounds (based on major fragment ions) and ISTD on a 1:1 basis without considering the relative response factor. The external quantification was performed in MRM mode with 11 selected standards. The contents of anthocyanin derivatives were expressed in mg/100 g DW (dry weight). The triplicate results are expressed as mean ± standard deviation. One-way ANOVA was performed with SPSS (version 28.0, SPSS institute; Chicago, IL, USA) to determine a significant difference between individual averages using Duncan’s multiple range test (p < 0.05). To quantify anthocyanins from blueberry, linearity was determined by analyzing standard solutions at concentrations of 0.01, 0.05, 0.1, 0.5, 1, 2, and 5 µg/mL using UPLC-QTrap-MS/MS, with each concentration analyzed in triplicate. The calibration curves were constructed by plotting the peak area against the concentration of the corresponding standards using least-square linear regression (Table 2). LOD and LOQ for used standards were calculated using the equations LOD = 3.3 × SD/δ and LOQ = 10 × SD/δ, respectively, where SD represents the standard deviation of the response (y-intercept), and δ is the slope of the calibration curve. Intra- and inter-day precisions were evaluated by analyzing standard mixtures (0.5 μg/mL, n = 6) on a single day and at 6 days. The variations were expressed as the relative standard deviation (RSD) of the replicates (Table 3).

2.5. Muliple Anlysis for Anthocyanins

A multivariate analysis was conducted using SIMCA (version 16, Satorius Stedim Data Analysis AB, Umeå, Sweden). Principal component analysis (PCA) and orthogonal partial least-squares discriminant analysis (OPLS-DA) were applied for statistical comparison and marker identification of nine blueberry cultivars. The scaling method was performed using Pareto (par). Chemical markers that distinguish the two species were obtained by combining S-plots and variable importance in projection (VIP) plots. Chemical markers were selected with VIP > 1 and p-value < 0.05 to indicate their influence on the classification. To evaluate the reliability and predictability of the OPLS-DA model, 7-fold cross-validation (CV), 200 random permutation tests, and receiver operating characteristic (ROC) curve models were performed. Additionally, hierarchical clustering analysis (HCA) with a heat map was constructed using the Euclidean distance method using MetaboAnalyst online analysis software 6.0 (http://www.metaboanalyst.ca, accessed on 1 December 2024) for clustering and visualization of the chemical markers between early and mid-seasons.

3. Results and Discussion

3.1. Identification of 22 Anthocyanin Glycosides from Blueberry Cultivars

In blueberries, anthocyanins are primarily identified as glycosides of cyanidin (m/z 287), peonidin (m/z 301), delphinidin (m/z 303), petunidin (m/z 317), and malvidin (m/z 331). These compounds consist of a sugar moiety (galactose, glucose, or arabinose) attached to the 3-OH position of the aglycone and acylated with acetic acid at the 6″-OH position of the sugar (Table 4 and Figure 1).
A total of twenty-two derivatives were tentatively identified as galactoside (5), glucoside (5), arabinoside (5), acetyl-galactoside (2), and acetyl-glucoside (5) based on cyanidin, peonidin, delphinidin, petunidin, and malvidin aglycones and confirmed with the presence of galactose (162 Da), glucose (162 Da), arabinose (132 Da), acetyl-galactose (42 + 162 Da), and acetyl-glucose (42 + 162 Da) moieties from the whole structure. Particularly, in positive ionization mode, the acetylated glycosides were fragmented, in which the acetyl group remained as the form attached to the sugar without de-esterification [26,27]. To further characterize these compounds, the previously reported retention times (Rt, min) [28], fragmentation patterns [29], ultraviolet spectra (UV) [30], and other sources [31] supported the isolation and identification of individual anthocyanins with UPLC-DAD-QToF/MS experimental data (Table 4 and Figure 2, Figure 3 and Figure 4).
Peaks 1 and 4 were identified as delphinidin glycosides (Figure 2a and Figure S1). Peak 1 had a fragmentation pattern indicating the loss of galactose or glucose from m/z 465 ([M]+), while peak 4 (Rt = 7.79) showed a pattern consistent with arabinose dissociated from m/z 435 ([M]+). Delphinidin derivatives were eluted in the following order: peak 1 (Rt = 5.99) < peak 2 (delphinidin 3-O-glucoside) < peak 4 (Rt = 7.52). This elution order is consistent with the previously reported order of compounds with the same aglycone attached to sugars at the 3-OH position (galactose < glucose < arabinose) [32]. Consequently, peaks 1 and 4 were identified as delphinidin 3-O-galactoside and delphinidin 3-O-arabinoside, respectively.
Peaks 10 and 15 were found to be petunidin and malvidin glycoside, respectively (Figure S1). Based on the parent ion, aglycone ion, and differences in elution times corresponding to the linked sugars, they were further identified as petunidin 3-O-arabinoside (peak 10) and malvidin 3-O-arabinoside (peak 15).
Meanwhile, acetylated glycosides have been identified in blueberries with fragmented characteristics of acetyl-galactoside (42 + 162 Da) and acetyl-glucoside (42 + 162 Da), where deacetylation did not occur in positive mode [33]. A total of seven acetylated glycosides were identified. Among them, delphinidin 3-O-(6″-O-acetyl)glucoside (peak 16), cyanidin 3-O-(6″-O-acetyl)glucoside (peak 18), petunidin 3-O-(6″-O-acetyl)glucoside (peak 19), and malvidin 3-O-(6″-O-acetyl)glucoside (peak 22) have been previously reported in berries and wine [34]. Additionally, three acetylated glycosides were identified: petunidin 3-O-(6″-O-acetyl)galactoside (peak 17), malvidin 3-O-(6″-O-acetyl)galactoside (peak 20), and peonidin 3-O-(6″-O-acetyl)glucoside (peak 21). Especially, the acetylated petunidin glycosides (peaks 17 and 19) showed a parent ion at m/z 521 ([M]+), eluted similarly to peaks 6 (petunidin 3-O-galactoside) and 8 (petunidin 3-O-glucoside), but were detected later due to the acetyl group at the sugar’s 6″-OH position [31]. Thus, peaks 17 and 19 were identified as petunidin 3-O-(6″-O-acetyl)galactoside and petunidin 3-O-(6″-O-acetyl)glucoside, respectively (Figure 2).
Peaks 16 (m/z 507, 303), 18 (m/z 491, 287), 20 and 22 (m/z 535, 331), and 21 (m/z 505, 301) were assigned to delphinidin 3-O-(6″-O-acetyl)glucoside, cyanidin 3-O-(6″-O-acetyl)glucoside, malvidin 3-O-(6″-O-acetyl)galactoside and malvidin 3-O-(6″-O-acetyl)glucoside, and peonidin 3-O-(6″-O-acetyl)glucoside, respectively, based on their elution times, parent and aglycone ions, and characteristic MS spectra of acetylated glycosides (Figure 2).

3.2. Variation in Anthocyanin Contents Depending on Highbush Blueberry Cultivars

Table 5 presents the composition and content of 22 anthocyanins from 9 blueberry cultivars. Total anthocyanin content ranged from 581.1 to 1011.7 mg/100 g DW, which is similar to the reported ranges of 108.1–279.1 mg/100 g FW in China [35] and 65.5–267.84 mg/100 g FW in the United States and New Zealand [36]. In total contents, Legacy and New Hanover as mid-season cultivars had 725.4 and 1011.7 mg/100 g DW, respectively, and the early-season cultivars were observed in the following order: Patriot (910.4) > Spartan (855.5) > Draper (795.3) > Suziblue (771.1) > Reka (635.9) > Farthing (599.3) > Hannah’s Choice (581.1).
In the two mid-season cultivars (Legacy and New Hanover), malvidin glycosides accounted for 34% and 41% of total content, followed by delphinidin, petunidin, cyanidin, and peonidin derivatives. The seven early-season cultivars (Reka, Hannah’s Choice, Spartan, Draper, Suziblue, Farthing, and Patriot), accounting for malvidin 34–50%, delphinidin 24–32%, petunidin 20–26%, cyanidin 2–9%, and peonidin 1–5%, were similar to the mid-season cultivars. These results indicated that delphinidin, petunidin, and malvidin derivatives affected the total content regardless of cultivar and were also consistent with the aglycone proportions (delphinidin 27–40%, malvidin 22–33%, petunidin 19–26%, cyanidin 6–14%, and peonidin 1–5%) reported by Cho et al. [34]. The color of anthocyanins is influenced by the position and number of hydroxyl (-OH) or methoxyl (-OCH3) groups on the B-ring. Furthermore, Jung et al. [37] suggested that the biosynthetic pathway for malvidin is more dominant than that for cyanidin in highbush blueberries, which plays a crucial role in the berries’ blue color and antioxidant properties.
In other cultivars, except for ‘Patriot,’ delphinidin 3-O-galactoside, petunidin 3-O-galactoside, and malvidin 3-O-galactoside were identified as major components [11,12], and the ‘Patriot’ contained mainly glucose-bound anthocyanins in the present study, where galactose was the predominant glycoside in ‘Patriot’ blueberries provided from Italy and China [38,39]. The differences in composition and content of blueberry anthocyanins are considered to be generated by cultivars as well as various factors, such as cultivated conditions [40,41], temperature [19,42], UV radiation [43], and genetic factors [19,44].
The seven acetylated glycosides (peaks 16–22) that accounted for 19.7% of total anthocyanins were highest in ‘Patriot’ (179.5), whereas these glycosides were not detected in Legacy, Draper, and Farthing (Table 5). Acetylated glycosides of ‘Patriot’ showed significant proportions of delphinidin and malvidin derivatives, which were consistent with data reported for Canadian lowbush and highbush blueberries [45]. Acetylated anthocyanins may have metabolic health benefits, including improved insulin sensitivity, reduced inflammation, and regulation of gut microbiota [46]. Malvidin 3-O-(6″-O-acetyl)glucoside has demonstrated free radical scavenging activity [47] and potential anti-inflammatory effects via selective COX-2 and β-glucosidase inhibition [16,48]. The synthesis of acylated anthocyanins can be catalyzed by acyltransferases, but the factors affecting the acetylation pathway are still unclear. Thus, further studies are required to elucidate the enzymatic activity and genetic regulation mechanism involved in the synthesis. In addition, the bioavailability, variations in metabolic processes, and biological activities of anthocyanins, including acetylated glycosides, should be evaluated in the future, and factors such as pH, light, and humidity need to be investigated to assess their stability and expand their applications.

3.3. Multivariate Statistical Analysis of Highbush Blueberry Cultivars

Multivariate statistical analysis was performed to visualize the differences in anthocyanins between highbush blueberry cultivars and to identify chemical markers contributing to these differences. The PCA score plot (R2X = 0.976, Q2 = 0.887) revealed three clusters (cluster 1, New Hanover; cluster 2, Draper, Legacy, Reka, Spartan, Suziblue, and Hannah’s Choice; cluster 3, Patriot). Patriot showed distinct differences from the other cultivars, primarily attributed to its high contents of acetyl glycosides. In the early season, Draper was found to share more similar compounds with the mid-season (Figure 5a). The PCA loading plot demonstrated variables corresponding to each cultivar (Figure S2a). To further clarify the separation between two groups (early vs. mid) and identify differential markers, OPLS-DA was additionally conducted (R2X = 0.937, R2Y = 0.819, Q2 = 0.644). The OPLS analysis formed three clusters, with Draper positioned relatively close to the mid-season group, similar to the PCA results (Figure 5b). The OPLS loading plot highlighted variables with VIP > 1 in red, showing that compounds predominantly found in the early season were distributed in the second quadrant, and those in the mid-season were in the fourth quadrant, and these variables were identified as significant components distinguishing the cultivars (Figure S2b). The accuracy and reliability of the 22 markers were validated through the AUCs and permutation plots for blueberries, indicating no overfitting in the model (Figure S3). The CV-ANOVA analysis yielded a p-value of 0.028 (p < 0.05), confirming that the established OPLS-DA model was statistically significant and reliable. The S-plot visualized the variables that distinguished the two groups; especially, delphinidin 3-O-galactoside (VIP = 1.94) was identified as a marker for mid-season, and malvidin 3-O-glucoside (VIP = 1.79) was identified as a marker for early season (Figure 5c and Table S1). HCA was also performed to visualize the differences in content between early and mid-seasons for variables with VIP > 1, and similar to the OPLS-DA results, it distinguished two groups (early vs. mid). In conclusion, five markers (delphinidin 3-O-galactoside, delphinidin 3-O-arabinoside, petunidin 3-O-galactoside, malvidin 3-O-galactoside, and malvidin 3-O-arabinoside) of mid-seasons with Draper and three markers (delphinidin 3-O-glucoside, petunidin 3-O-glucoside, and malvidin 3-O-glucoside) of early seasons were confirmed (Figure 5d).

4. Conclusions

A total of 22 anthocyanins from 9 highbush blueberry cultivars included 4 delphinidin, 4 cyanidin, 5 petunidin, 4 peonidin, and 5 malvidin derivatives. ‘New Hanover’ (1011.7 mg/100 g DW) showed the highest total anthocyanin content among all cultivars, with malvidin and delphinidin glycosides accounting for over 70% of its total content. Especially, ‘Patriot’ (910.4), an early-season cultivar, recorded the highest proportion of acetylated anthocyanins (up to 19.7%), while non-acetylated anthocyanins were only detected in ‘Legacy,’ ‘Draper,’ and ‘Farthing.’ Multivariate analysis showed clear separation between early and mid-seasons with Draper. Among the eight markers, delphinidin 3-O-galactoside (VIP = 1.94) was identified as a marker for mid-season, and malvidin 3-O-glucoside (VIP = 1.79) was identified as a marker for early season. This study provided detailed chemical profiles on both major and trace components of acetylated anthocyanins from nine cultivars grown in Korea. Furthermore, these detailed findings will be suggested as fundamental data for the development of Korean superior cultivars and functional products, conditional variation evaluation, related fields, such as clinical and metabolomic research, as well as the further research of anthocyanin variations by harvest time, cultivated methods, and storage conditions.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/foods14020188/s1. Figure S1: Fragmentation (m/z, [M]+) patterns of anthocyanins identified in highbush blueberry: (a, peak 2) delphinidin 3-O-glucoside, (b, peak 3) cyanidin 3-O-galactoside, (c, peak 4) delphinidin 3-O-arabinoside, (d, peak 5) cyanidin 3-O-glucoside, (e, peak 6) petunidin 3-O-galactoside, (f, peak 7) cyanidin 3-O-arabinoside, (g, peak 8) petunidin 3-O-glucoside, (h, peak 9) peonidin 3-O-galactoside, (i, peak 10) petunidin 3-O-arabinoside, (j, peak 11) peonidin 3-O-glucoside, (k, peak 13) peonidin 3-O-arabinoside, (l, peak 14) malvidin 3-O-glucoside, and (m, peak 15) malvidin 3-O-arabinoside. Figure S2: Multivariate analyses in nine highbush blueberry cultivars based on MS data: (A) PCA loading plot and (B) OPLS-DA loading plot. Figure S3: Validation of the OPLS-DA model. ROC curve of highbush blueberry cultivars. Table S1: Antioxidant activities of various anthocyanins. Table S2: Biological activities of various anthocyanins [49,50,51,52].

Author Contributions

Conceptualization, J.H.K. and H.-W.K.; methodology, J.H.K. and H.-W.K.; validation, J.H.K.; investigation, J.H.K.; writing—original draft preparation, J.H.K.; writing—review and editing, R.H.K., S.A.K. and H.N.; supervision, J.-Y.C. and H.-W.K.; funding acquisition, H.-W.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research is a part of the K-Agricultural Food Resources Functional Component Utilization Base Advancement Joint Research Project (Project Number: PJ017054012023 (RS-2022-RD010364)) of the Rural Development Administration and was supported by funds for professional researchers and academic research cooperation programs.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article/Supplementary Materials. Further inquiries can be directed to the corresponding authors.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Kim, J.G.; Ryou, M.S.; Jung, S.M.; Hwang, Y.S. Effects of cluster and flower thinning on yield and fruit quality in highbush ’Jersey’ blueberry. J. Bio-Environ. Control 2010, 19, 392–396. [Google Scholar]
  2. Kogan, C.; DeVetter, L.W.; Hoheisel, G.-A. Modeling northern Highbush blueberry cold hardiness for the Pacific Northwest. HortScience 2023, 11, 1314–1320. [Google Scholar] [CrossRef]
  3. Giacalone, G.; Peano, C.; Guarinoni, A.; Beccaro, G.; Bounous, G. Ripening curve of early, midseason and late maturing highbush blueberry cultivars. VII Int. Symp. Vaccinium Cult. 2000, 574, 119–121. [Google Scholar] [CrossRef]
  4. Kim, S.J.; Jeong, S.M.; Heo, Y.Y.; Nam, J.C.; Kim, S.H.; Cho, K.H.; Park, S.J. Analysis of growth period and morphological characteristics of introduced blueberry cultivars in Korea. Korean J. Plant Res. 2017, 30, 101–109. [Google Scholar] [CrossRef]
  5. Baenas, N.; Ruales, J.; Moreno, D.A.; Barrio, D.A.; Stinco, C.M.; Martinez-Cifuentes, G.; Melendez-Martinez, A.J.; Garcia-Ruiz, A. Characterization of Andean blueberry in bioactive compounds, evaluation of biological properties, and in vitro bioaccessibility. Foods 2020, 9, 1483. [Google Scholar] [CrossRef]
  6. Heinonen, I.M.; Lehtonen, P.J.; Hopia, A.I. Antioxidant activity of berry and fruit wines and liquors. J. Agric. Food Chem. 1998, 46, 25–31. [Google Scholar] [CrossRef]
  7. Seeram, N.P.; Adams, L.S.; Zhang, Y.; Lee, R.; Sand, D.; Scheuller, H.S.; Heber, D. Blackberry, black raspberry, blueberry, cranberry, red raspberry, and strawberry extracts inhibit growth and stimulate apoptosis of human cancer cells in vitro. J. Agric. Food Chem. 2006, 54, 9329–9339. [Google Scholar] [CrossRef]
  8. Martineau, L.C.; Couture, A.; Spoor, D.; Benhaddou-Andaloussi, A.; Harris, C.; Meddah, B.; Leduc, C.; Burt, A.; Vuong, T.; Le, P.M.; et al. Anti-diabetic properties of the Canadian lowbush blueberry Vaccinium angustifolium Ait. Phytomedicine 2006, 13, 612–623. [Google Scholar] [CrossRef]
  9. Wang, Y.; Gallegos, J.L.; Haskell-Ramsay, C.; Lodge, J.K. Effects of blueberry consumption on cardiovascular health in healthy adults: A cross-over randomised controlled trial. Nutrients 2022, 14, 2562. [Google Scholar] [CrossRef]
  10. Cosme, F.; Gonçalves, B.; Bacelar, E.A.; Inês, A.; Jordão, A.M.; Vilela, A. Genotype, environment and management practices on red/dark-colored fruits phenolic composition and its impact on sensory attributes and potential health benefits. In Phenolic Compounds-Natural Sources, Importance and Applications; IntechOpen: London, UK, 2017. [Google Scholar]
  11. Bornsek, S.M.; Ziberna, L.; Polak, T.; Vanzo, A.; Ulrih, N.P.; Abram, V.; Tramer, F.; Passamonti, S. Bilberry and blueberry anthocyanins act as powerful intracellular antioxidants in mammalian cells. Food Chem. 2012, 4, 1878–1884. [Google Scholar] [CrossRef]
  12. Kader, F.; Rovel, B.; Girardin, M.; Metche, M. Fractionation and identification of the phenolic compounds of Highbush blueberries (Vaccinium corymbosum, L.). Food Chem. 1995, 55, 35–40. [Google Scholar] [CrossRef]
  13. Chung, S.W.; Yu, D.J.; Lee, H.J. Changes in anthocyanidin and anthocyanin pigments in highbush blueberry (Vaccinium corymbosum cv. Bluecrop) fruits during ripening. Hortic. Environ. Biotechnol. 2016, 57, 424–430. [Google Scholar] [CrossRef]
  14. Rinaldo, A.R.; Cavallini, E.; Jia, Y.; Moss, S.M.A.; McDavid, D.A.J.; Hooper, L.C.; Robinson, S.P.; Tornielli, G.B.; Zenoni, S.; Ford, C.M.; et al. A Grapevine anthocyanin acyltransferase, transcriptionally regulated by VvMYBA, can produce most acylated anthocyanins present in grape skins. Plant Physiol. 2015, 169, 1897–1916. [Google Scholar] [CrossRef] [PubMed]
  15. Kähkönen, M.P.; Heinämäki, J.; Ollilainen, V.; Heinonen, M. Berry anthocyanins: Isolation, identification and antioxidant activities. J. Sci. Food Agric. 2003, 14, 1403–1411. [Google Scholar] [CrossRef]
  16. Wu, Q.; Zhang, Y.; Tang, H.; Chen, Y.; Xie, B.; Wang, C.; Sun, Z. Separation and Identification of Anthocyanins Extracted from Blueberry Wine Lees and Pigment Binding Properties toward beta-Glucosidase. J. Agric. Food Chem. 2017, 65, 216–223. [Google Scholar] [CrossRef]
  17. Ananga, A.; Georgiev, V.; Ochieng, J.; Phills, B.; Tsolova, V. Production of anthocyanins in grape cell cultures: A potential source of raw material for pharmaceutical, food, and cosmetic industries. Mediterr. Genet. Code-Grapevine Olive 2013, 1, 247–287. [Google Scholar]
  18. Barnes, J.S.; Nguyen, H.P.; Shen, S.; Schug, K.A. General method for extraction of blueberry anthocyanins and identification using high performance liquid chromatography-electrospray ionization-ion trap-time of flight-mass spectrometry. J. Chromatogr. A 2009, 1216, 4728–4735. [Google Scholar] [CrossRef]
  19. Spinardi, A.; Cola, G.; Gardana, C.S.; Mignani, I. Variation of anthocyanin content and profile throughout fruit development and ripening of highbush blueberry cultivars grown at two different altitudes. Front. Plant Sci. 2019, 10, 1045. [Google Scholar] [CrossRef]
  20. Smrke, T.; Veberic, R.; Hudina, M.; Stamic, D.; Jakopic, J. Comparison of highbush blueberry (Vaccinium corymbosum L.) under ridge and pot production. Agriculture 2021, 11, 929. [Google Scholar] [CrossRef]
  21. Chai, Z.; Herrera-Balandrano, D.D.; Yu, H.; Beta, T.; Zeng, Q.; Zhang, X.; Tian, L.; Niu, L.; Huang, W. A comparative analysis on the anthocyanin composition of 74 blueberry cultivars from China. J. Food Compos. Anal. 2021, 102, 104051. [Google Scholar] [CrossRef]
  22. De la Cruz, A.A.; Hilbert, G.; Rivière, C.; Mengin, V.; Ollat, N.; Bordenave, L.; Decroocq, S.; Delaunay, J.-C.; Delrot, S.; Mérillon, J.-M.; et al. Anthocyanin identification and composition of wild Vitis spp. accessions by using LC–MS and LC–NMR. Anal. Chim. Acta 2012, 732, 145–152. [Google Scholar] [CrossRef] [PubMed]
  23. Rosso, V.V.d.; Hillebrand, S.; Montilla, E.C.; Bobbio, F.O.; Winterhalter, P.; Mercadante, A.Z. Determination of anthocyanins from acerola (Malpighia emarginata DC.) and açai (Euterpe oleracea Mart.) by HPLC–PDA–MS/MS. J. Food Compos. Anal. 2008, 21, 291–299. [Google Scholar] [CrossRef]
  24. Prior, R.L.; Lazarus, S.A.; Cao, G.; Muccitelli, H.; Hammerstone, J.F. Identification of procyanidins and anthocyanins in blueberries and cranberries (Vaccinium spp.) using high-performance liquid chromatography/mass spectrometry. J. Agric. Food Chem. 2001, 49, 1270–1276. [Google Scholar] [CrossRef] [PubMed]
  25. Li, X.; Wang, W.; Sun, S.; Wang, J.; Zhu, J.; Liang, F.; Zhang, Y.; Hu, G. Quantitative analysis of anthocyanins in grapes by UPLC-Q-TOF MS combined with QAMS. Separations 2022, 9, 140. [Google Scholar] [CrossRef]
  26. Kwon, R.H.; Kim, H.-W.; Lee, S.; Lee, S.-J.; Na, H.; Kim, J.H.; Wee, C.-D.; Yoo, S.M.; Lee, S.H. Isoflavone characterization in soybean seed and fermented products based on high-resolution mass spectrometry. J. Korean Soc. Food Sci. Nutr. 2021, 50, 950–961. [Google Scholar] [CrossRef]
  27. Lee, S.-J.; Kim, H.-W.; Lee, S.; Na, H.; Kwon, R.H.; Kim, J.H.; Yoon, H.; Choi, Y.-M.; Wee, C.-D.; Yoo, S.M.; et al. Characterization of isoflavones from seed of selected soybean (Glycine max L.) resources using high-resolution mass spectrometry. Korean J. Food Nutr. 2020, 33, 655–665. [Google Scholar]
  28. Cardenosa, V.; Girones-Vilaplana, A.; Muriel, J.L.; Moreno, D.A.; Moreno-Rojas, J.M. Influence of genotype, cultivation system and irrigation regime on antioxidant capacity and selected phenolics of blueberries (Vaccinium corymbosum L.). Food Chem. 2016, 202, 276–283. [Google Scholar] [CrossRef]
  29. Nakajima, J.-I.; Tanaka, I.; Seo, S.; Yamazaki, M.; Saito, K. LC/PDA/ESI-MS profiling and radical scavenging activity of anthocyanins in various berries. J. Biomed. Biotechnol. 2004, 2004, 241–247. [Google Scholar] [CrossRef]
  30. Kouari, Y.E.; Migalska-Zalas, A.; Arof, A.K.; Sahraoui, B. Computations of absorption spectra and nonlinear optical properties of molecules based on anthocyanidin structure. Opt. Quantum Electron. 2015, 47, 1091–1099. [Google Scholar] [CrossRef]
  31. Lee, M.-K.; Kim, H.-W.; Lee, S.-H.; Kim, Y.J.; Jang, H.-H.; Jung, H.-A.; Hwang, Y.-J.; Choe, J.-S.; Kim, J.-B. Compositions and contents anthocyanins in blueberry (Vaccinium corymbosum L.) varieties. Korean J. Environ. Agric. 2016, 35, 184–190. [Google Scholar] [CrossRef]
  32. Brown, P.N.; Shipley, P.R. Determination of anthocyanins in cranberry fruit and cranberry fruit products by high-performance liquid chromatography with ultraviolet detection: Single-laboratory validation. J. AOAC Int. 2011, 94, 459–466. [Google Scholar] [CrossRef] [PubMed]
  33. Wu, X.; Prior, R.L. Systematic identification and characterization of anthocyanins by HPLC-ESI-MS/MS in common foods in the United States: Fruits and Berries. J. Agric. Food Chem. 2005, 53, 2589–2599. [Google Scholar] [CrossRef] [PubMed]
  34. Cho, M.J.; Howard, L.R.; Prior, R.L.; Clark, J.R. Flavonoid glycosides and antioxidant capacity of various blackberry, blueberry and red grape genotypes determined by high-performance liquid chromatography/mass spectrometry. J. Sci. Food Agric. 2004, 84, 1771–1782. [Google Scholar] [CrossRef]
  35. Li, D.; Meng, X.; Li, B. Profiling of anthocyanins from blueberries produced in China using HPLC-DAD-MS and exploratory analysis by principal component analysis. J. Food Compos. Anal. 2016, 47, 1–7. [Google Scholar] [CrossRef]
  36. Rossi, G.; Woods, F.M.; Leisner, C.P. Quantification of total phenolic, anthocyanin, and flavonoid content in a diverse panel of blueberry cultivars and ecotypes. HortScience 2022, 57, 901–909. [Google Scholar] [CrossRef]
  37. Jung, Y.S.; Kwak, I.A.; Lee, S.G.; Cho, H.-S.; Cho, Y.-S.; Kim, D.-O. Influence of production systems on phenolic characteristics and antioxidant capacity of highbush blueberry cultivars. J. Food Sci. 2021, 86, 2949–2961. [Google Scholar] [CrossRef]
  38. Giovanelli, G.; Buratti, S. Comparison of polyphenolic composition and antioxidant activity of wild Italian blueberries and some cultivated varieties. Food Chem. 2009, 112, 903–908. [Google Scholar] [CrossRef]
  39. Wang, S.; Wang, B.; Dong, K.; Li, J.; Li, Y.; Sun, H. Identification and quantification of anthocyanins of 62 blueberry cultivars via UPLC-MS. Biotechnol. Biotechnol. Equip. 2022, 36, 587–597. [Google Scholar] [CrossRef]
  40. Latti, A.K.; Kainulainen, P.S.; Hayirlioglu-Ayaz, S.; Ayaz, F.A.; Riihinen, K.R. Characterization of anthocyanins in Caucasian blueberries (Vaccinium arctostaphylos L.) native to Turkey. J. Agric. Food Chem. 2009, 57, 5244–5249. [Google Scholar] [CrossRef]
  41. Cheng, G.; He, Y.N.; Yue, T.X.; Wang, J.; Zhang, Z.W. Effects of climatic conditions and soil properties on Cabernet Sauvignon berry growth and anthocyanin profiles. Molecules 2014, 19, 13683–13703. [Google Scholar] [CrossRef]
  42. Liu, Y.; Liu, Y.; Tao, C.; Liu, M.; Pan, Y.; Lv, Z. Effect of temperature and pH on stability of anthocyanin obtained from blueberry. J. Food Meas. Charact. 2018, 12, 1744–1753. [Google Scholar] [CrossRef]
  43. Ubi, B.E.; Honda, C.; Bessho, H.; Kondo, S.; Wada, M.; Kobayashi, S.; Moriguchi, T. Expression analysis of anthocyanin biosynthetic genes in apple skin: Effect of UV-B and temperature. Plant Sci. 2006, 170, 571–578. [Google Scholar] [CrossRef]
  44. Connor, A.M.; Luby, J.J.; Tong, C.B.S.; Finn, C.E.; Hancock, J.F. Genotypic and environmental variation in antioxidant activity, total phenolic content, and anthocyanin content among blueberry cultivars. J. Am. Soc. Hortic. Sci. 2002, 127, 89–97. [Google Scholar] [CrossRef]
  45. Gao, L.; Mazza, G. Quantitation and distribution of simple and acylated anthocyanins and other phenolics in blueberries. J. Food Sci. 1994, 59, 1057–1059. [Google Scholar] [CrossRef]
  46. Overall, J.; Bonney, S.A.; Wilson, M.; Beermann, A.; Grace, M.H.; Esposito, D.; Lila, M.A.; Komarnytsky, S. Metabolic effects of berries with structurally diverse anthocyanins. Int. J. Mol. Sci. 2017, 18, 422. [Google Scholar] [CrossRef]
  47. Gui, H.; Dai, J.; Tian, J.; Jiang, Q.; Zhang, Y.; Ren, G.; Song, B.; Wang, M.; Saiwaidoula, M.; Dong, W.; et al. The isolation of anthocyanin monomers from blueberry pomace and their radical-scavenging mechanisms in DFT study. Food Chem. 2023, 418, 135872. [Google Scholar] [CrossRef]
  48. Trikas, E.D.; Melidou, M.; Papi, R.M.; Zachariadis, G.A.; Kyriakidis, D.A. Extraction, separation and identification of anthocyanins from red wine by-product and their biological activities. J. Funct. Foods 2016, 25, 548–558. [Google Scholar] [CrossRef]
  49. Mazewski, C.; Kim, M.S.; Gonzalez de Mejia, E. Anthocyanins, delphinidin-3-O-glucoside and cyanidin-3-O-glucoside, inhibit immune checkpoints in human colorectal cancer cells in vitro and in silico. Sci. Rep. 2019, 9, 11560. [Google Scholar] [CrossRef]
  50. Sari, D.R.T.; Cairns, J.R.K.; Safitri, A.; Fatchiyah, F. Virtual Prediction of the Delphinidin-3-O-glucoside and Peonidin-3-O-glucoside as Anti-inflammatory of TNF-α Signaling. Acta Inform. Medica 2019, 27, 152. [Google Scholar] [CrossRef]
  51. Huang, W.-Y.; Wang, X.-N.; Wang, J.; Sui, Z.-Q. Malvidin and its glycosides from vaccinium ashei improve endothelial function by anti-inflammatory and angiotensin I-converting enzyme inhibitory effects. Nat. Prod. Commun. 2018, 13, 49–52. [Google Scholar] [CrossRef]
  52. Srovnalova, A.; Svecarova, M.; Kopecna Zapletalova, M.; Anzenbacher, P.; Bachleda, P.; Anzenbacherova, E.; Dvorak, Z. Effects of anthocyanidins and anthocyanins on the expression and catalytic activities of CYP2A6, CYP2B6, CYP2C9, and CYP3A4 in primary human hepatocytes and human liver microsomes. J. Agric. Food Chem. 2014, 62, 789–797. [Google Scholar] [CrossRef] [PubMed]
Foods 14 00188 g001

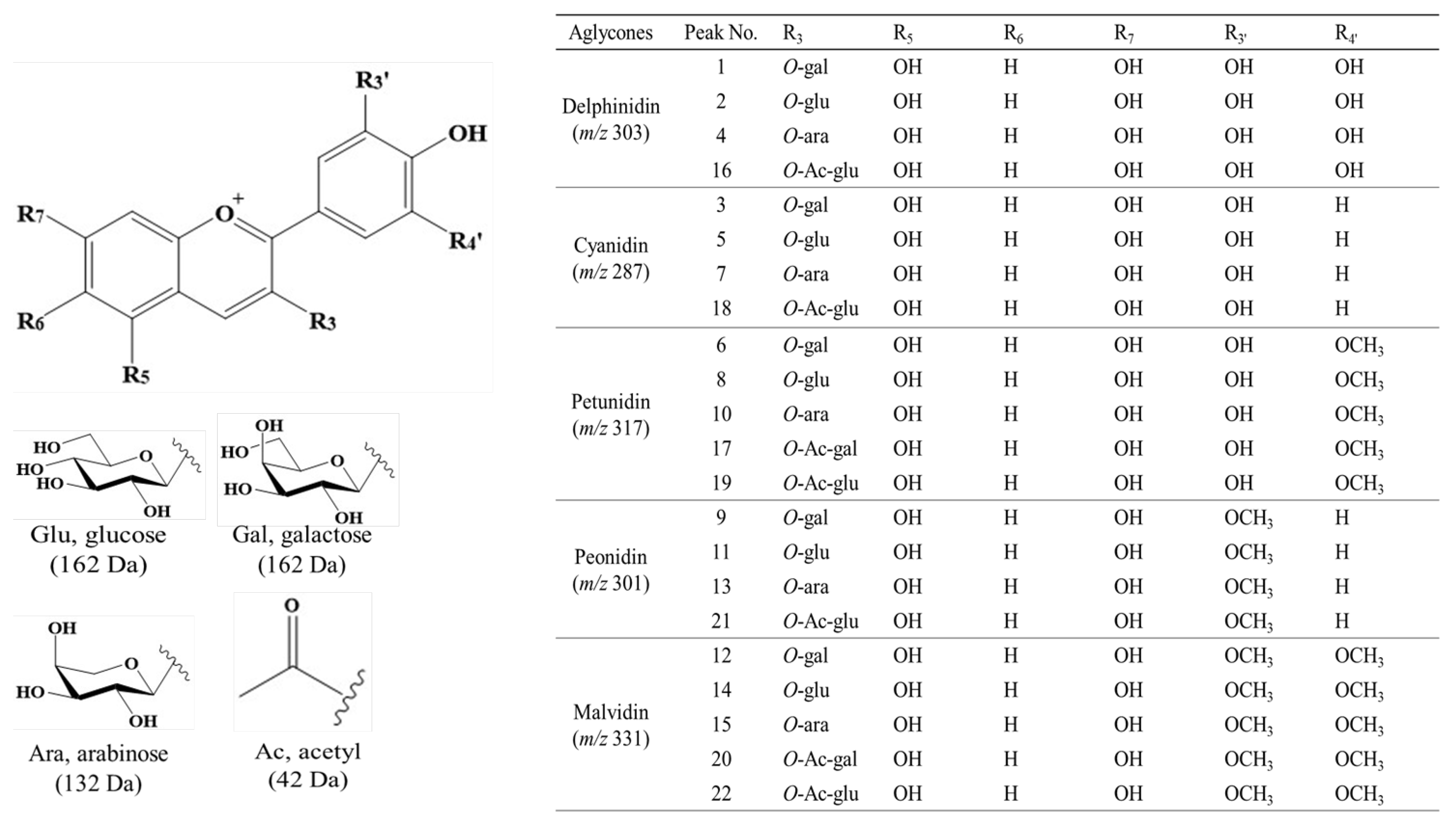

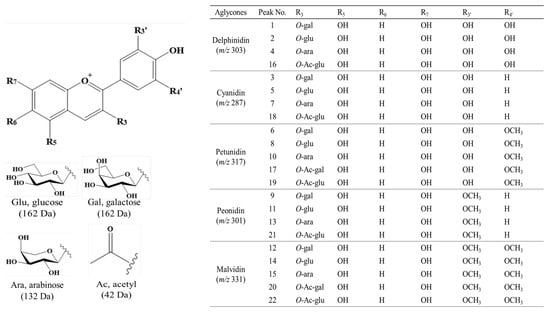

Figure 1. Chemical structures of 22 anthocyanin derivatives according to the positions of functional groups.
Figure 1. Chemical structures of 22 anthocyanin derivatives according to the positions of functional groups.
Foods 14 00188 g001
Foods 14 00188 g002

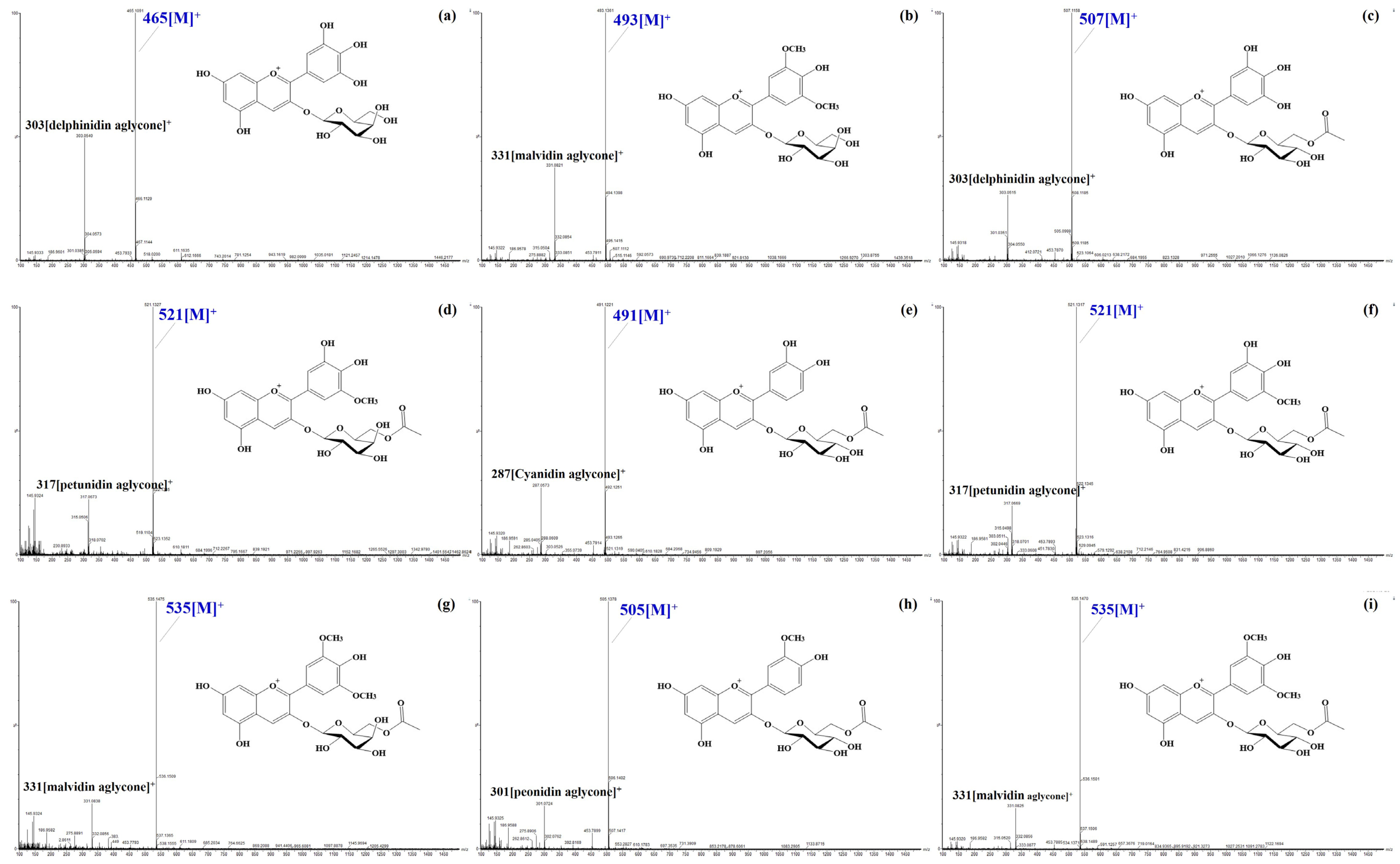

Figure 2. Fragmentation (m/z, [M]+) patterns of two major and seven acetylated anthocyanins identified in highbush blueberry: ((a), peak 1) Delphinidin 3-O-galactoside, ((b), peak 12) malvidin 3-O-galactoside, ((c), peak 16) delphinidin 3-O-(6″-O-acetyl)glucoside, ((d), peak 17) petunidin 3-O-(6″-O-acetyl)galactoside, ((e), peak 18) cyanidin 3-O-(6″-O-acetyl)glucoside, ((f), peak 19) petunidin 3-O-(6″-O-acetyl)glucoside, ((g), peak 20) malvidin 3-O-(6″-O-acetyl)galactoside, ((h), peak 21) peonidin 3-O-(6″-O-acetyl)glucoside, and ((i), peak 22) malvidin 3-O-(6″-O-acetyl)glucoside.
Figure 2. Fragmentation (m/z, [M]+) patterns of two major and seven acetylated anthocyanins identified in highbush blueberry: ((a), peak 1) Delphinidin 3-O-galactoside, ((b), peak 12) malvidin 3-O-galactoside, ((c), peak 16) delphinidin 3-O-(6″-O-acetyl)glucoside, ((d), peak 17) petunidin 3-O-(6″-O-acetyl)galactoside, ((e), peak 18) cyanidin 3-O-(6″-O-acetyl)glucoside, ((f), peak 19) petunidin 3-O-(6″-O-acetyl)glucoside, ((g), peak 20) malvidin 3-O-(6″-O-acetyl)galactoside, ((h), peak 21) peonidin 3-O-(6″-O-acetyl)glucoside, and ((i), peak 22) malvidin 3-O-(6″-O-acetyl)glucoside.
Foods 14 00188 g002
Foods 14 00188 g003

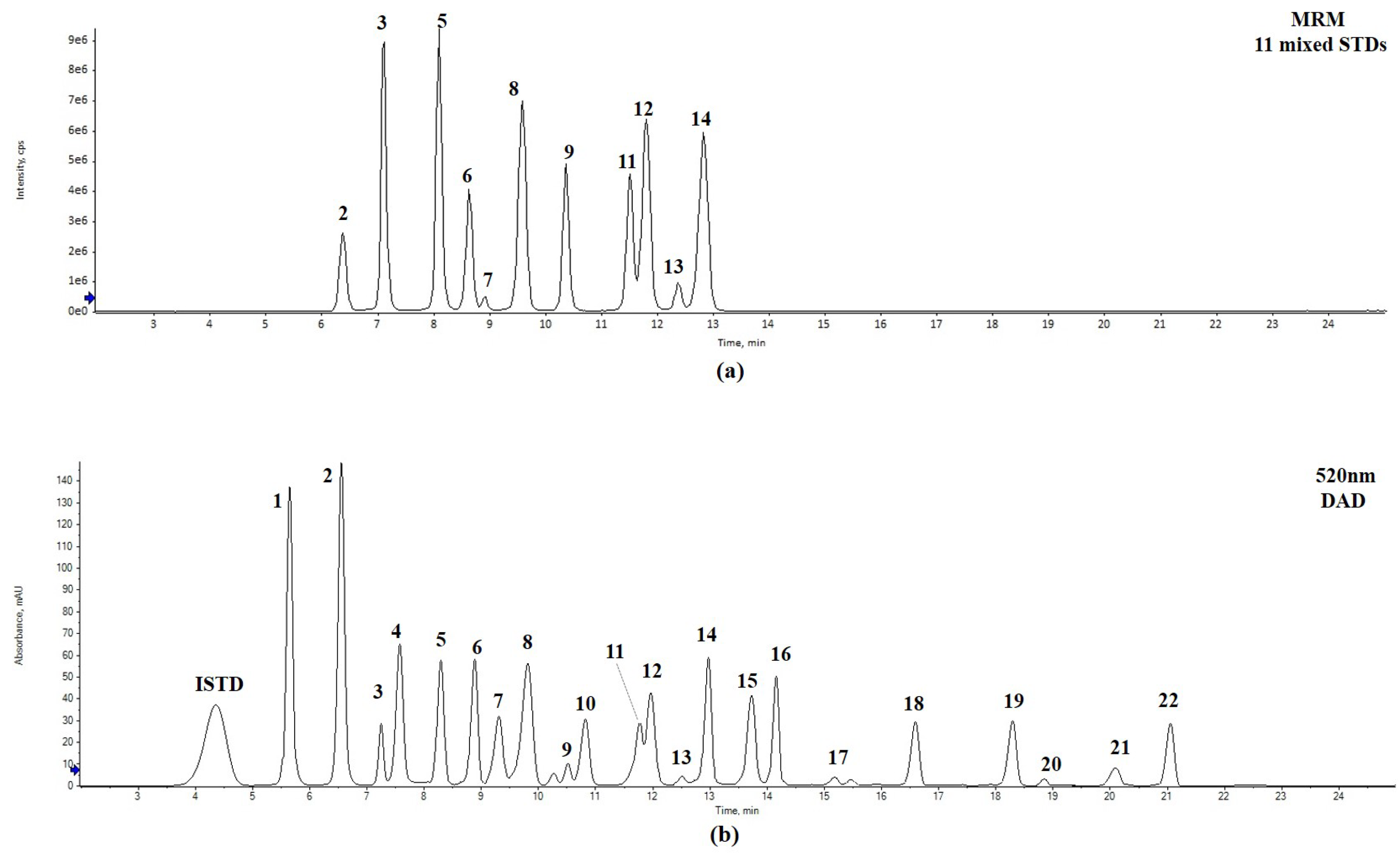

Figure 3. MRM chromatograms of 11 mixed standards (a) and UPLC-DAD chromatograms of 22 anthocyanins in Patriot (wavelength at 520 nm) (b). IS (internal standard): delphin 100 ppm.
Figure 3. MRM chromatograms of 11 mixed standards (a) and UPLC-DAD chromatograms of 22 anthocyanins in Patriot (wavelength at 520 nm) (b). IS (internal standard): delphin 100 ppm.
Foods 14 00188 g003
Foods 14 00188 g004

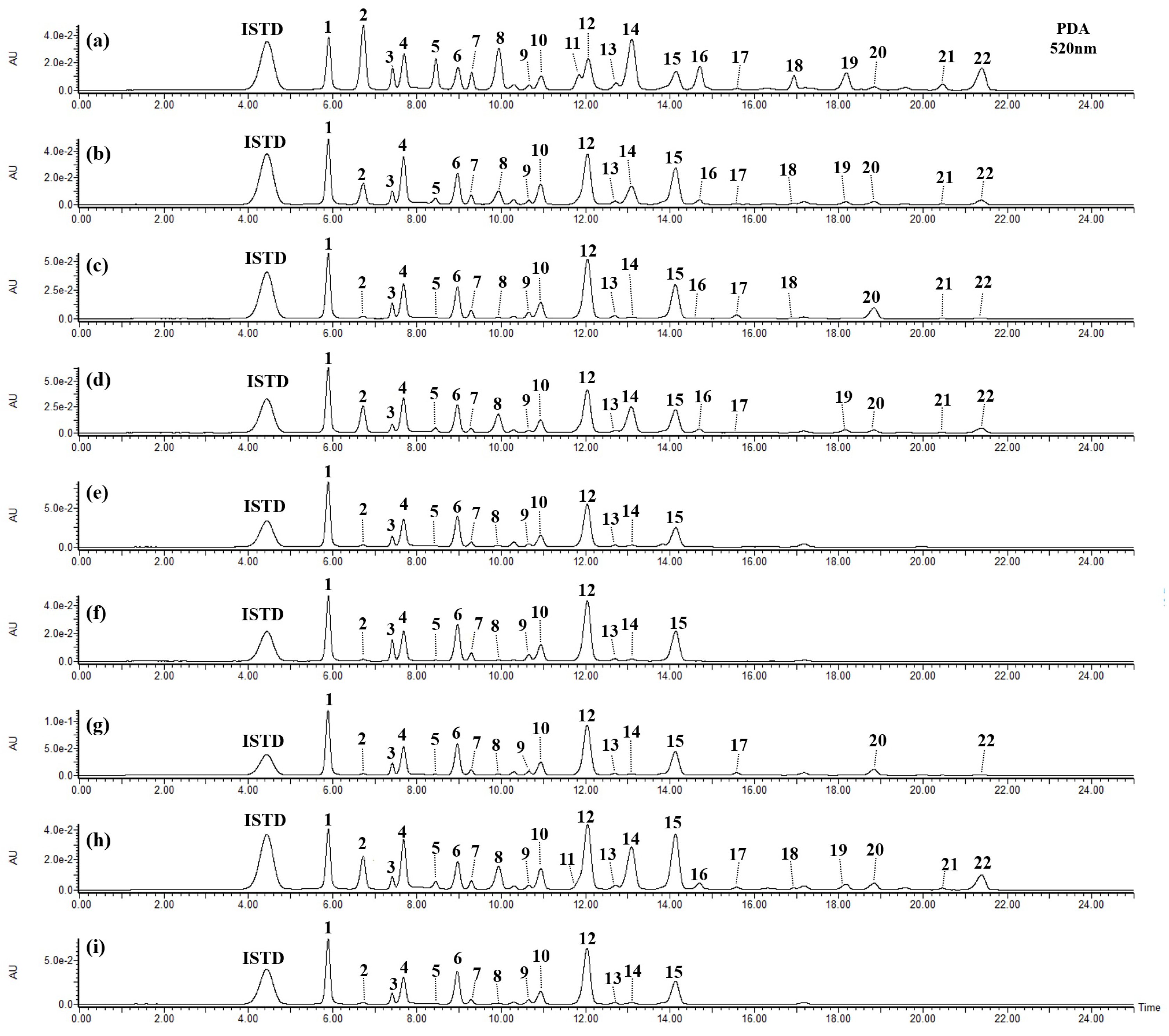

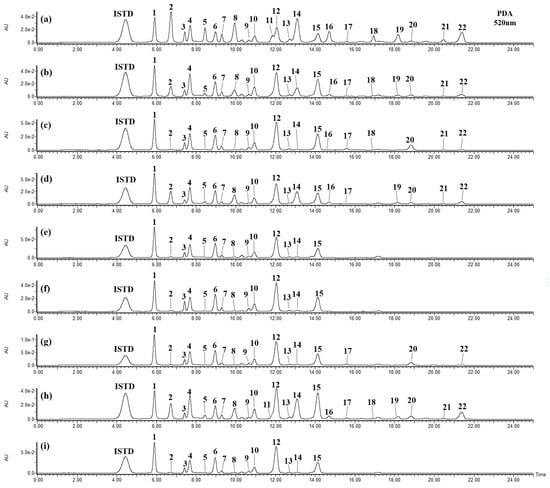

Figure 4. UPLC chromatograms of 22 anthocyanins (wavelength at 520 nm) from Patriot (a), Reka (b), Hannah’s Choice (c), Spartan (d), Legacy (e), Draper (f), New Hanover (g), Suziblue (h), and Farthing (i) highbush blueberry samples (V. corymboums L.) are presented according to peak number in Table 4. IS (internal standard): delphin 100 ppm.
Figure 4. UPLC chromatograms of 22 anthocyanins (wavelength at 520 nm) from Patriot (a), Reka (b), Hannah’s Choice (c), Spartan (d), Legacy (e), Draper (f), New Hanover (g), Suziblue (h), and Farthing (i) highbush blueberry samples (V. corymboums L.) are presented according to peak number in Table 4. IS (internal standard): delphin 100 ppm.
Foods 14 00188 g004
Foods 14 00188 g005

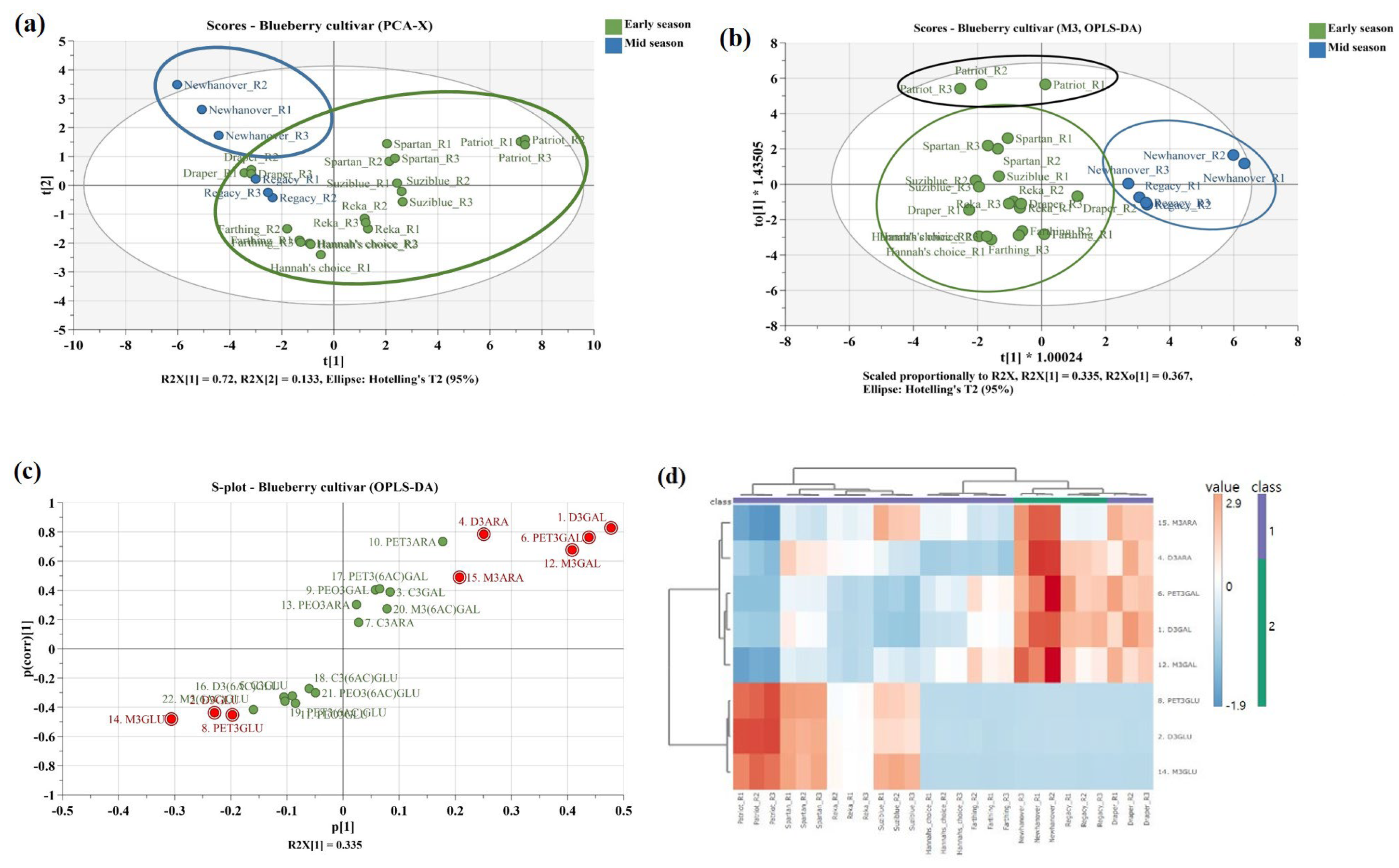

Figure 5. The multivariate statistical analysis of nine highbush blueberry cultivars. (a) PCA score plot, (b) OPLS-DA, (c) OPLS-DA loading S-plot, and (d) heat map of HCA.
Figure 5. The multivariate statistical analysis of nine highbush blueberry cultivars. (a) PCA score plot, (b) OPLS-DA, (c) OPLS-DA loading S-plot, and (d) heat map of HCA.
Foods 14 00188 g005
Table 1. List of nine highbush blueberry cultivars in Korea.
Table 1. List of nine highbush blueberry cultivars in Korea.
CultivarHarvest Season
RekaEarly
Hannah’s ChoiceEarly
SpartanEarly
DraperEarly
PatriotEarly
LegacyMid
SuziblueEarly
FarthingEarly
New HanoverMid
Table 2. Optimized MRM conditions for quantitative analysis of blueberry anthocyanins.
Table 2. Optimized MRM conditions for quantitative analysis of blueberry anthocyanins.
No.Compound NameFormulaRT (1)
(min)		Precursor
ion (m/z)		Product
ion (m/z)		DP (V) (2)CE (V) (3)
2Delphinidin 3-O-glucoside (mirtillin)C25H21O12+6.364653038629
3Cyanidin 3-O-galactoside (ideain)C21H21O11+7.094492878633
5Cyanidin 3-O-glucoside (asterin)C21H21O11+8.084492873139
6Petunidin 3-O-galactosideC22H23O12+8.624793178635
7Cyanidin 3-O-arabinosideC20H19O10+8.8741928723627
8Petunidin 3-O-glucosideC22H23O12+9.574793178631
9Peonidin 3-O-galactosideC22H23O11+10.354633012033
11Peonidin 3-O-glucosideC22H23O11+11.504633012033
12Malvidin 3-O-galactoside (primulin)C22H25O12+11.794933311135
13Peonidin 3-O-arabinosideC21H21O10+12.3643330110433
14Malvidin 3-O-glucoside (enin)C22H25O12+12.814933311637
(1) RT: retention time, (2) DP: de-clustering potential, and (3) CE: collision energy.
Table 3. Linearity, regression equation, LOD and LOQ, and intra- and inter-day precisions of 11 anthocyanin standards.
Table 3. Linearity, regression equation, LOD and LOQ, and intra- and inter-day precisions of 11 anthocyanin standards.
Compound NameRegression EquationCorrelation Coefficient (1) (R2)LOD (2)
(µg/mL)		LOQ (3)
(µg/mL)		Precision RSD (%)
Intraday
(n = 6)		Interday
(n = 6)
Delphinidin 3-O-glucosideY = 1779297.2X + 9835.23870.99990.00250.00761.836.54
Cyanidin 3-O-galactosideY = 2178374.9X + 25655.69421.00000.00260.00800.505.63
Cyanidin 3-O-glucosideY = 3597678.5X + 27299.58571.00000.00300.00910.035.27
Petunidin 3-O-galactosideY = 1184176.8X + 8718.22470.99980.00110.00335.904.34
Cyanidin 3-O-arabinosideY = 532110.7X + 5725.40700.99990.00390.01170.501.96
Petunidin 3-O-glucosideY = 2320782.4X + 22315.09590.99990.00170.00530.033.42
Peonidin 3-O-galactosideY = 1537207.3X + 46.97560.99990.00350.01065.433.21
Peonidin 3-O-glucosideY = 1639444.7X + 6829.89840.99990.00350.01050.494.57
Malvidin 3-O-galactosideY = 3097011.3X + 49762.19260.99980.00420.01280.033.31
Peonidin 3-O-arabinosideY = 817531.0X + 15169.96750.99980.00280.00856.693.84
Malvidin 3-O-glucosideY = 3094396.6X + 62198.37760.99980.00170.00510.493.95
(1) Correlation coefficient (R2) of calibration curve (range: 0.01–5 µg/mL), Y = peak area, X = concentration (ppm), (2) LOD: limit of detection, and (3) LOQ: limit of quantitation.
Table 4. Twenty-two anthocyanins identified from highbush blueberry cultivars.
Table 4. Twenty-two anthocyanins identified from highbush blueberry cultivars.
Peak
No.		RT
(min)		Compound NameFormulaExperimental ion (m/z, [M]+)Error
(ppm) (1)		Productions (m/z)Species (2)
15.99Delphinidin 3-O-galactosideC21H21O12+465.1022−1.2465, 303a, b, c, d, e, f, g, h, i
26.82Delphinidin 3-O-glucosideC25H21O12+465.1021−1.4465, 303a, b, c, d, e, f, g, h, i
37.52Cyanidin 3-O-galactosideC21H21O11+449.10800.4449, 287a, b, c, d, e, f, g, h, i
47.79Delphinidin 3-O-arabinosideC20H19O11+435.09220.0435, 303a, b, c, d, e, f, g, h, i
58.56Cyanidin 3-O-glucosideC21H21O11+449.10800.4449, 287a, b, c, d, e, f, g, h, i
69.09Petunidin 3-O-galactosideC22H23O12+479.11840.0479, 317a, b, c, d, e, f, g, h, i
79.41Cyanidin 3-O-arabinosideC20H19O10+419.09750.5419, 287a, b, c, d, e, f, g, h, i
810.06Petunidin 3-O-glucosideC22H23O12+479.11850.2479, 317a, b, c, d, e, f, g, h, i
910.79Peonidin 3-O-galactosideC22H23O11+463.12700.5463, 301a, b, c, d, e, f, g, h, i
1011.08Petunidin 3-O-arabinosideC21H21O11+449.1078−0.1449, 317a, b, c, d, e, f, g, h, i
1111.98Peonidin 3-O-glucosideC22H23O11+463.1234−0.2463, 301e, g
1212.20Malvidin 3-O-galactosideC22H25O12+493.1337−0.7493, 331a, b, c, d, e, f, g, h, i
1312.85Peonidin 3-O-arabinosideC21H21O10+433.11330.9433, 301a, b, c, d, e, f, g, h, i
1413.25Malvidin 3-O-glucosideC22H25O12+493.13420.3493, 331a, b, c, d, e, f, g, h, i
1514.30Malvidin 3-O-arabinosideC22H23O11+463.12350.0463, 331a, b, c, d, e, f, g, h, i
1614.88Delphinidin 3-O-(6″-O-acetyl)glucosideC23H23O13+507.11350.4507, 303a, b, c, e, g
1715.78Petunidin 3-O-(6″-O-acetyl)galactosideC24H25O13+521.12920.4521, 317a, b, c, e, g, i
1817.13Cyanidin 3-O-(6″-O-acetyl)glucosideC23H23O12+491.11870.6491, 287a, b, c, e, g
1918.39Petunidin 3-O-(6″-O-acetyl)glucosideC24H25O13+521.12920.4521, 317a, b, c, e, g
2019.06Malvidin 3-O-(6″-O-acetyl)galactosideC25H27O13+535.14490.5535, 331a, b, c, e, g, i
2120.69Peonidin 3-O-(6″-O-acetyl)glucosideC24H25O12+505.13430.4505, 301a, b, c, e, g
2221.62Malvidin 3-O-(6″-O-acetyl)glucosideC25H27O13+535.14480.3535, 331a, b, c, e, g, i
(1) Error (ppm) indicates the mass accuracy of QToF data and was calculated as: [(calculated ion − observed ion)/(calculated ion)] × 106, based on m/z [M+H]+. (2) a, Reka; b, Hannah’s Choice; c, Spartan; d, Draper; e, Patriot; f, Legacy; g, Suziblue; h, Farthing; i, New Hanover.
Table 5. Contents of individual anthocyanin glycosides in different highbush blueberry (Vaccinum corymbosum L.) cultivars.
Table 5. Contents of individual anthocyanin glycosides in different highbush blueberry (Vaccinum corymbosum L.) cultivars.
Peak No. (1)Anthocyanin Content (mg/100 g DW)
RekaHannah’s ChoiceSpartanSuziblueFarthingPatriotDraperLegacyNew Hanover
Early SeasonMid-Season
186.7 ± 1.4 d94.7 ± 1.8 d123.4 ± 7.7 c71.2 ± 2.1 e119.7 ± 2.6 c72.8 ± 2.5 e164.4 ± 19.4 b165.1 ± 3.1 b200.4 ± 16.8 a
2 *33.2 ± 1.9 d4.1 ± 0.2 e74.2 ± 2.2 b49.0 ± 2.0 c3.3 ± 1.3 e110.0 ± 0.9 a4.0 ± 0.6 e4.8 ± 0.7 e4.8 ± 0.4 e
3 *10.7 ± 0.7 fg14.8 ± 0.5 de8.3 ± 0.1 e9.0 ± 0.5 ge12.2 ± 1.4 ef17.0 ± 1.6 c27.7 ± 3.0 a16.2 ± 2.2 cd22.8 ± 2.5 b
465.7 ± 0.9 cd51.8 ± 0.9 e71.1 ± 2.9 bc59.5 ± 2.7 d52.0 ± 1.5 e49.4 ± 2.6 e74.3 ± 6.7 b74.4 ± 1.5 b91.7 ± 7.4 a
5 *5.4 ± 0.7 b0.7 ± 0.2 c6.9 ± 0.2 b6.2 ± 0.5 b0.4 ± 0.1 c33.7 ± 2.3 a0.7 ± 0.2 c0.6 ± 0.2 c0.6 ± 0.1 c
6 *84.4 ± 3.7 de102.7 ± 5.9 d108.0 ± 1.5 d73.8 ± 6.0 ef127.8 ± 10.3 c61.9 ± 0.3 f159.4 ± 13.4 b157.3 ± 14.6 b193.6 ± 18.3 a
7 *7.5 ± 0.8 c7.3 ± 1.2 c3.6 ± 0.3 f6.0 ± 0.5 de5.3 ± 0.4 e13.2 ± 0.9 a11.0 ± 0.1 b7.0 ± 0.6 cd10.6 ± 0.8 b
8 *22.5 ± 2.1 d2.8 ± 0.0 e56.0 ± 1.0 b38.6 ± 2.6 c2.7 ± 0.1 e72.1 ± 3.9 a3.4 ± 0.1 e3.8 ± 0.3 e3.8 ± 0.3 e
9 *5.0 ± 1.0 ef8.6 ± 2.1 b3.4 ± 0.1 g4.5 ± 0.2 f7.5 ± 1.1 bc6.1 ± 0.3 de11.2 ± 0.8 a6.7 ± 0.6 cd11.2 ± 1.0 a
1035.4 ± 0.5 d27.1 ± 0.5 e32.8 ± 1.8 d32.5 ± 1.8 d27.8 ± 1.0 e22.7 ± 1.3 f42.6 ± 1.4 b39.4 ± 0.8 c47.5 ± 3.5 a
11 *4.4 ± 0.7 d1.0 ± 0.3 e5.8 ± 0.6 c7.7 ± 0.5 b0.7 ± 0.1 e23.1 ± 1.4 a0.9 ± 0.2 e0.8 ± 0.1 e0.9 ± 0.1 e
12 *103.5 ± 3.2 d133.8 ± 11.7 c121.8 ± 3.1 cd120.9 ± 7.3 cd157.9 ± 14.0 b59.9 ± 3.7 e177.9 ± 15.9 b157.7 ± 13.1 b238.1 ± 22.7 a
13 *0.8 ± 0.5 e2.2 ± 0.2 cND f0.7 ± 0.1 e1.5 ± 0.1 d1.9 ± 0.1 c2.2 ± 0.2 b1.2 ± 0.1 d2.7 ± 1.1 a
14 *49.7 ± 2.6 c3.9 ± 0.3 d109.4 ± 7.9 b110.5 ± 6.6 b4.0 ± 0.4 d140.9 ± 9.0 a4.5 ± 0.3 d4.7 ± 0.4 d5.8 ± 0.4 d
1585.1 ± 1.5 c87.1 ± 1.7 c78.7 ± 3.6 d109.7 ± 5.8 b76.4 ± 2.0 d46.2 ± 3.4 e111.1 ± 4.7 b85.6 ± 0.5 c133.2 ± 7.5 a
166.9 ± 0.1 c0.9 ± 0.3 d9.0 ± 0.5 b9.0 ± 0.6 bND d43.9 ± 2.8 aND dND dND d
171.4 ± 0.0 e6.5 ± 0.4 b1.7 ± 0.3 de3.2 ± 0.1 cND f2.1 ± 0.2 dND fND f10.5 ± 0.9 a
182.3 ± 0.5 b0.9 ± 0.1 de1.3 ± 0.1 cd2.0 ± 0.2 bcND e21.0 ± 1.1 aND eND eND e
195.8 ± 0.4 cND d9.8 ± 0.4 b9.3 ± 0.6 bND d36.0 ± 1.5 aND dND dND d
206.7 ± 0.2 e26.9 ± 0.5 b8.9 ± 0.3 d11.8 ± 0.8 cND f6.2 ± 0.3 eND fND f31.6 ± 2.0 a
211.3 ± 0.0 c0.7 ± 0.0 d0.9 ± 0.1 cd2.1 ± 0.2 bND e11.2 ± 0.7 aND eND eND e
2211.5 ± 0.0 d2.7 ± 0.1 e20.7 ± 0.5 c34.0 ± 1.8 bND f59.2 ± 3.9 aND fND f1.9 ± 0.1 e
Total
anthocyanins		635.9 ± 18.9 d581.1 ± 23.8 de855.5 ± 27.3 bc771.1 ± 32.7 c599.3 ± 12.5 e910.4 ± 36.8 ab795.3 ± 31.5 c725.4 ± 36.8 ab1011.7 ± 66.4 a
(1) 1, delphinidin 3-O-galactoside; 2, delphinidin 3-O-glucoside; 3, cyanidin 3-O-galactoside; 4, delphinidin 3-O-arabinoside; 5, cyanidin 3-O-glucoside; 6, petunidin 3-O-galactoside; 7, cyanidin 3-O-arabinoside; 8, petunidin 3-O-glucoside; 9, peonidin 3-O-galactoside; 10, petunidin 3-O-arabinoside; 11, peonidin 3-O-glucoside; 12, malvidin 3-O-galactoside; 13, peonidin 3-O-arabinoside; 14, malvidin 3-O-glucoside; 15, malvidin 3-O-arabinoside; 16, delphinidin 3-O-(6″-O-acetyl)glucoside; 17, petunidin 3-O-(6″-O-acetyl)galactoside; 18, cyanidin 3-O-(6″-O-acetyl)glucoside; 19, petunidin 3-O-(6″-O-acetyl)glucoside; 20, malvidin 3-O-(6″-O-acetyl)galactoside; 21, peonidin 3-O-(6″-O-acetyl)glucoside; 22, malvidin 3-O-(6″-O-acetyl)glucoside. Each value was calculated as mean ± SD (n = 3) using an internal standard (delphin) and * external standards. a–f Different superscript letters next to mean values (n = 3) indicate significant differences (p < 0.05) according to Duncan’s multiple range test. ND means “not detected”.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kim, J.H.; Kwon, R.H.; Kim, S.A.; Na, H.; Cho, J.-Y.; Kim, H.-W. Characterization of Anthocyanins Including Acetylated Glycosides from Highbush Blueberry (Vaccinium corymbosum L.) Cultivated in Korea Based on UPLC-DAD-QToF/MS and UPLC-Qtrap-MS/MS. Foods 2025, 14, 188. https://doi.org/10.3390/foods14020188

AMA Style

Kim JH, Kwon RH, Kim SA, Na H, Cho J-Y, Kim H-W. Characterization of Anthocyanins Including Acetylated Glycosides from Highbush Blueberry (Vaccinium corymbosum L.) Cultivated in Korea Based on UPLC-DAD-QToF/MS and UPLC-Qtrap-MS/MS. Foods. 2025; 14(2):188. https://doi.org/10.3390/foods14020188

Chicago/Turabian Style

Kim, Ju Hyung, Ryeong Ha Kwon, So Ah Kim, Hyemin Na, Jeong-Yong Cho, and Heon-Woong Kim. 2025. "Characterization of Anthocyanins Including Acetylated Glycosides from Highbush Blueberry (Vaccinium corymbosum L.) Cultivated in Korea Based on UPLC-DAD-QToF/MS and UPLC-Qtrap-MS/MS" Foods 14, no. 2: 188. https://doi.org/10.3390/foods14020188

APA Style

Kim, J. H., Kwon, R. H., Kim, S. A., Na, H., Cho, J.-Y., & Kim, H.-W. (2025). Characterization of Anthocyanins Including Acetylated Glycosides from Highbush Blueberry (Vaccinium corymbosum L.) Cultivated in Korea Based on UPLC-DAD-QToF/MS and UPLC-Qtrap-MS/MS. Foods, 14(2), 188. https://doi.org/10.3390/foods14020188

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
