Hermetic Bags: A Short-Term Solution to Preserve High-Moisture Maize during Grain Drying

by
Nileshwari Raju Yewle
1,2,
Richard L. Stroshine
3,
R. P. Kingsly Ambrose
3 and
Dieudonne Baributsa
2,*
1
Department of Botany & Plant Pathology, Purdue University, West Lafayette, IN 47907, USA
2
Department of Entomology, Purdue University, West Lafayette, IN 47907, USA
3
Department of Agricultural and Biological Engineering, Purdue University, West Lafayette, IN 47907, USA
*
Author to whom correspondence should be addressed.
Foods 2024, 13(5), 760; https://doi.org/10.3390/foods13050760
Submission received: 27 December 2023 / Revised: 22 January 2024 / Accepted: 27 February 2024 / Published: 29 February 2024
(This article belongs to the Section Food Packaging and Preservation)
Browse Figures
Versions Notes

Abstract

:
Maintaining maize quality while drying during a rainy season is a major challenge for smallholder farmers in developing countries. We conducted a study to evaluate the impact of temporarily storing wet maize of 18, 21, and 24% moisture content (m.c.) in hermetic Purdue Improved Crop Storage (PICS) and polypropylene (PP) woven (control) bags for 21 days. Oxygen and carbon dioxide concentrations were monitored, and m.c., germination, and visual mold were assessed. In PICS bags, oxygen dropped below 1% within 7, 11.5, and 21 days for maize at 24, 21, and 18% m.c., respectively. After 21 days, the m.c. of maize stored in PICS bags remained constant, but decreased in PP bags. Germination of maize in PICS bags decreased by 0.5, 6.2, and 95.5 percentage points for 18, 21, and 24% m.c., respectively. In PP bags, germination decreased by 17.5, 15.2, and 39.5 percentage points for the respective moisture levels. After 21 days of storage, visible mold was present on maize stored in PP bags at both 21 and 24% m.c. No mold was observed on maize stored in PICS bags, but a fermentation smell was released from maize at 21 and 24% m.c. The results indicate that maize can be effectively stored in PICS bags at 21% m.c. or below for 21 days with minimal germination loss or mold growth. These findings highlight the potential of using hermetic bags for short-term grain quality preservation just before and during drying. This new utility adds to the current use of hermetic bags for protection against pests during long-term storage. Hermetic bags’ dual functionality could significantly improve postharvest management on smallholder farms, thereby enhancing food and nutritional security and safety. Field testing is required in order to integrate this approach under smallholder farmers’ conditions (e.g., temperature, m.c., drying practices, etc.).

1. Introduction

Maize (Zea mays) is an important cereal crop for agri-food systems [1]. As a staple crop that can provide food security, maize is important in tropical and subtropical regions. This crop is grown several times a year based on climate, rainfall, temperature, soil type, availability of irrigation, and market demand. Depending on the region and growing season (major or minor), maize is harvested during or right before the rainy season [2]. Drying maize (field or home) during the rainy season is a major challenge encountered by small-scale producers in developing nations due to the limited availability of sunlight [3,4,5]. Managing grain dryness to ensure a sufficiently low m.c. is crucial for preserving maize quality [6]. Improper drying and storage of grain can reduce its usefulness for food and feed [7,8]. Therefore, drying is essential to maintaining grain quality during storage.
Smallholder farmers in developing countries employ various strategies to effectively manage wet maize for quality preservation. Common practices include leaving kernels on cobs during storage in granaries, piles/stacks, or hanging under roofs [9,10,11]. These methods promote air circulation, facilitating the continuation of the drying process [12]. However, these practices have been declining in recent years, mainly due to losses caused by pests and the increased risk of theft, as most of these methods store the maize outside of the household [13,14,15]. Given the challenges noted above and improved access to postharvest technologies (e.g., shellers), most smallholder farmers shell and store maize in polypropylene (PP) or gunny bags inside their homes. The choice of these bags is driven by their porous nature, allowing for continuous airflow and drying.
After harvest, small-scale producers heavily rely on the sunlight to dry their crops [4,13]. Sun-drying, although a simple and cost-effective method, has drawbacks such as labor requirements and lack of protection from animals [6,16]. Sun-drying is a relatively slow process that often stretches over several days, or even longer if there are consecutive days of rain or heavy cloud cover. On a daily basis, grain is moved in and out of the house to minimize theft and the impact of bad weather. This labor-intensive task involves grain redistribution at the beginning of the day, followed by spreading, frequent stirring, and collection in the evening [3,6]. A slow drying process can easily lead to quality deterioration [17]. Microbial activity can compromise maize quality if the grain is kept in the house for several days while waiting for optimal drying conditions. Loss of quality usually involves a notable decline in seed germination and/or the presence of microorganisms (such as mold and fungus), which can make the product unsuitable for consumption by humans and/or animals [18,19].
Maintaining grain quality during drying is paramount, as it directly affects food security, income, and safety. Germination is critical because most smallholder farmers in developing countries rely on harvested crops for seed for the next planting season. Temporary measures to safeguard maize until favorable weather conditions permit the resumption of the drying process emerge as a potential solution, not only to maintain grain quality, but also to reduce the labor involved. Studies have tested hermetic storage systems to maintain the quality of high-moisture maize during storage [20,21,22]. The results have shown that hermetic storage bags, including the Purdue Improved Crop Storage (PICS), prevent insect damage and slow fungal development. However, storing wet grain in hermetic bags can affect their quality, including loss of germination as well as qualities such as color change and fermentation [6,23,24,25,26].
Millions of smallholder farmers use hermetic bags to store grains and seeds of various crops, including maize, cowpea, common beans, rice, and sorghum [27]. Farmers store grains in hermetic bags for several months, sometimes extending storage until just before the next crop harvest or even beyond. By the subsequent harvest, these hermetic bags are typically emptied, primarily due to the use of stored grain for home consumption or sale. These empty hermetic bags present an opportunity because they can be used for other purposes. Investigating the feasibility of utilizing empty hermetic bags for the short-term storage of wet maize to preserve grain quality during drying is opportune. The role of temporary grain storage techniques and structures in preventing the quality loss of wet and dry grain has been explored in large facilities [28,29]. However, no studies have examined these options for smallholder farmers.
Research has demonstrated that temporarily holding high-moisture maize in hermetic jars has minimal effects on maize quality [30]. This study shows that wet maize at 18 and 21% m.c. can be hermetically stored for 14 and 7 days, respectively, without unacceptable loss of germination or mold development. Exploring whether hermetic bags used by smallholder farmers to store dried grain can be used to maintain the quality of wet maize is critical. This would allow for drying when optimal weather conditions are available, thereby expediting the overall drying process. The benefits would be twofold: (i) it would help to maintain maize quality during drying, and (ii) it would increase the utility of hermetic bags, transforming them into a multipurpose postharvest technology. Expanding the utility of hermetic bags in this way would make the innovation more cost-effective and attractive to smallholder farmers.

2. Materials and Methods

2.1. Maize Preparation

Maize (Zea mays, variety Becks 5994V2P) used in this study was provided by the Agronomy Center for Research and Education (ACRE) at Purdue University, West Lafayette, IN, USA, in October 2021. Maize cobs were shelled using a single-ear sheller that removed the kernels from the cobs using rubber rollers. The shelled maize was kept in plastic bags and stored at 4 °C for 5 weeks. The moisture content (m.c.) was 20.0% (wet basis) at harvest, but decreased to 19.6% upon removal from storage. Maize was then divided into three batches, with each batch either being rewetted using a drum roller to achieve a target m.c. of 21 or 24% or dried to 18% [30].

2.2. Experimental Setup

This study was carried out at the Postharvest Innovation for Crop Storage Laboratory, Department of Entomology at Purdue University, West Lafayette, IN, USA, from 19 November 2021 to 10 December 2021 (21 days). Samples of the maize were stored in small-sized hermetic PICS and PP bags (L of 18.7 cm by W of 10.5 cm) purchased from PPTL—Tanga in Tanzania. PICS bags capable of holding 25 kg were cut into these small-sized hermetic bags and sealed using an electrical heat sealer (Uline H-86 Impulse Foot Sealer; Pleasant Prairie, WI, USA). A PICS bag is a three-layer storage container made of two plastic liners, one within the other, fitted inside a woven PP bag [31]. Each small PICS (hermetic) and PP bag (non-hermetic) was filled with about 1.5 kg of maize. The open end of each layer of the two PICS inner liners and the PP bag was tied separately with a plastic zip tie. There were 4 replicates for each of the three m.c.s and storage conditions (hermetic and non-hermetic bags), for a total of 24 bags. All the bags were kept in a CARON Growth Chamber (model 6025-1; Caron Products & Services, Inc., Marietta, OH, USA) set at 25 ± 1 °C and 80% relative humidity (RH). Four bags from each m.c. were opened after 21 days.

2.3. Monitoring of Gas Composition

To enable gas measurement, each hermetic bag was fitted with a silicon rubber septum that protruded from the outer side of the bag. Both oxygen (O2) and carbon dioxide (CO2) were monitored at intervals of 12 h for 21 days using a Mocon® portable O2/CO2 analyzer (Pac Check® 325, Mocon Inc., Brooklyn Park, MN, USA). The Mocon needle was inserted into the interior of the hermetic bags through the septum. After each measurement, the septum was covered with adhesive tape to minimize gas leakage. For non-hermetic storage, the needle was inserted through the weaves of the PP bag near the opening.

2.4. Moisture Content, Temperature, and Relative Humidity

The m.c. of maize was measured using the oven drying method at a temperature of 103 ± 1 °C [32]. This involved assessing the weight before and after drying, with three 20 g grain samples subjected to a 72 h drying period. Temperature and relative humidity (RH) were collected every hour for 21 days using data loggers (Centor Thai, Rhino Research Group, Phichit, Thailand) placed in each hermetic and non-hermetic bag.

2.5. Germination and Shoot and Root Length

The germination rate was determined using the protocol developed by the International Seed Testing Association [33]. Samples from each replicate bag were prepared by placing four sets of 25 seeds between layers of moistened paper towels in Petri dishes (100 seeds). Each day for a week, kernels were checked for germination, with germination defined as a shoot length of at least 2 mm. After germination, ten randomly selected seedlings from each Petri dish were measured with digital calipers to assess the shoot (SL) and root lengths (RL). The average root and shoot lengths were calculated by summing the values and then dividing the total by ten. Out of 400 seeds tested, only 1 germinated from those stored in hermetic bags at a moisture content of 24%. Hence, we used the one seed to assess SL and RL.

2.6. Mold Assessment

At the end of the sampling period, each bag was opened, and 250 g of kernels were extracted from the center of the bag and four cardinal points using a 4-slot probe. Twenty-five maize seeds were randomly selected from the 250 g sample extracted from each bag. The seeds were placed into a Petri dish and then examined with the naked eye for signs of fungal growth. The Petri dishes containing the seeds were then taken to another lab in Purdue’s Entomology Department to further evaluate the seed coat, tip cap, and pedicel using a Leica S6 D Greenough stereo microscope with 10× magnification.

2.7. Data Analysis

The data were analyzed using the statistical package R (version 4.2.2). The linear mixed model was used to analyze the effects of m.c. on the oxygen depletion rate. A trend analysis was performed to develop a model for oxygen and carbon dioxide consumption across various m.c.s. A two-way analysis of variance (ANOVA) was conducted to examine differences among the three m.c.s (18, 21, and 24%) at the beginning and end of the experiment. Mean comparisons were made using the Student–Newman–Keuls (SNK) test. Microsoft Excel 2016 (Microsoft, Redmond, WA, USA) was utilized to generate all the graphs.

3. Results

3.1. Gas Composition

During the 21-day storage period, O2 levels in the PICS bags declined from ambient levels (21%) to 0%, while CO2 levels, initially non-detectable (0%), increased to as high as 62% in the bag containing maize at 24% m.c. (Figure 1). Anoxic conditions were reached within 168, 276, and 504 h inside PICS bags containing 24, 21, and 18% m.c., respectively, and remained there until the end of storage. Conversely, in the non-hermetic bags, O2 and CO2 levels remained at ambient conditions throughout the 21 days of maize storage. Tukey’s test revealed statistically significant differences in the levels of O2 (F = 1800; p = 0.001) and CO2 (F = 744.36; p = 0.001) among m.c. treatments in the hermetic bags. In addition, significant differences were observed in O2 and CO2 levels over time, with F = 3739.89 (p = 0.001) and F = 3365.89 (p = 0.001), respectively. Furthermore, a two-way ANOVA revealed statistically significant differences in the levels of O2 (F = 792.60; p = 0.001) and CO2 (F = 4642.92; p = 0.001) for the combination of storage time and m.c.
Linear model estimates for the fixed effects of m.c.s on O2 and CO2 levels are shown in Table 1. Significant statistical differences existed for all fixed effects, with p < 0.001.
The fixed effects pertaining to m.c. exhibited distinct patterns: negative for O2 consumption and positive for CO2 increase. Specifically, an m.c. increase from 18% to 21 or 24% corresponded to a notable decrease in O2 concentration of −5.50 to −9.91 percentage points, respectively. On the other hand, the CO2 concentration exhibited the opposite trend, with significant increases of 14.57 and 31.86 percentage points when m.c. rose from 18% to 21 or 24%, respectively.
The effects of m.c. on O2 depletion and CO2 increase inside hermetic bags were generalized using the equations shown in Table 2. Based on these equations, the O2 and CO2 concentrations in PICS bags at 18% m.c. followed linear trends. However, at 21 and 24% m.c., O2 and CO2 concentrations in PICS bags exhibited non-linear patterns that fit a second-order polynomial. The R2 values for the equations indicate that these models effectively describe the relationship between either O2 or CO2 concentration and time for the three m.c.s.

3.2. Moisture Content, Temperature, and Relative Humidity (RH)

A two-way ANOVA showed a statistically significant interaction between storage time and m.c. under hermetic and non-hermetic storage conditions (F = 111.32; p < 0.001). Subsequent analysis indicated a substantial change in m.c. within moisture treatments (F = 352.84; p < 0.001) and storage time (F = 313.07; p < 0.001). The initial m.c.s in both hermetic and non-hermetic bags closely aligned with the targeted levels of 18, 21, and 24%. However, after 21 days, the decreases in m.c. in the non-hermetic bags at 21 and 24% were statistically significant (Table 3). There were minimal differences in RH and temperature inside PICS and PP bags storing maize at different m.c.s (Figure S1). The RH recorded in the growth chamber during the entire storage period was maintained between 80 and 82%.

3.3. Seed Germination Assessment

The initial seed germination rates were consistent across treatments, but the rates changed after 21 days of storage (Table 3).
The germination exhibited variations within m.c. (F = 65.67; p < 0.001) and storage time (F = 233.11; p < 0.001). For the percentage of germination, the interaction between storage duration and m.c. was significant for both hermetic and non-hermetic storage conditions (F = 56.83; p < 0.001). Notably, for both hermetic and non-hermetic treatments, the most substantial decline in percent germination after 21 days of storage was observed in maize with an m.c. of 24%. In PICS bags, the germination declined by 0.5, 6.2, and 95.5 percentage points for m.c.s of 18, 21, and 24%, respectively. Conversely, the germination rates for maize stored in PP bags dropped by 17.5, 15.2, and 39.5 percentage points for the same respective m.c.s.

3.4. Seedling Growth (Root and Shoot Length)

Shoot and root lengths exhibited variability among treatments (Table 3) at 0 and 21 days. After 21 days of storage in PICS bags, there were no increases in shoot or root length compared to 0 days, except for the root length of maize at 21% m.c. Root length varied with both m.c. (within columns; F = 4.90; p = 0.0016) and storage time (within rows, F = 14.18; p = 0.0006). There was a statistically significant interaction between m.c. treatments and storage time for the root length (F = 7.27; p < 0.001). The shoot length varied within moisture treatments (columns, F = 7.93; p < 0.001) and storage times (rows, F = 9.15; p = 0.0046). For the shoot length, there was also an interaction between m.c. and storage time (F = 3.2; p= 0.0173).

3.5. Visual Assessment of Mold Growth

Mold growth significantly and negatively impacts the quality of grains and seeds when it occurs during storage. After 21 days, the maize kept at 21 and 24% m.c. in non-hermetic bags exhibited the most visible mold (Figure 2). Moreover, grain discoloration was evident for maize at 21 and 24% m.c. Non-hermetic bags presented additional challenges, including a powdery dust and an off odor, indicating maize spoilage. Conversely, maize stored at 18% in hermetic bags showed no apparent mold growth. However, mold was only visible under a microscope when maize was kept at 21 and 24% m.c. in hermetic bags (Figure 2 and Figure 3). This was accompanied by a smell of fermentation.

4. Discussion

This study aimed to assess the impact of hermetic storage of wet maize in PICS bags on the quality of the maize before and during drying. Following a 21-day storage period, maize kept in PICS bags maintained its original m.c. (18, 21, or 24%); however, it decreased in maize stored in PP bags at 21 and 24% m.c. Previous research has documented no changes in the m.c. of grain stored in hermetic bags after several weeks [20,30]. The change in m.c. observed in PP bags is not surprising, given that the grain moisture level in these containers is influenced by environmental conditions such as ambient temperature and RH [23,34]. This phenomenon is attributed to airflow through PP bags during storage [12].

4.1. Impact of Short-Term Hermetic Storage of Moist Maize on Germination and Seedling Growth

Hermetic bags effectively preserved maize germination when maize was stored at 18 and 21% for 21 days. The reduction in the germination of maize seeds stored in PICS bags was proportional to oxygen depletion rates, which were influenced by the m.c. of the stored maize. The more quickly the oxygen concentration decreased, the greater the loss of maize germination after 21 days of storage. In this study, the initial m.c. of the maize seed impacted the oxygen consumption rate in PICS bags. The rates of oxygen depletion and CO2 increase were faster for the higher m.c.s of 21 and 24%. There was about a doubling of the rates of oxygen depletion and CO2 increase as the m.c. increased by 3 percentage points from 21 to 24%. Anoxia, attained within a week of storage at 24% m.c., resulted in a total loss of germination. However, anoxia of the maize at 21% m.c. occurred within 13 days, but had minimal impact on seed viability after 21 days. Previous research has demonstrated that, during hermetic storage, the germination decreases more rapidly as the m.c. increases [21,30].
These patterns of loss in germination when wet maize is stored in hermetic bags can be attributed to the metabolic activity of maize seeds, consuming O2 through respiration and releasing CO2, leading to fermentation at higher m.c.s [35,36,37]. Fermentation of wet maize can occur unintentionally due to poor grain handling during drying or improper storage conditions. Hence, it is advisable to allow maize to dry to 21% or below before short-term storage in hermetic containers. This will preserve seed viability, as most small-scale producers depend on saved seeds for planting in subsequent growing seasons.
Research on the hermetic storage of maize at 21% m.c. revealed that germination, with minimal reduction, was maintained for only 7 days in jars [30]. Oxygen consumption and CO2 production were plotted over time for maize kept in jars [30] and PICS bags at three m.c.s (18, 21, and 24%) (current study). The oxygen consumption curves for maize stored in PICS bags and jars were almost identical at 18 and 24% m.c. However, O2 consumption was slower in PICS bags than in jars for maize at 21% m.c. The release of CO2 was similar for 18% m.c., but 5–20% lower in PICS bags for 21 and 24% m.c. Apparently, some additional respiratory activity occurred in the 21% m.c. jars that consumed oxygen. This unexpected respiratory activity of maize kept in jars at 21% m.c. indicates the possibility of mold growth, which can contribute to oxygen depletion [38].
The decline in maize germination within non-hermetic PP bags was more pronounced in maize stored at 24% m.c. The differences in germination among samples of maize stored at different m.c.s in PP bags could be attributed to slower mold growth at the lower m.c.s. Distinctions in mold growth among the PP bag samples are depicted in Figure 2d–f. Previous research has demonstrated that storage fungi have the potential to infect and damage embryos, thereby reducing seed germination [39]. Simultaneously, a decrease in m.c. was observed in grains stored in PP woven bags, aligning with findings from other studies [23]. This reduction in the m.c. of grain held at 21 and 24% may also explain the higher level of seed viability. These findings underscore the differential impact of storage conditions on percent germination, emphasizing the importance of both m.c. and the choice of storage bag for preserving seed viability over time.
While root and shoot length measurements were employed as indicators of seed vigor, no clear patterns were observed. In contrast to our findings, other studies have shown a negative impact of factors such as storage m.c. on seed vigor [40,41].

4.2. Impact of Short-Term Hermetic Storage of Moist Maize on Fungal Growth

Hermetic bags showed minimal fungal growth regardless of m.c. This absence of mold growth in PICS bags has been documented in previous studies where maize was stored for up to 75 days [21,22,30]. Because PICS bags are designed with multiple layers, they provide an adequate oxygen barrier and reduce the chances of mold and fungal growth. The substantial mold growth on maize stored in PP bags, particularly at 21 and 24% m.c., indicates the need to reduce the m.c. of wet maize before short-term storage in non-hermetic containers. Aspergillus flavus, a fungus that grows on maize and other crops at high m.c., can produce aflatoxin, a carcinogenic mycotoxin [42]. It can grow on maize before and after harvest, but can be prevented through proper drying and storage [17]. High-moisture maize (up to 21%) can be safely stored for one or two months under sealed conditions with self-regulated atmospheres that protect against microflora damage if fermentation and some loss of germination are allowable [21,22].
In this study, the high m.c. maize stored in PICS bags produced odors associated with fermentation. Various factors influence the fermentation of wet maize in hermetic bags, but it is predominantly microbial activity. Elevated moisture levels provide an optimal environment for the proliferation of bacteria and yeast [43], which initiate the fermentation process [24,44]. The consumption of oxygen under airtight storage conditions results in anaerobic conditions needed for fermentation, while the glucose and fructose found in the maize serve as substrates for the fermentation process. Microbial metabolism converts these sugars into ethanol and carbon dioxide. Although hermetic and non-hermetic storage methods have drawbacks, hermetic storage offers a better alternative because fermented maize can still be used for other purposes, such as animal feed, unlike grain infected with fungi. Achieving an m.c. below 21% before storing maize in hermetic bags is essential to prevent fermentation and mitigate its impact on maize quality.

4.3. Implication of Short-Term Storage of Wet Maize in Hermetic (PICS) Bags

After maize harvest, sun drying on a smallholder farm (before storage or sale) is a continuous and intermittent process that often requires several days, depending on the prevailing weather conditions. During drying in the sun, grain loses moisture over time, and is often kept in containers (e.g., woven bags) overnight or until weather conditions are favorable (e.g., sunny). These drying practices offer an opportunity to use hermetic bags for temporarily holding maize while drying instead of using PP woven bags. Hermetic bags would provide several benefits, including reduced labor and time needed for drying and handling grain under bad weather conditions. Grain temporarily stored in hermetic bags could be kept in houses or storage facilities for several days until optimal weather conditions are available to continue drying. These same hermetic bags could be used for subsequent storage of the dried maize, effectively preserving the dried grains from attack by insect pests and mold [30].
Though hermetic storage has the potential for short-term storage of maize (and other grains) during drying on smallholder farms, it is necessary to assess its performance in situ. Future research should explore the integration of short-term storage of wet maize into postharvest drying practices on smallholder farms. This would require assessing the optimal length of time for which wet grain can be temporarily stored in hermetic bags under various conditions (e.g., temperature and m.c.). Temperature and moisture content influence grain quality during storage [45,46,47,48]. Capacity building is necessary for integrating hermetic bags for short-term storage of moist maize into grain handling on smallholder farms. Farmers must learn proper grain handling practices in order to maximize the benefits of using hermetic bags for both short- and long-term storage. By using hermetic bags for short-term storage, smallholder farmers would benefit by improving the quality of grain they store and consume. Further, this would also allow smallholder farmers to take advantage of market opportunities by supplying clean and safe grain to consumers and processors.

5. Conclusions

This research demonstrated that hermetic bags can maintain the quality of wet maize stored for 21 days. The germination rate stayed consistently above 90% for maize stored at either 18 or 21% m.c. for 21 days. The initial m.c. of the maize has a significant impact on oxygen consumption and the germination rate of the seeds. Hermetic PICS bag storage of maize seeds at 24% m.c. caused oxygen to deplete within a few days, resulting in a complete loss of germination. Although there was minimal fungal growth in the wet maize stored in PICS bags at 21 and 24% m.c., the grain removed from the bags after 21 days had a distinct odor of fermentation. These results indicate the possibility of using hermetic bags to maintain grain quality during drying by protecting it from pests and fungi. Utilizing hermetic bags for a combination of short- and long-term storage would improve postharvest grain management and food and nutrition security on smallholder farms. The integration of hermetic bags as a temporary solution for storing wet maize on smallholder farms requires additional research in order to better understand (i) the role of temperature and m.c. in oxygen consumption and grain quality, such as germination and microbial activity; (ii) how this technique could be part of typical postharvest drying practices used on smallholder farms; and (iii) the economics of using hermetic bags as a dual storage solution. Utilizing hermetic bags as both a short- and long-term storage solution would contribute to the sustainable use of resources on smallholder farms.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/foods13050760/s1, Figure S1. The mean relative humidity (RH) and temperature (Temp) of maize seeds kept in hermetic (a) and non-hermetic (b) bags at 18, 21, and 24% moisture for 21 days in a growth chamber maintained at 25 °C and 80% relative humidity. Data for 24% of non-hermetic bags are missing because the dataloggers malfunctioned at high relative humidity.

Author Contributions

Conceptualization, R.L.S. and D.B.; methodology, R.L.S., D.B., R.P.K.A. and N.R.Y.; software, N.R.Y.; validation, R.L.S., D.B. and N.R.Y.; formal analysis, N.R.Y., D.B. and R.L.S.; investigation, N.R.Y. and R.L.S.; resources, D.B., R.L.S. and R.P.K.A.; data curation, N.R.Y., R.L.S. and D.B.; writing—original draft preparation, N.R.Y.; writing—review and editing, R.L.S. and D.B.; visualization, D.B.; supervision, D.B. and R.P.K.A.; project administration, D.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding author.

Acknowledgments

We would like to acknowledge the support provided by the Science and Engineering Research Board—Purdue University Overseas Visiting Doctoral Fellowship (SERB-OVDF) in funding Nileshwari Yewle’s visit to Purdue University. Additionally, we extend our heartfelt appreciation to Akhere Olenloa and Mike Sserunjogi from the Department of Agricultural Biological Engineering at Purdue University and the members of the Postharvest Innovation for Crop Storage Lab for their invaluable assistance during the experiment.

Conflicts of Interest

The authors declare the following financial interests/personal relationships, which may be considered as potential competing interests: “Author Dieudonne Baributsa is a co-founder of PICS Global Inc., a social enterprise that commercializes PICS bags to small-scale farmers in developing countries, and hence declare a potential conflict of interest. He contributed to the “conceptualization, methodology, validation, formal analysis, resources, data curation, writing—review and editing, visualization, supervision, and project administration” of this study. Dieudonne Baributsa’s involvement had no effect on the objectivity and authenticity of the study. PICS Global and its licensee PPTL (manufacturer of PICS bags) did not have any role in the funding, study design, collection, analysis, interpretation of data, the writing of this article or the decision to submit it for publication. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest”. “Nileshwari Raju Yewle, Richard L Stroshine, RP Kingsly Ambrose”, they have no conflicts of interest to declare.

References

  1. Erenstein, O.; Jaleta, M.; Sonder, K.; Mottaleb, K.; Prasanna, B.M. Global maize production, consumption and trade: Trends and R&D implications. Food Secur. 2022, 14, 1295–1319. [Google Scholar] [CrossRef]
  2. De Groote, H.; Githinji, P.G.; Munya, B.G.; Ricker-Gilbert, J.E. Economics of open-air sun drying in the maize value chain of Kenya. J. Agric. Food Res. 2021, 5, 100185. [Google Scholar] [CrossRef]
  3. Chen, M. Development of the PICO Solar Crop Dryer (POD) for Farm Level Grain Drying by Smallholder Farmers in Africa. Master’s Thesis, Purdue University, West Lafayette, IN, USA, 2019. [Google Scholar]
  4. Darfour, B.; Rosentrater, K.A. Pre-harvest and post-harvest farmer experiences and practices in five maize growing regions in Ghana. Front. Nutr. 2022, 9, 725815. [Google Scholar] [CrossRef]
  5. Díaz-Valderrama, J.R.; Njoroge, A.; Macedo-Valdivia, D.; Orihuela-Ordóñez, N.; Smith, B.W.; Casa-Coila, V.; Ramírez-Calderón, N.; Zanabria-Gálvez, J.; Woloshuk, C.; Baributsa, D. Postharvest practices, challenges and opportunities for grain producers in Arequipa, Peru. PLoS ONE 2020, 15, e0240857. [Google Scholar] [CrossRef]
  6. Bradford, K.J.; Dahal, P.; Van Asbrouck, J.; Kunusoth, K.; Bello, P.; Thompson, J.; Wu, F. The dry chain: Reducing postharvest losses and improving food safety in humid climates. Trends Food Sci. Technol. 2018, 71, 84–93. [Google Scholar] [CrossRef]
  7. Angelovič, M.; Krištof, K.; Jobbágy, J.; Findura, P.; Križan, M. The effect of conditions and storage time on course of moisture and temperature of maize grains. BIO Web Conf. 2018, 10, 02001. [Google Scholar] [CrossRef]
  8. Sinha, D.J.P.; Jha, D.S.; Atwal, D.S.S.; Sinh, D.S.N. Postharvest management of paddy rice. Res. Trends Bioresour. Manag. Technol. 2010, TB-ICN:77/2010, 1–56. [Google Scholar]
  9. Bett, C.; Nguyo, R. Post-harvest storage practices and techniques used by farmers in semi-arid eastern and central Kenya. In Proceedings of the 8th African Crop Science Society Conference, El-Minia, Egypt, 27–31 October 2007; Volume 8, pp. 1023–1227. [Google Scholar]
  10. Ganesh, K.C. Post-harvest losses in maize: Review of the findings of the rural Save Grain Project. In Developing and Disseminating Technology to Reduce Post-Harvest Losses in Maize, Proceedings of the Working Group Meeting of the Hill Maize Research Project, Lalitpur, Nepal, 25–27 September 2000; Manandhar, D.N., Ransom, J.K., Rajbhandari, N.P., Eds.; Nepal Agricultural Research Council: Lalitpur, Nepal, 2001; pp. 47–49. [Google Scholar]
  11. Agada, M.O.; Otene, V.A.; Adikwu, S.O. Assessment of maize farmers’ awareness and effectiveness of indigenous production and preservation practices in Ugbokolo, Benue State, Nigeria. World J. Adv. Res. Rev. 2020, 8, 307–313. [Google Scholar] [CrossRef]
  12. Tefera, T. Post-harvest losses in African maize in the face of increasing food shortage. Food Secur. 2012, 4, 267–277. [Google Scholar] [CrossRef]
  13. Baributsa, D.; Díaz-Valderrama, J.R.; Mughanda, D.; Lubanzadio, A.; Nshombo, J.P.C.; Sperling, L.; Baoua, I.B. Grain handling and storage in Lubero and Rutshuru territories in the North Kivu province, the Democratic Republic of Congo. Sustainability 2021, 13, 9580. [Google Scholar] [CrossRef]
  14. Tibaingana, A.; Makombe, G.; Kele, T. An analysis of the characteristics of maize storage types used by smallholder producers in developing countries: A case of Uganda. Am. J. Ind. Bus. Manag. 2019, 09, 1524–1555. [Google Scholar] [CrossRef]
  15. Tibaingana, A.; Makombe, G.; Kele, T. Smallholder maize farmers need better storage for food security: An exploratory study over the storage types used in Uganda. In New Advances in Postharvest Technology; IntechOpen: London, UK, 2023. [Google Scholar]
  16. Prakash, O.; Kumar, A. Historical review and recent trends in solar drying systems. Int. J. Green Energy 2013, 10, 690–738. [Google Scholar] [CrossRef]
  17. Sumner, P.; Lee, D. Reducing Aflatoxin in Corn during Harvest and Storage; Cooperative Extension Bulletin 1231; University of Georgia: Athens, GA, USA, 2017; p. 6. [Google Scholar]
  18. De Vitis, M.; Hay, F.R.; Dickie, J.B.; Trivedi, C.; Choi, J.; Fiegener, R. Seed storage: Maintaining seed viability and vigor for restoration use. Restor. Ecol. 2020, 28, S249–S255. [Google Scholar] [CrossRef]
  19. Nkang, A.; Umoh, E. Six month storability of five soybean cultivars as influenced by stage of harvest, storage temperature and relative humidity. Seed Sci. Technol. 1997, 25, 93–99. [Google Scholar]
  20. Villers, P.; Navarro, S.; DeBruin, T. Development of hermetic storage technology in sealed flexible storage structures. In Proceedings of the 8th International Conference on Controlled Atmosphere and Fumigation in Stored Products, Chengdu, China, 21–26 September 2008; Daolin, G., Navarro, S., Jian, Y., Cheng, T., Zuxun, J., Yue, L., Haipeng, W., Eds.; Sichuan Publishing Group: Sichuan, China, 2008; pp. 21–26. [Google Scholar]
  21. Weinberg, Z.G.; Yan, Y.; Chen, Y.; Finkelman, S.; Ashbell, G.; Navarro, S. The effect of moisture level on high-moisture maize (Zea mays L.) under hermetic storage conditions—In vitro studies. J. Stored Prod. Res. 2008, 44, 136–144. [Google Scholar] [CrossRef]
  22. Williams, S.B.; Baributsa, D.; Woloshuk, C. Assessing Purdue Improved Crop Storage (PICS) bags to mitigate fungal growth and aflatoxin contamination. J. Stored Prod. Res. 2014, 59, 190–196. [Google Scholar] [CrossRef]
  23. Likhayo, P.; Bruce, A.Y.; Tefera, T.; Mueke, J. Maize grain stored in hermetic bags: Effect of moisture and pest infestation on grain quality. J. Food Qual. 2018, 2018, 2515698. [Google Scholar] [CrossRef]
  24. Marcos Valle, F.J.; Castellari, C.; Yommi, A.; Pereyra, M.A.; Bartosik, R. Evolution of grain microbiota during hermetic storage of corn (Zea mays L.). J. Stored Prod. Res. 2021, 92, 101788. [Google Scholar] [CrossRef]
  25. Odjo, S.; Palacios-Rojas, N.; Burgueño, J.; Corrado, M.; Ortner, T.; Verhulst, N. Hermetic storage technologies preserve maize seed quality and minimize grain quality loss in smallholder farming systems in Mexico. J. Stored Prod. Res. 2022, 96, 101954. [Google Scholar] [CrossRef]
  26. Carvalho, M.O.; Fradinho, P.; Martins, M.J.; Magro, A.; Raymundo, A.; de Sousa, I. Paddy rice stored under hermetic conditions: The effect of relative humidity, temperature and storage time in suppressing Sitophilus zeamais and impact on rice quality. J. Stored Prod. Res. 2019, 80, 21–27. [Google Scholar] [CrossRef]
  27. Baributsa, D.; Cristine, M.; Ignacio, C. Developments in the Use of Hermetic Bags for Grain Storage; Burleigh Dodds Science Publishing: Cambridge, UK, 2020; pp. 171–198. [Google Scholar]
  28. Dyck, J. Storing Wet Corn Safely. Available online: https://fieldcropnews.com/2019/11/storing-wet-corn-safely/ (accessed on 16 November 2023).
  29. Hellevang, K. Temporary Grain Storage; Extension Services AE-84; North Dakota State University: Fargo, ND, USA, 1996; p. 11. [Google Scholar]
  30. Yewle, N.R.; Stroshine, R.L.; Ambrose, R.K.; Baributsa, D. Short-term hermetic storage of wet maize and its effect on quality. Foods 2023, 12, 891. [Google Scholar] [CrossRef]
  31. Baributsa, D.; Baoua, I.; Abdoulaye, T.; Murdock, L.L.; Lowernberg-DeBoer, J. Stored Grain. In Purdue Improved Crop Storage (PICS) Bag: Size Matters! Purdue University: West Lafayette, IN, USA, 2013. [Google Scholar]
  32. ASAE S352.2 APR1988 (R2022); ASABE ASABE Standards: Moisture Measurement—Unground Grain and Seeds. Available online: https://engineering.purdue.edu/~abe305/moisture/html/page12.htm (accessed on 4 July 2022).
  33. ISTA. International Rules for Seed Testing; Interantional Seed Testing Association: Bassersdof, Switzerland, 2015; Volume 215, pp. 1–6. [Google Scholar]
  34. Afzal, I.; Bakhtavar, M.A.M.A.; Ishfaq, M.; Sagheer, M.; Baributsa, D. Maintaining dryness during storage contributes to higher maize seed quality. J. Stored Prod. Res. 2017, 72, 49–53. [Google Scholar] [CrossRef]
  35. Kolb, R.M.; Joly, C.A. Germination and anaerobic metabolism of seeds of Tabebuia cassinoides (Lam.) DC subjected to flooding and anoxia. Flora-Morphol. Distrib. Funct. Ecol. Plants 2010, 205, 112–117. [Google Scholar] [CrossRef]
  36. Lacey, J.; Hill, S.T.; Edwards, M.A. Micro-Organisms in Stored Grains: Their Enumeration and Significance. Available online: https://agris.fao.org/agris-search/search.do?recordID=US201301320285 (accessed on 20 April 2022).
  37. Ragai, H.; Loomis, W.E. Respiration of maize grain. Plant Physiol. 1954, 29, 49–55. [Google Scholar] [CrossRef]
  38. Fleurat-Lessard, F. Integrated management of the risks of stored grain spoilage by seedborne fungi and contamination by storage mould mycotoxins—An update. J. Stored Prod. Res. 2017, 71, 22–40. [Google Scholar] [CrossRef]
  39. Sauer, D.B. Effects of fungal deterioration on grain: Nutritional value, toxicity, germination. Int. J. Food Microbiol. 1988, 7, 267–275. [Google Scholar] [CrossRef]
  40. Dhakal, K.; Springer, T.L. Recurrent selection for improved seed germination results in greater seedling growth potential. Crop. Sci. 2020, 60, 2180–2185. [Google Scholar] [CrossRef]
  41. Raikar, S.D.; Vyakarnahal, B.S.; Biradar, D.P.; Deshpande, V.K.; Janagoudar, B.S. Effect of seed source, containers and seed treatment with chemical and biopesticide on storability of scented rice Cv. Mugad sugandha. Karnataka J. Agric. Sci. 2011, 24, 448–454. [Google Scholar]
  42. Wagacha, J.M.; Muthomi, J.W. Mycotoxin problem in Africa: Current status, implications to food safety and health and possible management strategies. Int. J. Food Microbiol. 2008, 124, 1–12. [Google Scholar] [CrossRef] [PubMed]
  43. Magro, A.; Raymundo, A.; Fradinho, P.; Sousa, I.; Carvalho, M.O. Hermetic storage of paddy rice: The impact of relative humidity on fungi infection and on the rheology of the pastes. In Proceedings of the IOBC/WPRS Working Group “Integrated Protection of Stored Products”, Ljubljana, Slovenia, 3–5 July 2017; Trematerra, P., Trdan, S., Eds.; Biotechnical Faculty of the University of Ljubljana & IOBC: Zürich, Switzerland, 2017; pp. 267–274. [Google Scholar]
  44. Wardynski, F.A.; Rust, S.R.; Yokoyama, M.T. Effect of microbial inoculation of high-moisture corn on fermentation characteristics, aerobic stability, and cattle performance. J. Anim. Sci. 1993, 71, 2246–2252. [Google Scholar] [CrossRef]
  45. Coradi, P.C.; Maldaner, V.; Lutz, É.; da Silva Daí, P.V.; Teodoro, P.E.; Vinícius Da, P.; Daí, S.; Teodoro, P.E. Influences of drying temperature and storage conditions for preserving the quality of maize postharvest on laboratory and field scales. Sci. Rep. 2020, 10, 1–15. [Google Scholar] [CrossRef] [PubMed]
  46. Park, C.-E.; Kim, Y.-S.; Park, K.-J.; Kim, B.-K. Changes in physicochemical characteristics of rice during storage at different temperatures. J. Stored Prod. Res. 2012, 48, 25–29. [Google Scholar] [CrossRef]
  47. Srikaeo, K.; Boonrod, C.; Rahman, M.S. Effect of storage temperatures on the head rice yield in relation to glass transition temperatures and un-freezable water. J. Cereal Sci. 2016, 70, 164–169. [Google Scholar] [CrossRef]
  48. Mbofung, G.C.Y.; Goggi, A.S.; Leandro, L.F.S.; Mullen, R.E. Effects of storage temperature and relative humidity on viability and vigor of treated soybean seeds. Crop. Sci. 2013, 53, 1086–1095. [Google Scholar] [CrossRef]
Foods 13 00760 g001

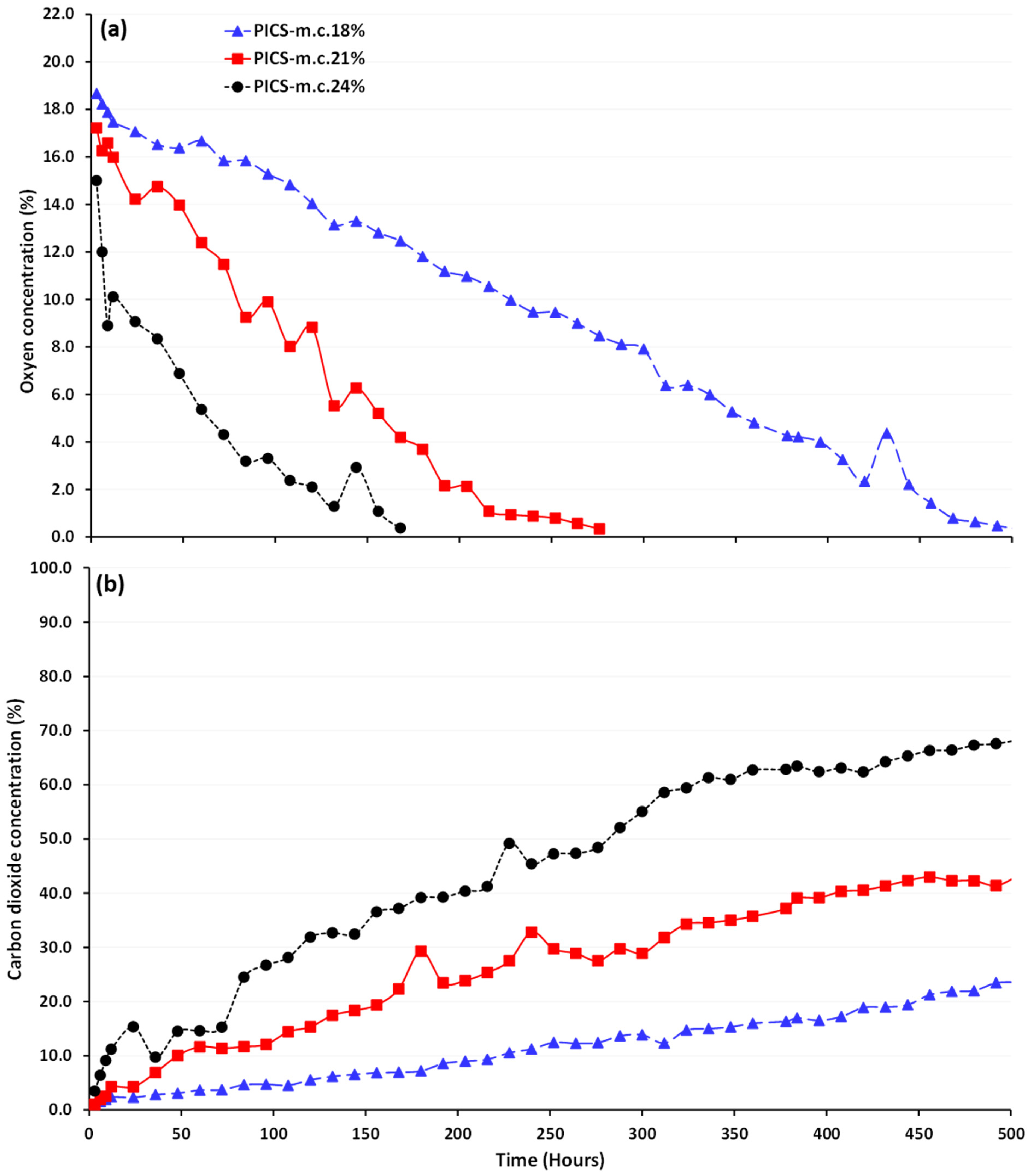

Figure 1. Levels of oxygen (a) and carbon dioxide (b) inside hermetic bags storing maize at the three m.c.s (18, 21, and 24%) when kept for 21 days in a growth chamber maintained at 25 °C and 80% relative humidity.
Figure 1. Levels of oxygen (a) and carbon dioxide (b) inside hermetic bags storing maize at the three m.c.s (18, 21, and 24%) when kept for 21 days in a growth chamber maintained at 25 °C and 80% relative humidity.
Foods 13 00760 g001
Foods 13 00760 g002
Figure 2. Stereomicroscope (10×)-magnified images for visual mold assessment of maize kernels kept in hermetic (a–c) and non-hermetic (d–f) bags at 18, 21, and 24% m.c., respectively, and stored for 21 days in a growth chamber maintained at 25 °C and 80% relative humidity.
Figure 2. Stereomicroscope (10×)-magnified images for visual mold assessment of maize kernels kept in hermetic (a–c) and non-hermetic (d–f) bags at 18, 21, and 24% m.c., respectively, and stored for 21 days in a growth chamber maintained at 25 °C and 80% relative humidity.
Foods 13 00760 g002
Foods 13 00760 g003
Figure 3. Photo of the kernel surface of maize kept at 24% m.c. (a) before and (b) after (21 days) storage in hermetic bags in a growth chamber maintained at 25 °C and 80% relative humidity. Image magnification (150×) by FEI Nova-Nano field emission SEM machine, with a low vacuum detector (LVD). Images taken at the Purdue Life Science Microscopy Facility (LSMF).
Figure 3. Photo of the kernel surface of maize kept at 24% m.c. (a) before and (b) after (21 days) storage in hermetic bags in a growth chamber maintained at 25 °C and 80% relative humidity. Image magnification (150×) by FEI Nova-Nano field emission SEM machine, with a low vacuum detector (LVD). Images taken at the Purdue Life Science Microscopy Facility (LSMF).
Foods 13 00760 g003
Table 1. Linear mixed model estimates of the fixed effects of moisture content (m.c.) on oxygen (O2) depletion and carbon dioxide (CO2) rise in hermetic bags storing maize at 18, 21, or 24% m.c. for 21 days. Hermetic bags were kept in a growth chamber maintained at 25 °C and 80% relative humidity.
Table 1. Linear mixed model estimates of the fixed effects of moisture content (m.c.) on oxygen (O2) depletion and carbon dioxide (CO2) rise in hermetic bags storing maize at 18, 21, or 24% m.c. for 21 days. Hermetic bags were kept in a growth chamber maintained at 25 °C and 80% relative humidity.
Parameter *EstimateSEM atp-ValueLCI bUCI c
Intercept23.180.4749.17<0.00122.2524.10
O2 at PICS-m.c.18%00
O2 at PICS-m.c.21%−5.500.21−25.75<0.001−5.92−5.08
O2 at PICS-m.c.24%−9.910.24−40.43<0.001−10.39−9.42
Intercept −13.591.80−7.51<0.001−17.95−9.24
CO2 at PICS-m.c.18%00
CO2 at PICS-m.c.21%14.570.6422.55<0.00113.3115.84
CO2 at PICS-m.c.24%31.860.6449.31<0.00130.6033.13
* Degree of freedom for parameters O2 = 368 and CO2 = 540. a SEM: standard error of means; t value; b LCI = lower confidence interval; c UCI = upper confidence interval.
Table 2. Relationship between oxygen and carbon dioxide concentration (y) at any time (x) in hermetic bags storing maize at the three moisture contents (18, 21, or 24%) when kept for 21 days in a growth chamber maintained at 25 °C and 80% relative humidity.
Table 2. Relationship between oxygen and carbon dioxide concentration (y) at any time (x) in hermetic bags storing maize at the three moisture contents (18, 21, or 24%) when kept for 21 days in a growth chamber maintained at 25 °C and 80% relative humidity.
TreatmentEquation *R2 Value
O2 at PICS-m.c.18%y = −0.0366x + 18.40.995
O2 at PICS-m.c.21%y = −0.0001x2 − 0.0994x + 17.4840.988
O2 at PICS-m.c.24%y = 0.0005x2 − 0.1451x + 12.5970.935
CO2 at PICS-m.c.18%y = 0.0429x + 0.74390.989
CO2 at PICS-m.c.21%y = −0.0001x2 + 0.1312x + 2.02650.983
CO2 at PICS-m.c.24%y = −0.0002x2 + 0.2208x + 5.38540.988
* y is the oxygen or carbon dioxide concentration level at time x.
Table 3. Germination (%), shoot and root lengths, and moisture contents of maize seeds stored in hermetic and non-hermetic bags after 21 days in a growth chamber maintained at 25 °C and 80% relative humidity.
Table 3. Germination (%), shoot and root lengths, and moisture contents of maize seeds stored in hermetic and non-hermetic bags after 21 days in a growth chamber maintained at 25 °C and 80% relative humidity.
TreatmentsGermination %Shoot Length (mm)Root Length (mm)Moisture Content (%)
0 Day21 Days0 Day21 Days0 Day21 Days0 Day21 Days
PICS-m.c.18%99.5 aA *99.0 aA9.44 bA13.92 bA55.57 aA64.97 aA17.59 cA17.67 cA
PICS-m.c.21%97.24 aA91.0 abA15.31 abA21.85 aA46.51 aB70.73 aA21.03 bA20.87 bA
PICS-m.c.24%95.5 aA0.0 dB14.61 abA11.75 bA &46.18 aA61.09 abA &24.08 aA24.07 aA
PP-m.c.18%99.5 aA82.0 bB10.33 abA14.97 bA55.68 aA63.36 aA17.59 cA16.98 cdA
PP-m.c.21%97.24 aA82.0 bA16.48 aA18.04 abA47.51 aA46.87 bA21.03 bA16.67 dB
PP-m.c.24%95.50 aA56.0 cB15.11 abA15.16 abA57.93 aA45.58 bA24.08 aA17.42 cdB
* In the same column (lower case) or the same row (upper case) for a given variable, means with the same letters are not statistically significant at p = 0.05; & data collected from only 1 germinated seed out of 400 tested.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Yewle, N.R.; Stroshine, R.L.; Ambrose, R.P.K.; Baributsa, D. Hermetic Bags: A Short-Term Solution to Preserve High-Moisture Maize during Grain Drying. Foods 2024, 13, 760. https://doi.org/10.3390/foods13050760

AMA Style

Yewle NR, Stroshine RL, Ambrose RPK, Baributsa D. Hermetic Bags: A Short-Term Solution to Preserve High-Moisture Maize during Grain Drying. Foods. 2024; 13(5):760. https://doi.org/10.3390/foods13050760

Chicago/Turabian Style

Yewle, Nileshwari Raju, Richard L. Stroshine, R. P. Kingsly Ambrose, and Dieudonne Baributsa. 2024. "Hermetic Bags: A Short-Term Solution to Preserve High-Moisture Maize during Grain Drying" Foods 13, no. 5: 760. https://doi.org/10.3390/foods13050760

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
